STEERING

Fitting sector

shaft

seal

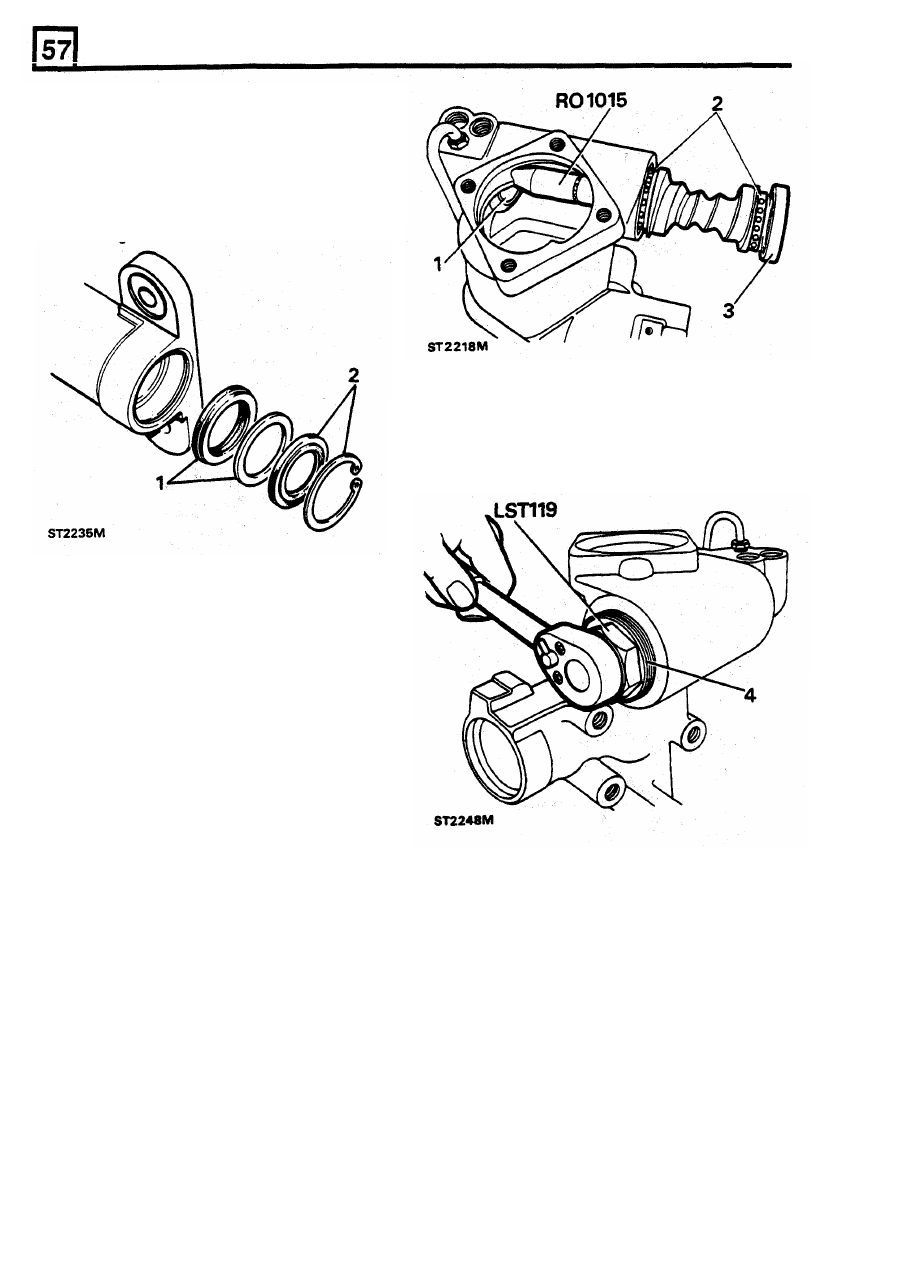

1.

With  the  lipped side  leading,  fit  the  oil seal  to

the casing followed by a plain fibre washer.

2.

Fit  the  steel  backed  dust  seal,  flat  side

downwards  towards  the  oil  seal.  Secure  with
the

circlip  ensuring  that  it  is  properly  located

in the groove.

Fit  a  new  sealing  ring  to  the  worm  adjuster
screw  and turn the adjuster  clockwise  into the

housing

using  special  tool

LST

119

until  the

end  float  in  the  input  shaft  is  almost
eliminated.  Fit  the  lock-nut  but  do  not  tighten
until  the  following  instructions for  setting  the
input shaft  preload are completed.

Fitting valve and

worm assembly

1.

Fit

the  inner  bearing  cup  and  the  original

shims  to  the  casing.  Use  a  suitable  bar
approximately

57

mm  diameter to  tap  the cup

squarely  into position.  If the original shims are
not available fit  shims to the value

of

0,76 mm

to provide a nominal thickness.

2.

Fit  the  inner  and  outer  bearing  cages  to  the
worm  using  petroleum  jelly  only

to

hold  the

cages

in

position.

Do

not  use grease

for

this

purpose  since  it  does  not  dissolve

in

the

steering

box

lubricating fluid  and  could  block

the fluid passages in the valve assembly.

3.  Cover  the  input  shaft  splined  area  with  seal

saver

RO  1015

and  carefully  insert  the  shaft

into  the  casing  followed  by  the  outer  bearing
cup.

16

REISSUED:

FEB 1993

STEERING

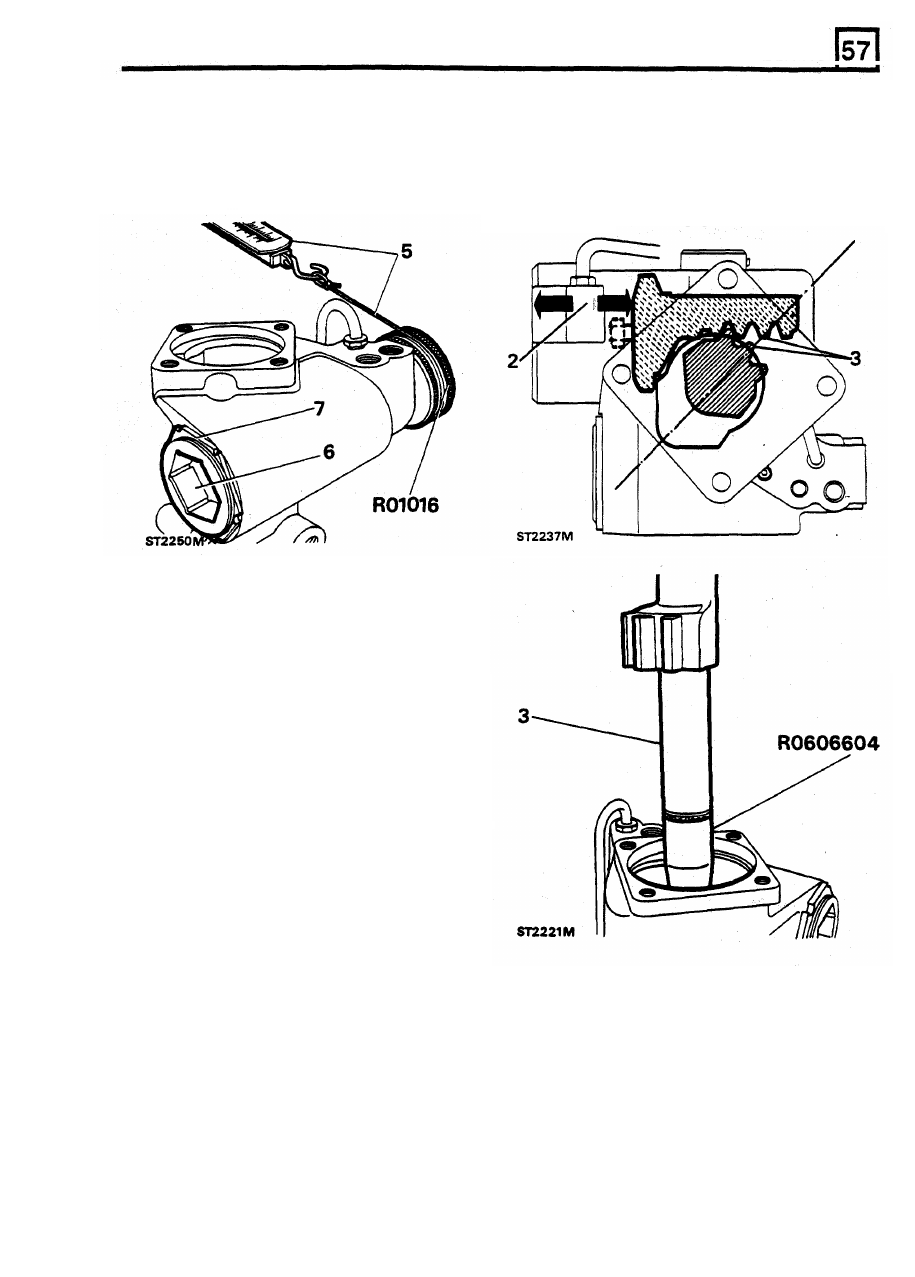

5.

Fit  the  torque  setting  tool  RO  1016  to  the

input  shaft  and  secure  with  the  grub  screw.
Coil a length of  cord round the tool  and attach
a spring  balance to the free end. Measure and
record  the  rolling  resistance

of

the  shaft  as

the spring balance is pulled.

3.

Fit seal saver R O  606604 over the thread and

splines  of  the  sector  shaft  and  carefully  insert
the shaft  into the casing. Align the centre gear
pitch on  the  rack with the centre gear tooth on
the  sector  shaft  and  at  the  same  time  rotate

the  input  shaft  about  a  small  arc  to  allow  the
sector  roller

to

engage the  worm.

6,

To

settle the  bearings, turn the worm  adjuster

again,  clockwise,  to  increase  the  resistance
over  that  recorded in  the  previous  instruction
by  1.8  to

2,2

kg (at a radius of  31,7  mm which

is

determined by the setting

tool).

7.  Now,

back-off

the

worm

adjuster

anti-clockwise

so

that  the  rolling  resistance

recorded in instruction

is  only 0,9  to  1,3  kg

Tighten  the  locknut  using  special

tool

LST

119.

Check  the  rolling  resistance  again

in

case  tightening  the  lock-nut  has  altered  the
setting.

Fitting

rack, piston and sector shaft

1.

Screw

suitable bolt  into the  piston crown to

assist  the  fitting  and  positioning of  the  piston
as was  recommended for  removing the piston.

2.

insert the piston, rack  end first, into the casing

so

that  the  piston crown is approximately 63,5

mm from the outer end

of

the bore.

REISSUED:

FEB 1993

17

STEERING

4.

The  illustration  below  shows  the  position  in

Fitting sector shaft cover

which  the  sector  shaft  and  roller  should  be in
relation to the casing aperature when the shaft
is being inserted.

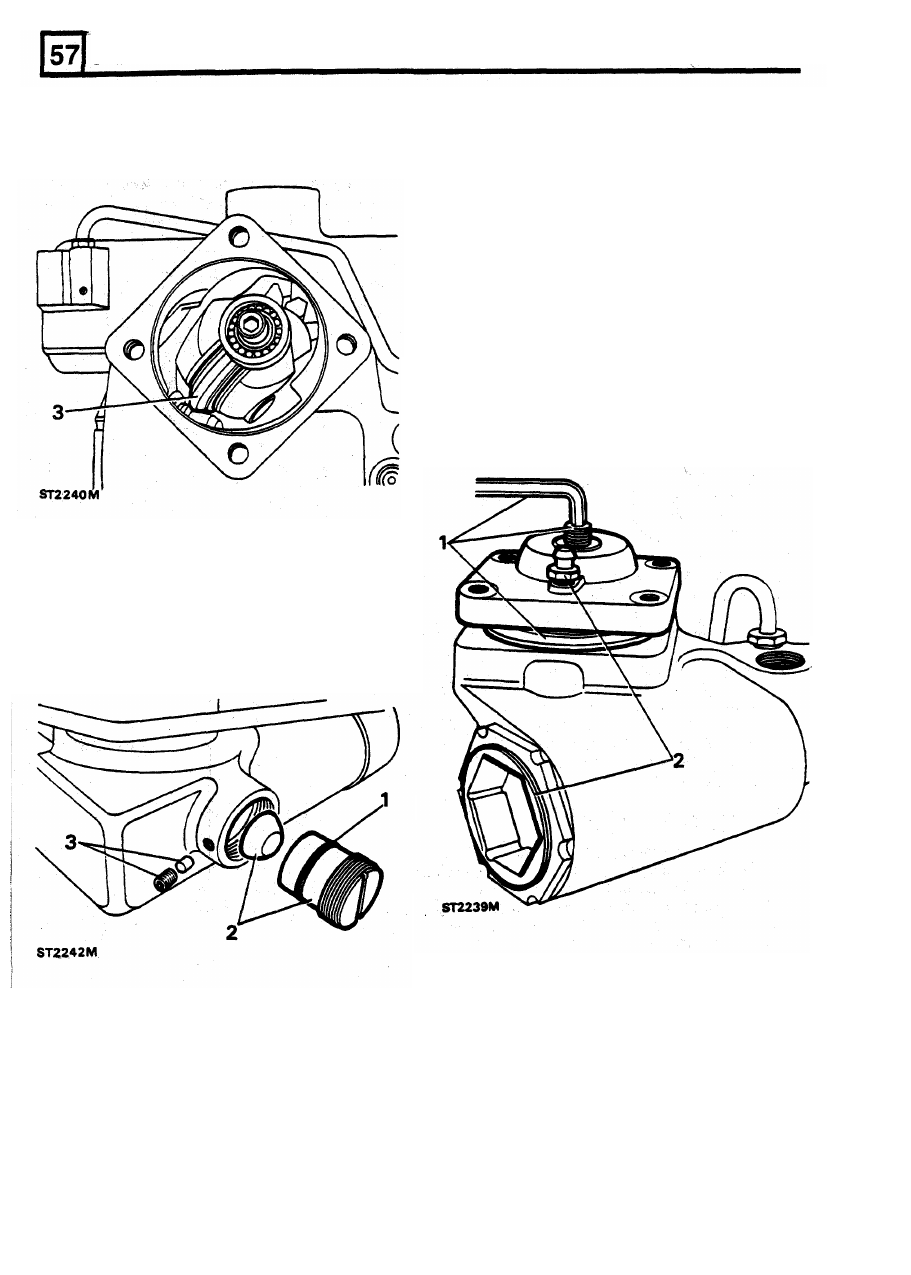

1.

Fit  and  lubricate  a  new  sealing  ring  to  the
inside

of

the  cover  and  screw  the  cover  fully

on  to  the  sector  shaft  adjuster  screw.  If
necessary, use an Allen  key

to

hold the  screw

to prevent it turning.

2.

Locate  the  cover  on  the  casing  noting  that  it

can  only  be  fitted  one  way,  that  is,  with  the
bleed  nipple  towards  the  worm  adjuster.  Tap
the cover  into place and if  necessary, back off

the  adjuster  screw  a  few  turns  to  allow  the
cover

to

seat  properly  on  the  casing.

Fit

the

3.

Using  the  torque  setting  tool

RO

1016

for

convenience,  rotate  the  input  shaft  through  a
small arc, in both directions, to  ensure that the
sector  roller  is  free  to  move  in  the  worm.
Tighten  the  four  screws  evenly

to

the  correct

torque.

cover retaing  screws  but  do  not tighten.

Fitting

rack adjuster

1.

Fit a new sealing ring

to

the  rack  adjuster.

2.

Fit  the  adjuster  pad with  the flat  side  towards

the  rack  and  screw

in

the

adjuster  until  solid

contact  is  made  with  the  rack.  Now  back-off
the adjuster half  a turn.

3.

Insert  the  Nylon  locking  pad  and  fit  the  grub

screw,  leaving it slack

at

this stage.

18

REISSUED: FEB 1993

STEERING

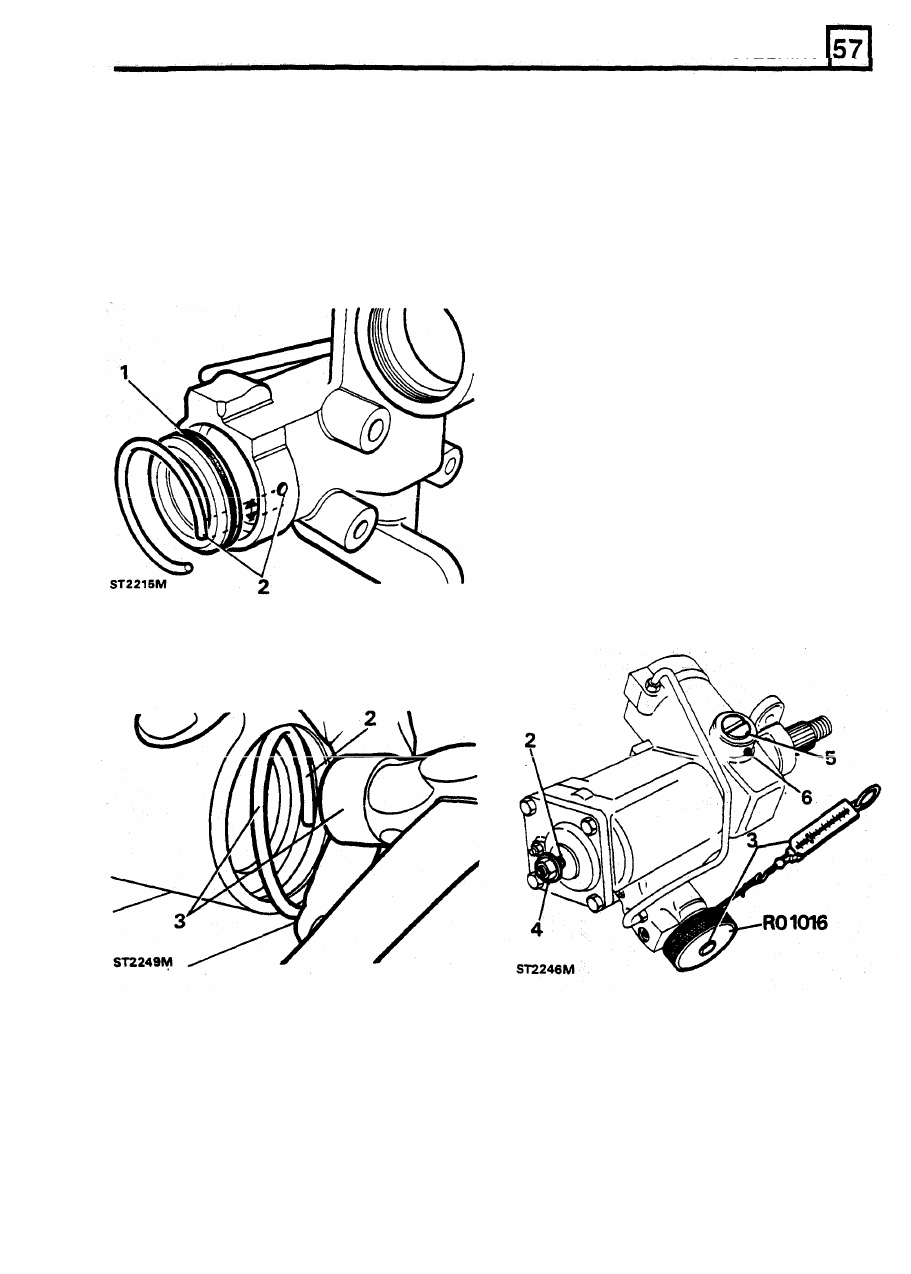

Fitting cylinder cover

Setting  the  sector  shaft  and  rack  adjuster

pre-loads

1.

Fit  and  lubricate  a  new  seal  to  the  cylinder

cover  and  press  the  cover  squarely  into  the

1.

Turn  the  input  shaft  to  set  the  sector  shaft

cylinder  just  far  enough to  clear  the  retaining

roller at  the mid point of  its travel  between the

ring groove.

left and  right hand locks.

2.

Secure  the  cover  with  the  retaining  ring  by

2.

Using a 6  mm  Allen  key,  turn the sector  shaft

inserting  one  end  of  the  ring  into the  cylinder

adjusting  screw  anti-clockwise  to  obtain

groove

so

that  it  is  positioned  12 mm  beyond

backlash between  the  input  shaft  and  sector

the  ring  extractor  hole

in

the  side  of  the

shaft.  Now, turn the adjusting screw  clockwise

cylinder.

until the backlash is just  eliminated.

3.  Using the  tool  R O  1016  and  spring  balance,

measure  and  record  the  maximum  rolling
resistance at the input shaft.

4.

Fit a new  locknut to  the  adjuster screw  but do
not  tighten.  Continue to  rotate the  input  shaft,
with  the  spring  balance,  whilst  turning  the
adjuster  screw  until  the  figure  recorded

in

instruction  3  is  increased  by  0,9  to  1,3  kg.

Tighten  the  locknut  and  check  the  above
figures again.

5.

Turn

the  rack  adjuster  clockwise  to  impart

Pressure upon  the  rack  and  back-off  half  a
turn.  Again,  using  special  tool  R O  1016  and
the  spring  balance,  rotate  the  input  shaft

whilst  turning the  rack  adjuster  until the figure

recorded  in  instruction  4

is

increased  by  a

te  that  the  final  rolling

resistance  figure,  recorded

on

the  spring

3.

Now,  compress  the  ring  by  hand,  whilst

feeding the  ring  into  the  groove  by  striking  it
with  a  hammer  until  the  ring  finally  springs

into  position

in

the  groove.  Ensure  that  the

ring  is fully  seated by  tapping  it  round with  a
punch.

6.  When  satisfied  that  the  pre-load  figures  are

satisfactory,  lock  the  rack  adjuster  in  position
with the grub screw.

REISSUED:

FEB

1993

19

further 0,9 to 1,3 kg. No

balance, must not exceed 7,25 kg.
