STEERING

Torque  peak  check

NOTE:

That the  addition  or  subtraction  of

0,07

The  purpose  of this  check  is

to

determine  the  point

mm  shim  will  move  the  torque  peak  area  by

at

which  the  rolling  resistance  is  the  greatest when

approximately  one quarter  of  a  turn of  the  input

the  steering  is  turned  from  lock  to  lock.  This

shaft.

resistance, which  must be equally distributed, should
be  when  the  sector  shaft  roller  is  positioned  along

Shim  washers  are  available  from  Land  Rover

the centre  portion  of  the  worm  approximately  two

Parts and Equipment

in

the following sizes: 0,03

revolutions of  the  input  shaft  from  either  the  left

or

mm, 0,07 mm, 0,12 mm and 0,24 mm.

right hand lock.

3.  Having  added  or  subtracted  shims  as

The  correct  position of  the  resistance depends upon

necessary,  reassemble  the  steering  box  and

the  amount  of  shimming behind the  input shaft  inner

check  that  the  torque  peak  position

IS

now

bearing  cup.  Provided  that  the  original  shim  pack

correct.

has been refitted, the torque peak  position should be

4.

Using seal  saver

RO

606604, fit

a  new  outer

correct  unless  major  components  have  been

dust  seal  over  the  sector  shaft.  Fit  the  drop

renewed. The  procedure for  checking  and  adjusting

arm

to

the  sector  shaft  and  a  new  lock

the  torque  peak  is  contained  in  the  following

washer. Fit and tighten the  retaining nut to the

instructions.

correct  torque  and  bend  the  lock  tab  over  a
flat of  the nut.

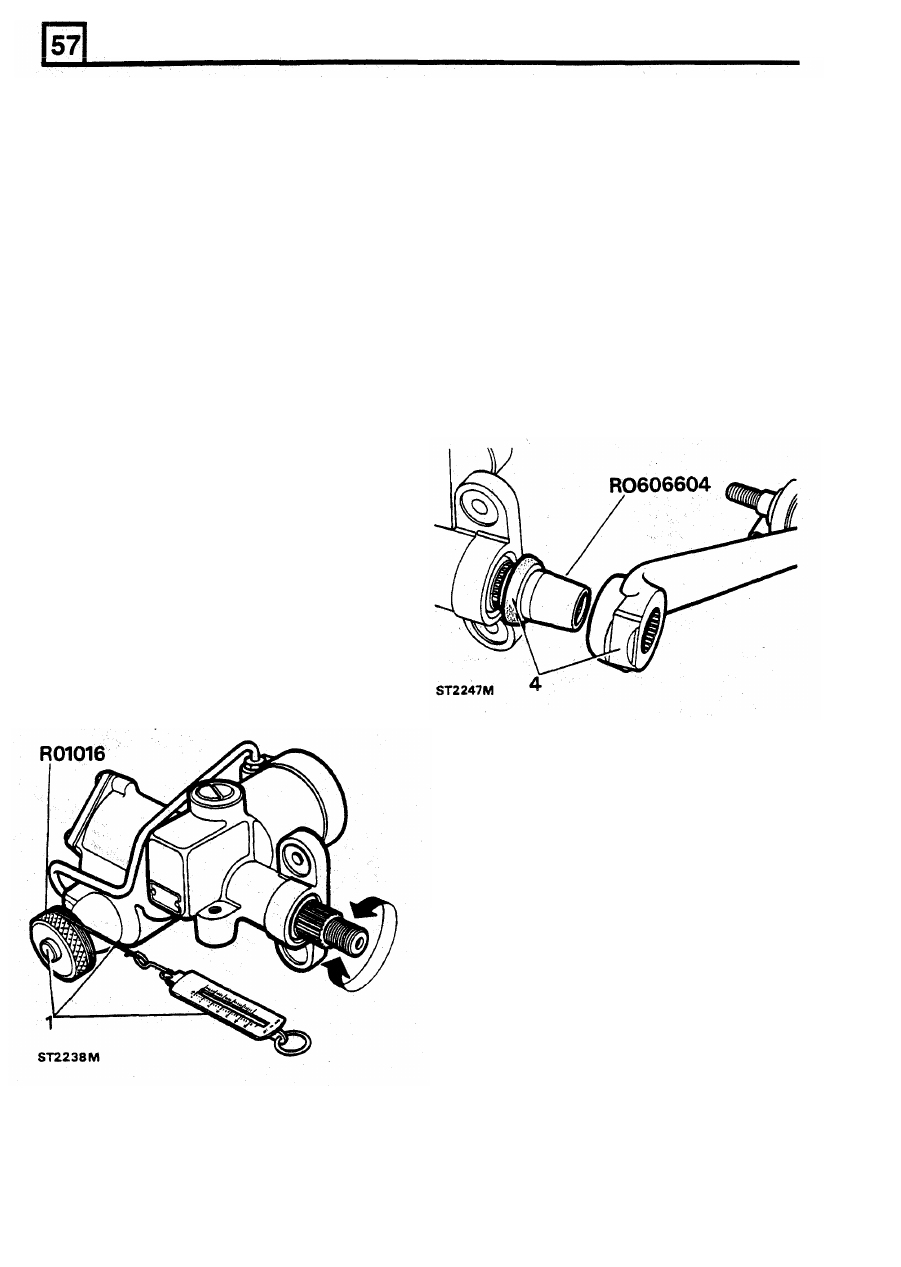

1.

Attach  the torque setting tool  RO 1016 to the
input  shaft  and  turn  it  fully  anti-clockwise.
Wind  cord  round the  tool  and  fasten  a  spring

balance  to  the  free  end

as

before.  Turn  the

input  shaft  by  pulling the  spring  balance  and
note  the  position  where  the  highest  figure  is

obtained.  If  the  highest  figures  are  not
recorded along the middle portion of the travel
as explained above adjustment is necessary.

2.

Adjustment  involves  the  dismantling  of  the
steering  box  and  removal  of  the  input  shaft
inner  bearing  cup  and  shims.  If  the  torque
peak  (highest  figure)  occured  before  the

centre  position,  add  shims

to

the  pack.

Remove shims  if  the  torque peak occurs after

the centre Position.

Fitting steering box to vehicle and testing

1.

Fit  the  steering  box  to  the  vehicle  and
replenish  the  system  with  the  correct  make
and grade of  fluid,  For this information refer to

'RECOMMENDED

LUBRICANTS

AND

FLUIDS’

and  bleeding  the  power  steering

system.

2.

To

test  the  effectiveness

of

the

steering  box

overhaul  and  the  system

for

leaks,  run  the

engine and hold the  steering  hard on  full  lock

in  both  directions  whilst  a  second  person
checks for  fluid leaks.

CAUTION:

Do  not  hold

the

steering  on  full  lock

for  more  than  thirty  seconds  in any  one  minute
t o   avoid  overheating  the  fluid  and  possibly

damaging the seals.

3.  Finally road test the vehicle.

20

REISSUED: FEB 1993

STEERING

POWER

STEERING

SYSTEM

Adwest

Test

Lightweight box

If

there is

lack  of  power assistance for  the  steering

Bleed

the  pressure  of  the  hydraulic  pump  should  be
checked first  before renewing any  components of  the
system.  The  fault  diagnosis  chart  should  also  be

1.

Fill the  steering fluid  reservoir

to

the  mark  on

the  side  of  the  reservoir  with  one  of  the

used to assist in tracing faults

in

the  power steering.

recommended fluids.

2.

Start  and  run the engine until it attains normal
operating temperature.

3.

Check

and

correct the reservoir fluid level.

Procedure

1.

The  hydraulic  pressure test  gauge  is  used for
testing  the  power steering system. This  gauge

NOTE:  During  the carrying out

of

items

4,

and

is calibrated to read up

to

140 kgf/cm² and the

6,  ensure  that  the  steering  reservoir  is  kept  full.

normal  pressure  which  may  be  expected

in

Do

not  increase the  engine

speed  or  move  the

the power steering system

is

77

kgflcm².

steering wheel.

2.  Under  certain  fault conditions  of  the  hydraulic

pump  it

is

possible to  obtain  pressures  up  to

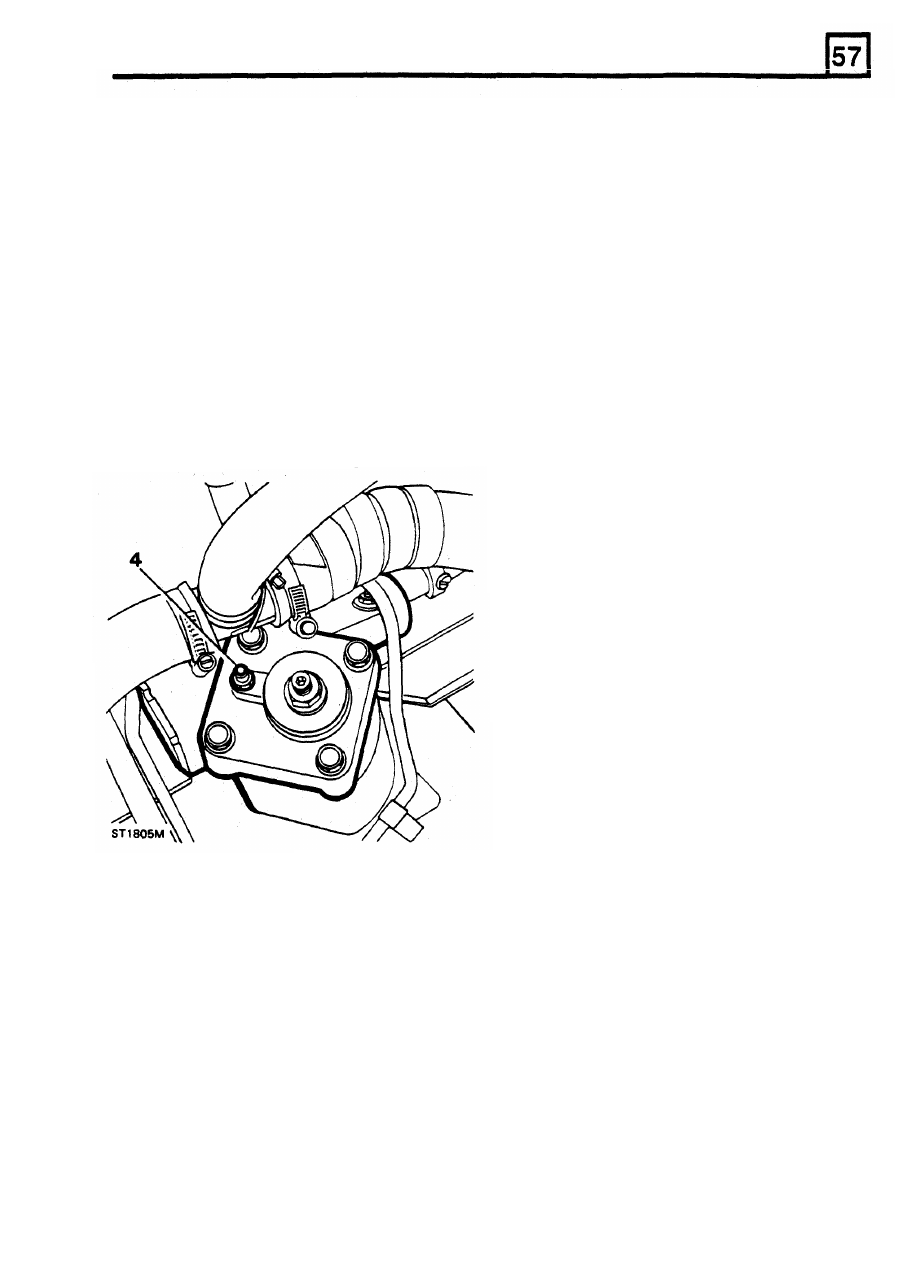

4.  Run  the  engine  at  idle  speed,  slacken  the

105

kgf/cm².  Therefore,

it

is

important  to

realise that the  pressure upon the  gauge is

in

direct proportion to the  pressure being exerted
upon the  steering wheel.  When  testing,  apply
pressure to  the  steering  wheel  very  gradually
while carefully observing the pressure gauge.

3.

Check,  and  if  necessary  replenish,  the  fluid
reservoir.

4.  Examine  the  power  steering  units  and

connections  for  leaks.

All

leaks  must  be

rectified before attempting to test  the system.

5.

Check  the  steering  pump  drive  belt  for
condition and tension, rectify as  necessary.

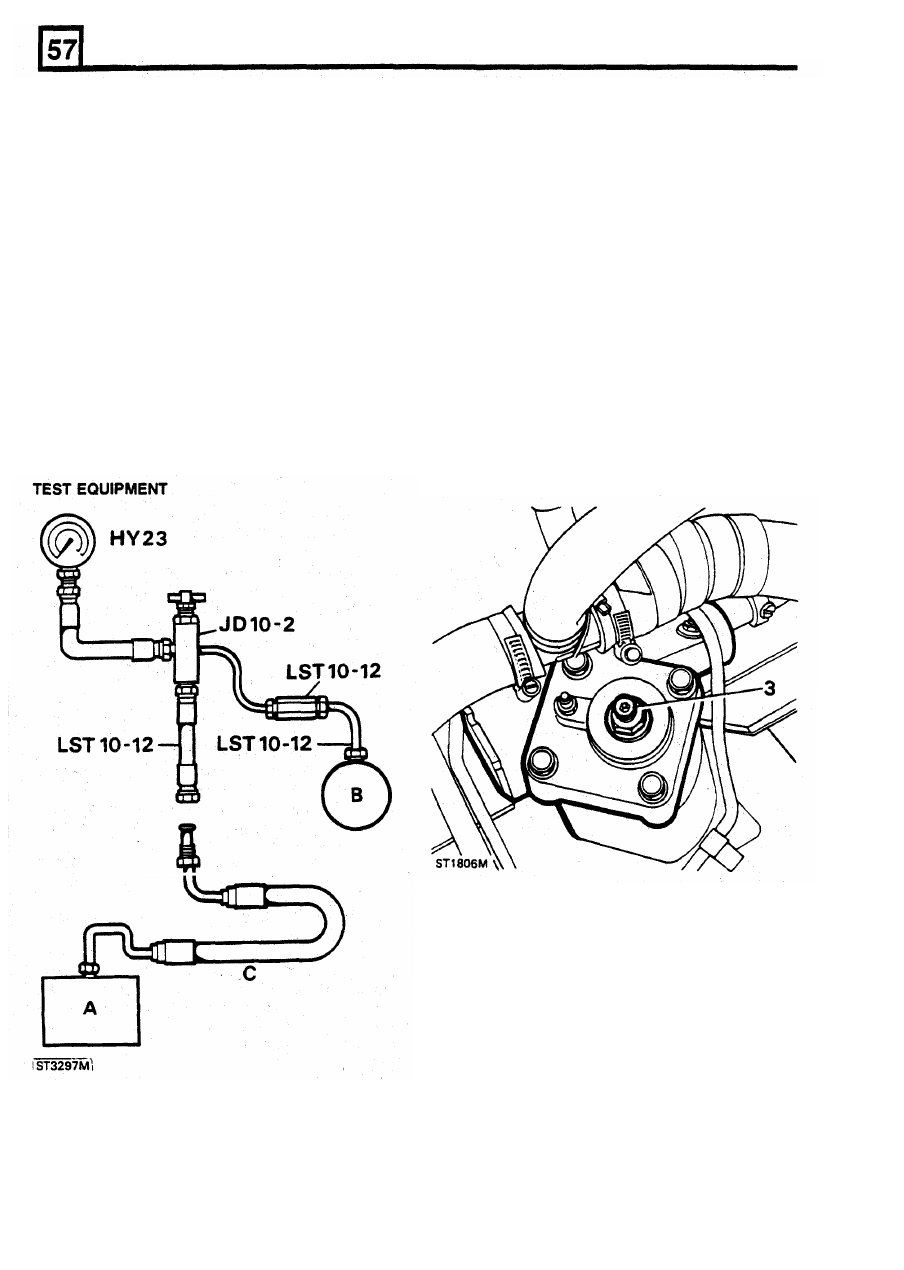

6.  Assemble  the  test  equipment  and  fit  to  the

vehicle as  illustrated.

7.

Open the tap  in the adaptor.

8.

Bleed  the  system  but  exercise  extreme  care

when  carrying  out  this  operation

so

as  not  to

overload the pressure gauge.

9.

With  the  system  in  good  condition,  the

pressures should be as follows:
a.  Steering

wheel

held  hard  on  full  lock  and

engine running  at  1,000 rev/min, the  pressure
should be 70

to

77

kgf/cm².

b.  With  the  engine  idling  and  the  steering
wheel  held  hard  on  full  lock,  the  pressure
should be

28

kgf/cm² minimum.

These checks should be carried out first  on one lock,
then on the other.

CAUTION:  Under  no  circumstances  must  the
steering wheel be held on full lock for more than

30

seconds  in  any  one  minute,  otherwise  there

will

be  a  tendency  for  the  oil  to  overheat  and

possible damage to the seals may  result.

bleed  screw.  When  fluid  seepage  past  the
bleed screw is observed, retighten the screw.

5.

Ensure that the fluid  level  is  in alignment with

the mark on the reservoir dipstick.

6.

Wipe

off

all fluid released during bleeding.

7.  Check  all  hose joints,  pump and  steering  box

for  fluid  leaks  under  pressure  by  holding  the
steering hard on

full

lock in both directions.

CAUTION:  Do  not  maintain  this  pressure

for

more  than

30

seconds  in  any  one  minute,  to

avoid  causing  the  oil  to  overheat  and  possible
damage  to  the  seals,  The  steering  should

be

smooth lock-to-lock in both directions, that  is,  no
heavy
or  light  spots  when  changing  direction
when the  vehicle  is stationary.

10.

Release  the  steering  wheel  and  allow  the

engine

to

idle. The  pressure should  be  below

kgflcm².

8.

Carry  out  a  short  road  test.  If  necessary,

repeat the complete foregoing procedure.

REISSUED:

FEB

1993

21

STEERING

11.

If

the  pressures recorded during the foregoing

ADJUST  POWER  STEERING

BOX

Adwest

test  are  outside  the  specified  range,  or

Lightweight box

pressure  imbalance

I

recorded, a fault  exists

in  the  system.

To

determine  if  the  fault  is  in

NOTE:  The  condition  of  adjustment  which  must

the  steering  box

or

the  pump,  close  the

be checked

is one

of

minimum  backlash without

adaptor  tap  for  a  period  not  exceeding  five

overtightness  when  the  wheels  are

in  the

seconds.

straight-ahead position.

12.

If

the  gauge  fails  to  register  the  specified

pressures,  the  pump

is

inefficient  and  the

1.

Jack  up  the  front

of

the  vehicle  until  the

pump  relief  valve  should  be  examined  and

wheels are clear of  the ground.

renewed as necessary.

13.

Repeat  the  foregoing  test  after  renewing  the

WARNING:  Wheels  must

be  chocked  in

all

relief  valve  and  bleeding  the  system.  If  the

circumstances.

pump  still  fails  to  achieve  the  specified
pressures, the  pump  should  be overhauled or

2.

Gently  rock  the  steering  wheel  about  the

a new unit fitted.

straight-ahead position  to  obtain  the  'feel'

of

14.

If

pump  delivery  is  satisfactory  and  low

the  backlash present. This  backlash must  not

pressure or  marked imbalance exists, the fault

be more than 9,5

mm.

must

be

in  the  steering  box  valve  and  worm

3.

Continue the  rocking action whilst  an assistant

assembly.

slowly  tightens  the  steering  box  adjuster
screw after  slackening the locknut until the  rim

movement

is

reduced

to 9,5 mm maximum.

4.

Tighten  the  locknut,  then  turn  the  steering

wheel

from  lock

to

lock  and  check  that  no

excessive tightness exists at  any  point.

5.

Lower  the vehicle

to

ground  level and remove

the wheel chocks.

6.  Road test the vehicle.

A.

Steering box

B. Steering pump
C. Existing hose from  steering box

22

REISSUED: FEB 1993

STEERING

PIPE CONNECTIONS TO STEERING

BOX

When  fitting  a  new  or  overhauled  steering  box

observe the following procedure.

1.

Remove dust caps from  ports.

2.

Immediately fit  pipes finger tight.

3.  Tighten the  16 mm union nut to 20  Nm.

4.

Tighten the  14 mm union nut

to

15

Nm.

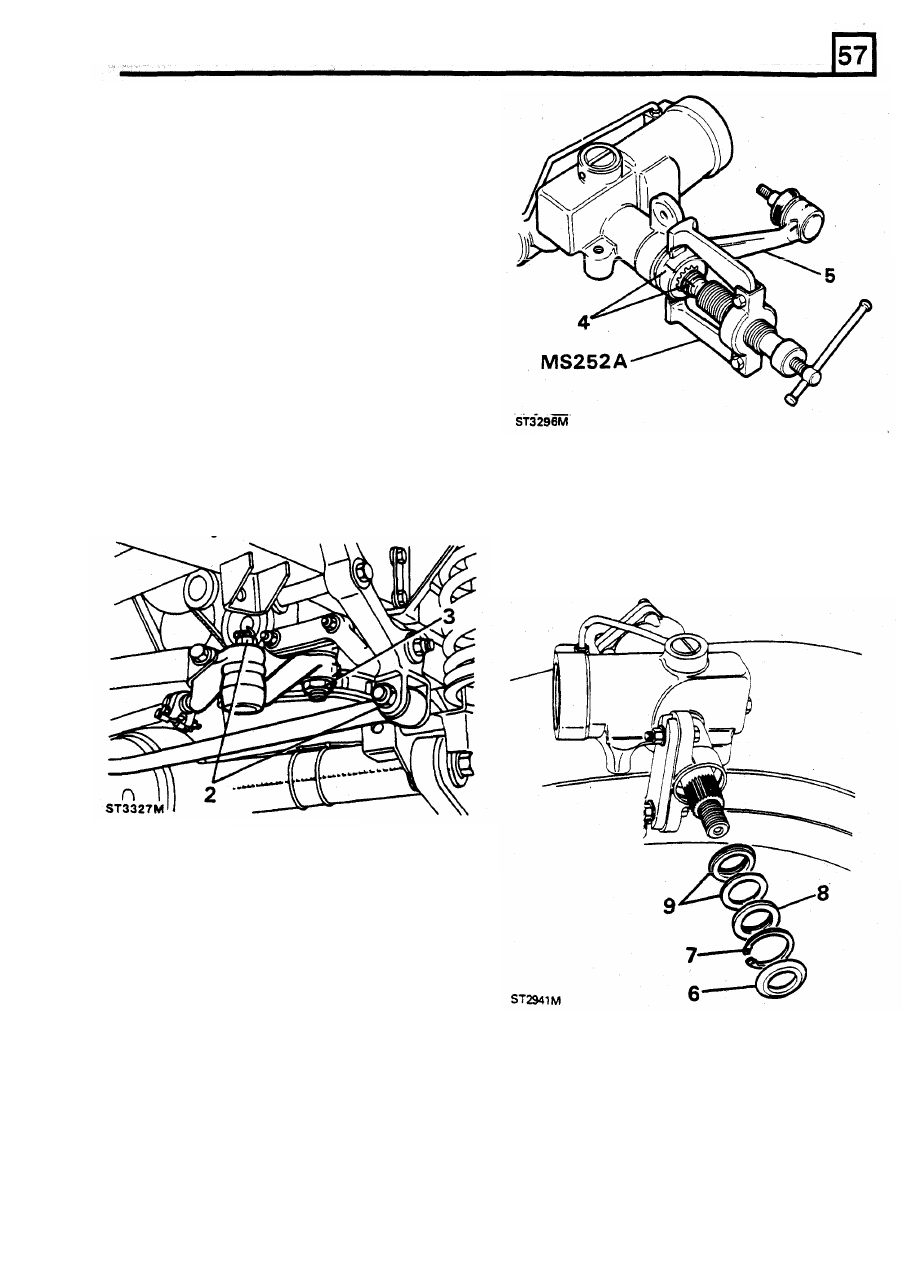

STEERING  BOX  SECTOR  SHAFT  SEAL  -  renew
with steering  box fitted to vehicle

Special tools
Drop arm  puller MS  252A  /  LRT-57-012
Seal  replacer LST  125A  /  LRT-57-010

1.

Working

from

beneath  the  vehicle  set  the

steering  in  approximately  the  straight  ahead

6.

Remove the  dust  seal,  if  fitted,  and  clean the

position.

area around the sector shaft seal.

2.

Release the  ball  pin  from  the  drag  link,  and

7.

Remove the circlip.

one end

of

Panard rod.

8.

To

remove  the  seal  pack,  drill

two

3 , 0   mm

3.  Release  the  lock  tab  from  the  drop  arm

holes diametrically  opposite into  the  metal  dirt

retaining nut and remove

the

nut

seal. Insert a 4 mm  self tapping  screw  in  each
hole  then,  with  pliars  pull  the  seal  from  the
box.

9.

Remove the extrusion washer  and inner seal.

4.

Before  removing  the  drop  arm,  mark  its
relationship  to  the  sector  shaft  to  assist
assembly.

5.  Using  pulley  MS

252A

or  a  suitable

alternative, withdraw the drop  arm.

10.

With

suitable

probe,

remove

the

anti-extrusion washer  and inner seal.

REISSUED:

FEB

1993

23
