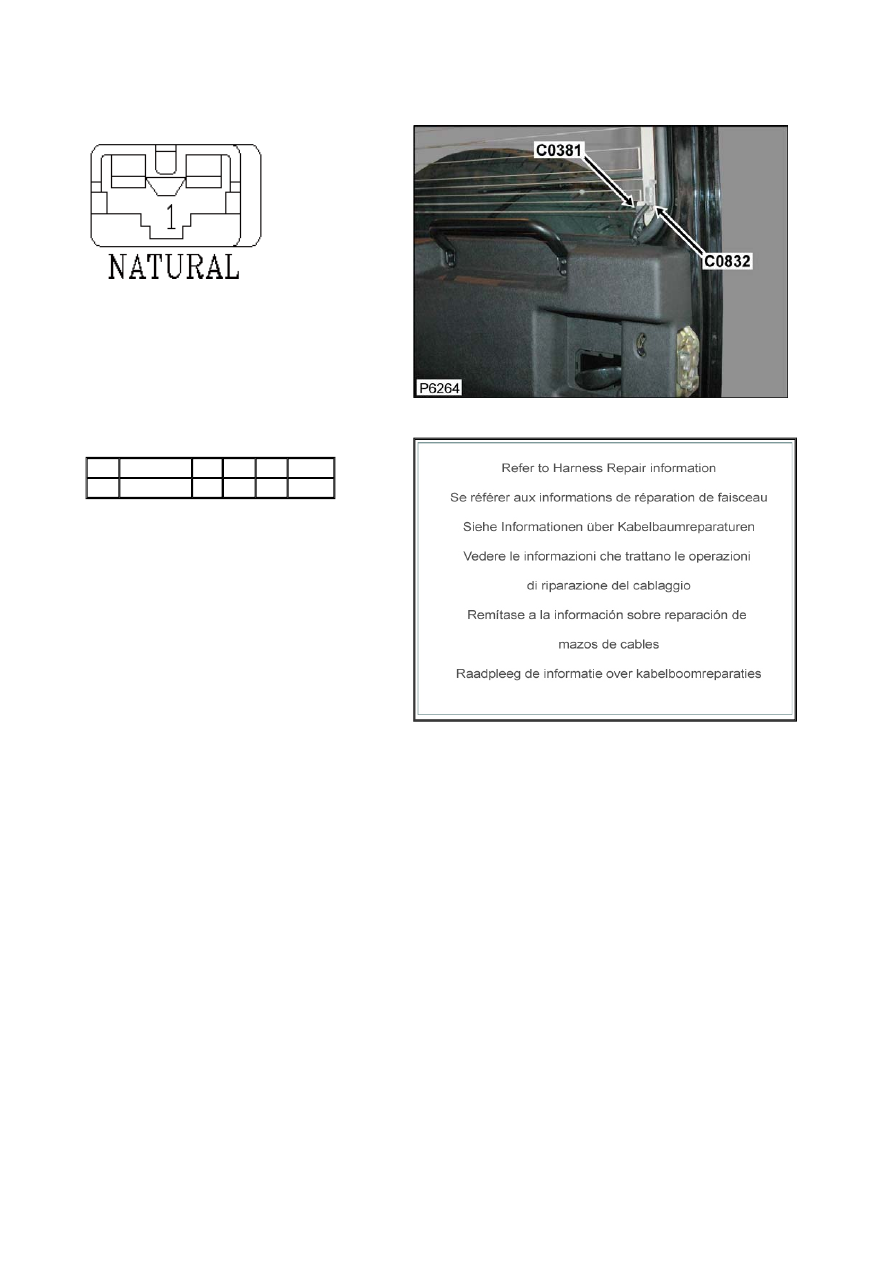

Connector: C0832

Description: Lamp-High mounted stop

Location: Rear screen - lower





Part No.:

AFU4521



Colour: NATURAL

Cavities: 1WY

Harness:

TAILGATE LINK HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

AGU1318

1.0D B

ALL C0789

Service Repair Kits

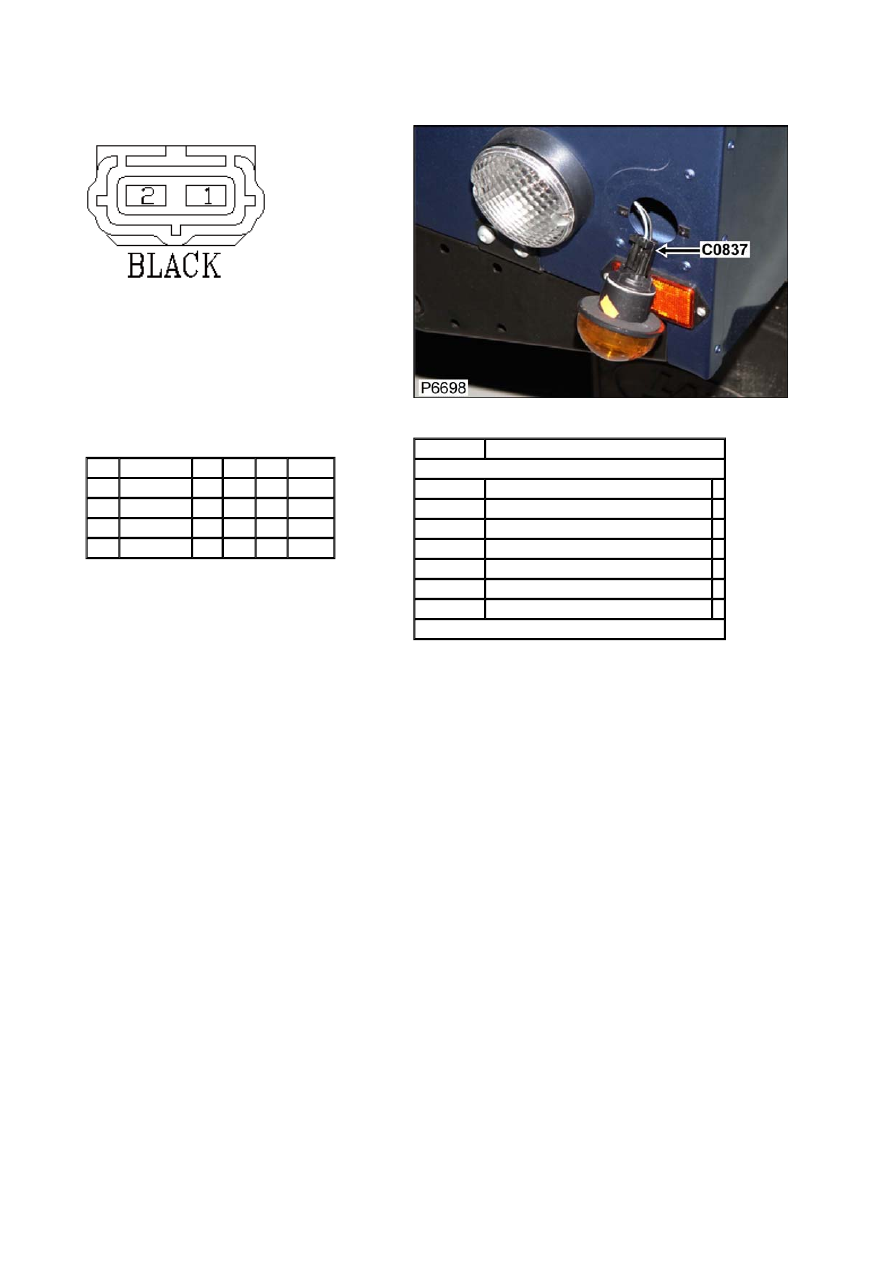

Connector: C0837

Description: Turn signal indicator/ hazard flasher lamp-Rear-RH

Location: RH 'D' post





Part No.:

YPC10070



Colour: BLACK

Cavities: 2WY

Harness:

CHASSIS HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

AFU3802

1.5D B

771

C0704

1

AFU3802

1.5D B

770

C0704

2

AFU3802

1.5D GW

771

CTAP

2

AFU3802

1.5D GW

770

CTAP

Service Repair Kits




CSA

0.70- 2.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

YMI000320

SRK ITEM ECONOSEAL FAMILY 2.0CSA 1

YPQ000110 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000050 SRK ITEM PIDG BLUE

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001680



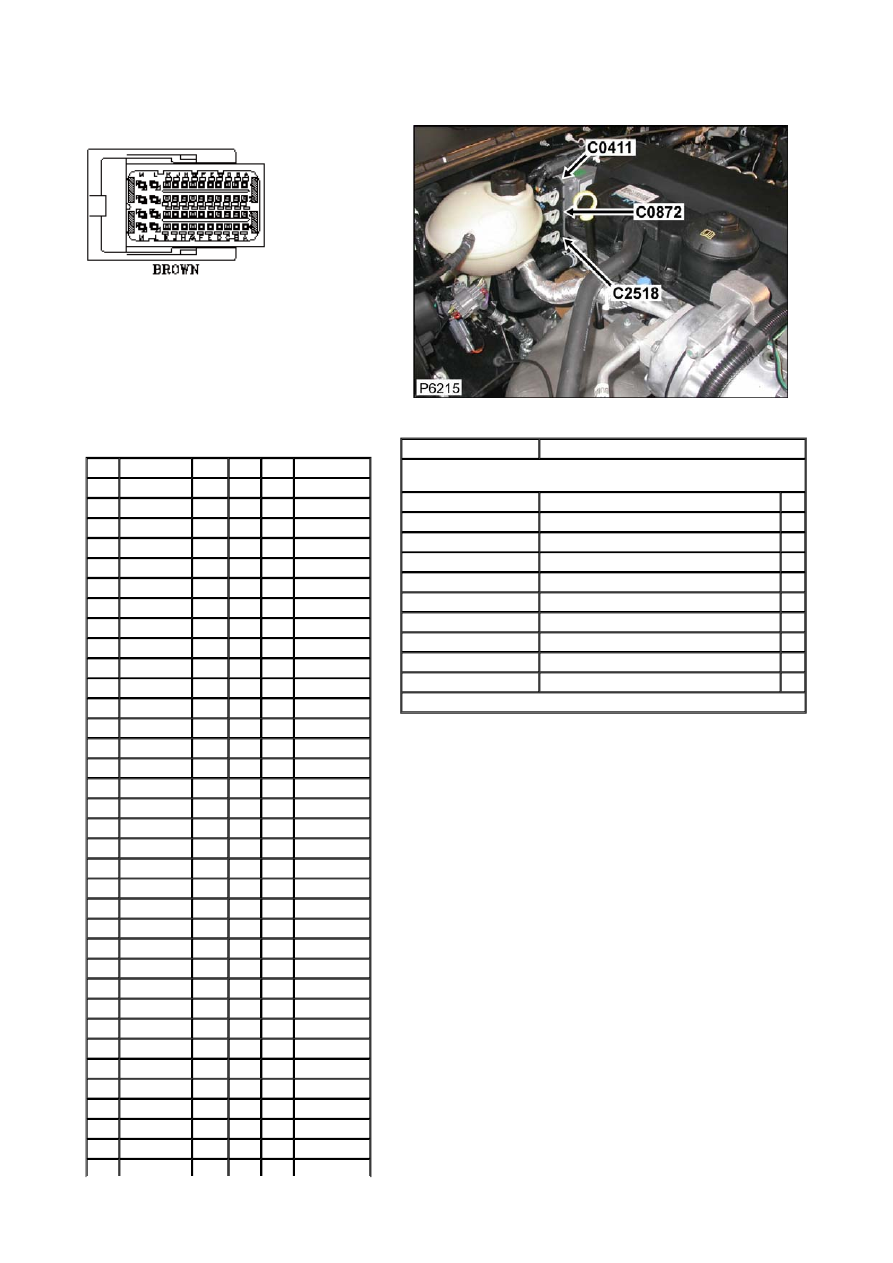

Connector: C0872

Description: Engine control-module (ECM)

Location: Rear of engine compartment - center





Part No.:

YPC908000



Colour:

Cavities:

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

K1

YPL101310

0.5D

YK

1

C0504

C1

YPL101910

0.75D GU

499

C0215

L3

YPL801240

1.0D

GO

139L C0582L

G2

YPL101310

0.5D

RG

200R C0582R

L2

YPL801240

1.0D

BO

499

C0151

G3

YPL101310

0.5D

BW

254R C0667R

C2

YPL101310

0.5D

UB

14

C0019

B2

YPL101910

0.75D PW

14

C0712

G1

YPL101310

0.5D

UR

499

C0063

L3

YPL801240

1.0D

GO

200R C0582R

B1

YPL101310

0.5D

SP

1

C0504

G2

YPL101310

0.5D

RG

139L C0582L

G4

YPL101310

0.5D

LGS 254R C1040R

G4

YPL101310

0.5D

LGS 254L C1040L

G3

YPL101310

0.5D

BW

254L C0667L

M3

YPL801240

0.75D UB

14

C0279

F2

YPL101910

0.75D BS

14

C0279

K3

YPL101910

0.75D R

499

C0872

J3

YPL101910

0.75D R

499

C0872

F3

YPL101310

0.5D

BR

200R C0029R

E3

YPL101910

0.75D GP

499

C0288

F3

YPL101310

0.5D

BR

139L C0029L

A1

YPL101310

0.5D

PN

254L C1589

D3

YPL101310

0.5D

WG

254L C1589

D1

YPL101310

0.5D

RG

254L C1589

D2

YPL101310

0.5D

WS

254L C1589

C4

YPL101310

0.5D

B

254L C1589

M1

YPL801240

0.75D B

254L C1589

A1

YPL101310

0.5D

PN

254R C0787

D3

YPL101310

0.5D

WG

254R C0787

D1

YPL101310

0.5D

RG

254R C0787

D2

YPL101310

0.5D

WS

254R C0787

C4

YPL101310

0.5D

B

254R C0787

M1

YPL801240

0.75D B

254R C0787

Service Repair Kits




CSA

0.20- 0.50 CSA

Cavities:
K1,C1,G2,G3,C2,B2,G1,B1,G4,F2,K3,J3,F3,E3,A1,D3,D1,D2,C4,B3,F4,A4,B4

VDK500010

SRK ITEM GENERAL

1

VDK500070

SRK ITEM MQ EXTRACT TOOL

1

VDK500080

SRK ITEM MPQ EXTRACT TOOL

1

YMI000870

SRK ITEM MQS FAMILY 0.75CSA

1

YPQ000100

SRK ITEM

1

YRV000040

SRK ITEM PIDG RED

1

YRW000390

SRK ITEM

1

YRW500010

SRK ITEM

1

YRW500060

SRK ITEM MQ FAMILY

1

YRW500070

SRK ITEM MPQ FAMILY

1

VUB500080

B3

YPL101910

0.75D B

499

S/JOINT SJ7

F4

YPL101910

0.75D B

499

S/JOINT SJ7

M4

YPL801240

0.75D B

499

S/JOINT SJ7

L4

YPL900440

1.5D

B

499

C1947

A4

YPL101310

0.5D

UB

200R S/JOINT SJ9

B4

YPL101310

0.5D

GB

200R S/JOINT SJ10

A4

YPL101310

0.5D

UB

139L S/JOINT SJ6

B4

YPL101310

0.5D

GB

139L S/JOINT SJ5
