Defender Electric Diagrams. Manual - part 237

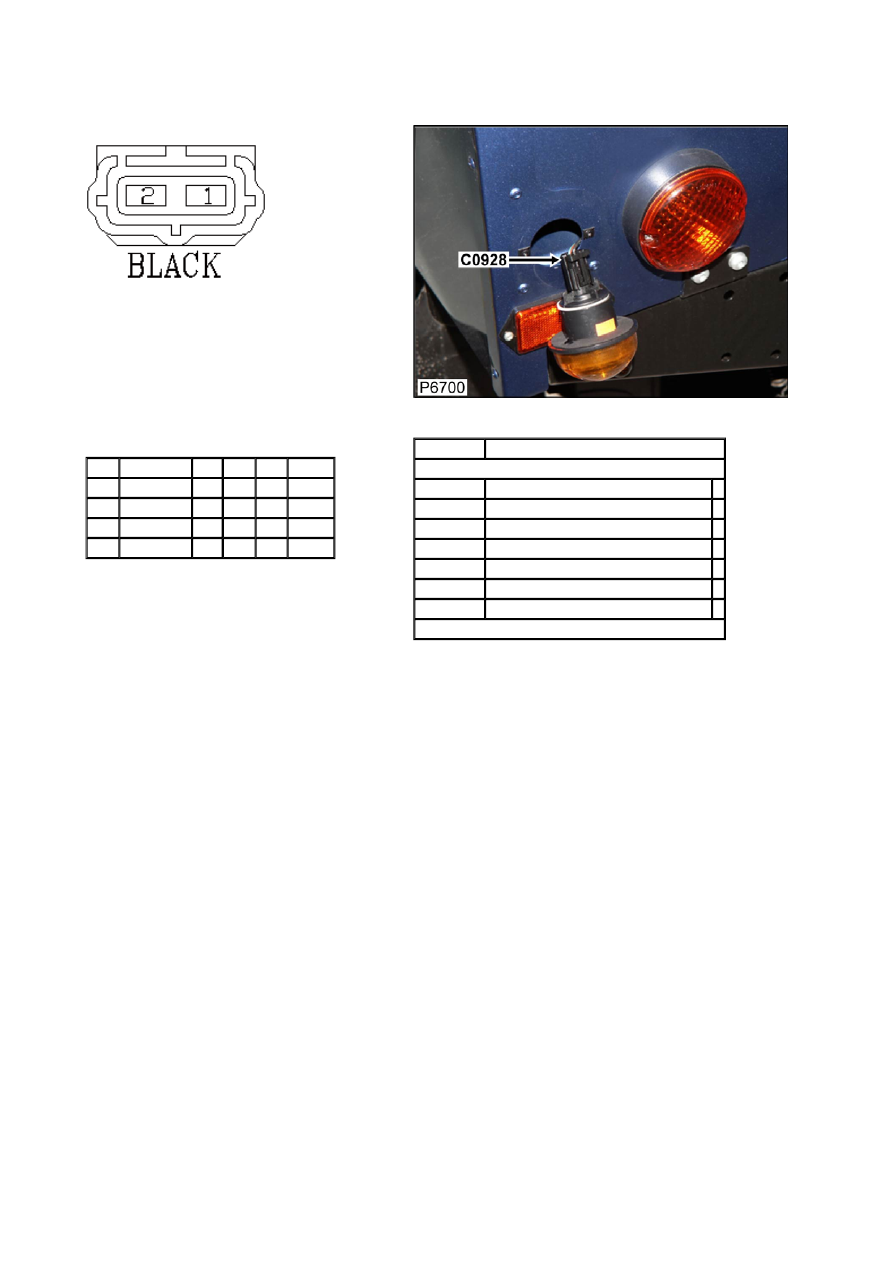

Connector: C0928

Description: Turn signal indicator/ hazard flasher lamp-Rear-LH

Location: LH 'D' post





Part No.:

YPC10070



Colour: BLACK

Cavities: 2WY

Harness:

CHASSIS HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

AFU3802

1.5D B

771

C0121

1

AFU3802

1.5D B

770

C0121

2

AFU3802

1.5D GR

771

CTAP

2

AFU3802

1.5D GR

770

CTAP

Service Repair Kits




CSA

0.70- 2.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

YMI000320

SRK ITEM ECONOSEAL FAMILY 2.0CSA 1

YPQ000110 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000050 SRK ITEM PIDG BLUE

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001680



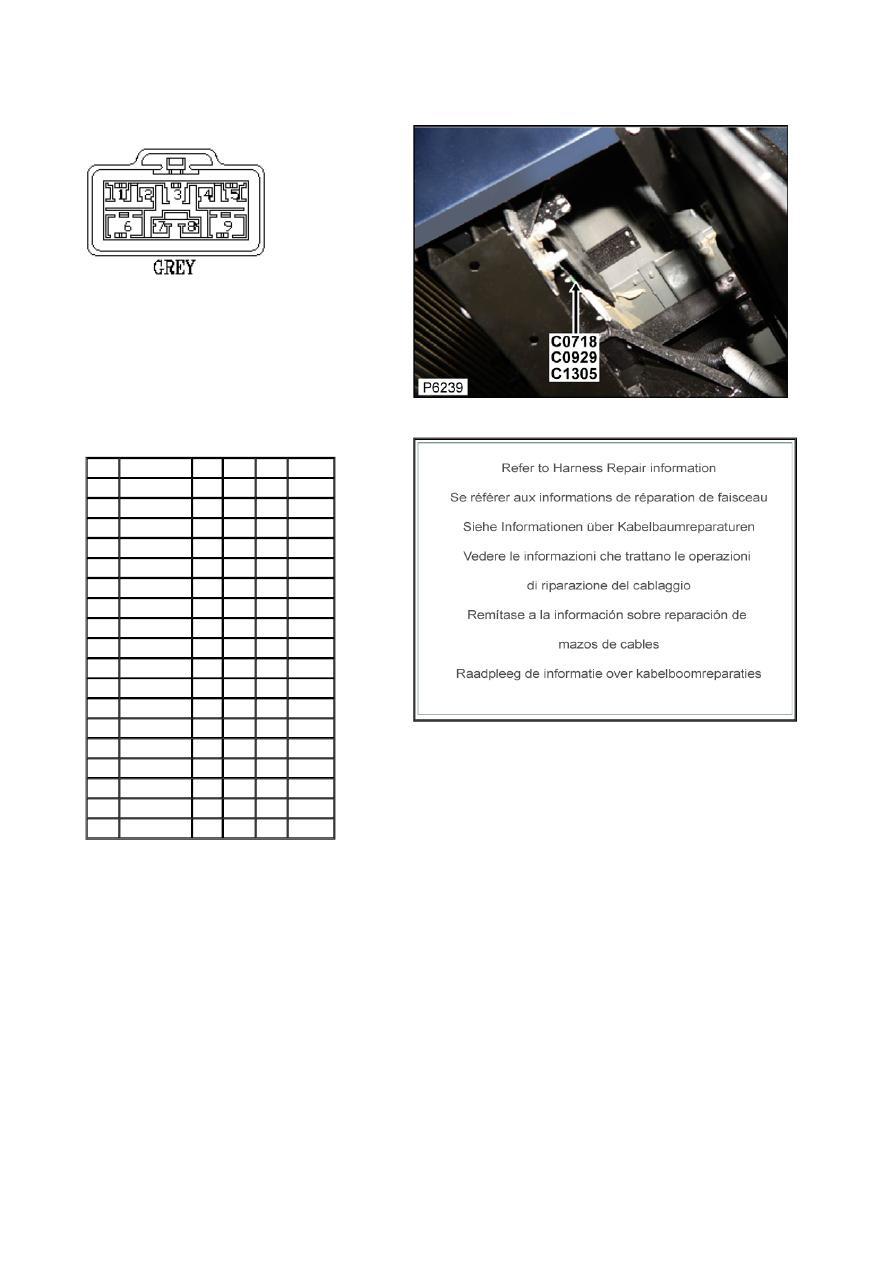

Connector: C0929

Description: Chassis harness to trailer harness

Location: Below RH rear wheelarch





Part No.:

YPC114850



Colour: GREY

Cavities: 9WY

Harness:

CHASSIS HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL101830

1.5D GR

771

C1759

1

YPL101830

1.5D GR

770

C0390

2

YPL101830

1.5D RB

771

C1759

2

YPL101830

1.5D RB

770

C0390

3

YPL101830

1.5D GW

771

C1759

3

YPL101830

1.5D GW

770

C0390

4

YPL101830

1.5D RO

771

C1759

4

YPL101830

1.5D RO

770

C0390

5

YPL101830

1.5D GP

771

CTAP

5

YPL101830

1.5D GP

770

CTAP

6

YPL101700

3.0D P

771

C1761

6

YPL101700

3.0D P

770

C0392

7

YPL101830

1.5D GN

771

C1759

7

YPL101830

1.5D GN

770

C0390

8

YPL101830

1.5D RY

771

C1759

8

YPL101830

1.5D RY

770

C0390

9

YPL101700

2.5D B

771

CTAP

9

YPL101700

2.5D B

770

CTAP

Service Repair Kits

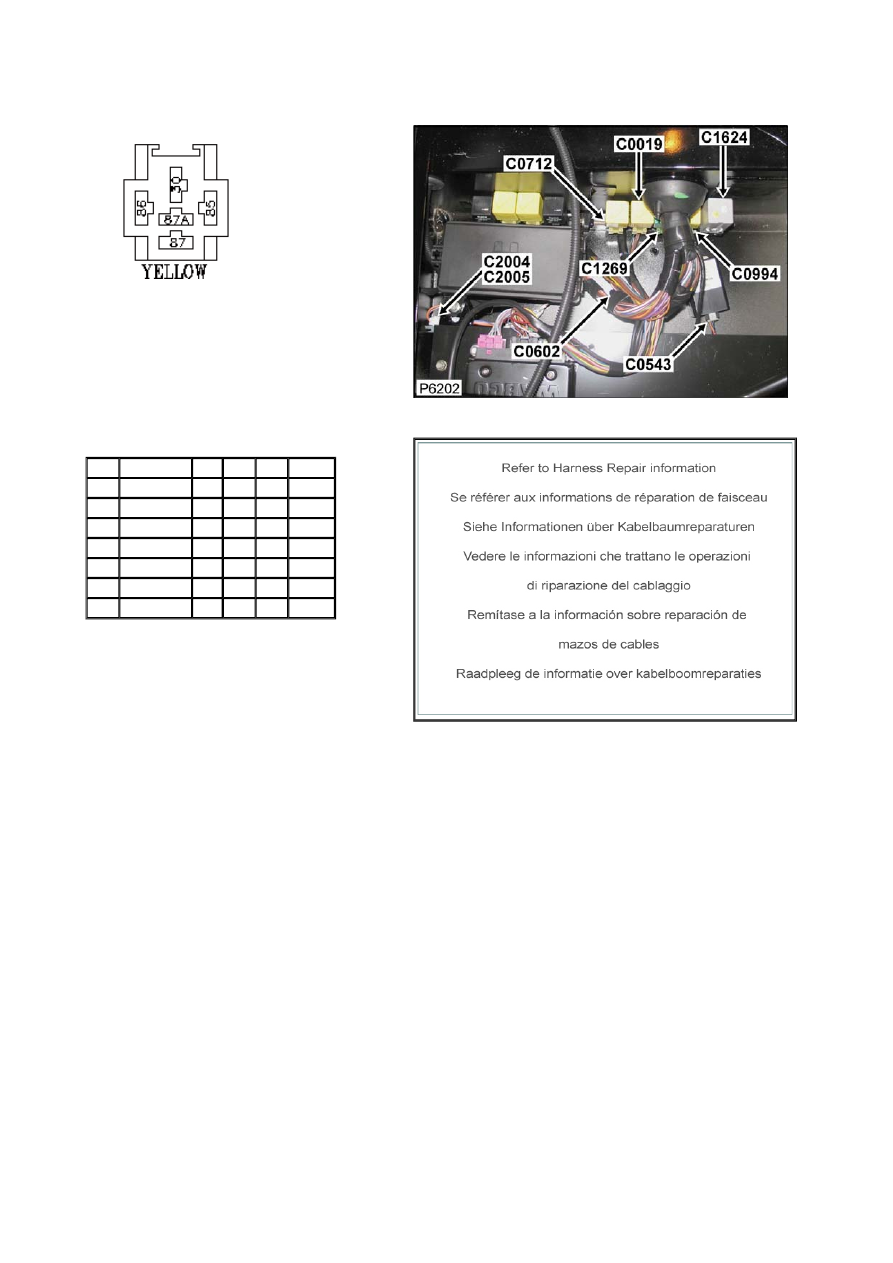

Connector: C0994

Description: Relay-Heated front-screen

Location: Beneath RH Front seat





Part No.:

AFU3271



Colour: YELLOW

Cavities: 5WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

30

YPL10045

2.5D NP

766L C0583L

30

YPL10045

2.5D NP

766R C0583R

85

AFU3119

0.5D PY

109R C1624

85

AFU3119

0.5D PY

109L C1624

86

AFU3119

0.5D B

766

C0289

87

YPL10045

2.5D PS

766R C0247

87

YPL10045

2.5D PS

766L C0247

Service Repair Kits

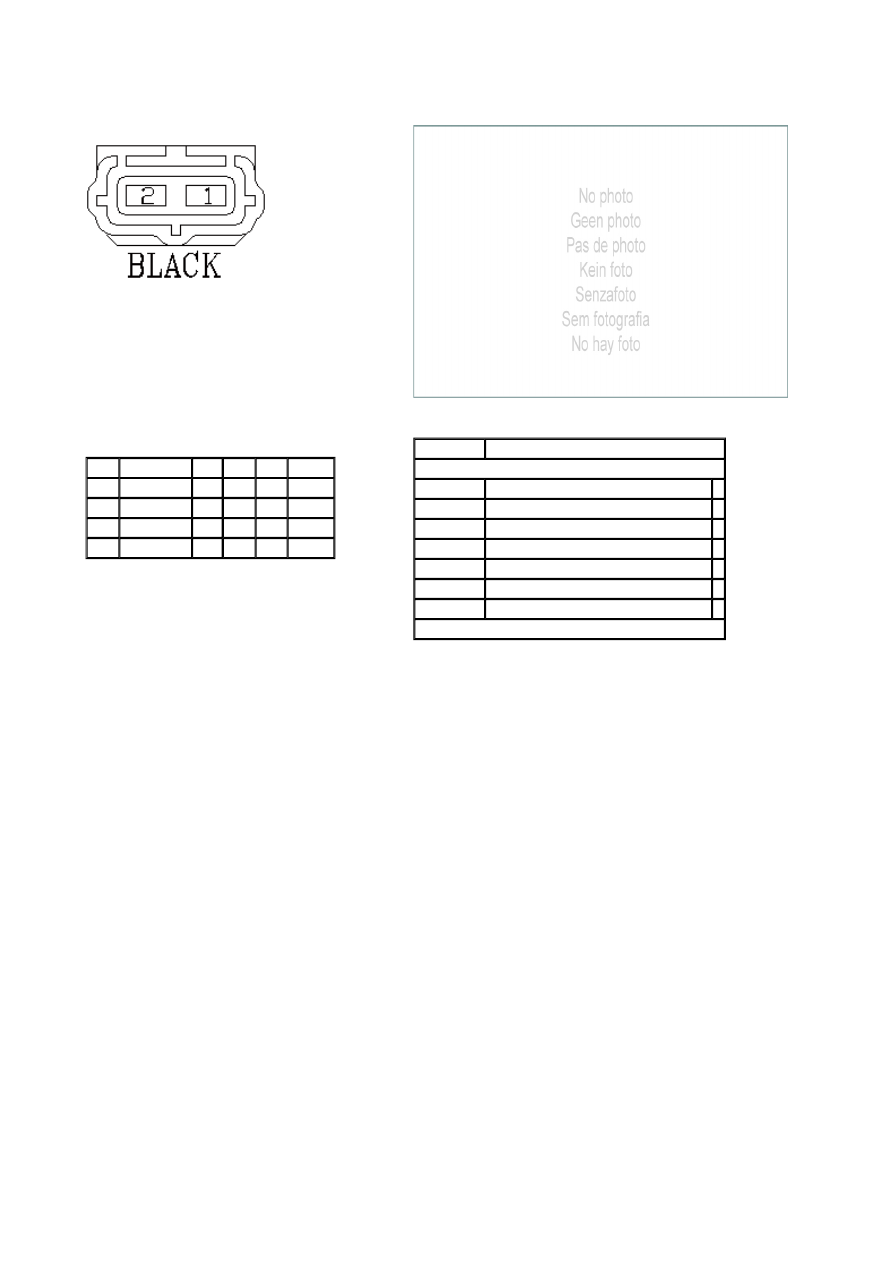

Connector: C1007

Description: Headlamp-Black-out-LH

Location: Behind LH headlamp





Part No.:

YPC10070



Colour: BLACK

Cavities: 2WY

Harness:

WING LH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

AFU3802

1.0D UO

5

C1265

1

AFU3802

1.0D UO

3

C1265

2

AFU3802

1.0D B

5

CTAP

2

AFU3802

1.0D B

3

CTAP

Service Repair Kits




CSA

0.70- 2.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

YMI000320

SRK ITEM ECONOSEAL FAMILY 2.0CSA 1

YPQ000110 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000050 SRK ITEM PIDG BLUE

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001680
