Defender Electric Diagrams. Manual - part 161

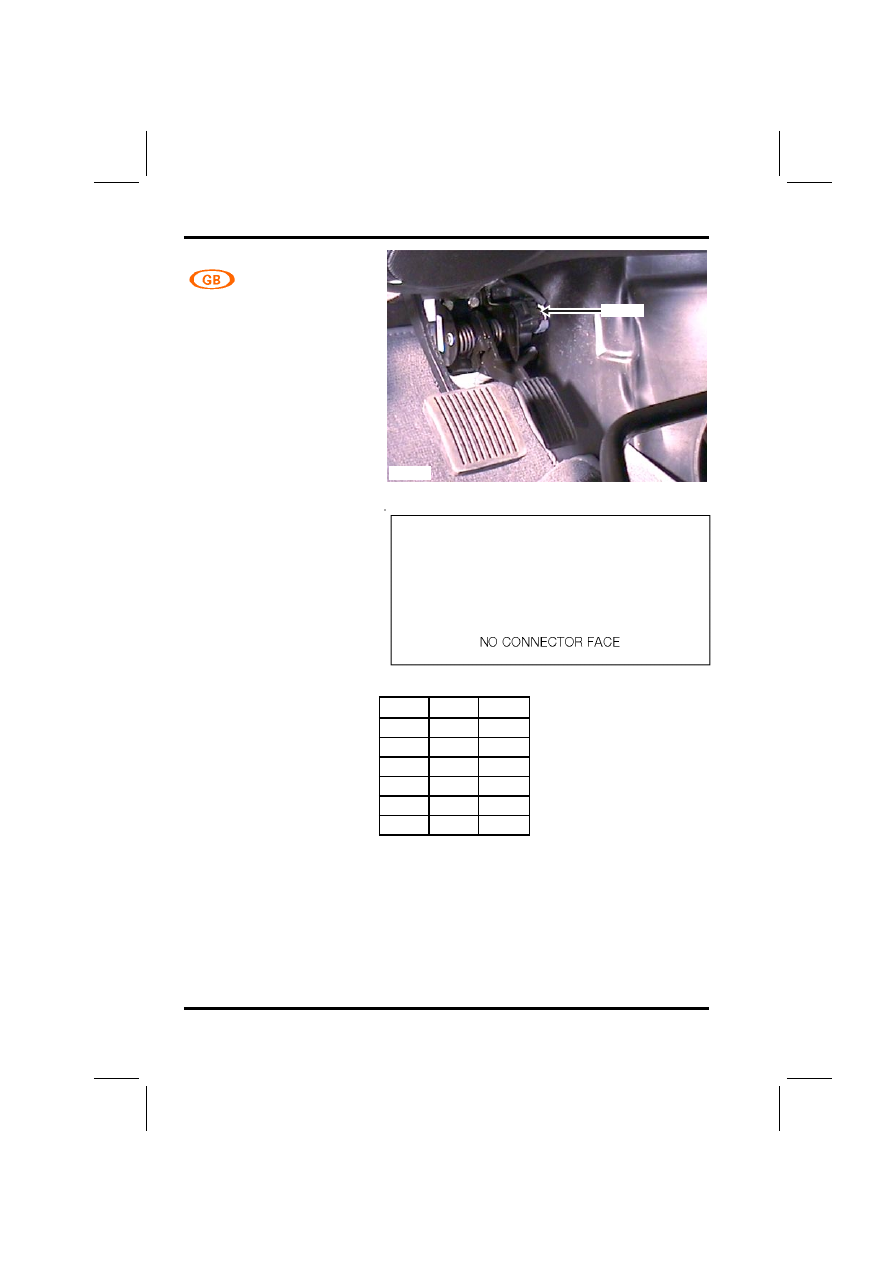

C0787

CONNECTOR

DEFENDER 1999 MY

Switch - Throttle pedal - Td5

Female
BLACK

Under LH side of fascia

P5661

C0787

Cav

Col

CCT

B

WP

ALL

D

BY

ALL

F

WG

ALL

G

BY

ALL

J

WP

ALL

K

WS

ALL

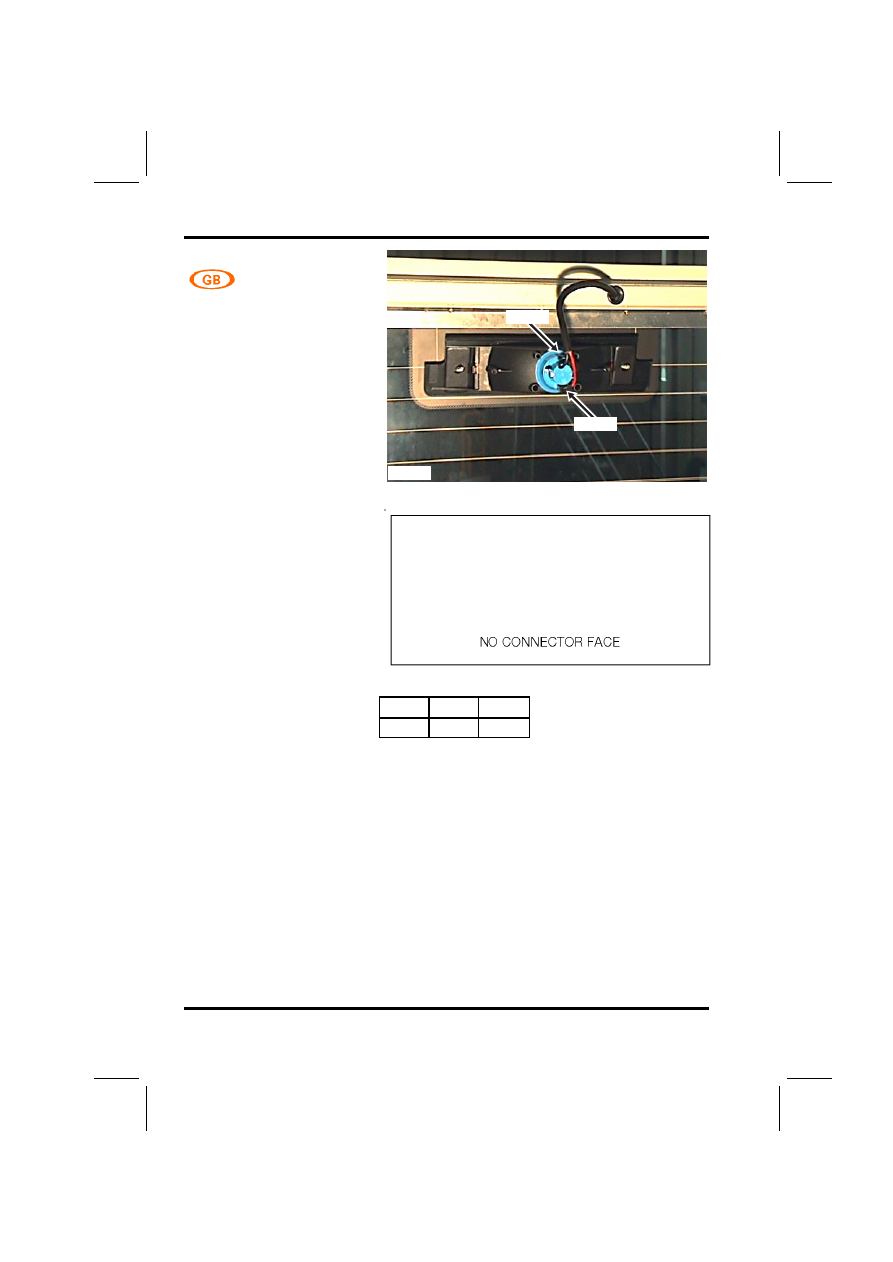

CONNECTOR

C0832

DEFENDER 1999 MY

Lamp - brake - high
mounted

Male
BLACK

Top of rear screen

P5588

C0832

C0833

Cav

Col

CCT

1

GP

ALL

C0833

CONNECTOR

DEFENDER 1999 MY

Lamp - brake - high
mounted

Male
BLACK

Top of rear screen

P5588

C0832

C0833

Cav

Col

CCT

1

B

ALL

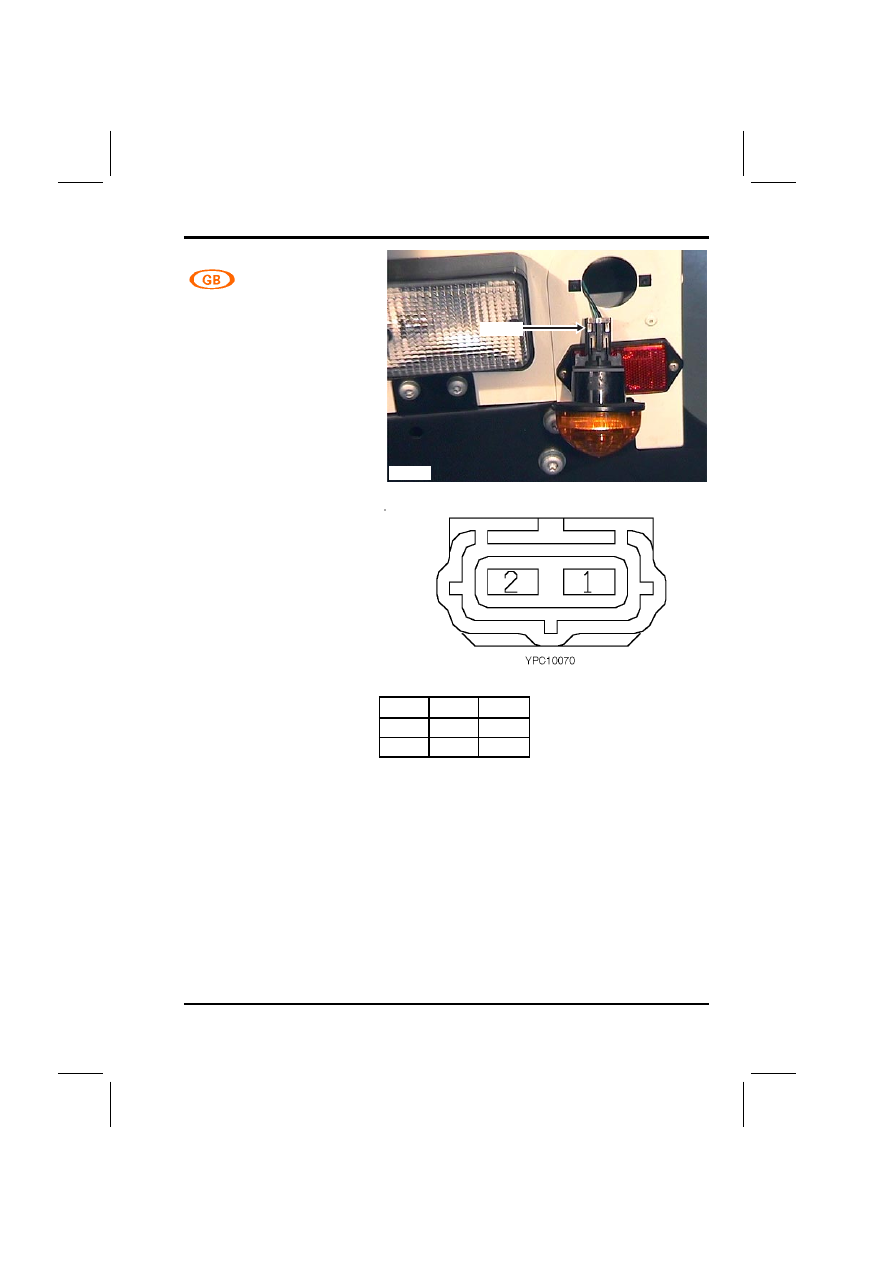

CONNECTOR

C0837

DEFENDER 1999 MY

Lamp - Direction indicator /
hazard warning - Rear - RH

Female
BLACK

RH rear of vehicle

P5646

C0837

Cav

Col

CCT

1

B

ALL

2

GW

ALL
