Defender Electric Diagrams. Manual - part 148

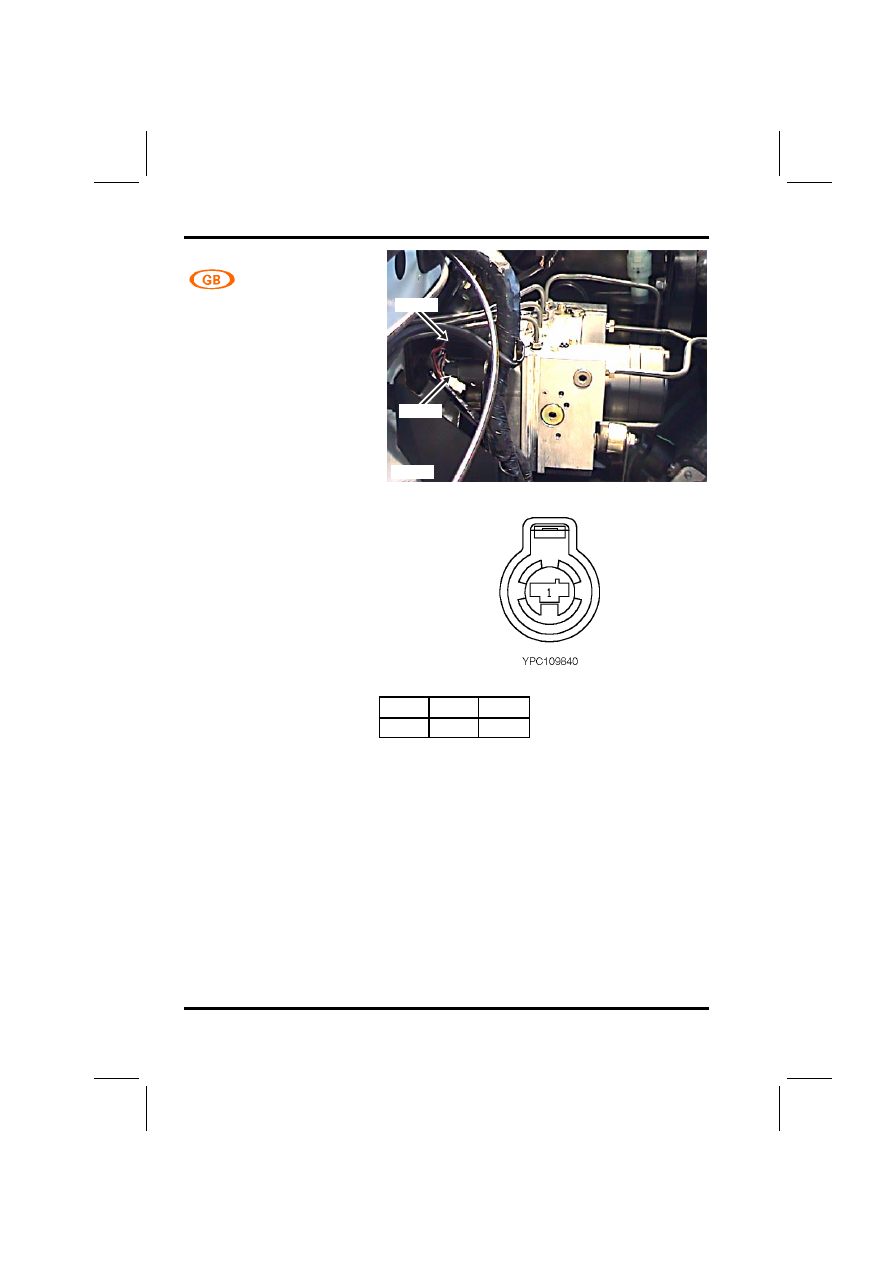

C0500

CONNECTOR

DEFENDER 1999 MY

Modulator - ABS

Female
LIGHT GREY

Behind ABS modulator

P5566

C0501

C0500

Cav

Col

CCT

1

B

ALL

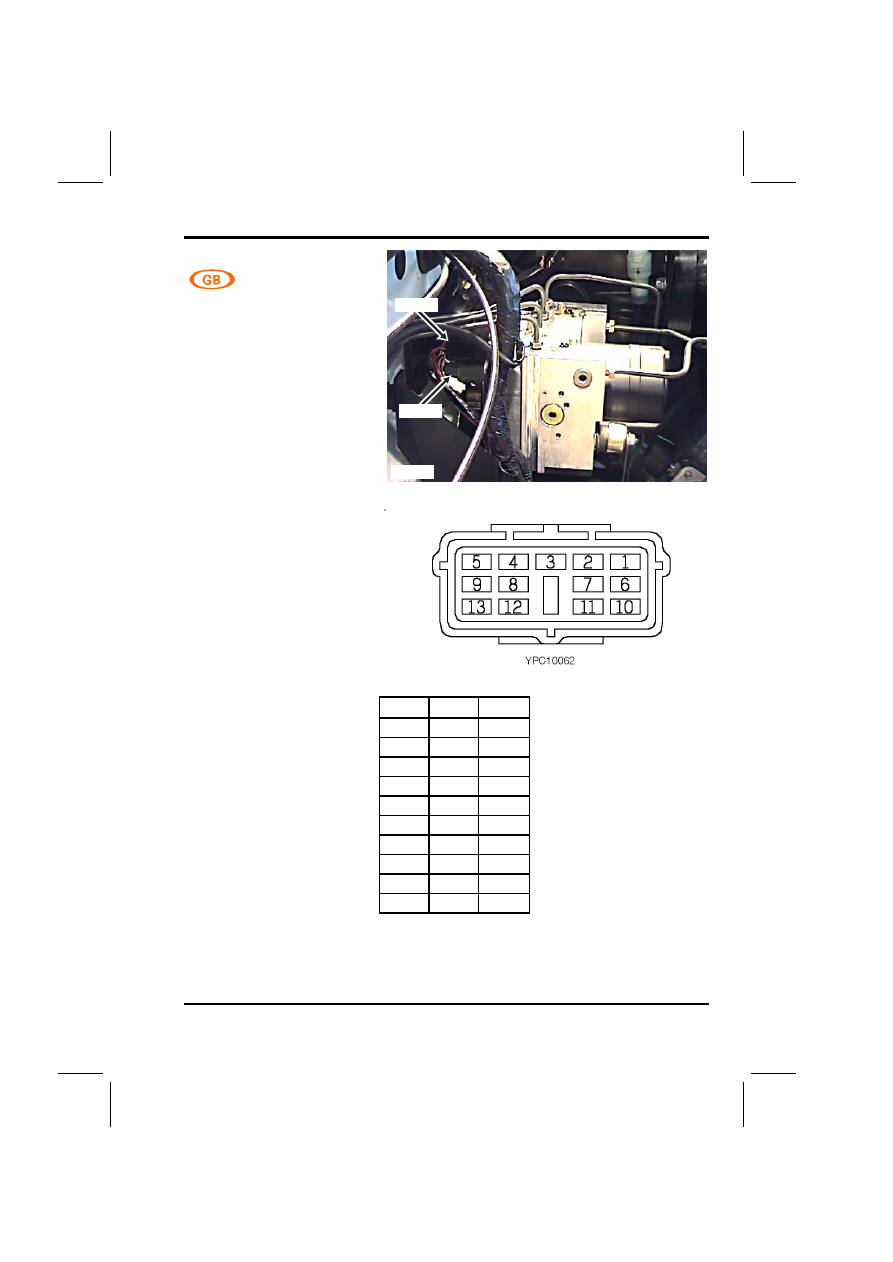

CONNECTOR

C0501

DEFENDER 1999 MY

Modulator - ABS

Female
BLACK

Behind ABS modulator

P5566

C0501

C0500

Cav

Col

CCT

1

SW

ALL

2

SR

ALL

4

SK

ALL

5

SP

ALL

8

B

ALL

9

RB

ALL

10

SG

ALL

11

SU

ALL

12

SN

ALL

13

SY

ALL

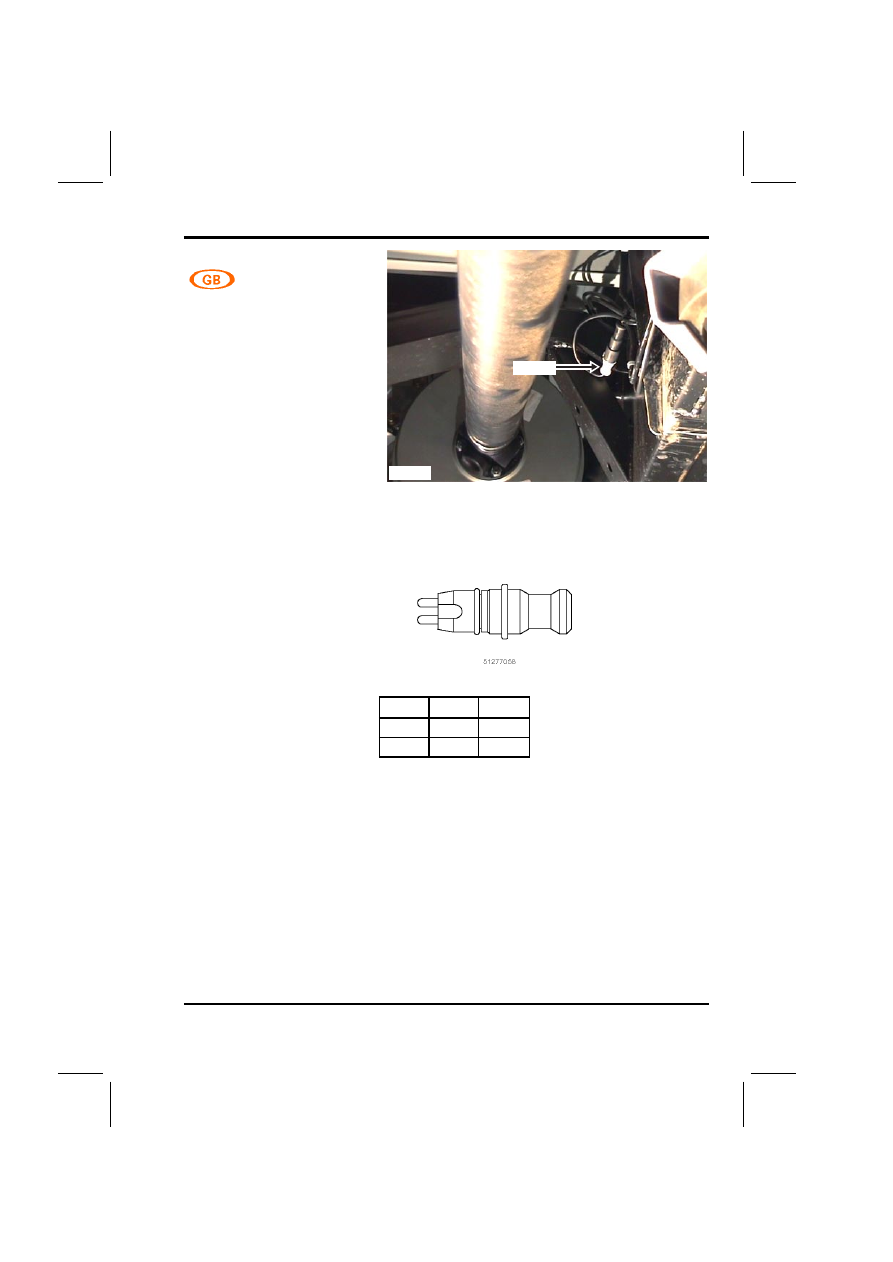

C0502

CONNECTOR

DEFENDER 1999 MY

Sensor - ABS - Rear - LH

Male
NATURAL

Beneath centre of vehicle

P5586

C0502

Cav

Col

CCT

1

W

12

2

W

12

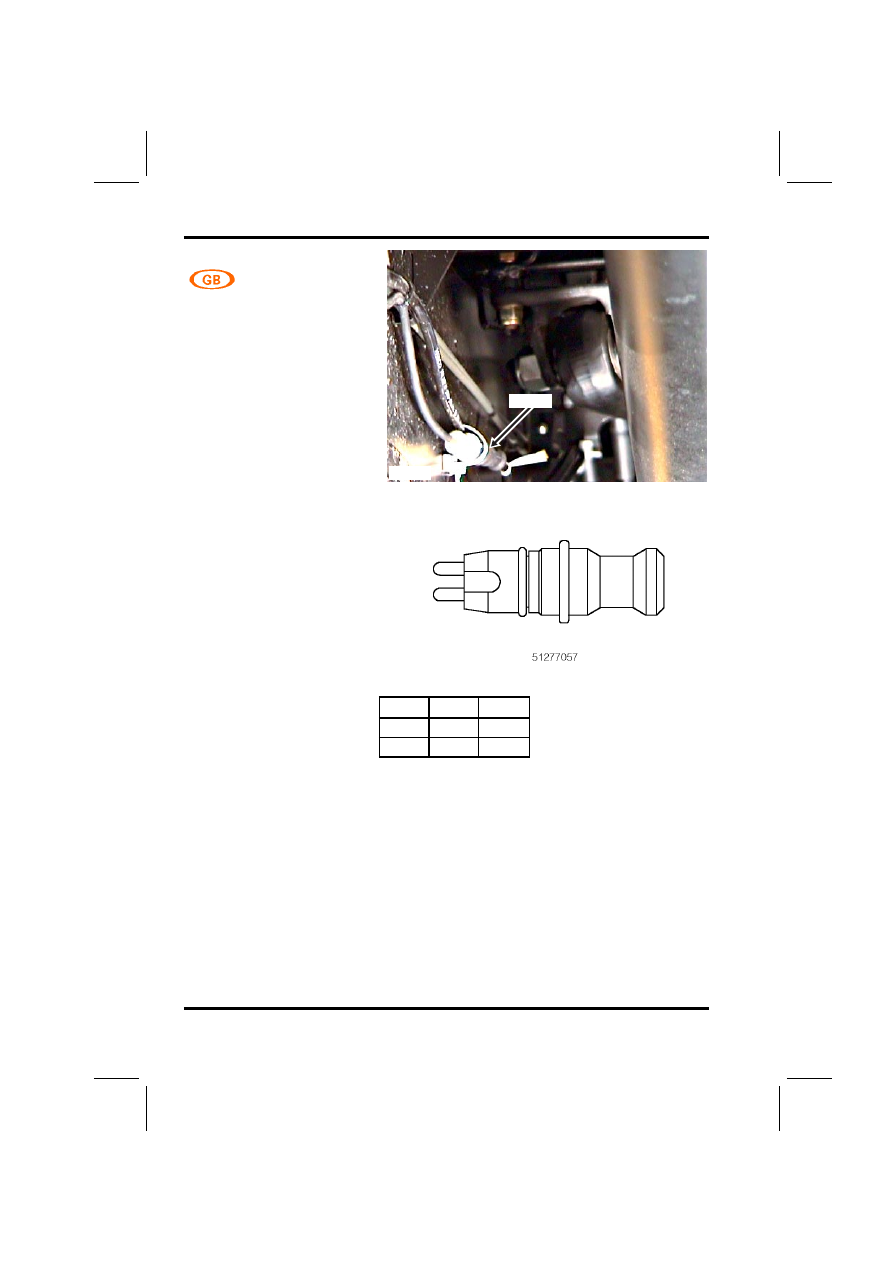

CONNECTOR

C0503

DEFENDER 1999 MY

Sensor - ABS - Rear - RH

Male
NATURAL

Beneath centre of vehicle

P5587

C0503

Cav

Col

CCT

1

G

12

2

G

12
