Defender Electric Diagrams. Manual - part 147

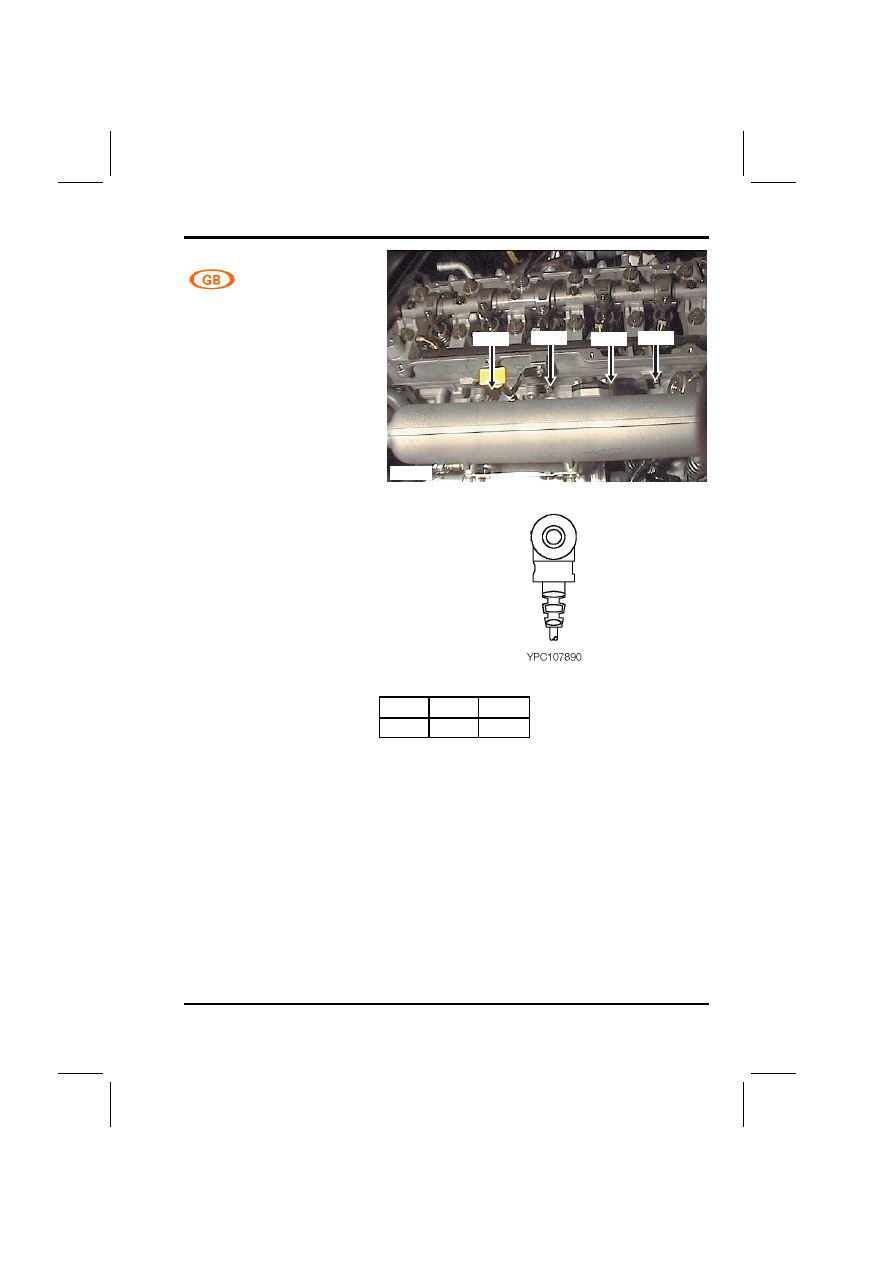

C0478

CONNECTOR

DEFENDER 1999 MY

Glow plug - Td5

Female
BLACK

Top of engine - RH side

C479

C478

C477

C476

P5402

Cav

Col

CCT

1

B

ALL

CONNECTOR

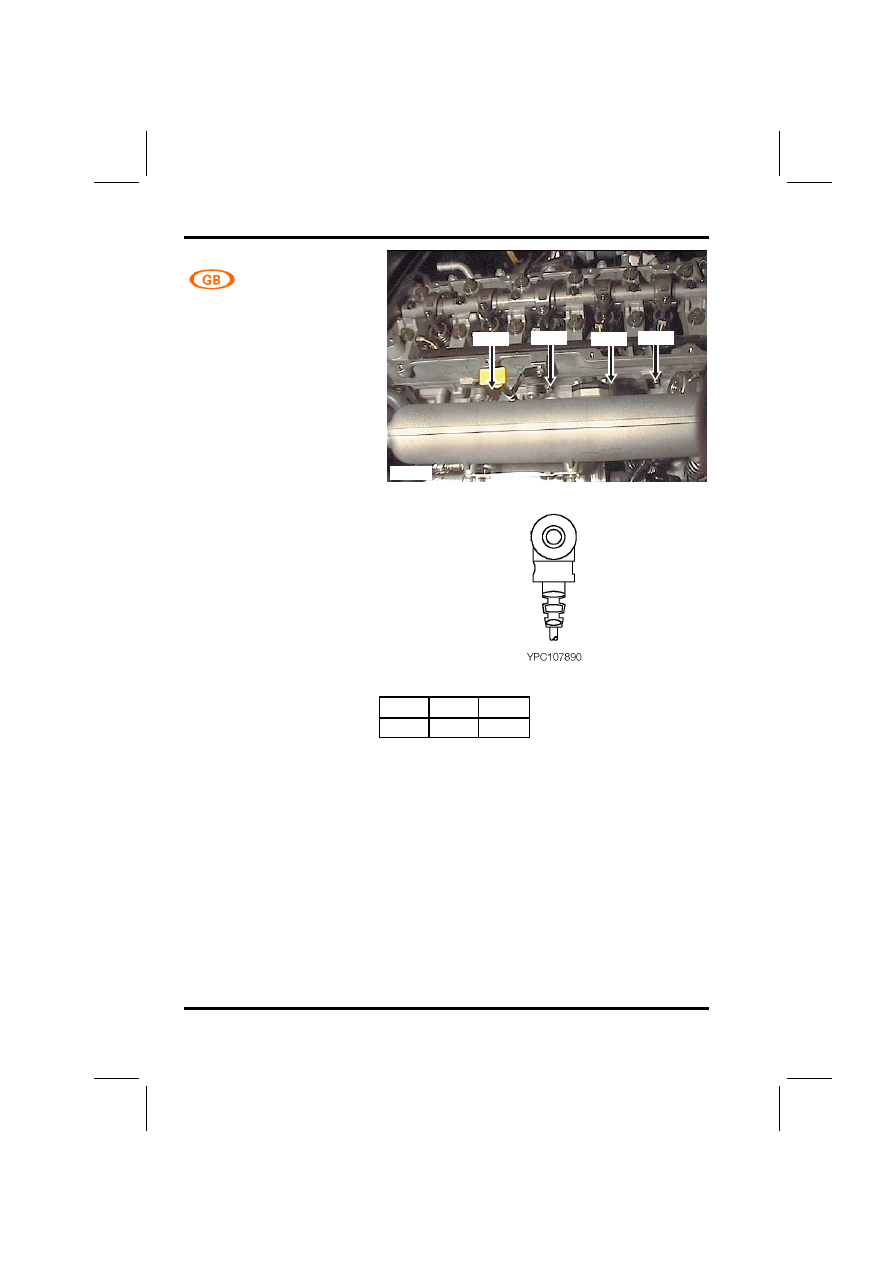

C0479

DEFENDER 1999 MY

Glow plug - Td5

Female
BLACK

Top of engine - RH side

C479

C478

C477

C476

P5402

Cav

Col

CCT

1

B

ALL

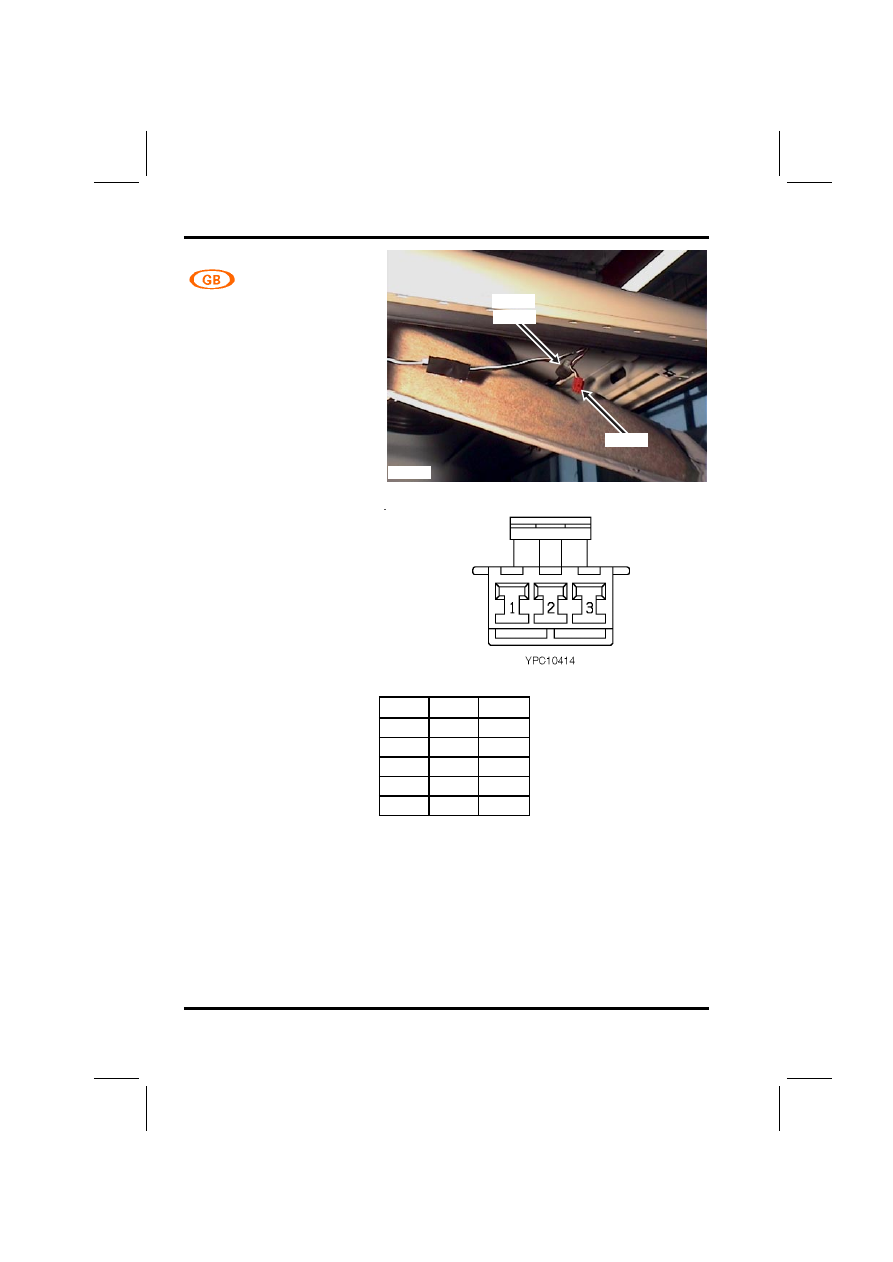

C0488

CONNECTOR

DEFENDER 1999 MY

Main harness to interior
lamp harness

Female
RED

Headlining - Front RH side

P5776

C1211

C0488

C0727

Cav

Col

CCT

1

WB

17

1

WB

16

2

BN

17

2

BN

16

3

B

ALL

CONNECTOR

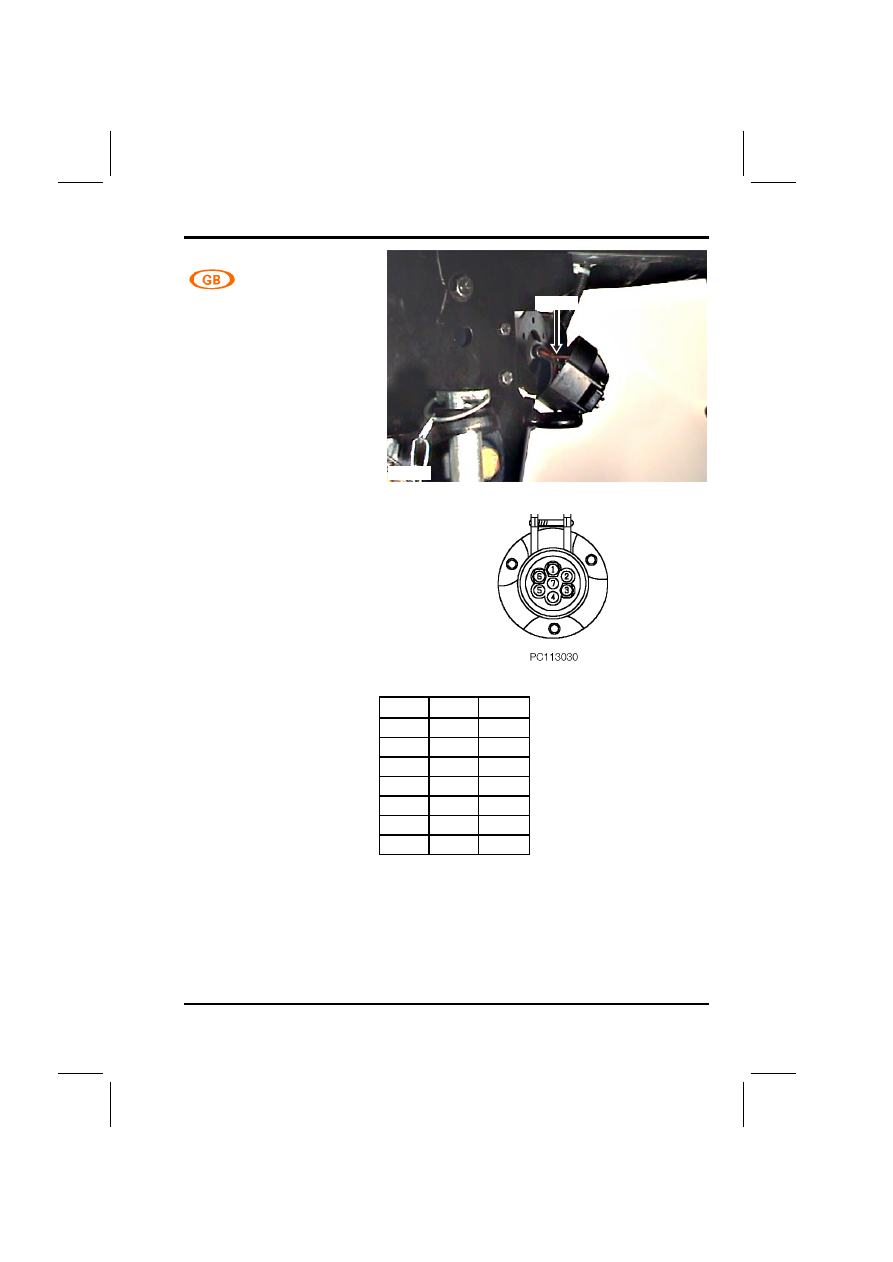

C0499

DEFENDER 1999 MY

Socket - Auxilliary - Trailer

Female
BLACK

Behind centre of rear
bumper

P5584

C0499

Cav

Col

CCT

1

GR

ALL

2

RY

ALL

3

B

ALL

4

GW

ALL

5

RO

ALL

6

GP

ALL

7

RB

ALL
