Defender Electric Diagrams. Manual - part 122

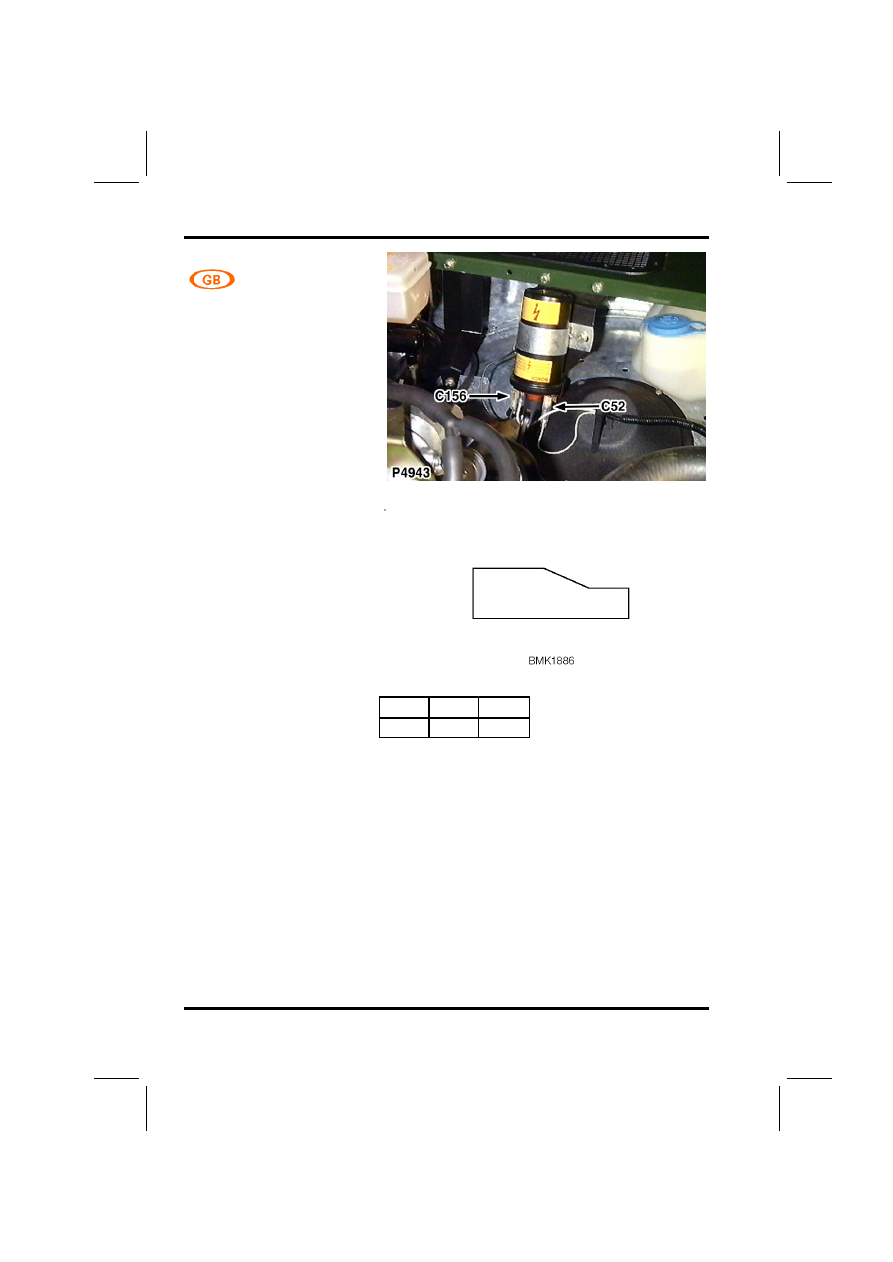

C0052

CONNECTOR

DEFENDER 1999 MY

Ignition coil - V8

Male
NATURAL

LH side of engine
compartment

Cav

Col

CCT

1

WB

ALL

CONNECTOR

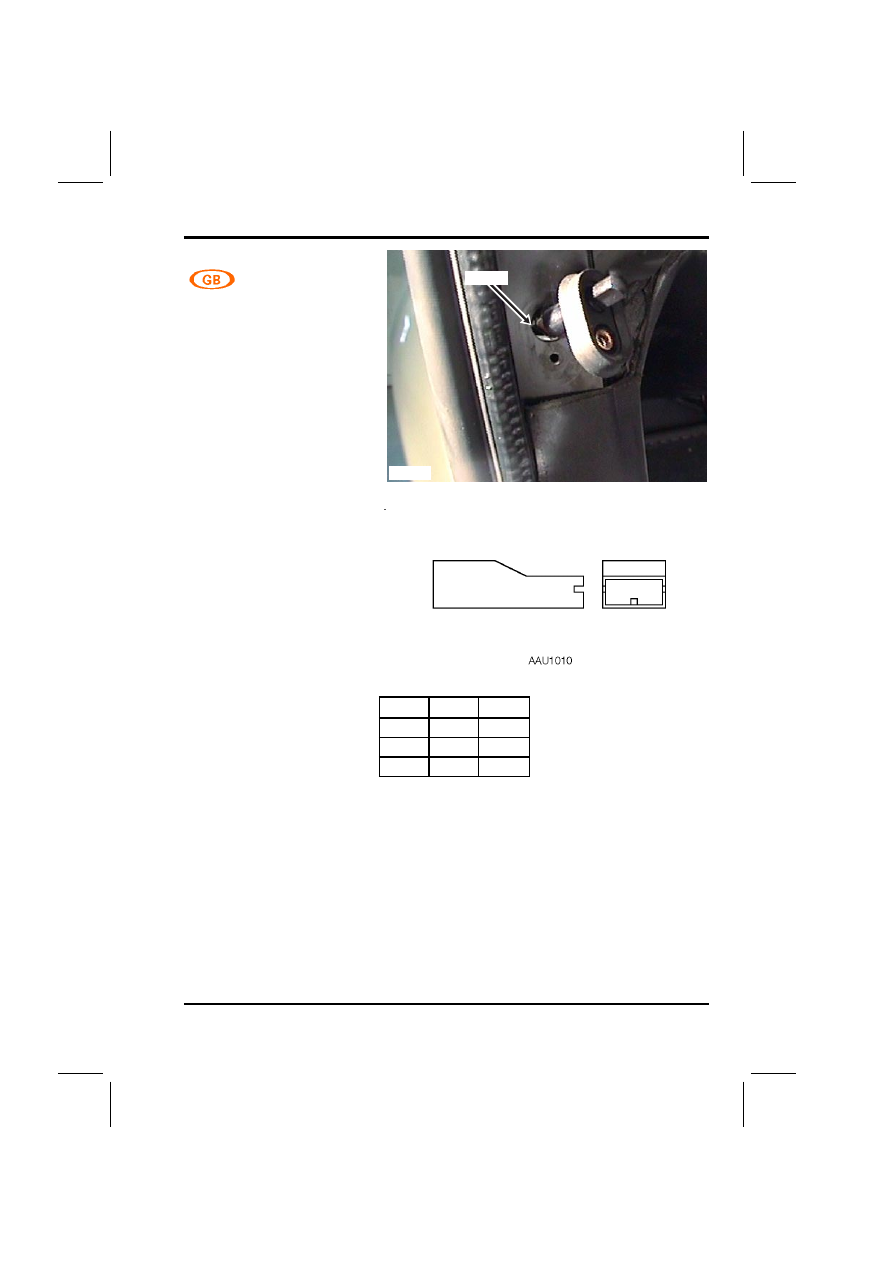

C0054

DEFENDER 1999 MY

Switch - Door - LH

Female
BLACK

LH ’A’ post

P5641

C0054

Cav

Col

CCT

1

PU

16

1

SW

17

1

PU

19

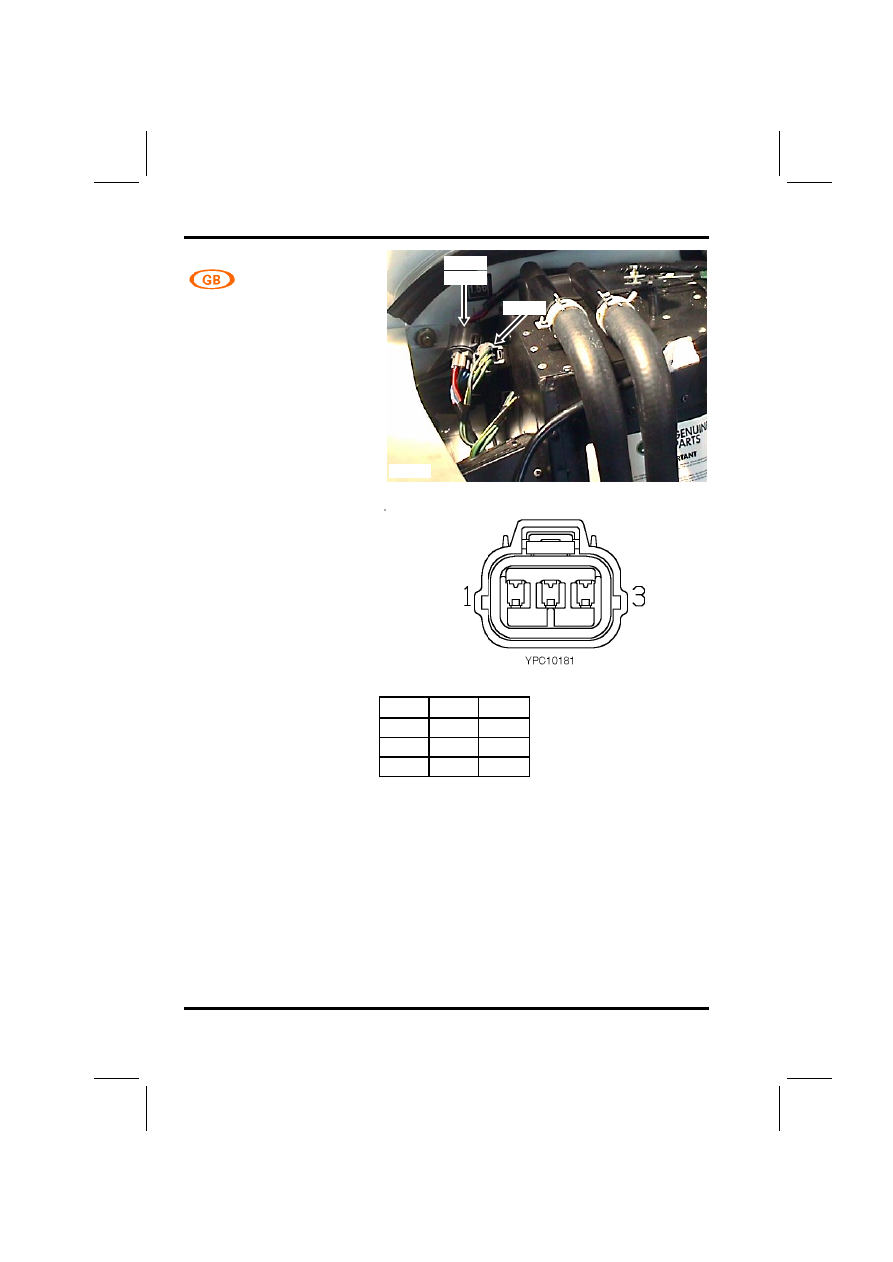

C0056

CONNECTOR

DEFENDER 1999 MY

Motor - Blower - Front

Female
LIGHT GREY

Adjacent heater assembly

P5563

C1267

C0056

C1266

Cav

Col

CCT

1

GS

ALL

2

GY

ALL

3

PG

ALL

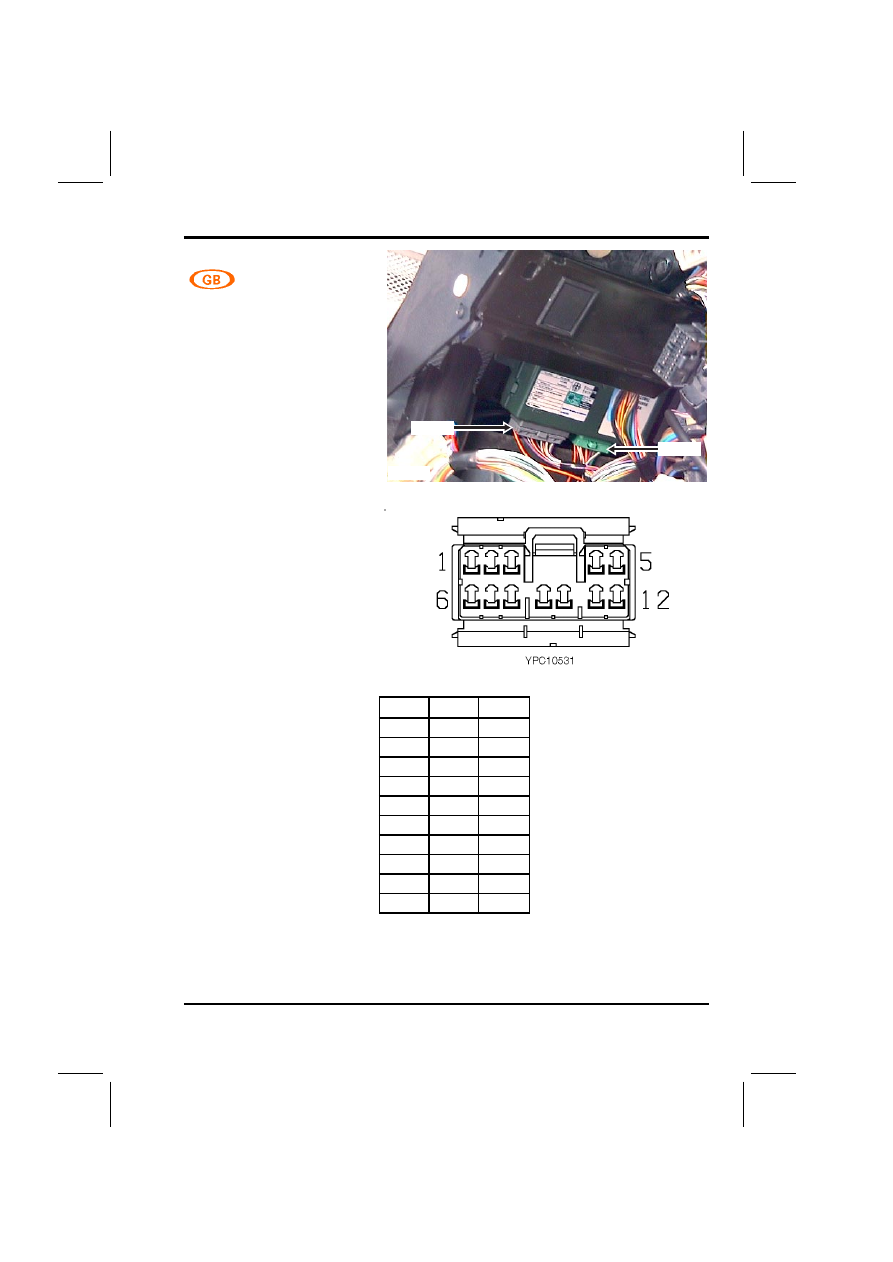

CONNECTOR

C0057

DEFENDER 1999 MY

ECU - Alarm

Female
GREEN

Behind instrument pack

P5769

C0061

C0057

Cav

Col

CCT

1

GW

ALL

4

K

ALL

5

OW

ALL

6

GR

ALL

7

OG

ALL

8

PN

ALL

9

O

ALL

10

BO

ALL

11

B

ALL

12

OP

ALL
