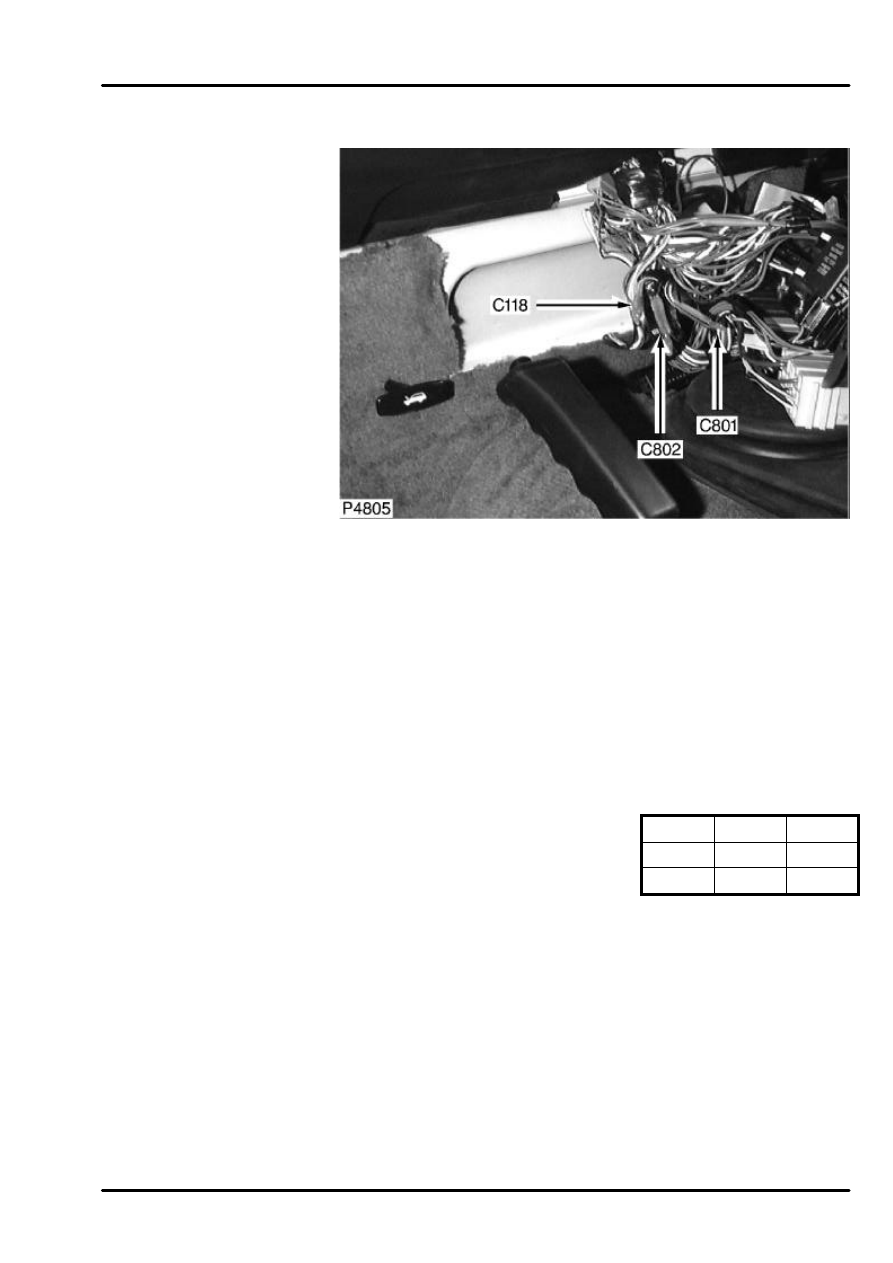

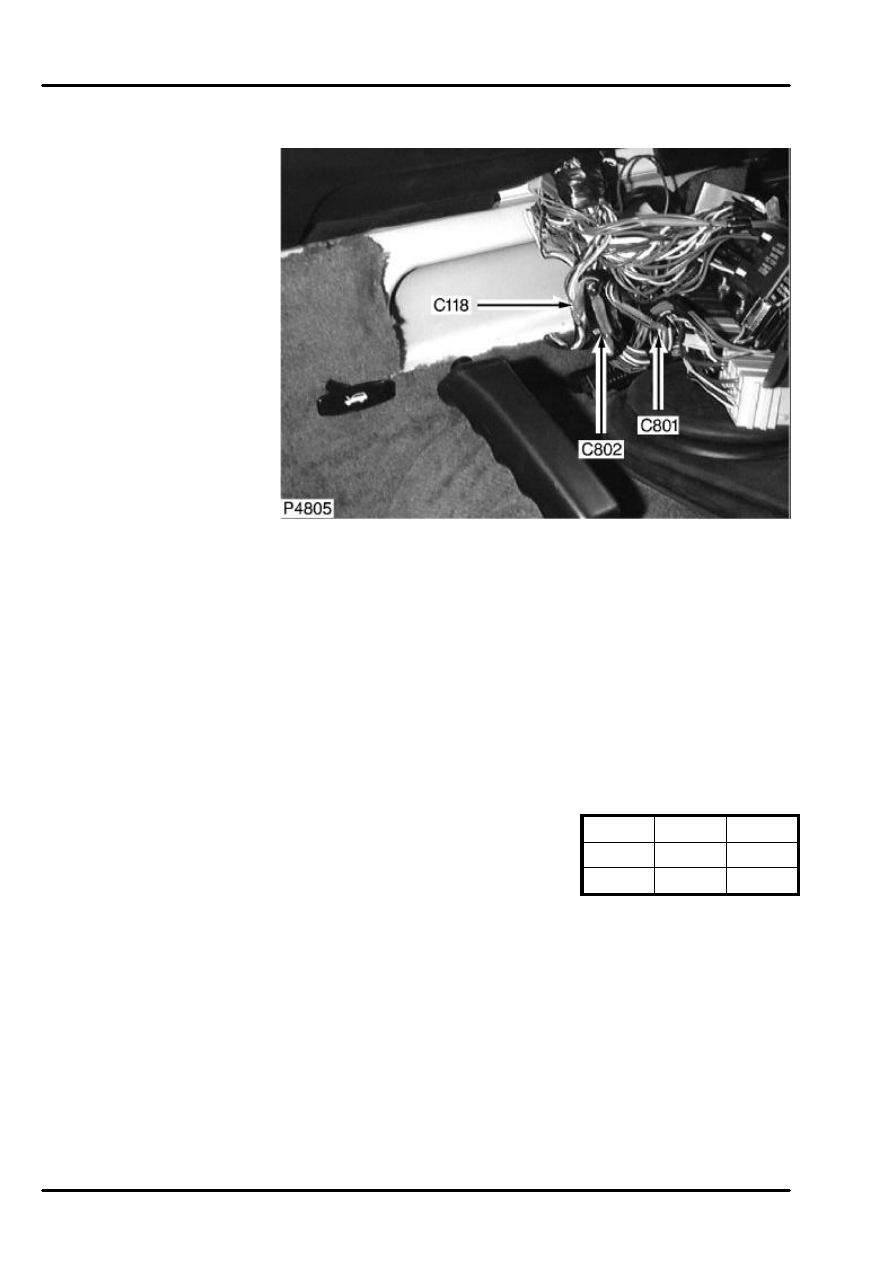

CONNECTOR DETAILS

DEFENDER 90 NAS

C801

C801
DIODE

BLACK
Behind passenger
compartment fusebox

t:\compuset\erl\faceview\YQP10003.tif

Cav

Color Cct

1

YB

ALL

2

BY

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C802

C802
DIODE

BLACK
Behind passenger
compartment fusebox

t:\compuset\erl\faceview\YQP10003.tif

Cav

Color Cct

1

BK

ALL

2

BY

ALL

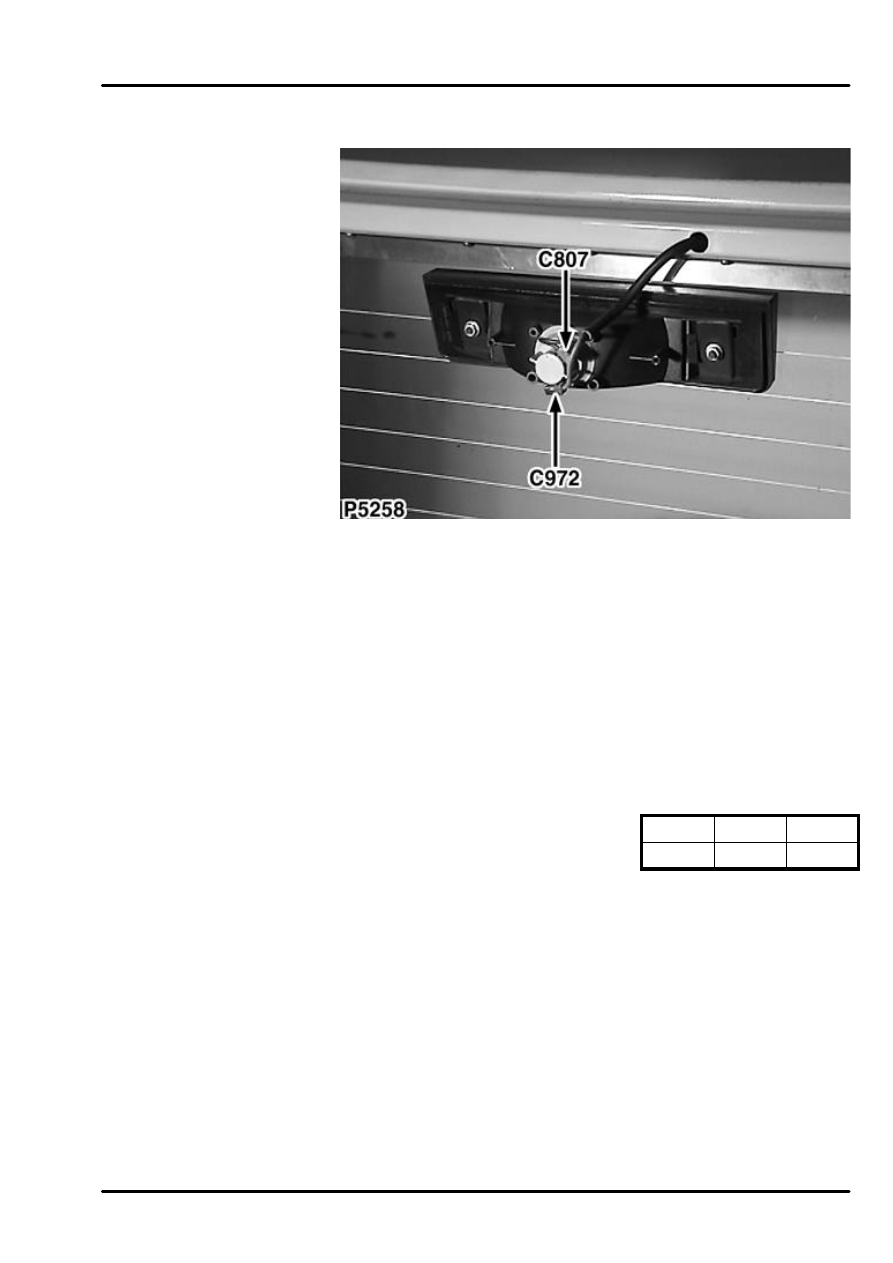

CONNECTOR DETAILS

REV: 9/97

DEFENDER NAS 90

C807

C807
BRAKE LAMP - HIGH
MOUNTED
1 Way
Female
TIN-PLATE
Top of taildoor

No connector face view

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C813

C813
GEARBOX GROUND
1 Way

TIN-PLATE
Beneath gearbox

Cav

Color Cct

1

B

ALL
