Defender Electric Diagrams. Manual - part 75

   CONNECTOR DETAILS

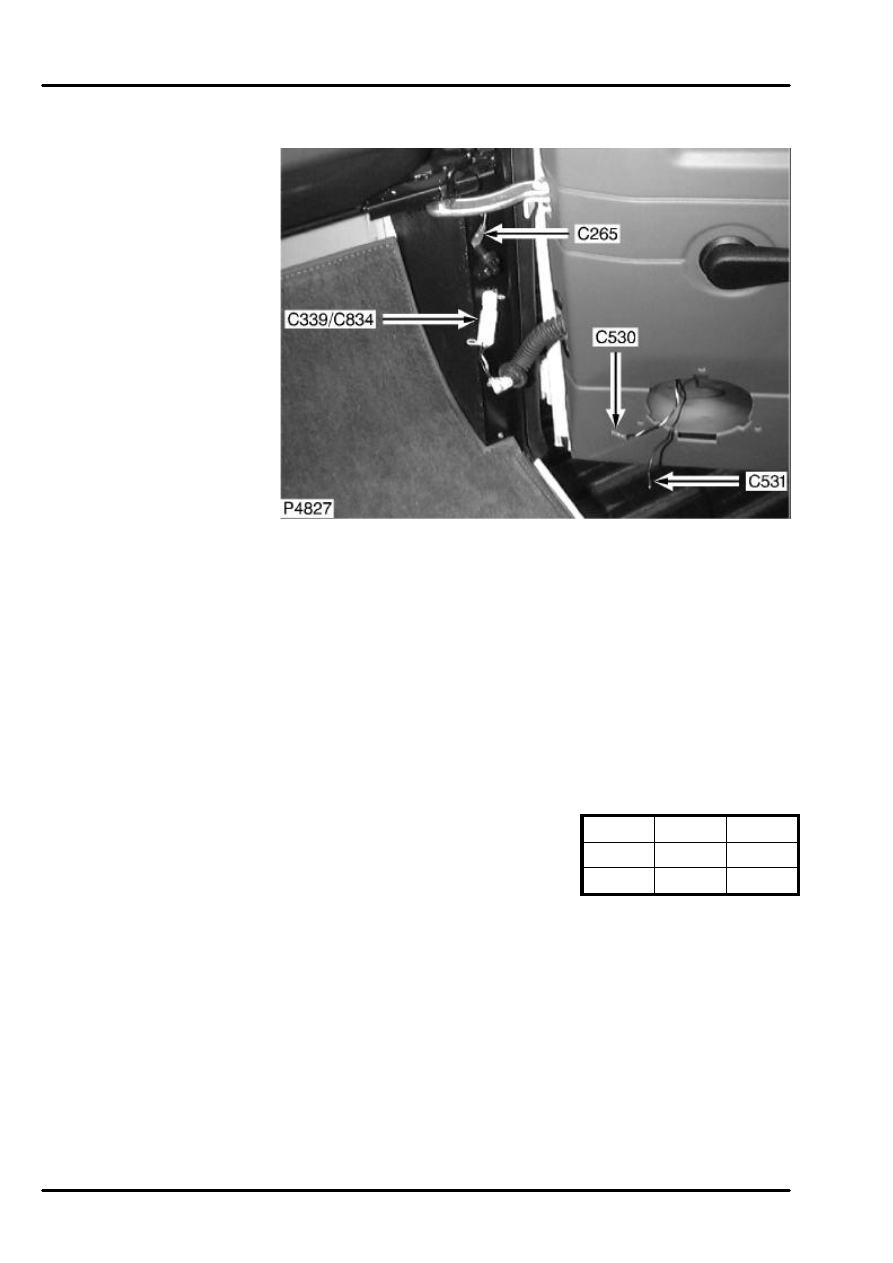

DEFENDER 90 NAS

C834

C834
SPEAKER/ MAIN
2 Way
Male
WHITE
In LH or RH 'A' post

t:\compuset\erl\faceview\AFU4461.tif

Cav

Color Cct

1

BW

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

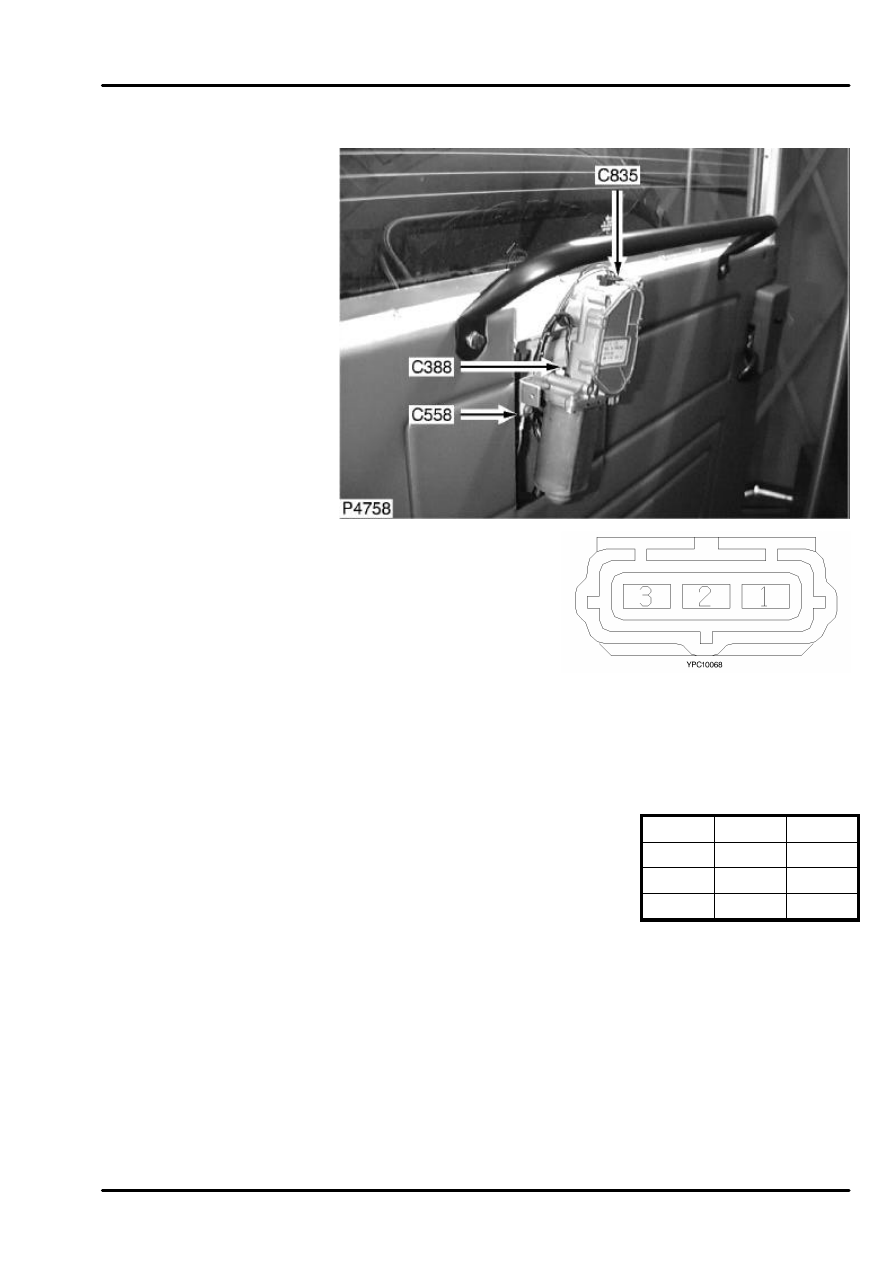

C835

C835
WIPER PARK SWIT
3 Way
Female
BLACK
Center of taildoor, behind
trim panel

Cav

Color Cct

1

NLG

ALL

2

G

ALL

3

NY

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C842

C842
WARNING LIGHT
CHECK UNIT
5 Way
Female
BLACK
Behind dash trim panel

Cav

Color Cct

30

SR

ALL

85

B

ALL

86

WG

ALL

87

WY

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

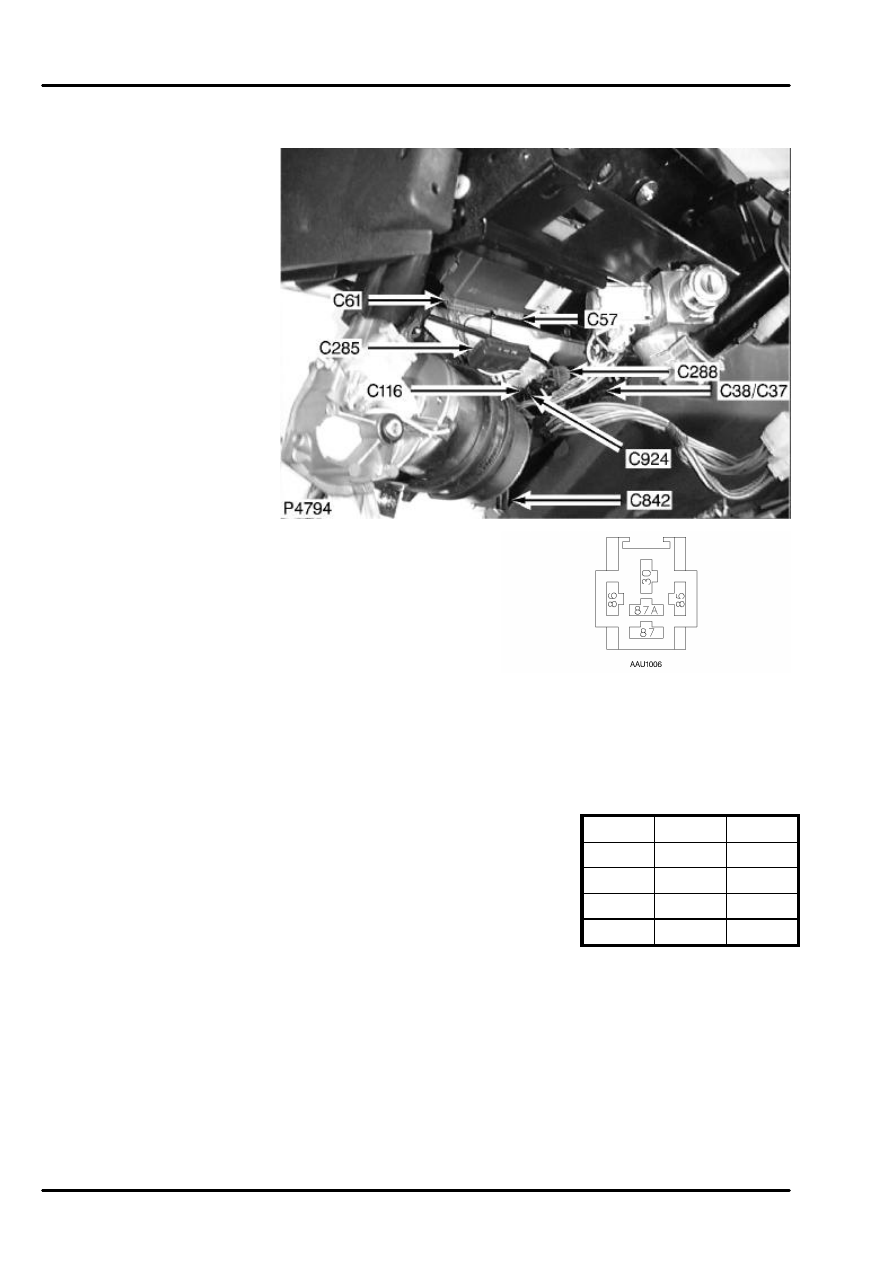

C843

C843
TEMPERATURE
GAUGE SENDER
1 Way
Female
NATURAL
Front RH side of engine

Cav

Color Cct

1

GU

ALL
