CONNECTOR DETAILS

DEFENDER 90 NAS

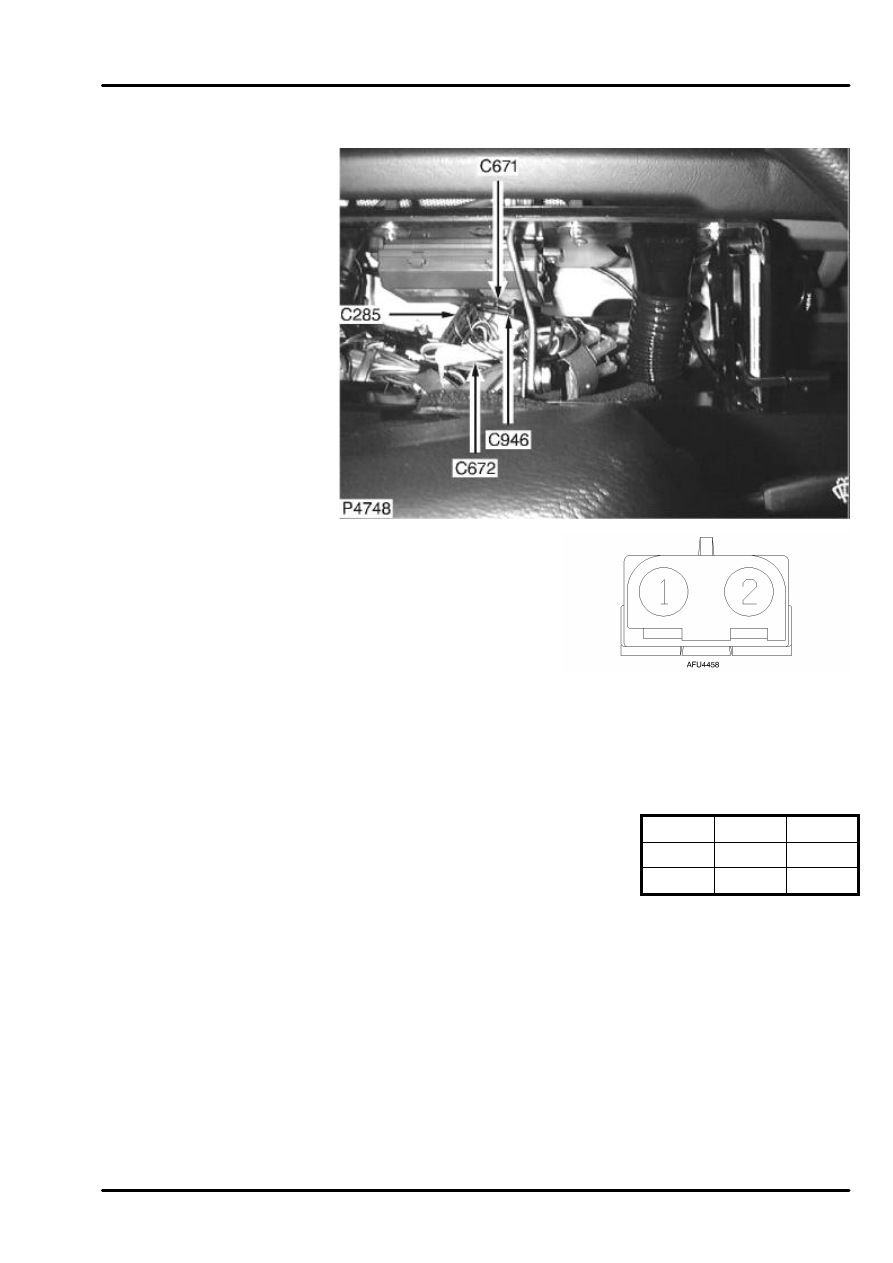

C672

C672
KEY-IN SENSOR
2 Way
Female
WHITE
Behind instrument pack

Cav

Color Cct

1

BR

ALL

2

P

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

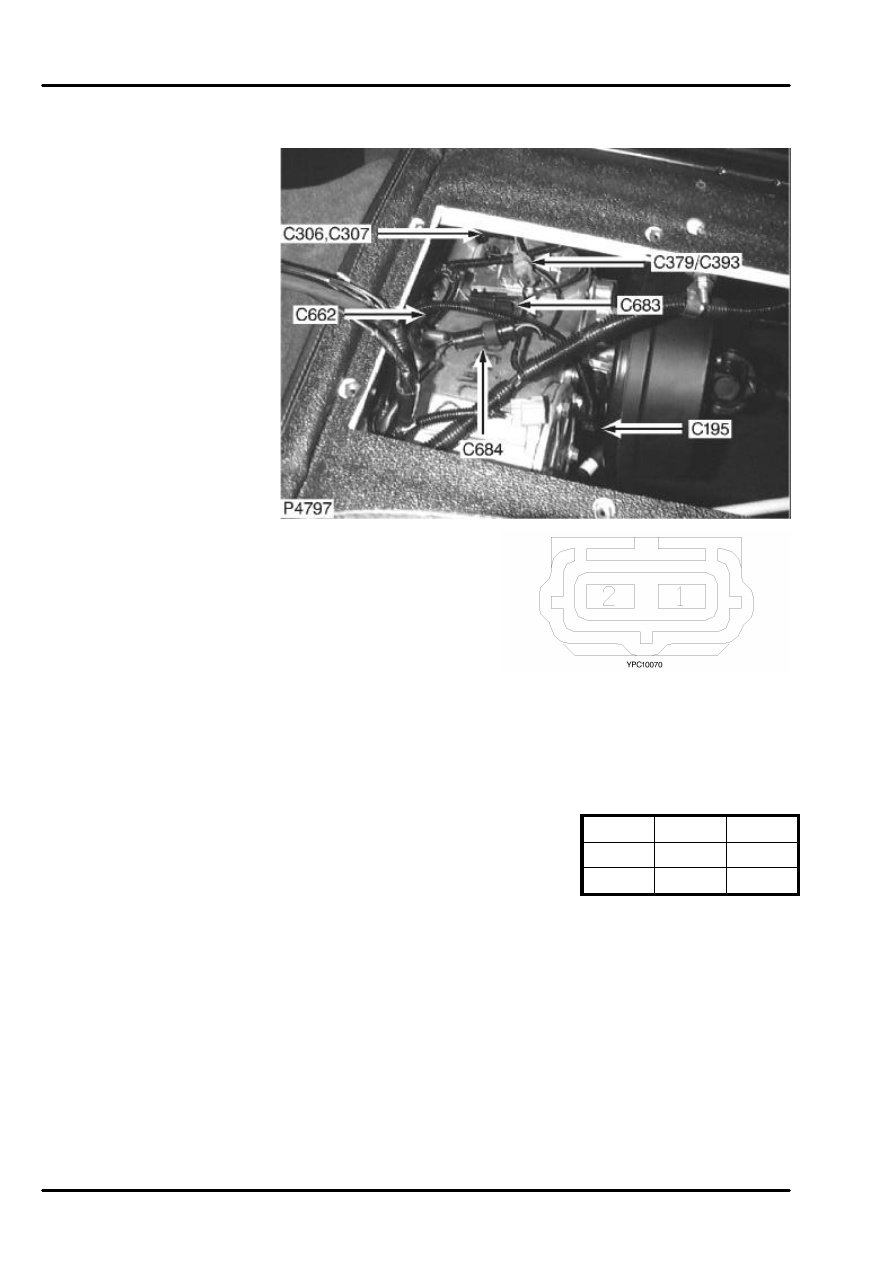

C683

C683
SOLENOID -
TRANSFER BOX
2 Way
Female
BLACK
Above gearbox

Cav

Color Cct

1

SB

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C684

C684

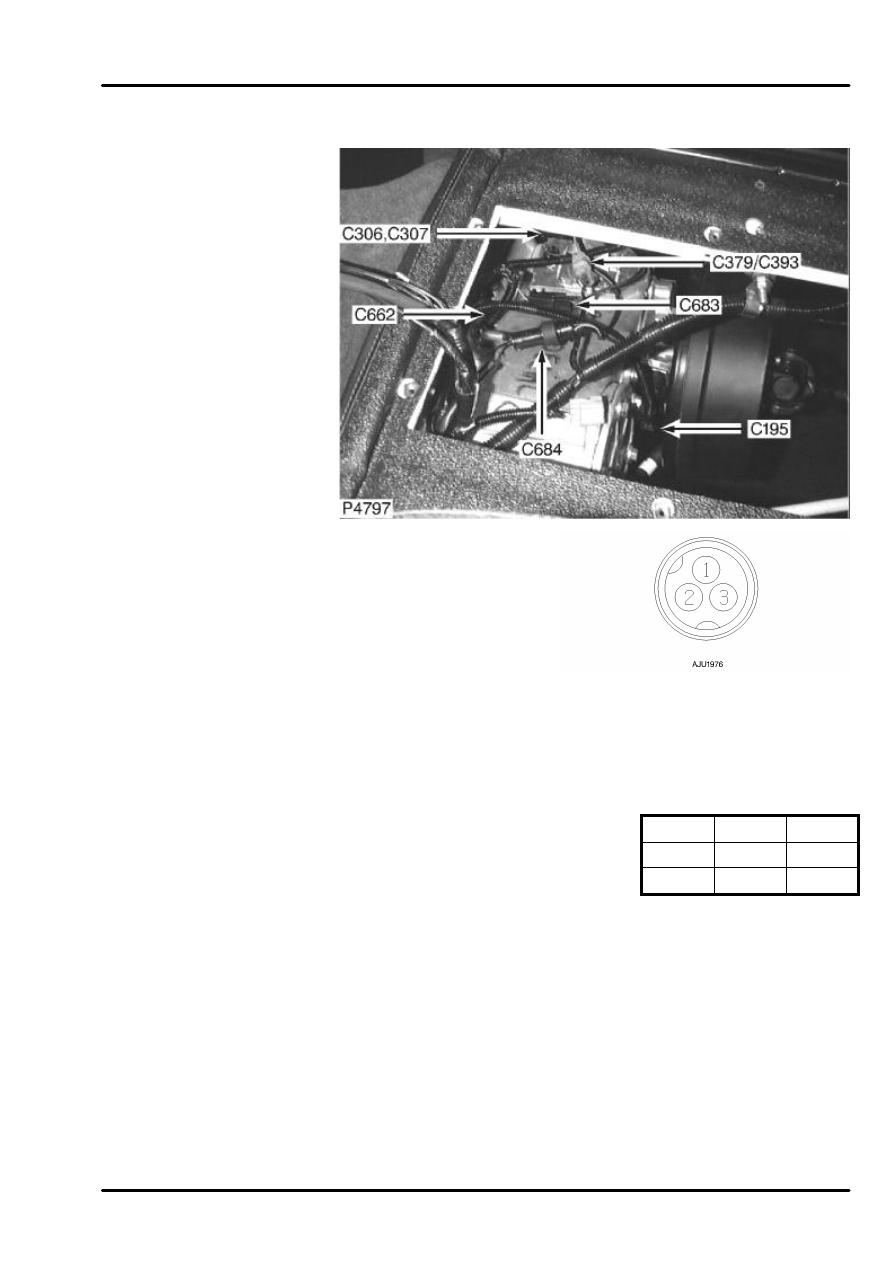

TRANSMISSION
NEUTRAL SENSE
3 Way
Male
BLACK
Above gearbox

Cav

Color Cct

2

B

ALL

3

BK

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

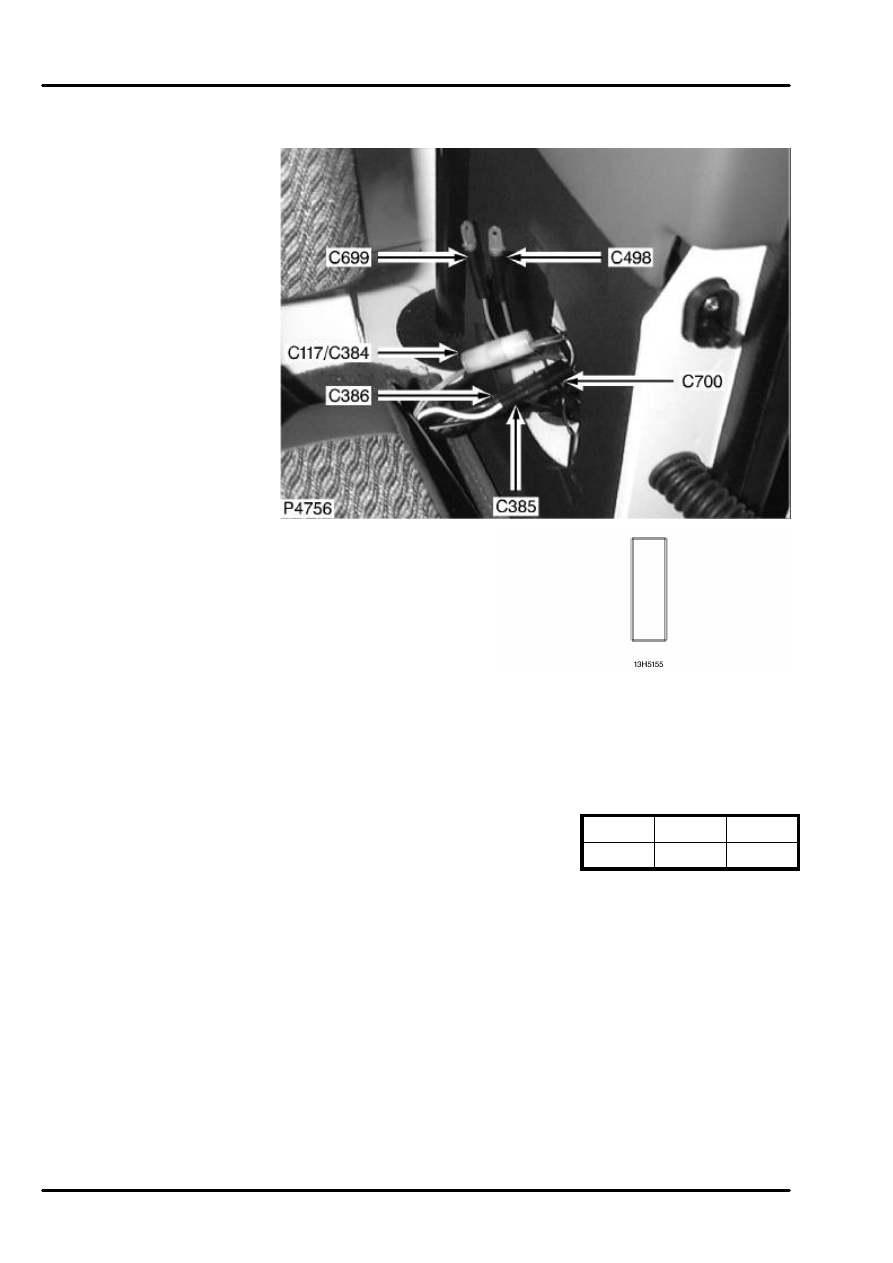

C699

C699
TRAILER
1 Way
Female
BLACK
Behind RH rear speaker

Cav

Color Cct

1

GN

ALL
