   CONNECTOR DETAILS

DEFENDER 90 NAS

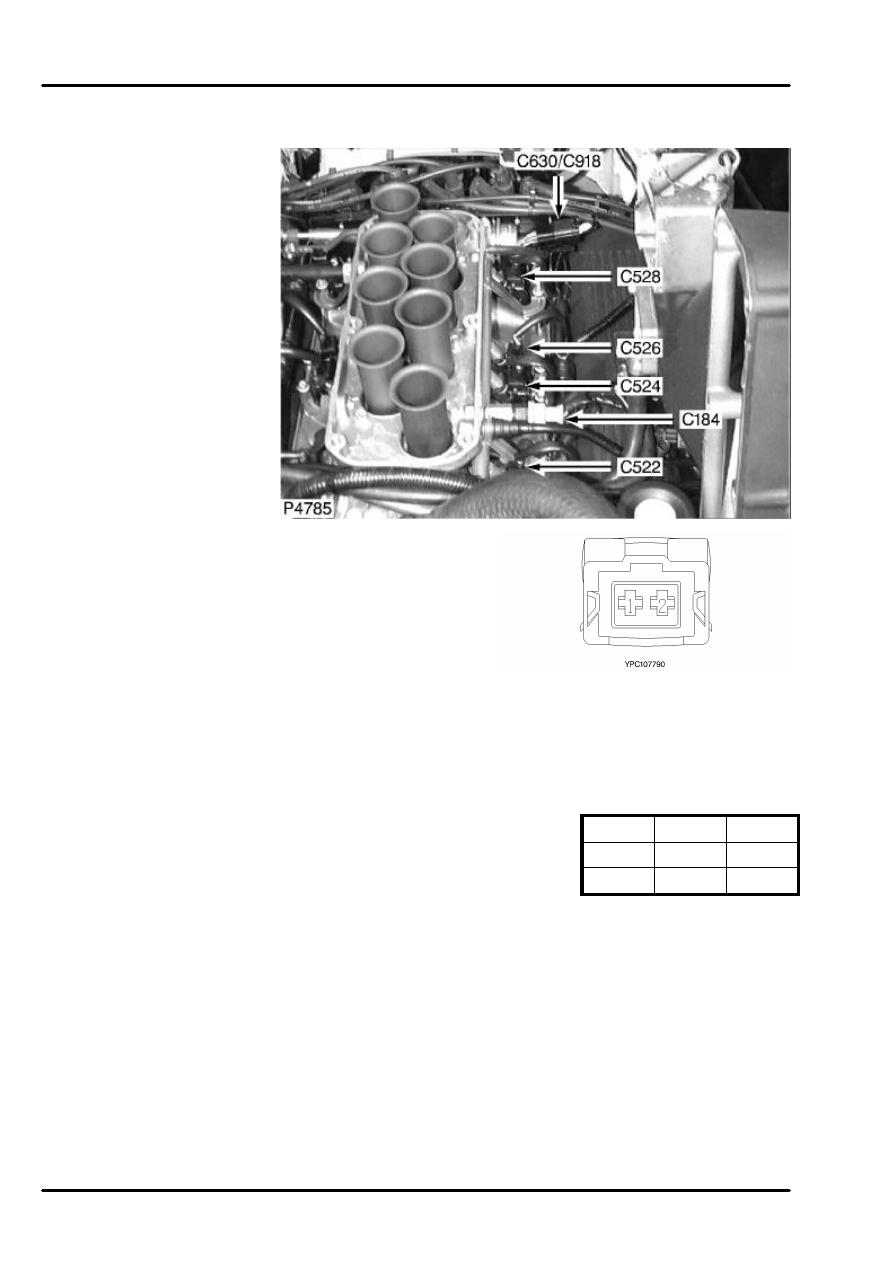

C528

C528
INJECTOR 7
2 Way
Female
BLACK
Top of engine - LH side

Cav

Color Cct

1

YR

ALL

2

NO

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

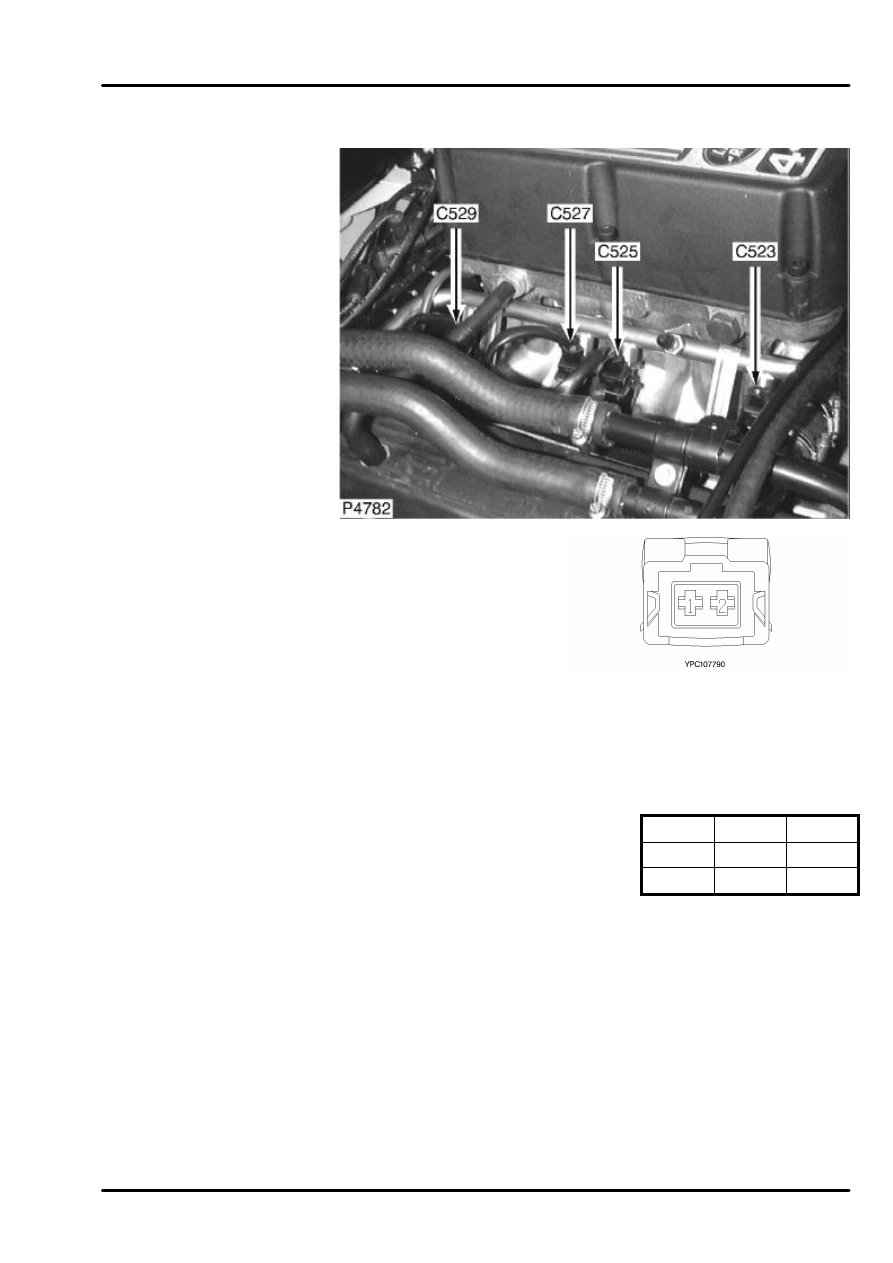

C529

C529
INJECTOR 8
2 Way
Female
BLACK
Top of engine - RH side

Cav

Color Cct

1

YK

ALL

2

NO

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

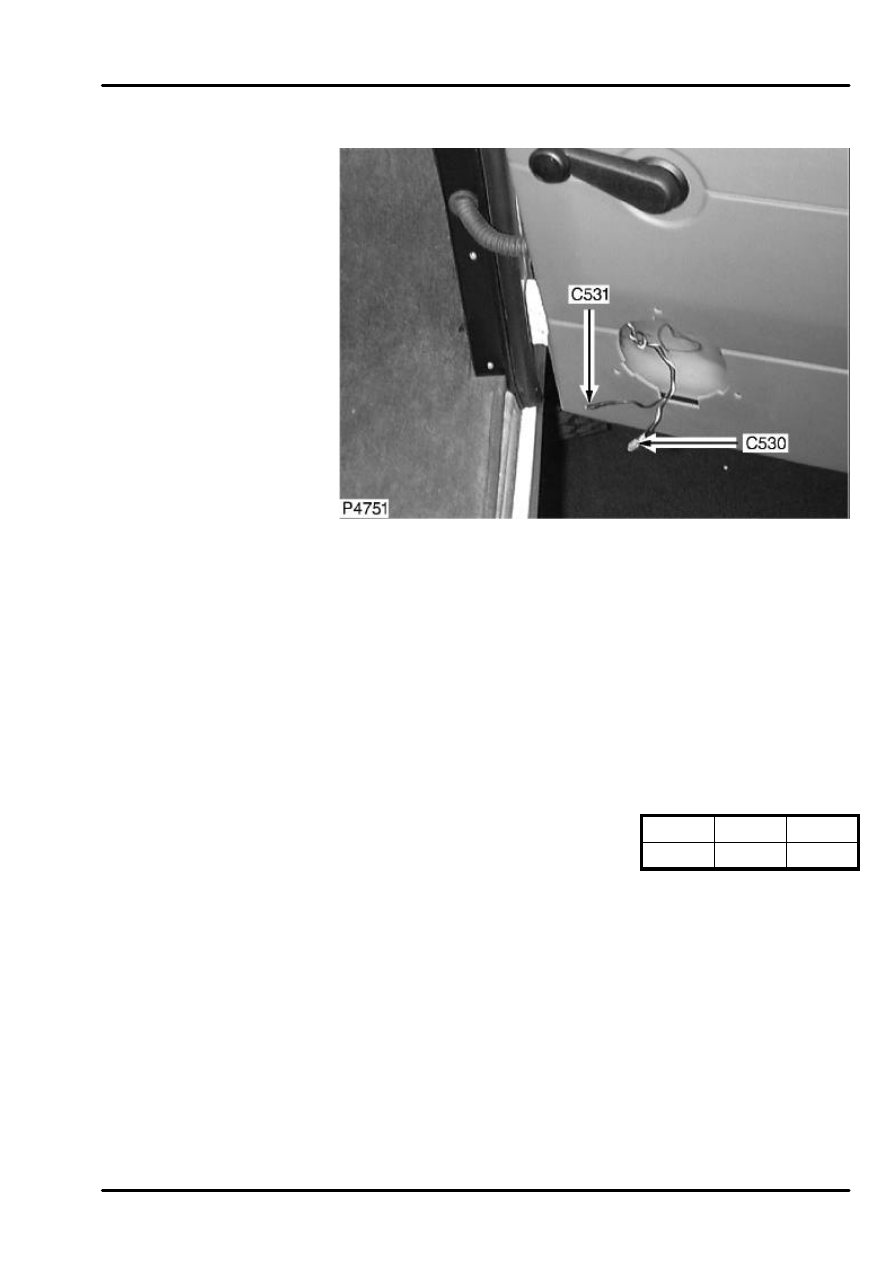

C530

C530
SPEAKER
1 Way
Female
NATURAL
Behind front speaker

Cav

Color Cct

1

BW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C531

C531
SPEAKER

Female

Behind front speaker

t:\compuset\erl\faceview\51153271.tif

Cav

Color Cct

1

B

ALL
