   CONNECTOR DETAILS

DEFENDER 90 NAS

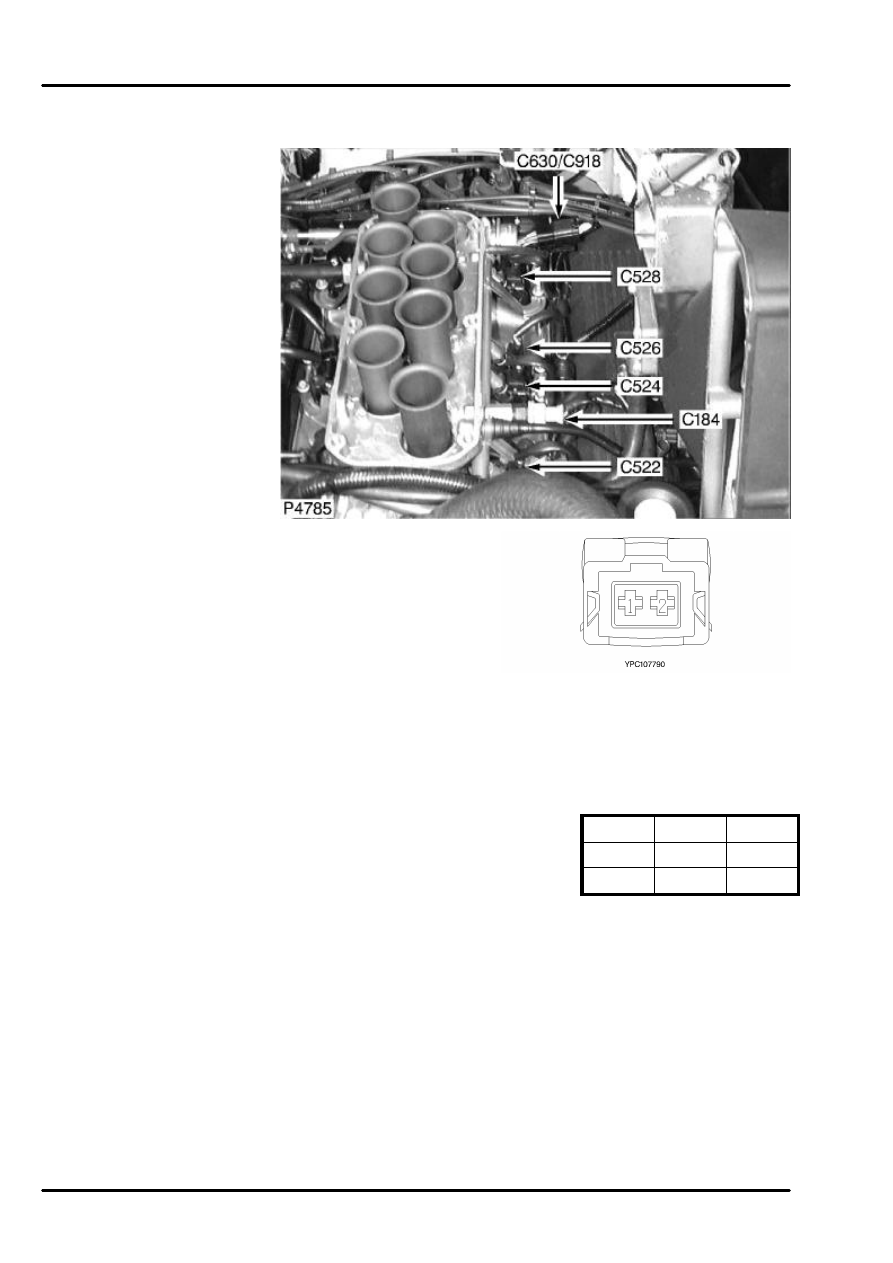

C524

C524
INJECTOR 3
2 Way
Female
BLACK
Top of engine - LH side

Cav

Color Cct

1

YB

ALL

2

NO

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C525

C525
INJECTOR 4
2 Way
Female
BLACK
Top of engine - RH side

Cav

Color Cct

1

YN

ALL

2

NO

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C526

C526
INJECTOR 5
2 Way
Female
BLACK
Top of engine - LH side

Cav

Color Cct

1

YG

ALL

2

NO

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C527

C527
INJECTOR 6
2 Way
Female
BLACK
Top of engine - RH side

Cav

Color Cct

1

YS

ALL

2

NO

ALL
