   CONNECTOR DETAILS

DEFENDER 90 NAS

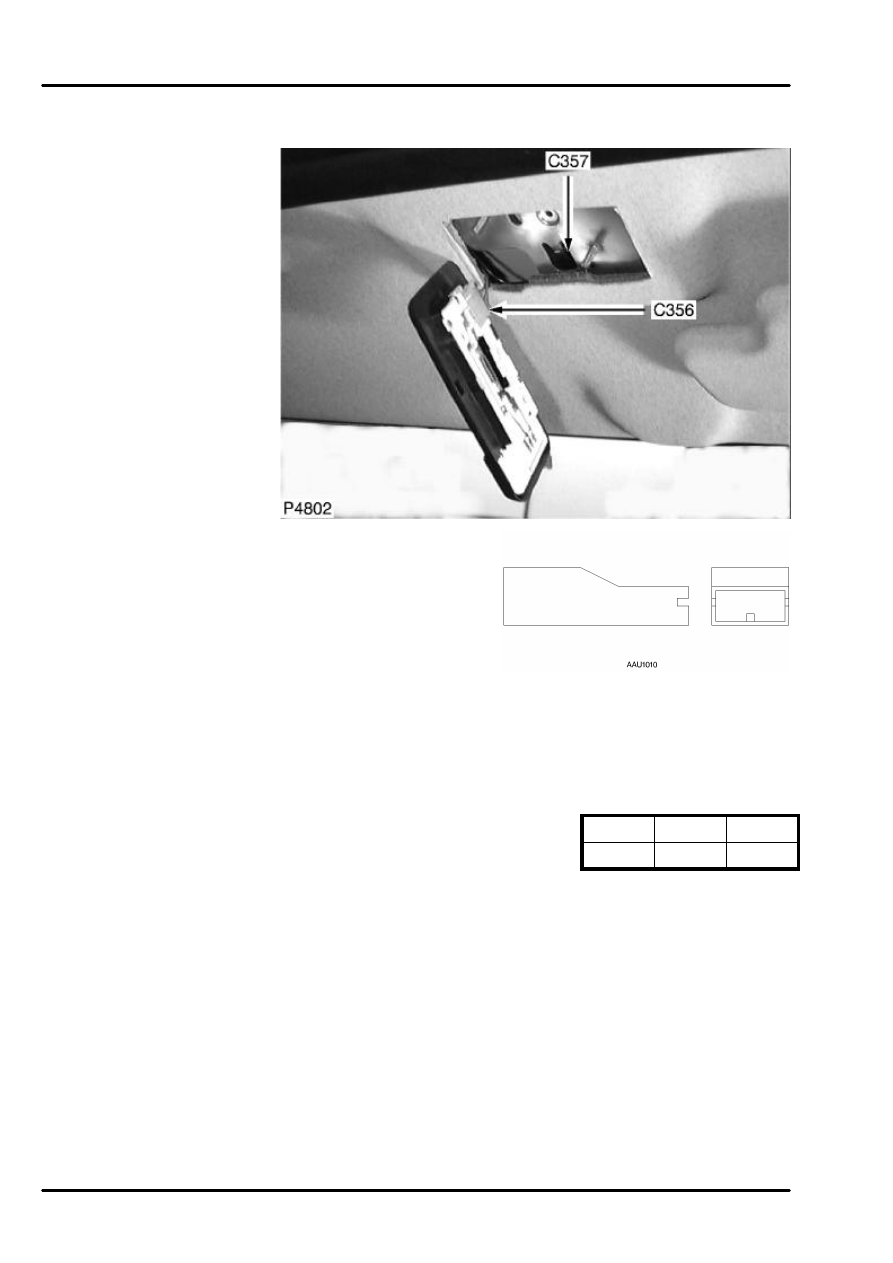

C357

C357
INTERIOR LAMP
1 Way
Female
BLACK
Behind interior light

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C358

C358

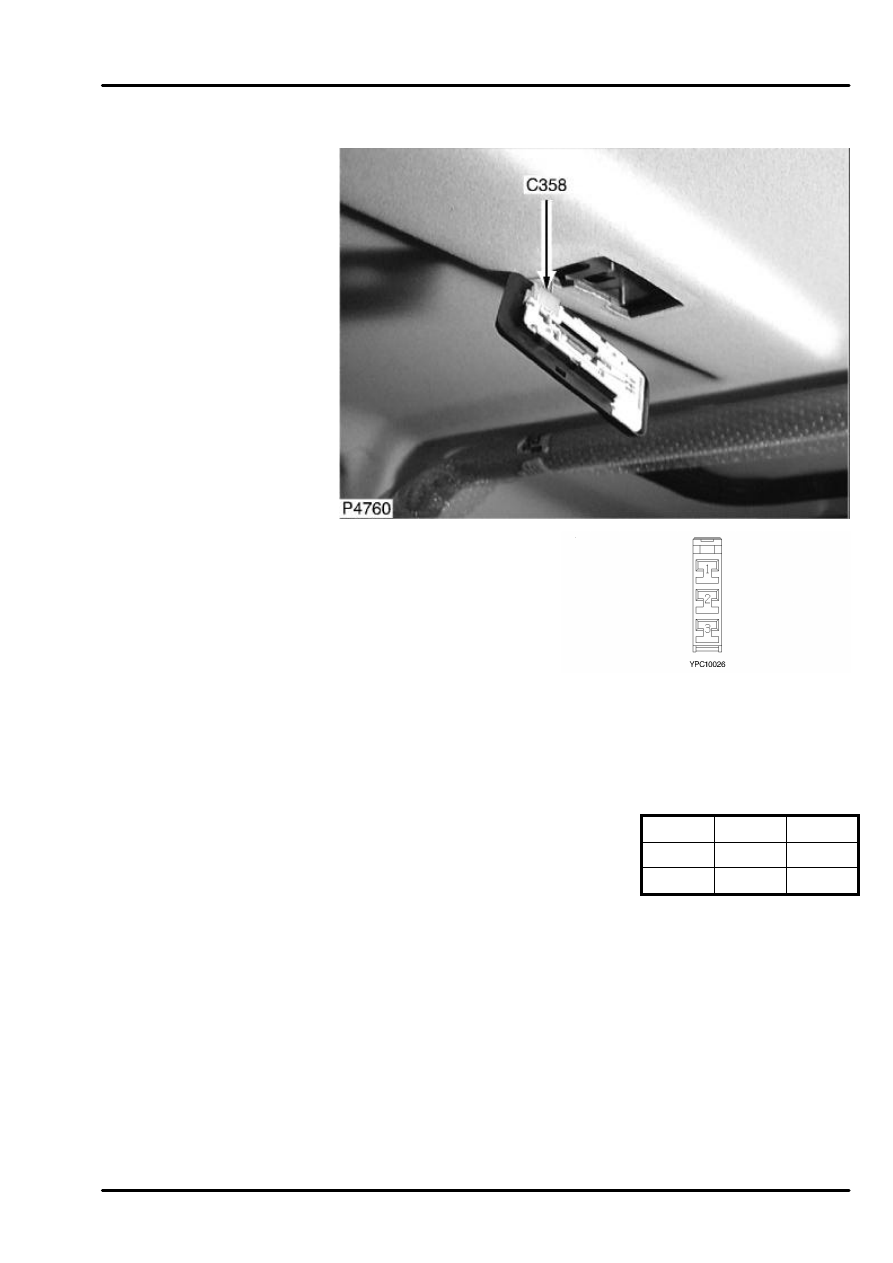

INTERIOR LIGHT
3 Way
Female
NATURAL
Front of headlining in the
center

Cav

Color Cct

1

PU

ALL

3

P

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

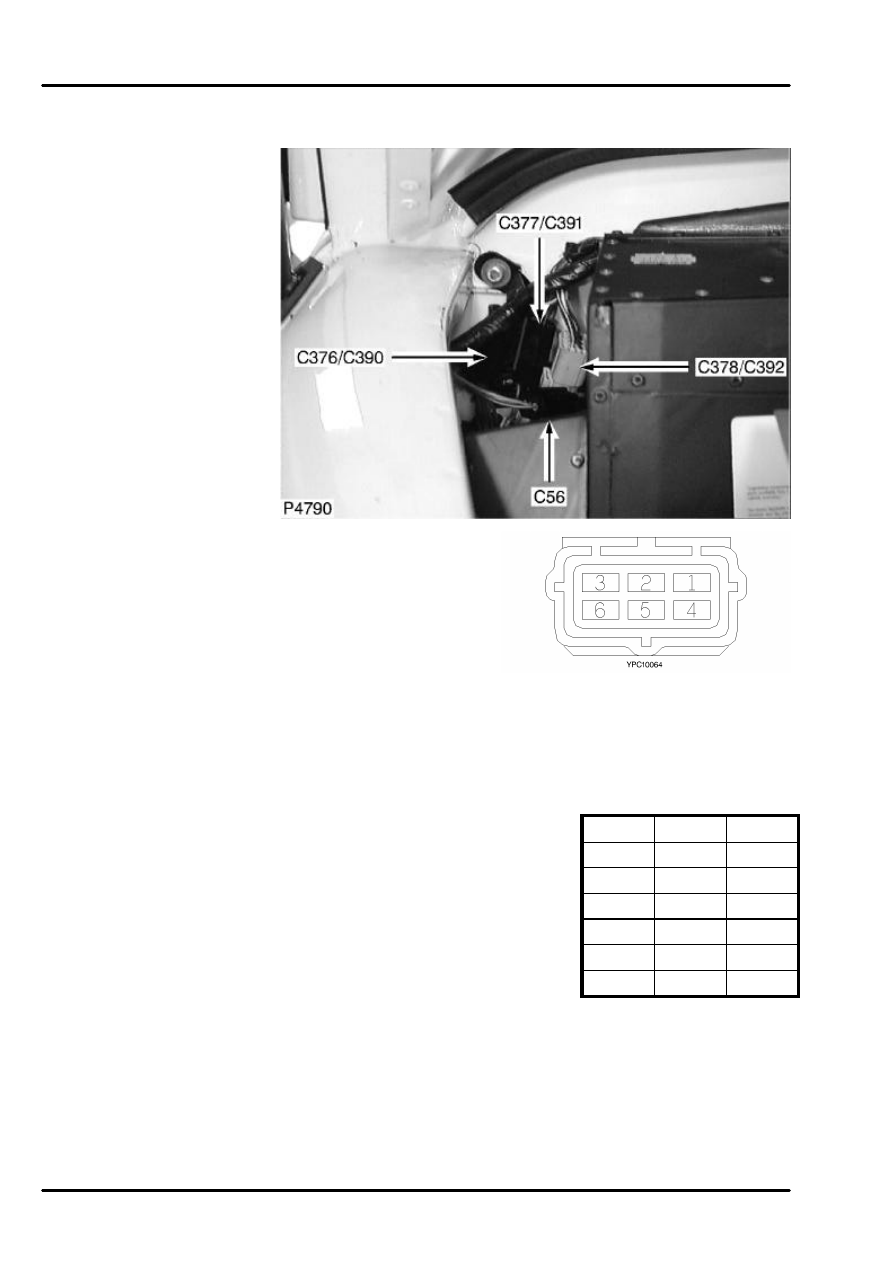

C376

C376
MAIN HARNESS TO
CHASSIS HARNESS
6 Way
Female
BLACK
Under bonnet, RH inner
fender

Cav

Color Cct

1

GP

ALL

2

RO

ALL

3

GN

ALL

4

GR

ALL

5

GW

ALL

6

RB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

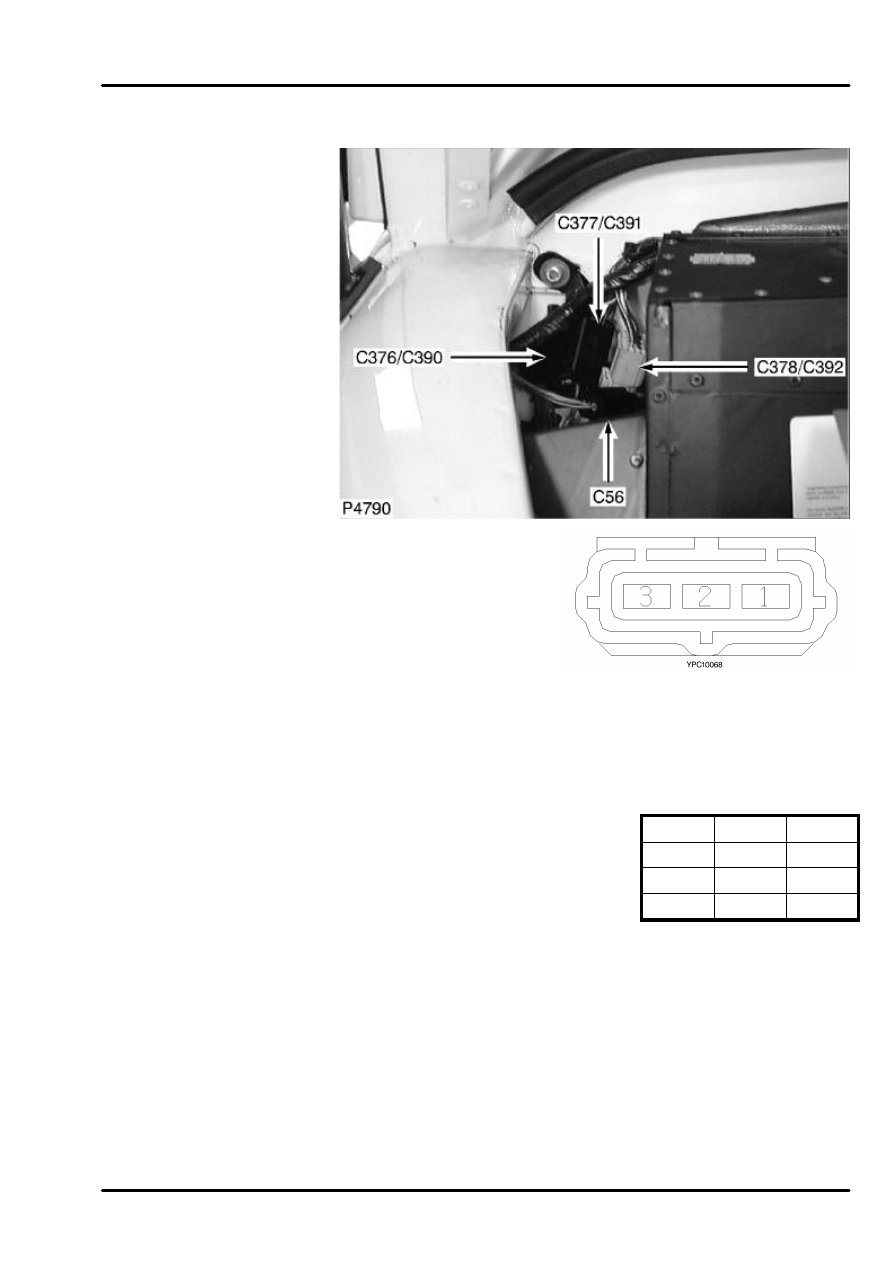

C377

C377
MAIN HARNESS TO
CHASSIS HARNESS
3 Way
Female
BLACK
Under bonnet, RH inner
fender

Cav

Color Cct

1

GB

ALL

2

WP

ALL

3

P

ALL
