   CONNECTOR DETAILS

DEFENDER 90 NAS

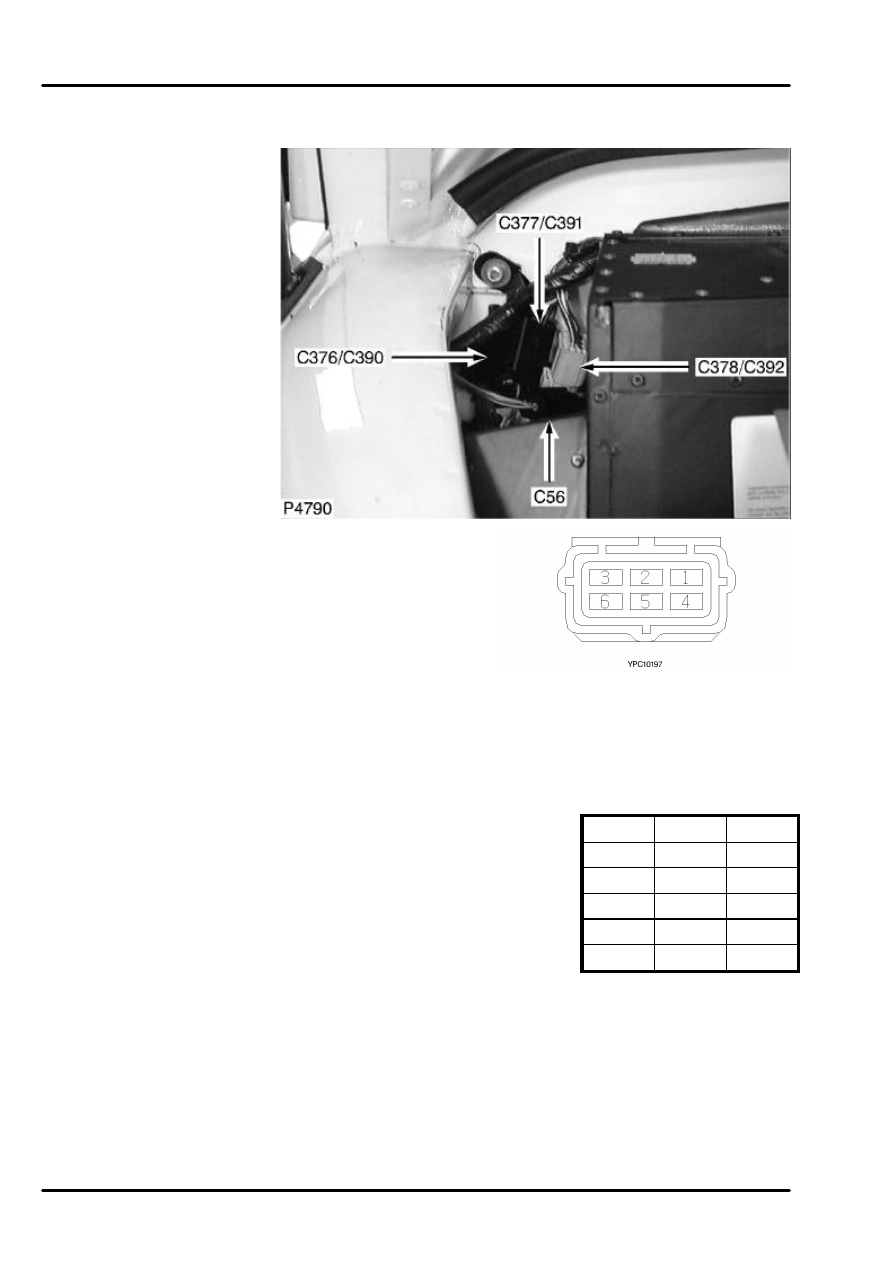

C378

C378
MAIN HARNESS TO
CHASSIS HARNESS
6 Way
Female
WHITE
Under bonnet, RH inner
fender

Cav

Color Cct

1

WB

ALL

2

PU

ALL

3

G

ALL

4

NLG

ALL

6

PW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C379

C379
MAIN HARNESS TO
CHASSIS HARNESS
4 Way
Male
NATURAL
Above gearbox

Cav

Color Cct

1

BW

ALL

2

BG

ALL

3

BN

ALL

4

BU

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C384

C384

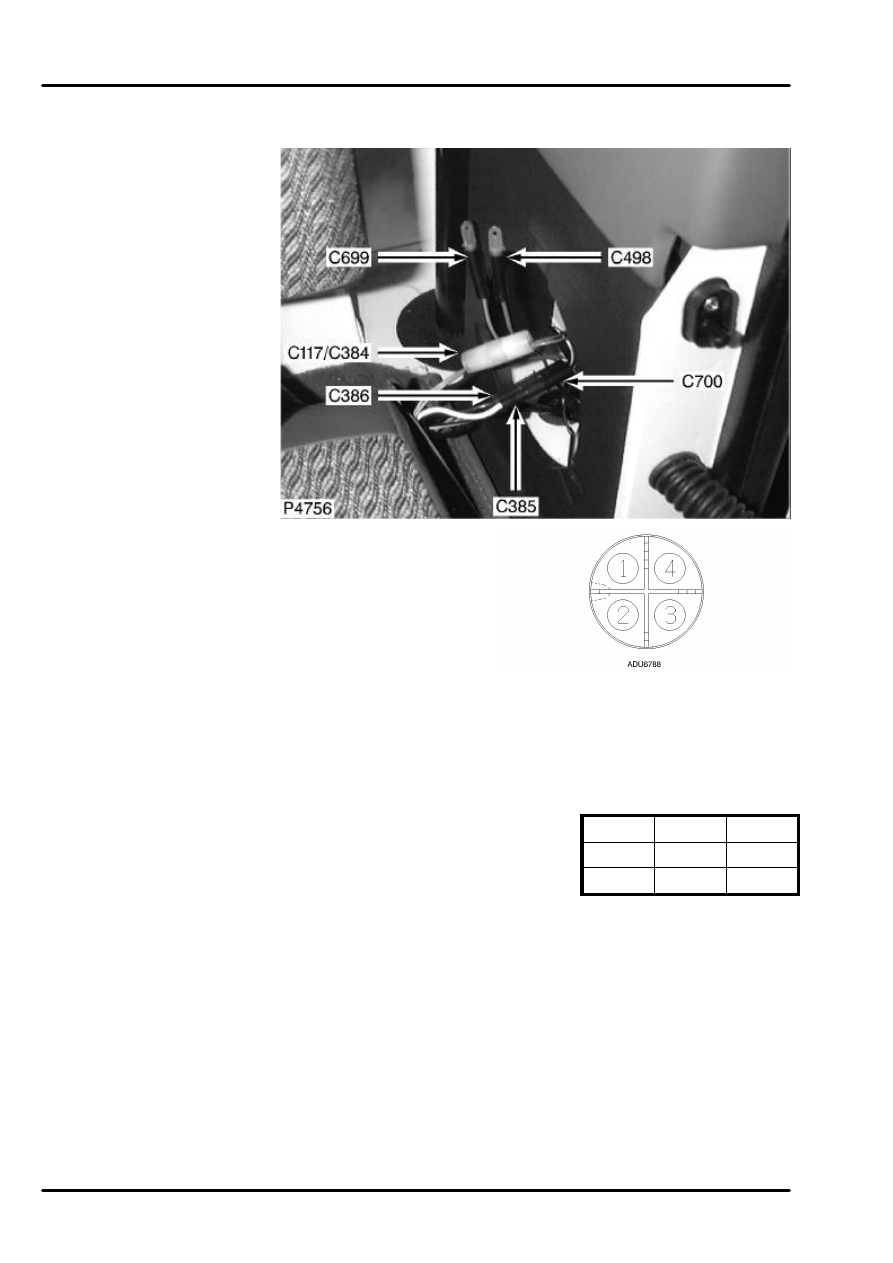

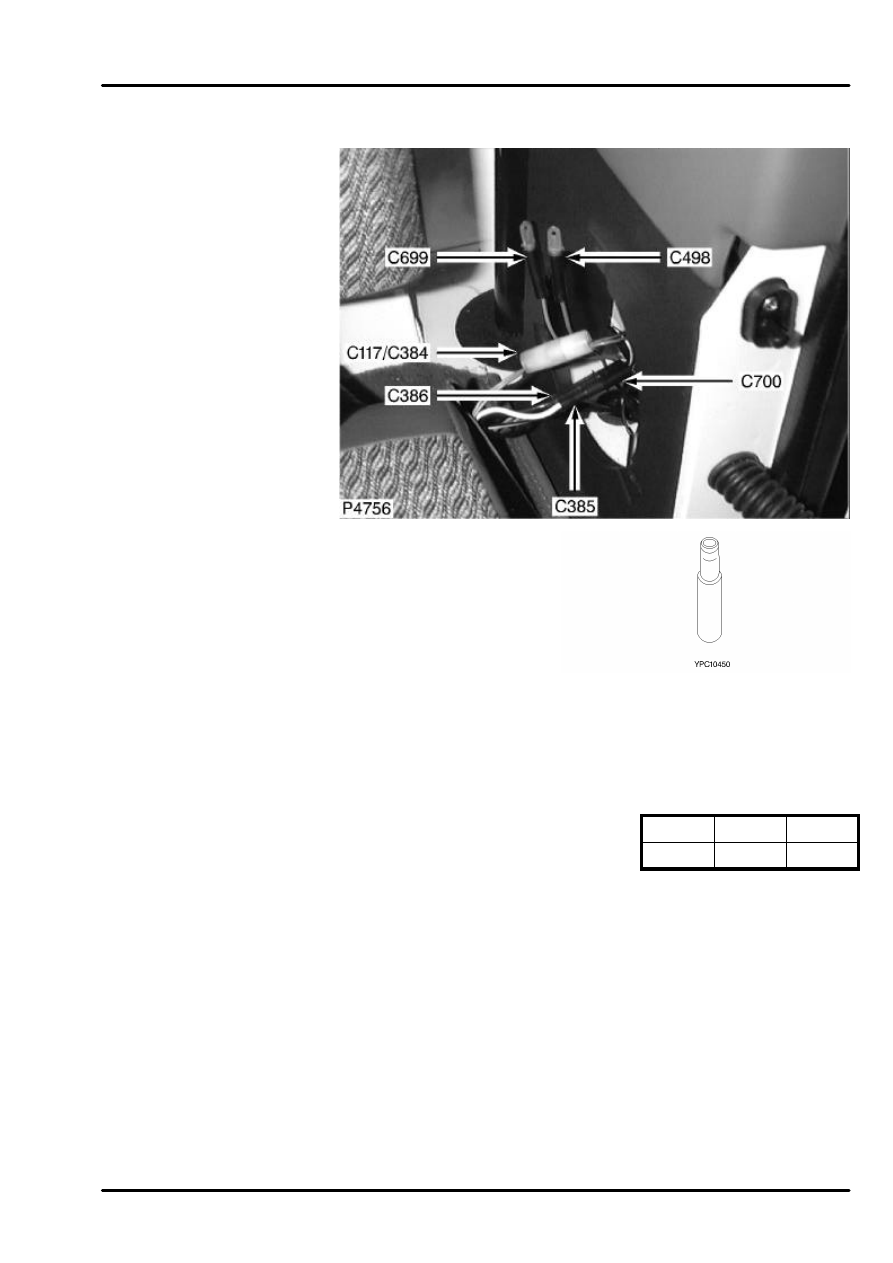

TAILGATE HARNESS
TO CHASSIS HARNESS
4 Way
Male
WHITE
Behind RH rear speaker

Cav

Color Cct

1

G

ALL

2

NLG

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C385

C385
TAILGATE HARNESS
TO CHASSIS HARNESS
1 Way
Female
BLACK
Behind RH rear speaker

Cav

Color Cct

1

WB

ALL
