   CONNECTOR DETAILS

DEFENDER 90 NAS

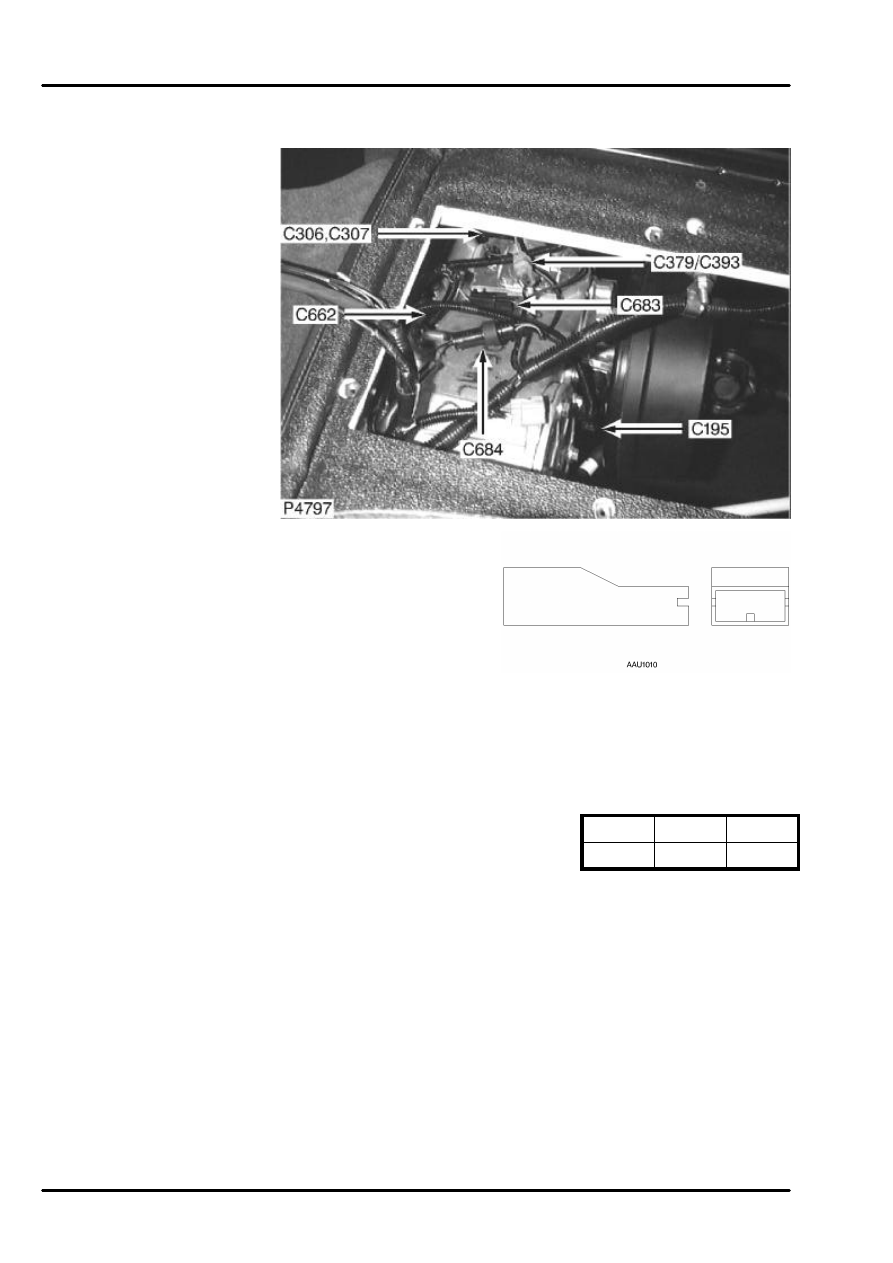

C307

C307
DIFFERENTIAL LOCK
1 Way
Female
BLACK
Above gearbox

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C308

C308

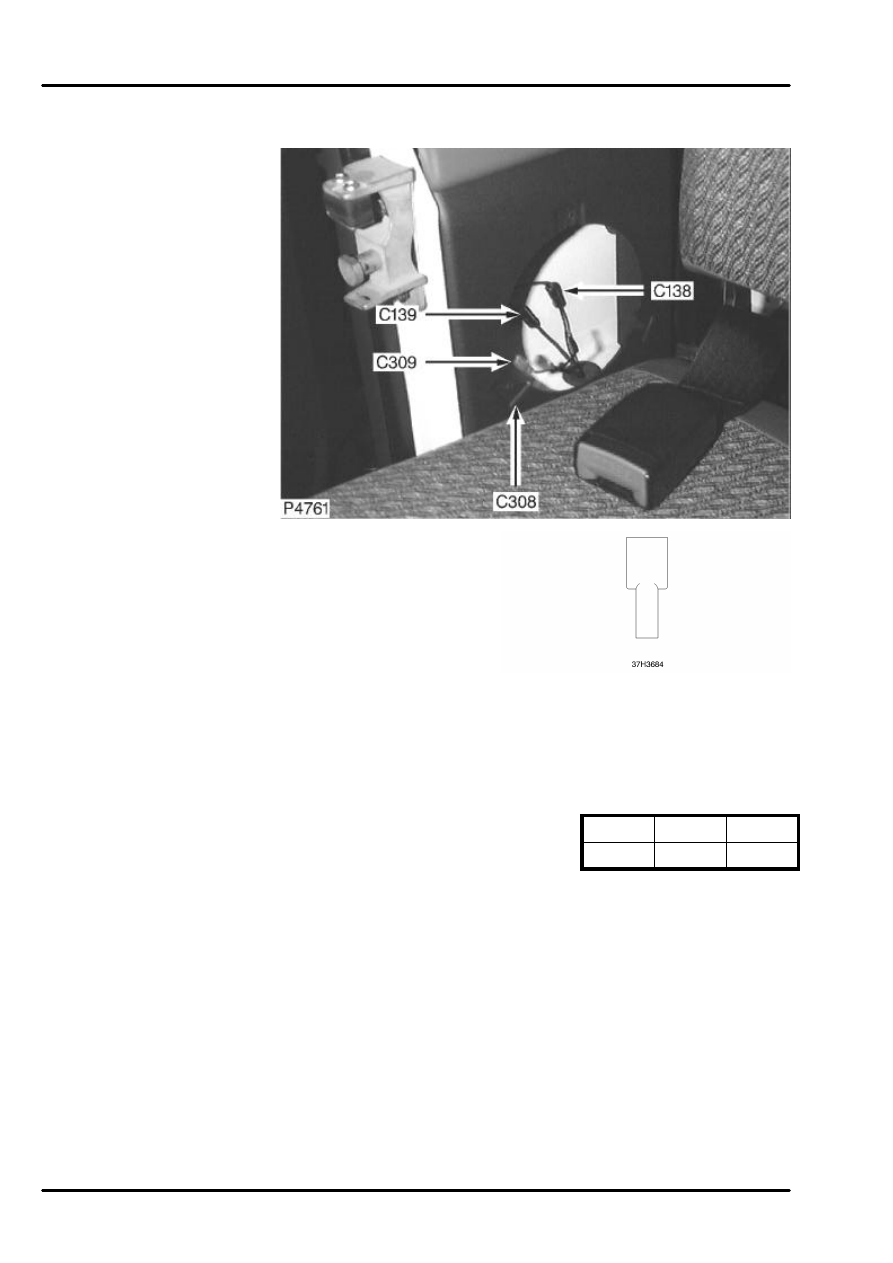

REAR SPEAKER D

Behind LH rear speaker

Cav

Color Cct

1

BU

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

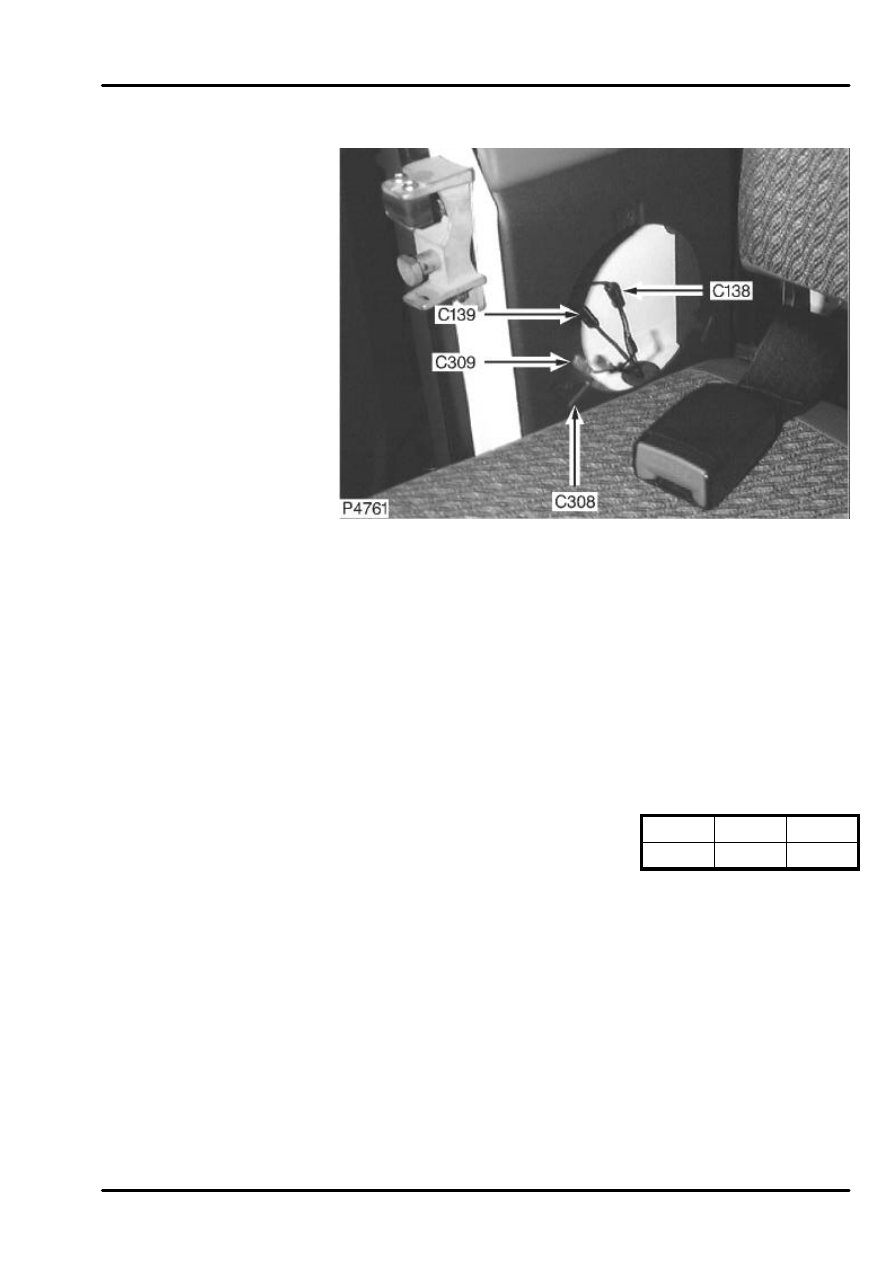

C309

C309
REAR SPEAKER C
1 Way
Female
NATURAL
Behind LH rear speaker

Cav

Color Cct

1

BG

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

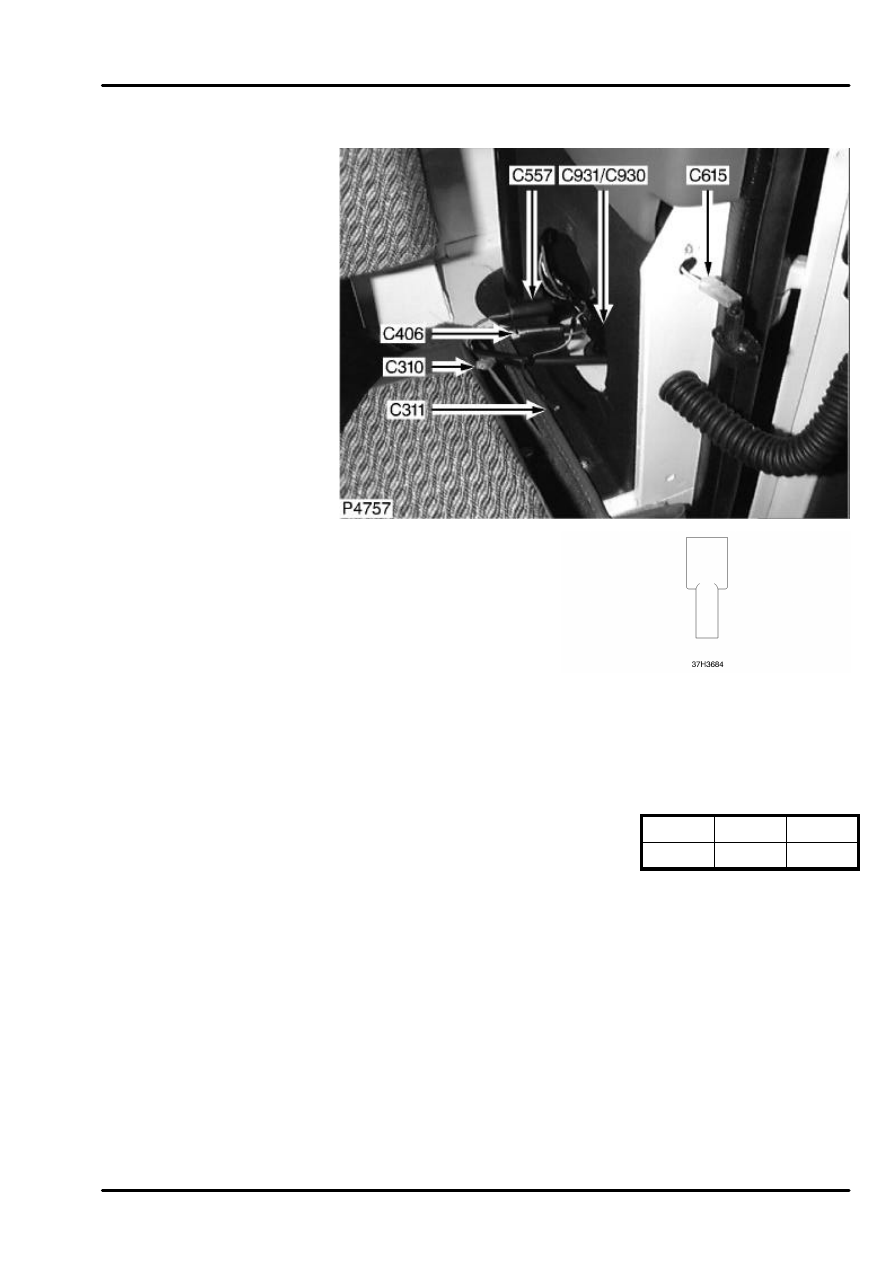

C310

C310
REAR SPEAKER A
1 Way
Female
NATURAL
Behind RH rear speaker

Cav

Color Cct

1

BW

ALL
