Defender Electric Diagrams. Manual - part 35

   CONNECTOR DETAILS

DEFENDER 90 NAS

C91

C91

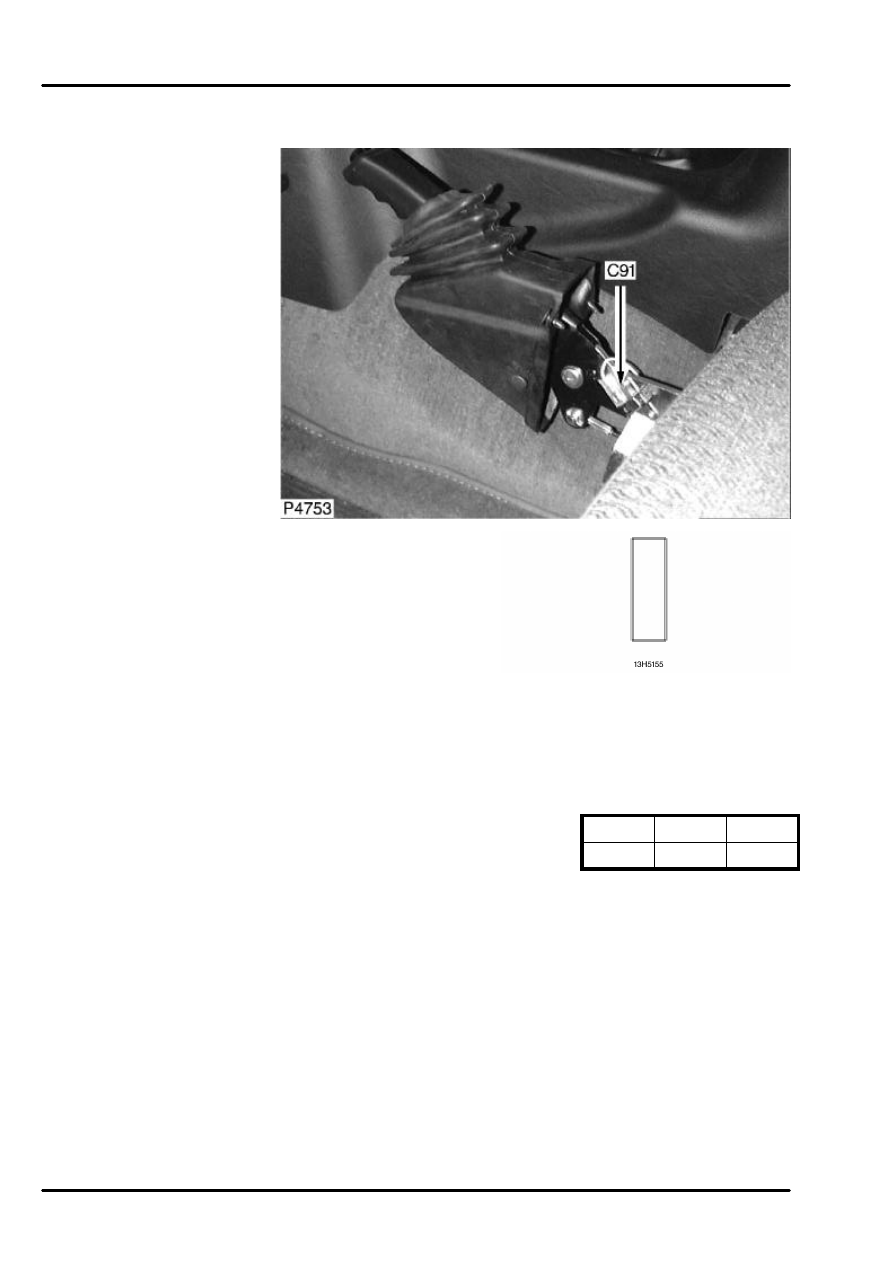

HANDBRAKE SWITCH
1 Way
Female
BLACK
Base of handbrake lever

Cav

Color Cct

1

WY

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C92

C92

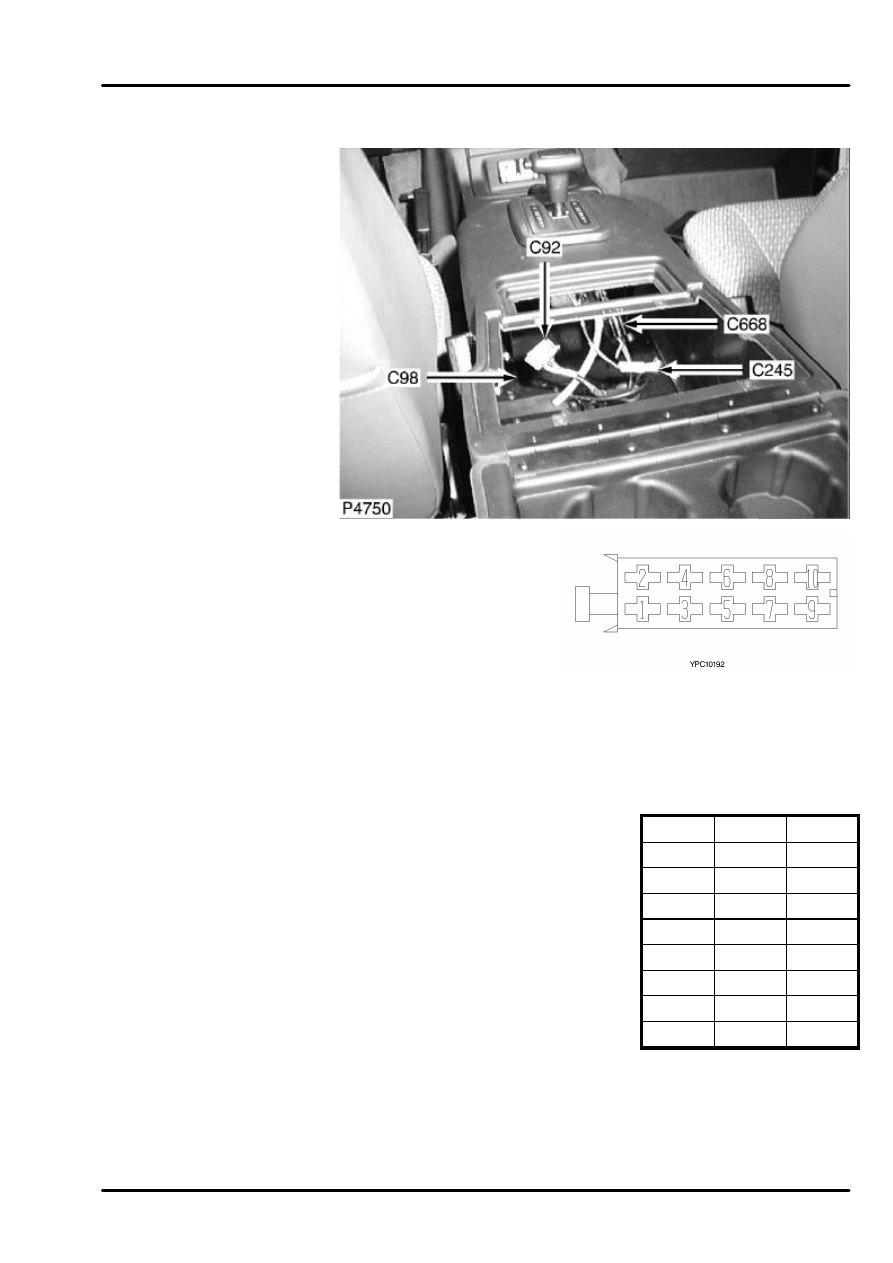

RADIO SPEAKERS
10 Way
Female
RED
Behind center console

Cav

Color Cct

1

BW

ALL

2

BN

ALL

3

BK

ALL

4

BR

ALL

5

BY

ALL

6

BO

ALL

7

BG

ALL

8

BU

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C94

C94

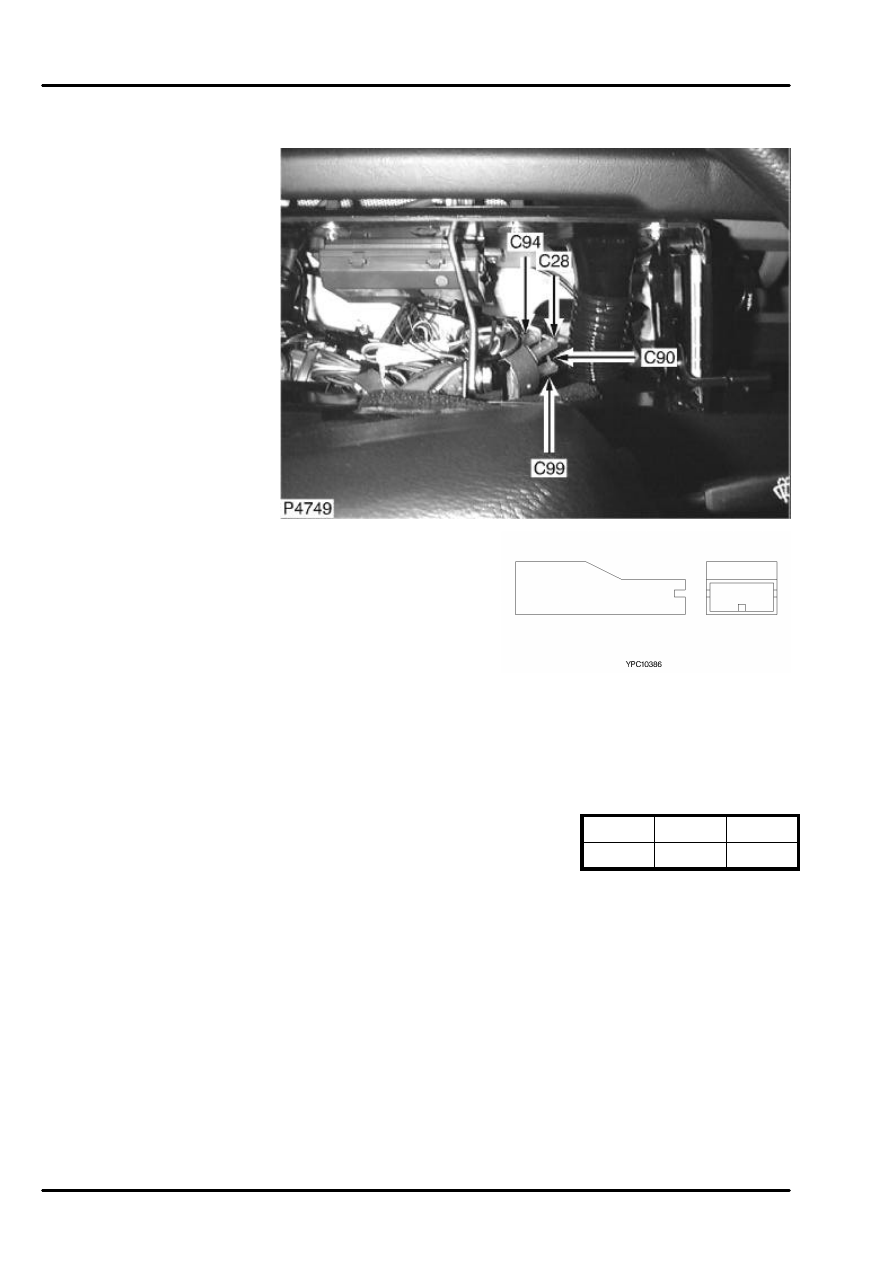

IGNITION SWITCH
1 Way
Female
NATURAL
Behind instrument pack

Cav

Color Cct

1

W

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C96

C96

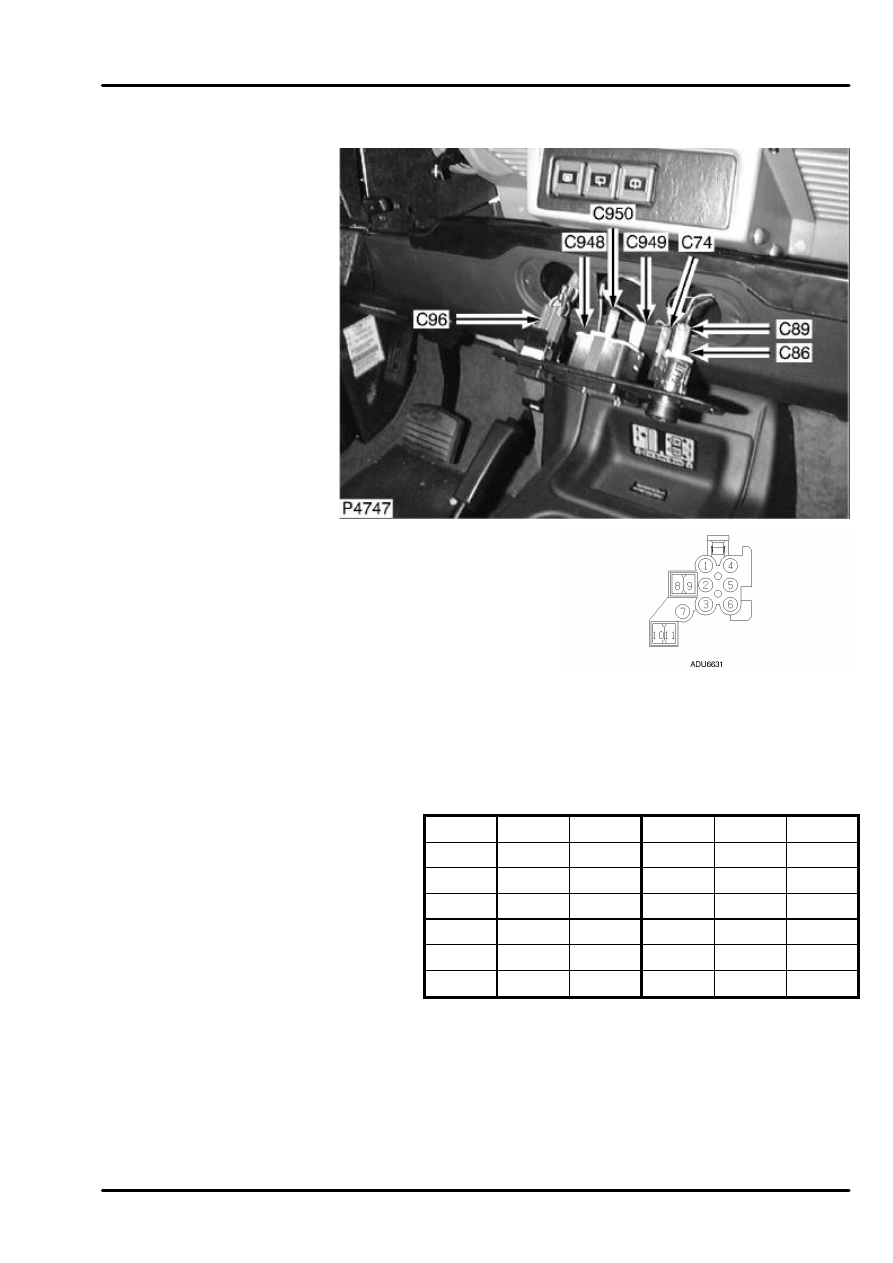

HAZARD WARNING
SWITCH
9 Way
Female
RED
Behind dash trim panel

Cav

Color Cct

Cav

Color Cct

1

LG

ALL

7

BR

ALL

2

P

ALL

8

BR

ALL

3

GW

ALL

9

B

ALL

4

G

ALL

10

B

ALL

5

LGN

ALL

11

RW

ALL

6

GR

ALL
