Defender Electric Diagrams. Manual - part 33

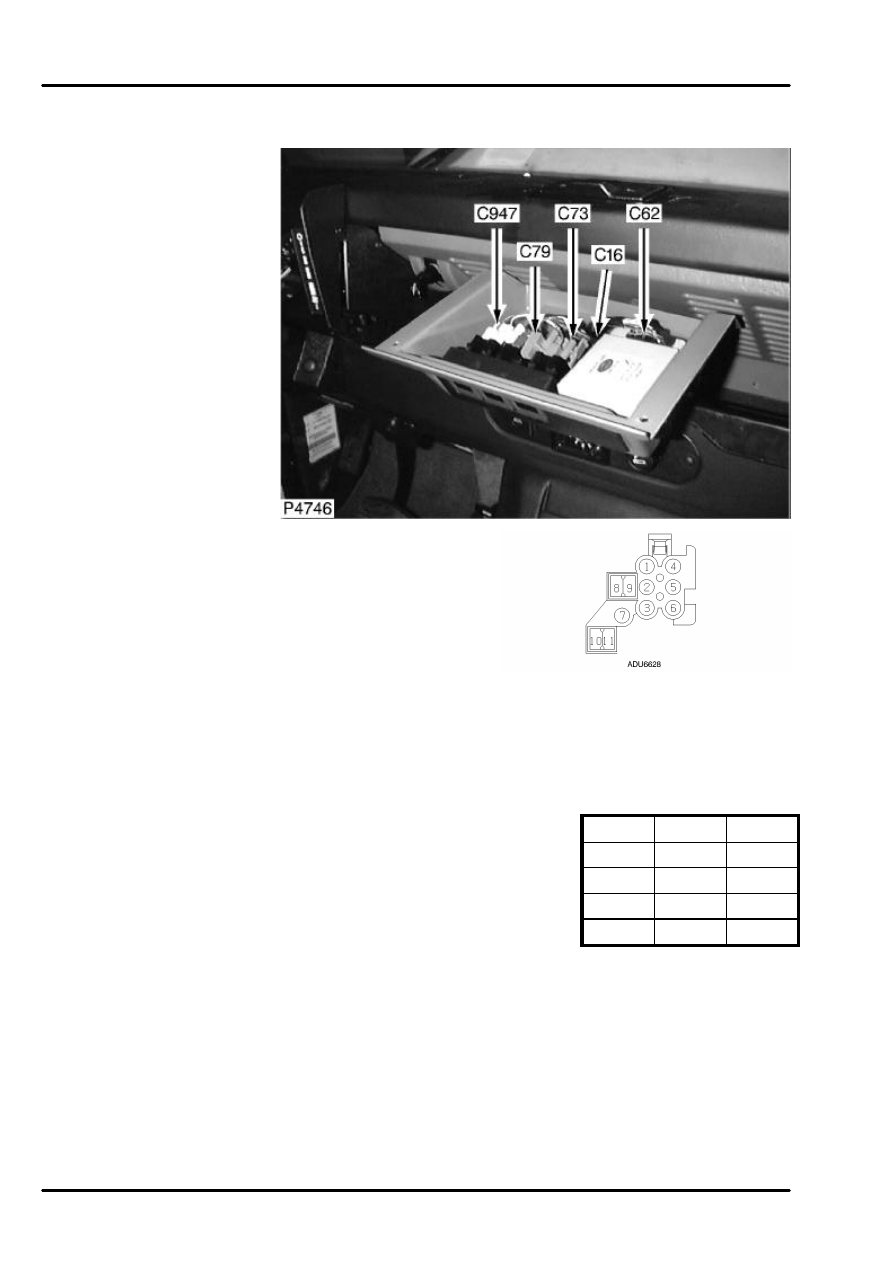

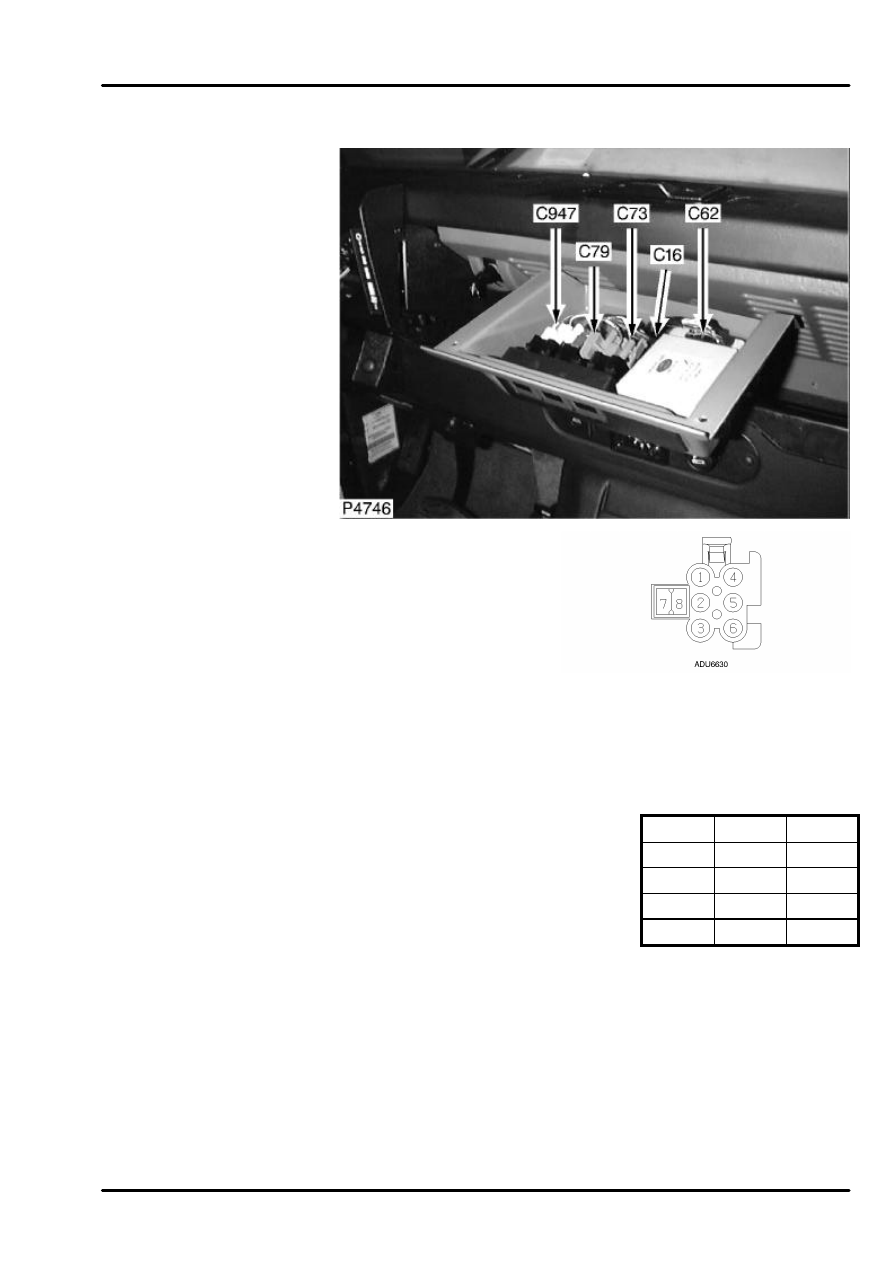

   CONNECTOR DETAILS

DEFENDER 90 NAS

C73

C73
WASHER SWITCH -
REAR
9 Way
Female
BLUE
Behind dash trim panel

Cav

Color Cct

2

BLG

ALL

5

G

ALL

8

RW

ALL

9

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C74

C74
CIGAR
ILLUMINATION
1 Way
Female
NATURAL
Behind dash trim panel

Cav

Color Cct

1

RW

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C75

C75
STOP LAMP SWITCH
1 Way
Female
NATURAL
LH side of fire wall

Cav

Color Cct

1

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C79

C79
WIPER SWITCH -
REAR
7 Way
Female
BROWN
Behind dash trim panel

Cav

Color Cct

2

RLG

ALL

5

G

ALL

7

RW

ALL

8

B

ALL
