Defender. Manual - part 289





Structural adhesive applied around body side lower fixing holes

Seam sealers

A heat cured, PVC Plastisol sealer is applied to joint areas during factory assembly. This material is not suitable for

service use.

Carry out seam sealing after the application of primer and before the surfacer and final paint coats. Ensure that surfaces

are first cleaned of all grease and oil. Apply the sealer material to the joint as a bead, either by hand or using an

applicator gun. Where necessary, brush sealer well into the joint and wipe smooth using a cloth soaked with solvent

such as Shell SBP3. This will ensure an acceptable cosmetic finish.

Apply sealer to ALL accessible joints following repair work. Be aware that damage to a vehicle can often result in

deflection to those areas of the body which are remote from the impact. The sealers in these areas can therefore be

disturbed by subsequent straightening and repair operations. Check joints in the vicinity of the area undergoing repair

for evidence of cracked sealer, clean them out as required and re-treat them with fresh sealer using the following

procedure:

Where joints are inaccessible following the reassembly or fitment of components, ensure that a paste-type sealer is

applied to such joints. Certain seams also become inaccessible after the completion of panel repairs. In such instances

the paint process should be carried out and sealers applied before final assembly.

Provided access is adequate, apply the sealer to both sides of the repair joint. Where access is limited to one side only

(e.g. box sections), inject the affected box member with cavity wax.

CAUTION: ALWAYS deploy an extractor unit to remove toxic fumes when using oxy-acetylene equipment to

remove panels treated with wax and sealers.

The following Illustrations show the treatment areas for Seam Sealing.

All areas symmetrically opposite to those shown are also treated.

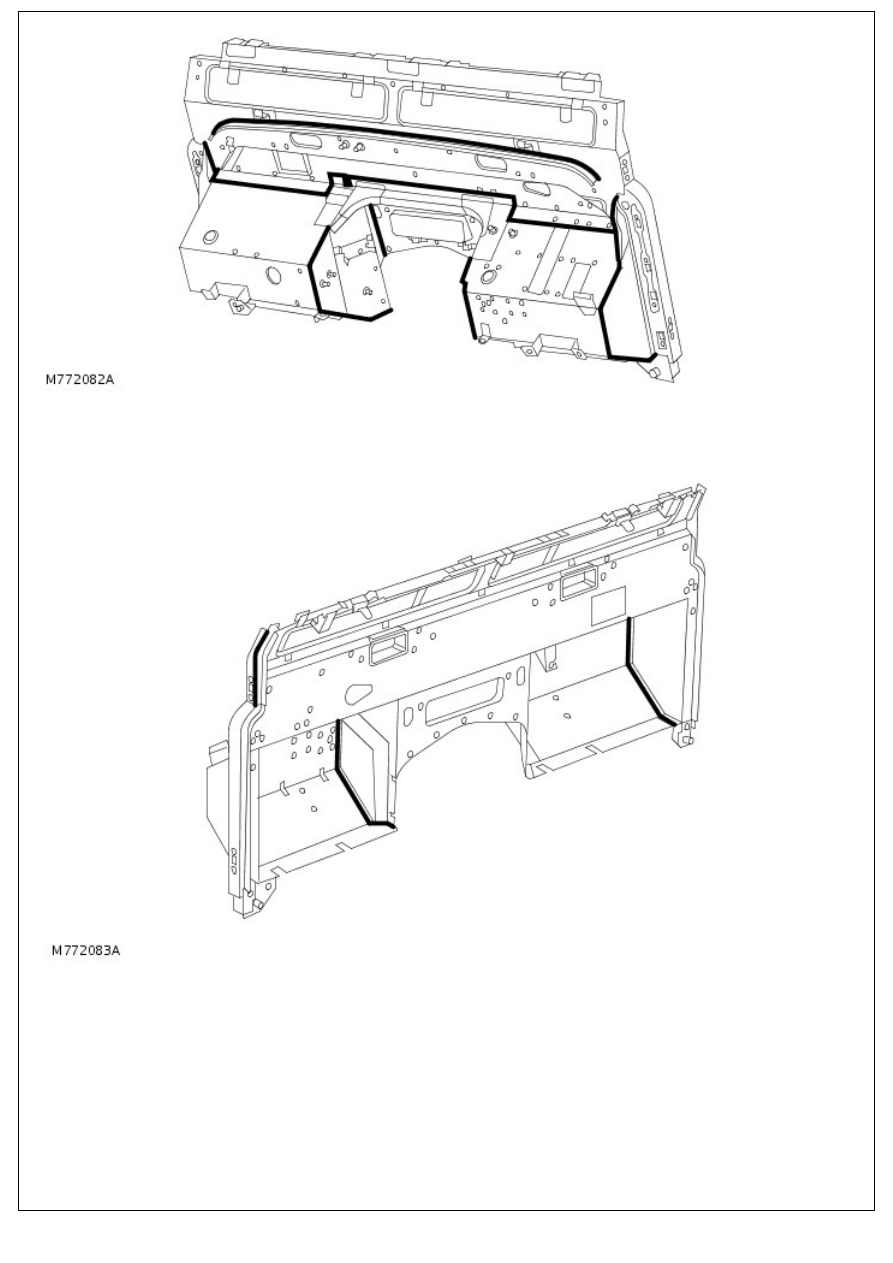

Seam sealing on bulkhead assembly - front view

Seam sealing on bulkhead assembly - rear view

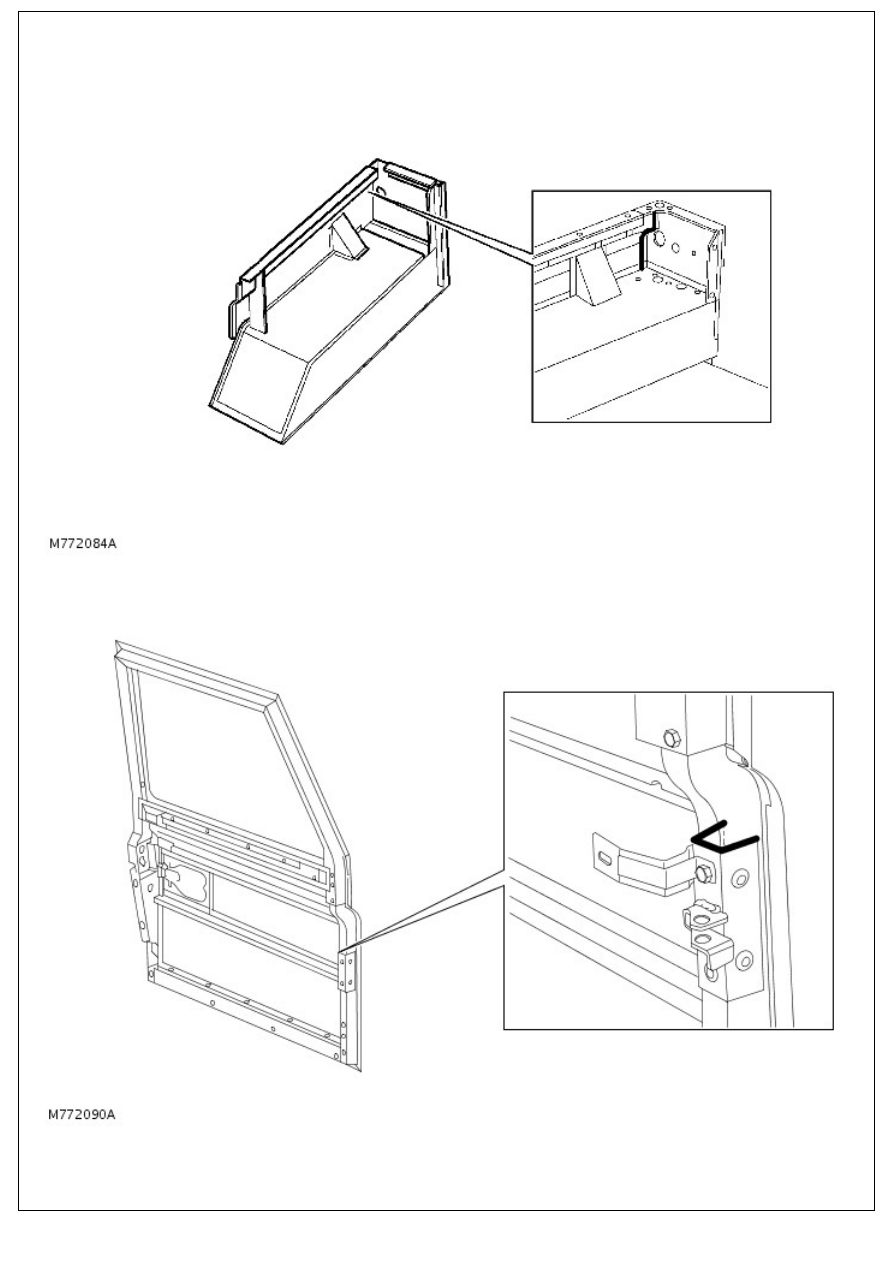

Seam sealer on body side assembly

Seam sealer on front door

• NOTE: Seam sealer to be wiped after application for cosmetic purposes.

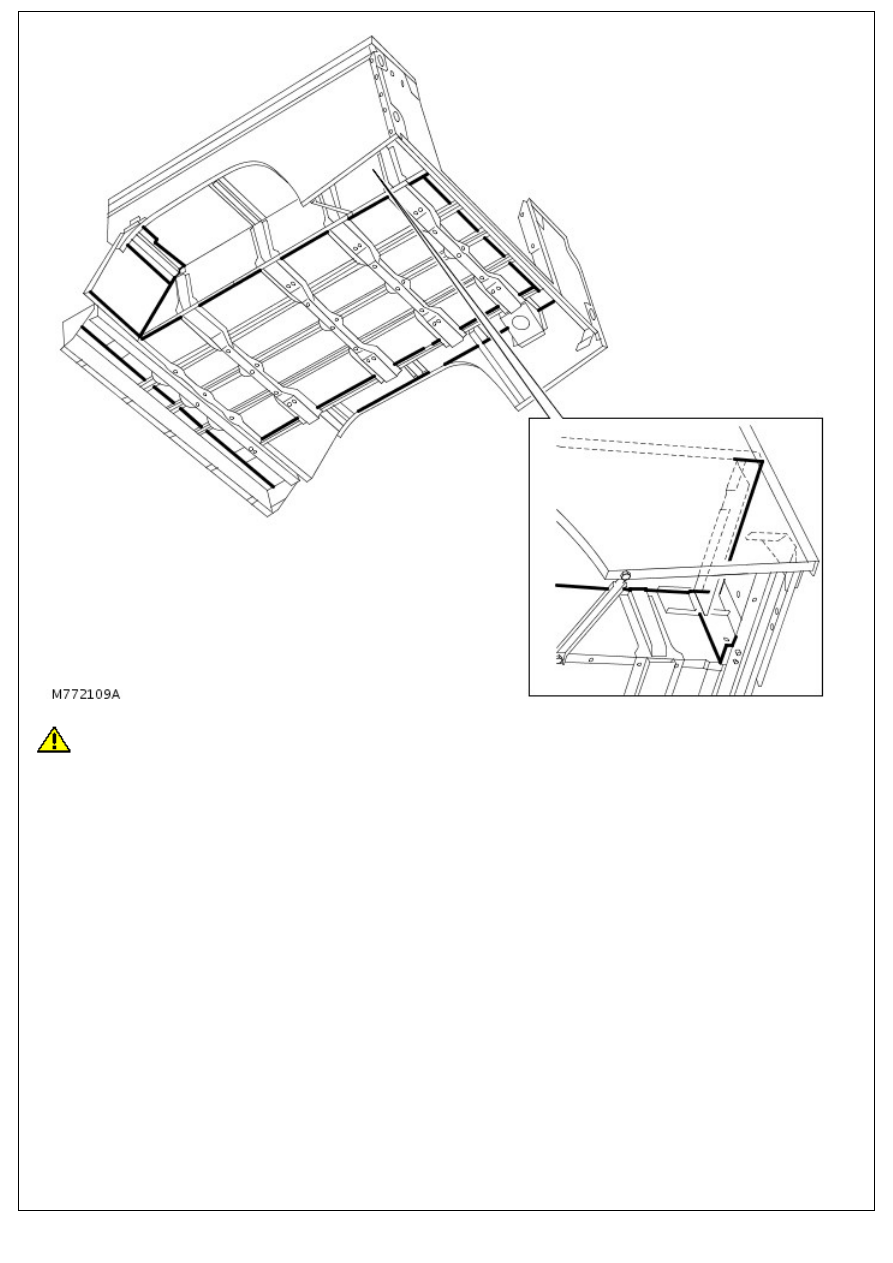

Seam sealer on rear end assembly

CAUTION: Do not block drain holes when applying seam sealer.

Seam sealer on roof assembly
