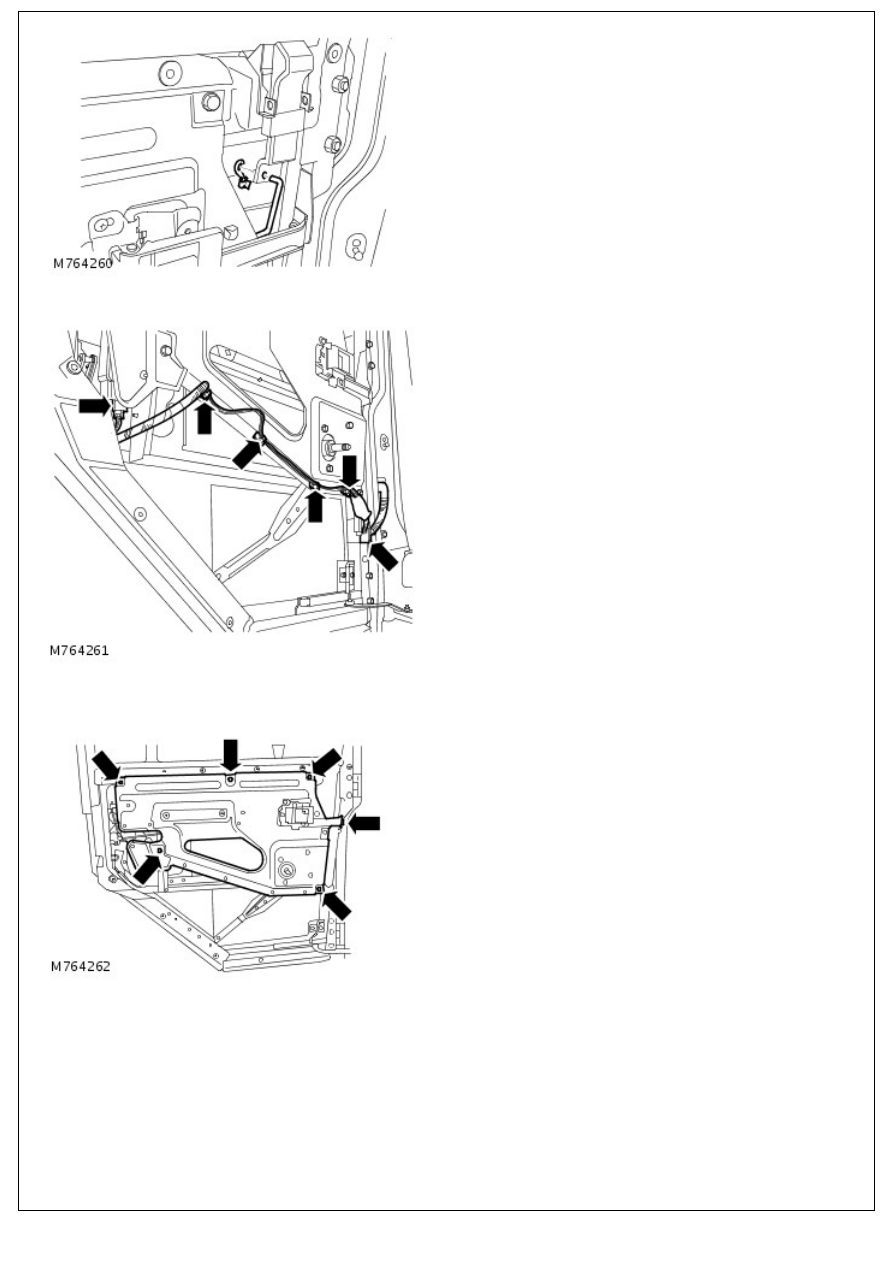

7. Remove clip and disconnect push button link.

8. Release clips securing harness to door reinforcement

panel.

9. Disconnect multiplug from door lock motor.
10. Release harness sleeve and withdraw harness from door.

11. Remove 5 bolts and 1 nut securing door reinforcement

panel.

12. Remove door reinforcement panel.

Installation

1. Position door reinforcement panel assembly, fit bolts and nut

and tighten to 10 Nm (7lbf.ft).

2. Connect multiplug to door lock motor.
3. Secure harness clips and sleeve.
4. Connect interior handle link to latch and secure with clip.
5. Connect link to push button and fit clip.
6. Fit and secure door lock motor link.

7. Remove wedges, lower the glass and locate to regulator. Fit

bolts and tighten to 6 Nm (4 lbf.ft).

8. Raise and lower glass to check operation.
9. Fit plastic sheet to the door.
10. Fit rear door trim panel.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

Body Closures - Taildoor

Removal and Installation

Removal

1. Remove 3 nuts and remove spare wheel.
2. Remove bolt securing check strap to body.

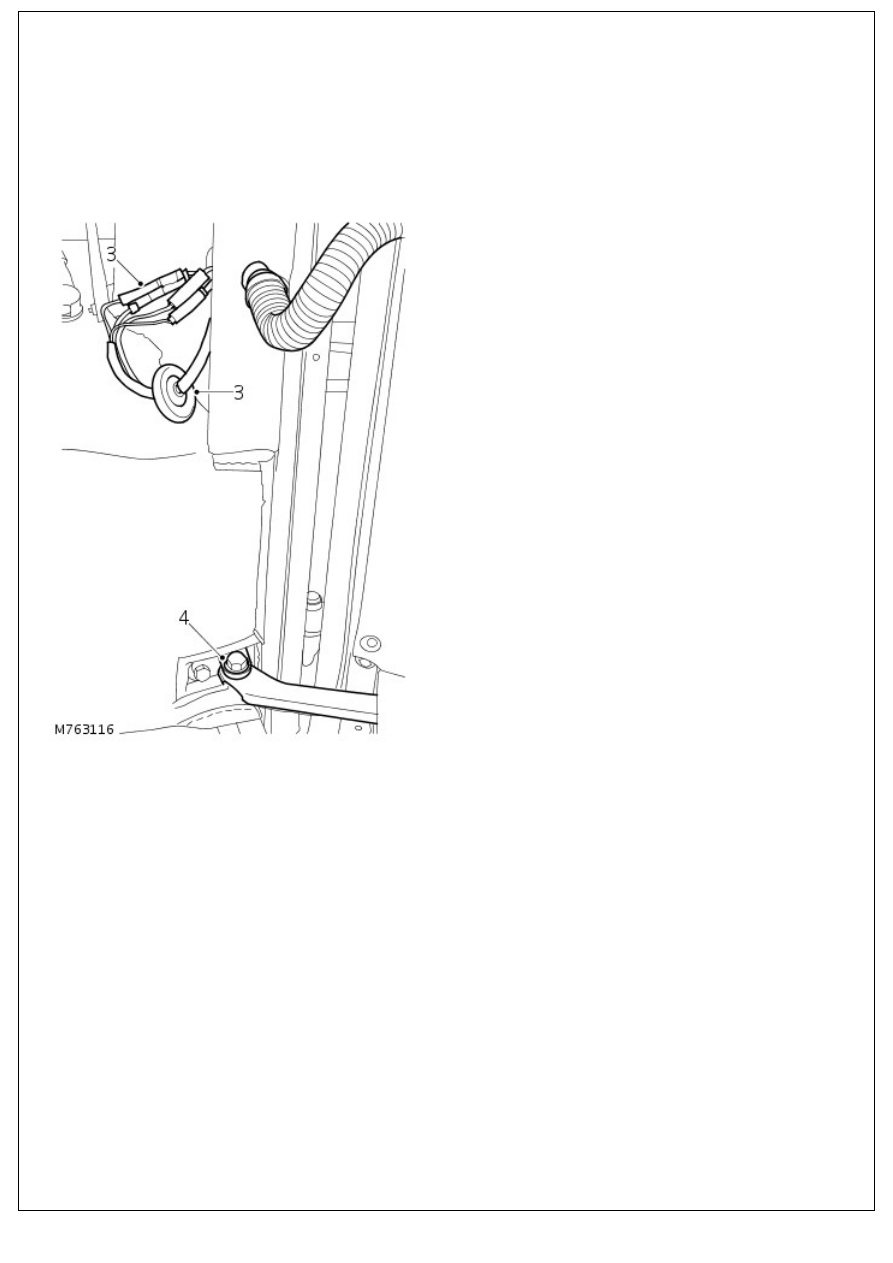

3. Release harness grommet from harness cover, disconnect

connectors and multiplug.

4. Release harness cover and harness from body.

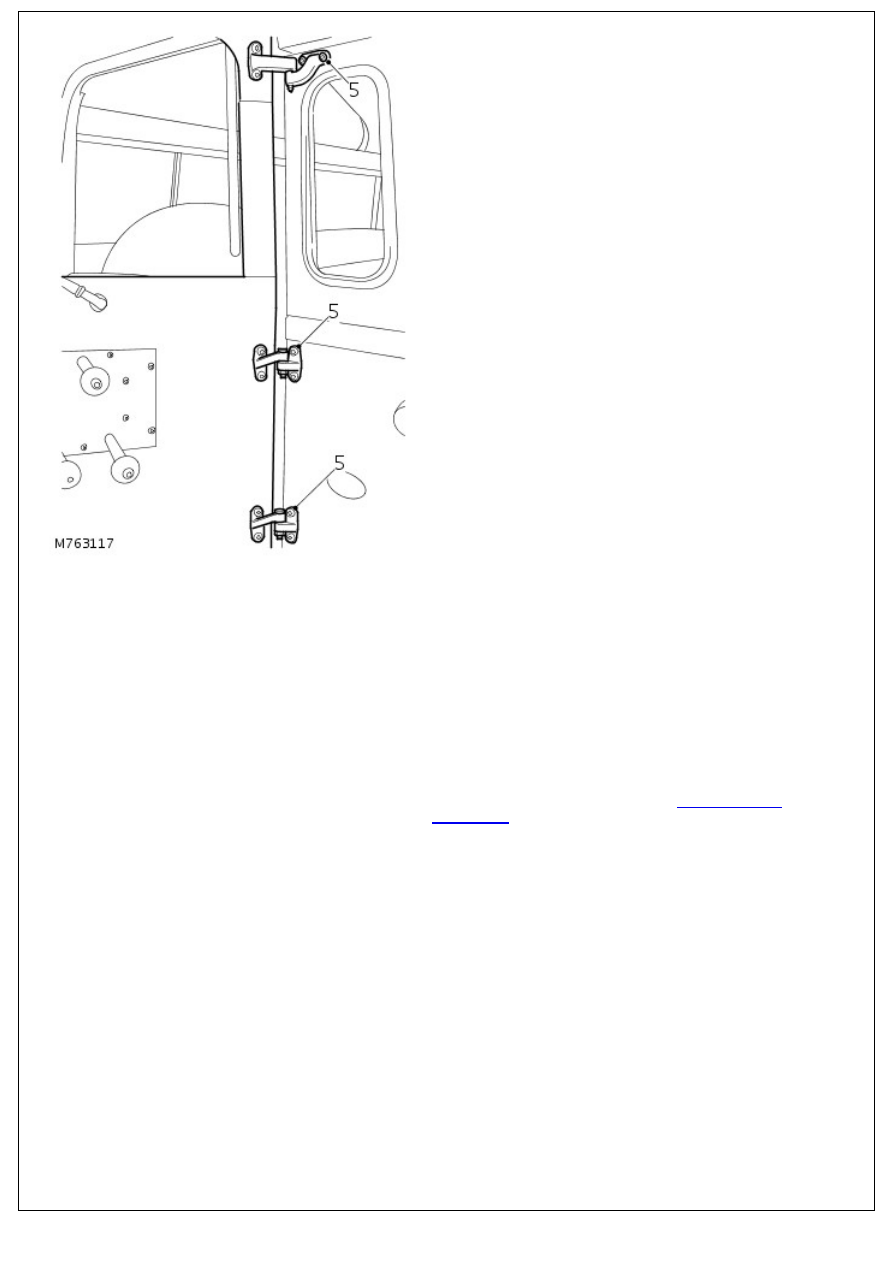

5. With assistance, remove 6 screws securing taildoor hinges

5. With assistance, remove 6 screws securing taildoor hinges

to body and remove taildoor.

Installation

1. With assistance, position taildoor and fit but do not tighten

bolts.

2. Position check strap and tighten bolt.
3. Align taildoor to body and tighten bolts.
4. Position harness through body and secure harness cover.
5. Secure harness connectors and multiplug.
6. Secure harness grommet to body.
7. Position spare wheel to taildoor and tighten nuts.
8. Adjust taildoor striker.

For additional information, refer to:

Taildoor Striker

Adjustment

 (501-03 Body Closures, General Procedures).
