Defender. Manual - part 235





Exterior Lighting - Reversing Lamp Switch

Removal and Installation

Removal

1. Remove the floor console.

For additional information, refer to:

Floor Console

 (501-12

Instrument Panel and Console, Removal and Installation).

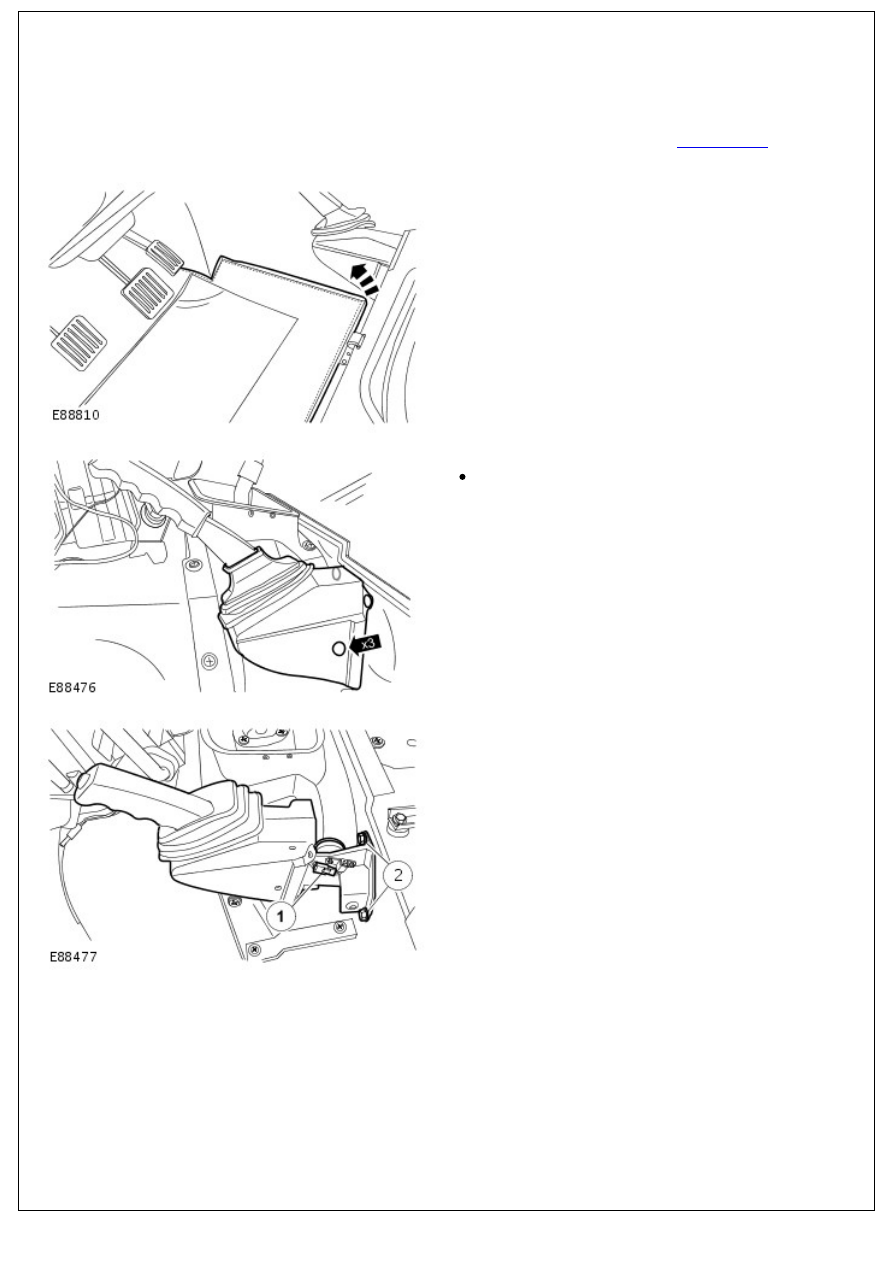

2. Reposition the LH carpet.

3. Release the parking brake lever gaiter.

Remove the 3 clips.

4. Release the parking brake lever.

1. Disconnect the electrical connector.

2. Remove the 2 bolts.

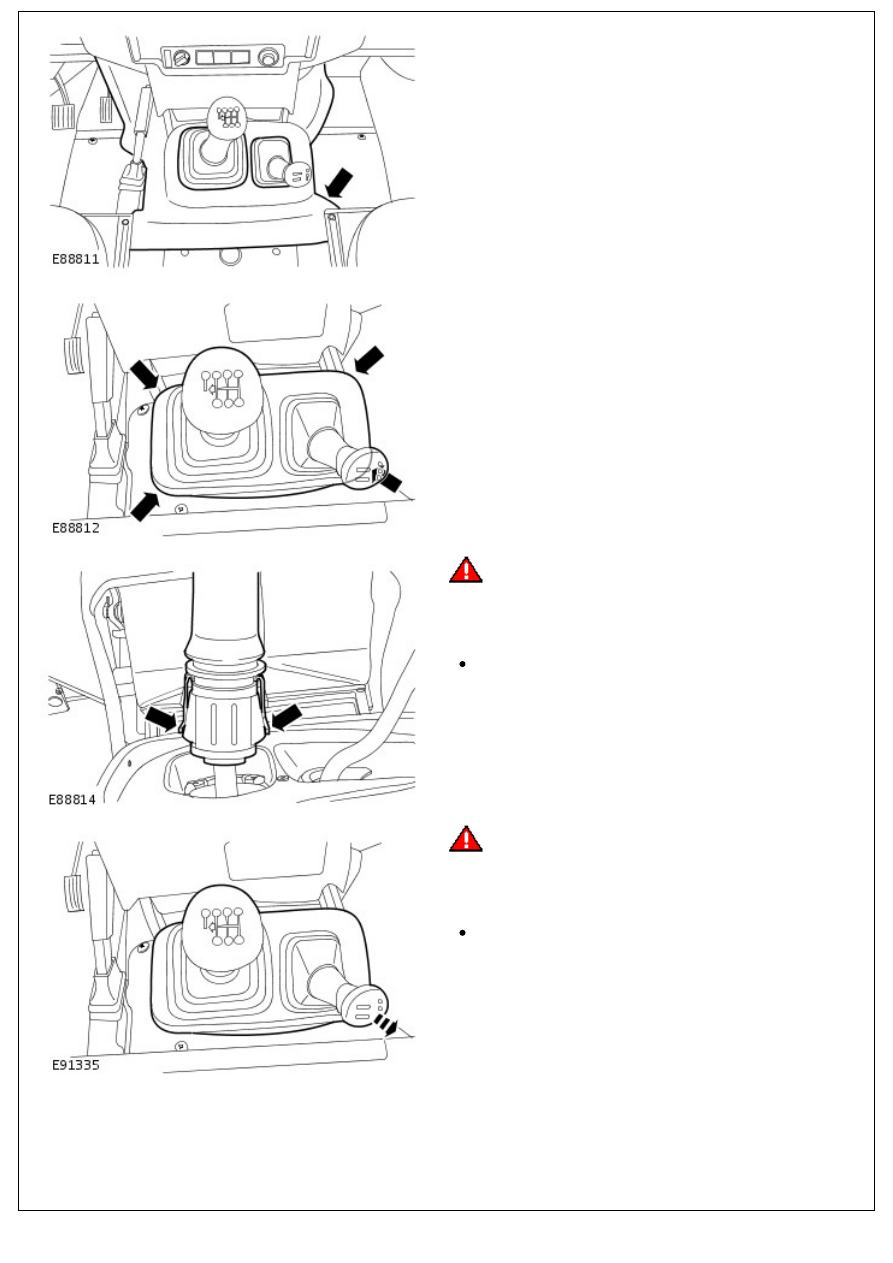

5. Remove the transmission cover panel floor covering.

5. Remove the transmission cover panel floor covering.

6. NOTE: Do not detach the gaiter from the selector knobs.

Detach the gaiter from the transmission cover panel.

7.

WARNING: The gearshift lever knob will be released

suddenly, keep face clear during removal. Failure to follow

this instruction may result in personal injury.

Release the gearshift lever knob.

Release the 2 clips.

8.

WARNING: The high/low range lever knob will be

released suddenly, keep face clear during removal. Failure to

follow this instruction may result in personal injury.

Remove the gaiter and selector levers.

Detach the high/low range selector lever.

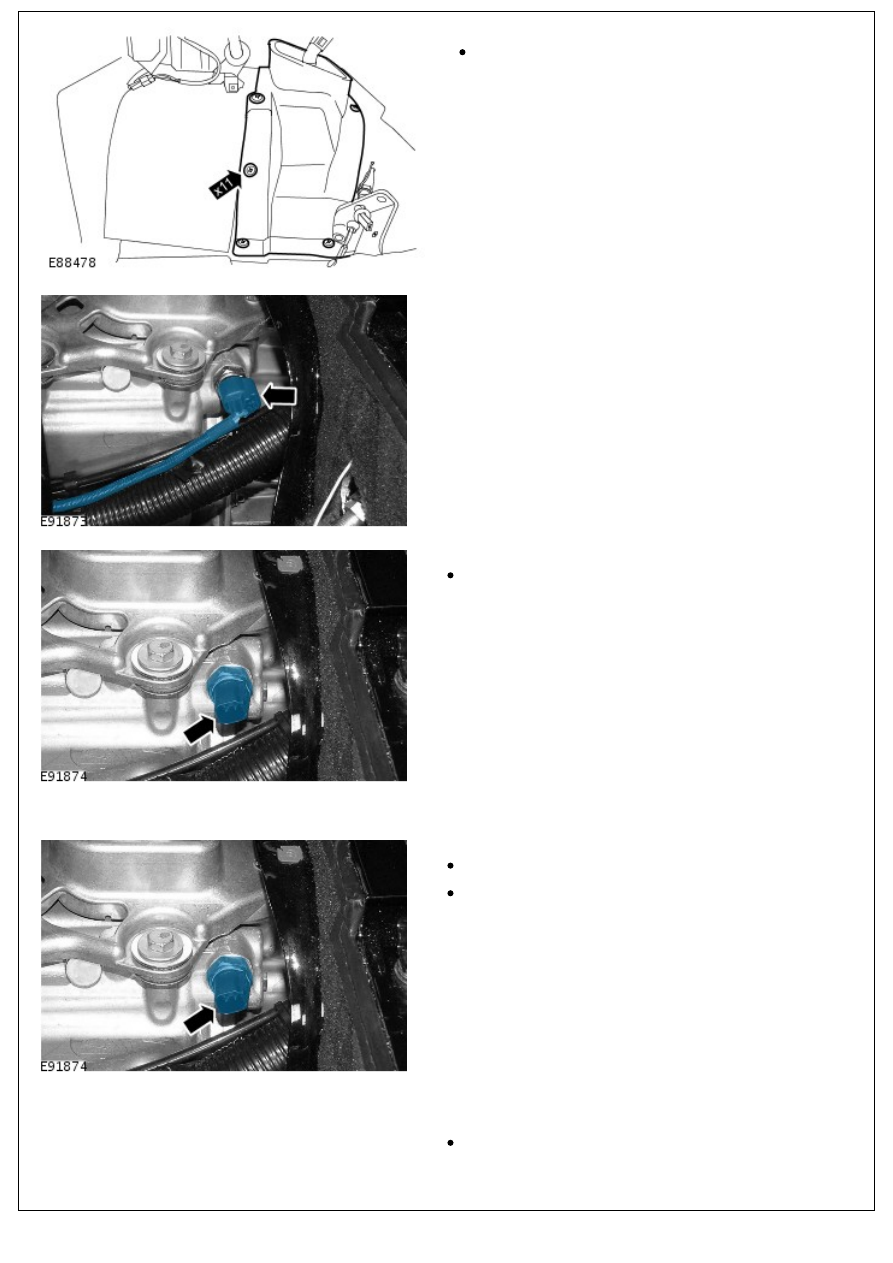

9. Remove the transmission cover panel.

9. Remove the transmission cover panel.

Remove the 11 screws.

10. Disconnect reversing lamp switch connector.

11. Remove the reversing lamp switch.

Remove and discard the O-ring seal.

Installation

1. Install the reversing lamp switch.

Install a new O-ring seal.

Tighten to 20 Nm (15 lb/ft).

2. Connect the reversing lamp switch electrical connector.
3. Install the transmission cover panel.

Install the screws.

4. Install the gaiter with the selector levers attached.

Install the selector levers.

Fully seat the gaiter.

5. Install the transmission cover panel floor covering.

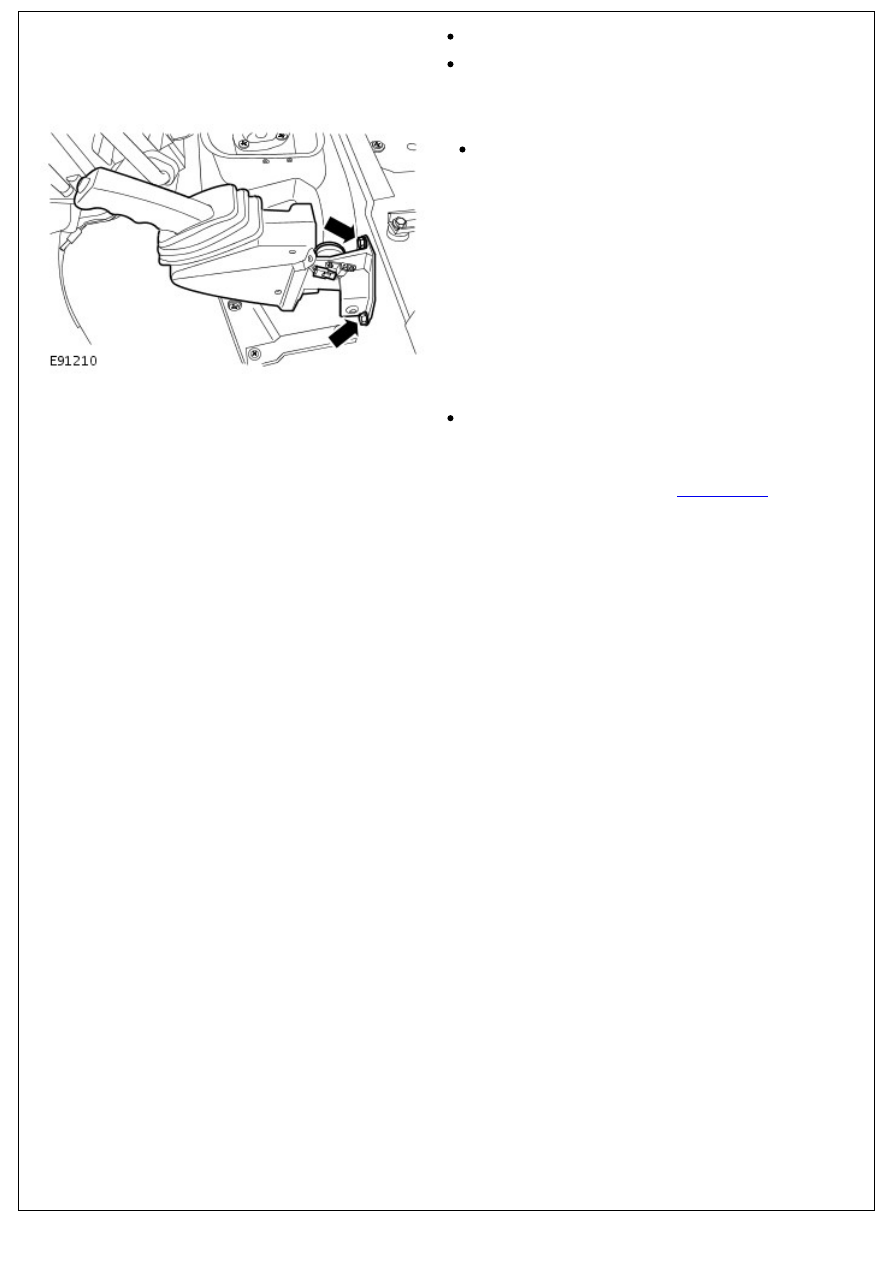

6. Install the parking brake lever.

Tighten to 25 Nm (18 lb.ft)

7. Install the parking brake lever gaiter.

Install the clips.

8. Reposition the LH carpet.
9. Install the floor console.

For additional information, refer to:

Floor Console

 (501-12

Instrument Panel and Console, Removal and Installation).
