Defender. Manual - part 233





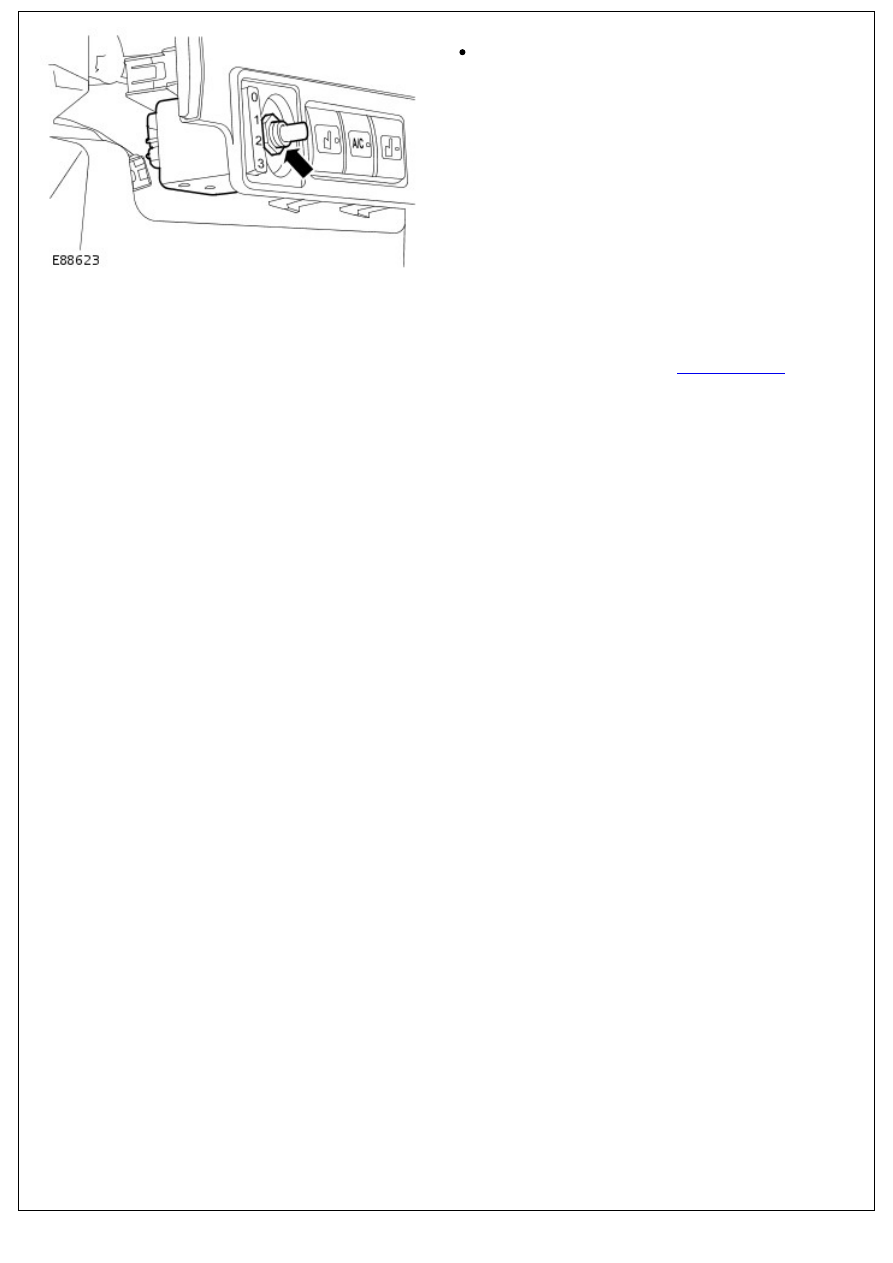

6. Remove the headlamp leveling switch.

Remove the nut.

Installation

1. To install, reverse the removal procedure.
2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

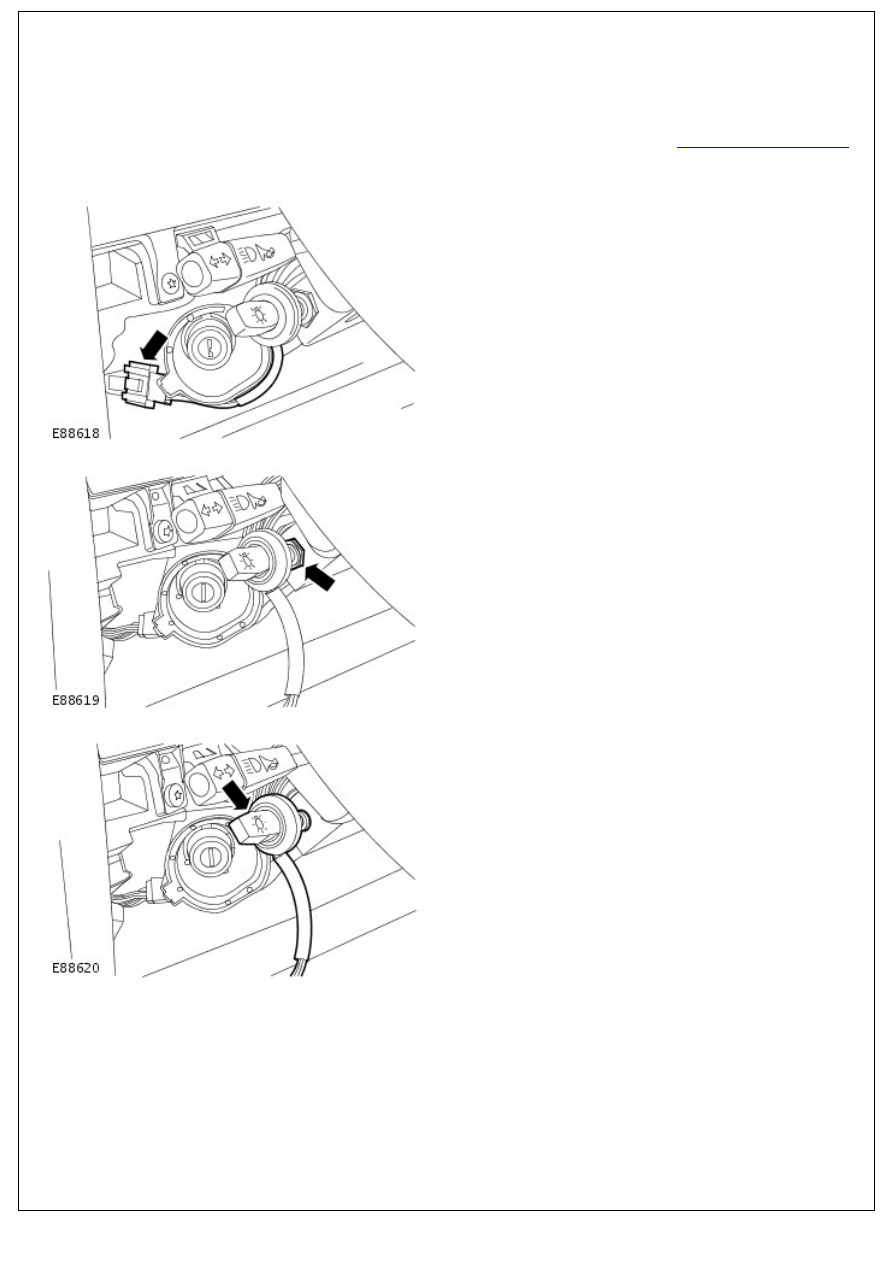

Exterior Lighting - Headlamp Switch

Removal and Installation

Removal

1. Remove the steering column shrouds.

For additional information, refer to:

Steering Column Shrouds

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

2. Disconnect the electrical connector.

3. Release the nut.

4. Remove the headlamp switch.

Installation

1. To install, reverse the removal procedure.

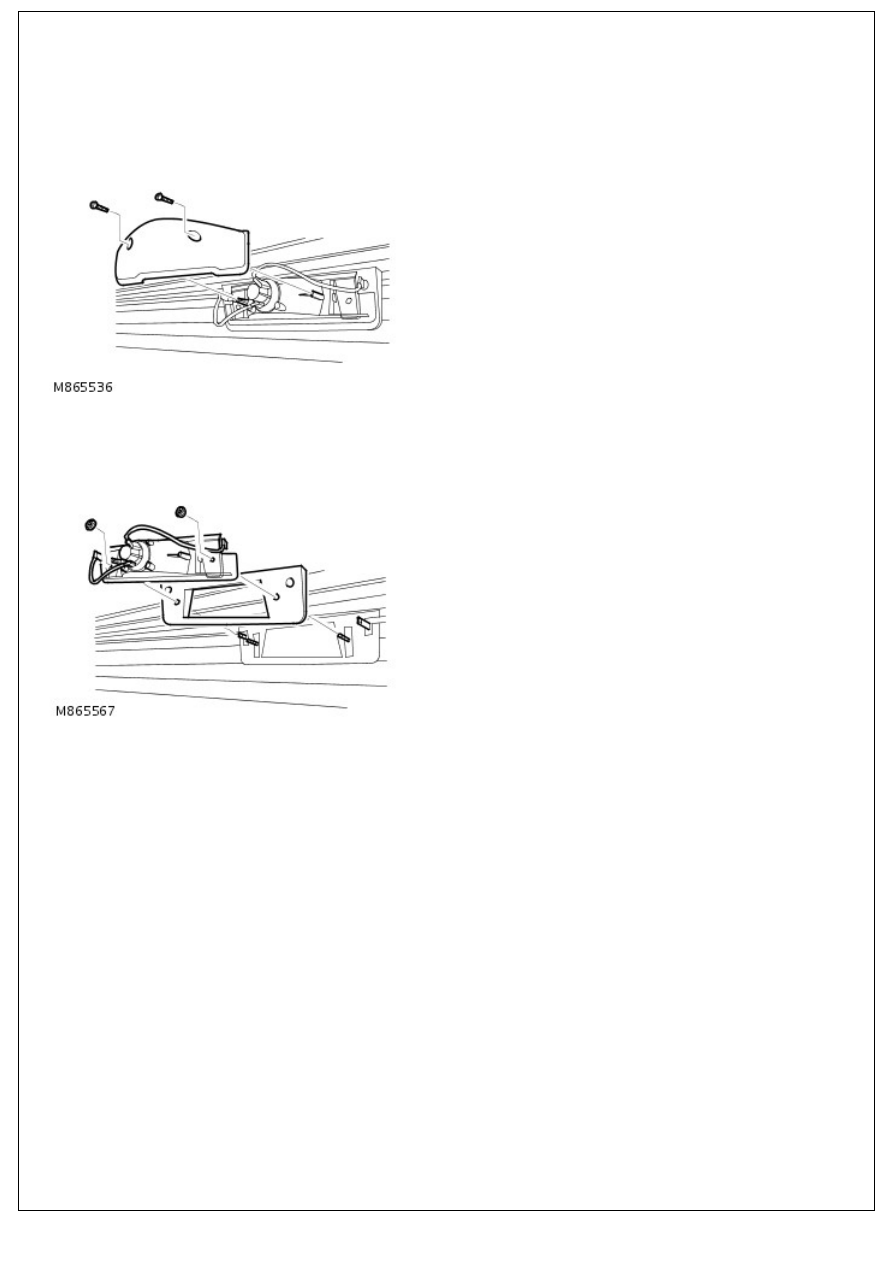

Exterior Lighting - High Mounted Stoplamp

Removal and Installation

Removal

1. Open rear door.

2. Remove 2 screws and cover from the high mounted

stoplamp.

3. Remove insulated cover from connector, release catches and

disconnect connectors taking care not to damage screen

element.

4. Remove nuts securing lamp to rear screen, withdraw high

mounted stoplamp, collect seals and washers.

5. Remove rubber backing pad, taking care not to damage

screen obscuration band.

Installation

1. Clean obscuration band and fit new backing pad.
2. Fit high mounted stoplamp, seals and washers. Fit nuts and

tighten to 3 Nm (2.2 lbf.ft).

3. Insulate connectors, and connect to rear screen.
4. Fit cover to high mounted stoplamp and secure with screws.

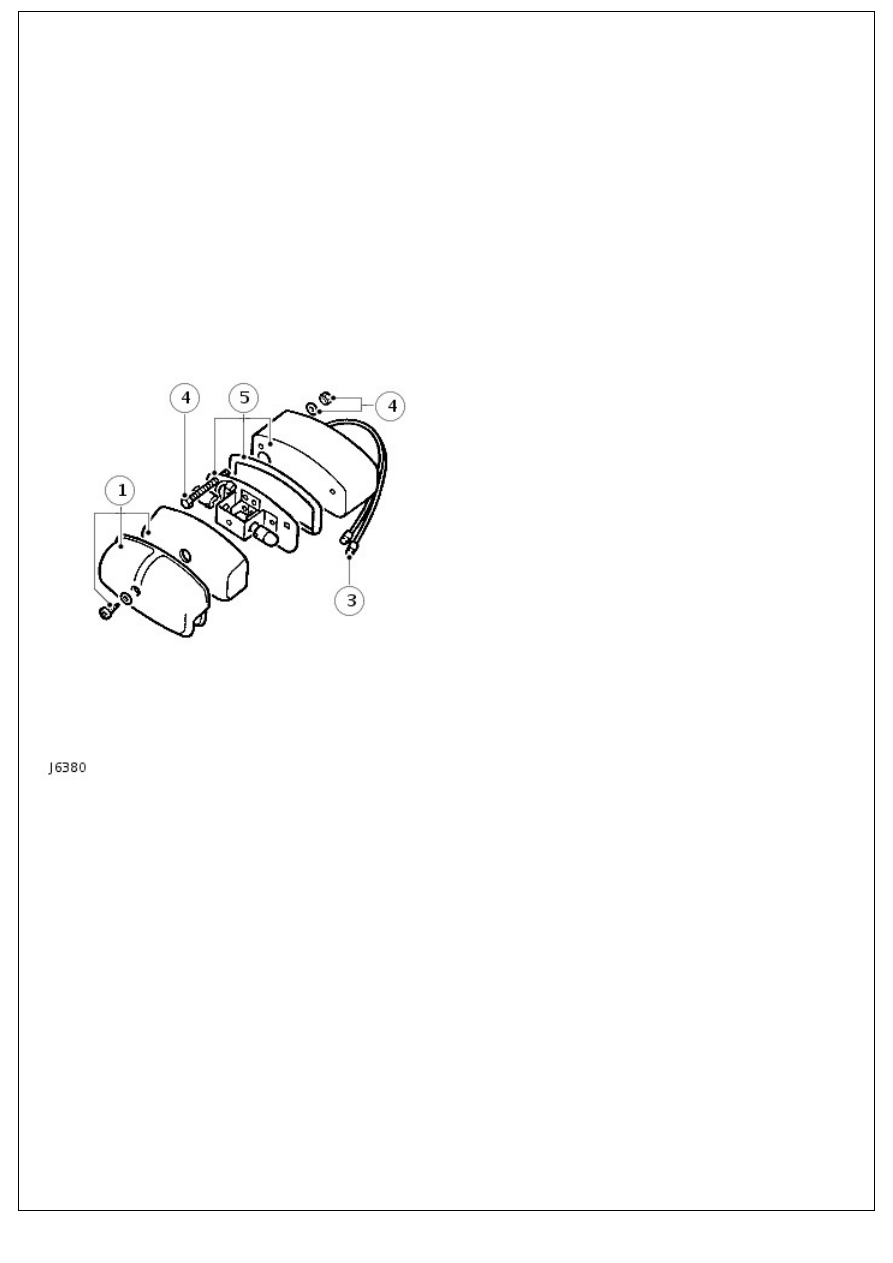

Exterior Lighting - License Plate Lamp

Removal and Installation

Removal

1. Remove single screw and remove lamp cover and lens.
2. Unscrew 2 fixings and remove metal cover to gain access to

lamp fixings and harness leads inside vehicle.

3. Disconnect lamp leads from harness.
4. Remove 2 bolts, nuts and washers securing lamp to vehicle

body.

5. Remove bulb holder, complete with rubber seal and

mounting plinth.

Installation

1. Feed lamp unit leads through vehicle body and secure bulb

holder, seal and plinth.

2. Instal lamp leads to harness connectors.
3. Instal cover to conceal lamp fixings.
4. Instal lens and lamp cover.
