Defender. Manual - part 160





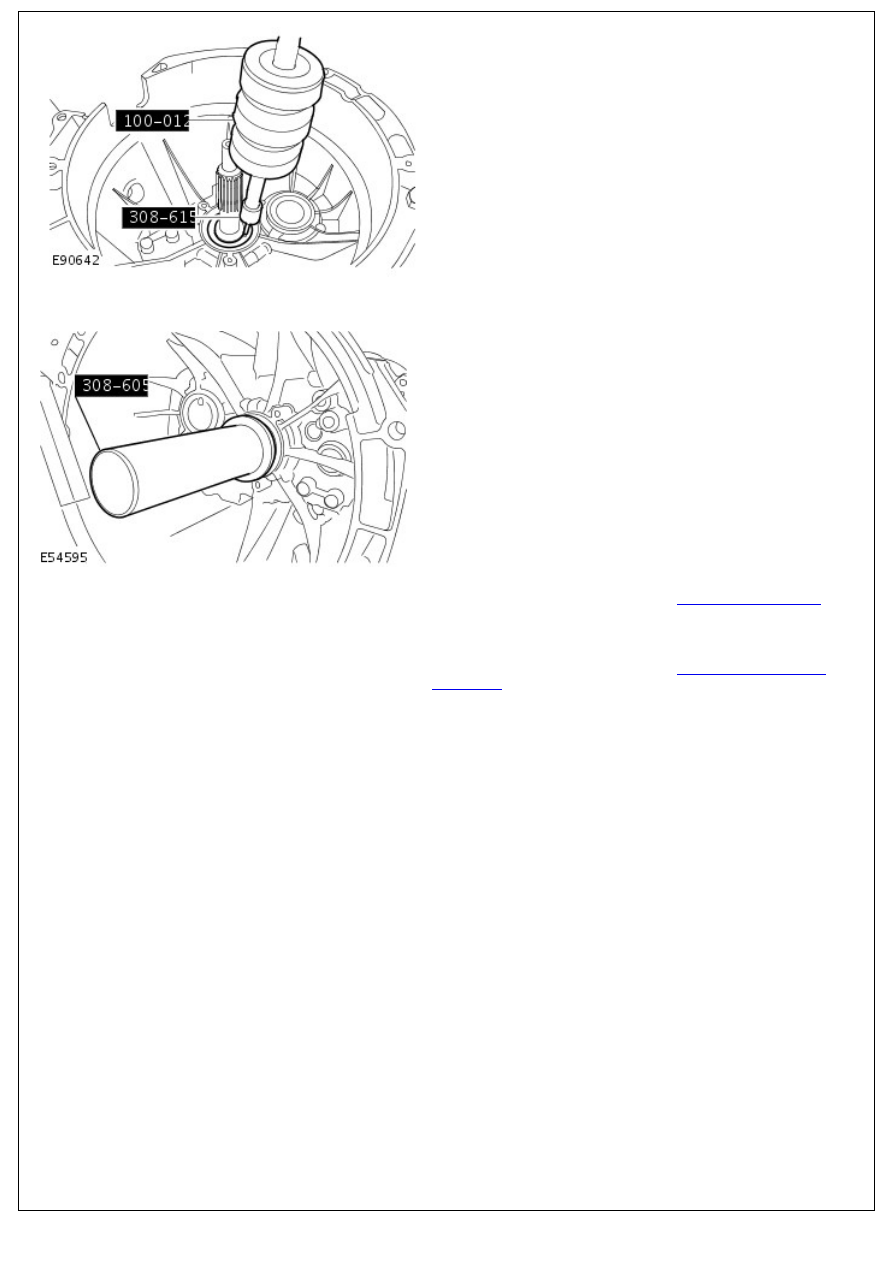

6. Using the special tools, remove and discard the input shaft

seal.

Installation

1. Using the special tool, install the new input shaft seal.

2. Install the clutch slave cylinder.

For additional information, refer to:

Clutch Slave Cylinder

(308-02 Clutch Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

3. Fill the transmission.

For additional information, refer to:

Transmission Draining

and Filling

 (308-03 Manual Transmission/Transaxle, General

Procedures).

Manual Transmission/Transaxle - Output Shaft Seal

In-vehicle Repair

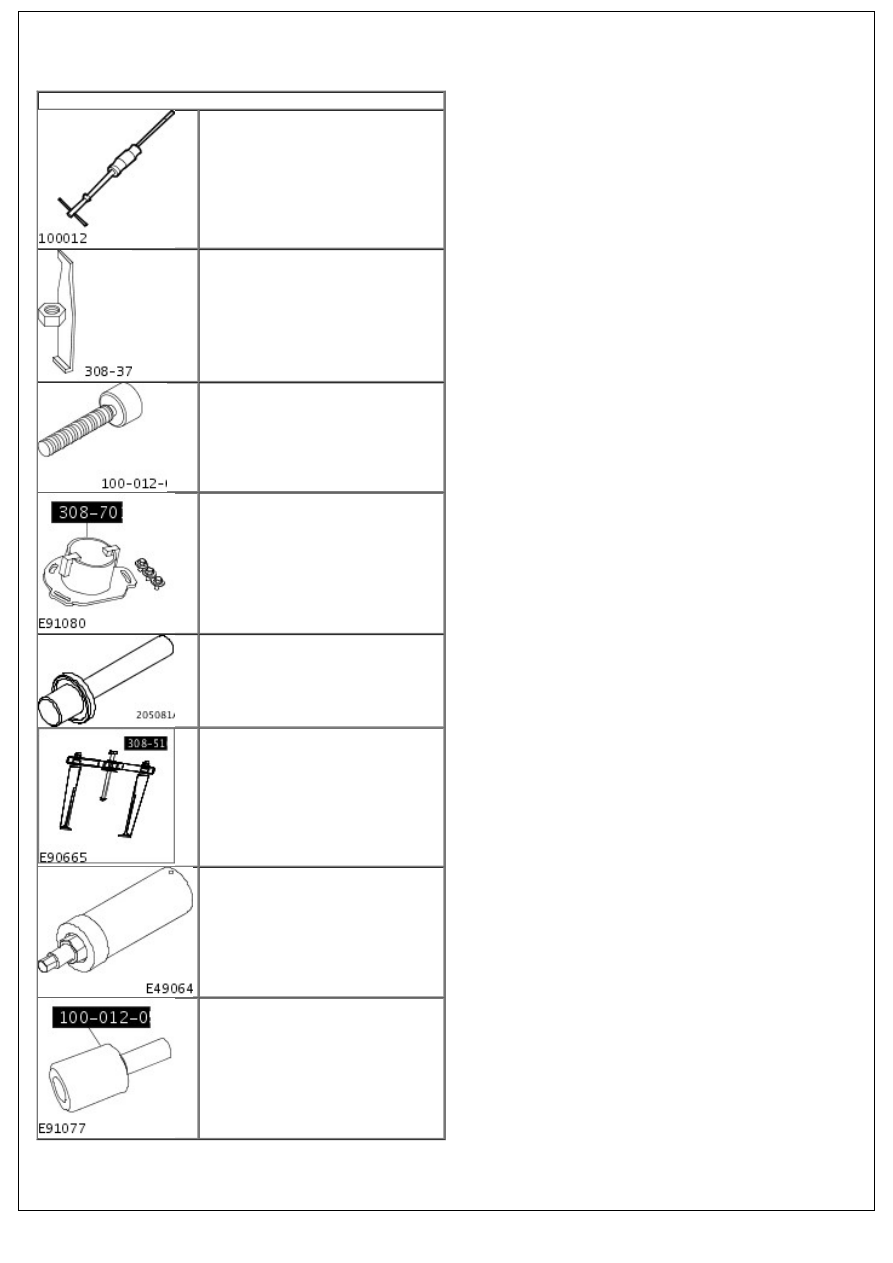

Special Tool(s)

Slide Hammer

100-012

Seal Remover Input and Output

308-375

Slide Hammer Adaptor

100-012-01

Holding Tool, Output Flange

308-701

Installer

205-081A

Long Legged Puller

308-516

Installer, Output Drive Flange Seal

308-604

Adapter Slide Hammer

100-012-05

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the gearshift lever.

For additional information, refer to:

Gearshift Lever

 (308-06

Manual Transmission/Transaxle External Controls - 2.4L

Duratorq-TDCi HPCR (103kW/140PS) - Puma, Removal and

Installation).

3.

WARNING: Do not work on or under a vehicle

supported only by a jack. Always support the vehicle on safety

stands.

Raise and support the vehicle.

4. Drain the transmission.

For additional information, refer to:

Transmission Draining

and Filling

 (308-03 Manual Transmission/Transaxle, General

Procedures).

5. Remove the transfer case.

For additional information, refer to:

Transfer Case

 (308-07A

Transfer Case - 2.4L Duratorq-TDCi HPCR (103kW/140PS) -

Puma, Removal).

6. Remove the transmission extension shaft cover.

Remove and discard the tie strap.

7. Using a suitable tool, remove the transmission extension

shaft.

Remove the seal.

8. Remove the transmission extension housing.

Remove the 10 bolts.

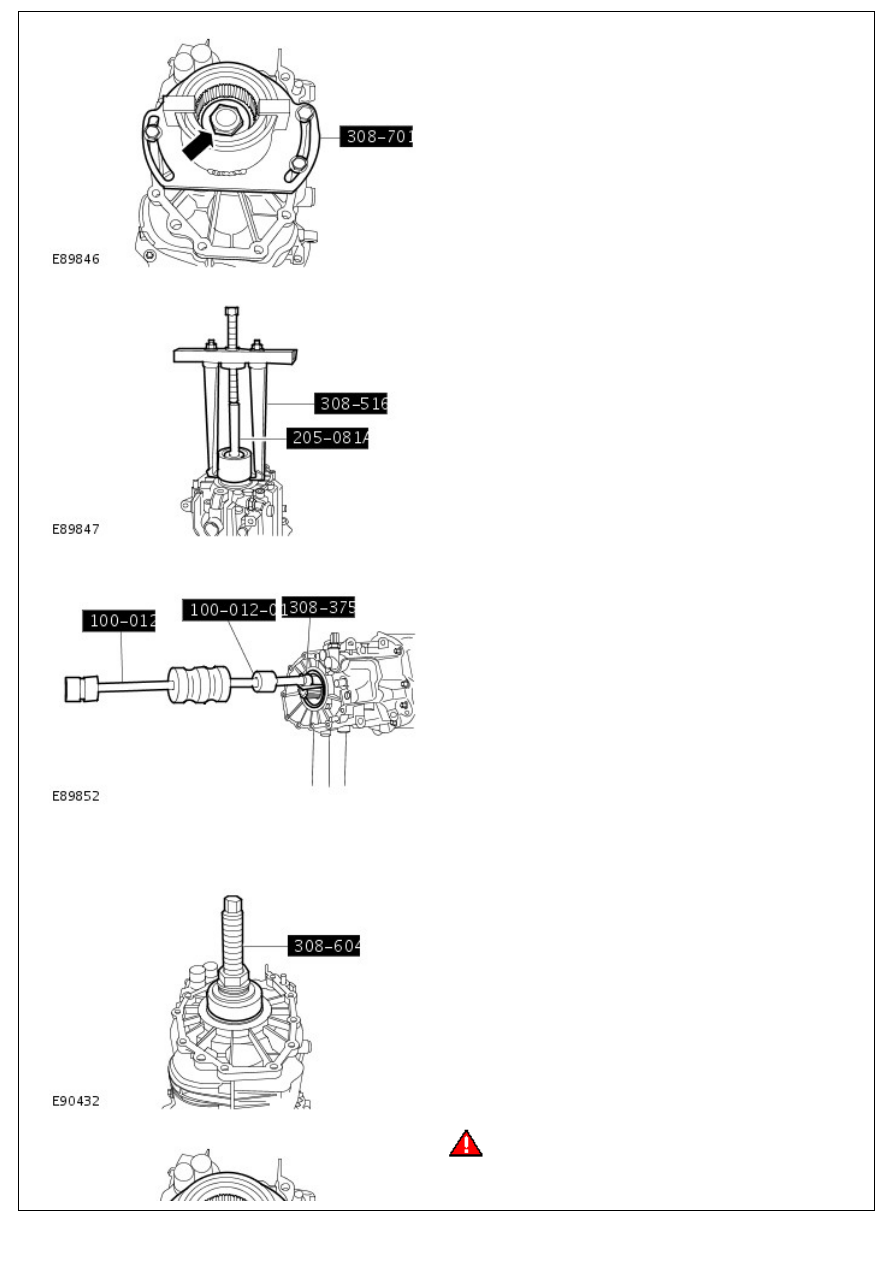

9. Using the special tool, remove the output flange securing

9. Using the special tool, remove the output flange securing

bolt.

10. Using the special tools, remove the output flange.

11. Using the special tools, remove and discard the output

shaft seal.

Installation

1. Using the special tool, install the output shaft seal.

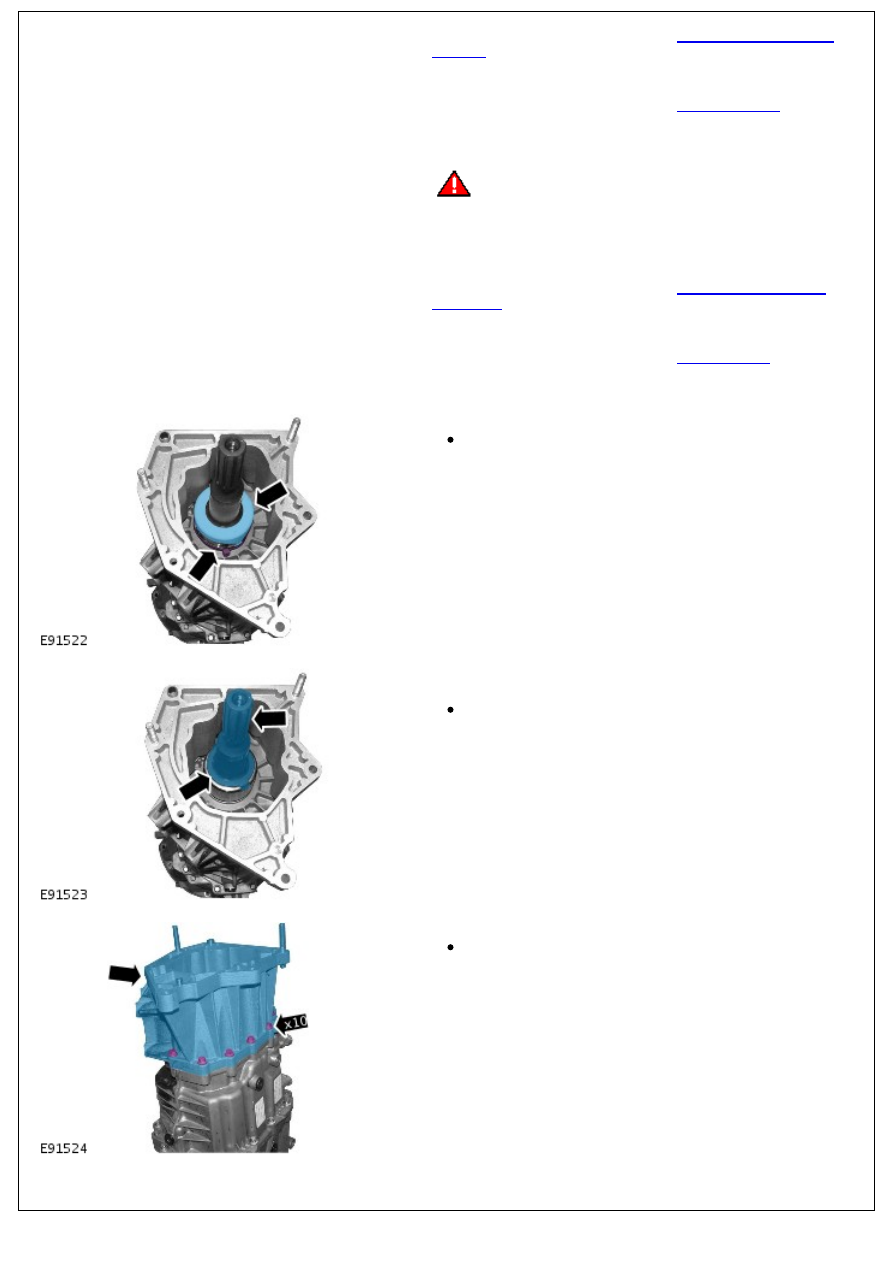

2.

WARNING: Care should be taken when using the hot

air blower. Failure to follow this instruction may result in

personal injury.
