OVERVIEW

The engine crankshaft pulley drives the accessory components, which comprise the torsional vibration damper,

generator, power steering pump, A/C compressor, vacuum pump and coolant pump, via the accessory drive belt.

The belt, which is maintenance free poly-V type belts, are automatically pre-loaded by the automatic tensioner and are

routed over deflection pulleys in order to maintain sufficient adhesion about the drive wheels. This ensures slip-free

drive of the accessory components.

Accessory Drive - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Accessory Drive

Diagnosis and Testing

Overview

For information on the description and operation of the system:

REFER to:

Accessory Drive

 (303-05 Accessory Drive - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma, Description and

Operation).

Inspection and Verification

1.  1. Verify the customer concern.

2.  2. Visually inspect for obvious mechanical faults.

Visual Inspection Chart

Mechanical

Drive belt condition (cracking/damage/contamination)

Idler assembly

Generator

Engine cooling fan

Tensioner assembly

Engine coolant pump

Power steering pump

Air conditioning (A/C) compressor

Torsional vibration damper

Accessory drive belt

3.  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

CAUTION: If the engine is run without the accessory drive belts connected to eliminate driven components,

diagnostic trouble codes, (DTCs) may be set which must be cleared before the vehicle is returned to the owner. The

engine should not be run for more than 2-3 minutes with the belts disconnected. Failure to follow this instruction may

result in damage to the vehicle.

4.  4. Use the approved diagnostic system or a scan tool to retrieve any DTCs before moving onto the symptom

chart or DTC index.

Make sure that all DTCs are cleared following rectification.

Symptom Chart (Accessory Drive Belt)

Symptom

Possible cause

Action

Noise

Belt condition

Belt tension

Pulleys

misaligned

Driven

components

(including

tensioners)

Check the belt condition (see visual inspection). Check the tensioner function. Check

the pulley alignment. Check the driven components for excessive resistance to

rotation. Rectify as necessary.

Drive belt

does not hold

tension

Belt condition

Tensioner

fault

Check the belt condition (see visual inspection). Check the tensioner function.

Rectify as necessary.

DTC Index

• NOTE: If a control module or component is suspect and the vehicle remains under manufacturer warranty, refer to the

Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval program is in operation,

before the replacement of a component.

• NOTE: Generic scan tools may not read the codes listed, or may read only 5-digit codes. Match the 5 digits from the

scan tool to the first 5 digits of the 7-digit code listed to identify the fault (the last 2 digits give extra information read

by the manufacturer-approved diagnostic system).

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal

places, and with an up-to-date calibration certificate. When testing resistance always take the resistance of the DMM

leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern

may be the cause. Always check for loose connections and corroded terminals.

• NOTE: For a full list of engine control module (ECM) DTCs:

REFER to:

Electronic Engine Controls

 (303-14 Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR (103kW/140PS) -

Puma, Diagnosis and Testing).

DTC

Description

Possible causes

Action

P062300 Generator

lamp control

circuit

Check generator belt is not

broken, excessively worn or

slipping when engine running

Generator lamp control circuit

fault

Generator fault

Check the charging voltage. Install a new accessory drive

belt if necessary.

REFER to:

Accessory Drive Belt

 (303-05 Accessory Drive -

2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma, Removal

and Installation).

Check the charging system circuits. Check the generator

lamp control circuit. Refer to the electrical guides. Install a

new generator if necessary.

REFER to:

Generator

 (414-02 Generator and Regulator -

2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma, Removal

and Installation).

Clear the DTCs and test for normal operation.

Accessory Drive - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Accessory Drive Belt

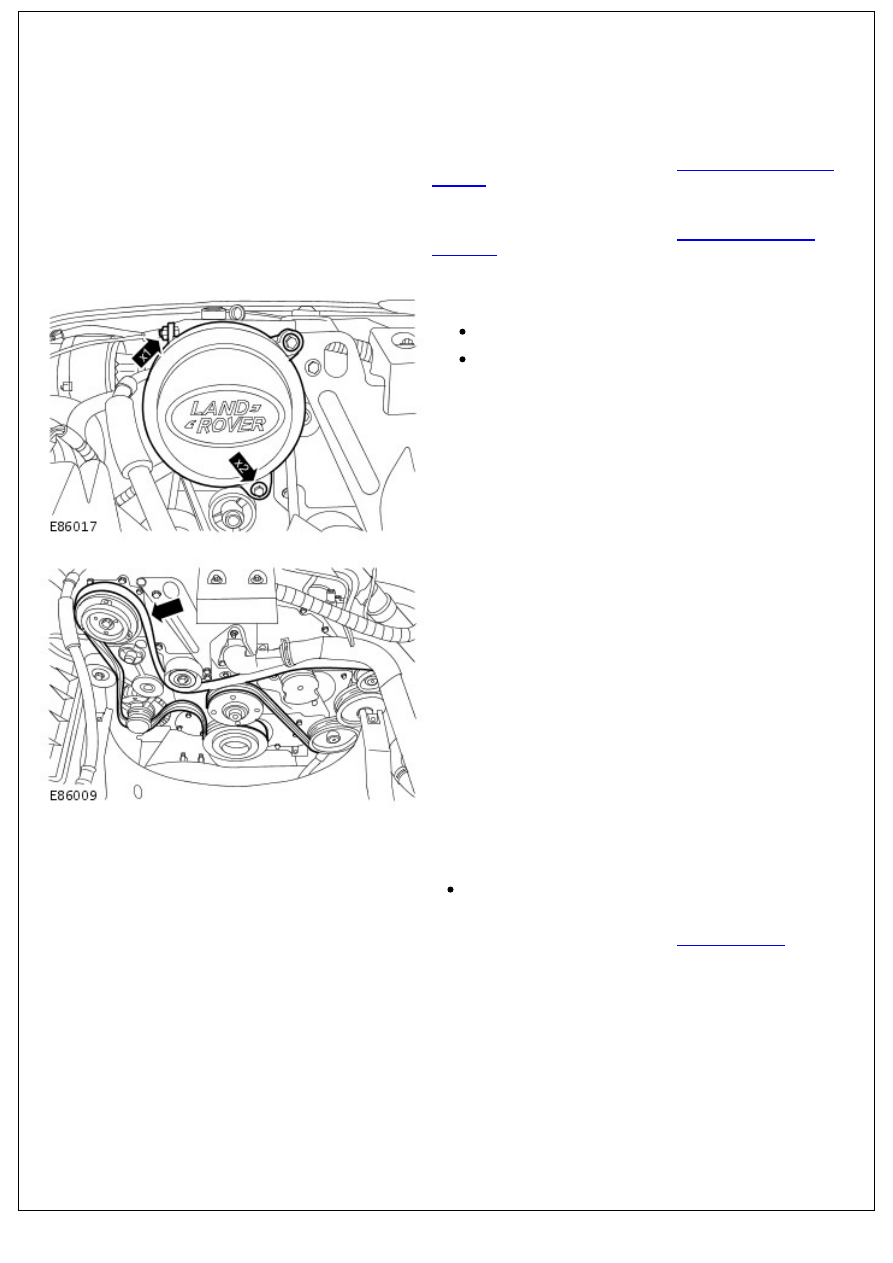

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the accessory drive belt tensioner.

For additional information, refer to:

Accessory Drive Belt

Tensioner

 (303-05 Accessory Drive - 2.4L Duratorq-TDCi

HPCR (103kW/140PS) - Puma, Removal and Installation).

3. Remove the air conditioning (A/C) compressor pulley

cover.

Remove the nut.

Remove the 2 bolts.

4. Remove the accessory drive belt.

Installation

1. To install, reverse the removal procedure.

Clean and inspect the drive pulleys for damage.

2. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
