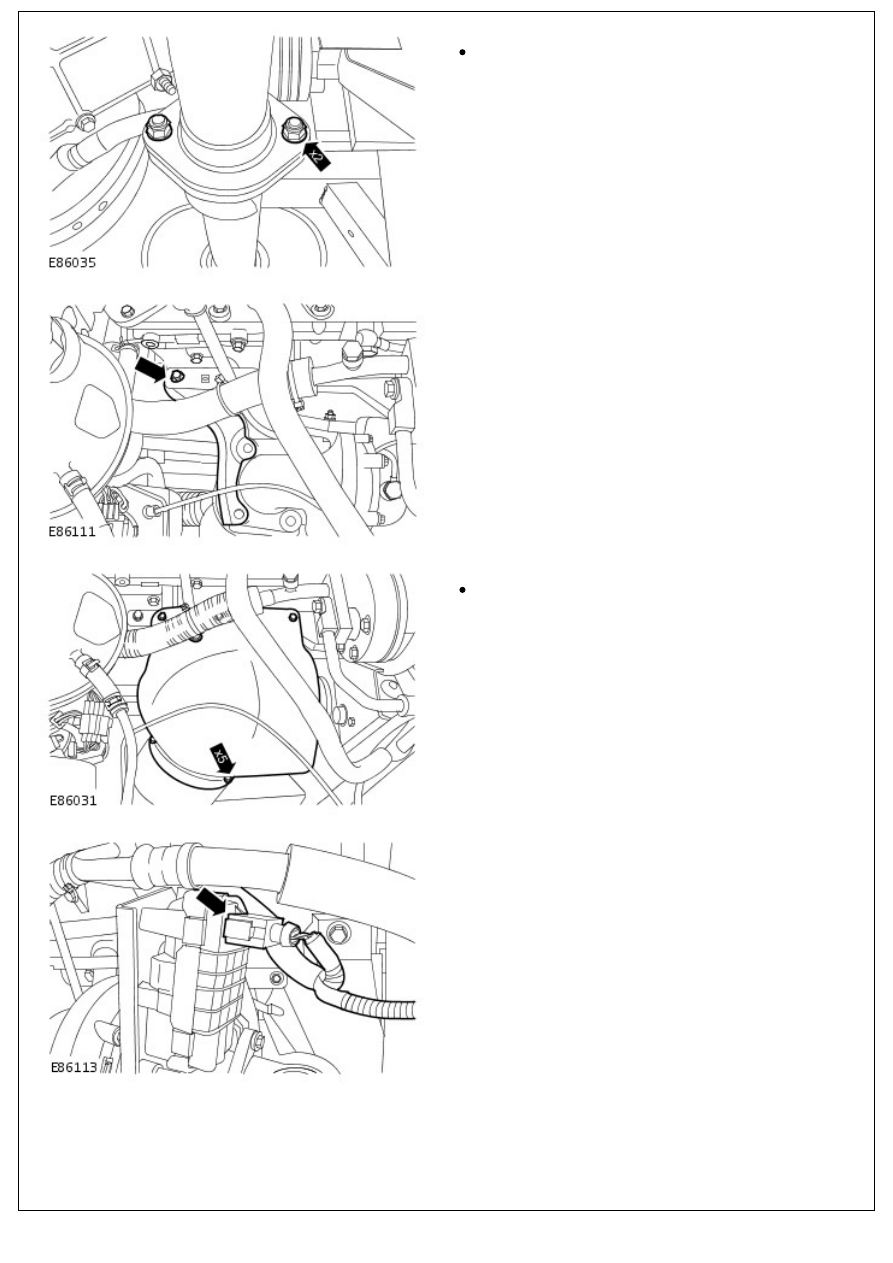

11. Install new nuts.

Tighten to 30 Nm (22 lb.ft).

12. Tighten to 20 Nm (15 lb.ft).

13. Install the turbocharger heat shield.

Tighten to 10 Nm (7 lb.ft).

14. Connect the turbocharger electrical connector.

15. Tighten to 3 Nm (2 lb.ft).

15. Tighten to 3 Nm (2 lb.ft).

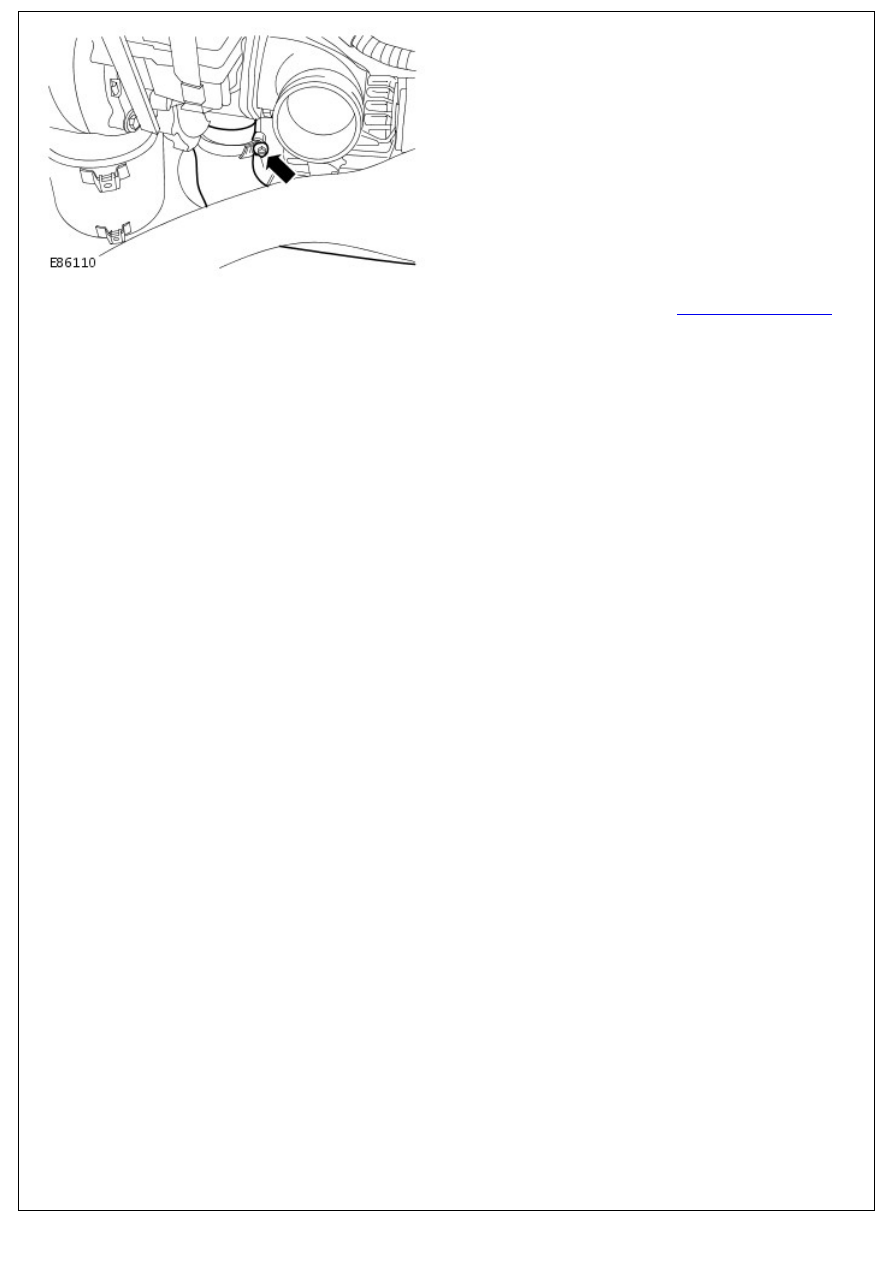

16. Install the air cleaner outlet pipe.

For additional information, refer to:

Air Cleaner Outlet Pipe

(303-12 Intake Air Distribution and Filtering - 2.4L Duratorq-

TDCi HPCR (103kW/140PS) - Puma, Removal and

Installation).

Accessory Drive - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Torque Specifications

Item

Nm

lb-ft

Accessory drive component bracket bolts

48

35

Engine lifting bracket bolts

10

7

Accessory drive belt tensioner bolt

25

18

Accessory drive belt idler pulley bolt

48

35

Accessory Drive - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Accessory Drive

Description and Operation

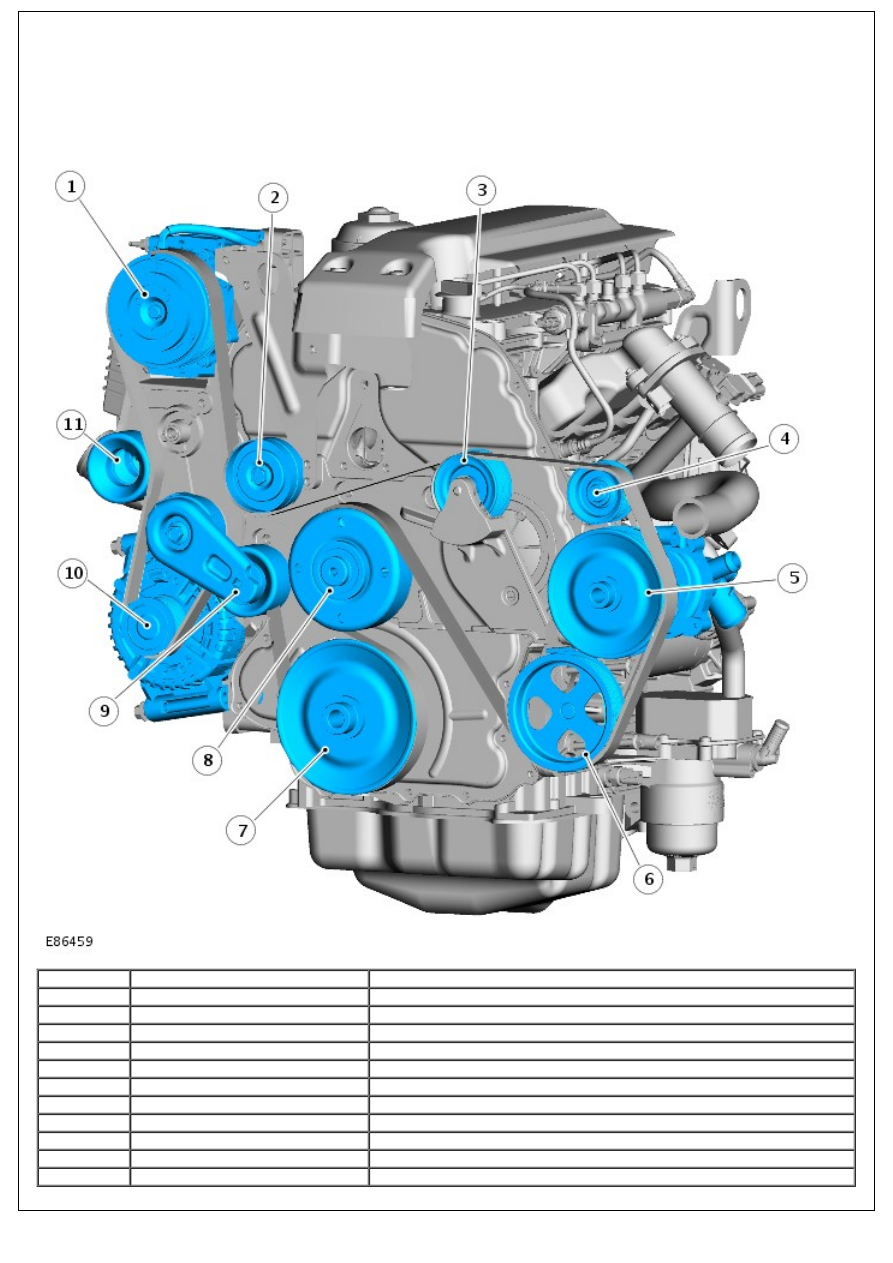

COMPONENT LOCATION

Item

Part Number

Description

1

-

Air conditioning compressor

2

-

Deflection pulley

3

-

Deflection pulley

4

-

Vacuum pump

5

-

Coolant pump

6

-

Power steering pump

7

-

Crankshaft pulley

8

-

Engine cooling fan pulley

9

-

Automatic tensioner

10

-

Generator

11

-

Deflection pulley
