Defender. Manual - part 93





refrigerant line.

Remove and discard the 2 O-ring seals.

All vehicles

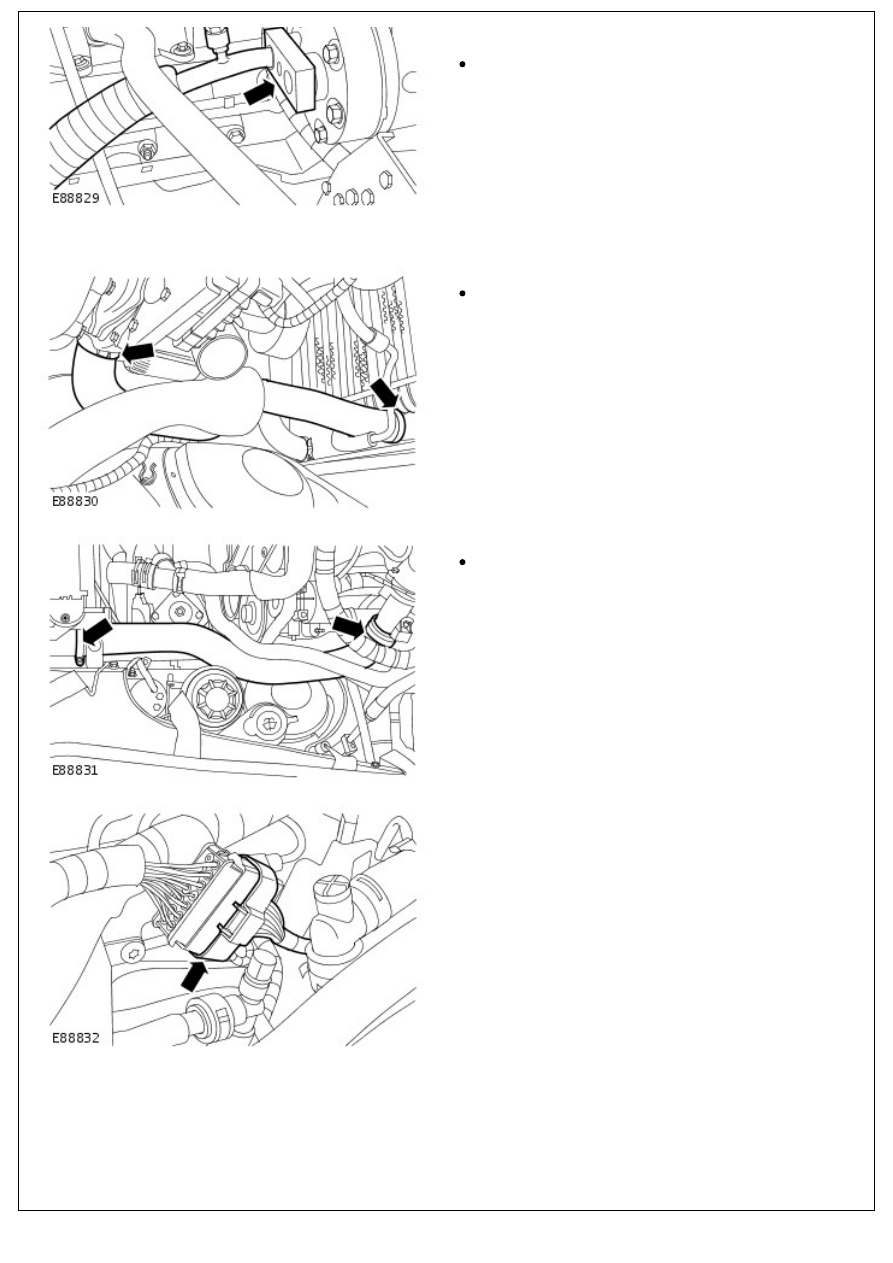

15. Remove the charge air cooler inlet hose.

Loosen the 2 clips.

16. Remove the charge air cooler outlet hose.

Loosen the 2 clips.

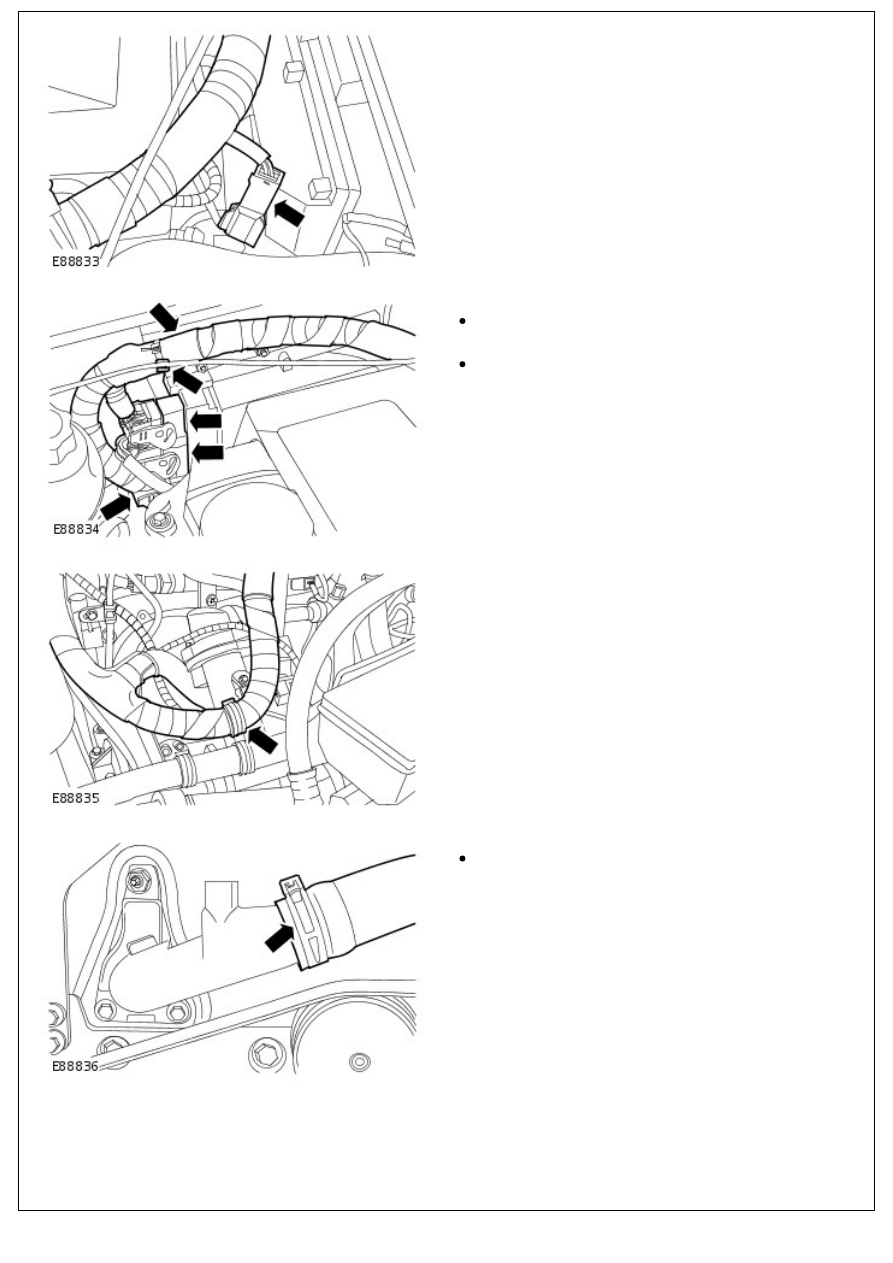

17. Disconnect the engine wiring harness electrical connector.

18. Disconnect the glow plug electrical connector.

18. Disconnect the glow plug electrical connector.

19. Release the engine wiring harness.

Disconnect the 3 electrical connectors from the engine

control module (ECM) .

Release from the 2 clips.

20. Release the wiring harness from the heater coolant hose.

21. Disconnect the radiator upper coolant hose.

Release the clip.

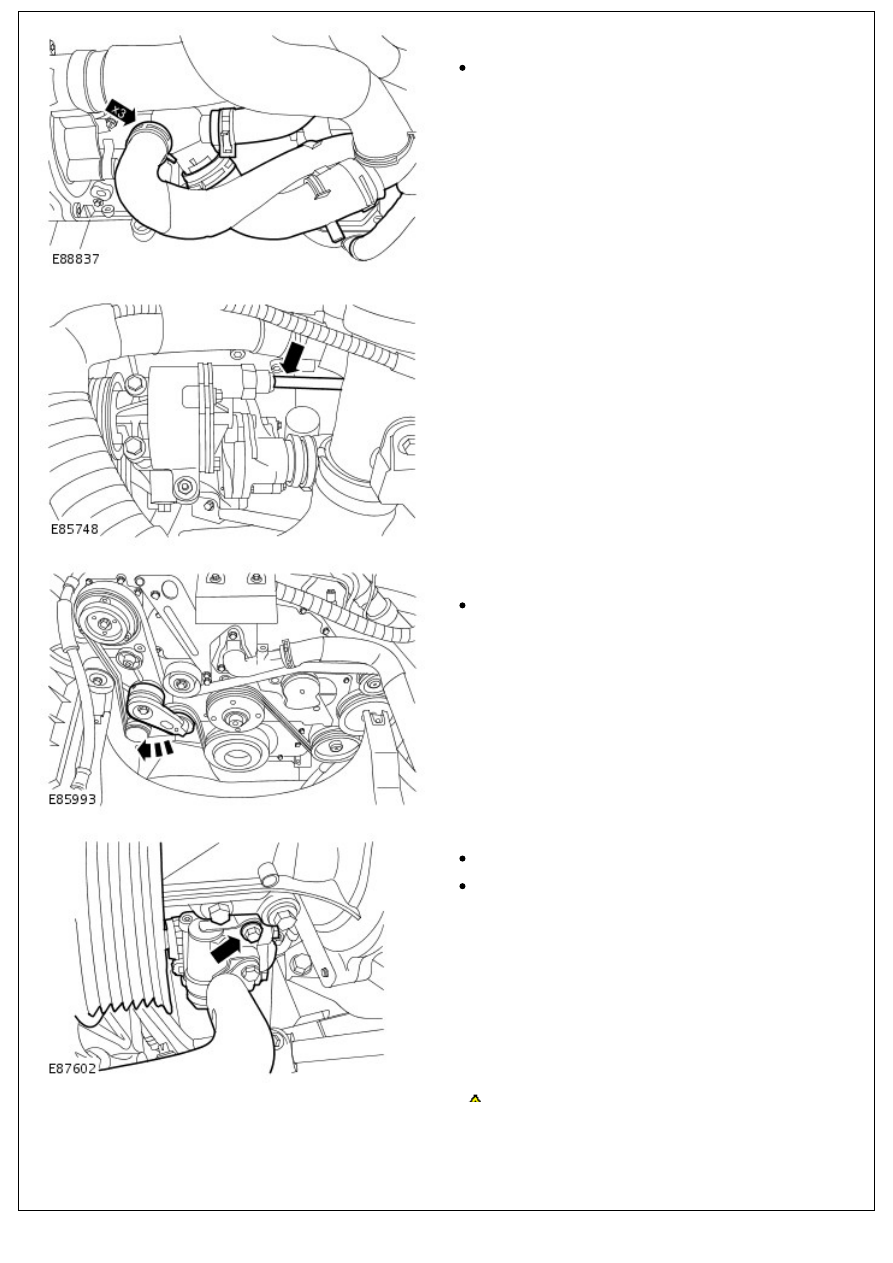

22. Disconnect the 3 coolant hoses from the coolant pump

22. Disconnect the 3 coolant hoses from the coolant pump

housing.

Release the 3 clips.

23. Disconnect the brake booster vacuum line from the brake

vacuum pump.

24. Release the accessory drive belt from the power steering

pump pulley.

Release the tension from the belt.

25. Release the power steering pump.

Remove the remaining bolt.

Tie the power steering pump aside.

CAUTION: Make sure that all openings are sealed.

26.

CAUTION: Make sure that all openings are sealed.

Use new blanking caps.

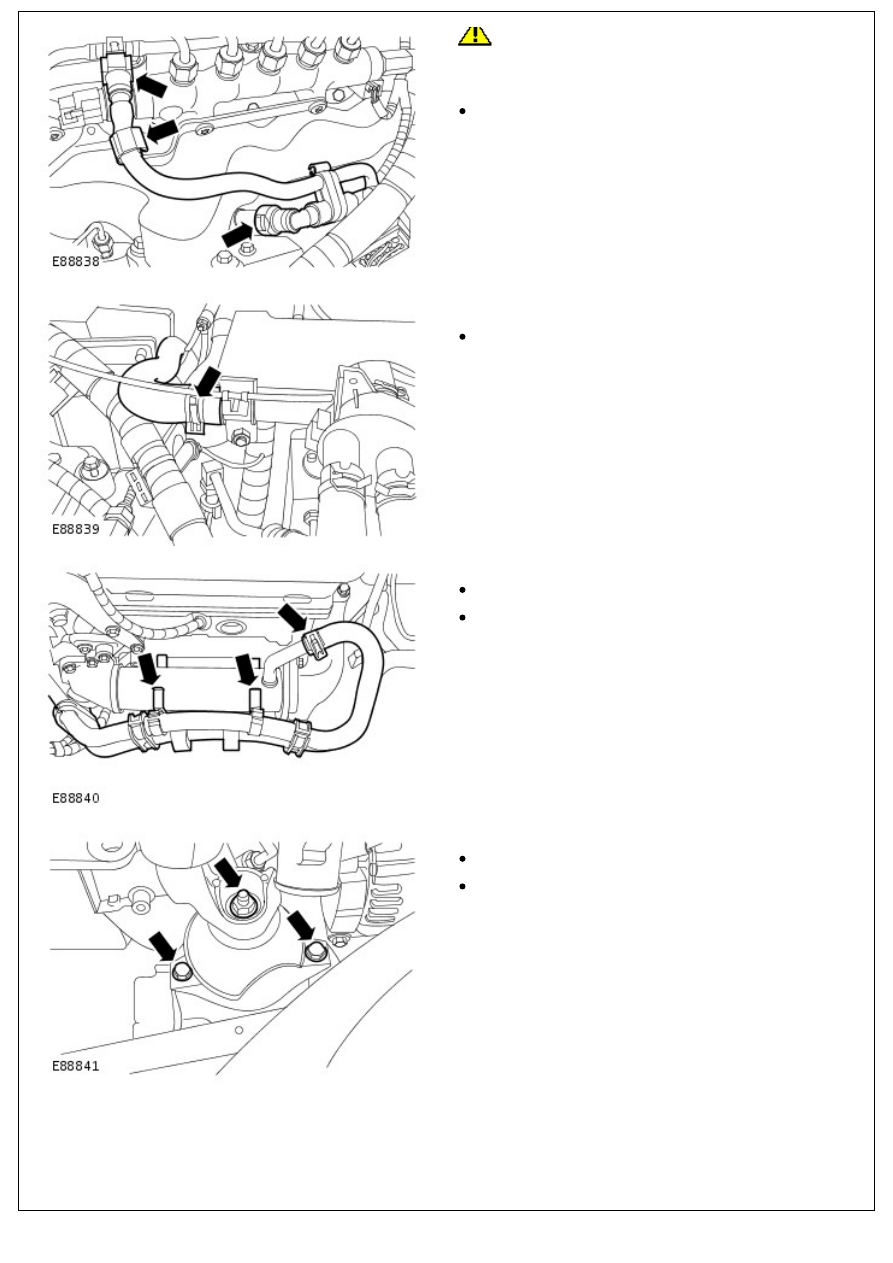

Disconnect the 2 fuel lines.

Release the fuel return line from the clip.

27. Disconnect the heater coolant hose from the heater

control valve.

Release the clip.

28. Disconnect the EGR cooler coolant hose.

Release the clip.

Release the coolant hoses from the EGR cooler.

29. Release the RH engine mount.

Remove the nut.

Remove the 2 bolts.

30. Release the LH engine mount.
