Parking Brake

1. With the vehicle stationary, apply the parking brake and check for correct operation.

For additional information, refer to:

Parking Brake Shoe and Lining Adjustment

 (206-05 Parking Brake and Actuation,

General Procedures).

Release parking brake and check for correct operation.

Battery Condition

• NOTE: The vehicle may be fitted with an alarm and immobilisation system. To prevent the alarm from sounding, it is

important that the following procedure is used when disconnecting the battery.

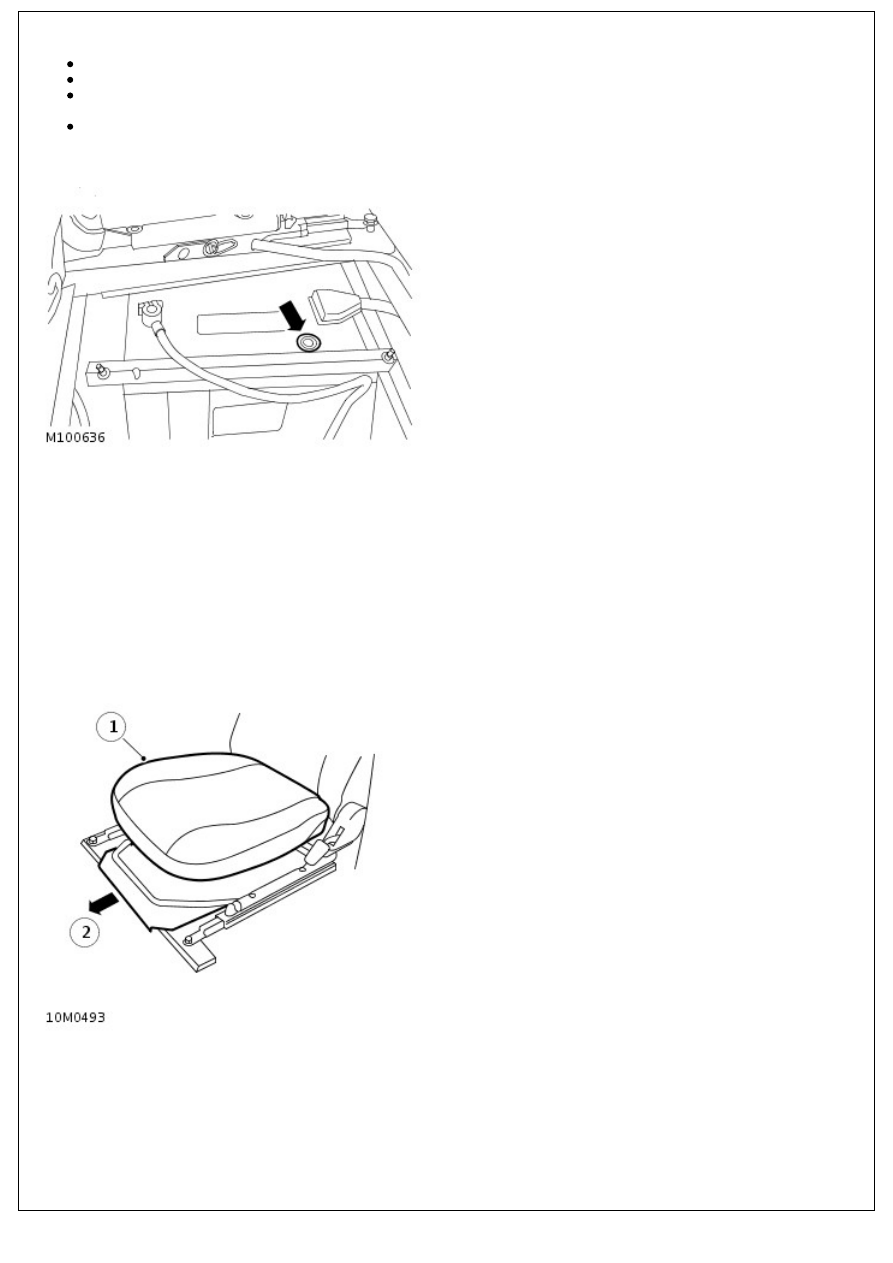

1. Remove drivers seat base.

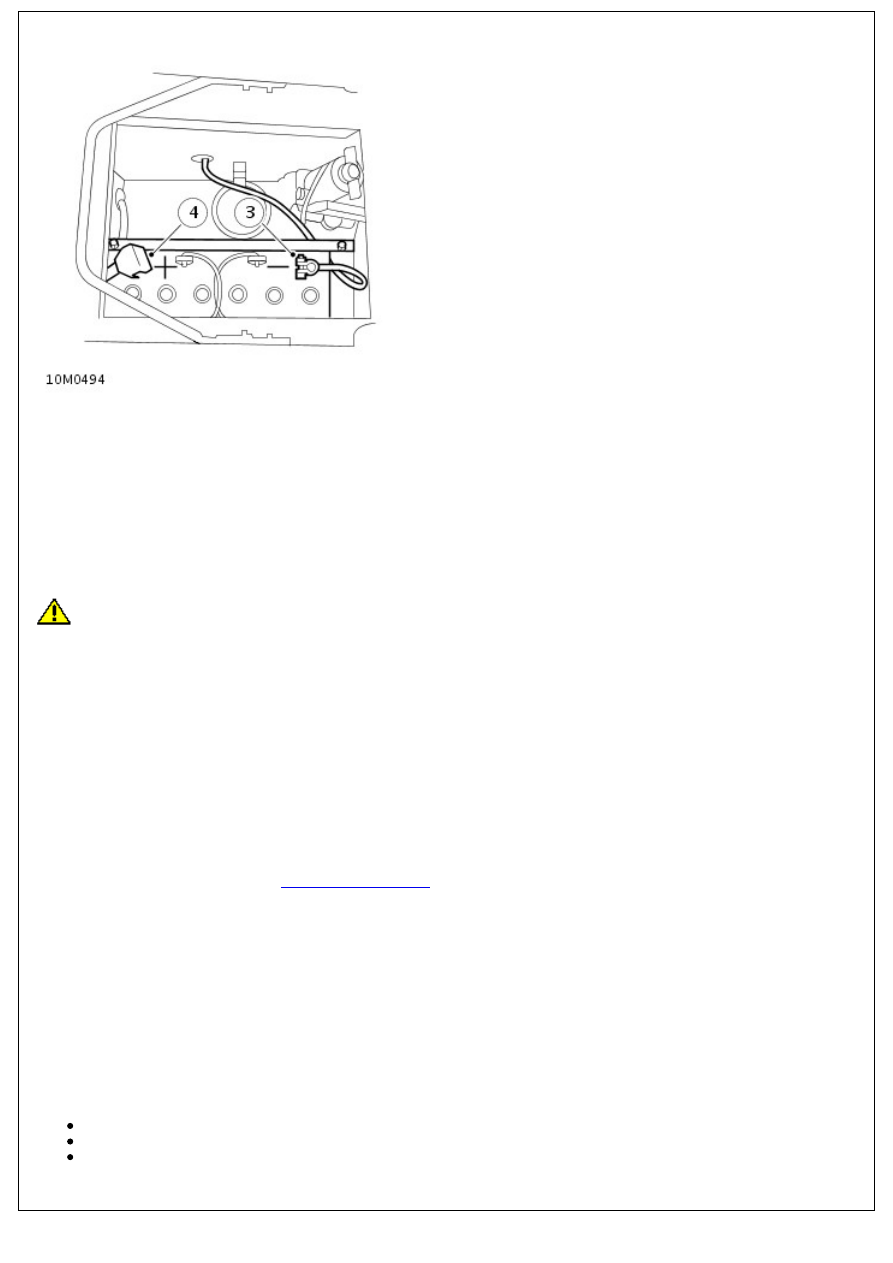

2. Release clip securing battery cover.

3. Remove battery cover.

4. Turn the ignition switch to position 'II', and then to position '0'.

5. Remove the ignition key.

• NOTE: Always disconnect the -ve terminal first. When replacing, connect the +ve terminal first.

6. Disconnect the vehicle -ve terminal within 15 seconds.

7. The battery is designed to be maintenance free, so topping-up is not possible. On the top of the battery is a battery

indicator. When the indicator shows:

GREEN - The battery is in a good state of charge.

DARK (turning to black) - The battery needs charging.

CLEAR (or light yellow) - The battery needs replacing. Do not charge the battery or jump start the vehicle in this

condition.

If the green dot is missing, the battery needs charging.

• NOTE: If the indicator shows clear or yellow, tap the indicator with the handle of a screwdriver to disperse any air

bubbles. If the indicator colour remains unchanged, the battery will need replacing.

8. Clean and grease battery terminals and leads with petroleum jelly.

9. Connect leads to battery (+ve first) and tighten clamp bolts.

10. Fit battery cover and secure with clip.

11. Fit drivers seat base.

Clean Battery Terminals

1. Remove drivers seat base.

2. Release clip securing battery cover. Remove battery cover.

3. Disconnect both battery terminals, -ve terminal first. Clean off corrosion and neutralise. Smear terminals with

petroleum jelly.

4. Reconnect battery terminals +ve first, when maintenance operations have been completed.

5. Fit battery cover and secure with clip.

6. Fit drivers seat base.

Handset Battery

• NOTE: Do not remove a battery until you are ready to install the replacement. Always fit a Land Rover STC4080 or a

Panasonic CR2032 replacement battery.

1. Unlock the vehicle and disarm the alarm system.

2. Turn the ignition switch to position 'II', then turn to position '0' and remove the key.

CAUTION: Do not allow moisture to get inside the handset.

3. Carefully prise the handset apart, starting from the keying end. Avoid damaging the seal between the two halves of

the case.

4. Slide the battery out of its clip, taking care to avoid touching the circuit board or the contact surfaces of the clip.

5. Press and hold one of the buttons for at least 5 seconds to drain any residual power from the handset.

6. Fit the new battery, making sure that correct polarity is maintained (+ve side facing up). Finger marks will adversely

affect battery life. Avoid touching the flat surfaces of the battery, and wipe clean before fitment.

7. Reassemble the two halves of the handset. Operate the Padlock symbol button at least 4 times within range of the

vehicle to resynchronise the handset.

Headlamp Alignment

1. Check alignment of headlamps.

For additional information, refer to:

Headlamp Adjustment

 (417-01 Exterior Lighting, General Procedures).

Road Wheels

1. Loosen wheel nuts. Raise vehicle for wheel free condition and remove the wheel nuts.

2. Mark the wheel to stud relationship to make sure that the wheels are refitted in the same orientation.

3. Apply a thin coat of anti-seize compound to wheel hub centre.

• NOTE: When refitting road wheel nuts do not over tighten using powered tools. Make sure the wheel nuts are correctly

tightened in the correct sequence.

4. Refit wheels to original hub position.

5. Tighten wheel nuts.

Steel wheels - 100 Nm (80 lbf/ft)

Alloy wheels - 130 Nm (96 lbf/ft)

Heavy Duty wheels - 170 Nm (125 lbf/ft)

Tire Pressures, Condition and Tread Depth

1. Check for any apparent damage to tires, paying particular attention to side walls.

• NOTE: Any adjustments to steering or suspension will be subject to additional labour and/or material cost and should

not be carried out without the authorisation of the customer.

2. Look at tires treads and check for any unusual wear patterns which may indicate out of specification adjustment of

steering or suspension.

• NOTE: Any requirement to replace tires should be advised to the customer before any remedial work is carried out.

This will be subject to additional labour and/or material cost and should not be carried out without the authorisation of

the customer.

3. Measure the tread depth across the width of the tire and around the circumference. Annotate the maintenance check

sheet with the lowest figure obtained from each tire.

Brake Pads, Calipers and Discs

1. With front road wheels removed, check brake pad thickness and make sure that both pads are wearing evenly.

• NOTE: Any requirement to replace brake pads or brake disc should be advised to the customer as this will incur

additional labour and/or material cost and should not be carried out without the authorisation of the customer.

2. Check brake discs for signs of cracking, excessive scoring or oil contamination.

3. Check for any signs of brake fluid leakage from caliper seals, hoses or unions.

4. Using brake cleaner, remove excessive deposits of brake dust from pads, calipers and disc shields.

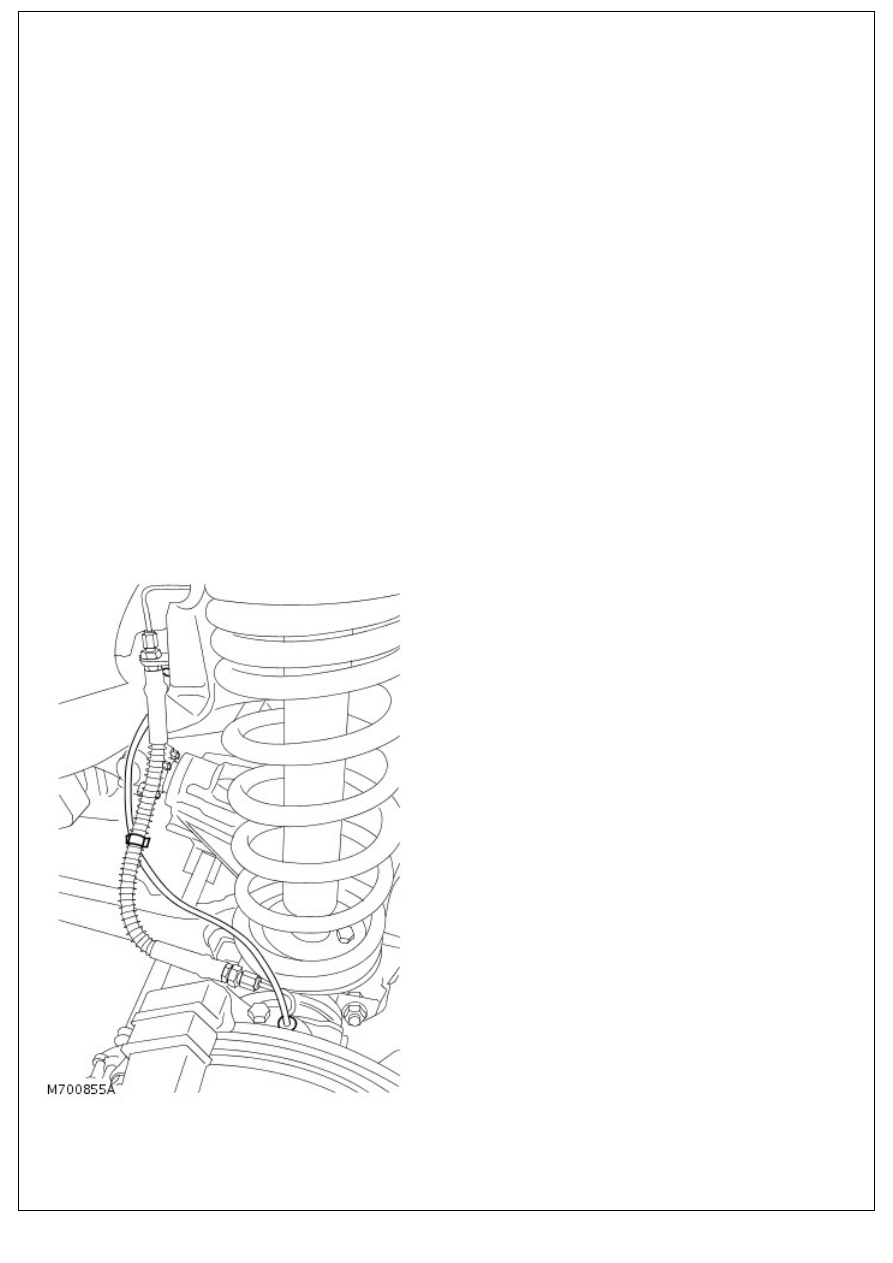

Road Wheel Speed Sensor Harness

1. Check each road wheel speed sensor harness is correctly and securely routed.

• NOTE: Any requirement to replace a road wheel speed sensor should be advised to the customer as this will incur

additional labour and/or material cost and should not be carried out without the authorisation of the customer.

2. Inspect each harness for chafing or damage.
