MIRRORS

INSIDE REARVIEW MIRROR

Automatic Dimming Mirror —

If Equipped

The mirror head can be adjusted up, down, left, and
right. The mirror should be adjusted to center on the
view through the rear window.

This mirror automatically adjusts for headlight glare
from vehicles behind you.

NOTE:

The Automatic Dimming Mirror feature is disabled when
the vehicle is in REVERSE to improve the driver’s view.

You can turn the feature on or off through the Uconnect
system

page 182.

Digital Rearview Mirror — If Equipped

The Digital Rearview Mirror provides a high definition,
wide and unobstructed view of the road behind while
driving.

Position the mirror in the regular Automatic Dimming
Mirror mode, then activate the Digital Rearview Mirror
mode.

To activate the Digital Rearview Mirror, pull the on/off
control lever on the bottom of the mirror rearward
toward the driver.

Push the menu button next to the on/off control/toggle
to access the following mirror options:

•

Brightness

•

Tilt

Use the left and right buttons to scroll through menu
options.

When not in use, push the on/off forward toward the
windshield to return the mirror to the regular Automatic
Dimming Mirror.

NOTE:

•

The Digital Rearview Mirror is not as effective during
nighttime driving in low light applications due to low
ambient light levels. In the event that it provides the
user with less than expected vision, the mirror can
be reverted to a normal reflective Automatic Dim-
ming Mirror by pushing the control/toggle forward in
the vehicle and putting the mirror into Automatic
Dimming Mirror mode.

•

When the rear window washer is activated by push-
ing the windshield wiper/washer lever forward, the
rear Back Up and Digital Rearview Mirror
(if equipped) cameras are also washed. For more
information, see

page 62.

ILLUMINATED VANITY MIRRORS

To access an illuminated vanity mirror, flip down one of
the visors.

Lift the cover to reveal the mirror. The light will turn on
automatically.

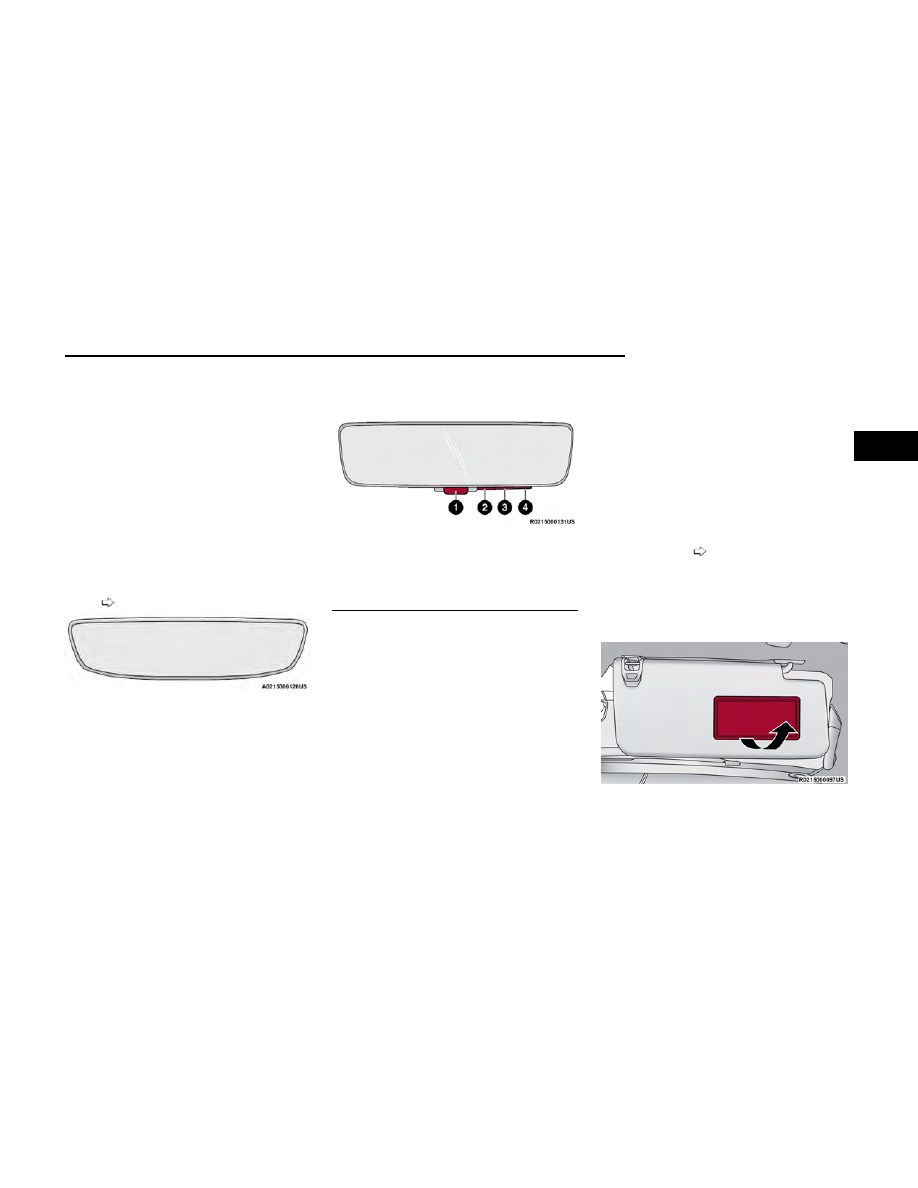

Automatic Dimming Mirror

Digital Rearview Mirror

1 — On/Off Control/Toggle
2 — Menu Button
3 — Left Scroll Button
4 — Right Scroll Button

Lift Cover On Vanity Mirror

GETTING TO KNOW YOUR VEHICLE

Sun Visor Slide-On-Rod Feature —

If Equipped

The sun visor Slide-On-Rod feature allows for additional
flexibility in positioning the sun visor to block out the
sun.

1. Fold down the sun visor.

2. Unclip the visor from the center clip.

3. Pivot the sun visor toward the side window.

4. Extend the sun visor blade for additional sun

blockage.

NOTE:

The sun visor blade can also be extended while the sun
visor is against the windshield for additional sun block-
age through the front of the vehicle.

OUTSIDE MIRRORS

To receive maximum benefit, adjust the outside mir-
ror(s) to center on the adjacent lane of traffic with a
slight overlap of the view obtained on the inside mirror.

WARNING!

Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or
other object. Use your inside mirror when judging the
size or distance of a vehicle seen in a side convex
mirror.

Outside Mirrors Folding Feature

All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:

•

Full forward position

•

Full rearward position

•

Normal position

Outside Mirrors With Turn Signal And

Approach Lighting — If Equipped

Driver and passenger outside mirrors with turn signal
and approach lighting contain LEDs, which are located
in the lower outer corner of each mirror.

The outer LEDs are turn signal indicators, which flash
with the corresponding turn signal lights in the front
and rear of the vehicle. Turning on the Hazard Warning
flashers will also activate these LEDs.

The approach lighting, which turns on in both mirrors
when you use the key fob or open any door is located
on the underside of the mirror.

The illuminated entry lighting fades to off after about
30 seconds or it will fade to off immediately once the
ignition is placed in the ON/RUN position.

NOTE:

The approach lighting will not function when the gear
selector is moved out of the PARK position.

OUTSIDE AUTOMATIC DIMMING
MIRROR — IF EQUIPPED

The exterior driver side mirror will automatically adjust
for glare from vehicles behind you. This feature is con-
trolled by the inside automatic dimming mirror. The mir-
ror will automatically adjust for headlight glare when
the inside mirror adjusts.

CONVERSATION MIRROR

Located in the overhead console there is a conversation
mirror to view all of the passengers in the vehicle. Push
the panel to release the drop down mirror, raise it back
up to 3/4 of the way and let go; a latch will hold the
mirror in place. Raise the mirror all the way and push to
latch it back in the stowed position.

NOTE:

From the conversation mirror position, do not pull the
door fully open because it will damage the door. The
door must be put back in the closed position before
fully opening it.

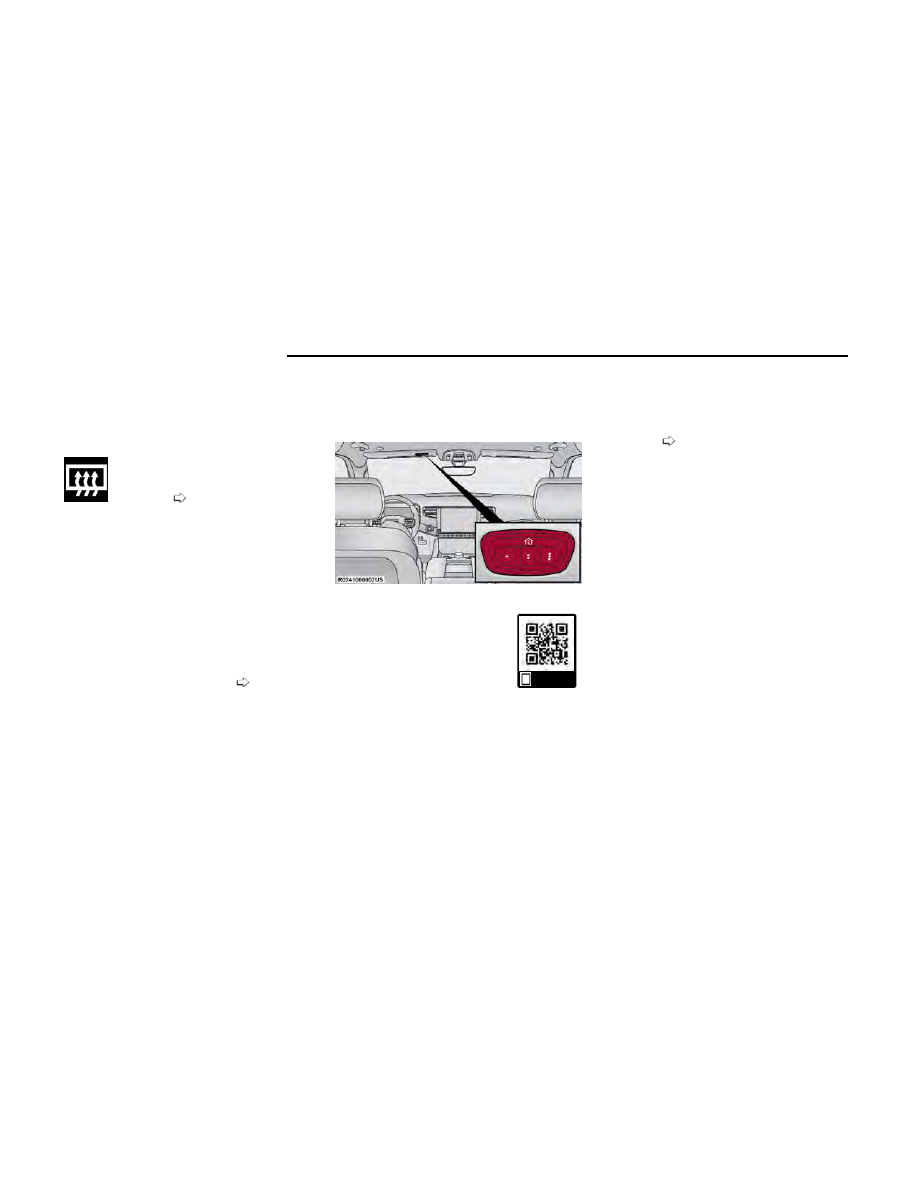

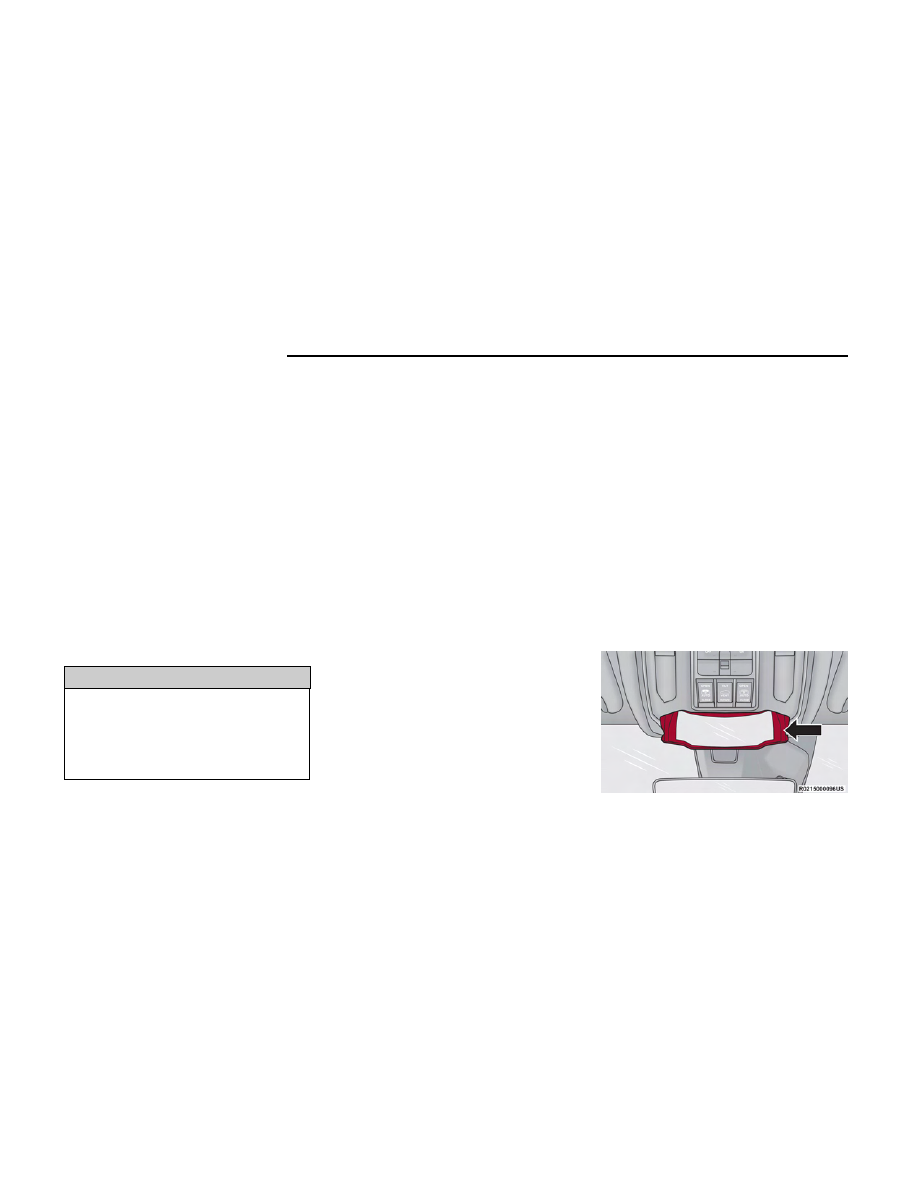

Conversation Mirror

GETTING TO KNOW YOUR VEHICLE

POWER MIRRORS

The power mirror control switch is located on the driv-
er's side door trim panel.

To adjust a mirror, rotate the control switch to the
desired mirror: (L) or (R). Then push the switch in the
direction that you want the mirror to move.

NOTE:

Once adjustment is complete, rotate the knob to the
neutral position to prevent accidental movements.

Power Folding — If Equipped

To fold the door mirrors in using the Power Folding Mir-
ror function, rotate the control switch to the power fold-
ing position. Rotating the control to the left, right, or
neutral position will return the mirrors to the driving
position.

If the power mirror control switch is moved again during
door mirror folding (from closed to open position and
vice versa), the movement direction is reversed.

NOTE:

The Power Folding Mirror function is only available
when the ignition is in the ON/RUN position.

Resetting The Power Folding Outside Mirrors

You may need to reset the power folding mirrors if the
following occurs:

•

The mirrors are accidentally blocked while folding.

•

The mirrors are accidentally manually folded/
unfolded (by hand or by pushing the power folding
mirror switch).

•

The mirrors come out of the unfolded position.

•

The mirrors shake and vibrate at normal driving
speeds.

To reset the power folding mirrors: Fold and unfold
them by turning the switch (this may require multiple
switch activations to synchronize the driver and passen-
ger mirror). This resets them to their normal position.

Power mirror position can be saved as part of the Driver
Memory Settings (if equipped)

page 31.

AUTOMATIC POWER FOLDING
MIRRORS — IF EQUIPPED

When enabled within Uconnect Settings

page 182,

the exterior mirrors will automatically fold when the
vehicle’s ignition is placed in the OFF position, and after
the doors are locked and closed.

The exterior mirrors will auto-fold in the following situa-
tions after the ignition is placed in the OFF position:

•

Pushing the lock button on the door panel before
the door is opened.

NOTE:

If the doors are already locked, push the lock button
again.

•

Opening the door, then pushing the lock button on
the door panel, followed by closing the door.

•

After exiting the vehicle, close the doors then push
the lock button on the key fob.

•

After exiting the vehicle, close the doors then touch
the lock icon on the Passive Entry door handle.

Automatic Unfolding

If the exterior mirrors were folded automatically, they
will unfold based on the selection with the Uconnect
system:

•

When the vehicle is unlocked using the key fob

•

When the vehicle is unlocked using a Passive Entry
door handle

•

When Proximity Wake-Up is activated

page 57

•

When the ignition is placed in the ON/RUN position

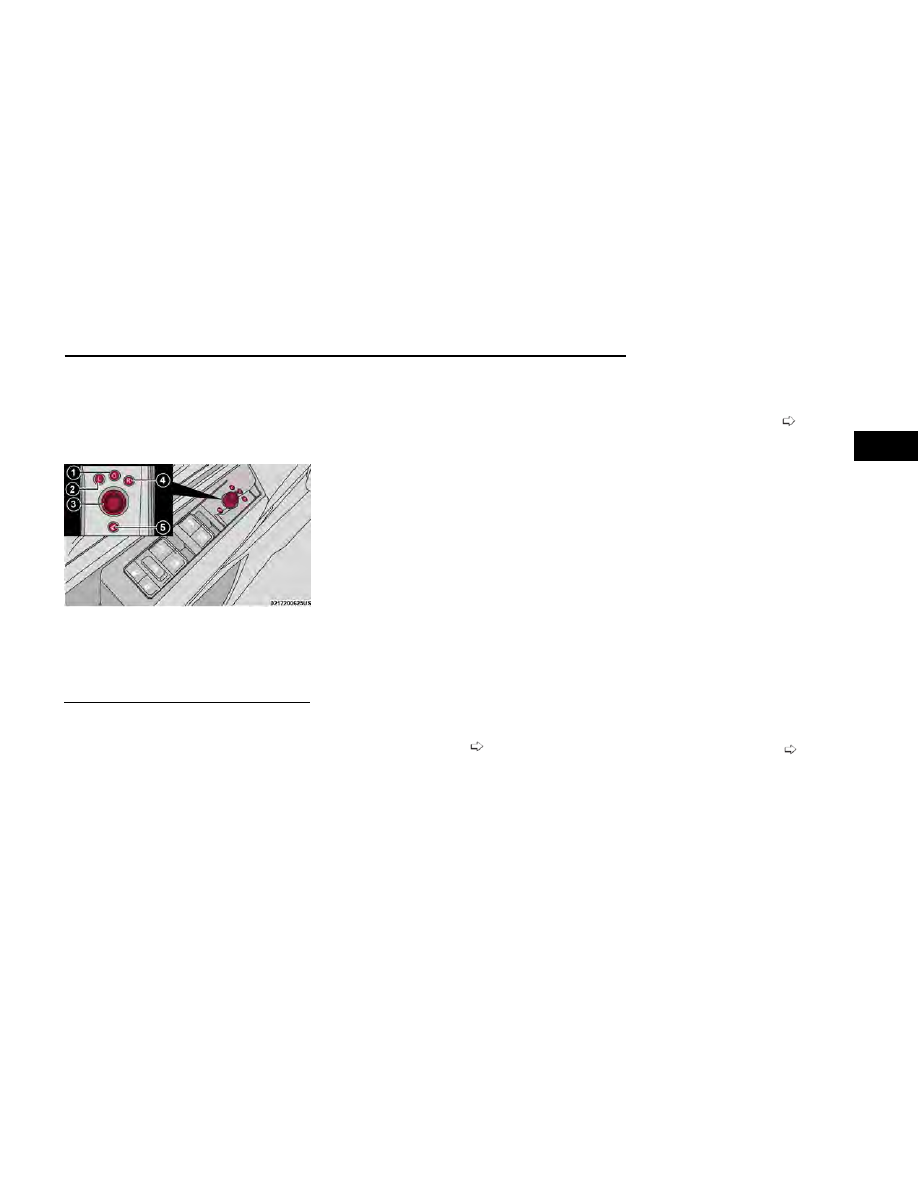

Power Mirror Switch

1 — Neutral Position
2 — Left Mirror
3 — Control Switch
4 — Right Mirror
5 — Power Folding Position (If Equipped)

GETTING TO KNOW YOUR VEHICLE

NOTE:

If the mirrors were folded manually by using the power
folding mirror switch on the driver’s door panel, they will
not automatically unfold.

HEATED MIRRORS

These mirrors are heated to melt frost or ice.
This feature will be activated whenever you
turn on the rear window defroster
(if equipped)

page 62.

TILT SIDE MIRRORS IN REVERSE

Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver’s view of the
ground rearward of the front doors. Outside mirrors will
move slightly downward from the present position when
the vehicle is shifted into REVERSE. Outside mirrors will
then return to the original position when the vehicle is
shifted out of REVERSE position. Each stored memory
setting will have an associated Tilt Side Mirrors In Reverse
position.

NOTE:

The Tilt Side Mirrors In Reverse feature can be turned
on and off using the Uconnect system

page 182.

Universal Garage Door Opener
(HomeLink®)

Use this QR code to access your digital
experience.

•

HomeLink® replaces up to three
hand-held transmitters that operate
devices such as garage door open-
ers, motorized gates, lighting, or
home security systems. The HomeLink® unit is pow-
ered by your vehicle’s 12 Volt battery.

•

The HomeLink® buttons that are located in the
overhead console or sun visor designate the three
different HomeLink® channels.

•

To operate HomeLink®, push and release any of the
programmed HomeLink® buttons. These buttons
will activate the devices they are programmed to
with each press of the corresponding HomeLink®
button.

•

The HomeLink® indicator light is located above the
center button.

NOTE:

HomeLink® is disabled when the Vehicle Security sys-
tem is active

page 348.

BEFORE YOU BEGIN
PROGRAMMING HOMELINK®

For efficient programming and accurate transmission of
the Radio Frequency (RF) signal, it is recommended
that a new battery be placed in the hand-held transmit-
ter of the device that is being programmed to the
HomeLink® system. Make sure your hand-held trans-
mitter is programmed to activate the device you are
trying to program your HomeLink® button to.

Ensure that your vehicle is parked outside of the garage
before you begin programming.

It is recommended that you erase all the channels of
your HomeLink® before you use it for the first time.

ERASING ALL THE HOMELINK®
CHANNELS

To erase the channels, follow this procedure:

1. Place the ignition switch in the ON/RUN position.

2. Push and hold the two outside HomeLink® buttons

(I and III) for up to 20 seconds, or until the
HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed when
programming HomeLink® for the first time. Do not
erase channels when programming additional buttons.

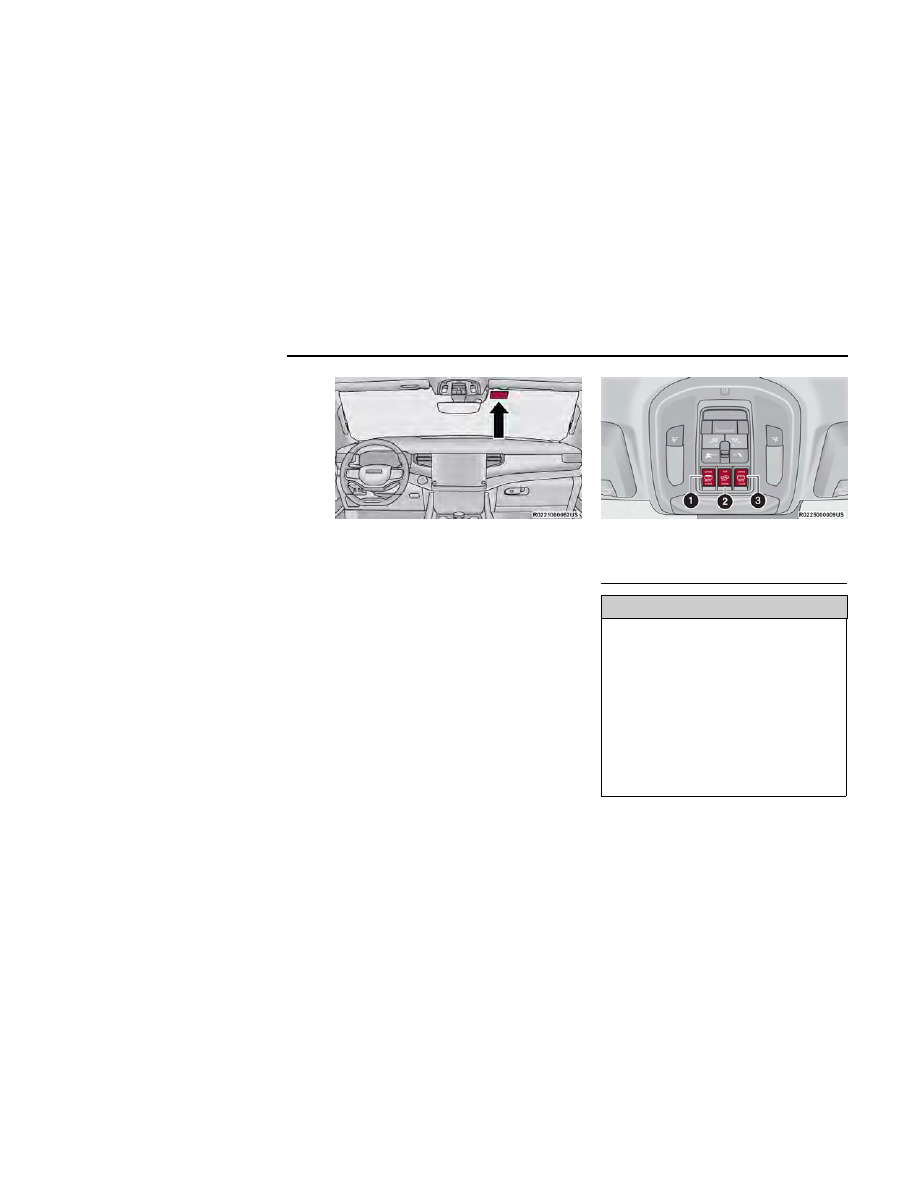

HomeLink® Buttons And Indicator Light

Scan me

GETTING TO KNOW YOUR VEHICLE

IDENTIFYING WHETHER YOU HAVE
A ROLLING CODE OR NON-ROLLING
CODE DEVICE

Before programming a device to one of your
HomeLink® buttons, you must determine whether the
device has a rolling code or non-rolling code.

Rolling Code Devices

To determine if your device has a rolling code, a good
indicator is its manufacturing date. Typically, devices
manufactured after 1995 have rolling codes. A device
with a rolling code will also have a “LEARN” or “TRAIN”
button located where the antenna is attached to the
device. The button may not be immediately visible when
looking at the device. The name and color of the button
may vary slightly by manufacturer.

NOTE:

The “LEARN” or “TRAIN” button is not the button you
normally use to operate the device.

Non-rolling Code Devices

Most devices manufactured before 1995 will not have a
rolling code. These devices will also not have a “LEARN”
or “TRAIN” button.

PROGRAMMING HOMELINK® TO A
GARAGE DOOR OPENER

To program any of the HomeLink® buttons to activate
your garage door opener motor, proceed as follows:

NOTE:

All HomeLink® buttons are programmed using this pro-
cedure. You do not need to erase all channels when
programming additional buttons.

1. Place the ignition switch in the ON/RUN position.

2. Place the garage door opener transmitter 1 to

3 inches (3 to 8 cm) away from the HomeLink® but-
ton you wish to program, while keeping the
HomeLink® indicator light in view.

3. Push and hold the HomeLink® button you want to

program while you push and hold the garage door
opener transmitter button you are trying to replicate.

4. Continue to hold both buttons and observe the

HomeLink® indicator light. The HomeLink® indica-
tor light will flash slowly and then rapidly. Once this
happens, release both buttons.

NOTE:

Make sure the garage door opener motor is plugged in
before moving on to the rolling code/non-rolling code
final steps.

Rolling Code Garage Door Opener Final Steps

NOTE:

You have 30 seconds in which to initiate rolling code
final step 2, after completing rolling code final step 1.

1. At the garage door opener motor (in the garage),

locate the “LEARN” or “TRAIN” button. This can usu-
ally be found where the hanging antenna wire is
attached to the garage door opener motor. Firmly
push and release the “LEARN” or “TRAIN” button.

2. Return to the vehicle and push the programmed

HomeLink® button three times (holding the button
for two seconds each time). If the garage door
opener motor operates, programming is complete.

3. Push the programmed HomeLink® button to con-

firm that the garage door opener motor operates. If
the garage door opener motor does not operate,
repeat the final steps for the rolling code procedure.

Non-Rolling Code Garage Door Opener Final Steps

1. Push and hold the programmed HomeLink® button

and observe the HomeLink® indicator light. If the
HomeLink® indicator light stays on constantly, pro-
gramming is complete.

2. Push the programmed HomeLink® button to con-

firm that the garage door opener motor operates. If
the garage door opener motor does not operate,
repeat the steps from the beginning.

WARNING!

•

Your motorized door or gate will open and close
while you are programming the universal transmit-
ter. Do not program the transmitter if people or
pets are in the path of the door or gate.

•

Do not run your vehicle in a closed garage or con-
fined area while programming the transmitter.
Exhaust gas from your vehicle contains carbon
monoxide which is odorless and colorless. Carbon
monoxide is poisonous when inhaled and can
cause you and others to be severely injured or
killed.

GETTING TO KNOW YOUR VEHICLE

PROGRAMMING HOMELINK® TO A
MISCELLANEOUS DEVICE

The procedure on how to program HomeLink® to a mis-
cellaneous device follows the same procedure as pro-
gramming to a garage door opener

page 53. Be

sure to determine if the device has a rolling code or
non-rolling code before beginning the programming
process.

NOTE:

Canadian Radio Frequency (RF) laws require transmit-
ter signals to time-out (or quit) after several seconds of
transmission, which may not be long enough for
HomeLink® to pick up the signal during programming.
Similar to this Canadian law, some U.S. gate operators
are designed to time-out in the same manner. The pro-
cedure may need to be performed multiple times to
successfully pair the device to your HomeLink®
buttons.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a single HomeLink® button that has been
previously trained, without erasing all the channels,
proceed as follows. Be sure to determine whether the
new device you want to program the HomeLink® button
to has a rolling code, or non-rolling code.

1. Place the ignition in the ON/RUN position, without

starting the engine.

2. Push and hold the desired HomeLink® button until

the HomeLink® indicator light begins to flash after
20 seconds.

Do not release the button.

Without releasing the button

, proceed with Step 2

in “Programming HomeLink® To A Garage Door
Opener” and follow all remaining steps.

CANADIAN/GATE OPERATOR
PROGRAMMING

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission:

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.

1. Place the ignition in the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter ‘n Go™,
place the ignition in the RUN position. Make sure
while programming HomeLink® with the engine on
that your vehicle is outside of your garage, or that
the garage door remains open at all times.

2. Place the hand-held transmitter 1 to 3 inches (3 to

8 cm) away from the HomeLink® button you wish to
program while keeping the HomeLink® indicator
light in view.

3. Continue to push and hold the HomeLink® button

while you push and release (cycle) your hand-held

transmitter every two seconds until HomeLink® has
successfully accepted the frequency signal. The indica-
tor light will flash slowly and then rapidly when fully
trained.

4. Watch for the HomeLink® indicator to change flash

rates. When it changes, it is programmed. It may
take up to 30 seconds or longer in rare cases. The
garage door may open and close while you are
programming.

5. Push and hold the programmed HomeLink® button

and observe the indicator light.

NOTE:

○

If the indicator light stays on constantly, program-
ming is complete and the garage door/device
should activate when the HomeLink® button is
pushed.

○

To program the two remaining HomeLink® but-
tons, repeat each step for each remaining but-
ton. DO NOT erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink® Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously
trained, follow these steps:

1. Place the ignition in the ON/RUN position.

2. Press and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds.
Do not release the button.

3. Without releasing the button, proceed with

“Canadian/Gate Operator Programming” Step 2 and
follow all remaining steps.

GETTING TO KNOW YOUR VEHICLE

SECURITY

It is advised to erase all channels before you sell or turn
in your vehicle.

To do this, push and hold the two outside buttons for
20 seconds until the indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink® universal transmitter is disabled when
the Vehicle Security system is active.

TROUBLESHOOTING TIPS

If you are having trouble programming HomeLink®,
here are some of the most common solutions:

•

Replace the battery in the garage door opener hand-
held transmitter.

•

Push the LEARN button on the garage door opener
to complete the training for a rolling code.

•

Did you unplug the device for programming and
remember to plug it back in?

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or visit HomeLink.com for
information or assistance.

WARNING!

•

Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while programming the transmitter. Exhaust gas
can cause serious injury or death.

•

Your motorized door or gate will open and close
while you are programming the universal transmit-
ter. Do not program the transmitter if people, pets
or other objects are in the path of the door or gate.
Only use this transmitter with a garage door

(Continued)

WARNING!

opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured
after 1982. Do not use a garage door opener with-
out these safety features.

EXTERIOR LIGHTS

HEADLIGHT SWITCH

The headlight switch is located on the left side of the
instrument panel, next to the steering wheel. The head-
light switch controls the operation of the headlights,
parking lights, instrument panel lights, and fog lights
(if equipped).

NOTE:

Vehicles sold in Canada are equipped with a headlight
switch with an AUTO and ON detent but without an OFF
detent. Headlights will be deactivated when the headlight
switch is placed in the parking lights position. However,
the Daytime Running Lights (DRLs) will be activated along
with the front and rear marker lights. The DRLs may be
deactivated when the parking brake is engaged.

To turn on the headlights, rotate the headlight switch
clockwise. When the headlight switch is on, the parking
lights, taillights, license plate light and instrument panel
lights are also turned on. To turn off the headlights,
rotate the headlight switch back to the O (off) position.

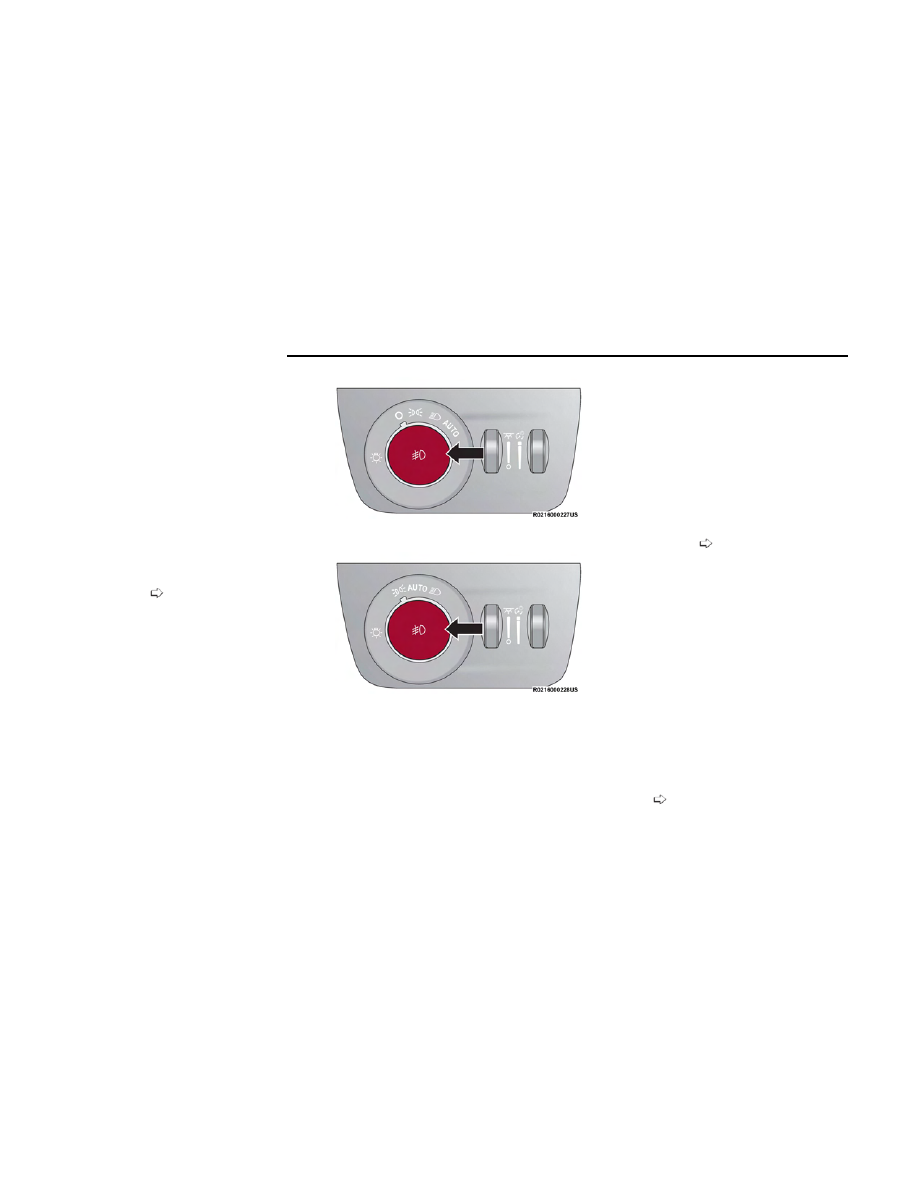

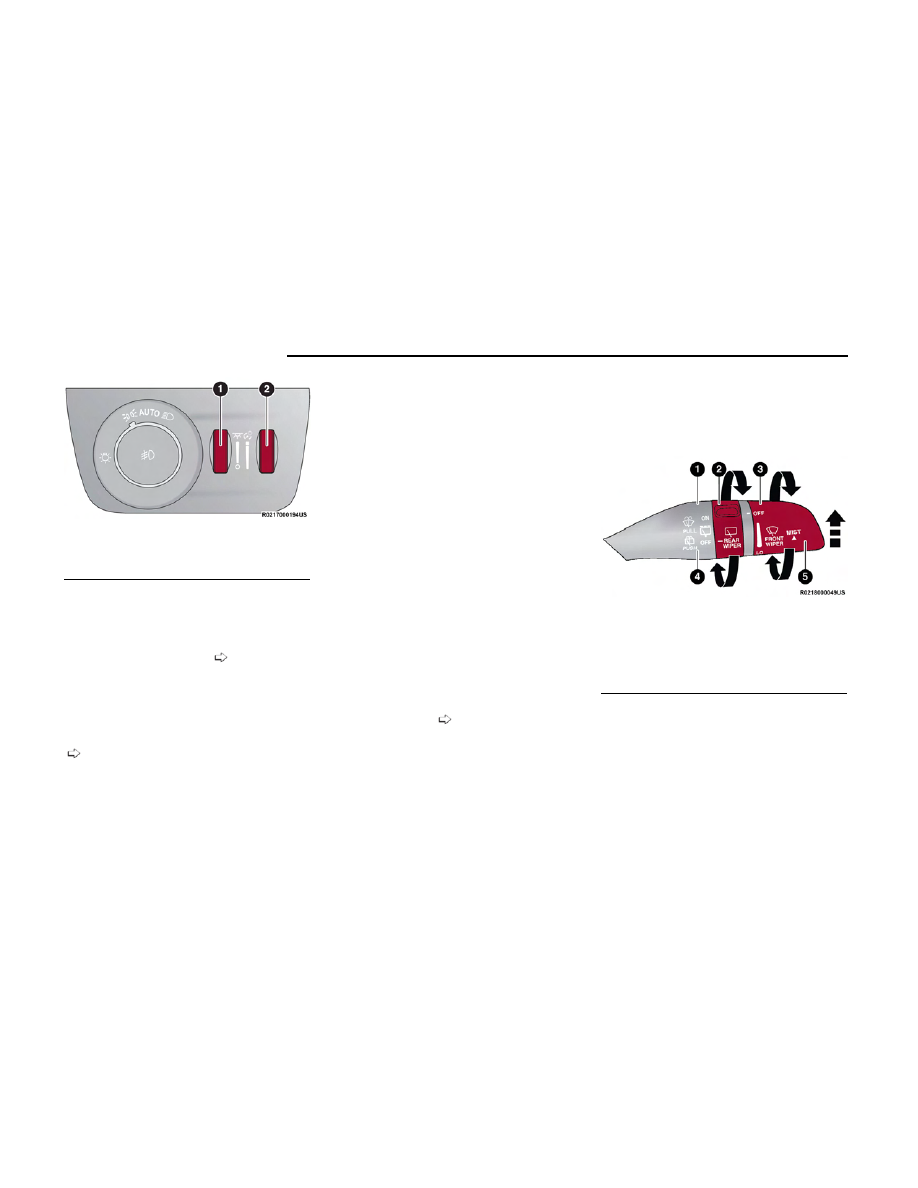

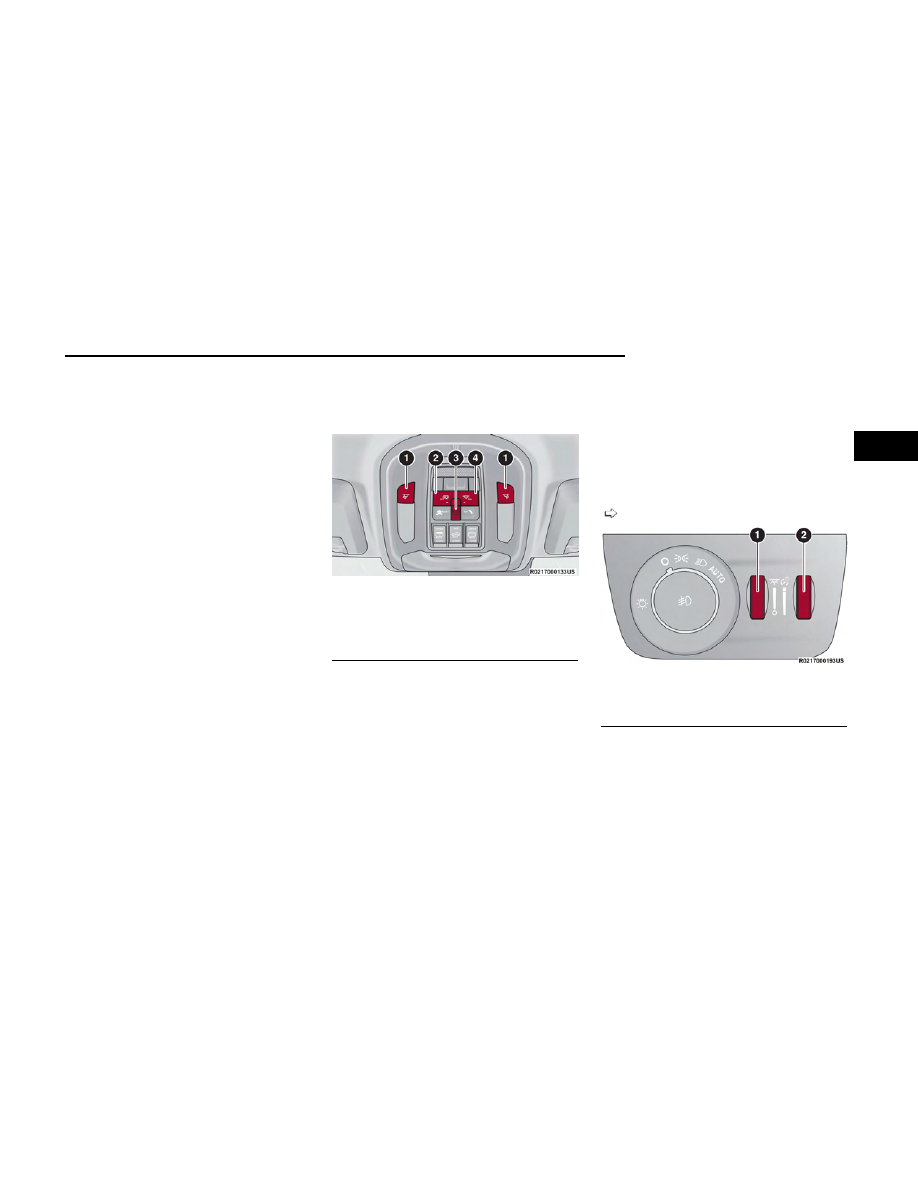

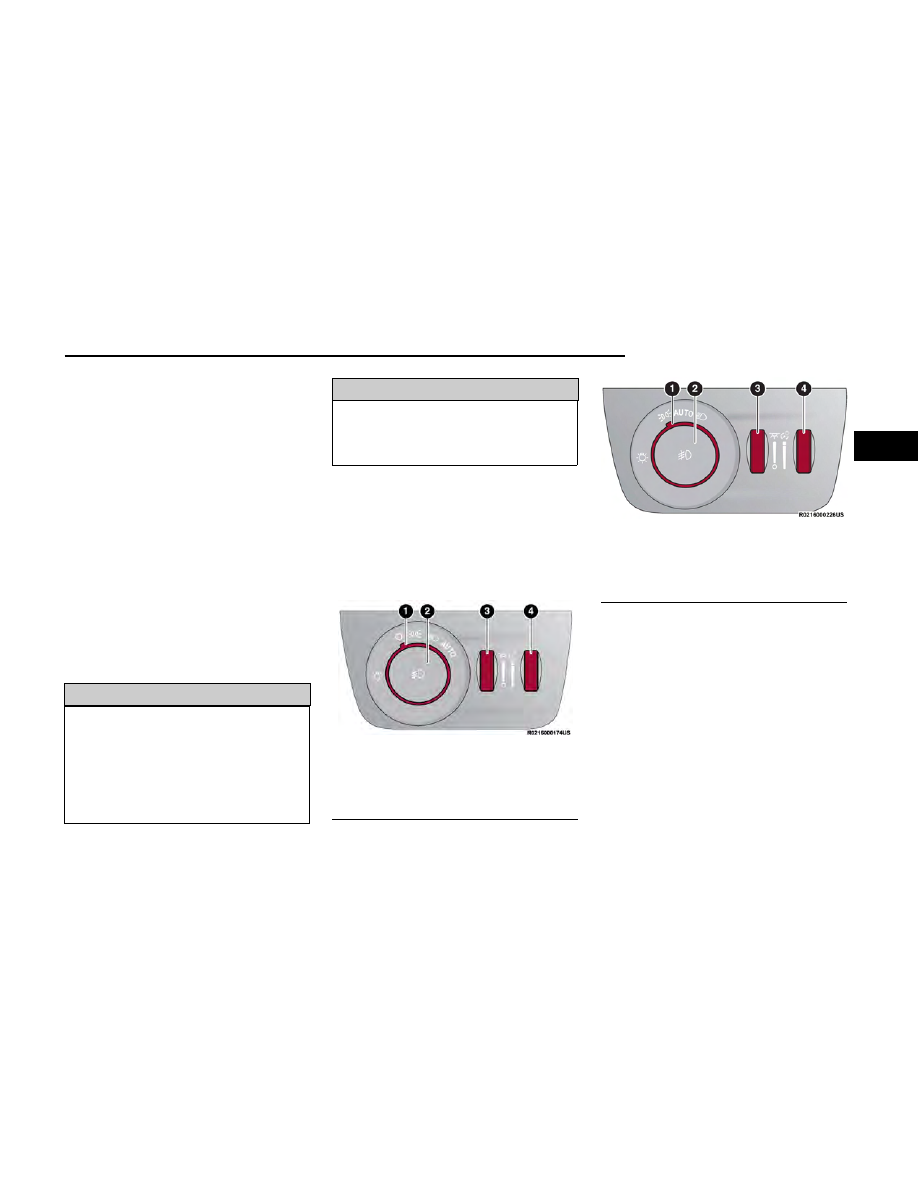

Headlight Switch

1 — Rotate Headlight Control
2 — Push Front Fog Light Control
3 — Ambient Light Dimmer Control
4 — Instrument Panel Dimmer Control

Headlight Switch (Vehicles Sold In Canada Only)

1 — Rotate Headlight Control
2 — Push Front Fog Light Control
3 — Ambient Light Dimmer Control
4 — Instrument Panel Dimmer Control

GETTING TO KNOW YOUR VEHICLE

For vehicles sold in Canada, rotate the headlight switch
clockwise from the parking lights and instrument panel
lights position to the AUTO position for automatic head-
lights. Rotate to the second detent to turn on head-
lights, parking lights, and instrument panel lights
operation.

NOTE:

•

Your vehicle is equipped with plastic headlight and
fog light (if equipped) lenses that are lighter and
less susceptible to stone breakage than glass lights.
Plastic is not as scratch resistant as glass and
therefore different lens cleaning procedures must
be followed.

•

To minimize the possibility of scratching the lenses
and reducing light output, avoid wiping with a dry
cloth. To remove road dirt, wash with a mild soap
solution followed by rinsing.

CAUTION!

Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.

MULTIFUNCTION LEVER

The multifunction lever is located on the left side of the
steering column.

DAYTIME RUNNING LIGHTS (DRLS)

The Daytime Running Lights (DRLs) come on whenever
the engine is running, and the low beams are not on.
The lights will remain on until the ignition is placed in
the OFF or ON/RUN position, or the parking brake is
engaged. The headlight switch must be used for normal
nighttime driving.

NOTE:

•

For vehicles sold in Canada, the Daytime Running
Lights will automatically deactivate when the front
fog lights are turned on.

•

If allowed by law in the country in which the vehicle
was purchased, the Daytime Running Lights can be
turned on and off using the Uconnect system

page 182.

•

On some vehicles, the Daytime Running Lights may
deactivate, or reduce intensity, on one side of the
vehicle (when a turn signal is activated on that
side), or on both sides of the vehicle (when the haz-
ard warning lights are activated).

HIGH/LOW BEAM SWITCH

Push the multifunction lever toward the instrument
panel to switch the headlights to high beams. Pulling
the multifunction lever back toward the steering wheel
will turn the low beams back on, or shut the high
beams off.

AUTOMATIC HIGH BEAMS —
IF EQUIPPED

The Automatic High Beam Headlight system provides
increased forward lighting at night by automating high
beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.

NOTE:

•

The Automatic High Beam Headlight system can be
turned on or off by selecting or deselecting “Auto
High Beam” within Uconnect Settings

page 182.

•

The headlight switch must also be turned to the
AUTO position after Automatic High Beams is
enabled within Uconnect Settings for the feature to
activate.

•

Automatic High Beams will only activate when the
vehicle speed is above 22 mph (35 km/h).

•

Broken, muddy, or obstructed headlights and tail-
lights of vehicles in the field of view will cause head-
lights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions on the wind-
shield or camera lens will cause the system to func-
tion improperly.

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

If the windshield or Automatic High Beam Headlight
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See a local authorized
dealer.

FLASH-TO-PASS

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the high beam headlights to turn on, and
remain on, until the lever is released.

AUTOMATIC HEADLIGHTS

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the
AUTO position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you place the
ignition into the OFF position. The headlight time delay
can be programmed 0/30/60/90 seconds

page 182.

To turn the automatic system off, move the headlight
switch out of the AUTO position.

NOTE:

The engine must be running before the headlights will
come on in the automatic mode.

PARKING LIGHTS AND PANEL
LIGHTS

To turn on the parking lights and instrument panel
lights, rotate the headlight switch clockwise. To turn off
the parking lights, rotate the headlight switch back to
the O (off) position.

NOTE:

Vehicles sold in Canada are equipped with a headlight
switch with an AUTO and ON detent but without an OFF
detent. Headlights will be deactivated when the head-
light switch is placed in the parking lights position. How-
ever, the Daytime Running Lights (DRLs) will be acti-
vated along with the front and rear marker lights. The
DRLs may be deactivated when the parking brake is
engaged.

HEADLIGHTS ON AUTOMATICALLY
WITH WIPERS

If your vehicle is equipped with Automatic Headlights, it
also has this customer-programmable feature. When
your headlights are in the automatic mode and the
engine is running, they will automatically turn on when
the wiper system is on. This feature is programmable
through the Uconnect system

page 182.

NOTE:

When your headlights come on during the daytime, the
vehicle will monitor outside brightness and decide if the
instrument panel needs to be dimmed or not

page 59.

HEADLIGHT ILLUMINATION ON
APPROACH

When enabled, the headlights, exterior door handle
pocket lights (if equipped), and interior lights will illumi-
nate when the unlock button on the key fob is pushed
as the operator is approaching the vehicle. This feature
can be turned on/off, and the length of time the head-
lights stay on can be programmed for up to 90 seconds
within Uconnect Settings

page 182.

Proximity Wake-Up — If Equipped

This feature is enabled/disabled within the Uconnect
system, and is activated when the operator approaches
the driver’s door, passenger’s door, or liftgate with a
valid key fob on their person. Some exterior and interior
lights will illuminate in order to provide an increased
sense of welcome and security as the operator
approaches the vehicle in the dark. “Headlight Illumina-
tion On Approach” must be selected and set to a time
value other than zero within Uconnect Settings for Prox-
imity Wake-Up to activate.

The doors may be locked or unlocked for this feature to
activate, as long as the ignition is in the OFF position, or
during a Remote Start event. It will not activate if the
doors are locked and the ignition was placed in the
ON/RUN position.

NOTE:

Proximity Wake-Up may not activate under the following
conditions:

•

After numerous consecutive activations, in order to
conserve the vehicle’s battery

•

After the vehicle’s engine has been off for several
days

Headlight Animation — If Equipped

When “Headlight Illumination On Approach” is turned
on, and set to a time value above zero, the exterior
lights illuminate in a theatrical manner during approach
to the vehicle. This feature is activated in the following
situations:

•

Proximity Wake-Up (if equipped) is activated

•

Remote Start is activated

•

The unlock button on the key fob is pushed

GETTING TO KNOW YOUR VEHICLE

NOTE:

For Headlight Animation to activate with Remote Start
or with the push of the unlock button, “Greeting Lights”
must also be selected within the Uconnect system.

HEADLIGHT DELAY

To aid in your exit, your vehicle is equipped with a head-
light delay that will leave the headlights on for approxi-
mately 90 seconds. This delay is initiated when the igni-
tion is placed in the OFF position while the headlight
switch is on, and then the headlight switch is cycled off.
Headlight delay can be canceled by either turning the
headlight switch on then off, or by placing the ignition in
the ON position.

NOTE:

The headlight delay time is programmable through
Uconnect Settings

page 182.

LIGHTS-ON REMINDER

If the headlights or parking lights are left on after the
ignition is placed in the OFF position, a chime will
sound when the driver’s door is opened.

FOG LIGHTS

To activate the front fog lights, turn on the parking lights
or the low beam headlights, and push the fog light but-
ton on the headlight switch.

The fog lights will operate only when the parking lights
are on, or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster dis-
play will illuminate when the fog lights are on. The fog
lights will turn off when the button is pushed a second
time, when the headlight switch is rotated to the off
position, or the high beam is selected.

Cornering Lights

The cornering lights are a feature to improve visibility at
night while turning the vehicle. When activated, a light
incorporated in the front fog light will illuminate on the
side of the vehicle the steering wheel is rotated or the
turn signal indicator is on. It can be activated through
the Uconnect system

page 182.

TURN SIGNALS

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster will flash to show
proper operation of the front and rear turn signal lights.

NOTE:

If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb.

LANE CHANGE ASSIST —
IF EQUIPPED

Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.

NOTE:

For information on Turn Signal Activated Blind Spot
Assist, see

page 159.

Fog Light Button

Fog Light Button (Vehicles Sold In Canada Only)

GETTING TO KNOW YOUR VEHICLE

BATTERY SAVER

To protect the life of your vehicle’s battery, load shed-
ding is provided for both the interior and exterior lights.

If the ignition is placed in the OFF position and any door
is left ajar for 10 minutes or if the overhead console
Dome ON switch is pressed, and the interior lights are
on for 10 minutes, the interior lights will automatically
turn off.

NOTE:

Battery saver mode is canceled if the ignition is in the
ON position.

If the headlights remain on while the ignition is placed
in the OFF position, the exterior lights will automatically
turn off after eight minutes. If the headlights are turned
on and left on for eight minutes while the ignition is in
the OFF position, the exterior lights will automatically
turn off.

INTERIOR LIGHTS

COURTESY LIGHTS

Courtesy and dome lights are turned on when the front
doors are opened or the Dome ON button is pushed on
the overhead console. If your vehicle is equipped with
Remote Keyless Entry and the unlock button is pushed
on the key fob, the courtesy and dome lights will turn
on. When a door is open and the interior lights are on,
pressing the Dome Defeat button on the overhead con-
sole will cause all of the interior lights to turn off. This
allows the doors to stay open for extended periods of
time without discharging the vehicle’s battery.

Front Map/Reading Lights

The overhead console lights can also be operated indi-
vidually as reading lights by pushing the corresponding
buttons.

Rear Courtesy/Reading Lights

Located above the rear passenger seating in both sec-
ond and third rows, along the trim, are courtesy/
reading lights. The courtesy lights turn on when a door
or the liftgate is opened. The lights will also turn on
when the unlock button on the key fob is pushed.

The courtesy lights also function as reading lights. Push
the lens button to turn these lights on while inside the
vehicle. Push the lens button a second time to turn
each light off.

DIMMER CONTROLS

The dimmer controls are inboard and adjacent to the
headlight switch located on the left side of the instru-
ment panel.

With the parking lights or headlights on, rotating the
right dimmer control upward will increase the bright-
ness of the instrument cluster lights. Rotating the left
dimmer control will adjust the interior light levels of the
ambient lighting on the instrument panel and doors.
The ambient lighting may be color customizable

page 60.

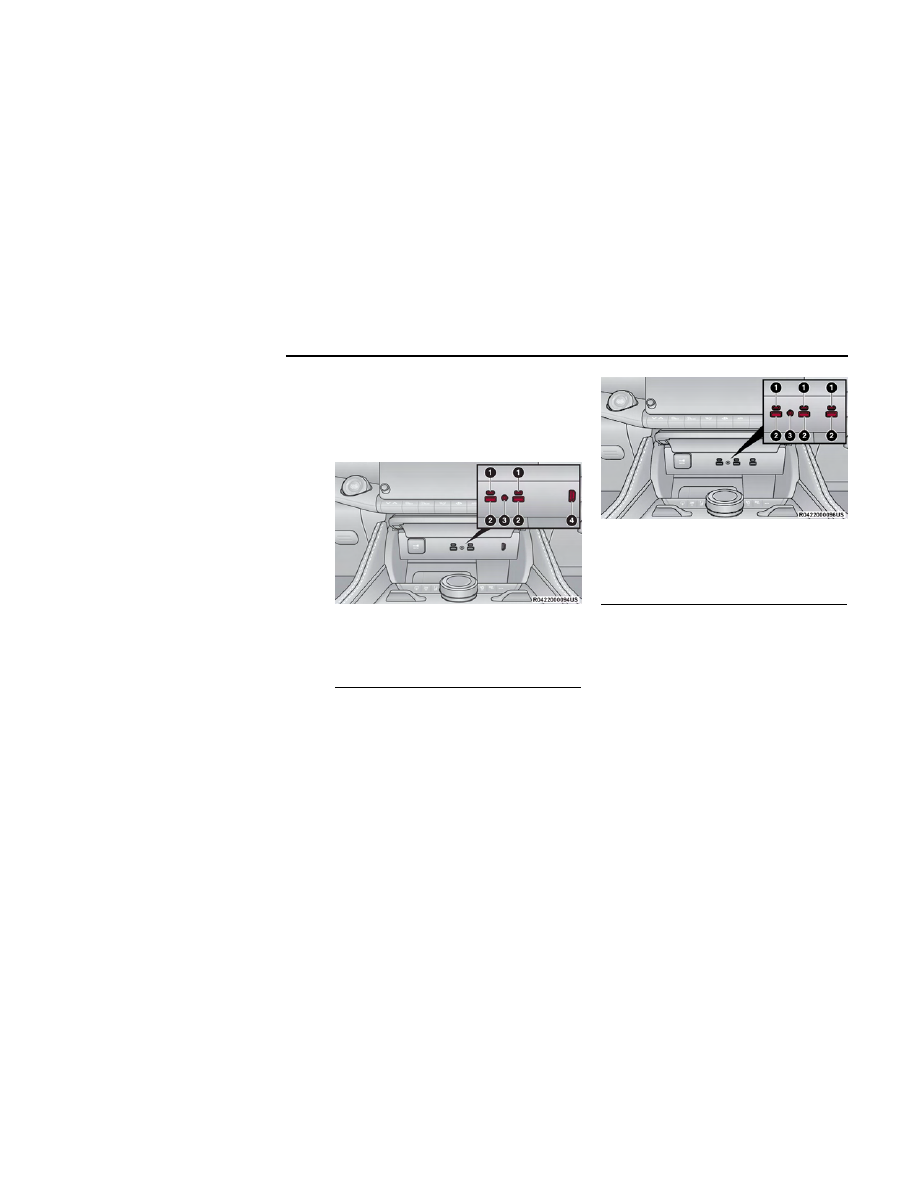

Courtesy Lights

1 — Reading Light On/Off Buttons
2 — Dome Defeat Button
3 — Ambient Light
4 — Dome ON Button

Dimmer Controls

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

Ambient lighting in the second and third row seating
areas may not be equipped in the vehicle.

•

The dimming of the touchscreen is programmable
through the Uconnect system

page 182.

MULTICOLOR AMBIENT LIGHTING —
IF EQUIPPED

The color of certain ambient lighting inside of the
vehicle can be selected within the Apps menu on the
radio screen, or within Uconnect Settings

page 182. Brightness is adjusted using the ambi-

ent light dimmer control on the headlight switch.

Five colors can be selected for the following two zones
inside of the vehicle:

•

Zone 1:

○

Instrument panel decorative ambient lights

•

Zone 2:

○

Front seat footwell areas below the instrument
panel

○

Lighting below the second row seats

○

Map pocket lighting on all four door panels

These areas can be set to different colors, or if the
SYNC button is selected within the settings menu, all
colored lights will be set to the same color
automatically.

NOTE:

All other ambient lighting inside of the vehicle will
remain white, and the ambient light dimmer control
switch will adjust all ambient lighting at the same time.

ILLUMINATED ENTRY —
IF EQUIPPED

The Illuminated Entry feature allows you to activate the
low beam, parking lights, and side marker lights for
25 seconds when the vehicle is unlocked (through the
key fob or the Passive Entry door handles [if equipped]).

This feature can be activated or deactivated through
the Uconnect Settings

page 182.

NOTE:

•

When a door is open with the feature active, the
activation of the lights is extended for five seconds.

•

The feature is disabled when the vehicle is locked or
when the ignition is placed in the ON/RUN position.

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer lever is located on the
right side of the steering column. The front wipers are
operated by rotating a switch, located on the end of the
lever.

WINDSHIELD WIPER OPERATION

The wipers and washers are operated by a switch within
the wiper lever. Rotate the switch at the end of the lever
upward, to the first detent past the intermittent settings
for low-speed wiper operation. Rotate the switch at the
end of the lever upward to the second detent past the
intermittent settings for high-speed wiper operation. To
turn the windshield wipers off, rotate the switch within
the lever all the way down to OFF.

Dimmer Controls (Vehicles Sold In Canada Only)

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

Windshield Wiper Operation

1 — Pull For Front Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Push Forward For Rear Washer
5 — Push Up For Mist

GETTING TO KNOW YOUR VEHICLE

CAUTION!

Always remove any buildup of snow that prevents the
windshield wiper blades from returning to the parked
position. If the windshield wiper switch is turned off,
and the blades cannot return to the parked position,
damage to the wiper motor may occur.

Intermittent Wiper System

Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause
between cycles desirable. Rotate the switch at the end
of the wiper lever to the first detent position, and then
turn the switch at the end of the lever to select the
desired delay interval. There are four delay settings,
which allow you to regulate the wipe interval from a
minimum of one cycle every second to a maximum of
approximately 36 seconds between cycles. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.

NOTE:

If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.

Windshield Washer Operation

To use the washer, pull the lever rearward toward you
and hold. If the lever is pulled while on the intermittent
setting, the wipers will turn on and operate for several
wipe cycles after the lever is released, and then resume
the intermittent interval previously selected. If the lever
is pulled while the wipers are in the off position, the
wipers will operate several cycles, then turn off.

NOTE:

•

As a protective measure, the pump will stop if the
switch is held for more than 20 seconds. Once the
switch is released the pump will resume normal
operation.

•

If the front window washer feature is activated, all of
the front cameras (if equipped) on the vehicle will
be washed as well.

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Mist

Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Push the
lever upward to the MIST position and release for a
single wiping cycle.

NOTE:

The Mist feature does not activate the washer pump;
therefore, no washer fluid will be sprayed on the wind-
shield. The washer function must be used in order to
spray the windshield with washer fluid.

RAIN SENSING WIPERS —
IF EQUIPPED

This feature senses rain or snowfall on the windshield
and automatically activates the wipers. Rotate the end
of the windshield wiper lever to one of the four detent
positions to activate this feature.

The sensitivity of the system is adjustable from the
windshield wiper lever. Wiper sensitivity position 1 is
the least sensitive, and wiper sensitivity position 4 is
the most sensitive.

NOTE:

•

The Rain Sensing feature will not operate when the
wiper switch is in the low or high position.

•

The Rain Sensing feature may not function properly
when ice or dried saltwater is present on the
windshield.

•

Use of products containing wax or silicone may
reduce rain sensor performance.

•

The Rain Sensing feature can be turned on and off
through the Uconnect system

page 182.

The Rain Sensing system has protective features for the
wiper blades and arms. It will not operate under the
following conditions:

•

Low Temperature Wipe Inhibit

— The Rain Sensing

feature will not operate when the ignition is first
placed in the ON position, when the vehicle is sta-
tionary and the outside temperature is below 32°F
(0°C), unless the wiper control on the windshield
wiper lever is moved, the vehicle speed becomes
greater than 3 mph (5 km/h) or the outside tem-
perature rises above freezing.

GETTING TO KNOW YOUR VEHICLE

•

Neutral Wipe Inhibit

— The Rain Sensing feature will

not operate when the ignition is ON, when the trans-
mission gear selector is in the NEUTRAL position
and the vehicle speed is less than 3 mph (5 km/h),
unless the wiper control on the windshield wiper
lever is moved, the vehicle speed is greater than
3 mph (5 km/h) or the gear selector is moved out of
the NEUTRAL position.

•

Remote Start Mode Inhibit

— On vehicles equipped

with the Remote Start system, Rain Sensing wipers
are not operational when the vehicle is in the
Remote Start mode. Once the operator is in the
vehicle and has placed the ignition switch in the
ON/RUN position, rain sensing wiper operation can
resume, if it has been selected, and no other inhibit
conditions (mentioned previously) exist.

REAR WIPER AND WASHER

The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.

Rotate the center portion of the lever upward
to the first detent for intermittent operation
and to the second detent for continuous rear
wiper operation.

Rear Window Washer Operation

Pushing the windshield wiper lever forward
activates the rear window washer. If the lever
is pushed while on the intermittent setting,
the wiper will turn on and operate for several

wipe cycles after the lever is released, and then resume
the intermittent interval previously selected. If the lever
is pushed while the wiper is in the off position, the
wiper will operate several wipe cycles, then turn off.

NOTE:

When the rear window washer is activated, the rear
Back Up camera and Digital Rearview Mirror
(if equipped) cameras are also washed.

WINDSHIELD WIPER DE-ICER —
IF EQUIPPED

Your vehicle may be equipped with a Windshield Wiper
De-Icer feature that may be activated under the follow-
ing conditions:

•

Activation By Front Defrost

— The Windshield Wiper

De-Icer shall be activated automatically in the case
of a cold weather manual start with full front
defrost, and when the ambient temperature is
below 33°F (0.6°C).

•

Activation By Rear Defrost

— The Windshield Wiper

De-Icer shall be activated automatically when the
rear defrost is turned on and when the ambient tem-
perature is below 33°F (0.6°C).

•

Activation By Remote Start Operation

— When

Remote Start is active and the outside ambient tem-
perature is less than 33°F (0.6°C), the Windshield
Wiper De-Icer will activate. Exiting Remote Start will
resume its previous operation. If the Windshield
Wiper De-Icer was active, the timer and operation
will continue.

CLIMATE CONTROLS

The Climate Control system allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen and on the instrument panel below the
radio.

AUTOMATIC CLIMATE CONTROL
DESCRIPTIONS AND FUNCTIONS

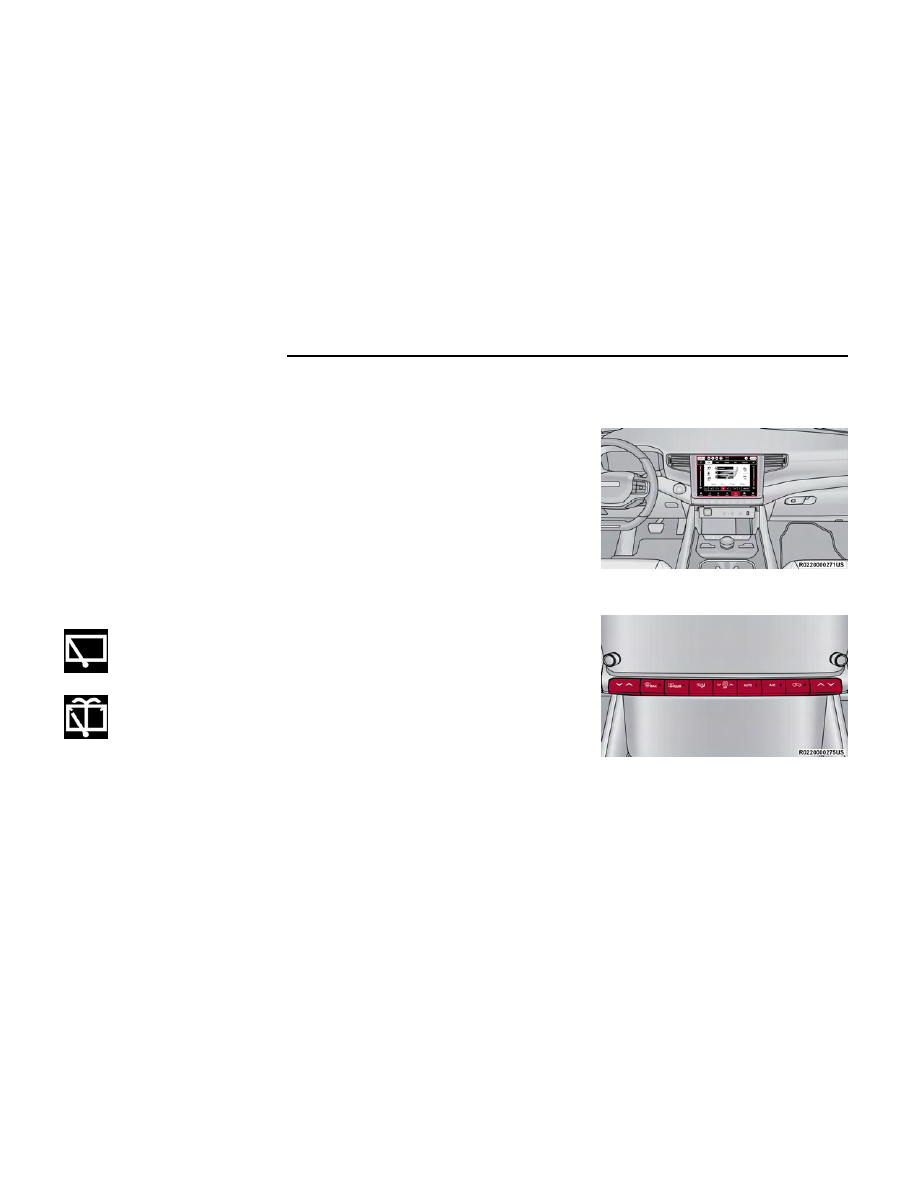

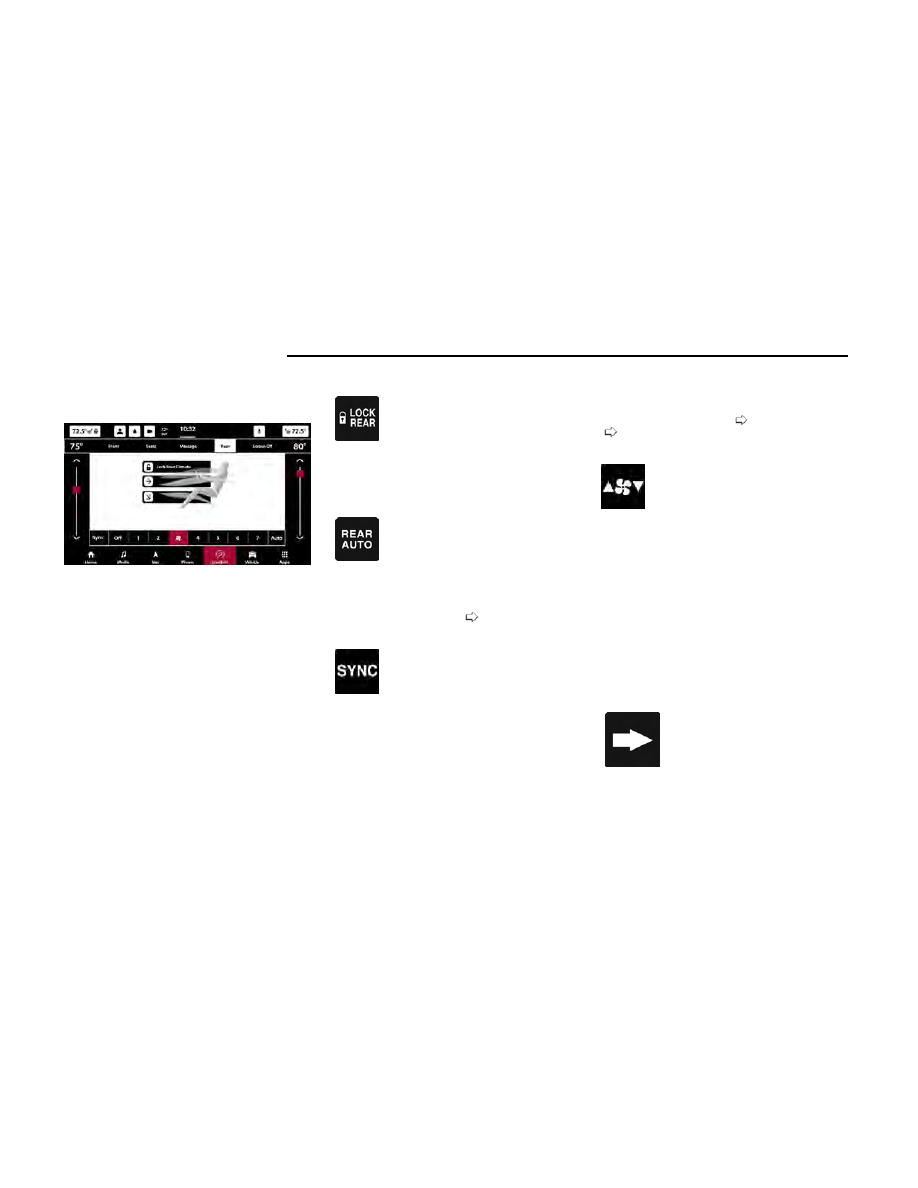

Uconnect 5 NAV With 10.1-inch Or 12-inch Display

Temperature Controls

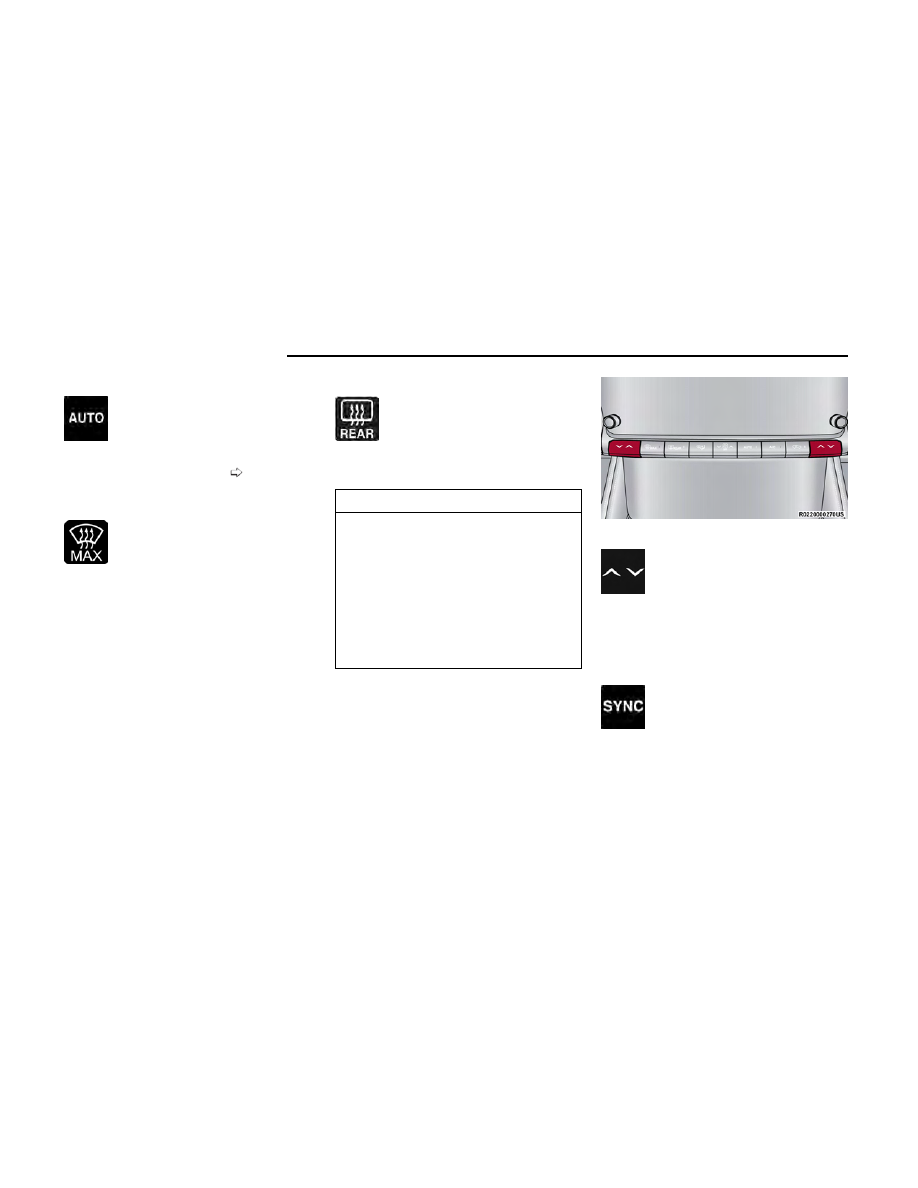

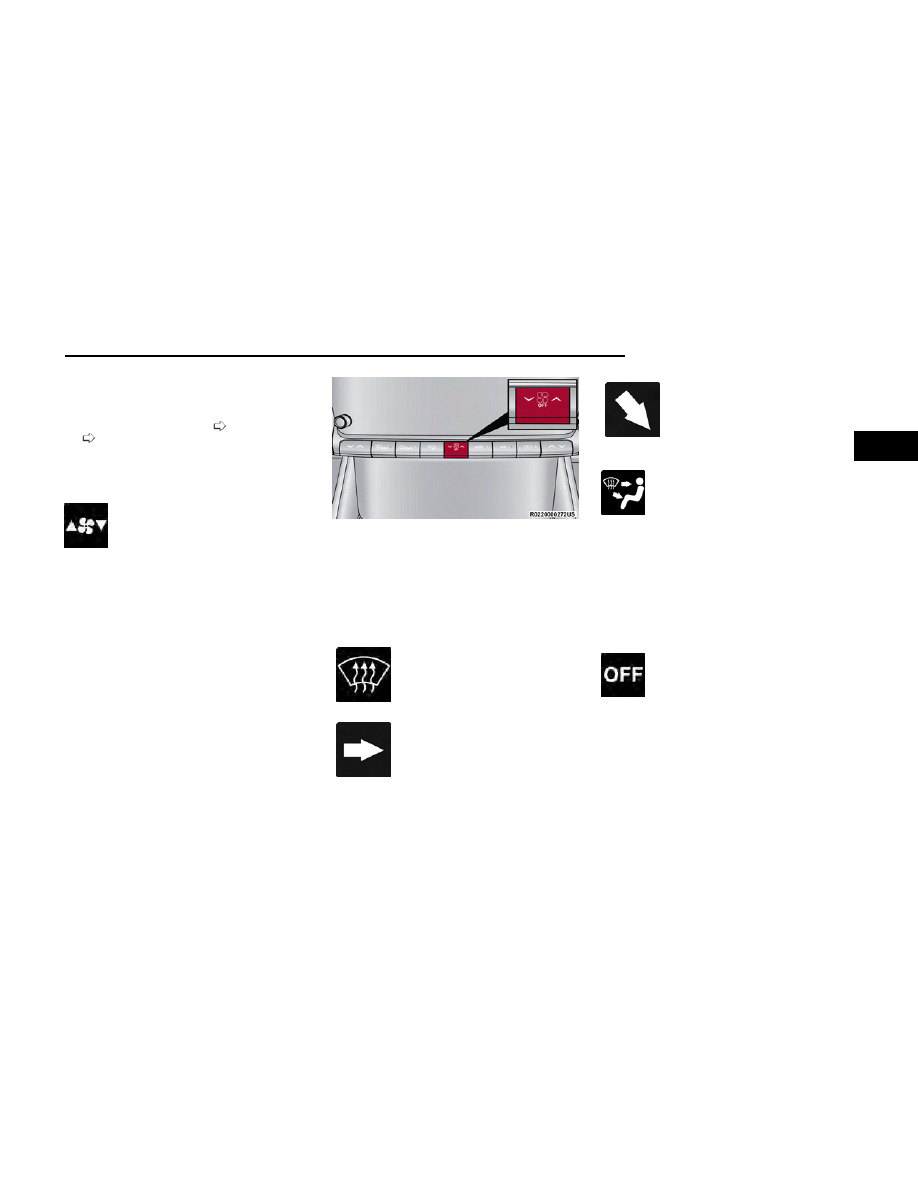

Instrument Panel Climate Control Toggle Switches

GETTING TO KNOW YOUR VEHICLE

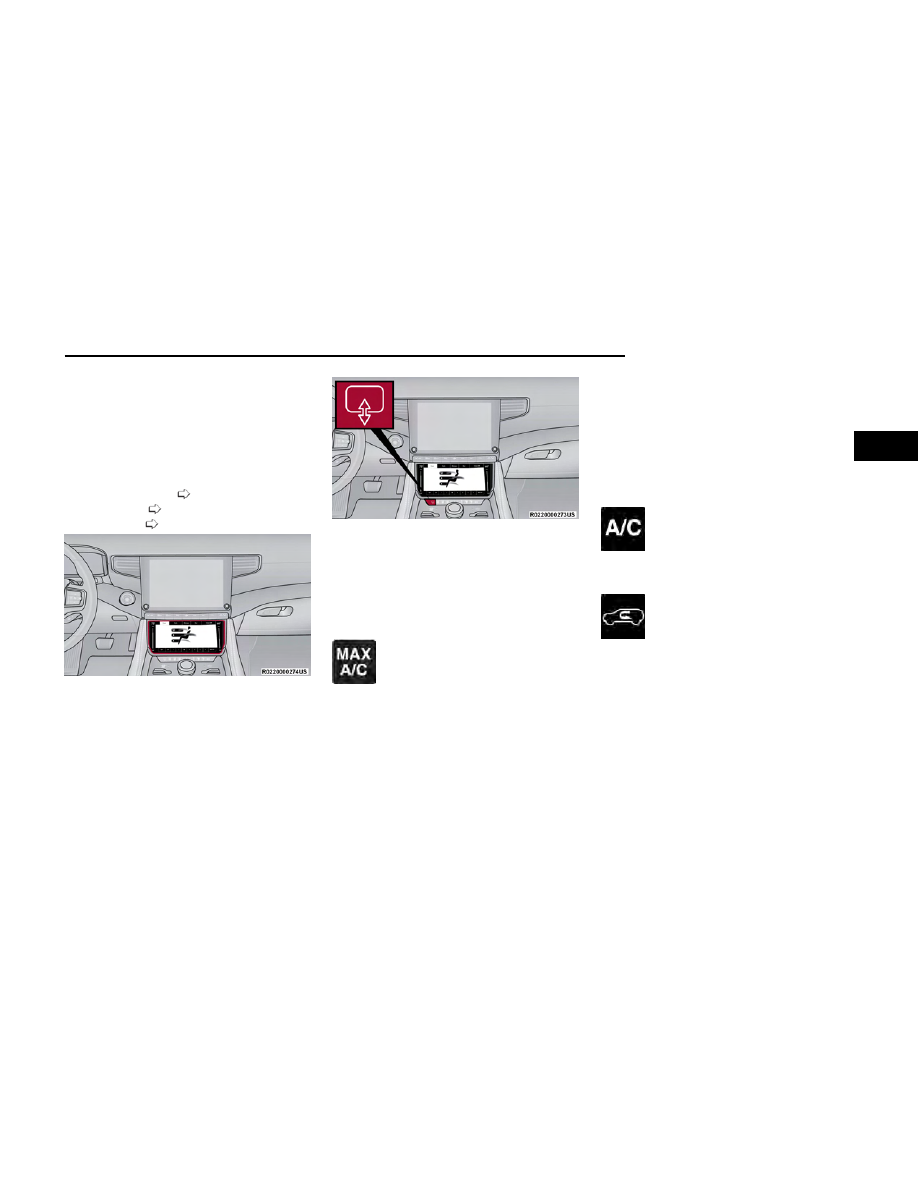

Front Comfort And Convenience

Display — If Equipped

The Front Comfort And Convenience Display is a retract-
able screen located below the main Uconnect display
that controls the front and rear climate settings just as
the Controls menu would within the Uconnect system.

Other front seat functions can also be adjusted from
this screen, such as:

•

Power Massage Seat

page 41

•

Power Lumbar

page 39

•

Power Bolster

page 39

NOTE:

The Front Comfort And Convenience Display can only be
used if the vehicle is in the ON/RUN position.

To stow this display and access the power outlet, USB
ports, and wireless charging pad, push the screen
open/close hard button below the display, in front of
the gear selector. Pushing the button again will lower
the screen for use.

NOTE:

When the open/close button is pushed to stow the
Front Comfort And Convenience Display screen, the
screen will turn off and save the menu it was on prior to
being stowed.

Max A/C Button

Press and release the MAX A/C button on
the touchscreen to automatically turn the air
conditioning on to the coldest temperature
setting and the highest blower speed. The

MAX A/C indicator illuminates when MAX A/C is ON.
Performing this function again will cause the MAX A/C
operation to switch into manual mode and the MAX A/C
indicator will turn off. Pressing other setting buttons will
also cause the MAX A/C to turn off.

MAX A/C sets the control for maximum cooling
performance.

NOTE:

•

The MAX A/C button is only available on the
touchscreen.

•

Pressing the MAX A/C button on the front climate
control screen will not set the rear A/C to MAX
unless the rear A/C was already active. If the rear
A/C is not active, pressing the MAX A/C button will
not turn on the rear A/C.

•

For best A/C performance, it is recommended that
the rear A/C be turned to ON or AUTO and synced to
the driver’s climate settings.

A/C Button

Press and release the A/C button on the
touchscreen, or push the toggle switch on
the faceplate down, to turn the air condition-
ing on. The A/C indicator illuminates when

A/C is on.

Recirculation Button

Press and release the Recirculation button
on the touchscreen, or push the toggle
switch on the faceplate down, to change the
system between recirculation mode and out-

side air mode. Recirculation can be used when outside
conditions such as smoke, odors, dust, or high humidity
are present. Recirculation can be used in all modes.
Recirculation may be unavailable if conditions exist that
could create fogging on the inside of the windshield.
The A/C can be deselected manually without disturbing
the mode control selection. Continuous use of Recircu-
lation mode may make the inside air stuffy and window
fogging may occur. Extended use of this mode is not
recommended.

In cold weather, use of Recirculation mode may lead to
excessive window fogging. The Recirculation feature
may be unavailable if conditions exist that could create
fogging on the inside of the windshield.

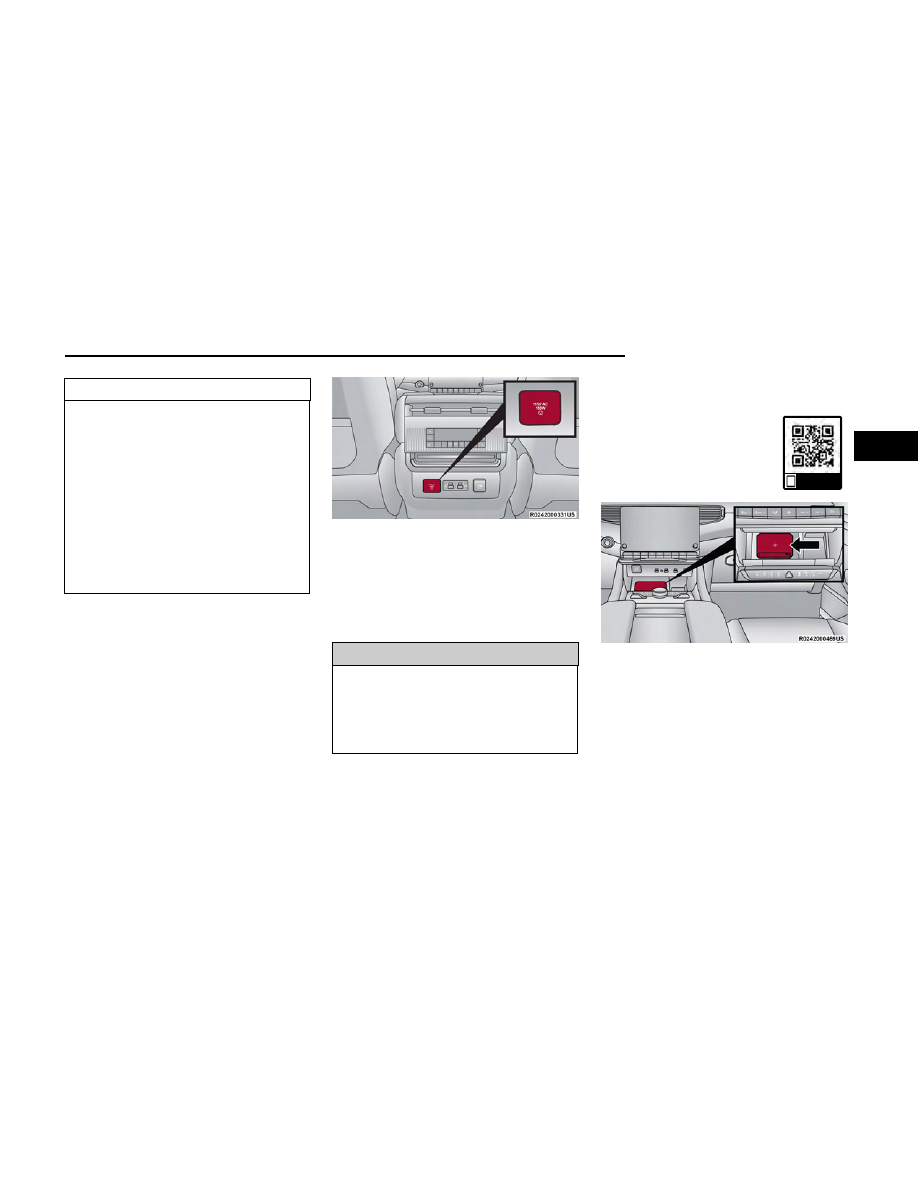

Front Comfort And Convenience Display Location

Screen Open/Close Button

GETTING TO KNOW YOUR VEHICLE

AUTO Button

Press the AUTO button on the touchscreen,
or push toggle switch on the faceplate down
to automatically control the front driver and
passenger area’s temperature by adjusting

distribution and amount of airflow. Performing this
function will cause the system to switch between
manual mode and automatic modes

page 68.

AUTO mode is highly recommended for efficiency.

MAX Defrost Button

Press the MAX Defrost button on the touch-
screen, or push the toggle switch on the
faceplate down, to change the current air-
flow setting to Defrost mode. The indicator

illuminates when this feature is on. Performing this
function will cause the automatic climate controls to
change to manual mode.

When MAX Defrost mode is selected:

•

The blower speed increases to full (all LEDs on)

•

Air conditioning compressor is turned on (LED on)

•

Both driver and passenger temperature controls are
set to HI

•

Defrost mode is selected (LED on)

•

Rear defroster is turned on (LED on)

•

Air recirculation is turned off (LED off)

If MAX Defrost mode is turned off, the Climate Control
system will return to the previous setting.

Rear Defrost Button

Press and release the button on the touch-
screen, or push the toggle switch on the
faceplate down, to turn on the rear window
defroster and the heated outside mirrors

(if equipped). The Rear Defrost indicator illuminates
when the rear window defroster is on. The rear window
defroster automatically turns off after 10 minutes.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:

•

Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and
a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.

•

Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.

•

Keep all objects a safe distance from the window.

Driver And Passenger Temperature

Switches

These toggle switches provide the driver and passenger
with independent temperature control by pushing the
single switch upward or downward.

Push upward on the driver’s or passenger’s
side toggle switch on the faceplate, or press
and slide the temperature bar towards the
red arrow button on the touchscreen for

warmer temperature settings. Push downward the driv-
er’s or passenger’s side toggle switch on the faceplate,
or press and slide the temperature bar towards the blue
arrow button on the touchscreen for cooler temperature
settings.

SYNC Button

Press the SYNC button on the touchscreen
to turn the SYNC feature on/off. The SYNC
indicator illuminates when SYNC is on. SYNC
is used to synchronize the front passenger

temperature and rear passenger temperature, mode,
and blower settings with the driver temperature, mode,
and blower settings. Changing the front passenger tem-
perature or rear passenger temperature, mode, and
blower settings while in SYNC will automatically exit this
feature.

Instrument Panel Toggle Switches

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

When SYNC is not active, the rear passenger climate
control settings will need to be adjusted manually to
achieve desired comfort. See

page 66 and

page 67 for more information.

•

The SYNC setting is only available on the
touchscreen.

Blower Control

Blower Control is used to regulate the
amount of air forced through the Climate
Control system. There are several blower
speeds available. The speeds can be

selected using the blower control buttons on the
touchscreen.

Use the small blower icon to reduce the blower setting
and the large blower icon to increase the blower set-
ting. Blower speed can also be selected by pressing the
numbered blower speed on the bar area between the
blower icons.

NOTE:

You can also adjust the blower speed by pushing the
single blower control toggle switch on the faceplate.
Push the toggle switch downward to decrease speed, or
upward to increase speed.

Tri-Mode Climate

Three airflow distribution modes can be selected on/off
individually by pressing the icons on the touchscreen
for up to seven combinations of airflow. The icons on
the screen will illuminate when selected, and turn off
when deselected.

The three airflow modes are:

Windshield (Front Defrost outlets)

Face (instrument panel outlets)

Feet (floor outlets)

Mode Control Button On The Instrument Panel

The airflow distribution mode can also be
selected by pushing the hard toggle switch
on the instrument panel, below the radio
screen. Pushing this toggle switch down will

cycle through the seven mode combinations in order:
Face, Face/Feet, Feet, Windshield/Feet, Windshield,
Windshield/Face, and Windshield/Face/Feet. The cycle
will repeat if the button is continually pushed.

NOTE:

The distribution modes on the climate control screen
will also illuminate when a selection is made using the
button on the instrument panel.

Climate Control OFF Button

Press and release the OFF button on the
touchscreen, or push the blower control but-
ton on the faceplate and release when the
OFF setting has been reached, to turn the

Climate Control system on/off.

Blower Control Toggle Switch

GETTING TO KNOW YOUR VEHICLE

Controlling The Rear Climate Controls

From The Front Climate Screen

The Three-Zone and Four-Zone Climate Control system
allows for adjustment of the rear climate controls from
the front screen. This can be done through either the
main Uconnect display, or the Front Comfort And Conve-
nience Display (if equipped).

NOTE:

If equipped with a Four-Zone Climate Control system,
the temperature of left and right sides of the rear pas-
senger zones can be adjusted separately from the front
or rear climate screens.

To change to the rear climate control screen:

•

Press the “Rear” icon on the touchscreen to display
the rear climate controls. The control functions now
operate the rear system.

•

Press the “Front” icon on the touchscreen to return
to the front climate controls.

LOCK REAR CLIMATE

Press and release the “Lock Rear” icon to
lock out manual control of the rear tempera-
ture and blower settings made from the rear
climate control display. The “Lock Rear” icon

will illuminate and the text will update to “Unlock Rear”
when this feature is selected. When the feature is dese-
lected, the text will change back to “Lock Rear” and will
no longer be illuminated.

REAR AUTO BUTTON

Press and release “Auto” on the rear climate
control screen to control the selected rear
passenger temperature by automatically
adjusting airflow distribution and amount.

The “Auto” icon will illuminate when this feature is
selected, and will turn off when deselected. Pressing
any other climate control function for the rear system
will cause the rear system to switch between manual
mode and automatic modes

page 68.

SYNC BUTTON

Press the SYNC To Driver icon on the rear
climate control screen to turn the SYNC fea-
ture on/off. SYNC is used to synchronize all
front and rear passenger zones to the driv-

er’s set temperature, mode, and blower settings. The
SYNC indicator will illuminate when SYNC is on. Chang-
ing the front driver climate settings will adjust all pas-
senger settings automatically. If the front passenger or
rear climate settings are adjusted while SYNC is on,
SYNC will automatically exit.

NOTE:

When SYNC is not active, the rear passenger climate
control settings will need to be adjusted manually to
achieve desired comfort. See

page 66 and

page 67 for more information.

REAR BLOWER CONTROL

Rear Blower Control is used to regulate the
amount of air forced through the rear cli-
mate system. There are several blower
speeds available. The speeds can be

selected using the buttons on the touchscreen. Use the
small blower icon (or blower icon with the downward
arrow) to reduce the blower setting, and the large
blower icon (or blower icon with the upward arrow) to
increase the blower setting. Blower can also be
selected by pressing the blower bar area between the
icons.

REAR MODE CONTROL

Two airflow distribution modes for the rear seat passen-
gers can be selected on/off from the front climate
screen by individually by pressing the icons on the
touchscreen for up to three combinations of airflow.
The icons on the screen will illuminate when selected,
and turn off when deselected.

The two airflow modes are:

Face (panel outlets)

Four-Zone Rear Climate Controls From Front Climate

Screen

GETTING TO KNOW YOUR VEHICLE

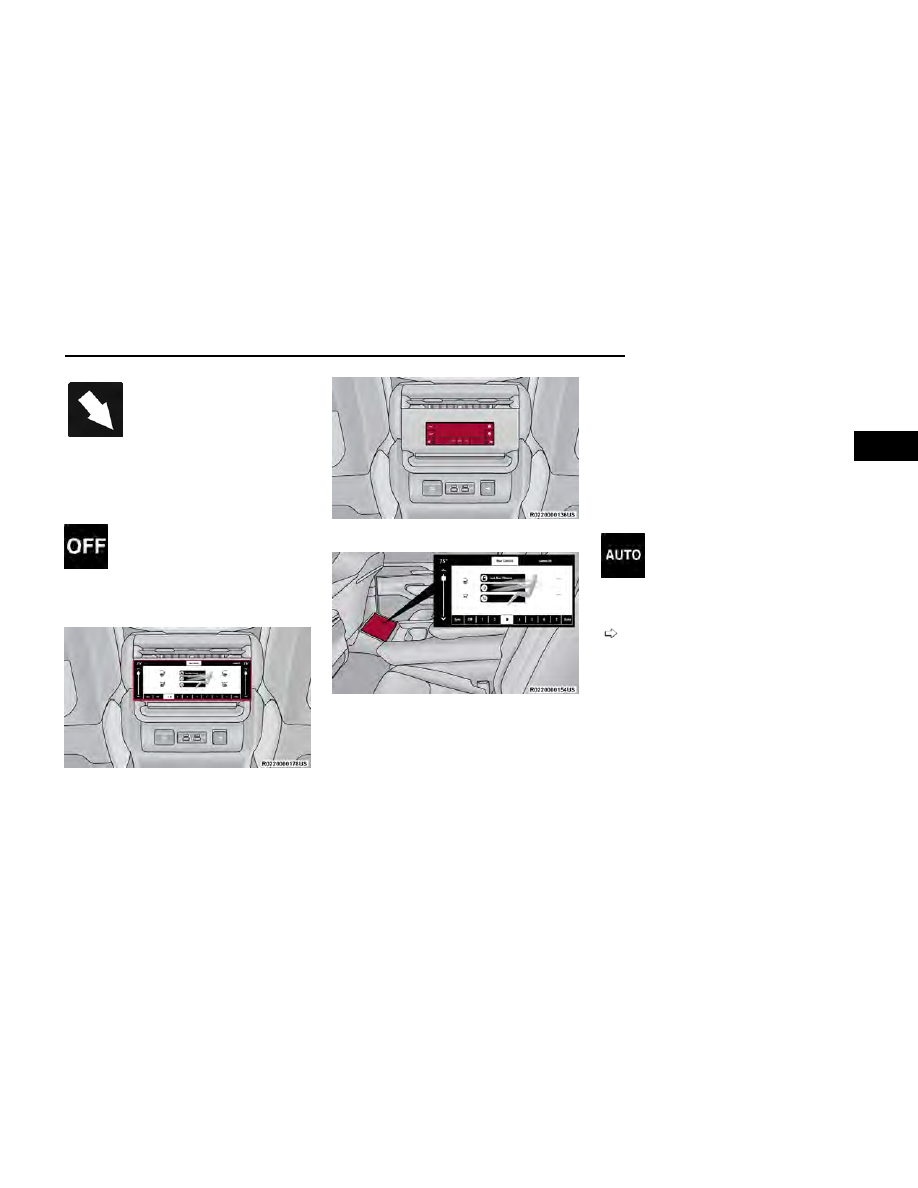

Feet (floor outlets)

NOTE:

If Auto is selected, these icons will no longer be avail-
able and the current mode selection will be overwritten.

REAR CLIMATE CONTROL OFF

To turn the rear climate controls off, press
the OFF button on the touchscreen, near the
blower buttons.

Rear Climate Control Description And

Functions

The rear climate controls are located on rear of the
front center console, or if equipped, on the Rear Com-
fort And Convenience Display screen located at the
front of the rear center console.

The rear Climate Control system has floor air outlets at
the right and left sides of the second and third row
seats. There are also airflow outlets on the B-pillars in

the second row seating area, as well as the side trim
panels in the third row seating area. The system pro-
vides heated or cooled air through the floor outlets, and
dehumidified air through the B-pillar and side trim
panel outlets.

NOTE:

If equipped with a Four-Zone ATC system, the left and
right sides of the rear passenger zones can be adjusted
separately from the front or rear climate control
displays.

AUTO BUTTON

Push the AUTO button below the rear climate
control display, or if equipped, press and
release the AUTO button on the Rear Com-
fort And Convenience Display touchscreen to

control the rear passenger area’s temperature by auto-
matically adjusting distribution and amount of airflow.
Performing this function will cause the system to switch
between manual mode and automatic modes

page 68.

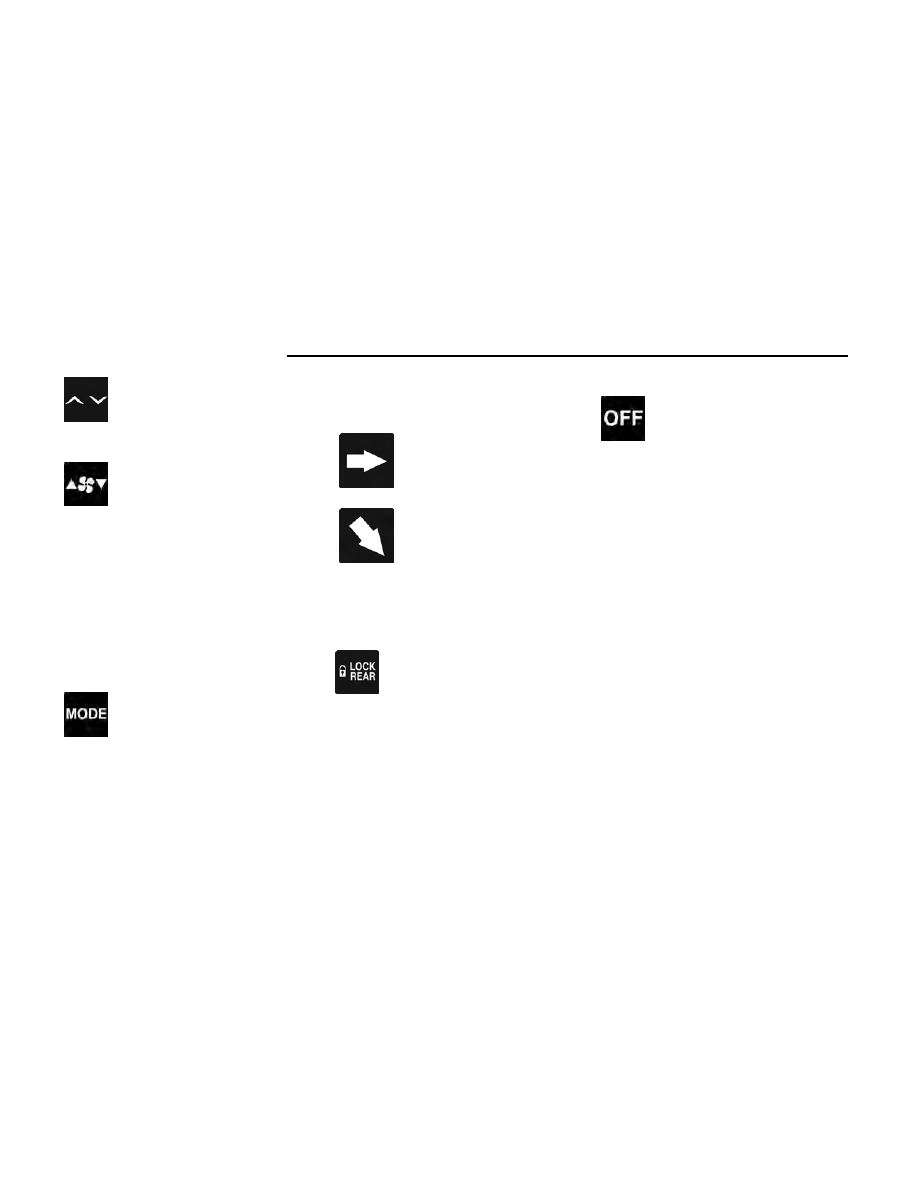

REAR TEMPERATURE CONTROL

Push the Up or Down buttons near the rear climate con-
trol display, or if equipped, press the Up or Down arrow
buttons on the Rear Comfort And Convenience Display
touchscreen to control the rear passenger’s
temperature.

NOTE:

If equipped with a Four-Zone ATC system, the left and
right sides of the rear passenger zones can be adjusted
separately.

Rear Comfort And Convenience Display Screen

(If Equipped)

Rear Climate Buttons (If Equipped)

Rear Comfort And Convenience Display Screen

(If Equipped)

GETTING TO KNOW YOUR VEHICLE

Push the Up or Down arrow hard buttons, or
press and release, or slide the temperature
bar on the touchscreen towards the red or
blue arrow buttons on the touchscreen for

warmer or cooler temperature settings.

REAR BLOWER CONTROL

Blower Control is used to regulate the
amount of air forced through the Climate
Control system. There are several blower
speeds available. The speeds can be

selected using the blower control buttons near the rear
climate control display, or if equipped, on the Rear Com-
fort And Convenience Display touchscreen.

Use the blower button with the down arrow, or small
blower icon on the touchscreen to reduce the blower set-
ting. Use the blower button with the up arrow, or the large
blower icon on the touchscreen to increase the blower
setting.

NOTE:

Blower speed can also be selected by pressing the
numbered blower speed on the touchscreen bar area
between the blower icons.

REAR MODE CONTROL

Pushing the Mode button below the rear cli-
mate control display, located on the rear of the
center console, will cycle through the three
rear mode control options for airflow distribu-

tion. These options are: Face, Face/Feet, and Feet.

Mode Control From The Rear Comfort And Conve-
nience Display

If equipped with the Rear Comfort And Convenience
display, two airflow distribution modes can be selected
on/off from the display by individually by pressing the

icons on the touchscreen for up to three combinations
of airflow. The icons on the screen will illuminate when
selected, and turn off when deselected.

The two airflow modes are:

Face (panel outlets)

Feet (floor outlets)

NOTE:

If Auto is selected, these icons will no longer be avail-
able and the current mode selection will be overwritten.

REAR CLIMATE LOCK

When the rear climate controls are locked
from the front climate controls, “Unlock
Rear” will illuminate on the rear climate
screen. No adjustments to the rear climate

system can be made from the rear climate controls
while the system is locked.

When the controls are then unlocked from the front
climate controls, the text on the rear screen will update
to “Lock Rear”, and no longer be illuminated. Tempera-
ture, blower speed, and mode settings can now be
made from the rear climate controls.

REAR CLIMATE CONTROL OFF

To turn the rear climate controls off, push the
OFF button below the rear climate control dis-
play, or if equipped, press and release the OFF
button on the Rear Comfort And Convenience

Display touchscreen, near the blower buttons.

AUTOMATIC TEMPERATURE
CONTROL (ATC)

Automatic Operation

1. Push the AUTO button on the front climate control

display, and the word “AUTO” will illuminate along
with two temperatures for the driver and front pas-
senger. The system will then automatically regulate
the amount of airflow.

2. Adjust the temperature you would like the system to

maintain, by adjusting the driver, passenger, and
rear temperatures. Once the desired temperature is
displayed, the system will achieve, and automati-
cally maintain, that comfort level.

3. When the system is set up for your comfort level, it

is not necessary to change the settings. You will
experience the greatest efficiency by simply allowing
the system to function automatically.

NOTE:

It is not necessary to move the temperature settings. The
system automatically adjusts the temperature, mode, and
fan speed to provide comfort as quickly as possible.

To provide you with maximum comfort in the automatic
mode during cold start-ups, the blower fan will remain
on low until the engine warms up. The fan will engage
immediately if the Defrost mode is selected, or by
changing the front blower setting.

GETTING TO KNOW YOUR VEHICLE

Manual Operation Override

This system offers a full complement of manual over-
ride features. The AUTO symbol in the front climate con-
trol display will no longer be illuminated when the sys-
tem is being used in the manual mode.

NOTE:

The system will not automatically sense the presence of
fog, mist or ice on the windshield. Defrost mode must
be manually selected to clear the windshield and side
glass.

CLIMATE VOICE RECOGNITION

Adjust vehicle temperatures hands-free and keep every-
one comfortable while you keep moving ahead (If
vehicle is equipped with climate control).

Push the VR/Phone button

. After the beep, say

one of the following commands:

•

“

Set the driver temperature to

degrees

”

•

“

Set the passenger temperature to

degrees

”

Did You Know:

Voice Command for Climate may only be

used to adjust the interior temperature of your vehicle.
Voice Command will not work to adjust the heated
seats or steering wheel if equipped.

OPERATING TIPS

CAUTION!

Interior air enters the Rear Climate Control system
through an intake grille, located in the right side trim
panel behind the third row seats. The heater outlets
are located in the right side trim panel, just behind
the rear doors. Do not block or place objects directly

(Continued)

CAUTION!

in front of the inlet grille or heater outlets. The electri-
cal system could overload causing damage to the
blower motor.

Refer to the chart at the end of this section for sug-
gested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheat-
ing. OAT coolant (conforming to MS.90032) is
recommended.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is func-
tioning properly and the proper amount, type, and con-
centration of coolant is used. Use of the Air
Recirculation mode during Winter months is not recom-
mended, because it may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control sys-
tem when the vehicle is being stored for an extended
period of time, see

page 339.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,
and/or humid weather. To clear the windows, select
Defrost or Mix mode and increase the front blower
speed. Do not use the Recirculation mode without A/C
for long periods, as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions, such as leaves.
Leaves collected in the air intake may reduce airflow,
and if they enter the air distribution box, they could plug
the water drains. In Winter months, make sure the air
intake is clear of ice, slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and pollen
from the air. Contact an authorized dealer to service
your cabin air filter, and to have it replaced when
needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.

Windshield Wiper De-Icer — If Equipped

The Windshield Wiper De-Icer is a heating element
located at the base of the windshield.

It operates automatically once the following conditions
are met:

•

Activation By Front Defrost

The Windshield Wiper De-Icer activates automati-
cally during a cold weather manual start with

full

defrost,

and when the

ambient temperature is

below 33°F (0.6°C)

•

Activation By Rear Defrost

The Windshield Wiper De-Icer activates automati-
cally when the Rear Defrost is operating and the

ambient temperature is below 33°F (0.6°C)

GETTING TO KNOW YOUR VEHICLE

•

Activation By Remote Start Operation

When Remote Start is activated and the

outside

ambient temperature is less than 33°F (0.6°C)

the

Windshield Wiper De-Icer will activate. Exiting
Remote Start will resume its previous operation. If
the Windshield Wiper De-Icer was active, the timer
and operation will continue.

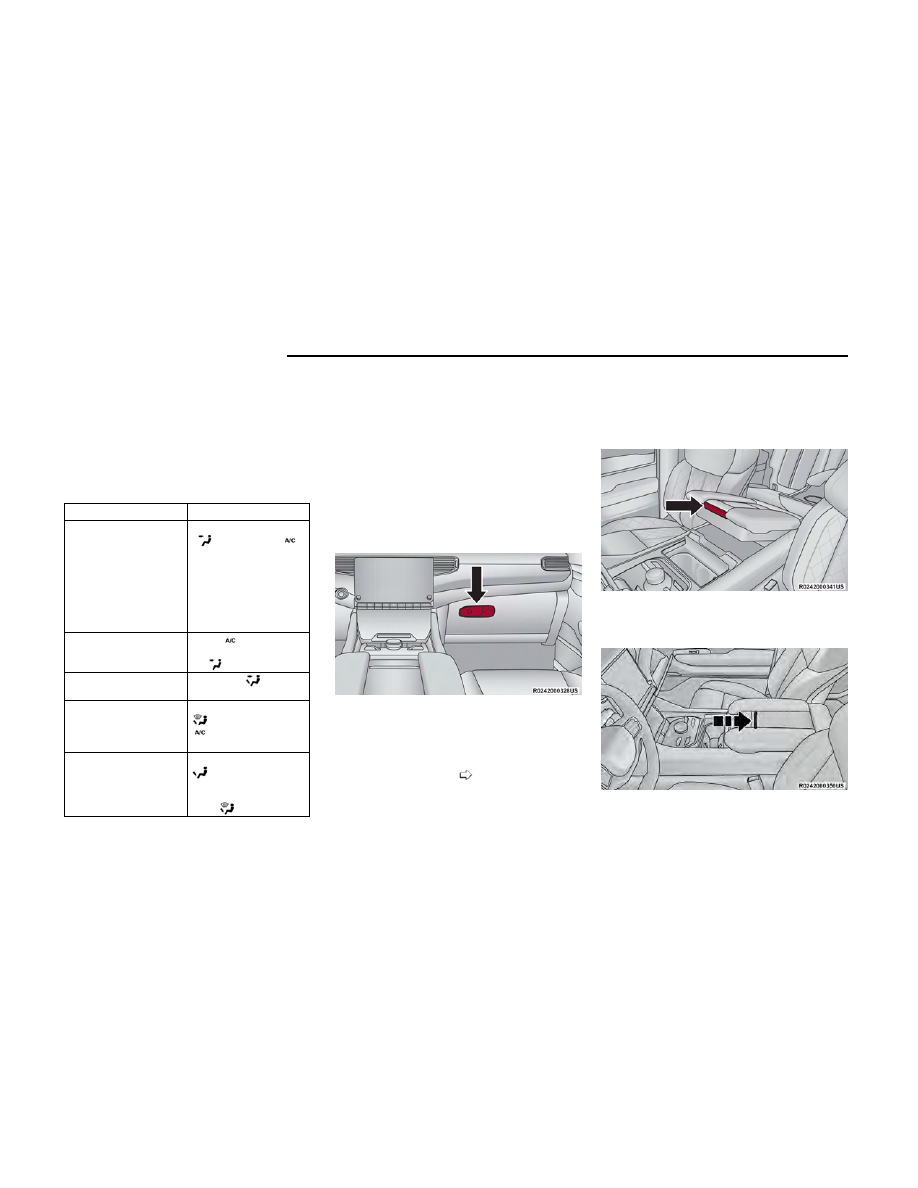

Operating Tips Chart

WEATHER

CONTROL SETTINGS

Hot Weather And Vehicle

Interior Is Very Hot

Set the mode control to

(Panel Mode),

(A/C) on, and blower on
high. Roll down the win-

dows for a minute to

flush out the hot air.

Adjust the controls as

needed to achieve

comfort.

Warm Weather

Turn

(A/C) on and

set the mode control to

(Panel Mode).

Cool Sunny

Operate in

(Bi-Level

Mode).

Cool & Humid Conditions

Set the mode control to

(Mix Mode) and turn
(A/C) on to keep win-

dows clear.

Cold Weather

Set the mode control to

(Floor Mode). If wind-

shield fogging starts to

occur, move the control

(Mix Mode).

NOTE:

If your vehicle is equipped with a Tri-Pane Panoramic
Sunroof, cabin heat generated by sunlight can be
reduced by closing the first and second row power sun-
shade, as well as the third row manual sunshade.

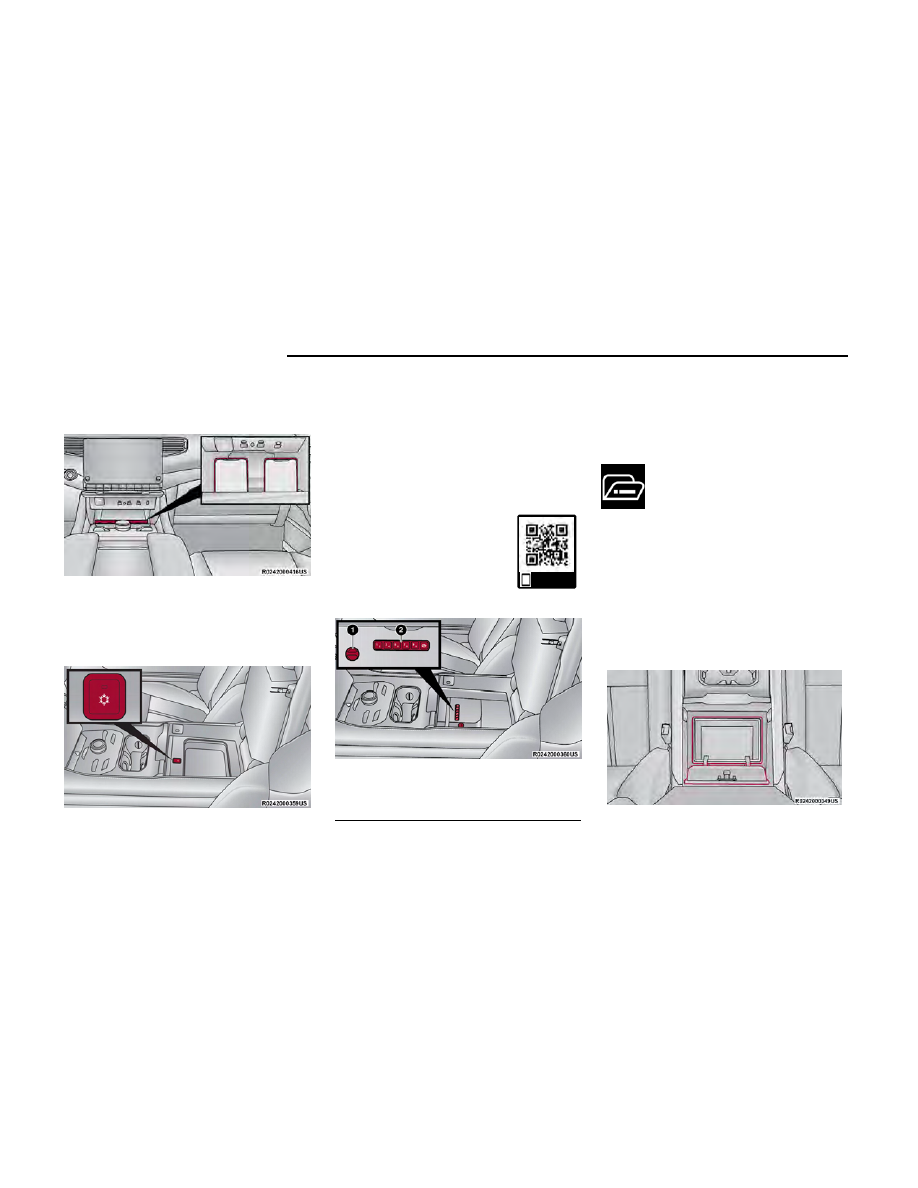

INTERIOR STORAGE AND EQUIPMENT

STORAGE

Glove Compartment

The glove compartment is located on the passenger
side of the instrument panel.

To open the glove compartment, pull the release
handle.

The glove compartment also has a lock cylinder that
can be locked/unlocked with the emergency key
(located inside the key fob)

page 18.

NOTE:

When valet parking your vehicle, remove the emergency
key from the key fob, as it will open the safe.

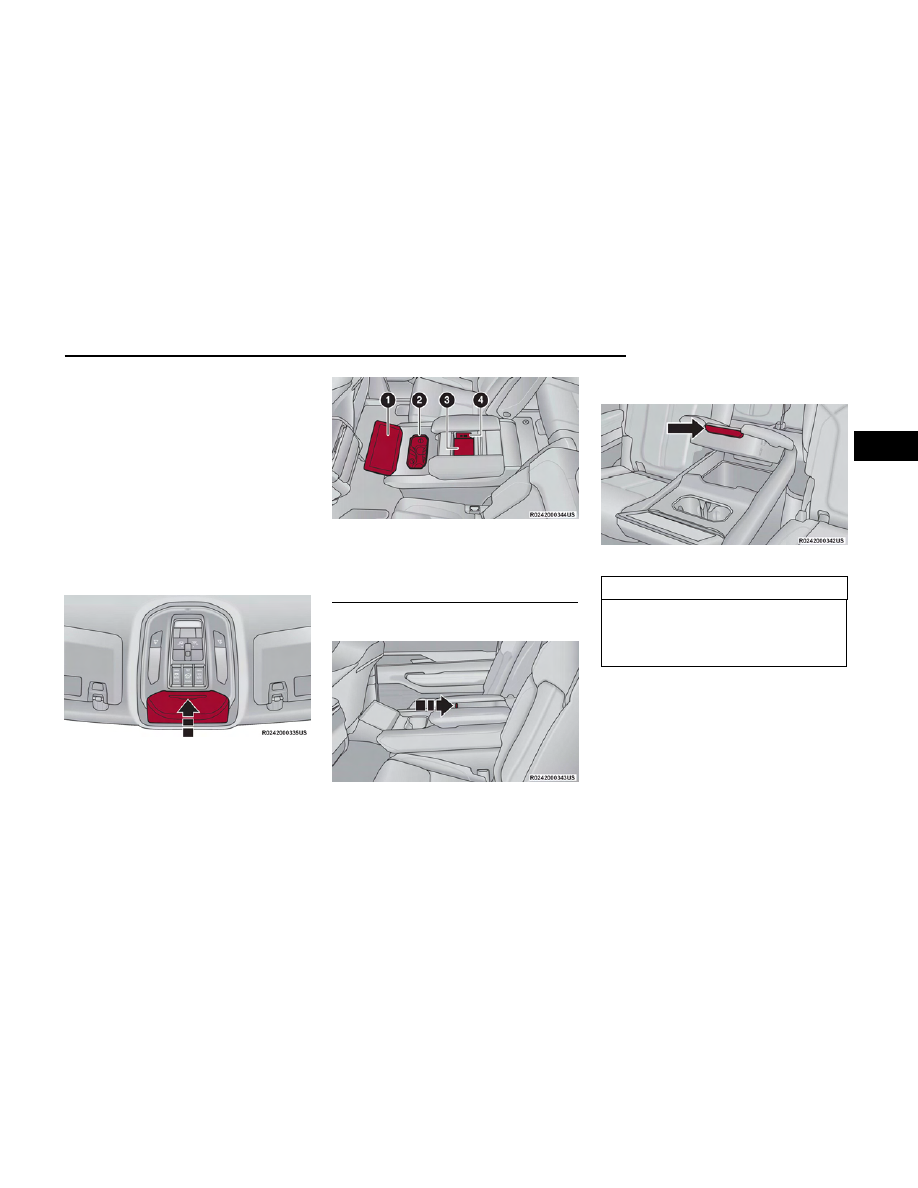

Front Center Console

The front center console contains both an upper and a
lower storage area.

To open the lower storage compartment, push the
release button and lift up.

To open the upper storage compartment, pull the slid-
ing tab backwards to slide the door open.

Glove Compartment Release Handle

Lower Storage Compartment Release Button

Upper Storage Compartment Sliding Tab

GETTING TO KNOW YOUR VEHICLE

Sunglasses Bin Door

At the front of the console a compartment is provided
for the storage of a pair of sunglasses. The storage
compartment access is a “push/push” design. Push
the chrome pad on the door to open. Push the chrome
pad on the door to close.

From the fully closed position, push the chrome pad on
the door once to fully open the sunglasses bin.

From the fully open position, raise the door back up
3/4 of the way and release to achieve the conversation
mirror position.

NOTE:

From the conversation mirror position, do not pull the
door fully open because it will damage the door. The
door must be put back in the closed position before
fully opening it.

Rear Full Center Console — If Equipped

The rear full center console contains both an upper and
a lower storage area.

To open the upper storage compartment, pull the slid-
ing tab rearward to slide the compartment door open.

To open the lower storage compartment, pull the
release handle and lift upward.

CAUTION!

Remove any items stored in the console cupholders
or devices with cords routing through upper storage
area. Damage may occur to upper console lid and
device cables when upper storage compartment is
lifted forward.

Sunglasses Bin Door

Rear Center Console

1 — Rear Comfort And Convenience Display
2 — Console Cupholders
3 — Upper Storage Compartment
4 — USB Ports

Upper Storage Sliding Tab

Lower Storage Release Handle

GETTING TO KNOW YOUR VEHICLE

Phone Storage — If Equipped

Your vehicle may be equipped with two pockets, located
at the front edge of the media bin, that can hold mobile
phones.

CENTER CONSOLE COOLER —
IF EQUIPPED

Your vehicle may be equipped with a console cooler
located in the front center console.

Press the cooler button once to turn on the cooler. The
LED will illuminate.

Press the button a second time to turn the cooler off.
The LED will turn off.

CENTER CONSOLE SAFE —
IF EQUIPPED

Your vehicle may be equipped with a safe to store your
valuables. The safe is located inside of the front center
console.

Use this QR code to access your digital
experience.

There is a keypad on the safe that con-
sists of six buttons. The first five buttons
have numbers you can select to create
the lock code, while the sixth button is
the Door Open button.

The safe can be used as locked or unlocked storage.

The color of the keypad indicates the lock mode of the
safe:

•

White: Unlocked

•

Red: Locked

•

Pink: Lock code programming mode

To open the safe while it is in the unlocked
mode, simply press the Door Open button on
the keypad.

You can program a lock code by performing the follow-
ing procedure:

1. Press and hold the Door Open button for two seconds.

The keypad will flash pink, and then turn solid pink.

2. Using the keypad, enter a 6-digit code. The keypad

will flash red, and then turn solid red.

3. Close the lid of the safe, and the safe will lock.

To open the locked safe, use the keypad to enter the
previously programmed 6-digit code, and then press the
Door Open button. After pressing the Door Open button,
the keypad turns white briefly to open the safe door.

Phone Holder Location

Center Console Cooler Button

Scan me

Center Console Safe

1 — Emergency Override Location
2 — Keypad

Open Center Console Safe

GETTING TO KNOW YOUR VEHICLE

The keypad will then turn red again, and return to the
locked mode when the safe lid is closed.

NOTE:

The keypad will flash red if an incorrect lock code is
entered. If the incorrect code is entered ten times in a
row, the user will be locked out from further attempts
for approximately 30 minutes.

To revert the safe back to the unlocked mode:

1. Enter the programmed 6-digit code.

2. Press and hold the Door Open button for two sec-

onds. The keypad will flash red and change to pink.

3. Enter the 6-digit code and press the Door Open but-

ton. The keypad will flash white.

Once this procedure is completed, the safe will no lon-
ger lock when the lid is closed.

Lock Code Override

If you forget the 6-digit code, there is a way to override
the code, using the emergency key stored inside your
key fob:

1. Remove the emergency key from the key fob

page 18.

2. Use the emergency key to open the safe door.

3. Press and hold the reset button, located under the

lid, for two seconds.

The safe will return to the unlocked mode.

NOTE:

When valet parking your vehicle, remove the emergency
key from the key fob, as it will open the safe.

SUN SCREENS — IF EQUIPPED

Sun screens are available for the second row seating
windows. The screens store in the sill trim panels, and
the tops of the windows are equipped with hooks that
the sun screens attach to when pulled up.

Gently pull up on the tab to raise the sun screen. Con-
tinue pulling the sun screen until the tab is near the top
of the window.

Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.

To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the
base sill.

USB/AUX CONTROL

This feature allows an external USB device to be
plugged into one of the USB ports, located in the center
stack of the instrument panel.

Plugging in a smartphone device to a USB port will acti-
vate Android Auto™ or Apple CarPlay® features, if
equipped. Android Auto™ and Apple CarPlay® can also
be activated wirelessly. For further information, refer to
“Android Auto™” or “Apple CarPlay®” in the Uconnect
Radio Instruction Manual.

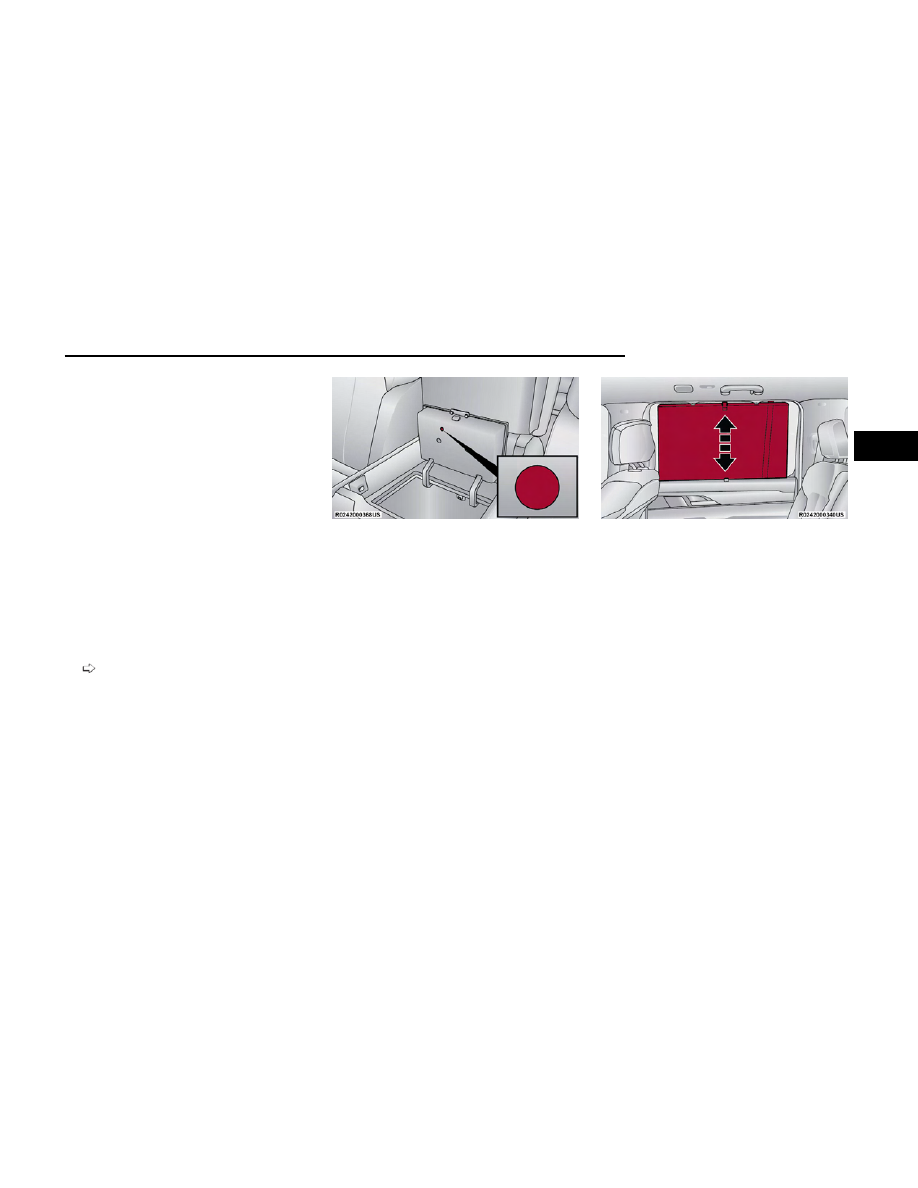

Reset Button Location

Sun Screen Extended

GETTING TO KNOW YOUR VEHICLE

NOTE:

Two devices can be plugged in at the same time, and
both ports will provide charging capabilities. Only one
port can transfer data to the system at a time.

For example, if a device is plugged into the Type A USB
port and another device is plugged into the Type C USB
port, a message will appear and allow you to select
which device to use.

The following scenarios are listed as follows when a
non-phone device is plugged into the smaller and larger
USB ports, and when a phone device is plugged into the
smaller and larger USB ports:

•

“A new device is now connected. Previous connec-
tion was lost.”

•

“(Phone Name) now connected. Previous connection
was lost.”

•

“Another device is in use through the same USB
port. Please disconnect the first device to use the
second device.”

Plugging in a phone or another USB device may cause
the connection to a previous device to be lost.

Connecting AUX Or The External USB

Device

Use a connection cable to connect an external USB
device to the vehicle’s USB port, or use an auxiliary
cable to connect a device to the vehicle’s AUX port.
These ports are located below the climate controls.

To the right of the front media hub is an HDMI port
used for the Passenger Display feature.

For vehicles not equipped with the Passenger Display
feature, the front media hub configuration will appear
different.

Once a device is connected to the USB port, it will begin
charging and is ready for use with the system. Type C
and Type A charge-only USB ports can be used at the
same time but cannot be used simultaneously while
playing media. When both Type C and Type A charge-
only USB ports are in use they will be charged at a
reduced rate.

If equipped, your vehicle may have additional charge-
only USB ports in the center compartment.

Front Media Hub USB/AUX Ports

1 — USB C Port
2 — USB A Port
3 — AUX Port
4 — HDMI Port (If Equipped)

Front Media Hub USB/AUX Ports — Without Passenger

Display

1 — USB C Port
2 — USB A Port
3 — AUX Port

GETTING TO KNOW YOUR VEHICLE

NOTE:

If the device’s battery completely discharges, it may not
communicate with the Uconnect system until a mini-
mum charge is attained. Leaving the device connected
to the USB port may charge it to the required level.

Using This Feature

By using a USB cable to connect an external device:

•

The device can be played on the vehicle’s sound
system, and provides the artist, track title, and
album information on the radio display.

NOTE:

Depending on track configuration, track information
may not be present on the radio display.

•

The device can be controlled using the radio buttons
to play, and browse the contents of the device.

•

The audio device battery charges when plugged into
the USB port.

By using an auxiliary cable to connect an external
device:

•

The audio device can be played on the vehicle’s
sound system. The Uconnect system will not display
information related to the artist, track title, and
album information.

NOTE:

When using the AUX port, the external device cannot be
controlled using the radio buttons. The device will not
charge.

For further information, refer to the Uconnect Radio
Instruction Manual.

Second And Third Row USB Ports —

If Equipped

If equipped, the second row USB ports can be used to
charge a device.

If equipped, in the third rows, a set of two USB ports can
be used to charge a device. These ports are charge only.

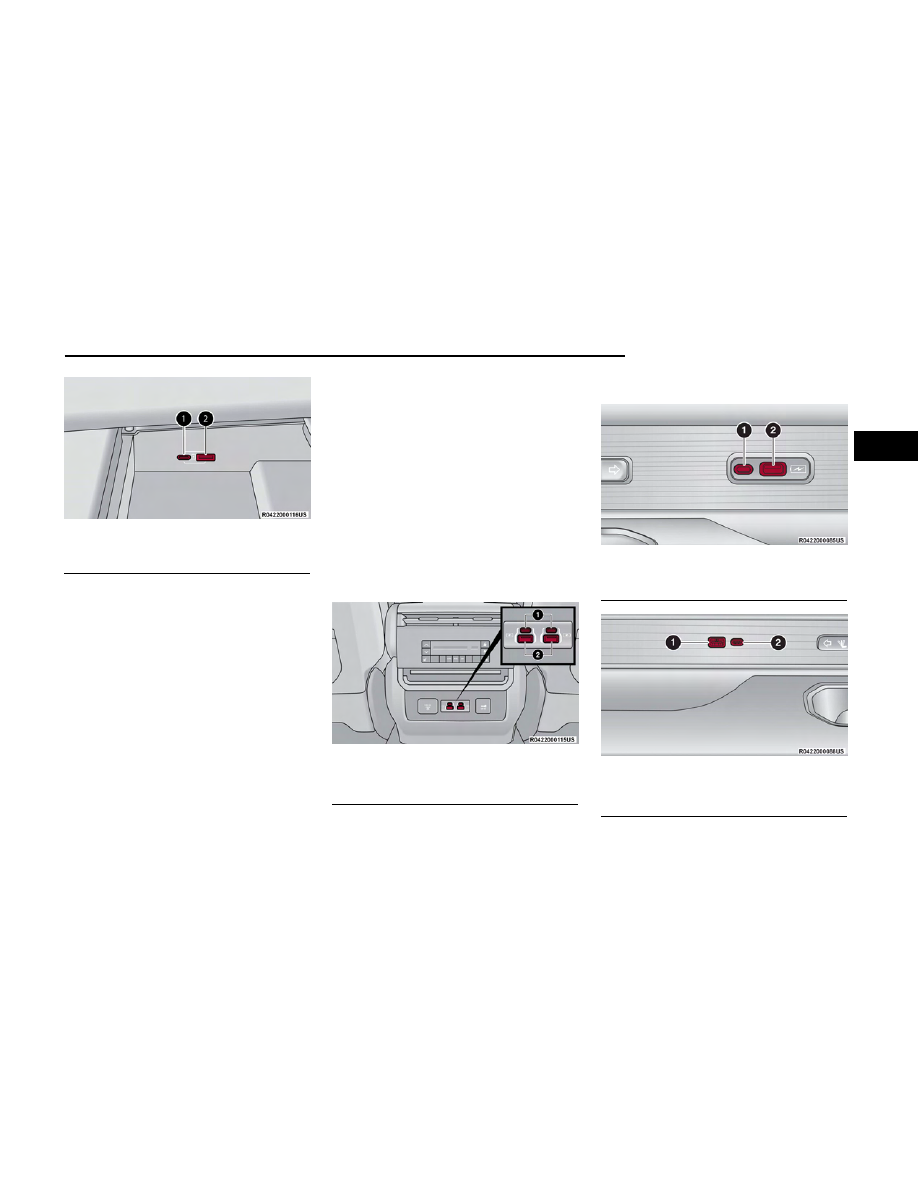

Center Compartment USB Charge-Only Ports

1 — USB C Port
2 — USB A Port

Rear Center Console USB Ports

1 — Type C Mini USB Ports (Charge Only)
2 — Type A Standard USB Ports (Charge Only)

Third Row USB Ports

1 — Type C USB Port (Charge Only)
2 — Type A USB Port (Charge Only)

Third Row USB Ports

1 — Type A USB Port
2 — Type C USB Port

GETTING TO KNOW YOUR VEHICLE

NOTE:

Charge unsupported devices with the charge only USB
ports. If an unsupported device is plugged into a Media
USB port, a message will display on the touchscreen
that the device is not supported by the system.

ELECTRICAL POWER OUTLETS

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones,
small electronics and other low powered electrical
accessories. The power outlets are labeled with either a
“key” or a “battery” symbol to indicate how the outlet is
powered. Power outlets labeled with a key symbol are
powered when the ignition switch is in the ON position,
while the outlets labeled with a battery symbol are con-
nected directly to the battery and powered at all times.

NOTE:

•

All accessories connected to the battery powered
outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

•

Do not exceed the maximum power of 160 W
(13 Amp) at 12 Volt. If the 160 W (13 Amp) power
rating is exceeded the fuse protecting the system
needs to be replaced.

•

Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets
as this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

The front power outlet is located inside the storage area
on the center stack of the instrument panel, below the
climate controls.

In addition to the front power outlet, there is also a
power outlet located on the rear of the front center
console.

The rear cargo power outlet is located in the right rear
cargo area.

NOTE:

The rear cargo power outlet can be changed to battery
powered at all times by switching the fuse in the rear
power distribution center (PDC) from fuse location F44A
to F44B.

WARNING!

To avoid serious injury or death:

•

Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.

•

Do not touch with wet hands.

•

Close the lid when not in use and while driving the
vehicle.

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

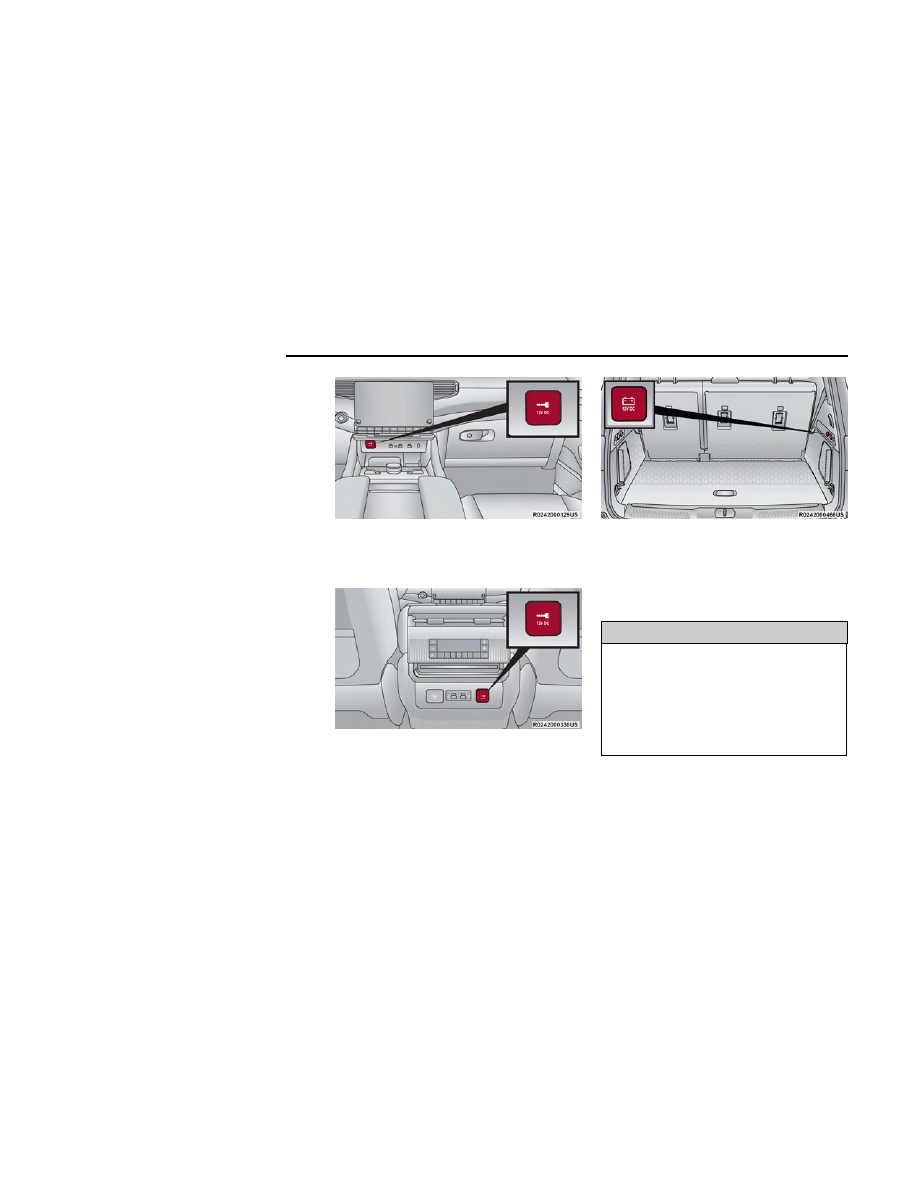

Front Power Outlet

Front Center Console Power Outlet

Rear Cargo Power Outlet

GETTING TO KNOW YOUR VEHICLE

CAUTION!

•

Many accessories that can be plugged in draw
power from the vehicle's battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle's battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

•

Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

•

After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the gen-
erator to recharge the vehicle's battery.

POWER INVERTER

There is a 115 Volt, 150 W inverter outlet located on
the back of the center console to convert DC current to
AC current. This outlet can power cellular phones, elec-
tronics and other low power devices requiring power up
to 150 W. Certain video game consoles exceed this
power limit, as will most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 W is exceeded,
the power inverter automatically shuts down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overload-
ing the circuit, check the power ratings on electrical
devices prior to using the inverter.

WARNING!

To avoid serious injury or death:

•

Do not insert any objects into the receptacles.

•

Do not touch with wet hands.

•

Close the lid when not in use.

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

WIRELESS CHARGING PAD —
IF EQUIPPED

Use this QR code to access your digital
experience.

Your vehicle may be equipped with a
15W 3A Qi® wireless charging pad
located below the center stack, within

the storage compartment. This charging pad is
designed to wirelessly charge your Qi® enabled mobile
phone. Qi® is a standard that allows wireless charging
of your mobile phone.

Your mobile phone must be designed for Qi® wireless
charging. If the phone is not equipped with Qi® wireless
charging functionality, an aftermarket sleeve or a spe-
cialized back plate can be purchased from your mobile
phone provider or a local electronics retailer. Please
see your phone’s Owner’s Manual for further
information.

Power Inverter

Scan me

Wireless Charging Pad

GETTING TO KNOW YOUR VEHICLE

The wireless charging pad is equipped with an anti-slip
mat to hold your mobile phone in place, and an LED
indicator light.

Place the device inside the prepared area delimited in
the mat as shown in the image. Incorrect positioning
will prevent the phone from charging.

LED Indicator Status:

•

No Light: Charging pad is idle or searching for a
device. Device may not be compatible with the Qi®
standard.

•

Blue Light: Device is detected and is charging.

•

Red Light/Flashing: Internal error, or foreign object
is detected.

•

Green Light: Device has completed battery charging
(if device is equipped to transmit this information).

Important Notes Regarding This Vehicle’s Wireless
Charging Pad:

•

The presence of the Near-Field Communication
(NFC) function active on a smartphone could signal
malfunction anomalies.

•

The ignition must be in the ON/RUN position in
order for the phone to charge.

•

To avoid interference with the key fob search, the wire-
less charging pad will stop charging when any door or
liftgate is opened, even if the engine is running.

•

Be sure to place the mobile device correctly (display
facing upward, and phone not covering the LED) on
the wireless charging pad.

•

If the phone moves on the pad causing the red light to
illuminate, the phone will have to be picked up and
placed back on the charging pad to resume charging.

•

Wireless charging is not as fast as when the phone
is connected to a wired charger.

•

The phone’s protective case must be removed when
placed on the wireless charging pad.

•

iPhone® 12 (including iPod®) is equipped with soft-
ware to protect the device from overheating. When
the software is active, the rate of charge is slowed
down to protect the device.

•

Phones must always be placed on the wireless
charging pad within the outline shown on the pad so
that its charging parts connect with the charging
coils of the system. Movement of the phone during
charging may prevent or slow the rate of charge.

•

Having multiple applications open on the phone
while charging will reduce the charging efficiency,
and may even shut down an application that is
actively running (i.e. Apple CarPlay®). This may also
cause the phone to overheat.

•

Wireless chargers may implement certain methods to
prevent the phone from overheating during charging
such as slowing down the rate of charge. In certain
instances, the device may shut down for a brief period
of time (when the device reaches a certain tempera-
ture). If this happens, it does not mean there is a fault
with the wireless charging pad. This may just be a pro-
tective measure to prevent damage to the phone.

•

The use of multiple wireless functions at the same
time (wireless charging, Apple CarPlay®, Android
Auto™) could cause the device to overheat, resulting
in limitation of the functions or it turning off. In this
case, it is recommended to connect the system
using the USB port.

•

Do not place the key fob or any other type of metal/
magnetized object inside the mobile phone housing
or near the wireless charging pad.

•

With a compatible device placed on the charging
pad, and the ignition is cycled to the OFF position, a
reminder message may appear on the instrument
cluster display to warn the driver.

CAUTION!

The key fob should not be placed on the charging pad
or within 6 inches (15 cm) of it. Doing so can cause
excessive heat buildup and damage to the fob. Plac-
ing the fob in close proximity of the charging pad
blocks the fob from being detected by the vehicle and
prevents the vehicle from starting.

WINDOWS

POWER WINDOW CONTROLS

The power window controls, located on the driver's door
trim panel, operate the window movement for all four
power windows.

There is a single switch on the front passenger door
and rear passenger doors which operates the windows
for only that door.

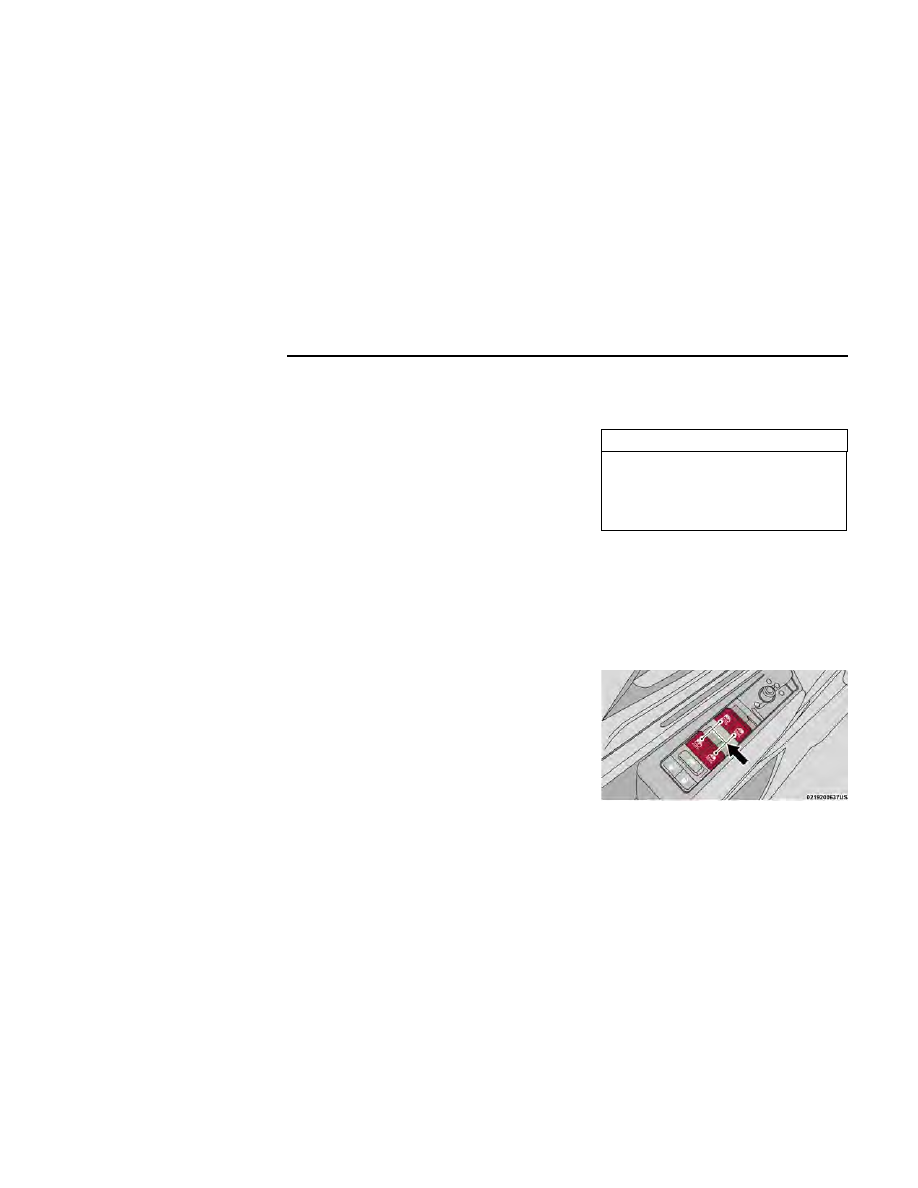

Driver’s Door Power Window Switches

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

The power window switches remain active for up to
10 minutes after the ignition has been placed in the
OFF position. Opening a vehicle front door will can-
cel this feature.

•

The window controls will operate only when the vehi-
cle’s ignition is placed in the ON/RUN position.

WARNING!

Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not leave
the key fob in or near the vehicle, or in a location
accessible to children, and do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position. Occu-
pants, particularly unattended children, can become
entrapped by the windows while operating the power
window switches. Such entrapment may result in seri-
ous injury or death.

Automatic Window Features

Both the driver and front passenger windows, and if
equipped, both rear windows, may have Auto-Down and
Auto-Up operations.

Auto-Down Feature

For windows equipped with the AUTO feature, push the
window switch down to the second detent, release, and
the window will go down automatically.

To stop the window from going all the way down during
the Auto-Down operation, pull up or push down on the
switch briefly.

Auto-Up Feature With Anti-Pinch Protection

For windows equipped with the AUTO feature, lift the
window switch up to the second detent, and release;
the window will go up automatically.

To stop the window from going all the way up during the
Auto-Up operation, push down on the switch briefly.

To close the window part way, lift the window switch
briefly and release it when you want the window to stop.

If the window runs into any obstacle during auto-
closure, it will reverse direction and then go back down.
Remove the obstacle and use the window switch again
to close the window.

NOTE:

Any impact due to rough road conditions may trigger the
auto-reverse function unexpectedly during auto-closure.
If this happens, pull the switch lightly and hold to close
the window manually.

WARNING!

There is no anti-pinch protection when the window is
almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.

Reset Auto-Up

Should the Auto-Up feature stop working, the window
may need to be reset. To reset Auto-Up:

Front Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

Rear Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

2. Release the window switch, and within five seconds,

pull the window switch up again for an additional
two seconds.

Window Lockout Switch

The window lockout switch on the driver's door trim
panel allows you to disable the window controls on the
rear passenger doors. To disable the window controls,
push and release the window lockout button (the indi-
cator light on the button will turn on). To enable the win-
dow controls, push and release the window lockout but-
ton again (the indicator light on the button will turn off).

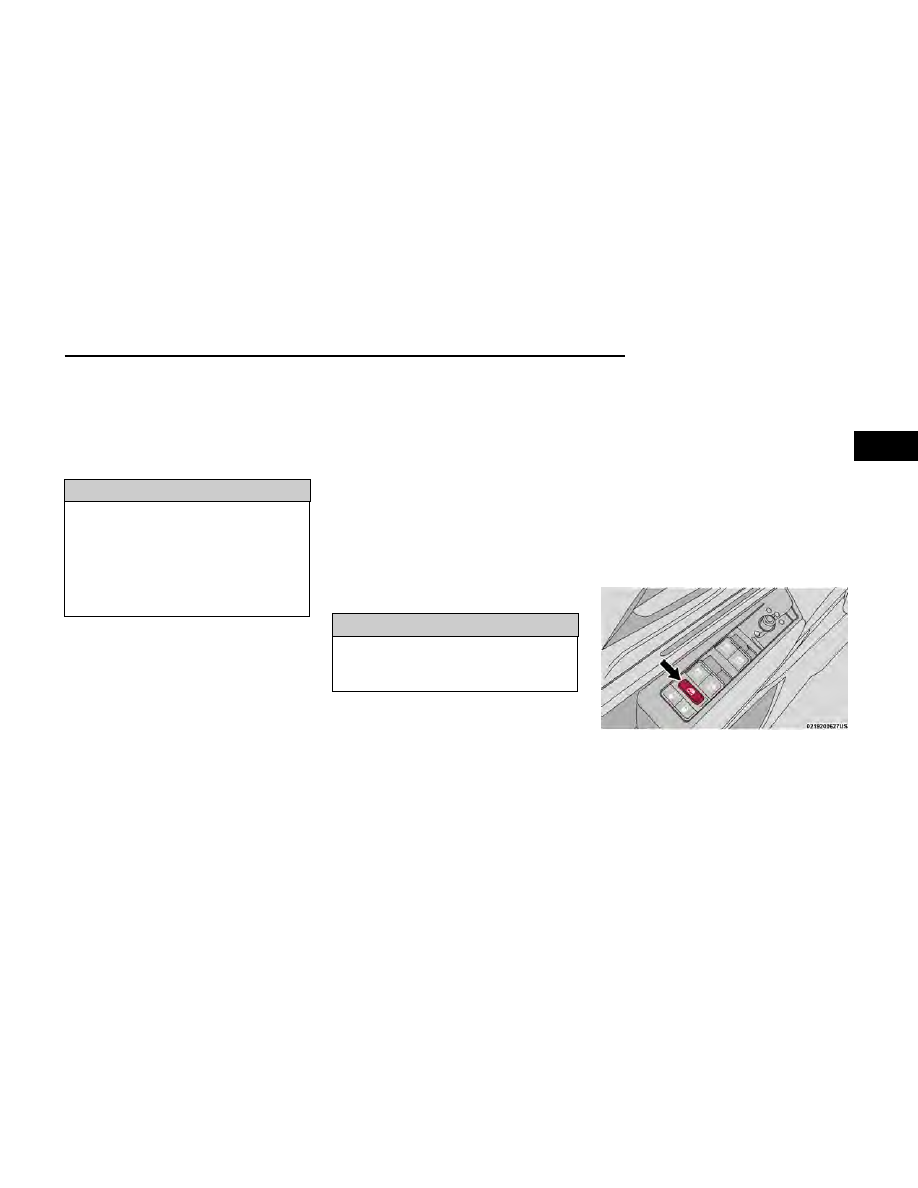

Power Window Lockout Switch

GETTING TO KNOW YOUR VEHICLE

WIND BUFFETING

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs
with the rear windows open, open the front and rear
windows together to minimize the buffeting. If the buf-
feting occurs with the sunroof open, adjust the sunroof
opening to minimize the buffeting or open any window.

RADIO SIGNAL DEVICES ON
WINDSHIELD — IF EQUIPPED

Your vehicle may be equipped with premium tint infra-
red reflective glass (IRR). In the necessity of mounting
devices such as transponders, garage door openers,
radar detectors, or any other device that sends out a
radio signal, please refer to the allocated area on the
windshield. There is a small box located near the pas-
senger side of the mirror cover. The location is identifi-
able by a slight discoloration in the glass due to the
removal of the IRR coating.

Metalized windshield coatings available on the Grand
Wagoneer can potentially disrupt radio frequency identi-
fication (RFID) transmission/reception depending on
signal location or additional interference, regardless of
the provided deletion zone. In the event that any RFID
or signal interruption between a vehicle mounted
device (e.g. toll transponder) does not function properly,
you may need to consult with your toll transponder com-
pany and may have to use an alternate device such as
a license plate attached toll transponder.

POWER SUNROOF — IF EQUIPPED

TRI-PANE POWER SUNROOF

The power sunroof switches are located on the over-
head console between the courtesy/reading lights.

WARNING!

•

Never leave children unattended in a vehicle, or
with access to an unlocked vehicle. Never leave
the key fob in or near the vehicle, or in a location
accessible to children. Do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position.
Occupants, particularly unattended children, can
become entrapped by the power sunroof while
operating the power sunroof switch. Such entrap-
ment may result in serious injury or death.

•

In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are also properly secured.

(Continued)

Radio Signal Device Mounting Location

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade

GETTING TO KNOW YOUR VEHICLE

Jeep Wagoneer (2024 year). Manual in english - page 2
