Jeep Wrangler (2024 year). Manual in english

WARNING!

•

The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only. Avoid
ice or slippery areas.

PREPARATIONS FOR JACKING

1. Park on a firm, level surface. Avoid ice or slippery

areas.

WARNING!

Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.

2. Turn on the Hazard Warning Flashers.

3. Apply the parking brake.

4. Shift the automatic transmission into PARK (P), or a

manual transmission into REVERSE (R).

5. Turn the ignition OFF.

6. Block both the front and rear of the wheel diagonally

opposite of the jacking position. For example, if the
driver’s front wheel is being changed, block the pas-
senger’s rear wheel.

NOTE:

Passengers should not remain in the vehicle when the
vehicle is being lifted or raised.

JACK LOCATION

The jack and lug wrench are located in the rear cargo
area. To remove jack and tools proceed as follows:

1. Lift the load floor in the cargo area.

NOTE:

The load floor can be removed for easier access by
pulling the load floor handle up and directly rearward.

2. Remove the hardware storage cover by pinching the

latch on the left side and pulling upward.

3. Turn the plastic wing nut counterclockwise to loosen

the jack from the storage bin.

4. Remove tool kit and assemble tools.

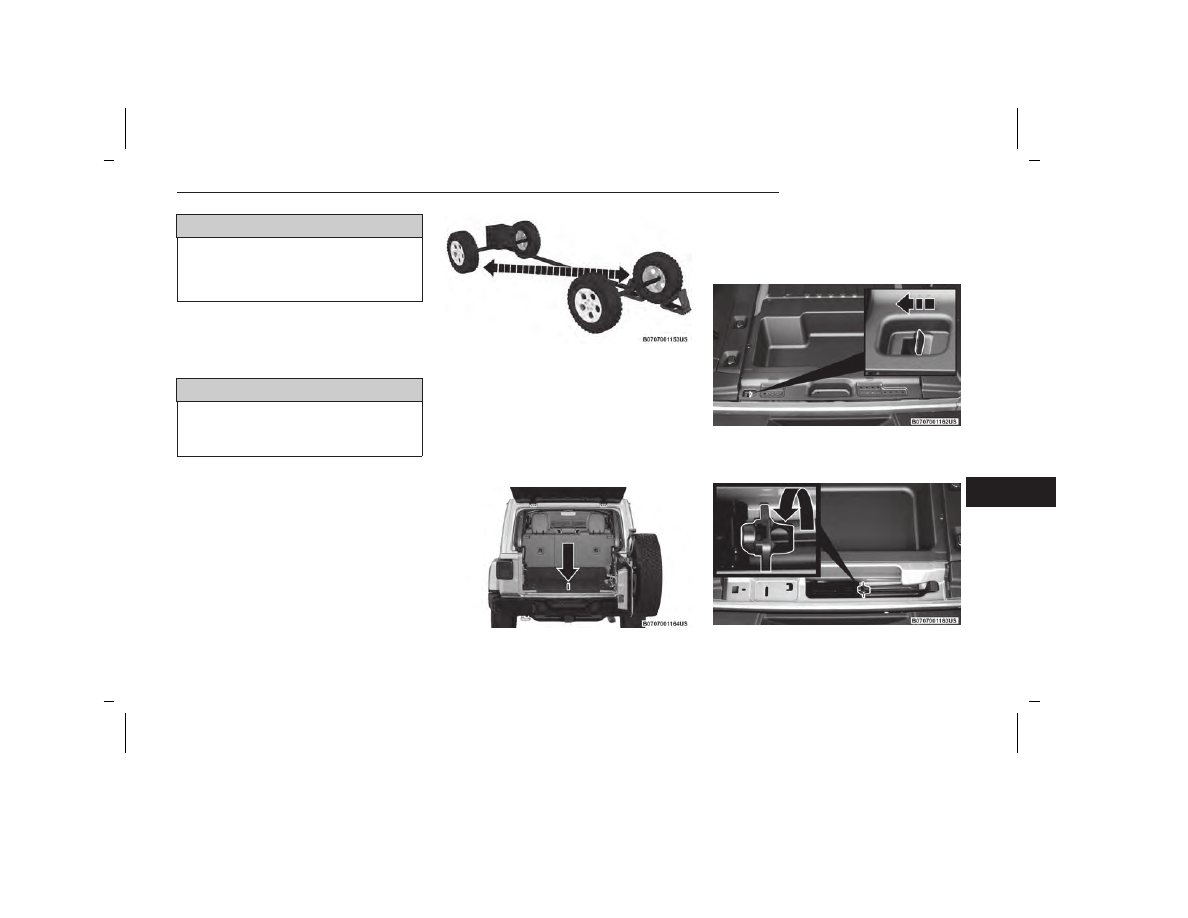

Wheel Blocked Example

Load Floor Handle

Hardware Storage Cover Latch

Plastic Wing Nut Location

IN CASE OF EMERGENCY

271

5538906_24_JL_OM_EN_USC_t_E1.pdf 271

5/22/2023 9:02:29 AM

SPARE TIRE REMOVAL

1. To remove the spare tire from the carrier, remove

the tire cover, if equipped.

2. Remove the Rear Camera Cover by turning the lock

bolt counterclockwise with the #T40 torx head driver
and ratchet from the supplied tool kit.

3. Remove the lug nuts with the lug wrench turning

them counterclockwise. If equipped, remove the
locking lug nut with the lock key (located in the glove
box) turning it counterclockwise.

JACKING INSTRUCTIONS

WARNING!

Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:

•

Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.

•

Turn on the Hazard Warning Flashers.

•

Apply the parking brake firmly and shift an auto-
matic transmission into PARK; a manual transmis-
sion into REVERSE.

•

Block the wheel diagonally opposite the wheel to
be raised.

•

Never start or run the engine with the vehicle on a
jack.

•

Do not let anyone sit in the vehicle when it is on a
jack.

•

Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.

•

Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.

•

If working on or near a roadway, be extremely care-
ful of motor traffic.

•

To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.

1. Remove the spare tire, jack and tools from the

stored location.

2. Loosen (but do not remove) the wheel lug nuts by

turning them to the left one turn while the wheel is
still on the ground.

3. Assemble the jack and jacking tools. Connect the

jack handle driver to the extension, then to the lug
wrench.

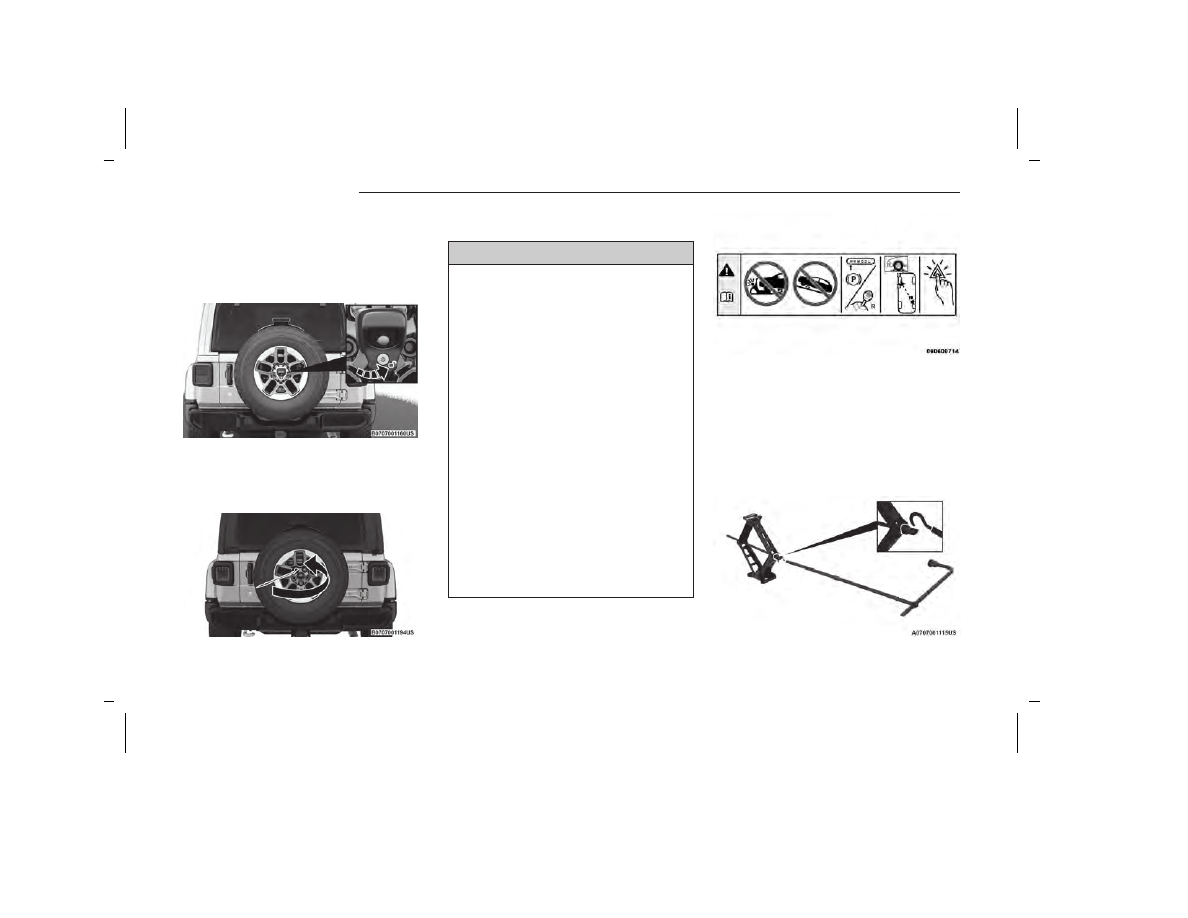

Unlock Rear Camera Cover

Removing The Spare Tire

Jack Warning Label

Assembled Jack And Tools

272

IN CASE OF EMERGENCY

5538906_24_JL_OM_EN_USC_t_E1.pdf 272

5/22/2023 9:02:29 AM

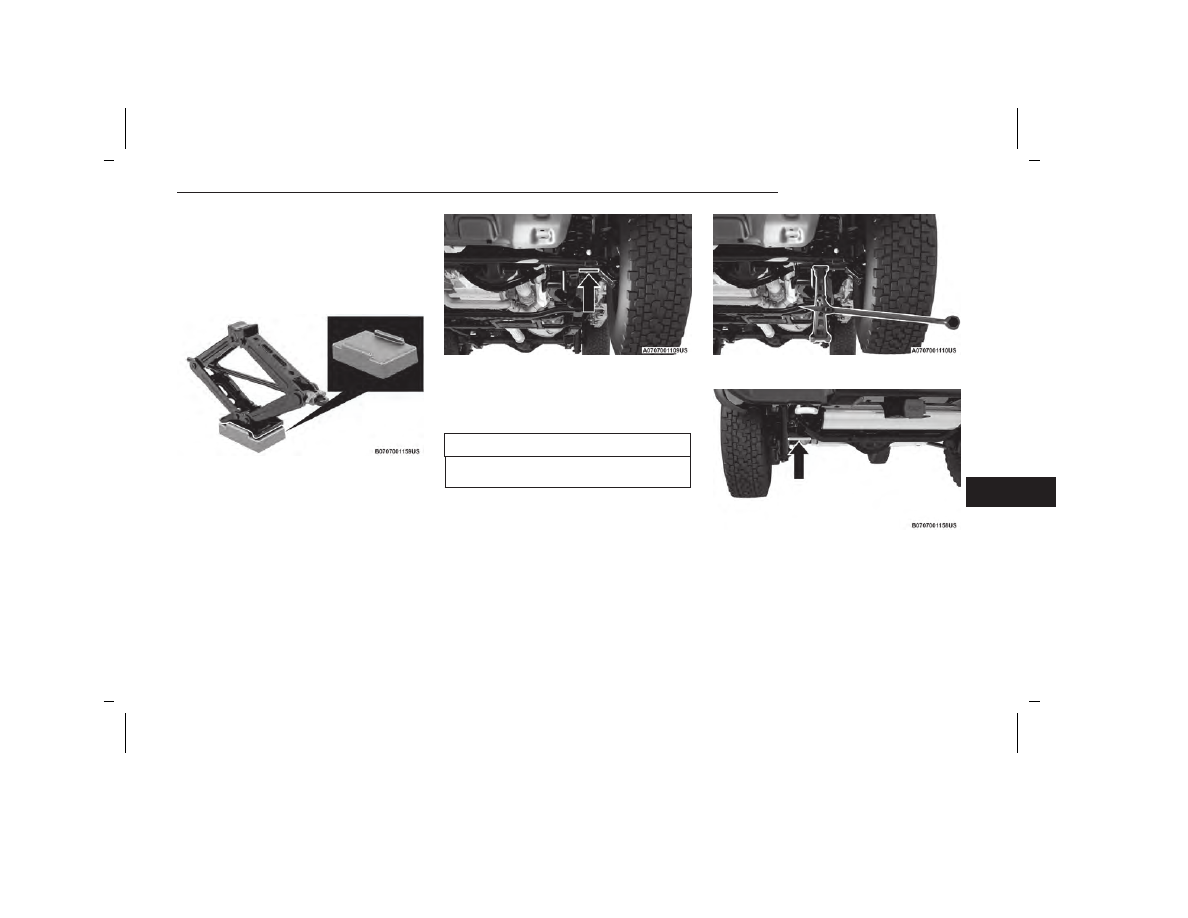

5. Raise the vehicle by turning the jack screw clock-

wise. Raise the vehicle only until the tire just clears
the surface and enough clearance is obtained to
install the spare tire. Minimum tire lift provides
maximum stability.

WARNING!

Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to change the tire.

6. Remove the lug nuts and wheel.

7. Mount the spare tire on the axle.

8. Install the lug nuts with the cone-shaped end toward

the wheel. Lightly tighten the lug nuts clockwise.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the wheel nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.

9. Lower the vehicle by turning the jack screw to the

counterclockwise, and remove the jack.

10. Finish tightening the wheel bolts. Push down on

the wrench while at the end of the handle for
increased leverage. Tighten the wheel bolts in a
star pattern until each wheel bolt has been tight-
ened twice

page 342. If in doubt about the

correct tightness, have them checked with a torque
wrench by an authorized dealer or at a service
station.

11. After 25 miles (40 km), check the lug nut torque

with a torque wrench to ensure that all lug nuts are
properly seated against the wheel.

12. Remove the jack assembly and wheel blocks.

13. Secure the jack and tools in their proper locations.

14. Secure the damaged wheel/tire on the spare tire

carrier. Torque down lug nuts and locking lug nut.

15. Return the lock bolt to the lock position on the

camera cover by turning the lock clockwise using
the provided #40 torx head driver and ratchet.
Then, reinstall the camera cover by slipping it over
the camera/tire carrier until it snaps into place.

WARNING!

A loose tire or jack thrown forward in a collision or
hard stop, could endanger the occupants of the
vehicle. Always stow the jack parts and the spare tire
in the places provided.

JUMP STARTING

If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in
another vehicle, or by using a portable battery booster
pack. Jump starting can be dangerous if done improp-
erly, so please follow the procedures in this section
carefully.

The vehicle requires its 12 Volt battery power to turn-on
the vehicle's high voltage battery. The high voltage bat-
tery is used to charge the 12 Volt battery, provide elec-
tric vehicle operation, and to start the vehicle's gas
engine. If the 12 Volt battery has been discharged, the

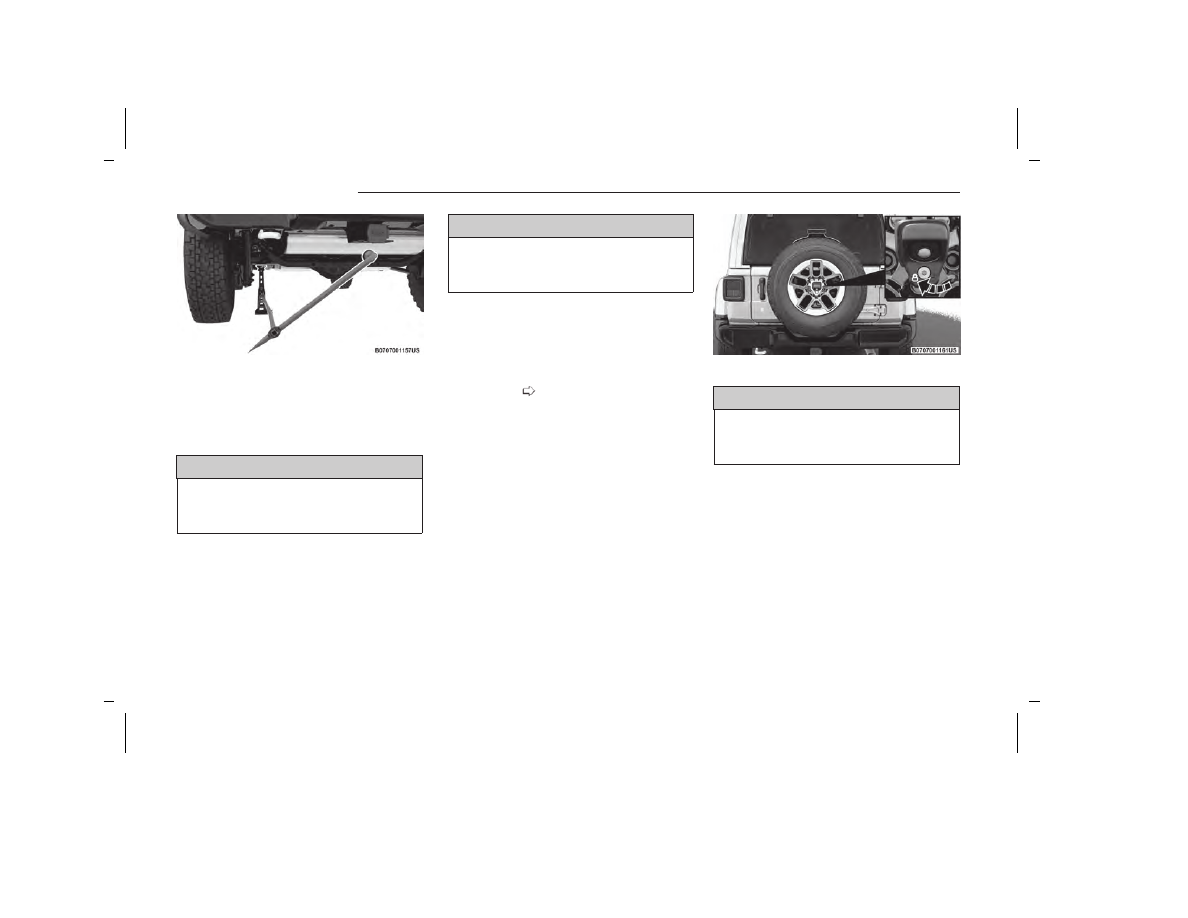

Rear Jacking Location

Lock Bolt Location

274

IN CASE OF EMERGENCY

5538906_24_JL_OM_EN_USC_t_E1.pdf 274

5/22/2023 9:02:29 AM

vehicle can be jump started using a set of jumper
cables and a battery in another vehicle or by using a
portable battery booster pack.

If the vehicle's high voltage battery has also been dis-
charged, it will need to be recharged to a minimum
operating State Of Charge (SOC) before the vehicle can
be started:

•

If the vehicle can be connected to a Level 1 or Level
2 charger where it is currently parked, the vehicle
will still require a jump start to allow the vehicle to
begin the battery charging process. Once the vehicle
charging has begun (indicated by the charge status
indicator on top of the vehicle's instrument panel),
the jumper cables can be removed from the vehicle
jump posts.

•

If the vehicle cannot be connected to a Level 1 or
Level 2 charger where it is currently parked, the
vehicle can be moved by connecting 12 Volt power
to the vehicle's jump posts and then shifting the
transmission from PARK (P) into NEUTRAL (N).
Power provided by the jumper cables will also allow
the Electric Park Brake to be released. Carefully
move the vehicle to a Level 1 or Level 2 charge loca-
tion. While the vehicle is being moved, the external
12 Volt power must remain connected to the vehicle
jump posts.

NOTE:

Be careful when moving the vehicle - ensure that con-
trol of the vehicle is maintained. Also, ensure that
vehicle is secured to prevent unintentional movement
during and after moving the vehicle. If the external

12 Volt power becomes disconnected from the vehicle
jump posts or there is an interruption of the 12 Volt
power while moving the vehicle, the vehicle's transmis-
sion may engage PARK. Do not allow the jumper cables
to come in contact with each other or to the vehicle,
this will result in a short.

When the vehicle is at the charging location, shift the
transmission back to PARK, apply the Electric Park
Brake, and start the high voltage battery charging. Once
the vehicle has been secured against unintentional
movement and high voltage battery charging has been
initiated, the jumper cables can be removed from the
vehicle jump posts.

WARNING!

Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.

CAUTION!

Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.

NOTE:

When using a portable battery booster pack, follow the
manufacturer's operating instructions and precautions.

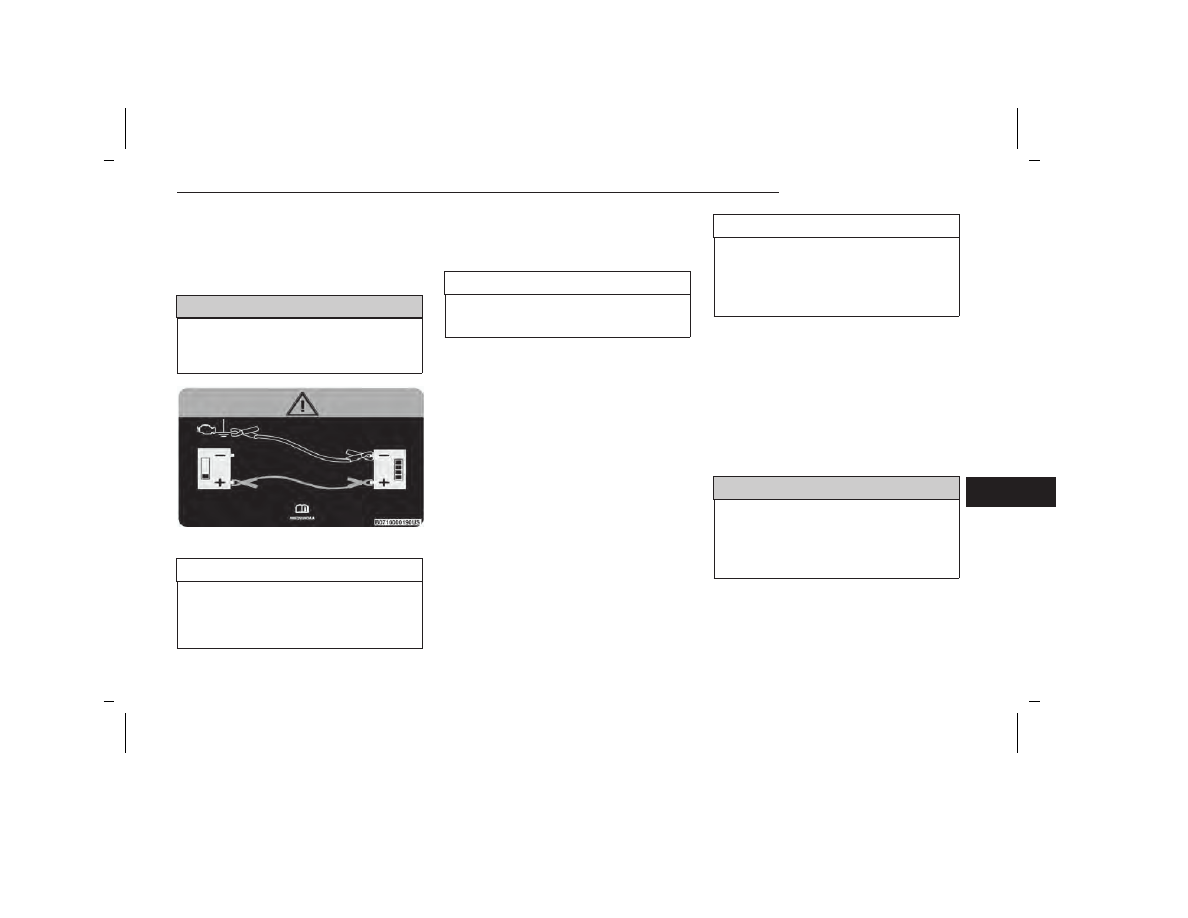

PREPARATIONS FOR JUMP START

WARNING!

•

Only use the positive battery post on the main bat-
tery to jump start your vehicle. Serious injury or
death could result if you attempt to jump start
using the supplemental battery.

•

Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.

•

Never use a fast battery charger to start the
engine, as this could damage the electronic sys-
tems of your vehicle, particularly the ignition and
engine fuel supply control units.

•

If a “fast charger” is used while the battery is in
the vehicle, disconnect both vehicle battery cables
before connecting the charger to the battery.

•

Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.

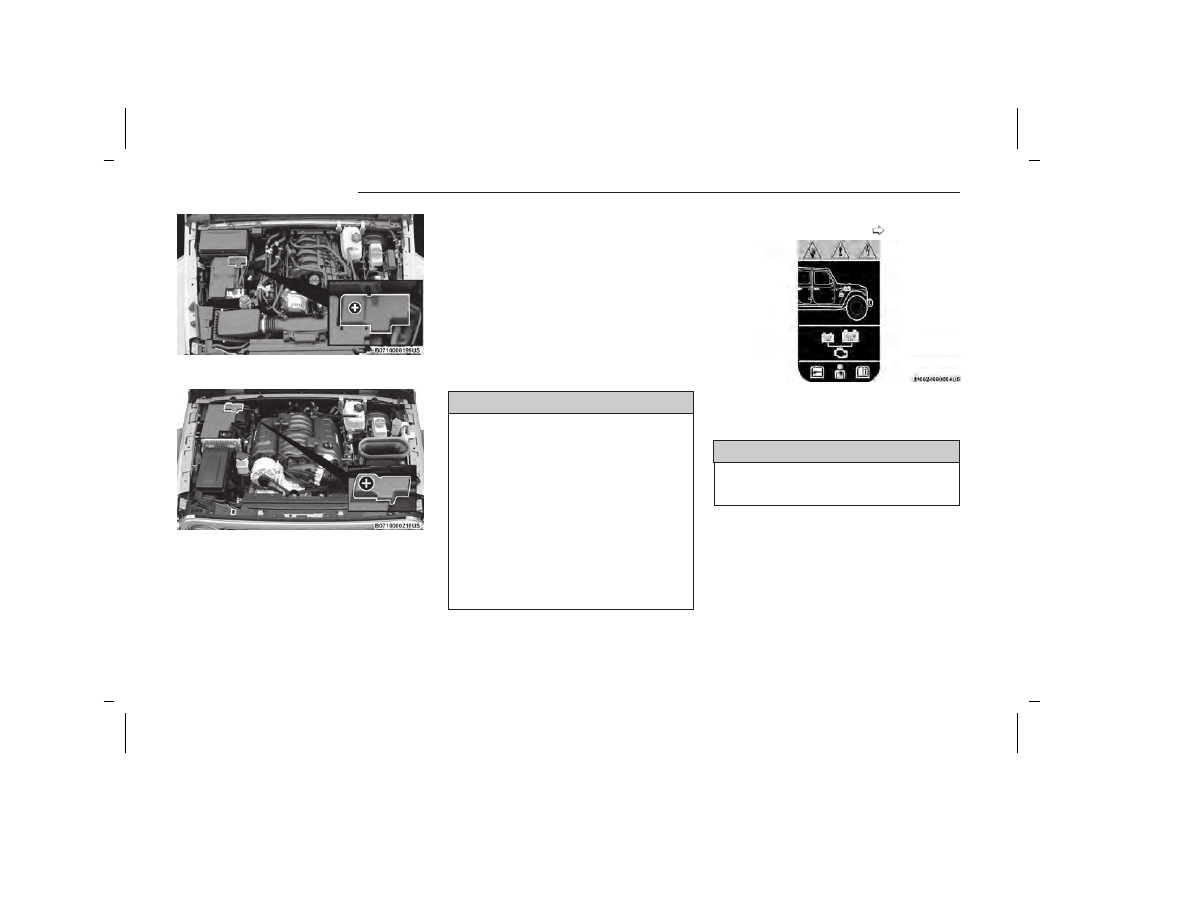

The battery in your vehicle is located in the right rear of
the engine compartment.

IN CASE OF EMERGENCY

275

5538906_24_JL_OM_EN_USC_t_E1.pdf 275

5/22/2023 9:02:29 AM

NOTE:

The positive (+) battery post is covered with a protective
cap. Lift up on the cap to gain access to the post.

See the following steps to prepare for jump starting:

1. Apply the parking brake, shift the automatic trans-

mission into PARK (P) (manual transmission in NEU-
TRAL) and turn the ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. Pull upward and remove the protective cover over

the positive

(+)

battery post.

4. If using another vehicle to jump start the battery,

park the vehicle within the jumper cable’s reach,
apply the parking brake and make sure the ignition
is OFF.

WARNING!

•

Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.

•

Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by moving
fan blades.

•

Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadver-
tent electrical contact. You could be seriously
injured.

•

Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

If your vehicle is equipped with a Stop/Start system, it
will be equipped with two batteries

page 167.

JUMP STARTING PROCEDURE

WARNING!

Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.

Connecting The Jumper Cables

1. Connect the positive

(+)

end of the jumper cable to

the positive

(+)

post of the discharged vehicle.

2. Connect the opposite end of the positive

(+)

jumper

cable to the positive

(+)

post of the booster battery.

3. Connect the negative

(-)

end of the jumper cable to

the negative

(-)

post of the booster battery.

Positive (+) Battery Post

Positive (+) Battery Post (6.4 Engine)

Supplemental Battery – If Equipped

276

IN CASE OF EMERGENCY

5538906_24_JL_OM_EN_USC_t_E1.pdf 276

5/22/2023 9:02:29 AM

4. Connect the opposite end of the negative

(-)

jumper

cable to a good engine ground. A “ground” is an
exposed metallic/unpainted part of the engine,
frame or chassis, such as an accessory bracket or
large bolt. The ground must be away from the bat-
tery and the fuel injection system.

WARNING!

Do not connect the jumper cable to the negative

(-)

post of the discharged battery. The resulting electrical
spark could cause the battery to explode and could
result in personal injury.

CAUTION!

Make sure at all times that unused ends of jumper
cables are not contacting each other or either vehicle
while making connections. Failure to follow these pro-
cedures could result in damage to the charging sys-
tem of the booster vehicle or the discharged vehicle.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.

CAUTION!

Do not run the booster vehicle engine above
2,000 RPM since it provides no charging benefit,
wastes fuel, and can damage booster vehicle engine.

6. Once the engine is started, remove the jumper

cables in the reverse sequence.

Disconnecting The Jumper Cables

1. Disconnect the negative

(-)

end of the jumper cable

from the engine ground of the vehicle with the dis-
charged battery.

2. Disconnect the opposite end of the negative

(-)

jumper cable from the negative

(-)

post of the

booster battery.

3. Disconnect the positive

(+)

end of the jumper cable

from the positive

(+)

post of the booster battery.

4. Disconnect the opposite end of the positive

(+)

jumper cable from the positive

(+)

post of the dis-

charged vehicle.

5. Reinstall the protective cover over the positive

(+)

post of the discharged vehicle.

NOTE:

If frequent jump starting is required to start your vehicle
you should have the battery and charging system tested
at an authorized dealer.

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when
not in use (i.e., cellular devices, etc.). Eventually, if
plugged in long enough without engine operation, the
vehicle’s battery will discharge sufficiently to degrade
battery life and/or prevent the engine from starting.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be serviced
by an authorized dealer.

Potential signs of vehicle overheating:

•

Temperature gauge is at HOT (H)

•

Strong smell of coolant

•

White smoke coming from engine or exhaust

•

Coolant bottle coolant has bubbles present

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do
not open the hood until the radiator has had time to
cool. Never try to open a cooling system pressure cap
when the radiator or coolant bottle is hot.

Jump Starting Label

IN CASE OF EMERGENCY

277

5538906_24_JL_OM_EN_USC_t_E1.pdf 277

5/22/2023 9:02:29 AM

If the temperature gauge is moving towards or close to
the HOT (H) position, you can reduce the potential for
overheating by taking the appropriate action.

•

On highways — slow down.

•

In city traffic — while stopped, place the transmis-
sion in NEUTRAL (N), but do not increase the engine
idle speed while preventing vehicle motion with the
brakes.

•

Turn the Air Conditioner (A/C) off. The A/C system
adds heat to the engine cooling system and turning
the A/C off can help remove this heat.

•

Turn the temperature control to maximum heat, and
the blower control to high. This allows the heater
core to act as a supplement to the radiator and aids
in removing heat from the engine cooling system.

CAUTION!

Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on HOT
(H), and you hear continuous chimes, turn the engine
off immediately and call for service.

MANUAL PARK RELEASE

In order to move the vehicle in cases where the trans-
mission will not shift out of PARK (P) (such as a
depleted battery), a Manual Park Release is available.

WARNING!

Always secure your vehicle by fully applying the park-
ing brake before activating the Manual Park Release.
In addition, you should be seated in the driver’s seat
with your foot firmly on the brake pedal when activat-
ing the Manual Park Release. Activating the Manual
Park Release will allow your vehicle to roll away if it is
not secured by the parking brake, or by proper con-
nection to a tow vehicle. Activating the Manual Park
Release on an unsecured vehicle could lead to seri-
ous injury or death for those in or around the vehicle.

See the following steps to use the Manual Park
Release:

1. Firmly apply the parking brake.

2. Using a small screwdriver or similar tool, remove the

manual park release cover located in front of the
gear selector, to access the release tether strap.

3. Fish the tether strap up through the opening in the

console base.

4. Press and maintain firm pressure on the brake

pedal.

5. Pull the tether strap up until the release lever locks

into place in the vertical position. The vehicle is now
out of PARK (P) and can be moved. Release the
parking brake only when the vehicle is securely con-
nected to a tow vehicle.

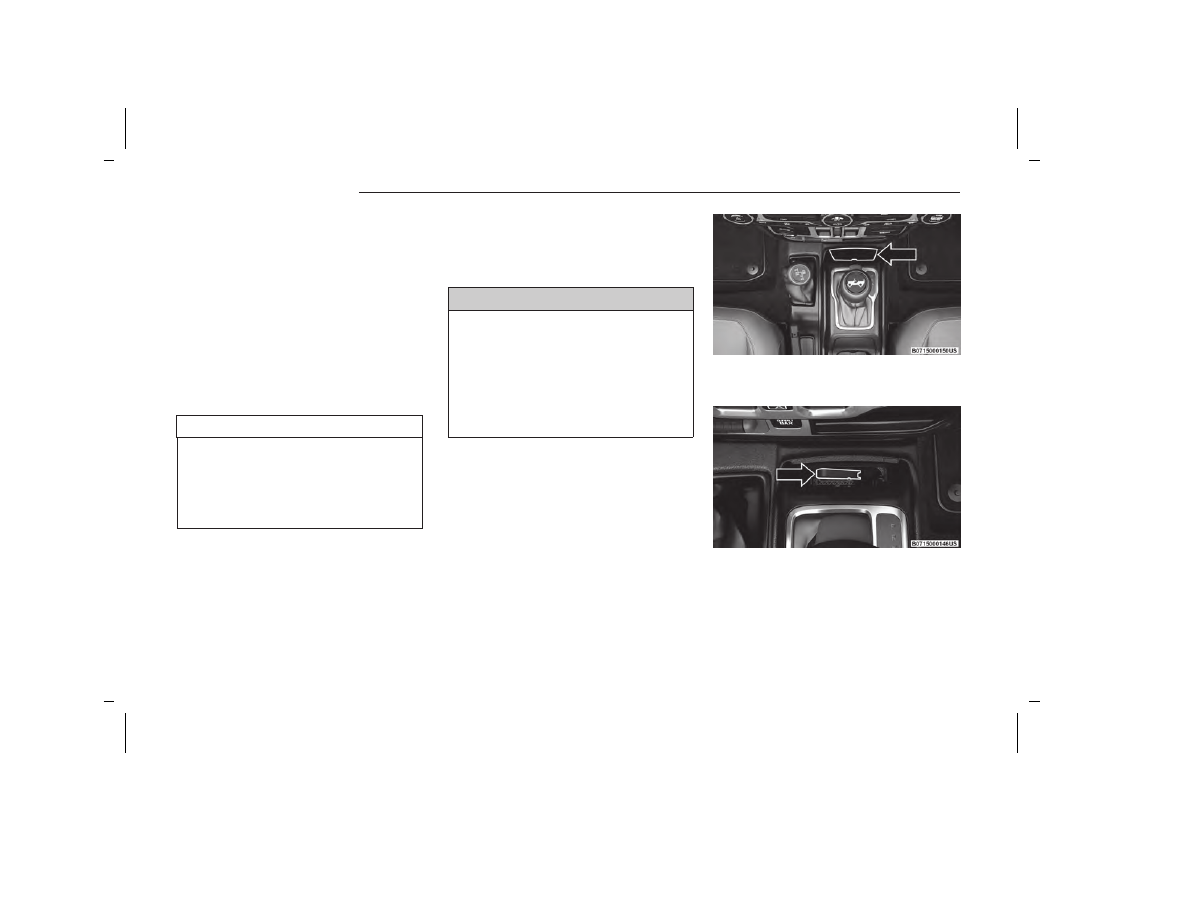

Manual Park Release Cover

Tether Strap

278

IN CASE OF EMERGENCY

5538906_24_JL_OM_EN_USC_t_E1.pdf 278

5/22/2023 9:02:29 AM

To Reset The Manual Park Release:

1. Pull upward on the tether strap, releasing it from the

“locked” position.

2. Lower the Manual Park Release lever downward and

to the left, into its original position.

3. Tuck the tether strap into the base of the console,

and reinstall the cover.

NOTE:

When the lever is locked in the release position the
access cover cannot be reinstalled.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around
the front wheels. For vehicles with automatic transmis-
sion, push and hold the lock button on the gear selec-
tor. Then, shift back and forth between DRIVE (D) and
REVERSE (R) (with automatic transmission) or SECOND
(2) gear and REVERSE (R) (with manual transmission),
while gently pressing the accelerator. Use the least
amount of accelerator pedal pressure that will maintain
the rocking motion, without spinning the wheels or rac-
ing the engine.

NOTE:

•

For vehicles with automatic transmission: Shifts
between DRIVE (D) and REVERSE (R) can only be
achieved at wheel speeds of 5 mph (8 km/h) or
less. Whenever the transmission remains in NEU-
TRAL (N) for more than two seconds, you must press
the brake pedal to engage DRIVE (D) or REVERSE
(R).

•

Push the ESC OFF button to place the Electronic
Stability Control (ESC) system in “Partial OFF” mode,
before rocking the vehicle

page 225. Once the

vehicle has been freed, push the ESC OFF button
again to restore “ESC On” mode.

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage,
or even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle's wheels faster than 30 mph (48 km/h) or for lon-
ger than 30 seconds continuously without stopping
when you are stuck and do not let anyone near a
spinning wheel, no matter what the speed.

CAUTION!

•

Racing the engine or spinning the wheels may lead
to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of clutch or transmission failure
during prolonged efforts to free a stuck vehicle.

•

When “rocking” a stuck vehicle by shifting between
DRIVE/SECOND gear and REVERSE, do not spin
the wheels faster than 15 mph (24 km/h), or drive-
train damage may result.

•

Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h) while in gear (no
transmission shifting occurring).

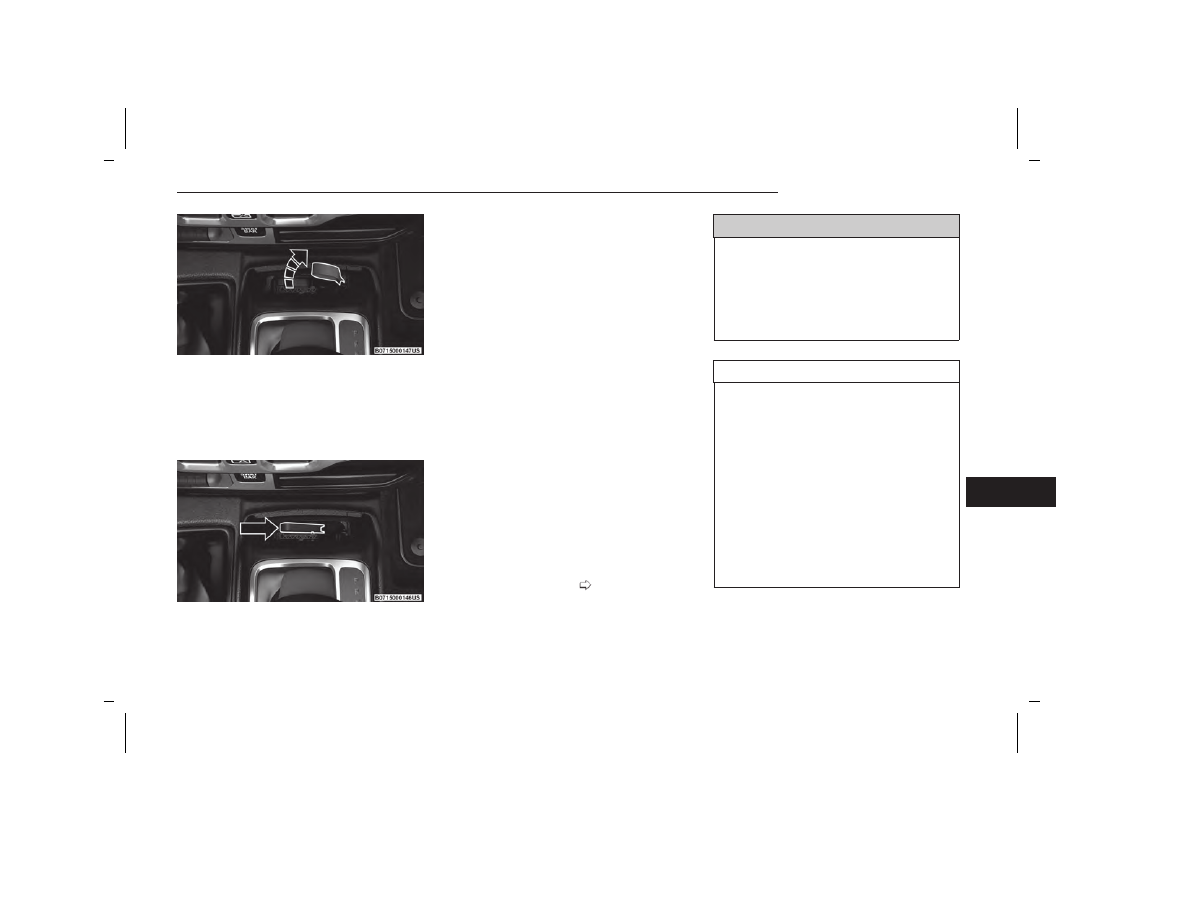

Vertical Released Position

Original Tether Position

IN CASE OF EMERGENCY

279

5538906_24_JL_OM_EN_USC_t_E1.pdf 279

5/22/2023 9:02:29 AM

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled vehicle using a commercial towing service.

If the transmission and drivetrain are operable, disabled 4x4 vehicles may also be towed as described

page 193.

Towing Condition

Wheels OFF The Ground

4WD MODELS

Flat Tow

NONE

• Automatic Transmission in

PARK (P)

• Manual Transmission in gear (

NOT

in NEUTRAL)

• Transfer Case in

NEUTRAL (N)

• Tow in

Forward

direction

Wheel Lift Or Dolly Tow

Front

NOT ALLOWED

Rear

NOT ALLOWED

Flatbed

ALL

BEST METHOD

NOTE:

When towing your vehicle, always follow applicable state and provincial laws. Contact state and provincial Highway Safety offices for additional details.

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer’s instructions. Use of safety chains
is mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to fascia/
bumpers or associated brackets. State and local laws
regarding vehicles under tow must be observed.

If you must use the accessories (wipers, defrosters,
etc.) while being towed, the ignition must be in the
ON/RUN position, not the ACC position.

If the vehicle's battery is discharged, follow the instruc-
tions on shifting the automatic transmission out of
PARK (P) in order to move the vehicle

page 278.

CAUTION!

•

Do not use sling type equipment when towing.
Vehicle damage may occur.

•

When securing the vehicle to a flatbed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.

•

If the vehicle being towed requires steering, the
ignition switch must be in the ACC or ON/RUN
mode, not in the OFF mode.

FOUR–WHEEL DRIVE MODELS

FCA US LLC recommends towing with all wheels

OFF

the ground. Acceptable methods are to tow the vehicle
on a flatbed or with one end of the vehicle raised and
the opposite end on a towing dolly.

If flatbed equipment is not available and the transfer
case is operable, the vehicle may be towed (in the for-
ward direction, with

ALL

wheels on the ground),

the

transfer case is in

NEUTRAL (N)

and the transmission is

PARK (P)

(for automatic transmissions) or in gear

NOT

NEUTRAL

, for manual transmissions)

page 193.

280

IN CASE OF EMERGENCY

5538906_24_JL_OM_EN_USC_t_E1.pdf 280

5/22/2023 9:02:29 AM

CAUTION!

•

Front or rear wheel lifts must not be used (if the
remaining wheels are on the ground). Internal
damage to the transmission or transfer case will
occur if a front or rear wheel lift is used when
towing.

•

Towing this vehicle in violation of the approved
requirements can cause severe transmission
and/or transfer case damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.

WITHOUT THE KEY FOB

Special care must be taken when the vehicle is towed
with the ignition in the OFF mode. The only approved
method of towing without the key fob is with a flatbed
truck. Proper towing equipment is necessary to prevent
damage to the vehicle.

EMERGENCY TOW HOOKS —
IF EQUIPPED

If your vehicle is equipped with tow hooks, they are
mounted in the front and the rear fascia/bumpers.

NOTE:

For off-road recovery, it is recommended to use both of
the front tow hooks to minimize the risk of damage to
the vehicle. Always use an appropriately rated tow
strap.

WARNING!

•

Stand clear of vehicles when pulling with tow
hooks. Tow straps may become disengaged, caus-
ing serious injury.

•

Do not use a chain for freeing a stuck vehicle.
Chains may break, causing serious injury or death.

•

Failure to follow proper tow hook usage may cause
components to break resulting in serious injury or
death.

CAUTION!

•

Tow hooks are for emergency use only, to rescue a
vehicle stranded off road. Tow straps are recom-
mended when towing the vehicle, chains may
cause vehicle damage.

•

The tow hooks must not be used to move the
vehicle off the road or where there are obstacles.

•

Do not use the tow hooks for tow truck hookup or
highway towing.

•

Do not use the tow hooks to pull a vehicle onto a
flatbed truck.

•

Do not use the tow hooks to free a stuck vehicle

page 279.

•

Damage to your vehicle may occur if these guide-
lines are not followed

page 280.

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)

This vehicle is equipped with an Enhanced Accident
Response System.

This feature is a communication network that takes
effect in the event of an impact.

page 254

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data
that will assist in understanding how a vehicle’s sys-
tems performed under certain crash or near crash-like
situations, such as an air bag deployment or hitting a
road obstacle.

page 255

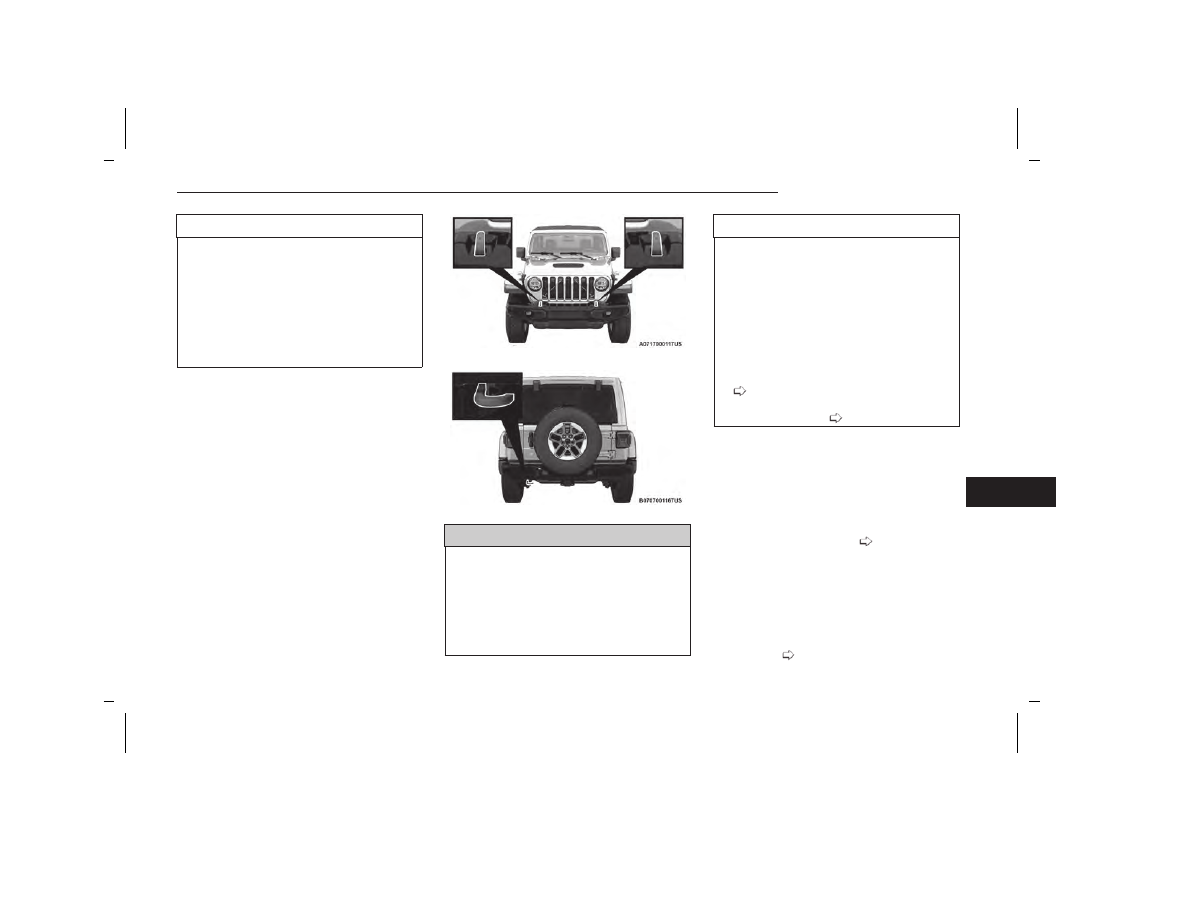

Front Tow Hooks

Rear Tow Hook

IN CASE OF EMERGENCY

281

5538906_24_JL_OM_EN_USC_t_E1.pdf 281

5/22/2023 9:02:29 AM

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.

Based on engine operation conditions, the oil change indi-
cator message will illuminate. This means that service is
required for your vehicle. Operating conditions such as
frequent short-trips, trailer towing, and extremely hot or
cold ambient temperatures will influence when the
“Change Oil” or “Oil Change Required” message is dis-
played. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).

On vehicles equipped with an instrument cluster display,
“Oil Change Required” will be displayed and a single
chime will sound, indicating that an oil change is
necessary.

On non-instrument cluster display equipped vehicles,
“Change Oil” will flash in the instrument cluster odom-
eter and a single chime will sound, indicating that an oil
change is necessary.

NOTE:

PHEV (If Equipped):

Even though the vehicle may not

have been driven, both the fuel in the tank and oil in
the engine will still degrade over time. Additionally,
there will be a notification to the driver if the engine is
being run to maintain the oil and fuel systems.

An authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If
a scheduled oil change is performed by someone other
than an authorized dealer, the message can be reset by
referring to the steps described under Instrument Clus-
ter Display

page 124.

NOTE:

Under no circumstances should oil change intervals
exceed 10,000 miles (16,000 km), 12 months or
350 hours of engine run time, whichever comes first.
The 350 hours of engine run or idle time is generally
only a concern for fleet customers.

Once A Month Or Before A Long Trip:

•

Check the engine oil level.

•

Check the windshield washer fluid level.

•

Check the tire inflation pressures and look for
unusual wear or damage, rotate at the first sign of
irregular wear.

•

Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering, and fill as
needed.

•

Check the function of all interior and exterior lights.

MAINTENANCE PLAN

Refer to the maintenance plan for the required maintenance intervals.

At Every Oil Change Interval As Indicated By Oil Change Indicator System

•

Change oil and filter.

•

Rotate the tires. Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.

•

Inspect 12 Volt battery and clean and tighten terminals as required.

•

Inspect the CV/Universal joints.

•

Inspect brake pads, shoes, rotors, drums, hoses and parking brake.

•

Inspect engine cooling system protection and hoses.

•

Inspect exhaust system.

282

5538906_24_JL_OM_EN_USC_t_E1.pdf 282

5/22/2023 9:02:29 AM

At Every Oil Change Interval As Indicated By Oil Change Indicator System

•

Inspect engine air cleaner filter if using in dusty or off-road conditions; replace engine air cleaner filter if necessary.

•

Inspect all door latches for presence of grease; reapply if necessary.

NOTE:

Using white lithium grease, lubricate the door hinge joints twice a year to prevent premature wear.

Mileage Or Time Passed

(Whichever Comes First):

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

00,000

0,000

20,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

2,000

28,000

144,000

60,000

6,000

192,000

208,000

4,000

240,000

Additional Inspections

Inspect the CV/Universal joints.

Inspect front suspension, tie rod ends, rear
suspension, and replace if necessary.

Inspect the front and rear axle fluid.

Inspect the brake linings, replace as
necessary.

Adjust parking brake on vehicles equipped
with four wheel disc brakes.

Inspect transfer case fluid.

Additional Maintenance

Replace engine air cleaner filter.

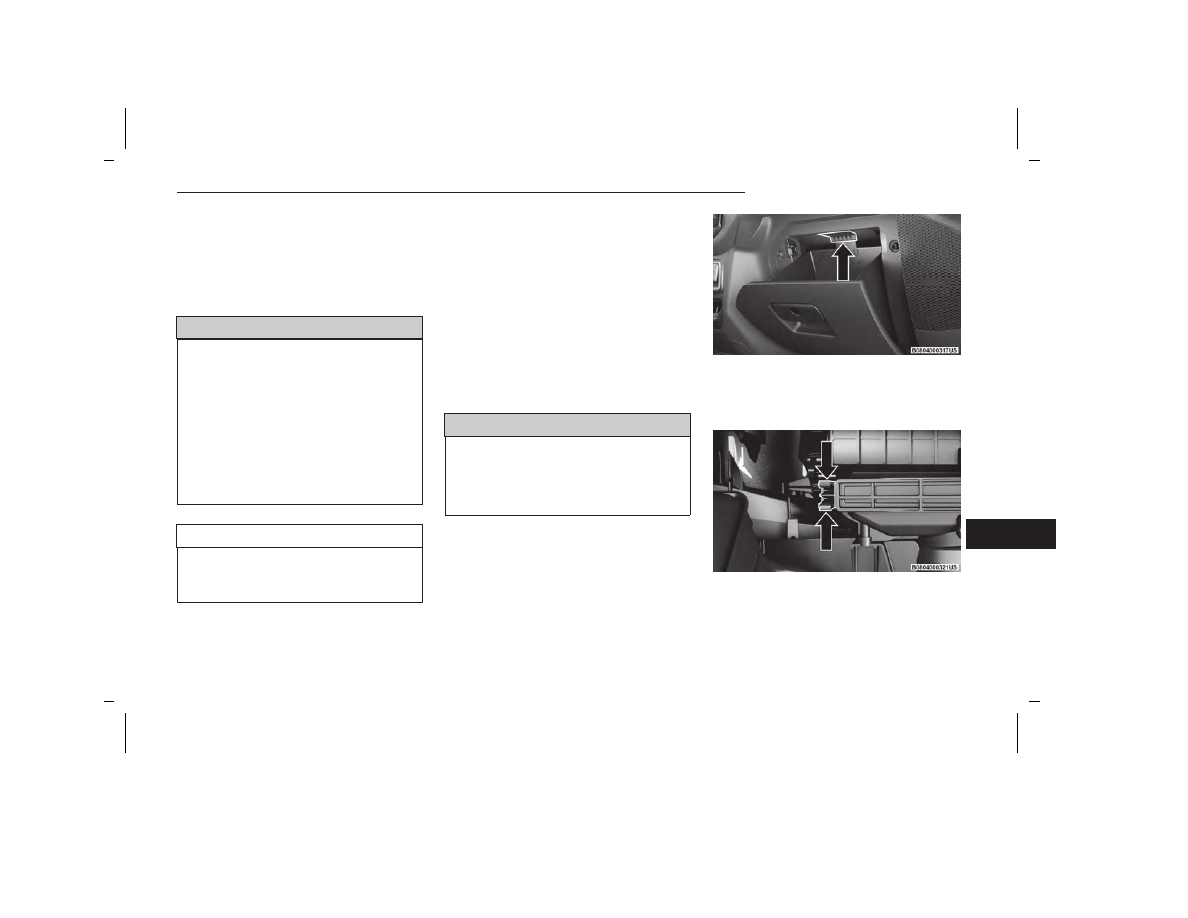

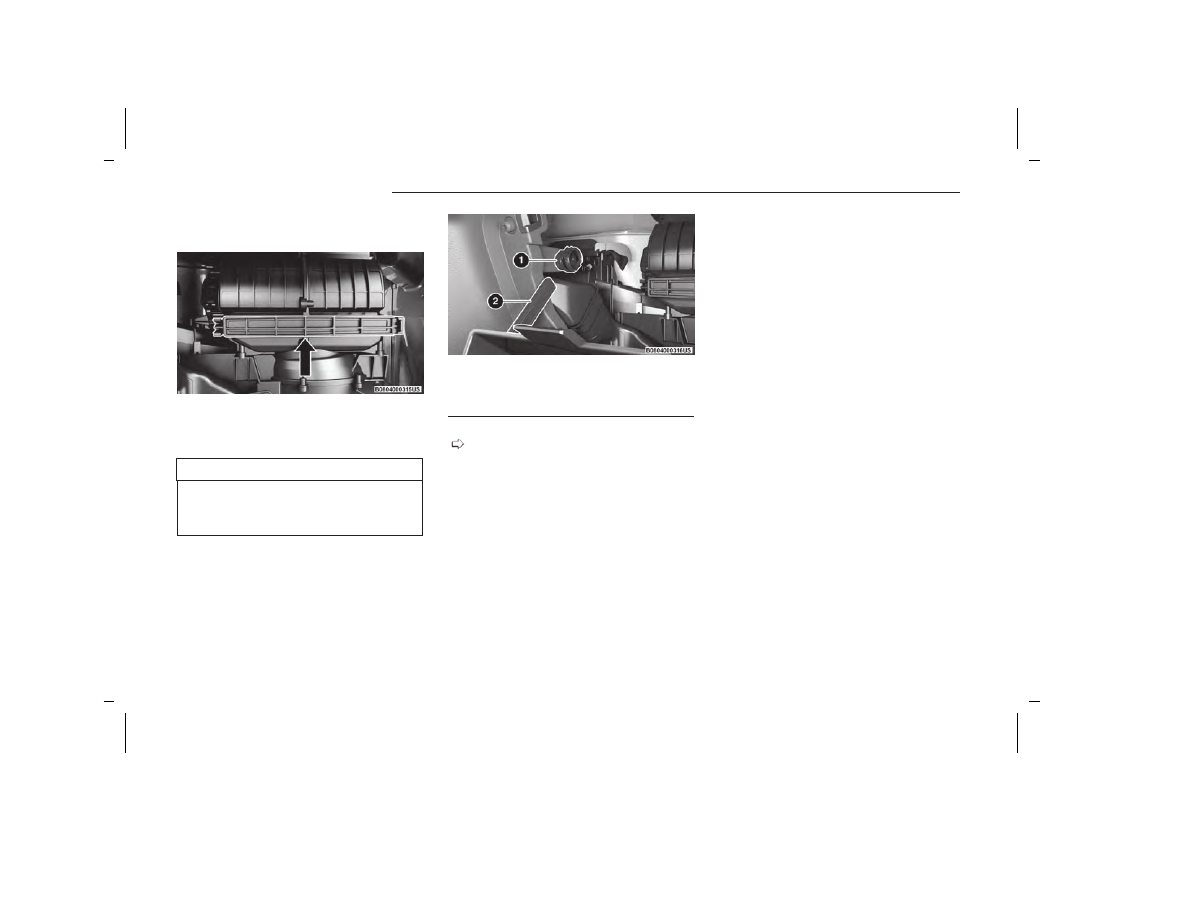

Replace cabin air filter.

To be replaced every 12,000 miles (19,000 km).

Replace Spark Plugs – 2.0L Engine.

** The spark plug change interval is mileage based only; yearly intervals do not apply.

SERVICING AND MAINTENANCE

283

5538906_24_JL_OM_EN_USC_t_E1.pdf 283

5/22/2023 9:02:29 AM

Mileage Or Time Passed

(Whichever Comes First):

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

00,000

0,000

20,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

2,000

28,000

144,000

60,000

6,000

192,000

208,000

4,000

240,000

Replace spark plugs – 3.6L Engine.

Flush and replace the engine, intercooler
(if equipped), power electronics
(if equipped), and battery (if equipped) cool-
ant at 10 years or 150,000 miles
(240,000 km) whichever comes first.

Change the manual transmission fluid if
using your vehicle for any of the following:
trailer towing, snow plowing, heavy loading,
taxi, police, delivery service (commercial
service), off-road, desert operation or more
than 50% of your driving is at sustained
high speeds during hot weather, above
90°F (32°C).

Change transfer case fluid if using your
vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing.

Inspect and replace PCV valve if necessary.

Change front and rear axle fluid if using
your vehicle for police, taxi, fleet, off-road or
frequent trailer towing.

** The spark plug change interval is mileage based only; yearly intervals do not apply.

284

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 284

5/22/2023 9:02:29 AM

WARNING!

•

You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent
mechanic.

•

Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and affect vehicle handling and performance. This
could cause an accident.

SCHEDULED SERVICING — 6.4L

The Scheduled Maintenance services listed in this
manual must be done at the times or mileages speci-
fied to protect the vehicle warranty and ensure the best
vehicle performance and reliability. More frequent
maintenance may be needed for vehicles in severe
operating conditions, such as dusty areas and very
short trip driving. Inspection and service should also be
done anytime a malfunction is suspected.

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

The instrument cluster display will display an “Oil
Change Required” message and a single chime will
sound, indicating that an oil change is necessary.

Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle ser-
viced as soon as possible, within the next 500 miles
(805 km).

NOTE:

•

The oil change indicator message will not monitor
the time since the last oil change. Change your vehi-
cle's oil if it has been six months since your last oil
change, even if the oil change indicator message is
NOT illuminated.

•

Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.

•

Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or six months,
whichever comes first.

page 124

Severe Duty All Models

Vehicles that are operated in a dusty and off-road envi-
ronment, or predominately at idle or very low engine
RPM are known as Severe Duty vehicles. It is recom-
mended that you change engine oil at 4,000 miles
(6,500 km) or 350 hours of engine run time.

At Each Stop For Fuel

•

Check the engine oil level.

•

Check the windshield washer solvent and add if
required.

Once A Month

•

Check tire pressure and look for unusual wear or
damage.

•

Inspect the battery and clean and tighten the termi-
nals as required.

•

Check the fluid levels of the coolant reservoir,
engine oil, brake master cylinder, and add as
needed.

•

Check all lights and other electrical items for correct
operation.

At Each Oil Change

•

Change the engine oil filter.

•

Inspect the brake hoses and lines.

•

Inspect the CV/Universal joints.

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

SERVICING AND MAINTENANCE

285

5538906_24_JL_OM_EN_USC_t_E1.pdf 285

5/22/2023 9:02:29 AM

MAINTENANCE PLAN

Miles:

6,000

2,000

8,000

24,000

30,000

36,000

42,000

48,000

4,000

60,000

66,000

72,000

78,000

84,000

90,000

96,000

02,000

08,000

114,000

20,000

26,000

132,000

138,000

144,000

150,000

Or Months:

96 102 108 114 120 126 132 138 144 150

Or Kilometers:

0,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

00,000

0,000

20,000

130,000

140,000

150,000

60,000

170,000

80,000

190,000

200,000

0,000

220,000

230,000

240,000

250,000

Change the engine oil and engine oil
filter.

Rotate the tires. Rotate at the first sign
of irregular wear, even if it occurs
before scheduled maintenance.

If using your vehicle for any of the fol-
lowing: dusty or off-road conditions.
Inspect the engine air cleaner filter;
replace if necessary.

Inspect the brake linings; replace if
necessary.

Inspect the CV/Universal joints.

Inspect the exhaust system.

Adjust the parking brake on vehicles
equipped with four wheel disc brakes.

Drain the transfer case and refill.

Inspect the accessory drive belts,
replace if necessary.

Inspect the front and rear axle fluid.
Change if using your vehicle for any of
the following: police, taxi, fleet, sus-
tained high speed driving, off-road or
frequent trailer towing.

286

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 286

5/22/2023 9:02:29 AM

Miles:

6,000

2,000

8,000

24,000

30,000

36,000

42,000

48,000

4,000

60,000

66,000

72,000

78,000

84,000

90,000

96,000

02,000

08,000

114,000

20,000

26,000

132,000

138,000

144,000

150,000

Or Months:

96 102 108 114 120 126 132 138 144 150

Or Kilometers:

0,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

00,000

0,000

20,000

130,000

140,000

150,000

60,000

170,000

80,000

190,000

200,000

0,000

220,000

230,000

240,000

250,000

Inspect front suspension, tie rod ends,
and boot seals for cracks or leaks and
all parts for damage, wear, improper
looseness or end play; replace if
necessary.

Replace the engine air cleaner filter.

Replace cabin air filter.

To be replaced every 12,000 miles (19,000 km).

Inspect and replace the PCV Valve if
necessary.

Replace the spark plugs – 6.4L Engine.
**

Flush and replace the engine coolant at
120 months if not done at
150,000 miles (240,000 km).

** The spark plug change interval is mileage based only, monthly intervals do not apply.

WARNING!

•

(Continued)

WARNING!

•

Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and affect vehicle handling and performance. This
could cause an accident.

SERVICING AND MAINTENANCE

287

5538906_24_JL_OM_EN_USC_t_E1.pdf 287

5/22/2023 9:02:29 AM

CHECKING OIL LEVEL

To ensure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time
to check the engine oil level is about five minutes after
a fully warmed up engine is shut off.

Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings.

There are four possible dipstick types:

•

Crosshatched zone.

•

Crosshatched zone marked SAFE.

•

Crosshatched zone marked with MIN at the low end
of the range and MAX at the high end of the range.

•

Crosshatched zone marked with dimples at the MIN
and the MAX ends of the range.

NOTE:

Always maintain the oil level within the crosshatch
markings on the dipstick.

NOTE:

Use care when filling under hood fluids such as engine
oil, washer fluid, antifreeze, etc., to minimize spillage
onto the top of the engine. Any excess fluid that is
spilled onto the top of the engine should be removed
using compressed air or an absorbent cloth.

Adding 1 qt (1 L) of oil when the reading is at the low
end of the dipstick range will raise the oil level to the
high end of the range marking.

CAUTION!

Overfilling or underfilling the crankcase will cause aera-
tion or loss of oil pressure. This could damage your
engine.

ADDING WASHER FLUID

The fluid reservoir for the windshield washers and the
rear window washer (if equipped) is shared. The fluid
reservoir is located in the engine compartment. Be sure
to check the fluid level at regular intervals. Fill the res-
ervoir with windshield washer solvent only (not radiator
antifreeze). When refilling the washer fluid reservoir,
take some washer fluid and apply it to a cloth or towel
and wipe clean the wiper blades; this will help blade
performance.

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets
or exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.

NOTE:

WARNING!

Commercial windshield washer solvents are flam-
mable. They could ignite and burn you. Care must be
exercised when filling or working around the washer
solution.

MAINTENANCE-FREE BATTERY

Your vehicle is equipped with a maintenance-free bat-
tery. You will never have to add water, and periodic
maintenance is not required.

WARNING!

•

Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid to
contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area immedi-
ately with large amounts of water

page 274.

•

Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.

•

Vehicles with the Stop/Start system will be
equipped with two batteries. Both the main and
the supplemental batteries must be disconnected
to completely de-energize the 12 Volt electrical
system.

•

Serious injury or death could result if you do not
disconnect both batteries. To learn how to properly
disconnect, see an authorized dealer.

292

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 292

5/22/2023 9:02:29 AM

CAUTION!

•

It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked posi-
tive (+) and negative (-) and are identified on the
battery case. Cable clamps should be tight on the
terminal posts and free of corrosion.

•

If a “fast charger” is used while the battery is in
the vehicle, disconnect both vehicle battery cables
before connecting the charger to the battery. Do
not use a “fast charger” to provide starting voltage.

•

Vehicles with the Stop/Start system will be equipped
with two batteries. Both the main and the supple-
mental batteries must be disconnected to completely
de-energize the 12 Volt electrical system.

•

If the negative battery cables are not isolated prop-
erly it can cause a potential power spike or surge
in the system, resulting in damage to essential
electrical components.

PRESSURE WASHING

Cleaning the engine compartment with a high pressure
washer is not recommended.

CAUTION!

Precautions have been taken to safeguard all parts
and connections however, the pressures generated
by these machines is such that complete protection
against water ingress cannot be guaranteed.

VEHICLE MAINTENANCE

An authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.

NOTE:

Intentional tampering with emissions control systems
may void your warranty and could result in civil penal-
ties being assessed against you.

WARNING!

You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a service
job, take your vehicle to a competent mechanic.

ENGINE OIL

Engine Oil Selection

For engine oil selection

page 346.

NOTE:

Hemi engines (6.4L) at times can tick right after startup
and then quiet down after approximately 30 seconds.
This is normal and will not harm the engine. This char-
acteristic can be caused by short drive cycles. For
example, if the vehicle is started then shut off after
driving a short distance. Upon restarting, you may expe-
rience a ticking sound.

Other causes could be if the vehicle is unused for an
extended period of time, incorrect oil, extended oil
changes or extended idling. If the engine continues to
tick or if the Malfunction Indicator Light (MIL) comes on,
see the nearest authorized dealer.

American Petroleum Institute (API)

Approved Engine Oil

These symbols mean that the oil has been certified by
the API. The manufacturer only recommends API trade-
mark oils.

The API Starburst trademark certifies
0W-20, 0W-30 and 5W-30 engine oils.

The API Donut trademark certifies
0W-40 and 5W-40 engine oil.

CAUTION!

Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.

Synthetic Engine Oils

Your engine was designed for synthetic engine oils, only
use synthetic API approved engine oils.

Synthetic engine oils which do not have both the correct
API trademark and the correct SAE viscosity grade num-
bers should not be used.

SERVICING AND MAINTENANCE

293

5538906_24_JL_OM_EN_USC_t_E1.pdf 293

5/22/2023 9:02:29 AM

Materials Added To Engine Oil

The manufacturer strongly recommends against the
addition of any additives (other than leak detection
dyes) to the engine oil. Engine oil is an engineered prod-
uct and its performance may be impaired by supple-
mental additives.

Disposing Of Used Engine Oil And Oil

Filters

Care should be taken in disposing of used engine oil
and oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to
the environment. Contact an authorized dealer, service
station or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.

ENGINE OIL FILTER

The engine oil filter should be replaced with a new filter
at every engine oil change.

Engine Oil Filter Selection

A full-flow type disposable oil filter should be used for
replacement. The quality of replacement filters varies
considerably. We recommend using a Mopar® Engine
Oil Filter. If Mopar® Engine Oil Filters are unavailable,
only use filters that meet or exceed SAE/USCAR-36 Fil-
ter Performance Requirements.

ENGINE AIR CLEANER FILTER

For the proper maintenance intervals

page 282.

NOTE:

Be sure to follow the “Severe Duty Conditions” mainte-
nance interval if applicable.

WARNING!

The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is neces-
sary for repair or maintenance. Make sure that no
one is near the engine compartment before starting
the vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.

Engine Air Cleaner Filter Selection

The quality of replacement engine air cleaner filters
varies considerably. Only high quality Mopar® filters
should be used.

Engine Air Cleaner Filter Inspection and

Replacement

Follow the recommended maintenance intervals as
shown in the Maintenance Schedule in this section.

Engine Air Cleaner Filter Removal

1. Loosen the fasteners from the engine air cleaner

filter cover using a suitable tool.

2. Lift the engine air cleaner filter cover to access the

engine air cleaner filter.

3. Remove the engine air cleaner filter from the hous-

ing assembly.

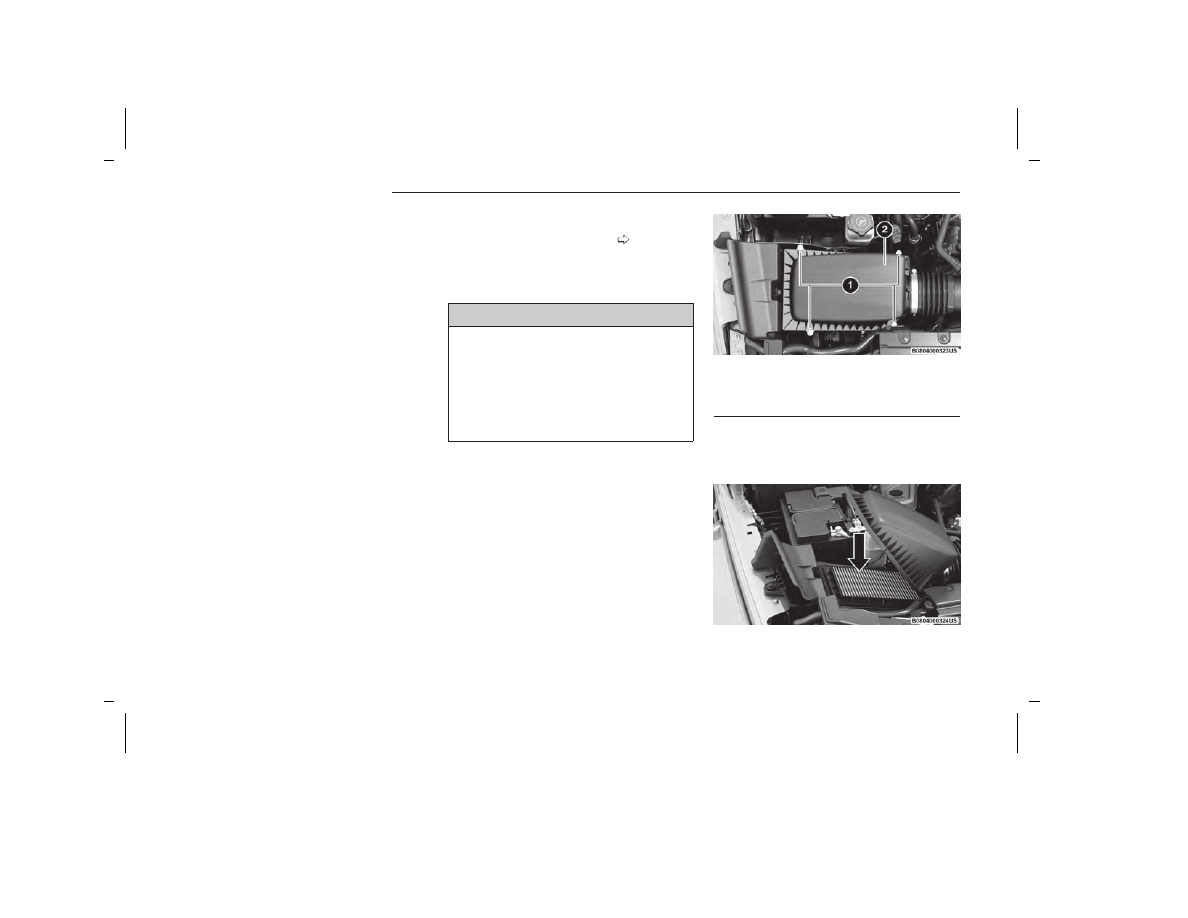

Engine Air Cleaner Filter Cover

1 — Fasteners
2 — Engine Air Cleaner Filter Cover

Engine Air Cleaner Filter Cover

294

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 294

5/22/2023 9:02:29 AM

Engine Air Cleaner Filter Installation

NOTE:

Inspect and clean the housing if significant dirt or
debris is present before replacing the engine air
cleaner filter.

1. Install the engine air cleaner filter into the housing

assembly with the engine air cleaner filter inspec-
tion surface facing downward.

2. Tighten engine air cleaner filter cover fasteners

using a suitable tool.

CAUTION!

Do not overtighten the engine air cleaner filter cover
lid screws or damage may result.

First Water Separation Chamber

Removal — 6.4L Engine

The vehicle is equipped with a hood duct system for
filtering out water, dirt and debris to keep them out of
the engine air cleaner filter. The first water separation
chamber can be removed for cleaning if necessary.

Removal

1. Loosen the six captured fasteners from the first

water separation chamber using a suitable tool.

NOTE:

The captured fasteners are made to stay with the
first water separation chamber and must NOT be
removed.

2. Pull on the hood duct at the top to disengage the

push pin clip along with the rubber grommet and
remove from vehicle.

Installation

NOTE:

Inspect and clean the housing if dirt or debris is pres-
ent before reinstallation.

1. Align the first water separation chamber to hood/

second chamber then engage the push pin clip and
grommet.

NOTE:

Both components should click-in. The cone shape of
the second chamber can aid in locating parts.

2. Hand start the six captured fasteners.

3. Tighten the captured fasteners. Do not overtighten.

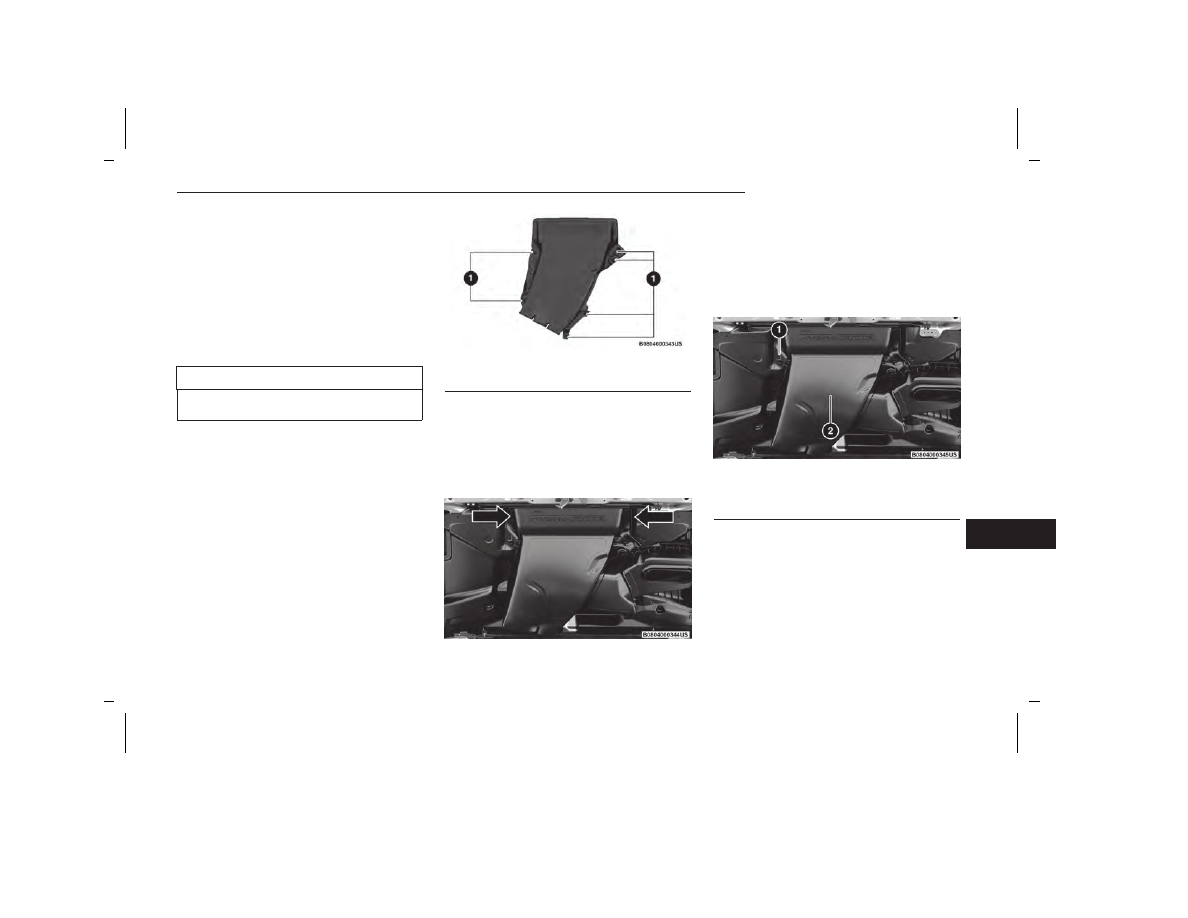

First Water Separation Chamber

1 — Captured Fasteners

First Water Chamber Removal

First Water Separation Chamber

1 — Push Pin
2 — Grommet (On The Backside)

SERVICING AND MAINTENANCE

295

5538906_24_JL_OM_EN_USC_t_E1.pdf 295

5/22/2023 9:02:30 AM

Engine Air Cleaner Filter Inspection and

Replacement — 6.4L Engine

Follow the recommended maintenance intervals as
shown in the Maintenance Plan in this section.

Engine Air Cleaner Filter Removal

1. Loosen the fasteners from the air cleaner cover

using a suitable tool.

2. Lift the engine air cleaner filter cover to access the

engine air cleaner filter by rotating at the hinge and
pulling the cover away from the engine.

3. Remove the engine air cleaner filter from the hous-

ing assembly.

Engine Air Cleaner Filter Installation

NOTE:

Inspect and clean the housing if significant dirt or
debris is present before replacing the engine air
cleaner filter.

1. Install the engine air cleaner filter into the housing

assembly with the engine air cleaner filter inspec-
tion surface facing downward.

2. Tighten engine air cleaner filter cover fasteners

using a suitable tool.

CAUTION!

Do not overtighten the engine air cleaner filter cover
lid screws or damage may result.

ACCESSORY DRIVE BELT
INSPECTION

WARNING!

•

Do not attempt to inspect an accessory drive belt
with the vehicle running.

•

When working near the radiator cooling fan, dis-
connect the fan motor lead. The fan is temperature
controlled and can start at any time regardless of
ignition mode. You could be injured by the moving
fan blades.

•

You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a ser-
vice job, take your vehicle to a competent mechanic.

When inspecting accessory drive belts, small cracks that
run across the ribbed surface of the belt, from rib to rib,
are considered normal. These are not a reason to replace
a belt. However, cracks running along a rib (not across)
are not normal. Any belt with cracks running along a rib
must be replaced. Also have the belt replaced if it has
excessive wear, frayed cords, or severe glazing.

Conditions that would require replacement:

•

Rib chunking (one or more ribs has separated from
belt body)

•

Rib or belt wear

•

Longitudinal belt cracking (cracks between two ribs)

•

Belt slips

•

Groove jumping (belt does not maintain correct posi-
tion on pulley)

•

Belt broken

•

Noise (objectionable squeal, squeak, or rumble is
heard or felt while drive belt is in operation)

NOTE:

Identify and correct problem before new belt is
installed.

Some conditions can be caused by a faulty component
such as a belt pulley. Belt pulleys should be carefully
inspected for damage and proper alignment.

Belt replacement on some models requires the use of
special tools, we recommend having your vehicle ser-
viced at an authorized dealer.

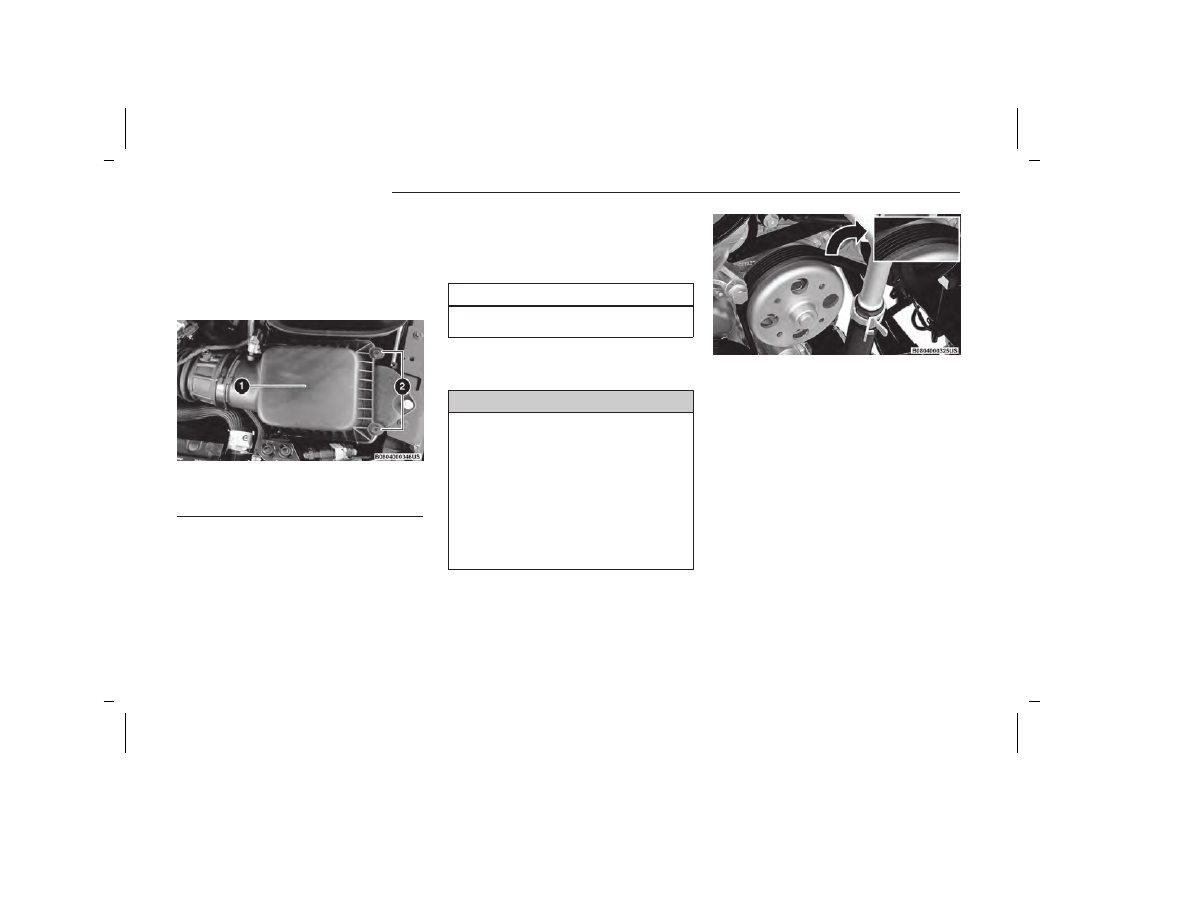

Engine Air Cleaner Cover

1 — Engine Air Cleaner Filter Cover
2 — Fasteners

Accessory Belt (Serpentine Belt)

296

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 296

5/22/2023 9:02:30 AM

AIR CONDITIONER MAINTENANCE

For best possible performance, your air conditioner
should be checked and serviced by an authorized
dealer at the start of each warm season. This service
should include cleaning of the condenser fins and a
performance test. Drive belt tension should also be
checked at this time.

WARNING!

•

Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Warranty Information Book, located in your owner’s
information kit, for further warranty information.

•

The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.

CAUTION!

Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condi-
tioning components. Such damage is not covered by
the New Vehicle Limited Warranty.

Refrigerant Recovery And Recycling —

R–1234yf

R–1234yf Air Conditioning Refrigerant is a Hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance
with a low global-warming potential. The manufacturer
recommends that air conditioning service be performed
by an authorized dealer using recovery and recycling
equipment.

NOTE:

Use only the manufacturer approved A/C system PAG
compressor oil, and refrigerants.

Cabin Air Filter

WARNING!

Do not remove the cabin air filter while the vehicle is
running, or while the ignition is in the ACC or ON/RUN
mode. With the cabin air filter removed and the
blower operating, the blower can contact hands and
may propel dirt and debris into your eyes, resulting in
personal injury.

The cabin air filter is located in the fresh air inlet behind
the glove compartment. Perform the following proce-
dure to replace the filter:

1. Open the glove compartment and remove all

contents.

2. Push up on the glove compartment travel stop and

lower the door.

3. Pivot the glove compartment downward.

4. Disengage the two retaining tabs that secure the air

filter access door to the HVAC housing.

Glove Compartment Travel Stop

Air Filter Retaining Tabs

SERVICING AND MAINTENANCE

297

5538906_24_JL_OM_EN_USC_t_E1.pdf 297

5/22/2023 9:02:30 AM

5. Remove the air filter from the HVAC air inlet housing.

Pull the filter elements out pinching them to the
right for clearance.

6. Install the cabin air filter with the air filter position

indicators pointing in the same direction as removal.

CAUTION!

The cabin air filter is identified with an arrow to indi-
cate airflow direction through the filter. Failure to
properly install the filter will result in the need to
replace it more often.

7. Close cabin air filter access door and secure retain-

ing tabs.

8. Rotate the glove compartment door back into posi-

tion ensuring you have properly engaged the travel
dampener.

For the proper maintenance intervals, see

page 282.

BODY LUBRICATION

Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as Mopar® Spray White Lube to ensure quiet,
easy operation and to protect against rust and wear.
Prior to the application of any lubricant, the parts con-
cerned should be wiped clean to remove dust and grit;
after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch release mechanism, and safety catch should be
cleaned and lubricated.

The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar®
Lock Cylinder Lubricant directly into the lock cylinder.

WINDSHIELD WIPER BLADES

Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and
a mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.

Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always
use washer fluid when using the wipers to remove salt
or dirt from a dry windshield.

Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact
with petroleum products such as engine oil, gasoline,
etc.

NOTE:

Life expectancy of wiper blades varies depending on
geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering,
marks, water lines or wet spots. If any of these condi-
tions are present, clean the wiper blades or replace as
necessary.

The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance problems
are experienced. This inspection should include the
following points:

•

Wear or uneven edges

•

Foreign material

•

Hardening or cracking

•

Deformation or fatigue

Air Filter

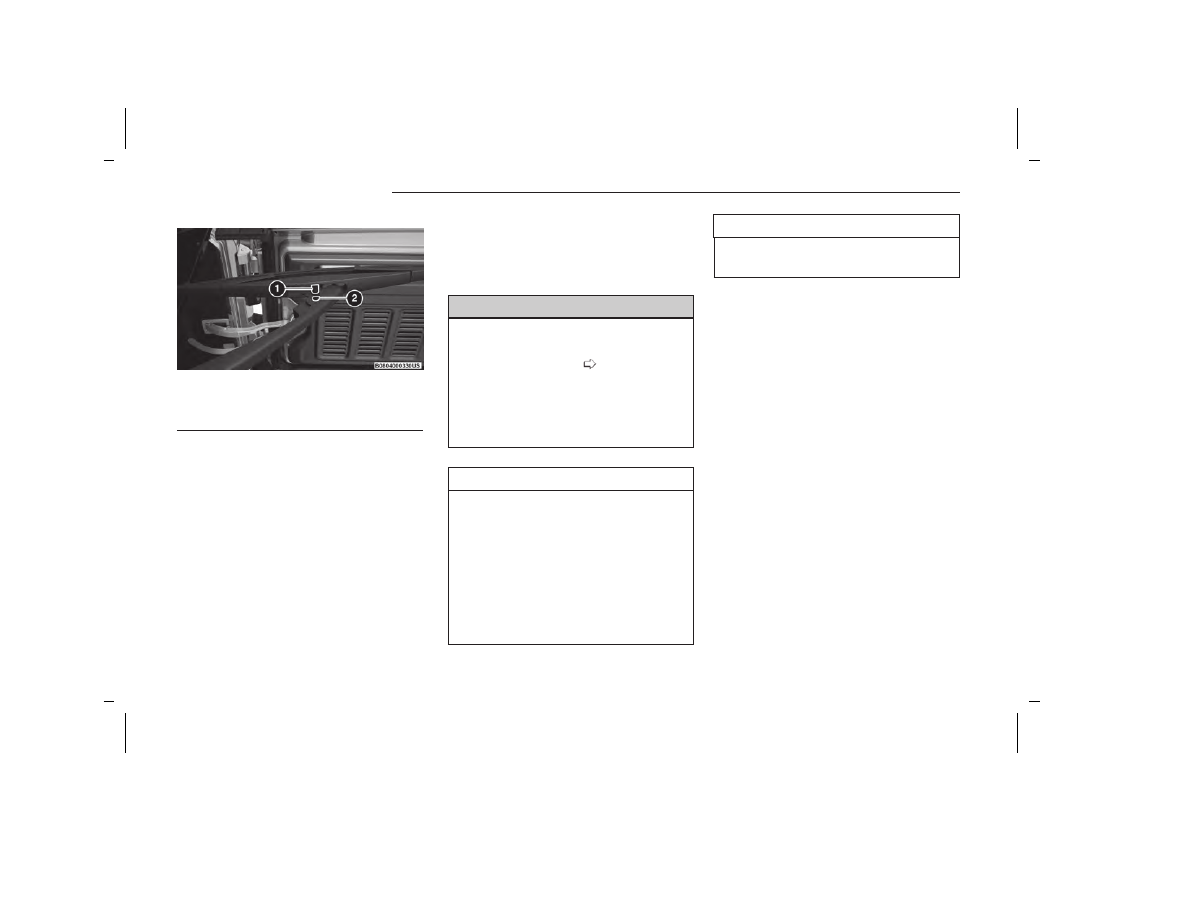

Travel Dampener

1 — Travel Dampener Housing
2 — Travel Dampener Rod

298

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 298

5/22/2023 9:02:30 AM

If a wiper blade or wiper arm is damaged, replace the
affected wiper arm or blade with a new unit. Do not
attempt to repair a wiper arm or blade that is damaged.

Wiper Blade Removal/Installation

CAUTION!

Do not allow the wiper arm to spring back against the
glass without the wiper blade in place or the glass
may be damaged.

1. Lift the wiper arm to raise the wiper blade off of the

glass, until the wiper arm is in the full up position.

2. To disengage the wiper blade from the wiper arm,

push the release tab on the wiper blade and while
holding the wiper arm with one hand, slide the wiper
blade down towards the base of the wiper arm.

3. With the wiper blade disengaged, remove the wiper

blade from the wiper arm.

4. Gently lower the wiper arm onto the glass.

Installing The Front Wipers

1. Lift the wiper arm off of the glass, until the wiper

arm is in the full up position.

2. Position the wiper blade near the hook on the tip of

the wiper arm.

3. Slide the wiper blade up into the hook on the wiper

arm, latch engagement will be accompanied by an
audible click.

4. Gently lower the wiper blade onto the glass.

Rear Wiper Blade Removal/Installation

1. Open swing gate to access the wiper arm.

2. Lift wiper arm off of the glass and rotate wiper blade

outward to disengage the wiper blade from the
wiper arm.

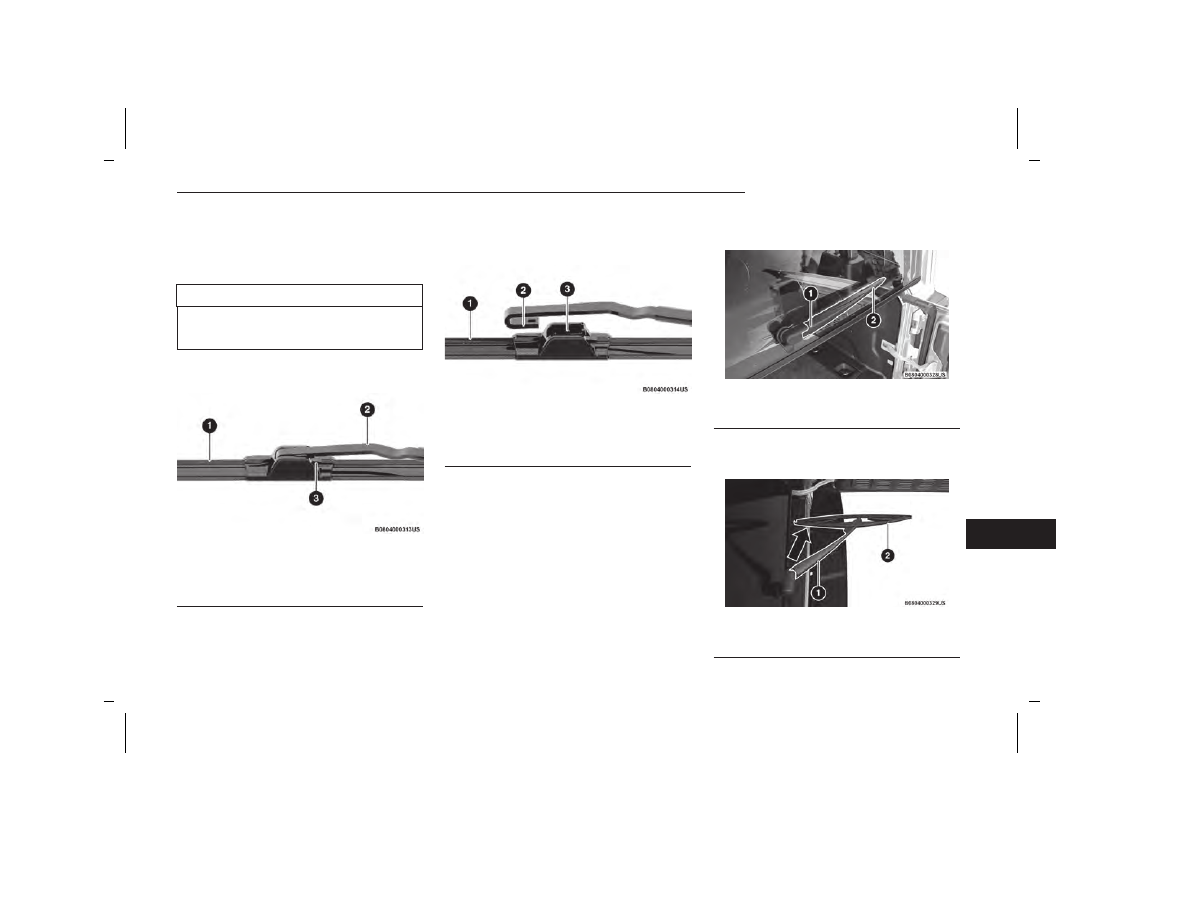

Wiper Blade With Release Tab In Locked Position

1 — Wiper Blade
2 — Wiper Arm
3 — Release Tab

Wiper Blade With Release Tab In Unlocked Position

1 — Wiper Blade
2 — Wiper Arm J Hook
3 — J Hook Retainer

Rear Wiper Assembly

1 — Wiper Arm
2 — Wiper Blade

Wiper Blade And Wiper Arm

1 — Wiper Arm
2 — Wiper Blade

SERVICING AND MAINTENANCE

299

5538906_24_JL_OM_EN_USC_t_E1.pdf 299

5/22/2023 9:02:30 AM

3. Gently set the arm on the glass.

Installing The Rear Wiper

1. Lift the wiper arm off of the glass.

2. Insert the wiper blade pivot pin into the opening on

the end of the wiper arm and rotate the wiper in to
place.

3. Place with wiper on the glass and close the tail gate.

EXHAUST SYSTEM

The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine
exhaust system.

If you notice a change in the sound of the exhaust sys-
tem; or if exhaust fumes can be detected inside the
vehicle; or when the underside or rear of the vehicle is
damaged; have an authorized technician inspect the
complete exhaust system and adjacent body areas for

broken, damaged, deteriorated, or mispositioned parts.
Open seams or loose connections could permit exhaust
fumes to seep into the passenger compartment. In
addition, have the exhaust system inspected each time
the vehicle is raised for lubrication or oil changes.
Replace as required.

WARNING!

•

Exhaust gases can injure or kill. They contain car-
bon monoxide (CO), which is colorless and odor-
less. Breathing it can make you unconscious and
can eventually poison you

page 265.

•

A hot exhaust system can start a fire if you park
over materials that can burn. Such materials might
be grass or leaves coming into contact with your
exhaust system. Do not park or operate your
vehicle in areas where your exhaust system can
contact anything that can burn.

CAUTION!

•

The catalytic converter requires the use of
unleaded fuel only. Leaded gasoline will destroy
the effectiveness of the catalyst as an emissions
control device and may seriously reduce engine
performance and cause serious damage to the
engine.

•

Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. In
the event of engine malfunction, particularly involv-
ing engine misfire or other apparent loss of perfor-
mance, have your vehicle serviced promptly. Con-
tinued operation of your vehicle with a severe

(Continued)

CAUTION!

malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.

Under normal operating conditions, the catalytic con-
verter will not require maintenance. However, it is
important to keep the engine properly tuned to ensure
proper catalyst operation and prevent possible catalyst
damage.

NOTE:

Intentional tampering with emissions control systems
can result in civil penalties being assessed against you.

In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool. Ser-
vice, including a tune-up to manufacturer's specifica-
tions, should be obtained immediately.

To minimize the possibility of catalytic converter
damage:

•

Do not interrupt the ignition when the transmission
is in gear and the vehicle is in motion.

•

Do not try to start the vehicle by pushing or towing
the vehicle.

•

Do not idle the engine with any ignition components
disconnected or removed, such as during diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.

Wiper Blade Removed From Wiper Arm

1 — Wiper Blade Pivot Pin
2 — Wiper Arm Receptacle

300

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 300

5/22/2023 9:02:30 AM

COOLING SYSTEM

WARNING!

•

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never open a cooling system
pressure cap when the radiator or coolant bottle is
hot.

•

Keep hands, tools, clothing, and jewelry away from
the radiator cooling fan when the hood is raised.
The fan starts automatically and may start at any
time, whether the engine is running or not.

•

When working near the radiator cooling fan, discon-
nect the fan motor lead or turn the ignition to the OFF
mode. The fan is temperature controlled and can
start at any time the ignition is in the ON mode.

Coolant Checks

Check the engine, battery (if equipped), intercooler
(if equipped), and Motor Generator Unit (MGU)
(if equipped) coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine, battery (if equipped), inter-
cooler (if equipped), and MGU (if equipped) coolant is
dirty or rusty in appearance, the system should be
drained, flushed and refilled with fresh OAT coolant
(conforming to MS.90032) by an authorized dealer.
Check the front of the A/C condenser (if equipped) or
radiator for any accumulation of bugs, leaves, etc.
If dirty, clean by gently spraying water from a garden
hose vertically down the face of the A/C condenser
(if equipped) or the back of the radiator core.

Check the engine, battery (if equipped), intercooler
(if equipped), and MGU (if equipped) cooling system
hoses for brittle rubber, cracking, tears, cuts, and tight-
ness of the connection at the coolant recovery bottle
and radiator. Inspect the entire system for leaks. DO
NOT REMOVE THE COOLANT PRESSURE CAP WHEN THE
COOLING SYSTEM IS HOT.

Cooling System — Drain, Flush And Refill

NOTE:

Some vehicles require special tools to add coolant prop-
erly. Failure to fill these systems properly could lead to
severe internal engine damage. If any coolant is needed
to be added to the system please contact an authorized
dealer.

If the engine coolant (antifreeze) is dirty or contains
visible sediment, have an authorized dealer clean and
flush with OAT coolant (conforming to MS.90032).

For the proper maintenance intervals, see

page 282.

Electric/Battery Coolant System — PHEV

(If Equipped)

These coolant systems must be serviced by an autho-
rized dealer. If the coolant level is below what is speci-
fied on the reservoir, contact an authorized dealer for
service.

These systems require the use of high purity water,
such as deionized, or distilled water, when mixing the
water and coolant (antifreeze) solution. The use of
lower quality water will reduce the amount of corrosion
protection in the cooling systems. If the coolant level of
the battery coolant system is low, the Hybrid Electric
Vehicle System Service Light will be illuminated on the
instrument cluster.

Selection Of Coolant

For further information

page 346.

NOTE:

•

Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) engine
coolant, may result in engine damage and may
decrease corrosion protection. OAT engine coolant is
different and should not be mixed with Hybrid
Organic Additive Technology (HOAT) engine coolant
or any “globally compatible” coolant. If a non-OAT
engine coolant is introduced into the cooling system
in an emergency, the cooling system will need to be
drained, flushed, and refilled with fresh OAT coolant
(conforming to MS.90032), by an authorized dealer
as soon as possible.

•

Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or anti-rust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

•

This vehicle has not been designed for use with pro-
pylene glycol-based engine coolant. Use of propyl-
ene glycol-based engine coolant is not
recommended.

•

Some vehicles require special tools to add coolant
properly. Failure to fill these systems properly could
lead to severe internal engine damage. If any cool-
ant is needed to be added to the system please con-
tact an authorized dealer.

SERVICING AND MAINTENANCE

301

5538906_24_JL_OM_EN_USC_t_E1.pdf 301

5/22/2023 9:02:30 AM

Adding Coolant

Your vehicle has been built with an improved engine
coolant (OAT coolant conforming to MS.90032) that
allows extended maintenance intervals. This engine
coolant (antifreeze) can be used up to 10 years or
150,000 miles (240,000 km) before replacement. To
prevent reducing this extended maintenance period, it
is important to use the same engine coolant (OAT cool-
ant conforming to MS.90032) throughout the life of
your vehicle.

Please review these recommendations for using
Organic Additive Technology (OAT) engine coolant that
meets the requirements of the manufacturer Material
Standard MS.90032. When adding engine coolant
(antifreeze):

•

We recommend using Mopar® Antifreeze/Coolant
10 Year/150,000 Mile (240,000 km) Formula OAT
(Organic Additive Technology) that meets the
requirements of the manufacturer Material Stan-
dard MS.90032.

•

Mix a minimum solution of 50% OAT engine coolant
that meets the requirements of the manufacturer
Material Standard MS.90032 and distilled water.
Use higher concentrations (not to exceed 70%) if
temperatures below −34°F (−37°C) are anticipated.
Please contact an authorized dealer for assistance.

•

Use only high purity water such as distilled or deion-
ized water when mixing the water/engine coolant
solution. The use of lower quality water will reduce
the amount of corrosion protection in the engine
cooling system.

NOTE:

•

It is the owner's responsibility to maintain the proper
level of protection against freezing according to the
temperatures occurring in the area where the
vehicle is operated.

•

Use care when filling under hood fluids such as
engine oil, washer fluid, antifreeze, etc., to minimize
spillage onto the top of the engine. Any excess fluid
that is spilled onto the top of the engine should be
removed using compressed air or an absorbent
cloth.

•

Mixing engine coolant types is not recommended
and can result in cooling system damage. If HOAT
and OAT coolant are mixed in an emergency, have
an authorized dealer drain, flush, and refill with OAT
coolant (conforming to MS.90032) as soon as
possible.

Cooling System Pressure Cap

The cap must be fully tightened to prevent loss of
engine coolant (antifreeze), and to ensure that engine
coolant will return to the radiator from the coolant
expansion bottle/recovery tank if so equipped.

The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing
surfaces.

WARNING!

•

Do not open hot engine cooling system. Never add
engine coolant (antifreeze) when the engine is
overheated. Do not loosen or remove the cap to
cool an overheated engine. Heat causes pressure
to build up in the cooling system. To prevent scald-
ing or injury, do not remove the pressure cap while
the system is hot or under pressure.

•

Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or engine
damage may result.

Disposal Of Used Coolant

Used ethylene glycol-based coolant (antifreeze) OAT or
HOAT, is a regulated substance requiring proper dis-
posal. Check with your local authorities to determine
the disposal rules for your community. To prevent inges-
tion by animals or children, do not store ethylene glycol-
based coolant in open containers or allow it to remain
in puddles on the ground, clean up any ground spills
immediately. If ingested, seek emergency assistance
immediately.

Coolant Level

The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the ranges
indicated on the bottle.

The radiator normally remains completely full, so there
is no need to remove the radiator/coolant pressure cap
unless checking for engine coolant freeze point or

302

SERVICING AND MAINTENANCE

5538906_24_JL_OM_EN_USC_t_E1.pdf 302

5/22/2023 9:02:30 AM

Jeep Wrangler (2024 year). Manual in english - page 9
