WARNING!

•

Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people or
pets are in the path of the door or gate.

•

Do not run your vehicle in a closed garage or con-
fined area while programming the transceiver.
Exhaust gas from your vehicle contains carbon
monoxide (CO) which is odorless and colorless.
Carbon monoxide is poisonous when inhaled and
can cause you and others to be severely injured or
killed.

PROGRAMMING HOMELINK® TO A
MISCELLANEOUS DEVICE

The procedure on how to program HomeLink® to a mis-
cellaneous device follows the same procedure as pro-
gramming to a garage door opener

page 48. Be

sure to determine if the device has a rolling code, or
non-rolling code before beginning the programming
process.

NOTE:

Canadian Radio Frequency (RF) laws require transmit-
ter signals to time-out (or quit) after several seconds of
transmission, which may not be long enough for
HomeLink® to pick up the signal during programming.
Similar to this Canadian law, some U.S. gate operators
are designed to time-out in the same manner. The pro-
cedure may need to be performed multiple times to
successfully pair the device to your HomeLink®
buttons.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a single HomeLink® button that has been
previously trained, without erasing all the channels,
proceed as follows. Be sure to determine whether the
new device you want to program the HomeLink® button
to has a rolling code, or non-rolling code.

1. Place the ignition to the ON/RUN position, without

starting the engine.

2. Push and hold the desired HomeLink® button until

the HomeLink® indicator light begins to flash after
20 seconds.

Do not release the button.

Without releasing the button

, proceed with Step 2

in “Programming HomeLink® To A Garage Door
Opener” and follow all remaining steps.

CANADIAN/GATE OPERATOR
PROGRAMMING

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission:

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.

1. Place the ignition in the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter ‘n Go™,
place the ignition in the ON/RUN position. Make
sure while programming HomeLink® with the
engine on that your vehicle is outside of your
garage, or that the garage door remains open at all
times.

2. Place the hand-held transmitter 1 to 3 inches (3 to

8 cm) away from the HomeLink® button you wish to
program while keeping the HomeLink® indicator
light in view.

3. Continue to push and hold the HomeLink® button

while you push and release (cycle) your hand-held
transmitter every two seconds until HomeLink® has
successfully accepted the frequency signal. The indi-
cator light will flash slowly and then rapidly when
fully trained.

4. Watch for the HomeLink® indicator to change flash

rates. When it changes, it is programmed. It may
take up to 30 seconds or longer in rare cases. The
garage door may open and close while you are
programming.

5. Push and hold the programmed HomeLink® button

and observe the indicator light.

NOTE:

○

If the indicator light stays on constantly, program-
ming is complete and the garage door/device
should activate when the HomeLink® button is
pushed.

○

To program the two remaining HomeLink® but-
tons, repeat each step for each remaining but-
ton. DO NOT erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

GETTING TO KNOW YOUR VEHICLE

Reprogramming A Single HomeLink® Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously
trained, follow these steps:

1. Place the ignition in the ON/RUN position.

2. Press and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds.
Do not release the button.

3. Without releasing the button, proceed with

“Canadian/Gate Operator Programming” Step 2 and
follow all remaining steps.

SECURITY

It is advised to erase all channels before you sell or turn
in your vehicle.

To do this, push and hold the two outside buttons for
20 seconds until the indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink® Universal Transceiver is disabled when
the Vehicle Security system is active.

TROUBLESHOOTING TIPS

If you are having trouble programming HomeLink®,
here are some of the most common solutions:

•

Replace the battery in the garage door opener hand-
held transmitter.

•

Push the LEARN button on the garage door opener
to complete the training for a rolling code.

•

Did you unplug the device for programming and
remember to plug it back in?

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or on the Internet at
HomeLink.com for information or assistance.

WARNING!

•

Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.

•

Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured
after 1982. Do not use a garage door opener with-
out these safety features.

EXTERIOR LIGHTS

HEADLIGHT SWITCH

The headlight switch is located on the left side of the
instrument panel, next to the steering wheel. The head-
light switch controls the operation of the headlights,
parking lights, instrument panel lights, and fog lights
(if equipped).

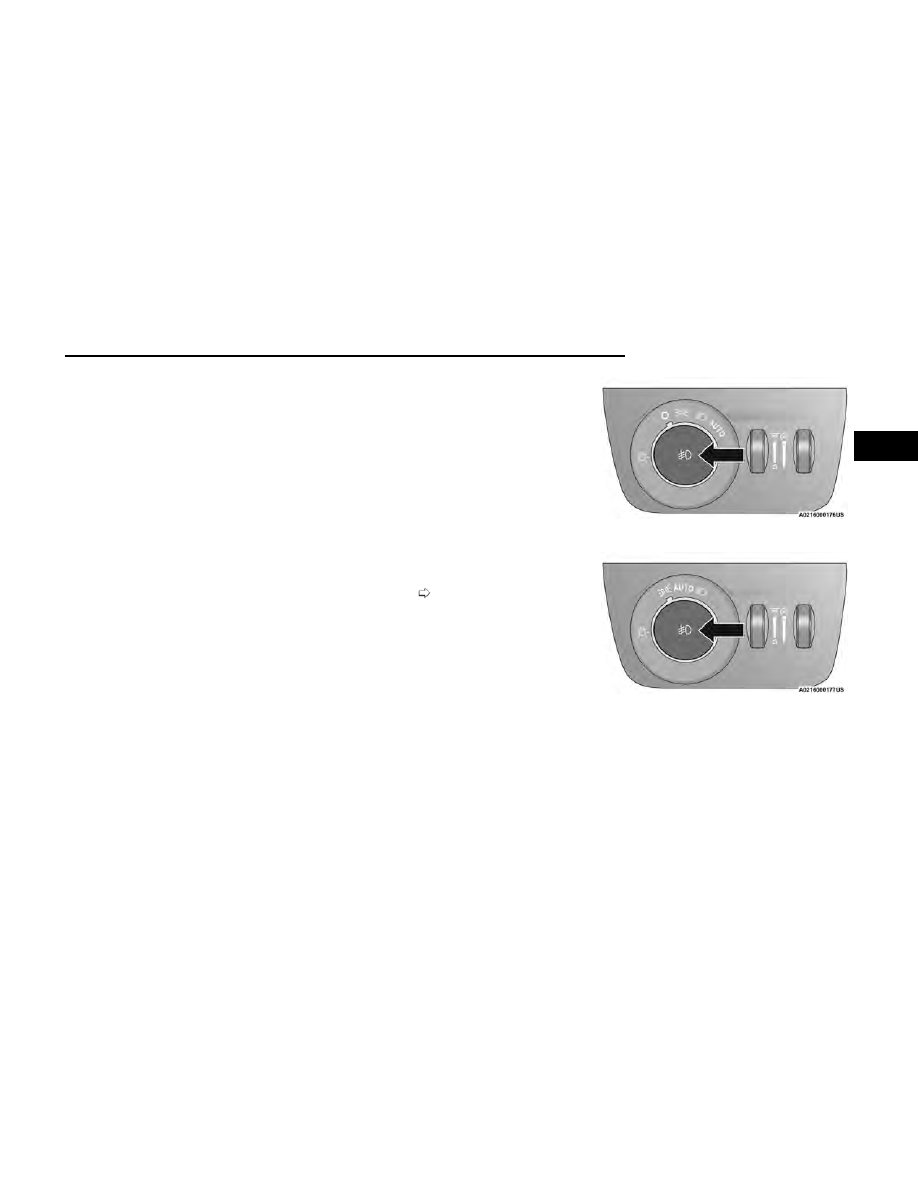

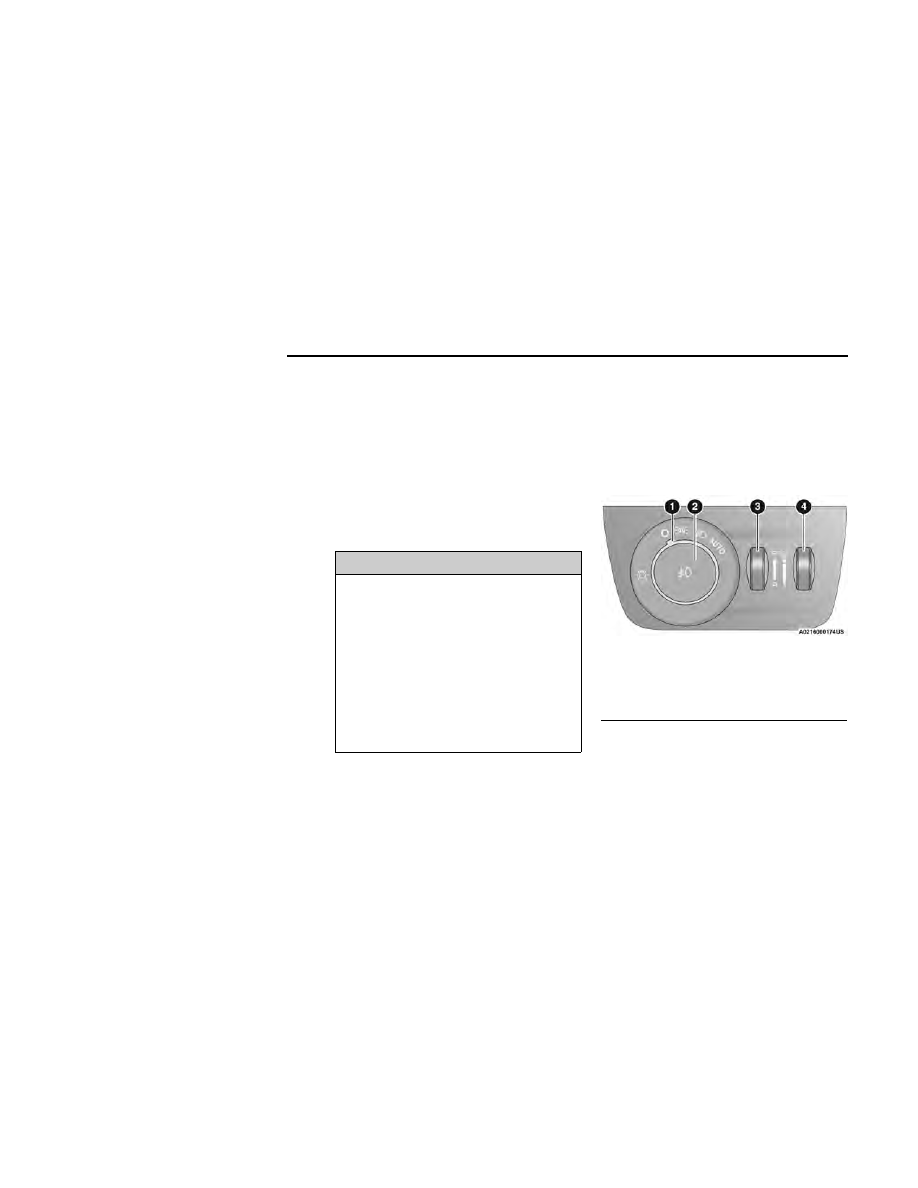

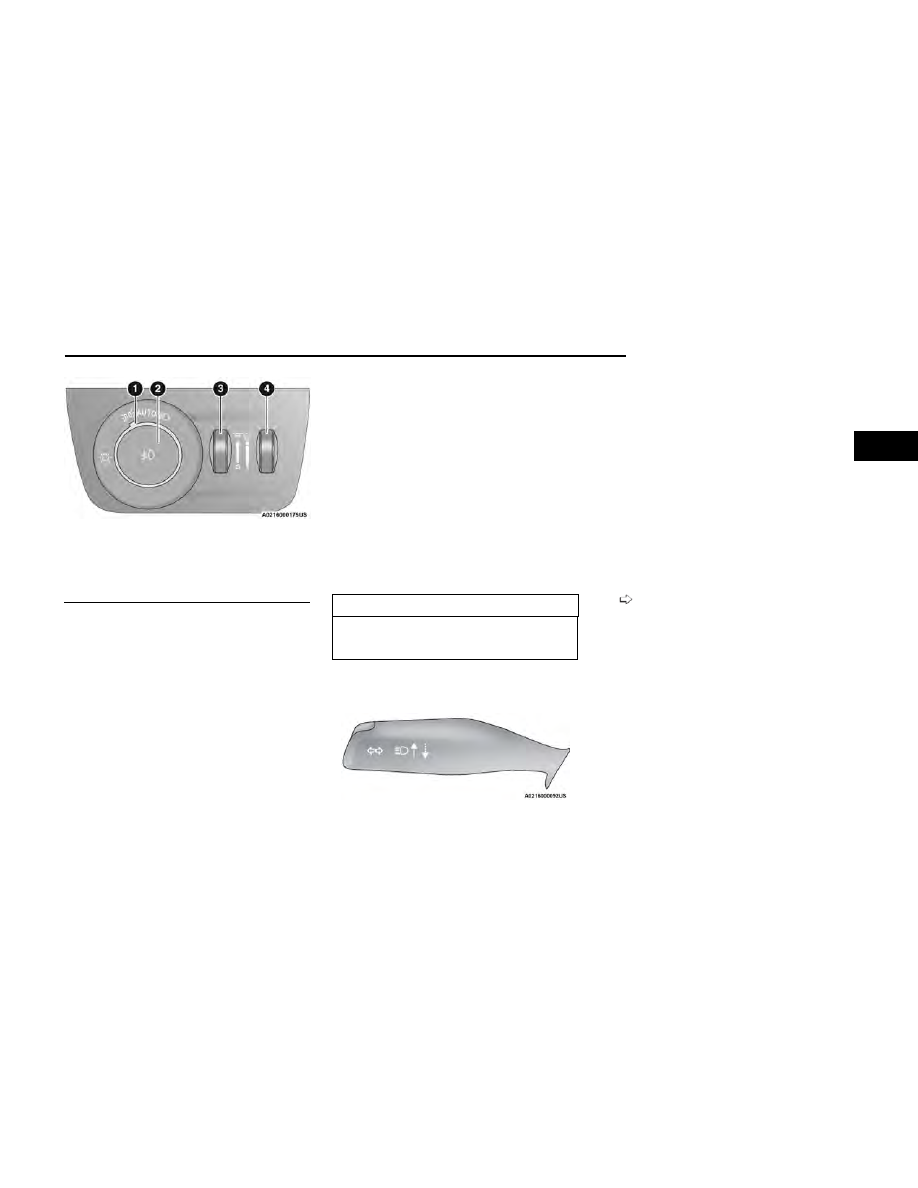

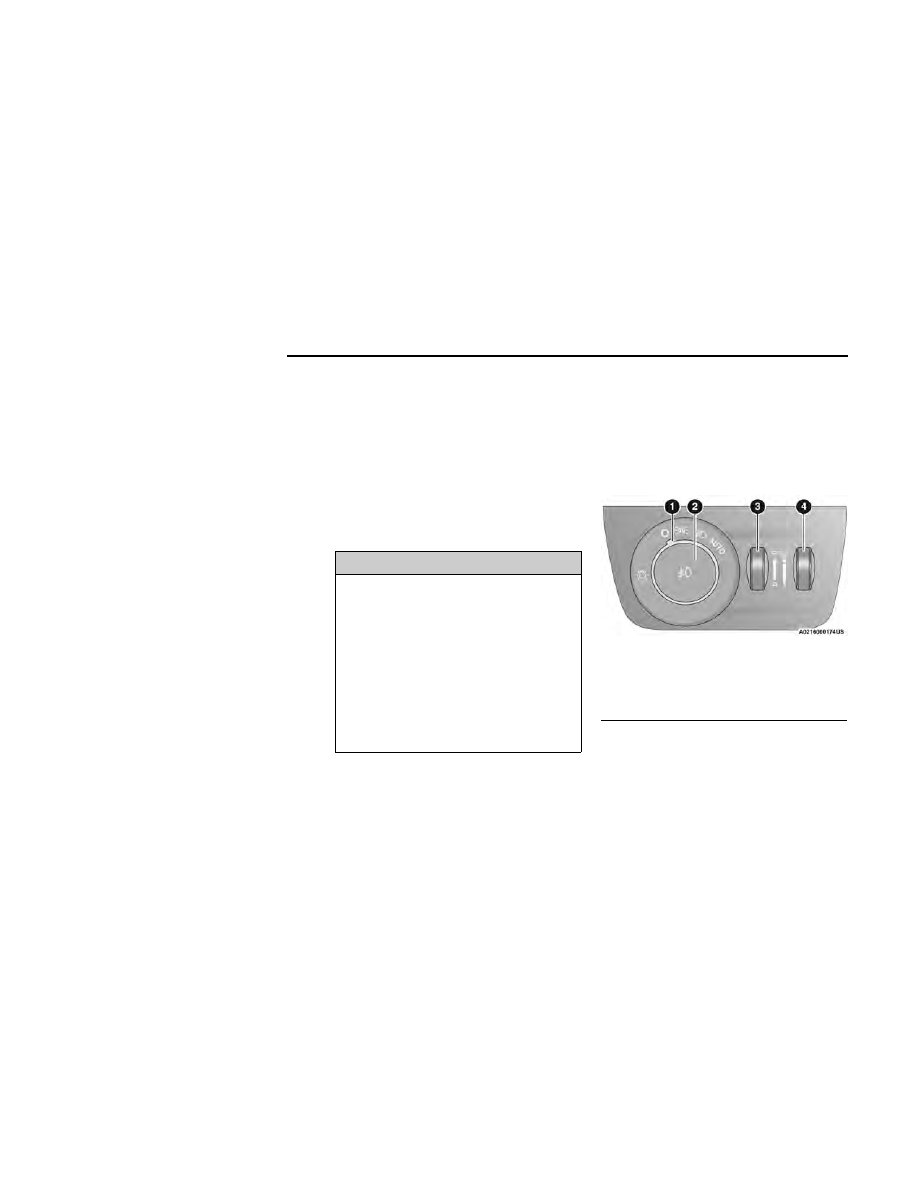

Headlight Switch

1 — Rotate Headlight Control
2 — Push Front Fog Light Control
3 — Ambient Light Dimmer Control
4 — Instrument Panel Dimmer Control

GETTING TO KNOW YOUR VEHICLE

NOTE:

Vehicles sold in Canada are equipped with a headlight
switch with an AUTO and ON detent but without an OFF
detent. Headlights will be deactivated when the head-
light switch is placed in the parking lights position. How-
ever, the Daytime Running Lights (DRLs) will be acti-
vated along with the front and rear marker lights. The
DRLs may be deactivated when the parking brake is
engaged.

To turn on the headlights, rotate the headlight switch
clockwise. When the headlight switch is on, the parking
lights, taillights, license plate light and instrument panel
lights are also turned on. To turn off the headlights,
rotate the headlight switch back to the O (off) position.

For vehicles sold in Canada, rotate the headlight switch
clockwise from the parking lights and instrument panel
lights position to the AUTO position for automatic head-
lights. Rotate to the second detent to turn on head-
lights, parking lights, and instrument panel lights
operation.

NOTE:

•

Your vehicle is equipped with plastic headlight and
fog light (if equipped) lenses that are lighter and
less susceptible to stone breakage than glass lights.
Plastic is not as scratch resistant as glass and
therefore different lens cleaning procedures must
be followed.

•

To minimize the possibility of scratching the lenses
and reducing light output, avoid wiping with a dry
cloth. To remove road dirt, wash with a mild soap
solution followed by rinsing.

CAUTION!

Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.

MULTIFUNCTION LEVER

The multifunction lever is located on the left side of the
steering column.

DAYTIME RUNNING LIGHTS (DRLS)
— IF EQUIPPED

The Daytime Running Lights (DRLs) come on whenever
the engine is running, and the low beams are not on.
The lights will remain on until the ignition is placed in
the OFF or ON/RUN position, or the parking brake is
engaged. The low beams must be used for normal
nighttime driving.

NOTE:

•

For vehicles sold in Canada, the Daytime Running
Lights will automatically deactivate when the front
fog lights are turned on.

•

If allowed by law in the country in which the vehicle
was purchased the Daytime Running Lights can be
turned on and off using the Uconnect system

page 169.

•

On some vehicles, the Daytime Running Lights may
deactivate, or reduce intensity, on one side of the
vehicle (when a turn signal is activated on that
side), or on both sides of the vehicle (when the haz-
ard warning lights are activated).

HIGH/LOW BEAM SWITCH

Push the multifunction lever toward the instrument
panel to switch the headlights to high beams. Pulling
the multifunction back toward the steering wheel will
turn the low beams back on, or shut the high beams
off.

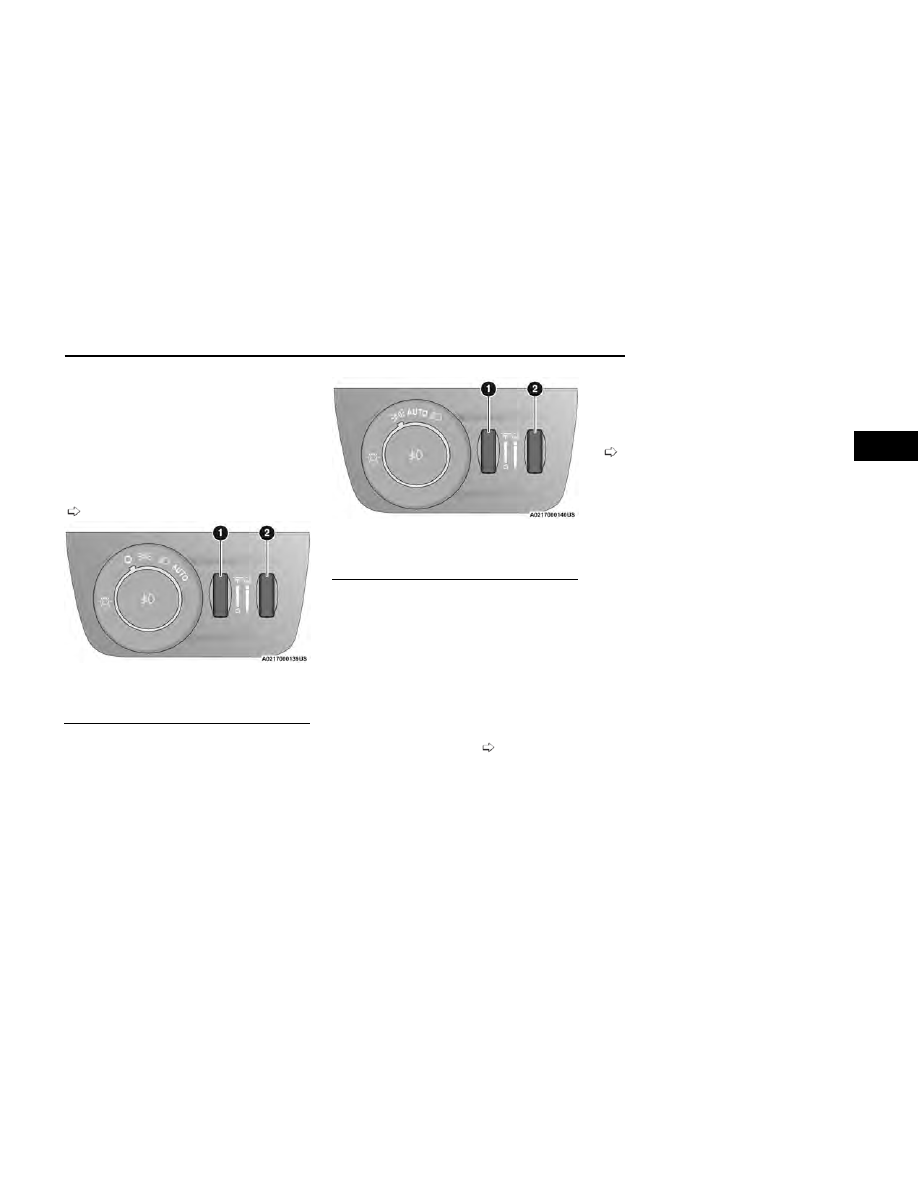

Headlight Switch (Vehicles Sold In Canada Only)

1 — Rotate Headlight Control
2 — Push Front Fog Light Control
3 — Ambient Light Dimmer Control
4 — Instrument Panel Dimmer Control

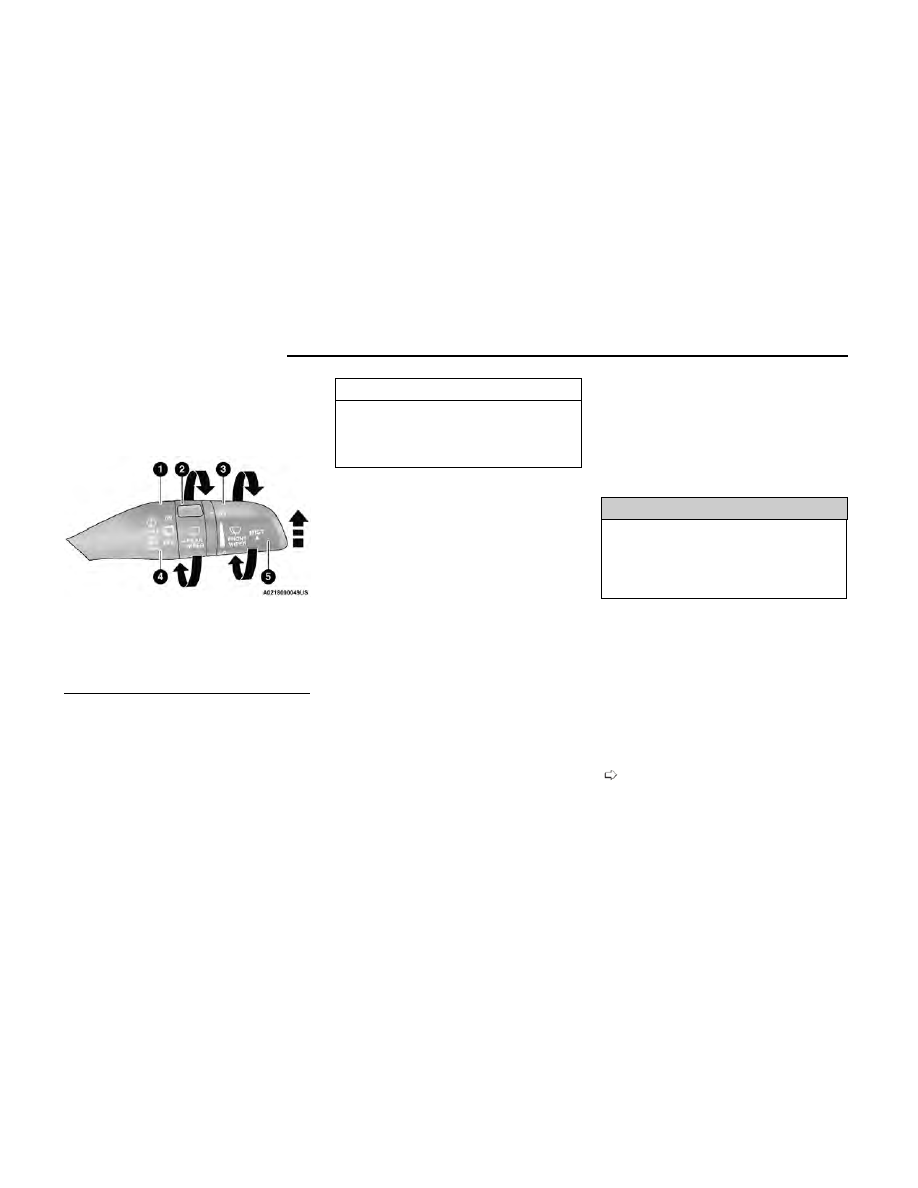

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

AUTOMATIC HIGH BEAMS —
IF EQUIPPED

The Automatic High Beam Headlight system provides
increased forward lighting at night by automating high
beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.

NOTE:

•

The Automatic High Beam Headlight system can be
turned on or off by selecting or deselecting “Auto
Dim High Beams” within Uconnect Settings

page 169.

•

The headlight switch must also be turned to the
AUTO position after Automatic High Beams is
enabled within Uconnect Settings for the feature to
activate.

•

Automatic High Beams will only activate when the
vehicle speed is above 22 mph (35 km/h).

•

Broken, muddy, or obstructed headlights and tail-
lights of vehicles in the field of view will cause head-
lights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions on the wind-
shield or camera lens will cause the system to func-
tion improperly.

If the windshield or Automatic High Beam Headlight
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See a local authorized
dealer.

FLASH-TO-PASS

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the high beam headlights to turn on, and
remain on, until the lever is released.

AUTOMATIC HEADLIGHTS

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the
AUTO position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you place the
ignition into the OFF position. The headlight time delay
can be programmed to 0/30/60/90 seconds within the
Uconnect system

page 169.

To turn the automatic system off, move the headlight
switch out of the AUTO position.

NOTE:

The engine must be running before the headlights will
come on in the automatic mode.

PARKING LIGHTS AND PANEL
LIGHTS

To turn on the parking lights and instrument panel
lights, rotate the headlight switch clockwise. To turn off
the parking lights, rotate the headlight switch back to
the O (off) position.

NOTE:

HEADLIGHTS ON AUTOMATICALLY
WITH WIPERS

If your vehicle is equipped with Automatic Headlights, it
also has this customer-programmable feature. When
your headlights are in the automatic mode and the
engine is running, they will automatically turn on when
the wiper system is on. This feature is programmable
through the Uconnect system

page 169.

NOTE:

When your headlights come on during the daytime, the
vehicle will monitor outside brightness and decide if the
instrument panel needs to be dimmed

page 54.

HEADLIGHT ILLUMINATION ON
APPROACH

When enabled, the headlights, exterior door handle
pocket lights (if equipped), and interior lights will illumi-
nate when the unlock button on the key fob is pushed
as the operator is approaching the vehicle. This feature
can be turned on/off, and the length of time the head-
lights stay on can be programmed for up to 90 seconds
within Uconnect Settings

page 169.

GETTING TO KNOW YOUR VEHICLE

Proximity Wake-Up — If Equipped

This feature is enabled/disabled within the Uconnect
system, and is activated when the operator approaches
the driver’s door, passenger’s door, or liftgate with a
valid key fob on their person. Some exterior and interior
lights will illuminate in order to provide an increased
sense of welcome and security as the operator
approaches the vehicle in the dark. “Headlight Illumina-
tion On Approach” must be selected and set to a time
value other than zero within Uconnect Settings for Prox-
imity Wake-Up to activate.

The doors may be locked or unlocked for this feature to
activate, as long as the ignition is in the OFF position, or
during a Remote Start event. It will not activate if the
doors are locked and the ignition was placed in the
ON/RUN position.

NOTE:

Proximity Wake-Up may not activate under the following
conditions:

•

After numerous consecutive activations, in order to
conserve the vehicle’s battery

•

After the vehicle’s engine has been off for several
days

Headlight Animation — If Equipped

When “Headlight Illumination On Approach” is turned
on, and set to a time value above zero, the exterior
lights illuminate in a theatrical manner during approach
to the vehicle. This feature is activated in the following
situations:

•

Proximity Wake-Up (if equipped) is activated

•

Remote Start is activated

•

The unlock button on the key fob is pushed

NOTE:

For Headlight Animation to activate with Remote Start
or with the push of the unlock button, “Greeting Lights”
must also be selected within the Uconnect system.

HEADLIGHT DELAY

To aid in your exit, your vehicle is equipped with a head-
light delay that will leave the headlights on for approxi-
mately 90 seconds. This delay is initiated when the igni-
tion is placed in the OFF position while the headlight
switch is on, and then the headlight switch is cycled off.
Headlight delay can be canceled by either turning the
headlight switch on then off, or by placing the ignition in
the ON/RUN position.

NOTE:

The headlight delay time is programmable through
Uconnect Settings

page 169.

LIGHTS-ON REMINDER

If the headlights or parking lights are left on after the
ignition is placed in the OFF position, a chime will
sound when the driver’s door is opened.

FRONT FOG LIGHTS — IF EQUIPPED

To activate the front fog lights, turn on the parking lights
or the low beam headlights, and push the fog light but-
ton on the headlight switch.

The fog lights will operate only when the parking lights
are on, or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster dis-
play will illuminate when the fog lights are on. The fog
lights will turn off when the button is pushed a second
time, when the headlight switch is rotated to the off
position, or the high beam is selected.

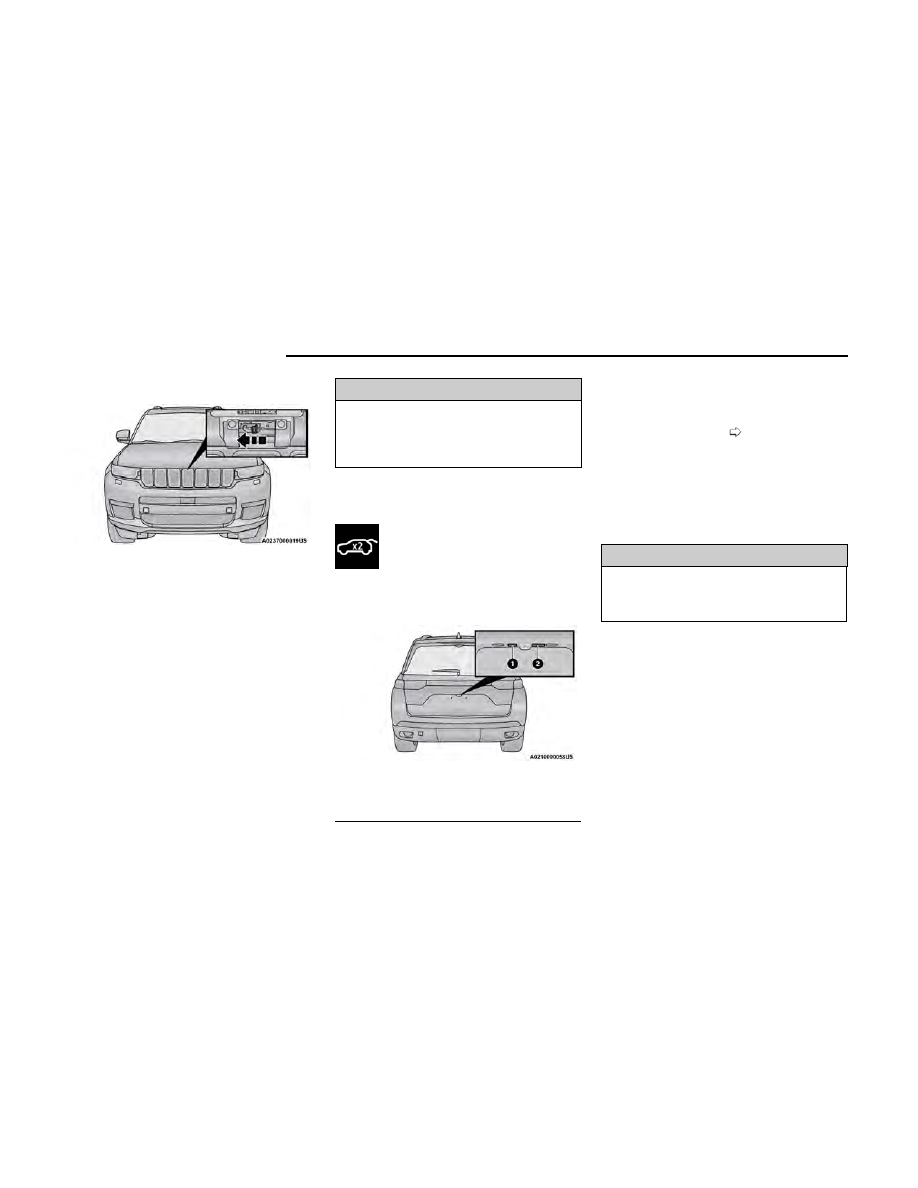

Fog Light Button

Fog Light Button (Vehicles Sold In Canada Only)

GETTING TO KNOW YOUR VEHICLE

Cornering Lights

The cornering lights are a feature to improve visibility at
night while turning the vehicle. When activated, a light
incorporated in the front fog light will illuminate on the
side of the vehicle the steering wheel is rotated or the
turn signal indicator is on. It can be activated through
the Uconnect system

page 169.

TURN SIGNALS

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster will flash to show
proper operation of the front and rear turn signal lights.

NOTE:

If either light remains on and does not flash, or there is
a very fast cluster turn indicator flash rate, check for a
defective outside light bulb.

LANE CHANGE ASSIST —
IF EQUIPPED

Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.

AUTOMATIC HEADLIGHT LEVELING
— IF EQUIPPED

This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam
in reaction to changes in vehicle pitch.

BATTERY SAVER

To protect the life of your vehicle’s battery, load shed-
ding is provided for both the interior and exterior lights.

If the ignition is placed in the OFF position and any door
is left ajar for 10 minutes or the overhead console
Dome On switch is left on for 10 minutes, the interior
lights will automatically turn off.

NOTE:

Battery saver mode is canceled if the ignition is in the
ON/RUN position.

If the headlights remain on while the ignition is placed
in the OFF position, the exterior lights will automatically
turn off after eight minutes. If the headlights are turned
on and left on for eight minutes while the ignition is in
the OFF position, the exterior lights will automatically
turn off.

INTERIOR LIGHTS

COURTESY LIGHTS

Courtesy and dome lights are turned on when the front
doors are opened or the Dome ON button is pushed on
the overhead console. If your vehicle is equipped with
Remote Keyless Entry and the unlock button is pushed
on the key fob, the courtesy and dome lights will turn
on. When a door is open and the interior lights are on,
pressing the Dome Defeat button on the overhead con-
sole will cause all of the interior lights to turn off.

Front Map/Reading Lights — If Equipped

The overhead console lights can also be operated indi-
vidually as reading lights by pushing the corresponding
buttons.

Rear Courtesy/Reading Lights

Located above the rear passenger seating in both sec-
ond and third rows, along the trim, are courtesy/
reading lights. The courtesy lights turn on when a door
or the liftgate is opened. The lights will also turn on
when the unlock button on the key fob is pushed.

The courtesy lights also function as reading lights. Push
the reading light button to turn these lights on while
inside the vehicle. Push the reading light button a sec-
ond time to turn each light off.

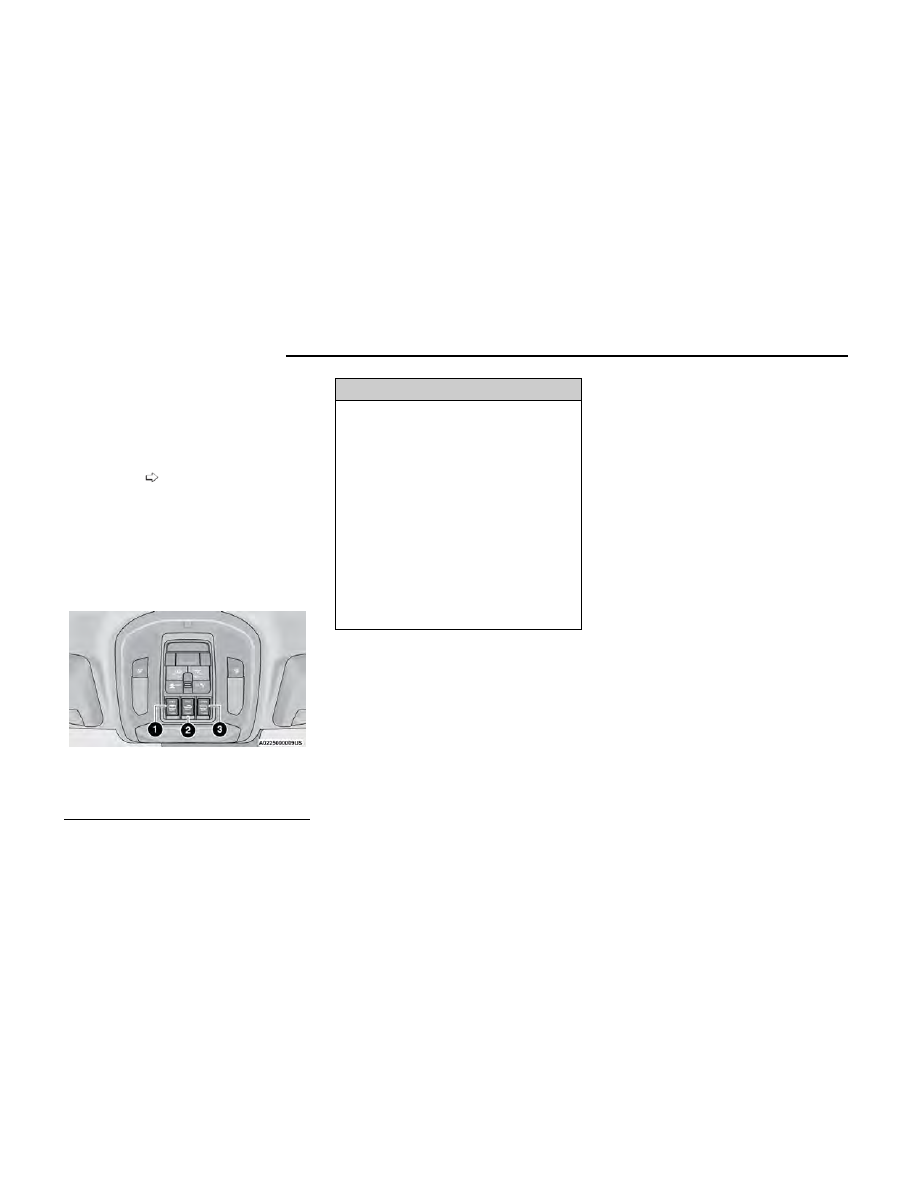

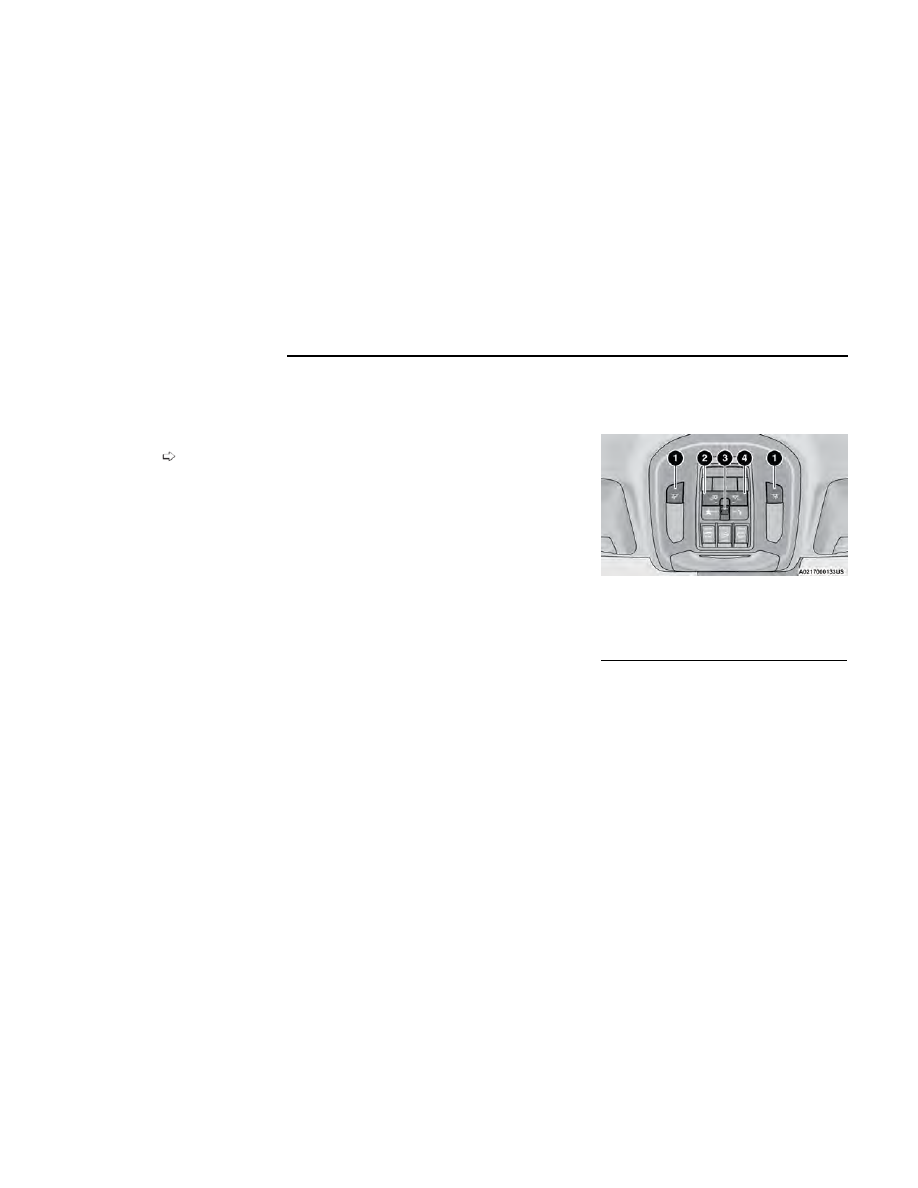

Courtesy Lights

1 — Reading Light On/Off Buttons
2 — Dome Defeat Button
3 — Ambient Light
4 — Dome ON Button

GETTING TO KNOW YOUR VEHICLE

Dimmer Controls

The dimmer controls are inboard and adjacent to the
headlight switch located on the left side of the instru-
ment panel.

With the parking lights or headlights on, rotating the
right dimmer control upward will increase the bright-
ness of the instrument cluster lights. Rotating the left
dimmer control will adjust the interior light levels of the
ambient lighting on the instrument panel and doors.
Certain ambient lights may be color customizable

page 55.

NOTE:

•

Multicolor ambient lighting for first and second
rows, and overhead white ambient lighting in the
second and third row (if equipped) seating areas,
may not be equipped in the vehicle.

•

Adjusting the right dimmer control all the way
upward will switch the radio screen to Light theme,
while moving the control all the way down will switch
the radio screen to the Dark theme.

•

The dimming of lighting linked to the headlight sta-
tus (i.e. radio screen brightness) is programmable
through the Uconnect system

page 169.

Multicolor Ambient Lighting —

If Equipped

The color of certain ambient lighting inside of the
vehicle can be selected within the Apps menu on the
radio screen, or within Uconnect Settings

page 169. Brightness is adjusted using the ambi-

ent light dimmer control on the headlight switch.

Five colors can be selected for the following two zones
inside of the vehicle:

•

Zone 1:

○

Instrument panel decorative ambient lights

•

Zone 2:

○

Front seat footwell areas below the instrument
panel

○

Lighting below the second row seats

○

Map pocket lighting on all four door panels

These areas can be set to different colors, or if the
SYNC button is selected within the settings menu, all
colored lights will be set to the same color
automatically.

NOTE:

All other ambient lighting inside of the vehicle will
remain white, and the ambient light dimmer control
switch will adjust all ambient lighting at the same time.

Dimmer Controls

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

Dimmer Controls (Vehicles Sold In Canada Only)

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

GETTING TO KNOW YOUR VEHICLE

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer lever is located on the
right side of the steering column. The front wipers are
operated by rotating a switch, located on the end of the
lever.

WINDSHIELD WIPER OPERATION

The wipers and washers are operated by a switch within
the wiper lever. Rotate the switch at the end of the lever
upward, to the first detent past the intermittent settings
for low-speed wiper operation. Rotate the switch at the
end of the lever upward to the second detent past the
intermittent settings for high-speed wiper operation. To
turn the windshield wipers off, rotate the switch within
the lever all the way down to OFF.

CAUTION!

Always remove any buildup of snow that prevents the
windshield wiper blades from returning to the parked
position. If the windshield wiper switch is turned off,
and the blades cannot return to the parked position,
damage to the wiper motor may occur.

Intermittent Wiper System

Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause
between cycles desirable. Rotate the switch at the end
of the wiper lever to the first detent position, and then
turn the switch at the end of the lever to select the
desired delay interval. There are four delay settings,
which allow you to regulate the wipe interval from a
minimum of one cycle every second to a maximum of
approximately 36 seconds between cycles. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.

NOTE:

If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.

Windshield Washer Operation

To use the washer, pull the lever rearward toward you
and hold. If the lever is pulled while on the intermittent
setting, the wipers will turn on and operate for several
wipe cycles after the lever is released, and then resume
the intermittent interval previously selected. If the lever
is pulled while the wipers are in the off position, the
wipers will operate several cycles, then turn off.

NOTE:

•

As a protective measure, the pump will stop if the
switch is held for more than 20 seconds. Once the
switch is released the pump will resume normal
operation.

•

If the front window washer feature is activated, all of
the front cameras (if equipped) on the vehicle will
be washed as well.

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Mist

Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Push the
lever upward to the MIST position and release for a
single wiping cycle.

NOTE:

The Mist feature does not activate the washer pump;
therefore, no washer fluid will be sprayed on the wind-
shield. The washer function must be used in order to
spray the windshield with washer fluid.

For information on wiper care and replacement, see

page 281.

Multifunction Lever

1 — Pull For Front Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Push Forward For Rear Washer
5 — Push Up For Mist

GETTING TO KNOW YOUR VEHICLE

RAIN SENSING WIPERS —
IF EQUIPPED

This feature senses rain or snowfall on the windshield
and automatically activates the wipers. Rotate the end
of the windshield wiper lever to one of the four detent
positions to activate this feature.

The sensitivity of the system is adjustable from the
windshield wiper lever. Wiper sensitivity position 1 is
the least sensitive, and wiper sensitivity position 4 is
the most sensitive.

NOTE:

•

The Rain Sensing feature will not operate when the
wiper switch is in the low, high, or OFF position. Only
in one of the intermittent positions.

•

The Rain Sensing feature may not function properly
when ice or dried saltwater is present on the
windshield.

•

Use of products containing wax or silicone may
reduce rain sensor performance.

•

The Rain Sensing feature can be turned on and off
through the Uconnect system

page 169.

The Rain Sensing system has protective features for the
wiper blades and arms. It will not operate under the
following conditions:

•

Low Temperature Wipe Inhibit

— The Rain Sensing

feature will not operate when the ignition is first
placed in the ON/RUN position, when the vehicle is
stationary and the outside temperature is below
32°F (0°C), unless the wiper control on the wind-
shield wiper lever is moved, the vehicle speed
becomes greater than 3 mph (5 km/h) or the out-
side temperature rises above freezing.

•

Neutral Wipe Inhibit

— The Rain Sensing feature will

not operate when the ignition is placed in the
ON/RUN position, when the transmission gear
selector is in the NEUTRAL position and the vehicle
speed is less than 3 mph (5 km/h), unless the wiper
control on the windshield wiper lever is moved, the
vehicle speed is greater than 3 mph (5 km/h) or the
gear selector is moved out of the NEUTRAL position.

•

Remote Start Mode Inhibit

— On vehicles equipped

with the Remote Start system, Rain Sensing wipers
are not operational when the vehicle is in the
Remote Start mode. Once the operator is in the
vehicle and has placed the ignition switch in the
ON/RUN position, rain sensing wiper operation can
resume, if it has been selected, and no other inhibit
conditions (mentioned previously) exist.

REAR WIPER AND WASHER

The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.

Rotate the center portion of the lever upward
to the first detent for intermittent operation
and to the second detent for continuous rear
wiper operation.

Rear Window Washer Operation

Pushing the windshield wiper lever forward
activates the rear window washer. If the lever
is pushed while on the intermittent setting,
the wiper will turn on and operate for several

wipe cycles after the lever is released, and then resume
the intermittent interval previously selected. If the lever
is pushed while the wiper is in the off position, the
wiper will operate several wipe cycles, then turn off.

NOTE:

If equipped with a Back Up camera washer, when the
rear window washer is activated, the Rear Back Up
camera and Digital Rearview Mirror (if equipped) cam-
eras are also washed.

WINDSHIELD WIPER DE-ICER —
IF EQUIPPED

Your vehicle may be equipped with a Windshield Wiper
De-Icer feature that may be activated under the follow-
ing conditions:

•

Activation By Front Defrost

— The Windshield Wiper

De-Icer shall be activated automatically in the case
of a cold weather manual start with full front
defrost, and when the ambient temperature is
below 33°F (0.6°C).

•

Activation By Rear Defrost

— The Windshield Wiper

De-Icer shall be activated automatically when the
rear defrost is turned on and when the ambient tem-
perature is below 33°F (0.6°C).

•

Activation By Remote Start Operation

— When

Remote Start is active and the outside ambient tem-
perature is less than 33°F (0.6°C), the Windshield
Wiper De-Icer will activate. Exiting Remote Start will
resume its previous operation. If the Windshield
Wiper De-Icer was active, the timer and operation
will continue.

CLIMATE CONTROLS

The Climate Control system allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen and on the instrument panel below the
radio.

GETTING TO KNOW YOUR VEHICLE

AUTOMATIC CLIMATE CONTROL
DESCRIPTIONS AND FUNCTIONS

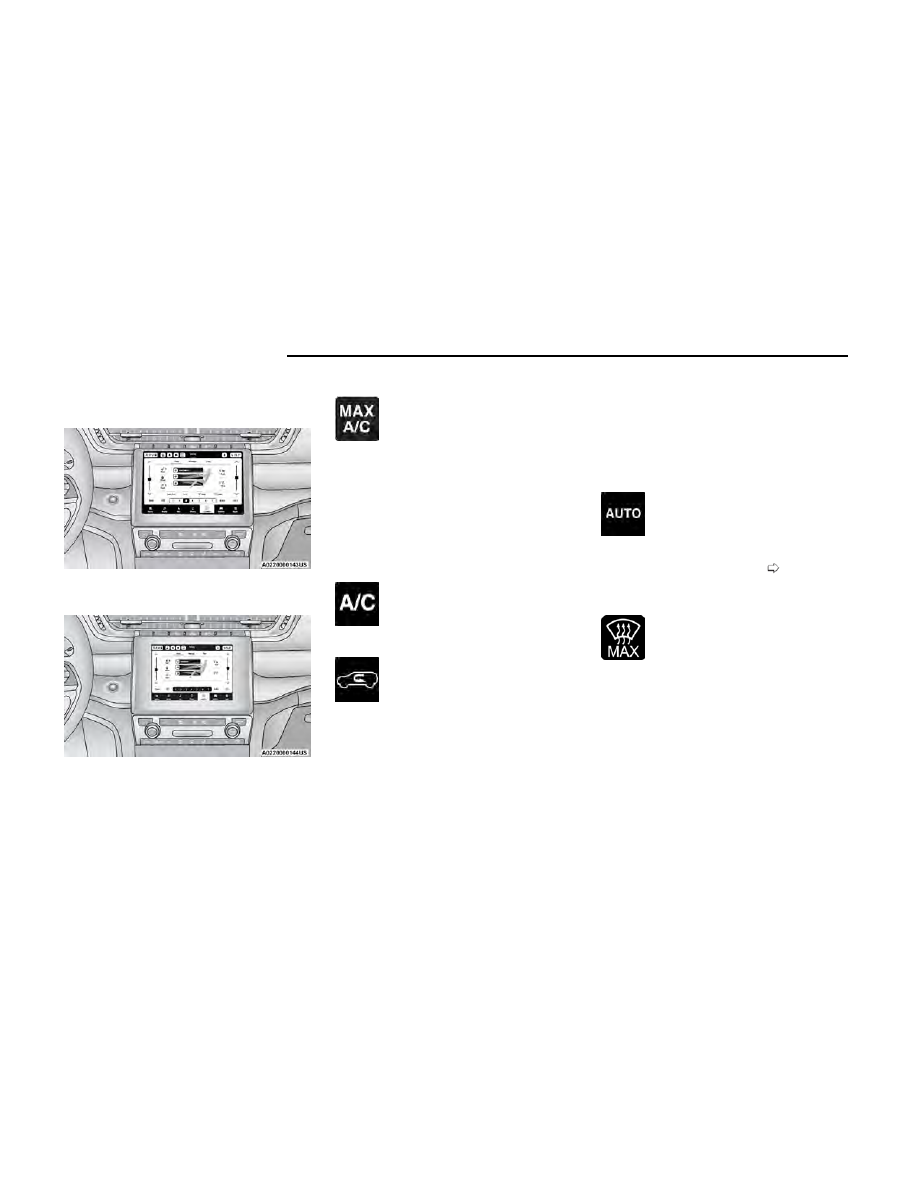

Max A/C Button

Press and release to change the current set-
ting. The MAX A/C indicator illuminates when
MAX A/C is ON. Performing this function
again will cause the MAX A/C operation to

switch into manual mode and the MAX A/C indicator
will turn off. Pressing other setting buttons will also
cause the MAX A/C to turn off.

MAX A/C sets the control for maximum cooling
performance.

NOTE:

The MAX A/C button is only available on the
touchscreen.

A/C Button

Press and release the button on the touch-
screen or push and release the button on the
faceplate to change the current setting. The
A/C indicator illuminates when A/C is on.

Recirculation Button

Press and release the Recirculation button
on the touchscreen or push and release the
button on the faceplate to change the sys-
tem between recirculation mode and outside

air mode. Recirculation can be used when outside con-
ditions such as smoke, odors, dust, or high humidity are
present. Recirculation can be used in all modes. Recir-
culation may be unavailable if conditions exist that
could create fogging on the inside of the windshield.
The A/C can be deselected manually without disturbing
the mode control selection. Continuous use of Recircu-
lation mode may make the inside air stuffy and window
fogging may occur. Extended use of this mode is not

recommended. Recirculation mode may automatically
adjust to optimize customer experience for warming,
cooling, dehumidification, etc.

In cold weather, use of Recirculation mode may lead to
excessive window fogging. The Recirculation feature
may be unavailable if conditions exist that could create
fogging on the inside of the windshield.

AUTO Button

The AUTO button automatically controls the
interior cabin temperature by adjusting dis-
tribution and amount of airflow. Air Condi-
tioning (A/C) may be active during AUTO

operation to improve performance. Performing this
function will cause the system to switch between
manual mode and automatic modes

page 63.

AUTO mode is highly recommended for efficiency.

MAX Defrost Button

Push the MAX Defrost button to change the
current airflow setting to Defrost mode. The
indicator illuminates when this feature is on.
Performing this function will cause the auto-

matic climate controls to change to manual mode, and
the following settings will occur:

•

The blower speed increases to full (all LEDs on)

•

The rear blower is off

•

The air conditioning compressor is turned on (A/C
LED off)

•

Both driver and passenger temperature controls are
set to HI

•

Defrost mode is selected (LED on)

•

Rear defroster is turned on (LED on)

•

The air recirculation is turned off (LED off)

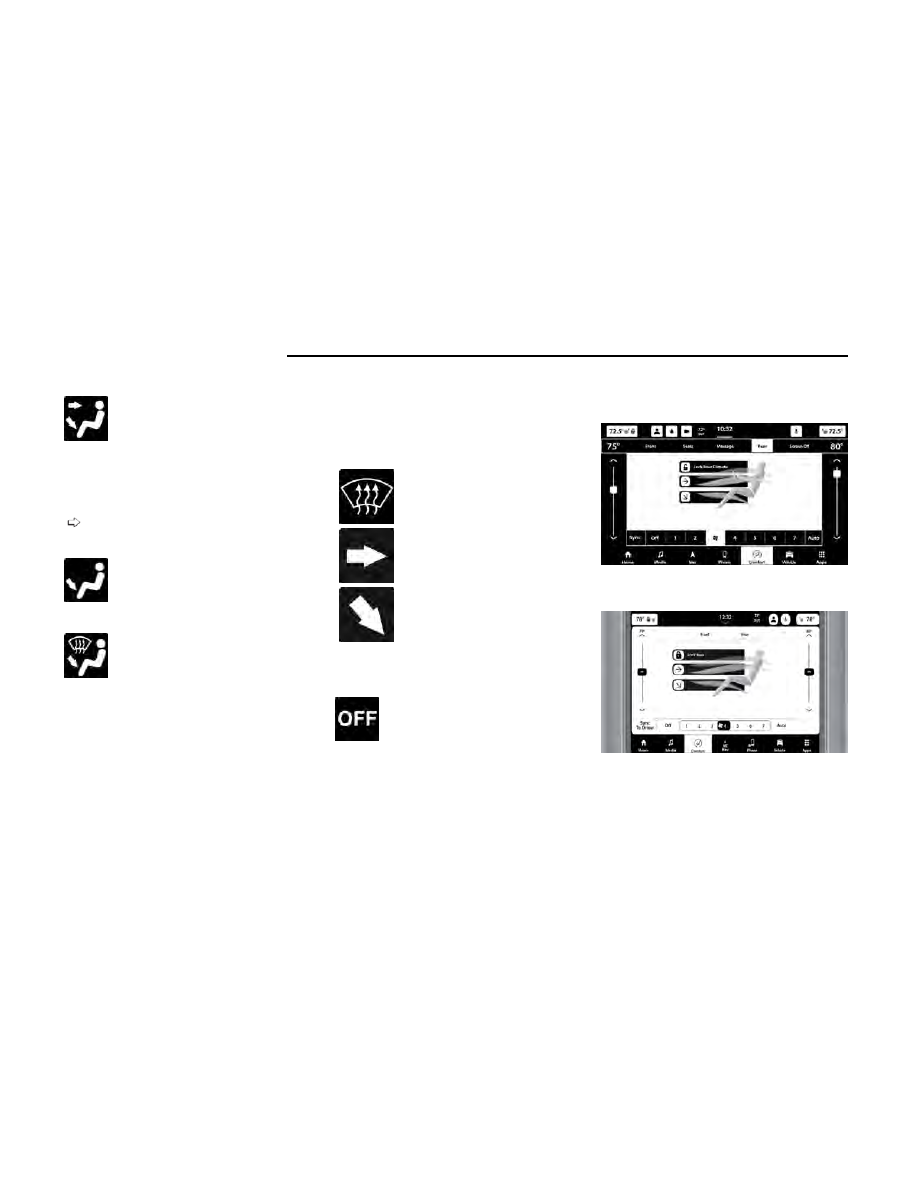

Uconnect 5 NAV With 10.1-inch Display Temperature

Controls

Uconnect 5/5 NAV With 8.4-inch Display Temperature

Controls

GETTING TO KNOW YOUR VEHICLE

If MAX Defrost mode is turned off, the Climate Control
system will return to the previous setting. MAX Defrost
automatically turns off after 20 minutes.

Rear Defrost Button

Press and release the button on the touch-
screen, or push and release the button on
the faceplate, to turn on the rear window
defroster and the heated outside mirrors

(if equipped). The Rear Defrost indicator illuminates
when the rear window defroster is on. The rear window
defroster automatically turns off after 10 minutes.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:

•

Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and
a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.

•

Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.

•

Keep all objects a safe distance from the window.

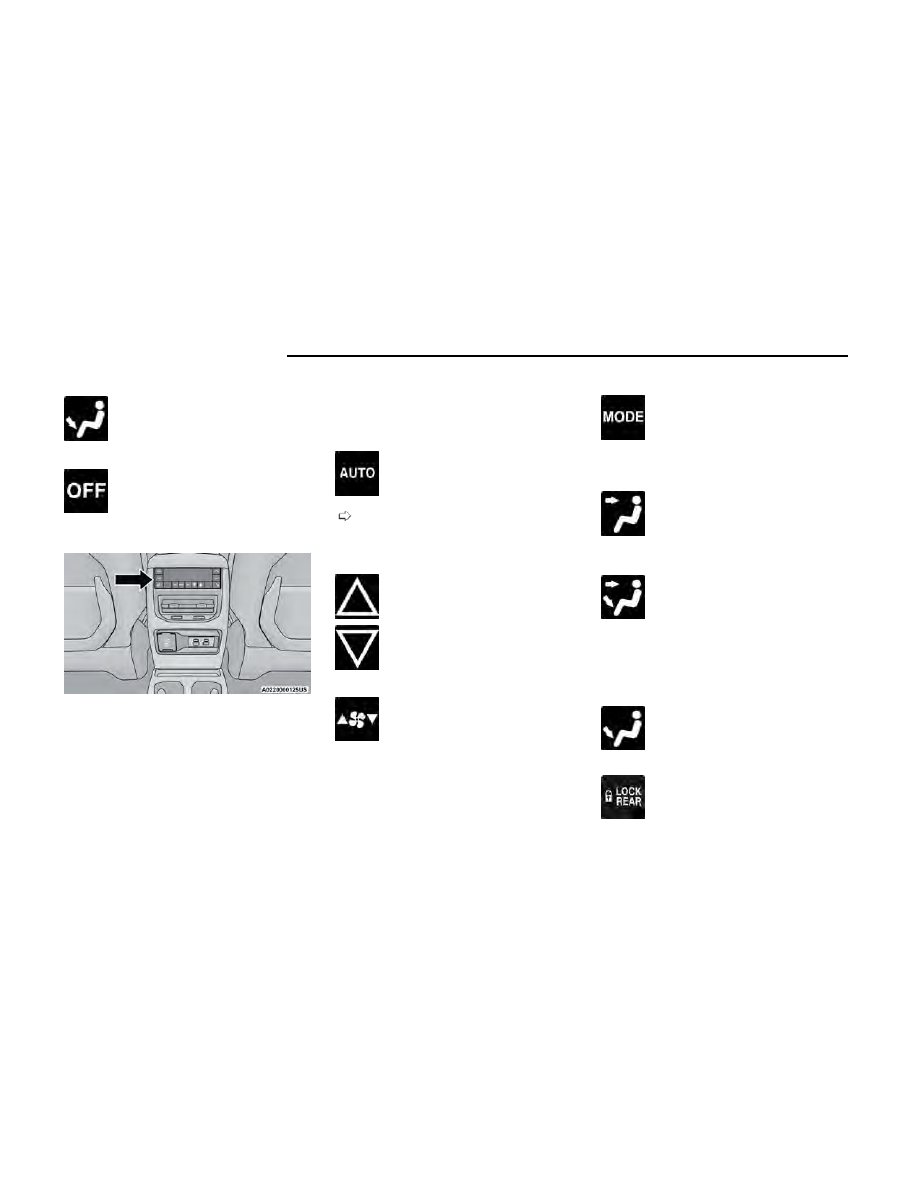

Rear Climate Control Button

Press and release this button on the climate
control touchscreen to access the rear cli-
mate controls. The Rear Climate indicator
will illuminate when the rear climate controls

are ON.

Driver And Passenger Temperature

Switches

These switches provide the driver and passenger with
independent temperature control.

Lift the driver’s or passenger’s side toggle
switch on the faceplate upward, or press and
slide the temperature bar towards the red
arrow button on the touchscreen for warmer

temperature settings.

Depress the driver’s or passenger’s side
toggle switch on the faceplate downward, or
press and slide the temperature bar towards
the blue arrow button on the touchscreen for

cooler temperature settings.

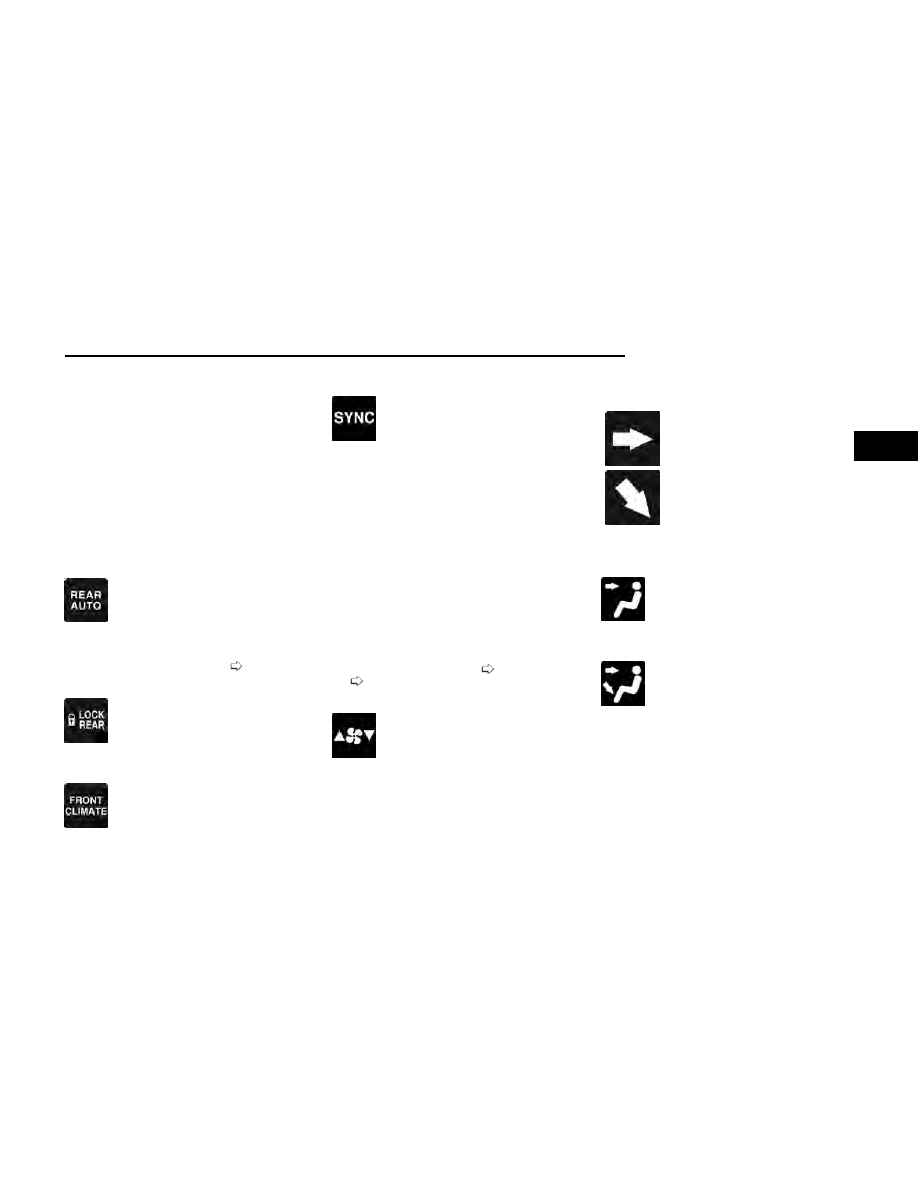

SYNC Button

Press the SYNC button on the touchscreen
to toggle the SYNC feature on/off. The SYNC
indicator illuminates when SYNC is on. SYNC
is used to synchronize the front passenger

temperature and rear passenger temperature, mode,
and blower settings with the driver temperature, mode,
and blower settings. Changing the front passenger tem-
perature or rear passenger temperature, mode, and
blower settings while in SYNC will automatically exit this
feature.

NOTE:

•

The SYNC setting is only available on the
touchscreen.

•

For vehicles equipped with the Four-Zone ATC sys-
tem, the rear climate control settings (temperature,
blower speed, and mode) will change to match the
driver’s settings when the vehicle is first started,
without changing the SYNC status.

•

When SYNC is not active, the rear passenger climate
control settings will need to be adjusted manually to
achieve desired comfort. See

page 60 or

page 62 for more information.

Blower Control

Blower Control is used to regulate the
amount of air forced through the Climate
Control system. There are several blower
speeds available.

Blower speed can be controlled by lifting blower toggle
on the instrument panel to increase blower speed, or
depress the toggle for lower blower speed.

The speed can also be selected using the blower con-
trol buttons on the touchscreen. Press the blower bar
area between the icons on the touchscreen.

Mode Control

Select Mode by pressing one of the Mode
buttons on the touchscreen, or the face-
plate, to change the airflow distribution
mode. The airflow distribution mode can be

adjusted so air comes from the instrument panel out-
lets, floor outlets, defrost outlets and demist outlets.

Panel Mode

Air comes from the outlets in the instrument
panel. Each of these outlets can be individu-
ally adjusted to direct the flow of air. The air
vanes of the center outlets and outboard

outlets can be moved up and down or side to side to
regulate airflow direction. There is a shut-off wheel
located next to the air vanes to shut off or adjust the
amount of airflow from these outlets.

GETTING TO KNOW YOUR VEHICLE

Bi-Level Mode

Air comes from the instrument panel outlets
and floor outlets. A slight amount of air is
directed through the defrost and side win-
dow demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to
provide cooler air out of the panel outlets and warmer
air from the floor outlets.

For more information on selecting modes, see

page 60.

Floor Mode

Air comes from the floor outlets. A slight
amount of air is directed through the defrost
and side window demister outlets.

Mix Mode

Air is directed through the floor, defrost, and
side window demister outlets. This setting
works best in cold or snowy conditions that
require extra heat to the windshield. This

setting is good for maintaining comfort while reducing
moisture on the windshield.

Combine Modes

Dual Level Combination

Front Defrost and Panel Mode

Tri-Level Combination

Front Defrost, Panel Mode, and Floor Mode

The driver or front passenger can com-
bine two or three of the modes
described by selecting them individually
on their side of climate control screen.
Combine modes by pressing each icon
on the touchscreen.

Climate Control OFF Button

Press and release this button to turn the
Climate Control ON/OFF.

Controlling The Rear Climate Controls

From The Front ATC Panel

Front ATC Panel Uconnect 5 NAV With 10.1-inch Display

Rear Controls

Front ATC Panel Uconnect 5/5 NAV With 8.4-inch Display

Rear Controls

GETTING TO KNOW YOUR VEHICLE

The Three-Zone and Four-Zone ATC system allows for
adjustment of the rear climate controls from the front
ATC panel.

To change the rear system settings:

•

Press the Rear button on the touchscreen to display
the rear climate controls. The control functions now
operate the rear system.

•

Press the Front button on the touchscreen to return
to the front climate controls.

NOTE:

If equipped with a Four-Zone ATC system, the left and
right sides of the rear passenger zones can be adjusted
separately from the front or rear ATC panel.

REAR AUTO BUTTON

Press and release this button on the touch-
screen to change the current setting. The
REAR AUTO indicator will illuminate when
REAR AUTO is on. This feature automatically

controls the rear interior cabin temperature by adjust-
ing airflow distribution and amount. Toggling this func-
tion will cause the rear system to switch between
manual mode and automatic modes

page 63.

REAR LOCK BUTTON

Press and release this button to lock out the
rear manual temperature controls from
adjusting the rear temperature and blower
settings. The LOCK REAR indicator will illumi-

nate when LOCK REAR is on.

FRONT CLIMATE BUTTON

Press and release to return to the Front Cli-
mate Control Screen.

SYNC BUTTON

Press the SYNC button on the touchscreen
to toggle the SYNC feature on/off. The SYNC
indicator will illuminate when SYNC is on.
SYNC is used to synchronize the front pas-

senger temperature and rear passenger temperature,
mode, and blower settings with the driver temperature,
mode, and blower settings. Changing the front passen-
ger temperature or rear passenger temperature, mode,
or blower settings while in SYNC will automatically exit
this feature.

NOTE:

•

The SYNC setting is only available on the
touchscreen.

•

When SYNC is not active, the rear passenger climate
control settings will need to be adjusted manually to
achieve desired comfort. See

page 60 or

page 62 for more information.

REAR BLOWER CONTROL

Rear Blower Control is used to regulate the
amount of air forced through the rear cli-
mate system. There are several blower
speeds available. The speeds can be

selected using the blower bar area between the icons
on the touchscreen.

REAR MODE CONTROL

The rear airflow distribution modes can
be adjusted so air comes from the
headliner outlets, the floor outlets, or
both. Select the arrow icons individually
on the front climate control screen.
Combine modes by pressing both icons.

HEADLINER MODE

Air comes from the outlets in the headliner.
Each of these outlets can be individually
adjusted to direct the flow of air. Moving the
air vanes of the outlets to one side shuts off

the airflow.

BI-LEVEL MODE

Press this button on the touchscreen to
change the air distribution mode to Bi-Level
Mode. In Bi-Level Mode, air comes from both
the headliner outlets and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode is
designed to provide cooler air out of the headliner out-
lets and warmer air from the floor outlets.

GETTING TO KNOW YOUR VEHICLE

FLOOR MODE

Press this button on the touchscreen to
change the air distribution mode to Floor
Mode. In Floor Mode, air comes from the
floor outlets.

REAR CLIMATE CONTROL OFF BUTTON

To manually set the rear blower controls to
off, press the Rear Climate Control/Blower
Off button.

REAR AUTOMATIC TEMPERATURE CONTROL

The rear ATC system has floor air outlets at the rear
right side of the third row seats and overhead outlets at
each outboard rear seating position. The system pro-
vides heated air through the floor outlets or cool, dehu-
midified air through the headliner outlets.

The rear system temperature control buttons are
located on rear of the front center console.

NOTE:

If equipped with a Four-Zone ATC system, the left and
right sides of the rear passenger zones can be adjusted
separately from the front or rear ATC panel.

AUTO Button

The AUTO button automatically controls the
interior cabin temperature by adjusting dis-
tribution and amount of airflow. Performing
this function will cause the system to switch

between manual mode and automatic modes

page 63.

Rear Temperature Control

These buttons provide the left and right side of the rear
seating area with independent temperature control.

Push the Up button on the faceplate for
warmer temperature settings.

Push the Down button on the faceplate for
cooler temperature settings.

Rear Blower Control

Use the blower button with the down arrow
to reduce the blower setting, and the blower
button with the up arrow to increase the
blower setting. The rear blower setting is

shown in the display.

Rear Mode Control

Push the rear mode button to adjust airflow
distribution. The rear mode settings are
shown in the rear display. The rear airflow
distribution mode can be adjusted so air

comes from the headliner outlets, the floor outlets, or
both.

Panel Mode

Air comes from the outlets in the headliner.
Each of these outlets can be individually
adjusted to direct the flow of air. Moving the
air vanes of the outlets to one side will shut

off the airflow.

Bi-Level Mode

Air comes from both the headliner outlets
and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode is
designed to provide cooler air out of the headliner out-
lets and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets.

Rear Temperature Lock

The Rear Temperature Lock symbol on the
rear display is illuminated when the rear con-
trols are locked by the front system.

Rear Automatic Climate Controls

GETTING TO KNOW YOUR VEHICLE

REAR LOCK

Pressing the Rear Temperature Lock button on the
Uconnect touchscreen will illuminate a lock symbol in
the rear display. The rear temperature and air source
are then controlled from the front Uconnect system.

Rear seat occupants can only adjust the rear ATC con-
trol when the Rear Temperature Lock button is turned
off.

The rear ATC is located on the rear of the front center
console.

•

Press the Rear Temperature Lock button on the
front Uconnect touchscreen a second time to turn
the Rear Temperature Lock icon off in the rear
display.

•

Push a rear blower button, adjust the temperature
using the rear up and down arrows, and select a
control mode to suit the rear occupant’s needs.

•

ATC is selected by pushing the AUTO button on the
rear climate control faceplate.

Once the desired temperature is shown on the rear dis-
play, the ATC System will automatically achieve and
maintain that comfort level. When the system is set up
for your comfort level, it is not necessary to change the
settings. You will experience the greatest efficiency by
simply allowing the system to function automatically.

AUTOMATIC TEMPERATURE
CONTROL (ATC)

Automatic Operation

1. Push the AUTO button on the front Automatic Tem-

perature Control (ATC) Panel and the word “AUTO”
will illuminate in the front ATC display, along with two
temperatures for the driver and front passenger. The
system will then automatically regulate the amount
of airflow.

2. Adjust the temperature you would like the system to

maintain, by adjusting the driver, passenger, and
rear temperatures. Once the desired temperature is
displayed, the system will achieve and automatically
maintain that comfort level.

3. When the system is set up for your comfort level, it

is not necessary to change the settings. You will
experience the greatest efficiency by simply allowing
the system to function automatically.

NOTE:

It is not necessary to move the temperature settings.
The system automatically adjusts the temperature,
mode and fan speed to provide comfort as quickly as
possible.

To provide you with maximum comfort in the automatic
mode, during cold start-ups, the blower fan will remain
on low until the engine warms up. The fan will engage
immediately if the Defrost mode is selected, or by
changing the front blower knob setting.

Manual Operation Override

This system offers a full complement of manual over-
ride features. The AUTO symbol in the front ATC display
will be turned off when the system is being used in the
manual mode.

NOTE:

The system will not automatically sense the presence of
fog, mist or ice on the windshield. Defrost mode must
be manually selected to clear the windshield and side
glass.

CLIMATE VOICE RECOGNITION

Adjust vehicle temperatures hands-free and keep every-
one comfortable while you keep moving ahead
(if vehicle is equipped with climate controls).

Push the VR button. After the beep, say one of the fol-
lowing commands:

•

“

Set the driver temperature to

degrees

”

•

“

Set the passenger temperature to

degrees

”

Did You Know:

Voice Command for Climate may only be

used to adjust the interior temperature of your vehicle.
Voice Command will not work to adjust the heated
seats or steering wheel if equipped.

GETTING TO KNOW YOUR VEHICLE

OPERATING TIPS

CAUTION!

Interior air enters the Rear Automatic Temperature
Control system through an intake grille, located in the
right side trim panel behind the third row seats. The
heater outlets are located in the right side trim panel,
just behind the rear doors. Do not block or place
objects directly in front of the inlet grille or heater
outlets. The electrical system could overload causing
damage to the blower motor.

NOTE:

Refer to the chart at the end of this section for sug-
gested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheat-
ing. OAT coolant (conforming to MS.90032) is recom-
mended. For more information, see

page 324.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is func-
tioning properly and the proper amount, type, and con-
centration of coolant is used. Use of the Air
Recirculation mode during Winter months is not recom-
mended, because it may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control sys-
tem when the vehicle is being stored for an extended
period of time, see

page 318.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,
and/or humid weather. To clear the windows, select
Defrost or Mix mode and increase the front blower
speed. Do not use the Recirculation mode without A/C
for long periods, as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions, such as leaves.
Leaves collected in the air intake may reduce airflow,
and if they enter the air distribution box, they could plug
the water drains. In Winter months, make sure the air
intake is clear of ice, slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and pollen
from the air. Contact an authorized dealer to service
your cabin air filter, and to have it replaced when
needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.

Windshield Wiper De-Icer — If Equipped

The Windshield Wiper De-Icer is a heating element
located at the base of the windshield.

It operates automatically once the following conditions
are met:

•

Activation By Front Defrost

The Windshield Wiper De-Icer activates automati-
cally during a cold weather manual start with

full

defrost,

and when the

ambient temperature is

below 33°F (0.6°C)

•

Activation By Rear Defrost

The Windshield Wiper De-Icer activates automati-
cally when the Rear Defrost is operating and the

ambient temperature is below 33°F (0.6°C)

•

Activation By Remote Start Operation

When the Remote Start is activated and the

outside

ambient temperature is less than 33°F (0.6°C)

the

Windshield Wiper De-Icer will activate. Exiting
Remote Start will resume its previous operation. If
the Windshield Wiper De-Icer was active, the timer
and operation will continue.

GETTING TO KNOW YOUR VEHICLE

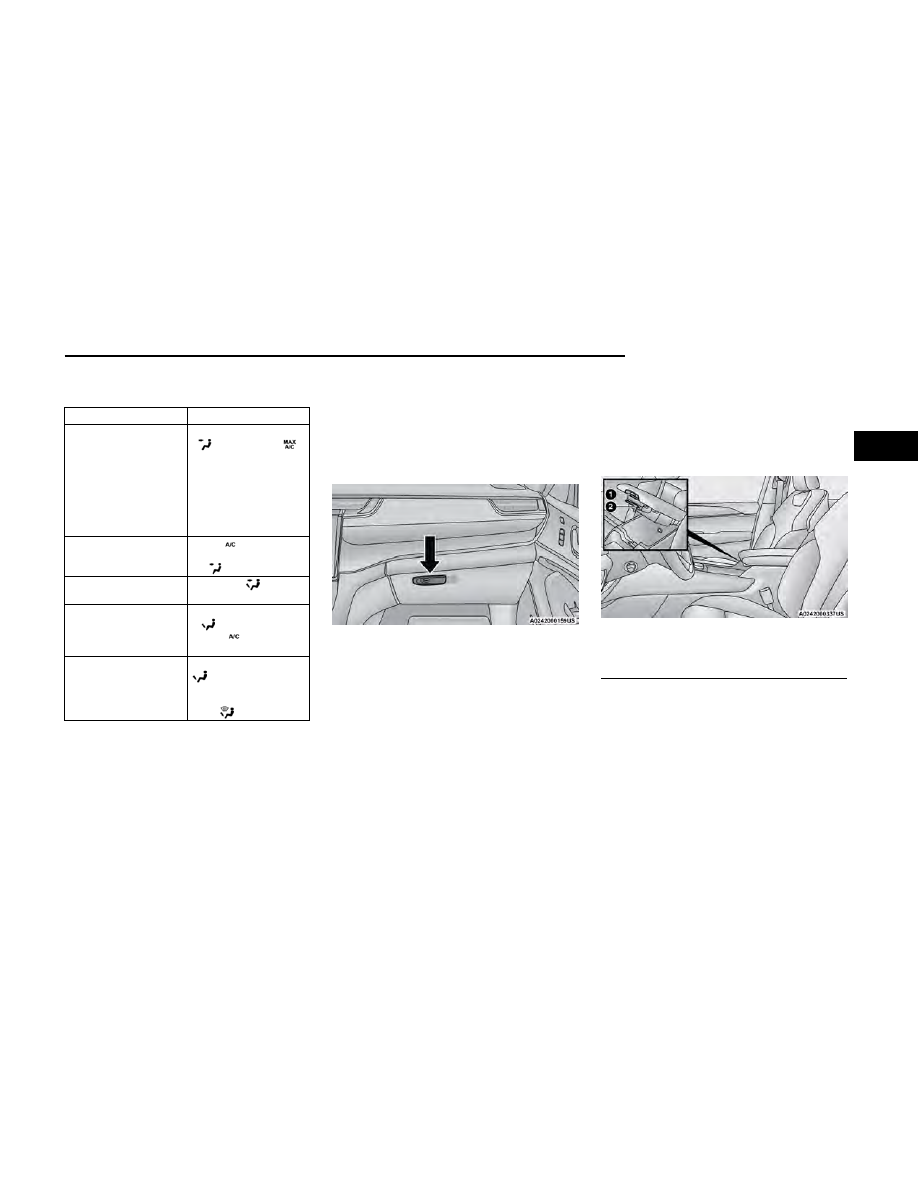

Operating Tips Chart

WEATHER

CONTROL SETTINGS

Hot Weather And Vehicle

Interior Is Very Hot

Set the mode control to

(Panel Mode),

(MAX A/C) on, and blower

on high. Roll down the

windows for a minute to

flush out the hot air.

Adjust the controls as

needed to achieve

comfort.

Warm Weather

Turn

(A/C) on and

set the mode control to

(Panel Mode).

Cool Sunny

Operate in

(Bi-Level

Mode).

Cool & Humid Conditions

Set the mode control to

(Floor Mode) and

turn

(A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If wind-

shield fogging starts to

occur, move the control

(Mix Mode).

INTERIOR STORAGE AND EQUIPMENT

STORAGE

Glove Compartment

The glove compartment is located on the passenger
side of the instrument panel.

To open the glove compartment, pull the release
handle.

Front Center Console

The front center console contains both an upper and a
lower storage area.

To open the upper storage compartment, pull the upper
paddle release lever.

To open the lower storage compartment, pull the lower
paddle release lever.

Lift upward on the larger of the release levers to access
the lower storage compartment.

Sunglasses Bin Door

At the front of the console a compartment is provided
for the storage of a pair of sunglasses. The storage
compartment access is a push/push design. Push the
chrome pad on the door to open. Push the chrome pad
on the door to close.

Glove Compartment Release Handle

Storage Compartment Release Levers

1 — Upper Compartment Release Lever
2 — Lower Compartment Release Lever

GETTING TO KNOW YOUR VEHICLE

Rear Full Center Console — If Equipped

The rear full center console contains both an upper and
a lower storage area.

To open the covered storage compartment, pull the
upper paddle release lever on the front of the lid.

The storage compartment may also be lifted forward.
Pull the paddle release lever located on the back of the
console lid.

When the second row seats are folded flat, lifting the
console forward provides a flat load floor surface from
the cargo area. There is also access to the storage com-
partment from the third row.

CAUTION!

Remove any items stored in the console cupholders
or devices with cords routing through upper storage
area. Damage may occur to upper console lid and
device cables when upper storage compartment is
lifted forward.

LIGHTED CUPHOLDERS —
IF EQUIPPED

On some vehicles, the front cupholders are equipped
with a light ring that illuminates the cupholders for the
front passengers.

The rear cupholders may also be equipped with a light
ring that illuminates the cupholders for the rear passen-
gers. The light ring is controlled by the Dimmer Controls

page 55.

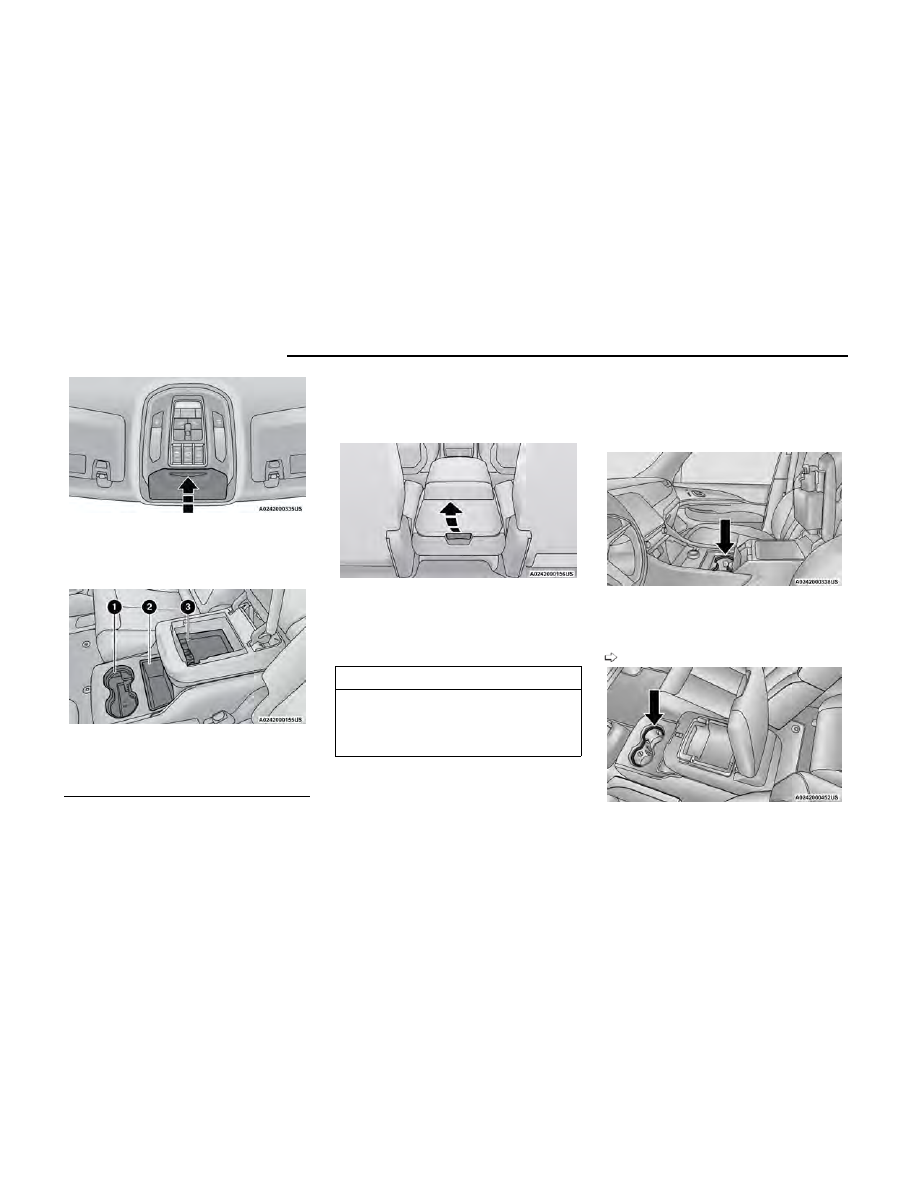

Sunglasses Bin Door

Rear Center Console

1 — Console Cupholders
2 — Open Lower Storage Area
3 — Covered Storage Compartment

Rear Paddle Release Lever

Light Ring In Front Cupholder

Light Ring In Rear Cupholder (If Equipped)

GETTING TO KNOW YOUR VEHICLE

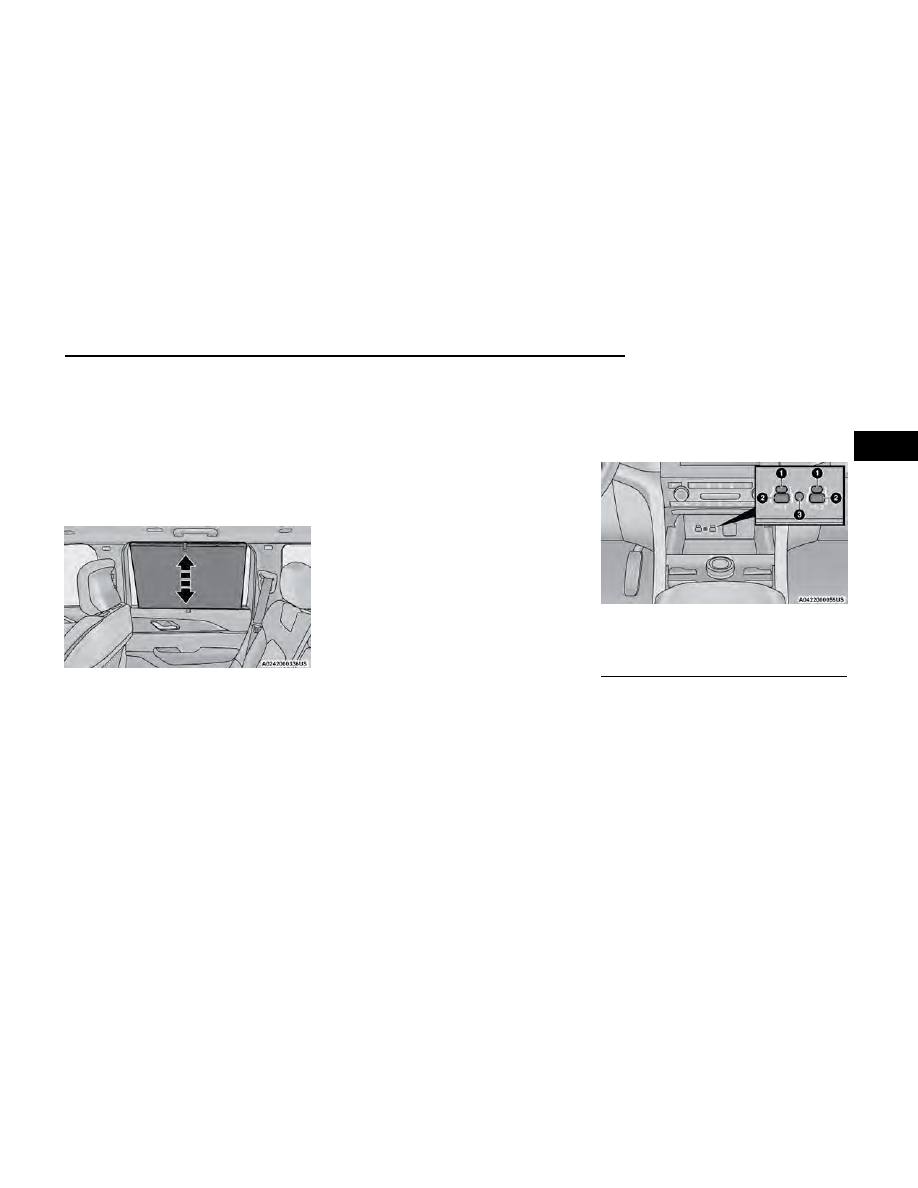

SUN SCREENS — IF EQUIPPED

Sun screens are available for the second row seating
windows. The screens store in the sill trim panels, and
the tops of the windows are equipped with hooks that
the sun screens attach to when pulled up.

Gently pull up on the tab to raise the sun screen. Con-
tinue pulling the sun screen until the tab is near the top
of the window.

Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.

To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the
base sill.

USB/AUX CONTROL

This feature allows an external USB device to be
plugged into one of the USB ports, located in the center
stack of the instrument panel.

Plugging in a smartphone device to a USB port will acti-
vate Android Auto™ or Apple CarPlay® features, if
equipped. For further information, refer to “Android
Auto™” or “Apple CarPlay®” in the Uconnect Radio
Instruction Manual.

NOTE:

Two devices can be plugged in at the same time, and
both ports will provide charging capabilities. Only one
port can transfer data to the system at a time.

For example, if a device is plugged into the Type A USB
port and another device is plugged into the Type C USB
port, a message will appear and allow you to select
which device to use.

The following messages will appear when a non-phone
device is plugged into the smaller and larger USB ports,
and when a phone device is plugged into the smaller
and larger USB ports:

•

“A new device is now connected. Previous connec-
tion was lost.”

•

“(Phone Name) now connected. Previous connection
was lost.”

•

“Another device is in use through the same USB
port. Please disconnect the first device to use the
second device.”

Plugging in a phone or another USB device may cause
the connection to a previous device to be lost.

Connecting AUX Or The External USB

Device

Use a connection cable to connect an external USB
device to the vehicle’s USB port, or use an auxiliary
cable to connect a device to the vehicle’s AUX port.
Both are located below the climate controls.

Sun Screen Extended

USB/AUX Ports

1 — USB C Port
2 — USB A Port (Standard USB)
3 — AUX Port

GETTING TO KNOW YOUR VEHICLE

Once a device is connected to the USB port, it will begin
charging and is ready for use with the system. Type C
and Type A charge-only USB ports can be used at the
same time but cannot be used simultaneously while
playing media. When both Type C and Type A charge-
only USB ports are in use they will be charged at a
reduced rate.

If equipped, in the center arm rest are USB ports for
Rear Seat Entertainment. Both the USB A (Standard
USB) and USB C port can be used as a media source
for the rear screens.

NOTE:

If the device’s battery completely discharges, it may not
communicate with the Uconnect system until a mini-
mum charge is attained. Leaving the device connected
to the USB port may charge it to the required level.

Using This Feature

By using a USB cable to connect an external device:

•

The device can be played on the vehicle’s sound
system, and provides the artist, track title, and
album information on the radio display.

NOTE:

Depending on track configuration, track information
may not be present on the radio display.

•

The device can be controlled using the radio buttons
to play and browse the contents of the device.

•

The audio device battery charges when plugged into
the USB port.

By using an auxiliary cable to connect an external
device:

•

The audio device can be played on the vehicle’s
sound system. The Uconnect system will not display
information related to the artist, track title, and
album information.

NOTE:

When using the AUX port, the external device cannot be
controlled using the radio buttons. The device will not
charge.

For further information, refer to the Uconnect Radio
Instruction Manual.

Second And Third Row USB Ports

The second row USB ports can be used to charge an
external device.

In the third row, a set of two USB ports can be used to
charge a device. These ports are charge only.

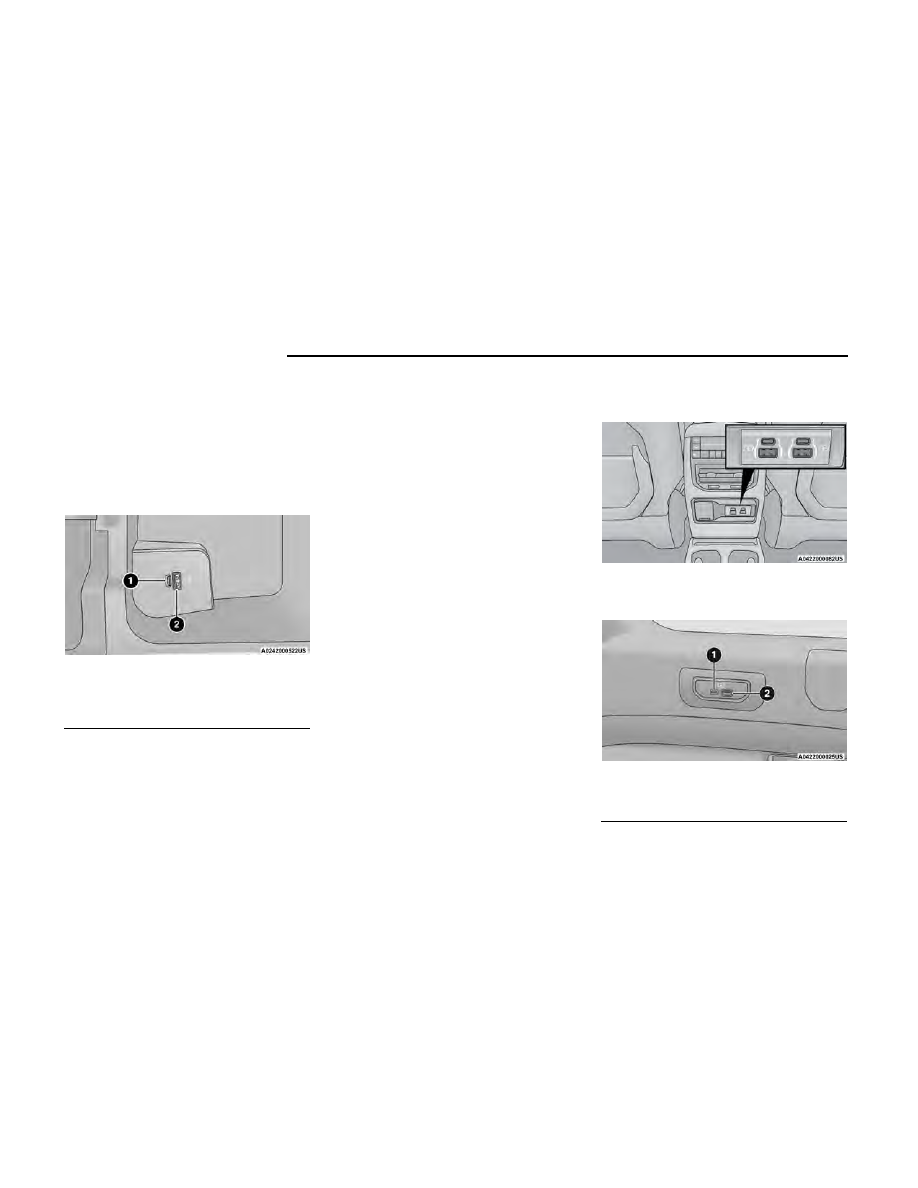

Center Arm Rest Rear Seat Entertainment USB Ports —

If Equipped

1 — USB C Port
2 — USB A Port (Standard USB)

Center Console Rear USB Ports

Third Row USB Ports

1 — Charge Only Type C USB Port
2 — Charge Only Type A USB Port

GETTING TO KNOW YOUR VEHICLE

NOTE:

Charge unsupported devices with the Charge Only USB
ports. If an unsupported device is plugged into a Media
USB port, a message will display on the touchscreen
that the device is not supported by the system.

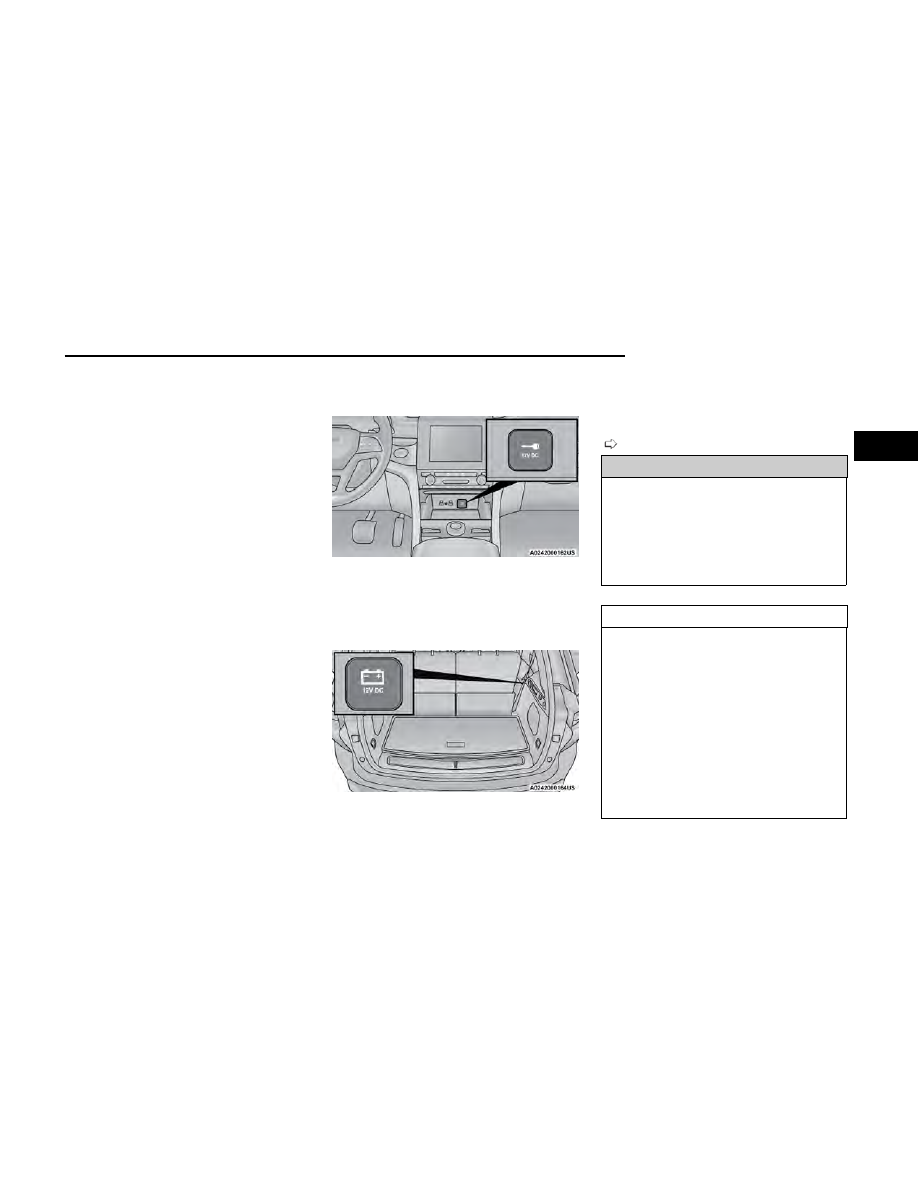

ELECTRICAL POWER OUTLETS

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones,
small electronics and other low powered electrical
accessories. The power outlets are labeled with either a
“key” or a “battery” symbol to indicate how the outlet is
powered. Power outlets labeled with a key symbol are
powered when the ignition switch is in the ON/RUN
position, while the outlets labeled with a battery symbol
are connected directly to the battery and powered at all
times.

NOTE:

•

All accessories connected to the battery powered
outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

•

Do not exceed the maximum power of 160 W
(13 Amp) at 12 Volt. If the 160 W (13 Amp) power
rating is exceeded the fuse protecting the system
needs to be replaced.

•

Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets
as this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

The front power outlet is located inside the storage area
on the center stack of the instrument panel, below the
climate controls.

The rear cargo power outlet is located in the right rear
cargo area when the vehicle is equipped with third row
seating. When the vehicle is equipped with only two row
seating, the cargo area outlet is located on the left side
trim panel.

NOTE:

The rear cargo power outlet can be changed from bat-
tery powered to powered by ignition in the ON/RUN
position by switching the cargo area power outlet fuse
from F44B to F44A in the rear power distribution center

page 288.

WARNING!

To avoid serious injury or death:

•

Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.

•

Do not touch with wet hands.

•

Close the lid when not in use and while driving the
vehicle.

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

CAUTION!

•

Many accessories that can be plugged in draw
power from the vehicle's battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle's battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

•

Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

•

After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the gen-
erator to recharge the vehicle's battery.

Front Power Outlet

Rear Cargo Power Outlet (Third Row Seating)

GETTING TO KNOW YOUR VEHICLE

POWER INVERTER — IF EQUIPPED

There is a 115 Volt, 150 W inverter outlet located on
the back of the center console to convert DC current to
AC current. This outlet can power cellular phones, elec-
tronics and other low power devices requiring power up
to 150 W. Certain video game consoles exceed this
power limit, as will most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 W is exceeded,
the power inverter automatically shuts down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overload-
ing the circuit, check the power ratings on electrical
devices prior to using the inverter.

WARNING!

To avoid serious injury or death:

•

Do not insert any objects into the receptacles.

•

Do not touch with wet hands.

•

Close the lid when not in use.

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

WIRELESS CHARGING PAD —
IF EQUIPPED

Your vehicle may be equipped with a 15W 3A Qi® wire-
less charging pad located below the center stack,
within the storage compartment. This charging pad is
designed to wirelessly charge your Qi® enabled mobile
phone. Qi® is a standard that allows wireless charging
of your mobile phone.

Your mobile phone must be designed for Qi® wireless
charging. If the phone is not equipped with Qi® wireless
charging functionality, an aftermarket sleeve or a spe-
cialized back plate can be purchased from your mobile
phone provider or a local electronics retailer. Please
see your phone’s Owner’s Manual for further
information.

The wireless charging pad is equipped with an anti-slip
mat to hold your mobile phone in place, and an LED
indicator light.

Place the device inside the prepared area delimited in
the mat as shown in the image. Incorrect positioning
will prevent the phone from charging.

LED Indicator Status:

•

No Light: Charging pad is idle or searching for a
device. Device may not be compatible with the Qi®
standard.

•

Blue Light: Device is detected and is charging.

•

Red Light/Flashing: Internal error or foreign object is
detected.

•

Green Light: Device has completed battery charging
(if device is equipped to transmit this information).

Important Notes Regarding This Vehicle’s Wireless
Charging Pad:

•

The presence of the Near-Field Communication
(NFC) function active on a smartphone could signal
malfunction anomalies.

•

The ignition must be in the ON/RUN position in
order for the phone to charge.

•

To avoid interference with the key fob search, the
wireless charging pad will stop charging when any
door or liftgate is opened, even if the engine is
running.

•

Be sure to place the mobile device correctly (display
facing upward, and phone not covering the LED) on
the wireless charging pad.

•

If the phone moves on the pad causing the red light
to illuminate, the phone will have to be picked up
and placed back on the charging pad to resume
charging.

•

Wireless charging is not as fast as when the phone
is connected to a wired charger.

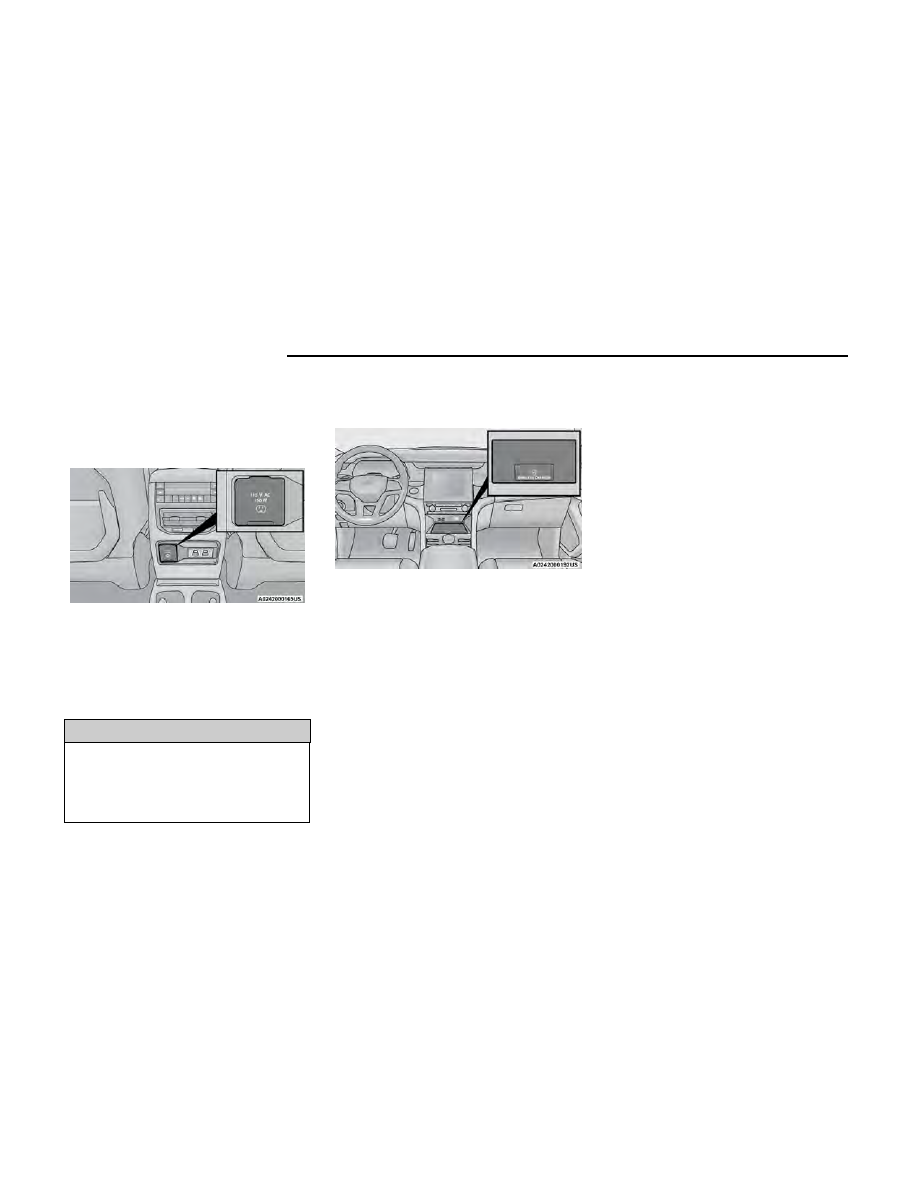

Power Inverter

Wireless Charging Pad

GETTING TO KNOW YOUR VEHICLE

•

If the phone moves on the pad causing the red light
to illuminate, the phone will have to be picked up
and placed back on the charging pad to resume
charging.

•

Wireless charging is not as fast as when the phone
is connected to a wired charger.

•

The phone’s protective case must be removed when
placed on the wireless charging pad.

•

iPhone® 12 (including iPod®) is equipped with soft-
ware to protect the device from overheating. When
the software is active, the rate of charge is slowed
down to protect the device.

•

Phones must always be placed on the wireless
charging pad within the outline shown on the pad so
that its charging parts connect with the charging
coils of the system. Movement of the phone during
charging may prevent or slow the rate of charge.

•

Having multiple applications open on the phone
while charging will reduce the charging efficiency,
and may even shut down an application that is
actively running (i.e. Apple CarPlay®). This may also
cause the phone to overheat.

•

Wireless chargers may implement certain methods
to prevent the phone from overheating during charg-
ing such as slowing down the rate of charge. In cer-
tain instances, the device may shut down for a brief
period of time (when the device reaches a certain
temperature). If this happens, it does not mean
there is a fault with the wireless charging pad. This
may just be a protective measure to prevent dam-
age to the phone.

•

The use of multiple wireless functions at the same
time (wireless charging, Apple CarPlay®, Android
Auto™) could cause the device to overheat, resulting
in limitation of the functions or it turning off. In this
case, it is recommended to connect the system
using the USB port.

•

Do not place the key fob or any other type of metal/
magnetized object inside the mobile phone housing
or near the wireless charging pad.

•

With a compatible device placed on the charging
pad, and the ignition is cycled to the OFF position, a
reminder message may appear on the instrument
cluster display to warn the driver.

CAUTION!

The key fob should not be placed on the charging pad
or within 6 inches (15 cm) of it. Doing so can cause
excessive heat buildup and damage to the fob. Plac-
ing the fob in close proximity of the charging pad
blocks the fob from being detected by the vehicle and
prevents the vehicle from starting.

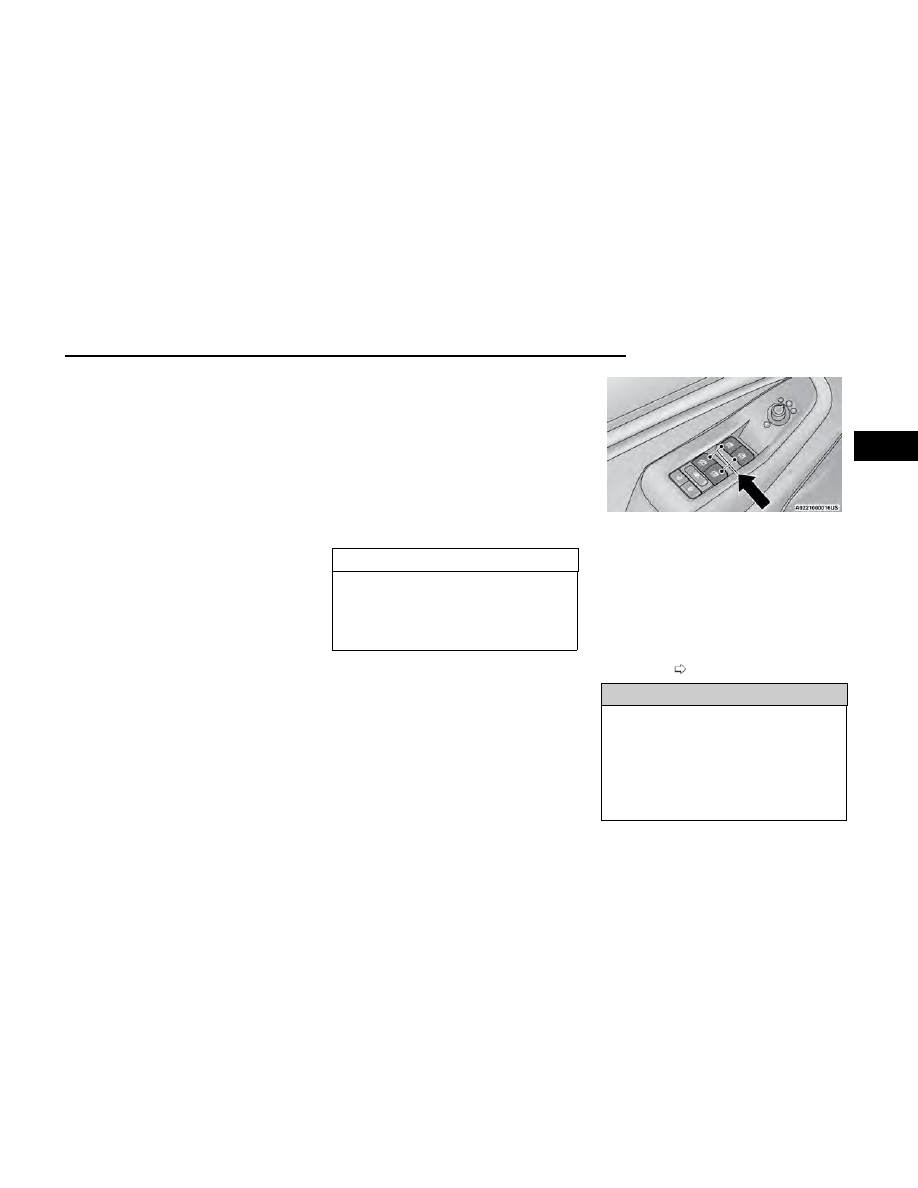

WINDOWS

POWER WINDOW CONTROLS

The power window controls, located on the driver's door
trim panel, operate the window movement for all four
power windows.

There is a single switch on the front passenger door
and rear passenger doors which operates the windows
for only that door.

NOTE:

•

The power window switches remain active for up to
10 minutes after the ignition has been placed in the
OFF position. Opening a vehicle front door will can-
cel this feature.

•

The window controls will operate only when the vehi-
cle’s ignition is placed in the ON/RUN position.

•

The power windows may be operated from outside
of the vehicle by using the key fob. For more infor-
mation, see

page 18.

WARNING!

Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not leave
the key fob in or near the vehicle, or in a location
accessible to children, and do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position. Occu-
pants, particularly unattended children, can become
entrapped by the windows while operating the power
window switches. Such entrapment may result in seri-
ous injury or death.

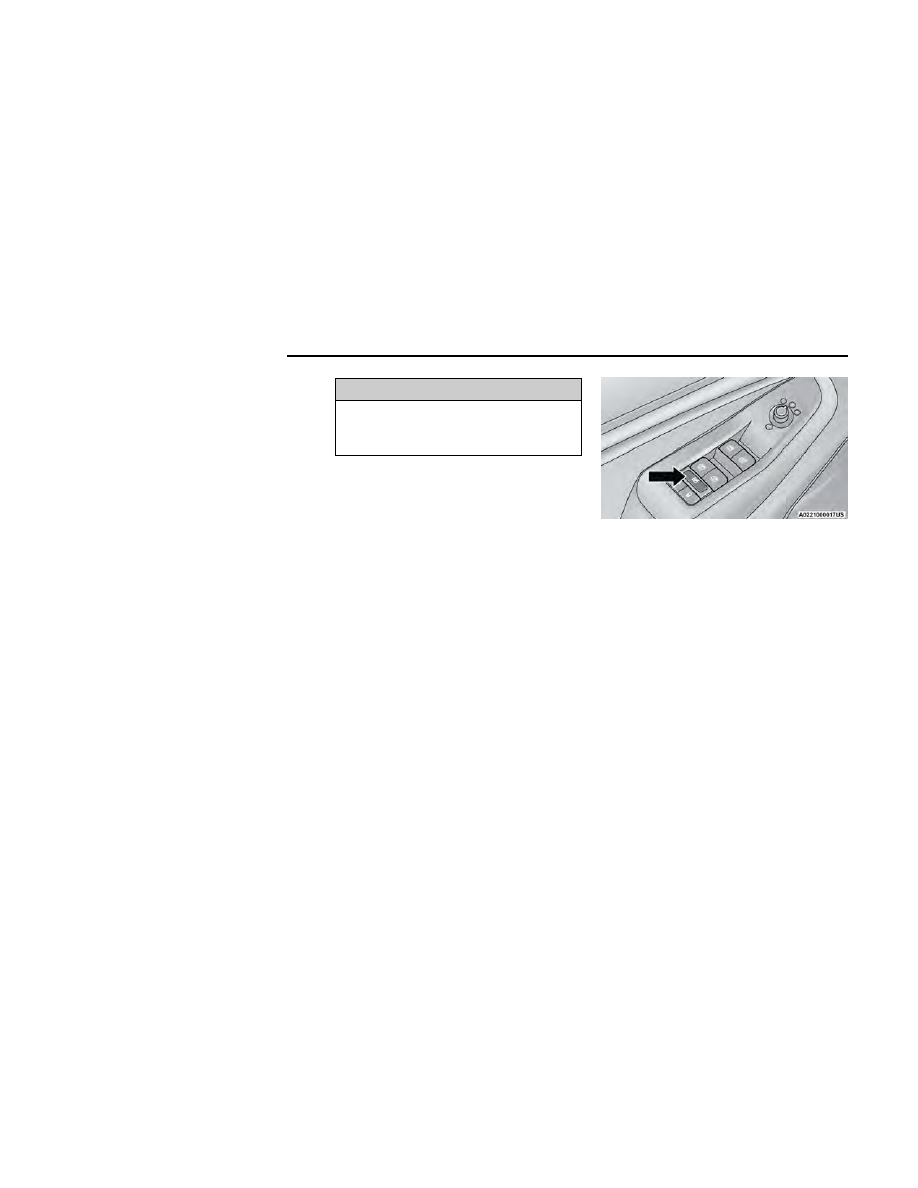

Driver’s Door Power Window Switches

GETTING TO KNOW YOUR VEHICLE

Automatic Window Features

Both the driver and front passenger windows, and
if equipped, both rear windows, may have Auto-Down
and Auto-Up operations.

Auto-Down Feature

For windows equipped with the AUTO feature, push the
window switch down to the second detent, release, and
the window will go down automatically.

To stop the window from going all the way down during
the Auto-Down operation, pull up or push down on the
switch briefly.

Auto-Up Feature With Anti-Pinch Protection

For windows equipped with the AUTO feature, lift the
window switch up to the second detent, and release;
the window will go up automatically.

To stop the window from going all the way up during the
Auto-Up operation, push down on the switch briefly.

To close the window part way, lift the window switch
briefly and release it when you want the window to stop.

For vehicles equipped with anti-pinch protection, if the
window runs into any obstacle during auto-closure, it
will reverse direction and then go back down. Remove
the obstacle and use the window switch again to close
the window.

NOTE:

Any impact due to rough road conditions may trigger the
auto-reverse function unexpectedly during auto-closure.
If this happens, pull the switch lightly and hold to close
the window manually.

WARNING!

There is no anti-pinch protection when the window is
almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.

Reset Auto-Up

Should the Auto-Up feature stop working, the window
may need to be reset. To reset Auto-Up:

Front Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

Rear Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

2. Release the window switch, and within five seconds,

pull the window switch up again for an additional
two seconds.

Window Lockout Switch

The window lockout switch on the driver's door trim
panel allows you to disable the window controls on the
rear passenger doors. To disable the window controls,
push and release the window lockout button (the indi-
cator light on the button will turn on). To enable the win-
dow controls, push and release the window lockout but-
ton again (the indicator light on the button will turn off).

WIND BUFFETING

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs
with the rear windows open, open the front and rear
windows together to minimize the buffeting. If the buf-
feting occurs with the sunroof open, adjust the sunroof
opening to minimize the buffeting or open any window.

Power Window Lockout Switch

GETTING TO KNOW YOUR VEHICLE

POWER SUNROOF — IF EQUIPPED

SINGLE PANE POWER SUNROOF —
IF EQUIPPED

The power sunroof switches are located on the over-
head console between the courtesy/reading lights.

WARNING!

•

Never leave children unattended in a vehicle, or
with access to an unlocked vehicle. Never leave
the key fob in or near the vehicle, or in a location
accessible to children. Do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position.
Occupants, particularly unattended children, can
become entrapped by the power sunroof while
operating the power sunroof switch. Such entrap-
ment may result in serious injury or death.

(Continued)

WARNING!

•

In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are also properly secured.

•

Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening.
Injury may result.

Opening And Closing The Sunroof

Express Open/Close

To open the sunroof, push OPEN on the sunroof switch
and release it within one-half second and the sunroof
will open automatically from any position.

To close the sunroof, push CLOSE on the sunroof switch
and release it within one-half second and the sunroof
will close automatically from any position.

During Express Open or Express Close operation, any
other actuation of the sunroof switch will stop the
sunroof.

Manual Open/Close

To open the sunroof, push and hold OPEN on the sun-
roof switch.

To close the sunroof, push and hold CLOSE on the sun-
roof switch.

Any release of the switch during open or close opera-
tion will stop the sunroof movement in a partially open
position. The sunroof will remain in a partially opened
position until the switch is operated and held again.

Express Venting The Sunroof

To vent the sunroof, push TILT on the vent switch and
release within one half second. The sunroof will open to
the vent position regardless of its initial position. During
Express Vent operation, any other actuation of the
switch will stop the sunroof.

NOTE:

If the sunshade is in the closed position when Express/
Manual Open or Vent operation is initiated, the sun-
shade will automatically open with the sunroof glass.

Pinch Protect Feature

This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an
obstruction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs.

NOTE:

If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and
the sunroof must be closed in Manual Mode.

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is open.

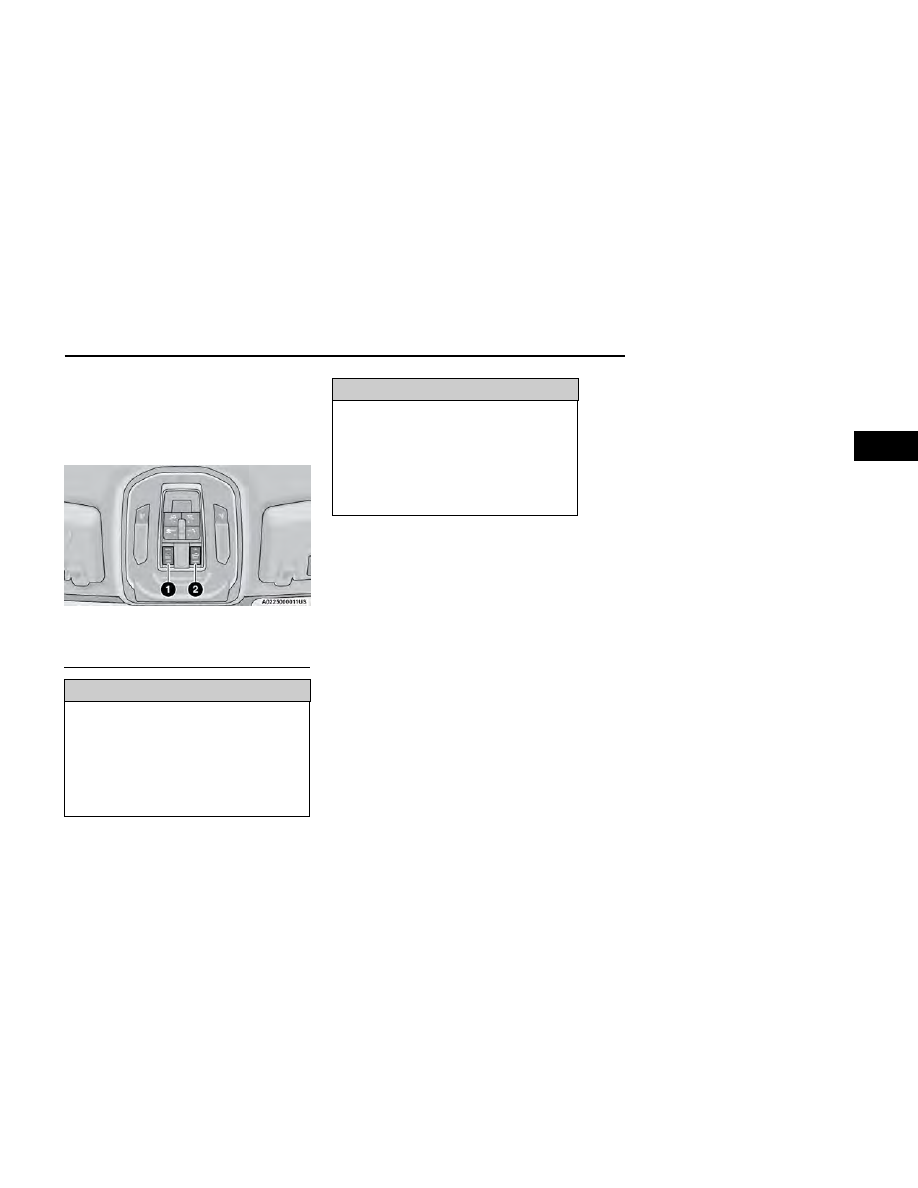

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof

GETTING TO KNOW YOUR VEHICLE

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
placed in the OFF position. Opening either front door
will cancel this feature.

NOTE:

Ignition Off timing is programmable through the
Uconnect system

page 169.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to
clean the glass panel. Periodically check for and clear
out any debris that may have collected in the tracks.

DUAL PANE POWER SUNROOF —
IF EQUIPPED

The power sunroof switches are located on the over-
head console between the courtesy/reading lights.

WARNING!

•

Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening.
Injury may result.

Opening And Closing The Sunroof

The sunroof has two programmed automatic stops for
the sunroof open position: a comfort stop position and
a full open position. The comfort stop position will mini-
mize wind buffeting in the interior.

Express Open/Close

To open the sunroof, push OPEN on the sunroof switch
and release it within one-half second. The sunroof will
open to the comfort stop position and stop automati-
cally. Push and release OPEN again to continue to the
full open position.

To close the sunroof, push CLOSE on the sunroof switch
and release it within one-half second. The sunroof will
close automatically from any position.

During Express Open or Express Close operation, any
other actuation of the sunroof switch will stop the
sunroof.

Manual Open/Close

To open the sunroof, push and hold OPEN on the sun-
roof switch. The sunroof will open to the comfort stop
position, then automatically stop. Release the switch
then push and hold again to continue to the full open
position.

To close the sunroof, push and hold CLOSE on the sun-
roof switch.

Any release of the switch during open or close opera-
tion will stop the sunroof movement in a partially open
position.

Express Venting The Sunroof

NOTE:

If the sunshade is in the closed position when Express/
Manual Open or Vent operation is initiated, the sun-
shade will automatically open to the half open position
prior to the sunroof opening.

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade

GETTING TO KNOW YOUR VEHICLE

Opening And Closing The Power

Sunshade

The sunshade has two programmed open positions:
half open and full open positions. When operating the
sunshade from the closed position, the sunshade will
always stop at the half open position regardless of
express or manual open operation. The switch must be
pushed again to continue on to full open position.

If the sunroof is open or vented, the sunshade cannot
be closed beyond the half open position. Pushing the
sunshade close switch when the sunroof is open/
vented and the sunshade is at half open position will
first automatically close the sunroof prior to the sun-
shade closing.

Express Open/Close

To open the sunshade, push OPEN on the sunshade
switch and release it within one-half second, the sun-
shade will open to the half open position and stop auto-
matically. Push and release OPEN again to continue to
open the sunshade to the full open position.

To close the sunshade, push CLOSE on the sunshade
switch and release it within one-half second.

During Express Open or Express Close operation, any
other actuation of the sunroof switches will stop the
sunshade in a partially open position.

Manual Open/Close

To open the sunshade, push and hold OPEN on the sun-
shade switch, the sunshade will open to the half open
position and stop automatically. Push and hold OPEN
again to continue to open the sunshade to the full open
position.
To close the sunshade, push and hold CLOSE on the
sunshade switch.
Releasing the switch while the sunshade is in motion
will stop the sunshade in a partially open position.

Pinch Protect Feature

NOTE:

If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and
the sunroof must be closed in Manual Mode.

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
placed in the OFF position. Opening either front door
will cancel this feature.

NOTE:

Ignition Off timing is programmable through the
Uconnect system

page 169.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to
clean the glass panel. Periodically check for and clear
out any debris that may have collected in the tracks.

HOOD

OPENING THE HOOD

To open the hood, two latches must be released.

1. Pull the release lever located at the bottom of the

driver’s side of the instrument panel.

Hood Release

GETTING TO KNOW YOUR VEHICLE

2. Reach under the hood from outside the vehicle,

move the safety latch to the left and lift the hood.

NOTE:

•

Vehicle must be at a stop and the gear selector
must be in PARK.

•

While lifting the hood, use both hands.

•

Before lifting the hood, check that the wiper arms
are not in motion and not in the lifted position.

CLOSING THE HOOD

In one continuous motion, pull down on the front edge
of the hood with moderate force until the angle is below
the crossover point (where the gas props are no longer
resisting) and let the hood continue to fall closed from
its own inertia.

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

LIFTGATE

TO UNLOCK/OPEN THE LIFTGATE

The power liftgate may be opened by push-
ing the liftgate button on the key fob or by
pushing the electronic liftgate release
button.

Push the liftgate button on the key fob twice within five
seconds to open the power liftgate. Once the liftgate is
open, pushing the button twice within five seconds a
second time will close the liftgate.

NOTE:

When you push the electronic liftgate release button,
either only the liftgate will unlock, or all the doors and
the liftgate will unlock, depending on the selected set-
ting in the Uconnect system

page 169.

NOTE:

•

Use the power door lock switch on either front door
trim panel or the key fob to lock and unlock the
liftgate.

•

The driver's door lock cylinder will not lock or unlock
the liftgate.

WARNING!

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the lift-
gate closed when you are operating the vehicle.

NOTE:

The liftgate can also be opened manually by pushing
the electronic liftgate release button and pulling
upward in one fluid motion.

TO LOCK/CLOSE THE LIFTGATE

There are several different ways to close the liftgate:

•

Manually (grab the liftgate closing handle and pull in
a downward motion)

•

Key fob

•

Hands-free (if equipped)

•

Liftgate close button in the cargo area

Safety Latch Location

Liftgate Entry

1 — Passive Entry Button
2 — Electronic Liftgate Release Button

GETTING TO KNOW YOUR VEHICLE

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the liftgate, pushing the Passive Entry button located to
the left of the electronic liftgate release button, will lock
the vehicle only.

If the liftgate is fully open, the liftgate can be closed by
pushing the liftgate close button located in the cargo
area on the left rear trim panel, near the liftgate open-
ing. If the liftgate is in motion, pushing the liftgate close
button a second time will reverse the liftgate operation.

ADJUSTABLE POWER LIFTGATE
HEIGHT

The maximum height that the liftgate will open can be
adjusted and saved so that the liftgate will only open to
the desired height. To set a desired height, proceed as
follows:

1. Open the liftgate fully, then manually pull down on

the liftgate to the desired height.

2. Push and hold the liftgate close button, located on

the left side trim panel inside the cargo area, for
three seconds. An audible chime will be emitted to
let you know the height has been saved.

To set the saved height setting to a new setting, pro-
ceed as follows:

1. Open the liftgate, then manually push the liftgate

upward to its full open position.

2. Manually pull the liftgate down to the new desired

height and hold the liftgate close button for three
seconds until the audible chime is emitted.

Power Liftgate Malfunction Procedure:

1. In the event of a power malfunction to the liftgate,

the liftgate can be released by accessing the service
release feature in the latch. This can be done using
a 3 mm diameter screwdriver.

2. From inside the gate, an eyelet can be seen. Place

the screwdriver in the eyelet.

3. Rotate the screwdriver handle to actuate the lever

and release the latch.

4. If liftgate is left open for an extended period of time,

the liftgate may need to be closed manually to reset
power liftgate functionality.

HANDS-FREE LIFTGATE —
IF EQUIPPED

To open or close the liftgate using hands-free activa-
tion, use a straight in and out kicking motion under the
vehicle activation zone in the general location below
the rear license plate. The activation zone is about
1.8 ft (0.5 m) from side to side. Do not move your foot
sideways or in a sweeping motion or the sensors may
not detect the motion.

NOTE:

The activation zone is the same for vehicles equipped
with or without a trailer tow package.

When a valid kicking motion is completed, the liftgate
will chime, the hazard lights will flash and the liftgate
will open after approximately one second, or close after
approximately three seconds. These settings can be
enabled or disabled through Uconnect Settings

page 169.

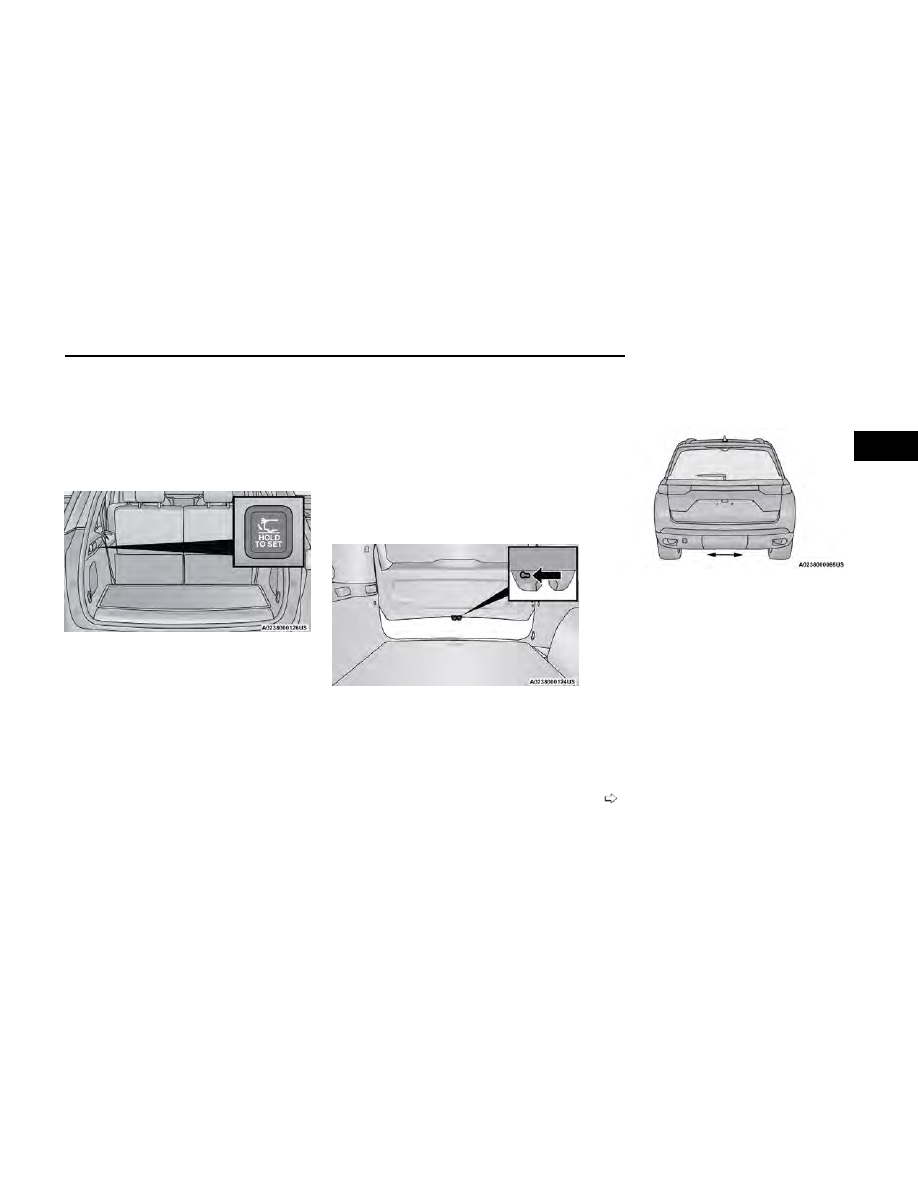

Liftgate Close Button

Liftgate Service Release

Hands-Free Liftgate Activation Zone

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

Opening or closing the Hands-Free Liftgate requires
a valid Passive Entry key fob within 5 ft (1.5 m) of
the liftgate handle. If a valid Passive Entry key fob is
not within 5 ft (1.5 m), the liftgate will not respond
to any kicks.

•

The Hands-Free Liftgate feature may be turned on or
off through the Uconnect system

page 169.

•

The Hands-Free Liftgate feature should be turned
off during jacking, tire changing, manual car wash,
and vehicle service.

•

The Hands-Free Liftgate feature can be activated by
any metallic object making a similar in-and-out
motion under the rear fascia/bumper, such as
cleaning using a metal broom.

•

The Hands-Free Liftgate will only operate when the
transmission is in PARK.

•

If anything obstructs the Hands-Free Liftgate while it
is opening or closing, the liftgate will automatically
reverse to the closed/open position, provided it
meets sufficient resistance.

•

There are pinch sensors attached to the side of the
liftgate opening. Light pressure anywhere along
these strips will cause the liftgate to return to the
open position.

•

If the power liftgate encounters multiple obstruc-
tions within the same cycle, the system will auto-
matically stop. If this occurs, the liftgate must be
operated manually.

•

The power liftgate will release, but not power open,
in temperatures below −12°F (−24°C). Be sure to
remove any buildup of snow or ice from the liftgate
before opening the liftgate.

•

If the liftgate is left open for an extended period of
time (approximately one hour), the liftgate may need
to be closed manually to reset power liftgate
functionality.

WARNING!

•

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

•

If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode.

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tem-
perature, it may be necessary to assist the props when
opening the liftgate in cold weather.

NOTE:

Allow the power system to open the liftgate. Manually
pushing or pulling the liftgate may activate the liftgate
obstacle detection feature and stop the power opera-
tion or reverse its direction.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

CARGO AREA FEATURES

Cargo Storage

The load floor is designed for a maximum load of
300 lb (136 kg).

If equipped, there may be a removable storage bin
located on the left side of the rear cargo area.

Additional storage can be found under the storage lid.
To access the lower storage, lift the handle and raise
the storage lid.

Cargo Tie-Down Hooks

The cargo tie-downs, located on the cargo area sides,
should be used to safely secure loads when the vehicle
is moving.

NOTE:

The cargo tie-downs are designed for a maximum load
of 300 lb (136 kg).

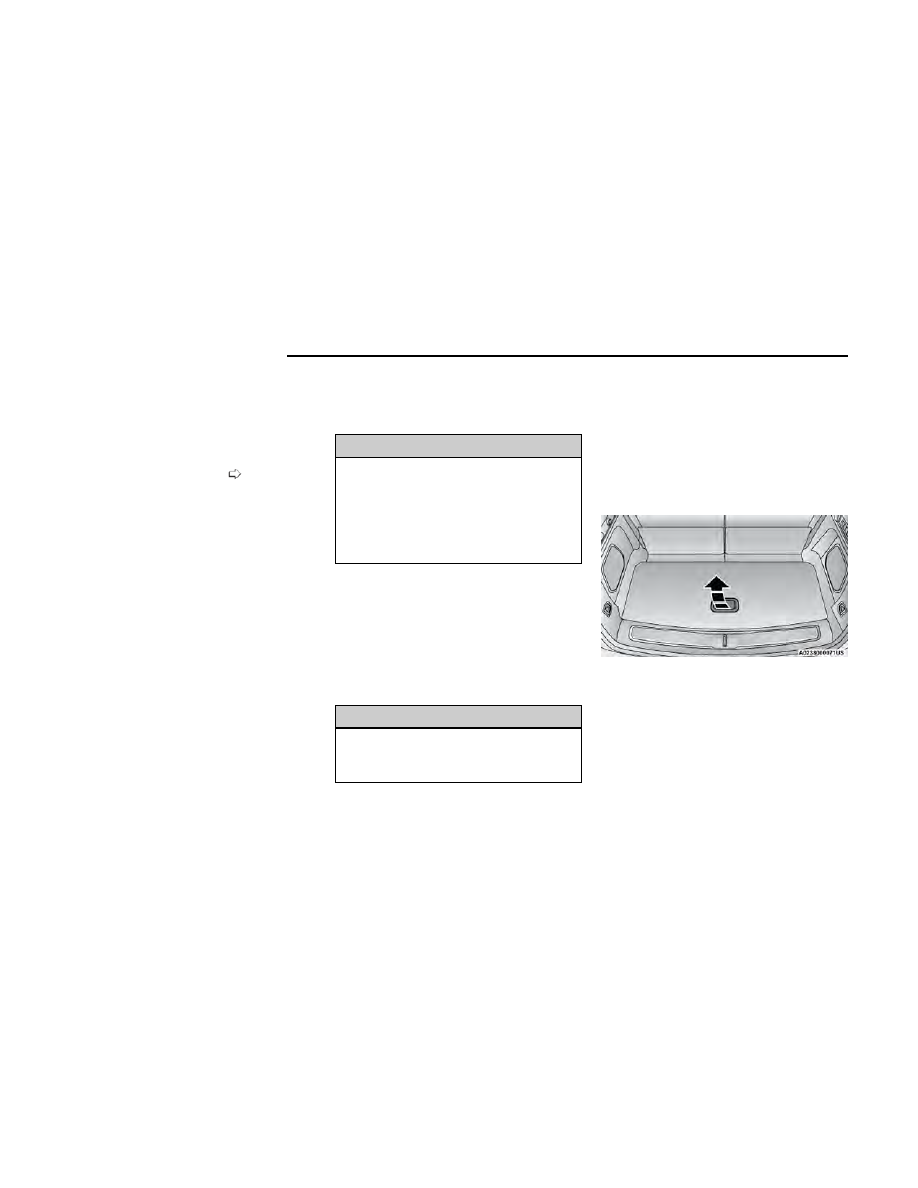

Lift Storage Lid Handle

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or accident, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.

•

To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:

•

Do not carry loads that exceed the load limits
described on the label attached to the left door or
left door center pillar.

•

Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.

•

Place as much cargo as possible in front of the
rear axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
vehicle to sway.

•

Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or
accident.

Retractable Cargo Area Cover —

If Equipped

The purpose of this cover is for privacy, not to secure
loads. It will not prevent cargo from shifting or protect
passengers from loose cargo.

To cover the cargo area:

1. Grab the cover at the center handle and pull over

the cargo area.

2. Insert the pins on the ends of the cover into the

slots in the pillar trim cover.

3. The liftgate may be opened with the cargo cover in

place.

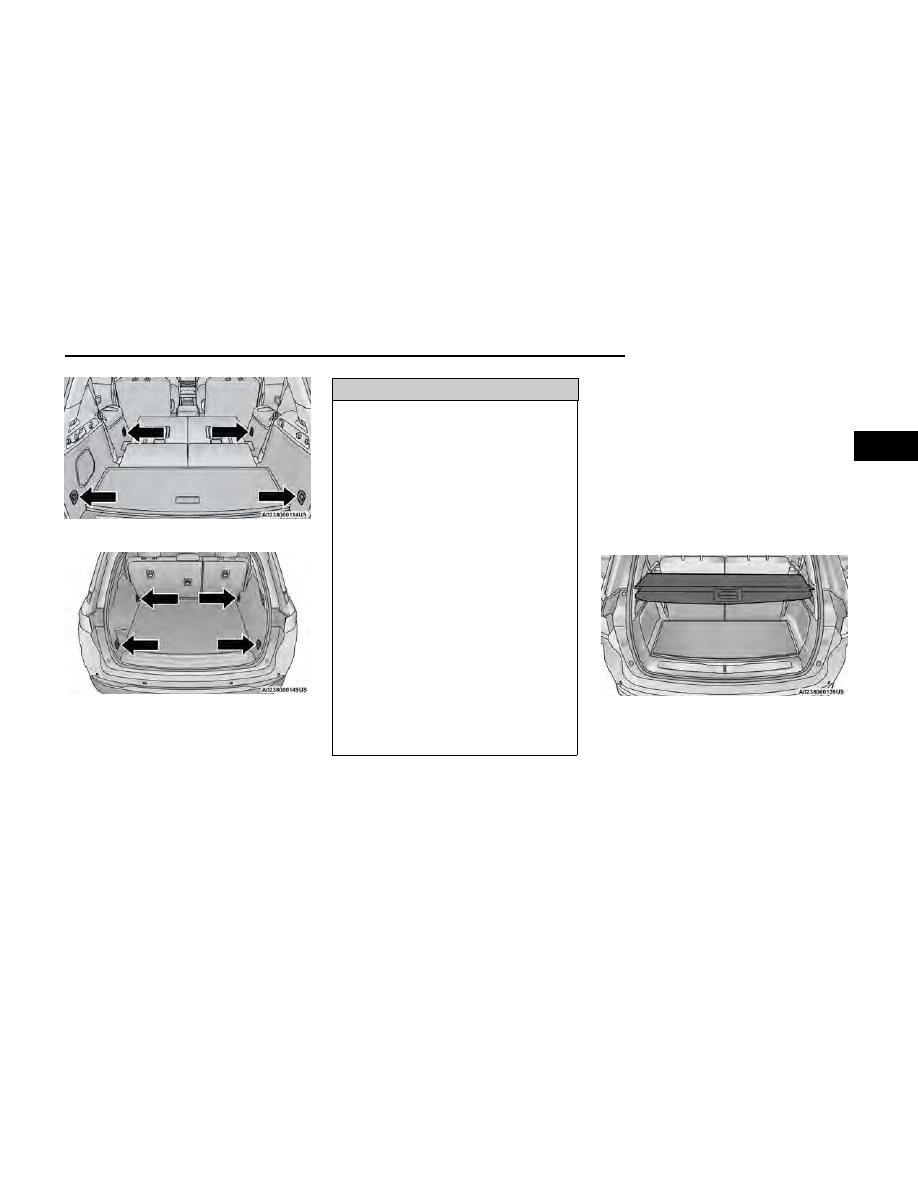

Tie-Down Hooks (Vehicles With Third Row Seating)

Tie-Down Hooks (Vehicles Without Third Row Seating)

Rear Cargo Cover

GETTING TO KNOW YOUR VEHICLE

WARNING!

In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.

Foldable Cargo Area Cover — If Equipped

The purpose of this cover is for privacy, not to secure
loads. It will not prevent cargo from shifting or protect
passengers from loose cargo.

To cover the cargo area:

1. Remove the folded cover from the storage pouch,

and unfold using a twisting motion.

2. Insert the pins on the ends of the cover into the

slots on each side of the pillar trim.

3. Hook the straps to the outside post of the rear head

restraint on each side.

NOTE:

The liftgate may be opened with the cargo cover in
place.

To store the foldable cargo area cover, reverse the
installation steps and replace the cover into its storage
pouch.

WARNING!

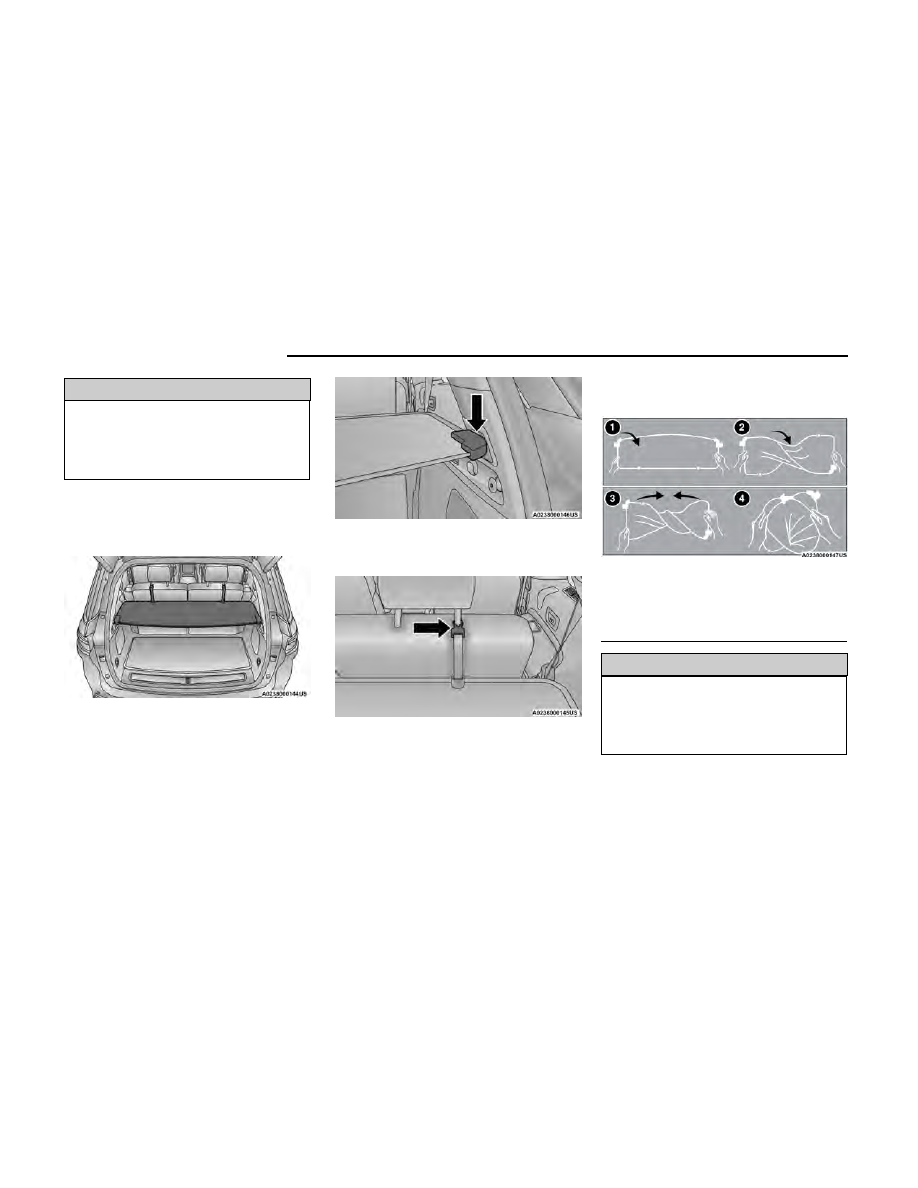

Foldable Cargo Area Cover

Step 2

Step 3

Folding The Cargo Cover

1 — Remove Cover From Vehicle
2 — Twist Cover
3 — Push Twisted Cover Inward
4 — Place Folded Cover In Pouch

GETTING TO KNOW YOUR VEHICLE

Jeep Grand Cherokee L (2024 year). Manual in english - page 2
