GETTING TO KNOW YOUR VEHICLE

KEYS

KEY FOB

Your vehicle is equipped with a key fob which supports
Passive Entry, Remote Keyless Entry (RKE), Keyless
Enter ‘n Go™ (if equipped), Remote Start (if equipped),
and remote power liftgate (if equipped) operation. The
key fob allows you to lock or unlock all doors and lift-
gate, as well as activate the Panic Alarm from distances
up to approximately 66 ft (20 m). The key fob does not
need to be pointed at the vehicle to activate the sys-
tem. The key fob also contains an emergency key, which
is stored in the rear of the key fob.

NOTE:

In vehicles equipped with Remote Start, the key fob will
operate at distances up to 328 ft (100 m).

NOTE:

•

The key fob’s wireless signal may be blocked if the
key fob is located next to a mobile phone, laptop, or
other electronic device. This may result in poor
performance.

•

If your vehicle is equipped with a Wireless Charging
Pad, the key fob may not be detected if it is placed
within 6 inches (15 cm) of the pad

page 70.

•

With the ignition in the ON position and the vehicle
moving at 2 mph (4 km/h), all RKE commands are
disabled.

In case the ignition switch does not change positions
with the push of a button, the key fob may have a low or
fully depleted battery. A low key fob battery can be veri-
fied by referring to the instrument cluster, which will
display directions to follow.

For more information on ignition positions, see

page 21.

NOTE:

A low key fob battery condition may be indicated by a
message in the instrument cluster display, or by the
LED light on the key fob. If the LED key fob light no lon-
ger illuminates after a key fob button is pushed, then
the key fob battery requires replacement

page 331.

To Lock/Unlock The Doors And Liftgate

Push and release the unlock button on the key fob once
to unlock the driver’s door, or twice within five seconds
to unlock all the doors and the liftgate. To lock all the
doors and the liftgate, push the lock button once.
If enabled within the Uconnect system, the turn signals
will flash and other illuminated entry features will be
activated when the doors are unlocked. When the doors
are locked, the turn signals will flash and the horn will
chirp.

NOTE:

•

If the vehicle is equipped with the Auto Relock fea-
ture, and is unlocked with the key fob, and no door
is opened within 60 seconds, the vehicle will relock
and the Vehicle Security system will arm
(if equipped). This feature can be enabled/disabled
within Uconnect Settings.

•

If one or more doors are open, or the liftgate is
open, the doors will lock. The doors will unlock
again automatically if the key fob is left inside the
passenger compartment, otherwise the doors will
stay locked.

All doors can be programmed to unlock on the first
push of the unlock button through Uconnect Settings

page 169.

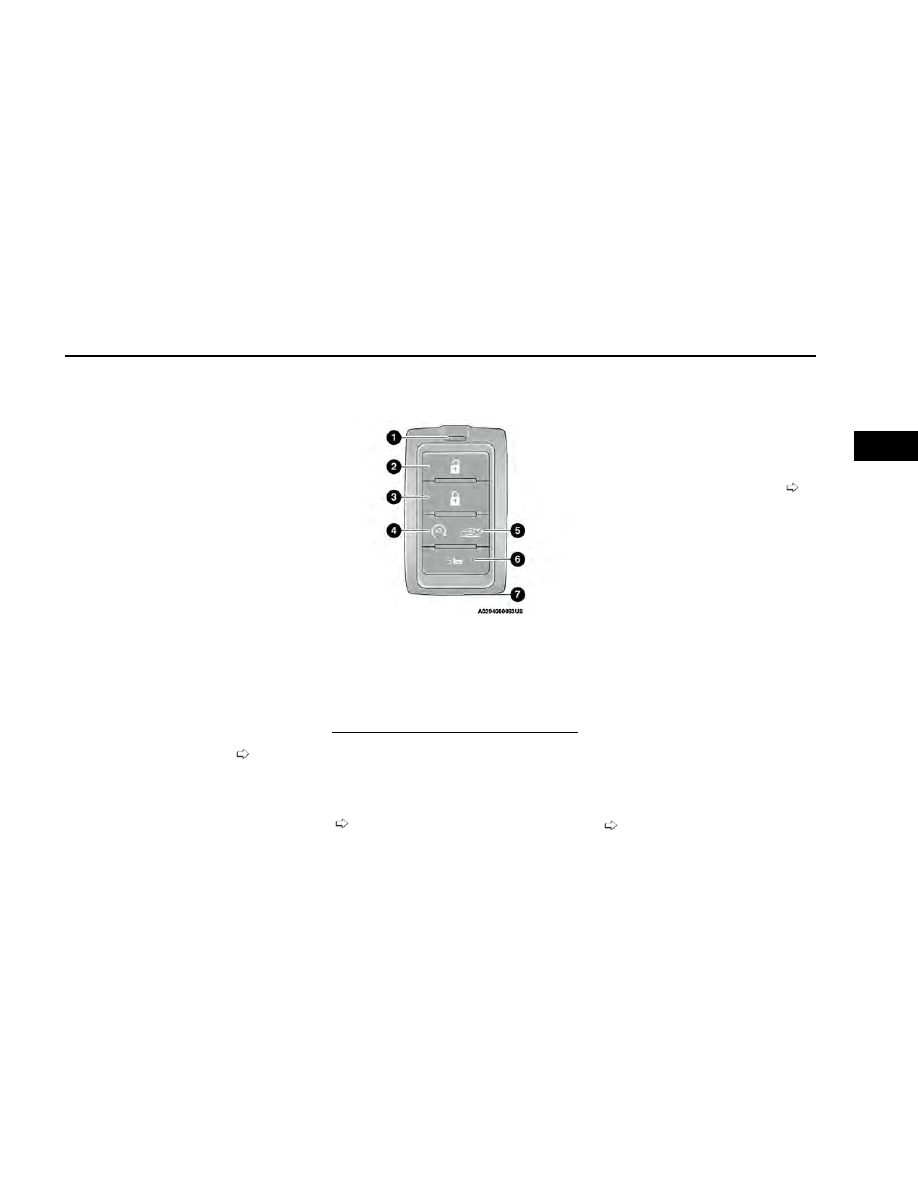

Key Fob

1 — LED Indicator
2 — Unlock
3 — Lock
4 — Remote Start
5 — Power Liftgate
6 — Panic
7 — Emergency Key

Using The Panic Feature

To turn the Panic feature on or off, push the Panic but-
ton on the key fob. When the Panic feature is activated,
the turn signals will flash, the horn may pulse on and
off (if equipped with horn alarm), and the interior lights
will turn on.

The Panic feature will stay on for three minutes unless
you turn it off by either pushing the Panic button a sec-
ond time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.

NOTE:

•

The interior lights will turn off if you place the igni-
tion in the ON/RUN position while the Panic feature
is activated. However, the exterior lights and horn
(if equipped with horn alarm) will remain on.

•

You may need to be closer than 66 ft (20 m) from
the vehicle when using the key fob to turn off the
Panic feature due to the radio frequency noises
emitted by the system.

Key Left Vehicle Feature

If a valid key fob is no longer detected inside the vehicle
while the vehicle’s ignition system is in the ON/RUN or
START position, the message “Key Fob Has Left The
Vehicle” will be shown in the instrument cluster display
along with an interior chime. An exterior audible and
visual alert will also be activated to warn the driver.

The vehicle’s horn will rapidly chirp three times along
with a single flash of the vehicle’s exterior lights.

NOTE:

•

The doors have to be open and then closed in order
for the vehicle to check for the presence of a key
fob; the Key Left Vehicle feature will not activate
until all of the doors are closed.

•

These alerts will not be activated in situations where
the vehicle’s engine is left running with the key fob
inside.

Using The Key Fob To Open Vehicle

Windows — If Equipped

From outside of the vehicle, push and release the
unlock button on the key fob, and within five seconds
push and hold the unlock button for up to seven sec-
onds. All vehicle door windows will open.

NOTE:

•

This feature is enabled through Uconnect Settings

page 169.

•

Vehicle must be equipped with front and rear auto
up/down windows.

Replacing The Battery In The Key Fob

The replacement battery model is one CR2450 battery.

NOTE:

•

Customers are recommended to use a battery
obtained from Mopar®. Aftermarket coin battery
specifications may not meet the original OEM coin
battery specifications.

•

Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
for further information.

•

Do not touch the battery terminals that are on the
back housing or the printed circuit board.

•

Do not replace the coin battery if the LED on the key
fob above the top row buttons blinks when a button
is pressed. The coin battery should last a minimum
of three years with normal vehicle usage.

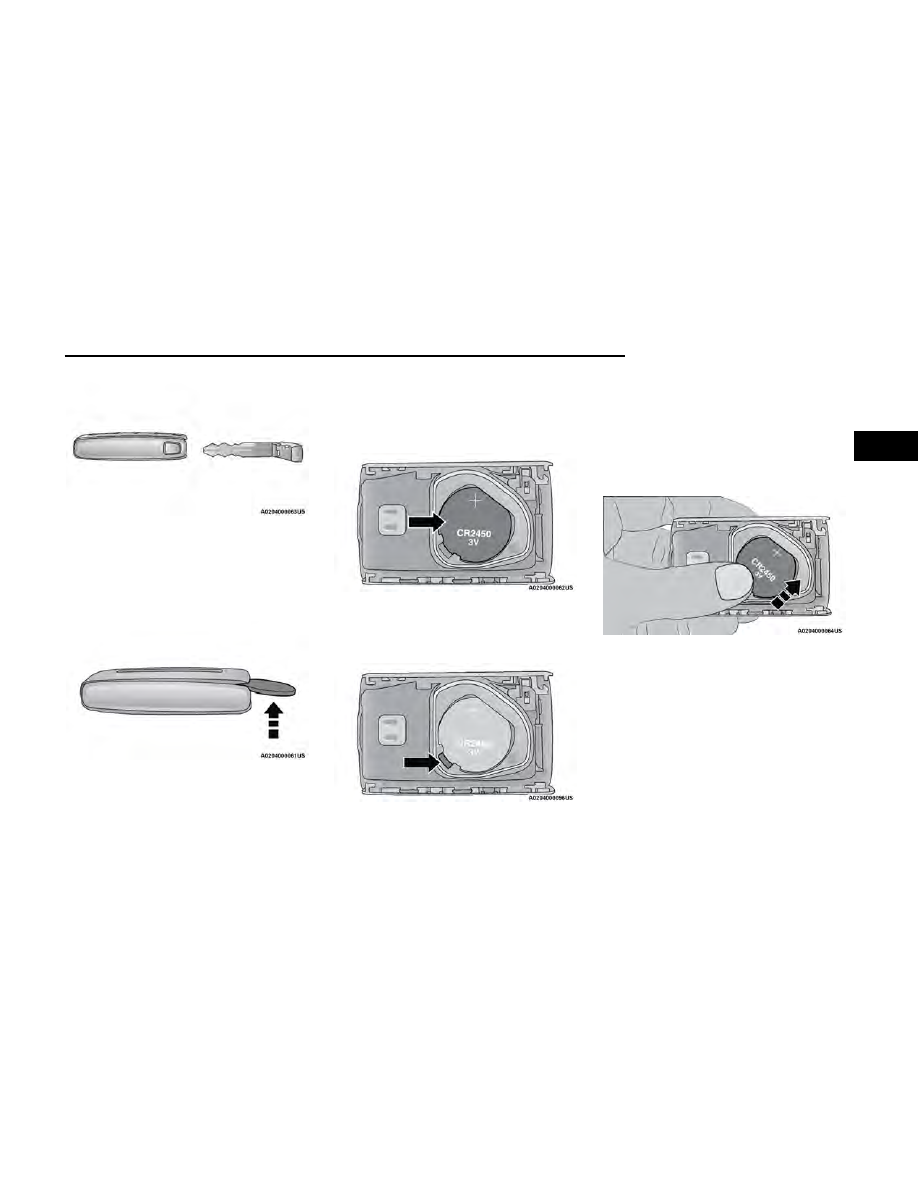

1. Remove the emergency key (2) by pushing the emer-

gency key release button (1) on the side of the key
fob, and pulling the emergency key out with the
other hand.

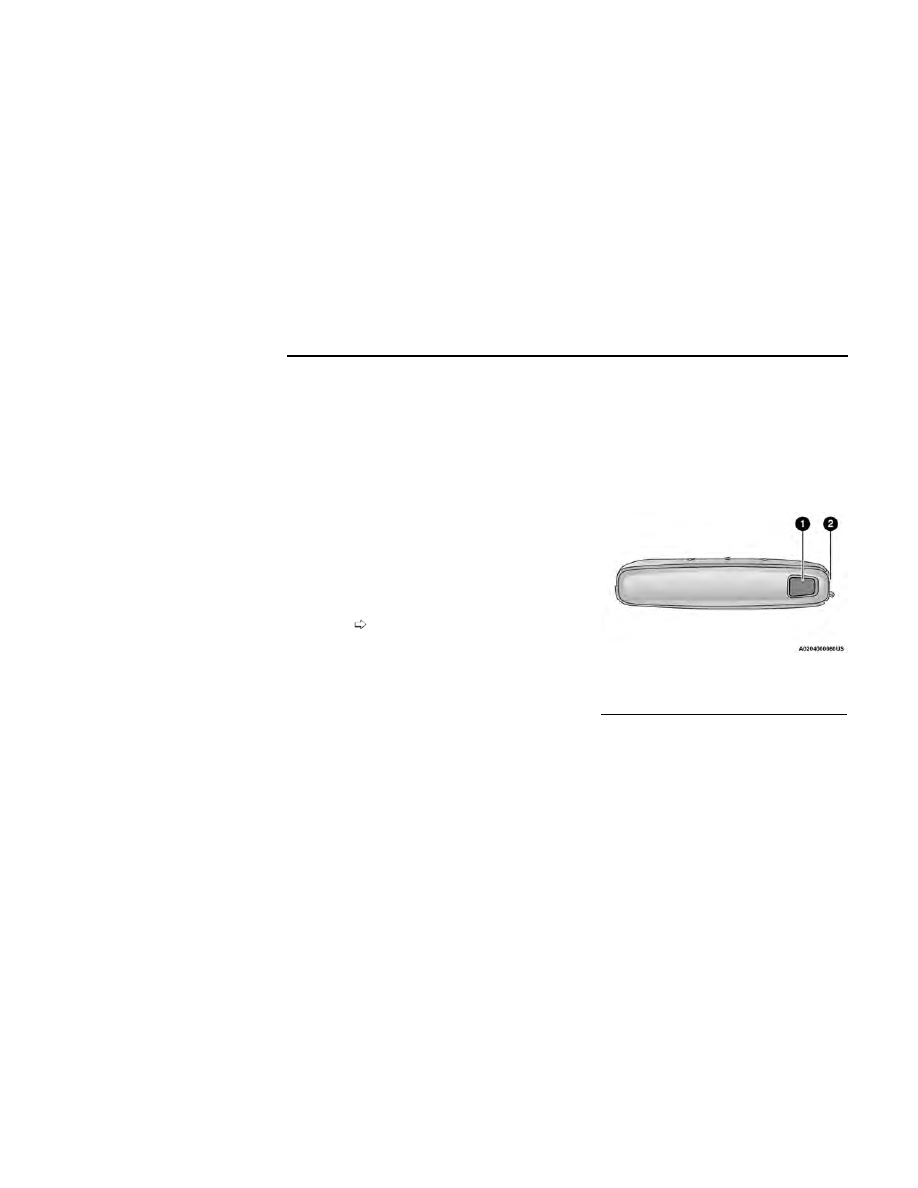

Emergency Key Removal

1 — Emergency Key Release Button
2 — Emergency Key

GETTING TO KNOW YOUR VEHICLE

2. Hold the key fob with the button side facing down,

and locate the small rectangular gap on the left side
between the housing and the back cover of the key
fob. Use a small flat-bladed tool to pry apart the two
halves of the key fob. Make sure not to damage the
seal during removal.

3. Next, locate the gap on the right side of the key fob,

which is positioned farther to the edge than the left
side gap. Pry open the right side, and remove the
back cover.

4. Remove the battery by using your thumb to slide the

battery downward and back toward the key ring.

NOTE:

You can also insert a screwdriver or similar tool into
the battery removal pocket to pry the battery out.

NOTE:

When replacing the battery, ensure the (+) sign on
the battery is facing upward. Avoid touching the new
battery with your fingers. Skin oils may cause bat-
tery deterioration. If you touch a battery, clean it
with rubbing alcohol.

5. Replace the battery by using your thumb to push

down and slide the battery under the small lip on
the top edge of the opening.

6. To assemble the key fob case, line up the top edge

of the back cover with the top of the fob, and press
the edges into the interlocking hinges until all edges
snap together with no large visual gaps.

7. Reinsert the emergency key until it locks into place.

NOTE:

The key fob battery should only be replaced by qualified
technicians. If the battery requires replacement, see an
authorized dealer.

Emergency Key Removed

Pry Apart Key Fob Halves

Key Fob Battery Location

Battery Removal Pocket

Key Fob Battery Replacement

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

The integrated key fob contains a coin cell battery.
Do not ingest the battery; there is a chemical burn
hazard. If the coin cell battery is swallowed, it can
cause severe internal burns in just two hours and
can lead to death.

•

If you think a battery may have been swallowed or
placed inside any part of the body, seek immediate
medical attention.

•

Keep new and used batteries away from children.
If the battery compartment does not close
securely, stop using the product and keep it away
from children.

Programming And Requesting

Additional Key Fobs

Programming the key fob may be performed by an
authorized dealer.

NOTE:

•

Once a key fob is programmed to a vehicle, it cannot
be repurposed and reprogrammed to another
vehicle.

•

Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the
vehicle. Once a key fob is programmed to a vehicle,
it cannot be programmed to any other vehicle.

WARNING!

•

Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle
unattended.

•

Always remember to place the Keyless Enter ‘n
Go™ Ignition in the OFF position when exiting the
vehicle.

Duplication of key fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.

NOTE:

•

When having the Sentry Key Immobilizer system
serviced, bring all vehicle keys with you to an autho-
rized dealer.

•

Keys must be ordered to the correct key cut to
match the vehicle locks.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The sys-
tem does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is
locked or unlocked.

The system uses a key fob, keyless push button ignition
and a Radio Frequency (RF) receiver to prevent unau-
thorized vehicle operation. Therefore, only key fobs that
are programmed to the vehicle can be used to start and
operate the vehicle. The system cannot reprogram a
key fob obtained from another vehicle.

After placing the ignition in the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for
a bulb check. If the light remains on after the bulb
check, it indicates that there is a problem with the elec-
tronics. In addition, if the light begins to flash after the
bulb check, it indicates that someone attempted to
start the engine with an invalid key fob. In the event
that a valid key fob is used to start the engine but there
is an issue with the vehicle electronics, the engine will
start and shut off after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than
10 seconds), it indicates that there is a fault in the elec-
tronics. Should this occur, have the vehicle serviced as
soon as possible by an authorized dealer.

CAUTION!

The Sentry Key Immobilizer system is not compatible
with some aftermarket Remote Start systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics

page 331.

NOTE:

A key fob that has not been programmed is also consid-
ered an invalid key.

GETTING TO KNOW YOUR VEHICLE

IGNITION SWITCH

KEYLESS ENTER ‘N GO™ IGNITION

This feature allows the driver to operate the ignition
switch with the push of a button as long as the key fob
is in the passenger compartment.

The START/STOP ignition button has several operating
modes that are labeled and will illuminate when in posi-
tion. These modes are OFF, ON/RUN, and START.

The push button ignition can be placed in the following
modes:

OFF

•

The engine is stopped

•

Some electrical devices (e.g. power locks, alarm,
etc.) are still available

ON/RUN

•

Driving position

•

All electrical devices are available (e.g. climate con-
trols, heated seats, etc.)

START

•

The engine will start (when foot is on the brake
pedal)

NOTE:

•

If the ignition position does not change with a push
of the ignition button, and the instrument cluster
displays a message such as “Key Fob Not
Detected”, the key fob may have a low or depleted
battery. In this situation, a backup method can be
used to operate the ignition switch. Put the nose
side of the key fob (side opposite of the emergency
key) against the START/STOP ignition button and
push to operate the ignition switch.

•

Replacement of the key fob battery is
recommended.

WARNING!

•

When exiting the vehicle, always place the ignition
in the OFF position, remove the key fob from the
vehicle, and lock your vehicle.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

•

Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or oth-
ers could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave Keyless Enter ‘n Go™ Ignition in the ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves.
Always remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.

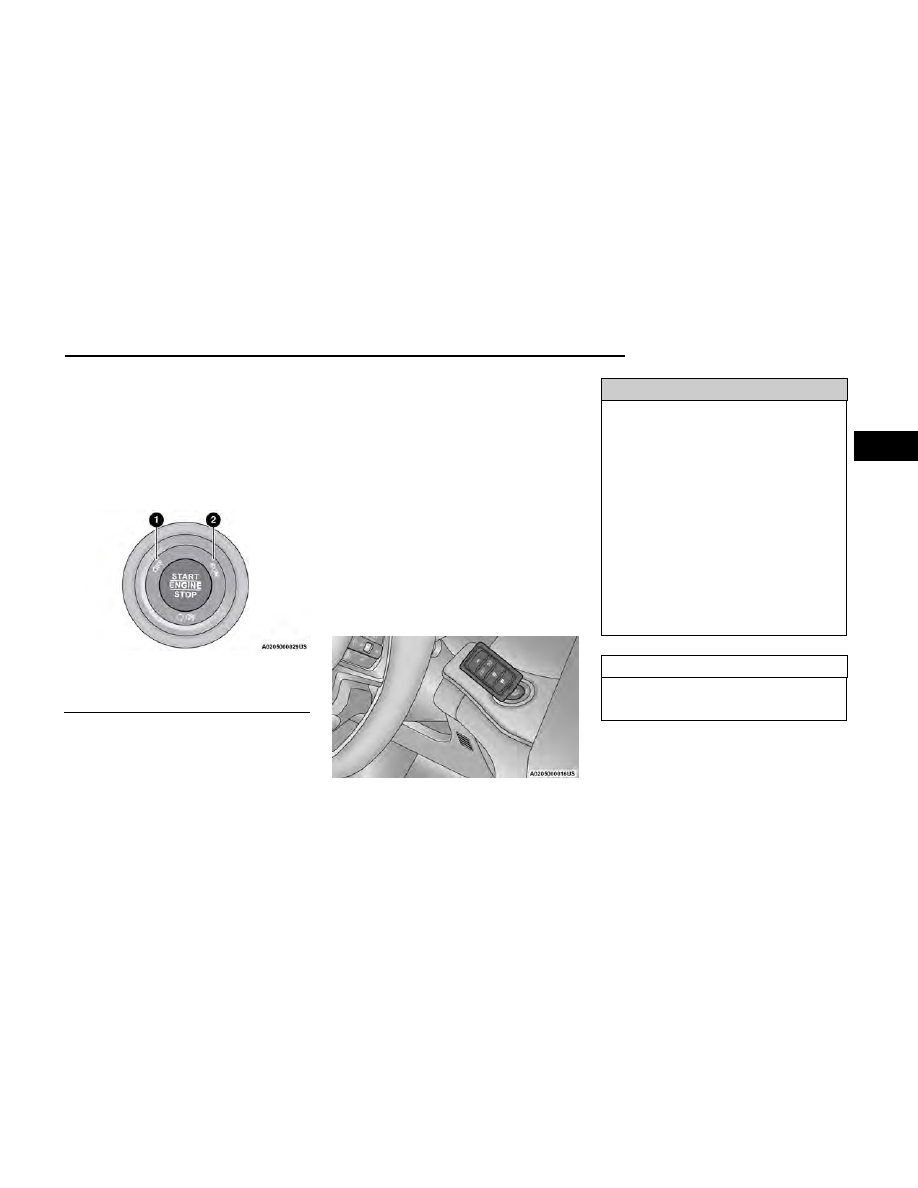

START/STOP Ignition Button

1 — OFF
2 — ON/RUN

Depleted Key Fob Battery Procedure

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

The key fob may not be detected by the vehicle Key-
less Enter ‘n Go™ system if it is located next to a
mobile phone, laptop or other electronic device, or
in the cupholders near aluminum cans; these
devices may block the key fob’s wireless signal and
prevent the Keyless Enter ‘n Go™ system from start-
ing the vehicle.

•

For more information on the engine starting proce-
dure, see

page 103.

•

When opening the driver's door and the ignition is in
the ON/RUN position (engine not running), a chime
will sound to remind you to place the ignition in the
OFF position. In addition to the chime, the message
“Ignition ON” will display in the cluster.

REMOTE START — IF EQUIPPED

This system uses the key fob to start the
engine conveniently from outside the vehicle
while still maintaining security. The system
has a range of approximately 328 ft

(100 m).

Remote Start is used to defrost windows in cold
weather, and to reach a comfortable climate in all ambi-
ent conditions before the driver enters the vehicle.

NOTE:

Obstructions between the vehicle and key fob may
reduce this range

page 331.

WARNING!

•

Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains carbon mon-
oxide which is odorless and colorless. Carbon mon-
oxide is poisonous and can cause serious injury or
death when inhaled.

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

HOW TO USE REMOTE START

Push and release the Remote Start button on the key
fob twice within five seconds. The vehicle doors will
lock, the parking lights will flash, and the horn will chirp
twice (if programmed). Then, the engine will start, and
the vehicle will remain in the Remote Start mode for a
15 minute cycle. Pushing the Remote Start button a
third time shuts the engine off.

NOTE:

•

If the Remote Start button on the key fob is pushed
too rapidly during activation, the vehicle may not
start.

•

With Remote Start, the engine will only run for
15 minutes.

•

Remote Start can only be used twice.

•

If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.

•

The parking lights will turn on and remain on during
Remote Start mode.

•

Headlight animation (if equipped) will occur when
Remote Start is activated, if “Headlight Illumination
On Approach” is enabled within Uconnect Settings.

•

For security, power window and power sunroof
operation (if equipped) are disabled when the
vehicle is in the Remote Start mode.

•

The ignition must be placed in the ON/RUN position
before the Remote Start sequence can be repeated
for a third cycle.

All of the following conditions must be met before the
engine will remote start:

•

Gear selector in PARK

•

Doors closed

•

Hood closed

•

Liftgate closed

•

Hazard switch off

•

Brake switch inactive (brake pedal not pressed)

•

Battery at an acceptable charge level

•

System not disabled from previous Remote Start
event

•

Vehicle Security Light is flashing

•

Ignition in OFF position

•

Fuel level meets minimum requirement

•

Vehicle Security system is not signaling an intrusion

•

Malfunction Indicator Light is not illuminated

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains carbon mon-
oxide (CO) which is odorless and colorless. Carbon
monoxide is poisonous and can cause serious
injury or death when inhaled.

•

Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

TO EXIT REMOTE START MODE

To drive the vehicle after starting the Remote Start sys-
tem, either push and release the unlock button on the
key fob to unlock the doors, or unlock the vehicle using
Keyless Enter ‘n Go™ — Passive Entry via the door
handles, and disarm the Vehicle Security system
(if equipped). Then, prior to the end of the 15 minute
cycle, push and release the START/STOP ignition
button.
The Remote Start system will turn the engine off if the
Remote Start button on the key fob is pushed again, or
if the engine is allowed to run for the entire 15 minute
cycle. Once the ignition is placed in the ON/RUN posi-
tion, the climate controls will resume the previously set
operations (temperature, blower control, etc.).

NOTE:

•

To avoid unintentional shutdowns, the system will
disable for two seconds after receiving a valid
Remote Start request.

•

For vehicles equipped with the Keyless Enter ‘n Go™
— Passive Entry feature, the message “Remote Start
Active — Push Start Button” will display in the instru-
ment cluster display until you push the START/STOP
ignition button.

REMOTE START FRONT DEFROST
ACTIVATION — IF EQUIPPED

When Remote Start is active, and the outside ambient
temperature is 40°F (4.5°C) or below, the system will
automatically activate front defrost for 15 minutes or
less. The timing is dependent on the ambient tempera-
ture. Once the timer expires, the system will automati-
cally adjust the settings depending on ambient condi-
tions. See “Remote Start Comfort Systems —
If Equipped” in the next section for detailed operation.

REMOTE START COMFORT
SYSTEMS — IF EQUIPPED

When Remote Start is activated, the front and rear
defrost will automatically turn on in cold weather. The
heated steering wheel and driver heated seat feature
will turn on if selected in the Comfort menu screen
within Uconnect Settings

page 169. In warm

weather, the driver vented seat feature will automati-
cally turn on when Remote Start is activated, if pro-
grammed in the Comfort menu screen. The vehicle will
adjust the climate control settings depending on the
outside ambient temperature.

Automatic Temperature Control (ATC)

The climate controls will automatically adjust to the
optimal temperature and mode settings depending on
the outside ambient temperature. This will occur until
the ignition is placed in the ON/RUN position where the
climate controls will resume their previous settings.

For more information on ATC and climate control set-
tings, see

page 57.

NOTE:

These features will stay on through the duration of
Remote Start until the ignition is placed in the ON/RUN
position. The climate control setting will change, and
exit automatic operation, if manually adjusted by the
driver while the vehicle is in Remote Start mode. This
includes the OFF button on the climate controls, which
will turn the system off.

REMOTE START WINDSHIELD
WIPER DE-ICER ACTIVATION —
IF EQUIPPED

When Remote Start is active and the outside ambient
temperature is less than 33°F (0.6°C), the Windshield
Wiper De-Icer will activate. Exiting Remote Start will
resume its previous operation. If the Windshield Wiper
De-Icer was active, the timer and operation will con-
tinue

page 169.

REMOTE START ABORT MESSAGE

One of the following messages will display in the instru-
ment cluster display if the vehicle fails to remote start
or exits Remote Start prematurely:

•

Remote Start Canceled — Door Open

•

Remote Start Canceled — Hood Open

•

Remote Start Canceled — Liftgate Open

•

Remote Start Canceled — Fuel Low

•

Remote Start Canceled — Time Expired

•

Remote Start Canceled — System Fault

•

Remote Start Disabled — Start Vehicle to Reset

The instrument cluster display message stays active
until the ignition is placed in the ON/RUN position.

GETTING TO KNOW YOUR VEHICLE

VEHICLE SECURITY SYSTEM —
IF EQUIPPED

The Vehicle Security system monitors the vehicle doors,
hood, liftgate, and the Keyless Enter ‘n Go™ Ignition for
unauthorized operation. While the Vehicle Security sys-
tem is armed, interior switches for door locks and lift-
gate release handle are disabled. If something triggers
the alarm, the Vehicle Security system will provide the
following audible and visible signals:

•

The horn will pulse

•

The turn signals will flash

•

The Vehicle Security Light in the instrument cluster
will flash

TO ARM THE SYSTEM

Follow these steps to arm the Vehicle Security system:

1. If any doors, windows, or the sunroof are open,

close them.

2. Make sure the vehicle’s ignition is placed in the OFF

position.

○

Make sure the vehicle’s keyless ignition system
is OFF.

3. Perform one of the following methods to lock the

vehicle:

○

Push lock on the interior power door lock switch
with the driver and/or passenger door open.

○

Push the lock button on the exterior Passive
Entry door handle with a valid key fob available in
the same exterior zone

page 27.

○

Push the lock button on the key fob.

When the Vehicle Security system is armed, the Vehicle
Security Light (located in the lower right portion of the
instrument cluster display) will begin to flash every two
seconds until it is disarmed.

NOTE:

If the system is armed by pushing the lock button on
the interior door panel, the Vehicle Security Light will
flash rapidly for about 15 seconds once the door is
closed, then slow down to every two seconds.

TO DISARM THE SYSTEM

The Vehicle Security system can be disarmed using any
of the following methods:

•

Push the unlock button on the key fob.

•

Grab the Passive Entry door handle to unlock the
door

page 27.

•

Cycle the ignition out of the OFF position to disarm
the system.

NOTE:

•

The driver's door key cylinder cannot arm or disarm
the Vehicle Security system. Use of the door key cyl-
inder when the alarm is armed will sound the alarm
when the door is opened.

•

The Vehicle Security system remains armed when
the power liftgate is opened using the liftgate button
on the key fob. If someone enters the vehicle
through the opened liftgate, then opens any door
from the inside, the alarm will sound.

•

If Passive Entry (if equipped) is used to unlock the
liftgate, the Vehicle Security system is disarmed and
the rest of the vehicle doors will remain locked
unless all doors are set to unlock on first press
within Uconnect Settings.

•

When the Vehicle Security system is armed, the inte-
rior power door lock switches will not unlock the
doors.

The Vehicle Security system is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security system will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security system.

If the Vehicle Security system is armed and the battery
becomes disconnected, the Vehicle Security system will
remain armed when the battery is reconnected; the
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security system.

REARMING OF THE SYSTEM

If something triggers the alarm and no action is taken
to disarm it, the Vehicle Security system will turn the
horn off after a 29 second cycle (with five seconds
between cycles and up to eight cycles if the trigger
remains active) and then rearm itself.

SECURITY SYSTEM MANUAL
OVERRIDE

The Vehicle Security system will not arm if you lock the
doors using the emergency lock lever

page 26.

TAMPER ALERT

If something has triggered the Vehicle Security system
in your absence, the horn will sound three times and
the exterior lights will blink three times when you dis-
arm the Vehicle Security system.

GETTING TO KNOW YOUR VEHICLE

DELUXE VEHICLE SECURITY SYSTEM —
IF EQUIPPED

The Deluxe Vehicle Security system monitors the doors,
hood latch, and liftgate for unauthorized entry and the
ignition switch for unauthorized operation. The system
also includes a dual function intrusion sensor and
vehicle tilt sensor. The intrusion sensor monitors the
vehicle interior for motion. The vehicle tilt sensor moni-
tors the vehicle for any tilting actions (tow away, tire
removal, ferry transport, etc.).

If a perimeter violation triggers the security system, the
horn will sound for 29 seconds, and the exterior lights
will flash followed by approximately five seconds of no
activity. This will continue for eight cycles if no action is
taken to disarm the system.

TO ARM THE SYSTEM

Follow these steps to arm the security system:

1. If any doors, windows, or the sunroof (if equipped)

are open, close them.

2. Make sure the vehicle ignition system is OFF.

3. Perform one of the following methods to lock the

vehicle:

○

Push lock on the interior power door lock switch
with the driver and/or passenger door open.

○

Push the lock button on the exterior Passive
Entry door handle with a key fob available in the
same exterior zone

page 27.

○

Push the lock button on the key fob.

NOTE:

•

When armed, the interior motion sensor detects
movement within the vehicle's interior, including
moving objects (i.e., people and pets) and air cur-
rents through open windows or the sunroof. The
windows and sunroof should be closed, and moving
objects should not be left in the vehicle when the
intrusion detection is armed, otherwise false alarms
can occur.

•

Once the security system is armed, it remains in
that state until you disarm it by following either of
the disarming procedures described. If a power loss
occurs after arming the system, you must disarm
the system after restoring power to prevent alarm
activation.

•

The ultrasonic intrusion sensor (motion detector)
actively monitors your vehicle every time you arm
the Vehicle Security system. If you prefer, you can
turn off the ultrasonic intrusion sensor when arming
the Vehicle Security system. To do so, push the lock
button on the key fob three times within 15 seconds
of arming the system (while the Vehicle Security
Light is flashing rapidly). The vehicle will remain
locked but will disable the alarm in the case of
repeated false alarms due to ambient conditions.

TO DISARM THE SYSTEM

The Vehicle Security system can be disarmed using any
of the following methods:

•

Push the unlock button on the key fob.

•

Grab the Passive Entry door handle to unlock the
door

page 27.

•

Cycle the vehicle ignition system out of the OFF posi-
tion by pushing the START/STOP ignition button
(requires at least one valid key fob in the vehicle).

NOTE:

•

The driver's door key cylinder and the liftgate button
on the key fob cannot arm or disarm the Vehicle
Security system.

•

The Vehicle Security system remains armed during
power liftgate entry. Pushing the liftgate button will
not disarm the Vehicle Security system. If someone
enters the vehicle through the opened liftgate, then
opens any door, the alarm will sound.

•

When the Vehicle Security system is armed, the inte-
rior power door lock switches will not unlock the
doors.

•

The Vehicle Security system is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security system will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security system.

If the Vehicle Security system is armed and the battery
becomes disconnected, the Vehicle Security system will
remain armed when the battery is reconnected; the
exterior lights will flash and the horn will sound. If this
occurs, disarm the Vehicle Security system.

GETTING TO KNOW YOUR VEHICLE

SECURITY SYSTEM MANUAL
OVERRIDE

The Vehicle Security system will not arm if you lock the
doors using the emergency lock lever

page 25.

DOORS

MANUAL DOOR LOCKS

The front doors can be manually unlocked with a single
pull of the inside door handle. The driver’s door can
also be manually unlocked by inserting the emergency
key into the lock cylinder on the outside door handle.

NOTE:

When using the emergency key to unlock the outside
door handle, make sure the handle of the emergency
key is pointing toward the rear of the vehicle. This will
ensure the handle can be pulled all the way out while
the key is in the lock cylinder.

The rear doors can be manually unlocked with a double
pull of the inside door handle.

Each door can be manually locked by inserting the
emergency key into the emergency lock lever and slid-
ing the lever upward. The emergency lock lever is
located on the door latch face of each door.

NOTE:

•

The emergency lock lever is only accessible when
the door is open.

•

Manually locking the vehicle will not arm the Vehicle
Security system.

WARNING!

•

For personal security and safety in the event of a
collision, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.

•

When exiting the vehicle, always make sure the
ignition is in the OFF position, remove the key fob
from the vehicle and lock your vehicle.

•

Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a num-
ber of reasons. A child or others could be seriously
or fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.

(Continued)

WARNING!

•

Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the Keyless Enter ‘n Go™ Ignition in the
ON/RUN position. A child could operate power win-
dows, other controls, or move the vehicle.

POWER DOOR LOCKS

The power door lock buttons are located on each front
door panel. Push the lock button to lock all doors and
liftgate, or the unlock button to unlock all doors and
liftgate.

When the doors are locked, an indicator light in the lock
button will illuminate.

The driver’s door will unlock automatically if the key fob
is detected inside the vehicle when the door lock button
on the front door panel is used to lock the door, then
the door is closed. The horn will also chirp to alert the
driver. This will occur for two attempts. On the third
attempt, the doors will lock even if the key fob is inside.

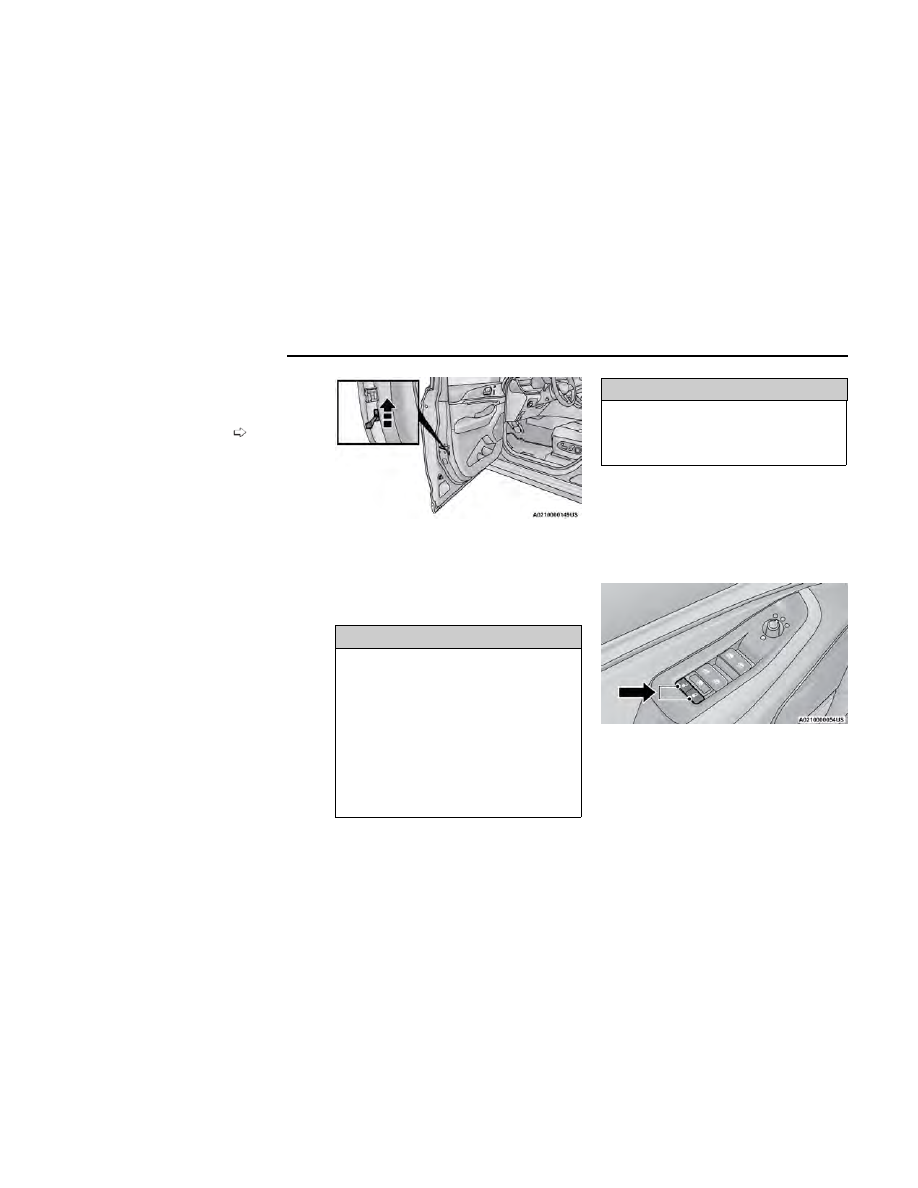

Emergency Lock Lever (Driver’s Door Shown)

Power Door Lock Switches

GETTING TO KNOW YOUR VEHICLE

NOTE:

If the key fob is located next to a mobile phone, laptop,
or other electronic device, the wireless signal may get
blocked, and the driver’s door may not unlock
automatically.

If the door lock button is pushed while the ignition is in
the ON/RUN position and the driver's door is open, the
doors will not lock.

Rear Passenger Power Door Locks

Power door lock buttons are located on each rear door
trim panel. Push the lock button to lock the rear door or
push the unlock button to unlock the rear door.

KEYLESS ENTER ‘N GO™ —
PASSIVE ENTRY

The Passive Entry system is an enhancement to the
vehicle’s Remote Keyless Entry (RKE) system and a
feature of Keyless Enter ‘n Go™. This feature allows you
to lock and unlock the vehicle’s door(s) without having
to push the key fob lock or unlock buttons.

If equipped, the rear doors will also have Passive Entry
capabilities.

NOTE:

•

Passive Entry may be programmed on/off through
Uconnect Settings

page 169.

•

The key fob may not be detected by the vehicle Pas-
sive Entry system if it is located next to a mobile
phone, laptop or other electronic device; these
devices may block the key fob's wireless signal and
prevent the Passive Entry handle from locking/
unlocking the vehicle.

•

Passive Entry unlock initiates illuminated approach
(low beams, license plate lamp, parking lights, door
handle pocket lights [if equipped]) for a preset dura-
tion of 0, 30, 60 or 90 seconds. Passive Entry
unlock also initiates two flashes of the turn signal
lights.

•

If wearing gloves, if it has been raining/snowing, or
there is salt/dirt covering the Passive Entry door
handle, the unlock and lock sensitivity can be
affected, resulting in a slower response time.

•

The doors may lock and unlock when water is
sprayed on the Passive Entry door handles, if the
key fob is located outside of the vehicle within 5 ft
(1.5 m) of the handle.

•

Passive Entry lock initiates one horn chirp and one
flash of turn signal lights. These settings can be pro-
grammed on/off within Uconnect Settings

page 169.

•

If the vehicle is unlocked by Passive Entry and no
door is opened within 60 seconds, the vehicle will
relock and will rearm the Vehicle Security system
(if equipped).

To Unlock From The Driver Or Passenger Side

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the door handle, grab the handle to unlock the vehicle.
Grabbing the driver’s door handle will unlock the driver
door automatically. Grabbing the front passenger door
handle (or a rear handle when equipped with four-door
Passive Entry) will unlock all doors and the liftgate
automatically.

NOTE:

•

Either the driver door only or all doors will unlock
when you grab hold of the front driver’s door handle,
depending on the selected setting in the Uconnect
system

page 169.

•

All doors will unlock when the front passenger (or a
rear door when equipped with four-door Passive
Entry) door handle is grabbed regardless of the driv-
er’s door unlock preference setting.

Frequency Operated Button Integrated Key
(FOBIK-Safe)

To minimize the possibility of unintentionally locking a
Passive Entry key fob inside your vehicle, the Passive
Entry system is equipped with an automatic door
unlock feature which will function if the ignition switch
is in the OFF position.

Grab The Door Handle To Unlock

GETTING TO KNOW YOUR VEHICLE

There are five situations that trigger a FOBIK-Safe
search in any Passive Entry vehicle:

•

A lock request is made by a valid Passive Entry key
fob while a door is open.

•

A lock request is made by the Passive Entry door
handle while a door is open.

•

A lock request is made by the door panel switch
while the door is open.

•

When the Vehicle Security system is in pre-arm or
armed status and the liftgate transitions from
opened to closed.

•

When the liftgate transitions from open to closed
and Remote Start is active.

When any of these situations occur, after all open doors
are shut, the FOBIK-Safe search will be executed. If it
detects a Passive Entry key fob inside the vehicle, the
vehicle will unlock and alert the customer.

NOTE:

The vehicle will only unlock the doors when a valid Pas-
sive Entry key fob is detected inside the vehicle. The
vehicle will not unlock the doors when any of the follow-
ing conditions are true:

•

The doors are manually locked using the emergency
lock lever.

•

Three attempts are made to lock the doors using
the door panel switch and then the doors are
closed.

•

There is a valid Passive Entry key fob outside the
vehicle within 5 ft (1.5 m) of a Passive Entry door
handle.

To Lock The Vehicle’s Doors And Liftgate

With one of the vehicle’s Passive Entry key fobs within
5 ft (1.5 m) of a Passive Entry door handle, touch the
lock icon on the door handle to lock all four doors and
liftgate.

NOTE:

Do NOT grab the door handle when touching the lock
icon. This could unlock the door(s).

NOTE:

•

After touching the door handle lock icon, you must
wait two seconds before you can lock or unlock the
doors using any Passive Entry door handle. This is
done to allow you to check if the vehicle is locked by
pulling the door handle, without the vehicle unlocking.

•

If Passive Entry is disabled using the Uconnect Set-
tings, the key fob protection described in "Frequency
Operated Button Integrated Key (FOBIK-Safe)"
remains active/functional.

•

The Passive Entry system will not operate if the key
fob battery is depleted.

To Unlock/Enter The Liftgate

The liftgate Passive Entry unlock feature is built into the
electronic liftgate release button. With a valid Passive
Entry key fob within 5 ft (1.5 m) of the liftgate, push the
electronic liftgate release button for a power open on
vehicles equipped with Power Liftgate. Pull the electronic
liftgate handle and lift for Manual Liftgate vehicles.

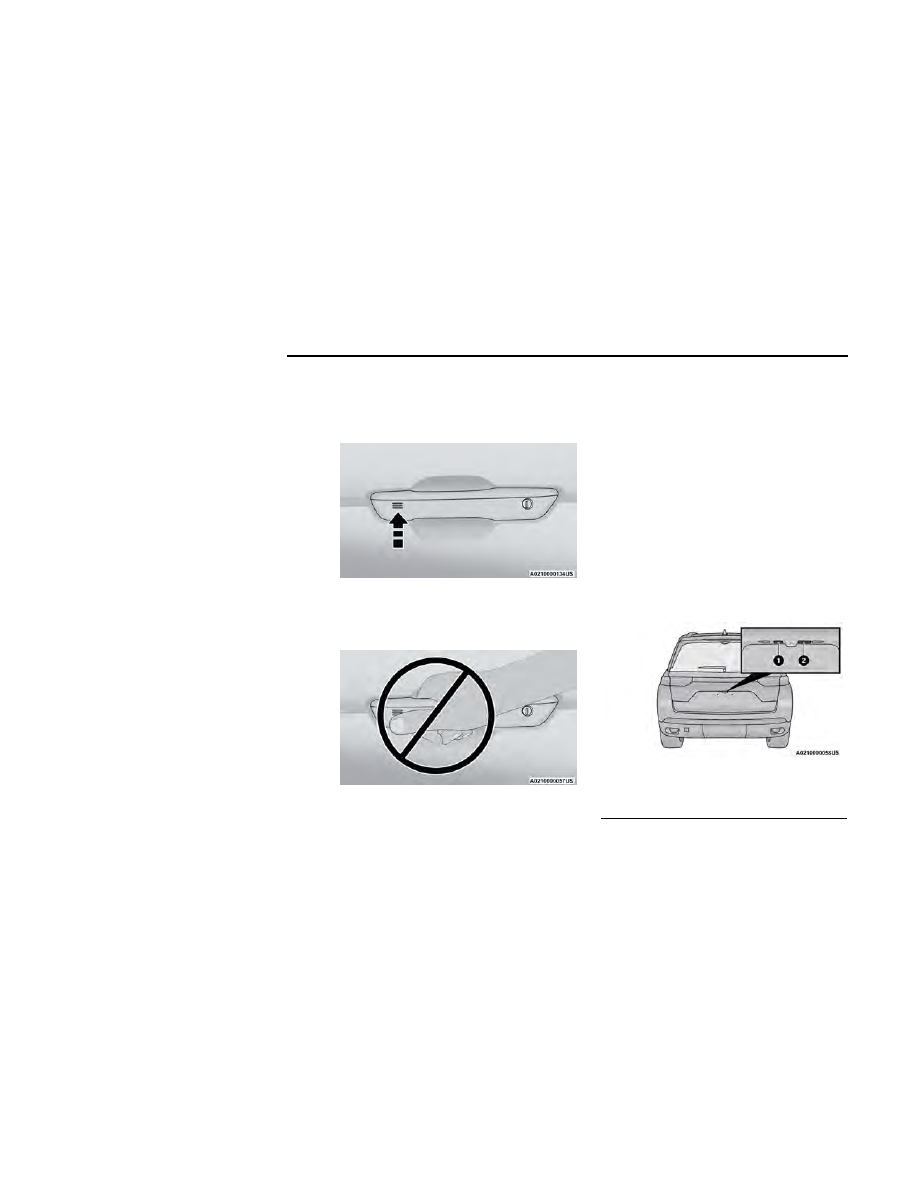

Touch The Door Handle Lock Icon To Lock

Do NOT Grab The Door Handle When Locking

Electronic Liftgate Handle

1 — Passive Entry Lock Button
2 — Electronic Liftgate Release Button

GETTING TO KNOW YOUR VEHICLE

To Lock The Liftgate

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the liftgate, push the Passive Entry lock button located
on the outside liftgate door handle.

NOTE:

The liftgate Passive Entry lock button will lock all doors
and the liftgate

page 331.

AUTOMATIC UNLOCK DOORS ON
EXIT

The doors will unlock automatically on vehicles with
power door locks after the following sequence of
actions:

1. The Automatic Unlock Doors On Exit feature is

enabled within Uconnect Settings

page 169.

2. All doors are closed.

3. The gear selector was not in PARK, then is placed in

PARK.

4. Any door is opened.

AUTOMATIC DOOR LOCKS —
IF EQUIPPED

The auto door lock feature default condition is enabled.
When enabled, the door locks will lock automatically
when the vehicle speed exceeds 15 mph (24 km/h).
The auto door lock feature is enabled or disabled by an
authorized dealer per written request of the customer.
Please see an authorized dealer for service.

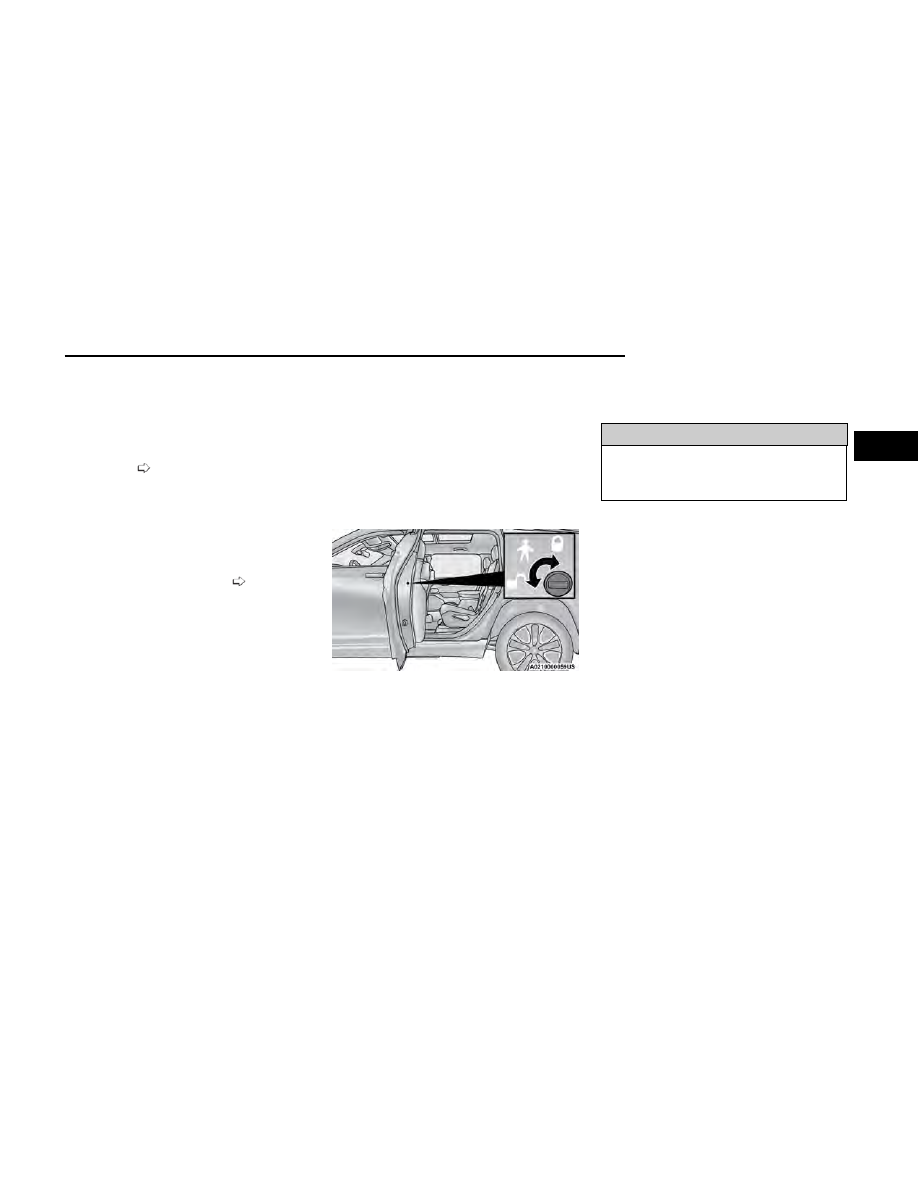

CHILD-PROTECTION DOOR LOCK
SYSTEM — REAR DOORS

To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a
Child-Protection Door Lock system.

To use the system, open each rear door, use a flat-
blade screwdriver (or emergency key) and rotate the
dial to the lock or unlock position. When the system on
a door is engaged, that door can only be opened by
using the outside door handle even if the inside door
lock is in the unlocked position.

NOTE:

•

When the Child-Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door
lock is in the unlocked position.

•

After disengaging the Child-Protection Door Lock
system, always test the door from the inside to
make certain it is in the unlocked position.

•

After engaging the Child-Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the locked position.

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside with the Child-Protection locks
engaged (locked).

NOTE:

Always use this device when carrying children. After
engaging the child lock on both rear doors, check for
effective engagement by trying to open a door with the
internal handle. Once the Child-Protection Door Lock
system is engaged, it is impossible to open the doors
from inside the vehicle. Before getting out of the
vehicle, be sure to check that there is no one left
inside.

STEERING WHEEL

MANUAL TILT/TELESCOPING
STEERING COLUMN — IF EQUIPPED

This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping lever
is located below the steering wheel at the end of the
steering column.

Child-Protection Door Lock Function

GETTING TO KNOW YOUR VEHICLE

To unlock the steering column, push the lever down-
ward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as
desired. To lengthen or shorten the steering column,
pull the steering wheel outward or push it inward as
desired. To lock the steering column in position, push
the lever upward until fully engaged.

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driving
with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.

POWER TILT/TELESCOPING
STEERING COLUMN — IF EQUIPPED

This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The power tilt/telescoping
steering column control is located below the multifunc-
tion lever on the steering column.

Use the four-way control to adjust the steering column.

NOTE:

For vehicles equipped with Driver Memory Settings, use
the key fob or the memory switch on the driver's door
trim panel to return the tilt/telescopic steering column
to saved positions

page 31.

WARNING!

HEATED STEERING WHEEL —
IF EQUIPPED

The steering wheel contains a heating ele-
ment that helps warm your hands in cold
weather. The heated steering wheel has only
one temperature setting. Once the heated

steering wheel has been turned on, it will stay on until
the operator turns it off. The heated steering wheel may
not turn on when it is already warm.

The heated steering wheel button is located on the cen-
ter of the instrument panel below the radio screen, and
within the Comfort screen of the touchscreen.

•

Press the heated steering wheel button once to turn
the heating element on.

•

Press the heated steering wheel button a second
time to turn the heating element off.

NOTE:

The engine must be running for the heated steering
wheel to operate.
For information on use with the Remote Start system,
see

page 23.

WARNING!

•

Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabe-
tes, spinal cord injury, medication, alcohol use,
exhaustion, or other physical conditions must exer-
cise care when using the steering wheel heater. It
may cause burns even at low temperatures, espe-
cially if used for long periods.

•

Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steer-
ing wheel covers of any type and material. This
may cause the steering wheel heater to overheat.

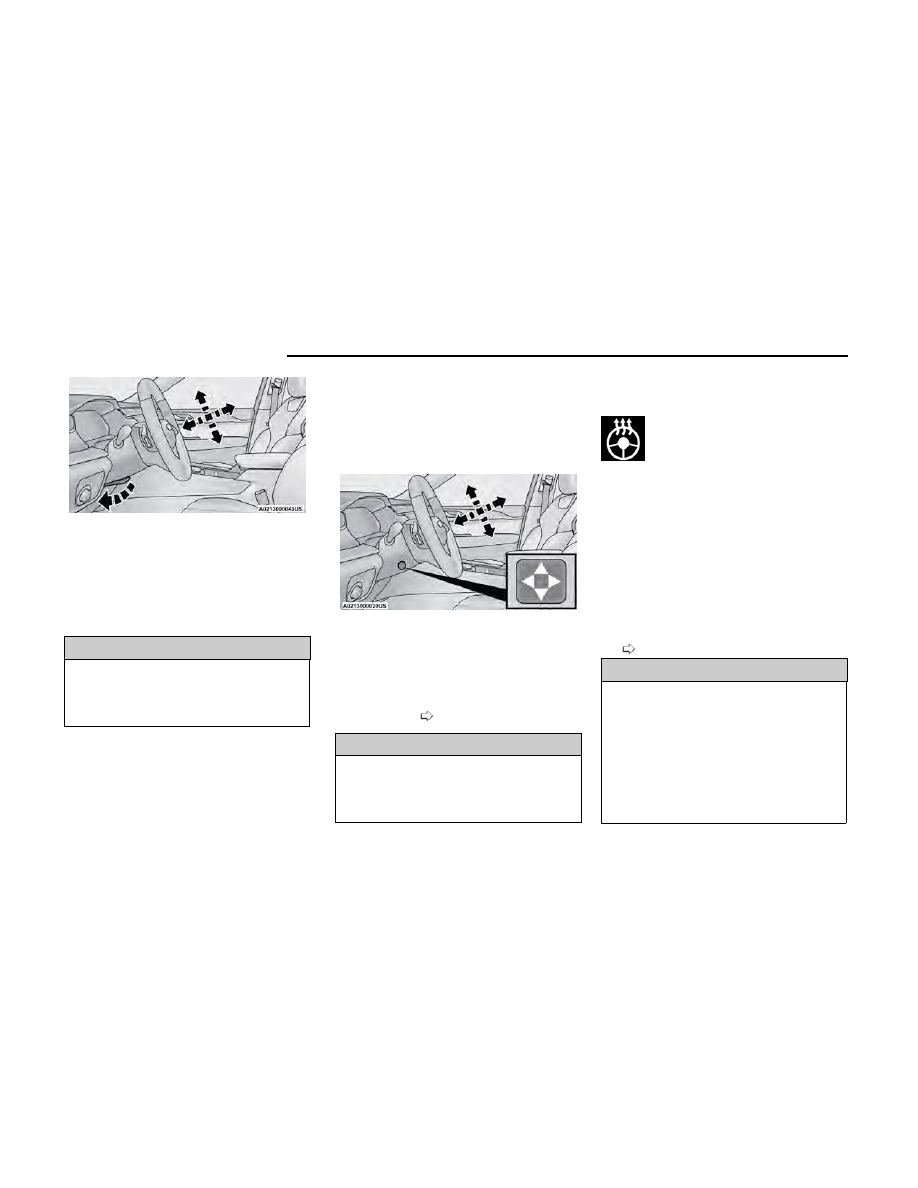

Manual Tilt/Telescoping Steering Column Handle

Power Tilt/Telescoping Steering Control Location

GETTING TO KNOW YOUR VEHICLE

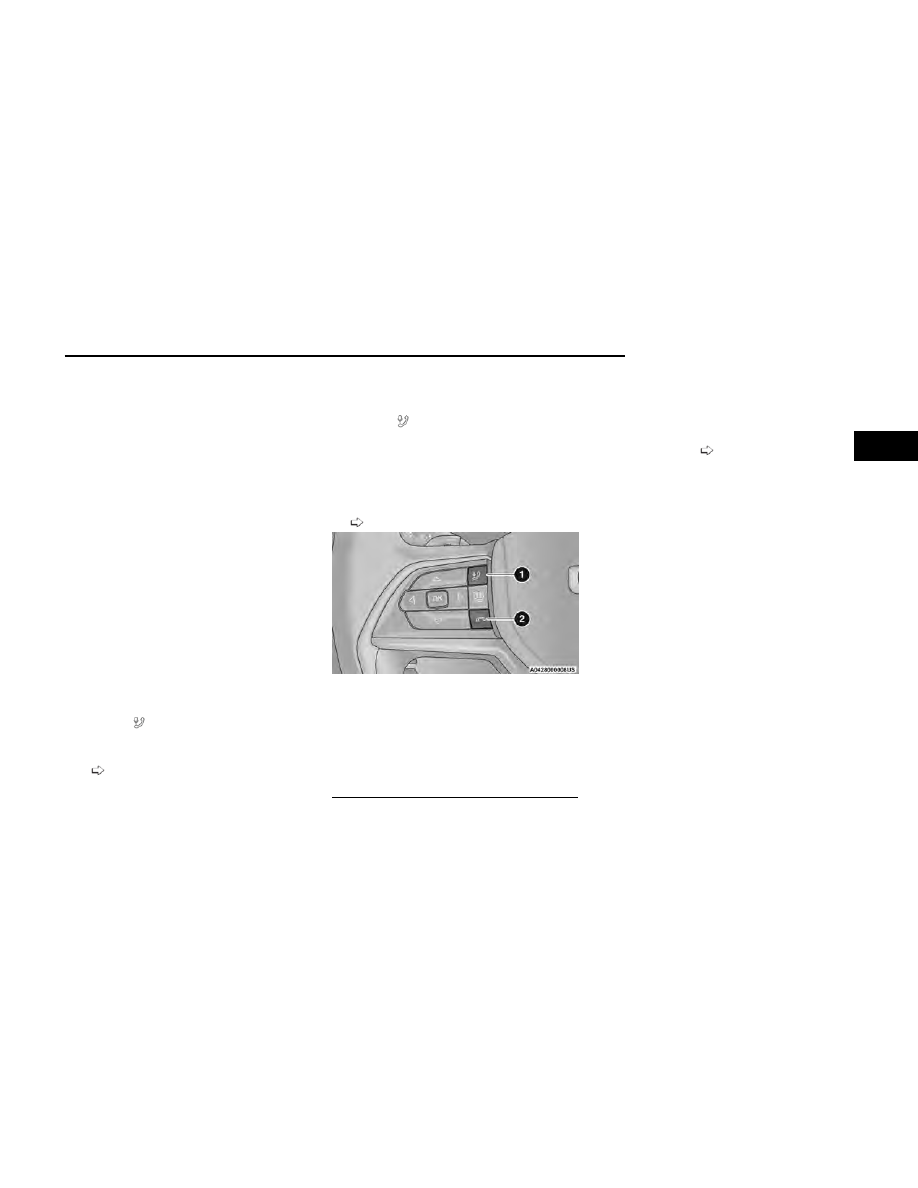

UCONNECT VOICE RECOGNITION QUICK
TIPS — IF EQUIPPED

INTRODUCING VOICE RECOGNITION

Start using Uconnect Voice Recognition with these help-
ful quick tips. These key Voice Commands and tips will
help you control your vehicle’s Voice Recognition (VR)
system.

BASIC VOICE COMMANDS

The following basic Voice Commands can be given at
any point while using your Uconnect system.

Push the VR button on the steering wheel or say the
vehicle’s Wake Up word, “Hey Uconnect” or “Hey
Jeep®”. The factory default Wake Up word is set to “Hey
Uconnect” and can be reprogrammed through the
Uconnect Settings. After the beep, say:

•

“

Cancel

” to stop a current voice session.

•

“

Help

” to hear a list of suggested Voice Commands.

•

“

Repeat

” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice
Recognition system’s status.

GET STARTED

The VR button

is used to activate/deactivate your

Voice Recognition system. You can also use the sys-
tem’s “Wake Up” word to activate voice recognition. The
“Wake Up” word can be set through the Uconnect Set-
tings

page 169.

Helpful hints for using Voice Recognition:

•

Reduce background noise. Wind noise and passen-
ger conversations are examples of noise that may
impact recognition.

•

Speak clearly at a normal pace and volume while
facing straight ahead.

•

Each time you give a Voice Command, first push the
VR button

or say the “Wake Up” word, wait until

after the beep, then say your Voice Command.

•

You can interrupt the help message or system
prompts by pushing the VR button and saying a
Voice Command from the current category.

•

You can also interrupt the help message or system
prompts by speaking. This feature is called “barge-
in” and can be set through the Uconnect Settings

page 169.

ADDITIONAL INFORMATION

© 2023 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. SiriusXM® and
all related marks and logos are trademarks of
SiriusXM® Radio Inc.

page 331.

For Uconnect system support, call 1-877-855-8400
(24 hours a day 7 days a week) or visit
DriveUconnect.com (US) or DriveUconnect.ca (Canada).

DRIVER AND PASSENGER MEMORY
SETTINGS — IF EQUIPPED

This feature allows the driver, and if equipped, also the
front passenger to save up to two different memory
profiles for easy recall through a memory switch. Each
memory profile saves desired position settings for the
following features:

Driver’s Side

•

Seat position

•

Easy Entry/Exit seat (if equipped)

•

Side mirrors

•

Power tilt and telescopic steering column
(if equipped)

•

A set of desired radio station presets

Passenger’s Side (If Equipped)

•

Seat Position

Uconnect Voice Command Buttons

1 — For Vehicles Equipped With Navigation: Push The
Voice Recognition Button To Begin Radio, Media, Navi-
gation, Climate, Start Or Answer A Phone Call, And Send
Or Receive A Text
1 — For Vehicles Not Equipped With Navigation: Push
The Phone Button To Answer An Incoming Phone Call
2 — Push The Hang Up Button To End A Call Currently In
Progress

GETTING TO KNOW YOUR VEHICLE

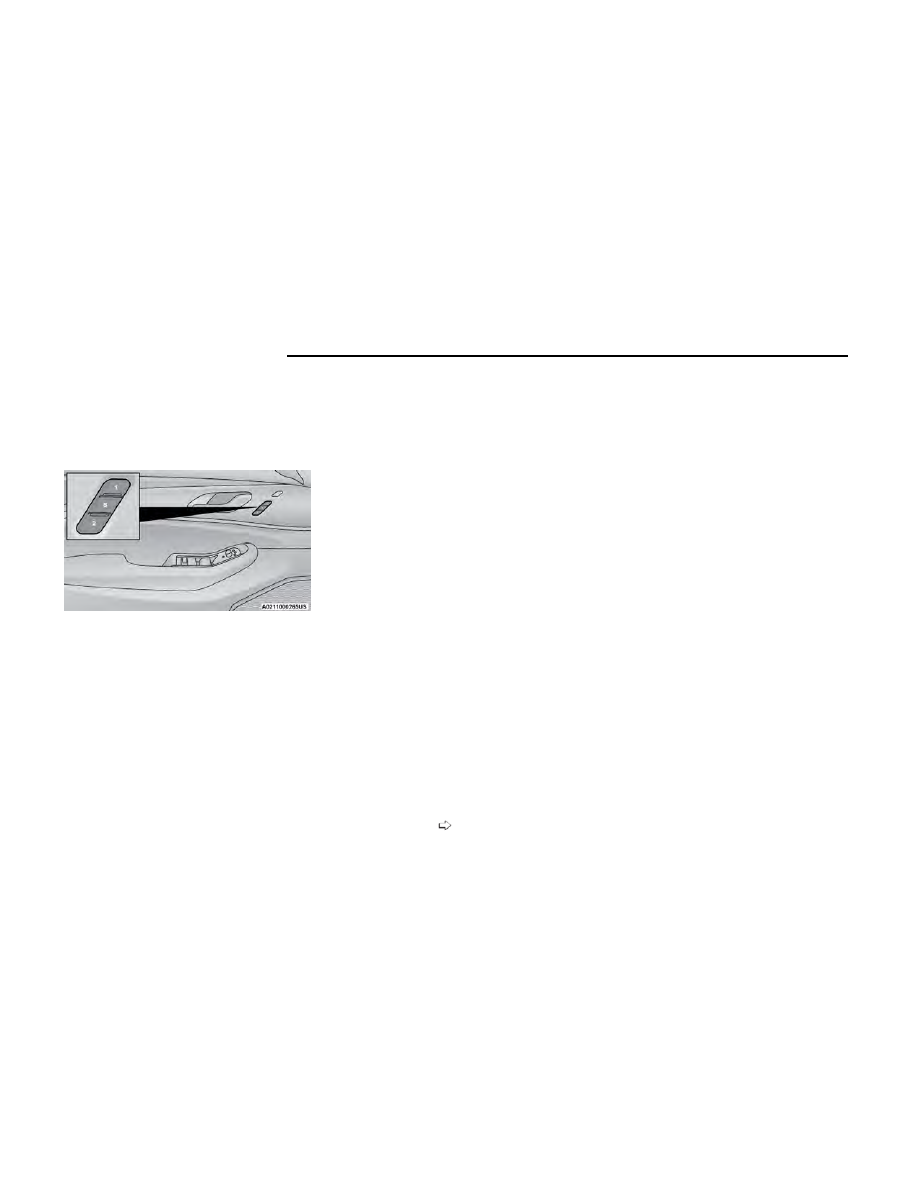

The memory settings switches are located on the front
door panels, next to the door handle, and consists of
three buttons:

•

The set (S) button, which is used to activate the
memory save function.

•

The (1) and (2) buttons which are used to recall
either of two saved memory profiles.

NOTE:

•

Your vehicle is equipped with two key fobs, each can
be linked to either driver’s side memory position
1 or 2.

•

Front passenger memory settings cannot be linked
to a key fob.

PROGRAMMING THE MEMORY
FEATURE

To create a new memory profile, perform the following:

NOTE:

Saving a new memory profile will erase the selected
profile from memory.

1. Place the vehicle’s ignition in the ON/RUN position

(do not start the engine).

2. Adjust all memory profile settings to desired prefer-

ences (i.e., seat, side mirror, power tilt/telescopic
steering column [if equipped], and radio station
presets).

3. Push and release the set (S) button on the memory

switch.

4. Within five seconds, push and release either of the

memory buttons (1) or (2). The instrument cluster
display will indicate which memory position has
been set.

NOTE:

Memory profiles can be set without the vehicle in PARK,
but the vehicle must be below 5 mph (8 km/h) to recall
a memory profile.

LINKING AND UNLINKING THE KEY
FOB TO MEMORY

Your key fobs can be programmed to recall one of two
saved driver’s side memory profiles.

NOTE:

Before programming your key fobs you must select the
“Personal Settings Linked To Key Fob” feature through
the Uconnect Settings

page 169.

To program your key fobs, perform the following:

1. Place the vehicle’s ignition in the OFF position.

2. Select a desired driver’s side memory profile, 1 or 2.

3. Once the profile has been recalled, push and

release the set (S) button on the memory switch.

4. Within five seconds, push and release button (1) or

(2) accordingly. “Memory Profile Set” (1 or 2) will
display in the instrument cluster.

5. Push and release the lock button on the key fob

within 10 seconds.

NOTE:

Your key fobs can be unlinked from your driver’s side
memory settings by pushing the set (S) button, and
within 10 seconds, pushing the unlock button on the
key fob.

MEMORY POSITION RECALL

NOTE:

Memory Recall is available when not in PARK, if the
vehicle speed is below 5 mph (8 km/h).

•

To recall a memory settings profile using the
memory switches, push memory button (1) or (2) on
the memory switch.

•

To recall the driver’s side memory settings using the
key fob, push the unlock button on the key fob
linked to memory position 1 or 2.

A recall can be canceled by pushing any of the memory
buttons during a recall (S, 1, or 2), or by pushing any of
the seat adjustment switches. When a recall is can-
celed, the seat and power tilt/telescopic steering col-
umn (if equipped) will stop moving. A delay of one sec-
ond will occur before another recall can be selected.

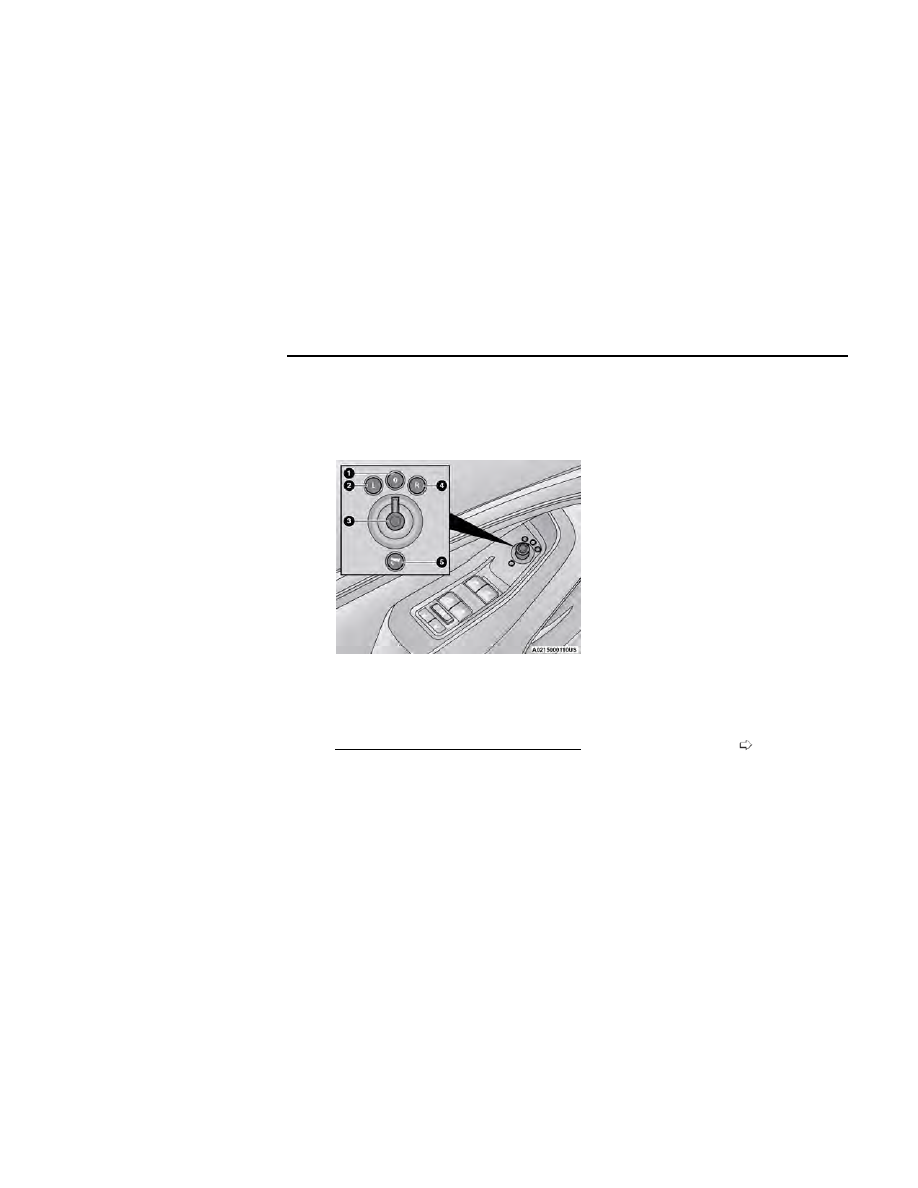

Memory Setting Buttons

GETTING TO KNOW YOUR VEHICLE

SEATS

Seats are a part of the Occupant Restraint system of
the vehicle.

WARNING!

•

It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

MANUAL ADJUSTMENT FRONT
SEATS — IF EQUIPPED

WARNING!

•

Adjusting a seat while the vehicle is moving is dan-
gerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not
be adjusted properly and you could be injured.
Adjust the seat only while the vehicle is parked.

•

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.

Manual Front Passenger Seat

Forward/Rearward Adjustment

Some models may be equipped with a manual front
passenger seat. The passenger seat can be adjusted
forward or rearward by using a bar located by the front
of the seat cushion, near the floor.

While sitting in the seat, lift up on the bar located under
the seat cushion and move the seat forward or rear-
ward. Release the bar once you have reached the
desired position. Then, using body pressure, move for-
ward and rearward on the seat to be sure that the seat
adjusters have latched.

WARNING!

•

Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

•

Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

Manual Front Passenger Seatback

Adjustment — Recline

To recline, lean forward slightly and lift the lever located
on the outboard side of the seat. Then, push the seat
rearward to the desired position and release the lever.
To return the seatback to its normal position, lean for-
ward and lift the lever. To ensure the seatback is
latched, use body pressure to lean forward and
rearward.

WARNING!

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

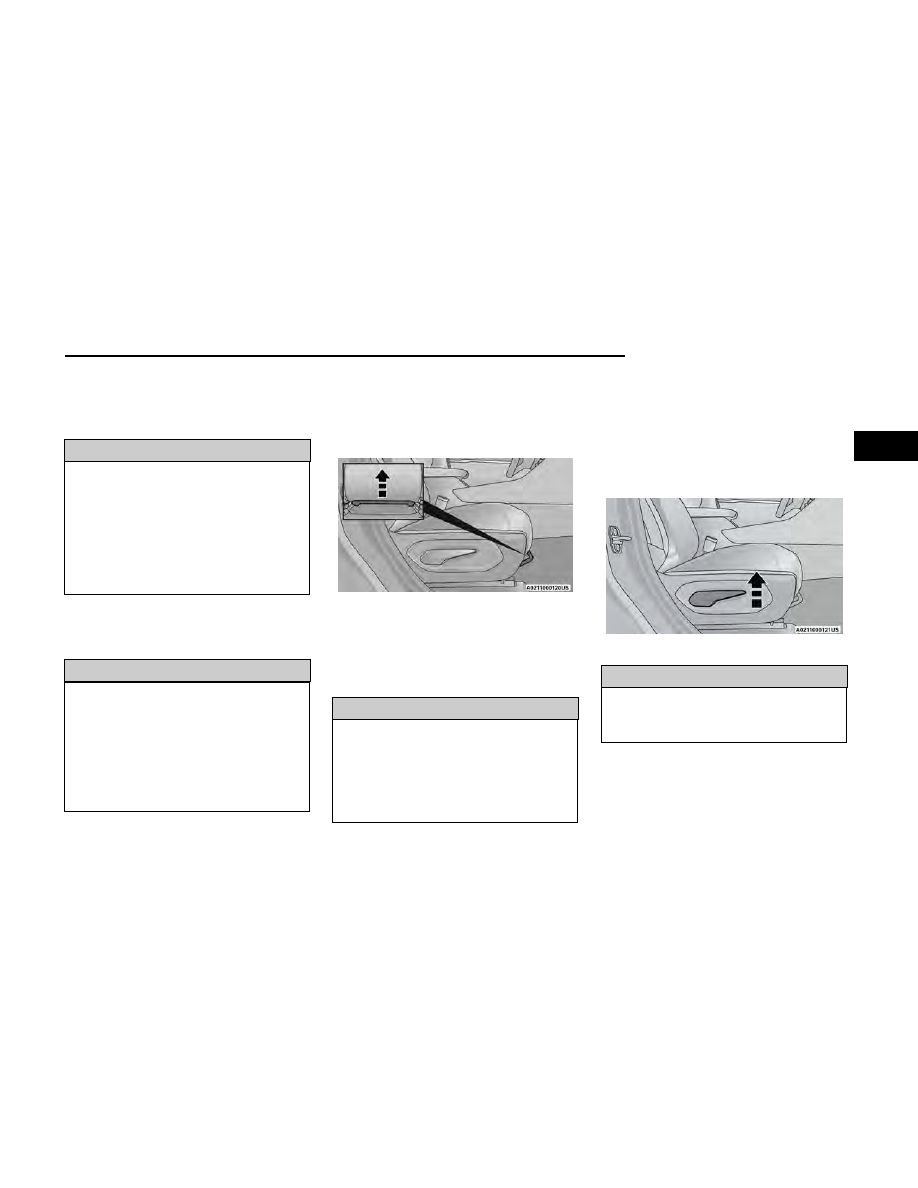

Adjustment Bar

Recline Lever

GETTING TO KNOW YOUR VEHICLE

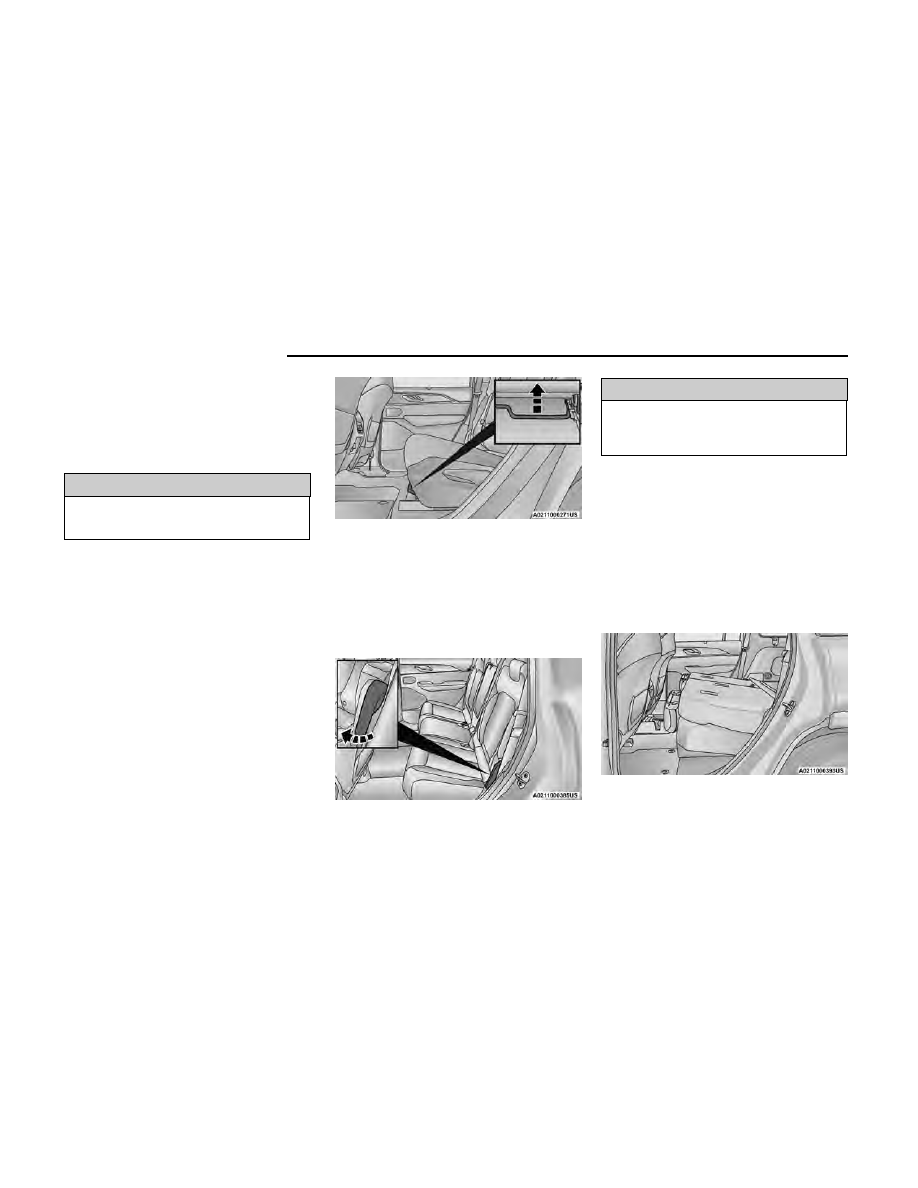

MANUAL ADJUSTMENT REAR
SEATS

Vehicles equipped with third row seating may have a
second row bench seat, or second row captain’s chairs.
Vehicles equipped with only second row seating, will
have a second row bench seat.

WARNING!

Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.

NOTE:

You may experience deformation in the seat cushion
from the seat belt buckles if the seats are left folded for
an extended period of time. This is normal and by sim-
ply unfolding the seats to the open position, over time
the seat cushion will return to its normal shape.

Second Row Bench Seat — If Equipped

SECOND ROW BENCH SEAT FORWARD/
REARWARD ADJUSTMENT — IF EQUIPPED

Lift up on the adjusting bar located at the front of the
seat near the floor and release it when the seat is at
the desired position. Then, using body pressure, move
forward and rearward on the seat to be sure that the
seat adjusters have latched.

SECOND ROW BENCH SEAT RECLINE
ADJUSTMENT

To recline, lean forward slightly and lift the lever located
on the outboard side of the seat. Then, push the seat
rearward to the desired position and release the lever. To
return the seatback to its normal position, lean forward
and lift the lever. To ensure the seatback is latched, use
body pressure to lean forward and rearward.

WARNING!

SECOND ROW BENCH FOLD FLAT SEAT

To provide additional storage area, each rear seat can
be folded flat. This allows for extended cargo space and
still maintains some rear seating room.

NOTE:

Prior to folding the rear seat, it may be necessary to
position the front seat to its mid-track position. Also, be
sure that the front seats are fully upright and positioned
forward. This will allow the rear seat to fold down easily.

To lower the seatback, pull upward on the recline lever
located on the outboard side of the seat, and let the
seatback fold forward automatically.

To raise the seatback, fold the seatback up into its origi-
nal position and lock it into place.

Rear Seat Adjustment Bar

Rear Seat Recline Lever

Second Row Bench Seat Folded Flat

GETTING TO KNOW YOUR VEHICLE

WARNING!

Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.

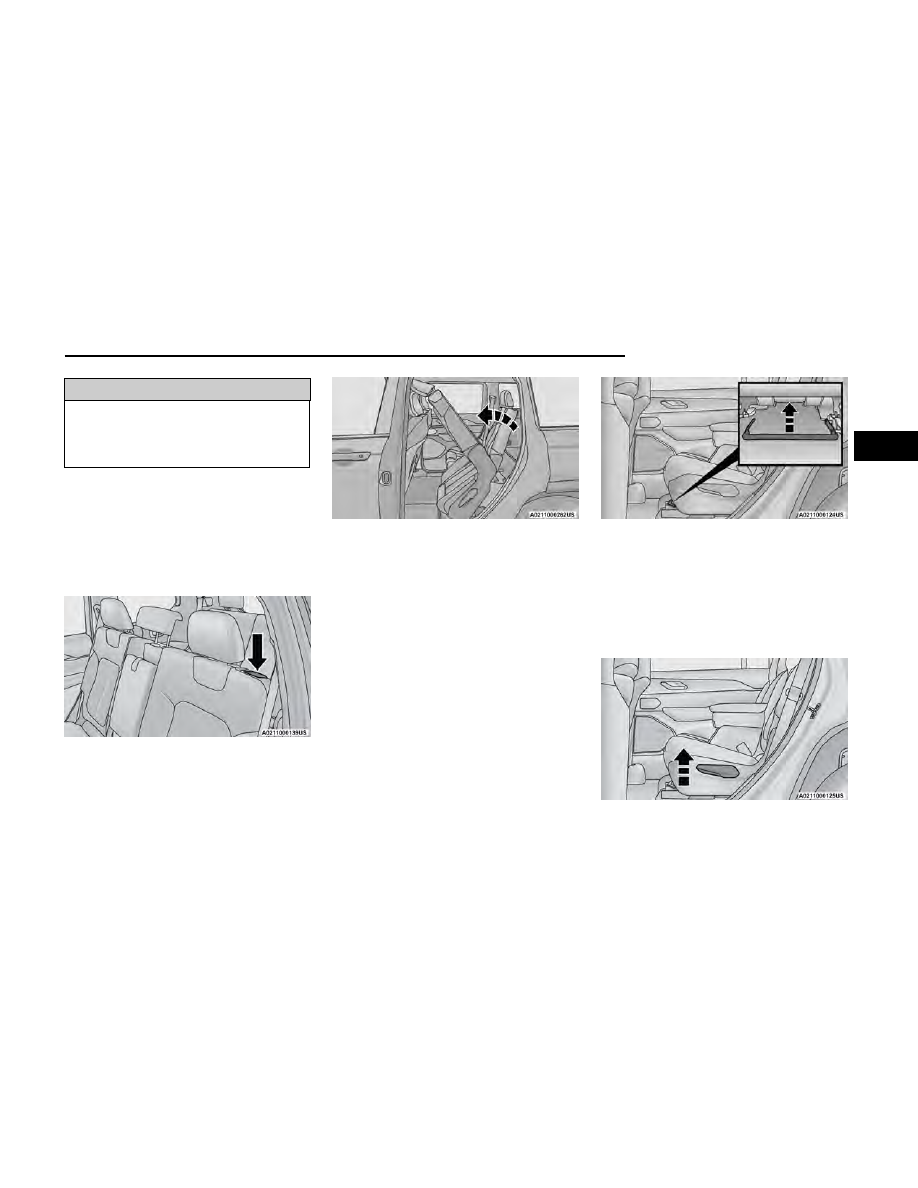

SECOND ROW BENCH SEAT EASY ACCESS
FOR THIRD ROW — IF EQUIPPED

If the vehicle is equipped with third row seating, the
second row seats can tip forward to allow passengers to
easily access the third row seats.

Pull upward on the easy entry lever located on the out-
board side of the seatback, then tip and slide the entire
seat forward.

To return the seat to a sitting position, unfold the seat-
back upright until it locks and push the seat rearward
until the track locks.

Second Row Captain’s Chairs —

If Equipped

Vehicles equipped with third row seating may be
equipped with second row captain’s chairs.

SECOND ROW CAPTAIN’S CHAIRS
FORWARD/REARWARD ADJUSTMENT

SECOND ROW CAPTAIN’S CHAIRS RECLINE
ADJUSTMENT

To recline, lean forward slightly and lift the lever located
on the outboard side of the seat. Then, push the seat
rearward to the desired position and release the lever. To
return the seatback to its normal position, lean forward
and lift the lever. To ensure the seatback is latched, use
body pressure to lean forward and rearward.

Easy Entry Lever Location

Access To Third Row Seats

Rear Seat Adjustment Bar

Rear Seat Recline Lever

GETTING TO KNOW YOUR VEHICLE

WARNING!

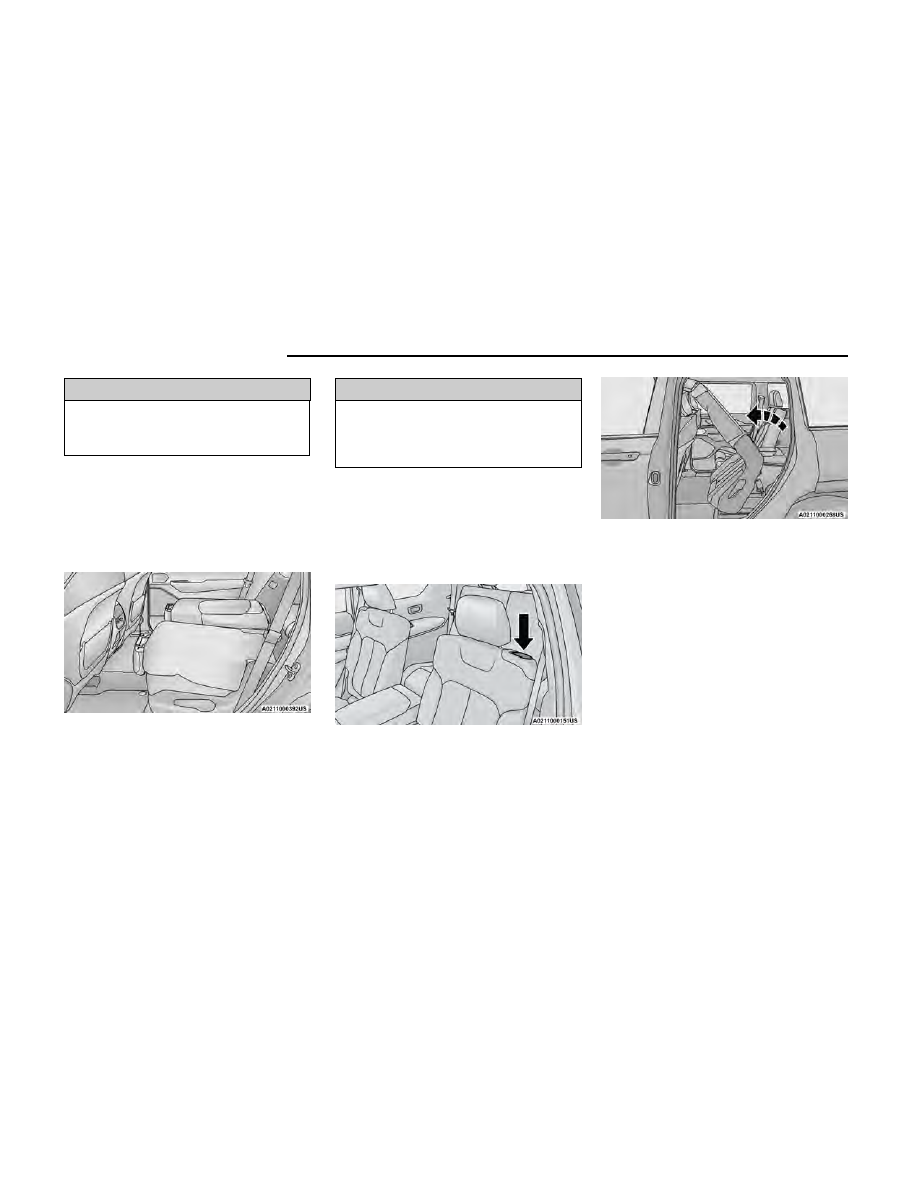

SECOND ROW CAPTAIN’S CHAIRS FOLD FLAT
SEATS

The second row seatbacks can be folded flat to carry
cargo.

Pull upward on the recline lever located on the out-
board side of each second row seat, and guide the
seatback down into the folded position.

To Raise The Rear Seats

Fold the seatbacks upward to their original position,
and lock them into place.

WARNING!

SECOND ROW CAPTAIN’S CHAIR EASY
ACCESS FOR THIRD ROW

The second row seats can tip forward to allow passen-
gers to easily access the third row seats.

Pull upward on the easy entry lever located on the out-
board side of the seatback, then tip and slide the entire
seat forward.

To return the seat to a sitting position, unfold the seat-
back upright until it locks and push the seat rearward
until the track locks.

Manual Folding Third Row — If Equipped

Both third row seats can be folded forward to increase
the cargo area. To lower either seat, pull on the release
handle located on the back of the seat and lower the
seat using the pull strap located next to the release
handle.

NOTE:

The second row seats must be in their full upright posi-
tion or folded flat when folding the third row seats.

Second Row Captain’s Chairs Folded Flat

Easy Entry Lever Location

Access To Third Row Seats

GETTING TO KNOW YOUR VEHICLE

To raise the seat, pull the seat toward you using the
strap located on the back of the seat.

WARNING!

POWER ADJUSTMENT FRONT
SEATS — IF EQUIPPED

Some models may be equipped with 12-way power
driver and front passenger seats. The power seat
switches are located on the outboard side of the seat.
There are three switches that control the movement of
the seat cushion and the seatback.

Adjusting The Seat Forward Or

Rearward

The seat can be adjusted both forward and rearward.
Push the seat switch forward or rearward. The seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or down.
Pull upward or push downward on the rear of seat
switch, the seat will move in the direction of the switch.
Release the switch when the desired position has been
reached.

Tilting The Seat Up Or Down

The angle of the seat cushion can be adjusted in two
directions. Pull upward or push downward on the front
of the seat switch, the front of the seat cushion will
move in the direction of the switch. Release the switch
when the desired position has been reached.

Reclining The Seatback

The angle of the seatback can be adjusted forward or
rearward. Push the seatback switch forward or rear-
ward, the seat will move in the direction of the switch.
Release the switch when the desired position is
reached.

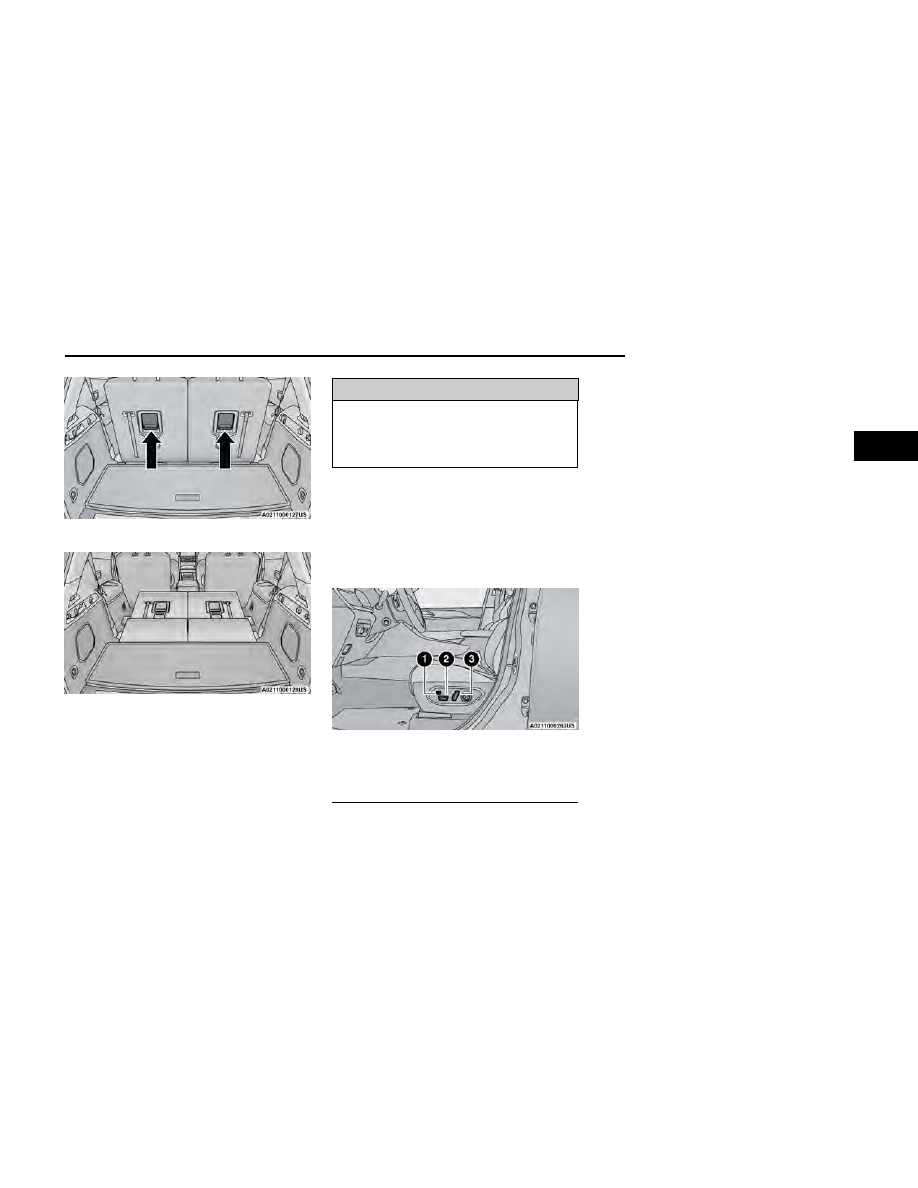

Release Handles

Third Row Folded

Power Seat Switches

1 — Cushion Extender Switch (If Equipped)
2 — Seat Switch
3 — Seatback And Bolster Adjustment Switch

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

•

Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

•

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.

CAUTION!

Do not place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat's
path.

Seatback Bolster Adjustment —

If Equipped

The front driver and passenger seatback bolsters can
be extended outward, or retracted inward by pushing
the bolster adjustment button located in the center of
the seatback switch.

Push the top of the button to extend the bolsters, or
push the bottom of the button to retract the bolsters.

Cushion Extender

The cushion can be extended forward a few inches
(centimeters) to increase thigh support. Push the cush-
ion extender switch forward or rearward to extend or
retract the cushion. Release the switch when the
desired position has been reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger seats
may also be equipped with power lumbar. The power
lumbar switch is located on the outboard side of the
power seat. Push the switch forward to increase the
lumbar support. Push the switch rearward to decrease
the lumbar support. Pushing upward or downward on
the switch will raise and lower the position of the
support.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat positioning
to enhance driver mobility when entering and exiting
the vehicle.

The distance the driver seat moves depends on where
you have the driver seat positioned when you place the
vehicle’s ignition in the OFF position.

•

When you place the vehicle’s ignition in the OFF
position, the driver seat will move about 2.4 inches
(6 cm) rearward if the driver seat position is greater
than or equal to 2.7 inches (6.8 cm) forward of the
rear stop. The seat will return to its previously set
position when you place the vehicle’s ignition in the
ON/RUN position.

•

The Easy Entry/Easy Exit feature is disabled when
the driver seat position is less than 0.9 of an inch
(2.3 cm) forward of the rear stop. At this position,
there is no benefit to the driver by moving the seat
for Easy Exit or Easy Entry.

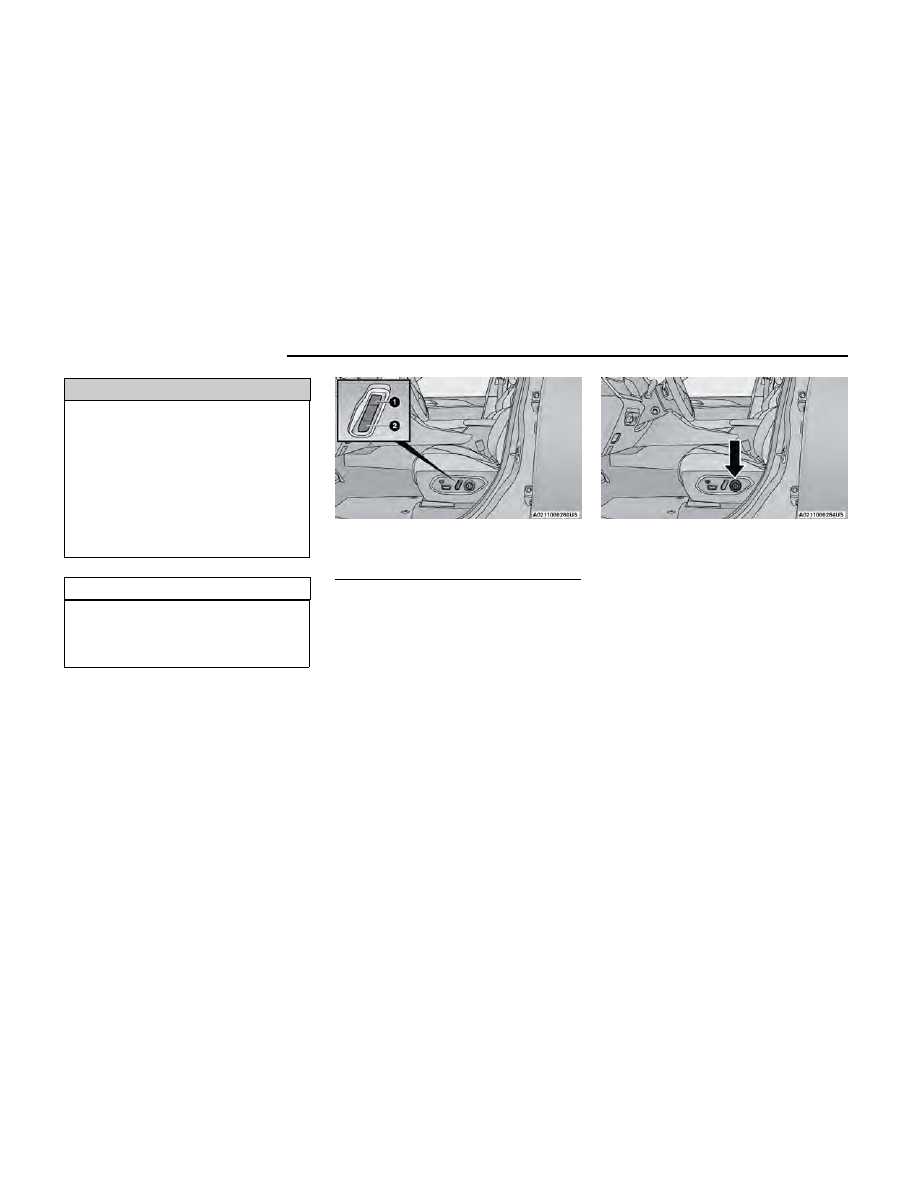

Seatback Bolster Adjustment Button

1 — Extend Seatback Bolsters
2 — Retract Seatback Bolsters

Power Lumbar Switch

GETTING TO KNOW YOUR VEHICLE

When enabled in Uconnect Settings, Easy Entry and
Easy Exit positions are stored in each memory setting
profile

page 31.

NOTE:

The Easy Entry/Exit feature is enabled or disabled
within the Uconnect system

page 169.

POWER ADJUSTMENT REAR SEATS
— IF EQUIPPED

WARNING!

•

Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

•

Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

•

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.

•

Do not place the seat belt webbing behind the
third row stow clip when using the seat belt to
restrain an occupant. The seat belt will not be posi-
tioned properly on the occupant and they could be
more seriously injured in an accident as a result.

CAUTION!

Rear Seat Power Folding Seatbacks —

If Equipped

If the vehicle is equipped with third row seating, the
second and third rows may be equipped with power
folding seatbacks.

A one-touch power folding seat switch is located in the
right rear trim panel inside the cargo area, as part of a
switch bank.

NOTE:

•

You may need to move the front seats forward to
allow the second row seats to fold properly, as they
may bump into the Rear Seat Entertainment touch-
screens (if equipped).

•

The third row seat belts may interfere with the
power folding of the seat. Place the seat belt web-
bing behind the stow clip before stowing or opening
the seat. When the seat is in the desired position,
remove the webbing from the stow clip so that it is
ready for use. Never leave the seat belt in the stow
clip when it is used to restrain an occupant.

•

The head restraints will lower automatically as nec-
essary when the power seat begins to move when
the vehicle is in PARK, and a rear door or the liftgate
is open.

The rear switch bank allows multiple power folding posi-
tions for the second and third row seats. The second
row seats can be folded using these switches, while the
third row can be folded or unfolded.

There are also power folding switches for the third row
seats located on the C-pillar (just behind the rear doors
on the trim panels).

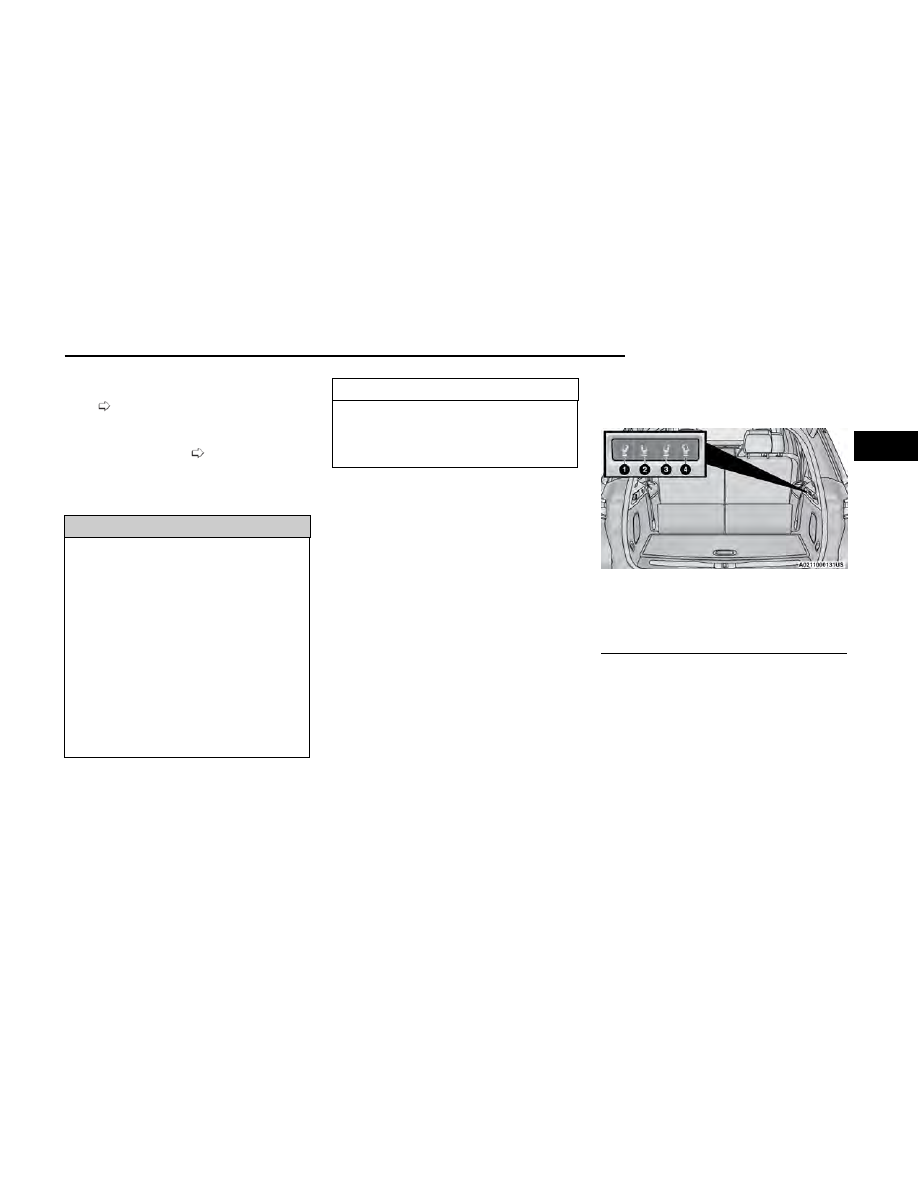

Rear Panel Power Switch Bank

1 — Second Row Left Side Fold
2 — Second Row Right Side Fold
3 — Third Row Left Side Fold/Unfold
4 — Third Row Right Side Fold/Unfold

GETTING TO KNOW YOUR VEHICLE

POWER SEATBACK MASSAGE —
IF EQUIPPED

The driver’s and front passenger’s seatbacks may be
equipped with power massage.

The massage feature can be turned on/off through the
massage button located on the door panel near the
handle, or through the Comfort screen on the radio.

Once activated by either method, the massage controls
will display on the radio screen, and “Massage Type”
and “Intensity Level” can be selected for the activated
seat.

There are four intensity levels and five massage types
that can be selected.

Intensity Levels:

•

High

•

Med

•

Low

•

Off

Massage Types:

•

Waterfall

•

Lower Back

•

Extend

•

Low Extend

•

Rock Climb

The selected settings will save in the system’s memory
when turned off, and will resume the next time the sys-
tem is turned on.

NOTE:

•

The engine must be running for the power seatback
massage to operate.

•

The massage feature will turn off after 20 minutes
of use. However, if the massage type or intensity
level is changed, the timer then resets.

HEATED SEATS — IF EQUIPPED

WARNING!

•

Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabe-
tes, spinal cord injury, medication, alcohol use,
exhaustion or other physical condition must exer-
cise care when using the seat heater. It may cause
burns even at low temperatures, especially if used
for long periods of time.

•

Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cush-
ion. This may cause the seat heater to overheat.
Sitting in a seat that has been overheated could
cause serious burns due to the increased surface
temperature of the seat.

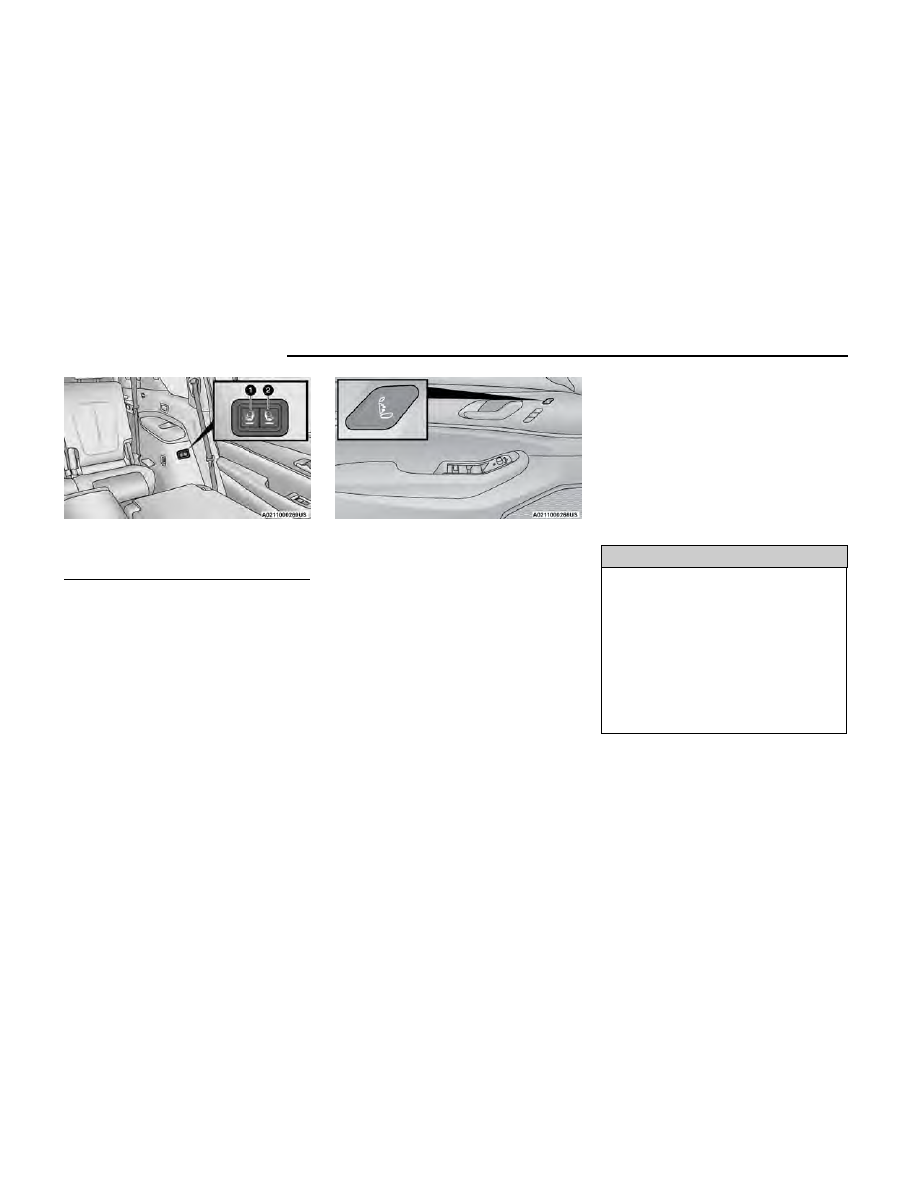

C-Pillar Power Folding Switches (Left Side Shown)

1 — Third Row Left Side Fold/Unfold
2 — Third Row Right Side Fold/Unfold

Door Panel Massage Button

GETTING TO KNOW YOUR VEHICLE

Front Heated Seats

The front heated seats control buttons are
located on the center stack below the radio
screen or within the Uconnect system. You
can gain access to the control buttons

through the Comfort screen.

•

Press the heated seat switch once to turn the HI
setting on.

•

Press the heated seat switch a second time to turn
the MED setting on.

•

Press the heated seat switch a third time to turn the
LO setting on.

•

Press the heated seat switch a fourth time to turn
the heating elements off.

NOTE:

•

Once a heat setting is selected, heat will be felt
within two to five minutes.

•

The engine must be running for the heated seats to
operate.

•

The level of heat selected will stay on until the
operator changes it.

For information on use with the Remote Start system,
see

page 23.

Rear Heated Seats — If Equipped

The two second row outboard seats may be
equipped with heated seats. There are two
heated seat switches that allow the rear pas-
sengers to operate the seats independently.

The heated seat switches for each heater are located
on the rear of the center console.

You can choose from HI, MED, LO, or OFF heat settings.
Indicator lights in each switch illuminate indicating the
level of heat in use.

•

Push the heated seat switch once to turn the HI set-
ting on.

•

Push the heated seat switch a second time to turn
the MED setting on.

•

Push the heated seat switch a third time to turn the
LO setting on.

•

Push the heated seat switch a fourth time to turn
the heating elements off.

The level of heat selected will stay on until the operator
changes it.

NOTE:

The engine must be running for the heated seats to
operate.

VENTILATED SEATS — IF EQUIPPED

Located in the seat cushion and seatback are fans that
draw the air from the passenger compartment and
move air through fine perforations in the seat cover to
help keep the occupant cooler in higher ambient
temperatures.

Front Ventilated Seats

The ventilated seats control buttons are
located on the center stack below the radio
screen or within the Uconnect system. The
fans operate at three speeds: HI, MED

and LO.

•

Press the ventilated seat switch once to choose HI.

•

Press the ventilated seat switch a second time to
choose MED.

•

Press the ventilated seat switch a third time to
choose LO.

•

Press the ventilated seat switch a fourth time to
turn the ventilation off.

NOTE:

The engine must be running for the ventilated seats to
operate.

For information on use with the Remote Start system,
see

page 23.

Rear Ventilated Seats — If Equipped

The two second row outboard seats may be
equipped with ventilated seats. The rear ven-
tilated seat control switches are located on
the rear of the center console and allow the

rear passengers to operate the seats independently.
The fans operate at three speeds: HI, MED, and LO.
Push the ventilated seat switches to toggle through the
speeds, or to turn the feature off.

There are two ventilated seat switches

•

Push the ventilated seat switch once to choose HI.

•

Push the ventilated seat switch a second time to
choose MED.

•

Push the ventilated seat switch a third time to
choose LO.

•

Push the ventilated seat switch a fourth time to turn
the ventilation off.

NOTE:

The engine must be running for the ventilated seats to
operate.

GETTING TO KNOW YOUR VEHICLE

HEAD RESTRAINTS

Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the
top of the head restraint is located above the top of
your ear.

WARNING!

•

All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the
head restraints are placed in their proper positions
in order to minimize the risk of neck injury in the
event of a crash.

•

Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

Front Head Restraints

Your vehicle is equipped with front four-way driver and
passenger head restraints.

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjust-
ment button, located at the base of the head restraint,
and push downward on the head restraint.

NOTE:

The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see an authorized
dealer.

To adjust the head restraint forward, pull the top of the
head restraint toward the front of the vehicle as desired
and release. To adjust the head restraint rearward, pull
the top of the head restraint to the forward most posi-
tion and release. The head restraint will return to the
rear most position.

WARNING!

•

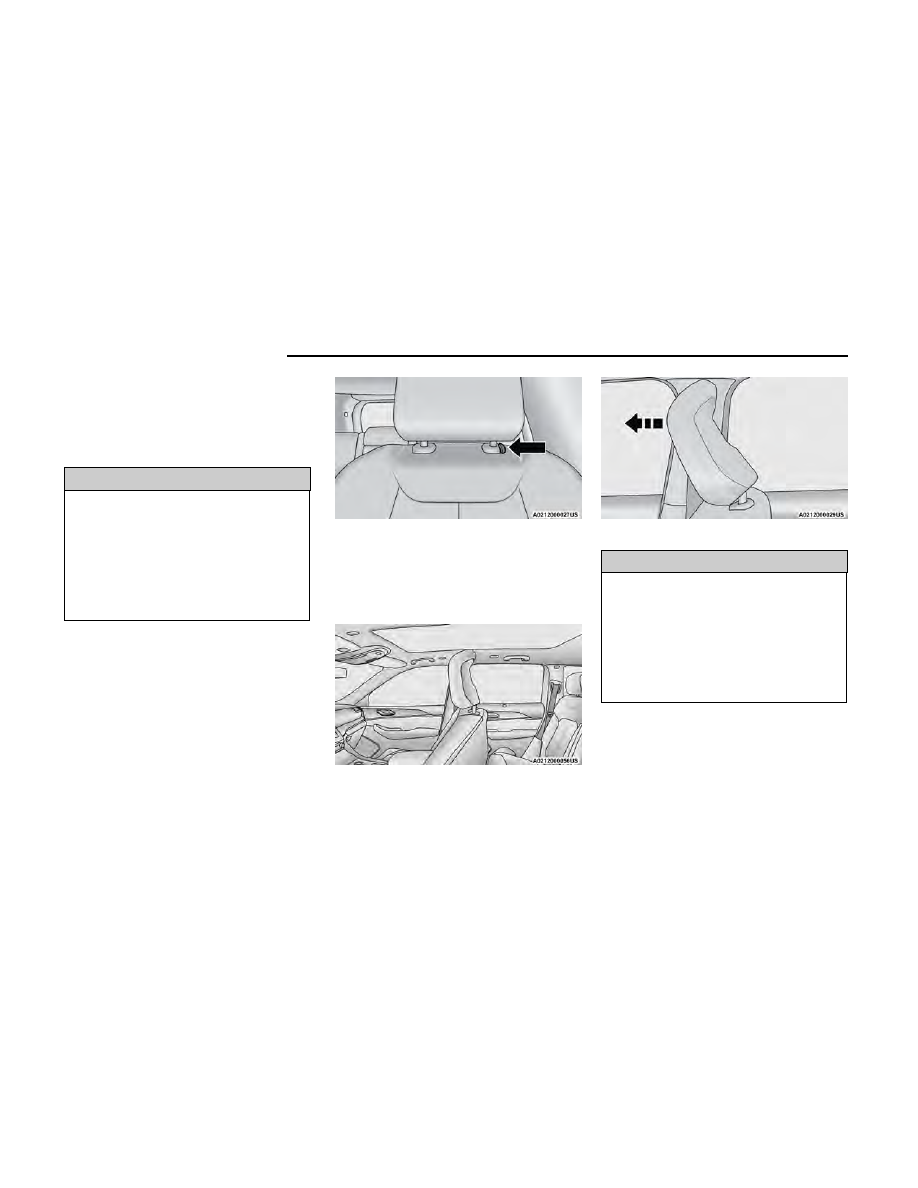

Head Restraint Adjustment Button

Upright Position

Forward Adjustment

GETTING TO KNOW YOUR VEHICLE

Head Restraints — Second Row

Captain’s Chairs (If Equipped)

If the second row is equipped with captain’s chairs, the
head restraints are not adjustable or removable. They
automatically fold forward when the seatback is folded,
and do not return to their normal position when the
seatback is raised. After returning the seatback to its
upright position after a folding operation, raise the
head restraint until it locks in place.

WARNING!

•

Head Restraints — Second Row Bench

(If Equipped)

If the second row is equipped with a bench seat, the
head restraints on the outboard seats are not adjust-
able or removable. They automatically fold forward
when the seatback is folded, and do not return to their
normal position when the seatback is raised. After
returning the seatback to its upright position after a
folding operation, raise the head restraint until it locks
in place.

The center head restraint has one adjustment position,
and can be adjusted up or down when the seat is occu-
pied. Pull up on the head restraint to raise it. To lower
the head restraint, push the adjustment button located
on the base of the head restraint, and push downward
on the head restraint until it locks into place.

NOTE:

The center head restraint is not removable.

NOTE:

For information on child restraint tethering, see

page 222.

WARNING!

•

(Continued)

WARNING!

•

Third Row Head Restraints —

If Equipped

The third row head restraints are not adjustable or
removable, but can be folded for improved visibility
when the vehicle is in REVERSE, and there are no occu-
pants in the seats.

Press the Headrest Fold button within the
Controls menu of the Uconnect system to
power fold the third row head restraints.

The head restraints will also automatically

fold when the seatbacks are folded forward using the
release handles on the backs of the seats from the
cargo area.

NOTE:

•

The head restraints must be raised manually when
occupying the third row.

•

Do not fold if there are passengers seated in the
third row seats.

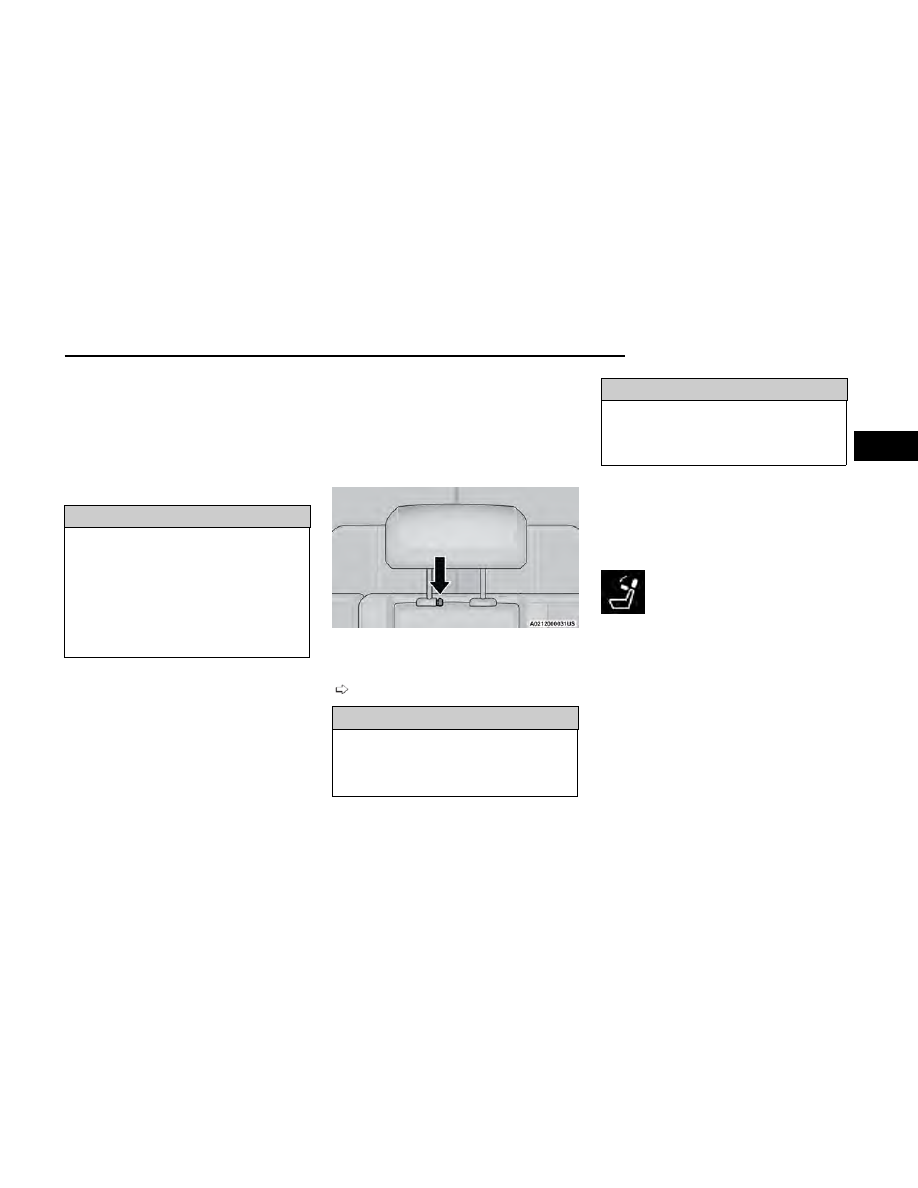

Center Seat Head Restraint Adjustment Button

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

MIRRORS

INSIDE REARVIEW MIRROR

Manual Mirror — If Equipped

The mirror head can be adjusted up, down, left, and
right. The mirror should be adjusted to center on the
view through the rear window.

Headlight glare from vehicles behind you can be
reduced by moving the small control under the mirror to
the night position (toward the rear of the vehicle). The
mirror should be adjusted while set in the day position
(small control forward toward the windshield).

Automatic Dimming Mirror —

If Equipped

The mirror head can be adjusted up, down, left, and
right. The mirror should be adjusted to center on the
view through the rear window.

This mirror automatically adjusts for headlight glare
from vehicles behind you.

NOTE:

The Automatic Dimming Mirror feature is disabled when
the vehicle is in REVERSE to improve the driver’s view.

You can turn the feature on or off through the Uconnect
system

page 169.

Digital Rearview Mirror — If Equipped

The Digital Rearview Mirror provides a high definition,
wide and unobstructed view of the road behind while
driving.

Position the mirror in the regular Automatic Dimming
Mirror mode, then activate the Digital Rearview Mirror
mode.

To activate the Digital Rearview Mirror, pull the on/off
control lever on the bottom of the mirror rearward
toward the driver.

Push the menu button next to the on/off control/toggle
to access the following mirror options:

•

Brightness

•

Tilt

Use the menu button to scroll through the feature
options, and the left and right scroll buttons to adjust
the feature content (brightness or tilt) higher/lower or
up/down.

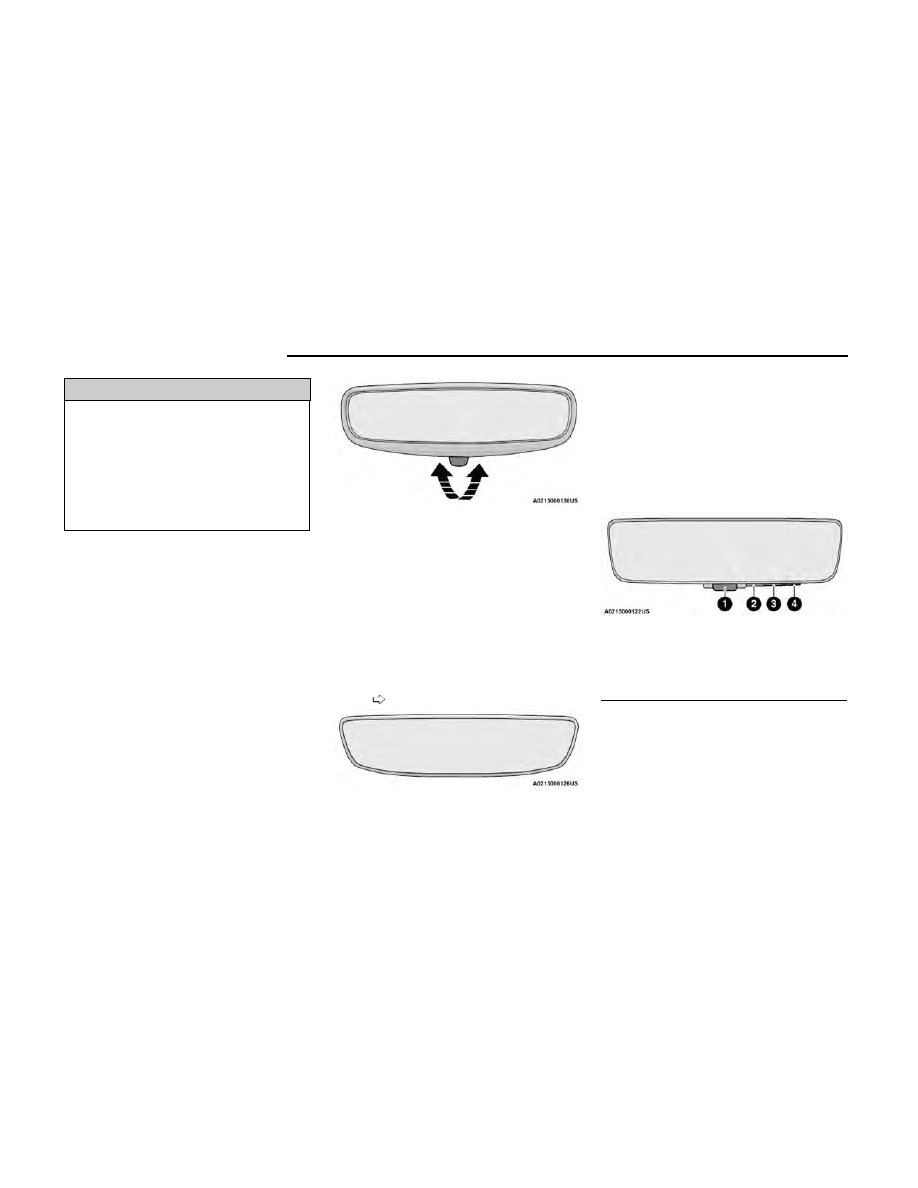

Adjusting Rearview Mirror

Automatic Dimming Mirror

Digital Rearview Mirror

1 — On/Off Control/Toggle
2 — Menu Button
3 — Left Scroll Button
4 — Right Scroll Button

GETTING TO KNOW YOUR VEHICLE

When not in use, push the on/off forward toward the
windshield to return the mirror to the regular Automatic
Dimming Mirror.

NOTE:

•

The Digital Rearview Mirror is not as effective during
nighttime driving in low light applications due to low
ambient light levels. In the event that it provides the
user with less than expected vision, the mirror can
be reverted to a normal reflective electrochromatic
mirror by pushing the control/toggle forward in the
vehicle and putting the mirror into Automatic Dim-
ming Mirror mode.

•

When the rear window washer is activated by push-
ing the windshield wiper/washer lever forward, the
Rear Back Up and Digital Rearview Mirror
(if equipped) cameras are also washed. For more
information, see

page 57.

ILLUMINATED VANITY MIRRORS

To access an illuminated vanity mirror, flip down one of
the visors.
Lift the cover to reveal the mirror. The light will turn on
automatically.

Sun Visor Slide-On-Rod Feature —

If Equipped

The sun visor Slide-On-Rod feature allows for additional
flexibility in positioning the sun visor to block out the
sun.

1. Fold down the sun visor.

2. Unclip the visor from the center clip.

3. Pivot the sun visor toward the side window.

4. Extend the sun visor blade for additional sun

blockage.

NOTE:

The sun visor blade can also be extended while the sun
visor is against the windshield for additional sun block-
age through the front of the vehicle.

OUTSIDE MIRRORS

To receive maximum benefit, adjust the outside mir-
ror(s) to center on the adjacent lane of traffic with a
slight overlap of the view obtained on the inside mirror.

WARNING!

Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or
other object. Use your inside mirror when judging the
size or distance of a vehicle seen in a side convex
mirror.

Outside Mirrors Folding Feature

All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:

•

Full forward position

•

Full rearward position

•

Normal position

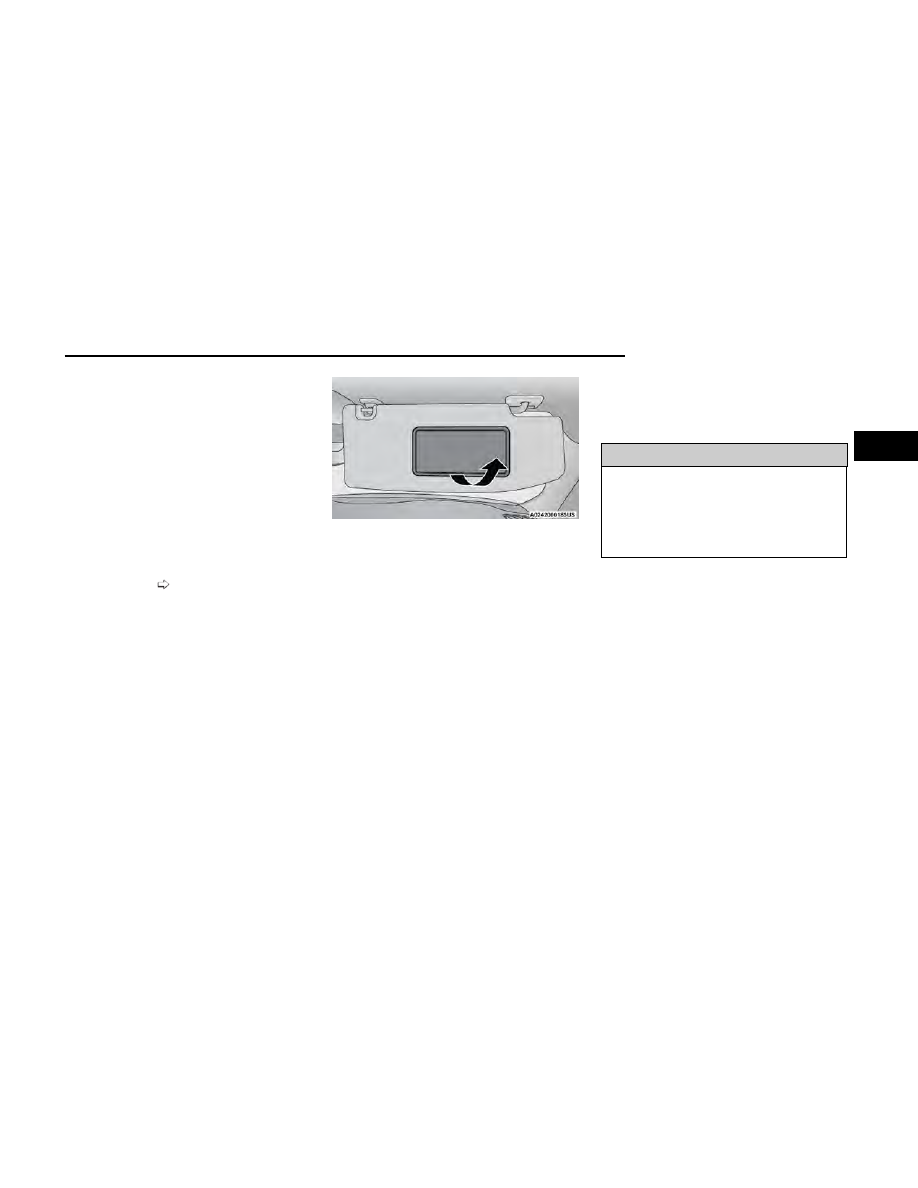

Lift Cover On Vanity Mirror

GETTING TO KNOW YOUR VEHICLE

Outside Mirrors With Turn Signal And

Approach Lighting — If Equipped

Driver and passenger outside mirrors with turn signal
and approach lighting contain four LEDs, which are
located in the upper outer corner of each mirror.

Three of the LEDs are turn signal indicators, which flash
with the corresponding turn signal lights in the front
and rear of the vehicle. Turning on the Hazard Warning
flashers will also activate these LEDs.

The fourth LED supplies illuminated entry lighting,
which turns on in both mirrors when you use the key fob
or open any door. This LED shines outward to illuminate
the front and rear door handles. It also shines down-
ward to illuminate the area in front of the doors.

The illuminated entry lighting fades to off after about
30 seconds or it will fade to off immediately once the
ignition is placed in the ON/RUN position.

NOTE:

The approach lighting will not function when the gear
selector is moved out of the PARK position.

OUTSIDE AUTOMATIC DIMMING
MIRROR — IF EQUIPPED

The outside driver side mirror will automatically adjust
for glare from vehicles behind you. This feature is con-
trolled by the inside automatic dimming mirror. The mir-
ror will automatically adjust for headlight glare when
the inside mirror adjusts.

POWER MIRRORS

The power mirror control switch is located on the driv-
er's side door trim panel.

To adjust a mirror, rotate the control switch to the mirror
you want to adjust (L) or (R). Then push the switch in
the direction that you want the mirror to move.

NOTE:

Once adjustment is complete, rotate the knob to the
neutral position to prevent accidental movements.

Power Folding — If Equipped

To fold the door mirrors in using the Power Folding Mir-
ror function, rotate the control switch to the power fold-
ing position. Rotating the control to the left, right, or
neutral position will return the mirrors to the driving
position.

If the power mirror control switch is moved again during
door mirror folding (from closed to open position and
vice versa), the movement direction is reversed.

Resetting The Power Folding Outside Mirrors

You may need to reset the power folding mirrors if the
following occurs:

•

The mirrors are accidentally blocked while folding.

•

The mirrors are accidentally manually folded/
unfolded (by hand or by pushing the power folding
mirror switch).

•

The mirrors come out of the unfolded position.

•

The mirrors shake and vibrate at normal driving
speeds.

To reset the power folding mirrors: Fold and unfold
them by turning the switch (this may require multiple
switch activations to synchronize the driver and passen-
ger mirror). This resets them to their normal position.

Power mirror position can be saved as part of the Driver
Memory Settings (if equipped)

page 31.

Power Mirror Switch

1 — Neutral Position
2 — Left Mirror
3 — Control Switch
4 — Right Mirror
5 — Power Folding Position

GETTING TO KNOW YOUR VEHICLE

AUTOMATIC POWER FOLDING
MIRRORS — IF EQUIPPED

When enabled within Uconnect Settings

page 169,

the exterior mirrors will automatically fold when the
vehicle’s ignition is placed in the OFF position, and after
the doors are locked and closed.

The exterior mirrors will auto-fold in the following situa-
tions after the ignition is placed in the OFF position:

•

Pushing the lock button on the door panel before
the door is opened.

NOTE:

If the doors are already locked, push the lock button
again.

•

Opening the door, then pushing the lock button on
the door panel, followed by closing the door.

•

After exiting the vehicle, close the doors then push
the lock button on the key fob.

•

After exiting the vehicle, close the doors then touch
the lock icon on the Passive Entry door handle.

If the exterior mirrors were folded automatically, they
will unfold when the ignition is placed in the ON/RUN
position.

NOTE:

If the mirrors were folded manually, by using the power
folding mirror switch on the driver’s door panel, they will
not automatically unfold.

HEATED MIRRORS — IF EQUIPPED

These mirrors are heated to melt frost or ice.
This feature will be activated whenever you
turn on the rear window defroster
(if equipped)

page 57.

TILT SIDE MIRRORS IN REVERSE —
IF EQUIPPED

Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver’s view of the
ground rearward of the front doors. Outside mirrors will
move slightly downward from the present position when
the vehicle is shifted into REVERSE. Outside mirrors will
then return to the original position when the vehicle is
shifted out of REVERSE position. Each stored memory
setting will have an associated Tilt Side Mirrors In
Reverse position.

NOTE:

The Tilt Side Mirrors In Reverse feature can be turned
on and off using the Uconnect system

page 169.

UNIVERSAL GARAGE DOOR OPENER
(HOMELINK®) — IF EQUIPPED

Use this QR code to access your digital
experience.

•

HomeLink® replaces up to three
hand-held transmitters that operate
devices such as garage door open-
ers, motorized gates, lighting or
home security systems. The
HomeLink® unit is powered by your vehicle’s 12 Volt
battery.

•

The HomeLink® buttons that are located in the
overhead console or sun visor designate the three
different HomeLink® channels.

•

To operate HomeLink®, push and release any of the
programmed HomeLink® buttons. These buttons
will activate the devices they are programmed to
with each press of the corresponding HomeLink®
button.

•

The HomeLink® indicator light is located above the
center button.

NOTE:

HomeLink® is disabled when the Vehicle Security sys-
tem is active

page 331.

BEFORE YOU BEGIN
PROGRAMMING HOMELINK®

For efficient programming and accurate transmission of
the Radio Frequency (RF) signal, it is recommended
that a new battery be placed in the hand-held transmit-
ter of the device that is being programmed to the
HomeLink® system. Make sure your hand-held trans-
mitter is programmed to activate the device you are
trying to program your HomeLink® button to.

Ensure that your vehicle is parked outside of the garage
before you begin programming.

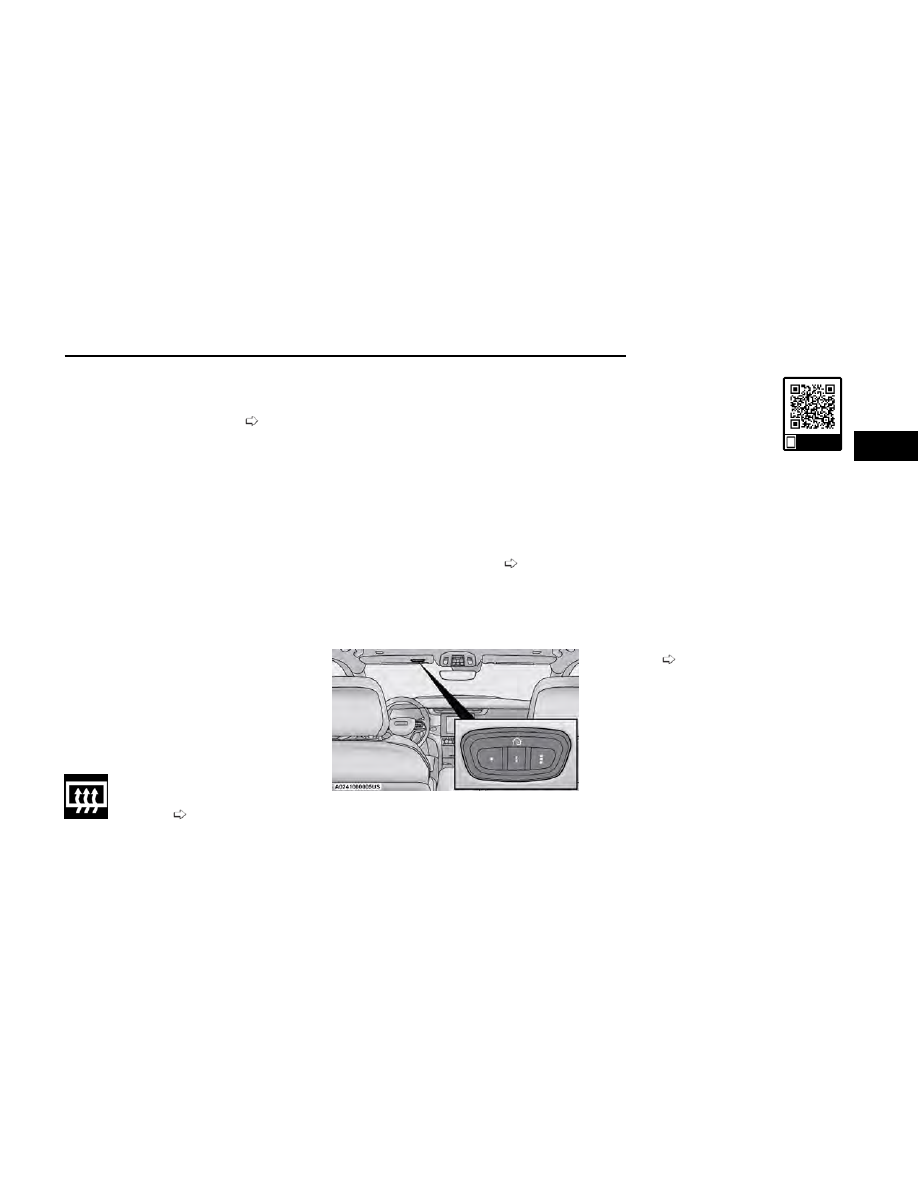

HomeLink® Buttons And Indicator Light

Scan me

GETTING TO KNOW YOUR VEHICLE

It is recommended that you erase all the channels of
your HomeLink® before you use it for the first time.

If you require assistance, please call toll-free
1-800-355-3515 or visit HomeLink.com.

ERASING ALL THE HOMELINK®
CHANNELS

To erase the channels, follow this procedure:

1. Place the ignition switch into the ON/RUN position.

2. Push and hold the two outside HomeLink® buttons

(I and III) for up to 20 seconds, or until the
HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed when
programming HomeLink® for the first time. Do not
erase channels when programming additional buttons.

IDENTIFYING WHETHER YOU HAVE
A ROLLING CODE OR NON-ROLLING
CODE DEVICE

Before programming a device to one of your
HomeLink® buttons, you must determine whether the
device has a rolling code or non-rolling code.

Rolling Code Devices

To determine if your device has a rolling code, a good
indicator is its manufacturing date. Typically, devices
manufactured after 1995 have rolling codes. A device
with a rolling code will also have a “LEARN” or “TRAIN”
button located where the antenna is attached to the
device. The button may not be immediately visible when
looking at the device. The name and color of the button
may vary slightly by manufacturer.

NOTE:

The “LEARN” or “TRAIN” button is not the button you
normally use to operate the device.

Non-rolling Code Devices

Most devices manufactured before 1995 will not have a
rolling code. These devices will also not have a “LEARN”
or “TRAIN” button.

PROGRAMMING HOMELINK® TO A
GARAGE DOOR OPENER

To program any of the HomeLink® buttons to activate
your garage door opener motor, proceed as follows:

NOTE:

All HomeLink® buttons are programmed using this pro-
cedure. You do not need to erase all channels when
programming additional buttons.

1. Place the ignition switch into the ON/RUN position.

2. Place the garage door opener transmitter 1 to

3 inches (3 to 8 cm) away from the HomeLink® but-
ton you wish to program, while keeping the
HomeLink® indicator light in view.

3. Push and hold the HomeLink® button you want to

program while you push and hold the garage door
opener transmitter button you are trying to replicate.

4. Continue to hold both buttons and observe the

HomeLink® indicator light. The HomeLink® indica-
tor light will flash slowly and then rapidly. Once this
happens, release both buttons.

NOTE:

Make sure the garage door opener motor is plugged in
before moving on to the rolling code/non-rolling code
final steps.

Rolling Code Garage Door Opener Final Steps

NOTE:

You have 30 seconds in which to initiate rolling code
final step 2, after completing rolling code final step 1.

1. At the garage door opener motor (in the garage),

locate the “LEARN” or “TRAIN” button. This can usu-
ally be found where the hanging antenna wire is
attached to the garage door opener motor. Firmly
push and release the “LEARN” or “TRAIN” button.

2. Return to the vehicle and push the programmed

HomeLink® button three times (holding the button
for two seconds each time). If the garage door
opener motor operates, programming is complete.

3. Push the programmed HomeLink® button to con-

firm that the garage door opener motor operates. If
the garage door opener motor does not operate,
repeat the final steps for the rolling code procedure.

Non-Rolling Code Garage Door Opener Final Steps

1. Push and hold the programmed HomeLink® button

and observe the HomeLink® indicator light. If the
HomeLink® indicator light stays on constantly, pro-
gramming is complete.

2. Push the programmed HomeLink® button to con-

firm that the garage door opener motor operates. If
the garage door opener motor does not operate,
repeat the steps from the beginning.

GETTING TO KNOW YOUR VEHICLE

Jeep Grand Cherokee L (2024 year). Manual in english - page 1
