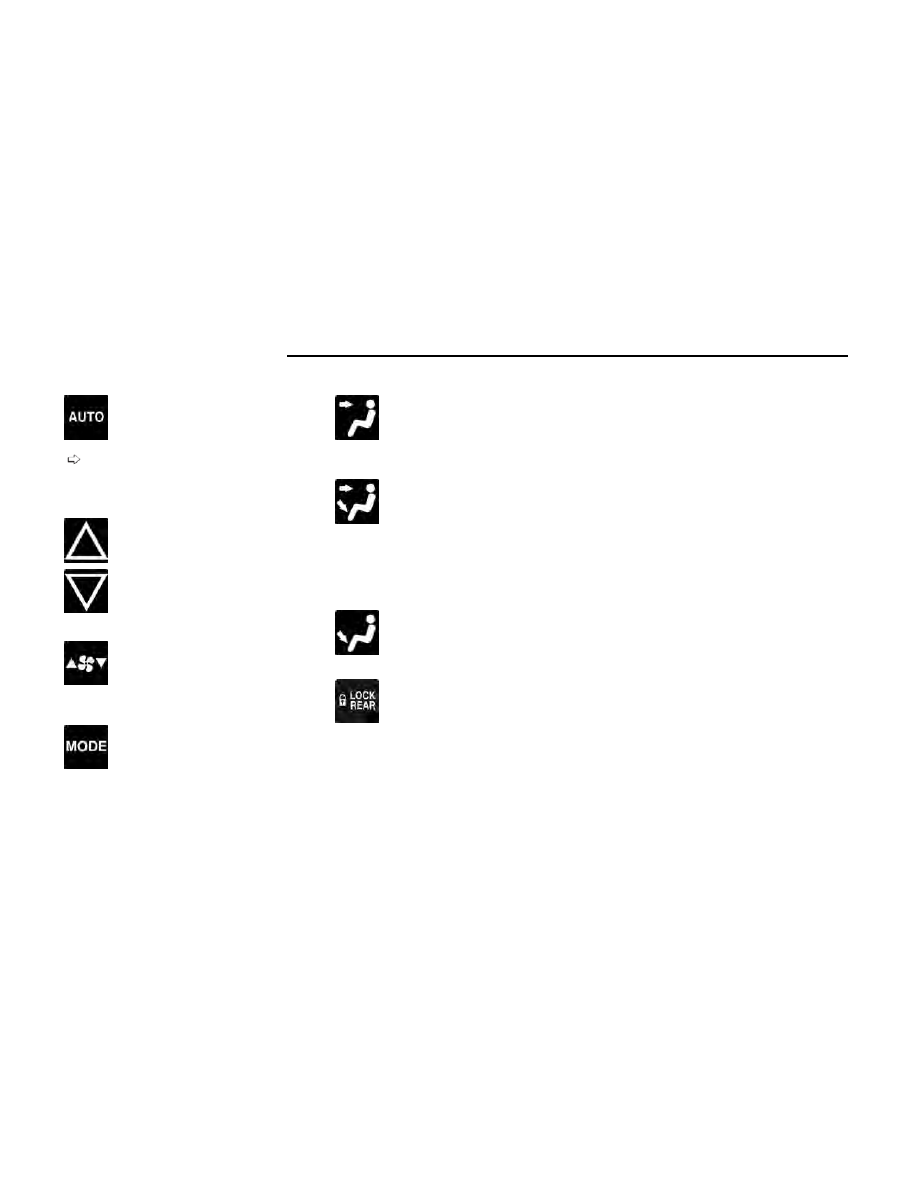

AUTO Button

The AUTO button automatically controls the
interior cabin temperature by adjusting dis-
tribution and amount of airflow. Performing
this function will cause the system to switch

between manual mode and automatic modes

page 82.

Rear Temperature Control

These buttons provide the left and right side of the rear
seating area with independent temperature control.

Push the Up button on the faceplate for
warmer temperature settings.

Push the Down button on the faceplate for
cooler temperature settings.

Rear Blower Control

Use the blower button with the down arrow
to reduce the blower setting, and the blower
button with the up arrow to increase the
blower setting. The rear blower setting is

shown in the display.

Rear Mode Control

Push the rear mode button to adjust airflow
distribution. The rear mode settings are
shown in the rear display. The rear airflow
distribution mode can be adjusted so air

comes from the headliner outlets, the floor outlets, or
both.

Panel Mode

Air comes from the outlets in the headliner.
Each of these outlets can be individually
adjusted to direct the flow of air. Moving the
air vanes of the outlets to one side will shut

off the airflow.

Bi-Level Mode

Air comes from both the headliner outlets
and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode is
designed to provide cooler air out of the headliner out-
lets and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets.

Rear Temperature Lock

The Rear Temperature Lock symbol on the
rear display is illuminated when the rear con-
trols are locked by the front system.

REAR LOCK

Pressing the Rear Temperature Lock button on the
Uconnect touchscreen will illuminate a lock symbol in
the rear display. The rear temperature and air source
are then controlled from the front Uconnect system.

Rear seat occupants can only adjust the rear ATC control
when the Rear Temperature Lock button is turned off.

The rear ATC is located on the rear of the front center
console.

•

Press the Rear Temperature Lock button on the
front Uconnect touchscreen a second time to turn
the Rear Temperature Lock icon off in the rear
display.

•

Push a rear blower button, adjust the temperature
using the rear up and down arrows, and select a
control mode to suit the rear occupant’s needs.

•

ATC is selected by pushing the AUTO button on the
rear climate control faceplate.

Once the desired temperature is shown on the rear dis-
play, the ATC System will automatically achieve and
maintain that comfort level. When the system is set up
for your comfort level, it is not necessary to change the
settings. You will experience the greatest efficiency by
simply allowing the system to function automatically.

AUTOMATIC TEMPERATURE
CONTROL (ATC)

Automatic Operation

1. Push the AUTO button on the front Automatic Tem-

perature Control (ATC) Panel and the word “AUTO”
will illuminate in the front ATC display, along with two
temperatures for the driver and front passenger. The
system will then automatically regulate the amount
of airflow.

2. Adjust the temperature you would like the system to

maintain, by adjusting the driver, passenger, and
rear temperatures. Once the desired temperature is
displayed, the system will achieve and automatically
maintain that comfort level.

GETTING TO KNOW YOUR VEHICLE

3. When the system is set up for your comfort level, it

is not necessary to change the settings. You will
experience the greatest efficiency by simply allowing
the system to function automatically.

NOTE:

It is not necessary to move the temperature settings.
The system automatically adjusts the temperature,
mode and fan speed to provide comfort as quickly as
possible.

To provide you with maximum comfort in the automatic
mode, during cold start-ups, the blower fan will remain
on low until the engine warms up. The fan will engage
immediately if the Defrost mode is selected, or by
changing the front blower knob setting.

Manual Operation Override

This system offers a full complement of manual over-
ride features. The AUTO symbol in the front ATC display
will be turned off when the system is being used in the
manual mode.

NOTE:

The system will not automatically sense the presence of
fog, mist or ice on the windshield. Defrost mode must
be manually selected to clear the windshield and side
glass.

CLIMATE VOICE RECOGNITION

Adjust vehicle temperatures hands-free and keep every-
one comfortable while you keep moving ahead (if
vehicle is equipped with climate controls).

Push the VR button. After the beep, say one of the fol-
lowing commands:

•

“

Set the driver temperature to

degrees

”

•

“

Set the passenger temperature to

degrees

”

Did You Know:

Voice Command for Climate may only be

used to adjust the interior temperature of your vehicle.
Voice Command will not work to adjust the heated
seats or steering wheel if equipped.

OPERATING TIPS

CAUTION!

Interior air enters the Rear Automatic Temperature
Control system through an intake grille, located in the
right side trim panel behind the third row seats. The
heater outlets are located in the right side trim panel,
just behind the rear doors. Do not block or place
objects directly in front of the inlet grille or heater
outlets. The electrical system could overload causing
damage to the blower motor.

NOTE:

Refer to the chart at the end of this section for sug-
gested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheat-
ing. OAT coolant (conforming to MS.90032) is recom-
mended. For more information, see

page 378.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is func-
tioning properly and the proper amount, type, and con-
centration of coolant is used. Use of the Air
Recirculation mode during Winter months is not recom-
mended, because it may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control sys-
tem when the vehicle is being stored for an extended
period of time, see

page 371.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,
and/or humid weather. To clear the windows, select
Defrost or Mix mode and increase the front blower
speed. Do not use the Recirculation mode without A/C
for long periods, as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions, such as leaves.
Leaves collected in the air intake may reduce airflow,
and if they enter the air distribution box, they could plug
the water drains. In Winter months, make sure the air
intake is clear of ice, slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and pollen
from the air. Contact an authorized dealer to service
your cabin air filter, and to have it replaced when
needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.

Windshield Wiper De-Icer — If Equipped

The Windshield Wiper De-Icer is a heating element
located at the base of the windshield.

GETTING TO KNOW YOUR VEHICLE

It operates automatically once the following conditions
are met:

•

Activation By Front Defrost

The Windshield Wiper De-Icer activates automati-
cally during a cold weather manual start with

full

defrost,

and when the

ambient temperature is

below 33°F (0.6°C)

•

Activation By Rear Defrost

The Windshield Wiper De-Icer activates automati-
cally when the Rear Defrost is operating and the

ambient temperature is below 33°F (0.6°C)

•

Activation By Remote Start Operation

When the Remote Start is activated and the

outside

ambient temperature is less than 33°F (0.6°C)

the

Windshield Wiper De-Icer will activate. Exiting
Remote Start will resume its previous operation. If
the Windshield Wiper De-Icer was active, the timer
and operation will continue.

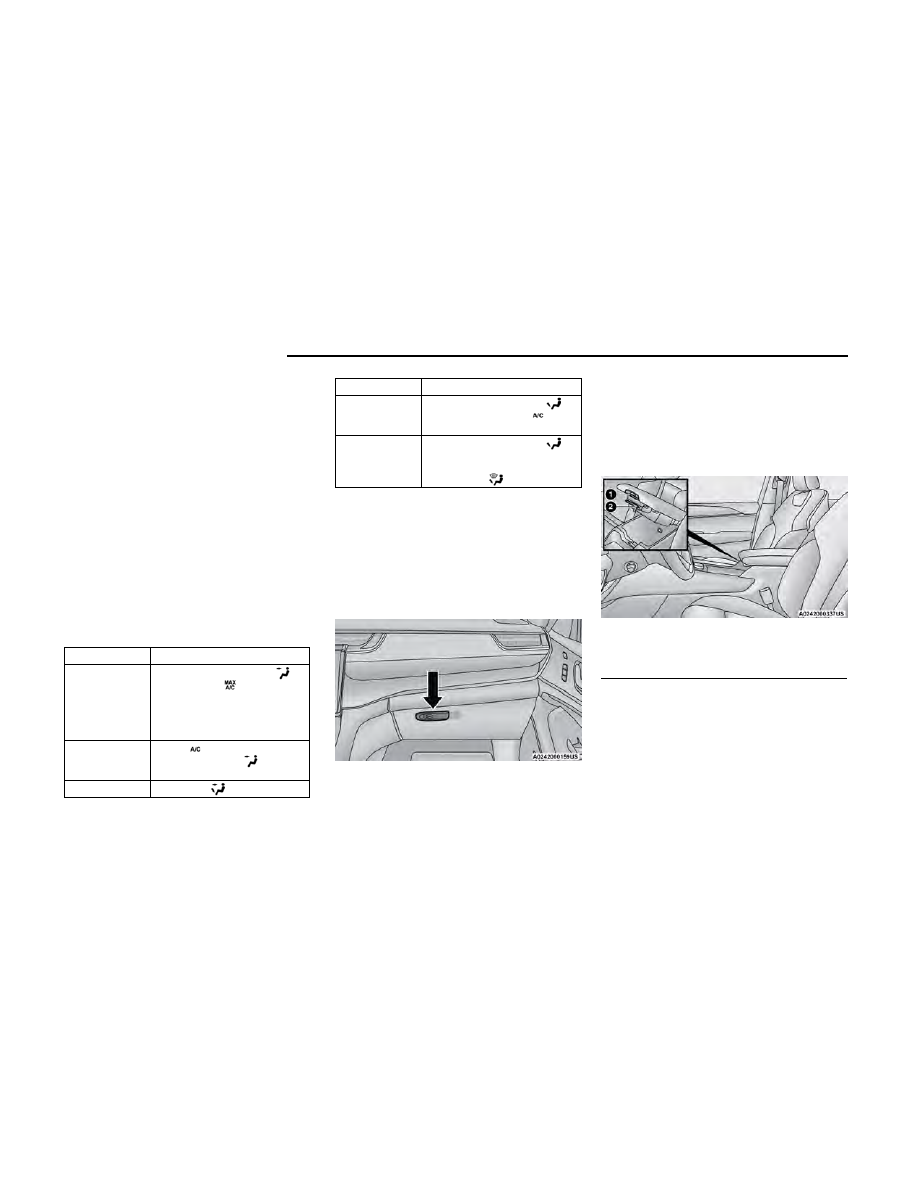

Operating Tips Chart

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

(Panel Mode),

(MAX A/C) on,

and blower on high. Roll down the

windows for a minute to flush out

the hot air. Adjust the controls as

needed to achieve comfort.

Warm Weather

Turn

(A/C) on and set the

mode control to

(Panel

Mode).

Cool Sunny

Operate in

(Bi-Level Mode).

WEATHER

CONTROL SETTINGS

Cool & Humid

Conditions

Set the mode control to

(Floor Mode) and turn

(A/C)

on to keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If windshield fog-

ging starts to occur, move the

control to

(Mix Mode).

INTERIOR STORAGE AND EQUIPMENT

STORAGE

Glove Compartment

The glove compartment is located on the passenger
side of the instrument panel.

To open the glove compartment, pull the release
handle.

Front Center Console

The front center console contains both an upper and a
lower storage area.

To open the upper storage compartment, pull the upper
paddle release lever.

To open the lower storage compartment, pull the lower
paddle release lever.

Lift upward on the larger of the release levers to access
the lower storage compartment.

Glove Compartment Release Handle

Storage Compartment Release Levers

1 — Upper Compartment Release Lever
2 — Lower Compartment Release Lever

GETTING TO KNOW YOUR VEHICLE

Sunglasses Bin Door

At the front of the console a compartment is provided
for the storage of a pair of sunglasses. The storage
compartment access is a push/push design. Push the
chrome pad on the door to open. Push the chrome pad
on the door to close.

Rear Full Center Console — If Equipped

The rear full center console contains both an upper and
a lower storage area.

To open the covered storage compartment, pull the
upper paddle release lever on the front of the lid.

The storage compartment may also be lifted forward.
Pull the paddle release lever located on the back of the
console lid.

When the second row seats are folded flat, lifting the
console forward provides a flat load floor surface from
the cargo area. There is also access to the storage com-
partment from the third row.

CAUTION!

Remove any items stored in the console cupholders
or devices with cords routing through upper storage
area. Damage may occur to upper console lid and
device cables when upper storage compartment is
lifted forward.

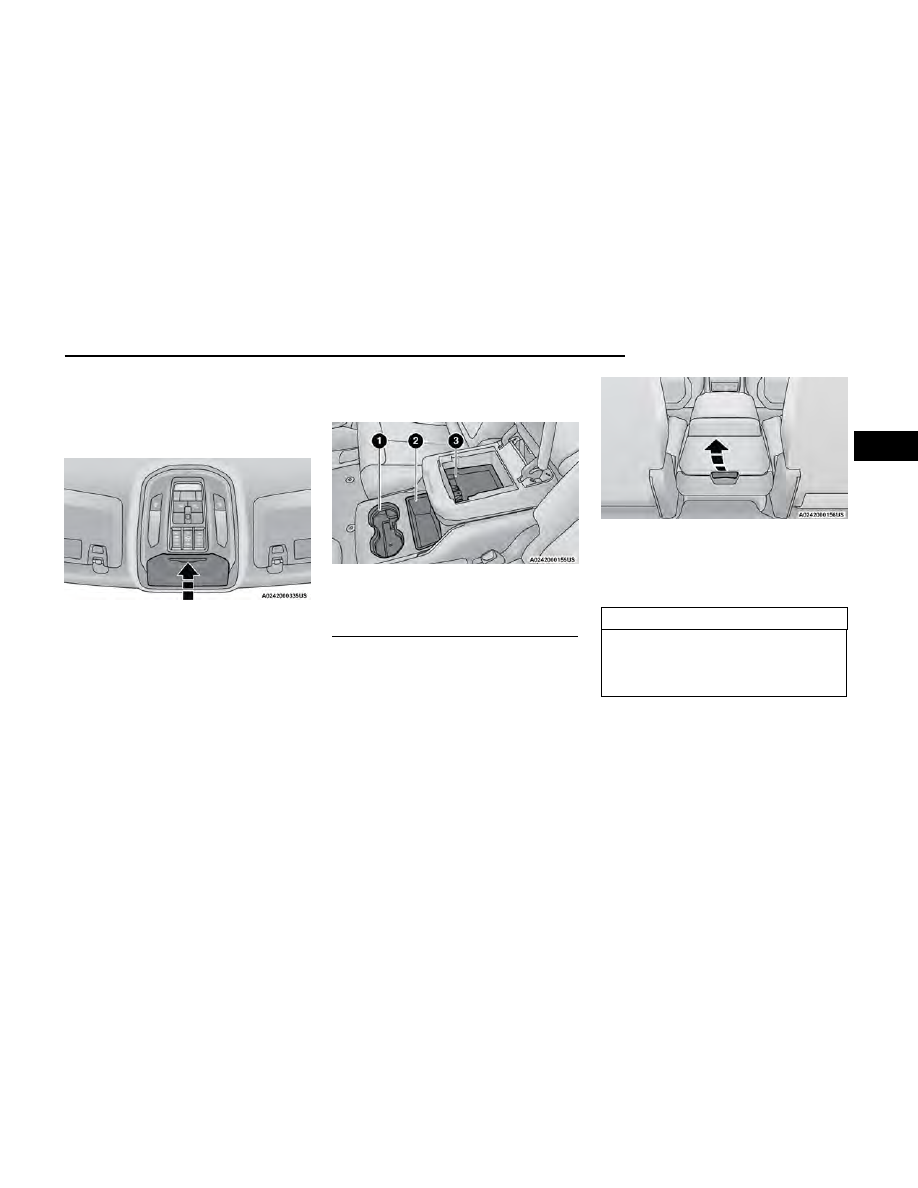

Sunglasses Bin Door

Rear Center Console

1 — Console Cupholders
2 — Open Lower Storage Area
3 — Covered Storage Compartment

Rear Paddle Release Lever

GETTING TO KNOW YOUR VEHICLE

LIGHTED CUPHOLDERS

On some vehicles, the front cupholders are equipped
with a light ring that illuminates the cupholders for the
front passengers.

The rear cupholders may also be equipped with a light
ring that illuminates the cupholders for the rear passen-
gers. The light ring is controlled by the Dimmer Controls

page 74.

SUN SCREENS — IF EQUIPPED

Sun screens are available for the second row seating
windows. The screens store in the sill trim panels, and
the tops of the windows are equipped with hooks that
the sun screens attach to when pulled up.

Gently pull up on the tab to raise the sun screen. Con-
tinue pulling the sun screen until the tab is near the top
of the window.

Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.

To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the
base sill.

USB/AUX CONTROL

This feature allows an external USB device to be
plugged into one of the USB ports, located in the center
stack of the instrument panel.

Plugging in a smartphone device to a USB port will acti-
vate Android Auto™ or Apple CarPlay® features, if
equipped. For further information, refer to “Android
Auto™” or “Apple CarPlay®” in the Uconnect Radio
Instruction Manual.

NOTE:

Two devices can be plugged in at the same time, and
both ports will provide charging capabilities. Only one
port can transfer data to the system at a time.

For example, if a device is plugged into the Type A USB
port and another device is plugged into the Type C USB
port, a message will appear and allow you to select
which device to use.

The following messages will appear when a non-phone
device is plugged into the smaller and larger USB ports,
and when a phone device is plugged into the smaller
and larger USB ports:

•

“A new device is now connected. Previous connec-
tion was lost.”

•

“(Phone Name) now connected. Previous connection
was lost.”

•

“Another device is in use through the same USB
port. Please disconnect the first device to use the
second device.”

Plugging in a phone or another USB device may cause
the connection to a previous device to be lost.

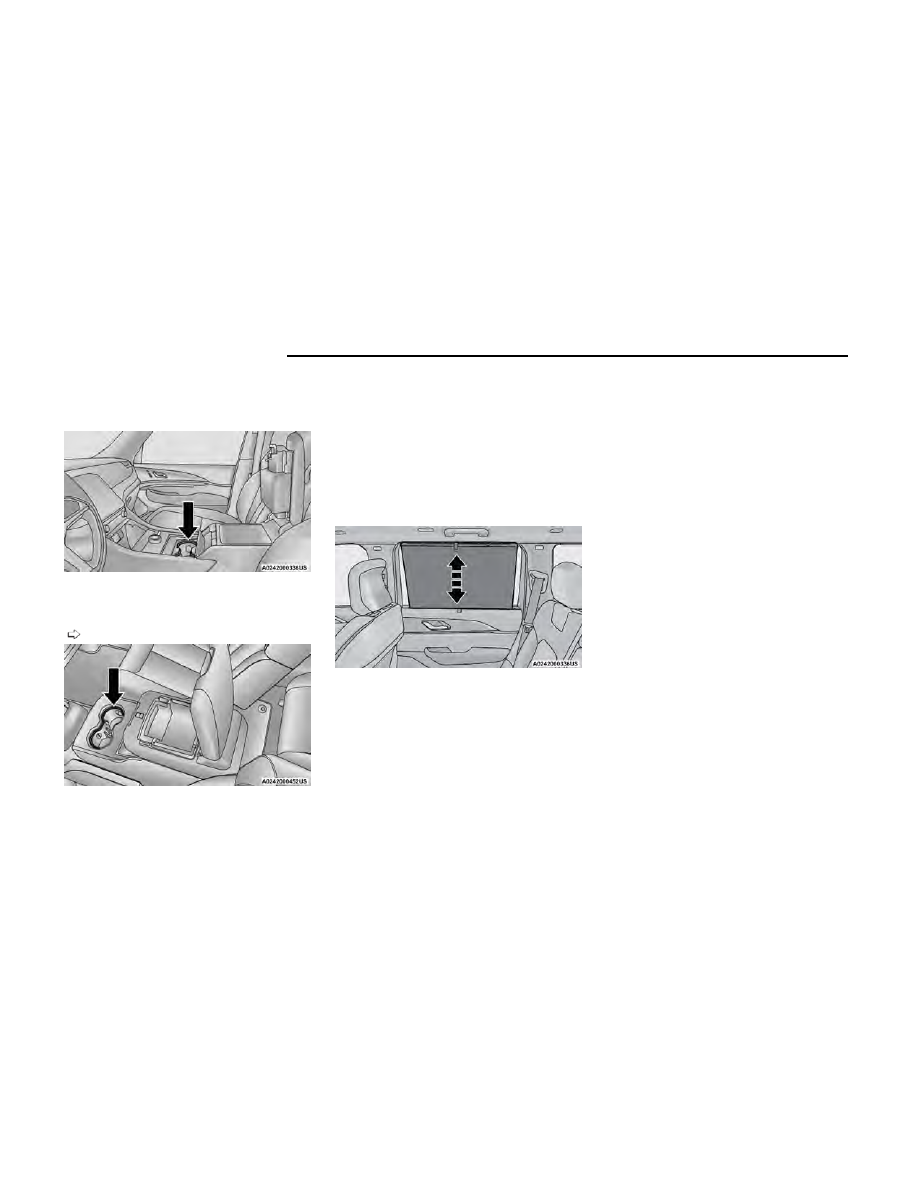

Light Ring In Front Cupholder

Light Ring In Rear Cupholder

Sun Screen Extended

GETTING TO KNOW YOUR VEHICLE

Connecting AUX Or The External USB

Device

Use a connection cable to connect an external USB
device to the vehicle’s USB port, or use an auxiliary
cable to connect a device to the vehicle’s AUX port.
Both are located below the climate controls.

Once a device is connected to the USB port, it will begin
charging and is ready for use with the system. Type C
and Type A charge-only USB ports can be used at the
same time but cannot be used simultaneously while
playing media. When both Type C and Type A charge-
only USB ports are in use they will be charged at a
reduced rate.

If equipped, in the center arm rest are USB ports for
Rear Seat Entertainment. Both the USB A (Standard
USB) and USB C port can be used as a media source
for the rear screens.

NOTE:

If the device’s battery completely discharges, it may not
communicate with the Uconnect system until a mini-
mum charge is attained. Leaving the device connected
to the USB port may charge it to the required level.

Using This Feature

By using a USB cable to connect an external device:

•

The device can be played on the vehicle’s sound
system, and provides the artist, track title, and
album information on the radio display.

NOTE:

Depending on track configuration, track information
may not be present on the radio display.

•

The device can be controlled using the radio buttons
to play and browse the contents of the device.

•

The audio device battery charges when plugged into
the USB port.

By using an auxiliary cable to connect an external
device:

•

The audio device can be played on the vehicle’s
sound system. The Uconnect system will not display
information related to the artist, track title, and
album information.

NOTE:

When using the AUX port, the external device cannot be
controlled using the radio buttons. The device will not
charge.

For further information, refer to the Uconnect Radio
Instruction Manual.

Second And Third Row USB Ports

The second row USB ports can be used to charge an
external device.

In the third row, a set of two USB ports can be used to
charge a device. These ports are charge only.

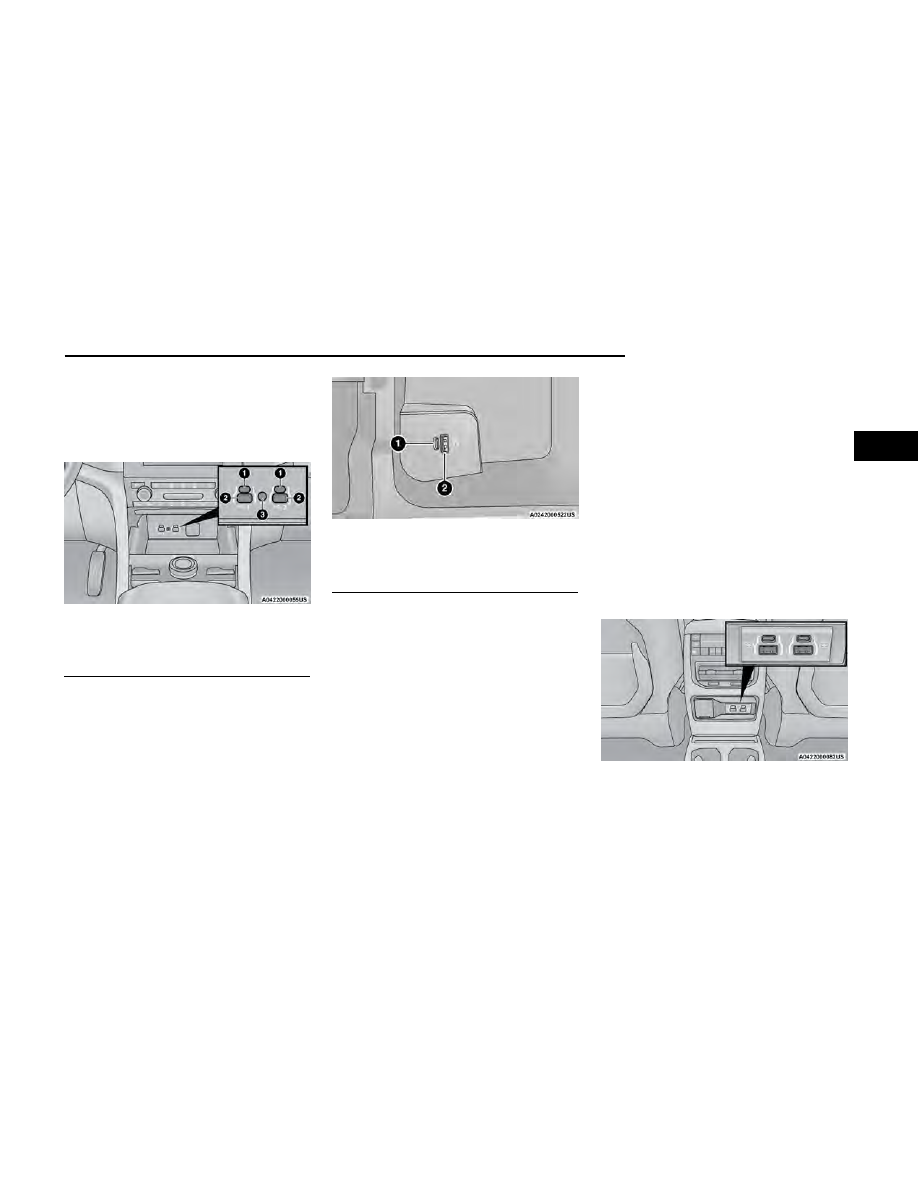

USB/AUX Ports

1 — USB C Port
2 — USB A Port (Standard USB)
3 — AUX Port

Center Arm Rest Rear Seat Entertainment USB Ports —

If Equipped

1 — USB C Port
2 — USB A Port (Standard USB)

Center Console Rear USB Ports

GETTING TO KNOW YOUR VEHICLE

NOTE:

Charge unsupported devices with the Charge Only USB
ports. If an unsupported device is plugged into a Media
USB port, a message will display on the touchscreen
that the device is not supported by the system.

ELECTRICAL POWER OUTLETS

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones,
small electronics and other low powered electrical
accessories. The power outlets are labeled with either a
“key” or a “battery” symbol to indicate how the outlet is
powered. Power outlets labeled with a key symbol are
powered when the ignition switch is in the ON/RUN
position, while the outlets labeled with a battery symbol
are connected directly to the battery and powered at all
times.

NOTE:

•

All accessories connected to the battery powered
outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

•

Do not exceed the maximum power of 160 W
(13 Amp) at 12 Volt. If the 160 W (13 Amp) power
rating is exceeded the fuse protecting the system
needs to be replaced.

•

Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets
as this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

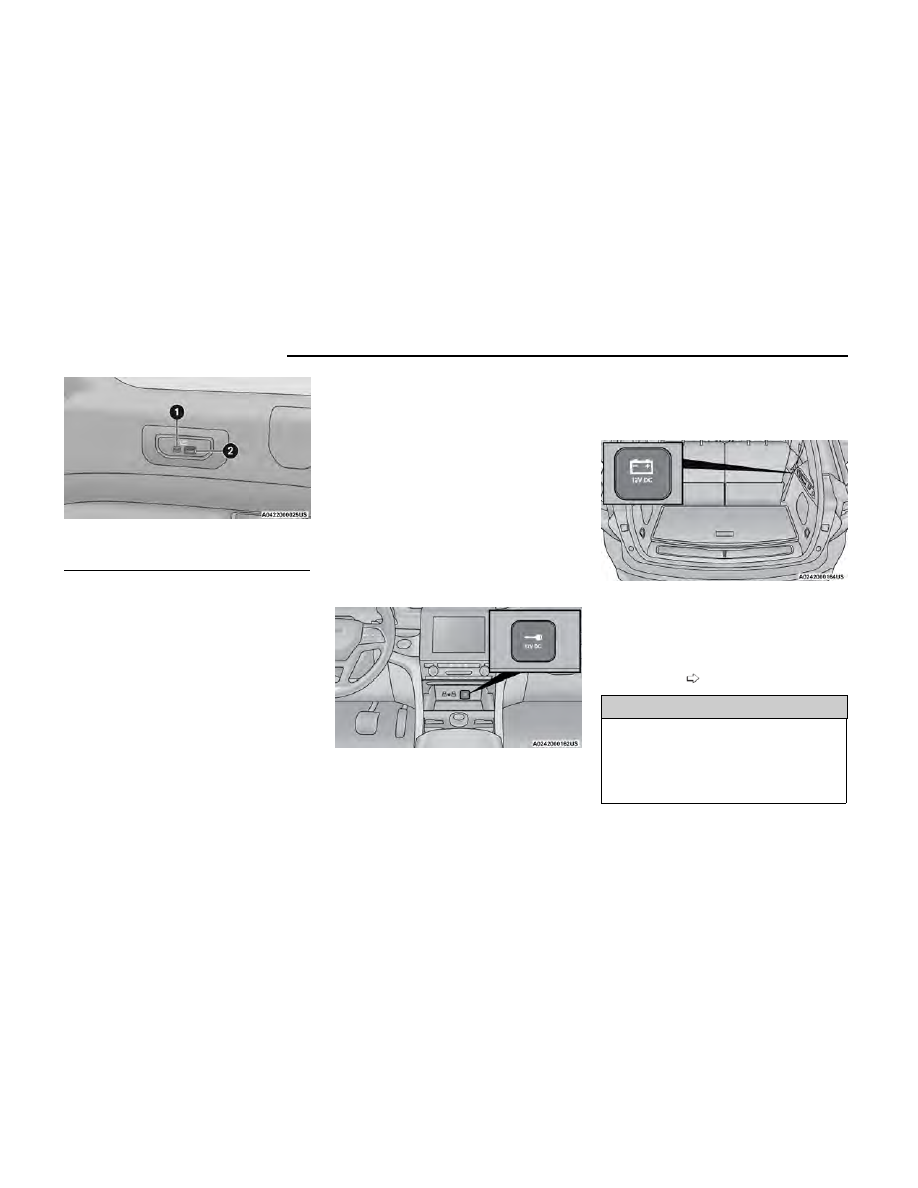

The front power outlet is located inside the storage area
on the center stack of the instrument panel, below the
climate controls.

The rear cargo power outlet is located in the right rear
cargo area when the vehicle is equipped with third row
seating. When the vehicle is equipped with only two row
seating, the cargo area outlet is located on the left side
trim panel.

NOTE:

The rear cargo power outlet can be changed from bat-
tery powered to powered by ignition in the ON/RUN
position by switching the cargo area power outlet fuse
from F44B to F44A in the rear power distribution center
(PDC), if equipped

page 325.

WARNING!

To avoid serious injury or death:

•

Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.

•

Do not touch with wet hands.

•

Close the lid when not in use and while driving the
vehicle.

(Continued)

Third Row USB Ports (If Equipped)

1 — Charge Only Type C USB Port
2 — Charge Only Type A USB Port

Front Power Outlet

Rear Cargo Power Outlet (Third Row Seating)

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

CAUTION!

•

Many accessories that can be plugged in draw
power from the vehicle's battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle's battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

•

Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

•

After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the gen-
erator to recharge the vehicle's battery.

POWER INVERTER — IF EQUIPPED

There is a 115 Volt, 150 W inverter outlet located on
the back of the center console to convert DC current to
AC current. This outlet can power cellular phones, elec-
tronics and other low power devices requiring power up
to 150 W. Certain video game consoles exceed this
power limit, as will most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 W is exceeded,
the power inverter automatically shuts down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overload-
ing the circuit, check the power ratings on electrical
devices prior to using the inverter.

WARNING!

To avoid serious injury or death:

•

Do not insert any objects into the receptacles.

•

Do not touch with wet hands.

•

Close the lid when not in use.

•

If this outlet is mishandled, it may cause an elec-
tric shock and failure.

WIRELESS CHARGING PAD —
IF EQUIPPED

Your vehicle may be equipped with a 15W 3A Qi® wire-
less charging pad located below the center stack,
within the storage compartment. This charging pad is
designed to wirelessly charge your Qi® enabled mobile
phone. Qi® is a standard that allows wireless charging
of your mobile phone.

Your mobile phone must be designed for Qi® wireless
charging. If the phone is not equipped with Qi® wireless
charging functionality, an aftermarket sleeve or a spe-
cialized back plate can be purchased from your mobile
phone provider or a local electronics retailer. Please
see your phone’s Owner’s Manual for further
information.

The wireless charging pad is equipped with an anti-slip
mat to hold your mobile phone in place, and an LED
indicator light.

Power Inverter

Wireless Charging Pad

GETTING TO KNOW YOUR VEHICLE

Place the device inside the prepared area delimited in
the mat as shown in the image. Incorrect positioning
will prevent the phone from charging.

LED Indicator Status:

•

No Light: Charging pad is idle or searching for a
device. Device may not be compatible with the Qi®
standard.

•

Blue Light: Device is detected and is charging.

•

Red Light/Flashing: Internal error or foreign object is
detected.

•

Green Light: Device has completed battery charging
(if device is equipped to transmit this information).

Important Notes Regarding This Vehicle’s Wireless
Charging Pad:

•

The presence of the Near-Field Communication
(NFC) function active on a smartphone could signal
malfunction anomalies.

•

The ignition must be in the ON/RUN position in
order for the phone to charge.

•

To avoid interference with the key fob search, the
wireless charging pad will stop charging when any
door or liftgate is opened, even if the engine is
running.

•

Be sure to place the mobile device correctly (display
facing upward, and phone not covering the LED) on
the wireless charging pad.

•

If the phone moves on the pad causing the red light
to illuminate, the phone will have to be picked up
and placed back on the charging pad to resume
charging.

•

Wireless charging is not as fast as when the phone
is connected to a wired charger.

•

If the phone moves on the pad causing the red light
to illuminate, the phone will have to be picked up
and placed back on the charging pad to resume
charging.

•

Wireless charging is not as fast as when the phone
is connected to a wired charger.

•

The phone’s protective case must be removed when
placed on the wireless charging pad.

•

iPhone® 12 (including iPod®) is equipped with soft-
ware to protect the device from overheating. When
the software is active, the rate of charge is slowed
down to protect the device.

•

Phones must always be placed on the wireless
charging pad within the outline shown on the pad so
that its charging parts connect with the charging
coils of the system. Movement of the phone during
charging may prevent or slow the rate of charge.

•

Having multiple applications open on the phone
while charging will reduce the charging efficiency,
and may even shut down an application that is
actively running (i.e. Apple CarPlay®). This may also
cause the phone to overheat.

•

Wireless chargers may implement certain methods
to prevent the phone from overheating during charg-
ing such as slowing down the rate of charge. In cer-
tain instances, the device may shut down for a brief
period of time (when the device reaches a certain
temperature). If this happens, it does not mean
there is a fault with the wireless charging pad. This
may just be a protective measure to prevent dam-
age to the phone.

•

The use of multiple wireless functions at the same
time (wireless charging, Apple CarPlay®, Android
Auto™) could cause the device to overheat, resulting
in limitation of the functions or it turning off. In this
case, it is recommended to connect the system
using the USB port.

•

Do not place the key fob or any other type of metal/
magnetized object inside the mobile phone housing
or near the wireless charging pad.

•

With a compatible device placed on the charging
pad, and the ignition is cycled to the OFF position, a
reminder message may appear on the instrument
cluster display to warn the driver.

CAUTION!

The key fob should not be placed on the charging pad
or within 6 inches (15 cm) of it. Doing so can cause
excessive heat buildup and damage to the fob. Plac-
ing the fob in close proximity of the charging pad
blocks the fob from being detected by the vehicle and
prevents the vehicle from starting.

WINDOWS

POWER WINDOW CONTROLS

The power window controls, located on the driver's door
trim panel, operate the window movement for all four
power windows.

There is a single switch on the front passenger door
and rear passenger doors which operates the windows
for only that door.

GETTING TO KNOW YOUR VEHICLE

NOTE:

•

The power window switches remain active for up to
10 minutes after the ignition has been placed in the
OFF position. Opening a vehicle front door will can-
cel this feature.

•

The window controls will operate only when the vehi-
cle’s ignition is placed in the ON/RUN position.

•

The power windows may be operated from outside
of the vehicle by using the key fob. For more infor-
mation, see

page 35.

WARNING!

Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not leave
the key fob in or near the vehicle, or in a location
accessible to children, and do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position. Occu-
pants, particularly unattended children, can become

(Continued)

WARNING!

entrapped by the windows while operating the power
window switches. Such entrapment may result in seri-
ous injury or death.

Automatic Window Features

Both the driver and front passenger windows, and
if equipped, both rear windows, may have Auto-Down
and Auto-Up operations.

Auto-Down Feature

For windows equipped with the AUTO feature, push the
window switch down to the second detent, release, and
the window will go down automatically.

To stop the window from going all the way down during
the Auto-Down operation, pull up or push down on the
switch briefly.

Auto-Up Feature With Anti-Pinch Protection

For windows equipped with the AUTO feature, lift the
window switch up to the second detent, and release;
the window will go up automatically.

To stop the window from going all the way up during the
Auto-Up operation, push down on the switch briefly.

To close the window part way, lift the window switch
briefly and release it when you want the window to stop.

For vehicles equipped with anti-pinch protection, if the
window runs into any obstacle during auto-closure, it
will reverse direction and then go back down. Remove
the obstacle and use the window switch again to close
the window.

NOTE:

Any impact due to rough road conditions may trigger the
auto-reverse function unexpectedly during auto-closure.
If this happens, pull the switch lightly and hold to close
the window manually.

WARNING!

There is no anti-pinch protection when the window is
almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.

Reset Auto-Up

Should the Auto-Up feature stop working, the window
may need to be reset. To reset Auto-Up:

Front Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

Rear Doors

1. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

2. Release the window switch, and within five seconds,

pull the window switch up again for an additional
two seconds.

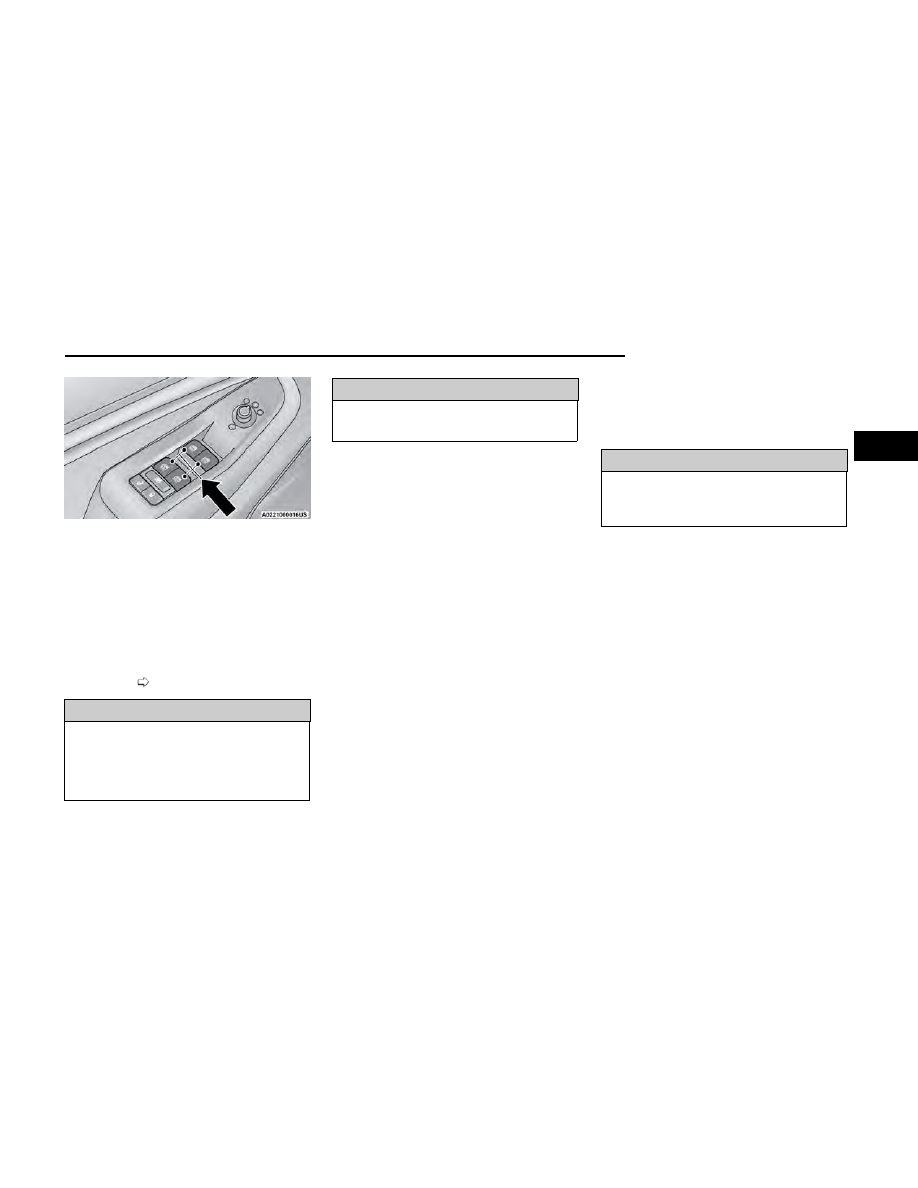

Driver’s Door Power Window Switches

GETTING TO KNOW YOUR VEHICLE

Window Lockout Switch

The window lockout switch on the driver's door trim
panel allows you to disable the window controls on the
rear passenger doors. To disable the window controls,
push and release the window lockout button (the indi-
cator light on the button will turn on). To enable the win-
dow controls, push and release the window lockout but-
ton again (the indicator light on the button will turn off).

WIND BUFFETING

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof/Power Sliding Top
(if equipped) in certain open or partially open positions.
This is a normal occurrence and can be minimized. If
the buffeting occurs with the rear windows open, open
the front and rear windows together to minimize the
buffeting. If the buffeting occurs with the sunroof open,
adjust the sunroof opening to minimize the buffeting or
open any window.

POWER SUNROOF — IF EQUIPPED

SINGLE PANE POWER SUNROOF —
IF EQUIPPED

The power sunroof switches are located on the over-
head console between the courtesy/reading lights.

WARNING!

•

Never leave children unattended in a vehicle, or
with access to an unlocked vehicle. Never leave
the key fob in or near the vehicle, or in a location
accessible to children. Do not leave the Keyless
Enter ‘n Go™ Ignition in the ON/RUN position.
Occupants, particularly unattended children, can
become entrapped by the power sunroof while
operating the power sunroof switch. Such entrap-
ment may result in serious injury or death.

(Continued)

WARNING!

•

In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are also properly secured.

•

Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening.
Injury may result.

Opening And Closing The Sunroof

Express Open/Close

To open the sunroof, push OPEN on the sunroof switch
and release it within one-half second and the sunroof
will open automatically from any position.

To close the sunroof, push CLOSE on the sunroof switch
and release it within one-half second and the sunroof
will close automatically from any position.

During Express Open or Express Close operation, any
other actuation of the sunroof switch will stop the
sunroof.

Manual Open/Close

To open the sunroof, push and hold OPEN on the sun-
roof switch.

To close the sunroof, push and hold CLOSE on the sun-
roof switch.

Any release of the switch during open or close opera-
tion will stop the sunroof movement in a partially open
position. The sunroof will remain in a partially opened
position until the switch is operated and held again.

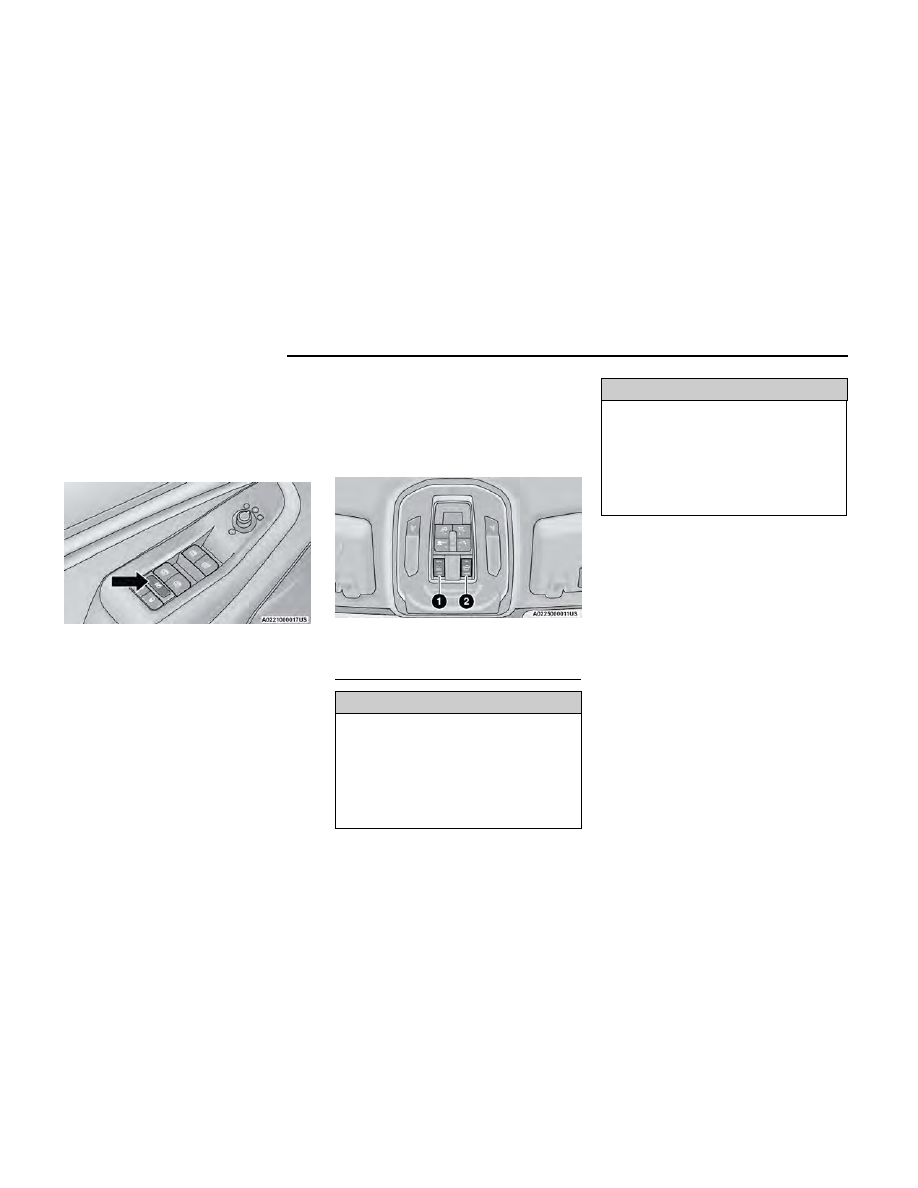

Power Window Lockout Switch

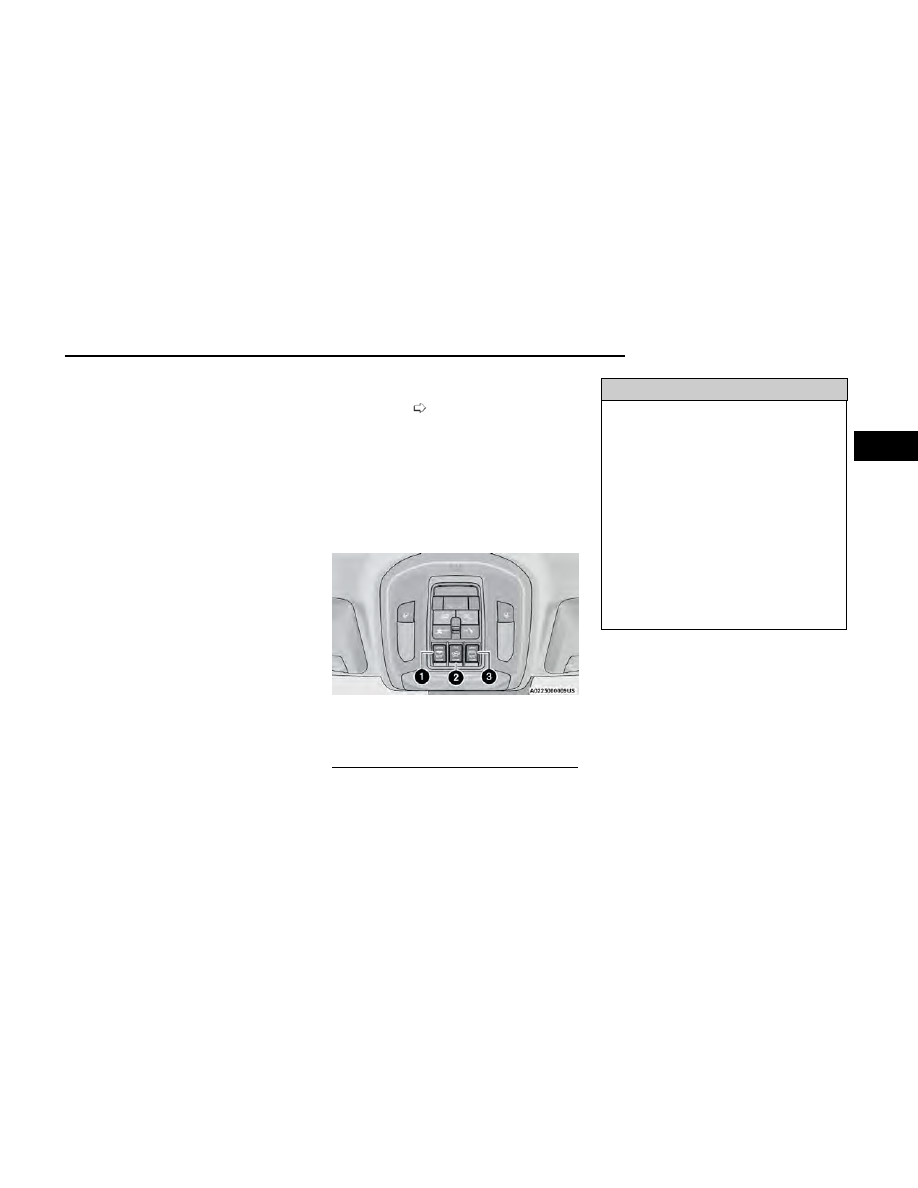

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof

GETTING TO KNOW YOUR VEHICLE

Express Venting The Sunroof

To vent the sunroof, push TILT on the vent switch and
release within one half second. The sunroof will open to
the vent position regardless of its initial position. During
Express Vent operation, any other actuation of the
switch will stop the sunroof.

NOTE:

If the sunshade is in the closed position when Express/
Manual Open operation is initiated, the sunshade will
automatically open with the sunroof glass.

Pinch Protect Feature

This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an
obstruction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs.

NOTE:

If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and
the sunroof must be closed in Manual Mode.

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is open.

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
placed in the OFF position. Opening either front door
will cancel this feature.

NOTE:

Ignition Off timing is programmable through the
Uconnect system

page 199.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to
clean the glass panel. Periodically check for and clear
out any debris that may have collected in the tracks.

DUAL PANE POWER SUNROOF —
IF EQUIPPED

The power sunroof switches are located on the over-
head console between the courtesy/reading lights.

WARNING!

•

Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening.
Injury may result.

Opening And Closing The Sunroof

The sunroof has two programmed automatic stops for
the sunroof open position: a comfort stop position and
a full open position. The comfort stop position will mini-
mize wind buffeting in the interior.

Express Open/Close

To open the sunroof, push OPEN on the sunroof switch
and release it within one-half second. The sunroof will
open to the comfort stop position and stop automati-
cally. Push and release OPEN again to continue to the
full open position.

To close the sunroof, push CLOSE on the sunroof switch
and release it within one-half second. The sunroof will
close automatically from any position.

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade

GETTING TO KNOW YOUR VEHICLE

During Express Open or Express Close operation, any
other actuation of the sunroof switch will stop the
sunroof.

Manual Open/Close

To open the sunroof, push and hold OPEN on the sun-
roof switch. The sunroof will open to the comfort stop
position, then automatically stop. Release the switch
then push and hold again to continue to the full open
position.

To close the sunroof, push and hold CLOSE on the sun-
roof switch.

Any release of the switch during open or close opera-
tion will stop the sunroof movement in a partially open
position.

Express Venting The Sunroof

NOTE:

If the sunshade is in the closed position when Express/
Manual Open or Vent operation is initiated, the sun-
shade will automatically open to the half open position
prior to the sunroof opening.

Opening And Closing The Power

Sunshade

The sunshade has two programmed open positions:
half open and full open positions. When operating the
sunshade from the closed position, the sunshade will
always stop at the half open position regardless of
express or manual open operation. The switch must be
pushed again to continue on to full open position.

If the sunroof is open or vented, the sunshade cannot
be closed beyond the half open position. Pushing the
sunshade close switch when the sunroof is open/
vented and the sunshade is at half open position will
first automatically close the sunroof prior to the sun-
shade closing.

Express Open/Close

To open the sunshade, push OPEN on the sunshade
switch and release it within one-half second, the sun-
shade will open to the half open position and stop auto-
matically. Push and release OPEN again to continue to
open the sunshade to the full open position.

To close the sunshade, push CLOSE on the sunshade
switch and release it within one-half second.

During Express Open or Express Close operation, any
other actuation of the sunroof switches will stop the
sunshade in a partially open position.

Manual Open/Close

To open the sunshade, push and hold OPEN on the sun-
shade switch, the sunshade will open to the half open
position and stop automatically. Push and hold OPEN
again to continue to open the sunshade to the full open
position.

To close the sunshade, push and hold CLOSE on the
sunshade switch.

Releasing the switch while the sunshade is in motion
will stop the sunshade in a partially open position.

Pinch Protect Feature

NOTE:

If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and
the sunroof must be closed in Manual Mode.

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
placed in the OFF position. Opening either front door
will cancel this feature.

NOTE:

Ignition Off timing is programmable through the
Uconnect system

page 199.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to
clean the glass panel. Periodically check for and clear
out any debris that may have collected in the tracks.

HOOD

OPENING THE HOOD

WARNING!

For Hybrid models:

Always place the ignition in the

OFF position before opening the hood. If the ignition
is in the RUN position and the Propulsion System is
active when the hood is opened, the electric motor
could automatically start, and persons not clear of
the vehicle could be injured by the electric motor’s
moving parts.

GETTING TO KNOW YOUR VEHICLE

To open the hood, two latches must be released.

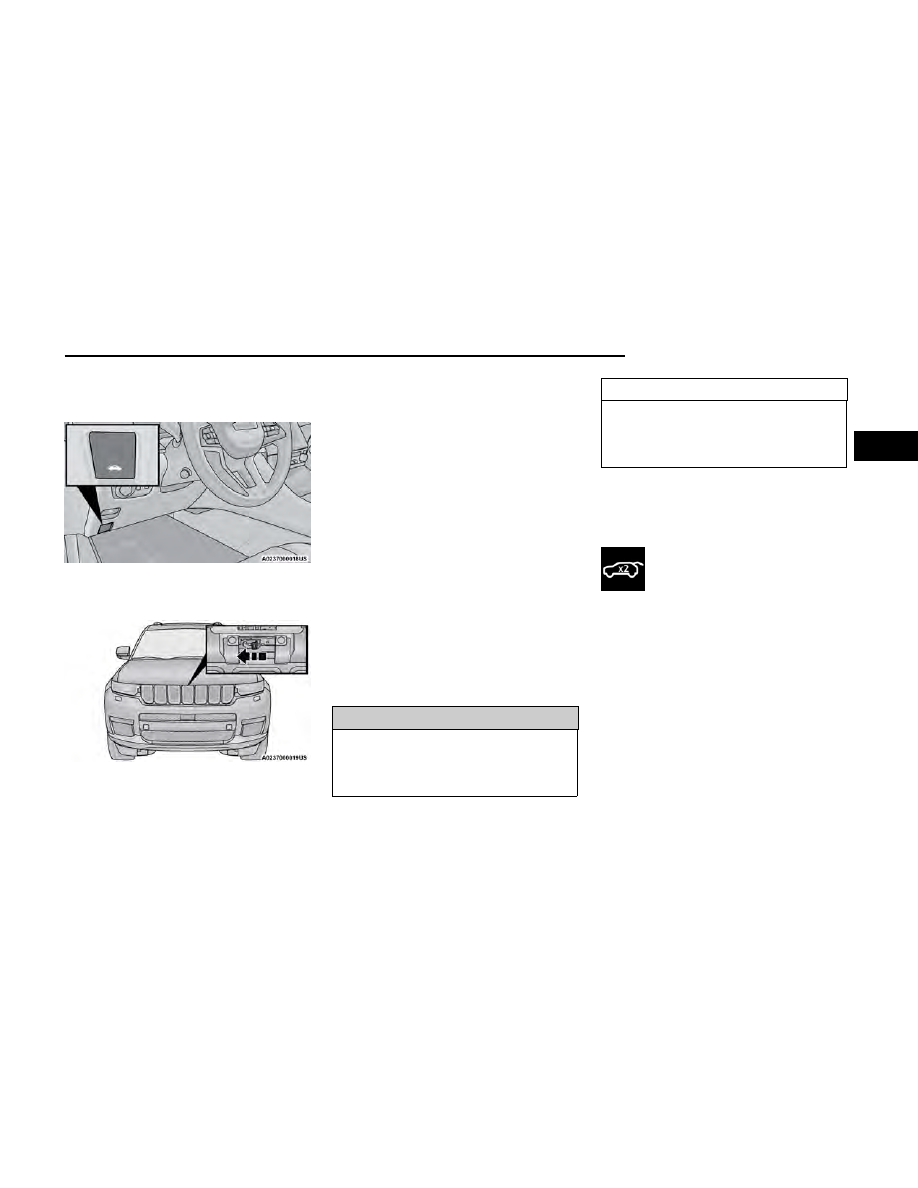

1. Pull the release lever located at the bottom of the

driver’s side of the instrument panel.

2. Reach under the hood from outside the vehicle,

move the safety latch to the left and lift the hood.

NOTE:

•

Vehicle must be at a stop and the gear selector
must be in PARK.

•

You may have to push down slightly on the hood
before pushing the safety latch.

•

While lifting the hood, use both hands.

•

Before lifting the hood, check that the wiper arms
are not in motion and not in the lifted position.

•

For Hybrid models:

If the vehicle was actively charg-

ing the high voltage battery when the hood was
opened, the vehicle will stop charging until the hood
is closed.

•

For Hybrid models:

Electric drive mode will not be

available while the hood is open. A message will
show in the instrument cluster display to alert the
driver.

CLOSING THE HOOD

In one continuous motion, pull down on the front edge
of the hood with moderate force until the angle is below
the crossover point (where the gas props are no longer
resisting) and let the hood continue to fall closed from
its own inertia.

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 10 – 14 inches
(30 – 36 cm) and drop the hood to close. Make sure
hood is fully closed and latched. Never drive vehicle
unless hood is fully closed, and latched.

LIFTGATE

TO UNLOCK/OPEN THE LIFTGATE

The power liftgate may be opened by push-
ing the liftgate button on the key fob or by
pushing the electronic liftgate release
button.

Push the liftgate button on the key fob twice within five
seconds to open the power liftgate. Once the liftgate is
open, pushing the button twice within five seconds a
second time will close the liftgate.

Hood Release

Safety Latch Location

GETTING TO KNOW YOUR VEHICLE

NOTE:

When you push the electronic liftgate release button,
either only the liftgate will unlock, or all the doors and
the liftgate will unlock, depending on the selected set-
ting in the Uconnect system

page 199.

NOTE:

•

Use the power door lock switch on either front door
trim panel or the key fob to lock and unlock the
liftgate.

•

The driver's door lock cylinder will not lock or unlock
the liftgate.

WARNING!

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the lift-
gate closed when you are operating the vehicle.

NOTE:

The liftgate can also be opened manually by pushing
the electronic liftgate release button and pulling
upward in one fluid motion.

TO LOCK/CLOSE THE LIFTGATE

There are several different ways to close the liftgate:

•

Manually (grab the liftgate closing handle and pull in
a downward motion)

•

Key fob

•

Hands-free (if equipped)

•

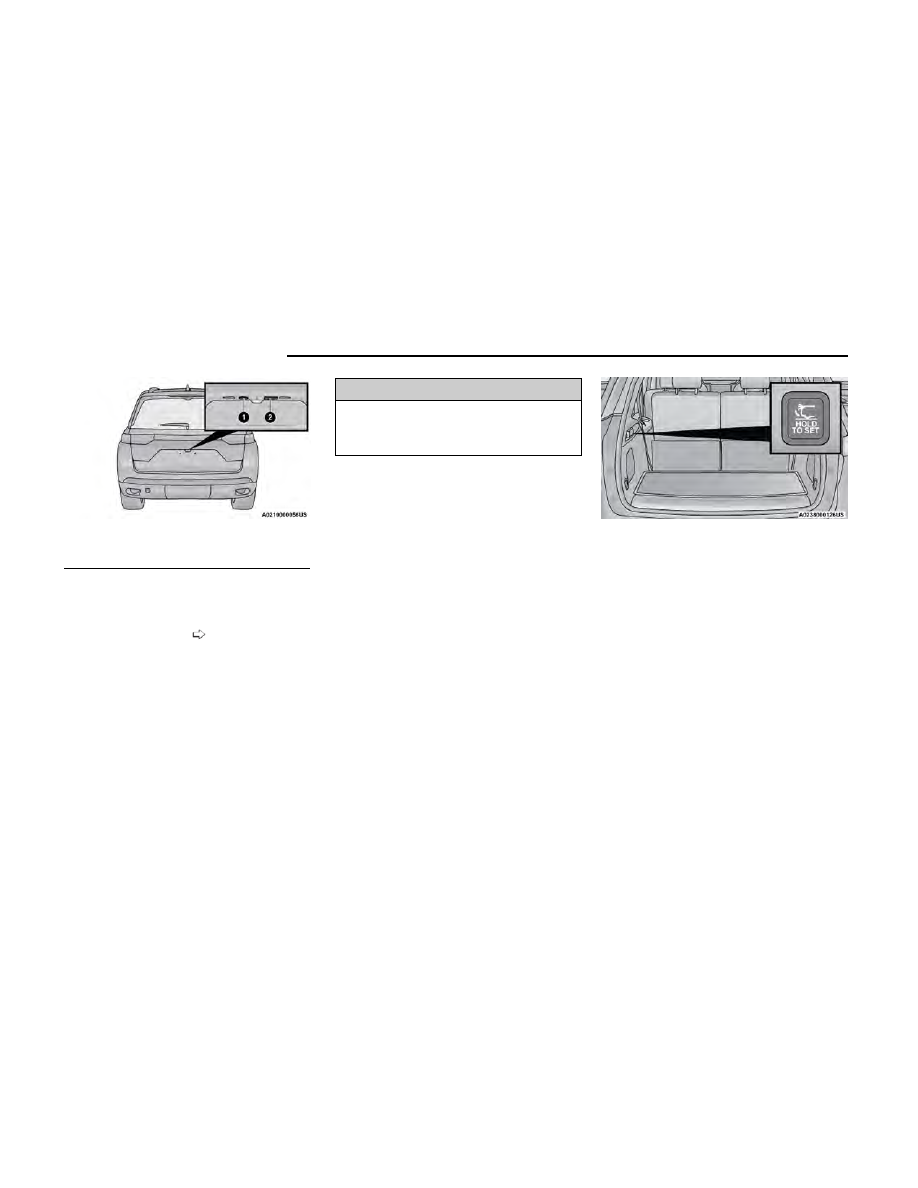

Liftgate close button in the cargo area

With a valid Passive Entry key fob within 5 ft (1.5 m) of
the liftgate, pushing the Passive Entry button located to
the left of the electronic liftgate release button, will lock
the vehicle only.

If the liftgate is fully open, the liftgate can be closed by
pushing the liftgate close button located in the cargo
area on the left rear trim panel, near the liftgate open-
ing. If the liftgate is in motion, pushing the liftgate close
button a second time will reverse the liftgate operation.

ADJUSTABLE POWER LIFTGATE
HEIGHT

The maximum height that the liftgate will open can be
adjusted and saved so that the liftgate will only open to
the desired height. To set a desired height, proceed as
follows:

1. Open the liftgate fully, then manually pull down on

the liftgate to the desired height.

2. Push and hold the liftgate close button, located on

the left side trim panel inside the cargo area, for
three seconds. An audible chime will be emitted to
let you know the height has been saved.

To set the saved height setting to a new setting, pro-
ceed as follows:

1. Open the liftgate, then manually push the liftgate

upward to its full open position.

2. Manually pull the liftgate down to the new desired

height and hold the liftgate close button for three
seconds until the audible chime is emitted.

Liftgate Entry

1 — Passive Entry Button
2 — Electronic Liftgate Release Button

Liftgate Close Button

GETTING TO KNOW YOUR VEHICLE

Power Liftgate Malfunction Procedure:

1. In the event of a power malfunction to the liftgate,

the liftgate can be released by accessing the service
release feature in the latch. This can be done using
a 3 mm diameter screwdriver.

2. From inside the gate, an eyelet can be seen. Place

the screwdriver in the eyelet.

3. Rotate the screwdriver handle to actuate the lever

and release the latch.

4. If liftgate is left open for an extended period of time,

the liftgate may need to be closed manually to reset
power liftgate functionality.

HANDS-FREE LIFTGATE —
IF EQUIPPED

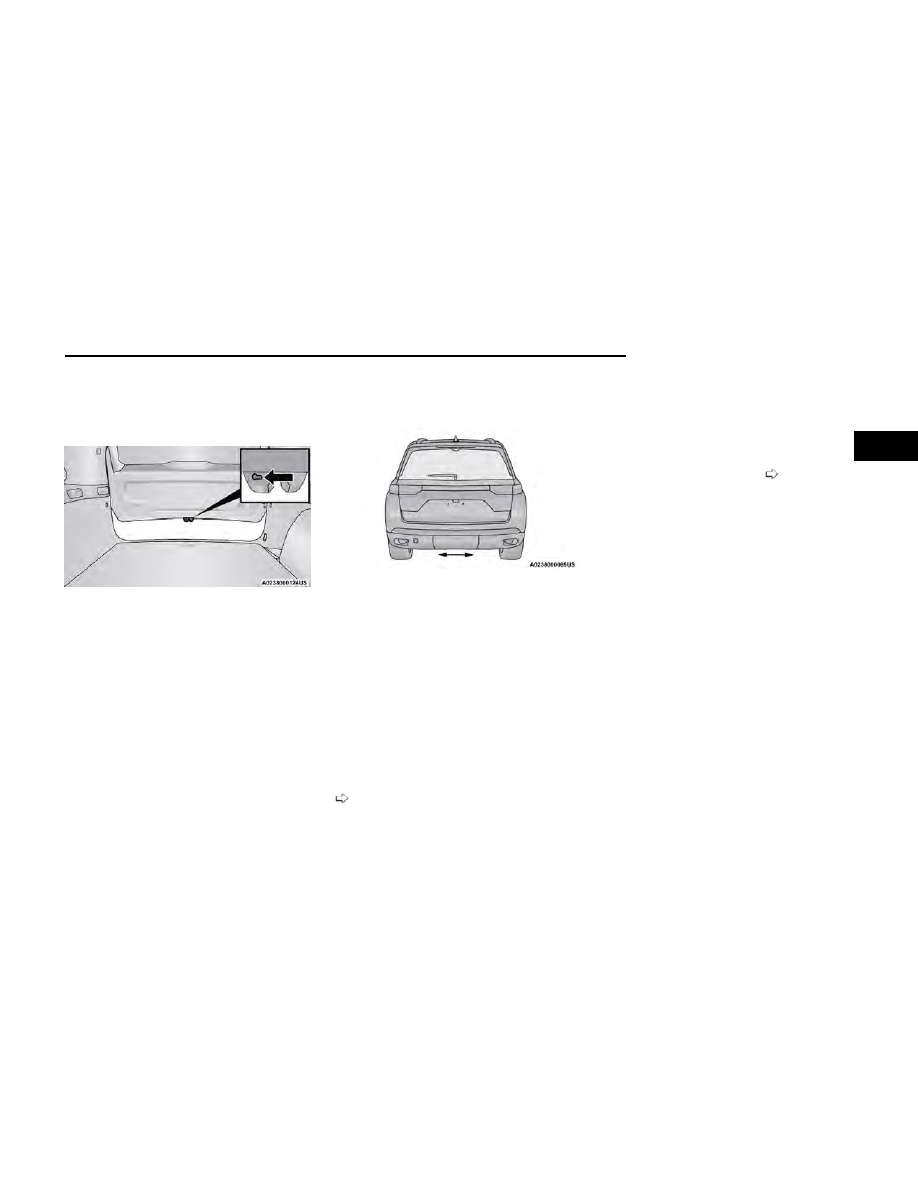

To open or close the liftgate using hands-free activa-
tion, use a straight in and out kicking motion under the
vehicle activation zone in the general location below
the rear license plate. The activation zone is about
1.8 ft (0.5 m) from side to side. Do not move your foot
sideways or in a sweeping motion or the sensors may
not detect the motion.

NOTE:

The activation zone is the same for vehicles equipped
with or without a trailer tow package.

When a valid kicking motion is completed, the liftgate
will chime, the hazard lights will flash and the liftgate
will open after approximately one second, or close after
approximately three seconds. These settings can be
enabled or disabled through Uconnect Settings

page 199.

NOTE:

•

Opening or closing the Hands-Free Liftgate requires
a valid Passive Entry key fob within 5 ft (1.5 m) of
the liftgate handle. If a valid Passive Entry key fob is
not within 5 ft (1.5 m), the liftgate will not respond
to any kicks.

•

The Hands-Free Liftgate feature may be turned on or
off through the Uconnect system

page 199.

•

The Hands-Free Liftgate feature should be turned
off during jacking, tire changing, manual car wash,
and vehicle service.

•

The Hands-Free Liftgate feature can be activated by
any metallic object making a similar in-and-out
motion under the rear fascia/bumper, such as
cleaning using a metal broom.

•

The Hands-Free Liftgate will only operate when the
transmission is in PARK.

•

If anything obstructs the Hands-Free Liftgate while it
is opening or closing, the liftgate will automatically
reverse to the closed/open position, provided it
meets sufficient resistance.

•

There are pinch sensors attached to the side of the
liftgate opening. Light pressure anywhere along
these strips will cause the liftgate to return to the
open position.

•

If the power liftgate encounters multiple obstruc-
tions within the same cycle, the system will auto-
matically stop. If this occurs, the liftgate must be
operated manually.

•

The power liftgate will release, but not power open,
in temperatures below −12°F (−24°C). Be sure to
remove any buildup of snow or ice from the liftgate
before opening the liftgate.

Liftgate Service Release

Hands-Free Liftgate Activation Zone

GETTING TO KNOW YOUR VEHICLE

•

If the liftgate is left open for an extended period of
time (approximately one hour), the liftgate may need
to be closed manually to reset power liftgate
functionality.

WARNING!

•

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

•

If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode.

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tem-
perature, it may be necessary to assist the props when
opening the liftgate in cold weather.

NOTE:

Allow the power system to open the liftgate. Manually
pushing or pulling the liftgate may activate the liftgate
obstacle detection feature and stop the power opera-
tion or reverse its direction.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

CARGO AREA FEATURES

Cargo Storage

The load floor is designed for a maximum load of
300 lb (136 kg).

If equipped, there may be a removable storage bin
located on the left side of the rear cargo area.

Additional storage can be found under the storage lid.
To access the lower storage, lift the handle and raise
the storage lid.

Cargo Tie-Down Hooks

The cargo tie-downs, located on the cargo area sides,
should be used to safely secure loads when the vehicle
is moving.

NOTE:

The cargo tie-downs are designed for a maximum load
of 300 lb (136 kg).

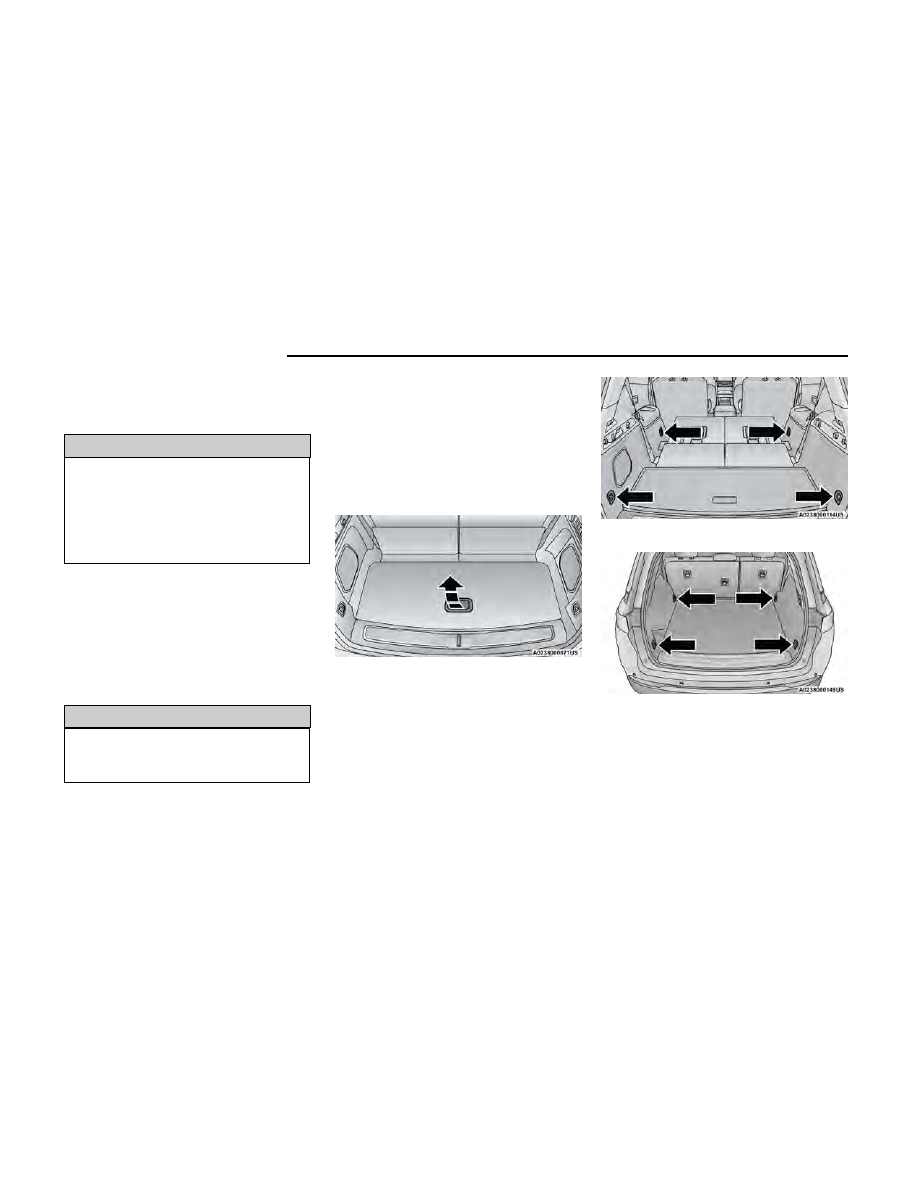

Lift Storage Lid Handle

Tie-Down Hooks (Vehicles With Third Row Seating)

Tie-Down Hooks (Vehicles Without Third Row Seating)

GETTING TO KNOW YOUR VEHICLE

WARNING!

•

Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or accident, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.

•

To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:

•

Do not carry loads that exceed the load limits
described on the label attached to the left door or
left door center pillar.

•

Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.

•

Place as much cargo as possible in front of the
rear axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
vehicle to sway.

•

Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or
accident.

Retractable Cargo Area Cover —

If Equipped

The purpose of this cover is for privacy, not to secure
loads. It will not prevent cargo from shifting or protect
passengers from loose cargo.

To cover the cargo area:

1. Grab the cover at the center handle and pull over

the cargo area.

2. Insert the pins on the ends of the cover into the

slots in the pillar trim cover.

3. The liftgate may be opened with the cargo cover in

place.

WARNING!

In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.

Foldable Cargo Area Cover — If Equipped

The purpose of this cover is for privacy, not to secure
loads. It will not prevent cargo from shifting or protect
passengers from loose cargo.

To cover the cargo area:

1. Remove the folded cover from the storage pouch,

and unfold using a twisting motion.

2. Insert the pins on the ends of the cover into the

slots on each side of the pillar trim.

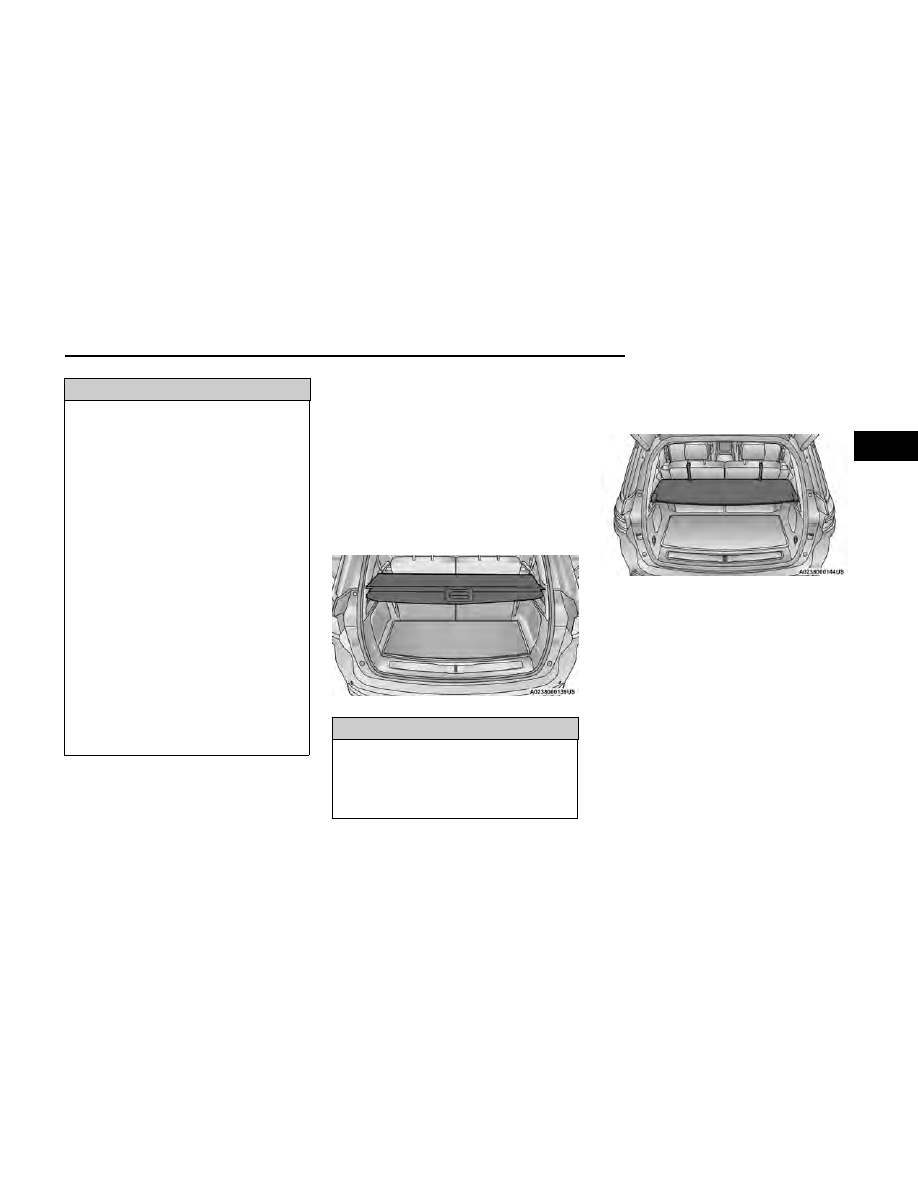

Rear Cargo Cover

Foldable Cargo Area Cover

GETTING TO KNOW YOUR VEHICLE

3. Hook the straps to the outside post of the rear head

restraint on each side.

NOTE:

The liftgate may be opened with the cargo cover in
place.

To store the foldable cargo area cover, reverse the
installation steps and replace the cover into its storage
pouch.

WARNING!

ROOF LUGGAGE RACK — IF EQUIPPED

The crossbars and siderails are designed to carry loads
on vehicles equipped with a luggage rack. The load
must not exceed 150 lb (68 kg), and should be uni-
formly distributed over the luggage rack crossbars.

NOTE:

See an authorized dealer to order and install Mopar®
crossbars built specifically for this roof rack system.

Distribute cargo weight evenly on the roof rack cross-
bars. The roof rack does not increase the total load car-
rying capacity of the vehicle. Be sure the total load of
cargo inside the vehicle plus that on the external rack
does not exceed the maximum vehicle load capacity.
Place one crossbar in the forward position. Place the
rear crossbar in one of the two rear optional positions
based on the load being secured.

To move the crossbars, loosen the attachments, located
at the upper edge of each crossbar, approximately eight
turns using the wrench provided with the Mopar®
crossbars. Then, move the crossbar to the desired posi-
tion, keeping the crossbars parallel to the rack frame.
Once the crossbar is in the desired position, retighten
with the wrench to lock the crossbar into position.

NOTE:

If any cargo (or any metallic object) is placed over the
satellite radio antenna (if equipped), you may experi-
ence interruption of satellite radio reception. For
improved satellite radio reception, place the rear cross-
bar in the forward of the two rear crossbar positions.

WARNING!

Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.

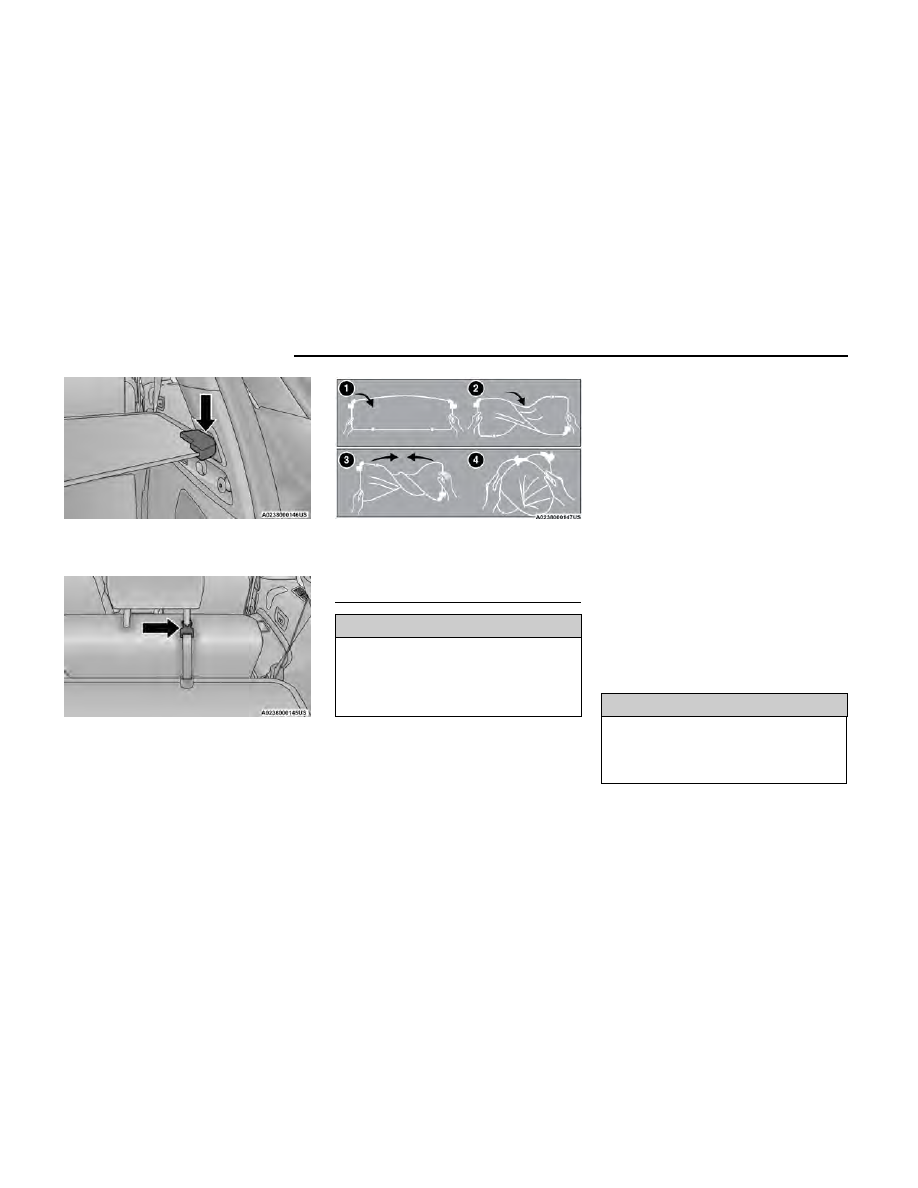

Step 2

Step 3

Folding The Cargo Cover

1 — Remove Cover From Vehicle
2 — Twist Cover
3 — Push Twisted Cover Inward
4 — Place Folded Cover In Pouch

100

GETTING TO KNOW YOUR VEHICLE

CAUTION!

•

To prevent damage to the roof of your vehicle, do
not carry any loads on the roof rack without the
crossbars installed. The load should be secured
and placed on top of the crossbars, not directly on
the roof. If it is necessary to place the load on the
roof, place a blanket or some other protection
between the load and the roof surface.

•

To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load
appropriately.

•

Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front
and rear of the vehicle.

•

Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.

•

The use of vehicle systems that would adjust the
ride heights (such as Selec-Terrain modes Rock or
Sand/Mud) is not recommended when using the
Roof Luggage Rack to carry a load.

GETTING TO KNOW YOUR VEHICLE

101

Holding the

button on the Instrument Cluster Dis-

play controls located on the steering wheel will allow
you to change your display from Digital to Analog.

Use this QR code to access your digital
experience.

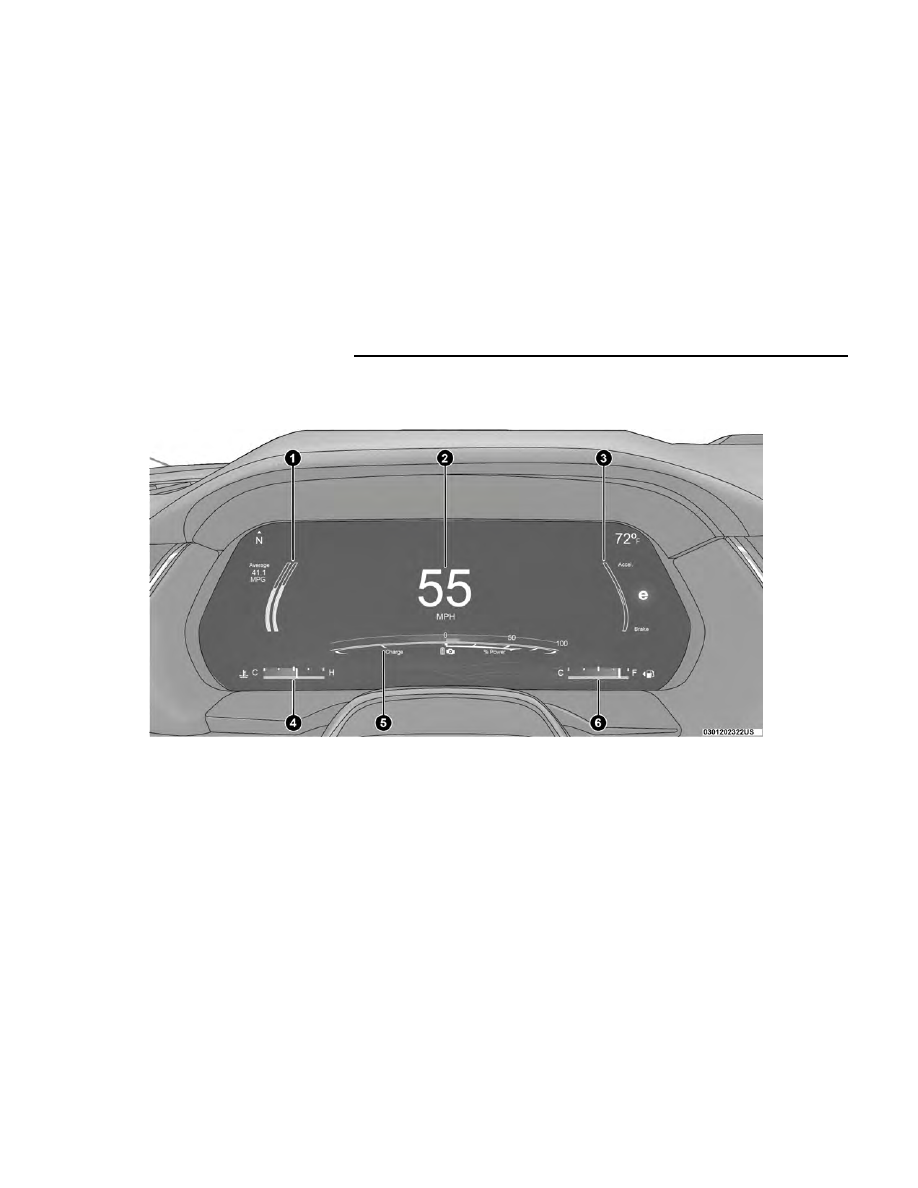

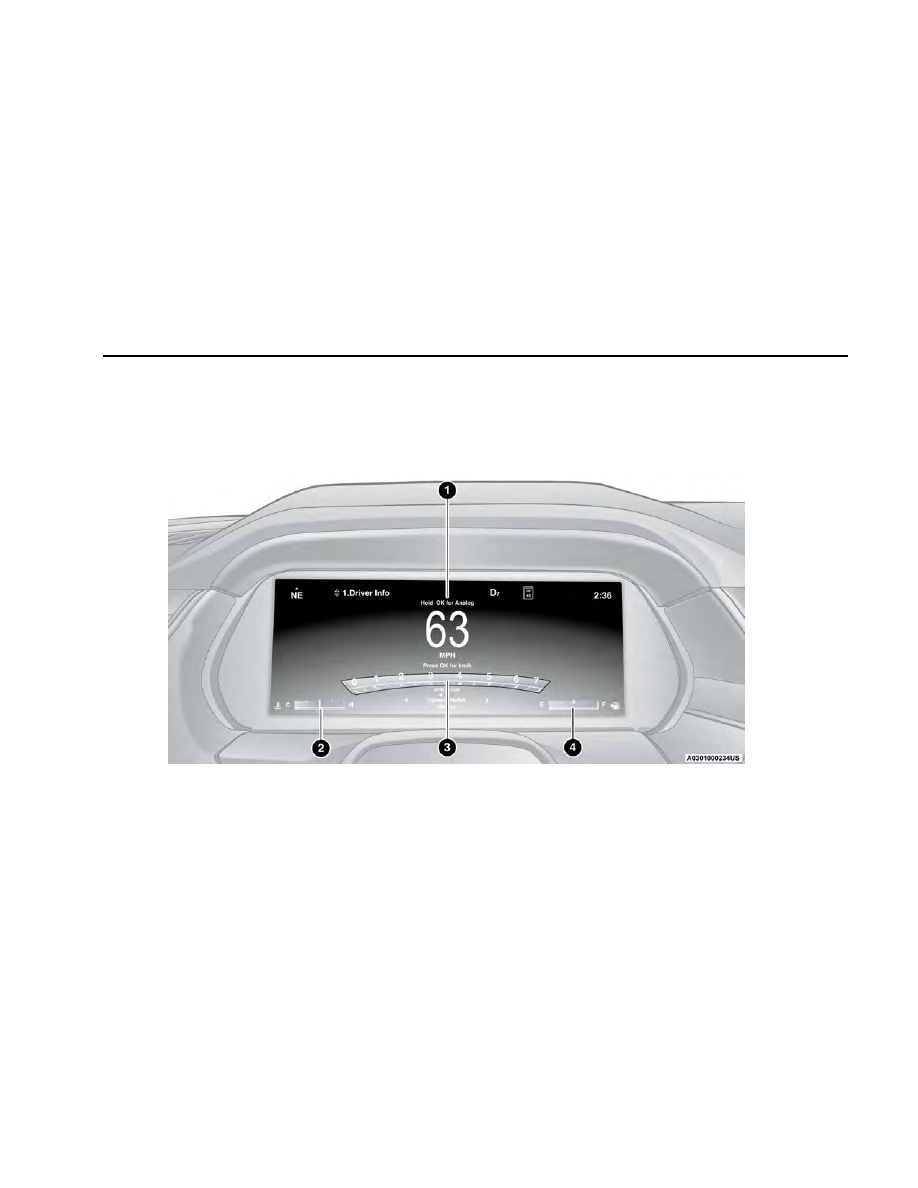

DIGITAL THEME INSTRUMENT
CLUSTER DESCRIPTIONS

1. Speedometer

○

Indicates vehicle speed.

2. Temperature Gauge

○

The temperature gauge shows engine coolant
temperature. Any reading within the normal
range indicates that the engine cooling system
is operating satisfactorily.

○

The pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.

WARNING!

A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. It is recommended to call an authorized dealer
for service if your vehicle overheats

page 321.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H”, turn the engine off immediately and call an
authorized dealer for service.

3. Tachometer

○

Indicates the engine speed in revolutions per
minute (RPM x 1000).

4. Fuel Gauge

○

The pointer shows the level of fuel in the fuel
tank when the Keyless Push Button Ignition is in
the ON/RUN position.

○

The fuel pump symbol points to the
side of the vehicle where the fuel
door is located.

NOTE:

The Instrument Cluster Warning Indicators will illumi-
nate briefly for a bulb check when the ignition is first
cycled.

Scan me

GETTING TO KNOW YOUR INSTRUMENT PANEL

103

Holding the

button on the Instrument Cluster Dis-

play controls located on the steering wheel will allow
you to change your display from Analog to Digital.

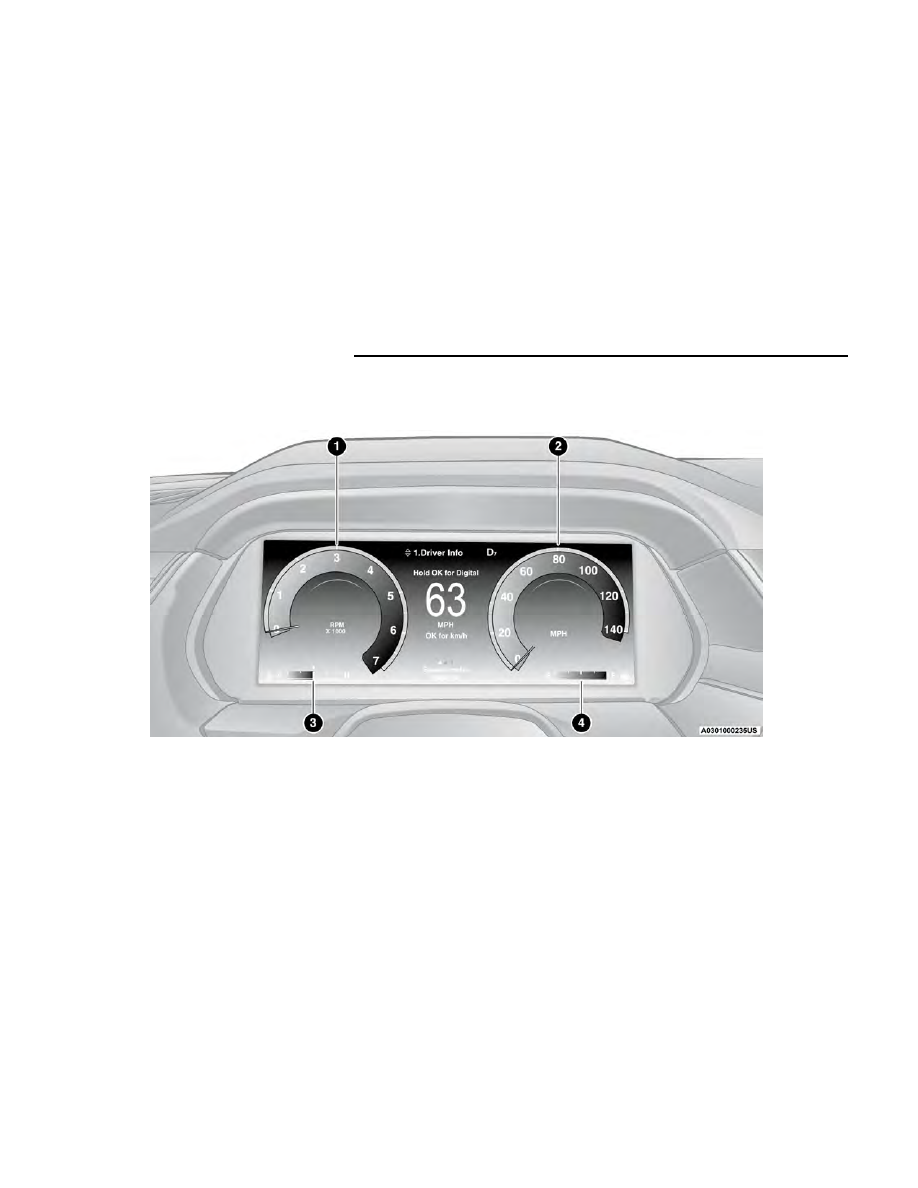

ANALOG THEME INSTRUMENT
CLUSTER DESCRIPTIONS

1. Tachometer

○

Indicates the engine speed in revolutions per
minute (RPM x 1000).

2. Speedometer

○

Indicates vehicle speed.

3. Temperature Gauge

○

The temperature gauge shows engine coolant
temperature. Any reading within the normal
range indicates that the engine cooling system
is operating satisfactorily.

○

WARNING!

A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. It is recommended to call an authorized dealer
for service if your vehicle overheats

page 321.

CAUTION!

4. Fuel Gauge

○

The pointer shows the level of fuel in the fuel
tank when the Keyless Push Button Ignition is in
the ON/RUN position.

○

The fuel pump symbol points to the
side of the vehicle where the fuel
door is located.

NOTE:

The Instrument Cluster Warning Indicators will illumi-
nate briefly for a bulb check when the ignition is first
cycled.

GETTING TO KNOW YOUR INSTRUMENT PANEL

105

INSTRUMENT CLUSTER
DESCRIPTIONS — HYBRID ONLY

Average/Current Economy

○

Displays average economy as a numeric value

○

Displays an average economy gauge

○

Displays a current economy gauge

Speedometer

○

Indicates vehicle speed

Efficiency Coach

The Efficiency Coach will monitor your current driv-
ing to help you drive as efficiently as possible.

Temperature Gauge

○

Displays engine coolant temperature. Any read-
ing within the normal range indicates that the
engine cooling system is operating satisfactorily.

○

WARNING!

A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. It is recommended to call an authorized dealer
for service if your vehicle overheats

page 321.

CAUTION!

Charge/Power Gauge

○

This gauge represents the source of the power
utilized to accelerate the vehicle. The green
upper line represents the High Voltage (HV) bat-
tery output during acceleration and input power
during regeneration. The blue lower line repre-
sents the engine output power.

Fuel Gauge

○

The pointer shows the level of fuel in the fuel
tank when the Keyless Push Button Ignition is in
the ON/RUN position.

○

The fuel pump symbol points to the
side of the vehicle where the fuel
door is located.

NOTE:

The Instrument Cluster Warning Indicators will illumi-
nate briefly for a bulb check when the ignition is first
cycled.

INSTRUMENT CLUSTER DISPLAY

Depending on your vehicles trim level, features and
options may vary.

Your vehicle will be equipped with an instrument cluster
display, which offers useful information to the driver.
With the ignition in the OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles, or kilometers, in the odometer. Your instru-
ment cluster display is designed to display important
information about your vehicle’s systems and features.
Using a driver interactive display located on the instru-
ment panel, your instrument cluster display can show
you how systems are working and give you warnings
when they are not. The steering wheel mounted con-
trols allow you to scroll through the main menus and
submenus. You can access the specific information you
want and make selections and adjustments.

LOCATION AND CONTROLS

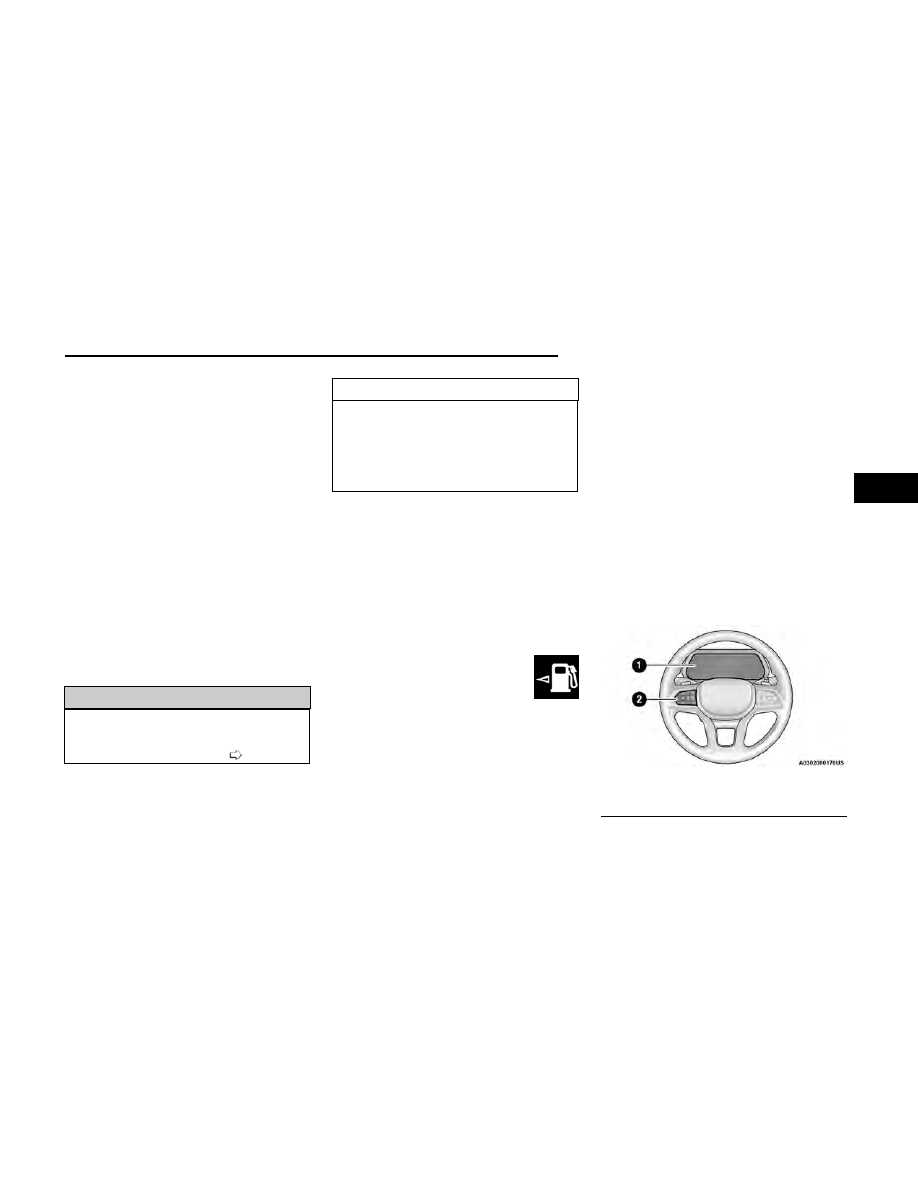

Instrument Cluster Display/Controls Location

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

GETTING TO KNOW YOUR INSTRUMENT PANEL

107

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

Arrow Button

Push and release the

arrow button to scroll

upward through the main menu.

Button

Push the

button to access/select the informa-

tion screens or submenu screens of a main menu
item. Push and hold the

button for one second

to reset displayed/selected features that can be
reset.

Button

Push the

button to access/select the informa-

tion screens or submenu screens of the Home
Screen display. Push and hold the

button to

enter edit mode.

Left

Arrow Button

Push the

left

arrow button to return to the main

menu from an info screen or submenu item.

Down

Arrow Button

Push and release the

down

arrow button to

scroll downward through the main menu.

Right

Arrow Button

Push and release the

right

arrow button to

access the information screens or submenu screens
of a main menu item.

Display Options — If Equipped

Holding

will also allow you to change your display to

Digital or Analog.

•

Digital theme will be the default theme

•

Menu screen times out after 10 seconds. Press

to reactivate

•

Speedometer must always be present

•

Relevant warning notifications and other pop-up info
will still be displayed in the main screen area (in this
case the speed moves to the top)

Custom Menu Tile Configuration

To customize the instrument cluster further, you are
able to select up to five tiles to display information
based on your needs.

•

Press the

button for the Home Screen display.

•

Navigate

Left

Right

to highlight desired

Menu Tile.

•

Press

to select the tile and navigate to the

selected submenu and press

again to add your

selection to your tile view.

•

The Home Screen Menu Tile options are Navigation,
Vehicle Info, Driver Info, Audio , Hybrid Info (If
Equipped), and Off Road.

MENU TILES

Press the

button to display the Home Screen.

Push and release the

left

right

arrow button

to highlight the desired selection. Push and release the

button to select. Press the

down

arrow button to select a different screen within the
selected category. If the

button is pressed in this

view, the instrument cluster will return to the previously
displayed screen.

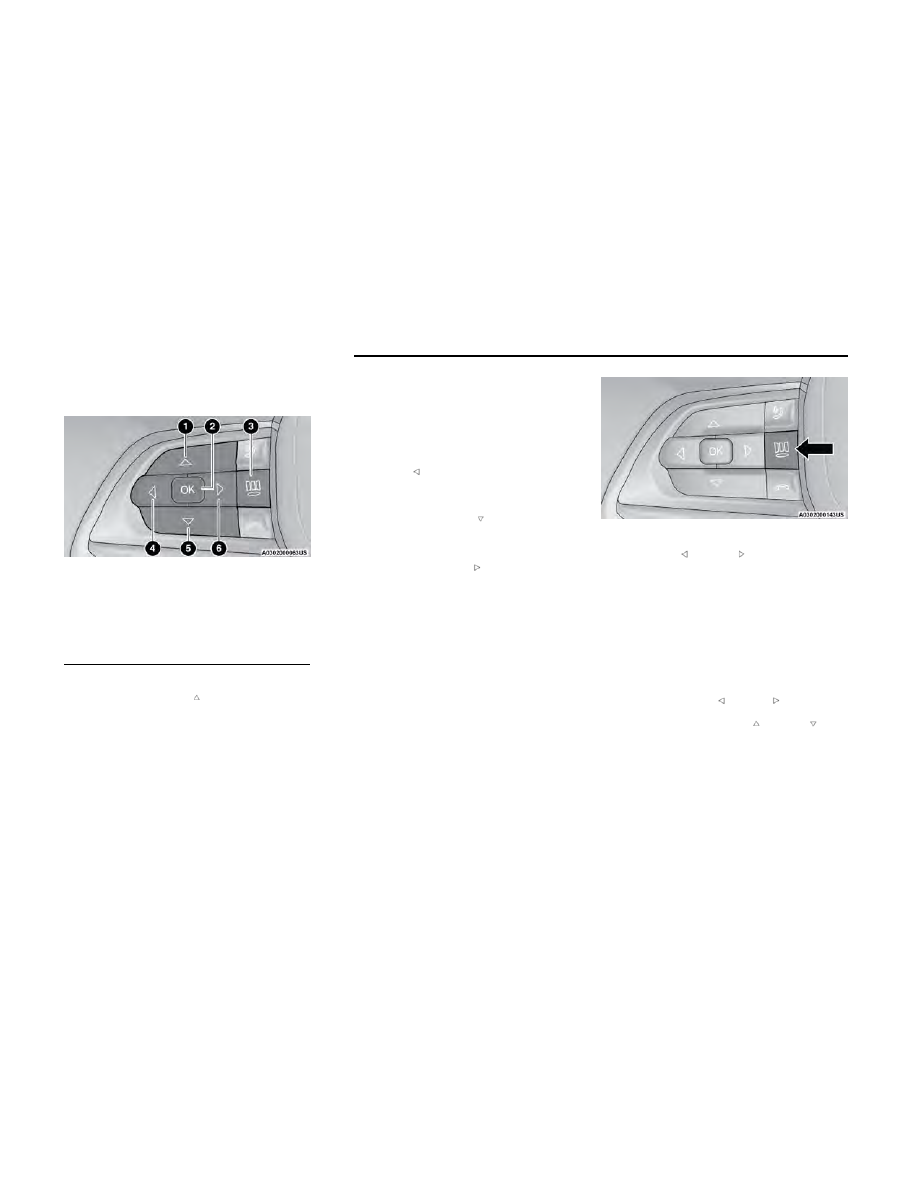

Instrument Cluster Display Control Buttons

1 — Up Arrow Button
2 — OK Button
3 — Menu Button
4 — Left Arrow Button
5 — Down Arrow Button
6 — Right Arrow Button

Menu Button

108

GETTING TO KNOW YOUR INSTRUMENT PANEL

Home Screen Options

NOTE:

Menu Tiles may vary based on your vehicle options.

•

Navigation — If Equipped

○

Map Display

○

Trip A

○

Trip B

•

Vehicle Info

○

Coolant Temp

○

Trans Temp

○

Oil Temp

○

Oil Pressure

○

Battery Voltage

○

Oil Life

○

Tire Pressure

○

Fuel Economy

•

Driver Info — If Equipped

○

Posted Speed Limit Sign

○

Driver Assist

•

Audio

○

Audio Info

•

Off Road

○

Selec-Terrain/Air Suspension Status —
If Equipped

○

Steering Angle

○

Pitch

○

Roll

•

Hybrid Info — If Equipped

○

Range to Empty

○

Efficiency Coach

○

Charge/Power

○

E-Drive Mode

ENGINE OIL LIFE RESET

Use this QR code to access your digital
experience.

Oil Change Required

Your vehicle is equipped with an engine
oil change indicator system. The “Oil
Change Required” message will display
in the instrument cluster display for five seconds after a
single chime has sounded, to indicate the next sched-
uled oil change interval. The engine oil change indicator
system is duty cycle based, which means the engine oil
change interval may fluctuate, dependent upon your
personal driving style.

Unless reset, this message will continue to display each
time the ignition is placed in the ON/RUN position. To
turn off the message temporarily, push and release the

or arrow buttons. To reset the oil change indicator

system (after performing the scheduled maintenance),
refer to the following procedure.

Vehicles Equipped With Keyless Enter ‘n Go™ Ignition

Use the steering wheel instrument cluster display con-
trols for the following procedure(s):

1. Without pressing the brake pedal, push the ENGINE

START/STOP button and place the ignition in the
ON/RUN position (do not start the engine).

2. Push and release the

down

arrow button to

scroll downward through the main menu to “Vehicle
Info”.

3. Push and release the

right

arrow button to

access the “Oil Life” screen.

4. Push and hold the

button to reset oil life. If con-

ditions are met, the gauge and numeric display will
update to show 100%. If conditions are not met a
pop-up message of “To reset oil life engine must be
off with ignition in run” will be displayed (for five
seconds), and the user will remain at the Oil Life
screen.

5. Push and release the

down

arrow but-

ton to exit the submenu screen.

NOTE:

If the indicator message illuminates when you start the
vehicle, the oil change indicator system did not reset. If
necessary, repeat this procedure.

Secondary Method Of Resetting Engine Oil Life

1. Without pressing the brake pedal, push the ENGINE

START/STOP button and place the ignition to the
ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within 10 seconds.

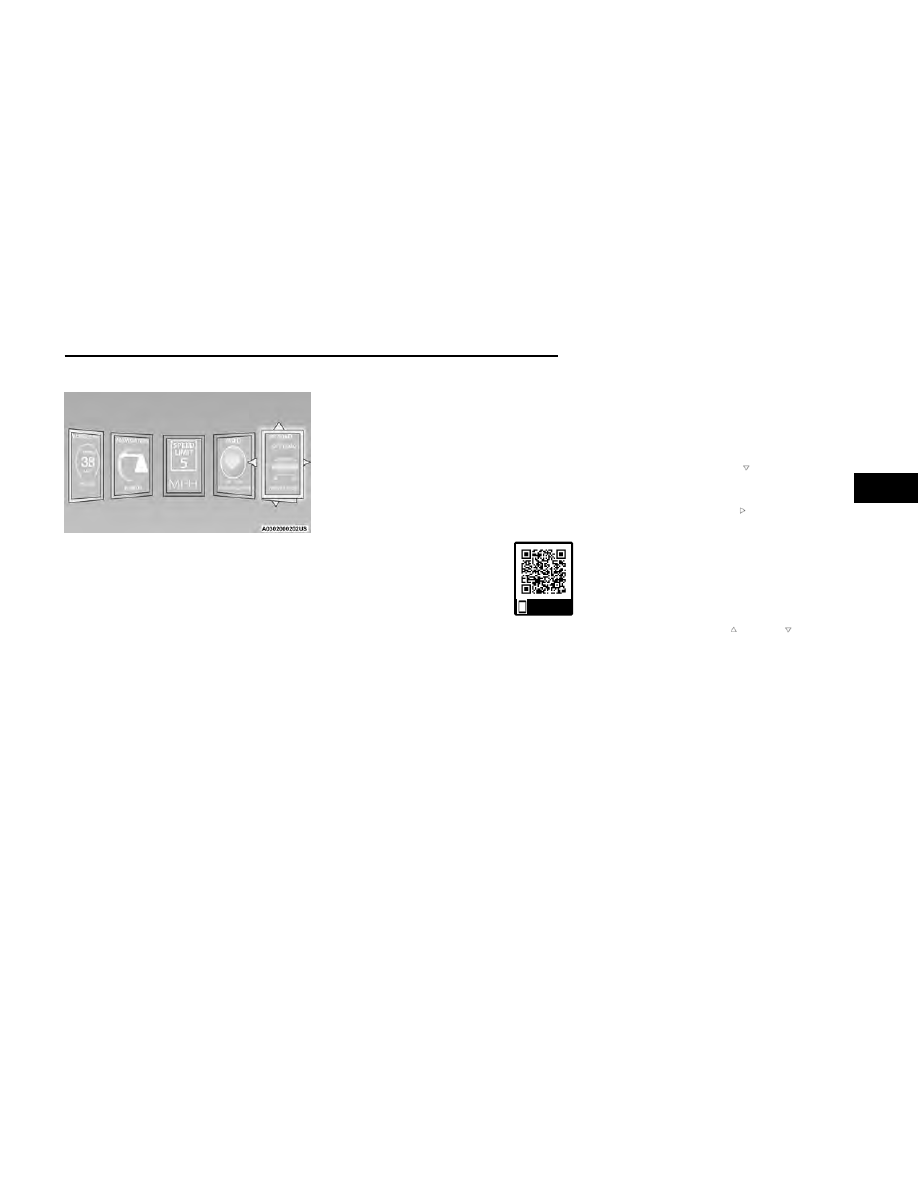

Custom Tile Screen

Scan me

GETTING TO KNOW YOUR INSTRUMENT PANEL

109

3. Without pushing the brake pedal, push the ENGINE

START/STOP button once to return the ignition to the
OFF position.

NOTE:

If the indicator message illuminates when you start the
vehicle, the oil change indicator system did not reset. If
necessary, repeat this procedure.

STOP SAFELY VEHICLE WILL SHUT
OFF SOON

This warning will be displayed on the instrument panel
display when the vehicle has determined an operational
issue will occur shortly, which will cause the vehicle's
electric propulsion system to turn off. If the light turns
on while driving, stop the vehicle in a safe location as
soon as possible. Have the vehicle transported to an
authorized dealer.

•

This message will be displayed continuously

•

Cannot be cleared with button press

•

A single chime will sound

STOP SAFELY AND LEAVE THE
VEHICLE AS SOON AS POSSIBLE

A warning will appear on the instrument panel display if
the system detects the high voltage battery has over-
heated. This can result in a vehicle fire, and the release
of toxic and/or flammable gases. To reduce the risk of a
larger fire,

the vehicle’s high voltage propulsion system

will turn off within thirty seconds of displaying this
warning

. At that time, the vehicle may not accelerate.

You can still steer and brake the vehicle.

Stop and park the vehicle in an open area

. Have all

passengers exit the vehicle as soon as possible and
move to a safe distance away from the vehicle. After all
passengers safely exit the vehicle, call emergency
responders immediately. Even if you do not see flames,
a fire may start at any moment, so do not attempt to
re-enter or start the vehicle.

•

This message will be displayed continuously.

•

Cannot be cleared with a button press.

•

A continuous and rapid chime will sound.

WARNING!

•

An overheated high voltage battery may result in a
vehicle fire and possible release of toxic and/or
flammable gases. Vehicle occupants could be
injured or killed. Leave the vehicle immediately
and stay as far away from the vehicle as possible.

•

Power to the vehicle may shut off thirty seconds
after this message appears. Stop the vehicle in a
safe location away from traffic, other vehicles and
building structures. Failure to bring the vehicle to a
safe stop could result in serious injury or death.

CAUTION!

•

An overheated High Voltage Battery may result in
electrical systems damage. Do not attempt to
restart the vehicle. The vehicle must be towed to
an authorized dealer.

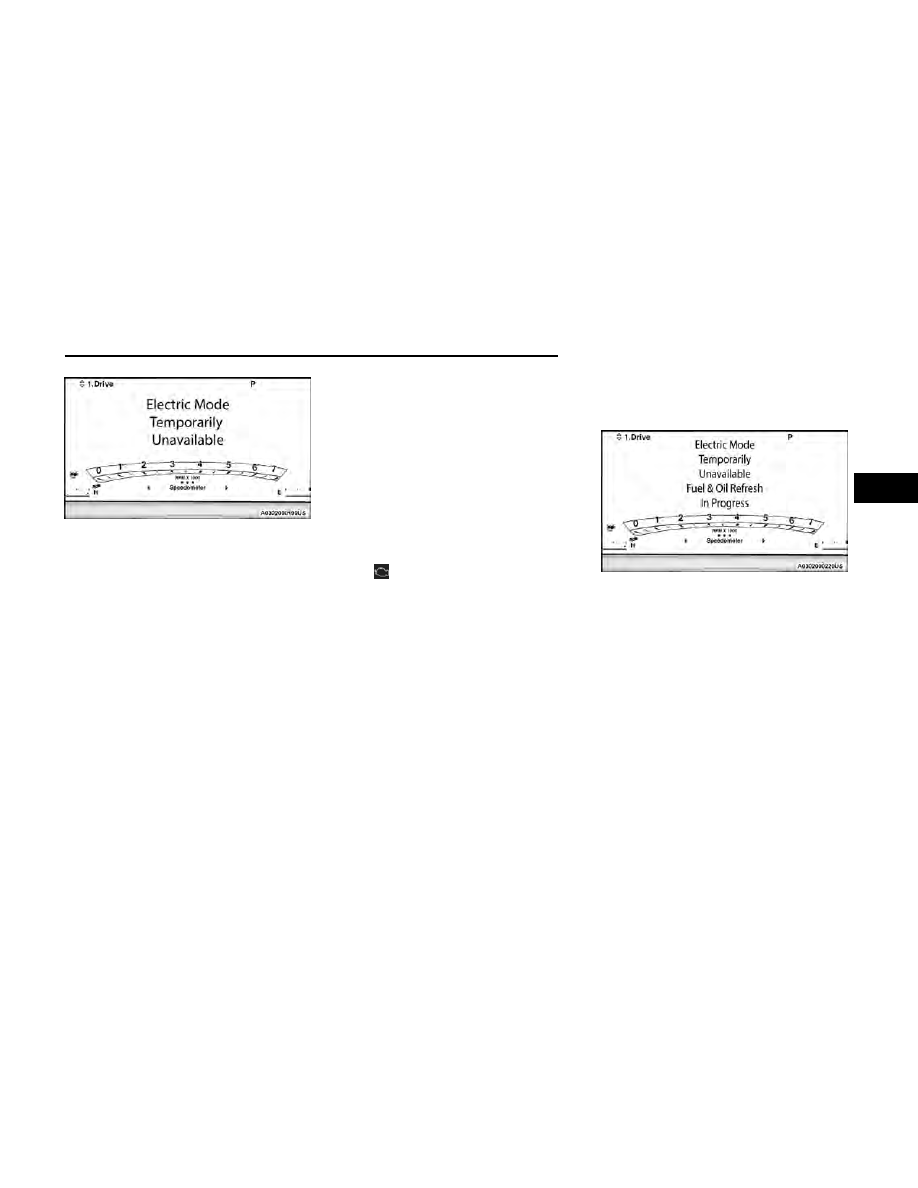

ELECTRIC MODE TEMPORARILY
UNAVAILABLE

If Electric mode is unavailable, the reason will display
for five seconds at start up. If your check engine light
comes on, see an authorized dealer immediately.

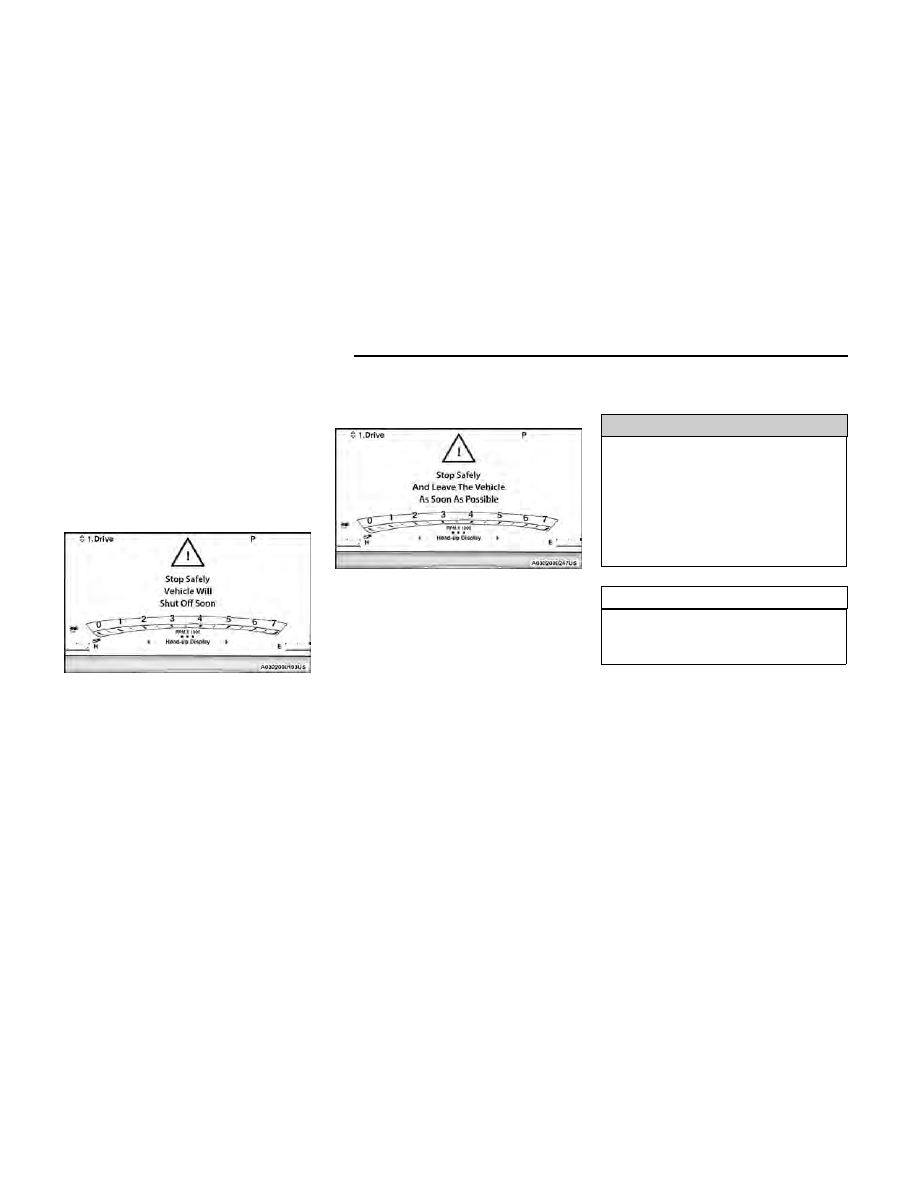

Stop Safely Vehicle Will Shut Off Soon Warning Message

Stop Safely And Leave The Vehicle As Soon As Possible

Warning Message

110

GETTING TO KNOW YOUR INSTRUMENT PANEL

See the following information for the most common
reasons the Electric mode would be unavailable:

Operator choices that can inhibit Electric Mode:

•

Transmission control using Paddle Shifters - Return
to auto mode to use Electric mode.

•

Heavily depressed accelerator pedal position,
requesting high power demand - Beyond the limits
of the electric drivetrain, will cause engine to run,
enabling the powertrain to produce its full combined
power available in Hybrid mode.

•

Sustained high speed operation in Electric mode -
Using the engine is more efficient for high speeds
than Electric mode.

•

Transfer case and drive mode selection - eSave/
Hybrid/Sport, Sand, Mud, 4WD Low/Hybrid will run
the engine.

•

Electric range is depleted - You need to recharge to
enjoy Electric mode, or you can continue normally in
Hybrid.

•

Hood open (or a hood switch fault) - This is to pre-
vent unexpected engine starts with the hood open.

Thermal protection that can inhibit Electric Mode:

•

Engine, transmission or engine starting belt too cold
- Some systems require warm-up to function prop-
erly if the ambient temperature is below 32°F
(15°F in Electric mode).

•

Electric cabin heating capacity limits (or electric
cabin heater fault) - Unlike Battery Electric Vehicles
(BEV's), the Hybrid can warm the cabin more effi-
ciently with engine heat when operating below 15°F
outside temperature.

•

HV battery, motors or contactors over temperature -
This is a temporary hardware protection feature.
Vehicle performance will resume once protection is
no longer required. If the vehicle performance is
accompanied with a Malfunction Indicator Lamp
(MIL)

, have the vehicle serviced at an autho-

rized dealership.

Component protection that can inhibit Electric Mode:

•

HV battery undervoltage - Sustained EV operation at
high speed, especially with aftermarket wheels and
tires, can induce this.

•

Other electric propulsion system faults indicated by
a MIL - Please see an authorized dealer for service.

•

Fuel and Oil Refresh Mode - See the following
section.

Fuel And Oil Refresh Mode

Since it is possible to operate this vehicle for extended
periods of time without running the gas engine, the fuel
within the vehicle’s fuel tank can become stale or the
engine oil’s lubricating properties can be reduced. To
prevent engine and/or fuel system damage due to stale
fuel, as well as maintaining internal engine lubrication,
this vehicle is equipped with a Fuel and Oil Refresh
Mode.

NOTE:

If the vehicle enters Fuel and Oil Refresh Mode to main-
tain engine lubrication, adding fuel will not exit the
mode sooner.

The vehicle will automatically enter into the Fuel and Oil
Refresh Mode to minimize potential for stale fuel, and
to ensure lubrication of internal engine components.
When operating in this mode, the gas engine will run to
provide vehicle propulsion (electric only operation is
inhibited). A message will be displayed in the instru-
ment cluster whenever Fuel and Oil Refresh Mode is
active.

The vehicle will automatically exit the Fuel and Oil
Refresh Mode when fuel and lubrication conditions
have been satisfied. If the vehicle enters Fuel and Oil
Refresh Mode, due to fuel which has been in the fuel
tank for a long period of time (becoming stale fuel), the
engine will run whenever the vehicle is operational (no
electric only operation) until the low fuel level warning is
activated. It is also possible to exit the Fuel and Oil
Refresh Mode sooner by adding a minimum of four gal-
lons of new fuel to the vehicle’s fuel tank.

Electric Mode Temporarily Unavailable Message

Fuel And Oil Refresh Mode Message

GETTING TO KNOW YOUR INSTRUMENT PANEL

111

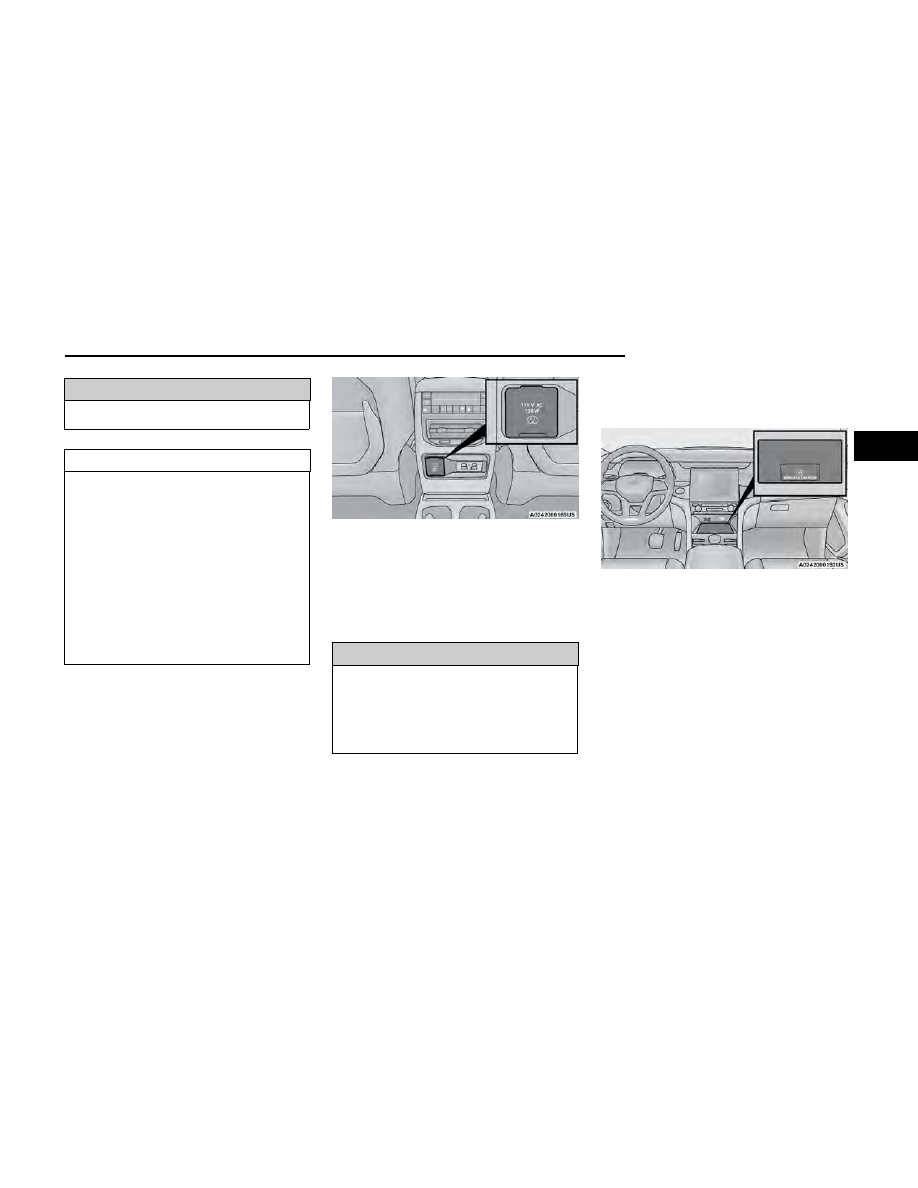

If the vehicle enters Fuel and Oil Refresh Mode to main-
tain engine lubrication properties, the engine may run
for a period of up to 2.5 hours when fully warm when-
ever the vehicle is operational (no electric only opera-
tion). If the vehicle is shut down before conditions to
exit the refresh mode have been satisfied, the engine
may run for additional time on subsequent trips. Oil
refresh may take significantly longer in freezing
temperatures.

NOTE:

•

Frequent short trips at low ambient temperature
conditions where the engine does not reach normal
operating temperatures are more likely to trigger the
Fuel and Oil Refresh Mode.

•

Electric drive mode will be temporarily unavailable
while the Fuel and Oil Refresh Mode is active. Do
not attempt to return to Electric mode until the Fuel
and Oil Refresh Mode cycle is complete.

CAUTION!

If the instrument cluster instructs you to change the
engine oil, do not reset the service indicator without
changing the oil. Engine damage may result.

DISPLAY AND MESSAGES

The instrument cluster display is located in the center
portion of the cluster and consist of multiple sections:

•

Main Screen — The inner ring of the display will illu-
minate in black under normal conditions, yellow for
noncritical warnings and red for critical warnings

•

Submenu Dots — Whenever there are submenus
available, the position within the submenus is
shown here

•

Reconfigurable Telltales/Information

•

Gear Selector Status (PRND)

•

Driver Interactive Display (Compass, Temp, Range to
Empty, Trip A, Trip B, Average Fuel Economy, Current
Fuel Economy and Time)

•

Air Suspension Status — If Equipped

•

Four-Wheel Drive (4WD) Status — If Equipped

The instrument cluster display will normally display the
main menu or the screens of a selected feature of the
main menu. The main display area also displays pop-up
messages and warning or information messages. These
pop-up messages fall into several categories:

•

Five Second Stored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for
five seconds and then returns to the previous
screen. Most of the messages of this type are then
stored (as long as the condition that activated it
remains active) and can be reviewed from the “Mes-
sages” main menu item. Examples of this message
type are “Right Front Turn Signal Lamp Out” and
“Low Tire Pressure”.

•

Unstored Messages

This message type is displayed indefinitely or until
the condition that activated the message is cleared.
Examples of this message type are “Turn Signal On”
(if a turn signal is left on) and “Lights On” (if driver
leaves the vehicle with the lights on).

•

Unstored Messages Until RUN

These messages deal primarily with the Remote
Start feature. This message type is displayed until
the ignition is in the RUN state. Examples of this
message type are “Remote Start Canceled - Door
Ajar” and “Press Brake Pedal and Push Button to
Start”.

•

Five Second Unstored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for
five seconds and then returns to the previous
screen. An example of this message type is “Auto-
matic High Beams On”.

112

GETTING TO KNOW YOUR INSTRUMENT PANEL

Includes the following, but not limited to:

Vehicle Speed is Too High to Shift to R

Front Seat Belts Unbuckled

Driver Seat Belt Unbuckled

Doors Open

Passenger Seat Belt Unbuckled

Traction Control Off

Vehicle Speed Too High To Shift to D

Washer Fluid Low

Oil Pressure Low

Hood Open

Oil Change Due

Fuel Low

Shift Not Allowed

Service Anti-lock Brake System

Service Electronic Throttle Control

Service Shifter

Service Power Steering

Cruise Off

Vehicle Speed is Too High to Shift to P

Cruise Ready

ACC Override

Service Transmission

Cruise Set To XXX mph or km/h

Close Fuel Door

Liftgate Open

Vehicle Not In Park

Service Tire Pressure System

Door Open

Park Brake Engaged

Brake Fluid Low

Service Air Bag Warning Light

Lights On

Engine Temperature Hot

Remote Start Disabled Start To Reset

Right Front Turn Signal Light Out

Right Rear Turn Signal Light Out

Service Air Bag System

Left Front Turn Signal Light Out

Left Rear Turn Signal Light Out

Remote Start Canceled Liftgate Open

Ignition On

Check The Rear Seat

Remote Start Canceled Time Expired

Remote Start Active Push Start Button

Remote Start Canceled Fuel Low

Remote Start Canceled Hood Open

Remote Start Canceled Door Open

The Reconfigurable Telltales section is divided into the
white or yellow telltales area on the left, and the green
or red telltales area on the right.

INSTRUMENT CLUSTER DISPLAY
MENU ITEMS

The instrument cluster display can be used to view the
main menu items for several features. Use the

and

down

arrow buttons to scroll through the

driver interactive display menu options until the desired
menu is reached.

NOTE:

Depending on the vehicle’s options, feature settings
may vary.

Main Menu

DRIVER INFO

Push and release the

down

arrow button

until the Drive menu title is displayed in the instrument
cluster display.

Speedometer

Push and release the

down

arrow button

until the Speedometer menu title is displayed in the
instrument cluster display. Push and release the

button to toggle units (mph or km/h) of the speedom-
eter. Hold the

button to toggle between Analog and

Digital speedometer.

Driver Assist — If Equipped

While viewing the Speedometer menu title, push and
release the

left

right

arrow button until the

Driver Assist menu title is displayed in the instrument
cluster display. The Driver Assist screen indicates the

GETTING TO KNOW YOUR INSTRUMENT PANEL

113

Jeep Grand Cherokee (2024 year). Manual in english - page 3
