Jeep Compass (2024 year). Manual in english

Cavity

Cartridge Fuse

Mini Fuse

Description

* If Equipped

F26

–

20 Amp

Lumbar Adjust (Driver Seat Only) / Driver
& Pass Front Heater Seat SW / Driver &
Pass Rear Heater Seat SW / BVP RLY
Coil

F27

–

25 Amp

Engine Control Module (ECM) / Fuel
Injectors / Snsr GPF EGT

F28

–

15 Amp

LTR Coolant Pump

F29A & B

–

Spare

F30

–

20 Amp

RT HID Lamp

F31

–

15 Amp

Wireless Charging Pad / SW Bank Lower
2 / SW Bank Lower LT & RT / Port UCI 2

F32

–

20 Amp

Fuel Injectors / Ignition Coils / Ignition
Coil Capacitors

F33

–

10 Amp

Relay Coil Power Control Relay *

F34A & B

–

Spare

F35

–

Spare

F36

–

10 Amp

Port UCI 2 / Mod CVPM

F37

–

10 Amp

Surge Solenoid / Surge Solenoid Bypass

F38

–

10 Amp

ECM / TCM / AGSM / DCSM / STM / Fuel
Pump Relay Coil / SEOP / TCM 8-Speed

F39

–

Spare

F40

–

15 Amp

Trans Control Module Feed #1 8-Speed

F41

–

Spare

F42

–

20 Amp

Cargo Power Outlet – Ignition power

F43

–

Cargo Power Outlet (Can be replaced
with 20 Amp fuse in F42 direct battery
power)

F44

–

15 Amp

Trans Control Module Feed #2 8-Speed

226

SERVICING AND MAINTENANCE

Cavity

Cartridge Fuse

Mini Fuse

Description

* If Equipped

F45

–

Spare

F46

–

30 Amp

Drivetrain Control Module (DTCM) AWD
Power

F47

–

30 Amp

Front Windshield Defrost*

F48

–

Spare

F49

–

Spare

F50

–

5 Amp

Drivetrain Control Module (DTCM) ECU
Power

F51

–

Spare

F52

–

5 Amp

Automatic Gearbox Shifter Module
(AGSM) / Dual Clutch Shifter Mod
(DCSM)

F53

–

Spare

F54

–

Spare

F55

–

Spare

F56

–

Spare

F57

–

20 Amp

RR Power Outlet (12 Volt APO)

F58

–

Spare

F59

–

Spare

F60

–

Spare

F61

–

20 Amp

Fuel Pump

F62

–

5 Amp

Intelligent Battery Sensor (IBS)

F63

–

Spare

F64

–

10 Amp

MOD DCSD / Handsfree Liftgate / UCI +
USB Port / HRLS

F65

–

20 Amp

Horn

F66

–

20 Amp

Cigar Lighter*

SERVICING AND MAINTENANCE

227

Cavity

Cartridge Fuse

Mini Fuse

Description

* If Equipped

F67

–

10 Amp

Engine Control Module (ECM)

Interior Fuses

The interior fuse panel is located on the driver’s side under the instrument panel lower cover.

Cavity

Blade Fuse

Description

*If Equipped

F31

7.5 Amp Brown

Occupant Restraint Controller

F33

20 Amp Yellow

Window Motor Passenger

F34

20 Amp Yellow

Window Motor Driver

F36

20 Amp Yellow

Intrusion Module/Siren, Radio, UCI/USB Port, VSU, Climate Control, Electronic Steering
Lock, Power Folding Mirrors, Security Gateway/DTV

F37

10 Amp Red

Instrument Panel Cluster, Drivetrain Control Module, Adaptive Cruise, ECC (HVAC) Blower

F38

20 Amp Yellow

Door Lock/Unlock, Liftgate Release

F42

7.5 Amp Brown

Brake System Module, Electric Power Steering

F43

20 Amp Yellow

Washer Pump Front And Rear

F47

20 Amp Yellow

Rear Left Window Lifter

F48

20 Amp Yellow

Rear Right Window Lifter

F49

7.5 Amp Brown

Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock,
Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch

F50

7.5 Amp Brown

Occupant Restraint Controller

F51

7.5 Amp Brown

Electronic Climate Control, Occupant Classification, Rear View Camera, Climate Con-
trol, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane
Mod

F53

7.5 Amp Brown

Keyless Ignition Node Module, Electric Park Brake, RF Hub, Cluster

F94

15 Amp Blue

Lumbar Adjust Driver Seat, Power Outlets

228

SERVICING AND MAINTENANCE

Rear Cargo Fuse/Relay Distribution Unit

- If Equipped

To access the fuses, remove the storage bin from the
left rear panel of the rear cargo area.

The fuses may be contained in two units. Fuse Holder
No. 1 is located closest to the rear of the vehicle and
Fuse Holder No. 2 (If equipped with trailer towing) is
located closest to the front of the vehicle.

NOTE:

The fuse may be contained in an In-line Fuse holder
(If equipped with a Sunroof or Power Inverter Module).

Fuse Holder No. 2

Cavity

Mini Fuse

Description

* If Equipped

10 Amp Red

TTM IGN Feed *

15 Amp Blue

Controller Exterior Lighting Lights (Driver’s Side) *

15 Amp Blue

Controller Exterior Lighting Lights (Passenger Side) *

10 Amp Red

TTM Jumper Battery Feed *

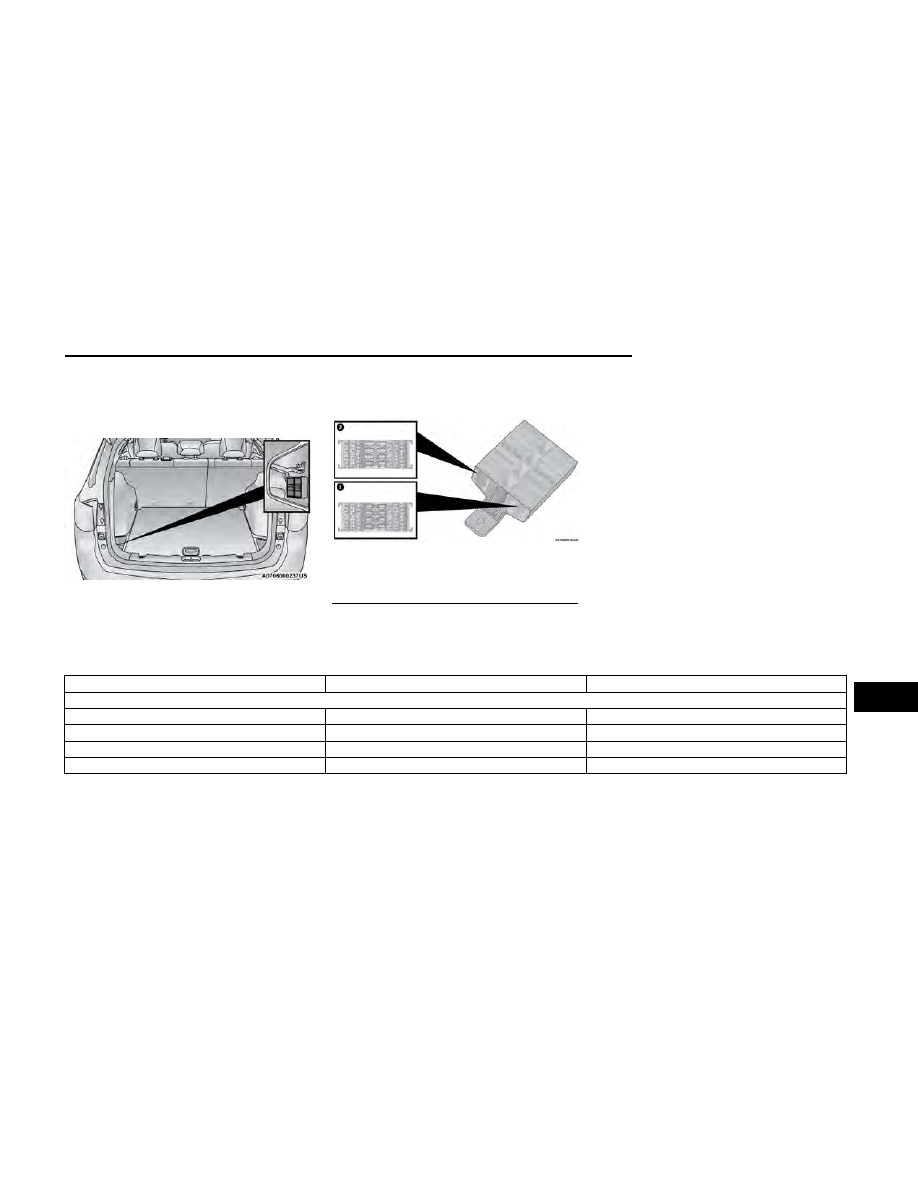

Rear Fuse Box Location

Rear Cargo Fuse Cavities

2 — Fuse Holder No. 2
1 — Fuse Holder No. 1

SERVICING AND MAINTENANCE

229

Fuse Holder No. 1

Cavity

Mini Fuse

Description

* If Equipped

30 Amp Green

Memory Seat

20 Amp Yellow

Sunroof*

30 Amp Green

Power Seat (Passenger Side)

30 Amp Green

Power Seat (Driver Side)

7.5 Amp Brown

Power Lumbar (Power Seats)

20 Amp Yellow

Heated Seats*

On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse Holder for the Power Liftgate and an ATO / UniVAL Fuse Holder for the HIFI Audio System.

Cavity

Maxi Fuse

Description

* If Equipped

F01

30 Amp Green

Power Liftgate*

* If Equipped

Cavity

ATO / UniVAL Fuse

Description

F02

25 Amp Clear

HIFI Audio System*

230

SERVICING AND MAINTENANCE

BULB REPLACEMENT

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers.

NOTE:

See an authorized dealer for LED bulb replacement.

Interior Bulbs

Lamps

Bulb Number

Front Courtesy Light

C5W

Front Courtesy Lights (Sun Visors)

C5W

Rear Dome Light (Models Without Retractable Roof)

C5W

Rear Interior Lights (Models With Retractable Roof)

C5W

Interior Lights

HT-168

Dome Light (Glove Box)

HT-168

Exterior Bulbs

Lamps

Bulb Number

Low Beam Headlamps

LED

High Beam Headlamps

LED

Front Position/Daytime Running Lights (DRL)/Front Directional - Premium

LED

Front Direction Indicator & Position Lamps - Base

7442NA

Side Marker Lamp

Base:2825

Front Fog Lamps

Base: H11LL/ Premium LED

Side Indicators (Side View Mirror)

LED

Tail/Brake Lights

Premium Tail Lights: LED

Base Tail Lights: W21/5WLL

SERVICING AND MAINTENANCE

231

Exterior Bulbs

Lamps

Bulb Number

Turn Indicators

W21WLL For Premium Tail Lamps

W21/5WLL For Base Tail Lamps

Center High Mounted Stop Lamp (CHMSL)

LED

License Plate Lamp

LED

Liftgate Lamp Reverse

W21WLL

Liftgate Lamp Tail

LED

Replacing Exterior Bulbs

WARNING!

Carry out the operation of replacing lamps only with
the engine off. Also make sure that the engine is cold,
to avoid the danger of burns.

Turn Signal Light/Position Lights (Base)

To replace the bulbs proceed as follows:

1. Open hood.

2. Reach behind headlamp near the radiator.

3. Remove the electrical connectors.

4. For the turn signal bulb, rotate in a counterclockwise

direction and remove the bulb and bulb socket. Pull
the bulb axially to remove it from the socket.

5. Install the bulb and sockets and rotate them clock-

wise making sure that it is properly locked.

6. Reconnect the electrical connectors.

7. Close hood.

Front Fog Lights (Base)

To replace the bulbs proceed as follows:

1. Turn the front wheels completely.

2. Remove the wheel liner.

3. By pushing the electrical connector tab remove the

electrical connector.

4. Rotate the bulb counterclockwise, and then replace

the bulb.

5. Insert the new bulb in the socket, making sure the

bulb is locked into place.

6. Reconnect the electrical connector.

7. Reinstall the wheel liner.

Side Indicators

The Side Indicators are LED. See an authorized dealer
for replacement.

Rear Body Side Tail Lamps

Contain the following:

•

Position lights

•

Stop lights

•

Direction indicator

To replace the bulbs proceed as follows:

1. Open the liftgate.

2. Using a suitable tool remove fasteners covering the

screws.

3. Disconnect the electrical connector by pushing the

release.

4. Remove the rear body side tail lamp, sliding it away

from the back of the vehicle.

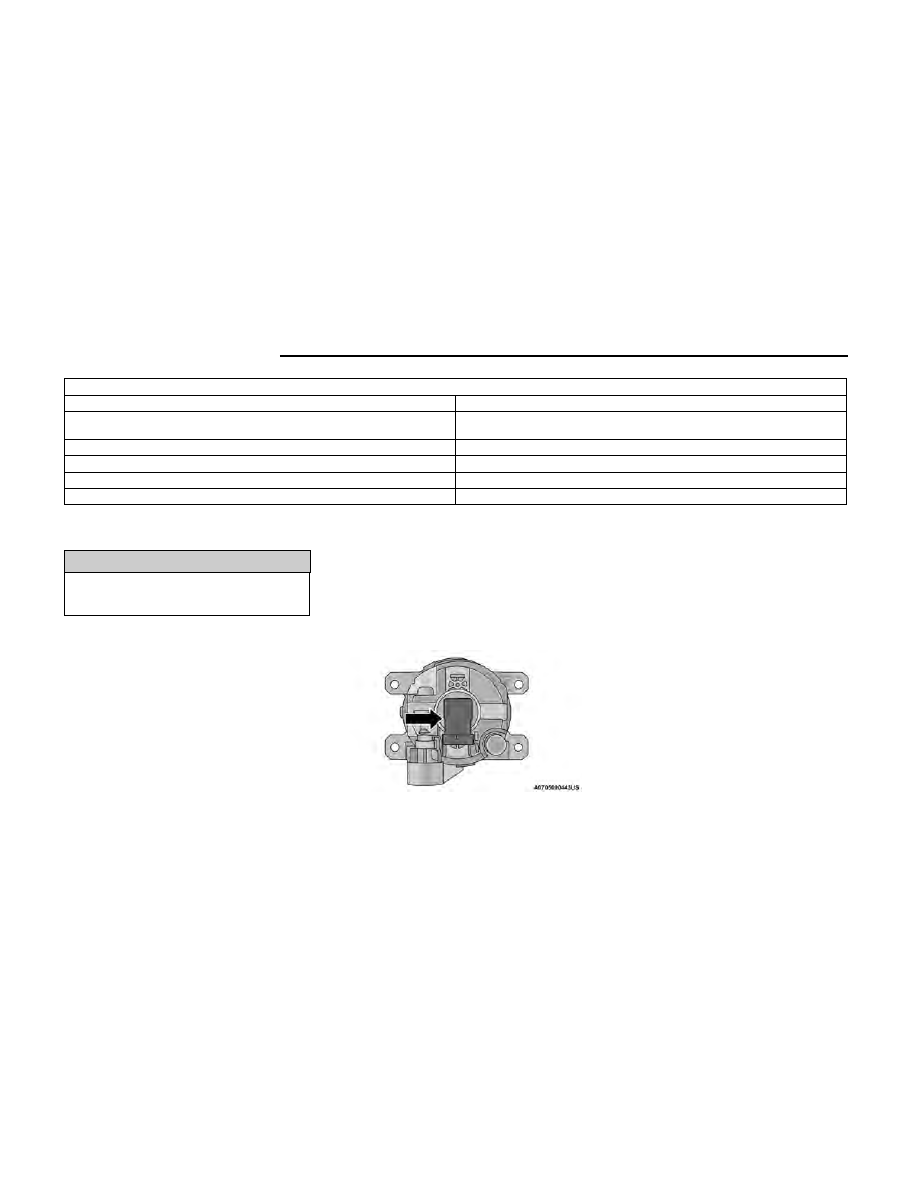

Fog Lamp Bulb

232

SERVICING AND MAINTENANCE

5. Replace the bulb as necessary by turning and

removing the bulb housing.

6. Insert the new bulb, making sure it is properly

locked.

7. Reposition the rear body side lamp assembly on the

car.

8. Reconnect the electrical connector.

9. Reinstall the body side lamp making sure to align

the ball studs.

10. Install fasteners and tighten body side lamp

assembly.

11. Finally close the tailgate.

Reverse Lamps

1. Open the liftgate.

2. Using a suitable tool remove the access panel for

body side lamps, remove liftgate access cover for
liftgate lamps.

3. Disconnect the electrical connector by pushing the

release.

4. Remove bulb and replace making sure it is properly

locked.

5. Reconnect the electrical connector.

6. Reinstall the access panels making sure they are

locked in correctly.

7. Finally close the liftgate.

NOTE:

Refer to an authorized dealer for service.

3rd Stop Lamp

The CHMSL is LED. See an authorized dealer for
replacement.

License Plate Lights

The License Plate light is LED. See an authorized dealer
for replacement.

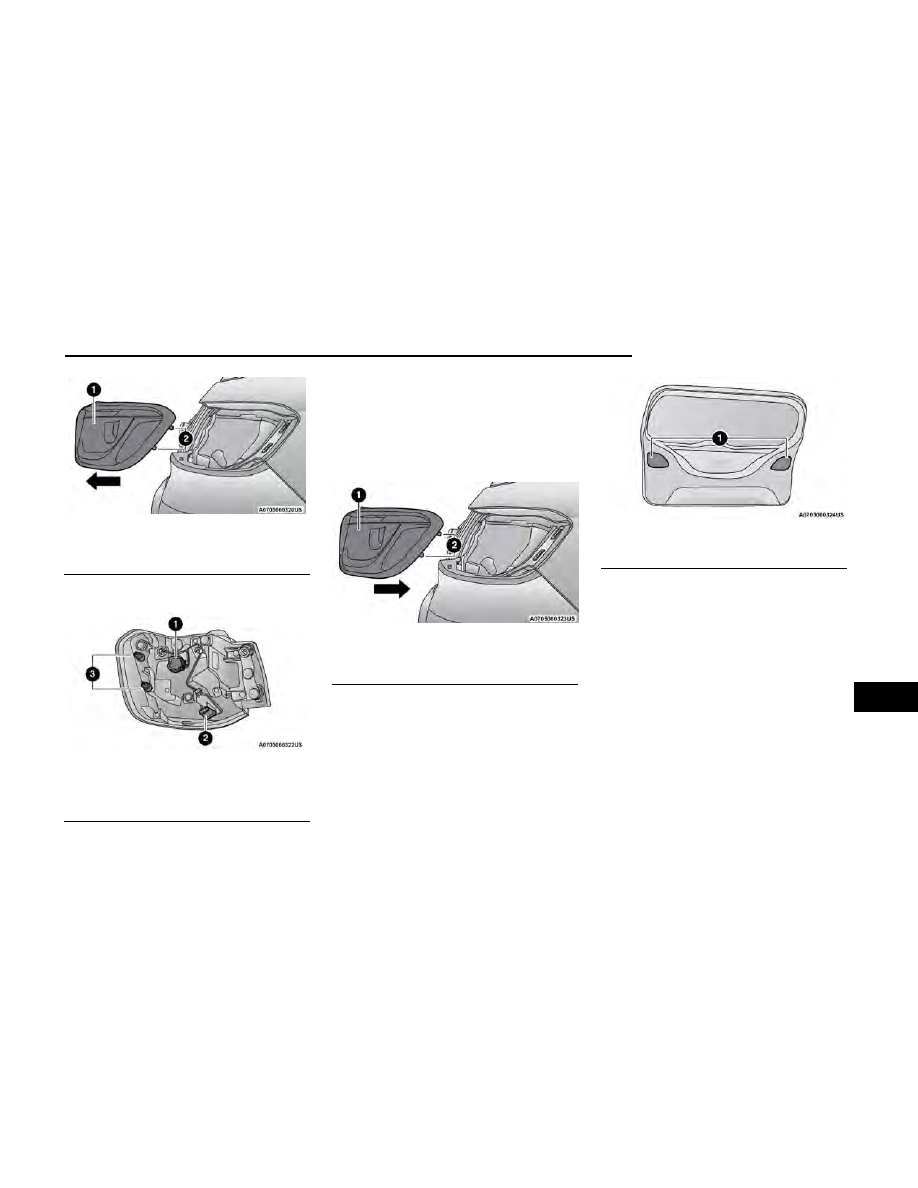

Body Side Tail Lamp

1 — Rear Body Side Tail Lamp
2 — Ball Stud

Reverse Side of Tail Lamp

1 — Direction Indicator Bulb / Stop Lamp Bulb
2 — Electrical Connector
3 — Ball Studs

Body Side Tail Lamp

1 — Rear Body Side Tail Lamp
2 — Ball Stud

Liftgate

1 — Liftgate Access Covers

SERVICING AND MAINTENANCE

233

Replacing Interior Bulbs

Front Courtesy Light

To replace the bulbs proceed as follows:
1. Using a suitable tool remove the front courtesy light

assembly.

2. Release the retainer clips and bulb housing as shown.

3. Replace the bulbs by pulling straight out of bulb

housing.

4. Insert the new bulbs, making sure that they are

properly locked.

5. Reassemble the bulb housing and courtesy light

housing making sure that they are properly locked.

6. Install the front courtesy light, making sure that it is

properly locked.

Dome Light Vanity Mirror — If Equipped

To replace the bulbs proceed as follows:

1. Lift the cover of the mirror and pull out the mirror

frame with the mirror light cover attached.

2. Replace the bulb, releasing it from the side con-

tacts, and then insert the new bulb, making sure
that it is properly locked between the contacts.

3. Reinstall the visor mirror light cover making sure

that it is properly locked.

4. Finally lower the visor mirror cover to the mirror.

Dome Light Glove Compartment

To replace the bulb proceed as follows:

1. Open the glove compartment.

2. Place your fingers inside the light assembly, pull the

bulb to replace it.

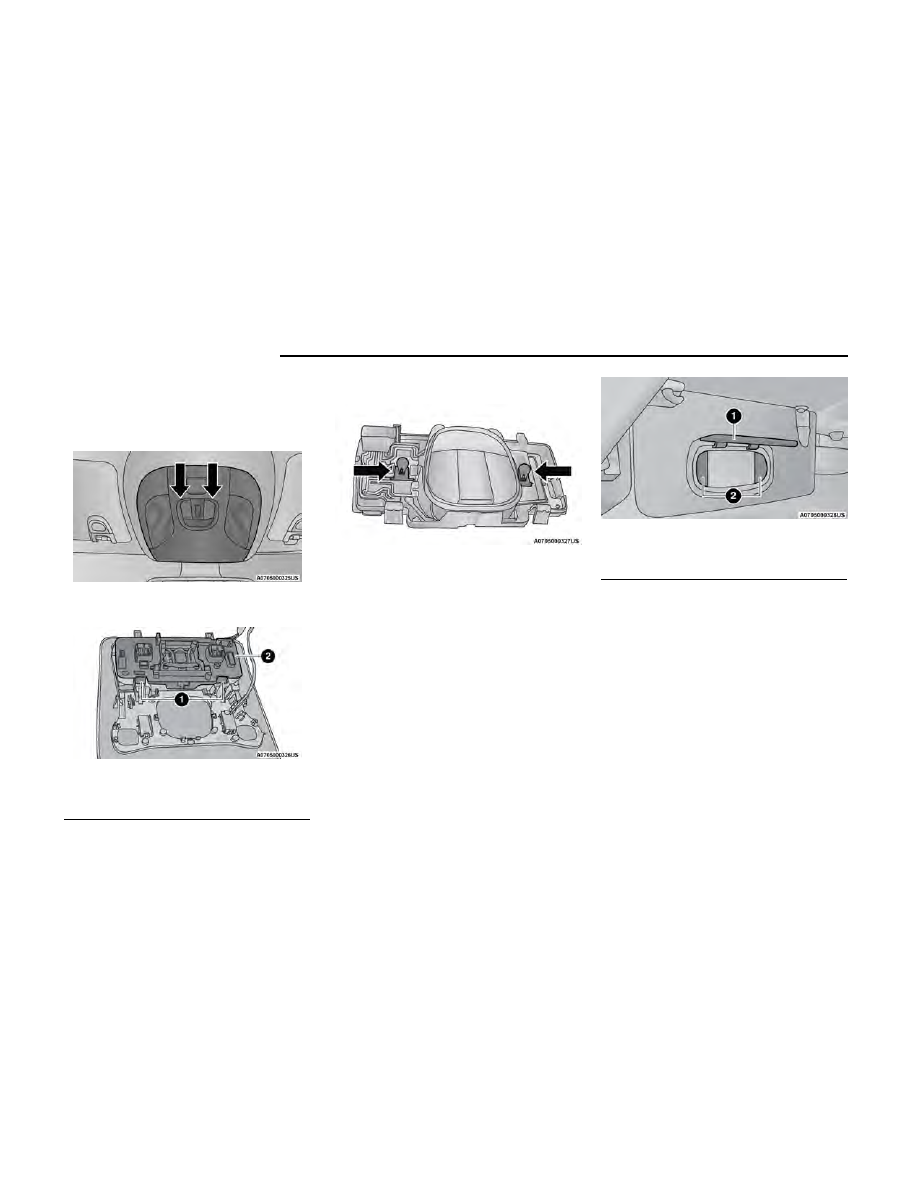

Front Courtesy Light

Front Courtesy Bulb Housing

1 — Retaining Clips
2 — Bulb Housing

Front Courtesy Bulb Housing

Visor

1 — Visor Mirror Cover
2 — Visor Mirror Light

234

SERVICING AND MAINTENANCE

3. Insert the new bulb, making sure it is properly

locked.

Dome Light

To replace the bulbs proceed as follows:

1. Lower the handle in the direction shown; remove the

dome light.

2. Replace the bulb by removing it from the side contacts.

3. Insert the new bulb, locking it between the contacts.

4. Reinstall the dome light.

Interior Cargo Lights

To replace the bulbs proceed as follows:

1. Using thumb with slight pressure – push bulb holder

to the side.

2. Fully disengage the bulb holder from the housing.

3. Rotate bulb holder to replace bulb.

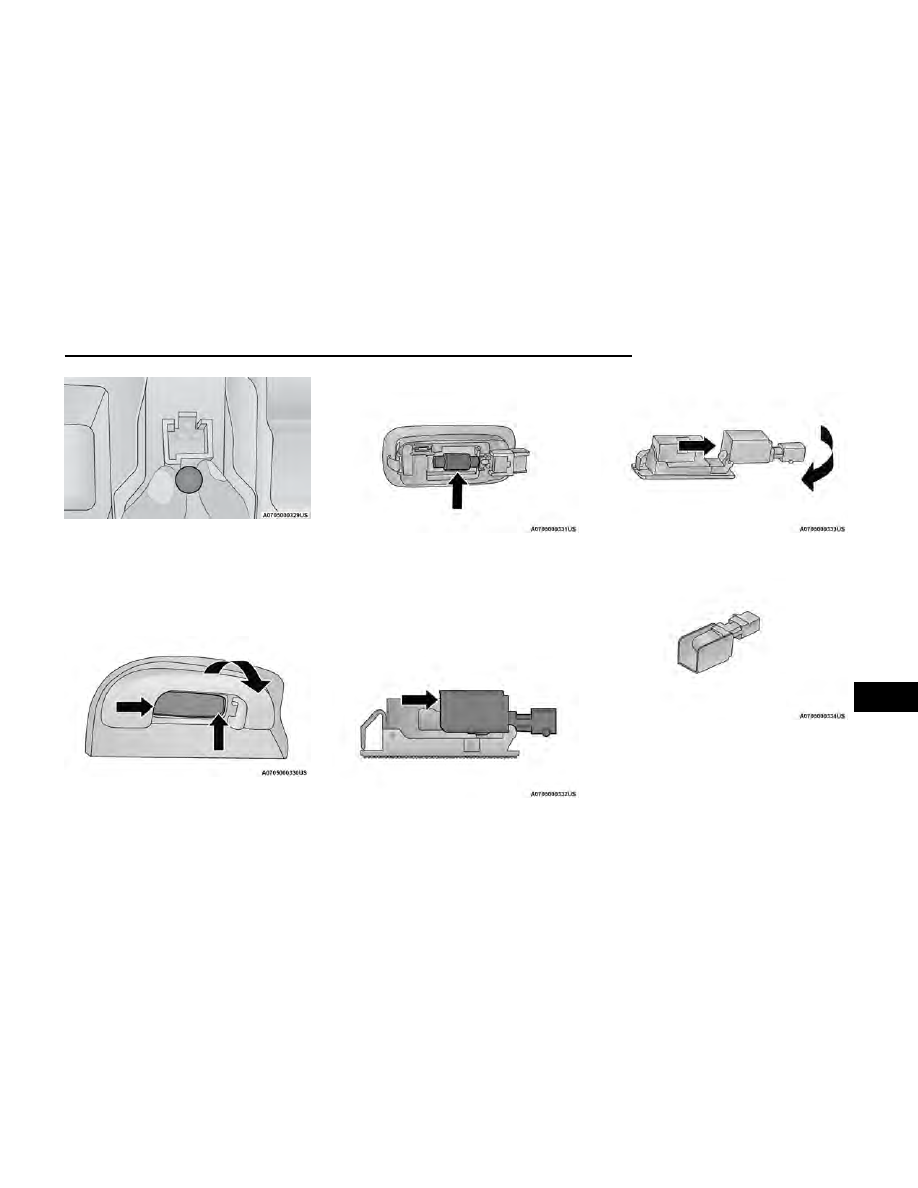

Bulb Removal/Installation

Grab Handle/Dome Light

Bulb

Bulb Holder

Bulb

SERVICING AND MAINTENANCE

235

WARNING!

•

Modifications or repair of the electrical system per-
formed incorrectly and without taking into account
the technical characteristics can cause malfunc-
tions with the risk of fire.

•

Halogen lamps contain gas under pressure, in the
event of breakage be careful of the projection of
fragments of glass.

•

Halogen lamps must be handled by touching only
the metallic part. If the transparent bulb is in con-
tact with the fingers, reduces the intensity of the
emitted light and you can also affect the life of the
lamp. In case of accidental contact, rub the bulb
with a cloth dampened with alcohol and allow to
dry.

NOTE:

It is recommended to have your bulbs replaced by an
authorized dealer.

TIRES

TIRE SAFETY INFORMATION

Tire safety information will cover aspects of the follow-
ing information: Tire Markings, Tire Identification Num-
bers, Tire Terminology and Definitions, Tire Pressures,
and Tire Loading.

Tire Markings

NOTE:

•

P (Passenger) — Metric tire sizing is based on US
design standards. P-Metric tires have the letter “P”
molded into the sidewall preceding the size designa-
tion. Example: P215/65R15 95H.

•

European — Metric tire sizing is based on European
design standards. Tires designed to this standard
have the tire size molded into the sidewall beginning
with the section width. The letter "P" is absent from
this tire size designation. Example:
215/65R15 96H.

•

LT (Light Truck) — Metric tire sizing is based on US
design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall pre-
ceding the size designation. Example:
LT235/85R16.

•

Temporary spare tires are designed for temporary
emergency use only. Temporary high pressure com-
pact spare tires have the letter “T” or “S” molded
into the sidewall preceding the size designation.
Example: T145/80D18 103M.

•

High flotation tire sizing is based on US design stan-
dards and it begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.

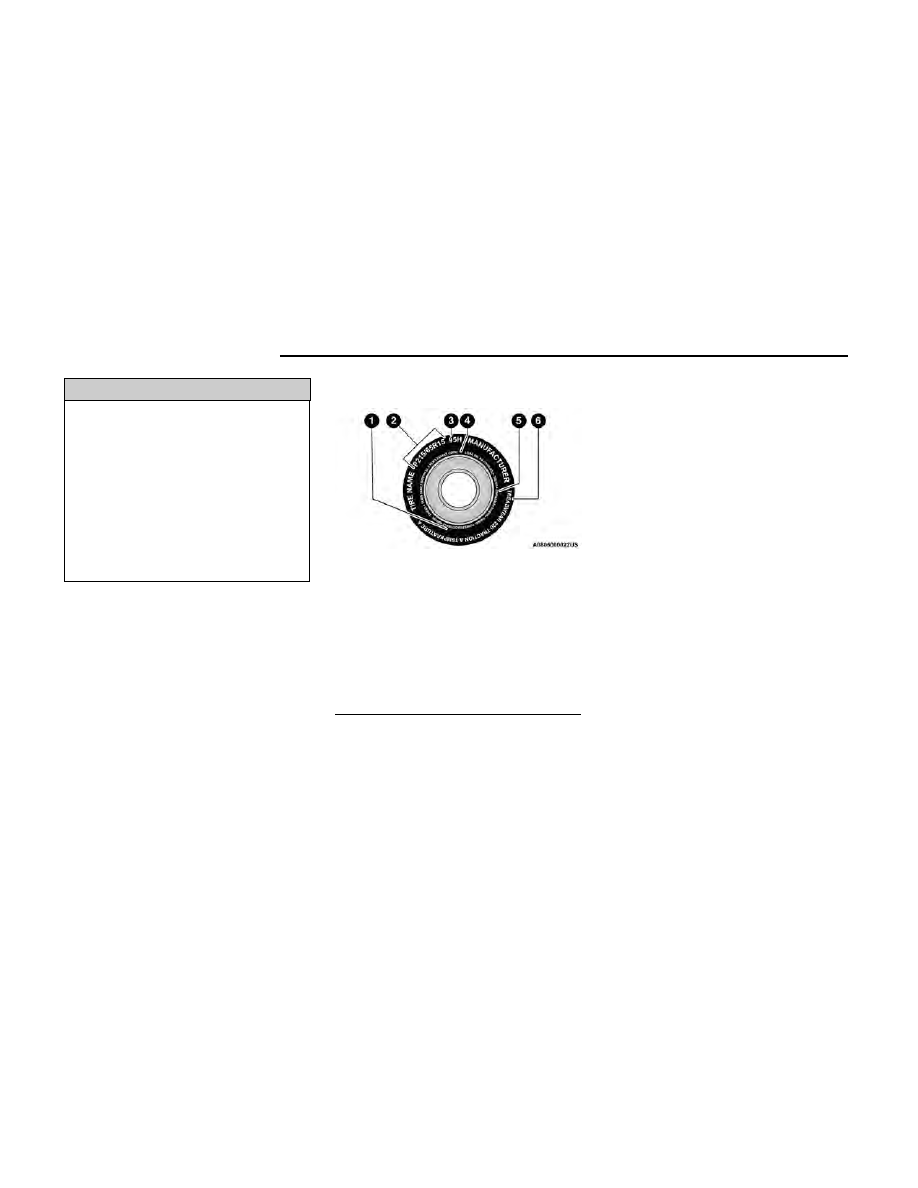

Tire Markings

1 — US DOT Safety Standards Code
(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and Tempera-
ture Grades

236

SERVICING AND MAINTENANCE

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P

= Passenger car tire size based on US design standards, or

"....blank...."

= Passenger car tire based on European design standards, or

= Light truck tire based on US design standards, or

T or S

= Temporary spare tire or

= Overall diameter in inches (in)

215, 235, 145

= Section width in millimeters (mm)

65, 85, 80

= Aspect ratio in percent (%)

•

Ratio of section height to section width of tire, or

10.5

= Section width in inches (in)

= Construction code

•

"R" means radial construction, or

•

"D" means diagonal or bias construction

15, 16, 18

= Rim diameter in inches (in)

Service Description:
95

= Load Index

•

A numerical code associated with the maximum load a tire can carry

= Speed Symbol

•

A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions

•

The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading, road conditions,
and posted speed limits)

Load Identification:

Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:

•

= Extra load (or reinforced) tire, or

•

= Light load tire or

•

C, D, E, F, G

= Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load

– Maximum load indicates the maximum load this tire is designed to carry

Maximum Pressure

– Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

SERVICING AND MAINTENANCE

237

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code,
located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is not found on the outboard side,
then you will find it on the inboard side of the tire.

EXAMPLE:

DOT MA L9 ABCD 0301

DOT

= Department of Transportation

•

This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

= Code representing the tire manufacturing location (two digits)

= Code representing the tire size (two digits)

ABCD

= Code used by the tire manufacturer (one to four digits)

= Number representing the week in which the tire was manufactured (two digits)

•

03 means the 3rd week

= Number representing the year in which the tire was manufactured (two digits)

•

01 means the year 2001

•

Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could represent the
3rd week of 1981 or 1991

Tire Terminology And Definitions

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or
driven less than 1 mile (1.6 km) after sitting for a minimum of three hours. Inflation pressure is measured in units of psi
(pounds per square inch) or kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for this tire. The maximum infla-
tion pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Manufacturer recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the original equipment tire sizes and
the recommended cold tire inflation pressures.

238

SERVICING AND MAINTENANCE

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on the
driver’s side B-pillar or the rear edge of the driver's side
door.

Check the inflation pressure of each tire, including the
spare tire (if equipped), at least monthly and inflate to
the recommended pressure for your vehicle.

Tire And Loading Information Placard

This placard tells you important information about the:

1. Number of people that can be carried in the vehicle.

2. Total weight your vehicle can carry.

3. Tire size designed for your vehicle.

4. Cold tire inflation pressures for the front, rear, and

spare tires.

The vehicle maximum load on the tire must not exceed
the load carrying capacity of the tire on your vehicle.
You will not exceed the tire's load carrying capacity if
you adhere to the loading conditions, tire size, and cold
tire inflation pressures specified on the Tire And Load-
ing Information Placard

page 124.

NOTE:

Under a maximum loaded vehicle condition, Gross Axle
Weight Ratings (GAWRs) for the front and rear axles
must not be exceeded

page 124.

To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX kg or
XXX lbs” on the Tire And Loading Information Placard.
The combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.

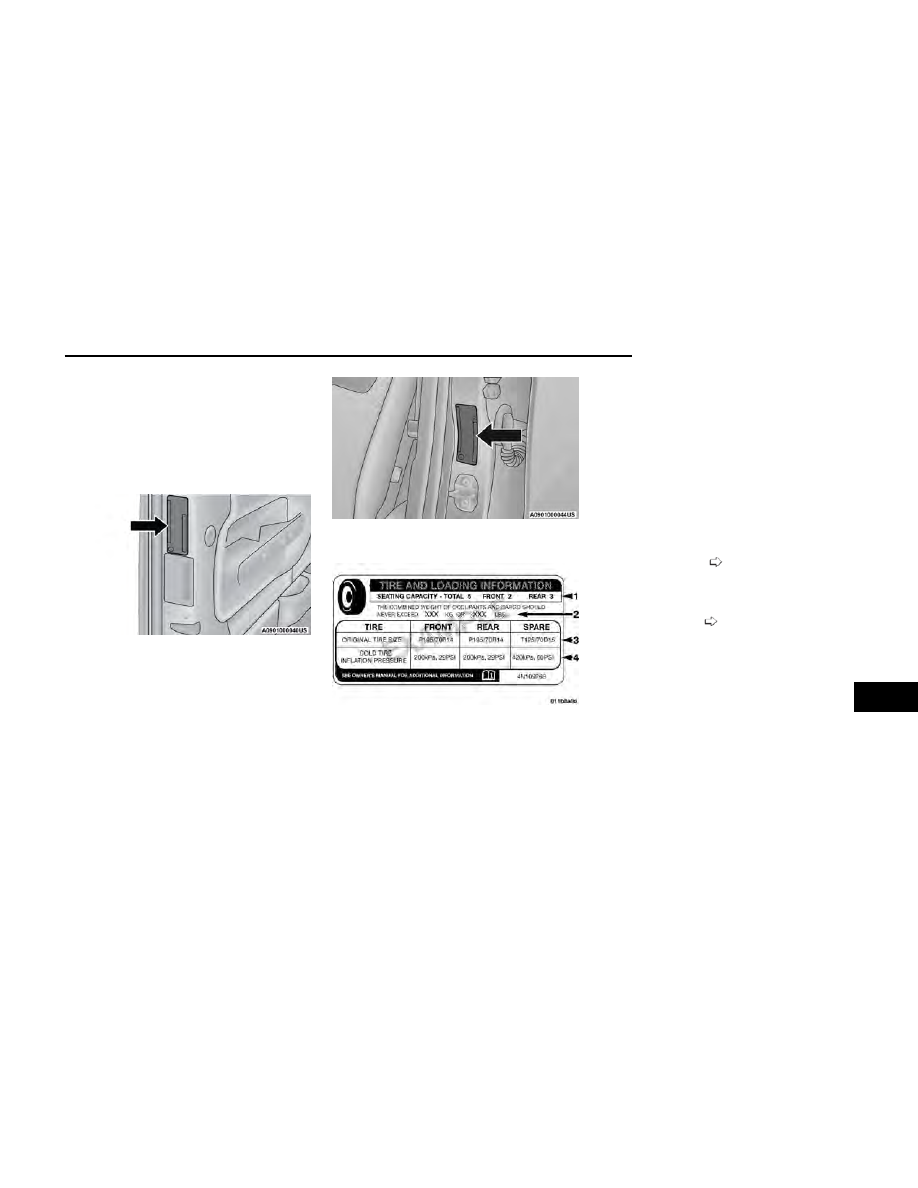

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

SERVICING AND MAINTENANCE

239

Steps For Determining Correct Load

Limit—

(1) Locate the statement “The com-
bined weight of occupants and cargo
should never exceed XXX kg or
XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.

(3) Subtract the combined weight of
the driver and passengers from XXX kg
or XXX lbs.

(4) The resulting figure equals the
available amount of cargo and luggage
load capacity. For example, if “XXX”
amount equals 1400 lbs. and there
will be five 150 lb passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5x150) = 650 lbs.)

(5) Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.

(6) If your vehicle will be towing a
trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and lug-
gage load capacity of your vehicle.

Metric Example For Load Limit

For example, if “XXX” amount equals 635 kg and there
will be five 68 kg passengers in your vehicle, the
amount of available cargo and luggage load capacity is
295 kg (635-340 (5x68) = 295 kg) as shown in step 4.

NOTE:

•

If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. The follow-
ing table shows examples on how to calculate total
load, cargo/luggage, and towing capacities of your
vehicle with varying seating configurations and num-
ber and size of occupants. This table is for illustra-
tion purposes only and may not be accurate for the
seating and load carry capacity of your vehicle.

•

For the following example, the combined weight of
occupants and cargo should never exceed 865 lbs
(392 kg).

240

SERVICING AND MAINTENANCE

TIRES — GENERAL INFORMATION

Tire Pressure

Proper tire inflation pressure is essential to the safe
and satisfactory operation of your vehicle. Four primary
areas are affected by improper tire pressure:

•

Safety

•

Fuel Economy

•

Tread Wear

•

Ride Comfort and Vehicle Stability

Safety

WARNING!

•

Improperly inflated tires are dangerous and can
cause collisions.

•

Underinflation increases tire flexing and can result
in overheating and tire failure.

•

Overinflation reduces a tire's ability to cushion
shock. Objects on the road and chuckholes can
cause damage that result in tire failure.

•

Overinflated or underinflated tires can affect
vehicle handling and can fail suddenly, resulting in
loss of vehicle control.

•

Unequal tire pressures can cause steering prob-
lems. You could lose control of your vehicle.

•

Unequal tire pressures from one side of the vehicle
to the other can cause the vehicle to drift to the
right or left.

•

Always drive with each tire inflated to the recom-
mended cold tire inflation pressure.

Both underinflation and overinflation affect the stability
of the vehicle and can produce a feeling of sluggish
response or over responsiveness in the steering.

NOTE:

•

Unequal tire pressures from side to side may cause
erratic and unpredictable steering response.

•

Unequal tire pressure from side to side may cause
the vehicle to drift left or right.

Fuel Economy

Underinflated tires will increase tire rolling resistance
resulting in higher fuel consumption.

Tread Wear

Improper cold tire inflation pressures can cause abnor-
mal wear patterns and reduced tread life, resulting in
the need for earlier tire replacement.

Ride Comfort And Vehicle Stability

Proper tire inflation contributes to a comfortable ride.
Overinflation produces a jarring and uncomfortable
ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on the
driver's side B-pillar or rear edge of the driver's side
door.

At least once a month:

•

Check and adjust tire pressure with a good quality
pocket-type pressure gauge. Do not make a visual
judgment when determining proper inflation. Tires
may look properly inflated even when they are
underinflated.

•

Inspect tires for signs of tire wear or visible damage.

CAUTION!

After inspecting or adjusting the tire pressure, always
reinstall the valve stem cap. This will prevent mois-
ture and dirt from entering the valve stem, which
could damage the valve stem.

Inflation pressures specified on the placard are always
“cold tire inflation pressure”. Cold tire inflation pressure
is defined as the tire pressure after the vehicle has not
been driven for at least three hours, or driven less than
1 mile (1.6 km) after sitting for a minimum of three
hours. The cold tire inflation pressure must not exceed
the maximum inflation pressure molded into the tire
sidewall.

Check tire pressures more often if subject to a wide
range of outdoor temperatures, as tire pressures vary
with temperature changes.

Tire pressures change by approximately 1 psi (7 kPa)
per 12°F (7°C) of air temperature change. Keep this in
mind when checking tire pressure inside a garage,
especially in the Winter.

Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire
inflation pressure should be increased by 3 psi
(21 kPa), which equals 1 psi (7 kPa) for every 12°F
(7°C) for this outside temperature condition.

Tire pressure may increase from 2 to 6 psi (13 to
40 kPa) during operation. DO NOT reduce this normal
pressure build-up or your tire pressure will be too low.

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe speeds and
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is

242

SERVICING AND MAINTENANCE

very important. Increased tire pressure and reduced
vehicle loading may be required for high-speed vehicle
operation. Refer to an authorized tire dealer or original
equipment vehicle dealer for recommended safe oper-
ating speeds, loading and cold tire inflation pressures.

WARNING!

High speed driving with your vehicle under maximum
load is dangerous. The added strain on your tires
could cause them to fail. You could have a serious
collision. Do not drive a vehicle loaded to the maxi-
mum capacity at continuous speeds above 75 mph
(120 km/h).

Radial Ply Tires

WARNING!

Combining radial ply tires with other types of tires on
your vehicle will cause your vehicle to handle poorly.
The instability could cause a collision. Always use
radial ply tires in sets of four. Never combine them
with other types of tires.

Tire Repair

If your tire becomes damaged, it may be repaired if it
meets the following criteria:

•

The tire has not been driven on when flat.

•

The damage is only on the tread section of your tire
(sidewall damage is not repairable).

•

The puncture is no greater than ¼ of an inch
(6 mm).

Consult an authorized tire dealer for tire repairs and
additional information.

Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced
immediately with another Run Flat tire of identical size
and service description (Load Index and Speed Sym-
bol). Replace the tire pressure sensor as well as it is not
designed to be reused.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of infla-
tion pressure. This rapid loss of inflation is referred to
as the Run Flat mode. A Run Flat mode occurs when
the tire inflation pressure is/or below 14 psi (96 kPa).
Once a Run Flat tire reaches the Run Flat mode it has
limited driving capabilities and needs to be replaced
immediately. A Run Flat tire is not repairable. When a
Run Flat tire is changed after being driven under a Run
Flat mode 14 psi (96 kPa) condition, please replace the
TPMS sensor as it is not designed to be reused.

NOTE:

TPMS sensor must be replaced after driving the vehicle
on a flat tire condition.

It is not recommended to drive a vehicle loaded at full
capacity or to tow a trailer while a tire is in the Run Flat
mode.

For more information

page 162.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions, do
not spin your vehicle's wheels above 30 mph (48 km/h)
or for longer than 30 seconds continuously without
stopping

page 206.

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure some-
one. Do not spin your vehicle's wheels faster than
30 mph (48 km/h) for more than 30 seconds con-
tinuously when you are stuck, and do not let anyone
near a spinning wheel, no matter what the speed.

Tread Wear Indicators

Tread wear indicators are in the original equipment
tires to help you in determining when your tires should
be replaced.

These indicators are molded into the bottom of the
tread grooves. They will appear as bands when the
tread depth becomes 1/16 of an inch (1.6 mm). When
the tread is worn to the tread wear indicators, the tire
should be replaced

page 244.

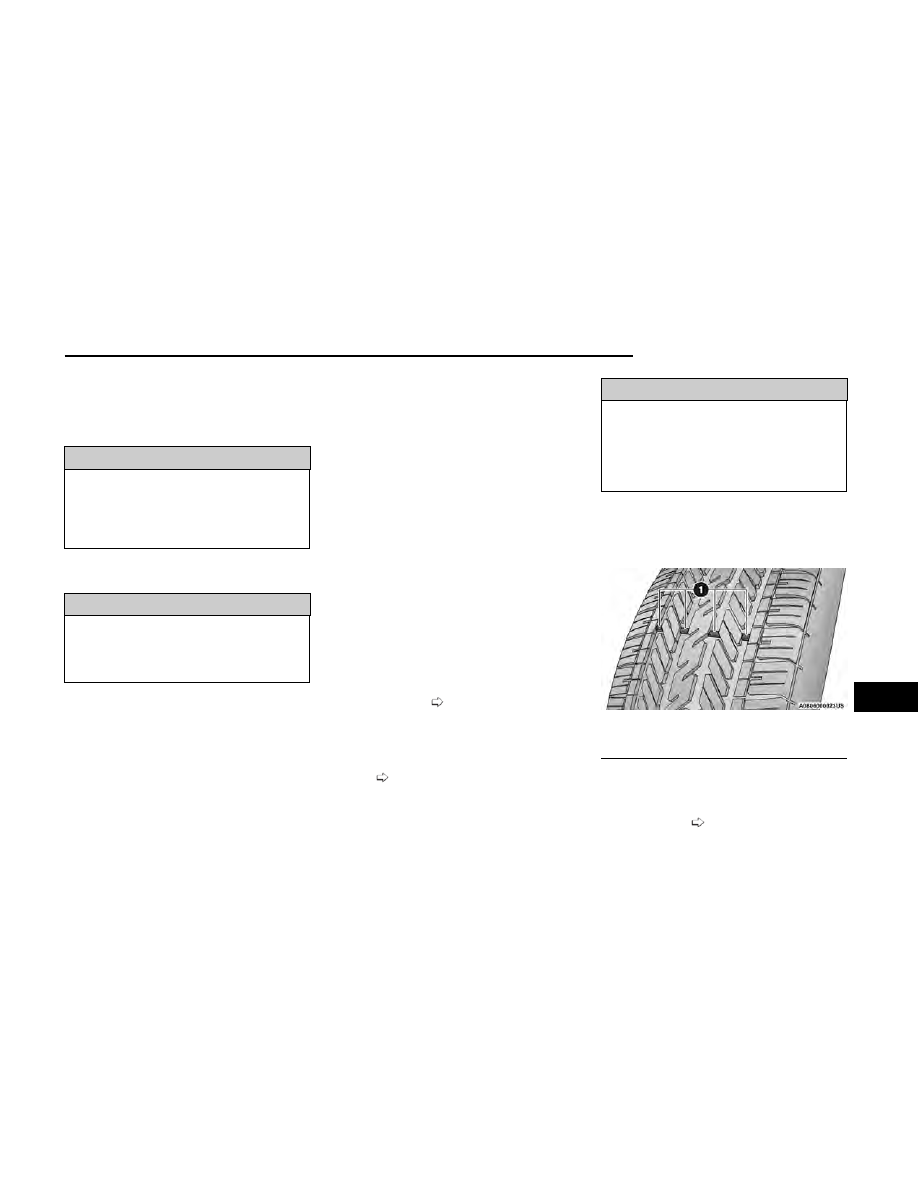

Tire Tread

1 — Tread Wear Indicators

SERVICING AND MAINTENANCE

243

Life Of Tire

The service life of a tire is dependent upon varying fac-
tors including, but not limited to:

•

Driving style.

•

Tire pressure - Improper cold tire inflation pressures
can cause uneven wear patterns to develop across
the tire tread. These abnormal wear patterns will
reduce tread life, resulting in the need for earlier tire
replacement.

•

Distance driven.

•

Performance tires, tires with a speed rating of V or
higher, and Summer tires typically have a reduced
tread life. Rotation of these tires per the vehicle
scheduled maintenance is highly recommended.

WARNING!

Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have a collision resulting
in serious injury or death.

NOTE:

The Wheel Valve Stem must be replaced as well when
installing new tires due to wear and tear in existing
tires.

Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressures. The
manufacturer strongly recommends using tires equiva-
lent to the originals in size, quality and performance
when replacement is needed

page 243. Refer to

the Tire And Loading Information Placard or the Vehicle
Certification Label for the size designation of your tire.
The Load Index and Speed Symbol for your tire will be
found on the original equipment tire sidewall.

For more information relating to the Load Index and
Speed Symbol of a tire

page 236.

It is recommended to replace the two front tires or two
rear tires as a pair. Replacing just one tire can seriously
affect your vehicle’s handling. If you ever replace a
wheel, make sure that the wheel’s specifications match
those of the original wheels.

It is recommended you contact an authorized tire
dealer or original equipment dealer with any questions
you may have on tire specifications or capability. Failure
to use equivalent replacement tires may adversely
affect the safety, handling, and ride of your vehicle.

WARNING!

•

Do not use a tire, wheel size, load rating, or speed
rating other than that specified for your vehicle.
Some combinations of unapproved tires and
wheels may change suspension dimensions and
performance characteristics, resulting in changes
to steering, handling, and braking of your vehicle.
This can cause unpredictable handling and stress
to steering and suspension components. You could

(Continued)

WARNING!

lose control and have a collision resulting in seri-
ous injury or death. Use only the tire and wheel
sizes with load ratings approved for your vehicle.

•

Never use a tire with a smaller load index or capac-
ity other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have a collision.

•

Failure to equip your vehicle with tires having
adequate speed capability can result in sudden
tire failure and loss of vehicle control.

CAUTION!

Replacing original tires with tires of a different size
may result in false speedometer and odometer
readings.

TIRE TYPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons (Spring,
Summer, Autumn, and Winter). Traction levels may vary
between different All Season tires. All Season tires can
be identified by the M+S, M&S, M/S or MS designation
on the tire sidewall. Use All Season tires only in sets of
four; failure to do so may adversely affect the safety
and handling of your vehicle.

244

SERVICING AND MAINTENANCE

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry con-
ditions, and are not intended to be driven in snow or on
ice. If your vehicle is equipped with Summer tires, be
aware these tires are not designed for Winter or cold
driving conditions. Install Winter tires on your vehicle
when ambient temperatures are less than 40°F (5°C)
or if roads are covered with ice or snow. For more infor-
mation, contact an authorized dealer.

Summer tires do not contain the all season designation
or mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.

WARNING!

Do not use Summer tires in snow/ice conditions. You
could lose vehicle control, resulting in severe injury or
death. Driving too fast for conditions also creates the
possibility of loss of vehicle control.

Snow Tires

Some areas of the country require the use of
snow tires during the Winter. Snow tires can
be identified by a mountain/snowflake sym-
bol on the tire sidewall.

If you need snow tires, select tires equivalent in size
and type to the original equipment tires. Use snow tires
only in sets of four; failure to do so may adversely affect
the safety and handling of your vehicle.

Snow tires generally have lower speed ratings than
what was originally equipped with your vehicle and
should not be operated at sustained speeds over
75 mph (120 km/h). For speeds above 75 mph

(120 km/h) refer to original equipment or an authorized
tire dealer for recommended safe operating speeds,
loading and cold tire inflation pressures.

While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
poorer than that of non-studded tires. Some states pro-
hibit studded tires; therefore, local laws should be
checked before using these tire types.

SPARE TIRES — IF EQUIPPED

NOTE:

For vehicles equipped with Tire Service Kit instead of a
spare tire

page 199.

CAUTION!

Because of the reduced ground clearance, do not
take your vehicle through an automatic car wash with
a compact or limited use temporary spare installed.
Damage to the vehicle may result.

For restrictions when towing with a spare tire desig-
nated for temporary emergency use

page 128.

Spare Tire Matching Original Equipped

Tire And Wheel — If Equipped

Your vehicle may be equipped with a spare tire and
wheel equivalent in look and function to the original
equipment tire and wheel found on the front or rear
axle of your vehicle. This spare tire may be used in the
tire rotation for your vehicle. If your vehicle has this
option, refer to an authorized tire dealer for the recom-
mended tire rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency use
only. You can identify if your vehicle is equipped with a
compact spare by looking at the spare tire description
on the Tire And Loading Information Placard located on
the driver’s side door opening or on the sidewall of the
tire. Compact spare tire descriptions begin with the let-
ter “T” or “S” preceding the size designation. Example:
T145/80D18 103M.

T, S = Temporary Spare Tire

Since this tire has limited tread life, the original equip-
ment tire should be repaired (or replaced) and rein-
stalled on your vehicle at the first opportunity.

Do not install a wheel cover or attempt to mount a con-
ventional tire on the compact spare wheel, since the
wheel is designed specifically for the compact spare
tire. Do not install more than one compact spare tire
and wheel on the vehicle at any given time.

WARNING!

Compact and collapsible spares are for temporary
emergency use only. With these spares, do not drive
more than 50 mph (80 km/h). Temporary use spares
have limited tread life. When the tread is worn to the
tread wear indicators, the temporary use spare tire
needs to be replaced. Be sure to follow the warnings,
which apply to your spare. Failure to do so could
result in spare tire failure and loss of vehicle control.

SERVICING AND MAINTENANCE

245

Full-Size Spare — If Equipped

The Full-Size spare is for temporary emergency use
only. This tire may look like the originally equipped tire
on the front or rear axle of your vehicle, but it is not.
This spare tire may have limited tread life. When the
tread is worn to the tread wear indicators, the tempo-
rary use Full-Size spare tire needs to be replaced. Since
it is not the same as your original equipment tire,
replace (or repair) the original equipment tire and rein-
stall on the vehicle at the first opportunity.

Limited Use Spare — If Equipped

The limited use spare tire is for temporary emergency
use only. This tire is identified by a label located on the
limited use spare wheel. This label contains the driving
limitations for this spare. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited use
spare tire affects vehicle handling. Since it is not the
same as your original equipment tire, replace (or repair)
the original equipment tire and reinstall on the vehicle
at the first opportunity.

WARNING!

Limited use spares are for emergency use only. Instal-
lation of this limited use spare tire affects vehicle
handling. With this tire, do not drive more than the
speed listed on the limited use spare wheel. Keep
inflated to the cold tire inflation pressures listed on
your Tire And Loading Information Placard located on
the driver’s side B-pillar or the rear edge of the driv-
er’s side door. Replace (or repair) the original equip-
ment tire at the first opportunity and reinstall it on
your vehicle. Failure to do so could result in loss of
vehicle control.

TIRE ROTATION
RECOMMENDATIONS

The tires on the front and rear of your vehicle operate
at different loads and perform different steering, han-
dling, and braking functions. For these reasons, they
wear at unequal rates.

These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute
to a smooth, quiet ride.

For the proper maintenance intervals

page 210.

The reasons for any rapid or unusual wear should be
corrected prior to rotation being performed.

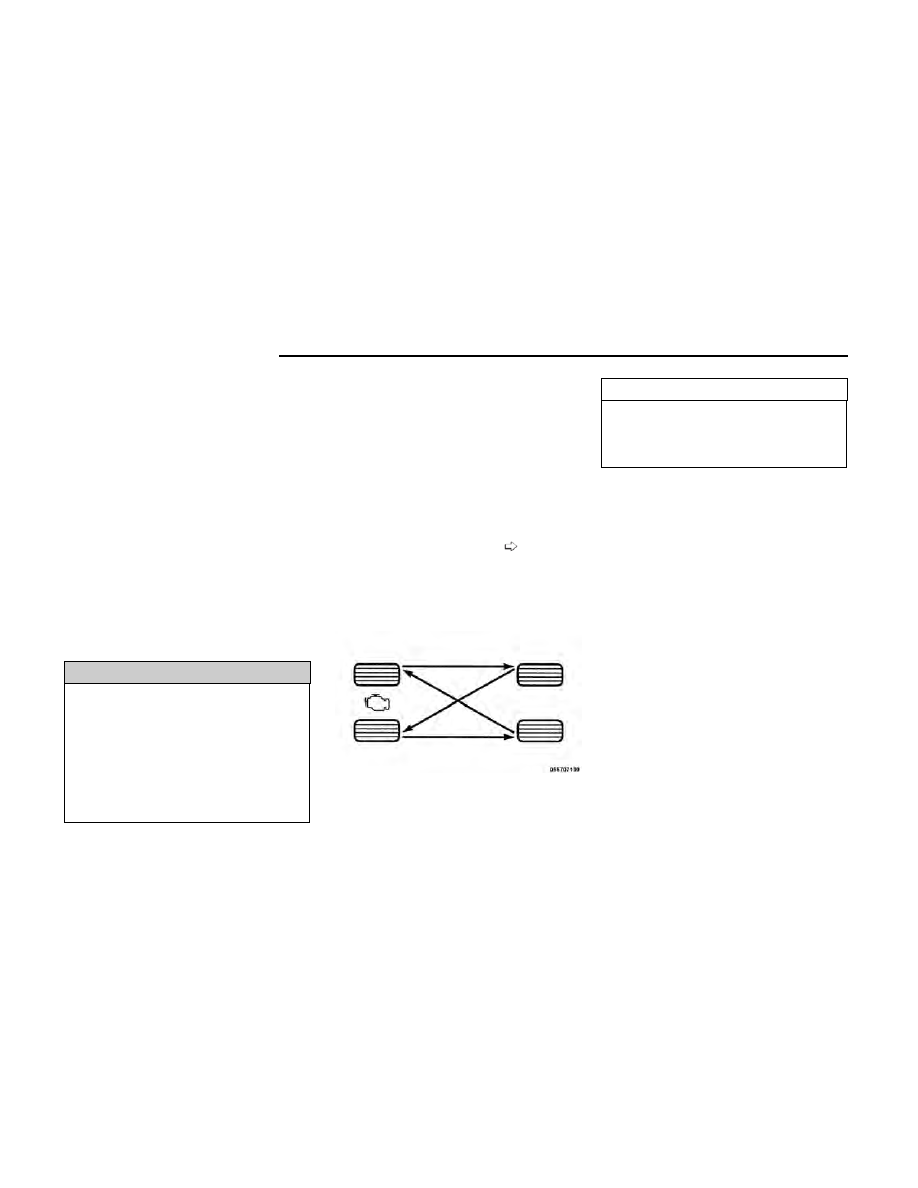

The suggested rotation method is the “forward cross”
shown in the following diagram. This rotation pattern
does not apply to some directional tires that must not
be reversed.

CAUTION!

Proper operation of four-wheel drive vehicles depends
on tires of equal size, type and circumference on
each wheel. Any difference in tire size can cause
damage to the power transfer unit. Tire rotation
schedule should be followed to balance tire wear.

DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES

The following tire grading categories
were established by the National High-
way Traffic Safety Administration. The
specific grade rating assigned by the
tire's manufacturer in each category is
shown on the sidewall of the tires on
your vehicle.

All passenger vehicle tires must con-
form to Federal safety requirements in
addition to these grades.

Tire Rotation (Forward Cross)

246

SERVICING AND MAINTENANCE

TREADWEAR

The Treadwear grade is a comparative
rating, based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course. For example, a tire graded
150 would wear one and one-half
times as well on the government
course as a tire graded 100. The rela-
tive performance of tires depends
upon the actual conditions of their
use, however, and may depart signifi-
cantly from the norm due to variations
in driving habits, service practices, and
differences in road characteristics and
climate.

TRACTION GRADES

The Traction grades, from highest to
lowest, are AA, A, B, and C. These
grades represent the tire's ability to
stop on wet pavement, as measured
under controlled conditions on speci-
fied government test surfaces of
asphalt and concrete. A tire marked C
may have poor traction performance.

WARNING!

The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not
include acceleration, cornering,
hydroplaning, or peak traction
characteristics.

TEMPERATURE GRADES

The Temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat,
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive tem-
perature can lead to sudden tire fail-
ure. The grade C corresponds to a level
of performance, which all passenger
vehicle tires must meet under the Fed-
eral Motor Vehicle Safety Standard

No. 109. Grades B and A represent
higher levels of performance on the
laboratory test wheel, than the mini-
mum required by law.

WARNING!

The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Exces-
sive speed, underinflation, or exces-
sive loading, either separately or in
combination, can cause heat build-up
and possible tire failure.

STORING THE VEHICLE

If you are storing your vehicle for more than three
weeks, we recommend that you take the following steps
to minimize the drain on your vehicle's battery:

•

Disconnect the negative cable from battery.

•

Any time you store your vehicle or keep it out of ser-
vice (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system
is started again.

SERVICING AND MAINTENANCE

247

NOTE:

When the vehicle has not been started or driven for at
least 30 days, an “Extended Park Starting Procedure” is
required to start the vehicle

page 83.

CAUTION!

Before removal of the positive and negative terminals
to the battery, wait at least a minute with ignition
switch in the OFF position and close the driver’s door.
When reconnecting the positive and negative termi-
nals to the battery be sure the ignition switch is in the
OFF position and the driver’s door is closed.

BODYWORK

PROTECTION FROM ATMOSPHERIC
AGENTS

Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make
roads passable in snow and ice and those that are
sprayed on trees and road surfaces during other sea-
sons are highly corrosive to the metal in your vehicle.
Outside parking, which exposes your vehicle to airborne
contaminants, road surfaces on which the vehicle is
operated, extreme hot or cold weather and other
extreme conditions will have an adverse effect on paint,
metal trim, and underbody protection.

The following maintenance recommendations will
enable you to obtain maximum benefit from the corro-
sion resistance built into your vehicle.

What Causes Corrosion?

Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.

The most common causes are:

•

Road salt, dirt and moisture accumulation.

•

Stone and gravel impact.

•

Insects, tree sap and tar.

•

Salt in the air near seacoast localities.

•

Atmospheric fallout/industrial pollutants.

BODY AND UNDERBODY
MAINTENANCE

Wheel And Wheel Trim Care

All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly
using mild (neutral Ph) soap and water to maintain their
luster and to prevent corrosion. Wash wheels with the
same soap solution recommended for the body of the
vehicle and remember to always wash when the sur-
faces are not hot to the touch.

Your wheels are susceptible to deterioration caused by
salt, sodium chloride, magnesium chloride, calcium
chloride, etc., and other road chemicals used to melt
ice or control dust on dirt roads. Use a soft cloth or
sponge and mild soap to wipe away promptly. Do not
use harsh chemicals or a stiff brush. They can damage
the wheel’s protective coating that helps keep them
from corroding and tarnishing.

CAUTION!

Avoid products or automatic car washes that use
acidic solutions or strong alkaline additives or harsh
brushes. Many aftermarket wheel cleaners and auto-
matic car washes may damage the wheel's protective
finish. Such damage is not covered by the New
Vehicle Limited Warranty. Only car wash soap,
Mopar® Wheel Cleaner or equivalent is
recommended.

When cleaning extremely dirty wheels including exces-
sive brake dust, care must be taken in the selection of
tire and wheel cleaning chemicals and equipment to
prevent damage to the wheels. Mopar® Wheel Treat-
ment, Mopar® Chrome Cleaner or their equivalent is
recommended, or select a non-abrasive, non-acidic
cleaner for aluminum or chrome wheels.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush,
metal polishes or oven cleaner. These products may
damage the wheel's protective finish. Such damage is
not covered by the New Vehicle Limited Warranty.
Only car wash soap, Mopar® Wheel Cleaner or
equivalent is recommended.

NOTE:

If you intend parking or storing your vehicle for an
extended period after cleaning the wheels with wheel
cleaner, drive your vehicle and apply the brakes to
remove the water droplets from the brake components.
This activity will remove the red rust on the brake rotors
and prevent vehicle vibration when braking.

248

SERVICING AND MAINTENANCE

Dark Vapor Chrome, Black Satin Chrome, or Low Gloss
Clear Coat Wheels

CAUTION!

If your vehicle is equipped with these specialty
wheels, DO NOT USE wheel cleaners, abrasives, or
polishing compounds. They will permanently damage
this finish and such damage is not covered by the
New Vehicle Limited Warranty. HAND WASH ONLY
USING MILD SOAP AND WATER WITH A SOFT CLOTH.
Used on a regular basis; this is all that is required to
maintain this finish.

Cleaning Headlights

Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone
breakage than glass headlights.

Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.

Do not use abrasive cleaning components, solvents,
steel wool or other aggressive material to clean the
lenses.

PRESERVING THE BODYWORK

Washing

•

Wash your vehicle regularly. Always wash your
vehicle in the shade using Mopar® Car Wash, or a
mild car wash soap, and rinse the panels completely
with water.

•

If insects, tar, or other similar deposits have accu-
mulated on your vehicle, use Mopar® Super Kleen
Bug and Tar Remover to remove.

•

Use a high quality cleaner wax, such as Mopar®
Cleaner Wax to remove road film, stains and to pro-
tect your paint finish. Use precautions to not scratch
the paint.

•

Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.

CAUTION!

•

Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder that will
scratch metal and painted surfaces.

•

Use of power washers exceeding 1,200 psi
(8,274 kPa) can result in damage or removal of
paint and decals.

Special Care

•

If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least
once a month.

•

It is important that the drain holes in the lower
edges of the doors, rocker panels, and trunk be kept
clear and open.

•

If you detect any stone chips or scratches in the
paint, touch them up immediately.

•

If your vehicle is damaged due to a collision or simi-
lar cause that destroys the paint and protective
coating, have your vehicle repaired as soon as
possible.

•

If you carry special cargo such as chemicals, fertiliz-
ers, de-icer salt, etc., be sure that such materials
are well packaged and sealed.

•

If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.

•

Use Mopar® Touch Up Paint on scratches as soon
as possible. An authorized dealer has touch up
paint to match the color of your vehicle.

INTERIORS

SEATS AND FABRIC PARTS

Use Mopar® Total Clean to clean fabric upholstery and
carpeting.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in closed
areas they may cause respiratory harm.

Stain Repel Fabric Cleaning Procedure —

If Equipped

Stain Repel seats may be cleaned in the following
manner:

•

Remove as much of the stain as possible by blotting
with a clean, dry towel.

•

Blot any remaining stain with a clean, damp towel.

•

For tough stains, apply Mopar® Total Clean, or a
mild soap solution to a clean, damp cloth and
remove stain. Use a fresh, damp towel to remove
soap residue.

SERVICING AND MAINTENANCE

249

•

For grease stains, apply Mopar® Multi-Purpose
Cleaner to a clean, damp cloth and remove stain.
Use a fresh, damp towel to remove soap residue.

•

Do not use any harsh solvents or any other form of
protectants on Stain Repel products.

Seat Belt Maintenance

Do not bleach, dye or clean the belts with chemical sol-
vents or abrasive cleaners. This will weaken the fabric.

If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the
vehicle to wash them. Dry with a soft cloth.

Sun damage can also weaken the fabric. Replace the
belts if they appear frayed or worn or if the buckles do
not work properly.

WARNING!

A frayed or torn seat belt could rip apart in a collision
and leave you with no protection. Inspect the seat
belt system periodically, checking for cuts, frays, or
loose parts. Damaged parts must be replaced imme-
diately. Do not disassemble or modify the seat belt
system. If your vehicle is involved in a collision, or if
you have questions regarding seat belt or retractor
conditions, take your vehicle to an authorized FCA
dealer or authorized FCA Certified Collision Care Pro-
gram facility for inspection.

PLASTIC AND COATED PARTS

Use Mopar® Total Clean to clean vinyl upholstery.

CAUTION!

•

Direct contact of air fresheners, insect repellents,
suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away
immediately.

•

Damage caused by these type of products may not
be covered by your New Vehicle Limited Warranty.

Cleaning Plastic Instrument Cluster

Lenses

The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

Clean with a wet soft cloth. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
cloth. Dry with a soft cloth.

LEATHER SURFACES

Mopar® Total Clean is specifically recommended for
leather upholstery.

Your leather upholstery can be best preserved by regu-
lar cleaning with a damp soft cloth. Small particles of
dirt can act as an abrasive and damage the leather
upholstery and should be removed promptly with a
damp cloth. Stubborn soils can be removed easily with
a soft cloth and Mopar® Total Clean. Care should be
taken to avoid soaking your leather upholstery with any

liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to
clean your leather upholstery.

NOTE:

If equipped with light colored leather, it tends to show
any foreign material, dirt, and fabric dye transfer more
so than darker colors. The leather is designed for easy
cleaning, and the manufacturer recommends Mopar®
total care leather cleaner applied on a cloth to clean
the leather seats as needed.

CAUTION!

Do not use alcohol and alcohol-based and/or ketone-
based cleaning products to clean leather upholstery,
as damage to the upholstery may result.

GLASS SURFACES

All glass surfaces should be cleaned on a regular basis
with Mopar® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive
type cleaner. Use caution when cleaning the inside rear
window equipped with electric defrosters or windows
equipped with radio antennas. Do not use scrapers or
other sharp instruments that may scratch the elements.

When cleaning the rearview mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.

250

SERVICING AND MAINTENANCE

TECHNICAL SPECIFICATIONS

VEHICLE IDENTIFICATION NUMBER (VIN)

The VIN is found on the left front corner of the wind-
shield and is visible from the outside of the vehicle.

NOTE:

It is illegal to remove or alter the VIN.

BRAKE SYSTEM

Your vehicle is equipped with power assisted brakes as
standard equipment. In the event power assist is lost
for any reason (for example, repeated brake applica-
tions with the engine off), the brakes will still function.
However, the effort required to brake the vehicle will be
much greater than that required with the power system
operating.

If either of the two hydraulic systems lose normal capa-
bility, the remaining system will still function with some
loss of overall braking effectiveness. This will be evident
by increased pedal travel during application and greater
pedal force required to slow or stop. In addition, if the
malfunction is caused by an internal leak, as the brake
fluid in the master cylinder drops, the Brake Warning
Light will turn on.

WARNING!

Driving a vehicle with the Brake Warning Light on is
dangerous. A significant decrease in braking perfor-
mance or vehicle stability during braking may occur. It
will take you longer to stop the vehicle or will make
your vehicle harder to control. You could have a colli-
sion. Have the vehicle checked immediately.

WHEEL AND TIRE TORQUE
SPECIFICATIONS

Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle, the lug nuts/bolts should be torqued using a
properly calibrated torque wrench using a six-sided
(hex) deep wall socket.

TORQUE SPECIFICATIONS

Lug Nut/Bolt

Torque

**Lug Nut/Bolt

Size

Lug Nut/Bolt

Socket Size

100 ft-lb

(135 N·m)

M12 x 1.25

19 mm

**Use only authorized dealer recommended lug nuts/
bolts and clean or remove any dirt or oil before
tightening.

Inspect the wheel mounting surface prior to mounting
the tire and remove any corrosion or loose particles.

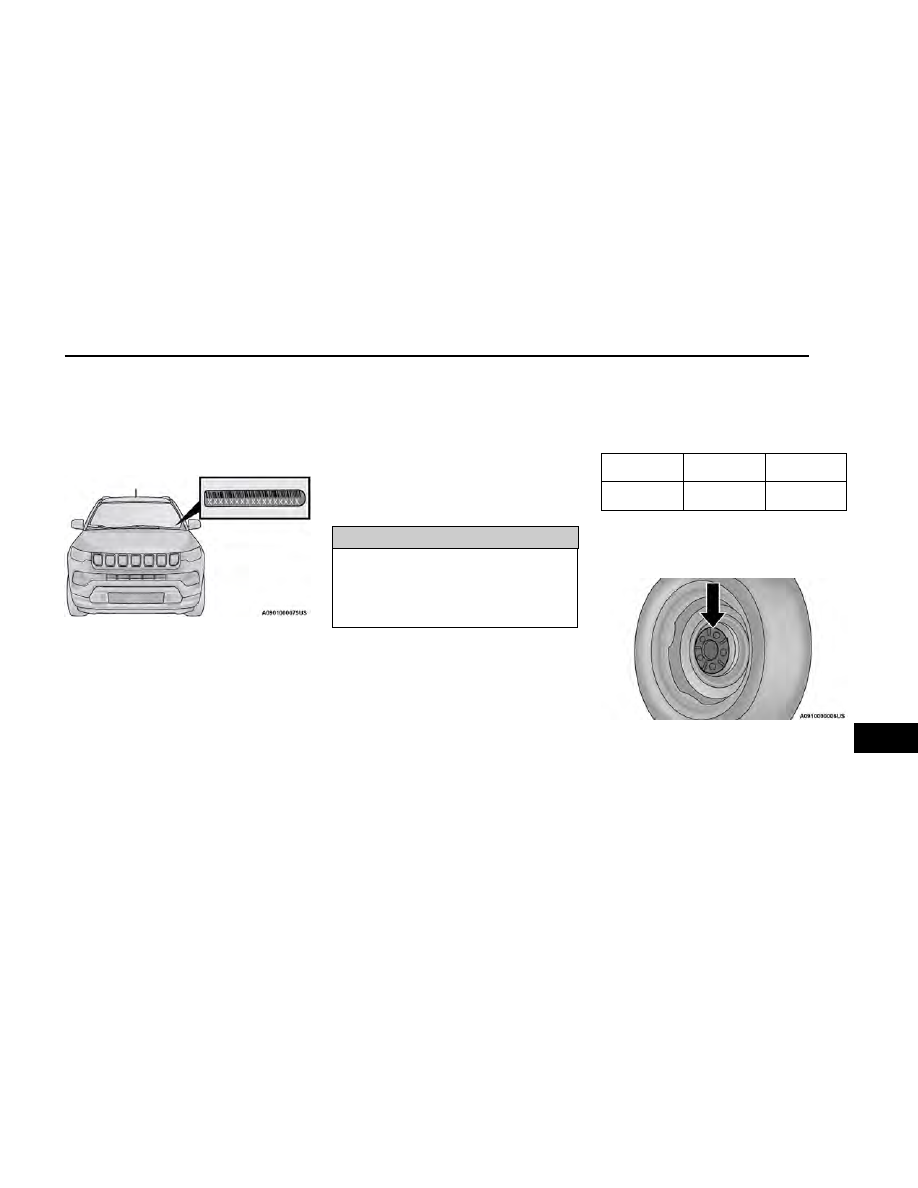

Vehicle Identification Number

Wheel Mounting Surface

251

Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice. Ensure that the
socket is fully engaged on the lug nut/bolt (do not
insert it halfway).

After 25 miles (40 km), check the lug nut/bolt torque to
be sure that all the lug nuts/bolts are properly
tightened.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle
has been lowered. Failure to follow this warning may
result in personal injury.

FUEL REQUIREMENTS

While operating on gasoline with the required octane
number, hearing a light knocking sound from the
engine is not a cause for concern. However, if the
engine is heard making a heavy knocking sound, see a

dealer immediately. Use of gasoline with a lower than
recommended octane number can cause engine failure
and may void or not be covered by the New Vehicle Lim-
ited Warranty.

2.0L ENGINE

This engine is designed to meet all emission
requirements, and provide satisfactory fuel
economy and performance, when using
unleaded regular gasoline having an octane

rating of 87, as specified by the (R+M)/2 method. The
use of 91 or higher octane premium gasoline will allow
these engines to operate to optimal performance. This
increase in performance is most noticeable in hot
weather or other heavier load conditions, such as while
towing.

REFORMULATED GASOLINE

Many areas of the country require the use of cleaner-
burning gasoline referred to as “reformulated gasoline”.
Reformulated gasoline contains oxygenates and are
specifically blended to reduce vehicle emissions and
improve air quality.

The use of reformulated gasoline is recommended.
Properly blended reformulated gasoline will provide
improved performance and durability of engine and fuel
system components.

GASOLINE/OXYGENATE BLENDS

Some fuel suppliers blend unleaded gasoline with oxy-
genates such as ethanol.

CAUTION!

DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15).
Use of these blends may result in starting and driv-
ability problems, damage critical fuel system compo-
nents, cause emissions to exceed the applicable
standard, and/or cause the Malfunction Indicator
Light to illuminate. Please observe pump labels as
they should clearly communicate if a fuel contains
greater than 15% ethanol (E-15).

Problems that result from using gasoline containing
more than 15% ethanol (E-15) or gasoline containing
methanol are not the responsibility of the manufacturer
and may void the New Vehicle Limited Warranty.

E-85 USAGE IN NON-FLEX FUEL
VEHICLES

Non-Flex Fuel Vehicles (FFV) are compatible with gaso-
line containing up to 15% ethanol (E-15). Gasoline with
higher ethanol content may void the New Vehicle Lim-
ited Warranty.

If a Non-FFV vehicle is inadvertently fueled with
E-85 fuel, the engine will have some or all of these
symptoms:

•

Operate in a lean mode.

•

OBD II Malfunction Indicator Light on.

•

Poor engine performance.

•

Poor cold start and cold drivability.

•

Increased risk for fuel system component corrosion.

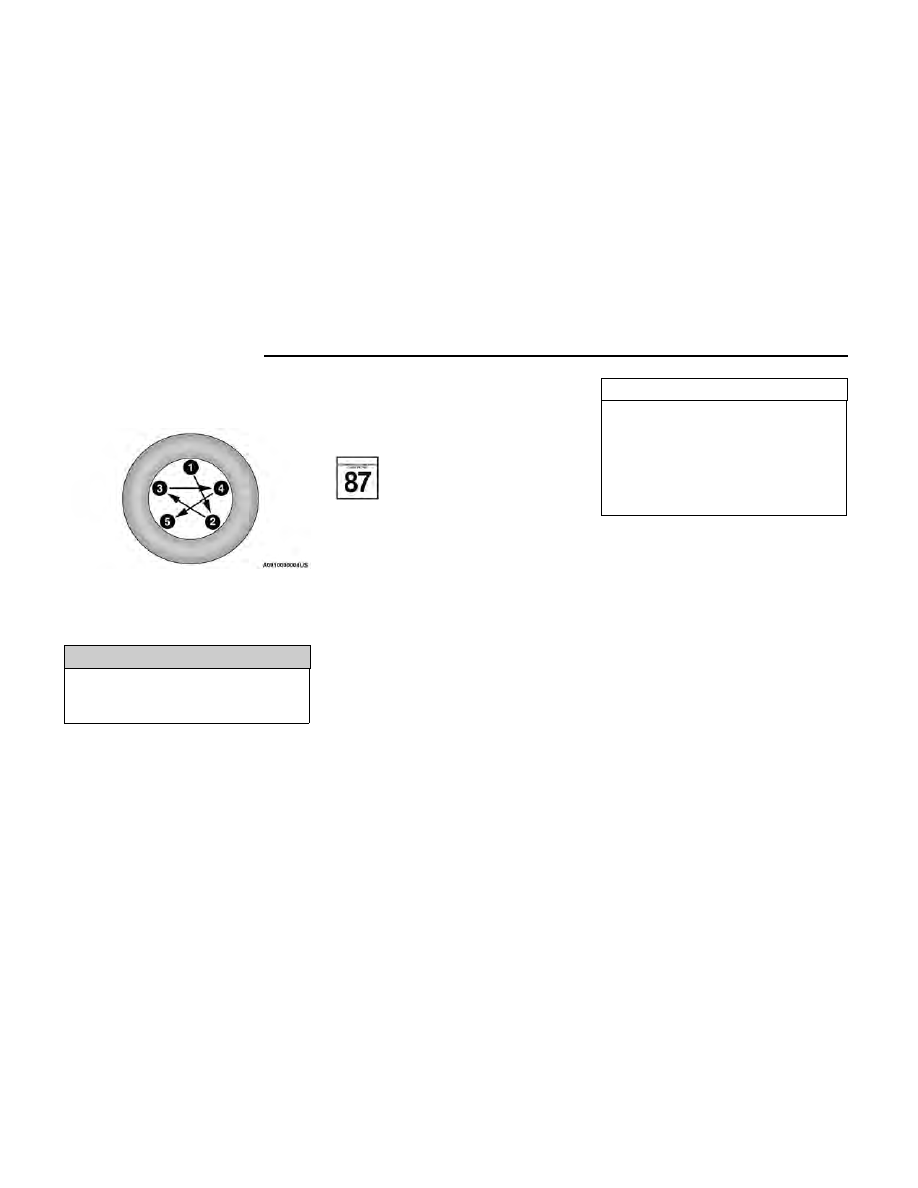

Torque Pattern

252

TECHNICAL SPECIFICATIONS

CNG AND LP FUEL SYSTEM
MODIFICATIONS

Modifications that allow the engine to run on Com-
pressed Natural Gas (CNG) or Liquid Propane (LP) may
result in damage to the engine, emissions, and fuel
system components. Problems that result from running
CNG or LP are not the responsibility of the manufac-
turer and may void the New Vehicle Limited Warranty.

METHYLCYCLOPENTADIENYL
MANGANESE TRICARBONYL (MMT)
IN GASOLINE

MMT is a manganese-containing metallic additive that
is blended into some gasolines to increase octane.
Gasoline blended with MMT provides no performance
advantage beyond gasoline of the same octane number
without MMT. Gasoline blended with MMT reduces
spark plug life and reduces emissions system perfor-
mance in some vehicles. The manufacturer recom-
mends that gasoline without MMT be used in your
vehicle. The MMT content of gasoline may not be indi-
cated on the gasoline pump, therefore, you should ask
the gasoline retailer whether or not his/her gasoline
contains MMT. MMT is prohibited in Federal and
California reformulated gasoline.

MATERIALS ADDED TO FUEL

Besides using unleaded gasoline with the proper
octane rating, gasolines that contain detergents, corro-
sion and stability additives are recommended. Using
gasolines that have these additives will help improve
fuel economy, reduce emissions, and maintain vehicle
performance.

Designated TOP TIER Detergent Gasoline
contains a higher level of detergents to fur-
ther aide in minimizing engine and fuel sys-
tem deposits. When available, the usage of

TOP TIER Detergent gasoline is recommended. Visit
www.toptiergas.com for a list of TOP TIER Detergent
Gasoline retailers.

Indiscriminate use of fuel system cleaning agents
should be avoided. Many of these materials intended
for gum and varnish removal may contain active sol-
vents or similar ingredients. These can harm fuel sys-
tem gasket and diaphragm materials.

FUEL SYSTEM CAUTIONS

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:

•

The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine per-
formance and damage the emissions control
system.

•

An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate ser-
vice. Contact an authorized dealer for service
assistance.

•

The use of fuel additives, which are now being sold
as octane enhancers, is not recommended. Most
of these products contain high concentrations of
methanol. Fuel system damage or vehicle perfor-
mance problems resulting from the use of such
fuels or additives is not the responsibility of the
manufacturer and may void or not be covered
under the New Vehicle Limited Warranty.

NOTE:

Intentional tampering with the emissions control system
can result in civil penalties being assessed against you.

TECHNICAL SPECIFICATIONS

253

FLUID CAPACITIES

Metric

Fuel (Approximate)

All Engines

13.5 gal

51 L

Engine Oil With Filter

2.0L Engine

5 qt

4.7 L

Cooling System*

2.0L Engine

9 qt

8.6 L

* Includes heater and coolant recovery bottle filled to MAX level.

ENGINE FLUIDS AND LUBRICANTS

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile
(240,000 km) Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of the manufacturer Standard MS.90032.

Engine Oil

We recommend using Mopar® API SP/GF-6A Certified SAE 5W-30 Full Synthetic
Engine Oil which meets the requirements of the manufacturer Material Standard
MS-13340. Equivalent full synthetic 5W-30 API SP engine oil can be used but must
have the API Donut trademark

page 214.

CAUTION!

Failure to use the recommended API SP/GF-6A or equivalent oil can cause engine
damage not covered by the vehicle warranty.

Fuel Selection

87 Octane (R+M)/2 Method, 0-15% Ethanol.

254

TECHNICAL SPECIFICATIONS

CUSTOMER ASSISTANCE

SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE

PREPARE FOR THE APPOINTMENT

All work to be performed may not be covered by the
warranty. Discuss additional charges with the service
manager. Keep a maintenance log of your vehicle's ser-
vice history. This can often provide a clue to the current
problem.

PREPARE A LIST

Make a written list of your vehicle's problems or the
specific work you want done. If you've had an accident
or work done that is not on your maintenance log, let
the service advisor know.

BE REASONABLE WITH REQUESTS

If you list a number of items and you must have your
vehicle by the end of the day, discuss the situation with
the service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle (additional charges may apply). If you need a
rental, it is advisable to make these arrangements
when you call for an appointment.

IF YOU NEED ASSISTANCE

FCA US LLC and its authorized dealers are vitally inter-
ested in your satisfaction. We want you to be happy with
our products and services.

Warranty service must be done by an authorized dealer.
We strongly recommend that you take the vehicle to an
authorized dealer. They know your vehicle the best, and
are most concerned that you get prompt and high qual-
ity service. FCA US LLC’s authorized dealers have the
facilities, factory-trained technicians, special tools, and
the latest information to ensure the vehicle is fixed cor-
rectly and in a timely manner.

This is why you should always talk to an authorized
dealer’s service manager first. If for some reason you
are still not satisfied, talk to the general manager or
owner of the authorized dealer. They want to know if
you need assistance. If an authorized dealer is unable
to resolve the concern, you may contact FCA US LLC's
Customer Assistance center.

Any communication to FCA US LLC’s customer center
should include the following information:

•

Owner's name and address

•

Owner's telephone number (home, mobile, and
office)

•

Authorized dealer name

•

Vehicle Identification Number (VIN)

•

Vehicle delivery date and mileage

ROADSIDE ASSISTANCE

Available 24 hours, 7 days a week.

Call 1-800-521-2779 or visit chrysler.rsahelp.com(USA)

Call 1-800-363-4869 or visit fca.roadsideaid.com
(Canada)

Who is Covered

You are covered by Roadside Assistance services if you
are a purchaser for use of the vehicle. Roadside Assis-
tance services last for five years or 60,000 miles on the
odometer, whichever occurs first, calculated from the
start date of the Basic Limited Warranty, as set forth in
your Warranty Information book.

1. Towing services provided through Cross Country Motor Club, Inc.,

400 River's Edge Drive, Medford, MA 02155, except in AK, CA, HI, OR,

WI, and WY, where services are provided by Cross Country Motor Club

of California, Inc., 275 East Hillcrest Drive, Suite 165, Thousand Oaks,

CA 91360.

What to Do

If your vehicle requires jump start assistance, out of
gas/fuel delivery, tire service, lockout service or towing
as a result of a mechanical breakdown, dial toll-free:
USA: 1-800-521-2779/Canada: 1-800-363-4869. Pro-
vide your name, Vehicle Identification Number (VIN)
required for covered services, license plate number,
and your location, including the telephone number from
which you are calling. Briefly describe the nature of the
problem and answer a few simple questions. You will be
given the name of the service provider and an esti-
mated time of arrival. If you feel you are in an unsafe
situation, please let us know. With your consent, we will
contact local police or safety authorities.

If Unable to Contact Roadside Assistance

If you are unable to contact Roadside Assistance or
unable to provide a valid Vehicle Identification Number
(VIN), and you obtain towing services on your own, you
may submit your original receipts from the licensed tow-
ing or service facility, for services rendered within

256

30 days of the occurrence. Be sure to include your VIN,
odometer mileage at the time of service, and current
mailing address. We will process the claim based on
vehicle and service eligibility. If eligible, we will reim-
burse you for the reasonable amount actually paid,
based on the usual and customary charges for that ser-
vice in the area where they were provided. FCA US LLC’s
determination relating to reimbursement is final. Corre-
spondence should be mailed to:

FCA US LLC Customer Assistance

P.O. Box 9145

Medford, MA 02155

Attention Claims Department

FCA US LLC reserves the right to modify the terms or
discontinue the Roadside Assistance Program at any
time. The Roadside Assistance program is subject to
restrictions and conditions of use, which are deter-
mined solely by FCA US LLC.

Flat Tire Service

If you are inconvenienced by a flat tire, we will dispatch
a service provider to use your vehicle’s temporary spare
tire (if equipped) as recommended in your Owner’s
Manual. This is not a permanent flat tire repair.

Out of Gas/Fuel Delivery

Drivers cannot always count on a gas station being
nearby, especially when traveling away from home. We
will dispatch a service provider to deliver a small
amount of fuel (maximum two gallons) to get you to a
nearby station. This service is limited to two occur-
rences in a 12-month period.

Battery Jump Assistance

No time is a good time for a depleted battery. With
Roadside Assistance, you do not have to worry about
being stranded. We will dispatch a service provider to
provide you with a battery jump anytime, day or night.

Lockout Service

Whether the keys are locked in your vehicle or frozen
locks are keeping you from getting on your way, help is
just a phone call away. This service is limited to provid-
ing access to the vehicle’s seating area. It does not
cover the cost of replacement keys.

Towing Service

Our towing service gives you peace of mind and confi-
dence. If your vehicle becomes disabled as a result of a
mechanical breakdown, Roadside Assistance will dispatch
a towing service to transport your vehicle to the closest
authorized Chrysler, Dodge, Jeep®, or Ram dealer. If you
choose to go to another dealer, you will be responsible for
the cost if the extra distance exceeds 10 miles.

FCA US LLC CUSTOMER CENTER

P.O. Box 21–8004

Auburn Hills, MI 48321–8004

Phone: (877) 426-5337

FCA CANADA INC. CUSTOMER CARE

P.O. Box 1621

Windsor, Ontario N9A 4H6

Phone: (800) 465-2001 English / (800)
387-9983 French

MEXICO

Customer Relations Office

Av. Prolongacion Paseo de la Reforma, 1240

Sante Fe C.P. 05109

Mexico, D.F.

In Mexico City: (800) 505-1300

Outside Mexico City: +(52) 55 50817568

PUERTO RICO AND US VIRGIN
ISLANDS

FCA Caribbean LLC Customer Service

P.O. Box 191857

San Juan, Puerto Rico, 00919-1857

Phone: (877) 426-5337

CUSTOMER ASSISTANCE FOR THE
HEARING OR SPEECH IMPAIRED
(TDD/TTY)

To assist customers who have hearing difficulties, FCA
US LLC has installed special Telecommunication
Devices for the Deaf (TDD) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with FCA
US LLC by dialing 1-800-380-2479.

Canadian residents with hearing difficulties that require
assistance can use the special needs relay service
offered by Bell Canada. For TTY teletypewriter users,
dial 711 and for Voice callers, dial 1-800-855-0511 to
connect with a Bell Relay Service operator.

SERVICE CONTRACT

You may have purchased a service contract for a
vehicle to help protect you from the high cost of unex-
pected repairs after FCA US LLC's New Vehicle Limited
Warranty expires. The Mopar® Vehicle Protection plans
are the ONLY vehicle extended protection plans autho-
rized, endorsed and backed by FCA US LLC to provide
additional protection beyond your vehicle’s warranty.

CUSTOMER ASSISTANCE

257

If you purchased a Mopar® Vehicle Protection Plan, you
will receive Plan Provisions and an Owner Identification
Card in the mail within three weeks of the vehicle deliv-
ery date.

If you have any questions about the service contract,
call FCA US LLC’s Service Contract National Customer
Hotline at 1-800-521-9922.

For Canadian residents, you may have purchased addi-
tional coverage with an extended service contract. FCA
Canada Inc. stands fully behind its service contracts.
Be sure that the one you buy is a genuine Canada Inc.
service contract. We are not responsible for other com-
panies’ contracts. If you purchased a contract other
than a genuine FCA Canada Inc. service contract and
you have a problem, you will have to contact the admin-
istrator of that contract for resolution.

If you have any questions about the service contract,
call the FCA's Service Contract National Customer
Hotline at (800) 465-2001 English / (800)
387-9983 French).

FCA US LLC is not responsible for any service contract
you may have purchased from another manufacturer. If
you require service after the FCA US LLC New Vehicle
Limited Warranty expires, please refer to the contract
documents, and contact the person listed in those
documents.

We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools,
and training to assure that you are absolutely delighted
with the ownership experience.

WARRANTY INFORMATION

See the Warranty Information for the terms and provi-
sions of FCA US LLC warranties applicable to this
vehicle and market. Refer to www.mopar.com/om for
further information.

See the Warranty Information for the terms and provi-
sions of FCA Canada Inc. warranties applicable to this
vehicle and market. Refer to www.owners.mopar.ca/en/
for further information.

Use this QR code to access your digital
experience.

MOPAR® PARTS

Mopar® original equipment parts & accessories and
factory filled fluids are available from an authorized
dealer. They are recommended for your vehicle to keep
it operating at its best and maintain its original
condition.

REPORTING SAFETY DEFECTS

IN THE 50 UNITED STATES AND
WASHINGTON, D.C.

If you believe that your vehicle has a
defect that could cause a crash or
cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying FCA US
LLC.

If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in indi-
vidual problems between you, an
authorized dealer, or FCA US LLC.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll free at
1-888-327-4236 (TTY:
1-800-424-9153); or go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New
Jersey Avenue, SE., West Building,

Scan me

258

CUSTOMER ASSISTANCE

Washington, D.C. 20590. You can also
obtain other information about motor
vehicle safety from
http://www.safercar.gov.

IN CANADA

If you believe that your vehicle has a
safety defect, you should contact the
Customer Service Department immedi-
ately. Canadian customers who wish to
report a safety defect to the Canadian
government should contact Transport
Canada, Motor Vehicle Defect Investi-
gations and Recalls at
1-800-333-0510 or go to
wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP.

PUBLICATION ORDER FORMS

To order the following manuals, you may use either the
website or the phone numbers listed below.

Service Manuals

These comprehensive Service Manuals provide a com-
plete working knowledge of the vehicle, system, and/or
components and is written in straightforward language
with illustrations, diagrams, and charts.

Diagnostic Procedure Manuals

Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These manuals make
it easy to find and fix problems on computer-controlled
vehicle systems and features. They show exactly how to
find and correct problems, using step-by-step trouble-
shooting and drivability procedures, proven diagnostic
tests and a complete list of all tools and equipment.

To order a digital copy of your Service or Diagnostic Pro-
cedure manuals, visit:

www.techauthority.com (US and Canada).

Owner's Manuals

These Owner's Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific FCA vehicles.

To access your Owner's Information online, visit
www.mopar.com/om (US) or www.owners.mopar.ca/en/
(Canada).

Or visit:

www.techauthority.com to order physical copies of
Owner’s Manuals (US).

Owner's Manuals, Radio Manuals and Warranty Infor-
mation Books can be ordered through Archway at:

•

1-800-387-1143 (Canada)

Change Of Ownership Or Address

*If you have purchased this vehicle used or have
changed your address, please provide the following
information and mail to:

FCA US LLC

P.O. Box 21–8008

Auburn Hills, MI 48321–8004

Make sure to include the following:

•

Date of Sale (mm/dd/yy)

•

Vehicle Identification Number (17 Character ID
located on top left of the instrument panel)

•

Exact Odometer Reading

•

First and Last Name

•

Phone Number

•

Street Address, City, State and Zip Code

•

Email Address

*Applies to US residents only.

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired
operation.

Le présent appareil est conforme aux CNR d`Innova-
tion, Science and Economic Development applicables
aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:

1. l'appareil ne doit pas produire de brouillage, et

2. l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est sus-
ceptible d'en compromettre le fonctionnement.

CUSTOMER ASSISTANCE

259

Jeep Compass (2024 year). Manual in english - page 8
