Jeep Grand Cherokee (2023 year). Manual in english

316

IN CASE OF EMERGENCY

1. Loosen (but do not remove) the wheel lug

nuts, using the lug wrench by turning them

counterclockwise, one turn, while the wheel is

still on the ground.

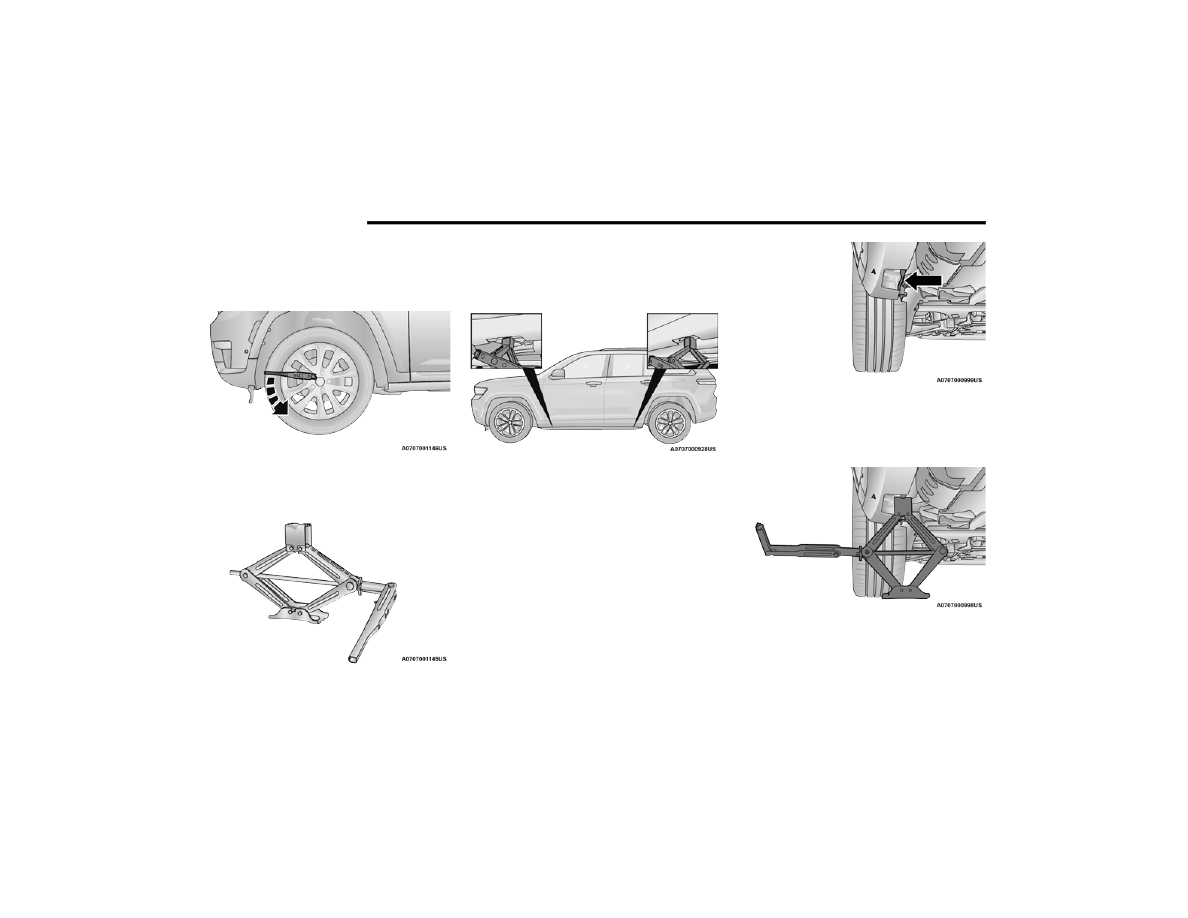

Loosen Lug Nuts

2. Assemble the jack and jacking tools

page 311.

Jack And Tools Assembled

NOTE:

Proper placement for the front and rear jacking

locations is critical. See the following images for

proper jacking locations.

Jacking Locations

3. For the front axle, place the jack on the body

flange just behind the front tire as indicated by

the triangular lift point symbol on the sill

molding. Do not raise the vehicle until you are

sure the jack is fully engaged.

Front Lifting Point

NOTE:

The jack must be placed straight on with handle

facing outwards.

Front Jacking Location

IN CASE OF EMERGENCY

317

4. For a rear tire, place the jack in the slot on the

rear tie-down bracket, just forward of the rear

tire (as indicated by the triangular lift point

symbol on the sill molding). Do not raise the

vehicle until you are sure the jack is fully

engaged.

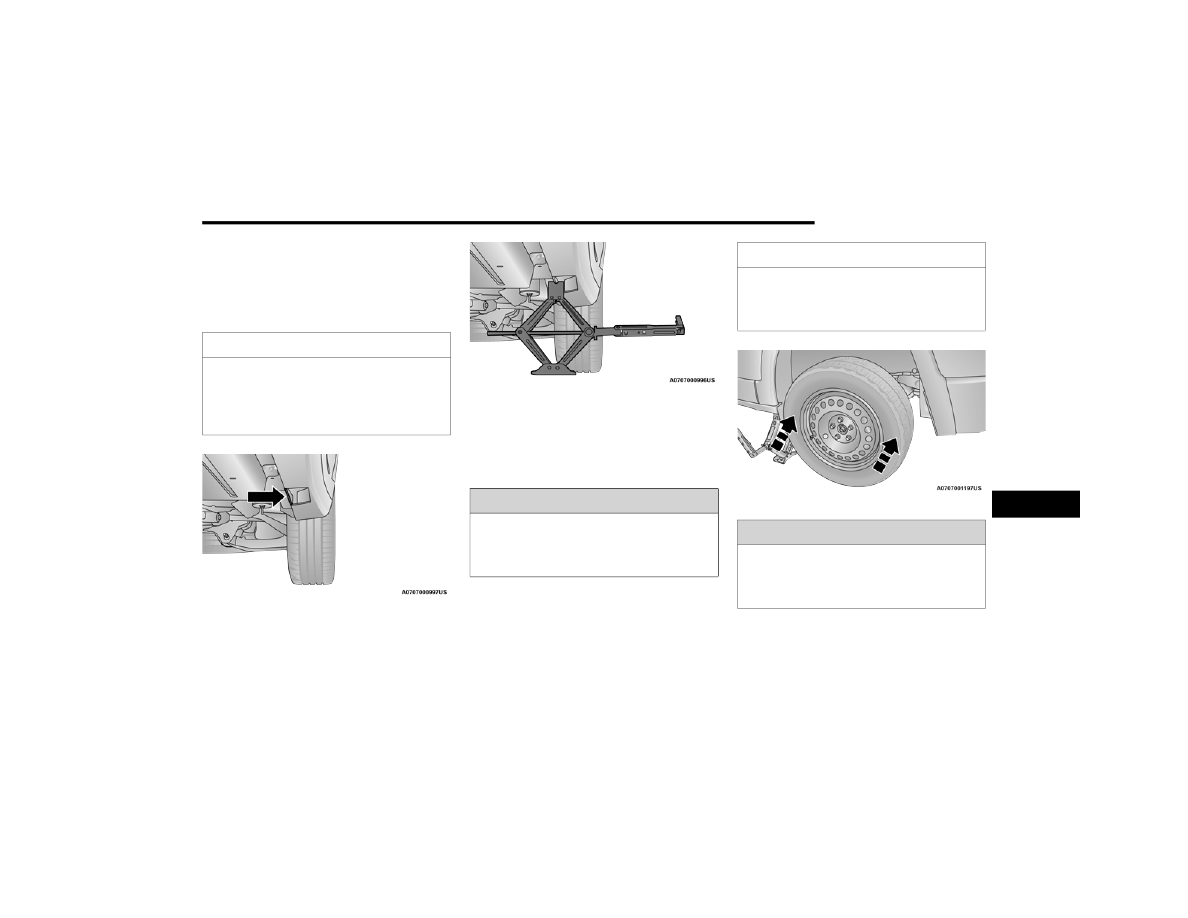

Rear Lifting Point

Rear Jacking Location

5. Raise the vehicle by turning the jack screw

clockwise. Raise the vehicle only until the tire

just clears the surface and enough clearance

is obtained to install the spare tire. Minimum

tire lift provides maximum stability.

6. Remove the lug nuts and wheel.
7. Position the spare wheel/tire on the vehicle

and install the lug nuts with the cone-shaped

end toward the wheel. Lightly tighten the nuts.

Mounting Spare Tire

8. Lower the vehicle by turning the jack screw

counterclockwise, and remove the jack and

wheel blocks.

CAUTION!

Do NOT raise the vehicle by the body side sill

molding. Be sure the jack is placed in the proper

engagement location on the inside of the panel.

Damage of the vehicle may occur if the

procedure is not properly followed.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the inflatable spare tire is mounted

incorrectly.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

318

IN CASE OF EMERGENCY

9. Finish tightening the lug nuts. Push down on

the wrench while at the end of the handle for

increased leverage. Tighten the lug nuts in a

star pattern until each nut has been tightened

twice. For correct lug nut torque

page 396.

If in doubt about the correct tightness, have

them checked with a torque wrench by an

authorized dealer or at a service station.

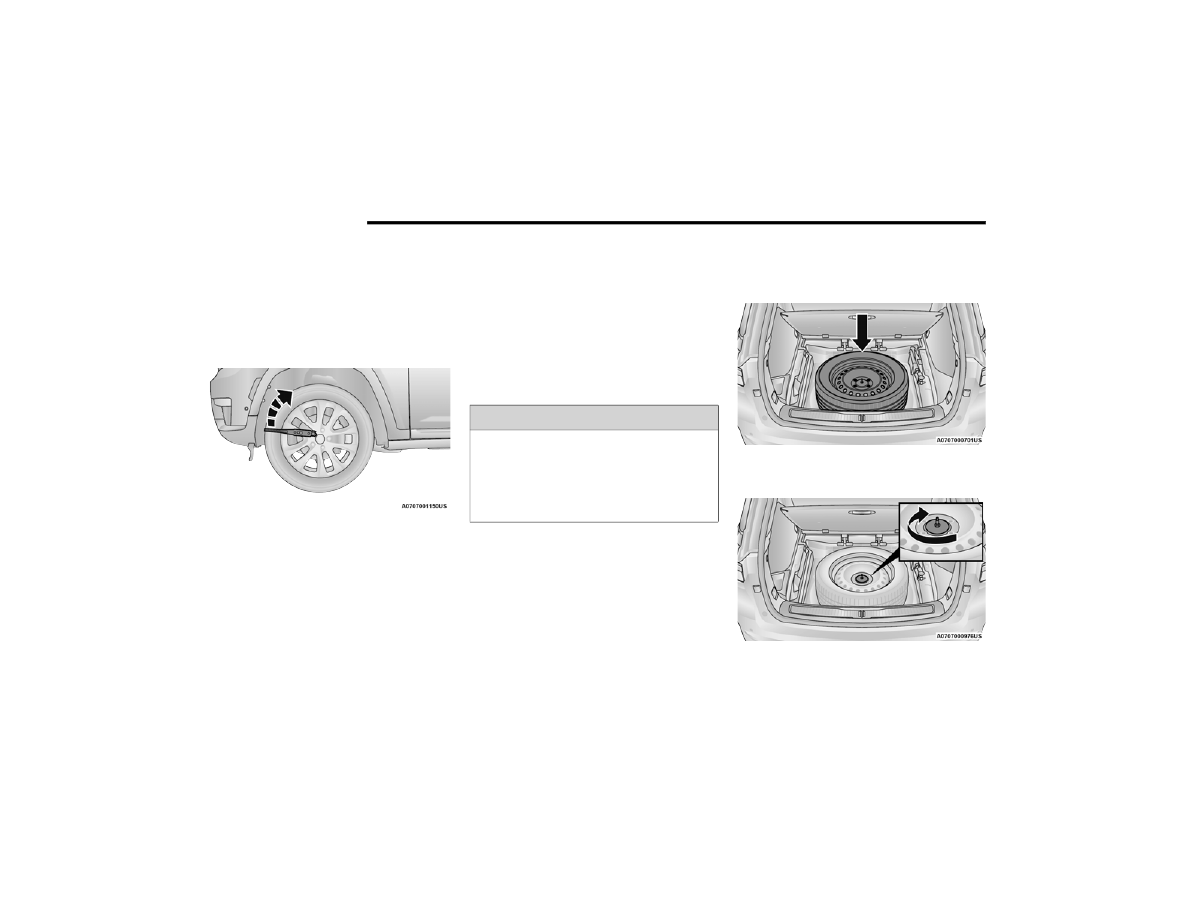

Tighten Lug Nuts

10. Lower the jack to the fully closed position.
11. Return the Jack and tools back into the jack

storage bin. Reinstall the jack storage cover by

firmly pushing down until the two side clips

lock into position.

12. After 25 miles (40 km), check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

13. Have the aluminum road wheel and tire

repaired as soon as possible and properly

secure the spare tire, jack and tool kit.

NOTE:

Do not drive with the spare tire installed for more

than 50 miles (80 km) at a max speed of 50 mph

(80 km/h).

Second Row Seating — If Equipped

1. Securely store the road wheel in the cargo

area.

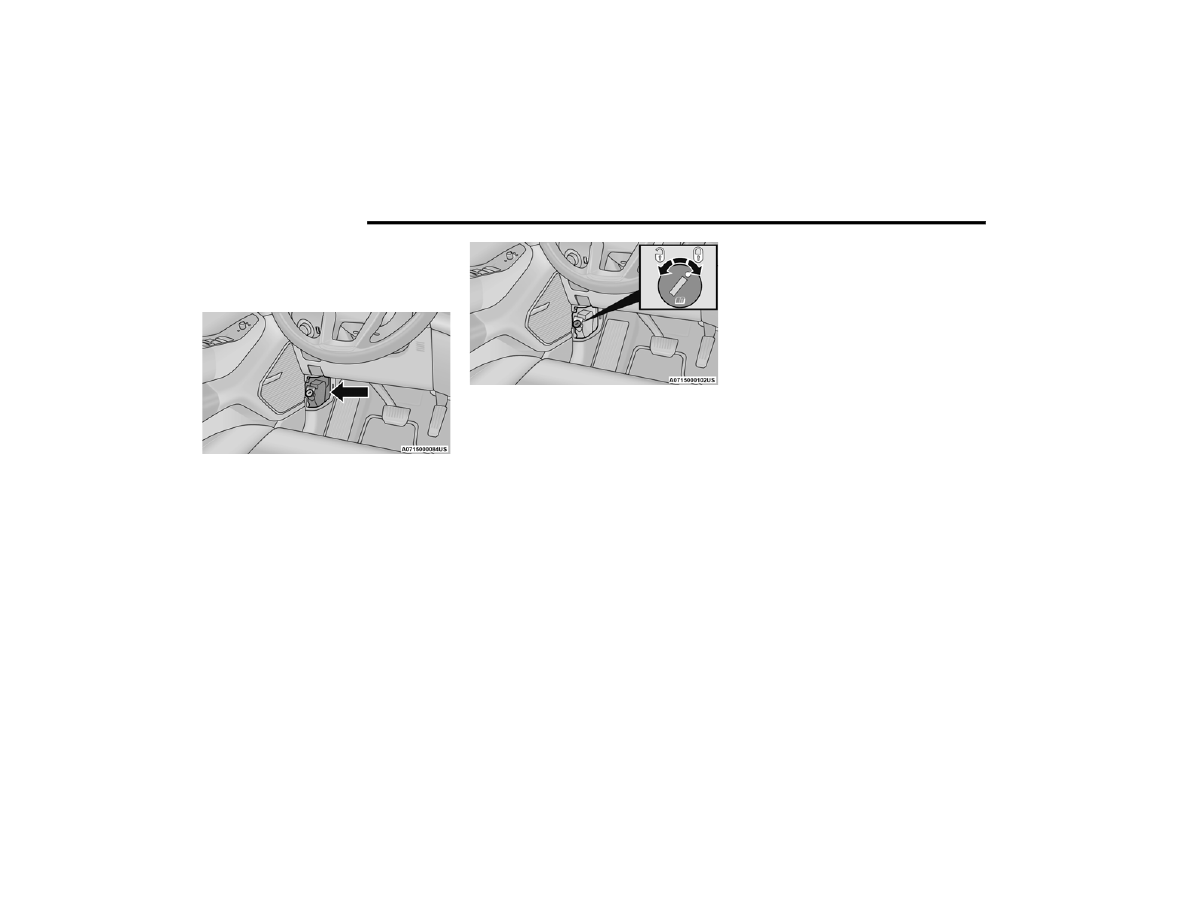

Road Wheel Installed In Spare Tire Location

2. Turn the fastener clockwise until secured.

Reinstalling Tire Fastener

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

IN CASE OF EMERGENCY

319

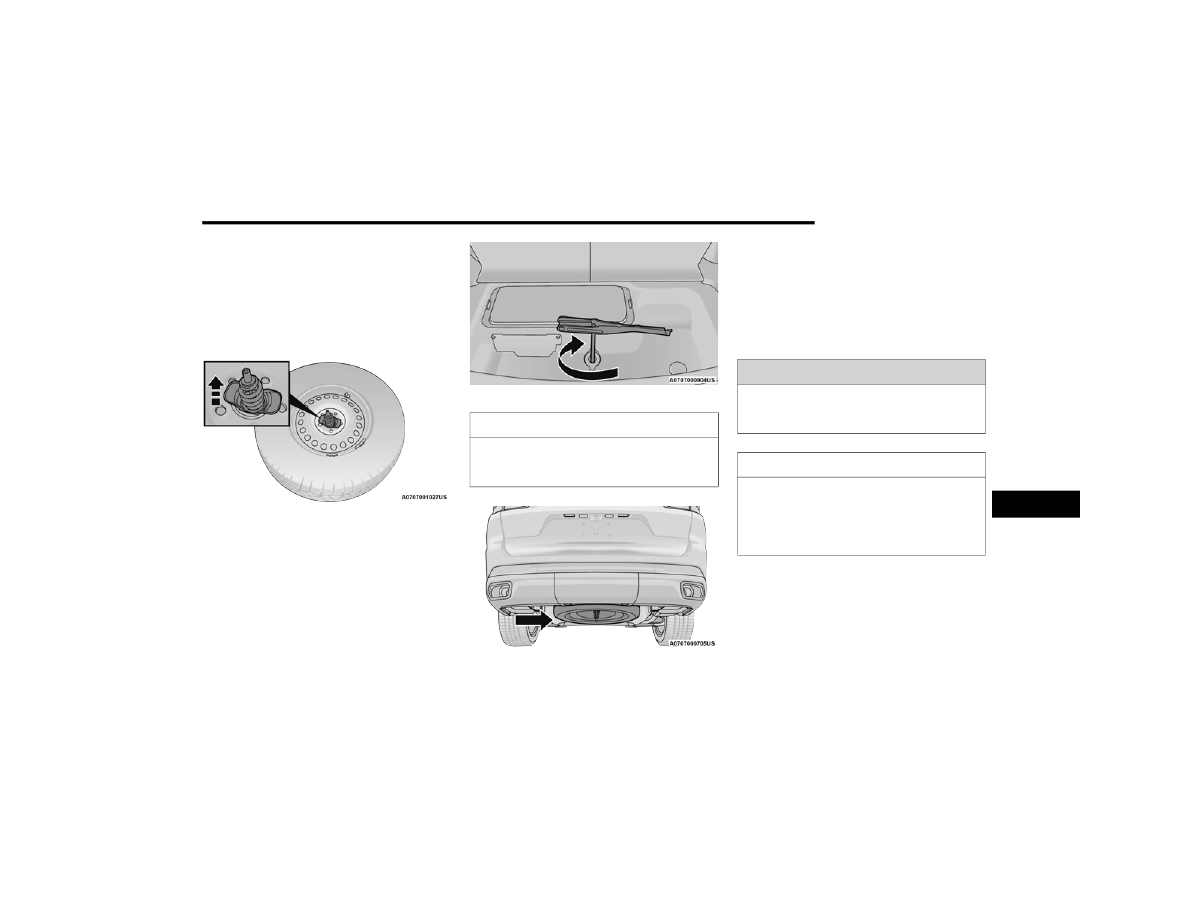

Third Row Seating — If Equipped

1. Position the wheel behind the rear fascia/

bumper facing outward. Push the end of the

winch’s cable, spring and steel sleeve

through the back of the road wheel. Making

sure the valve stem is facing the ground when

the wheel is stowed.

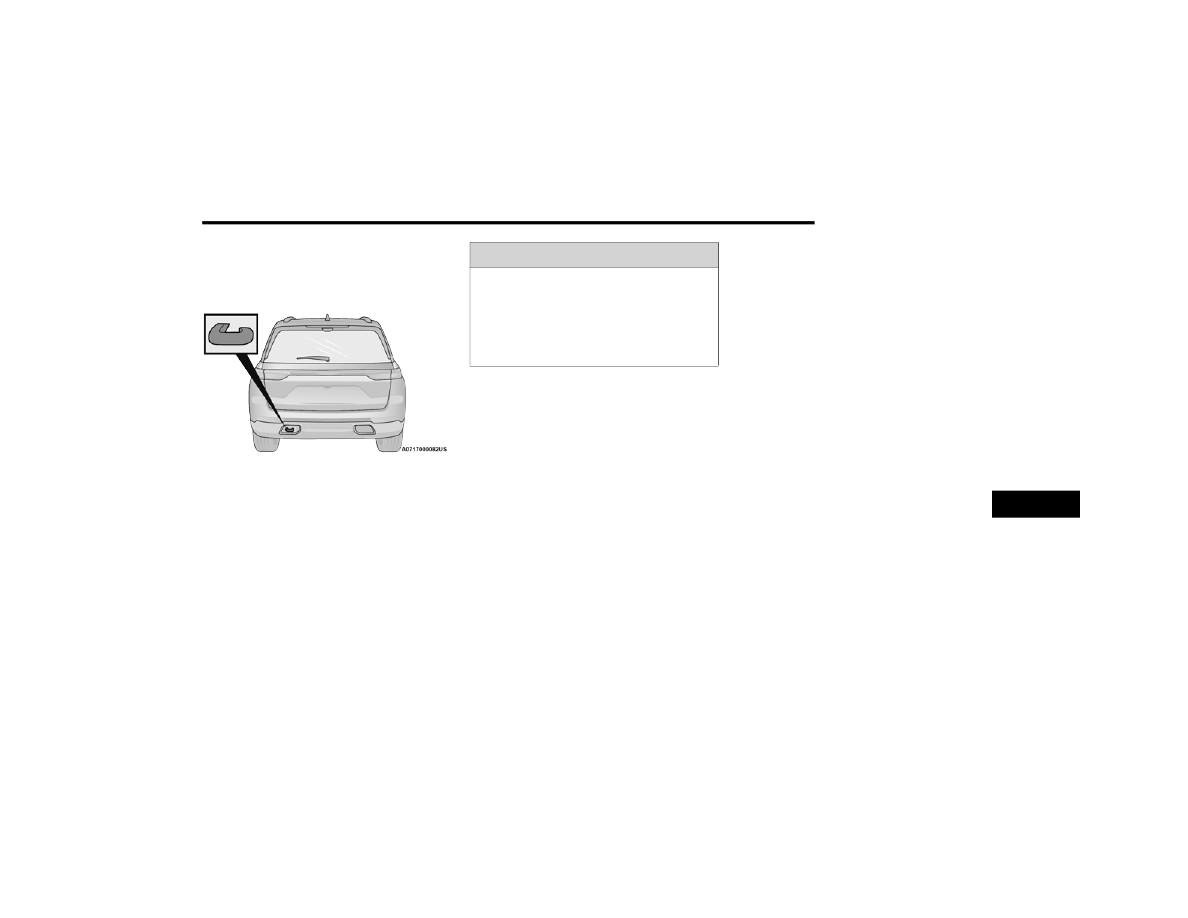

Installing Winch

2. Slide the road wheel on the ground until it is

directly under the winch and between the rear

fascia/bumper and exhaust system heat

shields. Raise the tire by turning the lug

wrench on the winch extension clockwise until

it clicks/ratchets three times to make sure the

cable is tight.

Winch Wrench Rotation

Road Wheel Installed In Spare Location

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer's operating instructions and

precautions.

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

320

IN CASE OF EMERGENCY

(Continued)

REPARATIONS

UMP

TART

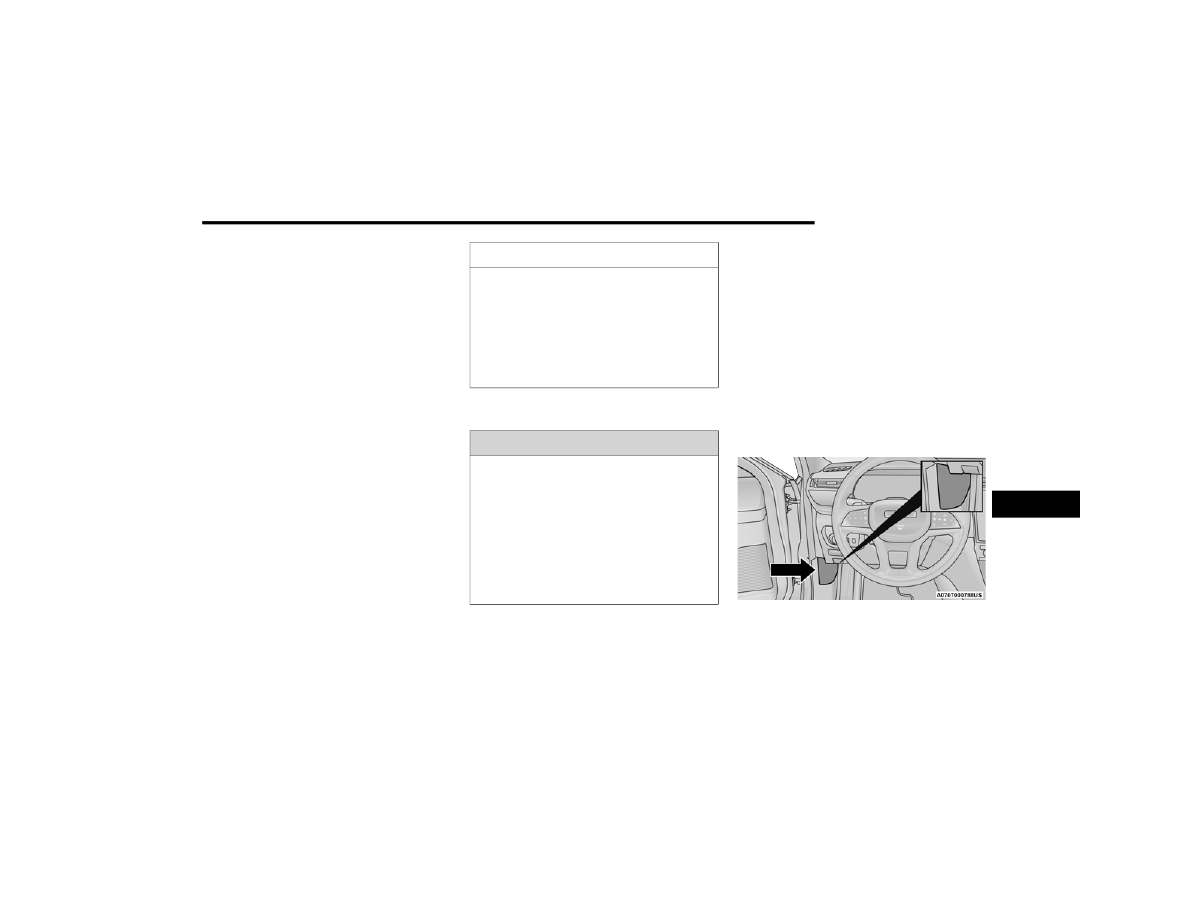

The battery in your vehicle is located under the

driver's front seat. There are remote terminals

located under the hood to assist in jump starting.

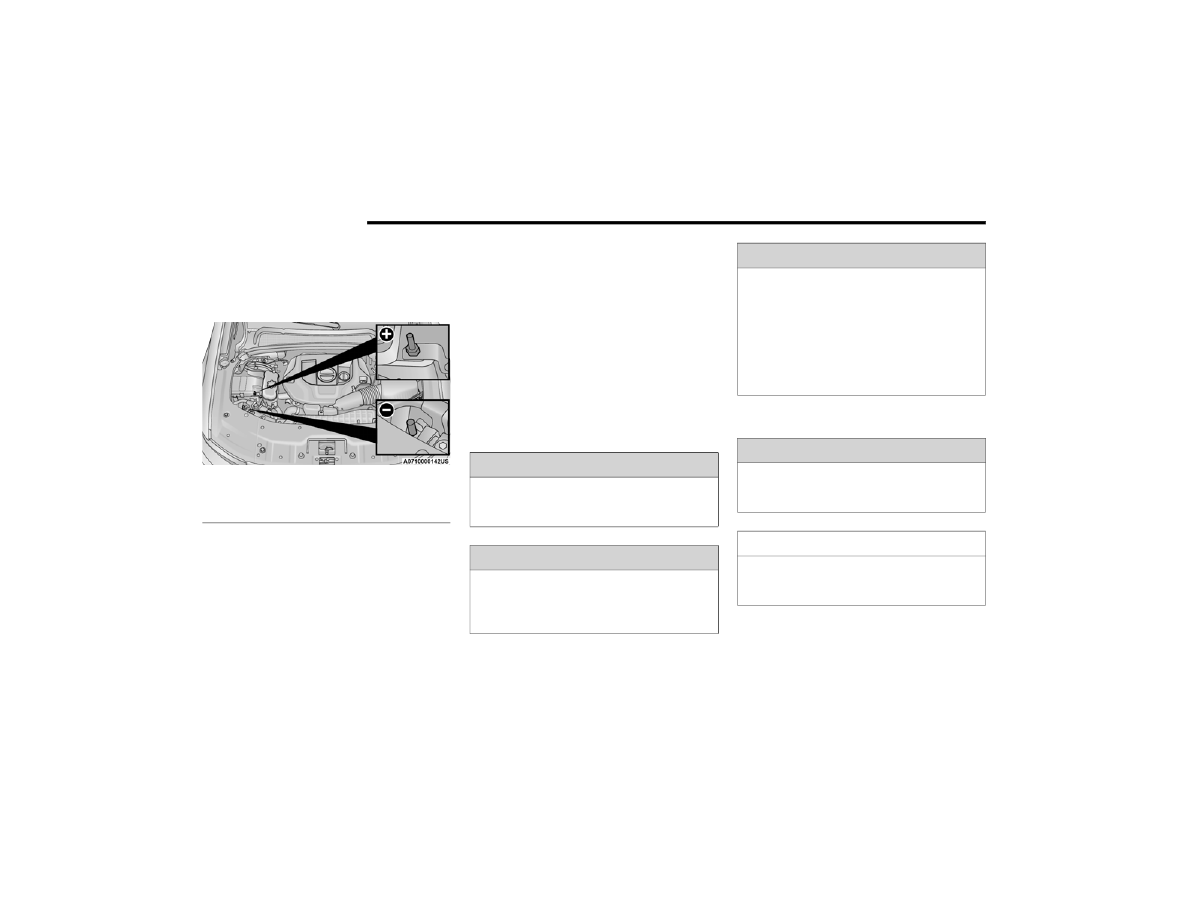

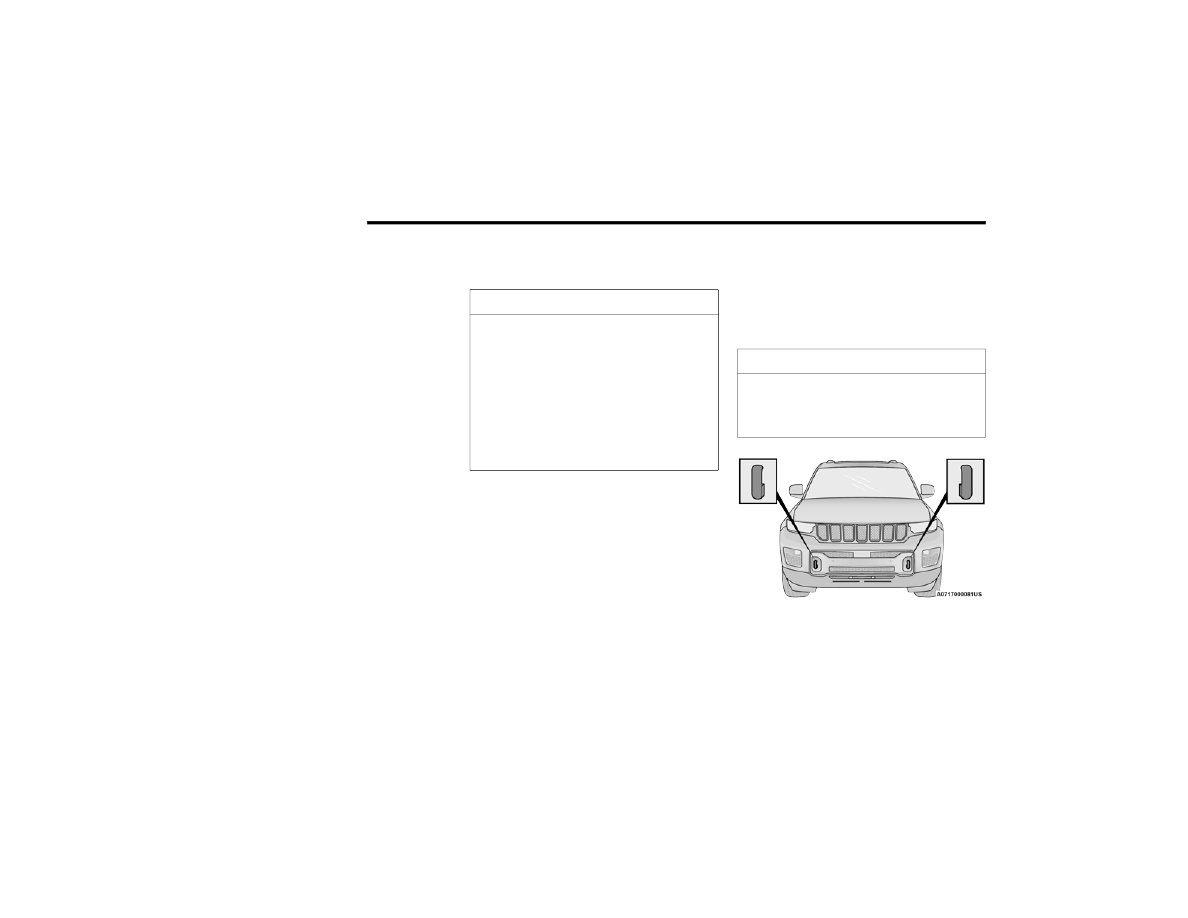

Jump Starting Posts

NOTE:

The remote battery posts are viewed by standing

on the right side of the vehicle looking over the

fender. The positive battery post may be covered

with a protective cap. Lift up on the cap to gain

access to the positive battery post. Do not jump off

fuses. Only jump directly off positive post which

has a positive (+) symbol on or around the post.
See the following steps to prepare for jump

starting:

1. Apply the parking brake, shift the automatic

transmission into PARK (P) and turn the

ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cables’ reach, apply the parking brake and

make sure the ignition is OFF.

NOTE:

Be sure that the disconnected cable ends do not

touch each other, or either vehicle, until properly

connected for jump starting.

UMP

TARTING

ROCEDURE

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either

vehicle while making connections.

Remote Positive (+) Post
Remote Negative (-) Post

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

IN CASE OF EMERGENCY

321

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

discharged vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

(exposed metallic/unpainted post of the

discharge vehicle) located directly in front of

the underhood fuse box.

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, follow the discon

necting procedure.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the remote negative (-) post of the

discharged vehicle.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the remote positive (+) post

of the discharged vehicle.

5. Reinstall the protective cover over the remote

positive (+) post of the discharged vehicle.

If frequent jump starting is required to start your

vehicle have the battery and charging system

tested at an authorized dealer.

REFUELING IN EMERGENCY

The vehicle is equipped with a refueling funnel

page 311 for a Cap-Less Fuel System. If

refueling is necessary, while using an approved

gas can, please insert the refueling funnel into the

filler neck opening.

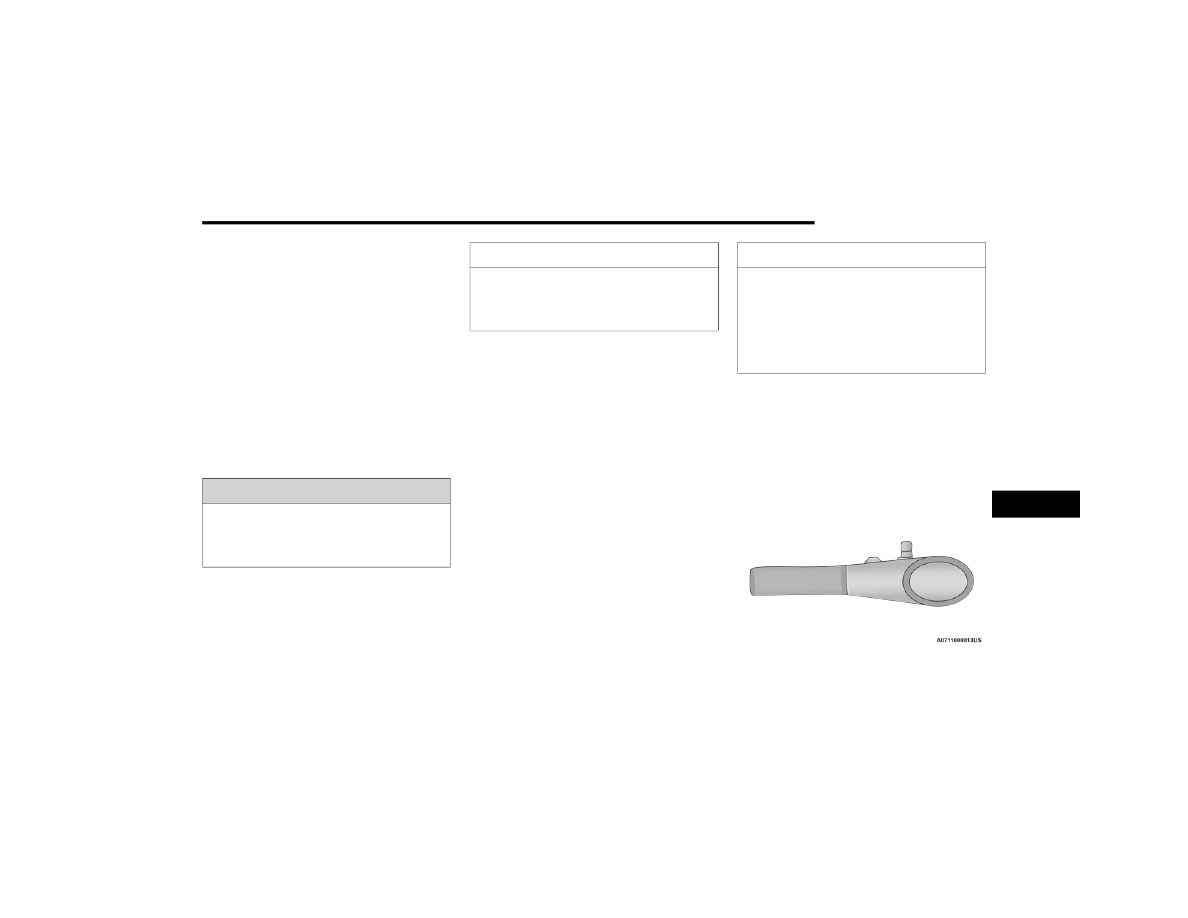

Refueling Funnel

WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the battery

to explode and could result in personal injury.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging benefit,

wastes fuel, and can damage booster vehicle

engine.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

322

IN CASE OF EMERGENCY

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push

around the perimeter of the fuel door to break the

ice build up. Re-release the fuel door by pushing on

the rear outer edge near the center to unlatch. Do

not pry on the door.
Emergency Gas Can Refueling
Most gas cans will not open the flapper doors. A

funnel is provided to allow emergency refueling

with a gas can.
See the following steps for refueling:
1. Retrieve funnel from under the rear cargo

load floor.

2. Insert funnel into same filler pipe opening as

the fuel nozzle.

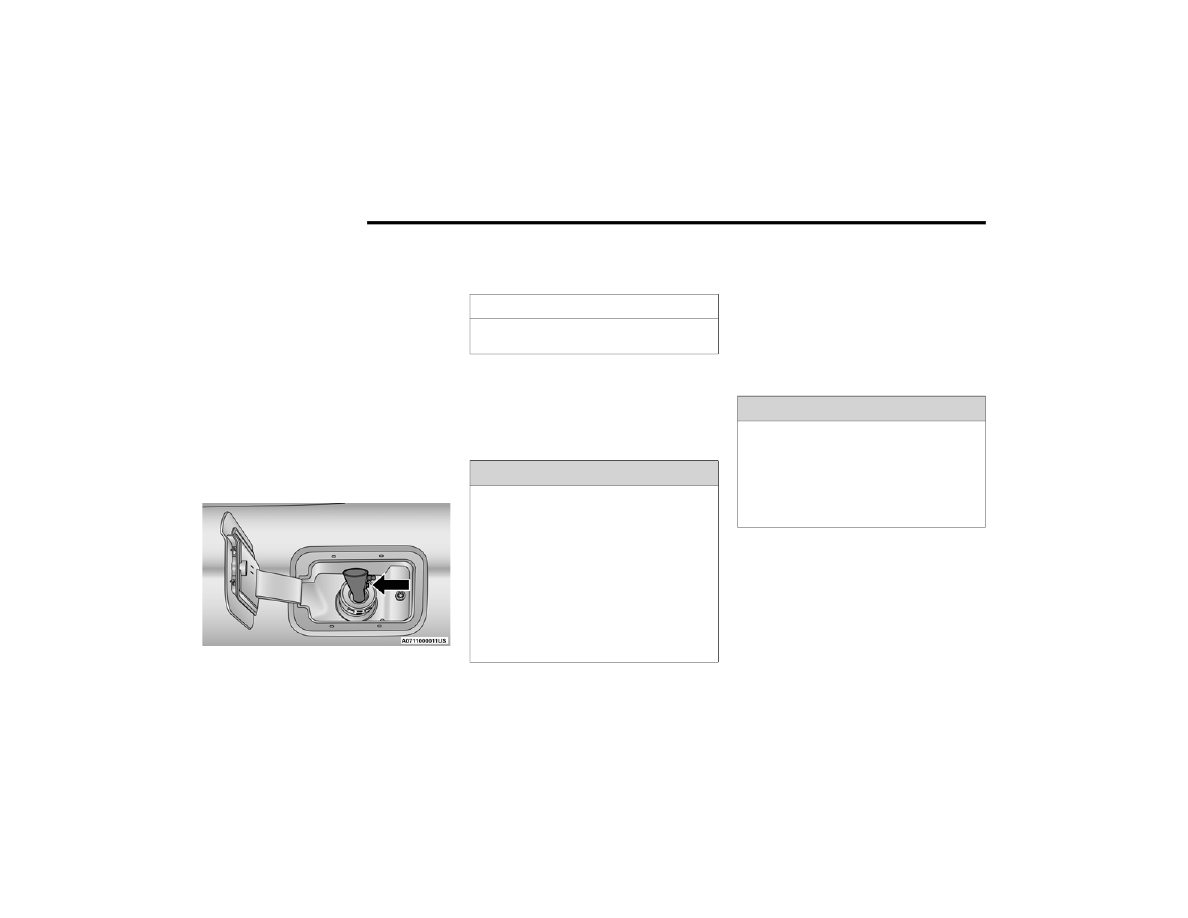

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.

5. Remove funnel from filler pipe, clean off prior

to putting back in the spare tire storage area.

6. Close the fuel door making sure the latch is

engaged by pushing on the rear outer edge

near the center.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
Potential signs of vehicle overheating:



Temperature gauge is at HOT (H)



Strong smell of coolant



White smoke coming from engine or exhaust



Coolant bottle coolant has bubbles present

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

WARNING!

You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator.

If you see or hear steam coming from under the

hood, do not open the hood until the radiator

has had time to cool. Never try to open a cooling

system pressure cap when the radiator or

coolant bottle is hot.

IN CASE OF EMERGENCY

323

In the event it is observed that the temperature

gauge is moving towards or close to the HOT (H)

position, you can reduce the potential for

overheating by taking the appropriate action.



On the highways — slow down.



In city traffic — while stopped, place the trans

mission in NEUTRAL (N), but do not increase the

engine idle speed while preventing vehicle

motion with the brakes.



If your Air Conditioner (A/C) is on, turn it off. The

A/C system adds heat to the engine cooling

system and turning the A/C off can help remove

this heat.



You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the heater

core to act as a supplement to the radiator and

aids in removing heat from the engine cooling

system.

MANUAL PARK RELEASE

To move the vehicle in cases where the

transmission will not shift out of PARK (P) (such as

a depleted battery), a Manual Park Release is

available.
To activate the Manual Park Release, see the

following steps:
1. Apply firm pressure to the brake pedal while

seated in the driver’s seat.

2. Apply the Electric Park Brake (EPB), if possible.
3. Using a flathead screwdriver or similar tool,

remove the Manual Park Release access

cover, which is to the lower left of the steering

column.

Manual Park Release Access Cover

CAUTION!

Driving with a hot cooling system could damage

your vehicle. If the temperature gauge reads

“H,” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H” and you hear

continuous chimes, turn the engine off

immediately and call for service.

WARNING!

You should be seated in the driver’s seat with

your foot firmly placed on the brake pedal to

maintain control of the vehicle before activating

the Manual Park Release. If possible, you should

apply the parking brake. Activating the Manual

Park Release will allow your vehicle to roll away if

it is not secured or properly connected to a tow

vehicle. Activating the Manual Park Release on

an unsecured vehicle could lead to serious

injury or death for those in or around the vehicle.

324

IN CASE OF EMERGENCY

NOTE:

Insert the flathead screwdriver or similar tool in the

lower notch of the access cover and gently rotate

clockwise to remove.

Manual Park Release Location

4. Unlock the orange lock plug by turning it a

quarter turn counterclockwise.

Locked — Unlocked Position

5. Pull the lock plug out as far as it will go, then

release it. The transmission should now be in

NEUTRAL (N), allowing the vehicle to be

moved.

NOTE:

When the lever is locked in the released position,

the lock plug and tether will remain outside of the

trim panel and the access cover cannot be rein

stalled.
6. Release the EPB only when the vehicle is

securely connected to a tow vehicle.

To Reset The Manual Park Release:
1. Apply firm pressure to the brake pedal while

seated in the driver’s seat.

2. Pull the lock plug out again, then release it.
3. Allow the tether to retract with the lever back

to its original position.

4. Verify that the transmission is in PARK (P).
5. Confirm that the tether has retracted fully,

then firmly push the orange lock plug back to

the locking position within the housing.

Reinstall the access cover. If the access cover

cannot be reinstalled, repeat steps 1

through 4.

IN CASE OF EMERGENCY

325

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or

snow, it can often be moved using a rocking

motion. Turn the steering wheel right and left to

clear the area around the front wheels. Then, shift

back and forth between DRIVE (D) and REVERSE

(R) while gently pressing the accelerator.

NOTE:

Shifts between DRIVE (D) and REVERSE (R) can

only be achieved at wheel speeds of 5 mph

(8 km/h) or less. Whenever the transmission

remains in NEUTRAL (N) for more than two

seconds, you must press the brake pedal to

engage DRIVE (D) or REVERSE (R).
Use the least amount of accelerator pedal

pressure that will maintain the rocking motion

without spinning the wheels or racing the engine.

NOTE:

Push the ESC OFF button to place the Electronic

Stability Control (ESC) system in “Partial OFF”

mode, before rocking the vehicle

page 251.

Once the vehicle has been freed, push the ESC OFF

button again to restore “ESC On” mode.

WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause damage, or even failure, of the axle and

tires. A tire could explode and injure someone.

Do not spin your vehicle's wheels faster than

30 mph (48 km/h) or for longer than 30

seconds continuously without stopping when

you are stuck and do not let anyone near a

spinning wheel, no matter what the speed.

CAUTION!



Racing the engine or spinning the wheels may

lead to transmission overheating and failure.

Allow the engine to idle with the transmission

in NEUTRAL for at least one minute after every

five rocking-motion cycles. This will minimize

overheating and reduce the risk of transmis

sion failure during prolonged efforts to free a

stuck vehicle.



When “rocking” a stuck vehicle by shifting

between DRIVE and REVERSE, do not spin the

wheels faster than 15 mph (24 km/h), or

drivetrain damage may result.



Revving the engine or spinning the wheels too

fast may lead to transmission overheating and

failure. It can also damage the tires. Do not

spin the wheels above 30 mph (48 km/h)

while in gear (no transmission shifting occur

ring).

326

IN CASE OF EMERGENCY

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled vehicle using a commercial towing service.
If the transmission and drivetrain are operable, disabled 4x4 vehicles may also be towed as described on

page 195.

Proper towing or lifting equipment is required to prevent damage to your vehicle. Use only tow bars and other equipment designed for this purpose, following

equipment manufacturer’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to main structural members of the vehicle,

not to fascia/bumpers or associated brackets. State and local laws regarding vehicles under tow must be observed.

Towing Condition

Wheels OFF The Ground

Two-Wheel Drive Models

Four-Wheel Drive Models

Without 4WD Low Range

Four-Wheel Drive Models

With 4WD Low Range

Flat Tow

NONE

NOT ALLOWED

See Instructions



Transmission in PARK



Transfer case in N

(NEUTRAL)



Tow in forward direction

Dolly Tow

Front

NOT ALLOWED

Rear

NOT ALLOWED

On Trailer

ALL

IN CASE OF EMERGENCY

327

NOTE:



You must ensure that the Auto Park Brake

page 123 feature is disabled before towing

this vehicle to avoid inadvertent Electric Park

Brake engagement. The Auto Park Brake

feature is enabled or disabled via the customer

programmable features in the Uconnect

Settings.



Vehicles with a discharged battery, or total elec

trical failure when the Electric Park Brake (EPB)

is engaged, will need a wheel dolly or jack to

raise the rear wheels off the ground when

moving the vehicle onto a flatbed.



The Safehold feature will engage the Electric

Park Brake whenever the driver's door is

opened (if the battery is connected, ignition is

ON, transmission is not in PARK, and brake

pedal is released). If you are towing this vehicle

with the ignition in the ON/RUN mode, you must

manually disable the Electric Park Brake each

time the driver's door is opened by pressing the

brake pedal and then releasing the EPB.

If you must use the accessories (wipers,

defrosters, etc.) while being towed, the ignition

must be in the ON/RUN mode.
If the vehicle's battery is discharged, instructions

on shifting the automatic transmission out of PARK

(P) in order to move the vehicle

page 323.

EAR

-W

HEEL

RIVE

ODELS

FCA US LLC recommends towing your vehicle with

all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the

transmission is operable, the vehicle may be towed

(with rear wheels off the ground) under the

following conditions:



The transmission must be in NEUTRAL (N). For

instructions on shifting the transmission to

NEUTRAL (N) when the engine is off

page 323.



The towing speed must not exceed 30 mph

(48 km/h).



The towing distance must not exceed 30 miles

(48 km).

CAUTION!



Do not use sling type equipment when towing.

Vehicle damage may occur.



When securing the vehicle to a flat bed truck,

do not attach to front or rear suspension

components. If vehicle is equipped with

Quadra-lift air suspension, secure vehicle only

with tire/wheel straps (no suspension compo

nents or body) to prevent air suspension from

adjusting during towing against securement

straps and causing damage. Damage to your

vehicle may result from improper towing.

CAUTION!



Towing faster than 30 mph (48 km/h) or

farther than 30 miles (48 km) with rear

wheels on the ground can cause severe trans

mission damage. Damage from improper

towing is not covered under the New Vehicle

Limited Warranty.

328

IN CASE OF EMERGENCY

If the transmission is not operable, or the vehicle

must be towed faster than 30 mph (48 km/h) or

farther than 30 miles (48 km), tow with the rear

wheels OFF the ground. Acceptable methods are to

tow the vehicle on a flatbed, or with the front

wheels raised and the rear wheels on a towing

dolly, or (when using a suitable steering wheel

stabilizer to hold the front wheels in the straight

position) with the rear wheels raised and the front

wheels ON the ground.

OUR

-W

HEEL

RIVE

ODELS

FCA US LLC recommends towing with all wheels

OFF the ground. Acceptable methods are to tow

the vehicle on a flatbed or with one end of the

vehicle raised and the opposite end on a towing

dolly.
If flatbed equipment is not available, and the

transfer case is operable, vehicles with a

two-speed transfer case may be towed (in the

forward direction, with ALL wheels on the ground),

IF the transfer case is in NEUTRAL (N) and the

transmission is in PARK

page 195.

Vehicles equipped with a single-speed transfer

case have no NEUTRAL (N) position, and therefore

must be towed will all four wheels OFF the ground.

MERGENCY

OOKS

—

QUIPPED

If your vehicle is equipped with tow hooks, there

will be two mounted on the front of the vehicle and

one in the rear. The rear tow hook will be located

on the driver's side of the vehicle.

Front Tow Hooks

CAUTION!



Front or rear wheel lifts must not be used (if

the remaining wheels are on the ground).

Internal damage to the transmission or

transfer case will occur if a front or rear wheel

lift is used when towing.



Towing this vehicle in violation of the

approved requirements can cause severe

transmission and/or transfer case damage.

Damage from improper towing is not covered

under the New Vehicle Limited Warranty.

CAUTION!

Tow hooks are for emergency use only, to rescue

a vehicle stranded off road. Do not use tow

hooks for tow truck hookup or highway towing.

You could damage your vehicle.

IN CASE OF EMERGENCY

329

NOTE:

For off road recovery, it is recommended to use

both of the front tow hooks to minimize the risk of

damage to the vehicle.

Rear Tow Hook

ENHANCED ACCIDENT RESPONSE SYSTEM

(EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact

page 287.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how a

vehicle’s systems performed under certain crash

or near crash-like situations, such as an air bag

deployment or hitting a road obstacle

page 288.

WARNING!



Do not use a chain for freeing a stuck vehicle.

Chains may break, causing serious injury or

death.



Stand clear of vehicles when pulling with tow

hooks. Tow straps may become disengaged,

causing serious injury.

330

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil

change indicator system. The oil change indicator

system will remind you that it is time to take your

vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil

change indicator message will illuminate. This

means that service is required for your vehicle.

Operating conditions such as frequent short-trips,

trailer tow, extremely hot or cold ambient

temperatures, and E85 fuel usage will influence

when the “Oil Change Required” message is

displayed. Have your vehicle serviced as soon as

possible, within the next 500 miles (805 km).

An authorized dealer will reset the oil change

indicator message after completing the scheduled

oil change.

NOTE:

Under no circumstances should oil change

intervals exceed 10,000 miles (16,000 km),

12 months or 350 hours of engine run time,

whichever comes first. The 350 hours of engine

run or idle time is generally only a concern for fleet

customers.

Once A Month Or Before A Long Trip:



Check engine oil level.



Check windshield washer fluid level.



Check the tire inflation pressures and look for

unusual wear or damage.



Check the fluid levels of the coolant reservoir,

brake master cylinder and fill as needed.



Check function of all interior and exterior lights.

SERVICING AND MAINTENANCE

331

AINTENANCE

LAN

Refer to the Maintenance Plan for the required maintenance intervals.

At Every Oil Change Interval As Indicated By Oil Change Indicator System:



Change oil and filter.



Rotate the tires at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.



Inspect battery and clean and tighten terminals as required.



Inspect the CV/Universal joints.



Inspect brake pads, shoes, rotors, drums, hoses and parking brake.



Inspect engine cooling system protection and hoses.



Inspect exhaust system.



Inspect engine air cleaner filter if using in dusty or off-road conditions. Replace engine air cleaner filter, as necessary.

Mileage Or Time Passed

(Whichever Comes First)

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

Additional Inspections
Inspect the CV/Universal joints.

Inspect front suspension, tie rod ends,

and replace if necessary.

Jeep Grand Cherokee (2023 year). Manual in english - page 20
