300

SAFETY



Installing A Child Restraint With A

Switchable Automatic Locking Retractor

(ALR):

Child restraint systems are designed to be secured

in vehicle seats by lap belts or the lap belt portion

of a lap/shoulder belt.

1. Place the child seat in the center of the

seating position. If the second row seat can

be reclined, you may recline the seat and/or

raise the head restraint (if adjustable) to get a

better fit. If the rear seat can be moved

forward and rearward in the vehicle, you may

wish to move it to its rear-most position to

make room for the child seat. You may also

move the front seat forward to allow more

room for the child seat.

2. Pull enough of the seat belt webbing from the

retractor to pass it through the belt path of the

child restraint. Do not twist the belt webbing in

the belt path.

3. Slide the latch plate into the buckle until you

hear a “click.”

4. Pull on the webbing to make the lap portion

tight against the child seat.

5. To lock the seat belt, pull down on the shoulder

part of the belt until you have pulled all the

seat belt webbing out of the retractor. Then,

allow the webbing to retract back into the

retractor. As the webbing retracts, you will hear

a clicking sound. This means the seat belt is

now in the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If it

is locked, you should not be able to pull out any

webbing. If the retractor is not locked, repeat

step 5.

7. Finally, pull up on any excess webbing to

tighten the lap portion around the child

restraint while you push the child restraint

rearward and downward into the vehicle seat.

8. If the child restraint has a top tether strap and

the seating position has a top tether

anchorage, connect the tether strap to the

anchorage and tighten the tether strap. See

Ú

page 300 for directions to attach a tether

anchor.

9. Test that the child restraint is installed tightly

by pulling back and forth on the child seat at

the belt path. It should not move more than

1 inch (25.4 mm) in any direction.

Any seat belt system will loosen with time, so check

the belt occasionally, and pull it tight if necessary.

Installing Child Restraints Using The Top

Tether Anchorage

WARNING!

Improper installation or failure to properly

secure a child restraint can lead to failure of

the restraint. The child could be badly injured

or killed.

Follow the child restraint manufacturer’s

directions exactly when installing an infant or

child restraint.

WARNING!

Do not attach a tether strap for a rear-facing car

seat to any location in front of the car seat,

including the seat frame or a tether anchorage.

Only attach the tether strap of a rear-facing car

seat to the tether anchorage that is approved for

that seating position, located behind the top of

the vehicle seat. See

Ú

page 292 for the

location of approved tether anchorages in your

vehicle.

SAFETY

301

Five Passenger
1. Look behind the seating position where you

plan to install the child restraint to find the

tether anchorage. If the seat can be moved,

you may need to move the seat forward to

provide better access to the tether

anchorage. If there is no top tether anchorage

for that seating position, move the child

restraint to another position in the vehicle if

one is available.

2. Route the tether strap to provide the most

direct path for the strap between the anchor

and the child seat. If your vehicle is equipped

with adjustable rear head restraints, raise the

head restraint, and where possible, route the

tether strap under the head restraint and

between the two posts. If not possible, lower

the head restraint and pass the tether strap

around the outboard side of the head restraint.

3. Attach the tether strap hook of the child

restraint to the top tether anchorage as shown

in the diagram.

Second Row Bench Seat Top Tether Strap Mounting

(5 And 7 Passenger Seating)

4. Remove slack in the tether strap according to

the child restraint manufacturer's instructions.

Six And Seven Passenger
1. Look behind the seating position where you

plan to install the child restraint to find the

tether anchorage. You may need to move the

seat forward to provide better access to the

tether anchorage. If there is no top tether

anchorage for that seating position, move the

child restraint to another position in the

vehicle if one is available.

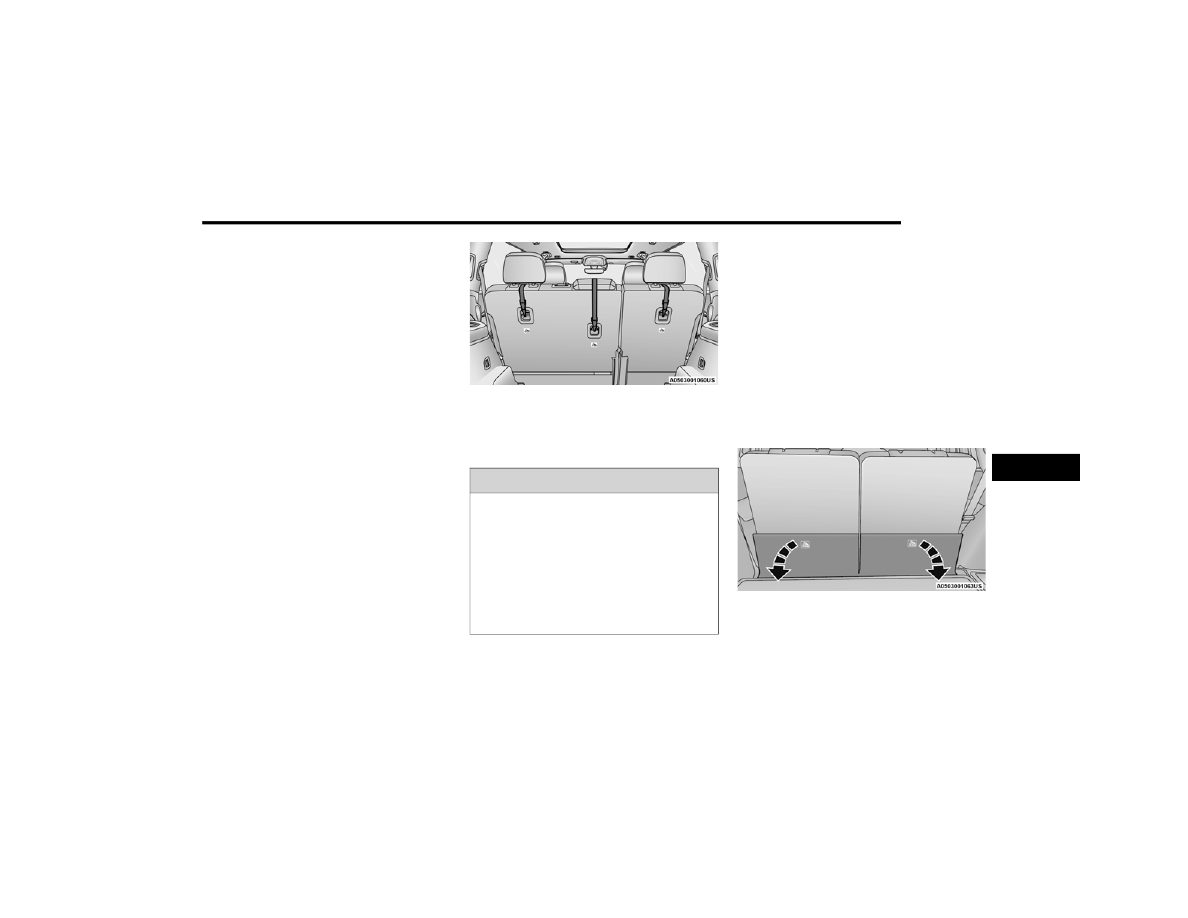

2. To access the top tether strap anchorages

behind the rear seat, pull the carpeted floor

panel away from the seat back, this will expose

the top tether strap anchorages.

Pulling Down The Carpet Floor Panel To Access Top Tether

Strap Anchorage (3rd Row Bench)

WARNING!

An incorrectly anchored tether strap could

lead to increased head motion and possible

injury to the child. Use only the anchorage

position directly behind the child seat to

secure a child restraint top tether strap.

If your vehicle is equipped with a split rear

seat, make sure the tether strap does not slip

into the opening between the seatbacks as

you remove slack in the strap.

6

302

SAFETY



(Continued)

Third Row Top Tether Strap Anchorage

(Located On Seatback)

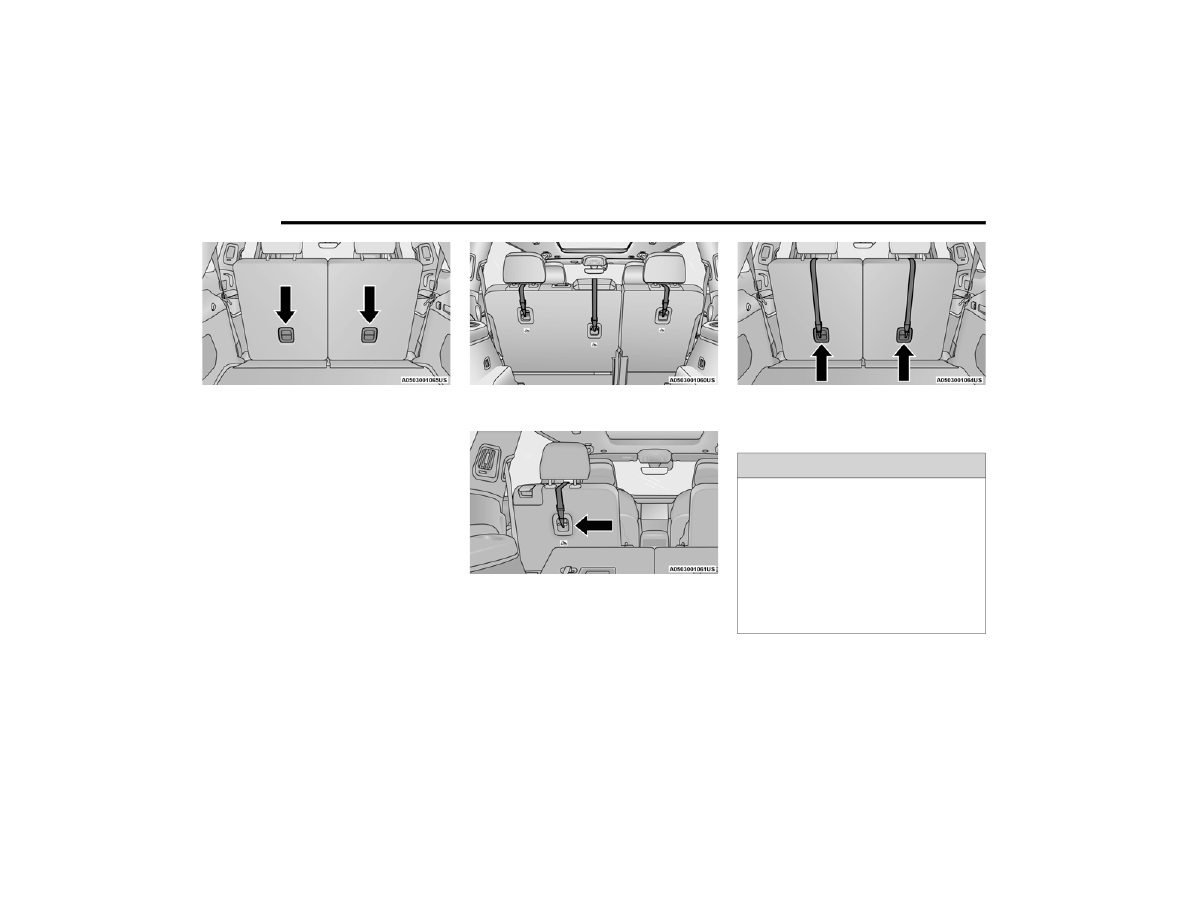

3. Route the tether strap to provide the most

direct path for the strap between the anchor

and the child seat. If your vehicle is equipped

with adjustable rear head restraints, raise the

head restraint, and where possible, route the

tether strap under the head restraint and

between the two posts. If not possible, lower

the head restraint and pass the tether strap

around the outboard side of the head restraint.

4. For the center seating position, route the

tether strap over the seatback and headrest

then attach the hook to the tether anchor

located on the back of the seat.

5. Attach the tether strap hook of the child

restraint to the top tether anchorage as shown

in the diagram.

Second Row Bench Seat Top Tether Strap Mounting

(5 And 7 Passenger Seating)

Captain’s Chair Top Tether Strap Mounting (6 Passenger)

Third Row Seating Top Tether Strap Mounting

6. Remove slack in the tether strap according to

the child restraint manufacturer’s instructions.

WARNING!

The top tether anchorages are not visible until

the gap panel is folded down. Do not use the

visible cargo tie down hooks, located on the

floor behind the seats, to attach a child

restraint tether anchor.

An incorrectly anchored tether strap could

lead to increased head motion and possible

injury to the child. Use only the anchorage

position directly behind the child seat to

secure a child restraint top tether strap.

SAFETY

303

SAFETY TIPS

T

RANSPORTING

 P

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO

AREA.

T

RANSPORTING

 P

ETS



Air Bags deploying in the front seat could harm

your pet. An unrestrained pet will be thrown about

and possibly injured, or injure a passenger during

panic braking or in a collision.
Pets should be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that are

secured by seat belts.

C

ONNECTED

 V

EHICLES

Privacy of any wireless and wired communications

cannot be assured. Third parties may unlawfully

intercept information and private communications

without your consent. For further information, refer

to “Data Collection & Privacy” in your Uconnect

Owner’s Manual Supplement or “Onboard

Diagnostic System (OBD II) Cybersecurity”

Ú

page 117.

S

AFETY

 C

HECKS

 Y

OU

 S

HOULD

 M

AKE



I

NSIDE

 T

HE

 V

EHICLE



Seat Belts

Inspect the seat belt system periodically, checking

for cuts, frays, and loose parts. Damaged parts

must be replaced immediately. Do not

disassemble or modify the system.
If your vehicle is involved in a collision, or if you

have questions regarding the seat belt or retractor

conditions, take your vehicle to an authorized FCA

dealer or authorized FCA Certified Collision Care

Program facility for inspection.

Air Bag Warning Light

The Air Bag Warning Light will turn on for

four to eight seconds as a bulb check

when the ignition switch is first placed in

the ON/RUN position. If the light is either

not on during starting, stays on, or turns on while

driving, have the system inspected at an

authorized dealer as soon as possible. After the

bulb check, this light will illuminate with a single

chime when a fault with the Air Bag System has

been detected. It will stay on until the fault is

removed. If the light comes on intermittently or

remains on while driving, have an authorized

dealer service the vehicle immediately

Ú

page 269.

If your vehicle is equipped with a split rear

seat, make sure the tether strap does not slip

into the opening between the seatbacks as

you remove slack in the strap.

WARNING!

Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.

It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a colli

-

sion, people riding in these areas are more

likely to be seriously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!

WARNING!

It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are

breached. It may be possible that vehicle

systems, including safety related systems, could

be impaired or a loss of vehicle control could

occur that may result in an accident involving

serious injury or death.

6

304

SAFETY



(Continued)

(Continued)

(Continued)

Defroster

Check operation by selecting the defrost mode and

place the blower control on high speed. You should

be able to feel the air directed against the

windshield. See an authorized dealer for service if

your defroster is inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle.

Only use a floor mat that does not interfere with the

operation of the accelerator, brake or clutch

pedals. Only use a floor mat that is securely

attached using the floor mat fasteners so it cannot

slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

WARNING!

An improperly attached, damaged, folded, or

stacked floor mat, or damaged floor mat

fasteners may cause your floor mat to interfere

with the accelerator, brake, or clutch pedals and

cause a loss of vehicle control. To prevent

SERIOUS INJURY or DEATH:

 ALWAYS securely attach your floor

mat using the floor mat fasteners. DO

NOT install your floor mat upside down

or turn your floor mat over. Lightly pull

to confirm mat is secured using the floor mat

fasteners on a regular basis.

 ALWAYS REMOVE THE EXISTING

FLOOR MAT FROM THE VEHICLE

before installing any other floor mat.

NEVER install or stack an additional

floor mat on top of an existing floor mat.

ONLY install floor mats designed to fit your

vehicle. NEVER install a floor mat that cannot

be properly attached and secured to your

vehicle. If a floor mat needs to be replaced,

only use a FCA approved floor mat for the

specific make, model, and year of your

vehicle.

WARNING!

ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for interfer

-

ence, with the vehicle properly parked with the

engine off, fully depress the accelerator, the

brake, and the clutch pedal (if present) to

check for interference. If your floor mat inter

-

feres with the operation of any pedal, or is not

secure to the floor, remove the floor mat from

the vehicle and place the floor mat in your

trunk.

ONLY use the passenger’s side floor mat on

the passenger’s side floor area.

ALWAYS make sure objects cannot fall or slide

into the driver’s side floor area when the

vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

WARNING!

SAFETY

305

P

ERIODIC

 S

AFETY

 C

HECKS

 Y

OU

 S

HOULD



M

AKE

 O

UTSIDE

 T

HE

 V

EHICLE

Tires

Examine tires for excessive tread wear and uneven

wear patterns. Check for stones, nails, glass, or

other objects lodged in the tread or sidewall.

Inspect the tread for cuts and cracks. Inspect

sidewalls for cuts, cracks, and bulges. Check the

lug nut/bolt torque for tightness. Check the tires

(including spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.

E

XHAUST

 G

AS



NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.

If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners are

secure to the vehicle carpet. Fully depress

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.

It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been properly

installed and is secured to your vehicle using

the floor mat fasteners by lightly pulling mat.

WARNING!

WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you. To

avoid breathing (CO), follow these safety tips:

Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.

If you are required to drive with the trunk/lift

-

gate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.

If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

6

306

SAFETY



(Continued)

The best protection against carbon monoxide entry

into the vehicle body is a properly maintained

engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the underside

or rear of the vehicle is damaged, have an

authorized dealer inspect the complete exhaust

system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts.

Open seams or loose connections could permit

exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

C

ARBON

 M

ONOXIDE

 W

ARNINGS



WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to prevent

carbon monoxide poisoning:

Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit in

a parked vehicle with the engine running for

an extended period. If the vehicle is stopped in

an open area with the engine running for more

than a short period, adjust the ventilation

system to force fresh, outside air into the

vehicle.

Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

When exiting the vehicle, always make sure

the ignition is in the OFF position, remove the

key fob from the vehicle and lock your vehicle.

WARNING!

307

IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

The Hazard Warning Flashers button is located on

the switch bank just above the radio screen.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the switch

a second time to turn off the Hazard Warning

Flashers.
This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

only when your vehicle is disabled or signaling a

safety hazard warning for other motorists.

When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in the OFF position.

NOTE:

With extended use, the Hazard Warning Flashers

may discharge the battery.

ASSIST AND SOS SYSTEM — IF EQUIPPED

ASSIST And SOS Buttons

If equipped, the overhead console contains an

ASSIST and SOS button.

NOTE:

Your vehicle may be transmitting data as autho

-

rized by the subscriber

Ú

page 408.

The ASSIST and SOS buttons will only function if

you are connected to an operable LTE (voice/

data) or 4G (data) network, which comes as a

built-in function. Other Jeep® Connect services

will only be operable if you are connected to an

operable LTE (voice/data) or 4G (data) network.

1 — ASSIST Button
2 — SOS Button

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

7

308

IN CASE OF EMERGENCY



(Continued)

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:

Roadside Assistance – If you get a flat tire, or

need a tow, just push the ASSIST button and you

will be connected to a representative for assis

-

tance. Roadside Assistance will know what

vehicle you’re driving and its location. Additional

fees may apply for roadside assistance.

Vehicle Customer Care – Total support for all

other vehicle issues.

Jeep® Connect Customer Care – Total support

for Radio, Phone and NAV issues.

SOS Call
1. Push the SOS Call button on the overhead

console.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator. To cancel

the SOS Call connection, push the SOS call button

on the overhead console or press the cancellation

button on the Device Screen. Termination of the

SOS Call will turn off the green LED light on the

overhead console.

2. The LED light located within the ASSIST and

SOS buttons on the overhead console will turn

green once a connection to a SOS operator has

been made.

3. Once a connection between the vehicle and a

SOS operator is made, the SOS Call system

may transmit the following important vehicle

information to a SOS operator:

Indication that the occupant placed a SOS

Call

The vehicle brand

The last known GPS coordinates of the

vehicle

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional assistance is needed.

NOTE:

Once a connection is made between the vehicle’s

SOS Call system and the SOS operator, the SOS

operator may be able to open a voice connection

with the vehicle to determine if additional assis

-

tance is needed. Once the SOS operator opens a

voice connection with the vehicle’s SOS Call

system, the operator should be able to speak with

you or other vehicle occupants and hear sounds

occurring in the vehicle. The vehicle’s SOS Call

system will attempt to remain connected with the

SOS operator until the SOS operator terminates

the connection.
5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

WARNING!

If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.

IN CASE OF EMERGENCY

309

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:

The overhead console lights located within the

ASSIST and SOS buttons will continuously illumi

-

nate red.

The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”

An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

Even if the SOS Call system is fully functional, factors

beyond FCA US LLC’s control may prevent or stop the

SOS Call system operation. These include, but are not

limited to, the following factors:

The ignition is in the OFF position

The vehicle’s electrical systems are not intact

The SOS Call system software and/or hardware

are damaged during a crash

The vehicle battery loses power or becomes

disconnected during a vehicle crash

LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

-

able or obstructed

Equipment malfunction at the SOS operator facility

Operator error by the SOS operator

LTE (voice/data) or 4G (data) network congestion

Weather

Buildings, structures, geographic terrain, or

tunnels

Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.

The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

-

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

-

DENT), THE JEEP® CONNECT FEATURES,

APPS AND SERVICES, AMONG OTHERS, WILL

NOT OPERATE.

Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

WARNING!

Ignoring the overhead console light could

mean you will not have SOS Call services. If

the overhead console light is illuminated, have

an authorized dealer service the SOS Call

system immediately.

The Occupant Restraint Control module turns on

the air bag Warning Light on the instrument panel

if a malfunction in any part of the system is

detected. If the Air Bag Warning Light is illumi

-

nated, have an authorized dealer service the

Occupant Restraint Control system immediately.

WARNING!

7

310

IN CASE OF EMERGENCY



NOTE:

Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

JACKING AND TIRE CHANGING

Use this QR code to access your

digital experience.

NOTE:

If your vehicle is equipped with an air suspension

system, there is a feature which allows the auto

-

matic leveling to be disabled before changing a

tire. This feature can be activated through the

Uconnect system

Ú

page 138.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.

Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

it to a service center where it can be raised on

a lift.

Never start or run the engine while the vehicle

is on a jack.

The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

IN CASE OF EMERGENCY

311

NOTE:

Before changing a tire or using the jack please

disable the hands free lift gate, This feature can be

disabled through the Uconnect system

Ú

page 219.

P

REPARATIONS

 F

OR

 J

ACKING



1. Park the vehicle on a firm, level surface as far

from the edge of the roadway as possible.

Avoid icy or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Place the gear selector into PARK (P).
5. Turn OFF the ignition.
6. Block both front and rear of the wheel

diagonally opposite of the jacking position. For

example, if changing the left front wheel, block

the right rear wheel.

Wheel Blocked Example

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being raised or lifted.

J

ACK

 L

OCATION

The scissor-type jack and tire changing tools are

located in the rear cargo area, under the load floor.

NOTE:

Depending on the vehicle’s trim level, the jacking

tool locations vary from second and third row

seating.

1. Locate and lift up on the load floor handle.

Load Floor Handle

2. Access the jack and tool storage.

Jack Storage Location (Second Row Seating)

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

7

312

IN CASE OF EMERGENCY



Jack Storage Location

(Third Row Seating Without Air Suspension)

Jack Storage Location

(Third Row Seating With Air Suspension)

3. Remove the jack storage cover. To remove,

firmly press the two side tabs inward while

lifting up or out.

Jack Storage Cover Tabs

4. Release the Velcro straps and pull outward or

up on the jack and tools to remove.

Jack Removal (Third Row Seating Without Air Suspension)

Jack Removal (Third Row Seating With Air Suspension)

IN CASE OF EMERGENCY

313

5. Jack And Tools Description

Jack And Tools

S

PARE

 T

IRE

 S

TOWAGE



NOTE:

Depending on the vehicle’s trim level, spare tire

locations vary from second and third row seating.

Second Row Seating — If Equipped

For vehicles equipped with second row seating, the

spare tire is located in the rear cargo area under

the load floor.

Spare Tire Location (Second Row Seating)

Third Row Seating — If Equipped

For vehicles equipped with third row seating, the

spare tire is stowed under the rear of the vehicle by

means of a cable winch mechanism. To remove or

stow the spare, use the jack handle/lug wrench

connected to the square socket extension to rotate

the “spare tire drive” nut. The nut is located under

a plastic cover at the center-rear of the cargo floor

area, just inside the liftgate opening.

Spare Tire Location (Third Row Seating)

S

PARE

 T

IRE

 R

EMOVAL

Remove the spare tire before attempting to jack up

the vehicle.

NOTE:

Depending on the vehicle’s trim level, the

procedure for spare tire removal varies for second

and third row seating.

1 — Jack Tool Bag
2 — Lug Nut Wrench
3 — Tow Hook (If Equipped)
4 — Jack Handle Extension (If Equipped)
5 — Fuel Funnel
6 — Scissor Jack

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

7

314

IN CASE OF EMERGENCY



Second Row Seating — If Equipped

1. Lift up on the rear load floor to access the spare

tire. Remove the fastener securing the spare tire,

and remove the spare tire from the vehicle.

Spare Tire Fastener

2. Remove the spare tire fastener by rotating it

counterclockwise.

Removing The Spare Tire Fastener

3. After removing the fastener, pull the spare tire

up away from the fastener pin and out of the

vehicle.

Third Row Seating — If Equipped

1. Lift up on the rear load floor to access the

spare tire winch plug. Locate and remove plug

from the storage compartment floor to

expose the winch access hole.

Winch Nut Plug

2. Fit the jack handle extension over the winch

drive nut. Use the lug wrench handle and

extension to completely lower the spare tire.

Keep turning the handle counterclockwise

until the winch stops.

Winch Drive Nut Location

Wrench Rotation

3. Slide the tire out from under the vehicle and

rotate it vertically behind the rear fascia/

bumper.

4. Pull the metal retainer toward you to release it.

IN CASE OF EMERGENCY

315

(Continued)

Spare Tire Retainer

5. Slide the retainer up the steel extension tube

and winch cable. Rotate the retainer and push

it through the hole in the wheel.

Releasing The Retainer

J

ACKING

 I

NSTRUCTIONS



Jack Warning Label

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:

Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.

Turn on the Hazard Warning Flashers.

Apply the parking brake firmly and set the

transmission in PARK.

Block the wheel diagonally opposite the wheel

to be raised.

Never start or run the engine with the vehicle

on a jack.

Do not let anyone sit in the vehicle when it is

on a jack.

Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.

Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.

If working on or near a roadway, be extremely

careful of motor traffic.

To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the valve stem facing the ground.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

WARNING!

7















Content      ..     17      18      19      20     ..
