STARTING AND OPERATING

171

To Accelerate For Passing

While the Cruise Control is set, press the

accelerator to pass as you would normally. When

the pedal is released, the vehicle will return to the

set speed.

USING CRUISE CONTROL ON HILLS

The transmission may downshift on hills to

maintain the vehicle set speed.
The Cruise Control system maintains speed up and

down hills. A slight speed change on moderate hills

is normal. On steep hills, a greater speed loss or

gain may occur so it may be preferable to drive

without Cruise Control.

To Resume Speed

To resume a previously set speed, push the RES

button and release. Resume can be used at any

speed above 20 mph (32 km/h).

To Deactivate

A tap on the brake pedal, pushing the CANC

(cancel) button, or normal brake pressure while

slowing the vehicle will deactivate the Cruise

Control without erasing the set speed from

memory.
The following conditions will also deactivate the

Cruise Control without erasing the set speed from

memory:



Vehicle parking brake is applied



Stability event occurs



Gear selector is moved out of DRIVE



Engine overspeed occurs



Clutch pedal is pressed (manual transmission

only)



Vehicle is operating at a low RPM (manual trans

mission only)

Pushing the on/off button or placing the ignition in

the OFF position erases the set speed from

memory.

DAPTIVE

RUISE

ONTROL

(ACC)

Adaptive Cruise Control (ACC) increases the driving

convenience provided by Cruise Control while

traveling on highways and major roadways.

However, it is not a safety system and not designed

to prevent collisions. The Cruise Control function

performs differently if your vehicle is not equipped

with ACC

page 169.

NOTE:



If the ACC sensor detects a vehicle ahead, ACC

will apply limited braking or accelerate (not to

exceed the original set speed) automatically to

maintain a preset following distance, while

matching the speed of the vehicle ahead.



Any chassis/suspension or tire size modifica

tions to the vehicle will affect the performance

of the Adaptive Cruise Control and Forward Colli

sion Warning system.



Fixed Speed Cruise Control (ACC not enabled)

will not detect vehicles directly ahead of you.

Always be aware of the feature selected

page 431.

WARNING!

Cruise Control can be dangerous where the

system cannot maintain a constant speed. Your

vehicle could go too fast for the conditions, and

you could lose control and have an accident. Do

not use Cruise Control in heavy traffic or on

roads that are winding, icy, snow-covered or

slippery.

172

STARTING AND OPERATING

(Continued)

Adaptive Cruise Control (ACC) Operation

The buttons on the right side of the steering wheel

operate the ACC system.

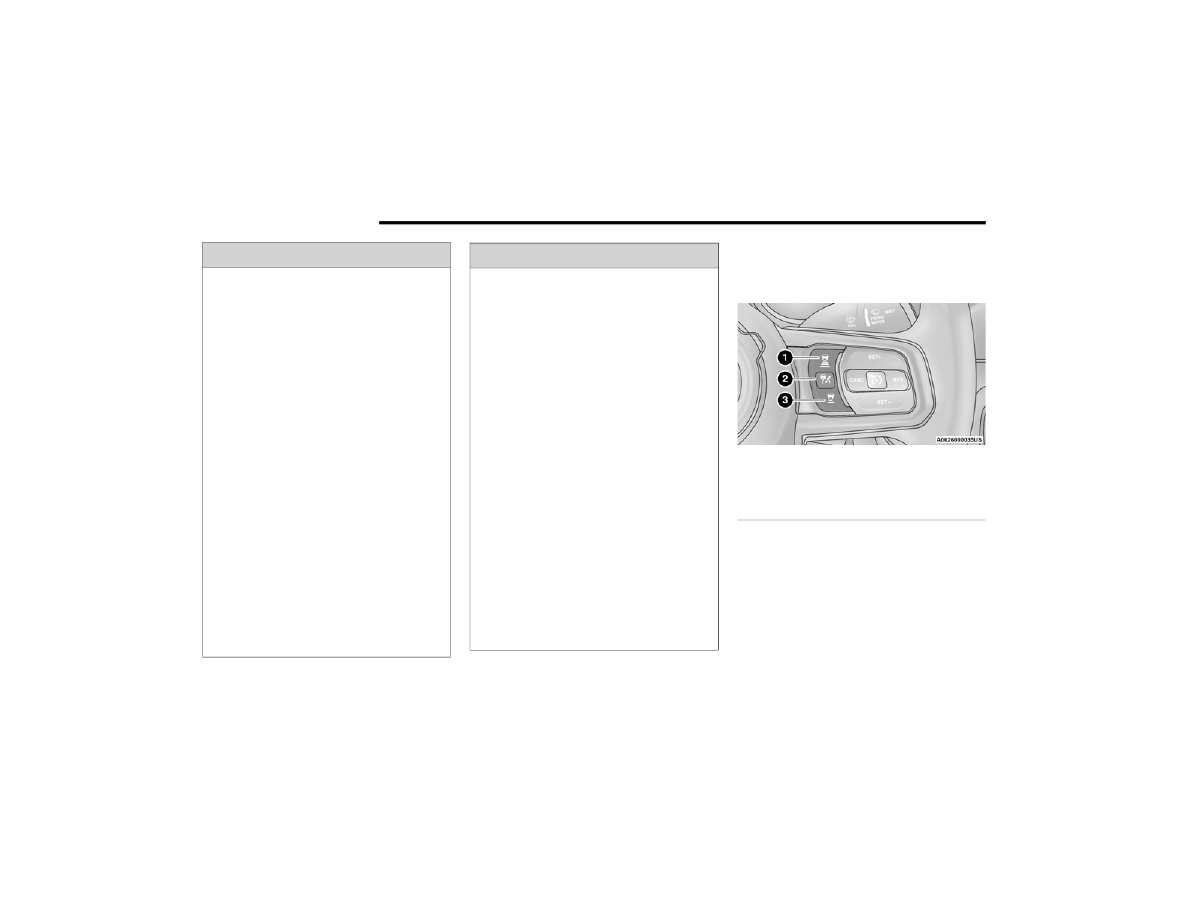

Adaptive Cruise Control Buttons

Adaptive Cruise Control (ACC) Menu

The instrument cluster display will show the

current ACC system settings. The information it

displays depends on ACC system status.
Push the Adaptive Cruise Control (ACC) on/off

button until one of the following appears in the

instrument cluster display:

WARNING!



Adaptive Cruise Control (ACC) is a conve

nience system. It is not a substitute for active

driver involvement. It is always the driver’s

responsibility to be attentive of road, traffic,

and weather conditions, vehicle speed,

distance to the vehicle ahead and, most

importantly, brake operation to ensure safe

operation of the vehicle under all road condi

tions. Your complete attention is always

required while driving to maintain safe control

of your vehicle. Failure to follow these warn

ings can result in a collision and death or

serious personal injury.



The ACC system:



Does not react to pedestrians, oncoming

vehicles, and stationary objects (e.g., a

stopped vehicle in a traffic jam or a

disabled vehicle).



Cannot take street, traffic, and weather

conditions into account, and may be

limited upon adverse sight distance condi

tions.



Does not always fully recognize complex

driving conditions, which can result in

wrong or missing distance warnings.



On vehicles with an automatic transmis

sion, will bring the vehicle to a complete

stop while following a vehicle ahead and

hold the vehicle for two seconds in the

stop position. If the vehicle ahead does

not start moving within two seconds, the

ACC system will display a message that

the system will release the brakes and

that the brakes must be applied manually.

An audible chime will sound when the

brakes are released.



You should switch off the ACC system:



When driving in fog, heavy rain, heavy

snow, sleet, heavy traffic, and complex

driving situations (i.e., in highway

construction zones).



When entering a turn lane or highway

off-ramp; when driving on roads that are

winding, icy, snow-covered, slippery, or

have steep uphill or downhill slopes.



When towing a trailer up or down steep

slopes.



When circumstances do not allow safe

driving at a constant speed.

WARNING!

1 — Distance Setting Increase
2 — Adaptive Cruise Control (ACC) On/Off
3 — Distance Setting Decrease

STARTING AND OPERATING

173

Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated, but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Adaptive Cruise Control Set
When the SET (+) or the SET (-) button is pushed,

the display will read “ACC SET.”
When ACC is set, the set speed will show in the

instrument cluster display.
The ACC screen may display once again if any of

the following ACC activity occurs:



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity.

Activating Adaptive Cruise Control (ACC)

The minimum set speed for the ACC system is

20 mph (32 km/h).
When the system is turned on and in the ready

state, the instrument cluster displays “ACC Ready.”
When the system is off, the instrument cluster

displays “Adaptive Cruise Control (ACC) Off.”

NOTE:

You cannot engage ACC under the following condi

tions:



When in 4WD Low



When the brakes are applied



When the parking brake is applied



When the automatic transmission is in PARK,

REVERSE or NEUTRAL



When the manual transmission is in FIRST gear



When the vehicle speed is below 20 mph

(32 km/h) (manual transmission)



When the vehicle speed is below the minimum

speed range



When the brakes are overheated



When the driver’s door is open at low speeds



When the driver’s seat belt is unbuckled at low

speeds



When ESC Full Off mode is active



When Off Road+ (if equipped) is active

To Activate/Deactivate

Push and release the Adaptive Cruise Control

(ACC) on/off button. The ACC menu in the

instrument cluster display will read “ACC Ready.”
To turn the system off, push and release the

Adaptive Cruise Control (ACC) on/off button again.

At this time, the system will turn off and the

instrument cluster display will read “Adaptive

Cruise Control (ACC) Off.”

To Set A Desired Speed

When the vehicle reaches the speed desired, push

the SET (+) button or the SET (-) button and

release. The instrument cluster display will show

the set speed.

NOTE:

Fixed Speed Cruise Control can be used without

ACC enabled. To change between the different

modes, push the ACC on/off button which turns

the ACC and the Fixed Speed Cruise Control off.

WARNING!

Leaving the Adaptive Cruise Control (ACC)

system on when not in use is dangerous. You

could accidentally set the system or cause it to

go faster than you want. You could lose control

and have a collision. Always leave the system off

when you are not using it.

174

STARTING AND OPERATING

Pushing the Fixed Speed Cruise Control on/off

button will result in turning on (changing to) Fixed

Speed Cruise Control mode.

If ACC is set when the vehicle speed is below

20 mph (32 km/h), the set speed will default to

20 mph (32 km/h).

NOTE:

Fixed Speed Cruise Control cannot be set below

20 mph (32 km/h).
If either system is set when the vehicle speed is

above 20 mph (32 km/h), the set speed shall be

the current speed of the vehicle.
On vehicles equipped with a manual transmission,

the ACC system cannot be set when the vehicle

speed is below 20 mph (32 km/h) or when the

vehicle is in FIRST gear.

NOTE:



Keeping your foot on the accelerator pedal can

cause the vehicle to continue to accelerate

beyond the set speed. If this occurs, the

message “DRIVER OVERRIDE” will display in the

instrument cluster display.



If you continue to accelerate beyond the set

speed while ACC is enabled, the system will not

be controlling the distance between your vehicle

and the vehicle ahead. The vehicle speed will

only be determined by the position of the accel

erator pedal.

To Cancel

The following conditions cancel the ACC or Fixed

Speed Cruise Control systems:



The brake pedal is applied



The CANC button is pushed



The Anti-Lock Brake System (ABS) activates



The gear selector is removed from the DRIVE

position



The Electronic Stability Control/Traction Control

System (ESC/TCS) activates



The vehicle parking brake is applied



The braking temperature exceeds normal range

(overheated)



The Trailer Sway Control (TSC) activates



The vehicle speed is less than 15 mph

(24 km/h) (manual transmission only)



The clutch is pressed for more than 10 seconds

(manual transmission only)



The vehicle is placed in NEUTRAL for more than

10 seconds (manual transmission only)



The driver shifts to FIRST gear (manual trans

mission only)

The following conditions will only cancel the ACC

system:



Driver seat belt is unbuckled at low speeds



Driver door is opened at low speeds

To Turn Off

The system will turn off and erase the set speed in

memory if:



The Adaptive Cruise Control (ACC) on/off button

is pushed



The Fixed Speed Cruise Control on/off button is

pushed



The ignition is placed in the OFF position



4WD Low is engaged

To Resume

If there is a set speed in the memory, push the RES

button and then remove your foot from the

accelerator pedal. The instrument cluster display

will show the last set speed.

WARNING!

In Fixed Speed Cruise Control mode, the system

will not react to vehicles ahead. In addition, the

proximity warning does not activate and no

alarm will sound even if you are too close to the

vehicle ahead since neither the presence of the

vehicle ahead nor the vehicle-to-vehicle distance

is detected. Be sure to maintain a safe distance

between your vehicle and the vehicle ahead.

Always be aware which mode is selected.

STARTING AND OPERATING

175

Resume can be used at any speed above 20 mph

(32 km/h) when only Fixed Speed Cruise Control is

being used.
Resume can be used at any speed above 0 mph

(0 km/h) when ACC is active.

NOTE:



While in ACC mode, when the vehicle comes to

a complete stop longer than two seconds, the

system will cancel. The driver will have to apply

the brakes to keep the vehicle at a standstill.



ACC cannot be resumed if there is a stationary

vehicle in front of your vehicle in close proximity.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
After setting a speed, you can increase the set

speed by pushing the SET (+) button, or decrease

speed by pushing the SET (-) button.

U.S. Speed (mph)



Pushing the SET (+), or SET (-) button once will

result in a 1 mph speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 mph.



If the button is continually pushed, the set

speed will continue to adjust in 5 mph incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

Metric Speed (km/h)



Pushing the SET (+), or SET (-) button once will

result in a 1 km/h speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 km/h.



If the button is continually pushed, the set

speed will continue to adjust in 10 km/h incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

NOTE:

When you override and push the SET (+) button or

SET (-) buttons, the new set speed will be the

current speed of the vehicle.

When ACC Is Active



When you use the SET (-) button to decelerate, if

the engine’s braking power does not slow the

vehicle sufficiently to reach the set speed, the

brake system will automatically slow the

vehicle.



The ACC system applies the brake down to a full

stop when following the vehicle in front. If your

vehicle follows the vehicle in front to a standstill,

your vehicle will release the brakes two seconds

after coming to a full stop.



The ACC system maintains set speed when

driving uphill and downhill. However, a slight

speed change on moderate hills is normal. In

addition, downshifting may occur while climbing

uphill or descending downhill. This is normal

operation and necessary to maintain set speed.

When driving uphill and downhill, the ACC

system will cancel if the braking temperature

exceeds normal range (overheated).

Setting The Following Distance In ACC

The specified following distance for ACC can be set

by varying the distance setting between four bars

(longest), three bars (long), two bars (medium) and

one bar (short). Using this distance setting and the

vehicle speed, ACC calculates and sets the

distance to the vehicle ahead. This distance

setting displays in the instrument cluster display.

WARNING!

The Resume function should only be used if

traffic and road conditions permit. Resuming a

set speed that is too high or too low for

prevailing traffic and road conditions could

cause the vehicle to accelerate or decelerate too

sharply for safe operation. Failure to follow these

warnings can result in a collision and death or

serious personal injury.

176

STARTING AND OPERATING

Distance Settings

To increase the distance setting, push the

Distance Setting Increase button and release.

Each time the button is pushed, the distance

setting increases by one bar (longer).
To decrease the distance setting, push the

Distance Setting Decrease button and release.

Each time the button is pushed, the distance

setting decreases by one bar (shorter).
If there is no vehicle ahead, the vehicle will

maintain the set speed. If a slower moving vehicle

is detected in the same lane, the instrument

cluster displays the ACC Set With Target Light. The

system will then adjust vehicle speed

automatically to maintain the distance setting,

regardless of the set speed.
The vehicle will then maintain the set distance

until:



The vehicle ahead accelerates to a speed above

the set speed



The vehicle ahead moves out of your lane or

view of the sensor



The distance setting is changed



The system disengages

page 173

The maximum braking applied by ACC is limited;

however, the driver can always apply the brakes

manually, if necessary.

NOTE:

The brake lights will illuminate whenever the ACC

system applies the brakes.
A Proximity Warning will alert the driver if ACC

predicts that its maximum braking level is not

sufficient to maintain the set distance. If this

occurs, a visual alert “BRAKE!” will flash in the

instrument cluster display and a chime will sound

while ACC continues to apply its maximum braking

capacity.

NOTE:

The “BRAKE!” screen in the instrument cluster

display is a warning for the driver to take action

and does not necessarily mean that the Forward

Collision Warning system is applying the brakes

autonomously.

Overtake Aid

When driving with ACC engaged and following a

vehicle, the system will provide an additional

acceleration up to the ACC set speed to assist in

passing the vehicle. This additional acceleration is

triggered when the driver utilizes the left turn

signal and will only be active when passing on the

left hand side.

ACC Operation At A Stop

(Automatic Transmission Only)

In the event that the ACC system brings your

vehicle to a standstill while following a target

vehicle, your vehicle will resume motion without

the need for any driver action if the target vehicle

starts moving within two seconds of your vehicle

coming to a standstill.
If the target vehicle does not start moving within

two seconds of your vehicle coming to a standstill,

the ACC with Stop system will cancel and the

brakes will release. A cancel message will display

on the instrument cluster display and produce a

warning chime. Driver intervention will be required

at this moment.
While ACC with Stop is holding your vehicle at a

standstill, if the driver seatbelt is unbuckled or the

driver door is opened, the ACC with Stop system

will cancel and the brakes will release. A cancel

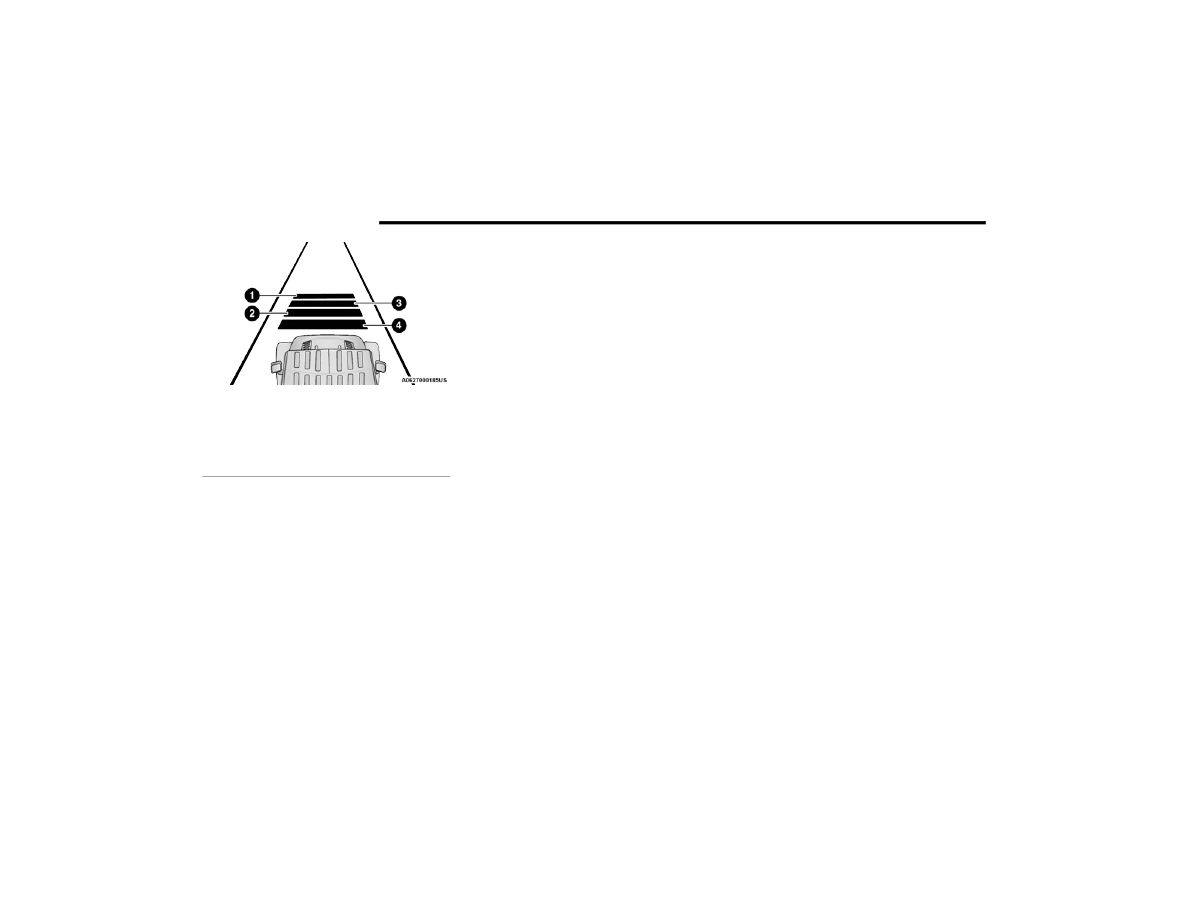

1 — Longest Distance Setting (Four Bars)
2 — Medium Distance Setting (Two Bars)
3 — Long Distance Setting (Three Bars)
4 — Short Distance Setting (One Bar)

STARTING AND OPERATING

177

message will display on the instrument cluster

display and produce a warning chime. Driver

intervention will be required at this moment.

Display Warnings And Maintenance

“WIPE FRONT RADAR SENSOR IN FRONT OF

VEHICLE” WARNING

The “ACC/FCW Unavailable Wipe Front Radar

Sensor” warning will display and a chime will

sound when conditions temporarily limit system

performance.
This most often occurs at times of poor visibility,

such as in snow or heavy rain. The ACC system may

also become temporarily blinded due to

obstructions, such as mud, dirt or ice. In these

cases, the instrument cluster display will display

“ACC/FCW Unavailable Wipe Front Radar Sensor”

and the system will deactivate.
The “ACC/FCW Unavailable Wipe Front Radar

Sensor” message can sometimes be displayed

while driving in highly reflective areas (i.e. tunnels

with reflective tiles, or ice and snow). The ACC

system will recover after the vehicle has left these

areas. Under rare conditions, when the radar is not

tracking any vehicles or objects in its path this

warning may temporarily occur.

NOTE:

If the “ACC/FCW Unavailable Wipe Front Radar

Sensor” warning is active, Fixed Speed Cruise

Control is still available.
If weather conditions are not a factor, the driver

should examine the sensor. It may require cleaning

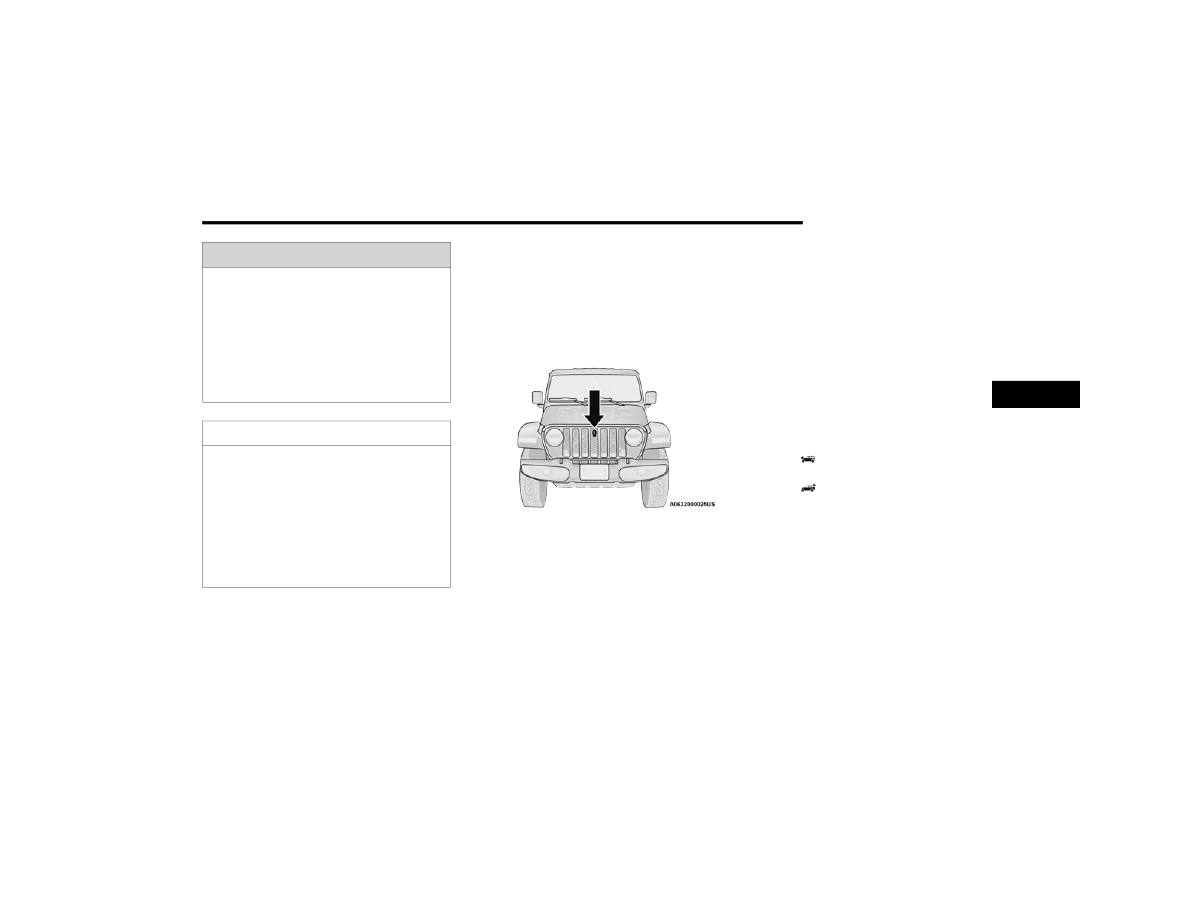

or removal of an obstruction. The sensor is located

in the center of the vehicle behind the lower grille.
To keep the ACC system operating properly, it is

important to note the following maintenance

items:



Always keep the sensor clean. Carefully wipe the

sensor lens with a soft cloth. Be cautious not to

damage the sensor lens.



Do not remove any screws from the sensor.

Doing so could cause an ACC system malfunc

tion or failure and require a sensor realignment.



If the sensor or front end of the vehicle is

damaged due to a collision, see an authorized

dealer for service.



Do not attach or install any accessories near the

sensor, including transparent material or after

market grilles. Doing so could cause an ACC

system failure or malfunction.

When the condition that deactivated the system is

no longer present, the system will return to the

“Adaptive Cruise Control Off” state and will resume

function by simply reactivating it.

NOTE:

If the “ACC/FCW Unavailable Wipe Front Radar

Sensor” message occurs frequently (e.g. more

than once on every trip) without any snow, rain,

mud, or other obstruction, have the radar sensor

realigned at an authorized dealer.

“CLEAN FRONT WINDSHIELD” WARNING

The “ACC/FCW Limited Functionality Clean Front

Windshield” warning will display and a chime will

sound when conditions temporarily limit system

performance. This most often occurs at times of

poor visibility, such as in snow or heavy rain and

fog. The ACC system may also become temporarily

blinded due to obstructions, such as mud, dirt, or

ice on windshield and fog on the inside of glass. In

these cases, the instrument cluster display will

display “ACC/FCW Limited Functionality Clean

Front Windshield” and the system will have

degraded performance.
The “ACC/FCW Limited Functionality Clean Front

Windshield” message can sometimes be displayed

while driving in adverse weather conditions. The

ACC/FCW system will recover after the vehicle has

left these areas. Under rare conditions, when the

camera is not tracking any vehicles or objects in its

path this warning may temporarily occur.

WARNING!

When the ACC system is resumed, the driver

must ensure that there are no pedestrians,

vehicles or objects in the path of the vehicle.

Failure to follow these warnings can result in a

collision and death or serious personal injury.

178

STARTING AND OPERATING

If weather conditions are not a factor, the driver

should examine the windshield and the camera

located on the back side of the inside rear view

mirror. They may require cleaning or removal of an

obstruction.
When the condition that created limited

functionality is no longer present, the system will

return to full functionality.

NOTE:

If the “ACC/FCW Limited Functionality Clean Front

Windshield” message occurs frequently (e.g. more

than once on every trip) without any snow, rain,

mud, or other obstruction, have the windshield and

forward facing camera inspected at an authorized

dealer.

“SERVICE ACC/FCW” WARNING

If the system turns off, and the instrument cluster

displays “ACC/FCW Unavailable Service Required”

or “Cruise/FCW Unavailable Service Required”,

there may be an internal system fault or a

temporary malfunction that limits ACC

functionality. Although the vehicle is still drivable

under normal conditions, ACC will be temporarily

unavailable. If this occurs, try activating ACC again

later, following an ignition cycle. If the problem

persists, see an authorized dealer.

Precautions While Driving With ACC

In certain driving situations, ACC may have

detection issues. In these cases, ACC may brake

late or unexpectedly. The driver needs to stay alert

and may need to intervene. The following are

examples of these types of situations:

TOWING A TRAILER

Towing a trailer is not recommended when using

ACC.

OFFSET DRIVING

ACC may not detect a vehicle in the same lane that

is offset from your direct line of travel, or a vehicle

merging in from a side lane. There may not be

sufficient distance to the vehicle ahead. The offset

vehicle may move in and out of the line of travel,

which can cause your vehicle to brake or

accelerate unexpectedly.

Offset Driving Condition Example

TURNS AND BENDS

When driving on a curve with ACC engaged, the

system may decrease the vehicle speed and

acceleration for stability reasons, with no vehicle in

front detected. Once the vehicle is out of the curve

the system will resume your original set speed.

This is a part of normal ACC system functionality.

NOTE:

On tight turns ACC performance may be limited.

USING ACC ON HILLS

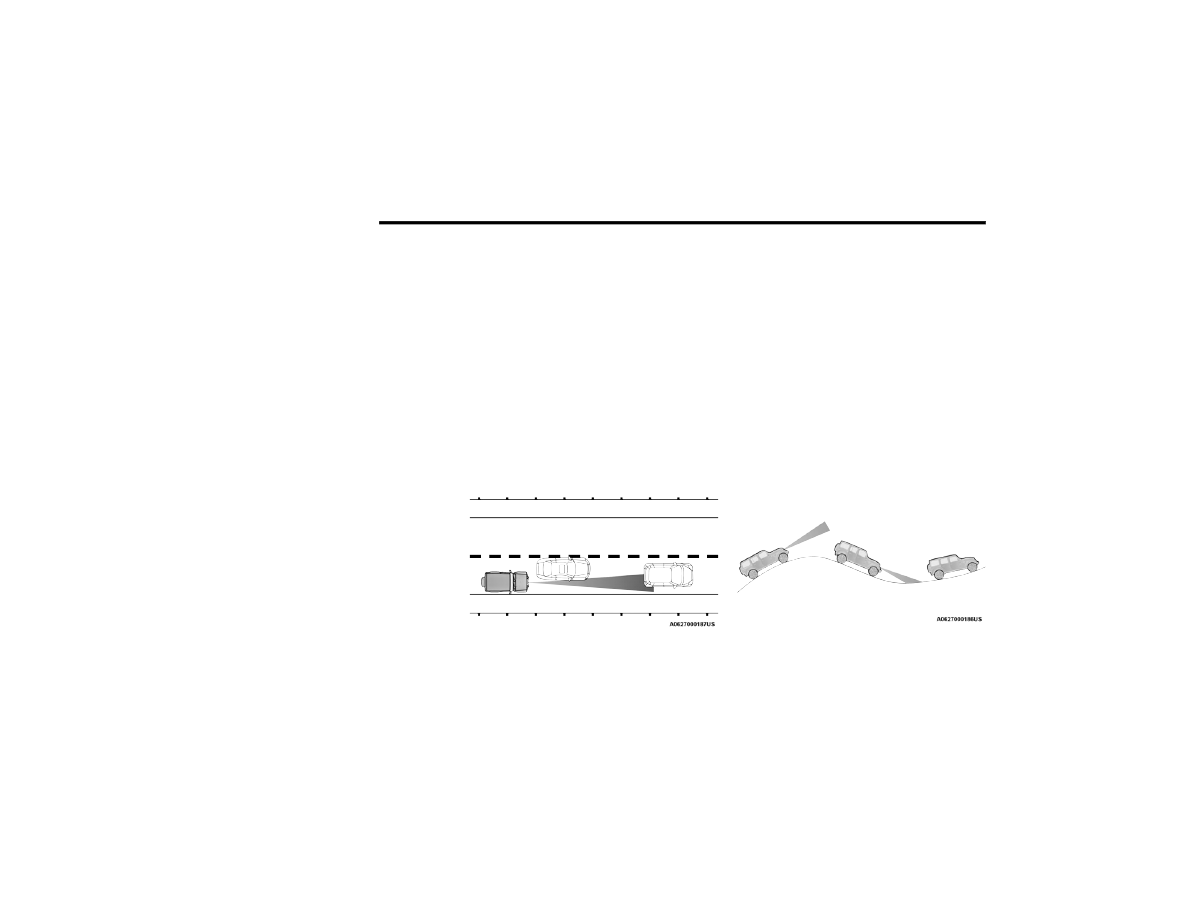

ACC performance may be limited when driving on

hills. ACC may not detect a vehicle in your lane

depending on the speed, vehicle load, traffic

conditions, and the steepness of the hill.

ACC Hill Example

STARTING AND OPERATING

179

LANE CHANGING

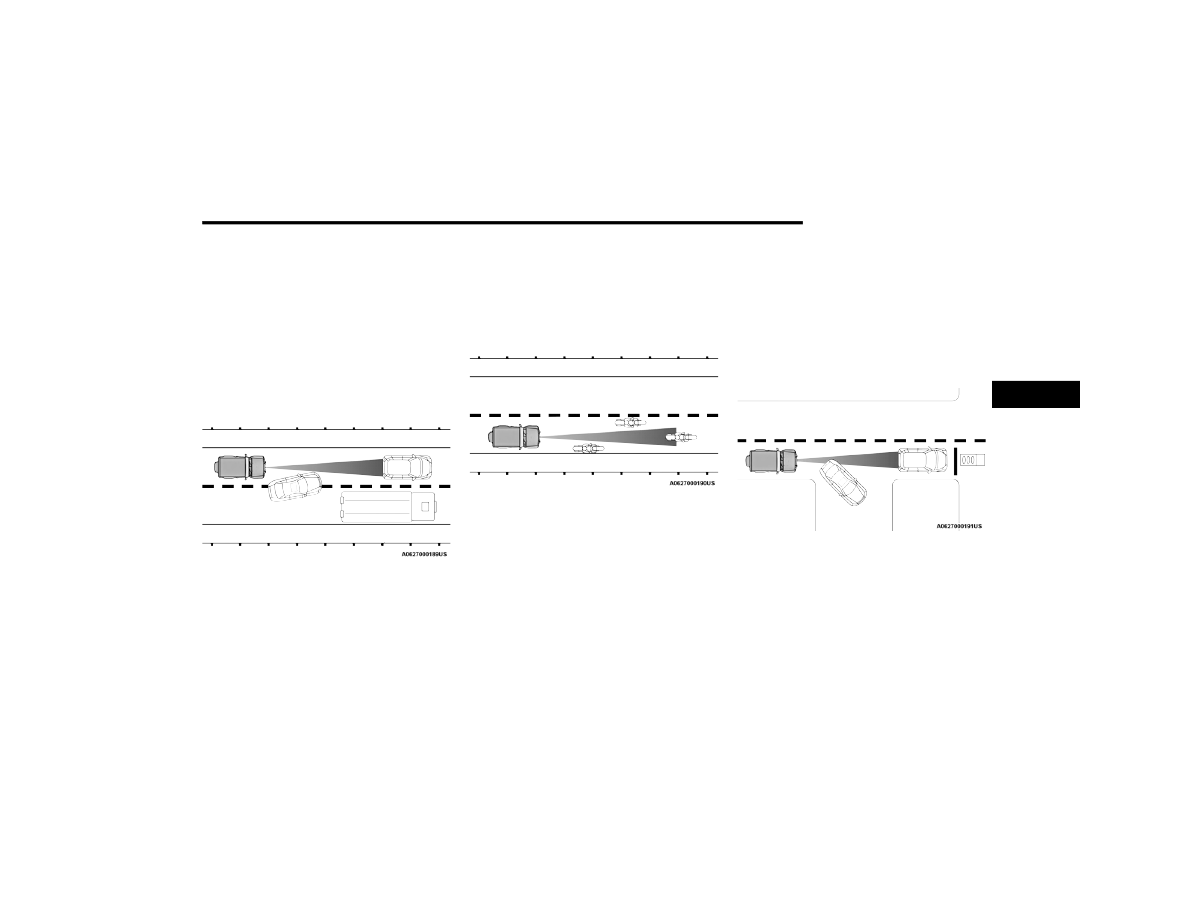

ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the

following lane changing example, ACC has not yet

detected the vehicle changing lanes and it may not

detect the vehicle until it's too late for the ACC

system to take action. ACC may not detect a

vehicle until it is completely in the lane. There may

not be sufficient distance to the lane-changing

vehicle. Always be attentive and ready to apply the

brakes if necessary.

Lane Changing Example

NARROW VEHICLES

Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the vehicle

ahead.

Narrow Vehicle Example

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following exits

your lane and the vehicle ahead is stopped in your

lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

Stationary Object And Stationary Vehicle Example

180

STARTING AND OPERATING

PARKSENSE REAR PARK ASSIST —

IF EQUIPPED

The ParkSense Rear Park Assist system provides

visual and audible indications of the distance

between the rear fascia/bumper and a detected

obstacle when backing up (e.g. during a parking

maneuver). For limitations of this system and

recommendations, see

page 183.

ParkSense will retain the last system state

(enabled or disabled) from the last ignition cycle

when the ignition is placed in the ON/RUN position.
ParkSense can be active only when the gear

selector is in REVERSE. If ParkSense is enabled at

this gear selector position, the system will remain

active until the vehicle speed is increased to

approximately 7 mph (11 km/h) or above. When in

REVERSE and above the system's operating speed,

a warning will appear within the instrument cluster

display indicating the vehicle speed is too fast. The

system will become active again if the vehicle

speed is decreased to speeds less than

approximately 6 mph (9 km/h).

ARK

ENSE

ENSORS

The four ParkSense sensors, located in the rear

fascia/bumper, monitor the area behind the

vehicle that is within the sensors’ field of view. The

sensors can detect obstacles from approximately

12 inches (30 cm) up to 79 inches (200 cm) from

the rear fascia/bumper in the horizontal direction,

depending on the location, type and orientation of

the obstacle.

ARK

ENSE

ARNING

ISPLAY

The ParkSense Warning screen is located within

the instrument cluster display

page 120. It

provides visual warnings to indicate the distance

between the rear fascia/bumper and the detected

obstacle.

ARK

ENSE

ISPLAY

When the vehicle is in REVERSE, the instrument

cluster display will show the park assist ready

system status.

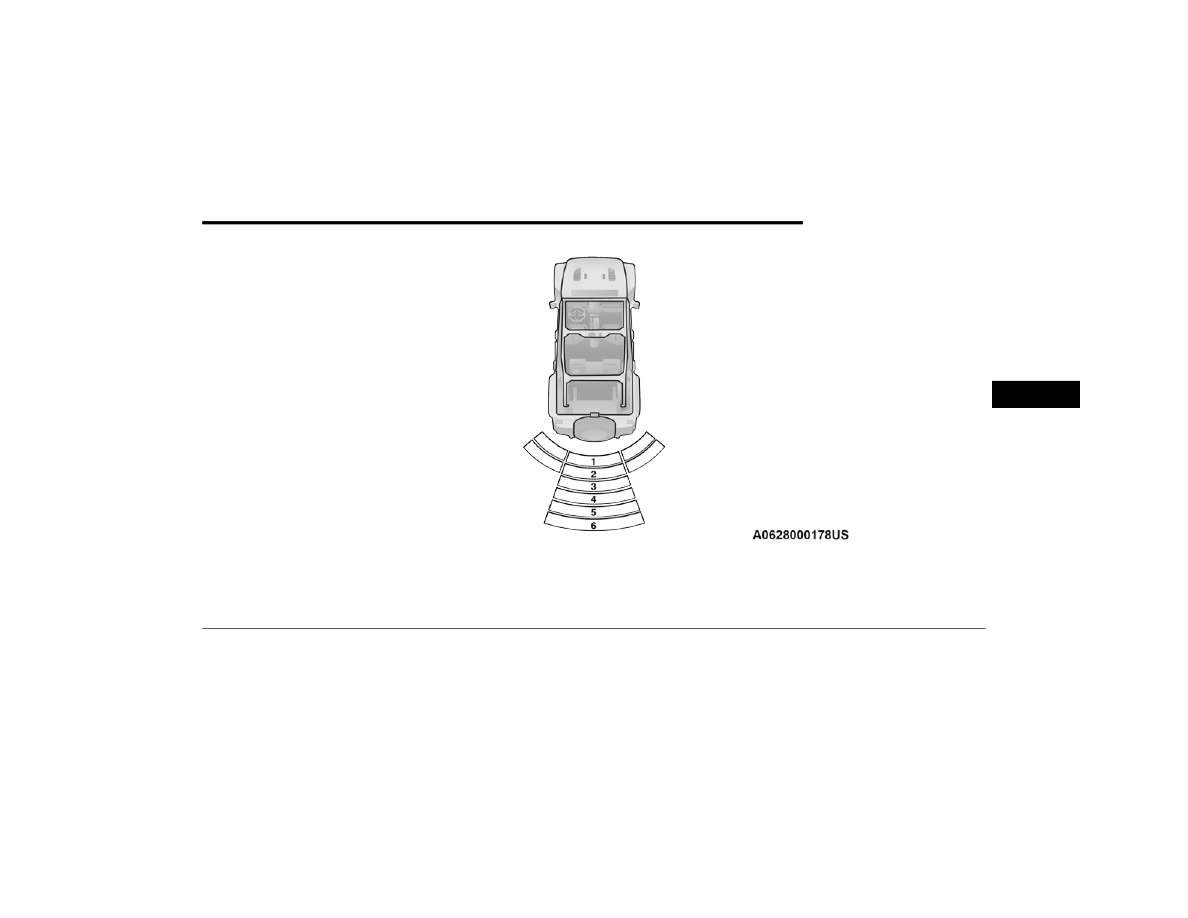

The system will indicate a detected obstacle by

showing a single arc in one or more regions based

on the obstacle’s distance and location relative to

the vehicle.
If an obstacle is detected in the center rear region,

the display will show a single solid arc in the center

rear region and will produce a one-half second

tone. As the vehicle moves closer to the obstacle,

the display will show a single arc moving closer to

the vehicle and emit a fast sound tone that will

change from fast to continuous.
If an obstacle is detected in the left and/or right

rear region, the display will show a single flashing

arc in the left and/or right rear region and will

produce a fast sound tone. As the vehicle moves

closer to the obstacle, the display will show the

single arc moving closer to the vehicle and the tone

will change from fast to continuous.

182

STARTING AND OPERATING

The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert

operation when the system is detecting an obstacle:

NOTE:

ParkSense will reduce the volume of the radio, if

on, when the system is sounding an audio tone.

NABLING

ISABLING

ARK

ENSE

ParkSense can be enabled and disabled

with the ParkSense switch located below

the Uconnect display.

When the ParkSense switch is pushed to disable

the system, the instrument cluster display

page 120 will show the “PARKSENSE OFF”

message for approximately five seconds. When the

gear selector is moved to REVERSE and the system

is disabled, the instrument cluster display will

show the “PARKSENSE OFF” message for as long

as the vehicle is in REVERSE (Not in 4WD Low).
The ParkSense switch LED will be on when

ParkSense is disabled or requires service. The

ParkSense switch LED will be off when the system

is enabled. If the ParkSense switch is pushed, and

requires service, the ParkSense switch LED will

blink momentarily, and then the LED will remain

on.

ERVICE

ARK

ENSE

EAR

ARK

SSIST

YSTEM

During vehicle start up, when the ParkSense Rear

Park Assist System has detected a faulted

condition, the instrument cluster display will

actuate a single chime, once per ignition cycle, and

it will display the “PARKSENSE UNAVAILABLE WIPE

REAR SENSORS” or the “PARKSENSE

UNAVAILABLE SERVICE REQUIRED” message.

WARNING ALERTS

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Arcs — Left

None

2nd Flashing

1st Flashing

Arcs — Center

None

6th Solid

5th Solid

4th Solid

3rd Flashing

2nd Flashing

1st Flashing

Arcs — Right

None

2nd Flashing

1st Flashing

Audible Alert

Chime

None

Single 1/2

Second Tone (for

rear center only)

Slow (for rear

center only)

Slow (for rear

center only)

Fast (for rear

center only)

Fast

Continuous

Radio Volume

Reduced

Yes

STARTING AND OPERATING

183

When the gear selector is moved to REVERSE and

the system has detected a faulted condition, the

instrument cluster display will show the

"PARKSENSE UNAVAILABLE WIPE REAR SENSORS"

or "PARKSENSE UNAVAILABLE SERVICE

REQUIRED" message for as long as the vehicle is in

REVERSE. Under this condition, ParkSense will not

operate.
If “PARKSENSE UNAVAILABLE WIPE REAR

SENSORS” appears in the instrument cluster

display, make sure the outer surface and the

underside of the rear fascia/bumper is clean and

clear of snow, ice, mud, dirt or other obstruction

and then cycle the ignition. If the message

continues to appear, see an authorized dealer.
If “PARKSENSE UNAVAILABLE SERVICE

REQUIRED” appears in the instrument cluster

display, see an authorized dealer.

LEANING

ARK

ENSE

YSTEM

Clean the Rear Park Assist sensors with water, car

wash soap and a soft cloth. Do not use rough or

hard cloths. In washing stations, clean sensors

quickly keeping the vapor jet/high pressure

washing nozzles at least 4 inches (10 cm) from the

sensors. Do not scratch or poke the sensors.

ARK

ENSE

YSTEM

SAGE

RECAUTIONS

NOTE:



Ensure that the rear fascia/bumper is free of

snow, ice, mud, dirt and debris to keep the Park

Sense system operating properly.



Jackhammers, large trucks, and other vibra

tions could affect the performance of Park

Sense.



When you turn ParkSense off, the instrument

cluster display will read “PARKSENSE OFF.”

Furthermore, once you turn ParkSense off, it

remains off until you turn it on again, even if you

cycle the ignition.



ParkSense, when on, will reduce the volume of

the radio when it is sounding a tone.



Clean the ParkSense sensors regularly, taking

care not to scratch or damage them. The

sensors must not be covered with ice, snow,

slush, mud, dirt or debris. Failure to do so can

result in the system not working properly. The

ParkSense system might not detect an obstacle

behind the fascia/bumper, or it could provide a

false indication that an obstacle is behind the

fascia/bumper.



Use the ParkSense switch to turn the ParkSense

system off if objects such as bicycle carriers,

trailer hitches, etc. are placed within 12 inches

(30 cm) of the rear fascia/bumper. Failure to do

so can result in the system misinterpreting a

close object as a sensor problem, causing the

“PARKSENSE UNAVAILABLE SERVICE

REQUIRED” message to be displayed in the

instrument cluster display.

WARNING!



Drivers must be careful when backing up even

when using ParkSense. Always check carefully

behind your vehicle, look behind you, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, and blind spots before

backing up. You are responsible for safety and

must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.



Before using ParkSense, it is strongly recom

mended that the ball mount and hitch ball

assembly be disconnected from the vehicle

when the vehicle is not used for towing.

Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball

will be much closer to the obstacle than the

rear fascia when the vehicle sounds the

continuous tone. Also, the sensors could

detect the ball mount and hitch ball assembly,

depending on its size and shape, giving a false

indication that an obstacle is behind the

vehicle.

184

STARTING AND OPERATING

PARKVIEW REAR BACK UP CAMERA

The ParkView Rear Back Up Camera allows you to

see an on-screen image of the rear surroundings of

your vehicle whenever the gear selector is put into

REVERSE. The image will be displayed in the

touchscreen display along with a caution note to

“Check Entire Surroundings” across the top of the

screen. After five seconds this note will disappear.

The ParkView camera is located on the rear of the

vehicle in the center of the spare tire.

Manual Activation Of The Rear View Camera
1. Press the Controls button located on the

bottom of the Uconnect display.

2. Press the Back Up Camera button to turn the

Rear View Camera system on.

When the vehicle is shifted out of REVERSE with

Camera delay turned off, the rear Camera mode is

exited and the previous screen appears again.
When the vehicle is shifted out of REVERSE with

Camera delay turned on, the rear Camera image

will be displayed for up to 10 seconds unless the

vehicle speed exceeds 8 mph (13 km/h), the

transmission is shifted into PARK, the ignition is

placed in the OFF position, or the touchscreen

button X to disable display of the Rear View

Camera image is pressed.
Whenever the Rear View Camera image is

activated through the Back Up Camera button in

the Controls menu, and the vehicle speed is

greater than, or equal to, 8 mph (13 km/h), a

display timer for the image is initiated. The image

will continue to be displayed until the display timer

exceeds 10 seconds.

NOTE:



If the vehicle speed remains below 8 mph

(13 km/h), the Rear View Camera image will be

displayed continuously until deactivated via the

touchscreen button X, the transmission is

shifted into PARK, or the ignition is placed in the

OFF position.



The touchscreen button X to disable display of

the camera image is made available ONLY when

the vehicle is not in REVERSE.

When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle and

its projected backup path based on the steering

wheel position. A dashed center line overlay

indicates the center of the vehicle to assist with

parking or aligning to a hitch/receiver.
When enabled, fixed guidelines are overlaid on the

image to illustrate the width of the vehicle.
Different colored zones indicate the distance to

the rear of the vehicle.
The following table shows the approximate

distances for each zone:

CAUTION!



ParkSense is only a parking aid and it is

unable to recognize every obstacle, including

small obstacles. Parking curbs might be

temporarily detected or not detected at all.

Obstacles located above or below the sensors

will not be detected when they are in close

proximity.



The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time

when an obstacle is detected. It is recom

mended that the driver looks over his/her

shoulder when using ParkSense.

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft

(0 - 30 cm)

Yellow

1 ft - 6.5 ft

(30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

STARTING AND OPERATING

185

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with

water, and dry with a soft cloth. Do not cover the

lens.

TRAILCAM SYSTEM — IF EQUIPPED

Your vehicle may be equipped with a TrailCam that

allows you to you see an on-screen image of the

front view of your vehicle. The image will be

displayed on the touchscreen display along with a

caution note “Check Entire Surroundings” across

the top of the screen.

Front View Camera

NOTE:

The system will stay active while in 4WD Low.
The TrailCam system has programmable settings

that may be selected through the Uconnect system

page 207.

Manual Activation Of The TrailCam
TrailCam view can be activated via the below

methods:



Press the FWD Camera button on the controls

screen.



Press the Forward Facing Camera button on the

apps menu.



Press the TrailCam button on the Off Road

Pages.



Press the Off Road+ button when “Auto Launch

Off Road+” (if equipped) has been selected

under camera settings.

The TrailCam view can also be activated by

pressing the icon on the Back Up Camera view.

The Back Up Camera view can also be activated by

pressing the icon on the TrailCam view.
When the vehicle is shifted out of REVERSE with

Camera Delay turned off and TrailCam view is

active, the TrailCam mode is exited and the

previous screen appears again.
When the vehicle is shifted out of REVERSE with

Camera Delay turned on and the TrailCam view is

active, the TrailCam image will be displayed for up

to 10 seconds unless the vehicle speed exceeds

8 mph (13 km/h), the transmission is shifted into

PARK, the ignition is placed in the OFF position, or

the touchscreen button X to disable display of the

TrailCam view is pressed.

WARNING!

Drivers must be careful when backing up even

when using the ParkView Rear Back Up Camera.

Always check carefully behind your vehicle, and

be sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, ParkView should

only be used as a parking aid. The ParkView

camera is unable to view every obstacle or

object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using ParkView to be able

to stop in time when an obstacle is seen. It is

recommended that the driver look frequently

over his/her shoulder when using ParkView.

186

STARTING AND OPERATING

(Continued)

Whenever the TrailCam image is activated through

the Manual Activation Methods, and the vehicle

speed is greater than or equal to 8 mph (13 km/h),

a display timer for the image is initiated. The image

will continue to be displayed until the display timer

exceeds 10 seconds.

NOTE:



If the vehicle speed remains below 8 mph

(13 km/h) while in 2WD or 4WD High, the

TrailCam image will be displayed continuously

until deactivated via the touchscreen button X,

the transmission is shifted into PARK, or the

ignition is placed in the OFF position.



The touchscreen button X to disable the display

of the camera image is made available ONLY

when the vehicle is not in REVERSE.



The TrailCam view will stay active regardless of

the vehicle speed and time while in 4WD Low.

Cleaning The TrailCam
Press and hold the Clean Camera soft button

located on the TrailCam view to wash the TrailCam.

Washer fluid will stop when the button is released.



The camera can be washed up to 20 seconds at

a time while holding the button.



The Clean Camera system is not available when

windshield washing is in process.

When enabled, active dynamic Tire Lines are

projected on the ground plane of the TrailCam view

based on the steering wheel position.

REFUELING THE VEHICLE —

GASOLINE ENGINE (IF EQUIPPED)

UEL

ILLER

The fuel filler cap is located on the driver's side of

the vehicle. If the fuel filler cap is lost or damaged,

be sure the replacement cap is the correct one for

this vehicle.

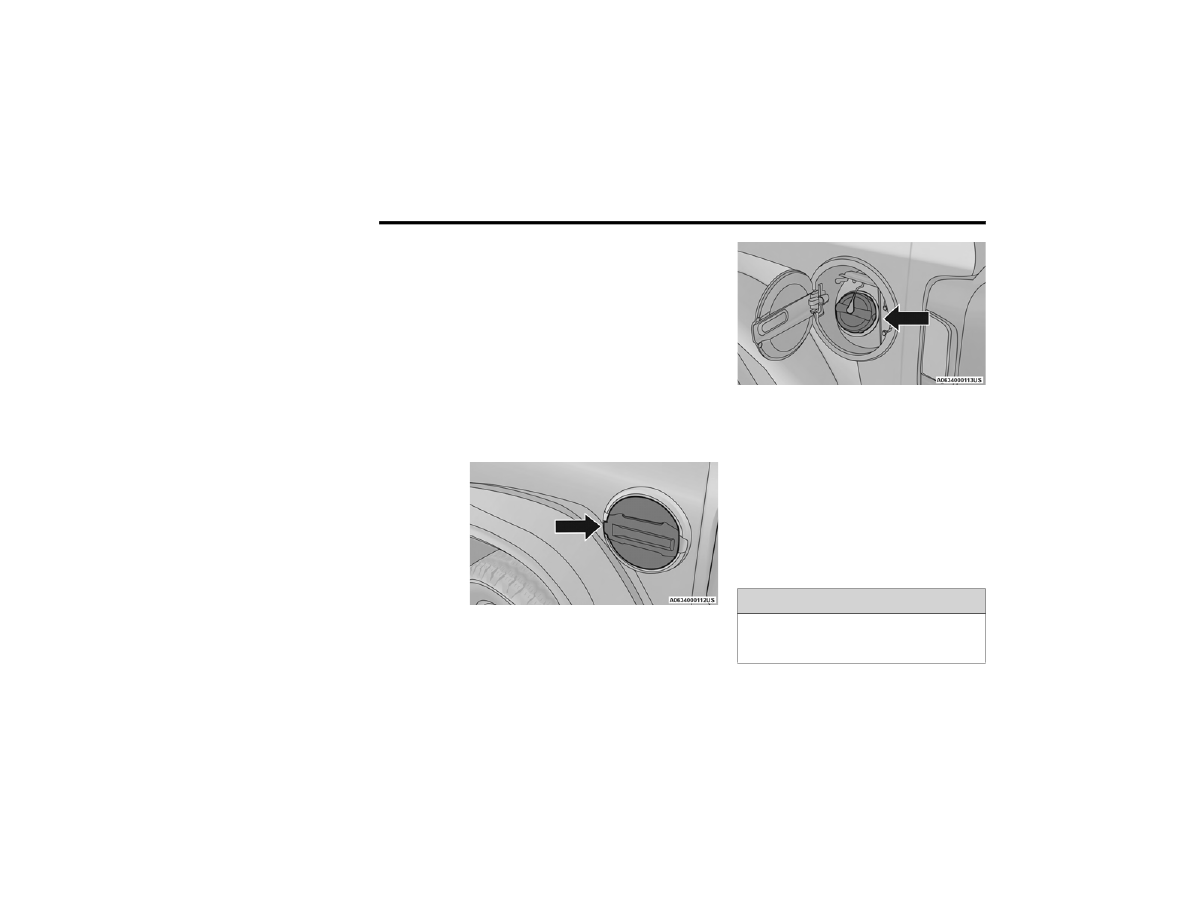

1. Open the fuel filler door.

Fuel Filler Door

2. Remove the fuel cap by rotating it counter

clockwise.

Fuel Filler Cap

3. Fully insert the fuel nozzle into the filler pipe.
4. Fill the vehicle with fuel.

NOTE:



When the fuel nozzle “clicks” or shuts off,

the fuel tank is full.



Wait five seconds before removing the fuel

nozzle to allow excess fuel to drain from the

nozzle.

5. Remove the fuel nozzle, reinstall fuel cap and

close fuel filler door.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.

Jeep Wrangler (2022 year). Manual in english - page 11
