SAFETY

317

(Continued)

ERIODIC

AFETY

HECKS

HOULD

AKE

UTSIDE

EHICLE

Tires

Examine tires for excessive tread wear and uneven

wear patterns. Check for stones, nails, glass, or

other objects lodged in the tread or sidewall.

Inspect the tread for cuts and cracks. Inspect

sidewalls for cuts, cracks, and bulges. Check the

lug nut/bolt torque for tightness. Check the tires

(including spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.



ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for interfer

ence, with the vehicle properly parked with the

engine off, fully depress the accelerator, the

brake, and the clutch pedal (if present) to

check for interference. If your floor mat inter

feres with the operation of any pedal, or is not

secure to the floor, remove the floor mat from

the vehicle and place the floor mat in your

trunk.



ONLY use the passenger’s side floor mat on

the passenger’s side floor area.



ALWAYS make sure objects cannot fall or slide

into the driver’s side floor area when the

vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

WARNING!



NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.



If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners are

secure to the vehicle carpet. Fully depress

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.



It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been properly

installed and is secured to your vehicle using

the floor mat fasteners by lightly pulling mat.

WARNING!

318

SAFETY

XHAUST

The best protection against carbon monoxide entry

into the vehicle body is a properly maintained

engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the underside

or rear of the vehicle is damaged, have an

authorized dealer inspect the complete exhaust

system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts.

Open seams or loose connections could permit

exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

ARBON

ONOXIDE

ARNINGS

WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you. To

avoid breathing (CO), follow these safety tips:



Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.



If you are required to drive with the trunk/lift

gate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.



If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to prevent

carbon monoxide poisoning:



Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit in

a parked vehicle with the engine running for

an extended period. If the vehicle is stopped in

an open area with the engine running for more

than a short period, adjust the ventilation

system to force fresh, outside air into the

vehicle.



Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

319

IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

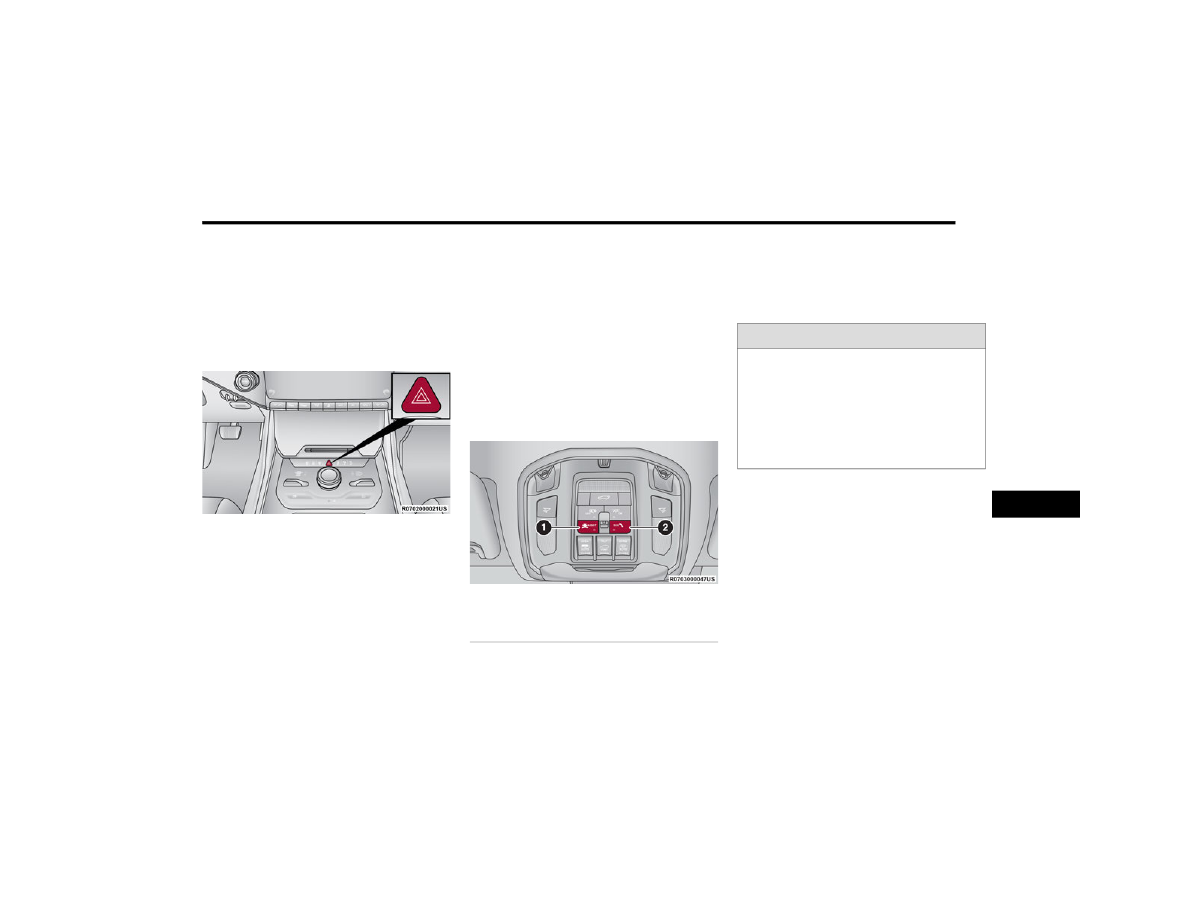

The Hazard Warning Flashers button is located in

the center console just below the climate control

screen.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the button

a second time to turn off the Hazard Warning

Flashers.
This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

only when your vehicle is disabled or signaling a

safety hazard warning for other motorists.

When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in the OFF position.

NOTE:

With extended use, the Hazard Warning Flashers

may discharge the battery.

ASSIST AND SOS SYSTEM— IF EQUIPPED

Assist And SOS Buttons

If equipped, the overhead console contains an

ASSIST and SOS button.

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber

page 413.



The ASSIST and SOS buttons will only function if

you are connected to an operable LTE (voice/

data) or 4G (data) network, which comes as a

built-in function. Other Uconnect services will

only be operable if your SiriusXM Guardian™

service is active and you are connected to an

operable LTE (voice/data) or 4G (data) network.

1 — ASSIST Button
2 — SOS Button

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

320

IN CASE OF EMERGENCY

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:



Roadside Assistance – If you get a flat tire, or

need a tow, just push the ASSIST button and you

will be connected to a representative for assis

tance. Roadside Assistance will know what

vehicle you’re driving and its location. Additional

fees may apply for roadside assistance.



Vehicle Customer Care – Total support for all

other vehicle issues.



Uconnect Customer Care - Total support for

Radio, Connected Services, Phone and NAV

issues.

SOS Call
1. Push the SOS Call button on the overhead

console.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator, during

which the LED will blink green. To cancel the SOS

Call connection, push the SOS call button on the

overhead console or press the cancellation button

on the Device Screen. Termination of the SOS Call

will turn off the green LED light on the overhead

console.

2. The LED light located within the ASSIST and

SOS buttons on the overhead console will turn

green once a connection to a SOS operator has

been made.

3. Once a connection between the vehicle and a

SOS operator is made, the SOS Call system

may transmit the following important vehicle

information to a SOS operator:



Indication that the occupant placed a SOS

Call



The vehicle brand



The last known GPS coordinates of the

vehicle

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional assistance is needed.

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber.



Once a connection is made between the

vehicle’s SOS Call system and the SOS oper

ator, the SOS operator may be able to open

a voice connection with the vehicle to deter

mine if additional assistance is needed.

Once the SOS operator opens a voice

connection with the vehicle’s SOS Call

system, the operator should be able to

speak with you or other vehicle occupants

and hear sounds occurring in the vehicle.

The vehicle’s SOS Call system will attempt

to remain connected with the SOS operator

until the SOS operator terminates the

connection.

5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

IN CASE OF EMERGENCY

321

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The overhead console lights located within the

ASSIST and SOS buttons will continuously illumi

nate red.



The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

322

IN CASE OF EMERGENCY

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position



The vehicle’s electrical systems are not intact



The SOS Call system software and/or hardware

are damaged during a crash



The vehicle battery loses power or becomes

disconnected during a vehicle crash



LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

able or obstructed



Equipment malfunction at the SOS operator

facility



Operator error by the SOS operator



LTE (voice/data) or 4G (data) network conges

tion



Weather



Buildings, structures, geographic terrain, or

tunnels

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

WARNING!



Ignoring the overhead console light could

mean you will not have SOS Call services. If

the overhead console light is illuminated, have

an authorized dealer service the SOS Call

system immediately.



The Occupant Restraint Control module turns

on the air bag Warning Light on the instrument

panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

IN CASE OF EMERGENCY

323

Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

JACKING AND TIRE CHANGING

NOTE:

If your vehicle is equipped with an air suspension

system, there is a feature which allows the auto

matic leveling to be disabled before changing a

tire. This feature can be activated through the

Uconnect system

page 236.

REPARATIONS

ACKING

1. Park the vehicle on a firm, level surface as far

from the edge of the roadway as possible.

Avoid icy or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Place the gear selector into PARK (P).

5. Turn OFF the ignition.
6. Block both the front and rear of the wheel

diagonally opposite the jacking position. For

example, if changing the driver’s front tire,

block the passenger’s rear wheel.

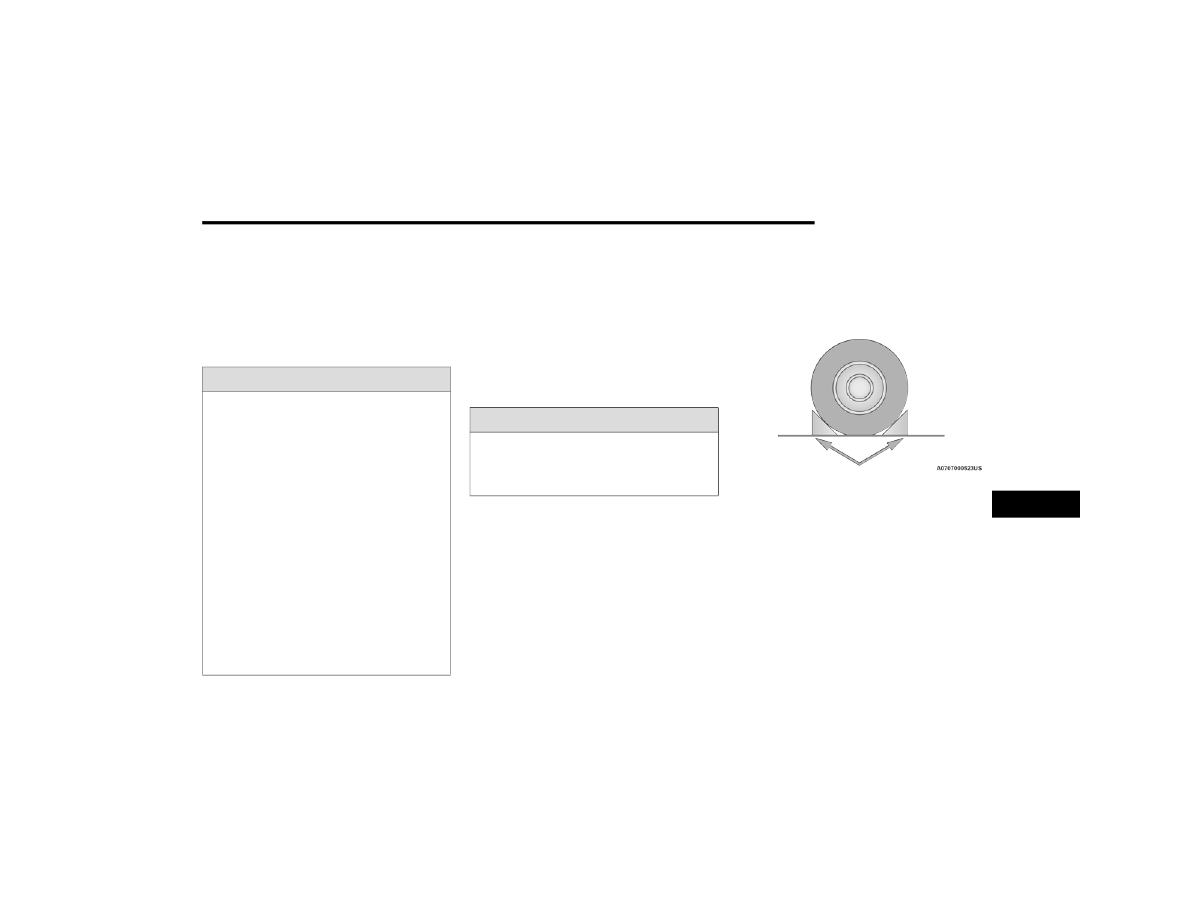

Wheel Blocked

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being raised or lifted.

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack. If

you need to get under a raised vehicle, take it to

a service center where it can be raised on a lift.



Never start or run the engine while the vehicle

is on a jack.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

324

IN CASE OF EMERGENCY

ACK

OOLS

OCATION

The scissor-type jack and tire changing tools are

located in the rear cargo area, under the load floor.

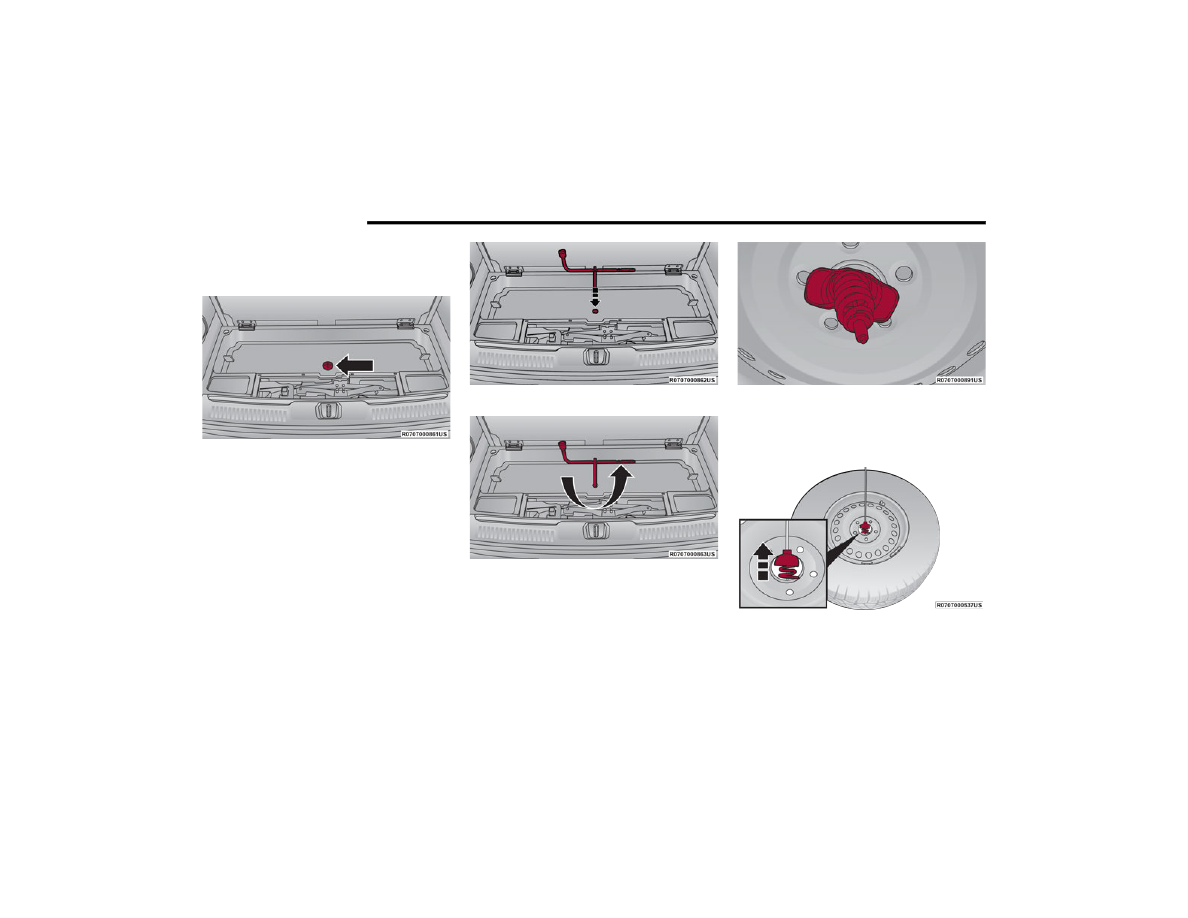

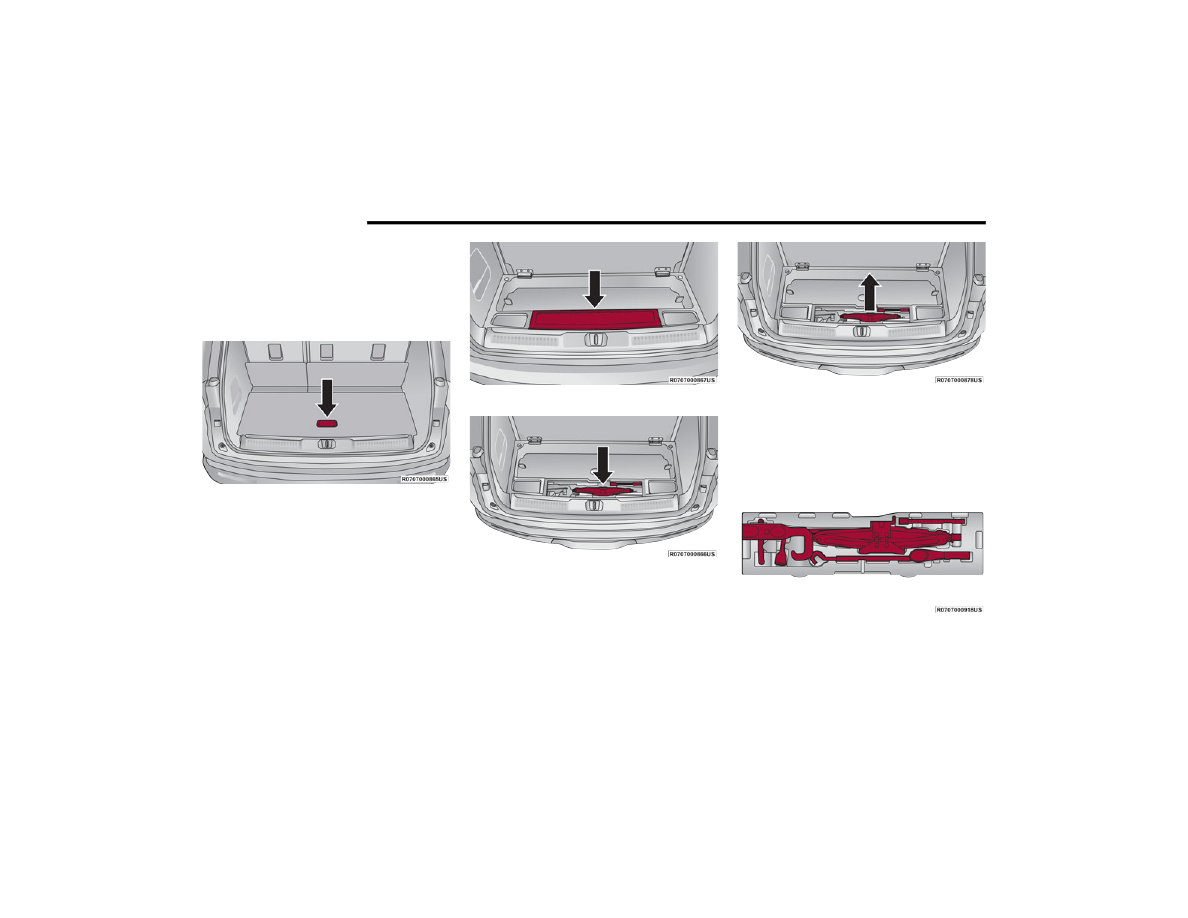

1. Lift up on the load floor handle to access the

jack and tool storage.

Load Floor Handle

2. Remove the jack storage cover to access the

jack and tools.

Jack And Tools Access Cover

Jack And Tools Storage Location

3. Pull up to remove jack and tools from storage.

Removing Jack And Tools

NOTE:

Depending on vehicle trim level, tools shown may

vary.

Jack And Tools

IN CASE OF EMERGENCY

325

PARE

IRE

TOWAGE

The spare tire is stowed under the rear of the

vehicle by means of a cable winch mechanism. To

remove or stow the spare, use the jack handle/lug

wrench connected to the square socket extension

to rotate the “spare tire drive” nut. The nut is

located under a rubber plug at the center-rear of

the cargo floor area, just inside the liftgate

opening.

Spare Tire Location

PARE

IRE

EMOVAL

Remove the spare tire before attempting to jack up

the vehicle. The spare tire is stowed underneath

the rear cargo area on the outside of the vehicle.
1. Assemble the jacking tools.

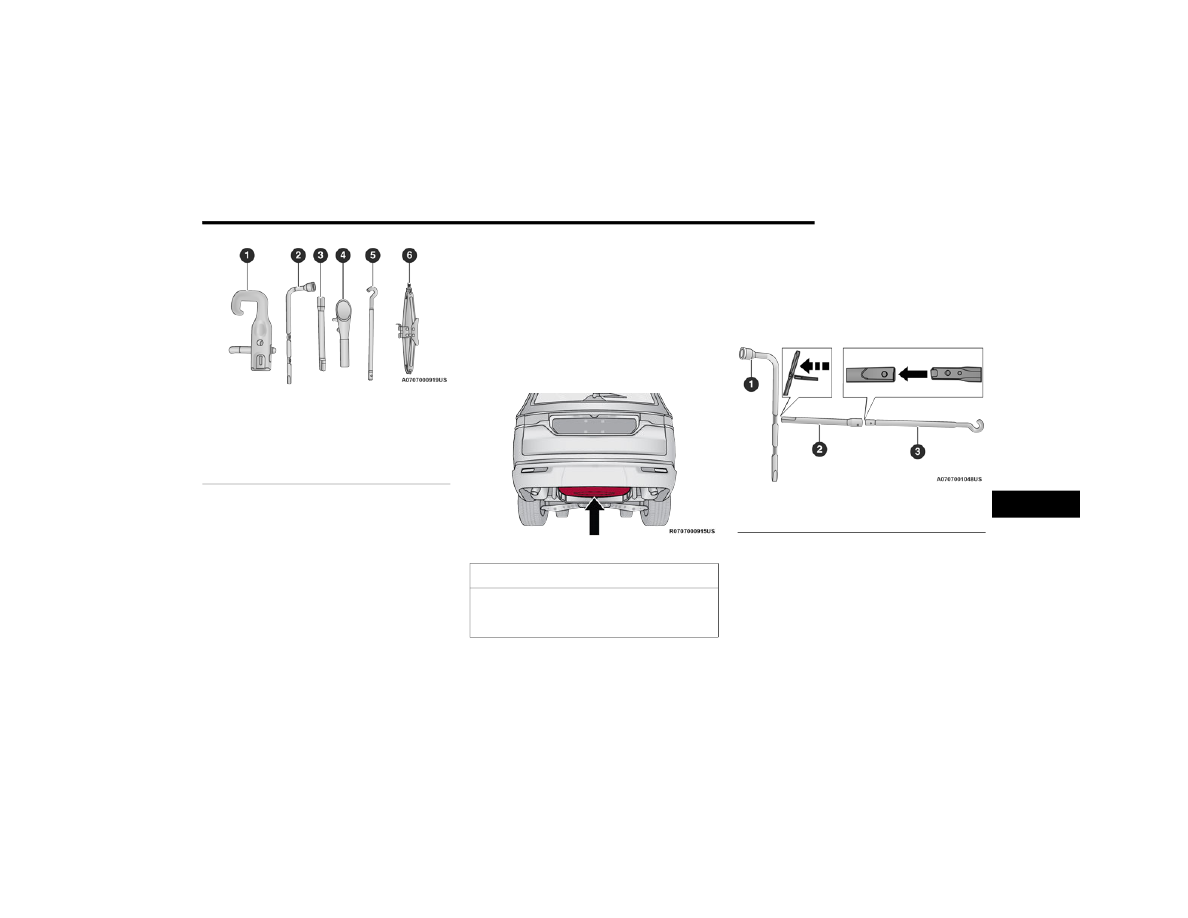

1 — Tow Hook (If Equipped)
2 — Wheel Lug Wrench
3 — Jack Handle Extension
4 — Fuel Funnel
5 — Jack Handle
6 — Scissor Jack

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

1 — Wheel Lug Wrench
2 — Jack Handle Extension
3 — Jack Handle

326

IN CASE OF EMERGENCY

2. Locate and remove plug from the storage

compartment floor to expose the winch access

hole.

Winch Nut Plug

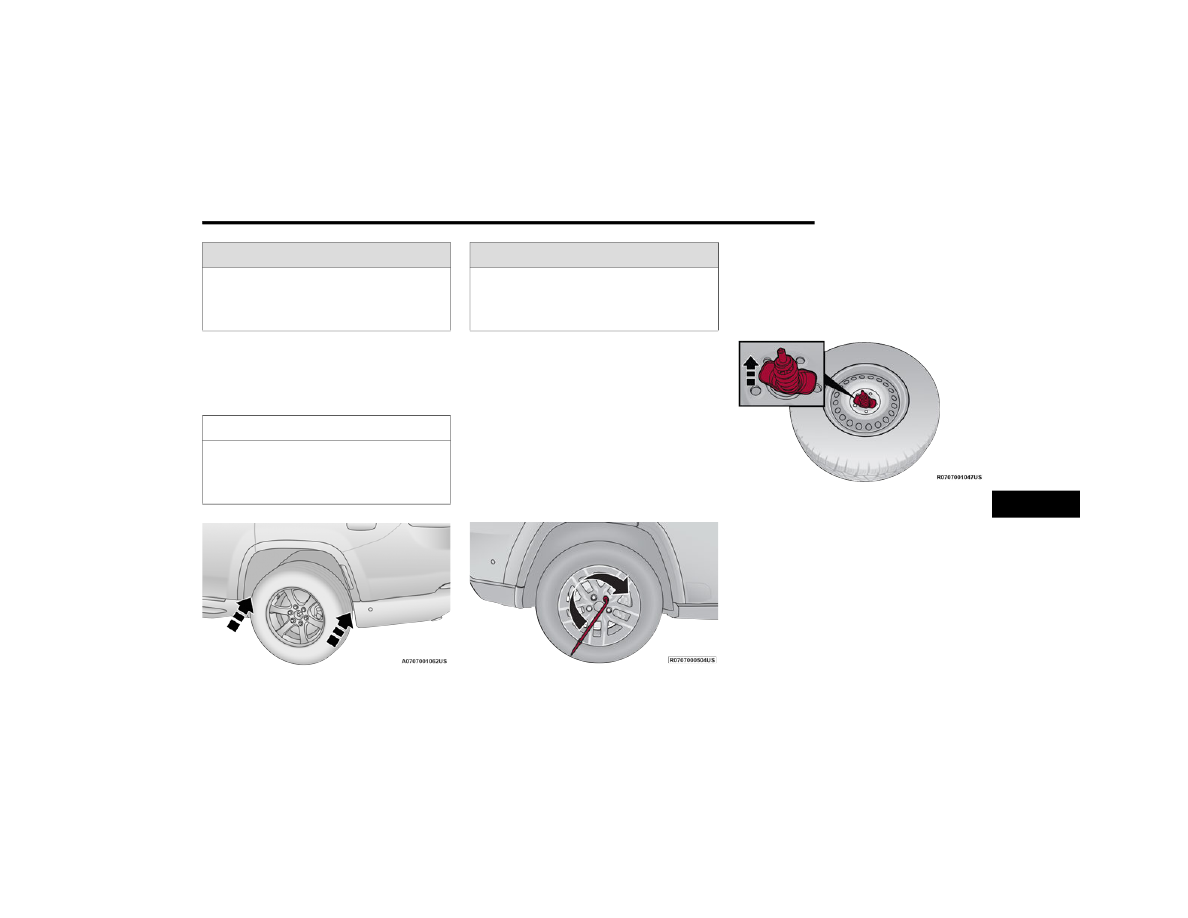

3. Fit the jack handle extension over the drive

nut. Use the wheel lug wrench and extension

to completely lower the spare tire. Keep

turning the handle counterclockwise until the

winch stops.

Winch Drive Nut Location

Wrench Rotation

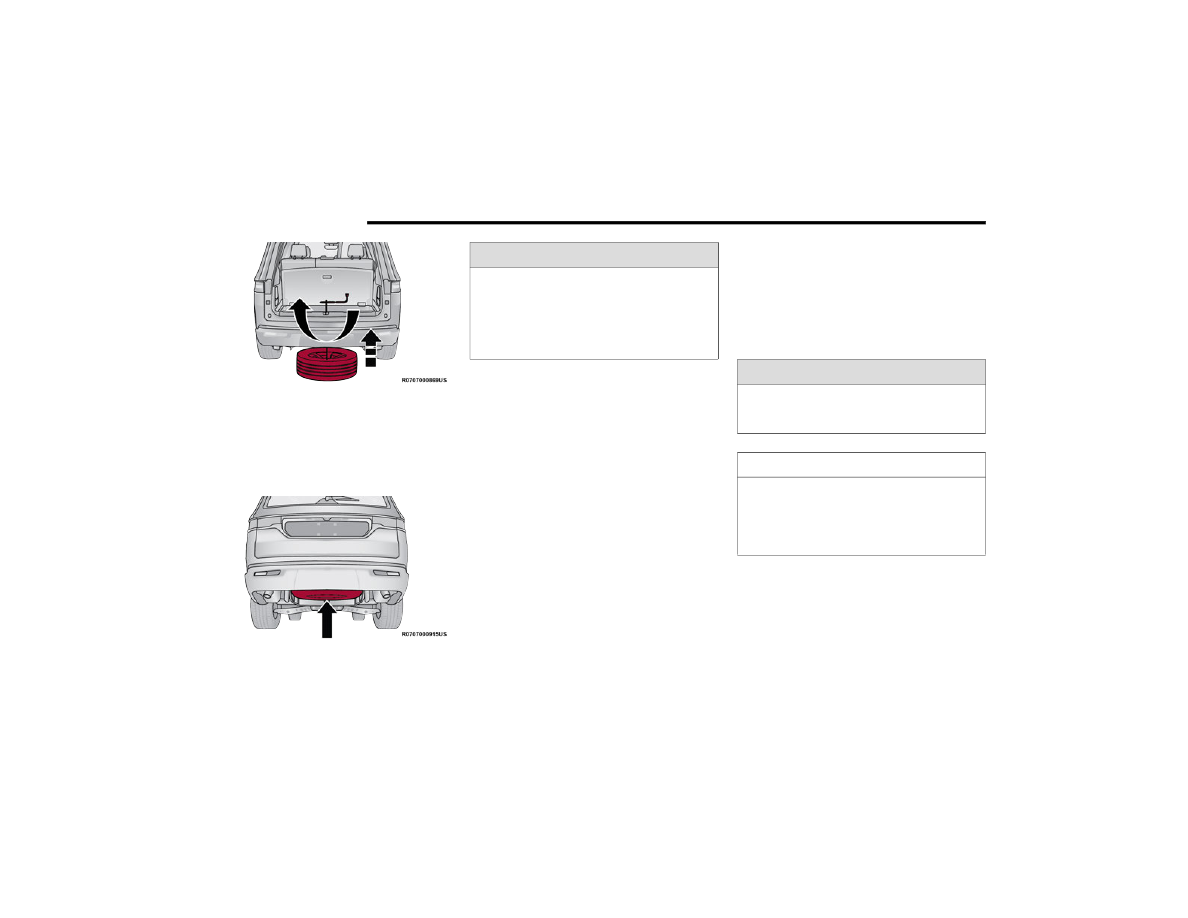

4. Slide the tire out from under the vehicle and

rotate it vertically behind the rear fascia/

bumper.

5. Pull the metal retainer toward you to release it.

Spare Tire Retainer

6. Slide the retainer up the steel extension tube

and winch cable. Rotate the retainer and push

it through the hole in the wheel.

Releasing The Retainer

IN CASE OF EMERGENCY

327

(Continued)

ACKING

NSTRUCTIONS

Jack Warning Label

1. Loosen (but do not remove) the wheel lug

nuts, using the lug wrench by turning them

counterclockwise, one turn, while the wheel is

still on the ground.

Loosen Lug Nuts

2. Assemble the jack and tools

page 325.

Jack And Tool Assembled

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake firmly and set the

transmission in PARK.



Block the wheel diagonally opposite the wheel

to be raised.



Never start or run the engine with the vehicle

on a jack.



Do not let anyone sit in the vehicle when it is

on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.



To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the back of the wheel facing the ground.

WARNING!

328

IN CASE OF EMERGENCY

NOTE:

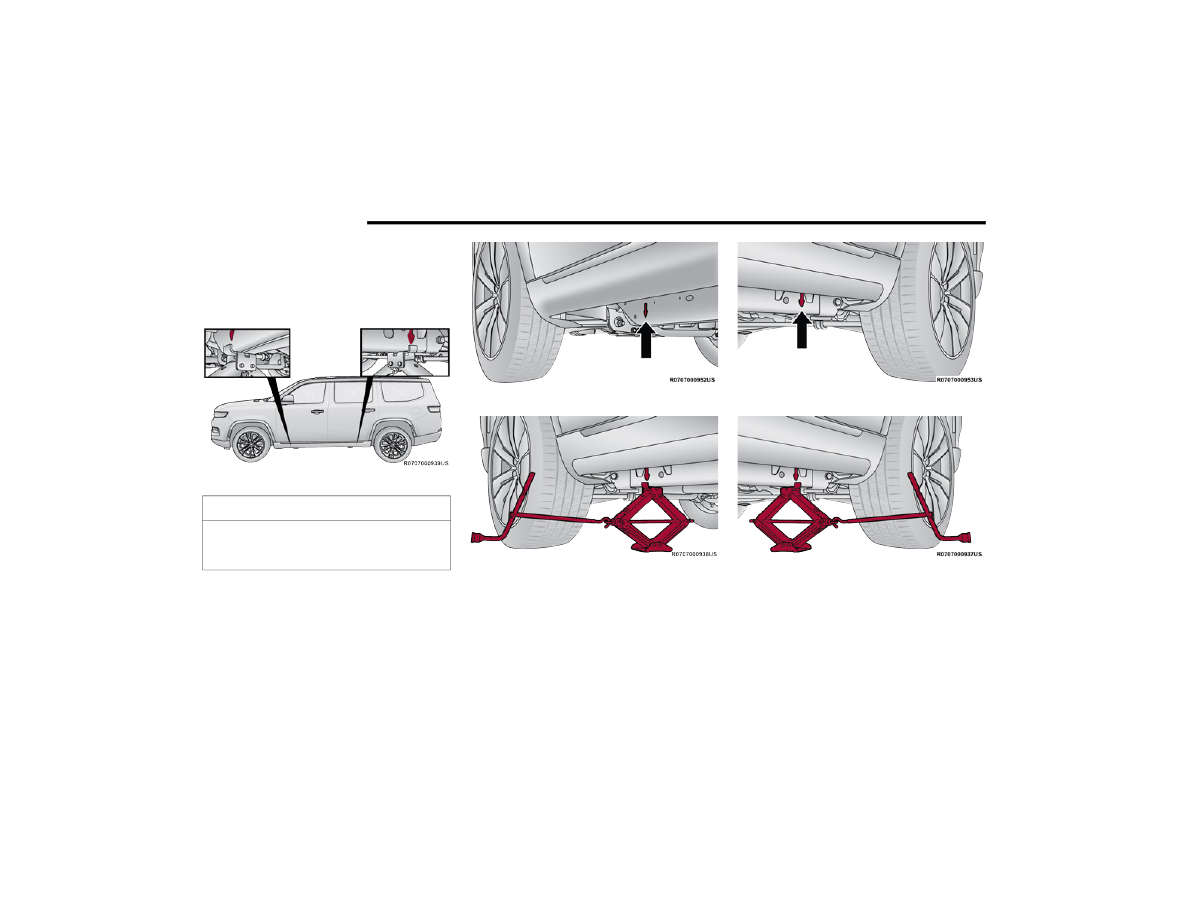

Placement for the front and rear jacking locations

are critical. Keep the jack and tools aligned while

raising the vehicle to prevent tool damage. See

below images for proper jacking locations.

Jacking Locations

3. When changing a front tire, place the scissor

jack under the front chassis lifting point, as

indicated by the triangular lift point symbol

shown below. Do not raise the vehicle until you

are sure the jack is fully engaged.

Front Lifting Point

Front Jacking Location

4. When changing a rear tire, place the scissor

jack under the rear chassis lifting point, as

indicated by the triangular lift point symbol

shown below. Do not raise the vehicle until you

are sure the jack is fully engaged.

Rear Lifting Point

Rear Jacking Location

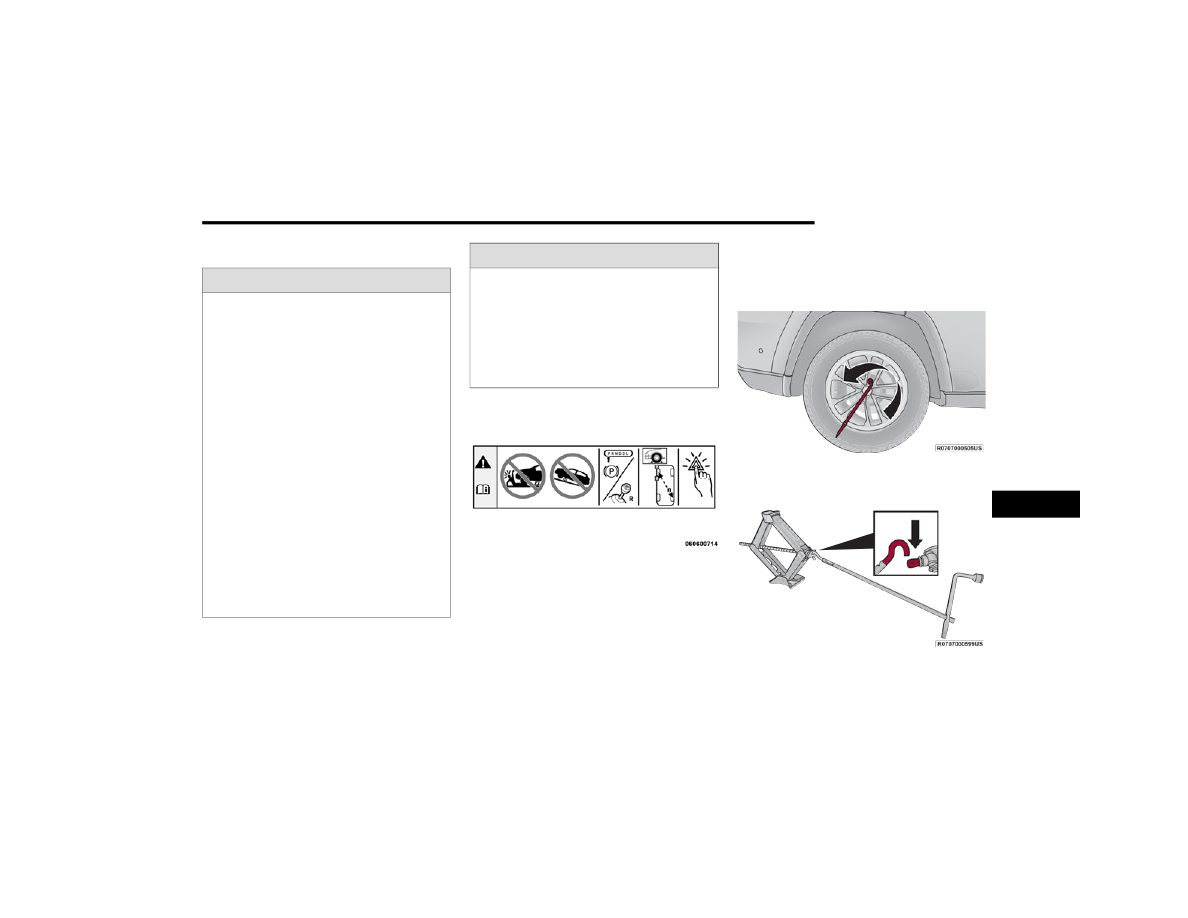

5. Raise the vehicle by using the wheel lug

wrench and jack handle to turn the jack screw

clockwise. Raise the vehicle only until the tire

just clears the surface and enough clearance

is obtained to install the spare tire. Minimum

tire lift provides maximum stability.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

IN CASE OF EMERGENCY

329

6. Remove the lug nuts and wheel.
7. Position the spare wheel/tire on the vehicle

and install the lug nuts with the cone-shaped

end toward the wheel. Lightly tighten the nuts.

Mounting Spare Tire

8. Lower the vehicle by turning the jack screw

counterclockwise, and remove the jack and

wheel blocks.

9. Finish tightening the lug nuts. Push down on

the wrench while at the end of the handle for

increased leverage. Tighten the lug nuts in a

star pattern until each nut has been tightened

twice. For correct lug nut torque

page 403.

If in doubt about the correct tightness, have

them checked with a torque wrench by an

authorized dealer or at a service station.

Tighten Lug Nuts

10. Position the wheel behind the rear fascia/

bumper with the valve stem facing inward.

Push the end of the winch’s cable, spring and

steel sleeve through the front side of the road

wheel. Making sure the back of the wheel is

facing the ground when the wheel is stowed.

Installing Winch

11. Slide the road wheel on the ground until it is

directly under the winch and between the rear

fascia/bumper and exhaust system heat

shields. Raise the tire by turning the lug

wrench on the winch extension clockwise until

it clicks/ratchets three times to make sure the

cable is tight.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the inflatable spare tire is mounted

incorrectly.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

330

IN CASE OF EMERGENCY

Storing Of Road Wheel

NOTE:

Double check to ensure the tire is snug against the

underbody of the vehicle. Damage to the winch

cable may result if the vehicle is driven with the tire

loose.

Road Wheel Stowage

12. Lower the jack to the fully closed position.
13. Return the Jack and tools back into the jack

storage bin. Reinstall the jack storage cover by

firmly pushing down until the clips lock into

position.

14. After 25 miles (40 km), check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

15. Have the road wheel and tire repaired as soon

as possible and properly secure the spare tire,

jack and tool kit.

NOTE:

Do not drive with the spare tire installed for more

than 50 miles (80 km) at a max speed of 50 mph

(80 km/h).

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer's operating instructions and

precautions.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

IN CASE OF EMERGENCY

331

(Continued)

REPARATIONS

UMP

TART

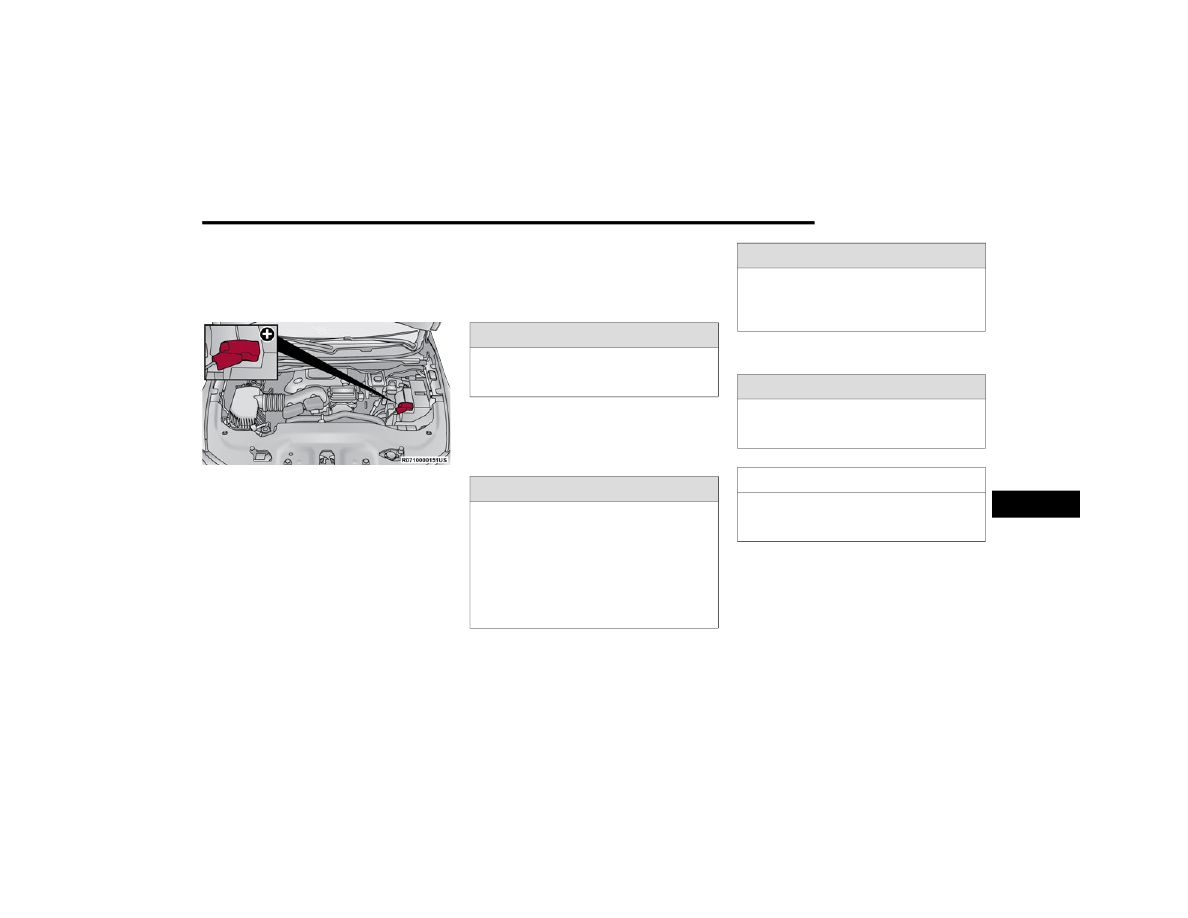

The battery in your vehicle is located in the front of

the engine compartment, behind the left headlight

assembly.

Positive (+) Jump Starting Post

NOTE:

The positive (+) battery post may be covered with a

protective cap. Lift up on the cap to gain access to

the positive battery post. Do not jump off fuses.

Only jump directly off positive post which has a

positive (+) symbol on or around the post.
See below steps to prepare for jump starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) and turn the

ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cables’ reach, apply the parking brake and

make sure the ignition is OFF.

NOTE:

Be sure that the disconnected cable ends do not

touch each other, or either vehicle, until properly

connected for jump starting.

UMP

TARTING

ROCEDURE

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either

vehicle while making connections.

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

332

IN CASE OF EMERGENCY

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the positive (+) post of the discharged

vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to a good engine ground. A

“ground” is an exposed metallic/unpainted

part of the engine, frame or chassis, such as

an accessory bracket or large bolt. The ground

must be away from the battery and the fuel

injection system.

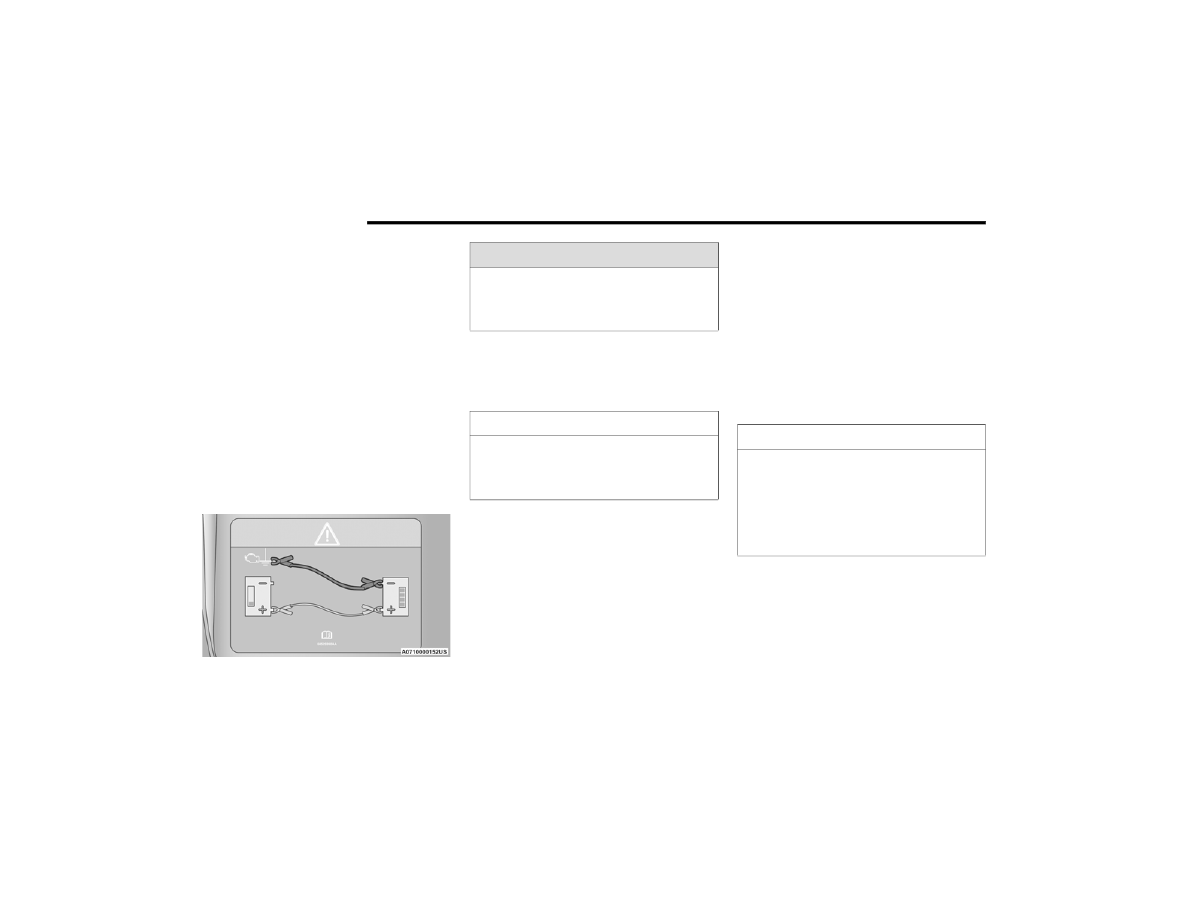

Jump Starting Label

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, follow the discon

necting procedure below.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the engine ground of the vehicle

with the discharged battery.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the positive (+) post of the

discharged vehicle.

5. Reinstall the protective cover over the positive

(+) post of the discharged vehicle.

If frequent jump starting is required to start your

vehicle have the battery and charging system

tested at an authorized dealer.

WARNING!

Do not connect the jumper cable to the negative

(-) post of the discharged battery. The resulting

electrical spark could cause the battery to

explode and could result in personal injury.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging

benefit, wastes fuel, and can damage booster

vehicle engine.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

Jeep Wagoneer (2022 year). Manual in english - page 20
