SAFETY

285

(Continued)



It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seri

ously injured or killed.



Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.



Be sure everyone in your vehicle is in a seat and

using a seat belt properly. Occupants, including

the driver, should always wear their seat belts

whether or not an air bag is also provided at

their seating position to minimize the risk of

severe injury or death in the event of a crash.



Wearing your seat belt incorrectly could make

your injuries in a collision much worse. You

might suffer internal injuries, or you could

even slide out of the seat belt. Follow these

instructions to wear your seat belt safely and

to keep your passengers safe, too.



Two people should never be belted into a

single seat belt. People belted together can

crash into one another in a collision, hurting

one another badly. Never use a lap/shoulder

belt or a lap belt for more than one person, no

matter what their size.

WARNING!



A lap belt worn too high can increase the risk

of injury in a collision. The seat belt forces

won’t be at the strong hip and pelvic bones,

but across your abdomen. Always wear the lap

part of your seat belt as low as possible and

keep it snug.



A twisted seat belt may not protect you prop

erly. In a collision, it could even cut into you.

Be sure the seat belt is flat against your body,

without twists. If you can’t straighten a seat

belt in your vehicle, take it to an authorized

dealer immediately and have it fixed.



A seat belt that is buckled into the wrong

buckle will not protect you properly. The lap

portion could ride too high on your body,

possibly causing internal injuries. Always

buckle your seat belt into the buckle nearest

you.



A seat belt that is too loose will not protect you

properly. In a sudden stop, you could move too

far forward, increasing the possibility of injury.

Wear your seat belt snugly.



A seat belt that is worn under your arm is

dangerous. Your body could strike the inside

surfaces of the vehicle in a collision, increasing

head and neck injury. A seat belt worn under

the arm can cause internal injuries. Ribs aren’t

as strong as shoulder bones. Wear the seat belt

over your shoulder so that your strongest bones

will take the force in a collision.



A shoulder belt placed behind you will not

protect you from injury during a collision. You

are more likely to hit your head in a collision if

you do not wear your shoulder belt. The lap and

shoulder belt are meant to be used together.



A frayed or torn seat belt could rip apart in a

collision and leave you with no protection.

Inspect the seat belt system periodically,

checking for cuts, frays, or loose parts.

Damaged parts must be replaced immedi

ately. Do not disassemble or modify the seat

belt system. If your vehicle is involved in a

collision, or if you have questions regarding

seat belt or retractor conditions, take your

vehicle to an authorized FCA dealer or autho

rized FCA Certified Collision Care Program

facility for inspection.

WARNING!

286

SAFETY

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back

and adjust the seat.

2. The seat belt latch plate is above the back of

the front seat, and next to your arm in the rear

seat (for vehicles equipped with a rear seat).

Grab the latch plate and pull out the seat belt.

Slide the latch plate up the webbing as far as

necessary to allow the seat belt to go around

your lap.

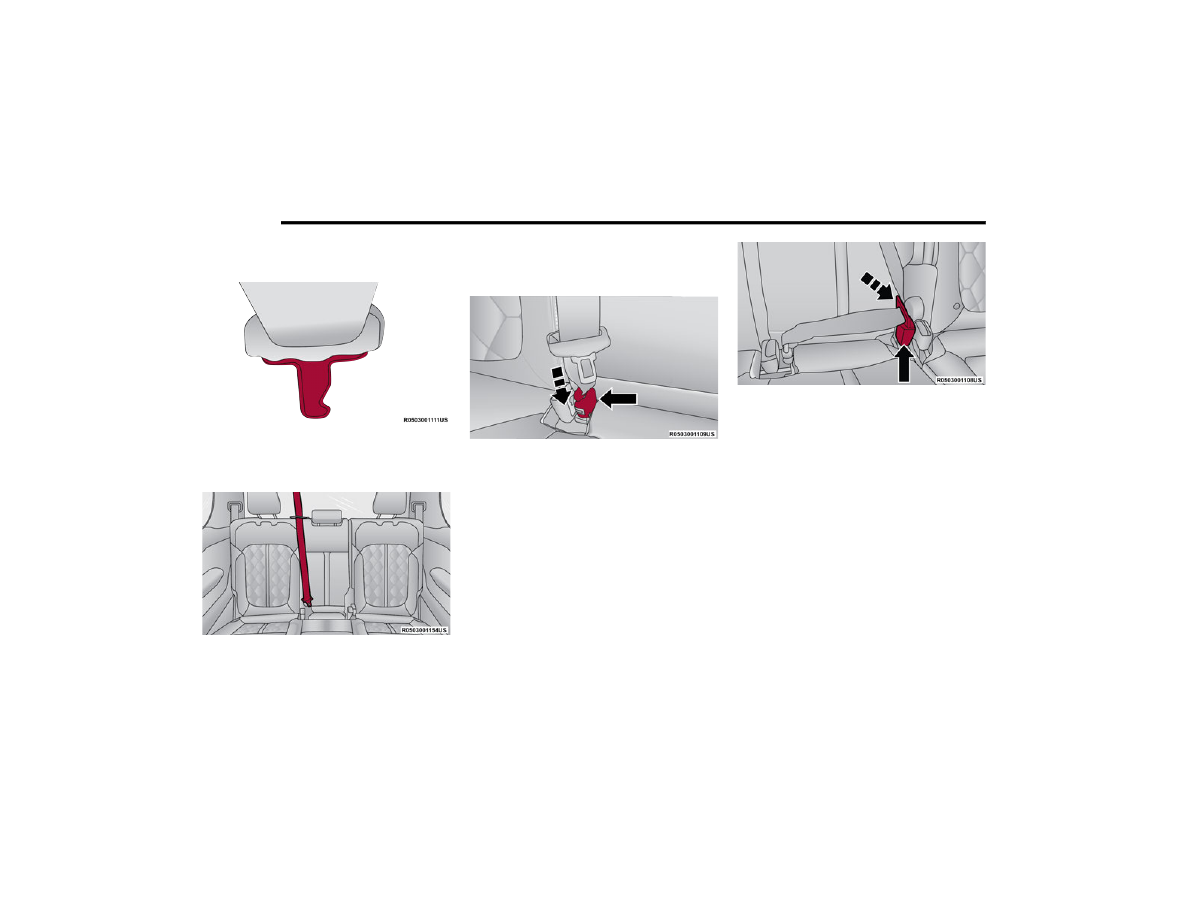

Pulling Out The Latch Plate

3. When the seat belt is long enough to fit, insert

the latch plate into the buckle until you hear a

“click.”

Inserting Latch Plate Into Buckle

4. Position the lap belt so that it is snug and lies

low across your hips, below your abdomen. To

remove slack in the lap belt portion, pull up on

the shoulder belt. To loosen the lap belt if it is

too tight, tilt the latch plate and pull on the lap

belt. A snug seat belt reduces the risk of sliding

under the seat belt in a collision.

Positioning The Lap Belt

5. Position the shoulder belt across the shoulder

and chest with minimal, if any slack so that it

is comfortable and not resting on your neck.

The retractor will withdraw any slack in the

shoulder belt.

6. To release the seat belt, push the red button

on the buckle. The seat belt will automatically

retract to its stowed position. If necessary,

slide the latch plate down the webbing to allow

the seat belt to retract fully.

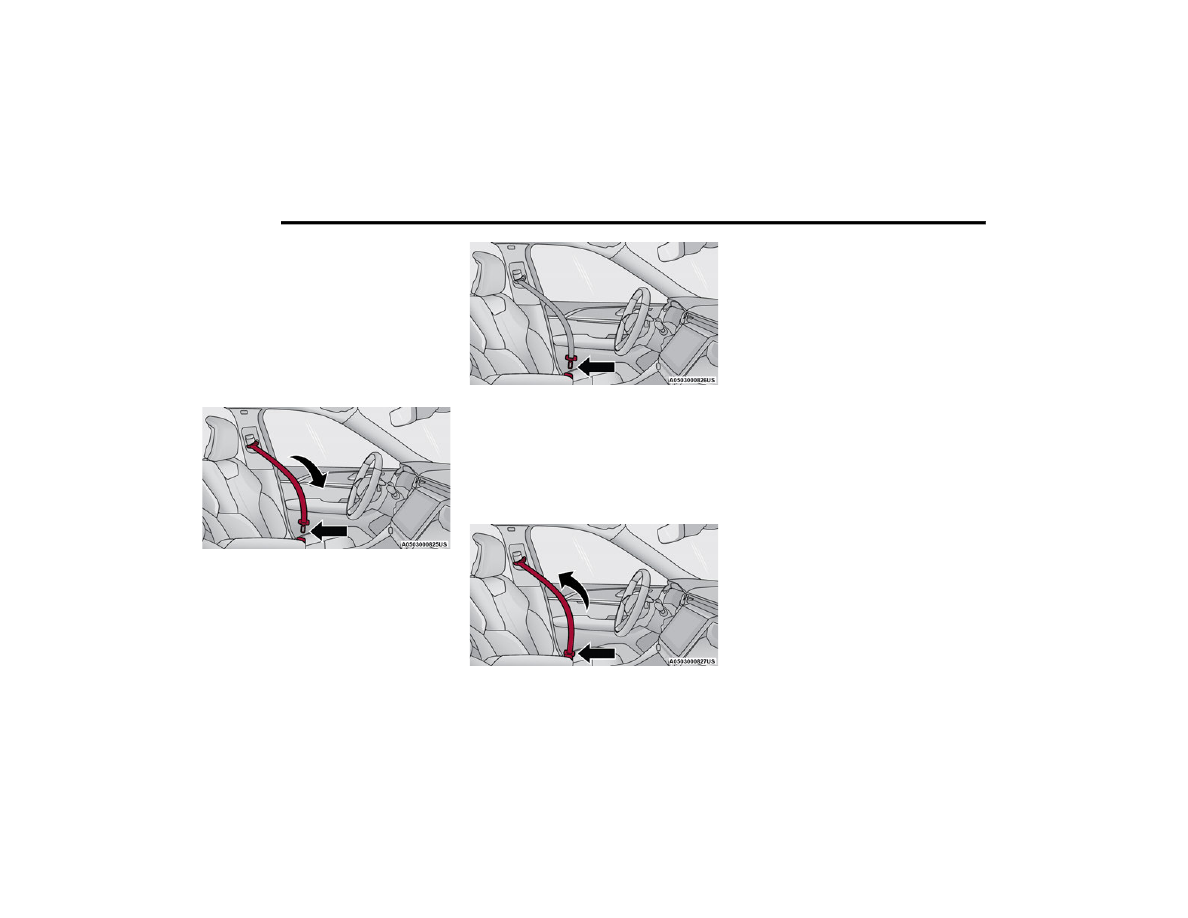

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted

lap/shoulder belt.
1. Position the latch plate as close as possible to

the anchor point.

2. At about 6 to 12 inches (15 to 30 cm) above

the latch plate, grab and twist the seat belt

webbing 180 degrees to create a fold that

begins immediately above the latch plate.

3. Slide the latch plate upward over the folded

webbing. The folded webbing must enter the

slot at the top of the latch plate.

4. Continue to slide the latch plate up until it

clears the folded webbing and the seat belt is

no longer twisted.

SAFETY

287

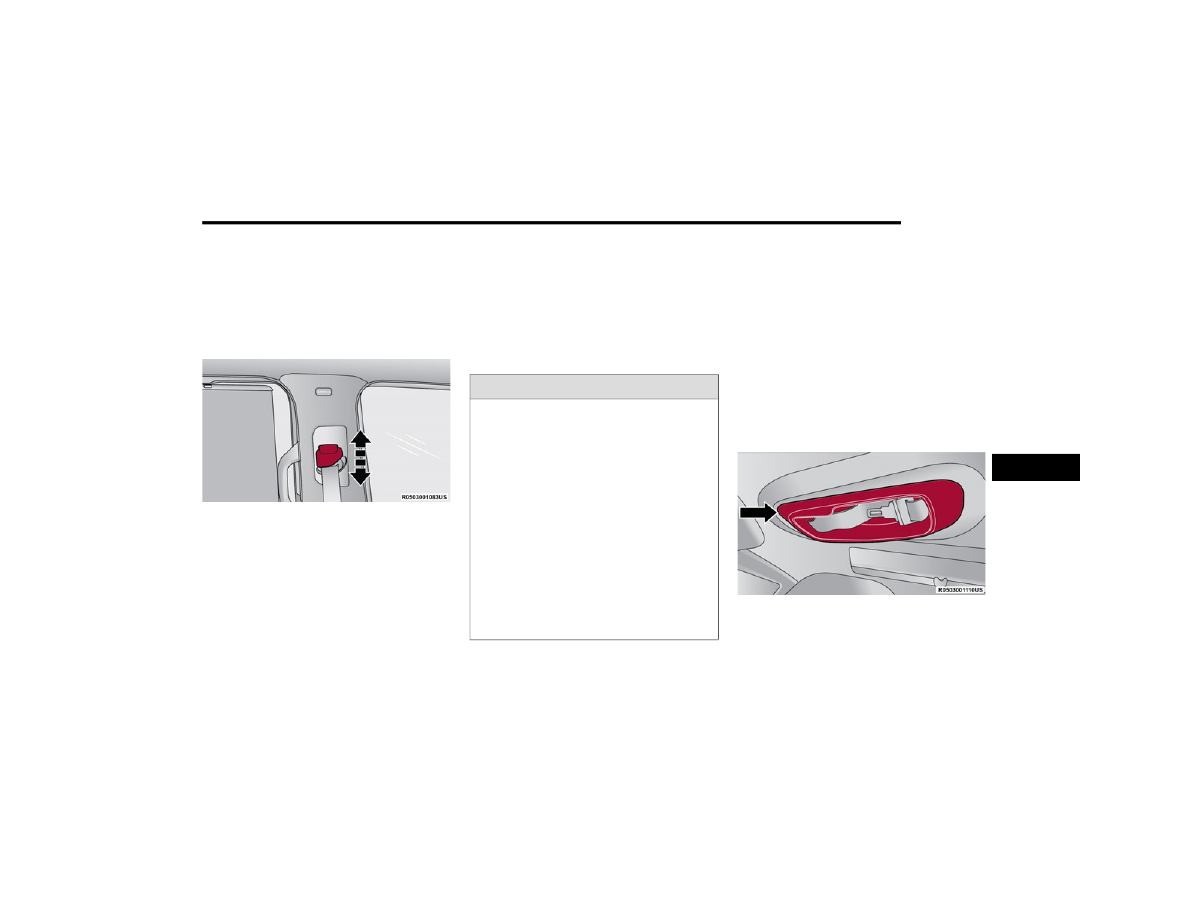

Adjustable Upper Shoulder Belt Anchorage

In the driver and outboard front passenger seats,

the top of the shoulder belt can be adjusted

upward or downward to position the seat belt away

from your neck. Push or squeeze the anchorage

button to release the anchorage, and move it up or

down to the position that serves you best.

Adjustable Upper Anchorage

As a guide, if you are shorter than average, you will

prefer the shoulder belt anchorage in a lower

position, and if you are taller than average, you will

prefer the shoulder belt anchorage in a higher

position. After you release the anchorage button,

try to move it up or down to make sure that it is

locked in position.

NOTE:

The adjustable upper shoulder belt anchorage is

equipped with an Easy Up feature. This feature

allows the shoulder belt anchorage to be adjusted

in the upward position without pushing or

squeezing the release button. To verify the

shoulder belt anchorage is latched, pull downward

on the shoulder belt anchorage until it is locked

into position.

Third Row Center Seat Belt Operating

Instructions

The third row center seat belts feature a seat belt

with a mini-latch plate and buckle, which allows

the seat belt to detach from the lower anchor when

the seat is folded. The mini-latch plate and regular

latch plate can then be stored out of the way in the

headliner for added convenience to open up

utilization of the storage areas behind the front

seats when the seat is not occupied.
1. Remove the mini-latch plate and regular latch

plate from its stowed position in the headliner

slightly behind third row seat.

Mini-Latch Stowage

WARNING!



Wearing your seat belt incorrectly could make

your injuries in a collision much worse. You

might suffer internal injuries, or you could

even slide out of the seat belt. Follow these

instructions to wear your seat belt safely and

to keep your passengers safe, too.



Position the shoulder belt across the shoulder

and chest with minimal, if any slack so that it

is comfortable and not resting on your neck.

The retractor will withdraw any slack in the

shoulder belt.



Misadjustment of the seat belt could reduce

the effectiveness of the safety belt in a crash.



Always make all seat belt height adjustments

when the vehicle is stationary.

288

SAFETY

2. Grab the mini-latch plate and pull the seat belt

over the seat.

Mini-Latch Plate

3. Route the shoulder belt to the inside of the

right head restraint.

Routing The Rear Seat Belt Latch Plate

4. When the seat belt is long enough to fit, insert

the mini-latch plate into the mini-buckle until

you hear a “click.”

Connect Mini-Latch To Mini-Buckle

5. Sit back in seat. Slide the regular latch plate up

the webbing as far as necessary to allow the

seat belt to go around your lap.

6. When the seat belt is long enough to fit, insert

the latch plate into the buckle until you hear a

“click.”

Rear Center Seat Belt Buckled

7. Position the lap belt so that it is snug and lies

low across your hips, below your abdomen. To

remove slack in the lap belt portion, pull up on

the shoulder belt. To loosen the lap belt if it is

too tight, pull on the lap belt. A snug seat belt

reduces the risk of sliding under the seat belt

in a collision.

8. Position the shoulder belt on your chest so that

it is comfortable and not resting on your neck.

The retractor will withdraw any slack in the

seat belt.

SAFETY

289

(Continued)

9. To release the seat belt, push the red button

on the buckle.

10. To disengage the mini-latch plate from the

mini-buckle for storage, insert the regular latch

plate into the center slot on the mini-buckle.

The seat belt will automatically retract to its

stowed position. If necessary, slide the latch

plate down the webbing to allow the seat belt

to retract fully. Insert the mini-latch plate and

regular latch plate into its stowed position.

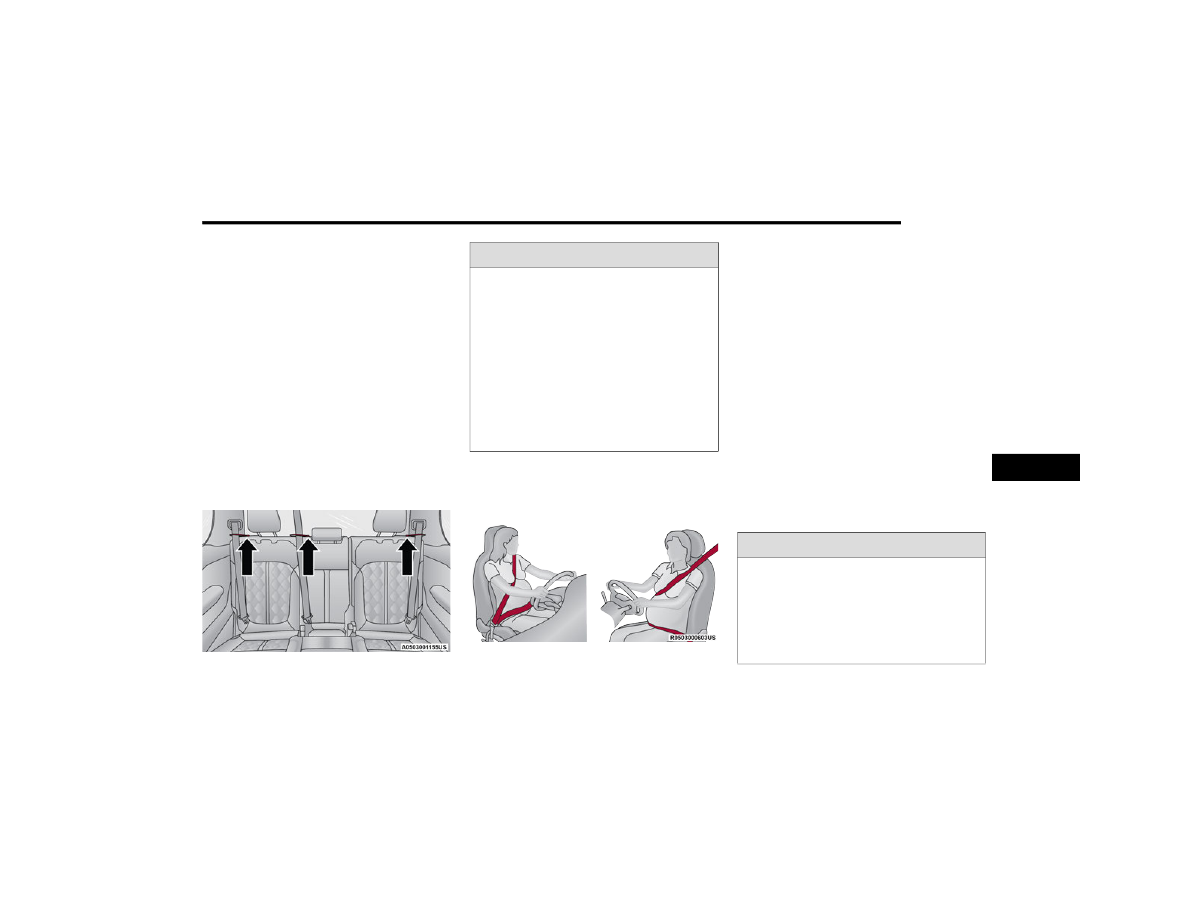

Third Row Belt Guides

NOTE:

There are three belt guides located on the top of

the seat backs, one for each seating position in the

third row. They can be used to keep the shoulder

belt in a fixed position for additional comfort, if

needed.

Seat Belts And Pregnant Women

Seat belts must be worn by all occupants including

pregnant women: the risk of injury in the event of

an accident is reduced for the mother and the

unborn child if they are wearing a seat belt.
Position the lap belt snug and low below the

abdomen and across the strong bones of the hips.

Place the shoulder belt across the chest and away

from the neck. Never place the shoulder belt

behind the back or under the arm.

Seat Belt Extender

If a seat belt is not long enough to fit properly, even

when the webbing is fully extended and the

adjustable upper shoulder belt anchorage (if

equipped) is in its lowest position, an authorized

dealer can provide you with a Seat Belt Extender.

The Seat Belt Extender should be used only if the

existing seat belt is not long enough. When the

Seat Belt Extender is not required for a different

occupant, it must be removed.

WARNING!



If the mini-latch plate and mini-buckle are not

properly connected when the seat belt is used

by an occupant, the seat belt will not be able

to provide proper restraint and will increase

the risk of injury in a collision.



When reattaching the mini-latch plate and

mini-buckle, ensure the seat belt webbing is

not twisted. If the webbing is twisted, follow

the preceding procedure to detach the

mini-latch plate and mini-buckle, untwist the

webbing, and reattach the mini-latch plate

and mini-buckle.

WARNING!



ONLY use a Seat Belt Extender if it is physically

required in order to properly fit the original

seat belt system. DO NOT USE the Seat Belt

Extender if, when worn, the distance between

the front edge of the Seat Belt Extender

buckle and the center of the occupant’s body

is LESS than 6 inches.

290

SAFETY

Seat Belt Pretensioner

The front outboard seat belt system is equipped

with pretensioning devices that are designed to

remove slack from the seat belt in the event of a

collision. These devices may improve the

performance of the seat belt by removing slack

from the seat belt early in a collision. Pretensioners

work for all size occupants, including those in child

restraints.

NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt still

must be worn snugly and positioned properly.
The pretensioners are triggered by the Occupant

Restraint Controller (ORC). Like the air bags, the

pretensioners are single use items. A deployed

pretensioner or a deployed air bag must be

replaced immediately.

Energy Management Feature

The front outboard seat belt system is equipped

with an Energy Management feature that may help

further reduce the risk of injury in the event of a

collision. The seat belt system has a retractor

assembly that is designed to release webbing in a

controlled manner.

Switchable Automatic Locking Retractor

(ALR)

The seat belts in the passenger seating positions

are equipped with a Switchable Automatic Locking

Retractor (ALR) which is used to secure a child

restraint system

page 311.

The figure below illustrates the locking feature for

each seating position.

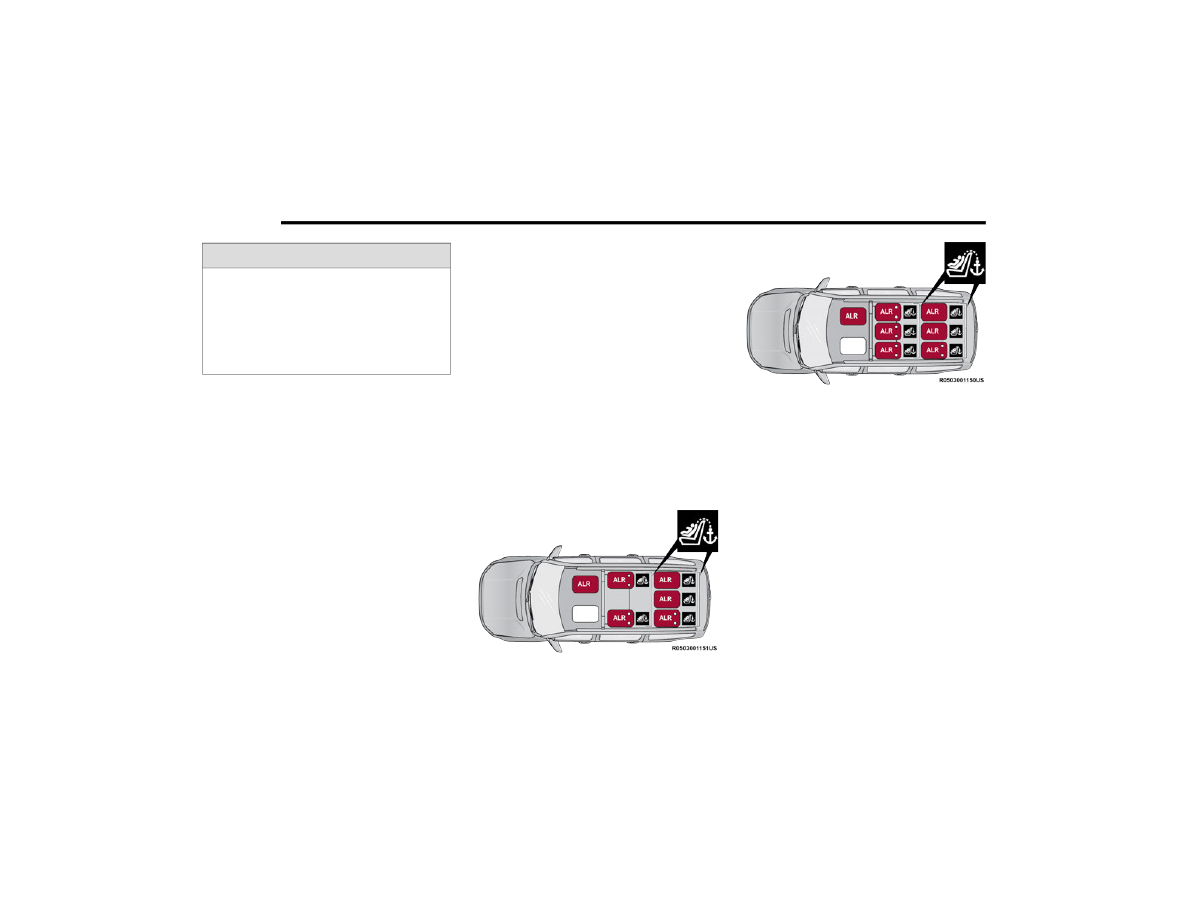

Captain's Chairs Second Row (7 Passenger) Automatic

Locking Retractor (ALR) Locations

Second Row Bench (8 Passenger) Automatic Locking

Retractor (ALR) Locations

If the passenger seating position is equipped with

an ALR and is being used for normal usage, only

pull the seat belt webbing out far enough to

comfortably wrap around the occupant’s

mid-section so as to not activate the ALR. If the ALR

is activated, you will hear a clicking sound as the

seat belt retracts. Allow the webbing to retract

completely in this case and then carefully pull out

only the amount of webbing necessary to

comfortably wrap around the occupant’s

mid-section. Slide the latch plate into the buckle

until you hear a "click”.



Using a Seat Belt Extender when not needed

can increase the risk of serious injury or death

in a collision. Only use the Seat Belt Extender

when the lap belt is not long enough and only

use in the recommended seating positions.

Remove and store the Seat Belt Extender

when not needed.

WARNING!

SAFETY

291

In Automatic Locking Mode, the shoulder belt is

automatically pre-locked. The seat belt will still

retract to remove any slack in the shoulder belt.

Use the Automatic Locking Mode anytime a child

restraint is installed in a seating position that has

a seat belt with this feature. Children 12 years old

and under should always be properly restrained in

the rear seat of a vehicle with a rear seat.

How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grab the shoulder portion and pull downward

until the entire seat belt is extracted.

3. Allow the seat belt to retract. As the seat belt

retracts, you will hear a clicking sound. This

indicates the seat belt is now in the Automatic

Locking Mode.

How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and

allow it to retract completely to disengage the

Automatic Locking Mode and activate the vehicle

sensitive (emergency) locking mode.

UPPLEMENTAL

ESTRAINT

YSTEMS

(SRS)

Some of the safety features described in this

section may be standard equipment on some

models, or may be optional equipment on others. If

you are not sure, ask an authorized dealer.

The air bag system must be ready to protect you in

a collision. The Occupant Restraint Controller

(ORC) monitors the internal circuits and

interconnecting wiring associated with the

electrical Air Bag System Components. Your

vehicle may be equipped with the following Air Bag

System Components:

Air Bag System Components



Occupant Restraint Controller (ORC)



Air Bag Warning Light



Steering Wheel and Column



Instrument Panel



Knee Impact Bolsters



Driver and Front Passenger Air Bags



Seat Belt Buckle Switch



Supplemental Side Air Bags



Supplemental Knee Air Bags



Front and Side Impact Sensors



Seat Belt Pretensioners



Seat Track Position Sensors



Occupant Classification System

WARNING!



Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious injury

to a child 12 years or younger, including a

child in a rear-facing child restraint.



Never install a rear-facing child restraint in the

front seat of a vehicle. Only use a rear-facing

child restraint in the rear seat. If the vehicle

does not have a rear seat, do not transport a

rear-facing child restraint in that vehicle.

WARNING!



The seat belt assembly must be replaced if the

switchable Automatic Locking Retractor (ALR)

feature or any other seat belt function is not

working properly when checked according to

the procedures in the Service Manual.



Failure to replace the seat belt assembly

could increase the risk of injury in collisions.



Do not use the Automatic Locking Mode to

restrain occupants who are wearing the seat

belt or children who are using booster seats.

The locked mode is only used to install

rear-facing or forward-facing child restraints

that have a harness for restraining the child.

292

SAFETY

Air Bag Warning Light

The Occupant Restraint Controller (ORC)

monitors the readiness of the electronic

parts of the air bag system whenever the

ignition switch is in the START or ON/

RUN position. If the ignition switch is in the OFF

position, the air bag system is not on and the air

bags will not inflate.
The ORC contains a backup power supply system

that may deploy the air bag system even if the

battery loses power or it becomes disconnected

prior to deployment.
The ORC turns on the Air Bag Warning Light in the

instrument panel for approximately four to eight

seconds for a self-check when the ignition switch is

first in the ON/RUN position. After the self-check,

the Air Bag Warning Light will turn off. If the ORC

detects a malfunction in any part of the system, it

turns on the Air Bag Warning Light, either

momentarily or continuously. A single chime will

sound to alert you if the light comes on again after

initial startup.
The ORC also includes diagnostics that will

illuminate the instrument panel Air Bag Warning

Light if a malfunction is detected that could affect

the air bag system. The diagnostics also record the

nature of the malfunction. While the air bag system

is designed to be maintenance free, if any of the

following occurs, have an authorized dealer

service the air bag system immediately.



The Air Bag Warning Light does not come on

during the four to eight seconds when the igni

tion switch is first in the ON/RUN position.



The Air Bag Warning Light remains on after the

four to eight-second interval.



The Air Bag Warning Light comes on intermit

tently or remains on while driving.

NOTE:

If the speedometer, tachometer, or any engine

related gauges are not working, the Occupant

Restraint Controller (ORC) may also be disabled. In

this condition the air bags may not be ready to

inflate for your protection. Have an authorized

dealer service the air bag system immediately.

Redundant Air Bag Warning Light

If a fault with the Air Bag Warning Light

is detected, which could affect the

Supplemental Restraint System (SRS),

the Redundant Air Bag Warning Light

will illuminate on the instrument panel. The

Redundant Air Bag Warning Light will stay on until

the fault is cleared. In addition, a single chime will

sound to alert you that the Redundant Air Bag

Warning Light has come on and a fault has been

detected. If the Redundant Air Bag Warning Light

comes on intermittently or remains on while driving

have an authorized dealer service the vehicle

immediately

page 104.

Front Air Bags

This vehicle has front air bags and lap/shoulder

belts for both the driver and front passenger. The

front air bags are a supplement to the seat belt

restraint systems. The driver front air bag is

mounted in the center of the steering wheel. The

passenger front air bag is mounted in the

instrument panel, above the glove compartment.

The words “SRS AIRBAG” or “AIRBAG” are

embossed on the air bag covers.

WARNING!

Ignoring the Air Bag Warning Light in your

instrument panel could mean you won’t have the

air bag system to protect you in a collision. If the

light does not come on as a bulb check when the

ignition is first turned on, stays on after you start

the vehicle, or if it comes on as you drive, have

an authorized dealer service the air bag system

immediately.

SAFETY

293

(Continued)

Front Air Bag/Knee Bolster Locations

Driver And Passenger Front Air Bag

Features

The Advanced Front Air Bag system has multistage

driver and front passenger air bags. This system

provides output appropriate to the severity and

type of collision as determined by the Occupant

Restraint Controller (ORC), which may receive

information from the front impact sensors (if

equipped) or other system components.
The first stage inflator is triggered immediately

during an impact that requires air bag deployment.

A low energy output is used in less severe

collisions. A higher energy output is used for more

severe collisions.

This vehicle may be equipped with a driver and/or

front passenger seat belt buckle switch that detects

whether the driver or front passenger seat belt is

buckled. The seat belt buckle switch may adjust the

inflation rate of the Advanced Front Air Bags.
This vehicle may be equipped with driver and/or

front passenger seat track position sensors that

may adjust the inflation rate of the Advanced Front

Air Bags based upon seat position.
This vehicle is equipped with a right front

passenger Occupant Classification System (“OCS”)

that is designed to provide Passenger Advanced

Front Air Bag output appropriate to the occupant’s

seated weight input, as determined by the OCS.

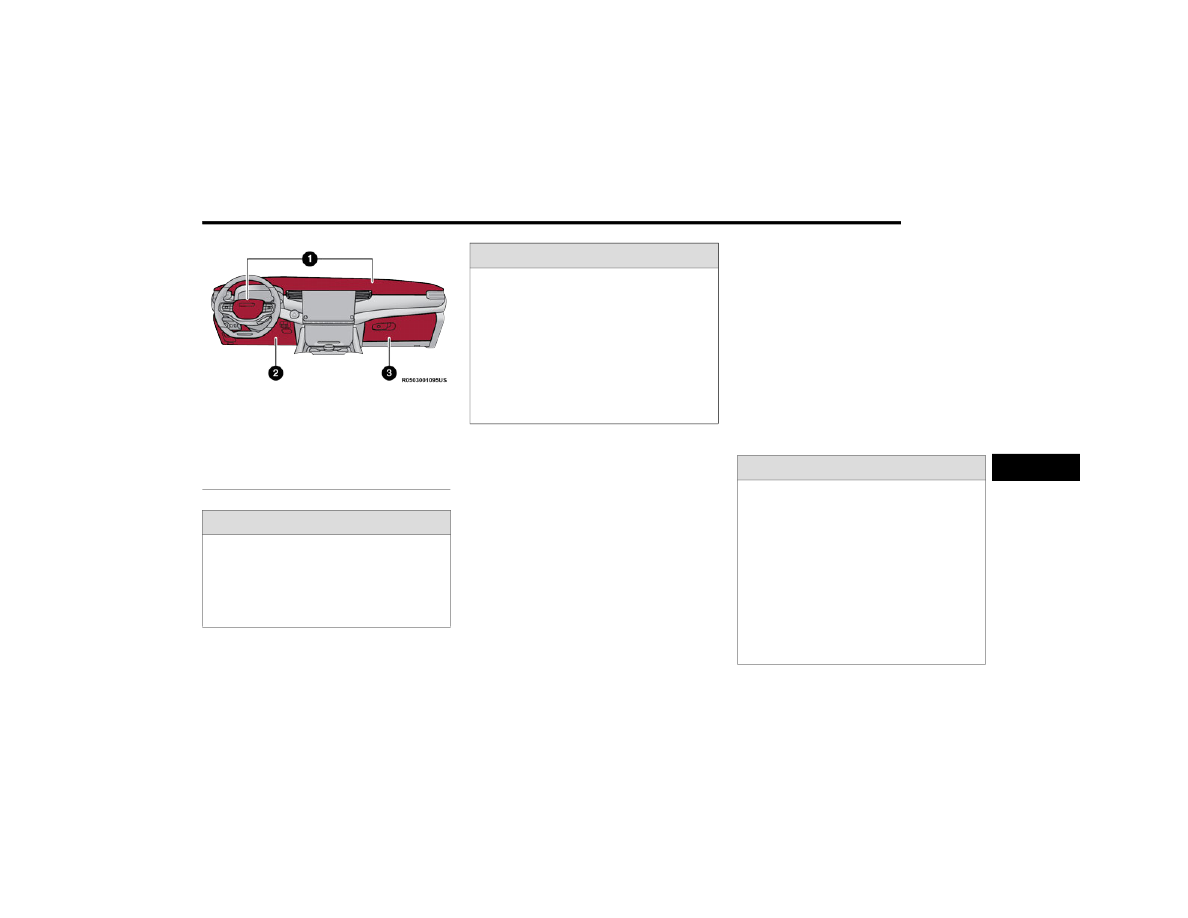

1 — Driver And Passenger Front Air Bags
2 — Driver Knee Impact Bolster/Supplemental

Driver Knee Air Bag
3 — Passenger Knee Impact Bolster/

Supplemental Passenger Knee Air Bag

WARNING!



Being too close to the steering wheel or instru

ment panel during front air bag deployment

could cause serious injury, including death. Air

bags need room to inflate. Sit back, comfort

ably extending your arms to reach the steering

wheel or instrument panel.



Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious injury

to a child 12 years or younger, including a

child in a rear-facing child restraint.



Never install a rear-facing child restraint in the

front seat of a vehicle. Only use a rear-facing

child restraint in the rear seat. If the vehicle

does not have a rear seat, do not transport a

rear-facing child restraint in that vehicle.

WARNING!



No objects should be placed over or near the

air bag on the instrument panel or steering

wheel because any such objects could cause

harm if the vehicle is in a collision severe

enough to cause the air bag to inflate.



Do not put anything on or around the air bag

covers or attempt to open them manually. You

may damage the air bags and you could be

injured because the air bags may no longer be

functional. The protective covers for the air

bag cushions are designed to open only when

the air bags are inflating.

294

SAFETY

Front Air Bag Operation

Front Air Bags are designed to provide additional

protection by supplementing the seat belts. Front

air bags are not expected to reduce the risk of

injury in rear, side, or rollover collisions. The front

air bags will not deploy in all frontal collisions,

including some that may produce substantial

vehicle damage — for example, some pole

collisions, truck underrides, and angle offset

collisions.
On the other hand, depending on the type and

location of impact, front air bags may deploy in

crashes with little vehicle front-end damage but

that produce a severe initial deceleration.
Because air bag sensors measure vehicle

deceleration over time, vehicle speed and damage

by themselves are not good indicators of whether

or not an air bag should have deployed.

Seat belts are necessary for your protection in all

collisions, and also are needed to help keep you in

position, away from an inflating air bag.
When the ORC detects a collision requiring the

front air bags, it signals the inflator units. A large

quantity of non-toxic gas is generated to inflate the

front air bags.
The steering wheel hub trim cover and the upper

passenger side of the instrument panel separate

and fold out of the way as the air bags inflate to

their full size. The front air bags fully inflate in less

time than it takes to blink your eyes. The front air

bags then quickly deflate while helping to restrain

the driver and front passenger.

Occupant Classification System (OCS) —

Front Passenger Seat

The Occupant Classification System (OCS) is part

of a Federally regulated safety system for this

vehicle. It is designed to provide Passenger

Advanced Front Air Bag output appropriate to the

occupant’s seated weight, as determined by the

OCS.
The Occupant Classification System (OCS) consists

of the following:



Occupant Restraint Controller (ORC)



Occupant Classification Module (OCM) and

Sensor located in the front passenger seat



Air Bag Warning Light

Occupant Classification Module (OCM) And Sensor
The Occupant Classification Module (OCM) is

located underneath the front passenger seat. The

Sensor is located beneath the passenger seat

cushion foam. Any weight on the seat will be

sensed by the Sensor. The OCM uses input from

the Sensor to determine the front passenger’s

most probable classification. The OCM

communicates this information to the ORC. The

ORC may reduce the inflation rate of the Passenger

Advanced Front Air Bag deployment based on

occupant classification. In order for the OCS to

operate as designed, it is important for the front

passenger to be seated properly and properly

wearing the seat belt.
The OCS will NOT prevent deployment of the

Passenger Advanced Front Air Bag. The OCS may

reduce the inflation rate of the Passenger

Advanced Front Air Bag if the OCS estimates that:



The front passenger seat is unoccupied or has

very light objects on it; or



The front passenger seat is occupied by a small

passenger, including a child; or



The front passenger seat is occupied by a

rear-facing child restraint; or



The front passenger is not properly seated or his

or her weight is taken off of the seat for a period

of time.



Relying on the air bags alone could lead to

more severe injuries in a collision. The air

bags work with your seat belt to restrain you

properly. In some collisions, air bags won’t

deploy at all. Always wear your seat belts even

though you have air bags.

WARNING!

SAFETY

295

(Continued)

* It is possible for a child to be classified as an

adult, allowing a full-power Passenger Advanced

Front Air Bag deployment. Never allow children to

ride in the front passenger seat and never install a

child restraint system, including a rear-facing child

restraint, in the front passenger seat.

The OCS determines the front passenger’s most

probable classification. The OCS estimates the

seated weight on the front passenger seat and

where that weight is located. The OCS

communicates the classification status to the ORC.

The ORC uses the classification to determine

whether the Passenger Advanced Front Air Bag

inflation rate should be adjusted.
In order for the OCS to operate as designed, it is

important for the front passenger to be seated

properly and properly wearing the seat belt.

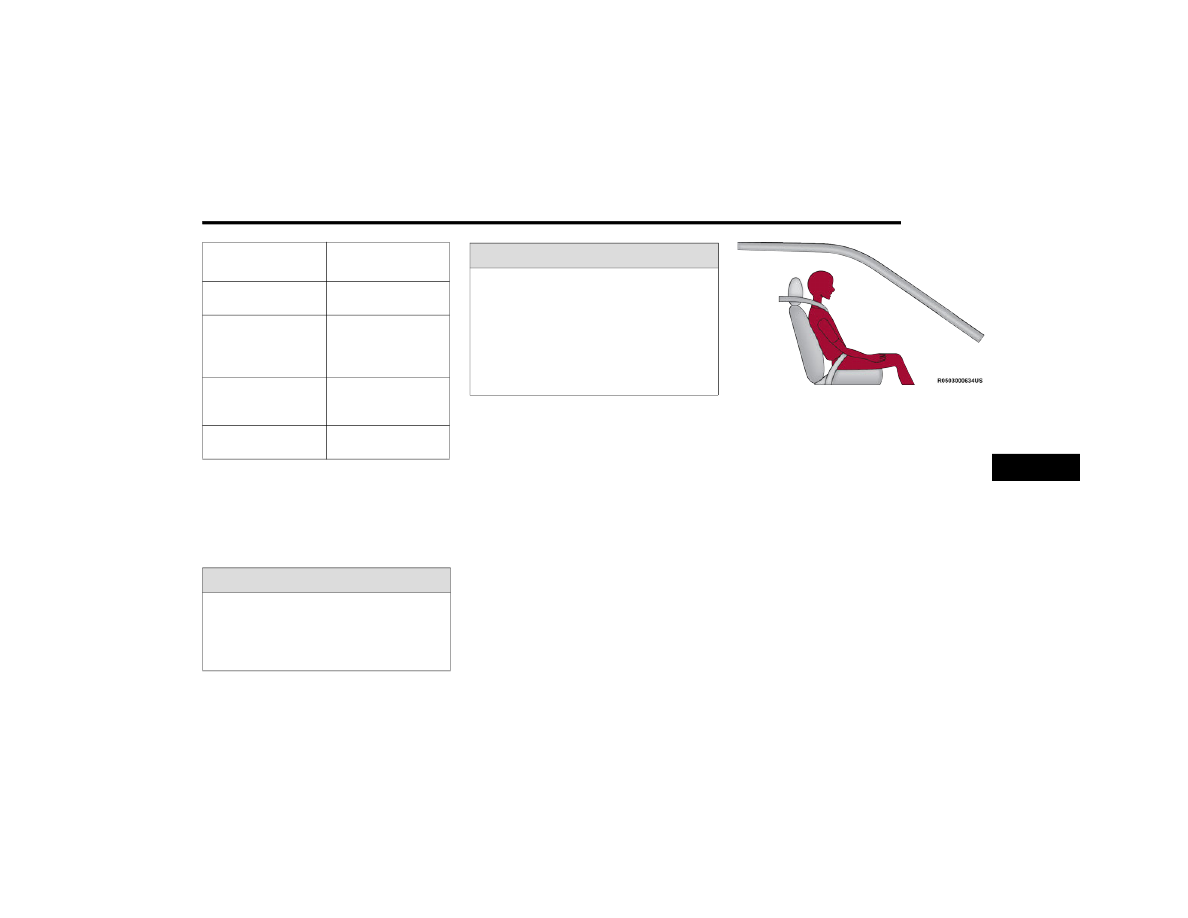

Properly seated passengers are:



Sitting upright



Facing forward



Sitting in the center of the seat with their feet

comfortably on or near the floor



Sitting with their back against the seatback and

the seatback in an upright position

Seated Properly

Lighter Weight Passengers (Including Small Adults)
When a lighter weight passenger, including a small

adult, occupies the front passenger seat, the OCS

may reduce the inflation rate of the Passenger

Advanced Front Air Bag. This does not mean that

the OCS is working improperly.
Do not decrease OR increase the front passenger’s

seated weight on the front passenger seat
The front passenger’s seated weight must be

properly positioned on the front passenger seat.

Failure to do so may result in serious injury or

death. The OCS determines the most probable

classification of the occupant that it detects. The

OCS will detect the front passenger’s decreased or

increased seated weight, which may result in an

adjusted inflation rate of the Passenger Advanced

Front Air Bag in a collision. This does not mean that

the OCS is working improperly. Decreasing the

Front Passenger Seat

Occupant Status

Front Passenger Air

Bag Output

Rear-facing child

restraint

Reduced-power

deployment

Child, including a child

in a forward-facing

child restraint or

booster seat*

Reduced-power

deployment OR

Full-power deployment

Properly seated adult

Full-power deployment

OR reduced-power

deployment

Unoccupied seat

Reduced-power

deployment

WARNING!



Never place a rear-facing child restraint in

front of an air bag. A deploying passenger

front air bag can cause death or serious injury

to a child 12 years or younger, including a

child in a rear-facing child restraint.



Never install a rear-facing child restraint in the

front seat of a vehicle. Only use a rear-facing

child restraint in the rear seat. If the vehicle

does not have a rear seat, do not transport a

rear-facing child restraint in that vehicle.



Children 12 years or younger should always

ride buckled up in the rear seat of a vehicle

with a rear seat.

WARNING!

296

SAFETY

front passenger’s seated weight on the front

passenger seat may result in a reduced-power

deployment of the Passenger Advanced Front Air

Bag. Increasing the front passenger’s seated

weight on the front passenger seat may result in a

full-power deployment of the Passenger Advanced

Front Air Bag.

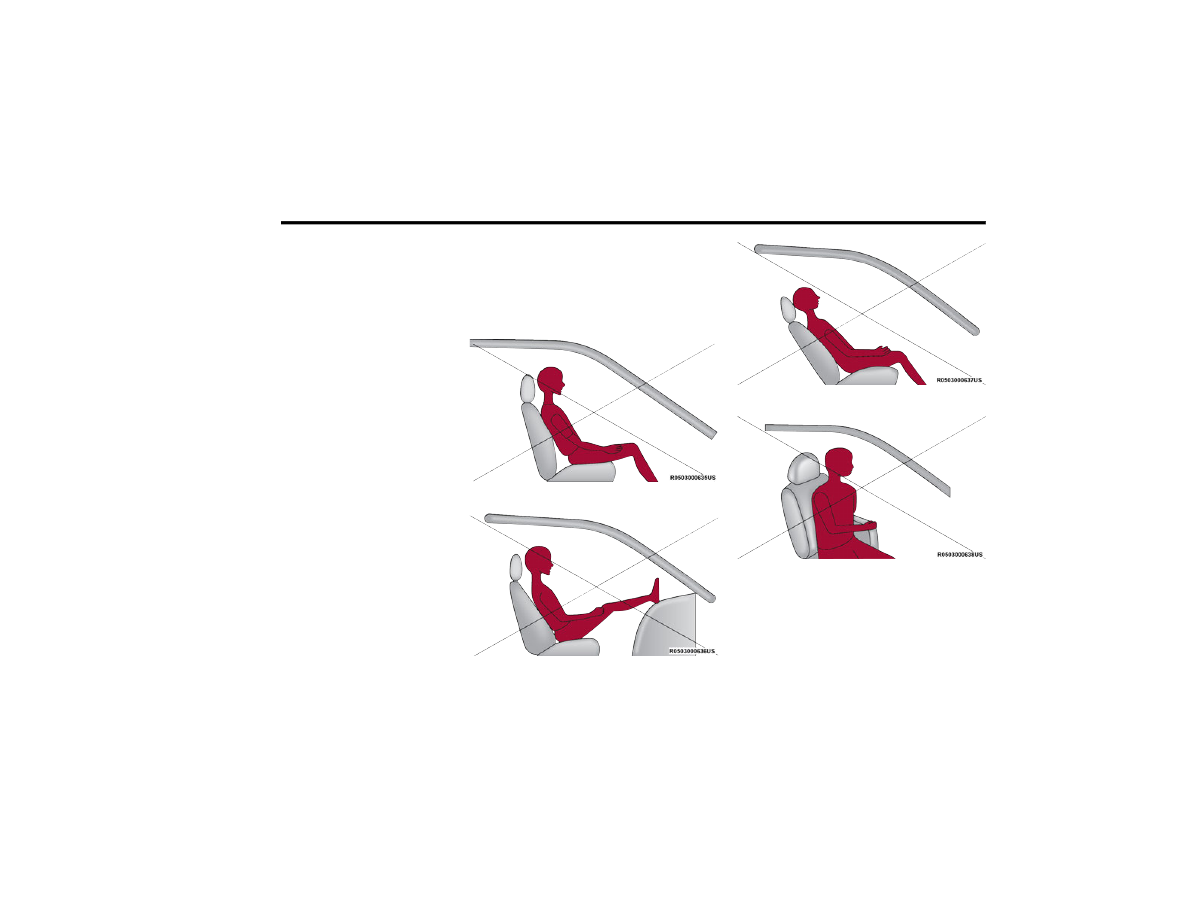

Examples of improper front passenger seating

include:



The front passenger’s weight is transferred to

another part of the vehicle (like the door, arm

rest or instrument panel).



The front passenger leans forward, sideways, or

turns to face the rear of the vehicle.



The front passenger’s seatback is not in the full

upright position.



The front passenger carries or holds an object

while seated (e.g., backpack, box, etc.).



Objects are lodged under the front passenger

seat.



Objects are lodged between the front passenger

seat and center console.



Accessories that may change the seated weight

on the front passenger seat are attached to the

front passenger seat.



Anything that may decrease or increase the

front passenger’s seated weight.

The OCS determines the front passenger’s most

probable classification. If an occupant in the front

passenger seat is seated improperly, the occupant

may provide an output signal to the OCS that is

different from the occupant’s properly seated

weight input, for example:

Not Seated Properly

SAFETY

297

The Air Bag Warning Light in the

instrument panel will turn on whenever

the OCS is unable to classify the front

passenger seat status. A malfunction in

the OCS may affect the operation of the air bag

system.

If the Air Bag Warning Light does not

come on, or stays on after you start the

vehicle, or it comes on as you drive, take

the vehicle to an authorized dealer for

service immediately.
The passenger seat assembly contains critical OCS

components that may affect the Passenger

Advanced Front Air Bag inflation. In order for the

OCS to properly classify the seated weight of a

front seat passenger, the OCS components must

function as designed. Do not make any

modifications to the front passenger seat

components, assembly, or to the seat cover. If the

seat, trim cover, or cushion needs service for any

reason, take the vehicle to an authorized dealer.

Only FCA US LLC approved seat accessories may

be used.
The following requirements must be strictly

followed:



Do not modify the front passenger seat

assembly or components in any way.



Do not use prior or future model year seat

covers or cushions not designated by FCA US

LLC for the specific model being repaired.

Always use the correct seat cover and cushion

specified for the vehicle.



Do not replace the seat cover or cushion with an

aftermarket seat cover or cushion.



Do not add a secondary seat cover or mat.



At no time should any Supplemental Restraint

System (SRS) component or SRS related

component or fastener be modified or replaced

with any part except those which are approved

by FCA US LLC.

WARNING!



If a child restraint system, child, small teen

ager or adult in the front passenger seat is

seated improperly, the occupant may provide

an output signal to the OCS that is different

from the occupant’s properly seated weight

input. This may result in serious injury or death

in a collision.



Always wear your seat belt and sit properly,

with the seatback in an upright position, your

back against the seatback, sitting upright,

facing forward, in the center of the seat, with

your feet comfortably on or near the floor.



Do not carry or hold any objects (e.g., back

packs, boxes, etc.) while seated in the front

passenger seat. Holding an object may

provide an output signal to the OCS that is

different than the occupant’s properly seated

weight input, which may result in serious injury

or death in a collision.



Placing an object on the floor under the front

passenger seat may prevent the OCS from

working properly, which may result in serious

injury or death in a collision. Do not place any

objects on the floor under the front

passenger seat.

WARNING!



Unapproved modifications or service proce

dures to the passenger seat assembly, its

related components, seat cover or cushion

may inadvertently change the air bag deploy

ment in case of a frontal collision. This could

result in death or serious injury to the front

passenger if the vehicle is involved in a colli

sion. A modified vehicle may not comply with

required Federal Motor Vehicle Safety Stan

dards (FMVSS) and/or Canadian Motor

Vehicle Safety Standards (CMVSS).



If it is necessary to modify the air bag system

for persons with disabilities, contact an autho

rized dealer.

298

SAFETY

Knee Impact Bolsters

The Knee Impact Bolsters help protect the knees

of the driver and front passenger, and position the

front occupants for improved interaction with the

front air bags.

Supplemental Driver And Front Passenger

Knee Air Bags

This vehicle is equipped with a Supplemental

Driver Knee Air Bag mounted in the instrument

panel below the steering column and a

Supplemental Passenger Knee Air Bag mounted in

the instrument panel below the glove

compartment. The Supplemental Knee Air Bags

provide enhanced protection during a frontal

impact by working together with the seat belts,

pretensioners, and front air bags.

Supplemental Side Air Bags

Supplemental Seat-Mounted Side Air Bags (SABs)
This vehicle is equipped with Supplemental

Seat-Mounted Side Air Bags (SABs).
Supplemental Seat-Mounted Side Air Bags (SABs)

are located in the outboard side of the front seats.

The SABs are marked with “SRS AIRBAG” or

“AIRBAG” on a label or on the seat trim on the

outboard side of the seats.
The SABs may help to reduce the risk of occupant

injury during certain side impacts, in addition to

the injury reduction potential provided by the seat

belts and body structure.

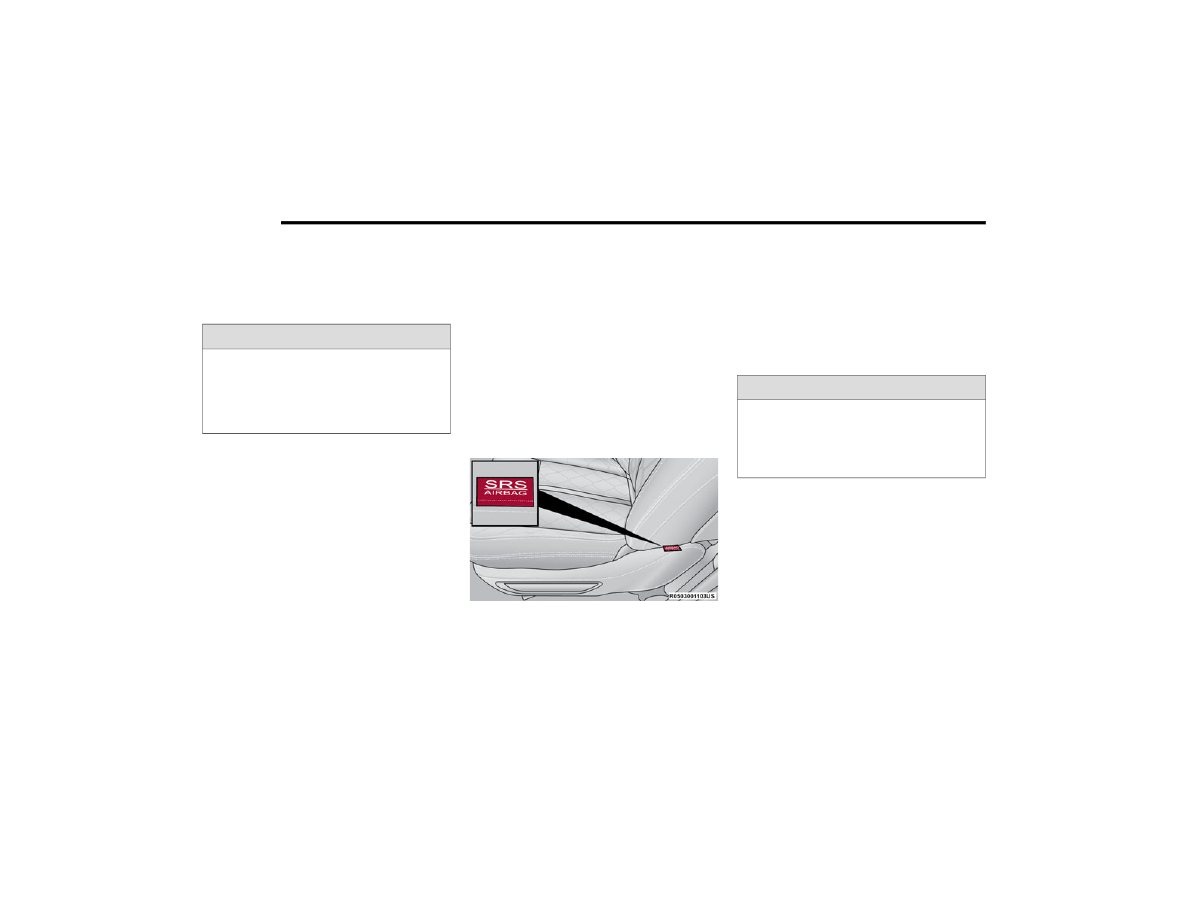

Front Supplemental Seat-Mounted Side Air Bag Label

When the SAB deploys, it opens the seam on the

outboard side of the seatback’s trim cover. The

inflating SAB deploys through the seat seam into

the space between the occupant and the door. The

SAB moves at a very high speed and with such a

high force that it could injure occupants if they are

not seated properly, or if items are positioned in

the area where the SAB inflates. Children are at an

even greater risk of injury from a deploying air bag.

Supplemental Side Air Bag Inflatable Curtains

(SABICs)
This vehicle is equipped with Supplemental Side

Air Bag Inflatable Curtains (SABICs).
Supplemental Side Air Bag Inflatable Curtains

(SABICs) are located above the side windows. The

trim covering the SABICs is labeled “SRS AIRBAG”

or “AIRBAG.”

WARNING!



Do not drill, cut, or tamper with the knee

impact bolsters in any way.



Do not mount any accessories to the knee

impact bolsters such as alarm lights, stereos,

citizen band radios, etc.

WARNING!

Do not use accessory seat covers or place

objects between you and the Side Air Bags; the

performance could be adversely affected and/or

objects could be pushed into you, causing

serious injury.

SAFETY

299

(Continued)

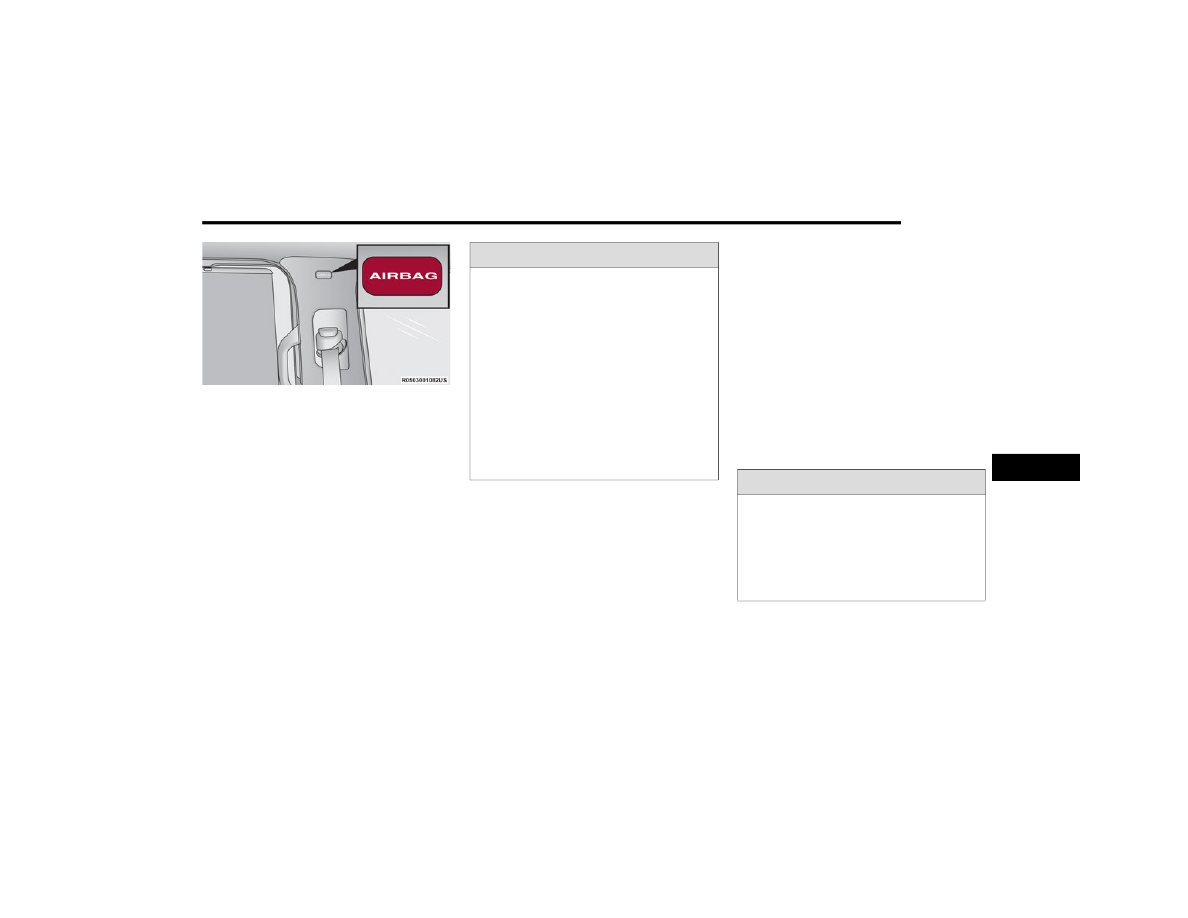

Supplemental Side Air Bag Inflatable Curtain (SABIC)

Label Location

SABICs may help reduce the risk of head and other

injuries to front and rear seat outboard occupants

in certain side impacts, in addition to the injury

reduction potential provided by the seat belts and

body structure.
The SABIC deploys downward, covering the side

windows. An inflating SABIC pushes the outside

edge of the headliner out of the way and covers the

window. The SABICs inflate with enough force to

injure occupants if they are not belted and seated

properly, or if items are positioned in the area

where the SABICs inflate. Children are at an even

greater risk of injury from a deploying air bag.
The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain side impact events.

Side Impacts
The Side Air Bags are designed to activate in

certain side impacts. The Occupant Restraint

Controller (ORC) determines whether the

deployment of the Side Air Bags in a particular

impact event is appropriate, based on the severity

and type of collision. The side impact sensors aid

the ORC in determining the appropriate response

to impact events. The system is calibrated to

deploy the Side Air Bags on the impact side of the

vehicle during impacts that require Side Air Bag

occupant protection. In side impacts, the Side Air

Bags deploy independently; a left side impact

deploys the left Side Air Bags only and a right-side

impact deploys the right Side Air Bags only. Vehicle

damage by itself is not a good indicator of whether

or not Side Air Bags should have deployed.
The Side Air Bags will not deploy in all side

collisions, including some collisions at certain

angles, or some side collisions that do not impact

the area of the passenger compartment. The Side

Air Bags may deploy during angled or offset frontal

collisions where the front air bags deploy.
Side Air Bags are a supplement to the seat belt

restraint system. Side Air Bags deploy in less time

than it takes to blink your eyes.

WARNING!



Do not mount equipment, or stack luggage or

other cargo up high enough to block the

deployment of the SABICs. The trim covering

above the side windows where the SABIC and

its deployment path are located should

remain free from any obstructions.



In order for the SABICs to work as intended, do

not install any accessory items in your vehicle

which could alter the roof. Do not add an after

market sunroof to your vehicle. Do not add

roof racks that require permanent attach

ments (bolts or screws) for installation on the

vehicle roof. Do not drill into the roof of the

vehicle for any reason.

WARNING!



Occupants, including children, who are up

against or very close to Side Air Bags can be

seriously injured or killed. Occupants,

including children, should never lean on or

sleep against the door, side windows, or area

where the side air bags inflate, even if they are

in an infant or child restraint.

300

SAFETY

NOTE:

Air bag covers may not be obvious in the interior

trim, but they will open during air bag deployment.
Rollover Events
Side Air Bags and seat belt pretensioners are

designed to activate in certain rollover events. The

Occupant Restraint Controller (ORC) determines

whether deployment in a particular rollover event

is appropriate, based on the severity and type of

collision. Vehicle damage by itself is not a good

indicator of whether or not Side Air Bags and seat

belt pretensioners should have deployed.
The Side Air Bags and seat belt pretensioners will

not deploy in all rollover events. The rollover

sensing system determines if a rollover event may

be in progress and whether deployment is

appropriate. In the event the vehicle experiences a

rollover or near rollover event, and deployment is

appropriate, the rollover sensing system will deploy

the side air bags and seat belt pretensioners on

both sides of the vehicle.
The SABICs may help reduce the risk of partial or

complete ejection of vehicle occupants through

side windows in certain rollover or side impact

events.

Air Bag System Components

NOTE:

The Occupant Restraint Controller (ORC) monitors

the internal circuits and interconnecting wiring

associated with electrical Air Bag System Compo

nents listed below:



Occupant Restraint Controller (ORC)



Air Bag Warning Light



Steering Wheel and Column



Instrument Panel



Knee Impact Bolsters



Driver and Front Passenger Air Bags



Seat Belt Buckle Switch



Supplemental Side Air Bags



Supplemental Knee Air Bags



Front and Side Impact Sensors



Seat Belt Pretensioners



Seat Track Position Sensors



Occupant Classification System

If A Deployment Occurs

The front air bags are designed to deflate

immediately after deployment.



Seat belts (and child restraints where appro

priate) are necessary for your protection in all

collisions. They also help keep you in position,

away from an inflating Side Air Bag. To get the

best protection from the Side Air Bags, occu

pants must wear their seat belts properly and

sit upright with their backs against the seats.

Children must be properly restrained in a child

restraint or booster seat that is appropriate for

the size of the child.

WARNING!



Side Air Bags need room to inflate. Do not lean

against the door or window. Sit upright in the

center of the seat.



Being too close to the Side Air Bags during

deployment could cause you to be severely

injured or killed.



Relying on the Side Air Bags alone could lead

to more severe injuries in a collision. The Side

Air Bags work with your seat belt to restrain

you properly. In some collisions, Side Air Bags

won’t deploy at all. Always wear your seat belt

even though you have Side Air Bags.

WARNING!

Jeep Wagoneer (2022 year). Manual in english - page 18
