STARTING AND OPERATING

189

(Continued)



Occurs when the vehicle is moving at speeds

greater than 8 mph (13 km/h) and a collision

with the detected pedestrian/animal is possible



The pedestrian/animal is directly in the vehicle

path, close to the headlight area



A video pop-up will display when there is a target

detected and the instrument cluster display is

not showing the Night Vision page



A chime will sound for a Level 2 Warning detec

tion event

Only one telltale can be displayed at a time based

upon priority.
The priority order of the warnings from highest to

lowest is:
1. Pedestrian Warning Level 2
2. Animal Warning Level 2
3. Pedestrian Warning Level 1
4. Animal Warning Level 1

Level 2 Warnings may display in the Head-Up

Display (if equipped).

NOTE:

If the vehicle is stopped, or slowing down, all Level

2 warnings become Level 1 warnings.
You can en able or disable the warnings within the

Uconnect system

page 216.

If the warnings are off, the telltales, chimes, and

warning messages will all be off. Pedestrians and

animals can still be detected by the system, but

there will be no warnings.

The Night Vision alert status telltale will

be gray when the warnings are

suppressed. The telltale will also turn

gray to indicate that the alerts are

suppressed due to environmental factors (e.g.

daylight hours, external temperature is greater

than 86°F (30°C)) or if the gear selector is in

REVERSE. When the Night Vision alerts are active,

the telltale will be green

page 117.

Camera Washers
When the front window washer is activated, the

Night Vision camera will also be washed

page 70.

ETECTION

ANGE

The system can detect people 4 ft (1.25 m) tall or

greater in the upright position. The system can also

detect animals that are four-legged and 3 ft (1 m)

tall or greater in the upright position.
The detection distance for the system is between

26 ft (8 m) and 328 ft (100 m) from the front of the

vehicle.

WARNING!



Do not jerk the steering wheel in response to

a warning.



Never attempt to swerve around animals if

doing so would endanger you or other drivers

on the road.



Do not stare at the image while driving. You

could crash and you or others could be

injured.



The Night Vision system only provides alerts to

objects of interest and cannot serve as a

substitute for the driver’s personal judgment.

The warnings are meant to direct your atten

tion to the detected objects, but the Night

Vision system does not automatically brake

the vehicle and may not provide a warning

with enough time to help avoid a crash.



Warnings are only provided if a pedestrian or

large animal is detected by the system.



It is always the driver’s responsibility to be

attentive of road, traffic, and weather condi

tions, vehicle speed, distance to the vehicle

ahead; and, most importantly, brake opera

tion to ensure safe operation of the vehicle

under all road conditions. Your complete

attention is always required while driving to

maintain safe control of your vehicle.

WARNING!

190

STARTING AND OPERATING

(Continued)

The system may not be able to detect pedestrians

or animals in the following situations:



Pedestrian/animal is outside of the detection

range



Pedestrian/animal is fully or partially covered



Pedestrian/animal does not reach the minimum

detection height

NOTE:

Other objects on the road that meet the height/

shape/temperature (e.g. sun exposure) of pedes

trians/animals may be detected and classified as

targets.

ERVICE

IGHT

ISION

YSTEM

When service conditions are present, the following

fault messages may appear in the instrument

cluster display when the vehicle is placed in the ON

position.
If "Night Vision Unavailable Sensor Blocked"

appears in the instrument cluster display, make

sure the camera is clear of snow, ice, mud, dirt or

other debris. The camera is located in the upper

fascia/bumper, inside the driver side grille slot.

Clean the camera using a soft wet cloth or by

pressing the Clean Camera soft button in the

Uconnect system. If the message continues to

appear after cycling the ignition, see an authorized

dealer.

If “Night Vision Temporarily Unavailable” or “Night

Vision Unavailable Service Required" appears in

the instrument cluster display after cycling the

ignition, see an authorized dealer.
The camera must be properly aligned to work

correctly. If the camera needs adjustment, see an

authorized dealer. Do not attempt to adjust the

camera yourself.

NOTE:

Alignment and performance of the Night Vision

may be affected by aftermarket modifications.

Mopar® parts should be used to get the optimal

performance of this system.

IGHT

ISION

YSTEM

IMITATIONS

The Night Vision display is deactivated under the

following conditions:



Vehicle is shifted into REVERSE



The ignition is not in the ON/RUN position



The headlights are off and the vehicle speed is

greater than 8 mph (13 km/h)

The Night Vision display warnings are suppressed

under the following conditions:



Daylight hours



Temperatures above 86°F (30°C)

WARNING!



Night Vision can only detect pedestrians and

animals located within the range of the

infrared camera.



Night Vision may not detect pedestrians or

animals and highlight them if:



They are not in an upright position, for

example if they are sitting or lying down, or

if the pedestrian is riding a bicycle



The figure in the display appears incom

plete, for example because the pedes

trian or animal is partially behind a vehicle



The pedestrian/animal is not directly

ahead in the coverage area



The pedestrian/animal is part of a group



The pedestrian is wearing certain types of

clothing



The pedestrian/animal is moving too

quickly through the field of view



The sensor is blocked by dirt, rain, snow,

or ice

WARNING!

STARTING AND OPERATING

191

The system may not be fully functional in the

following situations:



On steep hills



On tight curves of the road



If the camera/sensor is damaged or blocked by

dirt, snow, ice, or other debris



In poor visibility conditions such as heavy fog,

rain, snow, or other weather conditions



If the vehicle has been modified with after

market parts and/or accessories

NOTE:

If any of these conditions are present, the system

does not need service.

SURROUND VIEW CAMERA SYSTEM —

IF EQUIPPED

Your vehicle may be equipped with the Surround

View Camera system that allows you to see an

on-screen image of the surroundings and Top View

of your vehicle whenever the gear selector is put

into REVERSE or a different view is selected

through the touchscreen soft buttons. The Top

View of the vehicle will show which doors are open.

The image will be displayed on the touchscreen

display along with a caution note “Check Entire

Surroundings” across the top of the screen. After

five seconds, this note will disappear. The

Surround View Camera system is comprised of four

sequential cameras located in the front grille, rear

liftgate and side mirrors.

NOTE:

The Surround View Camera system has program

mable settings that may be selected through the

Uconnect system

page 216.

Press this button on the touchscreen to

enter the Surround View Camera menu

in the Uconnect system.
When the vehicle is shifted into

REVERSE, the Rear View or Top View is the default

view of the system.
When the vehicle is shifted out of REVERSE with

camera delay turned on, the camera image will

continue to be displayed for up to 10 seconds unless

the vehicle speed exceeds 8 mph (13 km/h), the

vehicle is shifted into PARK or the ignition is placed

in the OFF position. There is a touchscreen button

“X” to disable the display of the camera image.
When the vehicle is shifted out of REVERSE with

camera delay turned off, the Surround View

Camera mode is exited and the last known screen

appears again.
When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle,

including the side view mirrors and its projected

backup path based on the steering wheel position.

Different colored zones indicate the distance to

the rear of the vehicle.
The following table shows the approximate

distances for each zone:

Modes Of Operation
Manual activation of the Surround View Camera is

selected by pressing the Surround View Camera

soft key located in the Controls menu within the

Uconnect system.
Top View
The Top View will show in the Uconnect system with

Rear View or Front View in a split screen display.

There is integrated ParkSense arcs in the image at

the front, rear, and if equipped, the sides of the

vehicle. The arcs will change color from yellow to

red corresponding to the distance zones to the

oncoming object.

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft (30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

192

STARTING AND OPERATING

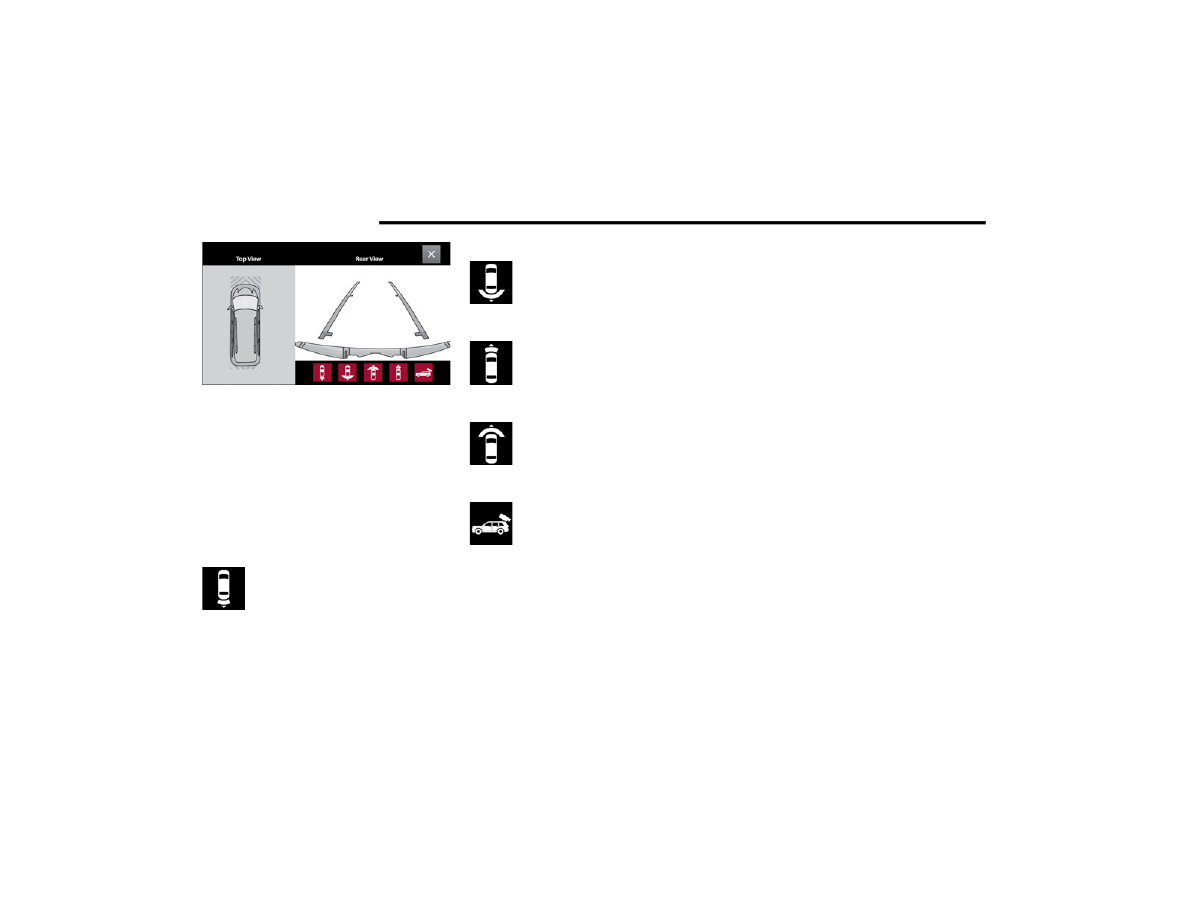

Surround View Camera View

NOTE:



Front tires will be in image when the tires are

turned.



Due to wide angle cameras in the mirrors, the

image may appear distorted.



Top View will show which doors are open.



Open front doors and/or liftgate will cancel

outside image.

Top View Plus Rear View

This is the default view of the system in

REVERSE and is always paired with the

Top View of the vehicle with optional

active guidelines for the projected path

when enabled.

Rear Cross Path View

Pressing the Rear Cross Path soft key

will give the driver a wider angle view of

the rear camera system. The Top View

will be disabled when this is selected.

Top View Plus Front View

The Front View will show you what is

immediately in front of the vehicle and is

always paired with the Top View of the

vehicle.

Front Cross Path View

Pressing the Front Cross Path soft key

will give the driver a wider angle view of

the front camera system. The Top View

will be disabled when this is selected.

Backup Camera View

Pressing the Back Up Camera soft key

will provide a full screen rear view with

Zoom View.

NOTE:

If the Rear View Camera view was selected through

the Surround View Camera menu, exiting out of the

Rear View screen will return to the Surround View

Camera menu. If the Back Up Camera was

manually activated through the Controls menu of

the Uconnect system, exiting out of the display

screen will return to the Controls menu.

Deactivation
The system can be deactivated under the following

conditions:



The speed of the vehicle is greater than 8 mph

(13 km/h).



The vehicle is shifted into PARK.



The vehicle is in any gear other than REVERSE

and the “X” button is pressed.



The camera delay system is turned off manually

through Uconnect Settings

page 216.

Camera Washers
When the rear window washer is activated, the rear

backup and digital rearview mirror (if equipped)

cameras are also washed

page 71.

When the front window washer is activated, the

front cameras will also be washed

page 70.

NOTE:



If snow, ice, mud, or any foreign substance

builds up on the camera lenses, clean the

lenses, rinse with water, and dry with a soft

cloth. Do not cover the lenses.



If a malfunction with the system has occurred,

see an authorized dealer.

STARTING AND OPERATING

193

OOM

IEW

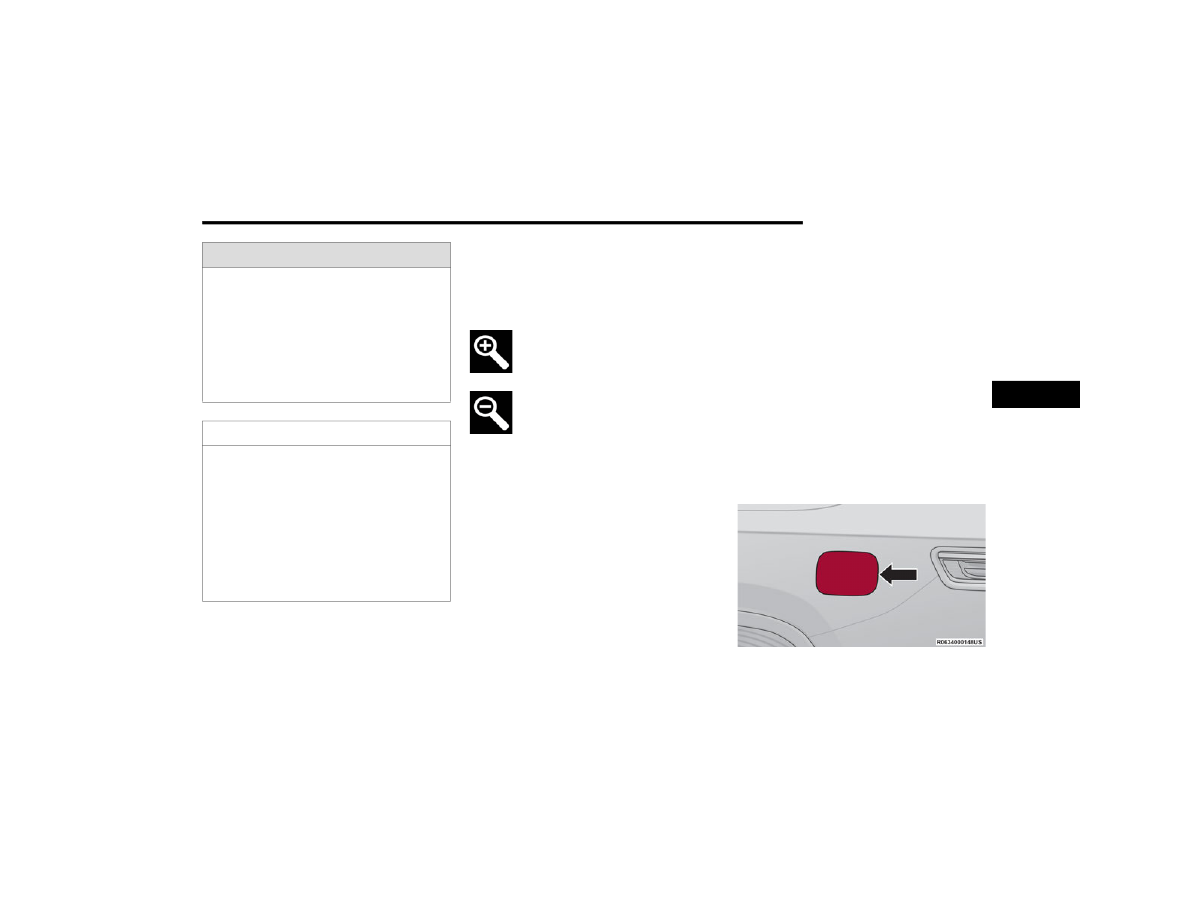

When the Rear View Camera image is being

displayed, and the vehicle speed is below 8 mph

(13 km/h) while in any gear selector position,

Zoom View is available.

By pressing the “magnifying glass” icon

in the upper left of the display screen,

the image will zoom in to two times the

standard view.
Pressing the icon a second time will

return the view to the standard Back Up

Camera display.
When Zoom View is selected while the

vehicle is in REVERSE, then shifted to DRIVE, the

camera delay view will display the standard Back

Up Camera view. If the vehicle is then returned to

REVERSE gear from DRIVE, the Zoom View

selection will automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle is below 8 mph (13 km/h).
If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE and speeds are at or above 8 mph

(13 km/h).

NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear grey.



While in Zoom View, the guidelines will not be

visible.

REFUELING THE VEHICLE

1. Open the fuel filler door by pushing on the

outer edge of the fuel door near the center to

unlatch. Then use a finger to rotate the door

to the full open position.

NOTE:

Ensure that the vehicle doors are unlocked as this

unlocks the fuel door.

Fuel Filler Door

WARNING!

Drivers must be careful when backing up even

when using the Surround View Camera. Always

check carefully behind your vehicle, and be sure

to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, Surround View

should only be used as a parking aid. The

Surround View camera is unable to view every

obstacle or object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using Surround View to be

able to stop in time when an obstacle is seen.

It is recommended that the driver look

frequently over his/her shoulder when using

Surround View.

194

STARTING AND OPERATING

NOTE:



In certain cold conditions, ice may prevent

the fuel door from opening. If this occurs,

lightly push around the perimeter of the fuel

door to break the ice buildup.



There is no fuel filler cap. Two flapper doors

inside the pipe seal the system.



Fuel door will lock when the vehicle is

locked.

2. Insert the fuel nozzle fully into the filler pipe –

the nozzle opens and holds the flapper doors

while refueling.

NOTE:

Only the correct size nozzle opens the latches

allowing the flapper doors to open.

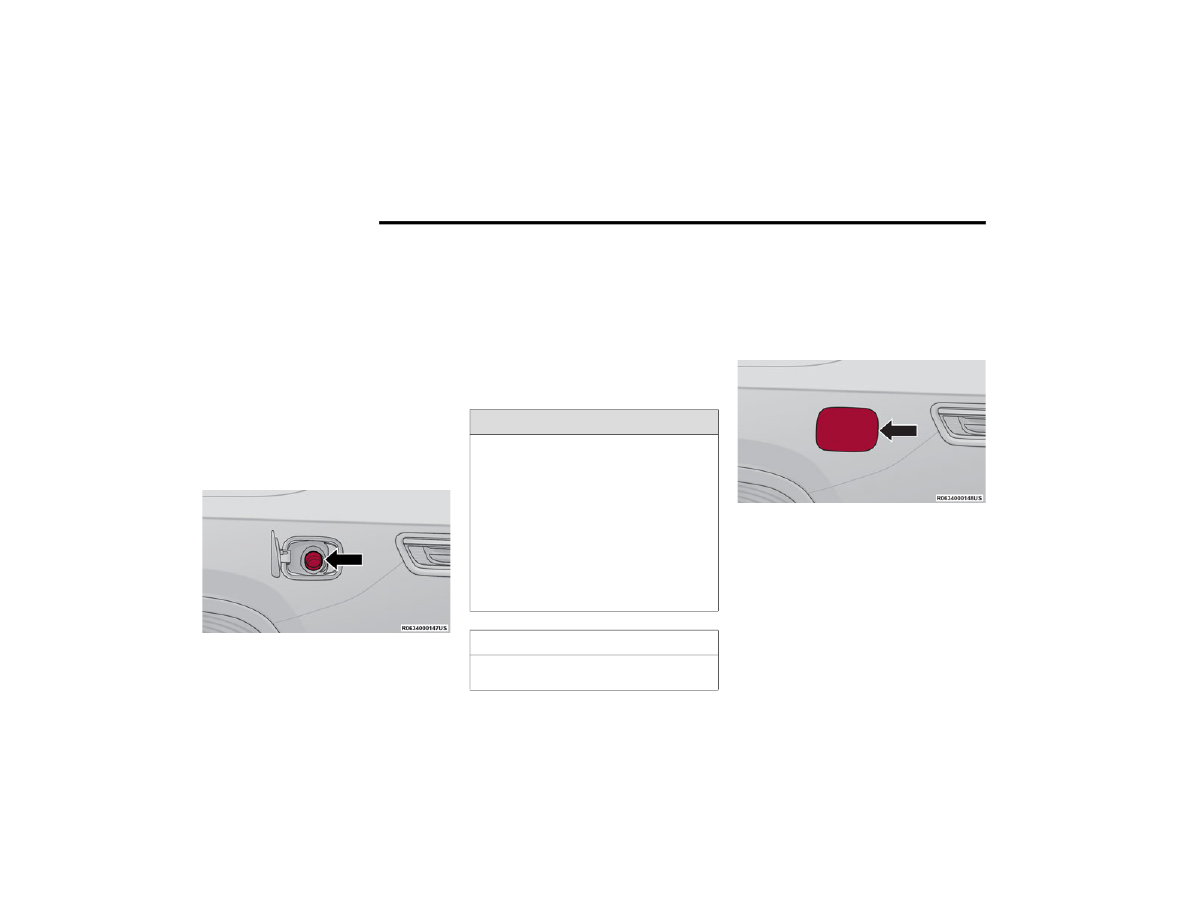

Fuel Filler

3. Fill the vehicle with fuel – when the fuel nozzle

“clicks” or shuts off the fuel tank is full.

4. Wait five seconds before removing the fuel

nozzle to allow fuel to drain from nozzle.

5. Remove the fuel nozzle and close the fuel

door. Engage the fuel door latch by pushing on

the outer edge near the center.

NOTE:

For further information on fuel requirements see

page 404.

MERGENCY

UEL

ILLER

OOR

ELEASE

If you are unable to open the fuel filler door, use

the fuel filler door emergency release.
1. Gently pry up on the rear edge of the fuel door

to allow finger access.

Fuel Door

NOTE:

Be careful not to damage the body side and paint.
2. With fingers under the edge, pull firmly on the

door to separate the two piece tappet and

open the door.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

STARTING AND OPERATING

195

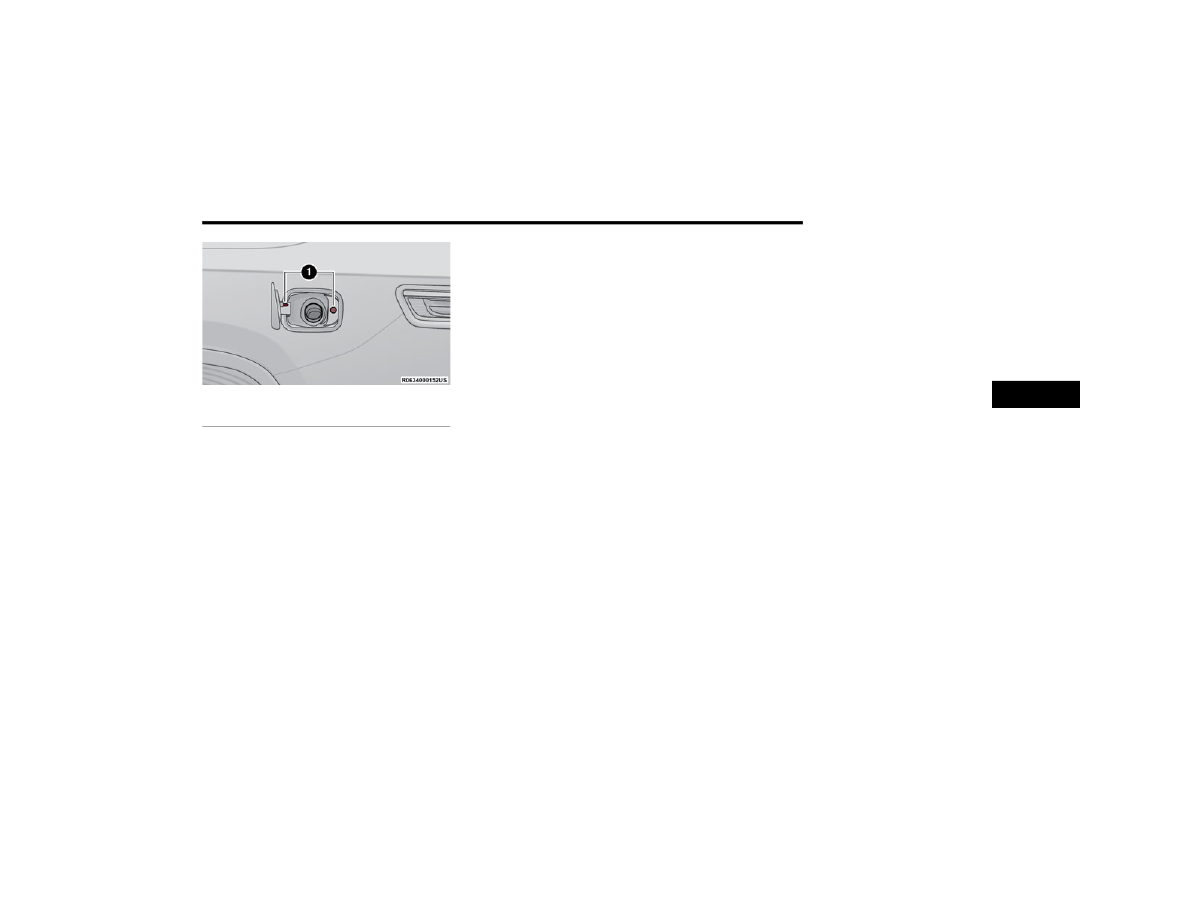

Fuel Door Open

3. Once this has been done, the two piece tappet

feature that was separated will need be

replaced at your authorized dealer.

VEHICLE LOADING

ROSS

EHICLE

EIGHT

ATING

(GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR.

AYLOAD

The payload of a vehicle is defined as the allowable

weight a vehicle can carry, including the weight of

the driver, all passengers, options and cargo.

ROSS

XLE

EIGHT

ATING

(GAWR)

The GAWR is the maximum permissible load on the

front and rear axles. The load must be distributed

in the cargo area so that the GAWR of each axle is

not exceeded.
Each axle GAWR is determined by the components

in the system with the lowest load carrying capacity

(axle, springs, tires or wheels). Heavier axles or

suspension components sometimes specified by

purchasers for increased durability does not

necessarily increase the vehicle's GVWR or GAWR.

IRE

IZE

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

IZE

This is the rim size that is appropriate for the tire

size listed.

NFLATION

RESSURE

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full GAWR.

URB

EIGHT

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with no

occupants or cargo loaded into the vehicle. The

front and rear curb weight values are determined

by weighing your vehicle on a commercial scale

before any occupants or cargo are added.

OADING

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.
The entire vehicle should first be weighed on a

commercial scale to ensure that the GVWR has not

been exceeded. The weight on the front and rear of

the vehicle should then be determined separately

to be sure that the load is properly distributed over

the front and rear axles. Weighing the vehicle may

show that the GAWR of either the front or rear axles

has been exceeded but the total load is within the

specified GVWR. If so, weight must be shifted from

front to rear or rear to front as appropriate until the

specified weight limitations are met. Store the

1 — Two Piece Tappet

196

STARTING AND OPERATING

heavier items down low and be sure that the

weight is distributed equally. Stow all loose items

securely before driving.

NOTE:



Improper weight distributions can have an

adverse effect on the way your vehicle steers

and handles and the way the brakes operate.



Air suspension vehicle may limit off-road heights

if loaded beyond recommended values for

vehicle GVWR and GAWR.

TRAILER TOWING

In this section you will find safety tips and

information on limits to the type of towing you can

reasonably do with your vehicle. Before towing a

trailer, carefully review this information to tow your

load as efficiently and safely as possible.

To maintain the New Vehicle Limited Warranty

coverage, follow the requirements and

recommendations in this manual concerning

vehicles used for trailer towing.

OMMON

OWING

EFINITIONS

The following trailer towing related definitions will

assist you in understanding the following

information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR

page 195.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the weight

of all cargo, consumables and equipment

(permanent or temporary) loaded in or on the

trailer in its "loaded and ready for operation"

condition.
The recommended way to measure GTW is to put

your fully loaded trailer on a vehicle scale. The

entire weight of the trailer must be supported by

the scale.

Gross Combination Weight Rating (GCWR)

The GCWR is the total allowable weight of your

vehicle and trailer when weighed in combination.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front

and rear axles. Distribute the load over the front

and rear axles evenly. Make sure that you do not

exceed either front or rear GAWR

page 195.

CAUTION!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it can

change the way your vehicle handles. This could

cause you to lose control. Overloading can

shorten the life of your vehicle.

WARNING!

If the gross trailer weight is 5,000 lb (2,267 kg) or

more, it is recommended to use a weight-distributing

hitch to ensure stable handling of your vehicle. If you

use a standard weight-carrying hitch, you could lose

control of your vehicle and cause a collision.

WARNING!

It is important that you do not exceed the

maximum front or rear GAWR. A dangerous

driving condition can result if either rating is

exceeded. You could lose control of the vehicle

and have a collision.

STARTING AND OPERATING

197

Tongue Weight (TW)

The TW is the downward force exerted on the hitch

ball by the trailer. You must consider this as part of

the load on your vehicle.

Trailer Frontal Area

The frontal area is the maximum height multiplied

by the maximum width of the front of a trailer.

Trailer Sway Control (TSC)

The TSC can be a mechanical telescoping link that

can be installed between the hitch receiver and the

trailer tongue that typically provides adjustable

friction associated with the telescoping motion to

dampen any unwanted trailer swaying motions

while traveling.
If equipped, the electronic TSC recognizes a

swaying trailer and automatically applies individual

wheel brakes and/or reduces engine power to

attempt to eliminate the trailer sway.

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue

weight, just as if it were luggage located at a hitch

ball or some other connecting point of the vehicle.

These kinds of hitches are used to tow small and

medium sized trailers.

Weight-Distributing Hitch

A Weight-Distributing Hitch system works by

applying leverage through spring (load) bars. They

are typically used for heavier loads to distribute

trailer tongue weight to the tow vehicle's front axle

and the trailer axle(s). When used in accordance

with the manufacturer's directions, it provides for a

more level ride, offering more consistent steering

and brake control thereby enhancing towing

safety. The addition of a friction/hydraulic sway

control also dampens sway caused by traffic and

crosswinds and contributes positively to tow

vehicle and trailer stability. Trailer sway control and

a weight-distributing (load equalizing) hitch are

recommended for heavier Tongue Weights (TW)

and may be required depending on vehicle and

trailer configuration/loading to comply with Gross

Axle Weight Rating (GAWR) requirements.

RECOMMENDED DISTRIBUTION HITCH

ADJUSTMENT — QUADRA-LIFT AIR SUSPEN

SION EQUIPPED VEHICLES

1. Verify that the vehicle is at the Normal Ride

Height.

NOTE:

The vehicle must remain in the RUN position with

all doors closed while attaching a trailer for proper

leveling of the air suspension system.

WARNING!



An improperly adjusted Weight-Distributing

Hitch system may reduce handling, stability,

braking performance, and could result in a

collision.



Weight-Distributing Hitch systems may not be

compatible with surge brake couplers. Consult

with your hitch and trailer manufacturer or a

reputable Recreational Vehicle dealer for

additional information.

198

STARTING AND OPERATING

2. Position the vehicle on a level surface in

preparation to connect to the trailer (do not

connect the trailer).

3. For vehicles equipped with Quadra-Lift air

suspension, use the touchscreen radio

settings to enable Tire/Jack mode. Tire/Jack

mode will be canceled and the procedure must

be restarted if the vehicle is driven at speeds

above 5 mph (8 km/h). When towing, the

automatic Entry/Exit feature may be disabled

through the Uconnect Touchscreen Radio to

prevent vehicle and trailer movement when

gear selector is moved to PARK.

4. Measure the height from the top of the front

wheel opening on the fender to the ground;

this is height H1.

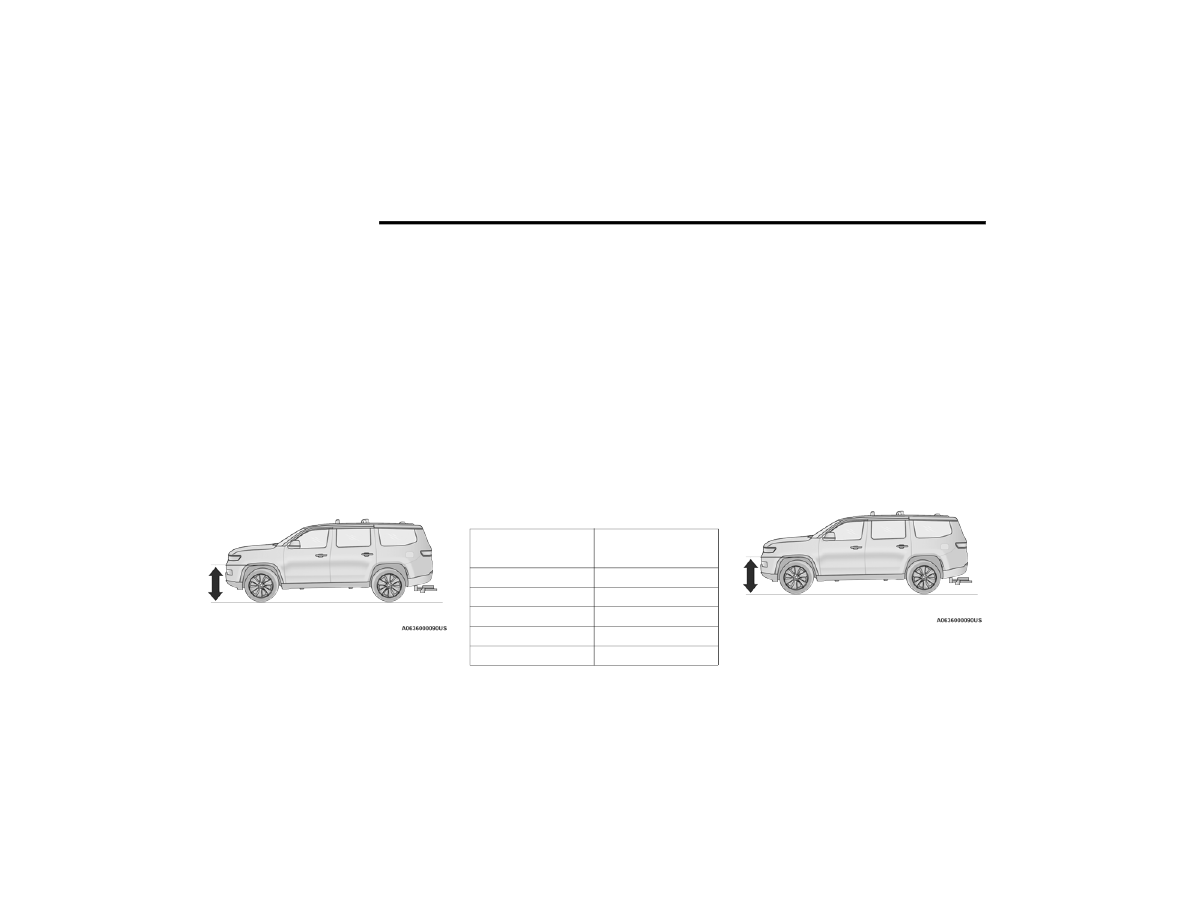

Measuring Height (H)

5. Attach the loaded trailer to the vehicle without

the weight distribution bars connected.

6. Measure the height from the top of the front

wheel opening on the fender to the ground;

this is height H2.

7. Install and adjust the tension in the

weight-distributing bars per the manufac

turers’ recommendations so that the height of

the front fender is approximately (H2-H1)/

2+H1 (about 1/2 the difference between H2

and H1 above normal ride height [H1]).

8. Use the touchscreen radio settings and switch

off Tire/Jack mode. Make sure the vehicle

returns to Normal Ride Height. Perform a visual

inspection of the trailer and weight-distributing

hitch to confirm the manufacturers’ recommen

dations have been met.

9. The vehicle can now be driven.

NOTE:

For all towing conditions, we recommend towing

with TOW/HAUL mode engaged (if equipped).

RECOMMENDED DISTRIBUTION HITCH

ADJUSTMENT — NON-AIR SUSPENSION

EQUIPPED VEHICLES

1. Verify that the vehicle is at the normal ride

height.

2. Position the vehicle on a level surface in

preparation to connect to the trailer (do not

connect the trailer).

3. Measure the height from the top of the front

wheel opening on the fender to the ground;

this is height H1.

Measuring Height (H)

Measurement

Example

Example Height (mm)

925

946

H2-H1

(H2-H1)/2

10.5

(H2-H1)/2 + H1

935.5

STARTING AND OPERATING

199

4. Attach the loaded trailer to the vehicle without

the weight distribution bars connected.

5. Ensure the trailer is properly secured to the

hitch, including the safety chains, lighting, and

trailer brake controls.

6. Cautiously drive the vehicle and trailer at

20-25 mph (30-40 km/h) for approximately

3 miles (5 km) to re-level the suspension.

7. Park the vehicle and trailer on a level surface.
8. Measure the height from the top of the front

wheel opening on the fender to the ground;

this is height H2.

9. Install and adjust the tension in the

weight-distributing bars per the manufac

turers’ recommendations so that the height of

the front fender is approximately (H2-H1)/

2+H1 (about 1/2 the difference between H2

and H1 above normal ride height [H1]).

10. Perform a visual inspection of the trailer and

weight-distributing hitch to confirm the

manufacturers’ recommendations have been

met.

11. The vehicle can now be driven.

NOTE:

For all towing conditions, we recommend towing

with TOW/HAUL mode engaged (if equipped).

Measurement

Example

Example Height (mm)

925

946

H2-H1

(H2-H1)/2

10.5

(H2-H1)/2 + H1

935.5

200

STARTING AND OPERATING

RAILER

ITCH

LASSIFICATION

The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in selecting

the correct trailer hitch for your intended towing condition.

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry Standards

Class I - Light Duty

2,000 lb (907 kg)

Class II - Medium Duty

3,500 lb (1,587 kg)

Class III - Heavy Duty

6,000 lb (2,722 kg)

Class IV - Extra Heavy Duty

10,000 lb (4,535 kg)

Refer to the “Trailer Towing Weights (Maximum Trailer Weight Ratings)” chart for the Maximum Gross Trailer Weight (GTW) towable for your given drivetrain.
All trailer hitches should be professionally installed on your vehicle.

STARTING AND OPERATING

201

RAILER

OWING

EIGHTS

AXIMUM

RAILER

EIGHT

ATINGS

)

Engine

Model

GCWR

Frontal Area

Maximum GTW

Maximum TW

5.7L

4x2 Series 3

(3.21 Axle Ratio)

13,700 lb (6,214 kg)

40 sq ft (3.72 sq m)

7,400 lb (3,356 kg)

740 lb (335 kg)

5.7L

4x2 Series 3

(3.92 Axle Ratio)

15,000 lb (6,803 kg)

60 sq ft (5.57 sq m)

10,000 lb (4,536 kg)

1,000 lb (454 kg)

5.7L

4x2 Series 2

(3.21 Axle Ratio)

15,000 lb (6,803 kg)

55 sq ft (5.11 sq m)

8,790 lb (3,987 kg)

879 lb (398 kg)

5.7L

4x2 Series 2

(3.92 Axle Ratio)

16,600 lb (7,529 kg)

60 sq ft (5.57 sq m)

10,000 lb (4,536 kg)

1,000 lb (454 kg)

5.7L

4x4 Series 1

(3.21 Axle Ratio)

13,700 lb (6,214 kg)

40 sq ft (3.72 sq m)

7,180 lb (3,256 kg)

718 lb (325 kg)

5.7L

4x4 Series 1

(3.29 Axle Ratio)

15,000 lb (6,803 kg)

55 sq ft (5.11 sq m)

8,480 lb (3,846 kg)

848 lb (386 kg)

5.7L

4x4 Series 2

(3.21 Axle Ratio)

13,700 lb (6,214 kg)

40 sq ft (3.72 sq m)

7,170 lb (3,252 kg)

717 lb (325 kg)

5.7L

4x4 Series 2

(3.29 Axle Ratio)

16,600 lb (7,529 kg)

60 sq ft (5.57 sq m)

10,000 lb (4,536 kg)

1,000 lb (454 kg)

5.7L

4x4 Series 3

(3.21 Axle Ratio)

13,700 lb (6,214 kg)

40 sq ft (3.72 sq m)

7,170 lb (3,252 kg)

717 lb (325 kg)

5.7L

4x4 Series 3

(3.29 Axle Ratio)

15,000 lb (6,803 kg)

55 sq ft (5.11 sq m)

8,470 lb (3,841 kg)

847 lb (384 kg)

202

STARTING AND OPERATING

RAILER

ITCH

ECEIVER

OVER

EMOVAL

— I

QUIPPED

Your vehicle may be equipped with a trailer hitch

receiver cover, this must be removed to access the

trailer hitch receiver. This cover is located at the

bottom center of the rear fascia/bumper.
1. Turn the three locking retainers located at the

bottom of the hitch receiver cover a quarter

turn counterclockwise and pull bottom of the

hitch receiver cover outward (towards you).

2. Pull the bottom of the cover outward (towards

you) then downwards to disengage the tabs

located at the top of the hitch receiver cover to

remove.

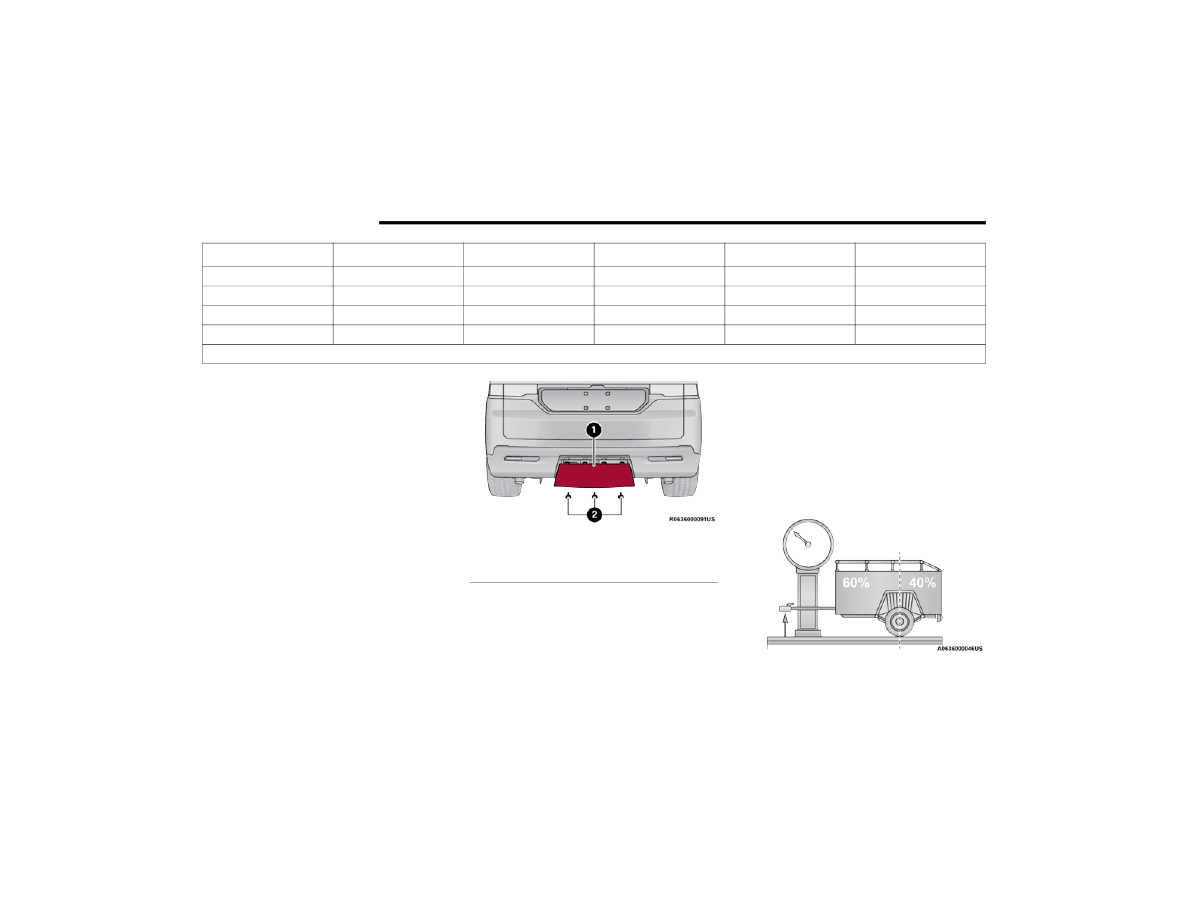

Hitch Receiver Cover

To reinstall the cover after towing repeat the

procedure in reverse order.

NOTE:

Be sure to engage all tabs and fully seat the hitch

receiver cover in the fascia/bumper prior to instal

lation of the quarter turn fasteners.

RAILER

ONGUE

EIGHT

Never exceed the maximum tongue weight

stamped on your bumper or trailer hitch.

Weight Distribution

6.4L

4x2

15,000 lb (6,803 kg)

55 sq ft (5.11 sq m)

8,450 lb (3,832 kg)

845 lb (383 kg)

6.4L

4x2 Max Tow

16,600 lb (7,529 kg)

60 sq ft (5.57 sq m)

10,000 lb (4,536 kg)

1,000 lb (454 kg)

6.4L

4x4

15,000 lb (6,803 kg)

55 sq ft (5.11 sq m)

8,260 lb (3,746 kg)

826 lb (374 kg)

6.4L

4x4 Max Tow

16,600 lb (7,529 kg)

55 sq ft (5.11 sq m)

9,860 lb (4,472 kg)

986 lb (447 kg)

Refer to local laws for maximum trailer towing speeds.

Engine

Model

GCWR

Frontal Area

Maximum GTW

Maximum TW

1 — Hitch Receiver Cover
2 — Locking Retainers

STARTING AND OPERATING

203

(Continued)

Consider the following items when computing the

weight on the rear axle of the vehicle:



The tongue weight of the trailer.



The weight of any other type of cargo or equip

ment put in or on your vehicle.



The weight of the driver and all passengers.

NOTE:

Remember that everything put into or on the trailer

adds to the load on your vehicle. Also, additional

factory-installed options or dealer-installed options

must be considered as part of the total load on

your vehicle. Refer to the “Tire And Loading Infor

mation” placard for the maximum combined

weight of occupants and cargo for your vehicle.

OWING

EQUIREMENTS

To promote proper break-in of the new vehicle

drivetrain components, the following guidelines

are recommended.

Perform the maintenance listed in the Scheduled

Servicing

page 341. When towing a trailer,

never exceed the GAWR or GCWR ratings.

CAUTION!

Always load a trailer with 60% of the weight in

the front of the trailer. This places 10% of the

GTW on the tow hitch of your vehicle. Loads

balanced over the wheels or heavier in the rear

can cause the trailer to sway severely side to

side which will cause loss of control of the

vehicle and trailer. Failure to load trailers heavier

in front is the cause of many trailer collisions.

CAUTION!



Do not tow a trailer at all during the first

500 miles (805 km) the new vehicle is driven.

The engine, axle or other parts could be

damaged.



Then, during the first 500 miles (805 km) that

a trailer is towed, do not drive over 50 mph

(80 km/h) and do not make starts at full

throttle. This helps the engine and other parts

of the vehicle wear in at the heavier loads.

WARNING!



Make certain that the load is secured in the

trailer and will not shift during travel. When

trailering cargo that is not fully secured,

dynamic load shifts can occur that may be

difficult for the driver to control. You could lose

control of your vehicle and have a collision.



When hauling cargo or towing a trailer, do not

overload your vehicle or trailer. Overloading

can cause a loss of control, poor performance

or damage to brakes, axle, engine, transmis

sion, steering, suspension, chassis structure

or tires.



Safety chains must always be used between

your vehicle and trailer. Always connect the

chains to the hook retainers of the vehicle

hitch. Cross the chains under the trailer

tongue and allow enough slack for turning

corners.



Vehicles with trailers should not be parked on

a grade. When parking, apply the parking

brake on the tow vehicle. Put the tow vehicle

transmission in PARK (P). For four-wheel drive

vehicles, make sure the transfer case is not in

NEUTRAL (N). Always, block or "chock" the

trailer wheels.



GCWR must not be exceeded.

WARNING!

204

STARTING AND OPERATING

(Continued)

Towing Requirements — Tires



Do not attempt to tow a trailer while using a

compact spare tire.



Do not drive more than 50 mph (80 km/h) when

towing while using a full-size spare tire.



Proper tire inflation pressures are essential to

the safe and satisfactory operation of your

vehicle.



Check the trailer tires for proper tire inflation

pressures before trailer usage.



Check for signs of tire wear or visible tire

damage before towing a trailer.



Replacing tires with a higher load carrying

capacity will not increase the vehicle's GVWR

and GAWR limits.



For further information

page 381.

Towing Requirements — Trailer Brakes



Do not interconnect the hydraulic brake system

or vacuum system of your vehicle with that of

the trailer. This could cause inadequate braking

and possible personal injury.



An electronically actuated trailer brake

controller is required when towing a trailer with

electronically actuated brakes. When towing a

trailer equipped with a hydraulic surge actuated

brake system, an electronic brake controller is

not required.



Trailer brakes are recommended for trailers

over 1,000 lb (453 kg) and required for trailers

in excess of 2,000 lb (907 kg).

Integrated Trailer Brake Module (ITBM) —

If Equipped

Your vehicle may have an ITBM for Electric and

Electric Over Hydraulic (EOH) trailer brakes. The

controller is located below the instrument panel on

the right side of the steering column.

NOTE:

This module has been designed and verified with

electric trailer brakes and EOH systems. Some

previous EOH systems may not be compatible with

ITBM.



Total weight must be distributed between the

tow vehicle and the trailer such that the

following four ratings are not exceeded:



GVWR



GTW



GAWR



Tongue weight rating for the trailer hitch

utilized.

WARNING!



Do not connect trailer brakes to your vehicle's

hydraulic brake lines. It can overload your

brake system and cause it to fail. You might

not have brakes when you need them and

could have an accident.



Towing any trailer will increase your stopping

distance. When towing, you should allow for

additional space between your vehicle and the

vehicle in front of you. Failure to do so could

result in an accident.

CAUTION!

If the trailer weighs more than 1,000 lb (453 kg)

loaded, it should have its own brakes and they

should be of adequate capacity. Failure to do

this could lead to accelerated brake lining wear,

higher brake pedal effort, and longer stopping

distances.

WARNING!

Jeep Wagoneer (2022 year). Manual in english - page 12
