SERVICING AND MAINTENANCE

313

Replacing Exterior Bulbs

Headlamps
Hi/Lo Beam Light Halogen
See the following steps to replace:

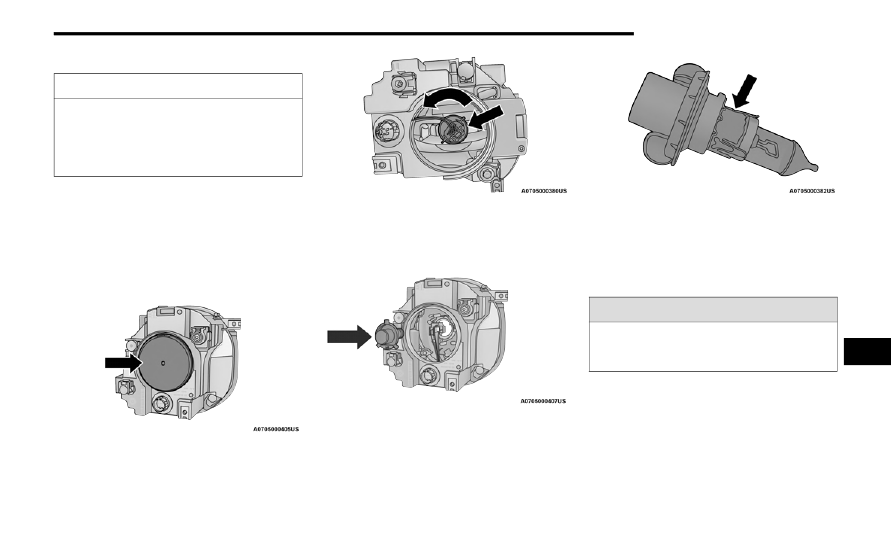

1. Open the engine compartment and remove

the headlamp bulb cap.

Headlamp Bulb Cap

2. Rotate the headlamp bulb socket counter

clockwise then pull outwards.

Headlamp Bulb Socket

3. Push on the locking tab on the headlamp bulb

connector and remove the bulb and socket.

Headlamp Bulb

4. Install the new headlamp bulb making sure it

is properly locked.

5. Install the headlamp bulb and socket; turn it

clockwise making sure it is properly locked.

LED Headlamps – If Equipped
For replacement see an authorized dealer.

CAUTION!

During bulb replacement do not touch the new

glass bulb with your fingers. Oil contamination

will severely shorten bulb life. If the bulb comes

in contact with any oily surface, clean the bulb

with rubbing alcohol.

WARNING!

Carry out the operation of replacing lamps only

with the engine off. Also make sure that the

engine is cold, to avoid the danger of burns.

314

SERVICING AND MAINTENANCE

Position Lights/Daytime Running Lights/Fog

Lights
See the following steps to replace:

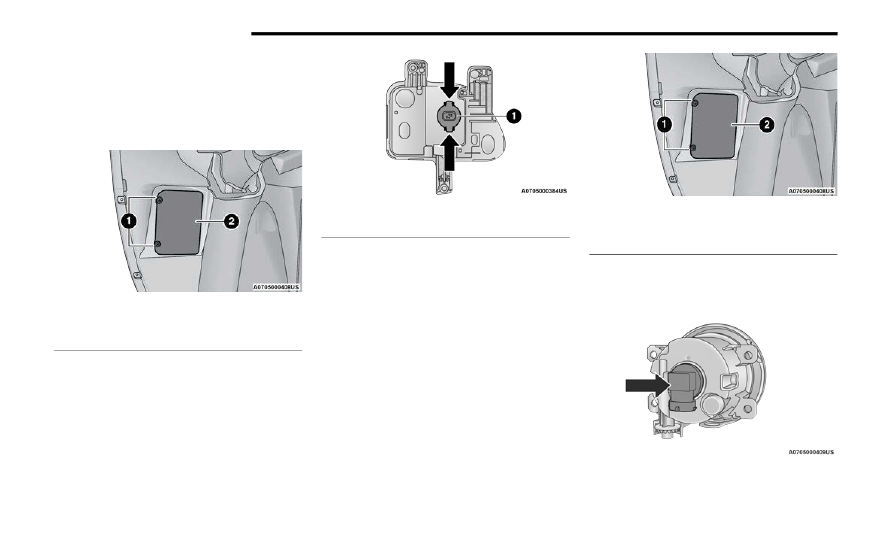

1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.

Position Light/Daytime Running Light/Fog Light Access

3. Remove the electrical connector.
4. Releasing the two tabs, and remove the bulb

and bulb socket from the housing.

Position Light/Daytime Running Light Assembly

5. Install the new bulb and socket into the

housing, and engage the two tabs, making

sure that it is properly locked.

6. Reconnect the electrical connector.
7. Reinstall the access door.

Front Fog Lights
See the following steps to replace:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.

Position Light/Daytime Running Light/Fog Light Access

3. By pushing the electrical connector tab

remove the electrical connector.

Fog Light Assembly

1 — Screws
2 — Access Door

1 — Bulb Socket

1 — Screws
2 — Access Door

SERVICING AND MAINTENANCE

315

4. Rotate the bulb counterclockwise, and then

replace the bulb.

5. Insert the new bulb in the socket, making sure

the bulb is locked into place.

6. Reconnect the electrical connector.
7. Reinstall the access door.

LED Front Fog Lamps – If Equipped
For replacement see an authorized dealer.

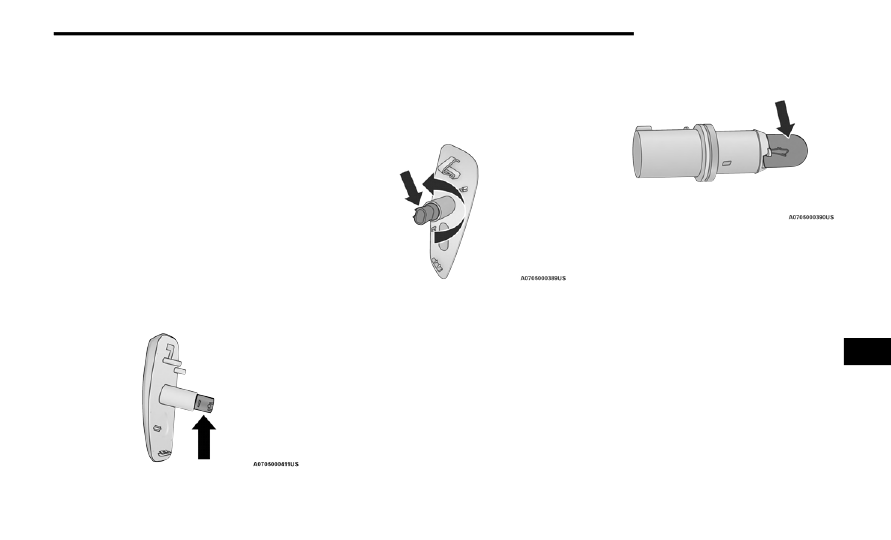

Front Side Indicators
See the following steps to replace:
1. Operating from inside the engine

compartment using a suitable tool release

the retaining clip.

2. Remove lamp assembly by sliding it toward the

outside.

Lamp Assembly

3. Remove the electrical connector by pushing

the tab then disconnect the electrical

connector.

4. Rotate counterclockwise to release the bulb

socket from the lamp assembly, and remove it.

Bulb Socket

5. Remove the bulb from the socket.

Bulb

6. Insert the new bulb in the socket.
7. Reinstall the bulb and socket into the lamp

assembly by turning it clockwise, making sure

it is locked into place.

8. Reconnect the electrical connector.
9. Reinstall the lamp assembly on the car,

making sure it is locked into place.

316

SERVICING AND MAINTENANCE

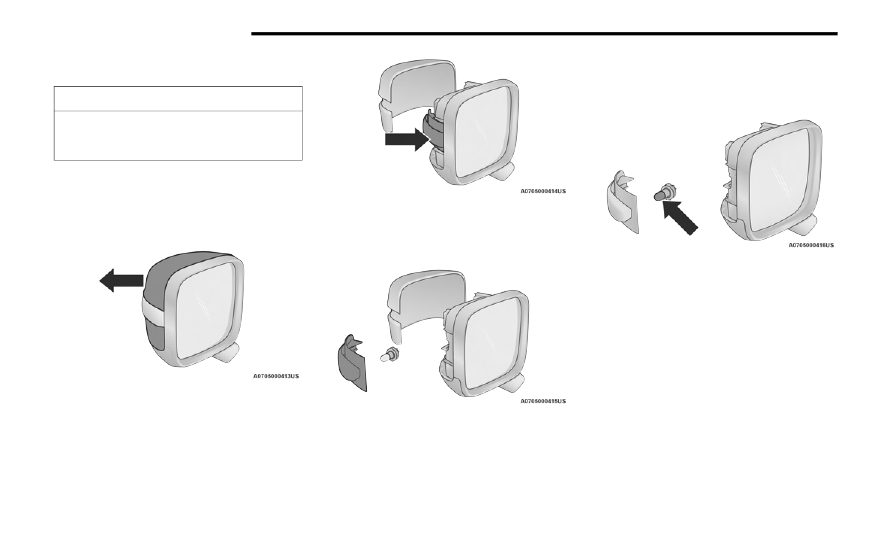

Side Indicators on External Rear View Mirrors – (If

Equipped)

See the following steps to replace:
1. Remove the mirror cap on the outside rear

view mirror.

Mirror Cap

Removing the mirror cap

2. Remove the transparent lens assembly as

shown.

Transparent Lens

3. Remove the bulb socket and bulb from the

transparent lens assembly by rotating the

socket counterclockwise.

Transparent Lens Assembly

4. Remove the bulb from the bulb socket by

pulling the bulb straight out.

5. Insert the new bulb, making sure that it is

locked into place.

6. Reinstall the socket in to the transparent lens

assembly.

7. Reinstall the cover on the outside rear view

mirror, making sure it is locked into place.

CAUTION!

The procedure is described as a guideline. For

the replacement of the lamp it is recommended

that you contact an authorized dealer.

SERVICING AND MAINTENANCE

317

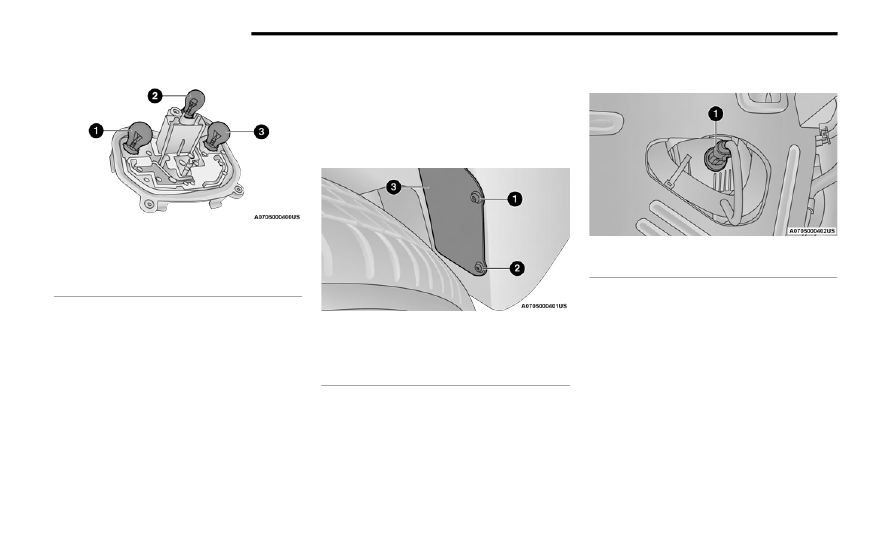

Rear Tail Lamps
Contain the following:



Position Lights



Stop Lights



Direction Indicator



REVERSE Lights

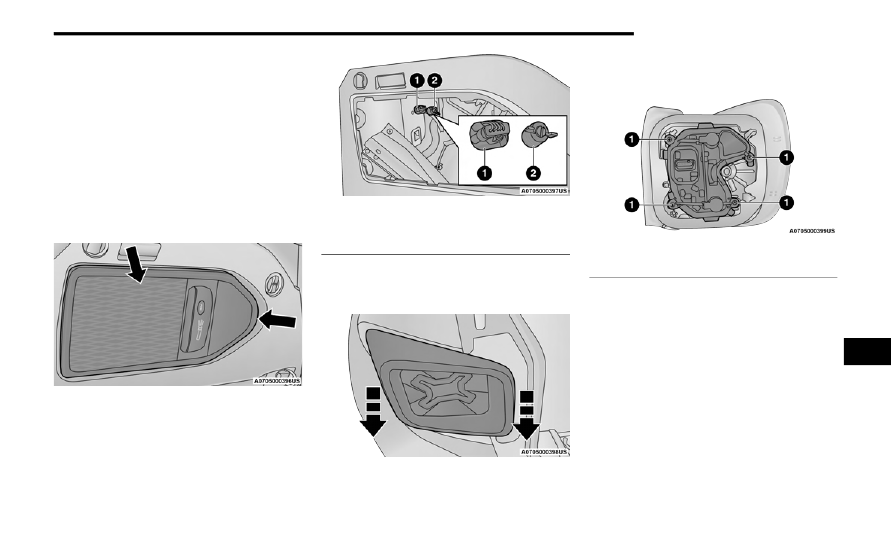

See the following steps to replace:
1. Open the liftgate.
2. Using a suitable tool remove the door as

shown.

Trim Panel Door

3. Using a suitable tool remove fastener.
4. Disconnect the electrical connector by pushing

the release.

Rear Lamp Fastener and Electrical Connector

5. Remove the rear tail lamp, sliding it toward the

outside as shown.

Tail Lamp Removal

6. Unscrew the screws and remove the rear tail

lamp holder.

Rear Lamp Assembly

1 — Electrical Connector
2 — Fastener

1 — Mounting Screws

318

SERVICING AND MAINTENANCE

7. Replace the bulb as necessary.

Rear Tail Lamp Holder

8. Insert the new bulb, making sure it is properly

locked.

9. Reassemble the lamp assembly on the rear

tail lamp housing, tightening the screws.

10. Reposition the rear tail lamp on the car.
11. Secure the fastener of the rear tail lamp and

reconnect the electrical connector.

12. Reinstall the door making sure it locked into

place.

13. Finally close the liftgate.

LED Rear Tail Lamps – If Equipped
For replacement see an authorized dealer.
Reverse Lights – If Equipped With LED Tail Lamps
See the following steps to replace:
1. Use a suitable tool to remove the screws and

remove the access door.

Reverse Light Access

2. By pushing the electrical connector tab

remove the electrical connector.

Reverse Light Assembly

3. Rotate the bulb counterclockwise, and then

replace the bulb.

4. Insert the new bulb in the socket, making sure

the bulb is locked into place.

5. Reconnect the electrical connector.
6. Reinstall the access door.

Center High Mounted Stop Lamp (CHMSL)
The CHMSL is LED. For replacement see an

authorized dealer.

1 — Tail Light
2 — Reverse Bulb
3 — Position Light/Stop Light/Turn Signal

1 — Screw
2 — Screw
3 — Access Door

1 — Bulb

SERVICING AND MAINTENANCE

319

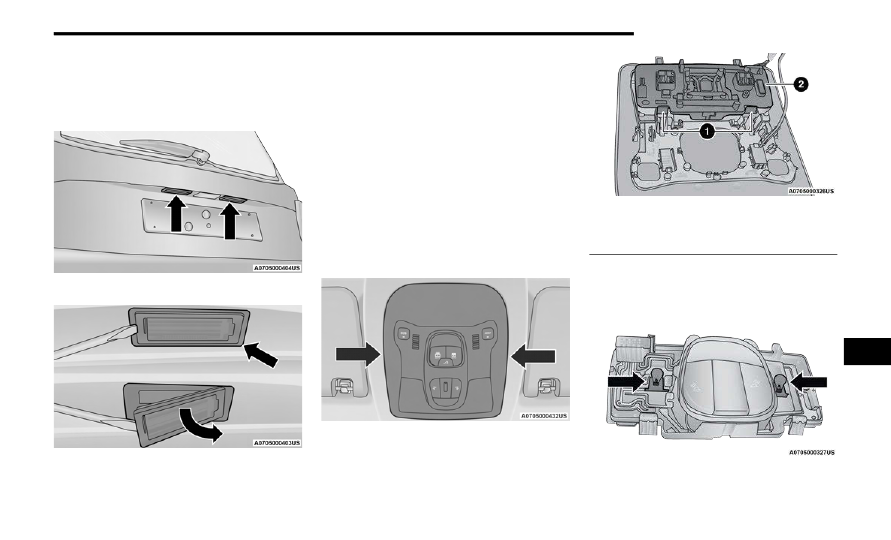

License Plate Lights
See the following steps to replace:
1. Using a suitable tool remove the license plate

lens.

License Plate Light Location

License Plate Light

2. Remove the bulbs from the individual side

contacts.

3. Insert the new bulbs, and ensure that they are

properly locked between the contacts.

4. Reinstall the license plate lens.

NOTE:

If removing the license plate lens using a screw

driver, be sure to cover the tip of the screwdriver

with a cloth so no damage is done to the lenses or

the vehicle paint.

Replacing Interior Bulbs

Front Courtesy Light
See below steps to replace:
1. Using a suitable tool remove the front

courtesy light as shown.

Front Courtesy Light Housing

2. Release the retainer clips and bulb housing as

shown.

Front Courtesy Bulb Housing

3. Replace the bulbs by pulling straight out of

bulb housing.

Front Courtesy Bulb Housing

1 — Retaining Clips
2 — Bulb Housing

320

SERVICING AND MAINTENANCE

4. Insert the new bulbs, making sure that they are

properly locked.

5. Reassemble the bulb housing and courtesy

light housing making sure that they are

properly locked.

6. Install the front courtesy light making sure that

it is properly locked.

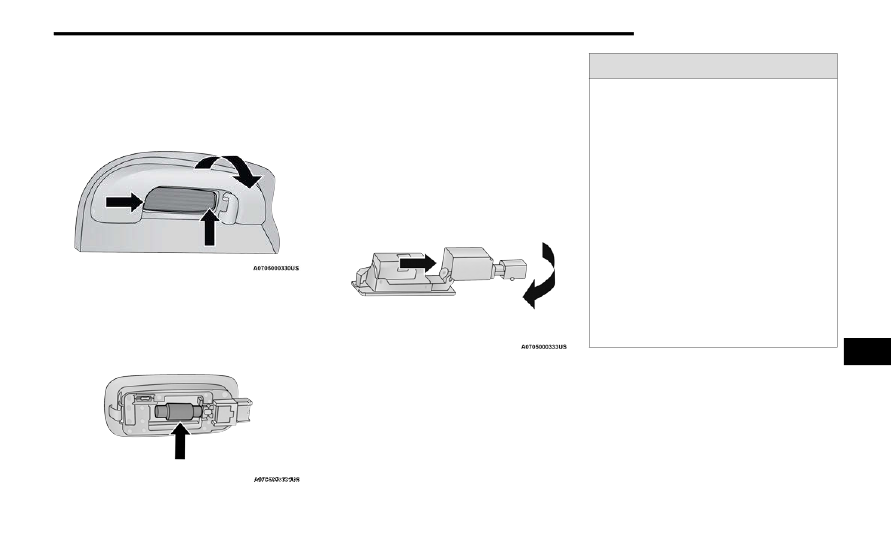

Dome Light Vanity Mirror
See below steps to replace:
1. Lift the cover of the mirror and pull out the

visor mirror light cover.

2. Replace the bulb, releasing it from the side

contacts, and then insert the new bulb, making

sure that it is properly locked between the

contacts.

Visor

3. Reinstall the visor mirror light cover making

sure that it is properly locked.

4. Finally lower the visor mirror cover to the

mirror.

Dome Light Glove Compartment
See below steps to replace:
1. Open the glove compartment.
2. Place your fingers inside the light assembly,

pull the bulb to replace it.

Bulb Removal/Installation

3. Insert the new bulb, making sure it is properly

locked.

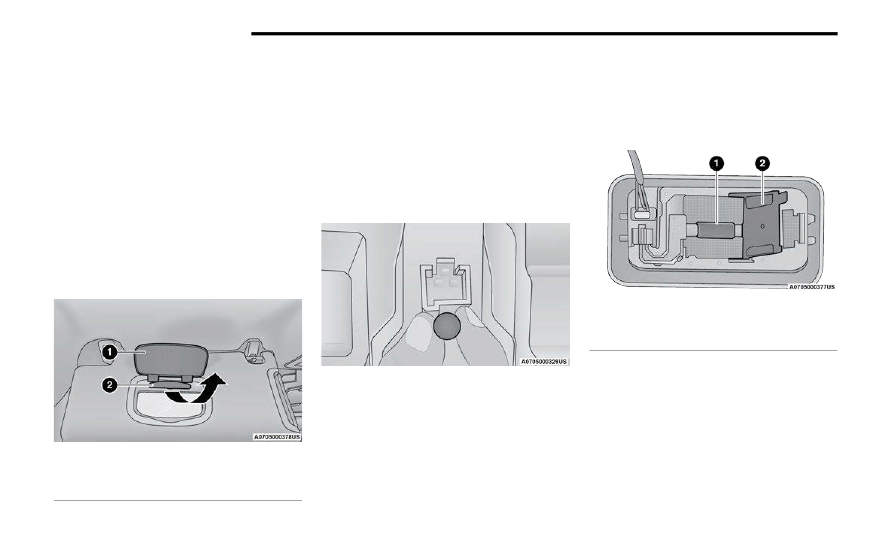

Rear Dome Light — Without Retractable Roof
See below steps to replace:
1. Using a suitable tool release the lamp

assembly at both the ends.

2. Open the flap and replace the bulb.

Rear Dome Light Housing

3. Insert the new bulb, locking it between the

contacts.

4. Reinstall the dome light.

1 — Visor Mirror Cover
2 — Visor Mirror Light

1 — Bulb
2 — Flap

SERVICING AND MAINTENANCE

321

Dome Light — MY SKY
See below steps to replace:
1. Lower the handle in the direction shown

remove the dome light.

Retractable Roof Light

2. Replace the bulb by removing it from the side

contacts.

Bulb

3. Insert the new bulb, locking it between the

contacts.

4. Reinstall the dome light.

Interior Cargo Lights
See below steps to replace:
1. Open the luggage compartment and remove

the dome light assembly.

2. Open the light cover and replace the bulb.

Light Cover

3. Close the light cover over the bulb.
4. Reinstall the dome light in its correct position.

WARNING!



Before proceeding with the replacement of

the lamp wait for the exhaust pipes are cool:

DANGER OF BURNS!



Modifications or repair of the electrical system

performed incorrectly and without taking into

account the technical characteristics can

cause malfunctions with the risk of fire.



Halogen lamps contain gas under pressure, in

the event of breakage be careful of the projec

tion of fragments of glass.



Halogen lamps must be handled by touching

only the metallic part. If the transparent bulb

is in contact with the fingers, reduces the

intensity of the emitted light and you can also

affect the life of the lamp. In case of acci

dental contact, rub the bulb with a cloth damp

ened with alcohol and allow to dry.

322

SERVICING AND MAINTENANCE

TIRES

IRE

AFETY

NFORMATION

Tire safety information will cover aspects of the

following information: Tire Markings, Tire

Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

NOTE:



P (Passenger) — Metric tire sizing is based on US

design standards. P-Metric tires have the letter

“P” molded into the sidewall preceding the size

designation. Example: P215/65R15 95H.



European — Metric tire sizing is based on Euro

pean design standards. Tires designed to this

standard have the tire size molded into the side

wall beginning with the section width. The letter

"P" is absent from this tire size designation.

Example: 215/65R15 96H.



LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.



Temporary spare tires are designed for tempo

rary emergency use only. Temporary high pres

sure compact spare tires have the letter “T” or

“S” molded into the sidewall preceding the size

designation. Example: T145/80D18 103M.



High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

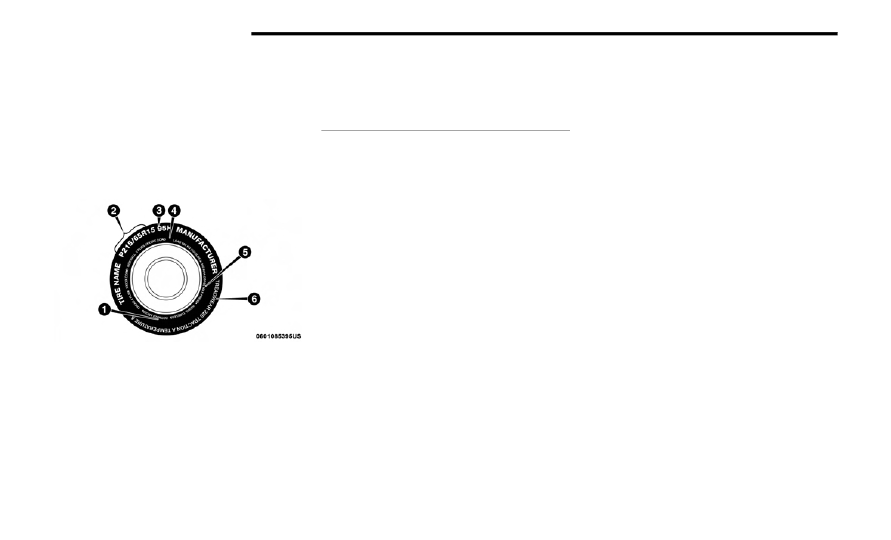

1 — US DOT Safety Standards Code

(TIN)
2 — Size Designation
3 — Service Description

4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

SERVICING AND MAINTENANCE

323

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)



Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code



"R" means radial construction, or



"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index



A numerical code associated with the maximum load a tire can carry

H = Speed Symbol



A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions



The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,

road conditions, and posted speed limits)

324

SERVICING AND MAINTENANCE

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including

the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is

not found on the outboard side, then you will find it on the inboard side of the tire.

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:



XL = Extra load (or reinforced) tire, or



LL = Light load tire or



C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation



This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)



means the 3rd week

EXAMPLE:

SERVICING AND MAINTENANCE

325

Tire Terminology And Definitions

01 = Number representing the year in which the tire was manufactured (two digits)



means the year 2001



Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could

represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1

mile (1.6

km) after sitting for a minimum

of three hours. Inflation pressure is measured in units of PSI (pounds per square inch) or kPa

(kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for

this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

The manufacturer's recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

EXAMPLE:

326

SERVICING AND MAINTENANCE

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire, including

the spare tire (if equipped), at least monthly and

inflate to the recommended pressure for your

vehicle.

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

This placard tells you important information about

the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on your

vehicle. You will not exceed the tire's load carrying

capacity if you adhere to the loading conditions, tire

size, and cold tire inflation pressures specified on the

Tire and Loading Information placard

page

123.

NOTE:

Under a maximum loaded vehicle condition, Gross

Axle Weight Rating (GAWR) for the front and rear

axles must not be exceeded.
For further information on GAWR, vehicle loading,

and trailer towing

page

123.

SERVICING AND MAINTENANCE

327

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The combined

weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your

vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.

(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your vehicle,

the amount of available cargo and luggage load

capacity is 295 kg (635-340 (5x68) = 295 kg) as

shown in step 4.

NOTE:



If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

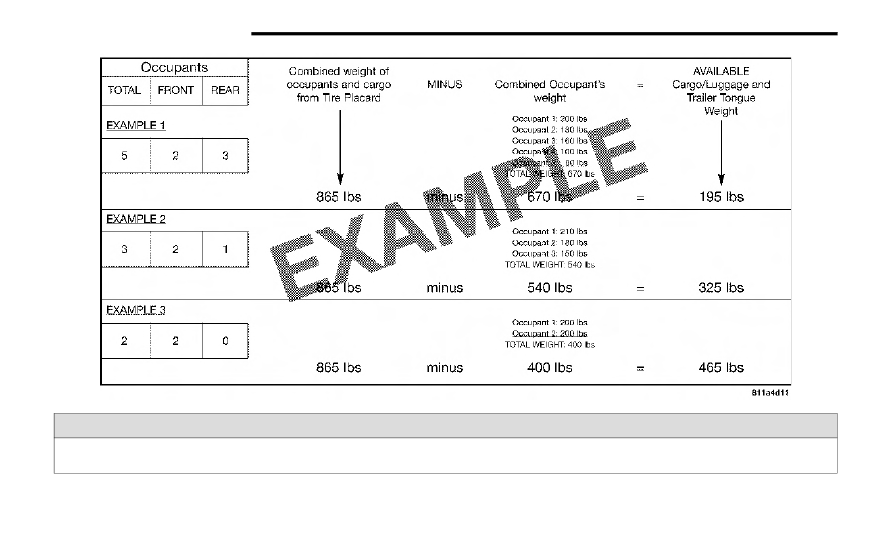

The following table shows examples on how to

calculate total load, cargo/luggage, and towing

capacities of your vehicle with varying seating

configurations and number and size of occu

pants. This table is for illustration purposes only

and may not be accurate for the seating and

load carry capacity of your vehicle.



For the following example, the combined weight

of occupants and cargo should never exceed

865 lbs (392 kg).

328

SERVICING AND MAINTENANCE

WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the

recommended load capacity for your vehicle. Never overload them.

Content .. 18 19 20 21 ..
