IN CASE OF EMERGENCY

281

5. Remove funnel from filler pipe, clean off prior

to putting back in the spare tire storage area.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
In any of the following situations, you can reduce

the potential for overheating your engine by taking

the appropriate action.



On the highways — slow down.



In city traffic — while stopped, put transmission

in NEUTRAL (N), but do not increase engine idle

speed.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:



If your Air Conditioner (A/C) is on, turn it off. The

A/C system adds heat to the engine cooling

system and turning the A/C off can help remove

this heat.



You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the heater

core to act as a supplement to the radiator and

aids in removing heat from the engine cooling

system.

GEAR SELECTOR OVERRIDE

If a malfunction occurs and the gear selector

cannot be moved out of the PARK position, follow

the steps below:

NOTE:

A depleted battery will prevent the Electric Park

Brake to be applied.
1. Turn the engine OFF.
2. Apply the Electric Park Brake.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

CAUTION!

Driving with a hot cooling system could damage

your vehicle. If the temperature gauge reads

“H”, pull over and stop the vehicle. Idle the vehi

cle with the air conditioner turned off until the

pointer drops back into the normal range. If the

pointer remains on the “H” and you hear contin

uous chimes, turn the engine off immediately

and call for service.

WARNING!

You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator.

If you see or hear steam coming from under the

hood, do not open the hood until the radiator

has had time to cool. Never try to open a cooling

system pressure cap when the radiator or cool

ant bottle is hot.

282

IN CASE OF EMERGENCY

3. Carefully separate the gear selector boot

assembly from the bezel.

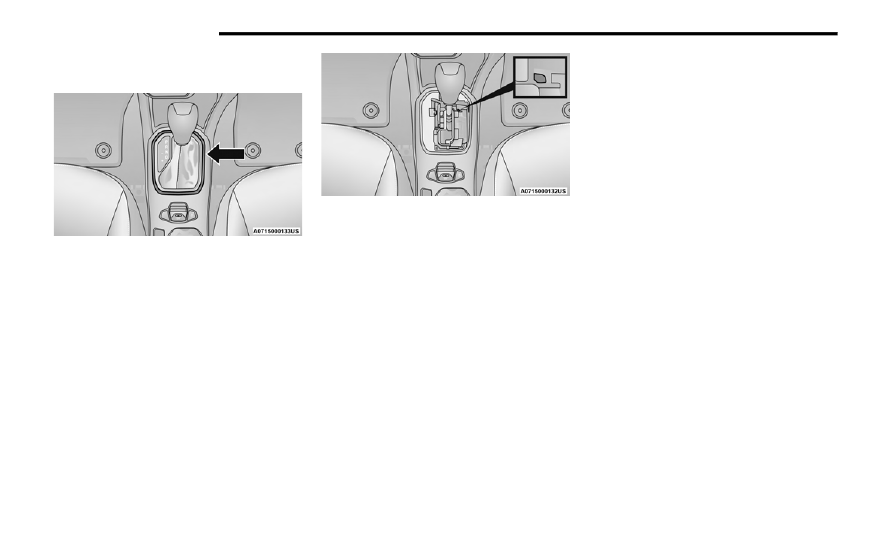

Gear Selector Bezel Location

4. Press and maintain firm pressure on the brake

pedal.

5. Insert a small screwdriver or similar tool down

into the gear selector override access hole (at

the right front corner of the gear selector

assembly), and push and hold the override

release lever down.

Gear Selector Override Location

6. Move the gear selector to the NEUTRAL

position.

7. The vehicle may then be started in NEUTRAL.
8. Reinstall the gear selector boot on the bezel.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or

snow, it can often be moved using a rocking

motion. Turn the steering wheel right and left to

clear the area around the front wheels. For

vehicles with automatic transmission, push and

hold the lock button on the gear selector. Then

shift back and forth between DRIVE (D) and

REVERSE (R) (with automatic transmission) or

SECOND (2) gear and REVERSE (R) (with manual

transmission), while gently pressing the

accelerator.
Use the least amount of accelerator pedal

pressure that will maintain the rocking motion

without spinning the wheels or racing the engine.
For Vehicles With Automatic Transmission:
Shifts between DRIVE and REVERSE can only be

achieved at wheel speeds of 5

mph (8

km/h) or

less. Whenever the transmission remains in

NEUTRAL (N) for more than two seconds, you must

press the brake pedal to engage DRIVE or

REVERSE.

NOTE:

Push the ESC OFF button to place the Electronic

Stability Control (ESC) system in “Partial OFF”

mode, before rocking the vehicle

page

223.

Once the vehicle has been freed, push the ESC OFF

button again to restore “ESC On” mode.

IN CASE OF EMERGENCY

283

(Continued)

TOWING A DISABLED VEHICLE

This section describes procedures for towing a

disabled vehicle using a commercial towing

service.

Proper towing or lifting equipment is required to

prevent damage to your vehicle. Use only tow bars

and other equipment designed for this purpose,

following equipment manufacturer’s instructions.

Use of safety chains is mandatory. Attach a tow bar

or other towing device to main structural members

of the vehicle, not to fascia/bumpers or associated

brackets. State and local laws regarding vehicles

under tow must be observed.

NOTE:



Vehicles with a discharged battery or total elec

trical failure when the Electric Park Brake (EPB)

is engaged, will need a wheel dolly or jack to

raise the rear wheels off the ground when

moving the vehicle onto a flatbed.



You must ensure that the Auto Park Brake

feature is disabled before towing this vehicle, to

avoid inadvertent Electric Park Brake engage

ment. The Auto Park Brake feature is enabled or

disabled via the customer programmable

features in the Uconnect Settings.

If you must use the accessories (wipers,

defrosters, etc.) while being towed, the ignition

must be in the ON/RUN position, not the ACC

position.
If the vehicle's battery is discharged, instructions

on shifting the automatic transmission out of PARK

(P) in order to move the vehicle

page

281.

WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause damage, or even failure, of the axle and

tires. A tire could explode and injure someone.

Do not spin your vehicle's wheels faster than

mph (48

km/h) or for longer than 30 sec-

onds continuously without stopping when you

are stuck and do not let anyone near a spinning

wheel, no matter what the speed.

CAUTION!



Racing the engine or spinning the wheels may

lead to transmission overheating and failure.

Allow the engine to idle with the transmission

in NEUTRAL for at least one minute after every

five rocking-motion cycles. This will minimize

overheating and reduce the risk of clutch or

transmission failure during prolonged efforts

to free a stuck vehicle.



When “rocking” a stuck vehicle by shifting

between DRIVE/SECOND gear and REVERSE,

do not spin the wheels faster than 15

mph

(24

km/h), or drivetrain damage may result.



Revving the engine or spinning the wheels too

fast may lead to transmission overheating and

failure. It can also damage the tires. Do not spin

the wheels above 30

mph (48

km/h) while in

gear (no transmission shifting occurring).

Towing

Condition

Wheels

Off The

Ground

Front-

Wheel

Drive

(FWD)

Four-

Wheel

Drive

(4WD)

Flat Tow

NONE

NOT

ALLOWED

NOT

ALLOWED

Dolly Tow

REAR

NOT

ALLOWED

NOT

ALLOWED

FRONT

NOT

ALLOWED

On Trailer

ALL

BEST

METHOD

CAUTION!

284

IN CASE OF EMERGENCY

RONT

–W

HEEL

RIVE

(FWD)

FCA US LLC recommends towing your vehicle with

all four wheels OFF the ground on a flatbed.
If flatbed equipment is not available, this vehicle

must towed with the front wheels OFF the ground

(using a towing dolly, or wheel lift equipment with

the front wheels raised).

NOTE:

Ensure that the Electric Park Brake is released,

and remains released, while being towed.

OUR

–W

HEEL

RIVE

(4WD)

FCA US LLC requires towing with all four wheels OFF

the ground. Acceptable methods are to tow the

vehicle on a flatbed, or with one end of the vehicle

raised and the opposite end on a towing dolly.

MERGENCY

OOKS

—

QUIPPED

If your vehicle is equipped with tow hooks, there

will be one in the rear and two mounted on the

front of the vehicle. The rear hook will be located

on the driver's side of the vehicle.

NOTE:

For off-road recovery, it is recommended to use

both of the front tow hooks to minimize the risk of

damage to the vehicle.

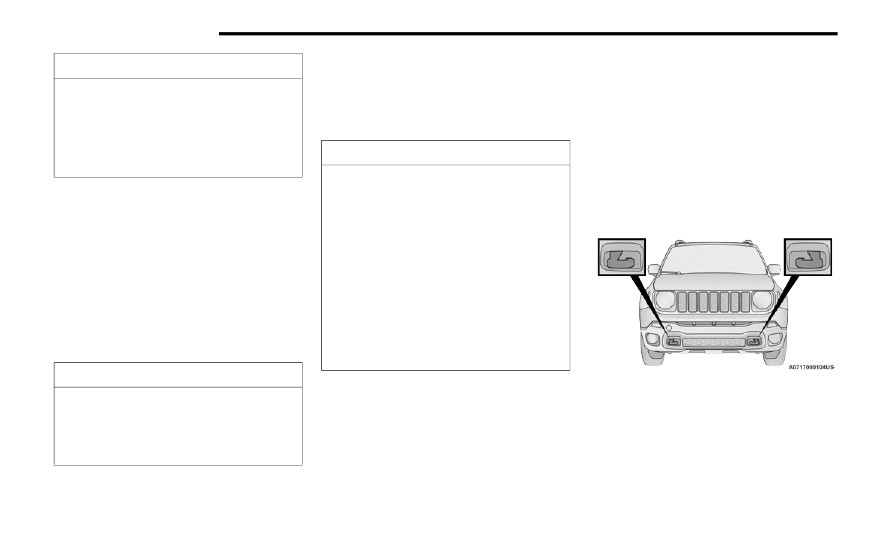

Front Tow Hook Locations

CAUTION!



Do not use sling type equipment when towing.

Vehicle damage may occur.



When securing the vehicle to a flat bed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.

CAUTION!

Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

CAUTION!



DO NOT tow this vehicle with ANY of its wheels

on the ground. Damage to the drivetrain will

result.



Front or rear wheel lifts must not be used (if

the remaining wheels are on the ground).

Internal damage to the transmission or power

transfer unit will occur if a front or rear wheel

lift is used when towing.



Towing this vehicle in violation of the above

requirements can cause severe transmission

and/or power transfer unit damage. Damage

from improper towing is not covered under the

New Vehicle Limited Warranty.

IN CASE OF EMERGENCY

285

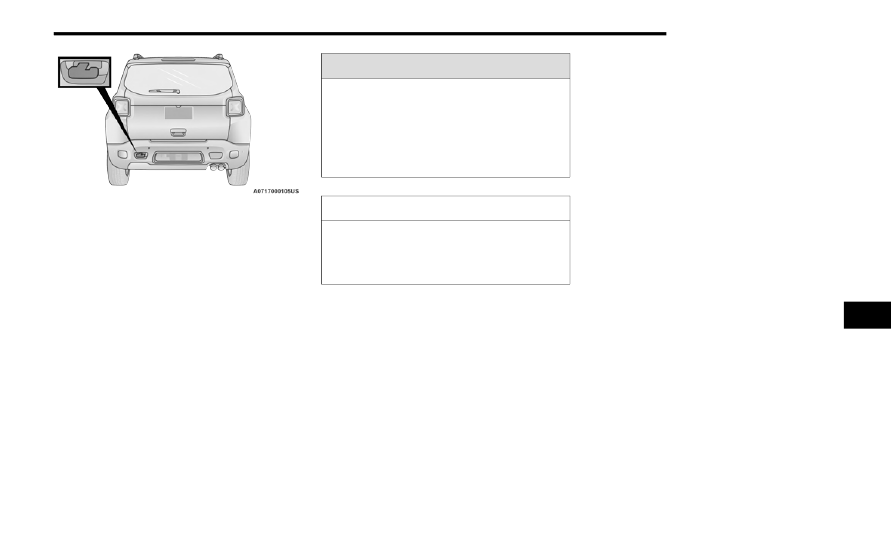

Rear Tow Hook Location

Place the ignition in the ON/RUN position, without

opening the door. During towing remember that

not having the aid of the power brakes and the

electromechanical power steering, greater force is

needed in applying the brakes and steering of the

vehicle.

ENHANCED ACCIDENT RESPONSE SYSTEM

(EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact

page

252.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how a

vehicle’s systems performed under certain crash

or near crash-like situations, such as an air bag

deployment or hitting a road obstacle

page

255.

WARNING!



Do not use a chain for freeing a stuck vehicle.

Chains may break, causing serious injury or

death.



Stand clear of vehicles when pulling with tow

hooks. Tow straps may become disengaged,

causing serious injury.

CAUTION!

Tow hooks are for emergency use only, to rescue

a vehicle stranded off road. Do not use tow

hooks for tow truck hookup or highway towing.

You could damage your vehicle.

286

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil

change indicator system. The oil change indicator

system will remind you that it is time to take your

vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil

change indicator message will illuminate in the

instrument cluster. This means that service is

required for your vehicle. Operating conditions

such as frequent short-trips, trailer tow and

extremely hot or cold ambient temperatures will

influence when the “Change Oil” or “Oil Change

Required” message is displayed. Have your vehicle

serviced as soon as possible, within the next

500

miles (805

km).

An authorized dealer will reset the oil change

indicator message after completing the scheduled

oil change.

NOTE:

Under no circumstances should oil change

intervals exceed 10,000

miles (16,000

km),

1 year or 350 hours of engine run time, whichever

comes first. The 350 hours of engine run or idle

time is generally only a concern for fleet

customers.

NOTE:

The Oil Change Indicator will not illuminate under

these conditions.

Once A Month Or Before A Long Trip:



Check engine oil level.



Check windshield washer fluid level.



Check the tire inflation pressures and look for

unusual wear or damage.



Check the fluid levels of the coolant reservoir,

and brake master cylinder reservoir, and fill as

needed.



Check function of all interior and exterior lights.

SERVICING AND MAINTENANCE

287

AINTENANCE

LAN

NOTE:

Using white lithium grease, lubricate the door hinge roller pivot joints twice a year to prevent premature wear.

At Every Oil Change Interval As Indicated By Oil Change Indicator System:

Change oil and filter.
Inspect battery and clean and tighten terminals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums, and hoses.
Inspect engine cooling system protection and hoses.
Rotate the tires at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.
Inspect exhaust system.
Inspect engine air cleaner filter if using in dusty or off-road conditions.

288

SERVICING AND MAINTENANCE

Mileage or time passed

(whichever comes first)

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

16,000

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

Replace the Uconnect box (telematics

box) battery (if equipped).

•

Check tire condition/wear and adjust

pressure, if necessary, check Tire

Service Kit expiration date (if

equipped).

•

Check operation of lighting system

(headlamps, direction indicators,

hazard warning lights, luggage

compartment, passenger

compartment, glove compartment,

instrument panel warning lights, etc.).

•

Check and, if necessary, top up fluid

levels (brakes/hydraulic clutch,

windshield washer, engine coolant,
etc.).

•

Check engine control system operation

(via diagnostic tool).

•

SERVICING AND MAINTENANCE

289

Visually inspect condition of: exterior

bodywork, underbody protection, pipes

and hoses (exhaust - fuel system -

brakes), rubber elements (boots,

sleeves, bushings, etc.).

•

Check windshield/rear window wiper

blade position/wear.

•

Check operation of windshield washer

system and adjust jets if necessary.

•

Check cleanliness of hood and tailgate

locks and cleanliness and lubrication

of linkages.

•

Visually check the condition and wear

of the front and rear brakes.

•

Check the front suspension, tie rods,

CV/Universal joints and replace if

necessary.

•

Visually inspect the condition of the
accessory drive belt.

•

Mileage or time passed

(whichever comes first)

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

16,000

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

290

SERVICING AND MAINTENANCE

Check the tension of the accessory

drive belt.

•

Inspect and replace, if required, front

end accessory drive belt, tensioner,
and, idler pulley.

•

Inspect and replace PCV valve if

necessary.

•

Change engine oil and replace oil
filter.

Inspect the PTU fluid level.

•

Inspect the rear differential fluid level.

•

Replace spark plugs (1.3L Turbo
Engine).

•

Replace engine air cleaner filter.

•

Replace brake fluid every two years.

•

Replace cabin air filter.

To be replaced every 12,000

mi (19,000

km).

Mileage or time passed

(whichever comes first)

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

16,000

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

SERVICING AND MAINTENANCE

291

○ Recommend replacement

• Mandatory service

Flush and replace the engine coolant

at 10 years or 150,000

miles

(240,000

km) whichever comes first.

•

1. The Uconnect box (telematics box) battery replacement has to be done every five years, regardless of mileage.

2. Always only use the fluids shown in the handbook for topping up after having checked that the system is not damaged.

3. The maximum mileage is 75,000

miles (120,000

km). The belt must be replaced every six years, regardless of distance traveled. If the vehicle is used in heavy conditions (dusty

areas, cold climates, urban driving, long periods of idling), the maximum mileage is 37,500

miles (60,000

km). The belt must be replaced every four years regardless of the mileage.

4. The oil and oil filter replacement must be carried out when indicated by a warning light or message on the instrument panel, or in any case should not exceed one year or

10,000

miles (16,000

km).

5. Always only use the fluids shown in the handbook for topping up after having checked that the system is not damaged.

6. If the engine oil quality detected by the vehicle diagnostics is lower than 20%, it is advisable to replace the engine oil and engine filter in order to avoid another service operation

after a short time.

7. The spark plug change is distance based only, yearly intervals do not apply. The following are essential to ensure correct operation and prevent serious damage to the engine:



Only use spark plugs of the same make and type which are especially certified for such engines

page

345.



Strictly comply with the spark plug replacement interval given in the “Maintenance Schedule” for spark plug replacement.



Contact an authorized dealer if you have any questions.

8. The engine air cleaner filter should be inspected at every oil change if used in dusty areas.

9. The brake fluid change interval is time based only, mileage intervals do not apply.

Mileage or time passed

(whichever comes first)

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

110,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

16,000

32,000

48,000

64,000

80,000

96,000

112,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

292

SERVICING AND MAINTENANCE

WARNING!



You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have

any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.



Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This could cause

an accident.

SERVICING AND MAINTENANCE

293

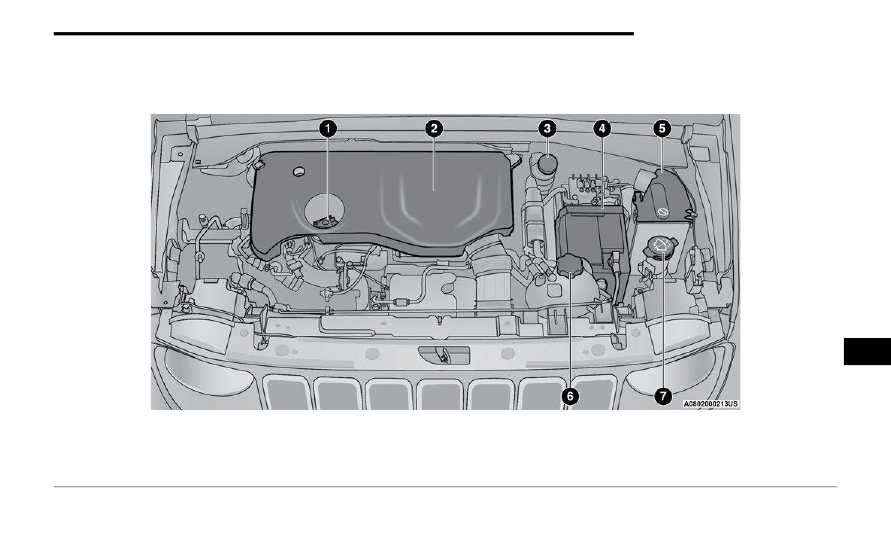

ENGINE COMPARTMENT

1.3L T

URBO

NGINE

1 — Oil Fill Cap/Engine Oil Dipstick

5 — Power Distribution Center (Fuses)

2 — Engine Air Cleaner Filter (Located Under Engine Cover)

6 — Engine Coolant Pressure Cap

3 — Brake Fluid Reservoir Cap

7 — Washer Fluid Reservoir Cap

4 — Battery

294

SERVICING AND MAINTENANCE

HECKING

EVEL

To ensure proper engine lubrication, the engine oil

must be maintained at the correct level. Check the

oil level at regular intervals, such as every fuel

stop. The best time to check the engine oil level is

about five minutes after a fully warmed up engine

is shut off.
Checking the oil while the vehicle is on level ground

will improve the accuracy of the oil level readings.

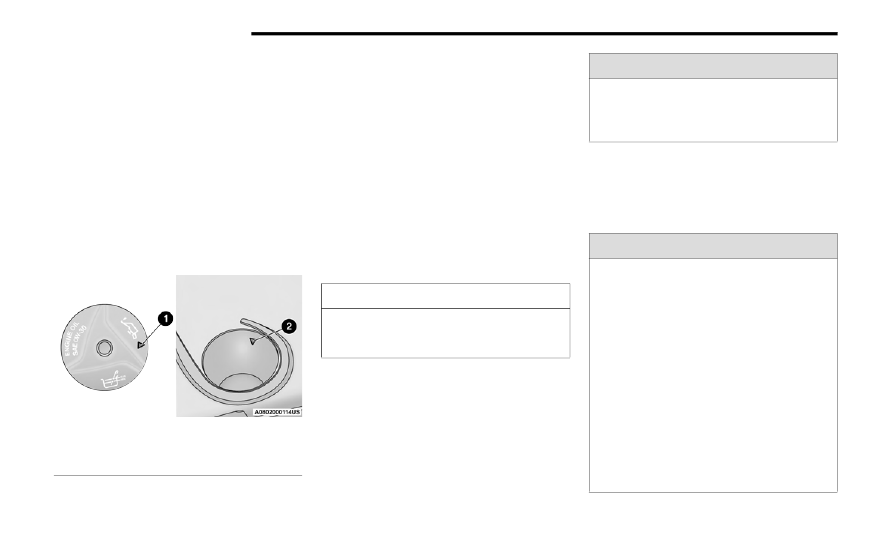

Engine Oil Cap/Dipstick Installation — 1.3L Turbo

Engine
Install the oil cap/dipstick aligning arrow on the

cap with arrow on the engine cover.

Oil Cap

There are four possible dipstick types:



Crosshatched zone.



Crosshatched zone marked SAFE.



Crosshatched zone marked with MIN at the low

end of the range and MAX at the high end of the

range.



Crosshatched zone marked with dimples at the

MIN and the MAX ends of the range.

NOTE:

Always maintain the oil level within the crosshatch

markings on the dipstick.
Adding 1 quart (1.0 liter) of oil when the reading is

at the low end of the dipstick range will raise the oil

level to the high end of the range marking.

DDING

ASHER

LUID

The windshield washer fluid reservoir is located in

the engine compartment, and the fluid level should

be checked at regular intervals. Fill the reservoir

with windshield washer solvent (not engine

coolant/ antifreeze)

page

293.

AINTENANCE

-F

REE

ATTERY

Your vehicle is equipped with a maintenance-free

battery. You will never have to add water, and

periodic maintenance is not required.

1 — Oil Cap/Dipstick Arrow
2 — Engine Cover Arrow

CAUTION!

Overfilling or underfilling the crankcase will

cause aeration or loss of oil pressure. This could

damage your engine.

WARNING!

Commercially available windshield washer

solvents are flammable. They could ignite and

burn you. Care must be exercised when filling or

working around the washer solution.

WARNING!



Battery fluid is a corrosive acid solution and

can burn or even blind you. Do not allow

battery fluid to contact your eyes, skin, or

clothing. Do not lean over a battery when

attaching clamps. If acid splashes in eyes or

on skin, flush the area immediately with large

amounts of water

page

279.



Battery gas is flammable and explosive. Keep

flame or sparks away from the battery. Do not

use a booster battery or any other booster

source with an output greater than 12 Volts. Do

not allow cable clamps to touch each other.



Battery posts, terminals, and related accesso

ries contain lead and lead compounds. Wash

hands after handling.

SERVICING AND MAINTENANCE

295

RESSURE

ASHING

Cleaning the engine compartment with a high

pressure washer is not recommended.

VEHICLE MAINTENANCE

An authorized dealer has the qualified service

personnel, special tools, and equipment to

perform all service operations in an expert

manner. Service Manuals are available which

include detailed service information for your

vehicle. Refer to these Service Manuals before

attempting any procedure yourself.

NOTE:

Intentional tampering with emissions control

systems may void your warranty and could result in

civil penalties being assessed against you.

NGINE

Engine Oil Selection

For engine oil selection

page

345.

American Petroleum Institute (API)

Approved Engine Oil

These symbols mean that the oil has been certified

by the API. The manufacturer only recommends API

trademark oils.

The API Starburst trademark certifies

0W-20, 0W-30 and 5W-30 engine oils.

The API Donut trademark certifies 0W-40

and 5W-40 engine oil.

Synthetic Engine Oils

Your engine was designed for synthetic engine oils,

only use synthetic API approved engine oils.
Synthetic engine oils which do not have both the

correct API trademark and the correct SAE viscosity

grade numbers should not be used.

CAUTION!



It is essential when replacing the cables on

the battery that the positive cable is attached

to the positive post and the negative cable is

attached to the negative post. Battery posts

are marked positive (+) and negative (-) and

are identified on the battery case. Cable

clamps should be tight on the terminal posts

and free of corrosion.



If a “fast charger” is used while the battery is

in the vehicle, disconnect both vehicle battery

cables before connecting the charger to the

battery. Do not use a “fast charger” to provide

starting voltage.

CAUTION!

Precautions have been taken to safeguard all

parts and connections however, the pressures

generated by these machines is such that

complete protection against water ingress

cannot be guaranteed.

WARNING!

You can be badly injured working on or around a

motor vehicle. Only do service work for which

you have the knowledge and the proper

equipment. If you have any doubt about your

ability to perform a service job, take your vehicle

to a competent mechanic.

CAUTION!

Do not use chemical flushes in your engine oil as

the chemicals can damage your engine. Such

damage is not covered by the New Vehicle

Limited Warranty.

296

SERVICING AND MAINTENANCE

Materials Added To Engine Oil

The manufacturer strongly recommends against

the addition of any additives (other than leak

detection dyes) to the engine oil. Engine oil is an

engineered product and its performance may be

impaired by supplemental additives.

Disposing Of Used Engine Oil And Oil

Filters

Care should be taken in disposing of used engine

oil and oil filters from your vehicle. Used oil and oil

filters, indiscriminately discarded, can present a

problem to the environment. Contact an

authorized dealer, service station or governmental

agency for advice on how and where used oil and

oil filters can be safely discarded in your area.

NGINE

ILTER

The engine oil filter should be replaced with a new

filter at every engine oil change.
Engine Oil Filter Selection
A full-flow type disposable oil filter should be used

for replacement. The quality of replacement filters

varies considerably. Only high quality Mopar®

certified filters should be used.

NGINE

LEANER

ILTER

For the proper maintenance intervals

page

287.

Engine Air Cleaner Filter Selection
The quality of replacement filters varies

considerably. Only high quality Mopar® certified

filters should be used.

ONDITIONER

AINTENANCE

For best possible performance, your air conditioner

should be checked and serviced by an authorized

dealer at the start of each warm season. This

service should include cleaning of the condenser

fins and a performance test. Drive belt tension

should also be checked at this time.

NOTE:



Use only refrigerants and compressor lubricants

approved by the manufacturer for your air condi

tioning system. Some unapproved refrigerants

are flammable and can explode, injuring you.

Other unapproved refrigerants or lubricants can

cause the system to fail, requiring costly repairs.

Refer to the Warranty Information Book for

further warranty information.



Use only refrigerants and compressor lubricants

approved by the manufacturer for your air condi

tioning system. Some unapproved refrigerants

are flammable and can explode, injuring you.

Other unapproved refrigerants or lubricants can

cause the system to fail, requiring costly repairs.



The air conditioning system contains refrigerant

under high pressure. To avoid risk of personal

injury or damage to the system, adding refrig

erant or any repair requiring lines to be discon

nected should be done by an experienced

technician.

WARNING!

The air induction system (air cleaner, hoses,

etc.) can provide a measure of protection in the

case of engine backfire. Do not remove the air

induction system (air cleaner, hoses, etc.) unless

such removal is necessary for repair or

maintenance. Make sure that no one is near the

engine compartment before starting the vehicle

with the air induction system (air cleaner, hoses,

etc.) removed. Failure to do so can result in

serious personal injury.

CAUTION!

Do not use chemical flushes in your air

conditioning system as the chemicals can

damage your air conditioning components. Such

damage is not covered by the New Vehicle

Limited Warranty.

Content .. 16 17 18 19 ..
