SAFETY

265

SAFETY TIPS

RANSPORTING

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO

AREA.

RANSPORTING

ETS

Air Bags deploying in the front seat could harm

your pet. An unrestrained pet will be thrown about

and possibly injured, or injure a passenger during

panic braking or in a collision.

Pets should be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that are

secured by seat belts.

ONNECTED

EHICLES

Privacy of any wireless and wired communications

cannot be assured. Third parties may unlawfully

intercept information and private communications

without your consent. For further information, refer

to “Data Collection & Privacy” in your Uconnect

Owner’s Manual Supplement or “Onboard

Diagnostic System (OBD II) Cybersecurity”

page

78.

AFETY

HECKS

HOULD

AKE

NSIDE

EHICLE

Seat Belts

Inspect the seat belt system periodically, checking

for cuts, frays, and loose parts. Damaged parts

must be replaced immediately. Do not

disassemble or modify the system.
If your vehicle is involved in a collision, or if you

have questions regarding the seat belt or retractor

conditions, take your vehicle to an authorized FCA

dealer or authorized FCA Certified Collision Care

Program facility for inspection.

Air Bag Warning Light

The Air Bag Warning Light will turn on for

four to eight seconds as a bulb check

when the ignition switch is first placed in

the ON/RUN mode. If the light is either

not on during starting, stays on, or turns on while

driving, have the system inspected at an

authorized dealer as soon as possible. After the

bulb check, this light will illuminate with a single

chime when a fault with the Air Bag System has

been detected. It will stay on until the fault is

removed. If the light comes on intermittently or

remains on while driving, have an authorized

dealer service the vehicle immediately

page

240.

Defroster

Check operation by selecting the defrost mode and

place the blower control on high speed. You should

be able to feel the air directed against the

windshield. See an authorized dealer for service if

your defroster is inoperable.

WARNING!



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.



It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a colli

sion, people riding in these areas are more

likely to be seriously injured or killed.



Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.



Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!

It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are

breached. It may be possible that vehicle

systems, including safety related systems, could

be impaired or a loss of vehicle control could

occur that may result in an accident involving

serious injury or death.

266

SAFETY

(Continued)

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle.

Only use a floor mat that does not interfere with the

operation of the accelerator, brake or clutch

pedals. Only use a floor mat that is securely

attached using the floor mat fasteners so it cannot

slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

WARNING!

An improperly attached, damaged, folded, or

stacked floor mat, or damaged floor mat

fasteners may cause your floor mat to interfere

with the accelerator, brake, or clutch pedals and

cause a loss of vehicle control. To prevent

SERIOUS INJURY or DEATH:



ALWAYS securely attach your floor

mat using the floor mat fasteners. DO

NOT install your floor mat upside down

or turn your floor mat over. Lightly pull

to confirm mat is secured using the floor mat

fasteners on a regular basis.



ALWAYS REMOVE THE EXISTING

FLOOR MAT FROM THE VEHICLE before

installing any other floor mat. NEVER

install or stack an additional floor mat

on top of an existing floor mat.



ONLY install floor mats designed to fit your

vehicle. NEVER install a floor mat that cannot

be properly attached and secured to your

vehicle. If a floor mat needs to be replaced,

only use a FCA approved floor mat for the

specific make, model, and year of your

vehicle.



ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for interfer

ence, with the vehicle properly parked with the

engine off, fully depress the accelerator, the

brake, and the clutch pedal (if present) to

check for interference. If your floor mat inter

feres with the operation of any pedal, or is not

secure to the floor, remove the floor mat from

the vehicle and place the floor mat in your

trunk.



ONLY use the passenger’s side floor mat on

the passenger’s side floor area.



ALWAYS make sure objects cannot fall or slide

into the driver’s side floor area when the

vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

WARNING!



NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.



If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners are

secure to the vehicle carpet. Fully depress

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.



It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been properly

installed and is secured to your vehicle using

the floor mat fasteners by lightly pulling mat.

WARNING!

SAFETY

267

ERIODIC

AFETY

HECKS

HOULD

AKE

UTSIDE

EHICLE

Tires

Examine tires for excessive tread wear and uneven

wear patterns. Check for stones, nails, glass, or

other objects lodged in the tread or sidewall.

Inspect the tread for cuts and cracks. Inspect

sidewalls for cuts, cracks, and bulges. Check the

lug nuts/bolt torque for tightness. Check the tires

(including spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.

XHAUST

The best protection against carbon monoxide entry

into the vehicle body is a properly maintained

engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the underside

or rear of the vehicle is damaged, have an

authorized dealer inspect the complete exhaust

system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts.

Open seams or loose connections could permit

exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

ARBON

ONOXIDE

ARNINGS

WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you. To

avoid breathing (CO), follow these safety tips:



Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.



If you are required to drive with the trunk/lift

gate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.



If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to prevent

carbon monoxide poisoning:



Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless gas,

which can kill. Never run the engine in a closed

area, such as a garage, and never sit in a

parked vehicle with the engine running for an

extended period. If the vehicle is stopped in an

open area with the engine running for more

than a short period, adjust the ventilation

system to force fresh, outside air into the

vehicle.



Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

268

IN CASE OF EMERGENCY

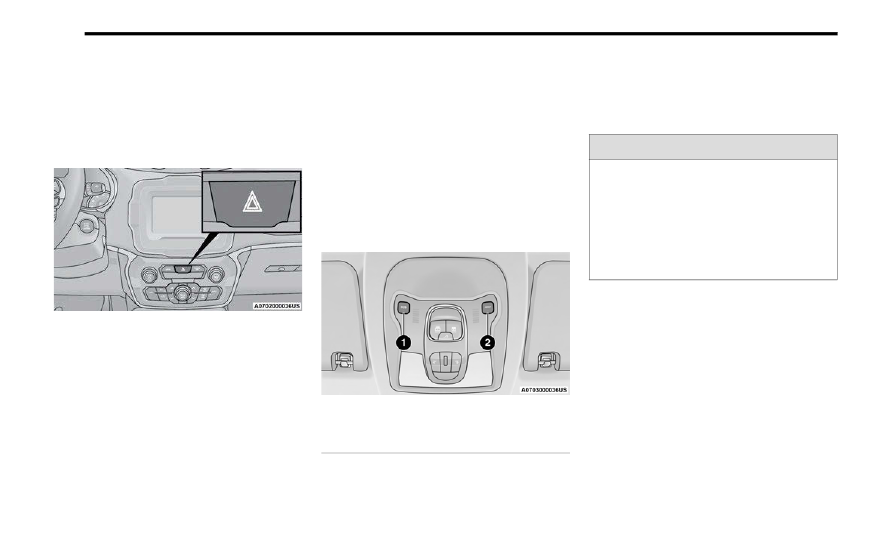

HAZARD WARNING FLASHERS

The Hazard Warning Flashers button is located on

the switch bank below the radio.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the button

a second time to turn off the Hazard Warning

Flashers.
This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

only when your vehicle is disabled or signaling a

safety hazard warning for other motorists.

When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in OFF mode.

NOTE:

With extended use the Hazard Warning Flashers

may wear down your battery.

ASSIST AND SOS SYSTEM — IF EQUIPPED

Assist And SOS Buttons

If equipped, the overhead console contains an SOS

and ASSIST button.

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber

page

349.



The SOS and ASSIST buttons will only function if

you are connected to an operable LTE (voice/

data) or 4G (data) network, which comes as a

built in function. Other Uconnect services will

only be operable if your SiriusXM Guardian™

service is active and you are connected to an

operable LTE (voice/data) or 4G (data) network.

1 — SOS Button
2 — ASSIST Button

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

IN CASE OF EMERGENCY

269

(Continued)

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:



Roadside Assistance (if equipped) – If you get a

flat tire, or need a tow, just push the ASSIST

button and you’ll be connected to someone who

can help. Roadside Assistance will know what

vehicle you’re driving and its location. Additional

fees may apply for roadside assistance.



SiriusXM Guardian™ Customer Care (if

equipped) – In-vehicle support for SiriusXM

Guardian™.



Vehicle Customer Care (if equipped) – Total

support for all other vehicle issues.



UConnect Care (if equipped) – Total support for

all the UConnect feature.

SOS Call
1. Push the SOS Call button on the overhead

console.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator. To cancel

the SOS Call connection, push the SOS call button

on the overhead console or press the cancellation

button on the Device Screen. Termination of the

SOS Call will turn off the green LED light on the

overhead console.

2. The LED lights located within the SOS and

ASSIST buttons on the overhead console will

turn green once a connection to a SOS

operator has been made.

3. The SOS Call system may transmit the

following important vehicle information to a

SOS operator:



Indication that the occupant placed a SOS

Call.



The vehicle brand.



The last known GPS coordinates of the

vehicle.

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional help is needed.

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber.



Once a connection is made between the

vehicle’s SOS Call system and the SOS oper

ator, the SOS operator may be able to open

a voice connection with the vehicle to deter

mine if additional help is needed. Once the

SOS operator opens a voice connection with

the vehicle’s SOS Call system, the operator

should be able to speak with you or other

vehicle occupants and hear sounds occur

ring in the vehicle. The vehicle’s SOS Call

system will attempt to remain connected

with the SOS operator until the SOS oper

ator terminates the connection.

5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.

270

IN CASE OF EMERGENCY

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.

NOTE:

The SOS Call function may not be available for the

first minute after the vehicle is started
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The overhead console lights located within the

SOS and ASSIST buttons will continuously illumi

nate red.



The Device Screen will display the following

message: “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position.



The vehicle’s electrical systems are not intact.



The SOS Call system software and/or hardware

are damaged during a crash.



The vehicle battery loses power or becomes

disconnected during a vehicle crash.



LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

able or obstructed.



Equipment malfunction at the SOS operator

facility.



Operator error by the SOS operator.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!



Ignoring the overhead console light could

mean you will not have SOS Call services. If

the overhead console light is illuminated, have

an authorized dealer service the SOS Call

system immediately.



The Occupant Restraint Control module turns

on the air bag Warning Light on the instrument

panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

IN CASE OF EMERGENCY

271

(Continued)



LTE (voice/data) or 4G (data) network conges

tion.



Weather.



Buildings, structures, geographic terrain, or

tunnels.

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.
Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

JACKING AND TIRE CHANGING

REPARATIONS

ACKING

1. Park the vehicle on a firm level surface as far

from the edge of the roadway as possible.

Avoid icy or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the Electric Park Brake.
4. Place the gear selector into PARK (P)

(automatic transmission) or REVERSE (R)

(manual transmission).

5. Turn the ignition to the OFF position.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

it to a service center where it can be raised on

a lift.



Never start or run the engine while the vehicle

is on a jack.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

WARNING!

272

IN CASE OF EMERGENCY

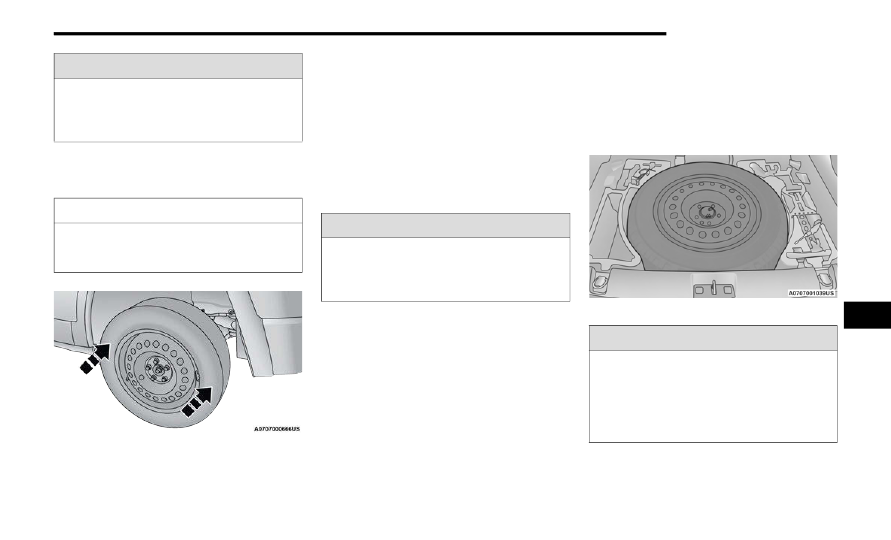

6. Block both the front and rear of the wheel

diagonally opposite of the jacking position. For

example, if changing the driver’s front tire,

block the passenger’s rear wheel.

Wheel Blocked Example

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being lifted or raised.

ACK

OCATION

PARE

IRE

TOWAGE

If equipped, the jack and tools are located under

the load floor in the rear storage compartment.
1. Open the liftgate.
2. Lift the access cover using the load floor

handle.

Load Floor Handle

3. Remove the jack, wheel bolt wrench and

chocks.

Jack And Tools Location

4. Remove the fastener securing the spare tire by

turning it counterclockwise.

Spare Tire Fastener Removal

IN CASE OF EMERGENCY

273

(Continued)

5. Remove the spare tire.

Jack And Tools

ACKING

NSTRUCTIONS

Jack Warning Label

1. Remove the spare tire, jack, and wheel bolt

wrench.

2. If equipped with wheels where the center cap

covers the wheel bolts, use the wheel bolt

wrench to pry the center cap off carefully

before raising the vehicle.

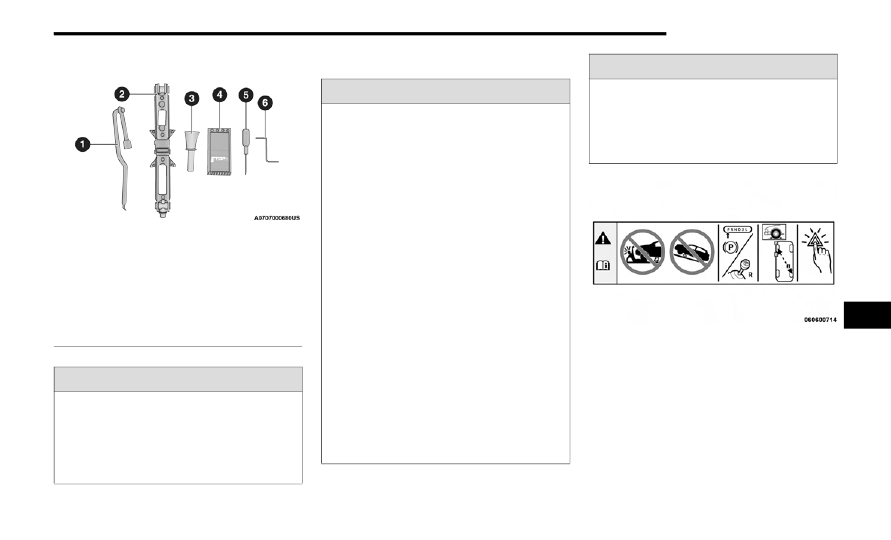

1 — Wheel Bolt Wrench
2 — Jack
3 — Emergency Funnel
4 — Wheel Chocks
5 — Screwdriver
6 — Emergency Allen Key

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake and place an auto

matic transmission in PARK.



Chock the wheel diagonally opposite the

wheel to be raised.



Never start or run the engine with the vehicle

on a jack.



Do not let anyone sit in the vehicle when it is

on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



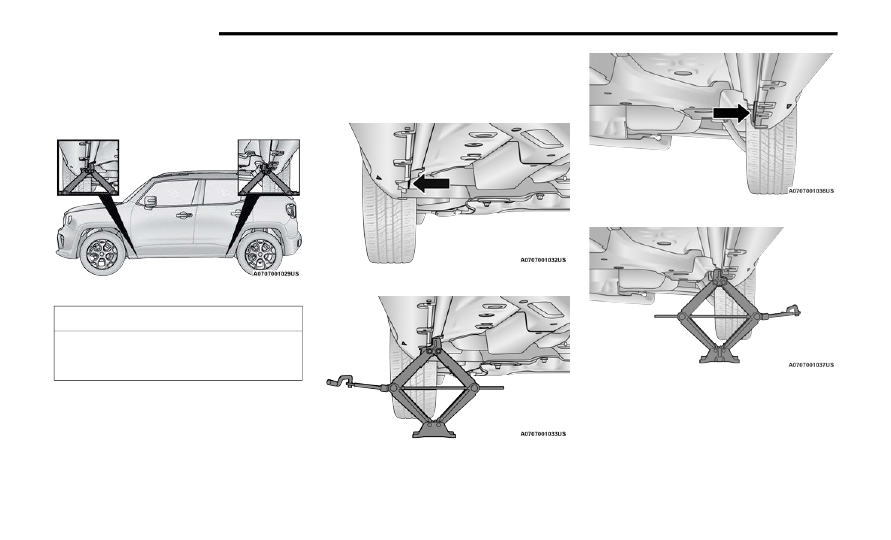

Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.



To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the valve stem facing the ground.

WARNING!

274

IN CASE OF EMERGENCY

3. Before raising the vehicle, use the wheel bolt

wrench to loosen, but not remove, the wheel

bolts on the wheel with the flat tire. Turn the

wheel bolts counterclockwise one turn while

the wheel is still on the ground.

Jacking Locations

4. Place the jack underneath the jacking location

that is closest to the flat tire. Jacking location

is indicated by a stamped arrow on the body.

Turn the jack screw clockwise to firmly engage

the jack saddle with the lift area of the sill

flange, centering the jack saddle inside the

cutout in the sill cladding.

NOTE:

Placement for the front and rear jacking locations

are critical. See below images for proper jacking

locations.

Front Lifting Point

Front Jacking Location

Rear Lifting Point

Rear Jacking Location

5. Raise the vehicle just enough to remove the

flat tire.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

IN CASE OF EMERGENCY

275

6. Remove the wheel bolts and tire.
7. Mount the spare tire.

Mounting Spare Tire

NOTE:



Your vehicle may be equipped with a

compact spare tire or a limited — use spare

tire

page

333.



For vehicles so equipped, do not attempt to

install a center cap or wheel cover on the

compact spare.

8. Install the wheel bolts with the threaded end of

the wheel bolt toward the wheel. Lightly tighten

the wheel bolts.

9. Lower the vehicle to the ground by turning the

jack handle counterclockwise.

10. Finish tightening the wheel bolts. Push down

on the wrench while at the end of the handle

for increased leverage. Tighten the wheel bolts

in a star pattern until each wheel bolt has been

tightened twice

page

341. If in doubt about

the correct tightness, have them checked with

a torque wrench by an authorized dealer or at

a service station.

11. After 25

miles (40

km) check the wheel bolt

torque with a torque wrench to ensure that all

wheel bolts are properly seated against the

wheel.

12. Securely stow the jack, tools, chocks, and flat

tire.

Properly Stowed Tire

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the spare tire is mounted incorrectly.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not fully tighten the wheel bolts until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

276

IN CASE OF EMERGENCY

TIRE SERVICE KIT — IF EQUIPPED

IRE

ERVICE

TORAGE

The Tire Service Kit is located in the rear storage

compartment inside a storage container. Located

inside the container are a screwdriver and the

emergency fuel funnel. To access the Tire Service

Kit open the liftgate and remove the load floor.

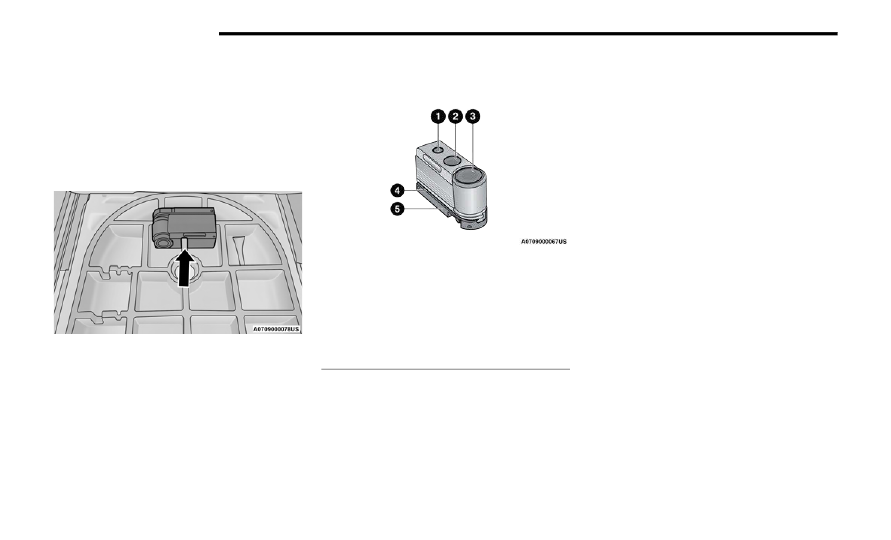

Tire Service Kit Location

IRE

ERVICE

OMPONENTS

PERATION

Tire Service Kit Components

If a tire is punctured, you can make a first

emergency repair using the Tire Service Kit located

in the rear storage compartment inside the storage

container.

1. Remove the Tire Service Kit from the vehicle,

take it out from the bag and place it near the

punctured tire. Screw the clear flexible filling

tube to the tire valve.

2. Insert the power plug into the vehicle power

outlet socket. Start the vehicle engine.

3. Push the Tire Service Kit power button to the

“I” position. The electric compressor will be

turned on, sealant and air will inflate the tire.
Minimum 26 psi (1.8 bar) of pressure should

be reached within 20

minutes. If the pressure

has not been reached turn off and remove the

Tire Service Kit, drive the vehicle 30 feet

(10

meters) back and forth, to better distribute

the sealant inside the tire.

4. Attach the clear flexible filling tube of the

compressor directly to the tire valve and

repeat the inflation process.
When the correct pressure has been reached,

start driving the vehicle to uniformly distribute

the sealant inside the tire. After 10

minutes,

stop and check the tire pressure. If the pres

sure is below 19 psi (1.3 bar), do not drive the

vehicle, as the tire is too damaged, and con

tact the nearest authorized dealer.

1 — Power Button
2 — Pressure Gauge
3 — Warning Label
4 — Sealant Hose (Clear)
5 — Power Plug (Located On Bottom Side Of Tire

Service Kit)

IN CASE OF EMERGENCY

277

(Continued)

If the pressure is at 19 psi (1.3 bar) or above

repeat the inflation process to reach the cor

rect tire pressure and continue driving.

5. Peel off the warning label from the bottle and

place it on the dashboard as a reminder to the

driver that the tire has been treated with Tire

Service Kit.

IRE

ERVICE

SAGE

RECAUTIONS

WARNING!

Tire Service Kit is not a permanent flat tire

repair. Have the tire inspected and repaired or

replaced after using Tire Service Kit. Do not

exceed 50

mph (80

km/h) until the tire is

repaired or replaced. Failure to follow this

warning can result in injuries that are serious or

fatal to you, your passengers, and others around

you. Have the tire checked as soon as possible

at an authorized dealer.

WARNING!

The metal end fitting from Power Plug may get

hot after use, so it should be handled carefully.

WARNING!



Do not attempt to seal a tire on the side of the

vehicle closest to traffic. Pull far enough off

the road to avoid the danger of being hit when

using the Tire Service Kit.



Do not use Tire Service Kit or drive the vehicle

under the following circumstances:



If the puncture in the tire tread is approxi

mately 1/4

inch (6

mm) or larger.



If the tire has any sidewall damage.



If the tire has any damage from driving

with extremely low tire pressure.



If the tire has any damage from driving on

a flat tire.



If the wheel has any damage.



If you are unsure of the condition of the

tire or the wheel.



Keep Tire Service Kit away from open flames

or heat source.



A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the Tire

Service Kit in the place provided. Failure to

follow these warnings can result in injuries

that are serious or fatal to you, your passen

gers, and others around you.



Take care not to allow the contents of Tire

Service Kit to come in contact with hair, eyes,

or clothing. Tire Service Kit sealant is harmful

if inhaled, swallowed, or absorbed through the

skin. It causes skin, eye, and respiratory irrita

tion. Flush immediately with plenty of water if

there is any contact with eyes or skin. Change

clothing as soon as possible, if there is any

contact with clothing.



Tire Service Kit Sealant solution contains

latex. In case of an allergic reaction or rash,

consult a physician immediately. Keep Tire

Service Kit out of reach of children. If swal

lowed, rinse mouth immediately with plenty of

water and drink plenty of water. Do not induce

vomiting! Consult a physician immediately.

WARNING!

278

IN CASE OF EMERGENCY

EPLACING

EALANT

NOTE:

Replace the sealant canister prior to the expiration

date at an authorized dealer.

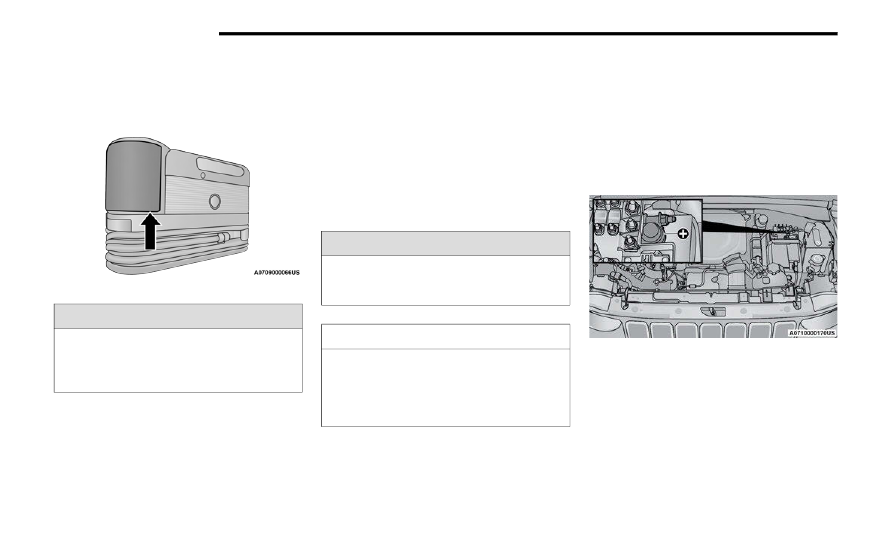

Tire Service Kit Expiration Date Location

JUMP STARTING

If your vehicle has a discharged battery it can be

jump started using a set of jumper cables and a

battery in another vehicle or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack follow

the manufacturer’s operating instructions and

precautions.

REPARATIONS

UMP

TART

The battery in your vehicle is located in the front of

the engine compartment, behind the left headlight

assembly.

NOTE:

The positive (+) battery post is covered with a

protective cap. Lift up on the cap to gain access to

the positive (+) battery post.

Positive (+) Battery Post

See below steps to prepare for jump starting:
1. Apply the Electric Park Brake, shift the

automatic transmission into PARK (P)

(manual transmission in NEUTRAL) and place

the ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

WARNING!

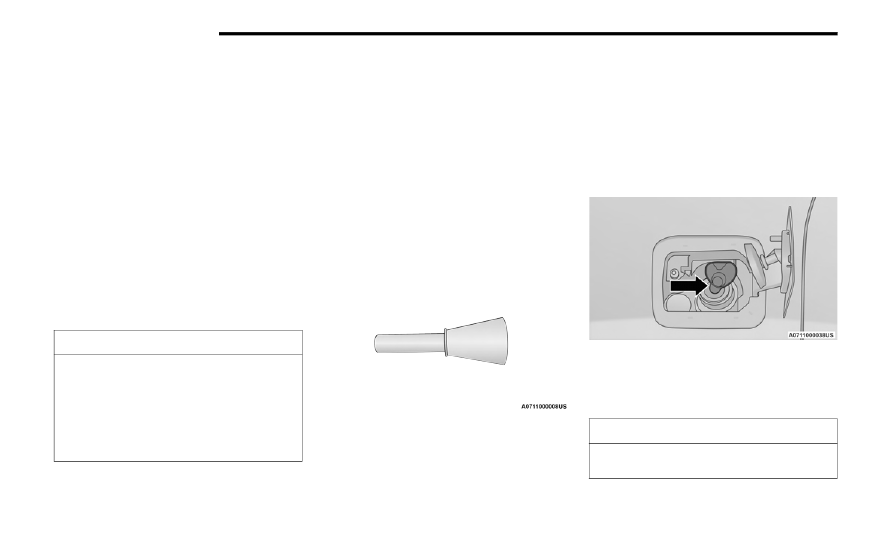

Store the sealant canister in its special compart

ment, away from sources of heat. Failure to fol

low this WARNING may result in sealant canister

rupture and serious injury or death.

WARNING!

Do not attempt jump starting if the battery is fro

zen. It could rupture or explode and cause per

sonal injury.

CAUTION!

Do not use a portable battery booster pack or any

other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

IN CASE OF EMERGENCY

279

3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, set the parking brake and make

sure the ignition is OFF.

UMP

TARTING

ROCEDURE

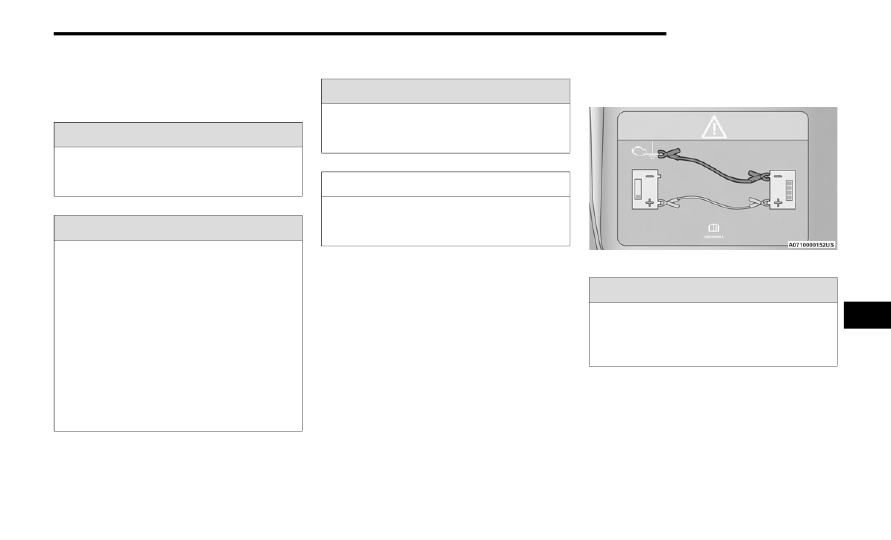

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the positive (+) post of the discharged

vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to a good engine ground. A

“ground” is an exposed metallic/unpainted

part of the engine, frame or chassis, such as

an accessory bracket or large bolt. The ground

must be away from the battery and the fuel

injection system.

Suitable Engine Ground

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, remove the jumper

cables in the reverse sequence.

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery. The

resulting electrical spark could cause the battery

to explode and could result in personal injury.

280

IN CASE OF EMERGENCY

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the engine ground of the vehicle

with the discharged battery.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the positive (+) post of the

vehicle with the discharged battery, and

reinstall the protective cap.

If frequent jump starting is required to start your

vehicle you should have the battery and charging

system inspected at an authorized dealer.

REFUELING IN EMERGENCY – IF EQUIPPED

The vehicle is equipped with a refueling funnel

page

272 for a Cap-Less Fuel System. If

refueling is necessary, while using an approved

gas can, insert the refueling funnel into the filler

neck opening. Take care to open both flappers with

the funnel to avoid spills.

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push on

the fuel door to break the ice buildup and

re-release the fuel door using the inside release

button. Do not pry on the door.

Refueling Funnel

Emergency Gas Can Refueling
Most gas cans will not open the flapper doors. A

funnel is provided to allow emergency refueling

with a gas can.
See the following steps for refueling:
1. Retrieve funnel from the spare tire storage area.
2. Insert funnel into same filler pipe opening as

the fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

Jeep Renegade (2022 year). Manual in english - page 17
