170

MULTIMEDIA

Audio

When the Audio button is pressed on the touchscreen, the system displays options related to the vehicle’s sound system. These settings can change the audio

location within the vehicle, adjust the bass or treble levels, and auto-play settings from an audio device or smartphone.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Balance/Fade

This setting will adjust audio levels from specific speakers in the front/back

and left/right of the vehicle. The Speaker icon can be moved to set audio

location.

Equalizer

This setting will adjust the “Bass”, “Mid”, and “Treble” ranges of the audio.

Speed Adjusted Volume

This setting will adjust audio volume as speeds increase. At a higher setting,

the volume will increase more as the vehicle speeds up. The available settings

are “Off”, “1”, “2”, and “3”.

Surround Sound

This setting will turn the Surround Sound system on or off.

AUX Volume Offset

This setting will tune the audio levels from a device connected through the

AUX port. The available settings are “+” and “-”.

Auto Play

This setting will automatically begin playing audio from a connected device.

Loudness

This setting will improve audio quality at lower volumes.

MULTIMEDIA

171

Phone/Bluetooth®

When the Phone/Bluetooth® button is pressed on the touchscreen, the system displays the options related to Bluetooth® connectivity from an external audio

device or smartphone. The list of paired audio devices or smartphones can be accessed from this menu.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Phone Pop-Ups Displayed In Cluster

This setting will activate phone message pop-ups in the Instrument

Cluster Display.

Do Not Disturb

This setting will open the Do Not Disturb settings menu. The following settings

are “Auto Reply” (both, text, call), “Auto Reply Message” (custom, default), and

“Custom Auto Reply Message” (create message).

Paired Phones

This setting will show the list of paired phones.

Paired Audio Sources

This setting will show the list of paired audio sources.

Paired Phones And Audio Devices

This setting will show the list of paired phones and audio devices.

Projection Manager

This setting will activate your smartphone to project on the vehicle’s

touchscreen.

172

MULTIMEDIA

SiriusXM® Setup

Accessibility

When the SiriusXM® Setup button is pressed on the touchscreen, the system displays options related to SiriusXM® Satellite Radio. These settings can be

used to skip specific radio channels and restart favorite songs from the beginning.

NOTE:



A subscription to SiriusXM® Satellite Radio is required for these settings to be functional.



Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Tune Start

This setting will play the current song from the beginning when you tune to a

music channel using one of the 12 presets.

Channel Skip

This setting allows you to set channels that you wish to skip. A channel list will

display of the skipped channels.

Subscription Information

This menu provides SiriusXM® subscription information. SiriusXM® Travel

Link is a separate subscription.

When pressing the Accessibility button of the touchscreen, the system will display the option related to the vehicle’s theater system.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Video Button Readback

This setting will announce a function prior to performing the action selected

when using DVD/Blu-ray™ functions. For example, when activated, and the

Play button is selected, the system will announce “Play Button Selected”, and

then once pressed again, the Play button will perform its action.

MULTIMEDIA

173

Reset

System Information

When the Reset button is pressed on the touchscreen, the system displays the options related to resetting the Uconnect system back to its default settings.

These settings can clear personal data and reset selected settings from other menus.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Restore Settings

This setting will return all the previously changed settings to their factory

default.

Reset App Drawer

This setting will reset the app drawer to its factory default layout.

Clear Personal Data

This setting will display a pop-up that gives you the option to clear all personal

data from the system, including Bluetooth® devices and presets.

When the System Information button is pressed on the touchscreen, the system displays the radio system information.

NOTE:

Depending on the vehicle’s options, feature settings may vary.

Setting Name

Description

Software Licenses

This will display the software licensing information screen.

174

MULTIMEDIA

REAR SEAT ENTERTAINMENT (RSE)

SYSTEM — IF EQUIPPED

Your Rear Seat Entertainment (RSE) System (if

equipped) plays your favorite CDs, DVDs or

Blu-ray™ Discs and enables you to listen to audio

over the wireless headphones or plug and play a

variety of video games or audio devices.

ETTING

TARTED

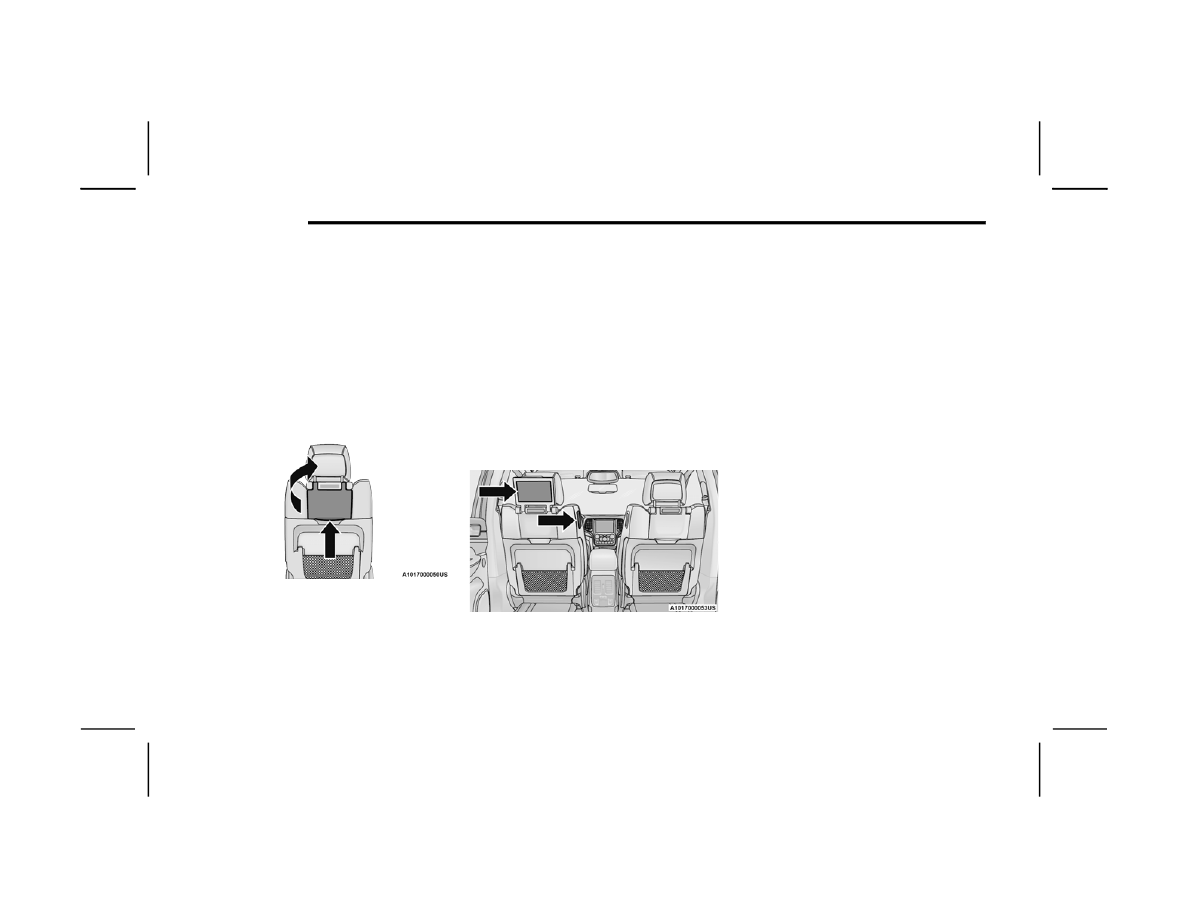

1. Lift the LCD screen located in the rear of the

front seats.

RSE System Screen

2. Place the ignition in the ON/RUN or ACC

position.

NOTE:

If equipped with a Blu-ray™ disc player, the icon

will be present on the player.
3. Turn on the Rear Seat Entertainment system

by pushing the power button on the remote

control.

NOTE:



When the Video Screen(s) are open and a

DVD/Blu-ray™ disc is inserted into the disc

player, the screen(s) turn(s) on automati

cally, the headphones turn on, and playback

begins.

RSE System Channel 1



With the Video Screen system, Channel 1 on

the remote control and headphones refers

to Screen 1 (driver's side), and Channel 2 on

the remote control and headphones refers

to Screen 2 (passenger’s side). The remote

control and headphones channel 1 and 2

refer to screen 1 (driver’s side) and screen

2 (passenger’s side).

The system can be controlled either by the front

seat occupants utilizing the touchscreen or by

the rear seat occupants using the remote

control.

MULTIMEDIA

175

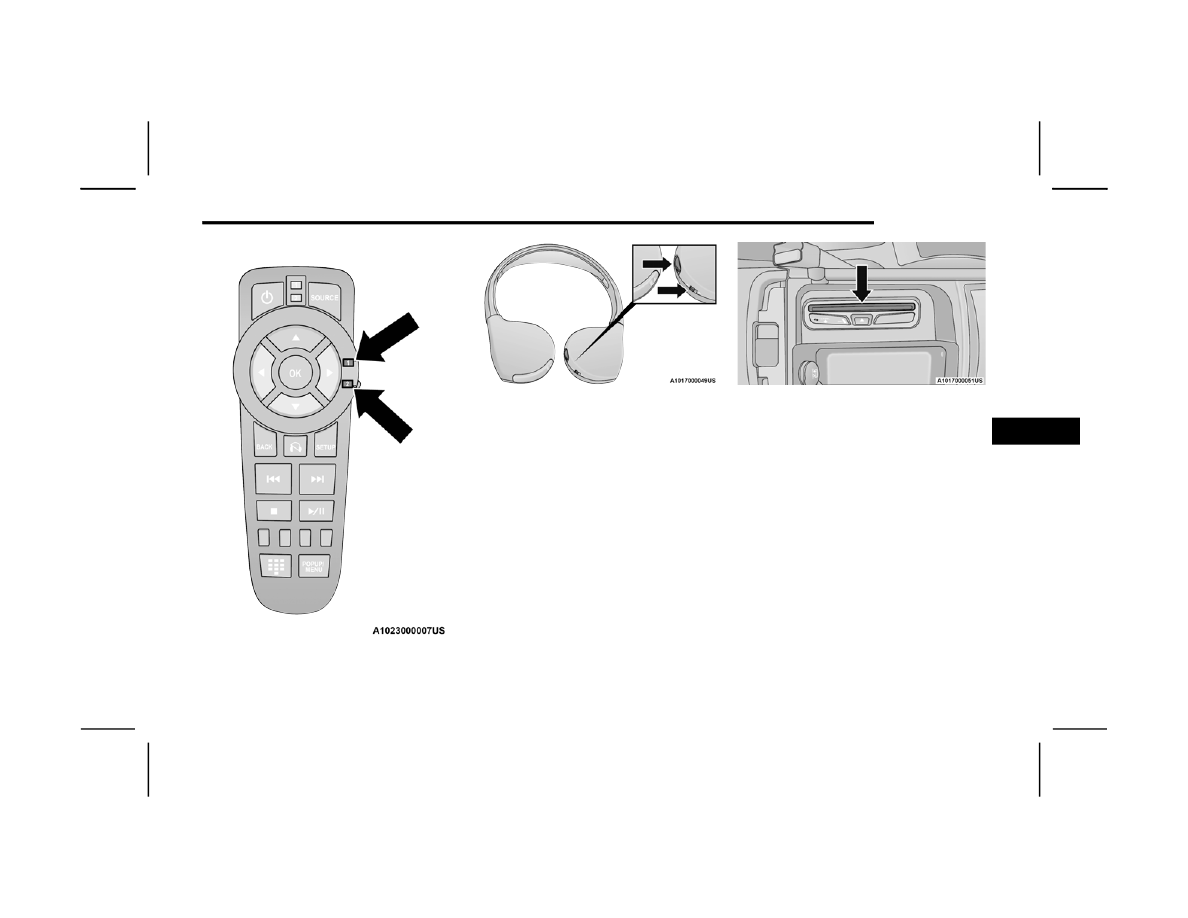

RSE System Remote Control Channel Selectors

RSE System Headphone Channel Selectors

IDEO

CREEN

NOTE:

Typically there are two different ways to operate

the features of the Rear Seat Entertainment

system:



The Remote Control



The Uconnect system touchscreen

LAY

A B

RAY

™ D

ISC

The Blu-ray™ disc player is located in the center

console.

Blu-ray™ Disc Player Location

1. Insert a Blu-ray™ disc into the disc player with

the label facing as indicated on the Blu-ray™

player. The radio automatically selects the

appropriate mode after the disc is recognized

and displays the menu screen, the language

screen, or starts playing the first track.

2. To watch a Blu-ray™ disc on Channel 1 for

driver's side rear passengers, ensure the

remote control and headphone switches are

on Channel 1.

3. To watch a Blu-ray™ disc on Channel 2 for

passenger side rear passenger’s, ensure the

remote control and headphone switches are

on Channel 2.

176

MULTIMEDIA

NOTE:



To view a Blu-ray™ disc on the radio, press the

Media button on the touchscreen, and then

press the Disc button. Press the Play button,

and then the Full Screen button.



Viewing a Blu-ray™ disc on the front radio

screen is not available in all states/provinces.

To view the disc, the vehicle must be stopped,

and the gear selector must be in the PARK posi

tion.

Using The Front Touchscreen Radio

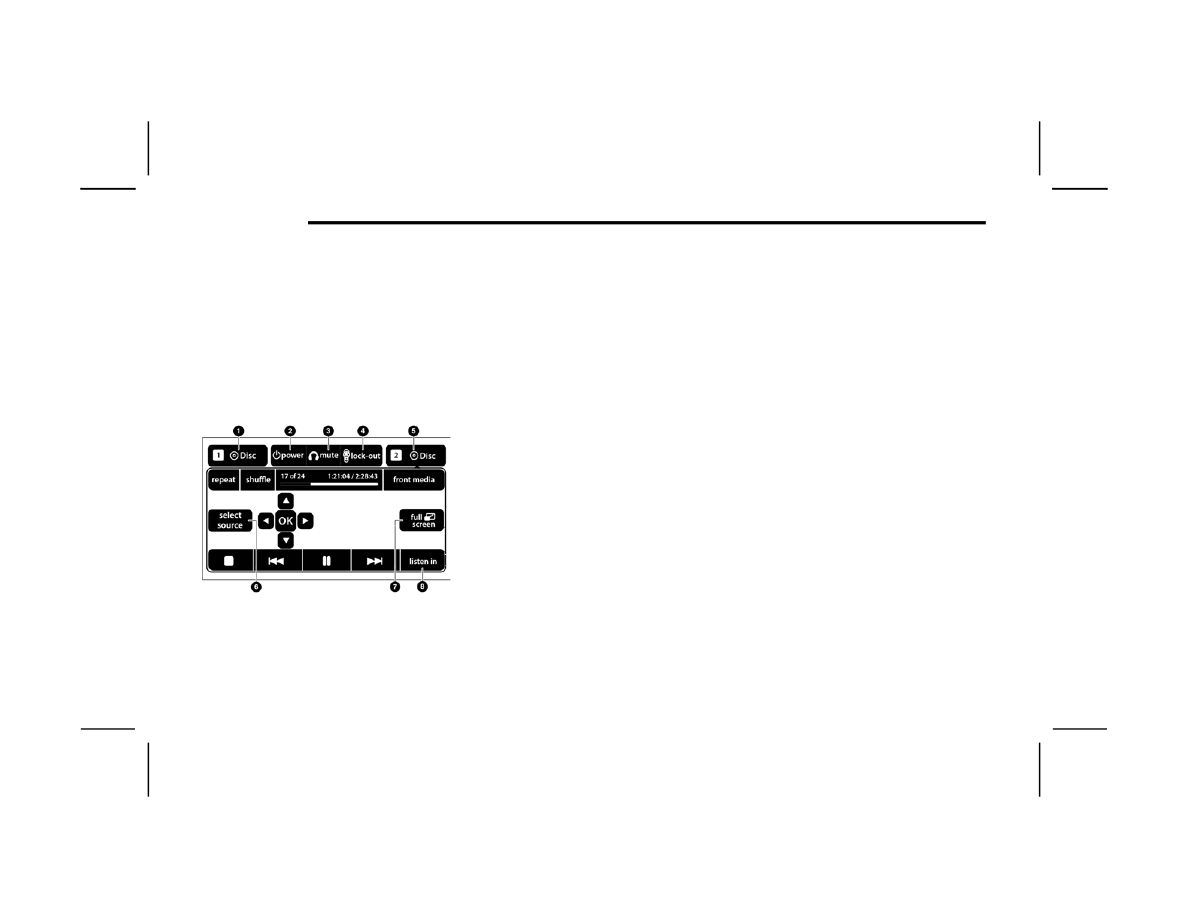

Rear Media Control Screen

1. RSE Channel 1 Mode

Indicates the current source for Screen

1/Channel 1. This button will be highlighted

when it is being controlled by the front user.

If this button is not highlighted, press the but

ton to access controls for Screen 1/Channel 1

source.

2. RSE Power

Press to turn RSE On/Off.

3. RSE Mute

Mute rear headphones for the current ignition

cycle. Pressing mute again will unmute rear

headphones.

4. RSE Remote Control Lock-Out

Press to enable/disable remote control func

tions.

5. RSE Channel 2 Mode

Indicates the current source for Screen 2/

Channel 2. This button will be highlighted

when it is being controlled by the front user. If

this button is not highlighted, press the button

to access controls for Screen 2/Channel 2

source.

6. RSE Source

Press this button to change the source for the

active (highlighted) rear Screen/Channel on

the Rear Media Control screen.

7. Radio Full Screen Mode

Press this button to change to Full Screen

Mode.

8. Cabin Audio Mode

Press this button to change the cabin audio to

the rear entertainment source currently shown

on the Rear Media Control screen.



Press the Media button on the touchscreen, and

then press the Rear Media button on the touch

screen.



Press the OK button on the touchscreen to

begin playing the Blu-ray™ disc.

Using The Remote Control



Select an audio channel (Channel 1 and

Channel 2), and then press the source key.

Using the Up and Down arrows, highlight Disc

from the menu and press the OK button.



Press the pop-up/menu key to navigate the disc

menu and options.

MULTIMEDIA

177

Using The Remote Control

1. Push the SOURCE button on the Remote

Control.

2. While looking at Channel 1 or 2, highlight DISC

by pushing Up/Down/Left/Right buttons, then

push ENTER/OK.

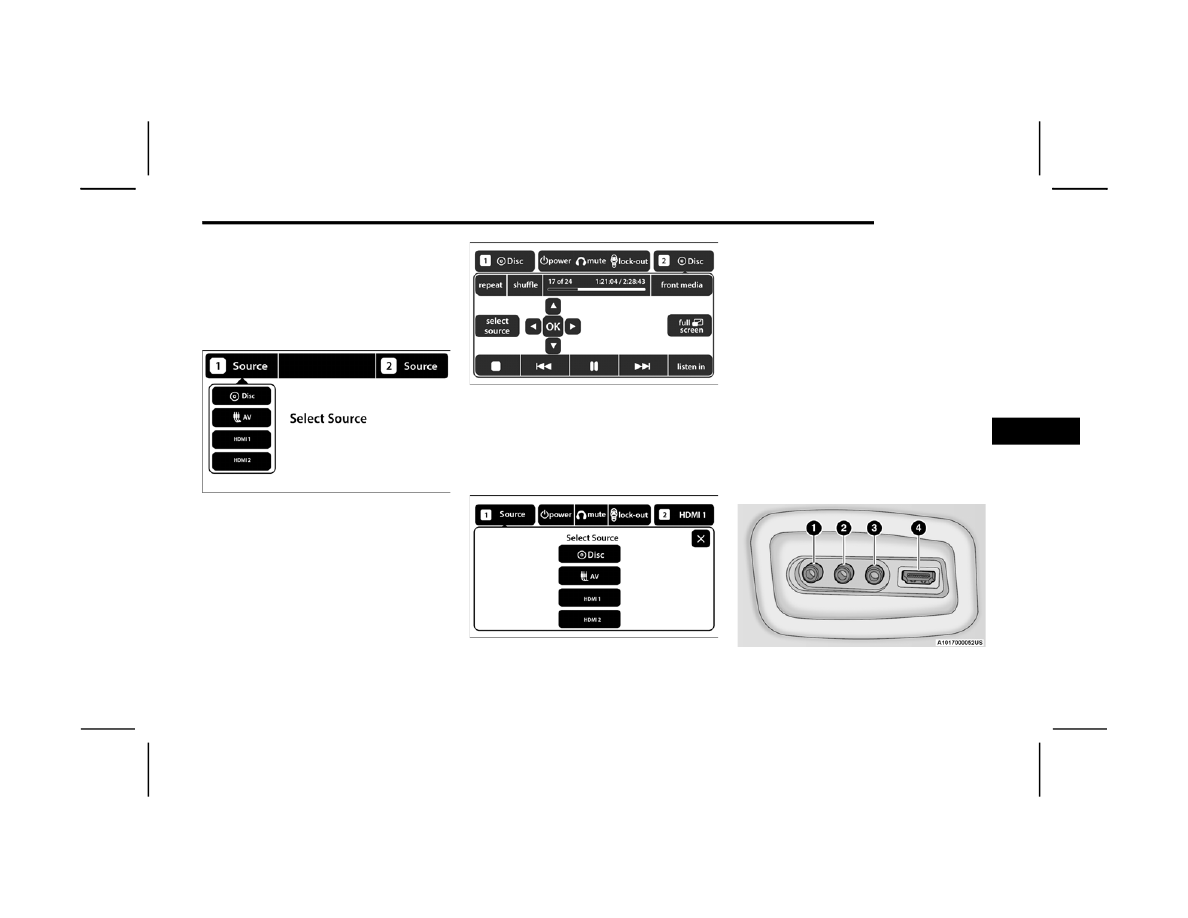

Select DISC Mode On The Rear Seat Entertainment Screen

Using The Touchscreen Controls

1. Press the Media button on the Uconnect

system touchscreen.

2. Press the Rear Media button to display the

Rear Media Control Screen.

Rear Media Control Screen

3. Press the 1 or 2 button on the touchscreen,

then the Select Source button on the

touchscreen. Press the Disc button on the

touchscreen in the Media column. To exit,

press the X at the top right of the screen.

Rear Seat Entertainment Source Screen

NOTE:

Pressing the screen on the Uconnect system while

a DVD or Blu-ray™ Disc is playing brings up the

basic remote control functions for DVD or Blu-ray™

Disc play such as Scene Selection, Play, Pause, FF,

RW, and Stop. Pressing the X in the upper corner

will turn OFF the remote control screen functions.

LAY

IDEO

AMES

Connect the video game console to the Audio/

Video RCA/HDMI input jacks located on the side of

each seat.
Audio/Video RCA/HDMI jacks (AUX/HDMI jacks)

on the side of each seat enable the monitor to

display video directly from a video camera, connect

video games for display on the screen, or play

music directly from an MP3 player.

Audio/Video Connector Ports/HDMI Input Jacks

178

MULTIMEDIA

When connecting an external source to the AUX/

HDMI input, be sure to follow the standard color

coding (numbers 1-3) for the audio/video jacks:
1. Right audio in (red)
2. Left audio in (white)
3. Video in (yellow)
4. HDMI Input

NOTE:

Certain video game consoles may exceed the

power limit of the vehicle's power inverter.

For more information about power inverters,

page 60.

MPORTANT

OTES

IDEO

CREEN

YSTEM



The Rear Seat Entertainment system is able to

transmit two channels of stereo audio and video

simultaneously.



The Blu-ray™ Disc Player can play CDs, DVDs,

and Blu-ray™ Discs.



Selecting a video source on either Channel 1 or

Channel 2 will display video and allow you to

hear it on each respective channel.



Audio can be heard through the headphones

even when the screen(s) are closed.

RAY

™ D

ISC

LAYER

EMOTE

ONTROL

Blu-ray™ Player Remote Control

Controls And Indicators

— To hear audio while the screen is closed,

push the Power button to turn the headphone

transmitter on; turns the screen and wireless

headphone transmitter for the selected

Channel on or off.

— Push to navigate menus.

3. OK — Push to select the highlighted option in a

menu.

— Push to navigate menus.

6. BACK — Push to exit out of menus or return to

source selection screen.

— Mutes headphone audio.

— Push and hold to fast rewind through the

current audio track or video chapter.

— Stops disc play.

10.

— Push to navigate chapters or titles.

11.

— When a button is pushed, the current

channel or channel button is illuminated

momentarily.

12. SOURCE — Push to enter Source Selection

screen.

MULTIMEDIA

179

13. Channel/Screen Selector Switch — Indicates

which channel is being controlled by the

remote control. When the selector switch is in

the Channel 1 position, the remote controls

the functionality of headphone Channel 1 (left

screen). When the selector switch is in the

Channel 2 position, the remote controls the

functionality of headphone Channel 2 (right

screen).

14.

— Push to navigate menus.

15. SETUP — Push to access the screen settings

menu.

16.

— Push and hold to fast forward through

the current audio track or video chapter.

17.

— Begin/resume or pause disc play.

18. Four Colored Buttons — Push to access

Blu-ray™ Disc features.

19. POPUP/MENU — Push to bring up repeat and

shuffle options, the Blu-ray™ Disc pop-up

menu, the DVD title menu, or to access disc

menus.

EADPHONES

PERATION

The headphones receive two separate channels of

audio using an infrared transmitter from the video

screen.

If no audio is heard after increasing the volume

control, verify that the screen is turned on, the

channel is not muted, and the headphone channel

selector switch is on the desired channel. If audio is

still not heard, check that the batteries are charged.

Rear Seat Entertainment Headphones

ONTROLS

The headphone power indicator and controls are

located on the right ear cup.

NOTE:

The rear video system must be turned on

before sound can be heard from the headphones.

To conserve battery life, the headphones will auto

matically turn off approximately three minutes

after the rear video system is turned off.
Changing the Audio Mode for Headphones
1. Ensure the Remote Control channel/screen

selector switch is in the same position as the

headphone selector switch.

NOTE:



When both the headphone and the remote

control channel selector switches are on

Channel 1, the Remote is controlling

Channel 1 and the headphones are tuned

to the audio on Channel 1.



When both the headphone and the remote

control channel selector switches are on

Channel 2, the remote is controlling

Channel 2 and the headphones are tuned

to the audio on Channel 2.

2. Push the SOURCE button on the remote

control to advance to the next mode.

3. When the Mode Selection menu appears on

screen, use the cursor buttons on the remote

control to navigate to the available modes and

push the OK button to select the new mode.

4. To cancel out of the Mode Selection menu,

push the Back button on the remote control.

1 — Power Button
2 — Volume Control
3 — Channel Selection Switch

180

MULTIMEDIA

EPLACING

EADPHONE

ATTERIES

Each set of headphones requires two AAA batteries

for operation. To replace the batteries:
1. Locate the battery compartment on the left

ear cup of the headphones, and then slide the

battery cover downward.

2. Replace the batteries, making sure to orient

them according to the polarity diagram shown.

3. Return the battery compartment cover.

CCESSIBILITY

— I

QUIPPED

Accessibility is a feature of the DVD/Blu-ray™

system that announces a function prior to

performing the action

page 155.

TEREO

EADPHONE

IFETIME

IMITED

ARRANTY

Who Does This Warranty Cover? This warranty covers

the initial user or purchaser ("you" or "your") of this

particular Aptiv PLC (“Aptiv”) wireless headphone

("Product"). The warranty is not transferable.
How Long Does the Coverage Last? This warranty

lasts as long as you own the Product.

What Does This Warranty Cover? Except as

specified, this warranty covers any Product that in

normal use is defective in workmanship or

materials.
What Does This Warranty Not Cover? This warranty

does not cover any damage or defect that results

from misuse, abuse, or modification of the Product

other than by Aptiv. Foam earpieces, which will

wear over time through normal use, are specifically

not covered (replacement foam is available for a

nominal charge). APTIV IS NOT LIABLE FOR ANY

INJURIES OR DAMAGES TO PERSONS OR

PROPERTY RESULTING FROM THE USE OF, OR ANY

FAILURE OR DEFECT IN, THE PRODUCT, NOR IS

APTIV LIABLE FOR ANY GENERAL, SPECIAL,

DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL,

EXEMPLARY, PUNITIVE OR OTHER DAMAGES OF

ANY KIND OR NATURE WHATSOEVER. Some states

and jurisdictions may not allow the exclusion or

limitation of incidental or consequential damages,

so the above limitation may not apply to you. This

warranty gives you specific legal rights. You may

also have other rights, which vary from jurisdiction

to jurisdiction.
What Will Aptiv Do? Aptiv, at its option, will repair or

replace any defective Product. Aptiv reserves the

right to replace any discontinued Product with a

comparable model. THIS WARRANTY IS THE SOLE

WARRANTY FOR THIS PRODUCT, SETS FORTH

YOUR EXCLUSIVE REMEDY REGARDING

DEFECTIVE PRODUCTS, AND IS IN LIEU OF ALL

OTHER WARRANTIES (EXPRESS OR IMPLIED),

INCLUDING ANY WARRANTY FOR

MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.
If you have any questions or comments regarding

your Aptiv wireless headphones, please email

hpservice@aptiv.com or phone: 888-293-3332.

System Information
Disc Menu

When listening to a CD Audio or CD Data disc,

pushing the remote control’s POP-UP/MENU

button displays a list of all commands which

control playback of the disc.

Display Settings

When watching a video source (Blu-ray™ Disc or

DVD Video with the disc in Play mode, Aux Video,

etc.), pushing the remote control’s SETUP button

activates the Display Settings menu. These

settings control the appearance of the video on the

screen. The factory default settings are already set

for optimum viewing, so there is no need to change

these settings under normal circumstances.
To change the settings, push the remote control’s

Navigation buttons to select an item, then push the

remote control’s Navigation buttons to change the

value for the currently selected item.

MULTIMEDIA

181

To reset all values back to the original settings,

select the Default Settings menu option and push

the remote control’s ENTER/OK button.
Disc Features control the remote Blu-ray™ Disc

player's settings of DVD being watched in the

remote player.

Listening To Audio With The Screen Closed

To listen to only the audio portion of the channel

with the screen closed:



Set the audio to the desired source and

channel.



Close the video screen.



To change the current audio mode, push the

remote control’s SOURCE button. This will auto

matically select the next available audio mode

without using the Mode/Source Select menu.



When the screen is reopened, the video screen

will automatically turn back on and show the

display menu or media.

If the screen is closed and there is no audio heard,

verify that the headphones are turned on (the ON

indicator is illuminated) and the headphone

selector switch is on the desired channel. If the

headphones are turned on, push the remote

control’s power button to turn audio on. If audio is

still not heard, check that fully charged batteries

are installed in the headphones.

Disc Formats

The Blu-ray™ Disc player is capable of playing the

following types of 4.7-inch (12 centimeter)

diameter discs:



BD: BDMV (Profile 1.1), BDAV (Profile 1.1)



DVD: DVD-Video, DVD-Audio, AVCREC, AVCHD,

DVD-VR



CD: CD-DA, VCD, CD-TEXT



DVD/CD: MP3, WMA, AAC, DivX (versions 3 – 6)

profile 3.0

DVD Region Codes
The Blu-ray™ Disc player and many DVD discs are

coded by geographic region. These region codes

must match in order for the disc to play. If the

region code for the DVD/Blu-ray™ disc does not

match the region code for the player, the disc will

not play.
DVD Audio Support
When a DVD-Audio disc is inserted in the Blu-ray™

Disc player, the DVD-Audio title on the disc is

played by default (most DVD-Audio discs also have

a Video title, but the Video title is ignored). All

multichannel program material is automatically

mixed down to two channels, which may result in a

lowered apparent volume level. If you increase the

volume level to account for this change in level,

remember to lower the volume before changing

the disc or to another mode.

Recorded Discs
The Blu-ray™ Disc player will play CD-R and CD-RW

discs recorded in CD-Audio or Video-CD format, or

as a CD-ROM containing MP3 or WMA files. The

player will also play DVD-Video content recorded to

a DVD-R or DVD-RW disc. DVD-ROM discs (either

pressed or recorded) are not supported.
If you record a disc using a personal computer,

there may be cases where the Blu-ray™ Disc player

may not be able to play some or the entire disc,

even if it is recorded in a compatible format and is

playable on other players. To help avoid playback

problems, use the following guidelines when

recording discs:



Open sessions are ignored. Only sessions that

are closed are playable.



For multi-session CDs that contain only multiple

CD-Audio sessions, the player will renumber the

tracks so each track number is unique.



For CD Data (or CD-ROM) discs, always use the

ISO-9660 (Level 1 or Level 2), Joliet, or Romeo

format. Other formats (such as UDF, HFS, or

others) are not supported.



The player recognizes a maximum of 512 files

and 99 folders per CD-R and CD-RW disc.



Mixed media recordable DVD formats will only

play the Video_TS portion of the disc.

182

MULTIMEDIA

If you are still having trouble writing a disc that is

playable in the Blu-ray™ Disc player, check with the

disc recording software publisher for more

information about burning playable discs.
The recommended method for labeling recordable

discs (CD-R, CD-RW, and DVD-R) is with a

permanent marker. Do not use adhesive labels as

they may separate from the disc, become stuck,

and cause permanent damage to the DVD player.
Compressed Audio Files (MP3 and WMA)
The Blu-ray™ Disc player is capable of playing MP3

(MPEG-1 Audio Layer 3) and WMA (Windows Media

Audio) files from a CD Data disc (usually a CD-R or

CD-RW).



The Blu-ray™ Disc player always uses the file

extension to determine the audio format, so

MP3 files must always end with the extension

“.mp3” or “.MP3” and WMA files must always

end with the extension “.wma” or “.WMA”. To

prevent incorrect playback, do not use these

extensions for any other types of files.



For MP3 files, only version 1 ID3 tag data (such

as artist name, track title, album, etc.) are

supported.



Any file that is copy protected (such as those

downloaded from many online music stores) will

not play. The Blu-ray™ player will automatically

skip the file and begin playing the next available

file.



Other compression formats such as AAC, MP3

Pro, Ogg Vorbis, and ATRAC3 will not play. The

Blu-ray™ player will automatically skip the file

and begin playing the next available file.



If you are creating your own files, the recom

mended fixed bit rate for MP3 files is between

96 and 192 Kbps and the recommended fixed

bit rate for WMA files is between 64 and

192Kbps. Variable bit rates are also supported.

For both formats, the recommended sample

rate is either 44.1 kHz or 48 kHz.



To change the current file, use the remote

control’s or Blu-ray™ Disc player’s button to

advance to the next file.

Disc Errors
If the Blu-ray™ Disc player is unable to read the

disc, a “Disc Error” message is displayed on the

rear screen and Uconnect system displays. A dirty,

damaged, or incompatible disc format are all

potential causes for a “Disc Error” message.
If a disc has a damaged track which results in

audible or visible errors that persists for two

seconds, the Blu-ray™ Disc player will attempt to

continue playing the disc by skipping forward one

to three seconds at a time. If the end of the disc is

reached, the Blu-ray™ Disc player will return to the

beginning of the disc and attempt to play the start

of the first track.

The Blu-ray™ Disc player may shut down during

extremely hot conditions, such as when the

vehicle’s interior temperature is above 120°F

(48.9°C). When this occurs, the player will display

“High Temp” and will shut off the rear seat displays

until a safe temperature is reached. This shutdown

is necessary to protect the optics of the Blu-ray™

Disc player.

Product Agreement

This product incorporates copyright protection

technology that is protected by US patents and

other intellectual property rights. Use of this

authorized by Macrovision, and is intended for

home or other limited viewing uses otherwise

authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Dolby Digital and MLP Lossless

Manufactured under license from Dolby

Laboratories. "Dolby", "MLP Lossless",

and the double-D symbol are trademarks

of Dolby Laboratories. Confidential unpublished

MULTIMEDIA

183

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being

on in your vehicle can cause erratic or noisy

performance from your radio. This condition may

be lessened or eliminated by repositioning the

mobile phone within the vehicle. This condition is

not harmful to the radio. If your radio performance

does not satisfactorily improve from repositioning

the mobile phone, it is recommended that the

volume be turned down or off during mobile phone

operation when not using the Uconnect system.

EGULATORY

AFETY

NFORMATION

US/CANADA
Exposure to Radio Frequency Radiation
The radiated output power of the internal wireless

radio is far below the FCC and IC radio frequency

exposure limits. Nevertheless, the wireless radio

will be used in such a manner that the radio is 8 in

(20 cm) or further from the human body.
The internal wireless radio operates within

guidelines found in radio frequency safety

standards and recommendations, which reflect

the consensus of the scientific community.

The radio manufacturer believes the internal

wireless radio is safe for use by consumers.

The level of energy emitted is far less than the

electromagnetic energy emitted by wireless

devices such as mobile phones. However, the use

of wireless radios may be restricted in some

situations or environments, such as aboard

airplanes. If you are unsure of restrictions, you are

encouraged to ask for authorization before turning

on the wireless radio

page 321.

OFF-ROAD PAGES — IF EQUIPPED

Your vehicle is equipped with Off-Road Pages,

which provides the vehicle status while operating

on off-road conditions. It supplies information

relating to the vehicle ride height, the status of the

transfer case, the pitch and roll of the vehicle, and

the active Selec-Terrain mode.

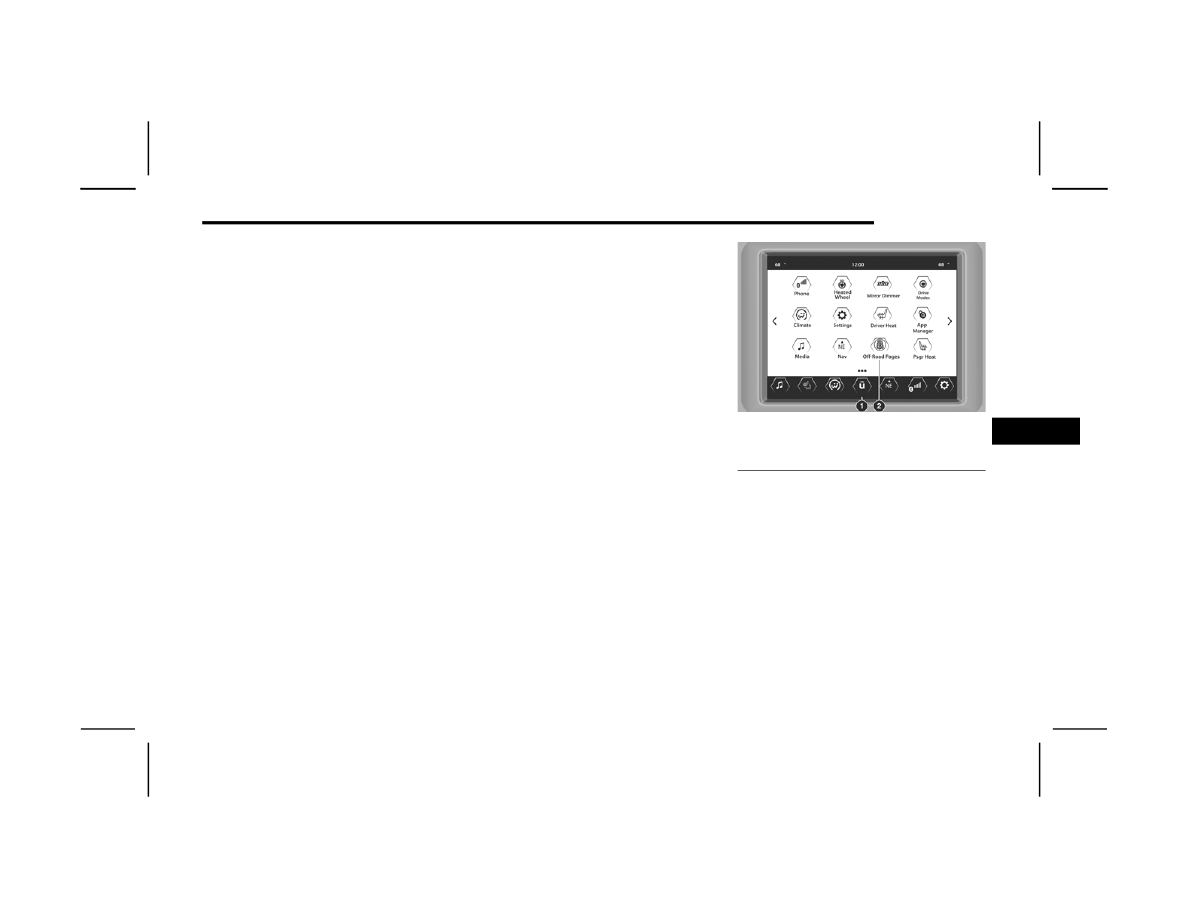

To access Off-Road Pages, press the Apps button

on the touchscreen, and then select “Off-Road

Pages”.

Main Menu

Off-Road Pages has the following selectable pages:



Vehicle Dynamics



Suspension



Pitch & Roll — If Equipped



Accessory Gauge



Selec-Terrain — If Equipped

1 — Uconnect Apps Button
2 — Off-Road Pages App

184

MULTIMEDIA

-R

OAD

AGES

TATUS

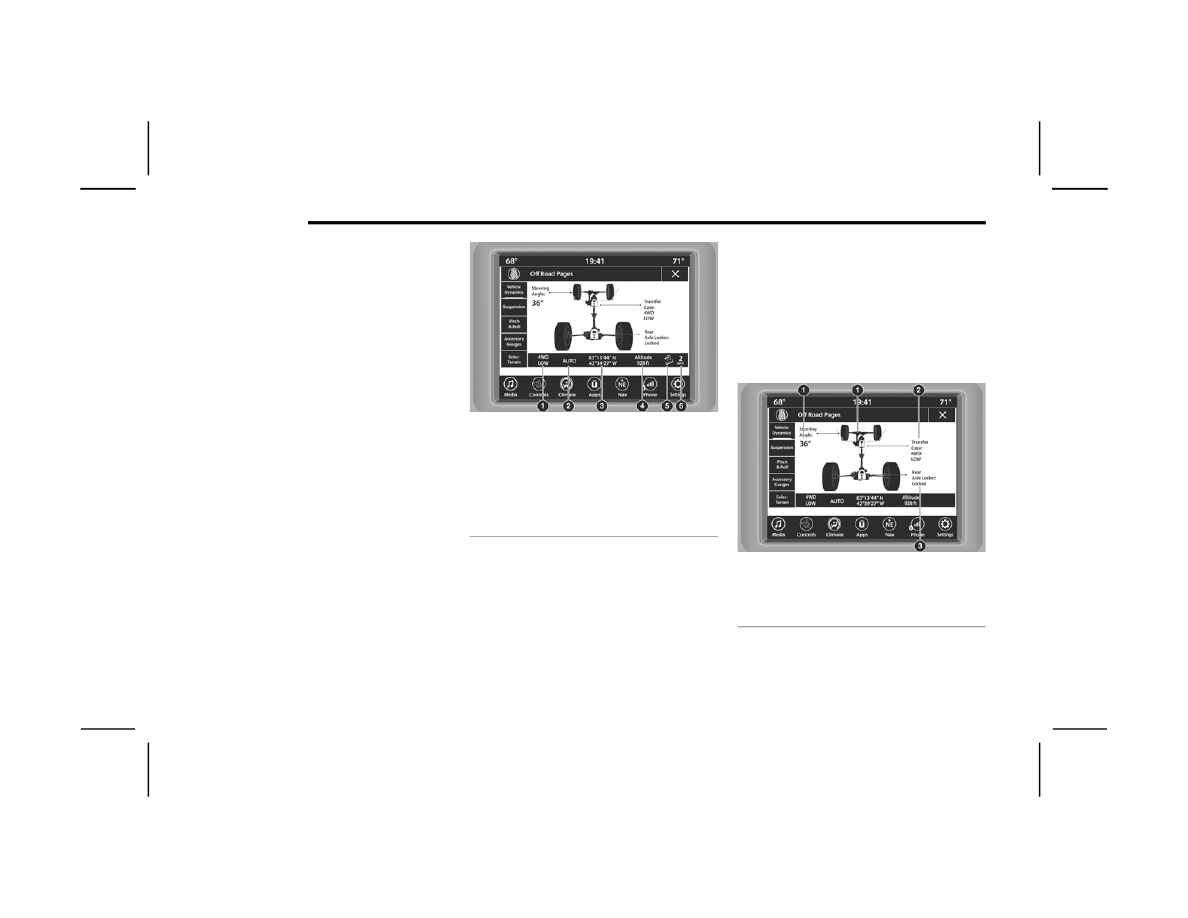

The Off-Road Pages Status Bar is located along the

bottom of Off-Road Pages and is present in each of

the five selectable page options. It provides

continually updating information for the following

items:
1. Current Transfer Case Status (only appears

when in 4WD LOW)

2. Current Selec-Terrain mode — If Equipped
3. Current Latitude/Longitude
4. Current Altitude of the vehicle
5. Status of Hill Descent
6. Selec-Speed Control and Selected Speed in

mph (km/h)

Status Bar

EHICLE

YNAMICS

The Vehicle Dynamics page displays information

concerning the vehicle’s drivetrain.
The following information is displayed:



Steering angle in degrees



Status of Transfer Case



Status of the Rear Axles — If Equipped

Vehicle Dynamics Menu

1 — Transfer Case Status (Only When In 4WD LOW)
2 — Selec-Terrain Mode — If Equipped
3 — Current Latitude/Longitude
4 — Current Altitude
5 — Hill Descent
6 — Selec-Speed Status And Set Speed

1 — Steering Angle
2 — Transfer Case Status
3 — Rear Axle Locker Status

MULTIMEDIA

185

USPENSION

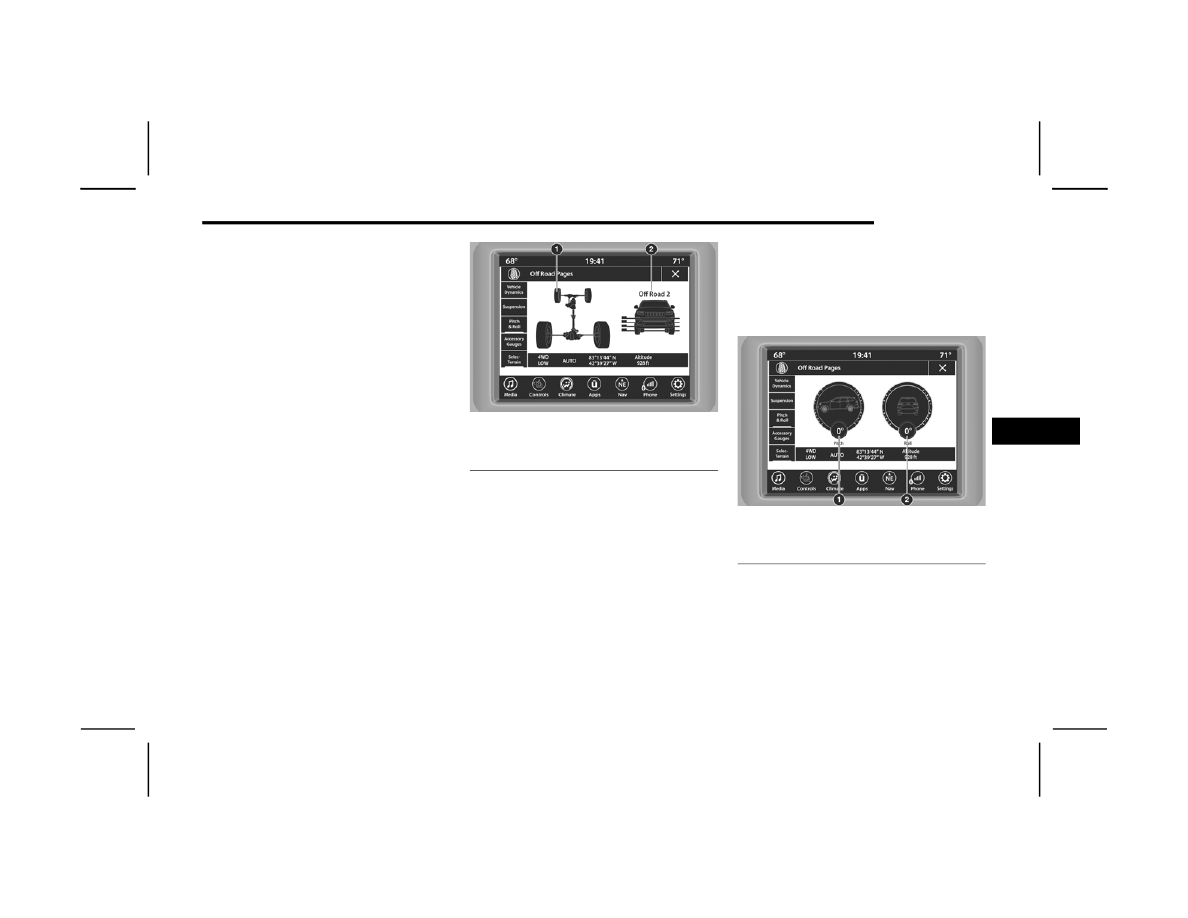

The Suspension page displays information

regarding the vehicle’s suspension.
The following information is displayed:
1. Suspension Articulation Indicator
2. Current Ride Height Status — If Equipped



Normal



Off-Road 1



Off-Road 2



Entry/Exit



Aero

NOTE:

The wheel articulation will be represented by a

yellow color in the Suspension Articulation Indi

cator. If Ride Height is adjusted, the Ride Height

Indicator on the screen will switch to the appro

priate height and the Suspension Articulation Indi

cator will show the movement and change in

height.

Suspension Menu

ITCH

& R

OLL

The Pitch & Roll page displays the vehicle’s current

pitch (angle up and down) and roll (angle side to

side) in degrees. The Pitch & Roll gauges provide a

visualization of the current vehicle angle.

Pitch & Roll Menu

1 — Suspension Articulation Indicator
2 — Current Ride Height

1 — Current Pitch
2 — Current Roll

Content .. 9 10 11 12 ..
