STARTING AND OPERATING

123

The vehicle is close to the obstacle when the instrument cluster display shows one flashing arc and sounds a continuous tone. The following chart shows the

warning alert operation when the system is detecting an obstacle:

WARNING ALERTS FOR REAR

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Audible Alert

Chime

None

Single 1/2

Second Tone

(Center Arc Only)

Slow

(Center Arc Only)

Slow

(Center Arc Only)

Fast

(Center Arc Only)

Fast

Continuous

Arcs-Left

None

6th Flashing

5th Flashing

Arcs-Center

None

10th Solid

9th Solid

8th Solid

7th Flashing

6th Flashing

5th Flashing

Arcs-Right

None

6th Flashing

5th Flashing

Radio Volume

Reduced

Yes

WARNING ALERTS FOR FRONT

Front Distance

(inches/cm)

Greater than 47 inches

(120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than 12 inches

(30 cm)

Audible Alert Chime

None

Fast

Continuous

Arcs-Left

None

3rd Flashing

4th Flashing

Arcs-Center

None

1st Solid

2nd Flashing

3rd Flashing

4th Flashing

Arcs-Right

None

3rd Flashing

4th Flashing

Radio Volume Reduced

Yes

124

STARTING AND OPERATING

NOTE:

ParkSense will reduce the volume of the radio, if

on, when the system is sounding an audio tone.
Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist

audible alert (chime) after approximately three

seconds when an obstacle has been detected, the

vehicle is stationary, and brake pedal is applied.
Adjustable Chime Volume Settings
Front and Rear chime volume settings can be

selected from the Uconnect system

page 155.

The chime volume settings include low, medium,

and high.
ParkSense will retain its last known configuration

state through ignition cycles.

ARK

ENSE

ARNING

ISPLAY

The ParkSense Warning screen will only be

displayed if Sound and Display is selected from

within the Uconnect system

page 155.

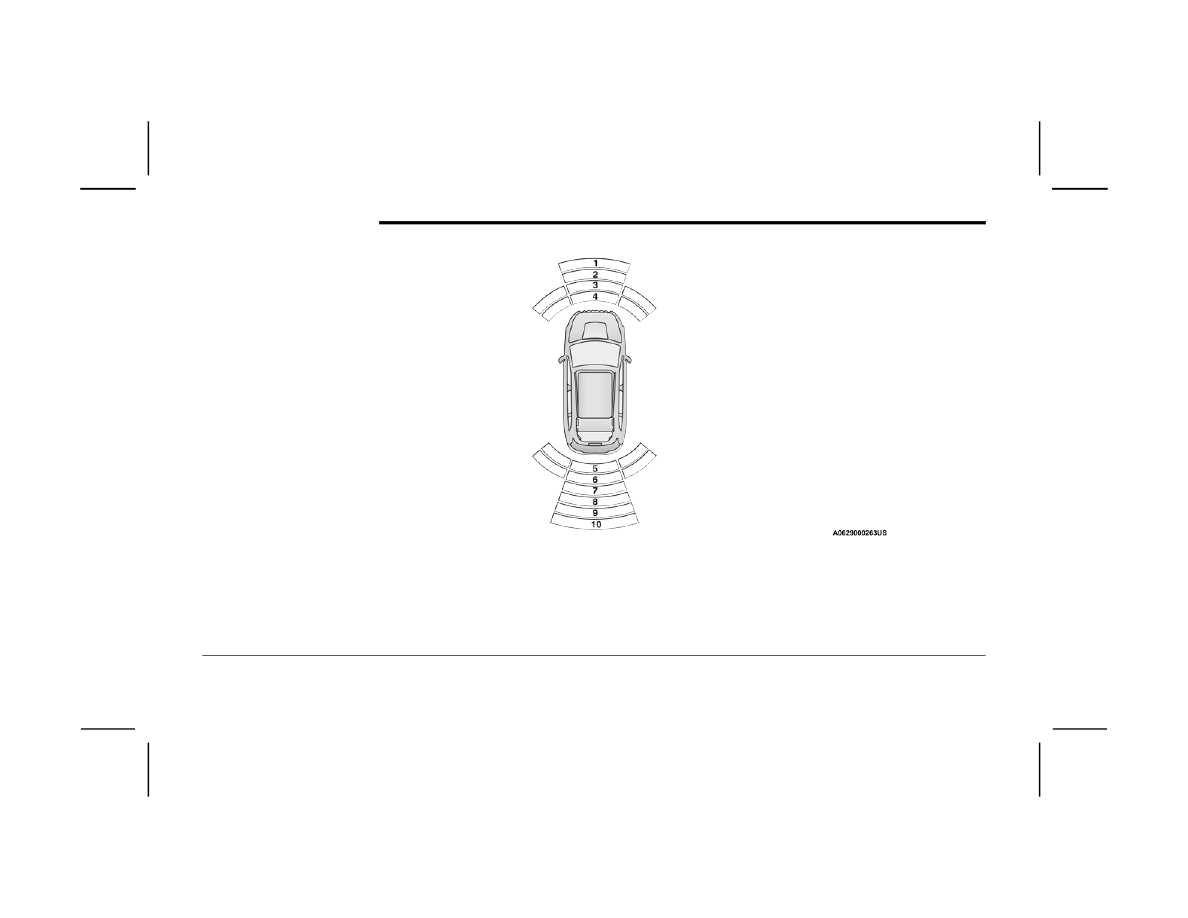

The ParkSense Warning screen is located within

the instrument cluster display

page 74. It

provides visual warnings to indicate the distance

between the rear fascia/bumper and/or front

fascia/bumper and the detected obstacle.

NABLING

ISABLING

ARK

ENSE

ParkSense can be enabled and disabled

with the ParkSense switch.

When the ParkSense switch is pushed to disable

the system, the instrument cluster will display the

“PARKSENSE OFF” message for approximately

five seconds. When the gear selector is moved to

REVERSE and the system is disabled, the

instrument cluster display will display the

“PARKSENSE OFF” message for as long as the

vehicle is in REVERSE.

NOTE:

When ParkSense is disabled and the gear selector

is moved to the DRIVE position, no warning

message will be displayed.
The ParkSense switch LED will be on when

ParkSense is disabled or requires service. The

ParkSense switch LED will be off when the system

is enabled. If the ParkSense switch is pushed, and

the system requires service, the ParkSense switch

LED will blink momentarily, and then the LED will

be on.

ERVICE

ARK

ENSE

ARK

SSIST

YSTEM

During vehicle start up, when the ParkSense

System has detected a faulted condition, the

instrument cluster will actuate a single chime,

once per ignition cycle, and it will display the

"PARKSENSE UNAVAILABLE WIPE REAR

SENSORS", "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS", or the "PARKSENSE

UNAVAILABLE SERVICE REQUIRED" message for

five seconds. When the gear selector is moved to

REVERSE and the system has detected a faulted

condition, the instrument cluster display will

display a "PARKSENSE UNAVAILABLE WIPE REAR

SENSORS", "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS" or "PARKSENSE UNAVAILABLE

SERVICE REQUIRED" pop-up message for five

seconds. After five seconds, a vehicle graphic will

be displayed with "UNAVAILABLE" at either the

front or rear sensor location depending on where

the fault is detected. The system will continue to

provide arc alerts for the side that is functioning

properly. These arc alerts will interrupt the

"PARKSENSE UNAVAILABLE WIPE REAR

SENSORS", "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS", or "PARKSENSE UNAVAILABLE

SERVICE REQUIRED" messages if an object is

detected within the five second pop-up duration.

The vehicle graphic will remain displayed for as

long as the vehicle is in REVERSE.

STARTING AND OPERATING

125

If "PARKSENSE UNAVAILABLE WIPE REAR

SENSORS" or "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS" appears in the instrument

cluster display make sure the outer surface and

the underside of the rear fascia/bumper and/or

front fascia/bumper is clean and clear of snow,

ice, mud, dirt or other obstruction and then cycle

the ignition. If the message continues to appear

see an authorized dealer.
If the "PARKSENSE UNAVAILABLE SERVICE

REQUIRED" message appears in the instrument

cluster display, see an authorized dealer.

LEANING

ARK

ENSE

YSTEM

Clean the ParkSense sensors with water, car wash

soap and a soft cloth. Do not use rough or hard

cloths. Do not scratch or poke the sensors.

Otherwise, you could damage the sensors.

ARK

ENSE

YSTEM

SAGE

RECAUTIONS

NOTE:



Ensure that the front and rear bumper are free

of snow, ice, mud, dirt and debris to keep the

ParkSense system operating properly.



Jackhammers, large trucks, and other vibra

tions could affect the performance of Park

Sense.



When you turn ParkSense off, the instrument

cluster will display “PARKSENSE OFF.” Further

more, once you turn ParkSense off, it remains

off until you turn it on again, even if you cycle the

ignition.



When you move the gear selector to the

REVERSE position and ParkSense is turned off,

the instrument cluster will display “PARKSENSE

OFF” for as long as the vehicle is in REVERSE.



ParkSense, when on, will reduce the volume of

the radio when it is sounding a tone.



Clean the ParkSense sensors regularly, taking

care not to scratch or damage them. The

sensors must not be covered with ice, snow,

slush, mud, dirt or debris. Failure to do so can

result in the system not working properly. The

ParkSense system might not detect an obstacle

behind or in front of the fascia/bumper, or it

could provide a false indication that an obstacle

is behind or in front of the fascia/bumper.



Use the ParkSense switch to turn the ParkSense

system off if objects such as bicycle carriers,

trailer hitches, etc. are placed within 12 inches

(30 cm) from the rear fascia/bumper. Failure to

do so can result in the system misinterpreting a

close object as a sensor problem, causing the

“PARKSENSE UNAVAILABLE WIPE REAR

SENSORS” message to be displayed in the

instrument cluster.



ParkSense should be disabled when the liftgate

is in the open position. An opened liftgate could

provide a false indication that an obstacle is

behind the vehicle.

WARNING!



Drivers must be careful when backing up even

when using ParkSense. Always check carefully

behind your vehicle, look behind you, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, and blind spots before

backing up. You are responsible for safety and

must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.



Before using ParkSense, it is strongly recom

mended that the ball mount and hitch ball

assembly be disconnected from the vehicle

when the vehicle is not used for towing.

Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball

will be much closer to the obstacle than the

rear fascia when the vehicle sounds the

continuous tone. Also, the sensors could

detect the ball mount and hitch ball assembly,

depending on its size and shape, giving a false

indication that an obstacle is behind the

vehicle.

126

STARTING AND OPERATING

PARKSENSE ACTIVE PARK ASSIST SYSTEM —

IF EQUIPPED

The ParkSense Active Park Assist system is

intended to assist the driver during parallel and

perpendicular parking maneuvers by identifying a

proper parking space, providing audible/visual

instructions, and controlling the steering wheel.

The ParkSense Active Park Assist system is

defined as “semi-automatic” since the driver

maintains control of the accelerator, gear selector

and brakes. Depending on the driver's parking

maneuver selection, the ParkSense Active Park

Assist system is capable of maneuvering a vehicle

into a parallel or a perpendicular parking space on

either side (i.e., driver side or passenger side).

NOTE:



The driver is always responsible for controlling

the vehicle, responsible for any surrounding

objects, and must intervene as required.



The system is designed to assist the driver and

not to substitute the driver.



During a semi-automatic maneuver, if the driver

touches the steering wheel after being

instructed to remove their hands from the

steering wheel, the system will cancel, and the

driver will be required to manually complete the

parking maneuver.



The system may not work in all conditions (e.g.

environmental conditions such as heavy rain,

snow, etc., or if searching for a parking space

that has surfaces that will absorb the ultrasonic

sensor waves).



New vehicles from the dealership must have at

least 30 miles (48 km) accumulated before the

ParkSense Active Park Assist system is fully cali

brated and performs accurately. This is due to

the system’s dynamic vehicle calibration to

improve the performance of the feature. The

system will also continuously perform the

dynamic vehicle calibration to account for differ

ences such as over or under inflated tires and

new tires.

NABLING

ISABLING

ARK

ENSE

CTIVE

ARK

SSIST

YSTEM

The ParkSense Active Park Assist system

can be enabled and disabled with the

ParkSense Active Park Assist switch,

located on the switch panel below the

Uconnect display.
To enable or disable the ParkSense Active Park

Assist system, push the ParkSense Active Park

Assist switch once (LED turns on). Pushing the

switch a second time will disable the system

(LED turns off).
The ParkSense Active Park Assist system will turn

off automatically for any of the following

conditions:



Parking maneuver is completed



Vehicle speed is greater than 18 mph

(30 km/h) when searching for a parking space



Vehicle speed is greater than 5 mph (7 km/h)

during active steering guidance into the parking

space

CAUTION!



ParkSense is only a parking aid and it is unable

to recognize every obstacle, including small

obstacles. Parking curbs might be temporarily

detected or not detected at all. Obstacles

located above or below the sensors will not be

detected when they are in close proximity.



The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time

when an obstacle is detected. It is recom

mended that the driver looks over his/her

shoulder when using ParkSense.

STARTING AND OPERATING

127



Steering wheel is touched during active steering

guidance into the parking space



ParkSense Park Assist switch is pushed



Driver's door is opened



Rear liftgate is opened



Electronic Stability Control/Anti-Lock Braking

System intervention



4WD Low is active or activated



SAND mode (if equipped) is active or activated



MUD mode (if equipped) is active or activated

The ParkSense Active Park Assist system allows a

maximum number of shifts between DRIVE and

REVERSE. If the maneuver cannot be completed

within the maximum amount of shifts, the system

will cancel and the instrument cluster display will

instruct the driver to complete the maneuver

manually.

NOTE:

The number of shifts will vary between two move

ments (for large parking spots) and eight move

ments (for small parking spots).

The ParkSense Active Park Assist system will only

operate and search for a parking space when the

following conditions are present:



Gear selector is in DRIVE



Ignition is in the RUN position



ParkSense Active Park Assist switch is activated



Driver's door is closed



Rear liftgate is closed



Vehicle speed is less than 15 mph (25 km/h)

NOTE:

If the vehicle is driven above approximately

15 mph (25 km/h), the instrument cluster display

will instruct the driver to slow down. If the vehicle

is driven above approximately 18 mph (30 km/h),

the system will cancel. The driver must then reac

tivate the system by pushing the ParkSense Active

Park Assist switch.



The outer surface and the underside of the front

and rear fascias/bumpers are clean and clear

of snow, ice, mud, dirt or other obstruction.

When pushed, the LED on the ParkSense Active

Park Assist switch will blink momentarily, and then

the LED will turn off if any of the preceding

conditions are not present.

ARALLEL

ERPENDICULAR

ARKING

PACE

SSISTANCE

PERATION

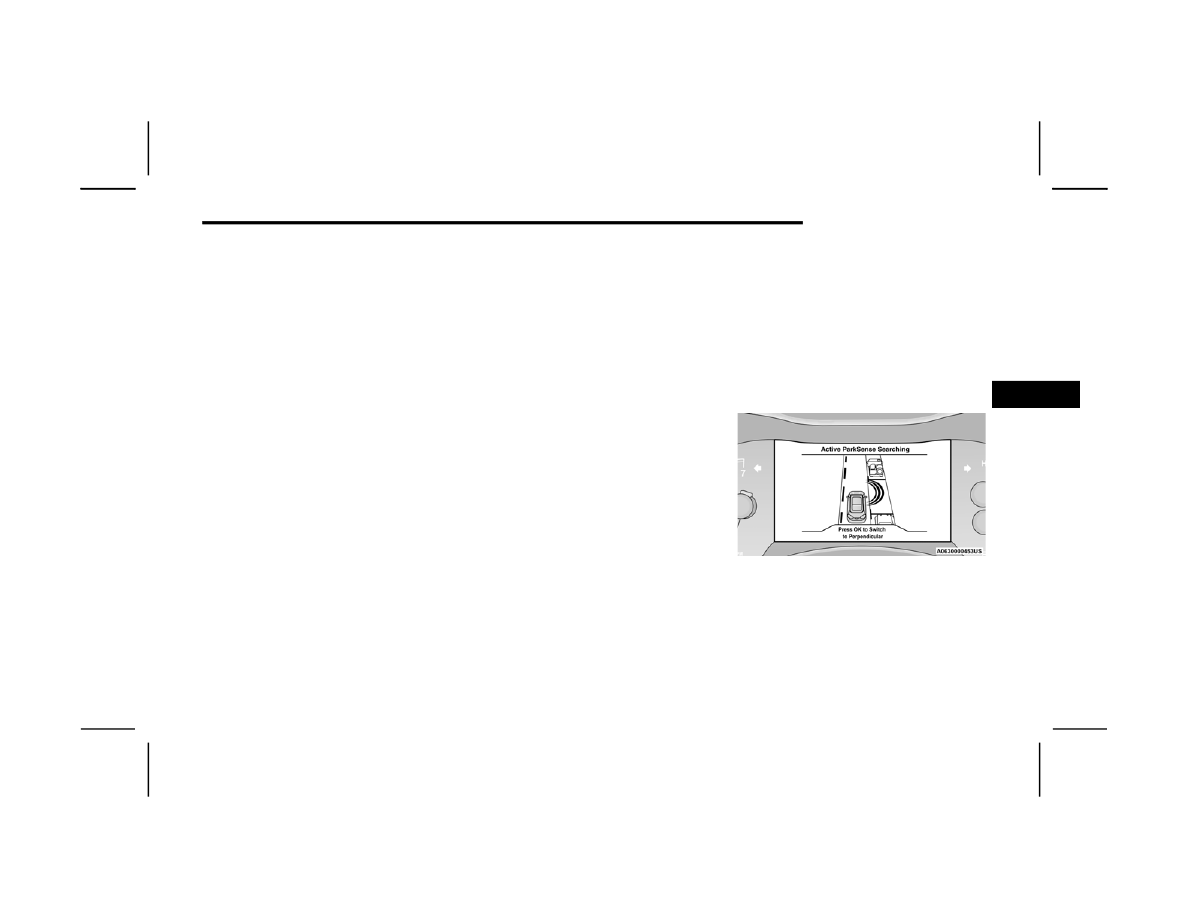

When the ParkSense Active Park Assist system is

enabled, the “Active ParkSense Searching - Press

OK to Switch to Perpendicular” message will

appear in the instrument cluster display. Push the

OK button on the left side of the steering wheel to

change your parking space setting to a

perpendicular maneuver. You may switch back to

parallel parking if you desire.

Switch To Perpendicular

128

STARTING AND OPERATING

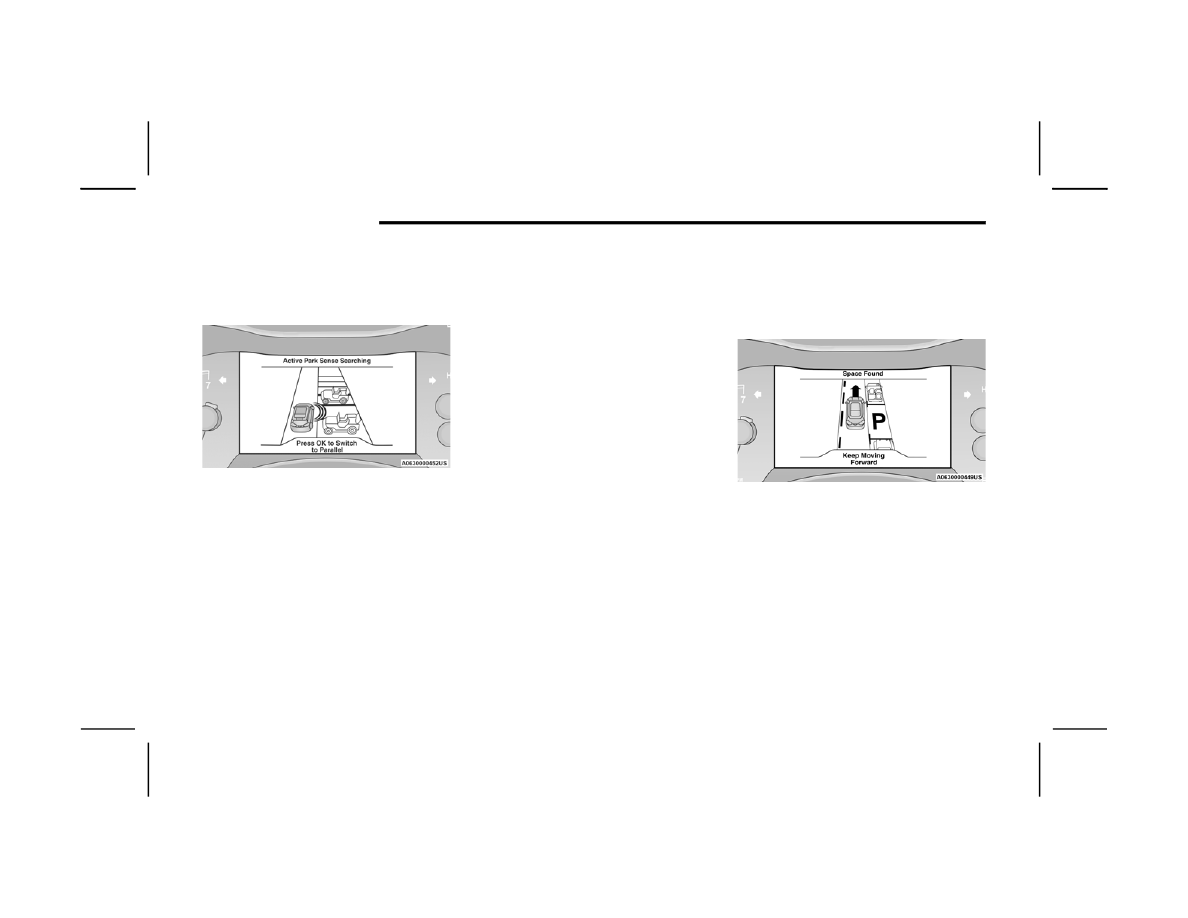

Once the driver pushes OK for a perpendicular

parking maneuver, the “Active ParkSense

Searching - Press OK to switch to Parallel”

message will appear in the instrument cluster

display.

Switch To Parallel

NOTE:



When searching for a parking space, use the

turn signal indicator to select which side of the

vehicle you want to perform the parking

maneuver. The ParkSense Active Park Assist

system will automatically search for a parking

space on the passenger's side of the vehicle if

the turn signal is not activated.



The driver needs to make sure that the selected

parking space for the maneuver remains free

and clear of any obstructions (e.g. pedestrians,

bicycles, etc.).



The driver is responsible to ensure that the

selected parking space is suitable for the

maneuver and free/clear of anything that may

be overhanging or protruding into the parking

space (e.g., ladders, tailgates, etc. from

surrounding objects/vehicles).



When seeking a parking space, the driver

should drive as parallel or perpendicular

(depending on the type of maneuver) to other

vehicles as possible.



The system will only indicate the last detected

parking space (example: if passing multiple

available parking spaces, the system will only

indicate the last detected parking space for the

maneuver). There must be a vehicle on either

side of the open parking space in order for the

system to detect it.

When an available parking space has been found,

and the vehicle is not in position, you will be

instructed to move forward to position the vehicle

for a perpendicular or parallel parking sequence

(depending on the type of maneuver being

performed).

Space Found — Keep Moving Forward

Once the vehicle is in position, you will be

instructed to stop the vehicle’s movement and

remove your hands from the steering wheel. When

the vehicle comes to a standstill (your hands still

removed from the steering wheel), you will be

instructed to place the gear selector into the

REVERSE position.

STARTING AND OPERATING

129

(Continued)

The system may then instruct the driver to wait for

steering to complete before then instructing to

check the vehicle’s surroundings, and move

backward.

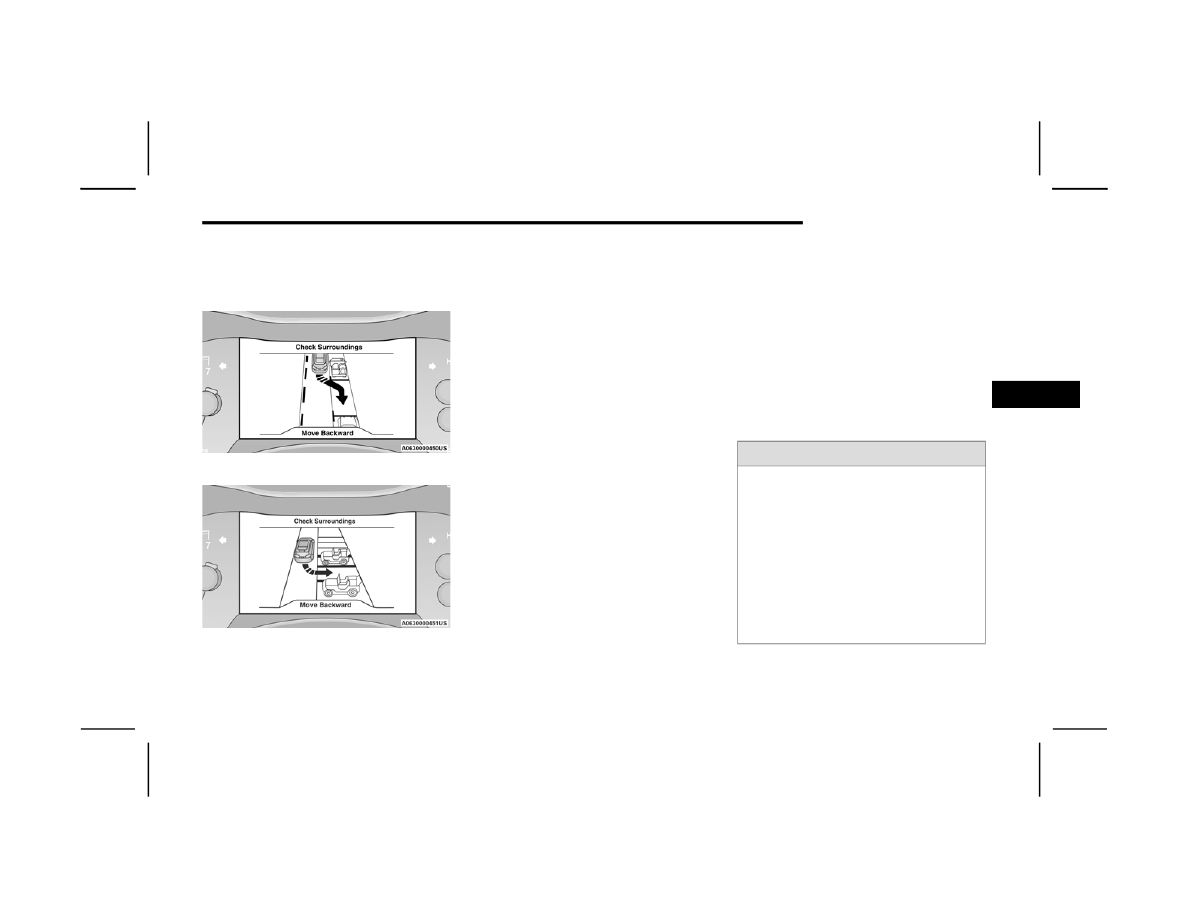

Move Backward Into Parallel Parking Space

Move Backward Into Perpendicular Parking Space

Several more gear shifts (DRIVE and REVERSE)

while keeping hands off of the steering wheel will

be instructed to the driver while checking the

vehicle’s surroundings before completing the

parking maneuver.
When the vehicle is in the parking position, the

maneuver is complete and the driver will be

instructed to check the vehicle's parking position,

then shift the vehicle into PARK. The message

“Active ParkSense Complete - Check Parking

Position” will be displayed momentarily.

NOTE:



It is the driver's responsibility to use the brake

and stop the vehicle. The driver should check

their surroundings and be prepared to stop the

vehicle either when instructed to, or when driver

intervention is required.



It is the driver’s responsibility to use the brake

and accelerator during the semi-automatic

parking maneuver.



When the system instructs the driver to remove

their hands from the steering wheel, the driver

should check their surroundings and begin to

back up slowly.



The ParkSense Active Park Assist system will

allow a maximum of eight shifts between DRIVE

and REVERSE. If the maneuver cannot be

completed within eight shifts, the system will

cancel and the instrument cluster display will

instruct the driver to complete the maneuver

manually.



The system will cancel the maneuver if the

vehicle speed exceeds 5 mph (7 km/h) during

active steering guidance into the parking space.

The system will provide a warning to the driver

at 3 mph (5 km/h) that tells them to slow down.

The driver is then responsible for completing the

maneuver if the system is canceled.



If the system is canceled during the maneuver

for any reason, the driver must take control of

the vehicle.

WARNING!



Drivers must be careful when performing

parallel or perpendicular parking maneuvers

even when using the ParkSense Active Park

Assist system. Always check carefully behind

and in front of your vehicle, look behind and in

front of you, and be sure to check for pedes

trians, animals, other vehicles, obstructions,

and blind spots before backing up and moving

forward. You are responsible for safety and

must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.

130

STARTING AND OPERATING

(Continued)

LANESENSE — IF EQUIPPED

ANE

ENSE

PERATION

The LaneSense system is operational at speeds

above 37 mph (60 km/h) and below 112 mph

(180 km/h). The LaneSense system uses a

forward looking camera to detect lane markings

and measure vehicle position within the lane

boundaries.
When both lane markings are detected and the

driver drifts out of the lane (no turn signal applied),

the LaneSense system provides a haptic warning

in the form of torque applied to the steering wheel

to prompt the driver to remain within the lane

boundaries. If the driver continues to drift out of

the lane, the LaneSense system provides a visual

warning through the instrument cluster display to

prompt the driver to remain within the lane

boundaries.

The driver may manually override the haptic

warning by applying force to the steering wheel at

any time.
When only a single lane marking is detected and

the driver drifts across the lane marking (no turn

signal applied), the LaneSense system provides

visual warnings through the instrument cluster

display to prompt the driver to remain within the

lane. When only a single lane marking is detected,

a haptic or a torque warning will not be provided.

NOTE:

When operating conditions have been met, the

LaneSense system will monitor if the driver’s

hands are on the steering wheel and provide an

audible warning to the driver if removed. The

system will cancel if the driver does not return their

hands to the wheel.

URNING

ANE

ENSE

The LaneSense button is located on the

switch panel below the Uconnect display.

To turn the LaneSense system on,

push the LaneSense button (LED turns off).

A “LaneSense On” message is shown in the

instrument cluster display.



Before using the ParkSense Active Park Assist

system, it is strongly recommended that the

ball mount and hitch ball assembly be discon

nected from the vehicle when the vehicle is

not used for towing. Failure to do so can result

in injury or damage to vehicles or obstacles

because the hitch ball will be much closer to

the obstacle than the rear fascia when the

vehicle sounds the continuous tone. Also, the

sensors could detect the ball mount and hitch

ball assembly, depending on its size and

shape, giving a false indication that an

obstacle is behind the vehicle.

CAUTION!



The ParkSense Active Park Assist system is

only a parking aid and it is unable to recognize

every obstacle, including small obstacles.

Parking curbs might be temporarily detected

or not detected at all. Obstacles located above

or below the sensors will not be detected

when they are in close proximity.

WARNING!



The vehicle must be driven slowly when using

the ParkSense Active Park Assist system in

order to be able to stop in time when an

obstacle is detected. It is recommended that

the driver looks over his/her shoulder when

using the ParkSense Active Park Assist system.

CAUTION!

STARTING AND OPERATING

131

To turn the LaneSense system off, push the

LaneSense button once (LED turns on).

NOTE:

The LaneSense system will retain the last system

state on or off from the last ignition cycle when the

ignition is placed in the ON/RUN position.

ANE

ENSE

ARNING

ESSAGE

The LaneSense system will indicate the current

lane drift condition through the instrument cluster

display.

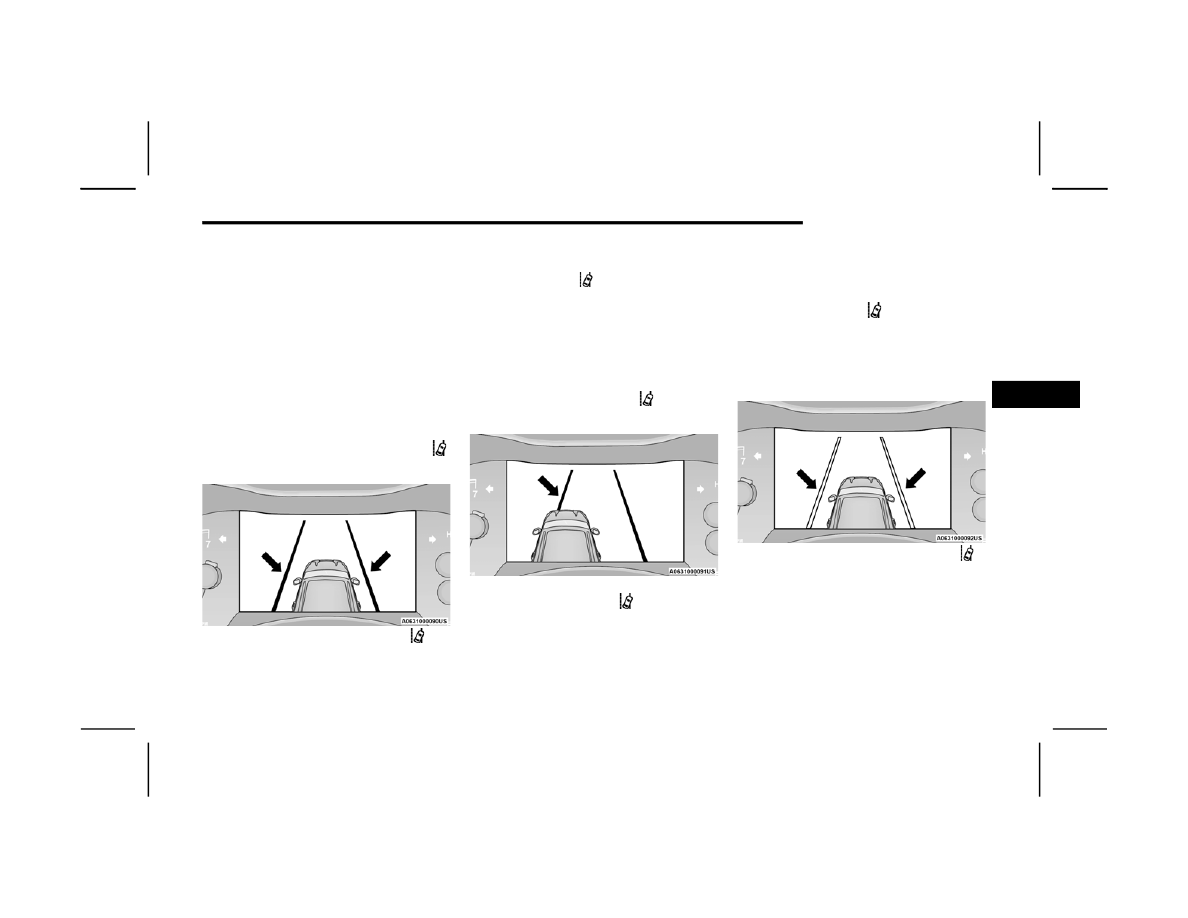

When the LaneSense system is on, the lane lines

are gray when both of the lane boundaries have
not been detected and the LaneSense telltale

is solid white.

System On With Gray Lines/White Telltale

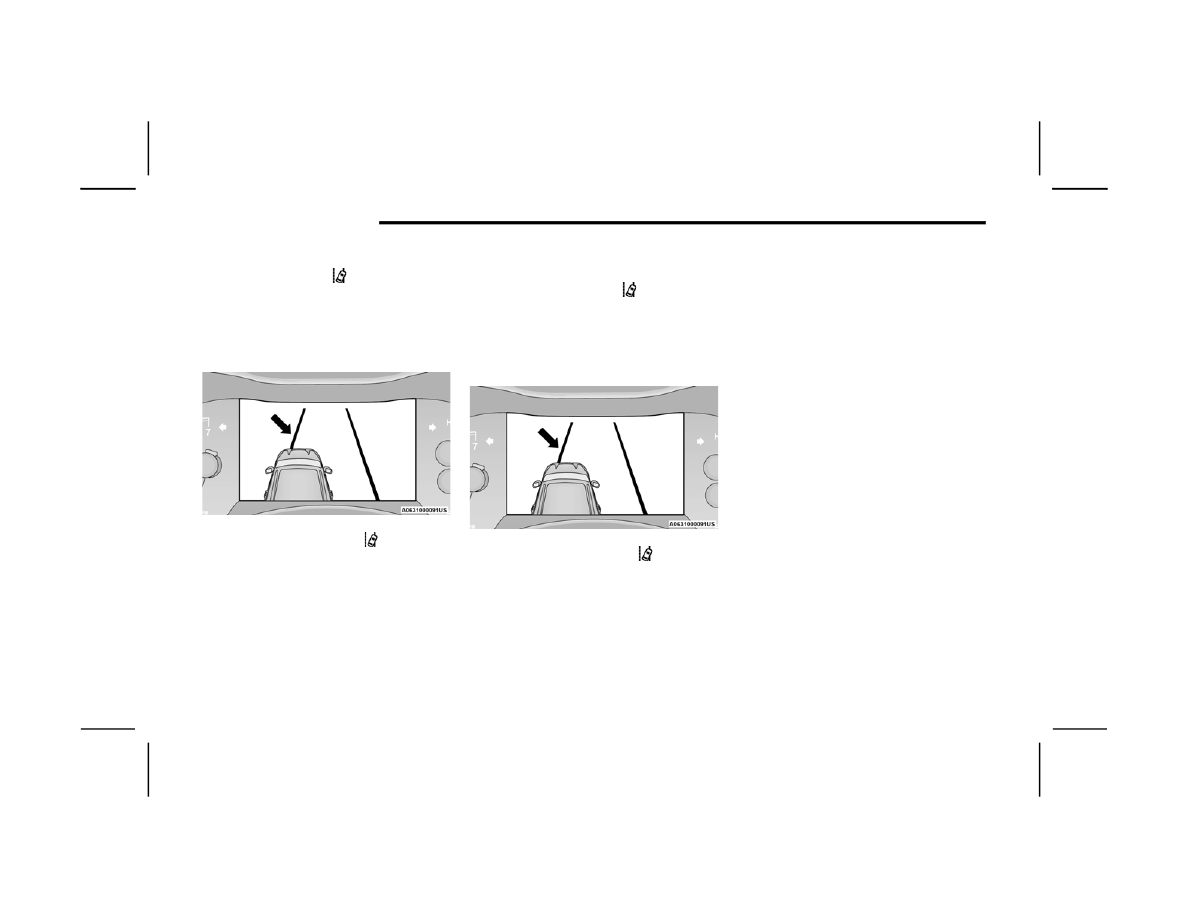

Left Lane Departure — Only Left Lane Detected



When the LaneSense system is on, the

LaneSense telltale is solid white when only

the left lane marking has been detected and the

system is ready to provide visual warnings in the

instrument cluster display if a lane departure

occurs.



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the left lane line flashes yellow (on/

off) and the LaneSense telltale changes

from solid white to flashing yellow.

Lane Approached With Flashing Yellow Line/Flashing

Yellow Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure when only the

right lane marking has been detected.

Left Lane Departure — Both Lanes Detected



When the LaneSense system is on, the lane

lines turn from gray to white to indicate that

both of the lane markings have been detected.

The LaneSense telltale is solid green when

both lane markings have been detected and the

system is on to provide visual warnings in the

instrument cluster display and a torque warning

in the steering wheel if an unintentional lane

departure occurs.

Lanes Detected With White Lines/Green Telltale

132

STARTING AND OPERATING



When the LaneSense system senses a lane drift

situation, the left lane line turns solid yellow.

The LaneSense telltale changes from solid

green to solid yellow. At this time torque is

applied to the steering wheel in the opposite

direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

Lane Sensed With Solid Yellow Line/

Solid Yellow Telltale



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the left lane line flashes yellow (on/

off). The LaneSense telltale changes from

solid yellow to flashing yellow. At this time

torque is applied to the steering wheel in the

opposite direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

Lane Approached With Flashing Yellow Line/

Flashing Yellow Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure.

HANGING

ANE

ENSE

TATUS

The LaneSense system has settings to adjust the

intensity of the torque warning and the warning

zone sensitivity (early/late) that you can configure

through the Uconnect system

page 155.

NOTE:



When enabled the system operates above

37 mph (60 km/h) and below 112 mph

(180 km/h).



The warnings are disabled with the use of the

turn signal.



The system will not apply torque to the steering

wheel whenever a safety system engages

(Anti-Lock Brakes, Traction Control System,

Electronic Stability Control, Forward Collision

Warning, etc.).

PARKVIEW REAR BACK UP CAMERA

The ParkView Rear Back Up Camera allows you to

see an on-screen image of the rear surroundings of

your vehicle whenever the gear selector is put into

REVERSE. The image will be displayed on the

Navigation/Multimedia radio display screen along

with a caution note to “Check Entire Surroundings”

across the top of the screen. After five seconds this

note will disappear. The ParkView camera is

located on the rear of the vehicle above the rear

license plate.

STARTING AND OPERATING

133

(Continued)

Manual Activation Of The Rear View Camera
1. Press the Controls button located on the

bottom of the Uconnect display.

2. Press the Back Up Camera button to turn the

Rear View Camera system on.

NOTE:

The ParkView Rear Back Up Camera has program

mable modes of operation that may be selected

through the Uconnect system

page 155.

When the vehicle is shifted out of REVERSE with

camera delay turned off, the rear camera mode is

exited and the previous screen appears. When the

vehicle is shifted out of REVERSE with camera

delay turned on, the camera image will continue to

be displayed for up to 10 seconds unless the

following conditions occur: The vehicle speed

exceeds 8 mph (13 km/h), the vehicle is shifted

into PARK, the vehicle’s ignition is placed in the

OFF position, or the user presses image defeat X to

exit out of the camera video display.
When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle and

its projected backup path based on the steering

wheel position. A dashed center line overlay

indicates the center of the vehicle to assist with

parking or aligning to a hitch/receiver. Different

colored zones indicate the distance to the rear of

the vehicle. The following table shows the

approximate distances for each zone:

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with

water, and dry with a soft cloth. Do not cover the

lens.
Rear View Camera — Viewing At Speed

When the vehicle is in PARK, NEUTRAL, or

DRIVE the Rear View Camera can be

activated with the Back Up Camera

button in the Controls menu. This feature

allows the customer to monitor the area directly

behind the vehicle (or trailer, if equipped) for up to

10 seconds while driving. If the vehicle speed

remains below 8 mph (13 km/h), the Rear View

Camera image will be displayed continuously until

deactivated via the X button on the touchscreen.

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft

(30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

WARNING!

Drivers must be careful when backing up even

when using the ParkView Rear Back Up Camera.

Always check carefully behind your vehicle, and

be sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, ParkView should

only be used as a parking aid. The ParkView

camera is unable to view every obstacle or

object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using ParkView to be able

to stop in time when an obstacle is seen. It is

recommended that the driver look frequently

over his/her shoulder when using ParkView.

CAUTION!

134

STARTING AND OPERATING

(Continued)

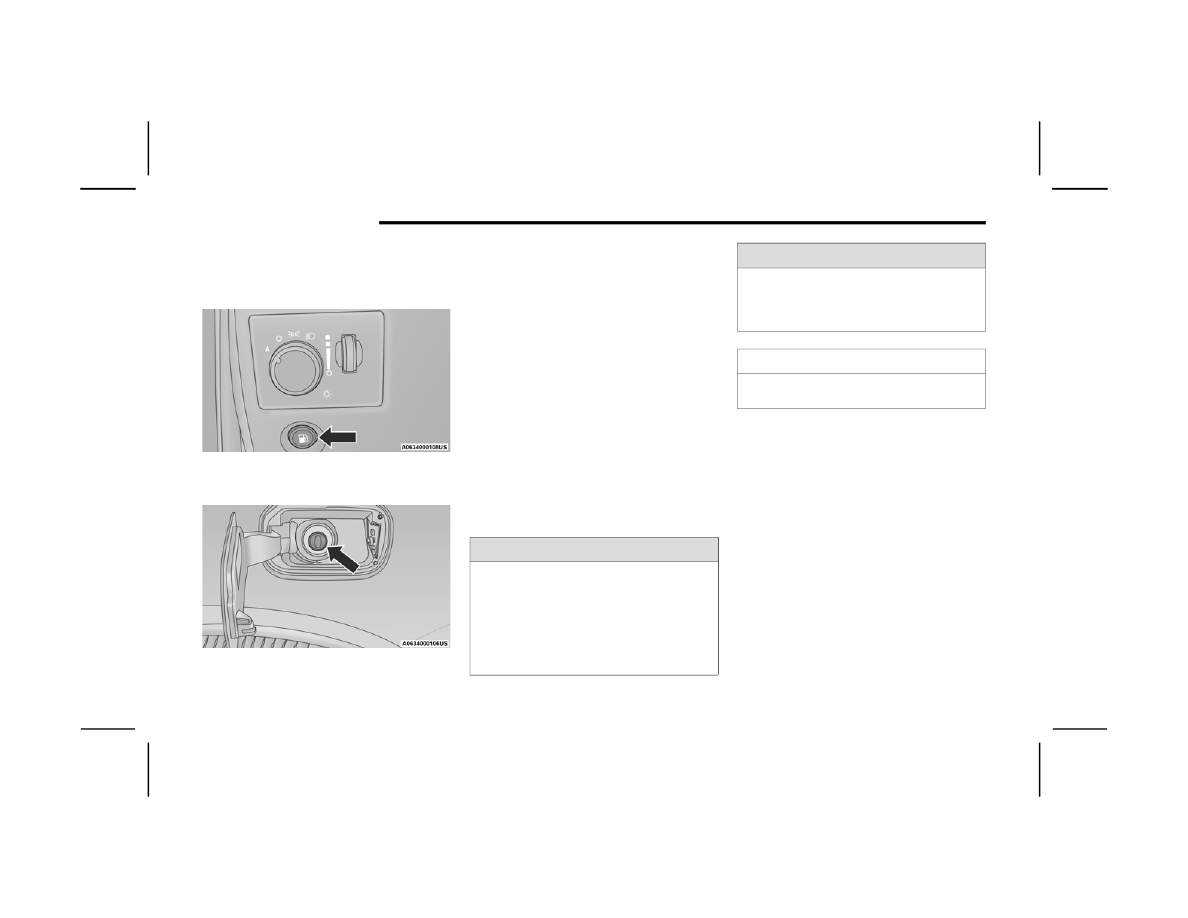

REFUELING THE VEHICLE

1. Push the fuel filler door release switch

(located under the headlamp switch).

Fuel Filler Door Release Switch

2. Open the fuel filler door.

Fuel Filler

NOTE:



In certain cold conditions, ice may prevent

the fuel door from opening. If this occurs,

lightly push on the fuel door to break the ice

buildup and re-release the fuel door using

the inside release button. Do not pry on the

door.



There is no fuel filler cap. Two flapper doors

inside the pipe seal the system.

3. Insert the fuel nozzle fully into the filler pipe,

the nozzle opens and holds the flapper doors

while refueling.

4. Fill the vehicle with fuel, when the fuel nozzle

“clicks” or shuts off, the fuel tank is full.

5. Wait five seconds before removing the fuel

nozzle to allow fuel to drain from nozzle.

6. Remove the fuel nozzle and close the fuel

door.

MERGENCY

UEL

ILLER

OOR

ELEASE

If you are unable to open the fuel filler door, use

the fuel filler door emergency release.
1. Open the liftgate.
2. Push the inboard edge of the left storage bin to

the center, this will pop up the outboard edge.

3. Grab the popped up outboard edge with other

hand to disengage snaps.

4. Remove the storage bin.
5. Pull the release cable to open the fuel door,

push the release cable back to the home

position to re-seat the fuel door latch to the

closed position.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

CAUTION!

To avoid fuel spillage and overfilling, do not

“top off” the fuel tank after filling.

WARNING!

STARTING AND OPERATING

135

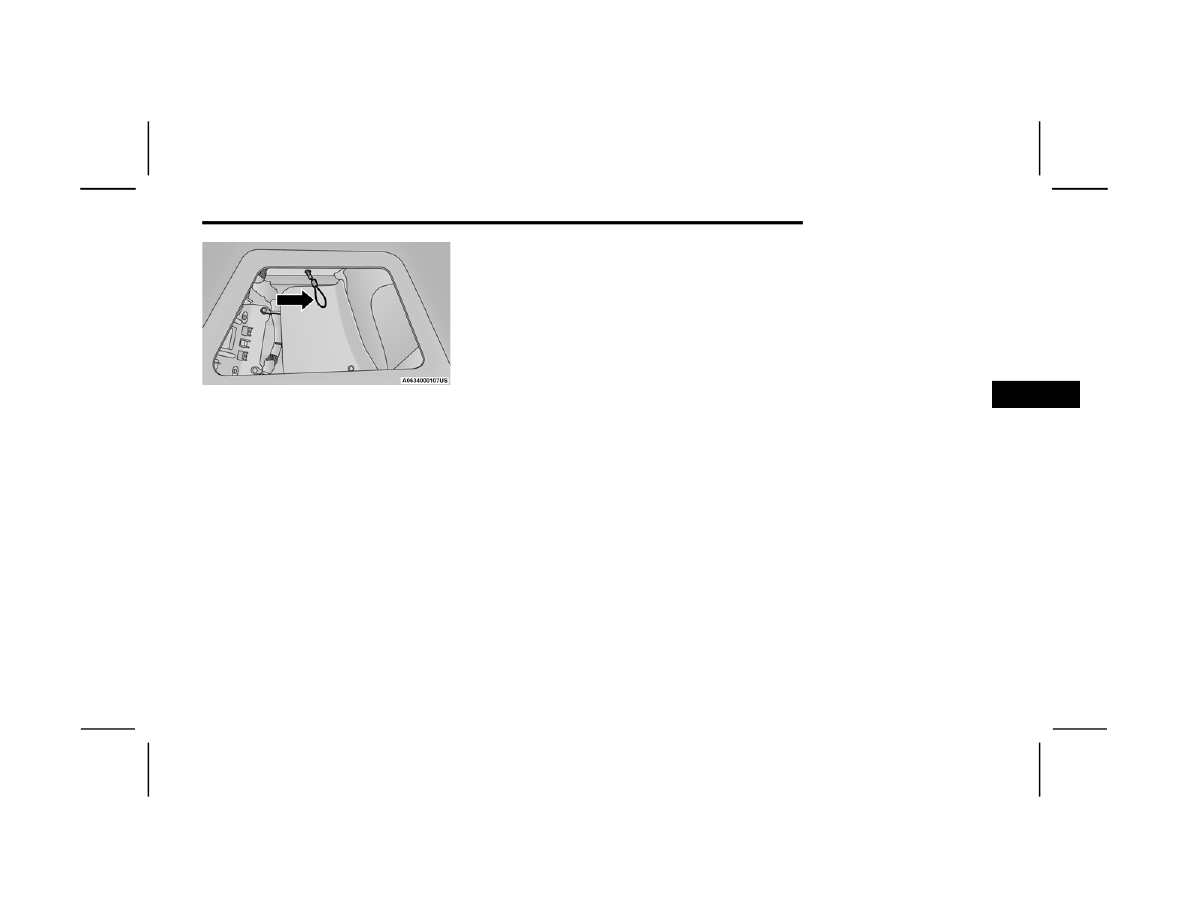

Release Cable

NOTE:

If the fuel door does not latch after the use of the

manual release cable, the actuator latch should be

manually returned to the closed position.

VEHICLE LOADING

ERTIFICATION

ABEL

As required by National Highway Traffic Safety

Administration regulations, your vehicle has a

certification label affixed to the driver's side door or

pillar.
This label contains the month and year of

manufacture, Gross Vehicle Weight Rating

(GVWR), front and rear Gross Axle Weight Rating

(GAWR), and Vehicle Identification Number (VIN).

A Month-Day-Hour (MDH) number is included on

this label and indicates the Month, Day and Hour of

manufacture. The bar code that appears on the

bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total permissible weight of your

vehicle including driver, passengers, vehicle,

options and cargo. The label also specifies

maximum capacities of front and rear GAWR. Total

load must be limited so GVWR and front and rear

GAWR are not exceeded.

Payload

The payload of a vehicle is defined as the allowable

load weight a truck can carry, including the weight

of the driver, all passengers, options and cargo.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum permissible load on the

front and rear axles. The load must be distributed

in the cargo area so that the GAWR of each axle is

not exceeded.
Each axle GAWR is determined by the components

in the system with the lowest load carrying capacity

(axle, springs, tires or wheels). Heavier axles or

suspension components sometimes specified by

purchasers for increased durability does not

necessarily increase the vehicle's GVWR.

Tire Size

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

Rim Size

This is the rim size that is appropriate for the tire

size listed.

Inflation Pressure

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full Gross

Axle Weight Rating (GAWR).

Curb Weight

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with no

occupants or cargo loaded into the vehicle. The

front and rear curb weight values are determined

by weighing your vehicle on a commercial scale

before any occupants or cargo are added.

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.

136

STARTING AND OPERATING

The entire vehicle should first be weighed on a

commercial scale to ensure that the Gross Vehicle

Weight Rating (GVWR) has not been exceeded. The

weight on the front and rear of the vehicle should

then be determined separately to be sure that the

load is properly distributed over the front and rear

axle. Weighing the vehicle may show that the Gross

Axle Weight Rating (GAWR) of either the front or

rear axles has been exceeded but the total load is

within the specified GVWR. If so, weight must be

shifted from front to rear or rear to front as

appropriate until the specified weight limitations

are met. Store the heavier items down low and be

sure that the weight is distributed equally. Stow all

loose items securely before driving.
Improper weight distributions can have an adverse

effect on the way your vehicle steers and handles

and the way the brakes operate.

TRAILER TOWING

In this section you will find safety tips and

information on limits to the type of towing you can

reasonably do with your vehicle. Before towing a

trailer, carefully review this information to tow your

load as efficiently and safely as possible.
To maintain the New Vehicle Limited Warranty

coverage, follow the requirements and

recommendations in this manual concerning

vehicles used for trailer towing.

OMMON

OWING

EFINITIONS

The following trailer towing related definitions will

assist you in understanding the following

information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR

page 135.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the weight

of all cargo, consumables and equipment

(permanent or temporary) loaded in or on the

trailer in its "loaded and ready for operation"

condition.
The recommended way to measure GTW is to put

your fully loaded trailer on a vehicle scale. The

entire weight of the trailer must be supported by

the scale.

Gross Combination Weight Rating (GCWR)

The GCWR is the total allowable weight of your

vehicle and trailer when weighed in combination.

CAUTION!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it can

change the way your vehicle handles. This could

cause you to lose control. Overloading can

shorten the life of your vehicle.

WARNING!

If the gross trailer weight is 5,000 lb (2,267 kg)

or more, it is recommended to use a

weight-distributing hitch to ensure stable

handling of your vehicle. If you use a standard

weight-carrying hitch, you could lose control of

your vehicle and cause a collision.

STARTING AND OPERATING

137

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front

and rear axles. Distribute the load over the front

and rear axles evenly. Make sure that you do not

exceed either front or rear GAWR

page 135.

Tongue Weight (TW)

The TW is the downward force exerted on the hitch

ball by the trailer. You must consider this as part of

the load on your vehicle.

Trailer Frontal Area

The frontal area is the maximum height multiplied

by the maximum width of the front of a trailer.

Trailer Sway Control (TSC)

The TSC can be a mechanical telescoping link that

can be installed between the hitch receiver and the

trailer tongue that typically provides adjustable

friction associated with the telescoping motion to

dampen any unwanted trailer swaying motions

while traveling.
If equipped, the electronic TSC recognizes a

swaying trailer and automatically applies individual

wheel brakes and/or reduces engine power to

attempt to eliminate the trailer sway.

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue

weight, just as if it were luggage located at a hitch

ball or some other connecting point of the vehicle.

These kinds of hitches are commonly used to tow

small and medium sized trailers.

Weight-Distributing Hitch

A weight-distributing hitch system works by

applying leverage through spring (load) bars. They

are typically used for heavier loads to distribute

trailer tongue weight to the tow vehicle's front axle

and the trailer axle(s). When used in accordance

with the manufacturer's directions, it provides for a

more level ride, offering more consistent steering

and brake control thereby enhancing towing

safety. The addition of a friction/hydraulic sway

control also dampens sway caused by traffic and

crosswinds and contributes positively to tow

vehicle and trailer stability. Trailer sway control and

a weight-distributing (load equalizing) hitch are

recommended for heavier TW and may be required

depending on vehicle and trailer configuration/

loading to comply with GAWR requirements.

WARNING!

It is important that you do not exceed the

maximum front or rear GAWR. A dangerous

driving condition can result if either rating is

exceeded. You could lose control of the vehicle

and have a collision.

WARNING!



An improperly adjusted weight-distributing

hitch system may reduce handling, stability,

braking performance, and could result in a

collision.



Weight-distributing hitch systems may not be

compatible with surge brake couplers. Consult

with your hitch and trailer manufacturer or a

reputable Recreational Vehicle dealer for

additional information.

Jeep Grand Cherokee WK (2022 year). Manual in english - page 8
