STARTING AND OPERATING

NSTRUMENT

LUSTER

ISPLAY

ESSAGES

When the appropriate conditions exist, a message

will appear in the instrument cluster

page 74.

PERATION

The indicator lamps 2 through 5 will illuminate to

show the current position of the vehicle. Flashing

indicator lamps will show a position which the

system is working to achieve. When raising, if

multiple indicator lamps are flashing on the UP

button, the highest flashing indicator lamp is the

position the system is working to achieve. When

lowering, if multiple indicators are flashing on the

DOWN button the lowest solid indicator lamp is the

position the system is working to achieve.
Pushing the UP button once will move the

suspension one position higher from the current

position, assuming all conditions are met (i.e.

engine running, speed below threshold, etc). The

UP button can be pushed multiple times. Each

push will raise the requested level by one position

up to a maximum position of OR2 or the highest

position allowed based on current conditions

(i.e. vehicle speed, etc).
Pushing the DOWN button once will move the

suspension one position lower from the current

level, assuming all conditions are met (i.e. engine

running, doors closed, speed below threshold, etc).

The DOWN button can be pressed multiple times.

Each push will lower the requested level by one

position down to a minimum of Entry/Exit Height or

the lowest position allowed based on current

conditions (i.e. vehicle speed, etc.)
Automatic height changes will occur based on

vehicle speed and the current vehicle height. The

indicator lamps and instrument cluster display

messages will operate the same for automatic

changes and user requested changes.



Off-Road 2 (OR2) – Indicator lamps 2, 3, and 4

will be illuminated.



Off-Road 1 (OR1) – Indicator lamps 3 and 4 will

be illuminated.



Normal Ride Height (NRH) – Indicator lamp 4

will be illuminated.



Entry/Exit Height – Indicator lamp 5 will be illu

minated.



Transport Mode – No indicator lamps will be illu

minated. Driving will disable Transport Mode.



Tire/Jack Mode – Indicator lamps 2 and 5 will

be illuminated. Driving will disable Tire/Jack

Mode.



Wheel Alignment Mode – Indicator lamps 4 and

5 will be illuminated. Driving will disable Wheel

Alignment Mode.

SELEC-TERRAIN — IF EQUIPPED

ELEC

-T

ERRAIN

ODE

ELECTION

Selec-Terrain combines the capabilities of the

vehicle control systems, along with driver input, to

provide the best performance for all terrains.

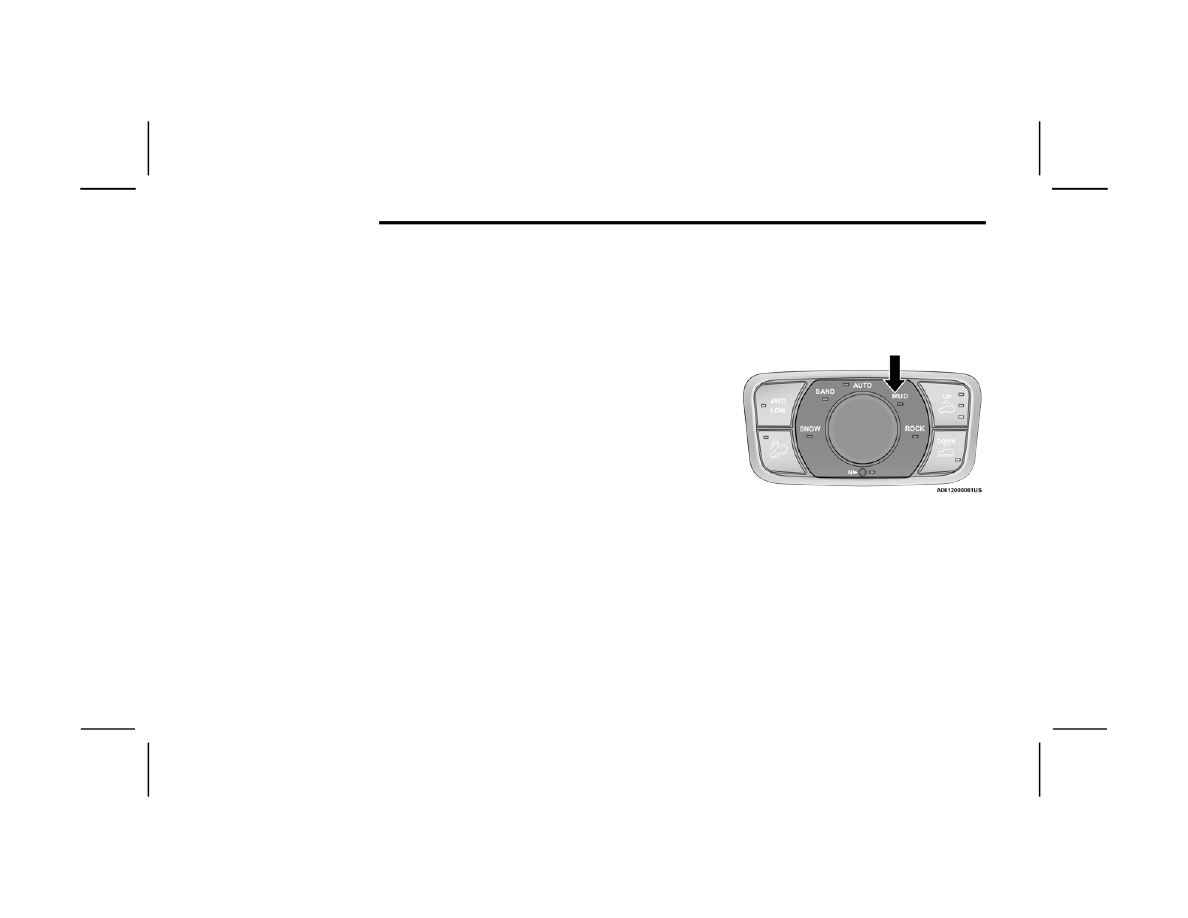

Selec-Terrain Switch

Selec-Terrain consists of the following positions:



SNOW – Tuning set for additional stability in

inclement weather. Use on and off-road on

loose traction surfaces such as snow. When in

SNOW mode (depending on certain operating

conditions), the transmission may use SECOND

gear (rather than FIRST gear) during launches,

to minimize wheel slippage. If equipped with air

suspension, the default ride height for SNOW is

Normal Ride Height (NRH).

STARTING AND OPERATING

107



AUTO – Fully automatic full-time four-wheel

drive operation can be used on and off-road.

Balances traction with seamless steering feel to

provide improved handling and acceleration

over two-wheel drive vehicles. If equipped with

air suspension, the level will change to Normal

Ride Height (NRH) unless in the Off-Road 1

(OR1) or Off-Road 2 (OR2) position, the height of

OR1 or OR2 will be maintained.



SAND – Off-road calibration for use on low trac

tion surfaces such as sand or wet grass. Drive

line is maximized for traction. Some binding may

be felt on less forgiving surfaces. The electronic

brake controls are set to limit traction control

management of throttle and wheel spin. If

equipped with air suspension, the default ride

height for SAND is Normal Ride Height (NRH).



MUD – Off-road calibration for use on low trac

tion surfaces such as mud. Driveline is maxi

mized for traction. Some binding may be felt on

less forgiving surfaces. The electronic brake

controls are set to limit traction control manage

ment of throttle and wheel spin. If equipped with

air suspension, the level will change to OR1.



ROCK – Off-road calibration is only available in

4WD LOW range. The vehicle is raised (if

equipped with Air Suspension) for improved

ground clearance. Traction based tuning with

improved steerability for use on high traction

off-road surfaces. Use for low speed obstacles

such as large rocks, deep ruts, etc. If equipped

with air suspension, the vehicle level will change

to Off-Road 2. If the Selec-Terrain switch is in

ROCK mode, and the transfer case is switched

out of 4WD LOW, the Selec-Terrain system will

return to AUTO.

NSTRUMENT

LUSTER

ISPLAY

ESSAGES

When the appropriate conditions exist, a message

will appear in the instrument cluster

page 74.

POWER STEERING

The electric power steering system will provide

increased vehicle response and ease of

maneuverability. The power steering system

adapts to different driving conditions and adjusts

accordingly.

Alternate electric power steering efforts can be

selected through the Uconnect System

page 155.

If the Electric Power Steering warning

icon is displayed and the “SERVICE

POWER STEERING” or the “POWER

STEERING ASSIST OFF – SERVICE

SYSTEM” message is displayed within the

instrument cluster display, this indicates the

vehicle needs to be taken to the dealer for service

page 79.

NOTE:



Even if the power steering assistance is no

longer operational, it is still possible to steer the

vehicle. Under these conditions there will be a

substantial increase in steering effort, espe

cially at low speeds and during parking maneu

vers.



If the condition persists, see an authorized

dealer for service.

If the Steering icon is displayed and the “POWER

STEERING SYSTEM OVER TEMP” message is

displayed on the instrument cluster screen, this

indicates an over temperature condition in the

power steering system. Once driving conditions are

safe, pull over and let the vehicle idle for a few

moments until the icon and message turn off.

WARNING!

Continued operation with reduced assist could

pose a safety risk to yourself and others. Service

should be obtained as soon as possible.

108

STARTING AND OPERATING

STOP/START SYSTEM — IF EQUIPPED

The Stop/Start function is developed to reduce

fuel consumption. The system will stop the engine

automatically during a vehicle stop if the required

conditions are met. Releasing the brake pedal or

pressing the accelerator pedal will automatically

restart the engine.
This vehicle has been upgraded with a heavy-duty

starter, enhanced battery, and other upgraded

engine parts, to handle the additional engine

starts.

UTOSTOP

ODE

The Stop/Start feature is enabled after every driver

ignition start. At that time, the system will go into

STOP/START READY.
To Activate The Autostop Mode, The Following

Must Occur:



The system must be in STOP/START READY

state. A STOP/START READY message will be

displayed in the instrument cluster display

within the Stop/Start section

page 74.



The vehicle must be completely stopped.



The gear selector must be in DRIVE (D) and the

brake pedal pressed.

The engine will shut down, the tachometer will

move to the zero position and the Stop/Start

telltale will illuminate indicating you are in

Autostop. Customer settings will be maintained

upon return to an engine running condition.

OSSIBLE

EASONS

NGINE

OES

UTOSTOP

Prior to engine shut down, the system will check

many safety and comfort conditions to see if they

are fulfilled. Detailed information about the

operation of the Stop/Start system may be viewed

in the instrument cluster display Stop/Start

Screen. Situations when the engine will not stop,

include (but not limited to):



Driver’s seat belt is not buckled.



Driver’s door is not closed.



Battery temperature is too warm or cold.



Battery charge is low.



The vehicle is on a steep grade.



Cabin heating or cooling is in process and an

acceptable cabin temperature has not been

achieved.



HVAC is set to full defrost mode at a high blower

speed.



HVAC is set to MAX A/C.



Engine has not reached normal operating

temperature.



The transmission is not in a forward gear.



Hood is open.



Vehicle is in 4WD LOW mode.



Brake pedal is not pressed with sufficient pres

sure.



Engine temperature is too high.



5 mph (8 km/h) threshold has not been

achieved from previous Autostop.



Accelerator pedal input.



Steering angle is beyond threshold.



Vehicle at a higher altitude.



Ambient temperature is outside operating

range.



Gear selector in MANUAL (M) mode.



Stop/Start related system malfunction.



Adaptive Cruise Control (ACC) is on and speed

is set.

It may be possible for the vehicle to be driven

several times without the Stop/Start system going

into a STOP/START READY state under more

extreme conditions of the items listed above.

STARTING AND OPERATING

109

TART

NGINE

HILE

UTOSTOP

ODE

While in a forward gear, the engine will start when

the brake pedal is released or the throttle pedal is

pressed. The transmission will automatically

re-engage upon engine restart.
Conditions That Will Cause The Engine To Start

Automatically While In Autostop Mode:



The transmission selector is moved out of

DRIVE.



To maintain cabin temperature comfort.



HVAC is set to full defrost mode.



HVAC system temperature or fan speed is

manually adjusted.



Battery voltage drops too low.



Stop/Start OFF switch is pushed.



Stop/Start related system malfunction.



4WD system is put into 4WD LOW mode.



Adaptive Cruise Control (ACC) is on and speed

is set.



Steering wheel is turned beyond threshold.

ANUALLY

URN

TOP

TART

YSTEM

Stop/Start OFF Switch

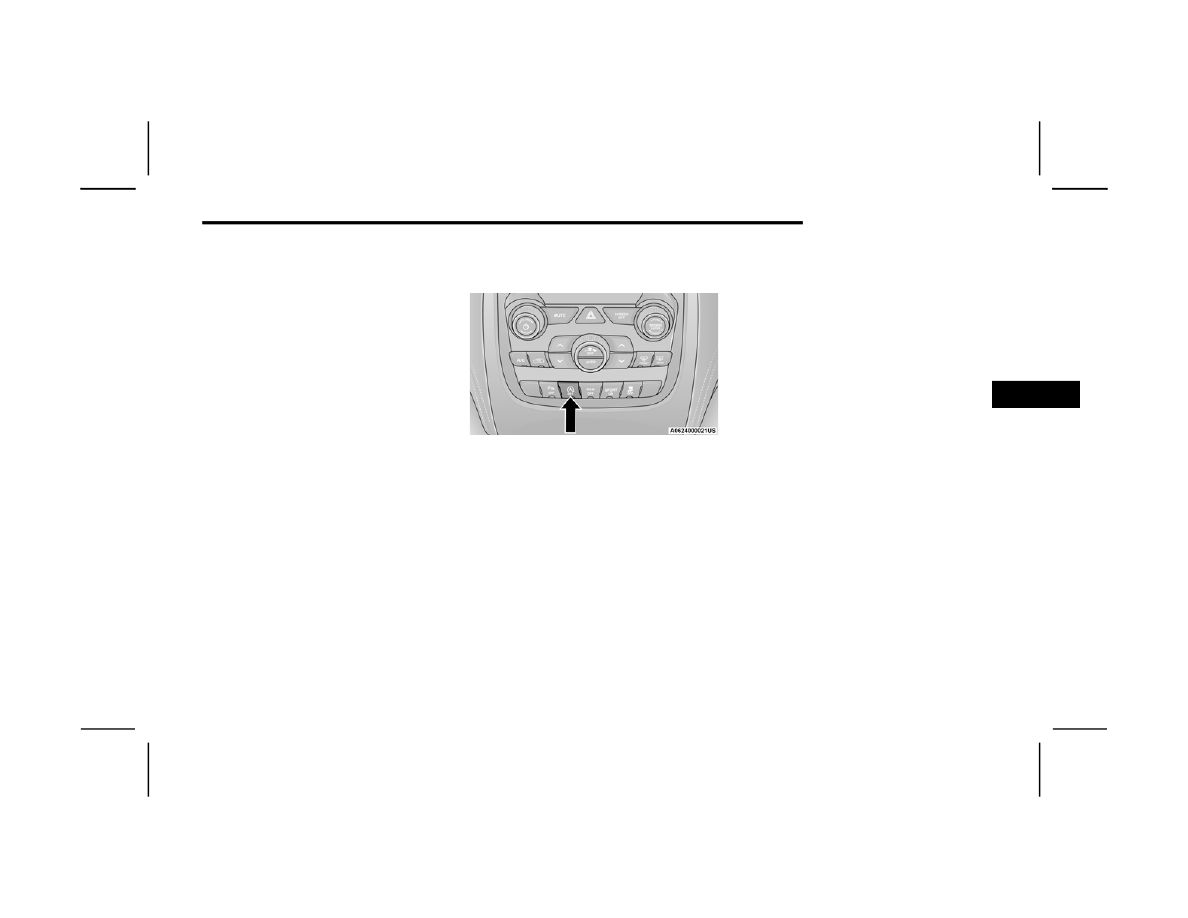

Push the Stop/Start OFF switch (located on the

switch bank). The light on the switch will illuminate.

The “Stop/Start OFF” message will appear in

instrument cluster display within the Stop/Start

section, and the autostop function will be disabled

page 74.

NOTE:

The Stop/Start system will reset itself back to an

ON condition every time the ignition is switched

OFF and back to the ON/RUN position.

ANUALLY

URN

TOP

TART

YSTEM

Push the Stop/Start OFF switch (located on the

switch bank). The light on the switch will turn off.

YSTEM

ALFUNCTION

If there is a malfunction in the Stop/Start system,

the system will not shut down the engine. A

“SERVICE STOP/START SYSTEM” message and a

yellow Stop/Start telltale will appear in the

Instrument Cluster Display

page 79.

If the “SERVICE STOP/START SYSTEM” message

appears in the instrument cluster display, have the

system checked by an authorized dealer.
If a malfunction occurs during an autostop, the

vehicle may not auto start and will need a key start.

110

STARTING AND OPERATING

CRUISE CONTROL SYSTEMS — IF EQUIPPED

Your vehicle may be equipped with the Cruise

Control system, or the Adaptive Cruise Control

(ACC) system:



Cruise Control will keep your vehicle at a

constant preset speed.



Adaptive Cruise Control (ACC) will adjust the

vehicle speed up to the preset speed to main

tain a distance with the vehicle ahead.

NOTE:



Fixed Speed Cruise Control (ACC not enabled)

will not detect vehicles directly ahead of you.

Always be aware of the feature selected.



Only one Cruise Control feature can operate at a

time. For example, if Fixed Speed Cruise Control

is enabled, Adaptive Cruise Control will be

unavailable, and vice versa.

RUISE

ONTROL

When engaged, the Cruise Control takes over

accelerator operations at speeds greater than

20 mph (32 km/h).
The Cruise Control buttons are located on the right

side of the steering wheel.

Cruise Control Buttons

To Activate

Push the on/off button to activate the Cruise

Control. “CRUISE CONTROL READY” will appear in

the instrument cluster display to indicate the

Cruise Control is on. To turn the system off, push

the on/off button a second time. “CRUISE

CONTROL OFF” will appear in the instrument

cluster display to indicate the Cruise Control is off.

The system should be turned off when not in use.

To Set A Desired Speed

Turn the Cruise Control on. When the vehicle has

reached the desired speed, push and release the

SET (+) or SET (-) button. Release the accelerator

and the vehicle will operate at the selected speed.

Once a speed has been set, a message “CRUISE

CONTROL SET TO MPH (km/h)” will appear

indicating the set speed. A cruise indicator lamp,

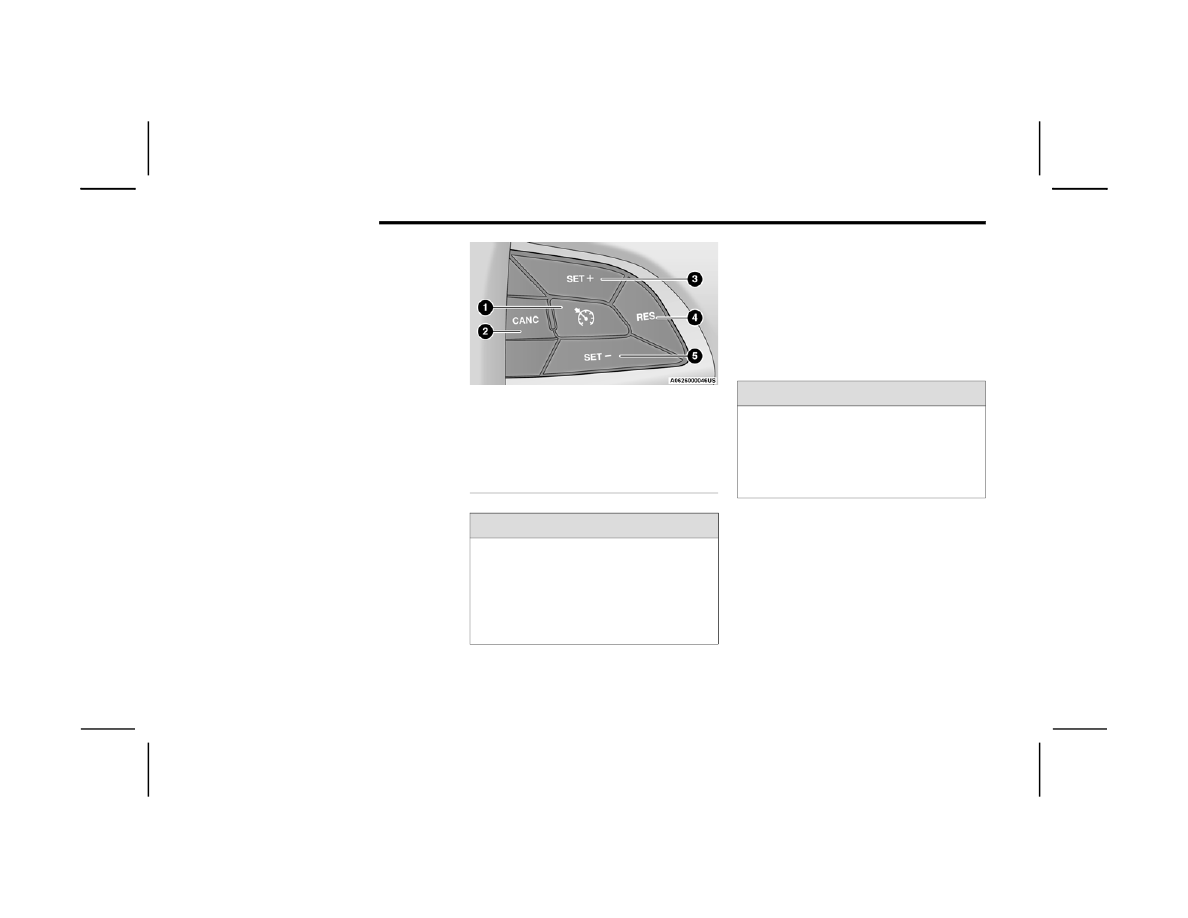

1 — On/Off
2 — CANC/Cancel
3 — SET (+)/Accel
4 — RES/Resume
5 — SET (-)/Decel

WARNING!

Cruise Control can be dangerous where the

system cannot maintain a constant speed. Your

vehicle could go too fast for the conditions, and

you could lose control and have an accident.

Do not use Cruise Control in heavy traffic or on

roads that are winding, icy, snow-covered or

slippery.

WARNING!

Leaving the Cruise Control system on when not

in use is dangerous. You could accidentally set

the system or cause it to go faster than you

want. You could lose control and have an

accident. Always ensure the system is off when

you are not using it.

STARTING AND OPERATING

111

along with set speed will also appear and stay on

in the instrument cluster when the speed is set.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
When the Cruise Control is set, you can increase

speed by pushing the SET (+) button, or decrease

speed by pushing the SET (-) button.
U.S. Speed (mph)



Pushing the SET (+), or SET (-) button once will

result in a 1 mph speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 mph.



If the button is continually pushed, the set

speed will continue to adjust until the button is

released, then the new set speed will be estab

lished.

Metric Speed (km/h)



Pushing the SET (+), or SET (-) button once will

result in a 1 km/h speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 km/h.



If the button is continually pushed, the set

speed will continue to adjust until the button is

released, then the new set speed will be estab

lished.

To Accelerate For Passing

While the Cruise Control system is set, press the

accelerator to pass as you would normally. When

the pedal is released, the vehicle will return to the

set speed.

USING CRUISE CONTROL ON HILLS

The transmission may downshift on hills to

maintain the vehicle set speed.
The Cruise Control system maintains speed up and

down hills. A slight speed change on moderate hills

is normal. On steep hills, a greater speed loss or

gain may occur so it may be preferable to drive

without Cruise Control.

To Resume Speed

To resume a previously set speed, push the RES

button and release. Resume can be used at any

speed above 20 mph (32 km/h).

To Deactivate

A tap on the brake pedal, or pushing the CANC

button, or normal brake pressure will deactivate

the Cruise Control system without erasing the set

speed from memory.
Pushing the on/off button or placing the ignition

switch in the OFF position erases the set speed

from memory.
The following conditions will also deactivate the

Cruise Control without erasing the set speed from

memory:



Vehicle parking brake is applied



Stability event occurs



Gear selector is moved out of DRIVE



Engine overspeed occurs

WARNING!

Cruise Control can be dangerous where the

system cannot maintain a constant speed. Your

vehicle could go too fast for the conditions, and

you could lose control and have an accident. Do

not use Cruise Control in heavy traffic or on

roads that are winding, icy, snow-covered or

slippery.

112

STARTING AND OPERATING

(Continued)

DAPTIVE

RUISE

ONTROL

(ACC)

Adaptive Cruise Control (ACC) increases the driving

convenience provided by Cruise Control while

traveling on highways and major roadways.

However, it is not a safety system and not designed

to prevent collisions. The Cruise Control function

performs differently

page 110.

ACC will allow you to keep Cruise Control engaged

in light to moderate traffic conditions without the

constant need to reset your Cruise Control. ACC

utilizes a radar sensor and a forward-facing

camera designed to detect a vehicle directly ahead

of you to maintain a set speed.

NOTE:



If the ACC sensor detects a vehicle ahead, ACC

will apply limited braking or accelerate (not to

exceed the original set speed) automatically to

maintain a preset following distance, while

matching the speed of the vehicle ahead.



Any chassis/suspension or tire size modifica

tions to the vehicle will affect the performance

of the Adaptive Cruise Control and Forward Colli

sion Warning system.



Fixed Speed Cruise Control (ACC not enabled)

will not detect vehicles directly ahead of you.

Always be aware of the feature selected

page 321.

WARNING!



Adaptive Cruise Control (ACC) is a conve

nience system. It is not a substitute for active

driver involvement. It is always the driver’s

responsibility to be attentive of road, traffic,

and weather conditions, vehicle speed,

distance to the vehicle ahead; and, most

importantly, brake operation to ensure safe

operation of the vehicle under all road condi

tions. Your complete attention is always

required while driving to maintain safe control

of your vehicle. Failure to follow these warn

ings can result in a collision and death or

serious personal injury.



The ACC system:



Does not react to pedestrians, oncoming

vehicles, and stationary objects (e.g., a

stopped vehicle in a traffic jam or a

disabled vehicle).



Cannot take street, traffic, and weather

conditions into account, and may be

limited upon adverse sight distance condi

tions.



Does not always fully recognize complex

driving conditions, which can result in

wrong or missing distance warnings.



Will bring the vehicle to a complete stop

while following a target vehicle and hold

the vehicle for two seconds in the stop

position. If the target vehicle does not

start moving within two seconds the ACC

system will display a message that the

system will release the brakes and that

the brakes must be applied manually.

An audible chime will sound when the

brakes are released.

You should switch off the ACC system:



When driving in fog, heavy rain, heavy snow,

sleet, heavy traffic, and complex driving situa

tions (i.e., in highway construction zones).



When entering a turn lane or highway

off-ramp; when driving on roads that are

winding, icy, snow-covered, slippery, or have

steep uphill or downhill slopes.



When towing a trailer up or down steep slopes.



When circumstances do not allow safe driving

at a constant speed.

WARNING!

STARTING AND OPERATING

113

Adaptive Cruise Control (ACC) Operation

The Cruise Control buttons (located on the right

side of the steering wheel) operate the ACC

system.

Adaptive Cruise Control Buttons

Adaptive Cruise Control (ACC) Menu

The instrument cluster display shows the current

ACC system settings. The information it displays

depends on ACC system status.
Push the Adaptive Cruise Control (ACC) on/off

button until one of the following appears in the

instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated, but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Adaptive Cruise Control Set
When the SET (+) or the SET (-) button is pushed,

the display will read “ACC SET.”
When ACC is set, the set speed will show in the

instrument cluster display.
The ACC screen may display once again if any of

the following ACC activity occurs:



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity.

Activating Adaptive Cruise Control (ACC)

The minimum set speed for the ACC system is

20 mph (32 km/h).
When the system is turned on and in the ready

state, the instrument cluster displays “ACC Ready.”
When the system is off, the instrument cluster

displays “Adaptive Cruise Control (ACC) Off.”

NOTE:

You cannot engage ACC under the following condi

tions:



When in 4WD Low



When the brakes are applied



When the parking brake is applied



When the transmission is in PARK, REVERSE or

NEUTRAL



When the vehicle speed is below the minimum

speed range



When the brakes are overheated



When the driver’s door is open at low speeds



When the driver’s seat belt is unbuckled at low

speeds



When ESC Full Off mode is active

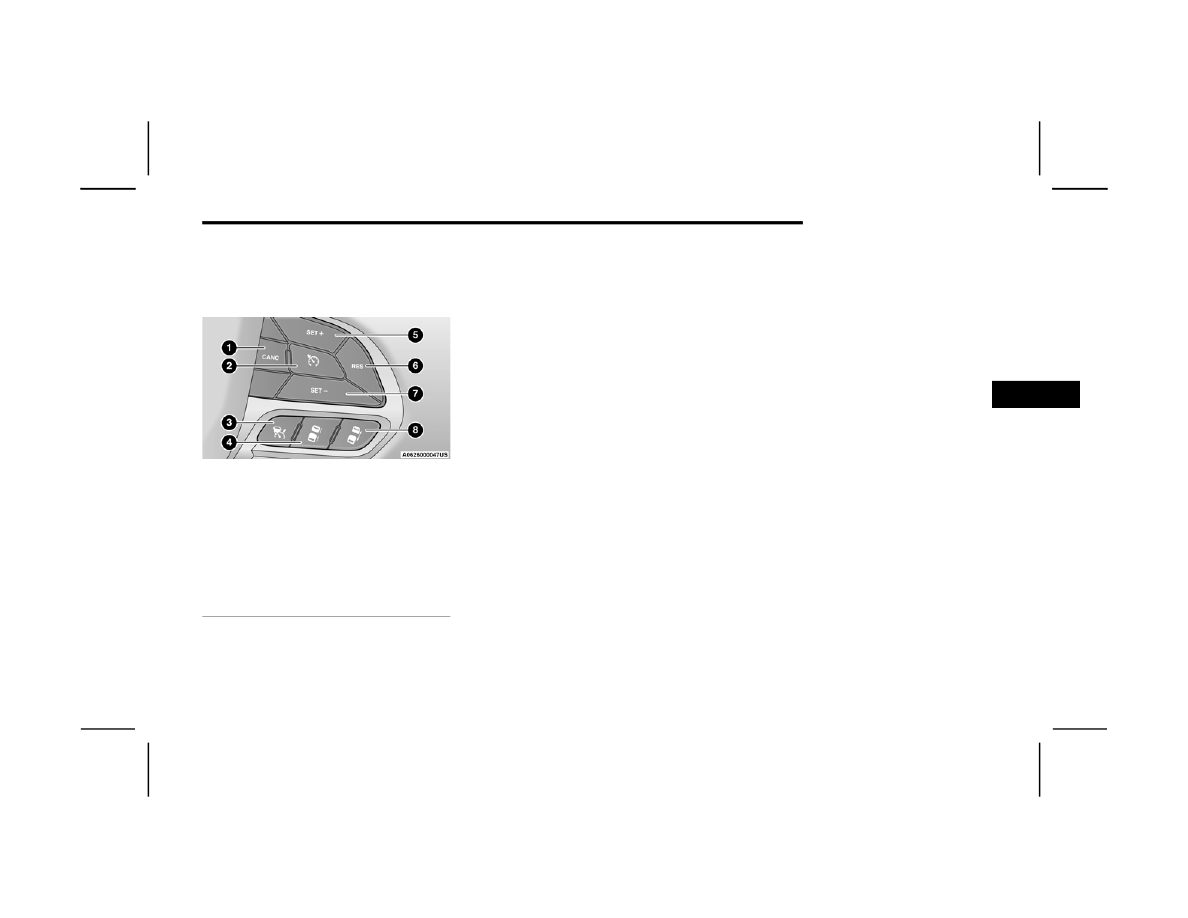

1 — CANC/Cancel
2 — Fixed Speed Cruise Control On/Off
3 — Adaptive Cruise Control (ACC) On/Off
4 — Distance Decrease
5 — SET (+)/Accel
6 — RES/Resume
7 — SET (-)/Decel
8 — Distance Increase

114

STARTING AND OPERATING

To Activate/Deactivate

Push and release the Adaptive Cruise Control

(ACC) on/off button. The ACC menu in the

instrument cluster displays “ACC Ready.”
To turn the system off, push and release the

Adaptive Cruise Control (ACC) on/off button again.

At this time, the system will turn off and the

instrument cluster displays “Adaptive Cruise

Control (ACC) Off.”

To Set A Desired Speed

When the vehicle reaches the speed desired, push

the SET (+) button or the SET (-) button and

release. The instrument cluster display will show

the set speed.

NOTE:

Fixed Speed Cruise Control can be used without

ACC enabled. To change between the different

modes, push the ACC on/off button which turns

the ACC and the Fixed Speed Cruise Control off.

Pushing the Fixed Speed Cruise Control on/off

button will result in turning on (changing to) Fixed

Speed Cruise Control mode.

If ACC is set when the vehicle speed is below

20 mph (32 km/h), the set speed will default to

20 mph (32 km/h).

NOTE:

Fixed Speed Cruise Control cannot be set below

20 mph (32 km/h).
If either system is set when the vehicle speed is

above 20 mph (32 km/h), the set speed shall be

the current speed of the vehicle.

NOTE:



Keeping your foot on the accelerator pedal can

cause the vehicle to continue to accelerate

beyond the set speed. If this occurs, the

message “DRIVER OVERRIDE” will display in the

instrument cluster display.



If you continue to accelerate beyond the set

speed while ACC is enabled, the system will not

be controlling the distance between your vehicle

and the vehicle ahead. The vehicle speed will

only be determined by the position of the accel

erator pedal.

To Cancel

The following conditions cancel the ACC or Fixed

Speed Cruise Control systems:



The brake pedal is applied



The CANC (cancel) button is pushed



The Anti-Lock Brake System (ABS) activates



The gear selector is removed from the DRIVE

position



The Electronic Stability Control/Traction Control

System (ESC/TCS) activates



The vehicle parking brake is applied



The Trailer Sway Control (TSC) activates



The driver switches ESC to Full Off mode



The braking temperature exceeds normal range

(overheated)

The following conditions will only cancel the

ACC system:



Driver seat belt is unbuckled at low speeds



Driver door is opened at low speeds

WARNING!

Leaving the Adaptive Cruise Control (ACC)

system on when not in use is dangerous. You

could accidentally set the system or cause it to

go faster than you want. You could lose control

and have a collision. Always ensure the system

is off when you are not using it.

WARNING!

In Fixed Speed Cruise Control mode, the system

will not react to vehicles ahead. In addition, the

proximity warning does not activate and no

alarm will sound even if you are too close to the

vehicle ahead since neither the presence of the

vehicle ahead nor the vehicle-to-vehicle distance

is detected. Be sure to maintain a safe distance

between your vehicle and the vehicle ahead.

Always be aware which mode is selected.

STARTING AND OPERATING

115

To Turn Off

The system will turn off and erase the set speed in

memory if:



The Adaptive Cruise Control (ACC) on/off button

is pushed



The Fixed Speed Cruise Control on/off button is

pushed



The ignition is placed in the OFF position



4WD Low is engaged

To Resume

If there is a set speed in memory, push the RES

(resume) button and remove your foot from the

accelerator pedal. The instrument cluster display

will show the last set speed.
Resume can be used at any speed above 20 mph

(32 km/h) when only Fixed Speed Cruise Control is

being used.
Resume can be used at any speed above 0 mph

(0 km/h) when ACC is active.

NOTE:



While in ACC mode when the vehicle comes to a

complete stop longer than two seconds, the

system will cancel. The driver will have to apply

the brakes to keep the vehicle at a standstill.



ACC cannot be resumed if there is a stationary

vehicle in front of your vehicle in close proximity.

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
While ACC is set, you can increase speed by

pushing the SET (+) button, or decrease speed by

pushing the SET (-) button.
U.S. Speed (mph)



Pushing the SET (+), or SET (-) button once will

result in a 1 mph speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 mph.



If the button is continually pushed, the set

speed will continue to adjust in 5 mph incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

Metric Speed (km/h)



Pushing the SET (+), or SET (-) button once will

result in a 1 km/h speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 km/h.



If the button is continually pushed, the set

speed will continue to adjust in 10 km/h incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

NOTE:

When you override and push the SET (+) button or

SET (-) buttons, the new set speed will be the

current speed of the vehicle.
When ACC Is Active:



When you use the SET (-) button to decelerate, if

the engine’s braking power does not slow the

vehicle sufficiently to reach the set speed, the

brake system will automatically slow the

vehicle.



The ACC system applies the brake down to a full

stop when following the vehicle in front. If your

vehicle follows the vehicle in front to a standstill,

your vehicle will release the brakes two seconds

after coming to a full stop.

WARNING!

The Resume function should only be used if

traffic and road conditions permit. Resuming a

set speed that is too high or too low for

prevailing traffic and road conditions could

cause the vehicle to accelerate or decelerate too

sharply for safe operation. Failure to follow these

warnings can result in a collision and death or

serious personal injury.

116

STARTING AND OPERATING



The ACC system maintains set speed when

driving uphill and downhill. However, a slight

speed change on moderate hills is normal. In

addition, downshifting may occur while climbing

uphill or descending downhill. This is normal

operation and necessary to maintain set speed.

When driving uphill and downhill, the ACC

system will cancel if the braking temperature

exceeds normal range (overheated).

Setting The Following Distance In ACC

The specified following distance for ACC can be set

by varying the distance setting between four bars

(longest), three bars (long), two bars (medium) and

one bar (short). Using this distance setting and the

vehicle speed, ACC calculates and sets the

distance to the vehicle ahead. This distance

setting displays in the instrument cluster display.

Distance Settings

To increase the distance setting, push the

Distance Increase button and release. Each time

the button is pushed, the distance setting

increases by one bar (longer).
To decrease the distance setting, push the

Distance Decrease button and release. Each time

the button is pushed, the distance setting

decreases by one bar (shorter).
If there is no vehicle ahead, the vehicle will

maintain the set speed. If a slower moving vehicle

is detected in the same lane, the instrument

cluster display will show the ACC Set With Target

Detected Light. The system will then adjust vehicle

speed automatically to maintain the distance

setting, regardless of the set speed.
The vehicle will then maintain the distance set by

the driver until:



The vehicle ahead accelerates to a speed above

the set speed.



The vehicle ahead moves out of your lane or

view of the sensor.



The distance setting is changed.



The system disengages

page 113.

The maximum braking applied by ACC is limited;

however, the driver can always apply the brakes

manually, if necessary.

NOTE:

The brake lights will illuminate whenever the ACC

system applies the brakes.
A Proximity Warning will alert the driver if ACC

predicts that its maximum braking level is not

sufficient to maintain the set distance. If this occurs,

a visual alert “BRAKE!” will flash in the instrument

cluster display and a chime will sound while ACC

continues to apply its maximum braking force.

NOTE:

The “BRAKE!” screen in the instrument cluster

display is a warning for the driver to take action

and does not necessarily mean that the Forward

Collision Warning system is applying the brakes

autonomously.

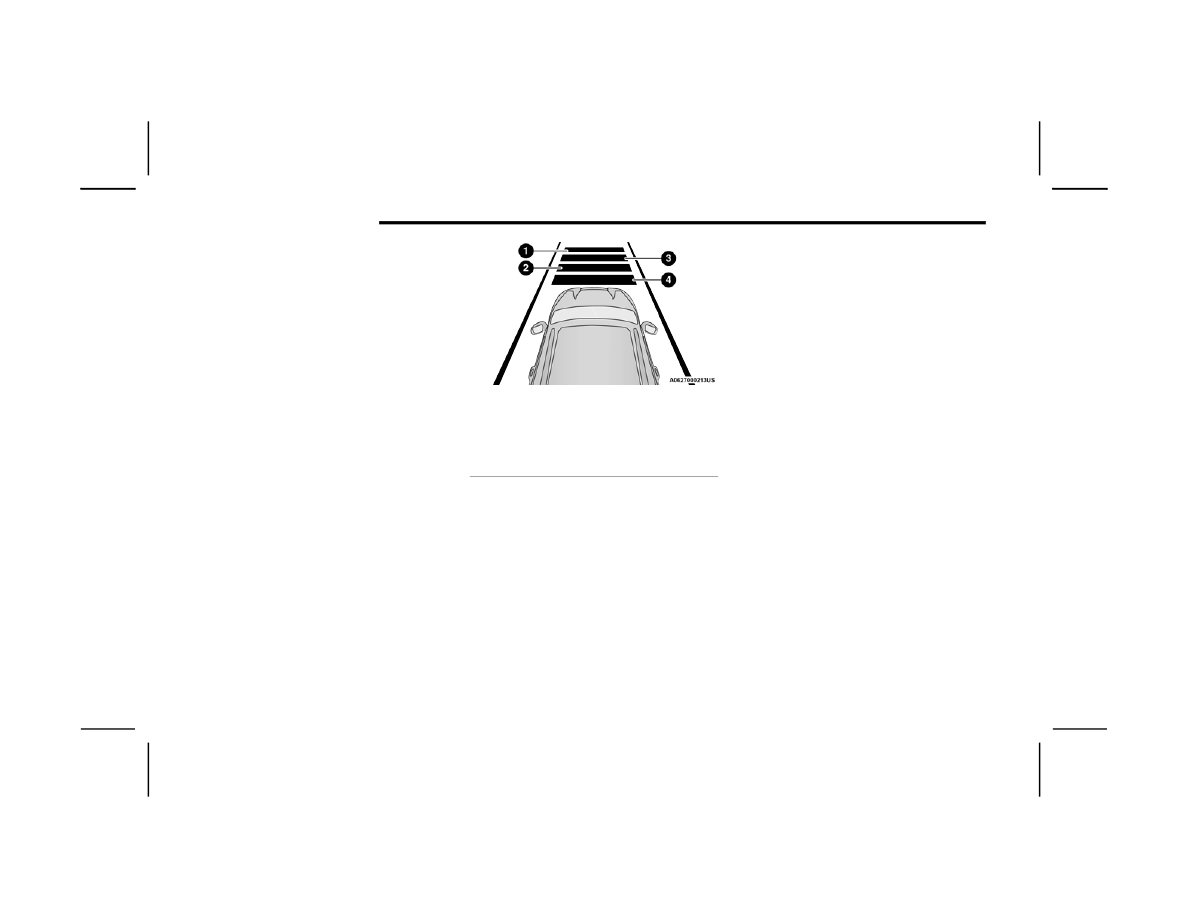

1 — Longest Distance Setting (Four Bars)
2 — Medium Distance Setting (Two Bars)
3 — Long Distance Setting (Three Bars)
4 — Short Distance Setting (One Bar)

STARTING AND OPERATING

117

Overtake Aid

When driving with ACC engaged and following a

vehicle, the system will provide an additional

acceleration up to the ACC set speed to assist in

passing the vehicle. This additional acceleration is

triggered when the driver utilizes the left turn

signal and will only be active when passing on the

left hand side.

ACC Operation At Stop

If the ACC system brings your vehicle to a standstill

while following a vehicle ahead, your vehicle will

resume motion, without any driver interaction, if

the vehicle ahead starts moving within two

seconds of your vehicle coming to a standstill.
If the vehicle in front does not start moving within

two seconds of your vehicle coming to a standstill,

the ACC with Stop system will cancel and the

brakes will release. A cancel message will display

on the instrument cluster display and produce a

warning chime. The driver must now manually

operate the vehicle’s accelerator and brakes.
While ACC with Stop is holding your vehicle at a

standstill, if the driver seat belt is unbuckled or the

driver door is opened, the ACC with Stop system

will cancel and the brakes will release. A cancel

message will display on the instrument cluster

display and produce a warning chime. The driver

must now manually operate the vehicle’s

accelerator and brakes.

Display Warnings And Maintenance

“WIPE FRONT RADAR SENSOR IN FRONT OF

VEHICLE” WARNING

The “ACC/FCW Unavailable Wipe Front Radar

Sensor” warning will display and a chime will

sound when conditions temporarily limit system

performance.
This most often occurs at times of poor visibility,

such as in snow or heavy rain. The ACC system may

also become temporarily blinded due to

obstructions, such as mud, dirt or ice. In these

cases, the instrument cluster display will display

the above message and the system will deactivate.
This message can sometimes be displayed while

driving in highly reflective areas (i.e. ice and snow,

or tunnels with reflective tiles). The ACC system will

recover after the vehicle has left these areas.

Under rare conditions, when the radar is not

tracking any vehicles or objects in its path this

warning may temporarily occur.

NOTE:

If the “ACC/FCW Unavailable Wipe Front Radar

Sensor” warning is active, Fixed Speed Cruise

Control is still available.
If weather conditions are not a factor, the driver

should examine the sensor. It may require cleaning

or removal of an obstruction. The sensor is located

in the center of the vehicle behind the lower grille.
To keep the ACC System operating properly, it is

important to note the following maintenance

items:



Always keep the sensor clean. Carefully wipe the

sensor lens with a soft cloth. Be cautious not to

damage the sensor lens.



Do not remove any screws from the sensor.

Doing so could cause an ACC system malfunc

tion or failure and require a sensor realignment.



If the sensor or front end of the vehicle is

damaged due to a collision, see an authorized

dealer for service.



Do not attach or install any accessories near the

sensor, including transparent material or after

market grilles. Doing so could cause an ACC

system failure or malfunction.

When the condition that deactivated the system is

no longer present, the system will return to the

“Adaptive Cruise Control Off” state and will resume

function by simply reactivating it.

WARNING!

When the ACC system is resumed, the driver

must ensure that there are no pedestrians,

vehicles or objects in the path of the vehicle.

Failure to follow these warnings can result in a

collision and death or serious personal injury.

118

STARTING AND OPERATING

NOTE:



If the “ACC/FCW Unavailable Wipe Front Radar

Sensor” message occurs frequently (e.g. more

than once on every trip) without any snow, rain,

mud, or other obstruction, have the radar

sensor realigned at an authorized dealer.



Installing a snow plow, front-end protector, an

aftermarket grille or modifying the grille is not

recommended. Doing so may block the sensor

and inhibit ACC/FCW operation.

“CLEAN FRONT WINDSHIELD” WARNING

The “ACC/FCW Limited Functionality Clean Front

Windshield” warning will display and a chime will

sound when conditions temporarily limit system

performance. This most often occurs at times of

poor visibility, such as in snow or heavy rain and

fog. The ACC system may also become temporarily

blinded due to obstructions, such as mud, dirt, or

ice on windshield and fog on the inside of glass. In

these cases, the instrument cluster display will

display “ACC/FCW Limited Functionality Clean

Front Windshield” and the system will have

degraded performance.
This message can sometimes be displayed while

driving in adverse weather conditions. The ACC/

FCW system will recover after the vehicle has left

these areas. Under rare conditions, when the

camera is not tracking any vehicles or objects in its

path this warning may temporarily occur.

If weather conditions are not a factor, the driver

should examine the windshield and the camera

located on the back side of the inside rearview

mirror. They may require cleaning or removal of an

obstruction.
When the condition that created limited

functionality is no longer present, the system will

return to full functionality.

NOTE:

If the “ACC/FCW Limited Functionality Clean Front

Windshield” message occurs frequently (e.g. more

than once on every trip) without any snow, rain,

mud, or other obstruction, have the windshield and

forward-facing camera inspected at an authorized

dealer.

SERVICE ACC/FCW WARNING

If the system turns off, and the instrument cluster

displays “ACC/FCW Unavailable Service Required”

or “Cruise/FCW Unavailable Service Required”,

there may be an internal system fault or a

temporary malfunction that limits ACC

functionality. Although the vehicle is still drivable

under normal conditions, ACC will be temporarily

unavailable. If this occurs, try activating ACC again

later, following an ignition cycle. If the problem

persists, see an authorized dealer.

Precautions While Driving With ACC

In certain driving situations, ACC may have

detection issues. In these cases, ACC may brake

late or unexpectedly. The driver needs to stay alert

and may need to intervene. The following are

examples of these types of situations:

TOWING A TRAILER

Towing a trailer is not recommended when using ACC.

OFFSET DRIVING

ACC may not detect a vehicle in the same lane that

is offset from your direct line of travel, or a vehicle

merging in from a side lane. There may not be

sufficient distance to the vehicle ahead. The offset

vehicle may move in and out of the line of travel,

which can cause your vehicle to brake or

accelerate unexpectedly.

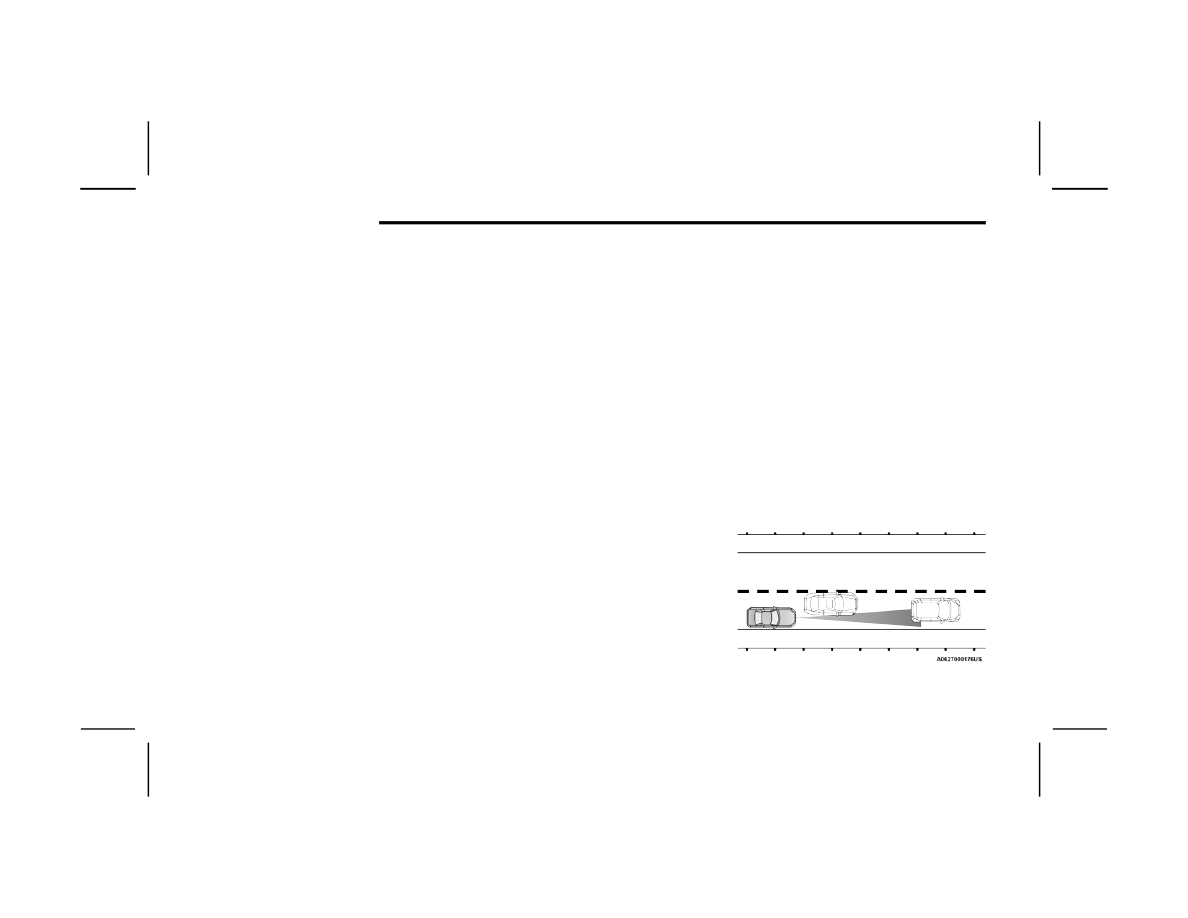

Offset Driving Condition Example

STARTING AND OPERATING

119

TURNS AND BENDS

When driving on a curve with ACC engaged, the

system may increase or decrease the vehicle

speed for stability, with no vehicle ahead detected.

Once the vehicle is out of the curve the system will

resume your original set speed. This is a part of

normal ACC system functionality.

NOTE:

On tight turns ACC performance may be limited.

USING ACC ON HILLS

ACC performance may be limited when driving on

hills. ACC may not detect a vehicle in your lane

depending on the speed, vehicle load, traffic

conditions, and the steepness of the hill.

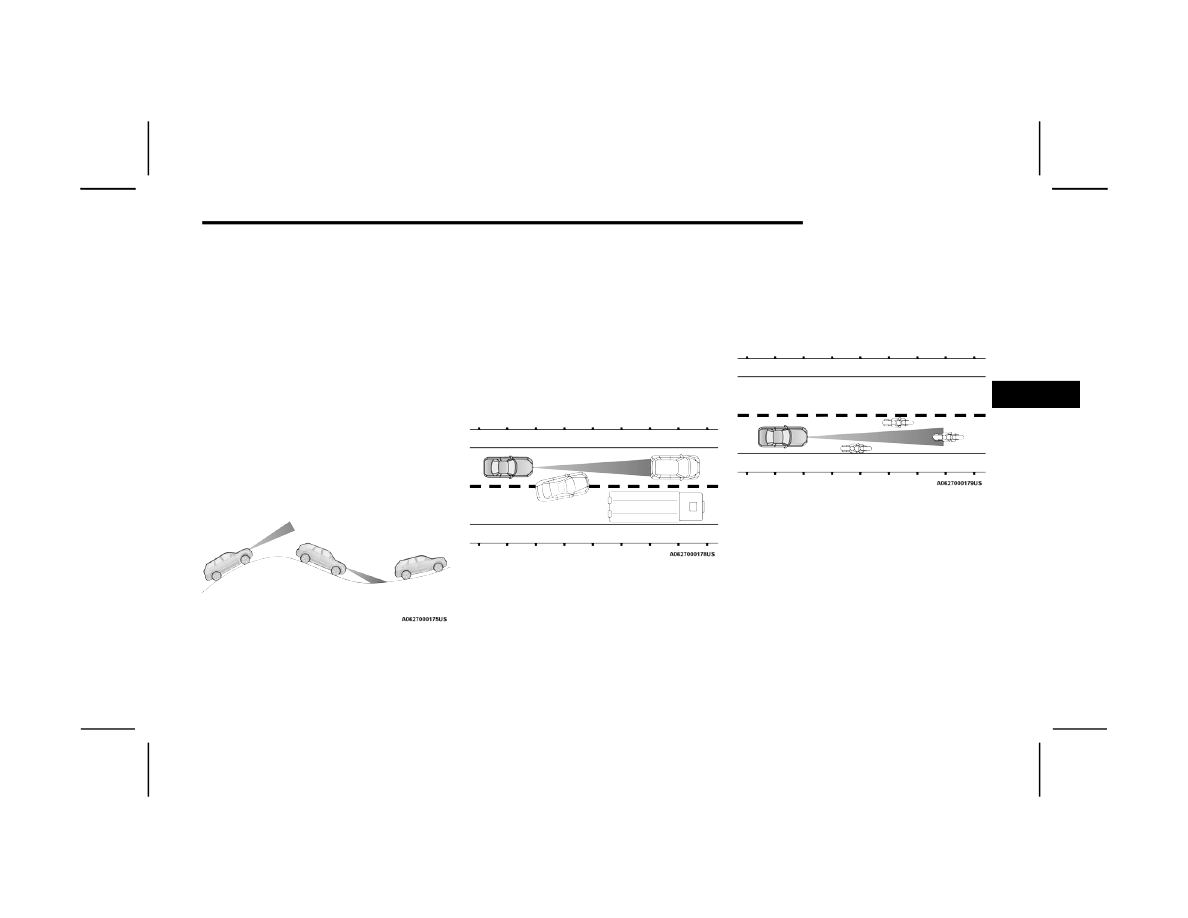

ACC Hill Example

LANE CHANGING

ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the

following lane changing example, ACC has not yet

detected the vehicle changing lanes and it may not

detect the vehicle until it's too late for the ACC

system to take action. ACC may not detect a

vehicle until it is completely in the lane. There may

not be sufficient distance to the lane-changing

vehicle. Always be attentive and ready to apply the

brakes if necessary.

Lane Changing Example

NARROW VEHICLES

Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the vehicle

ahead.

Narrow Vehicle Example

120

STARTING AND OPERATING

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following exits

your lane and the vehicle ahead is stopped in your

lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

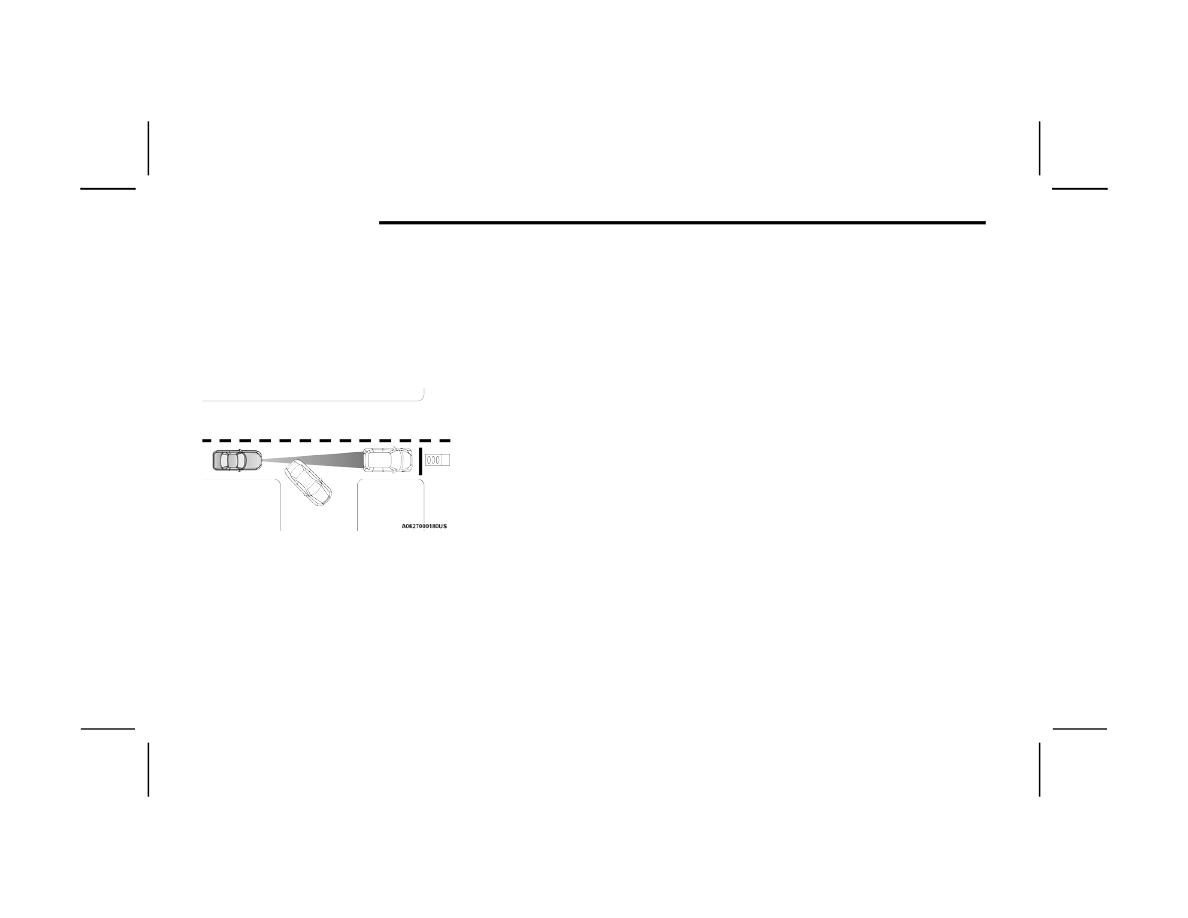

Stationary Object And Stationary Vehicle Example

PARKSENSE FRONT/REAR PARK ASSIST

SYSTEM — IF EQUIPPED

The ParkSense Park Assist system provides visual

and audible indications of the distance between

the rear, and if equipped, the front fascia/bumper

and a detected obstacle when backing up or

moving forward (e.g. during a parking maneuver).

The vehicle brakes may be automatically applied

and released when performing a reverse parking

maneuver if the system detects a possible collision

with an obstacle.

NOTE:



The driver can disable the automatic braking

function by turning ParkSense off via the Park

Sense switch. The driver can also override auto

matic braking by shifting out of REVERSE or by

pressing the gas pedal over 90% of its capacity

during the braking event.



Automatic brakes are not available if ESC is not

available.



Automatic brakes are not available if the vehicle

is in 4WD Low.



Automatic brakes will not be available if there is

a faulted condition detected with the ParkSense

Park Assist system or the Braking System

Module.



The automatic braking function may only be

applied if the vehicle deceleration is not enough

to avoid colliding with a detected obstacle.



The automatic braking function may not be

applied fast enough for obstacles that move

toward the rear of the vehicle from the left and/

or right sides.



The automatic braking function can be

enabled/disabled from the Customer Program

mable Features section of the Uconnect system.



ParkSense will retain its last known configura

tion state for the automatic braking function

through ignition cycles.

STARTING AND OPERATING

121

The automatic braking function is intended to

assist the driver in avoiding possible collisions with

detected obstacles when backing up in REVERSE

gear.

NOTE:



The system is designed to assist the driver and

not to substitute the driver.



The driver must stay in full control of the

vehicle's acceleration and braking and is

responsible for the vehicle's movements.

For limitations of this system and

recommendations, see

page 125.

ParkSense will retain the last system state

(enabled or disabled) from the last ignition cycle

when the ignition is changed to the ON/RUN

position.

ParkSense can be active only when the gear

selector is in REVERSE or DRIVE. If ParkSense is

enabled at one of these gear selector positions,

the system will remain active until the vehicle

speed is increased to approximately 7 mph

(11 km/h) or above. The system will become active

again if the vehicle speed is decreased to speeds

less than approximately 6 mph (9 km/h). A display

warning will appear in the instrument cluster

display if the vehicle is in REVERSE and the speed

exceeds 7 mph (11 km/h).

ARK

ENSE

ENSORS

The six ParkSense sensors (there may only be four,

depending on the vehicle options), located in the

rear fascia/bumper, and the six ParkSense

sensors located in the front fascia/bumper

(if equipped), monitor the area in front and behind

the vehicle that is within the sensors’ field of view.

The front sensors detect obstacles from

approximately 12 inches (30 cm) up to 47 inches

(120 cm) from the front fascia/bumper. The rear

sensors can detect obstacles from approximately

12 inches (30 cm) up to 79 inches (200 cm) from

the rear fascia/bumper. These distances depend

on the location, type and orientation of the

obstacle in the horizontal direction.

ARK

ENSE

ISPLAY

The warning display will turn on indicating the

system status when the vehicle is in REVERSE or

when the vehicle is in DRIVE and an obstacle has

been detected.
The system will indicate a detected obstacle by

showing a single arc in the left and/or right front or

rear regions based on the object’s distance and

location relative to the vehicle.
If an object is detected in the left and/or right rear

region, the display will show a single arc in the left

and/or right rear region and the system will

produce a tone. As the vehicle moves closer to the

object, the display will show the single arc moving

closer to the vehicle and the tone will change from

a single 1/2 second tone to slow, to fast, to

continuous.

Jeep Grand Cherokee WK (2022 year). Manual in english - page 7
