74

GETTING TO KNOW YOUR INSTRUMENT PANEL



I

NSTRUMENT

 C

LUSTER

 D

ISPLAY



L

OCATION

 A

ND

 C

ONTROLS

The instrument cluster display is located in the

center of the instrument cluster.

Instrument Cluster Display Location And Controls

The interactive display area to the left side of

the screen depicts which menus are being

accessed in the main display area.

The top line where reconfigurable telltales,

compass direction, outside temperature, Time,

Range MPG or Trip menu items are displayed.

This also displays the speedometer when other

menu pages are displayed.

The main display area where the menus and

pop-up messages are displayed.

The lower line where reconfigurable telltales,

menu name and menu page are displayed.

The system allows the driver to select information

by pushing the following buttons mounted on the

steering wheel:

Instrument Cluster Display Control Buttons

Up And Down Arrow Buttons:
Using the up  or down  arrow button allows you

to cycle through the main menu Items and changes

the main Screen area and menu title area.
Left And Right Arrow Buttons:
Using the left  or right  arrow button allows you

to cycle through the submenu items of the main

menu item.

NOTE:

Holding the up / down  or left / right

arrow button will loop the user through the

currently selected menu or options presented

on the screen.

Upon returning to a main menu, the last

submenu screen viewed within that main menu

will be displayed.

OK Button
Push the OK button to access/select the infor

-

mation screens or submenu screens of a main

menu item. To reset displayed/selected

features push and hold the OK button for two

seconds.

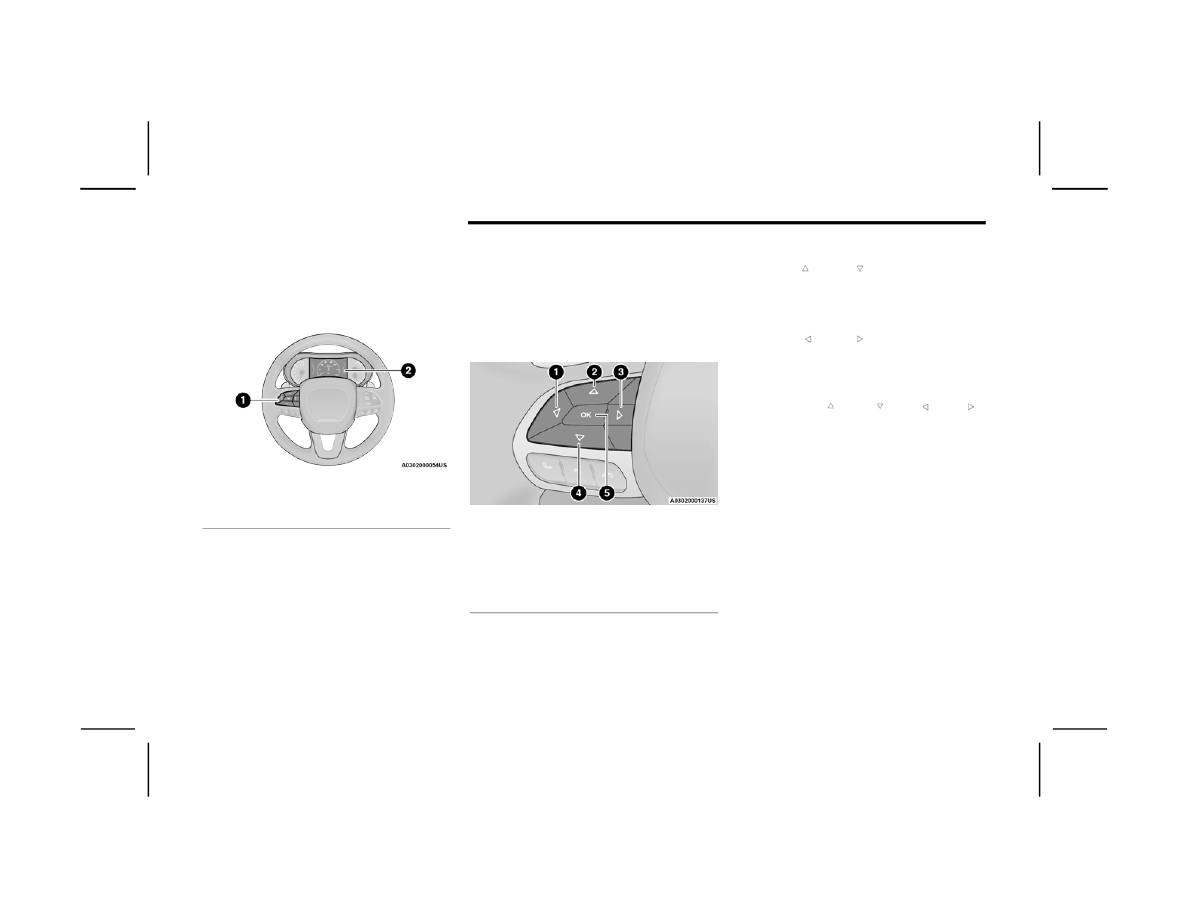

1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

GETTING TO KNOW YOUR INSTRUMENT PANEL

75

O

IL

 C

HANGE

 R

ESET

 — I

F

 E

QUIPPED

Your vehicle may be equipped with an engine oil

change indicator system. The “Oil Change

Required” message will display in the instrument

cluster display for five seconds after a single chime

has sounded to indicate the next scheduled oil

change interval. The engine oil change indicator

system is duty cycle based, which means the

engine oil change interval may fluctuate,

dependent upon your personal driving style.
Unless reset, this message will continue to display

each time you place the ignition in the ON/RUN

position. To turn off the message temporarily, push

and release the OK button. To reset the oil change

indicator system (after performing the scheduled

maintenance), refer to the following procedure.
Oil Life Reset
1. Without pushing the brake pedal, place the

ignition in the ON/RUN mode (do not start the

engine).

2. Navigate to “Oil Life” submenu in “Vehicle

Info” in the instrument cluster display.

3. Push and hold the OK button until the gauge

resets to 100%.

Secondary Method For Oil Change Reset

Procedure
1. Without pushing the brake pedal, place the

ignition in the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within ten seconds.

3. Without pushing the brake pedal, place the

ignition in the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

I

NSTRUMENT

 C

LUSTER

 D

ISPLAY

 M

ENU



I

TEMS



The instrument cluster display can be used to view

the main menu items for several features. Use the
up  and down  arrow buttons to scroll through

the driver interactive display menu options until

the desired menu is reached.

NOTE:

Depending on the vehicle’s options, feature

settings may vary.

Main Gauge

Push and release the up  or down  arrow

button until the Main Gauge menu icon is

displayed in the instrument cluster display. Push
and release the left  or right  arrow button to

select the analog or digital type speedometer

display. Push and release the OK button to toggle

units (mph or km/h) of the speedometer.

Vehicle Info

Push and release the up  or down  arrow

button until the Vehicle Info menu icon is displayed

in the instrument cluster display. Push and release
the left  or right  arrow button to scroll through

the information submenus and push and release

the OK button to select or reset the submenus.

Tire Pressure

Oil Pressure

Transmission

Temperature

Oil Life

Oil Temperature

Battery Voltage

3

76

GETTING TO KNOW YOUR INSTRUMENT PANEL



Terrain — If Equipped

Push and release the up  or down  arrow

button until the Terrain icon/title is highlighted in

the instrument cluster display. Push and release
the right  or left  arrow button to display the

Selec-Terrain, Air Suspension, Drivetrain, and

Wheel Articulation.

Selec-Terrain: Displays messages concerning

Selec-Terrain status.

Air Suspension — If Equipped: Displays

messages concerning Air Suspension status.

Drivetrain: Displays information on drivetrain

status of Front Wheel Angle, T-Case, and Axle

Lock.

Wheel Articulation: Displays current wheel artic

-

ulation.

Driver Assist — If Equipped

Push and release the up  or down  arrow

button until the Driver Assist menu title is

highlighted in the instrument cluster display.
Adaptive Cruise Control (ACC) Menu — If Equipped
The instrument cluster display displays the current

ACC and LaneSense system settings. The

information displayed depends on the status of

ACC and LaneSense.

Push the ACC on/off button (located on the

steering wheel) until one of the following displays

in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Push and release the SET + or the SET- button

(located on the steering wheel) and the following

will display in the instrument cluster display:
ACC SET
When ACC is set, the set speed will display in the

instrument cluster.
The ACC screen may display once again if any ACC

activity occurs, which may include any of the

following:

System Cancel

Driver Override

System Off

ACC Proximity Warning

ACC Unavailable Warning

NOTE:

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity

Ú

page 112.

LaneSense — If Equipped
The instrument cluster display displays the current

LaneSense system settings. The information

displayed depends on LaneSense system status

and the conditions that need to be met

Ú

page 130.

Fuel Economy

Push and release the up  or down  arrow

button until the Fuel Economy icon is highlighted in

the instrument cluster display. Push and hold the

OK button to reset average fuel economy feature.
Toggle left  or right  to select a display with or

without Current Fuel Economy Information.

Range – The display shows the estimated

distance (mi or km) that can be traveled with the

fuel remaining in the tank. When the Range

value is less than 30 miles (48 km) estimated

driving distance, the Range display will change

to a “RANGE LOW” message. Adding a signifi

-

cant amount of fuel to the vehicle will turn off

the “RANGE LOW” message and a new Range

value will display. Range cannot be reset

through the OK button.

GETTING TO KNOW YOUR INSTRUMENT PANEL

77

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable

distance of the vehicle, regardless of the Range

displayed value.

Average – The display shows the average fuel

economy (MPG, L/100 km, or km/L) since the

last reset.

Current – This display shows the current fuel

economy (MPG, L/100 km, km/L) while driving.

Trip Info

Push and release the up  or down  arrow

button until the Trip menu title is displayed in the
instrument cluster display. Toggle the left  or
right  arrow button to select Trip A or Trip B. The

Trip information will display the following:

Distance – Shows the total distance (mi or km)

traveled for Trip A or Trip B since the last reset.

Average Fuel Economy – Shows the average

fuel economy (MPG or L/100 km or km/L) of

Trip A or Trip B since the last reset.

Elapsed Time – Shows the total elapsed time of

travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Stop / Start — If Equipped

Press and release the up  or down

arrow button on the steering wheel to

scroll to the Stop/Start menu in the driver

interactive display. This menu will give

access to Stop/Start settings using the left  and
right  arrow buttons on the steering wheel

Ú

page 108.

Audio

Push and release the up  or down  arrow

button until the Audio menu title is displayed in the

instrument cluster display.

Stored Messages

Push and release the up  or down  arrow

button until the Messages Menu icon is highlighted

in the instrument cluster display. This feature

shows the number of stored warning messages.
Pushing the left  or right  arrow button will

allow you to scroll through the stored messages.

Screen Setup

Push and release the up  or down  arrow

button until the Screen Setup Menu icon/Title is

highlighted in the instrument cluster display. Push

and release the OK button to enter the submenus

and follow the prompts on the screen as needed.

The Screen Setup feature allows you to change

what information is displayed in the instrument

cluster as well as the location that information is

displayed.
Screen Setup Driver Selectable Items

Upper Left

None

Compass

Outside Temp

Time

Range

Fuel Economy

Average

Fuel Economy

Current

Trip A

Trip B

Upper Right

None

Compass

Outside Temp

Time

Range

Fuel Economy

Average

Fuel Economy

Current

Trip A

Trip B

3

78

GETTING TO KNOW YOUR INSTRUMENT PANEL



Gear Display

Full

Single

Defaults (Restores All Settings To Default Settings)

Cancel

Restore

Current Gear

On

Off

The menu with (show/hide) means user can press

OK button to choose show or hide this menu on the

instrument cluster display.

B

ATTERY

 S

AVER

 O

N

/B

ATTERY

 S

AVER



M

ODE

 M

ESSAGE

 — E

LECTRICAL

 L

OAD



R

EDUCTION

 A

CTIONS

 (I

F

 E

QUIPPED

)

This vehicle is equipped with an Intelligent Battery

Sensor (IBS) to perform additional monitoring of

the electrical system and status of the vehicle

battery.
In cases when the IBS detects charging system

failure, or the vehicle battery conditions are

deteriorating, electrical load reduction actions will

take place to extend the driving time and distance

of the vehicle. This is done by reducing power to or

turning off non-essential electrical loads.
Load reduction is only active when the engine is

running. It will display a message if there is a risk

of battery depletion to the point where the vehicle

may stall due to lack of electrical supply, or will not

restart after the current drive cycle.
When load reduction is activated, the message

“Battery Saver On” or “Battery Saver Mode” will

appear in the instrument cluster display.
These messages indicate the vehicle battery has a

low state of charge and continues to lose electrical

charge at a rate that the charging system cannot

sustain.

NOTE:

The charging system is independent from load

reduction. The charging system performs a diag

-

nostic on the charging system continuously.

If the Battery Charge Warning Light is on it may

indicate a problem with the charging system

Ú

page 80.

The electrical loads that may be switched off (if

equipped), and vehicle functions which can be

effected by load reduction:

Heated Seat/Vented Seats/Heated Wheel

Rear Defroster And Heated Mirrors

HVAC System

150W Power Inverter System

Audio and Telematics System

Loss of the battery charge may indicate one or

more of the following conditions:

The charging system cannot deliver enough

electrical power to the vehicle system because

the electrical loads are larger than the capability

of charging system. The charging system is still

functioning properly.

Turning on all possible vehicle electrical loads

(e.g. HVAC to max settings, exterior and interior

lights, overloaded power outlets +12 Volts,

150W, USB ports) during certain driving condi

-

tions (city driving, towing, frequent stopping).

Favorite Menus

Speedometer

Vehicle Info

Terrain

(show/hide)

Driver Assist

(show/hide)

Fuel Economy

(show/hide)

Trip Info

(show/hide)

Stop/Start

Audio

(show/hide)

Messages

Screen Setup

GETTING TO KNOW YOUR INSTRUMENT PANEL

79

Installing options like additional lights, upfitter

electrical accessories, audio systems, alarms

and similar devices.

Unusual driving cycles (short trips separated by

long parking periods).

The vehicle was parked for an extended period

of time (weeks, months).

The battery was recently replaced and was not

charged completely.

The battery was discharged by an electrical load

left on when the vehicle was parked.

The battery was used for an extended period

with the engine not running to supply radio,

lights, chargers, +12 Volt portable appliances

like vacuum cleaner’s, game consoles and

similar devices.

What to do when an electrical load reduction

action message is present (“Battery Saver On” or

“Battery Saver Mode”)
During a trip:

Reduce power to unnecessary loads if possible:

Turn off redundant lights (interior or exterior)

Check what may be plugged in to power

outlets +12 Volts, 150W, USB ports

Check HVAC settings (blower, temperature)

Check the audio settings (volume)

After a trip:

Check if any aftermarket equipment was

installed (additional lights, upfitter electrical

accessories, audio systems, alarms) and review

specifications if any (load and Ignition Off Draw

currents).

Evaluate the latest driving cycles (distance,

driving time and parking time).

The vehicle should have service performed if

the message is still present during consecutive

trips and the evaluation of the vehicle and

driving pattern did not help to identify the cause.

TRIP COMPUTER

Push and release the up  or down  arrow

button until the Trip icon shows in the instrument
cluster display (Toggle left  or right  to select

Trip A or Trip B).
Trip A/Trip B

Shows the total distance traveled for Trip A/

Trip B since the last reset.

Shows the elapsed time traveled for Trip A/

Trip B since the last reset.

Shows average fuel consumption for Trip A/

Trip B since the last reset.

Elapsed time will increment when the ignition

switch is in the ON or START position.

To Reset Trip A/B Function
Reset will only occur while a function is selected.

Push and hold the OK button to reset/clear the

function being displayed.

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the

instrument panel together with a dedicated

message and/or acoustic signal when applicable.

These indications are indicative and precautionary

and as such must not be considered as exhaustive.

Always refer to the information in this chapter in

the event of a failure indication. All active telltales

will display first if applicable. The system check

menu may appear different based upon

equipment options and current vehicle status.

Some telltales are optional and may not appear.

R

ED

 W

ARNING

 L

IGHTS

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a bulb

check when the ignition is placed in the

ON/RUN or ACC/ON/RUN position. This light will

illuminate with a single chime when a fault with the

air bag has been detected, it will stay on until the

fault is cleared. If the light is either not on during

3

80

GETTING TO KNOW YOUR INSTRUMENT PANEL



startup, stays on, or turns on while driving, have

the system inspected at an authorized dealer as

soon as possible.

Brake Warning Light

This warning light monitors various brake

functions, including brake fluid level and

parking brake application. If the brake

light turns on it may indicate that the

parking brake is applied, that the brake fluid level

is low, or that there is a problem with the Anti-Lock

Brake System reservoir.
If the light remains on when the parking brake has

been disengaged, and the fluid level is at the full

mark on the master cylinder reservoir, it indicates

a possible brake hydraulic system malfunction or

that a problem with the Brake Booster has been

detected by the Anti-Lock Brake System (ABS) /

Electronic Stability Control (ESC) system. In this

case, the light will remain on until the condition has

been corrected. If the problem is related to the

brake booster, the ABS pump will run when

applying the brake, and a brake pedal pulsation

may be felt during each stop.
The dual brake system provides a reserve braking

capacity in the event of a failure to a portion of the

hydraulic system. A leak in either half of the dual

brake system is indicated by the Brake Warning

Light, which will turn on when the brake fluid level

in the master cylinder has dropped below a

specified level.

The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level

conditions. The vehicle should have service

performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is

necessary.

Vehicles equipped with the Anti-Lock Brake System

(ABS) are also equipped with Electronic Brake

Force Distribution (EBD). In the event of an EBD

failure, the Brake Warning Light will turn on along

with the ABS Light. Immediate repair to the ABS

system is required.
Operation of the Brake Warning Light can be

checked by turning the ignition switch from the OFF

position to the ON/RUN position. The light should

illuminate for approximately two seconds. The light

should then turn off unless the parking brake is

applied or a brake fault is detected. If the light does

not illuminate, have the light inspected by an

authorized dealer.
The light also will turn on when the parking brake

is applied with the ignition switch in the ON/RUN

position.

NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake appli

-

cation.

Battery Charge Warning Light

This warning light will illuminate when the

battery is not charging properly. If it stays

on while the engine is running, there may

be a malfunction with the charging

system. Contact an authorized dealer as soon as

possible.
This indicates a possible problem with the

electrical system or a related component.

Door Open Warning Light

This indicator will illuminate when a door

is ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

WARNING!

Driving a vehicle with the red brake light on is

dangerous. Part of the brake system may have

failed. It will take longer to stop the vehicle. You

could have a collision. Have the vehicle checked

immediately.

GETTING TO KNOW YOUR INSTRUMENT PANEL

81

Electric Power Steering (EPS) Fault

Warning Light

This warning light will turn on when

there's a fault with the EPS system

Ú

page 107.

Electronic Throttle Control (ETC) Warning

Light

This warning light will illuminate to

indicate a problem with the ETC system.

If a problem is detected while the vehicle

is running, the light will either stay on or

flash depending on the nature of the problem.

Cycle the ignition when the vehicle is safely and

completely stopped and the transmission is placed

in the PARK position. The light should turn off. If

the light remains on with the vehicle running, your

vehicle will usually be drivable; however, see an

authorized dealer for service as soon as possible.

NOTE:

This light may turn on if the accelerator and brake

pedals are pressed at the same time.
If the light continues to flash when the vehicle is

running, immediate service is required and you

may experience reduced performance, an

elevated/rough idle, or engine stall and your

vehicle may require towing. The light will come on

when the ignition is placed in the ON/RUN or ACC/

ON/RUN position and remain on briefly as a bulb

check. If the light does not come on during starting,

have the system checked by an authorized dealer.

Engine Coolant Temperature Warning

Light

This warning light warns of an

overheated engine condition. If the

engine coolant temperature is too high,

this indicator will illuminate and a single

chime will sound. If the temperature reaches the

upper limit, a continuous chime will sound for four

minutes or until the engine is able to cool;

whichever comes first.
If the light turns on while driving, safely pull over

and stop the vehicle. If the Air Conditioning (A/C)

system is on, turn it off. Also, shift the transmission

into NEUTRAL (N) and idle the vehicle. If the

temperature reading does not return to normal,

turn the engine off immediately and call for service

Ú

page 250.

Hood Open Warning Light

This indicator will illuminate when the

hood is ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Liftgate Open Warning Light

This warning light will illuminate when the

liftgate is open.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Oil Pressure Warning Light

This warning light will illuminate to

indicate low engine oil pressure. If the

light turns on while driving, stop the

vehicle, shut off the engine as soon as

possible, and contact an authorized dealer.

A chime will sound when this light turns on.
Do not operate the vehicle until the cause is

corrected. This light does not indicate how much oil

is in the engine. The engine oil level must be

checked under the hood.

WARNING!

Continued operation with reduced assist could

pose a safety risk to yourself and others. Service

should be obtained as soon as possible.

3

82

GETTING TO KNOW YOUR INSTRUMENT PANEL



Oil Temperature Warning Light

This warning light will illuminate to

indicate the engine oil temperature is

high. If the light turns on while driving,

stop the vehicle and shut off the engine

as soon as possible. Wait for oil temperature to

return to normal levels.

Seat Belt Reminder Warning Light

This warning light indicates when the

driver or passenger seat belt is

unbuckled. When the ignition is first

placed in the ON/RUN or ACC/ON/RUN

position and if the driver’s seat belt is unbuckled,

a chime will sound and the light will turn on. When

driving, if the driver or front passenger seat belt

remains unbuckled, the Seat Belt Reminder Light

will flash or remain on continuously and a chime

will sound

Ú

page 204.

Transmission Temperature Warning Light

This warning light will illuminate to warn

of a high transmission fluid temperature.

This may occur with strenuous usage

such as trailer towing. If this light turns

on, stop the vehicle and run the engine at idle or

slightly faster, with the transmission in PARK (P) or

NEUTRAL (N), until the light turns off. Once the light

turns off, you may continue to drive normally.

Vehicle Security Warning Light —

If Equipped

This light will flash at a fast rate for

approximately 15 seconds when the

vehicle security system is arming, and

then will flash slowly until the vehicle

is disarmed.

Y

ELLOW

 W

ARNING

 L

IGHTS

Service Adaptive Cruise Control (ACC)

Warning Light

This light will turn on when the ACC

system is not operating and needs

service

Ú

page 112.

Anti-Lock Brake System (ABS) Warning

Light

This warning light monitors the ABS.

The light will turn on when the ignition is

placed in the ON/RUN or ACC/ON/RUN

position and may stay on for as long as

four seconds.
If the ABS light remains on or turns on while

driving, then the Anti-Lock portion of the brake

system is not functioning and service is required as

soon as possible. However, the conventional brake

system will continue to operate normally,

assuming the Brake Warning Light is not also on.
If the ABS light does not turn on when the ignition

is placed in the ON/RUN or ACC/ON/RUN position,

have the brake system inspected by an authorized

dealer.

WARNING!

If you continue operating the vehicle when the

Transmission Temperature Warning Light is

illuminated you could cause the fluid to boil over,

come in contact with hot engine or exhaust

components and cause a fire.

CAUTION!

Continuous driving with the Transmission

Temperature Warning Light illuminated will

eventually cause severe transmission damage

or transmission failure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

83

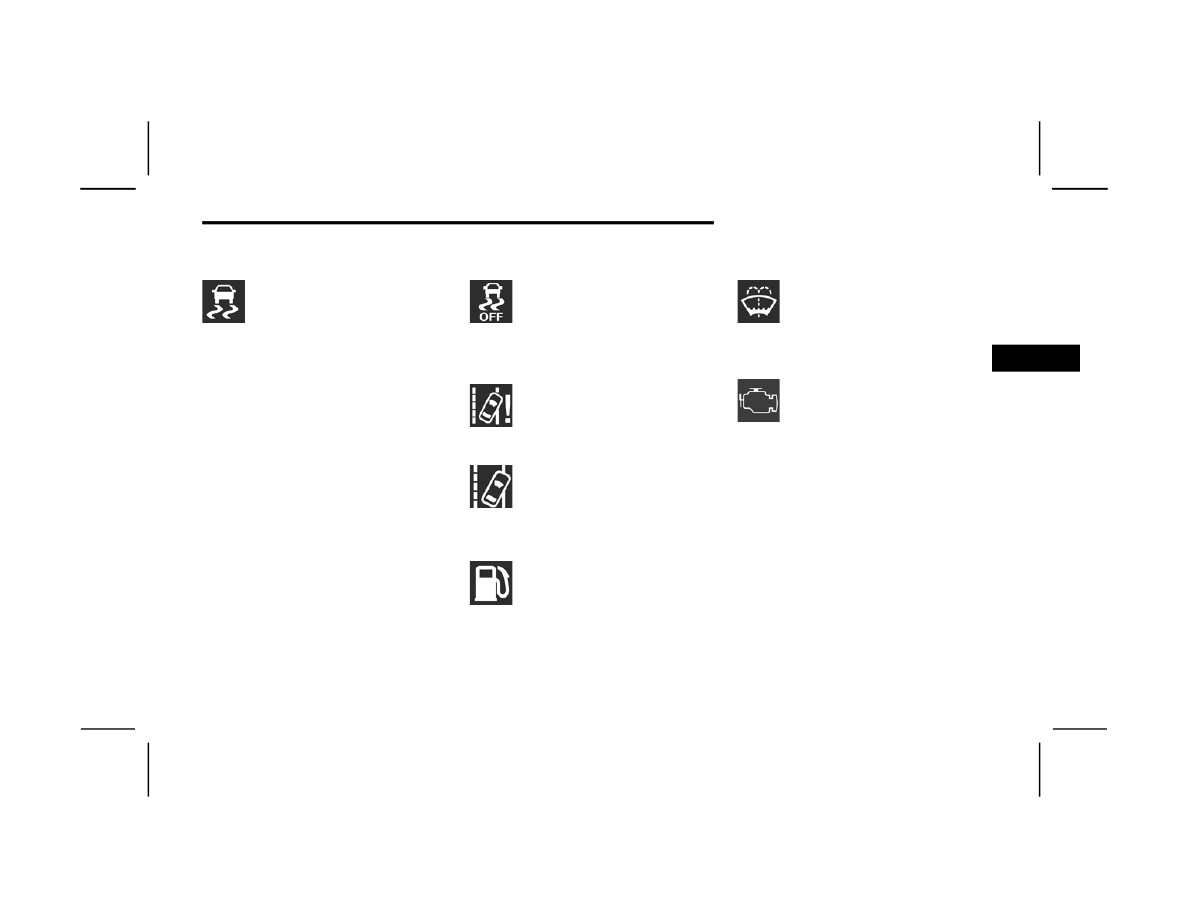

Electronic Stability Control (ESC) Active

Warning Light — If Equipped

This warning light will indicate when the

ESC system is Active. The ESC Indicator

Light in the instrument cluster will come

on when the ignition is placed in the ON/

RUN or ACC/ON/RUN position, and when ESC is

activated. It should go out with the engine running.

If the ESC Indicator Light comes on continuously

with the engine running, a malfunction has been

detected in the ESC system. If this warning light

remains on after several ignition cycles, and the

vehicle has been driven several miles (kilometers)

at speeds greater than 30 mph (48 km/h), see an

authorized dealer as soon as possible to have the

problem diagnosed and corrected.

The ESC OFF Indicator Light and the ESC Indi

-

cator Light come on momentarily each time the

ignition is placed in the ON/RUN or ACC/ON/

RUN position.

The ESC system will make buzzing or clicking

sounds when it is active. This is normal; the

sounds will stop when ESC becomes inactive.

This light will come on when the vehicle is in an

ESC event.

Electronic Stability Control (ESC) OFF

Warning Light — If Equipped

This warning light indicates the ESC is off.
Each time the ignition is turned to ON/

RUN or ACC/ON/RUN, the ESC system

will be on, even if it was turned off previously.

Service LaneSense Warning Light —

If Equipped

This warning light will illuminate when the

LaneSense system is not operating and

requires service. Please see an

authorized dealer.

LaneSense Warning Light — If Equipped

The LaneSense Warning Light will be

solid yellow when the vehicle is

approaching a lane marker. The warning

light will flash when the vehicle is

crossing the lane marker

Ú

page 130.

Low Fuel Warning Light

When the fuel level reaches

approximately 2.4 gal (9.1 L) this light will

turn on, and remain on until fuel is

added.

A single warning chime will sound with Low Fuel

Warning.

Low Washer Fluid Warning Light —

If Equipped

This warning light will illuminate and a

single chime will sound when the

windshield washer fluid is low

Ú

page 263.

Engine Check/Malfunction Indicator

Warning Light (MIL)

The Engine Check/Malfunction Indicator

Light (MIL) is a part of an Onboard

Diagnostic System called OBD II that

monitors engine and automatic

transmission control systems. This warning light

will illuminate when the ignition is in the ON/RUN

position before engine start. If the bulb does not

come on when turning the ignition switch from OFF

to ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas

cap, poor quality fuel, etc., may illuminate the light

after engine start. The vehicle should be serviced if

the light stays on through several typical driving

styles. In most situations, the vehicle will drive

normally and will not require towing.
When the engine is running, the MIL may flash to

alert serious conditions that could lead to

immediate loss of power or severe catalytic

converter damage. The vehicle should be serviced

by an authorized dealer as soon as possible if this

occurs.

3

84

GETTING TO KNOW YOUR INSTRUMENT PANEL



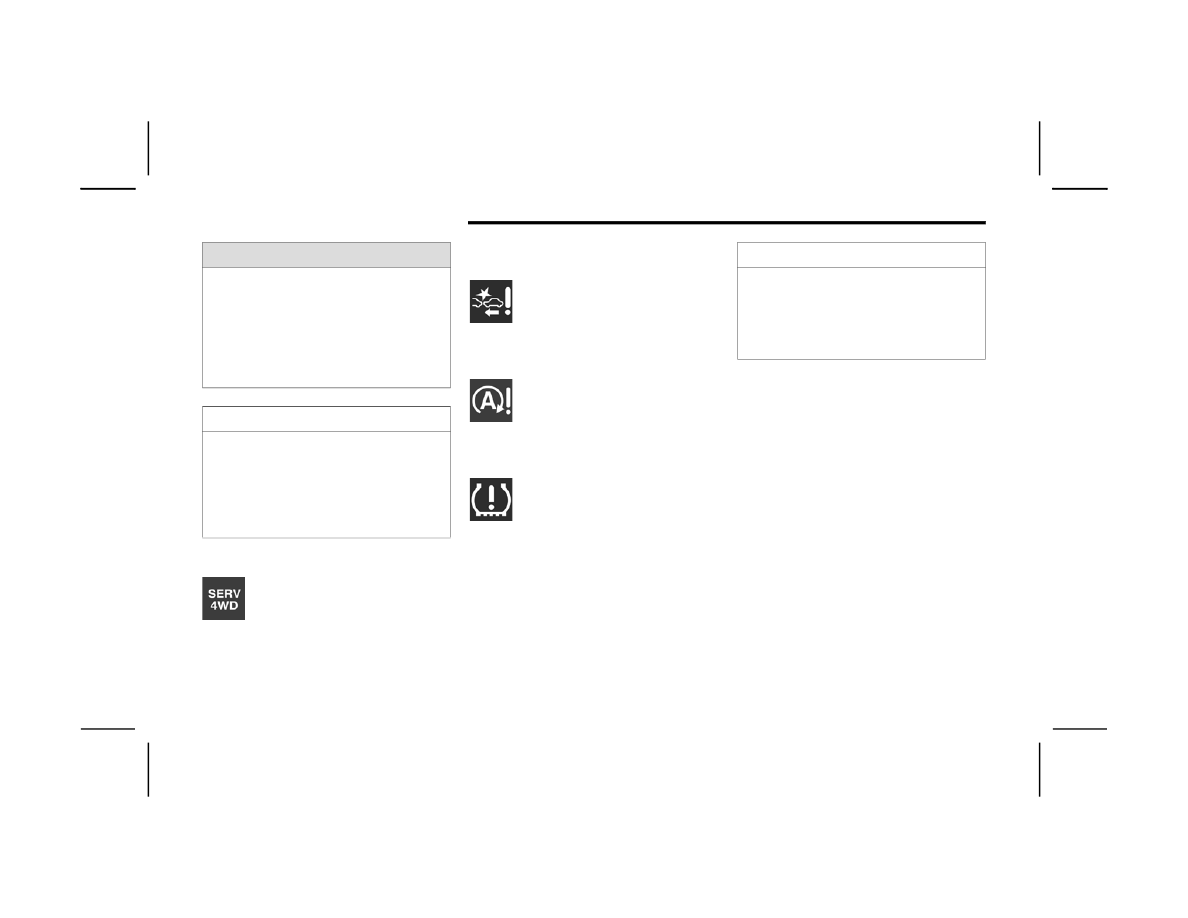

Service 4WD Warning Light — If Equipped

This warning light will illuminate to signal

a fault with the 4WD system. If the light

stays on or comes on during driving, it

means that the 4WD system is not

functioning properly and that service is required.

We recommend you drive to the nearest service

center and have the vehicle serviced immediately.

Service Forward Collision Warning (FCW)

Light — If Equipped

This warning light will illuminate to

indicate a fault in the Forward Collision

Warning System. Contact an authorized

dealer for service

Ú

page 199.

Service Stop/Start System Warning Light —

If Equipped

This warning light will illuminate when the

Stop/Start system is not functioning

properly and service is required. Contact

an authorized dealer for service.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a

message is displayed to indicate that the

tire pressure is lower than the

recommended value and/or that slow

pressure loss is occurring. In these cases, optimal

tire duration and fuel consumption may not be

guaranteed.
Should one or more tires be in the condition

mentioned above, the display will show the

indications corresponding to each tire.

Each tire, including the spare (if provided), should

be checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire

inflation pressure label. If your vehicle has tires of

a different size than the size indicated on the

vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation pressure

for those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire

pressure telltale when one or more of your tires is

significantly underinflated. Accordingly, when the

low tire pressure telltale illuminates, you should

stop and check your tires as soon as possible, and

inflate them to the proper pressure. Driving on a

significantly underinflated tire causes the tire to

overheat and can lead to tire failure. Underinflation

also reduces fuel efficiency and tire tread life, and

may affect the vehicle’s handling and stopping

ability.

WARNING!

A malfunctioning catalytic converter, as

referenced above, can reach higher

temperatures than in normal operating

conditions. This can cause a fire if you drive

slowly or park over flammable substances such

as dry plants, wood, cardboard, etc. This could

result in death or serious injury to the driver,

occupants or others.

CAUTION!

Prolonged driving with the Malfunction Indicator

Light (MIL) on could cause damage to the

vehicle control system. It also could affect fuel

economy and driveability. If the MIL is flashing,

severe catalytic converter damage and power

loss will soon occur. Immediate service is

required.

CAUTION!

Do not continue driving with one or more flat

tires as handling may be compromised. Stop the

vehicle, avoiding sharp braking and steering. If a

tire puncture occurs, repair immediately using

the dedicated tire repair kit and contact an

authorized dealer as soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

85

Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure,

even if underinflation has not reached the level to

trigger illumination of the TPMS low tire pressure

telltale.
Your vehicle has also been equipped with a TPMS

malfunction indicator to indicate when the system

is not operating properly. The TPMS malfunction

indicator is combined with the low tire pressure

telltale. When the system detects a malfunction,

the telltale will flash for approximately one minute

and then remain continuously illuminated. This

sequence will continue upon subsequent vehicle

start-ups as long as the malfunction exists. When

the malfunction indicator is illuminated, the

system may not be able to detect or signal low tire

pressure as intended. TPMS malfunctions may

occur for a variety of reasons, including the

installation of replacement or alternate tires or

wheels on the vehicle that prevent the TPMS from

functioning properly. Always check the TPMS

malfunction telltale after replacing one or more

tires or wheels on your vehicle to ensure that the

replacement or alternate tires and wheels allow

the TPMS to continue to function properly.

Y

ELLOW

 I

NDICATOR

 L

IGHTS

Air Suspension Active Indicator Light —

If Equipped

This light will illuminate when the air

suspension system is actively adjusting

the ride height

Ú

page 103.

Air Suspension Entry/Exit Indicator Light—

If Equipped

This light will illuminate when the vehicle

is automatically lowered from ride height

position downward for easy entry and exit

of the vehicle.

Air Suspension Aerodynamic Height

Indicator Light— If Equipped

This light will illuminate when the air

suspension system is set to the

Aerodynamic setting

Ú

page 103.

Air Suspension Off-Road 1 Indicator

Light — If Equipped

This light will illuminate when the air

suspension system is set to the Off-Road

1 setting

Ú

page 103.

Air Suspension Off-Road 2 Indicator

Light — If Equipped

This light will illuminate when the air

suspension system is set to the Off-Road

2 setting

Ú

page 103.

CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the tire

size equipped on your vehicle. Undesirable

system operation or sensor damage may result

when using replacement equipment that is not

of the same size, type, and/or style. Aftermarket

wheels can cause sensor damage. Using

aftermarket tire sealants may cause the Tire

Pressure Monitoring System (TPMS) sensor to

become inoperable. After using an aftermarket

tire sealant it is recommended that you take

your vehicle to an authorized dealer to have your

sensor function checked.

3

86

GETTING TO KNOW YOUR INSTRUMENT PANEL



Forward Collision Warning (FCW) Off

Indicator Light — If Equipped

This indicator light illuminates to indicate

that FCW is off

Ú

page 199.

4WD Low Indicator Light —

If Equipped

This light alerts the driver that the vehicle

is in the 4WD Low mode. The front and

rear driveshafts are mechanically locked

together forcing the front and rear

wheels to rotate at the same speed. Low range

provides a greater gear reduction ratio to provide

increased torque at the wheels

Ú

page 101.

NEUTRAL Indicator Light — If Equipped

This light alerts the driver that the 4WD

power transfer case is in the NEUTRAL

mode and the front and rear driveshafts

are disengaged from the powertrain.

G

REEN

 I

NDICATOR

 L

IGHTS

Adaptive Cruise Control (ACC) Set With No

Target Detected Indicator Light —

If Equipped

This light will turn on when the Adaptive

Cruise Control is set and there is no

vehicle in front detected

Ú

page 112.

Adaptive Cruise Control (ACC) Set With

Target Light — If Equipped

This will display when the ACC is set and

a vehicle in front is detected

Ú

page 112.

Cruise Control Set Indicator Light —

If Equipped

This indicator light will illuminate when

the cruise control is set to the desired

speed

Ú

page 110.

Front Fog Indicator Light — If Equipped

This indicator light will illuminate when

the front fog lights are on

Ú

page 44.

LaneSense Indicator Light —

If Equipped

The LaneSense indicator light illuminates

solid green when both lane markings

have been detected and the system is

“armed” and ready to provide visual and

torque warnings if an unintentional lane departure

occurs

Ú

page 130.

Parking/Headlights On Indicator Light

This indicator light will illuminate when

the parking lights or headlights are

turned on

Ú

page 44.

Sport Mode Indicator Light

This light will turn on when Sport Mode is

active

Ú

page 101.

Stop/Start Active Indicator Light —

If Equipped

This indicator light will illuminate when

the Stop/Start function is in “Autostop”

mode

Ú

page 108.

GETTING TO KNOW YOUR INSTRUMENT PANEL

87

Turn Signal Indicator Lights

When the left or right turn signal is

activated, the turn signal indicator will

flash independently and the

corresponding exterior turn signal lamps

will flash. Turn signals can be activated when the

multifunction lever is moved down (left) or

up (right).

NOTE:

A continuous chime will sound if the vehicle is

driven more than 1 mile (1.6 km) with either

turn signal on.

Check for an inoperative outside light bulb if

either indicator flashes at a rapid rate.

W

HITE

 I

NDICATOR

 L

IGHTS

Adaptive Cruise Control (ACC) Ready

Light — If Equipped

This light will turn on when the vehicle

equipped with ACC has been turned on,

but not set

Ú

page 112.

Cruise Control Ready Indicator Light

This light will turn on when the cruise

control has been turned on, but not set

Ú

page 110.

Hill Descent Control (HDC) Indicator

Light — If Equipped

This indicator shows when the HDC

feature is turned on. The lamp will be on

solid when HDC is armed. HDC can only

be armed when the transfer case is in the

4WD Low position and the vehicle speed is less

then 30 mph (48 km/h). If these conditions are not

met while attempting to use the HDC feature, the

HDC indicator light will flash on/off.

LaneSense Indicator Light — If Equipped

When the LaneSense system is ON, but

not armed, the LaneSense indicator light

illuminates solid white. This occurs when

only left, right, or neither lane line has

been detected. If a single lane line is detected, the

system is ready to provide only visual warnings if

an unintentional lane departure occurs on the

detected lane line

Ú

page 130.

Selec-Speed Control Indicator Light —

If Equipped

This light will turn on when “Selec-Speed

Control” is activated.
To activate “Selec-Speed Control”,

assure the vehicle is Four Wheel Drive (4WD) Low

and push the button on the Instrument Panel.

NOTE:

If the vehicle is not in 4WD Low, “To Enter

Selec-Speed Shift to 4WD Low” will appear in the

instrument cluster display.

B

LUE

 I

NDICATOR

 L

IGHTS

High Beam Indicator Light

This indicator light will illuminate to

indicate that the high beam headlights

are on. With the low beams activated,

push the multifunction lever forward

(toward the front of the vehicle) to turn on the high

beams. Pull the multifunction lever rearward

(toward the rear of the vehicle) to turn off the high

beams. If the high beams are off, pull the lever

toward you for a temporary high beam on, “flash to

pass” scenario.

3

88

GETTING TO KNOW YOUR INSTRUMENT PANEL



ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated

Onboard Diagnostic system called OBD II. This

system monitors the performance of the

emissions, engine, and transmission control

systems. When these systems are operating

properly, your vehicle will provide excellent

performance and fuel economy, as well as engine

emissions well within current government

regulations.
If any of these systems require service, the OBD II

system will turn on the Malfunction Indicator Light

(MIL). It will also store diagnostic codes and other

information to assist your service technician in

making repairs. Although your vehicle will usually

be drivable and not need towing, see an authorized

dealer for service as soon as possible.

O

NBOARD

 D

IAGNOSTIC

 S

YSTEM



(OBD II) C

YBERSECURITY

Your vehicle is required to have OBD II and a

connection port to allow access to information

related to the performance of your emissions

controls. Authorized service technicians may need

to access this information to assist with the

diagnosis and service of your vehicle and

emissions system

Ú

page 155.

CAUTION!

Prolonged driving with the MIL on could cause

further damage to the emission control

system. It could also affect fuel economy and

driveability. The vehicle must be serviced

before any emissions tests can be performed.

If the MIL is flashing while the vehicle is

running, severe catalytic converter damage

and power loss will soon occur. Immediate

service is required.

WARNING!

ONLY an authorized service technician should

connect equipment to the OBD II connection

port in order to read the VIN, diagnose, or

service your vehicle.

If unauthorized equipment is connected to the

OBD II connection port, such as a

driver-behavior tracking device, it may:

Be possible that vehicle systems,

including safety related systems, could be

impaired or a loss of vehicle control could

occur that may result in an accident

involving serious injury or death.

Access, or allow others to access, infor

-

mation stored in your vehicle systems,

including personal information.

GETTING TO KNOW YOUR INSTRUMENT PANEL

89

EMISSIONS INSPECTION AND

MAINTENANCE PROGRAMS

In some localities, it may be a legal requirement to

pass an inspection of your vehicle's emissions

control system. Failure to pass could prevent

vehicle registration.

For states that require an Inspection and

Maintenance (I/M), this check verifies

the Malfunction Indicator Light (MIL) is

functioning and is not on when the

engine is running, and that the OBD II system is

ready for testing.
The OBD ll may not be ready if your vehicle was

recently serviced, recently had a depleted battery

or a battery replacement. If the OBD ll system

should be determined not ready for the I/M test,

your vehicle may fail the test.

Your vehicle has a simple ignition actuated test,

which you can use prior to going to the test station.

To check if your vehicle's OBD II system is ready,

you must do the following:
1. Switch the ignition to the ON position, but do

not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to

start this test over.
2. As soon as you cycle the ignition switch to the

ON position, you will see the Malfunction

Indicator Light (MIL) symbol come on as part of

a normal bulb check.

3. Approximately 15 seconds later, one of two

things will happen:

The MIL will flash for about 10 seconds and

then return to being fully illuminated until you

turn OFF the ignition or start the engine. This

means that your vehicle's OBD II system is not

ready and you should not proceed to the I/M

station.

The MIL will not flash at all and will remain fully

illuminated until you place the ignition in the off

position or start the engine. This means that

your vehicle's OBD II system is ready and you

can proceed to the I/M station.

If your OBD II system is not ready, you should see

an authorized dealer or repair facility. If your

vehicle was recently serviced or had a battery

failure or replacement, you may need to do nothing

more than drive your vehicle as you normally would

in order for your OBD II system to update. A

recheck with the above test routine may then

indicate that the system is now ready.

3















Content      ..     3      4      5      6     ..
