Jeep Wrangler Unlimited (2012 year). Instruction

威 Or Rock-Trac威) . . . . . . . . . . 390

▫ Operating Instructions/Precautions . . . . . . . 390
▫ Shift Positions . . . . . . . . . . . . . . . . . . . . . . 392
▫ Shifting Procedure . . . . . . . . . . . . . . . . . . . 393

䡵 Trac-Lok威 Rear Axle — If Equipped . . . . . . . . 394
䡵 Axle Lock (Tru–Lok威) — Rubicon Models . . . . 395
䡵 Electronic Sway Bar Disconnect —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 396

䡵 On-Road Driving Tips . . . . . . . . . . . . . . . . . . 398
䡵 Off-Road Driving Tips . . . . . . . . . . . . . . . . . . 399

▫ Side Step Removal – If Equipped . . . . . . . . . 399
▫ The Basics Of Off-Road Driving . . . . . . . . . . 400
▫ When To Use 4L (Low) Range . . . . . . . . . . . 401

▫ Simultaneous Brake And Throttle

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 401

▫ Driving In Snow, Mud And Sand . . . . . . . . . 402
▫ Crossing Obstacles

(Rocks And Other High Points) . . . . . . . . . . 403

▫ Hill Climbing . . . . . . . . . . . . . . . . . . . . . . . 406
▫ Driving Through Water . . . . . . . . . . . . . . . . 408
▫ After Driving Off-Road . . . . . . . . . . . . . . . . 411

䡵 Power Steering . . . . . . . . . . . . . . . . . . . . . . . 412

▫ Power Steering Fluid Check . . . . . . . . . . . . . 413

䡵 Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . 414
䡵 Anti-Lock Brake System . . . . . . . . . . . . . . . . . 417
䡵 Electronic Brake Control System . . . . . . . . . . . 419

▫ Traction Control System (TCS) . . . . . . . . . . . 419

368

STARTING AND OPERATING

▫ Brake Assist System (BAS) . . . . . . . . . . . . . . 420
▫ Hill Start Assist (HSA) . . . . . . . . . . . . . . . . 420
▫ Electronic Roll Mitigation (ERM) . . . . . . . . . 424
▫ Electronic Stability Control (ESC) . . . . . . . . . 425
▫ ESC Activation/Malfunction Indicator Light

And ESC Off Indicator Light . . . . . . . . . . . . 429

▫ Trailer Sway Control (TSC) . . . . . . . . . . . . . 430
▫ Hill Descent Control (HDC) – If Equipped . . 431

䡵 Tire Safety Information . . . . . . . . . . . . . . . . . 432

▫ Tire Markings . . . . . . . . . . . . . . . . . . . . . . . 432
▫ Tire Identification Number (TIN) . . . . . . . . . 436
▫ Tire Terminology And Definitions . . . . . . . . . 437
▫ Tire Loading And Tire Pressure . . . . . . . . . . 438

䡵 Tires — General Information . . . . . . . . . . . . . 443

▫ Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . 443
▫ Tire Inflation Pressures . . . . . . . . . . . . . . . . 444
▫ Tire Pressures For High-Speed Operation . . . 445
▫ Radial-Ply Tires . . . . . . . . . . . . . . . . . . . . . 446
▫ Spare Tire Matching Original Equipped Tire

And Wheel – If Equipped . . . . . . . . . . . . . . 446

▫ Compact Spare Tire – If Equipped . . . . . . . . 447
▫ Full Size Spare – If Equipped . . . . . . . . . . . . 447
▫ Limited-Use Spare – If Equipped . . . . . . . . . 448
▫ Tire Spinning . . . . . . . . . . . . . . . . . . . . . . . 448
▫ Tread Wear Indicators . . . . . . . . . . . . . . . . . 449
▫ Life Of Tire . . . . . . . . . . . . . . . . . . . . . . . . 450

STARTING AND OPERATING

369

▫ Replacement Tires . . . . . . . . . . . . . . . . . . . . 450

䡵 Tire Chains . . . . . . . . . . . . . . . . . . . . . . . . . . 452
䡵 Tire Rotation Recommendations . . . . . . . . . . . 453
䡵 Tire Pressure Monitor System (TPMS) . . . . . . . 454

▫ Base System . . . . . . . . . . . . . . . . . . . . . . . . 457
▫ General Information . . . . . . . . . . . . . . . . . . 459

䡵 Fuel Requirements . . . . . . . . . . . . . . . . . . . . . 460

▫ Reformulated Gasoline . . . . . . . . . . . . . . . . 460
▫ Gasoline/Oxygenate Blends . . . . . . . . . . . . . 461
▫ E-85 Usage In Non-Flex Fuel Vehicles . . . . . . 461
▫ MMT In Gasoline . . . . . . . . . . . . . . . . . . . . 462
▫ Materials Added To Fuel . . . . . . . . . . . . . . . 462

▫ Fuel System Cautions . . . . . . . . . . . . . . . . . 463
▫ Carbon Monoxide Warnings . . . . . . . . . . . . 464

䡵 Adding Fuel . . . . . . . . . . . . . . . . . . . . . . . . . 465

▫ Fuel Filler Cap (Gas Cap) . . . . . . . . . . . . . . 465
▫ Loose Fuel Filler Cap Message . . . . . . . . . . . 466

䡵 Vehicle Loading . . . . . . . . . . . . . . . . . . . . . . 466

▫ Certification Label . . . . . . . . . . . . . . . . . . . 466

䡵 Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . 469

▫ Common Towing Definitions . . . . . . . . . . . . 469
▫ Trailer Hitch Classification . . . . . . . . . . . . . . 472
▫ Trailer Towing Weights

(Maximum Trailer Weight Ratings) . . . . . . . . 473

370

STARTING AND OPERATING

▫ Trailer And Tongue Weight . . . . . . . . . . . . . 477
▫ Towing Requirements . . . . . . . . . . . . . . . . . 478
▫ Towing Tips . . . . . . . . . . . . . . . . . . . . . . . . 483

䡵 Recreational Towing

(Behind Motorhome, Etc.) . . . . . . . . . . . . . . . . 485

▫ Towing This Vehicle Behind

Another Vehicle . . . . . . . . . . . . . . . . . . . . . 485

▫ Recreational Towing – Four-Wheel Drive

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . 486

STARTING AND OPERATING

371

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.

WARNING!

• When leaving the vehicle, always remove the key

fob from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the shift lever.

Manual Transmission – If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.

Four-Wheel Drive Models Only
In 4L mode, this vehicle will start regardless of whether
or not the clutch pedal is pressed to the floor. This feature
enhances off-road performance by allowing the vehicle to
start when in 4L without having to press the clutch pedal.
The “4WD Indicator Light” will illuminate when the
transfer case has been shifted into this mode.

Automatic Transmission – If Equipped
Start the vehicle with the shift lever in the PARK position
(vehicle can also be started in NEUTRAL). Apply the
brake before shifting to any driving range.

372

STARTING AND OPERATING

Normal Starting

NOTE:

Normal starting of either a cold or a warm

engine is obtained without pumping or pressing the
accelerator pedal.

Turn the ignition switch to the START position and
release when the engine starts. If the engine fails to start
within 10 seconds, turn the ignition switch to the LOCK
position, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.

Tip Start Feature – Automatic Transmission Only
Turn the ignition switch to the START position and
release it as soon as the starter engages. The starter motor
will continue to run, but will automatically disengage
itself when the engine is running. If the engine fails to
start, the starter will disengage automatically in 10 sec-
onds. If this occurs, turn the ignition switch to the LOCK
position, wait 10 to 15 seconds, then repeat the “Normal
Starting” procedure.

Extreme Cold Weather (Below –20°F Or –29°C)
To ensure reliable starting at these temperatures, use of
an externally-powered electric engine block heater (avail-
able from your authorized dealer) is recommended.

If Engine Fails To Start

WARNING!

• Never pour fuel or other flammable liquids into

the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.

(Continued)

STARTING AND OPERATING

373

WARNING! (Continued)

• Do not attempt to push or tow your vehicle to get

it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and, once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from a booster battery or the battery
in another vehicle. This type of start can be dan-
gerous if done improperly. Refer to “Jump Start-
ing” in “What To Do In Emergencies” for further
information.

Without Tip Start – Manual Transmission Only
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” proce-
dures, it may be flooded. Push the accelerator pedal all
the way to the floor and hold it there while cranking the
engine. This should clear any excess fuel in case the
engine is flooded.

CAUTION!

To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.

If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key is
released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.

374

STARTING AND OPERATING

If the engine shows no sign of starting after two 15–
second periods of cranking with the accelerator pedal
held to the floor, repeat the “Normal Starting” or “Ex-
treme Cold Weather” procedures.

With Tip Start – Automatic Transmission Only
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” proce-
dures, it may be flooded. To clear any excess fuel, push
the accelerator pedal all the way to the floor and hold it.
Then, turn the ignition switch to the START position and
release it as soon as the starter engages. The starter motor
will disengage automatically in 10 seconds. Once this
occurs, release the accelerator pedal, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.

CAUTION!

To prevent damage to the starter, wait 10 to 15 sec-
onds before trying again.

After Starting
The idle speed will automatically decrease as the engine
warms up.

ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.

The engine block heater cord is found under the hood
bundled in front of the battery tray.

The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.

STARTING AND OPERATING

375

WARNING!

Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt AC
electrical cord could cause electrocution.

MANUAL TRANSMISSION — IF EQUIPPED

WARNING!

You or others could be injured if you leave the
vehicle unattended without having the parking
brake fully applied. The parking brake should al-
ways be applied when the driver is not in the vehicle,
especially on an incline.

CAUTION!

Never drive with your foot resting on the clutch
pedal, or attempt to hold the vehicle on a hill with the
clutch pedal partially engaged, as this will cause
abnormal wear on the clutch.

NOTE:

During cold weather, you may experience in-

creased effort in shifting until the transmission fluid
warms up. This is normal.

376

STARTING AND OPERATING

Shifting
Fully press the clutch pedal before shifting gears. As you
release the clutch pedal, lightly press the accelerator
pedal.

You should always use first gear when starting from a
standing position.

Recommended Vehicle Shift Speeds
To utilize your manual transmission efficiently for both
fuel economy and performance, it should be upshifted as
listed in recommended shift speed chart. Shift at the
vehicle speeds listed for acceleration. When heavily
loaded or pulling a trailer these recommended up-shift
speeds may not apply.

Manual Transmission Shift Speeds in MPH (KM/H)

En-
gine

Speeds 1 to 2 2 to 3 3 to 4 4 to 5 5 to 6

3.6L

Accel.

(24)

(39)

(55)

(76)

(90)

Cruise

(16)

(31)

(43)

(60)

(66)

NOTE:

Vehicle speeds shown in the chart above are for

2H and 4H only, vehicle speeds in 4L would be signifi-
cantly less.

Shift Pattern

STARTING AND OPERATING

377

Downshifting

Moving from a high gear down to a lower gear is
recommended to preserve brakes when driving down
steep hills. In addition, downshifting at the right time
provides better acceleration when you desire to resume
speed. Downshift progressively. Do not skip gears to
avoid overspeeding the engine and clutch.

WARNING!

Do not downshift for additional engine braking on a
slippery surface. The drive wheels could lose their
grip, and the vehicle could skid.

CAUTION!

When descending a hill, be very careful to downshift
one gear at a time to prevent overspeeding the engine
which can cause valve damage, and/or clutch disc
damage, even if the clutch pedal is pressed.

Maximum Recommended Downshift Speeds

CAUTION!

Failure to follow the maximum recommended down-
shifting speeds may cause the engine to overspeed
and/or damage the clutch disc, even if the clutch
pedal is pressed.

378

STARTING AND OPERATING

Manual Transmission Downshift

Speeds in MPH (KM/H)

Gear
Selec-
tion

6 to 5

5 to 4

4 to 3

3 to 2

2 to 1

Maxi-
mum
Speed

80 (129) 70 (113) 50 (81)

30 (48) 15 (24)

NOTE:

Vehicle speeds shown in the chart above are for

2H and 4H only, vehicle speeds in 4L would be signifi-
cantly less.

Reverse Shifting
To shift into REVERSE, bring the vehicle to a complete
stop. Press the clutch and pause briefly to allow the gear
train to stop rotating. Beginning from the NEUTRAL
position, move the shift lever in one quick, smooth
motion straight across and into the REVERSE area (the

driver will feel a firm “click” as the shifter passes the
“knock-over”). Complete the shift by pulling the shift
lever into REVERSE.

The “knock-over” prevents the driver from accidentally
entering the REVERSE shift area and warns the driver
that they are about to shift the transmission into RE-
VERSE. Due to this feature, a slow shift to REVERSE can
be perceived as a high shift effort.

AUTOMATIC TRANSMISSION — IF EQUIPPED

CAUTION!

Damage to the transmission may occur if the follow-
ing precautions are not observed:
• Shift into PARK only after the vehicle has come to

a complete stop.

(Continued)

STARTING AND OPERATING

379

CAUTION! (Continued)

• Shift into or out of REVERSE only after the

vehicle has come to a complete stop and the engine
is at idle speed.

• Do not shift between PARK, REVERSE, NEU-

TRAL, or DRIVE when the engine is above idle
speed.

• Before shifting into any gear, make sure your foot

is firmly pressing the brake pedal.

NOTE:

You must press and hold the brake pedal while

shifting out of PARK.

WARNING!

• Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
and remove the ignition key. Once the ignition key
is removed, the shift lever is locked in the PARK
position, securing the vehicle against unwanted
movement.

(Continued)

380

STARTING AND OPERATING

WARNING! (Continued)

• When leaving the vehicle, always remove the key

fob from the ignition and lock your vehicle. Never
leave children alone in a vehicle, or with access to
an unlocked vehicle. Allowing children to be in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the shift
lever. Do not leave the key in or near the vehicle.
A child could operate power windows, other con-
trols, or move the vehicle.

(Continued)

WARNING! (Continued)

• It is dangerous to move the shift lever out of PARK

or NEUTRAL if the engine speed is higher than
idle speed. If your foot is not firmly pressing the
brake pedal, the vehicle could accelerate quickly
forward or in reverse. You could lose control of the
vehicle and hit someone or something. Only shift
into gear when the engine is idling normally and
when your foot is firmly pressing the brake pedal.

Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the shift lever to be placed in PARK
before the ignition switch can be turned to the LOCK/
OFF position. The key can only be removed from the
ignition when the ignition is in the LOCK/OFF position
and once removed the shift lever is locked in PARK.

STARTING AND OPERATING

381

Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in the
PARK position unless the brakes are applied. To move
the shift lever out of the PARK position, the ignition
switch must be turned to the ON/RUN position (engine
running or not) and the brake pedal must be pressed.

Five-Speed Automatic Transmission
The shift lever position display (located in the instrument
panel cluster) indicates the transmission gear range. You
must press the brake pedal to move the shift lever out of
the PARK position (refer to “Brake/Transmission Shift
Interlock System” in this section). To drive, move the shift
lever from PARK or NEUTRAL to the DRIVE position.

The electronically-controlled transmission provides a
precise shift schedule. The transmission electronics are
self-calibrating; therefore, the first few shifts on a new
vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a few
hundred miles (kilometers).

Shifting from DRIVE to PARK or REVERSE should be
done only after the accelerator pedal is released and the
vehicle is stopped. Be sure to keep your foot on the brake
pedal when moving the shift lever between these gears.

382

STARTING AND OPERATING

The transmission shift lever has only PARK, REVERSE,
NEUTRAL, and DRIVE shift positions. Manual down-
shifts can be made using the Electronic Range Select
(ERS) shift control (refer to “Electronic Range Select
(ERS)” in this section). Moving the shift lever to the left or
right (-/+) while in the DRIVE position will select the
highest available transmission gear, and will display that
gear in the instrument cluster as 4, 3, 2, 1.

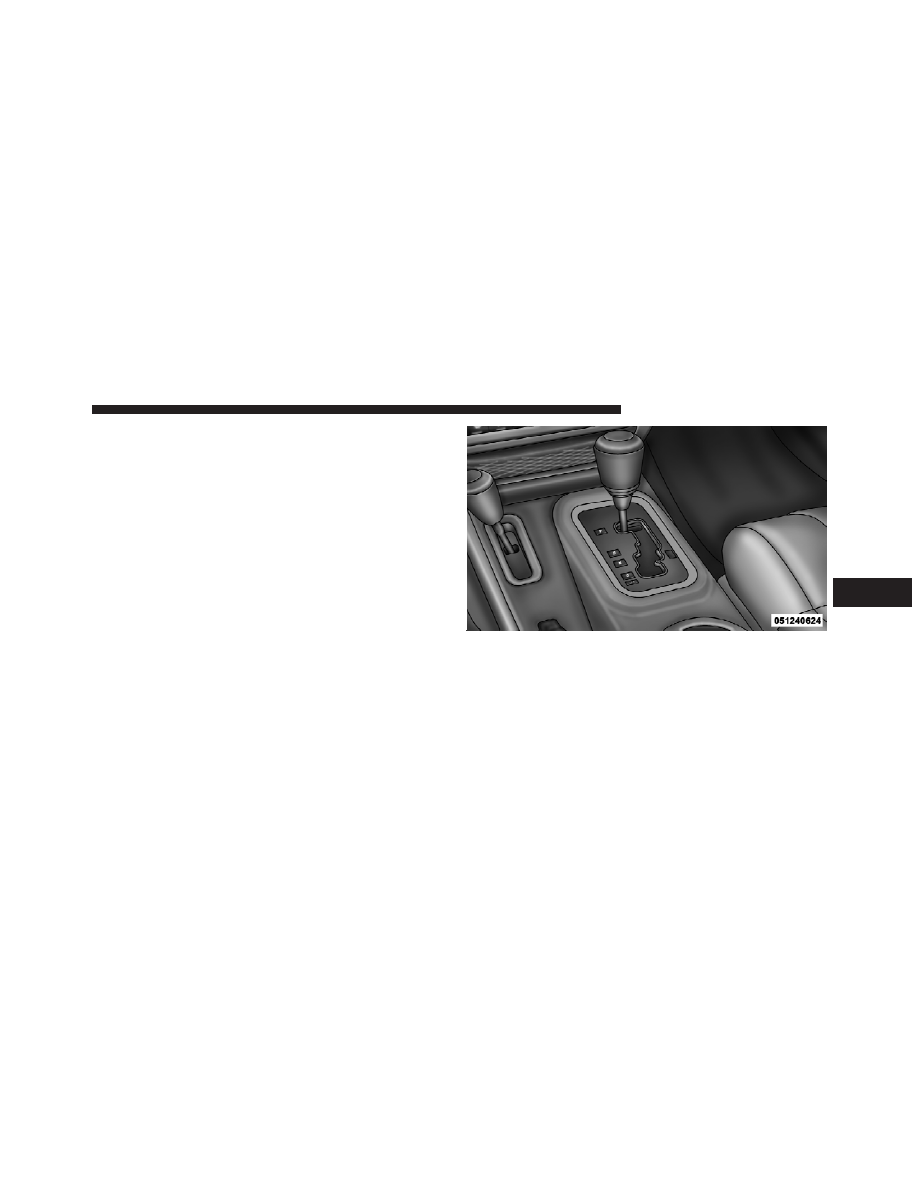

Shift Lever

STARTING AND OPERATING

383

Jeep Wrangler Unlimited (2012 year). Instruction - part 24
