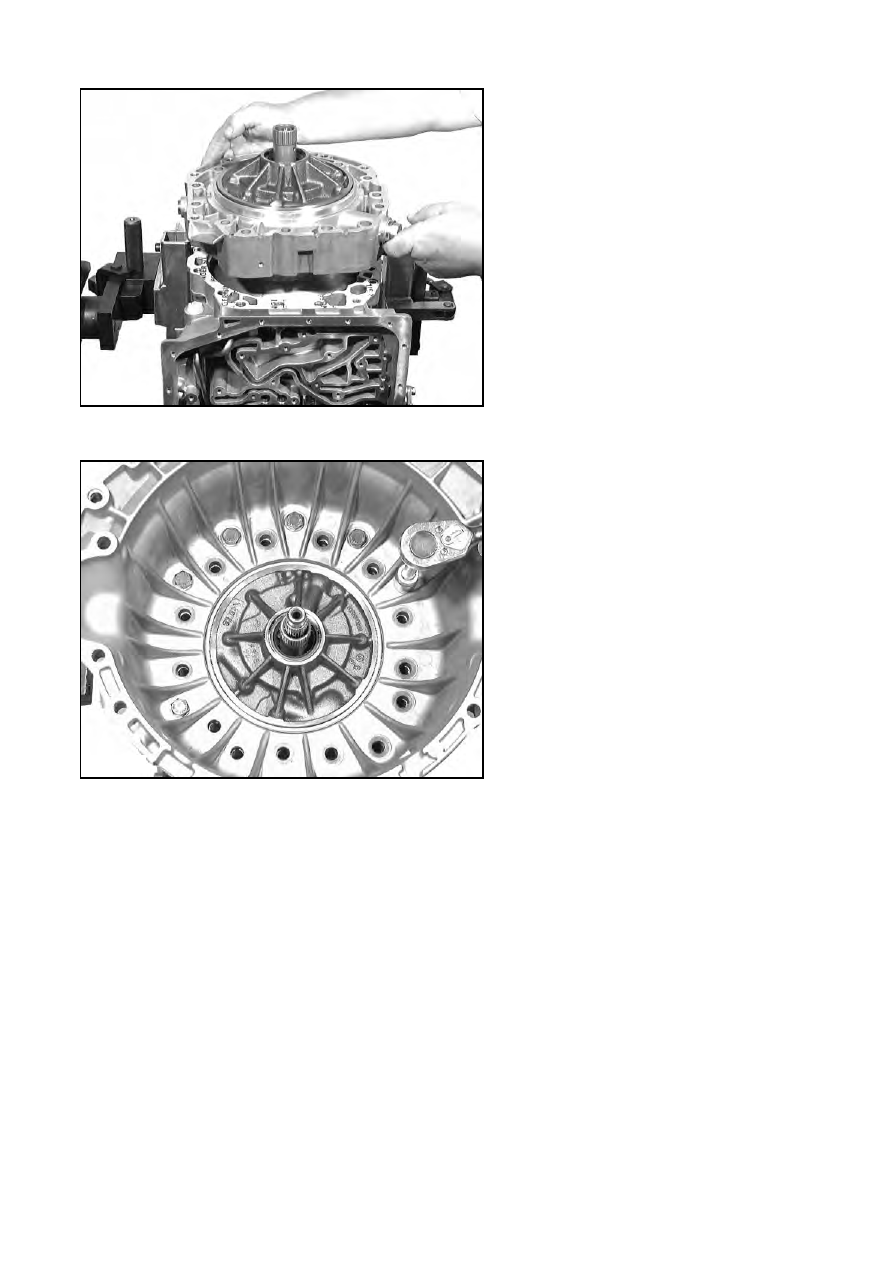

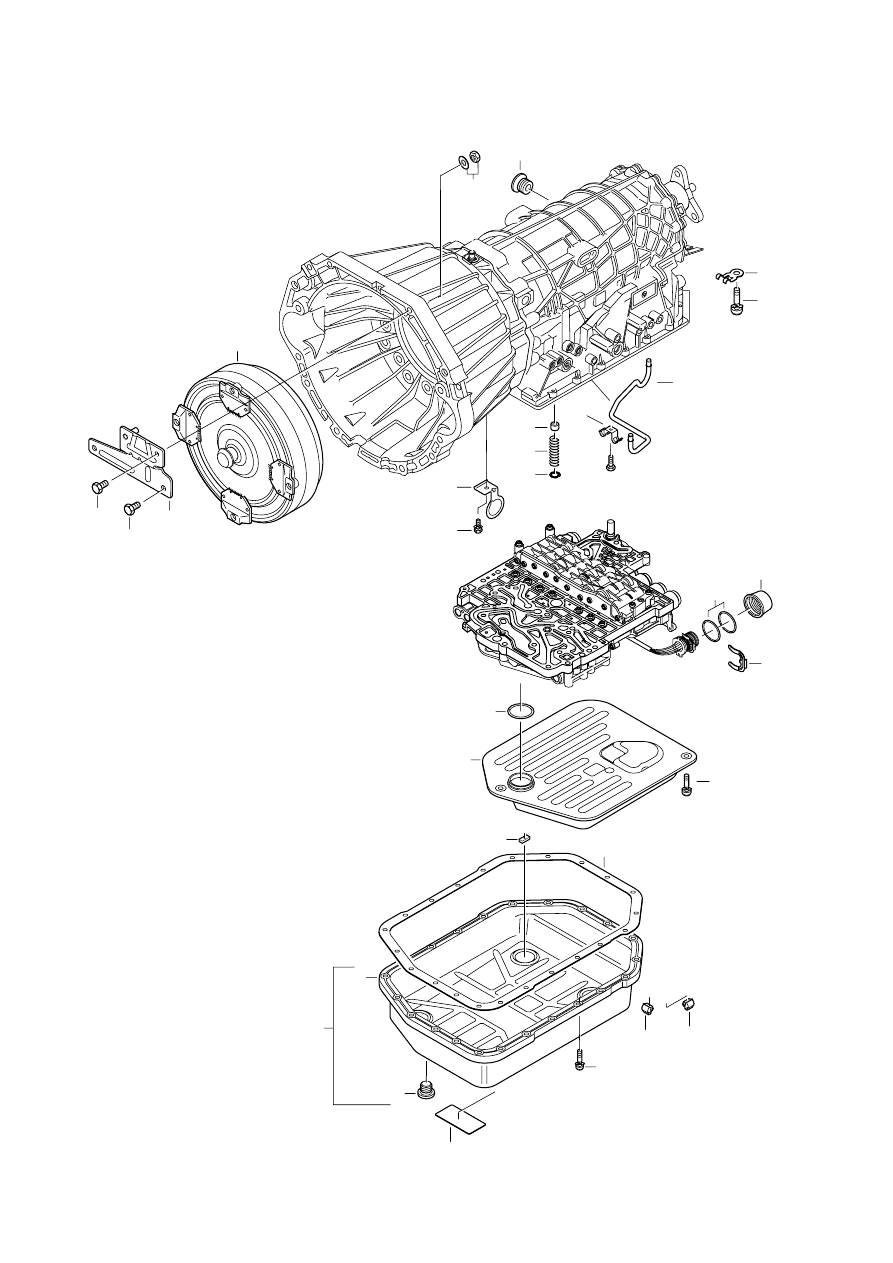

Screw locating pin 5x46 001 007 into the
pump. Mount the complete pump (in-
cluding intermediate metal sheet 10.016)
over the stator shaft onto the intermediate
plate. Remove the locating pins and fas-
ten tight with 9 machine screws 10.070
and 1 cylinder screw 10.074.
(See Chapter 1.5 for tightening torque)
Note!

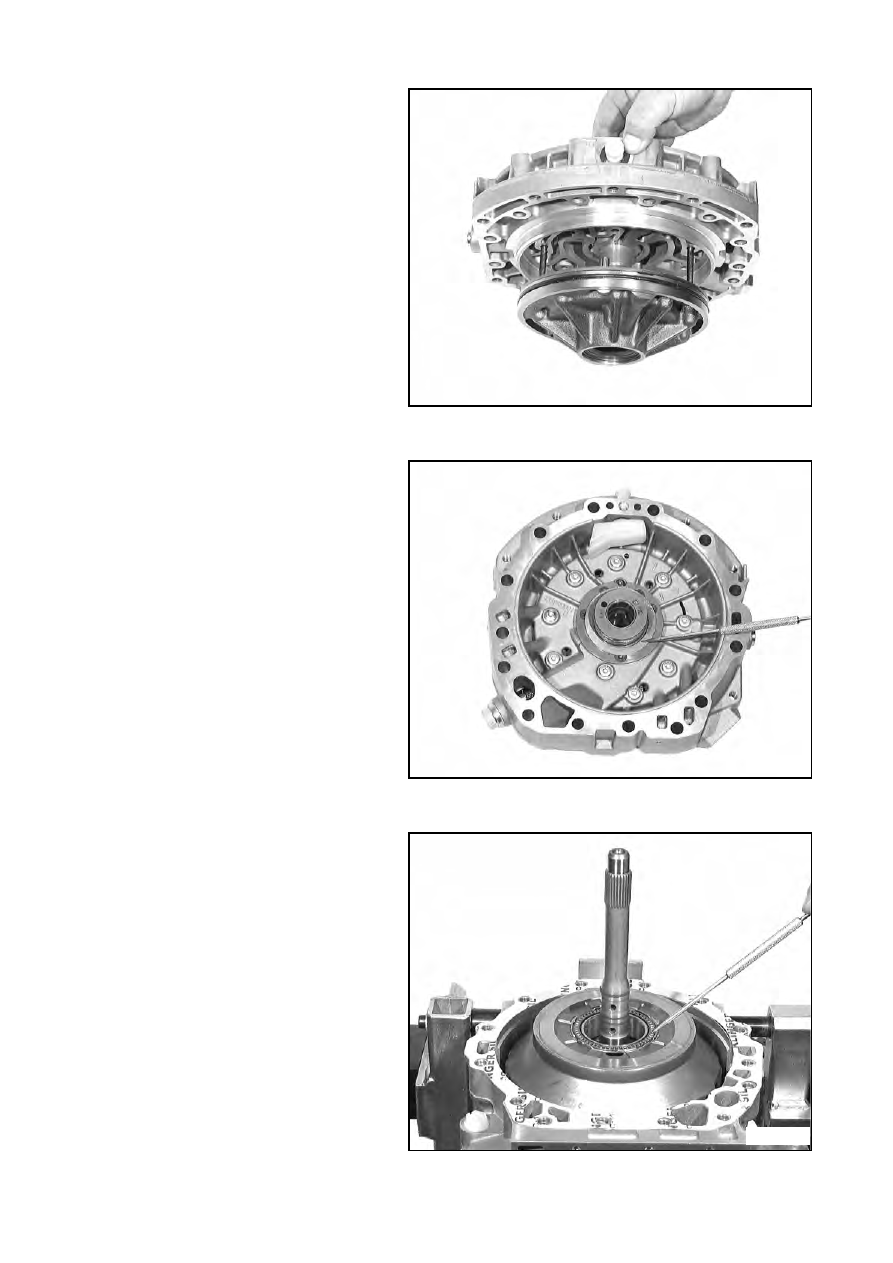

Check pump with sleeve 5x56 000 021 to
ensure that it moves freely. The pump
wheels must turn freely and easily.
Attach shim 02.260 to the stator shaft
using petroleum jelly.
Attach seal 10. 024 to the transmission
housing using petroleum jelly.
Put axial needle roller bearing 02.250
over the drive shaft onto clutch B.
3.6/4
