Jaguar 5HP24 transmission. Manual - part 29

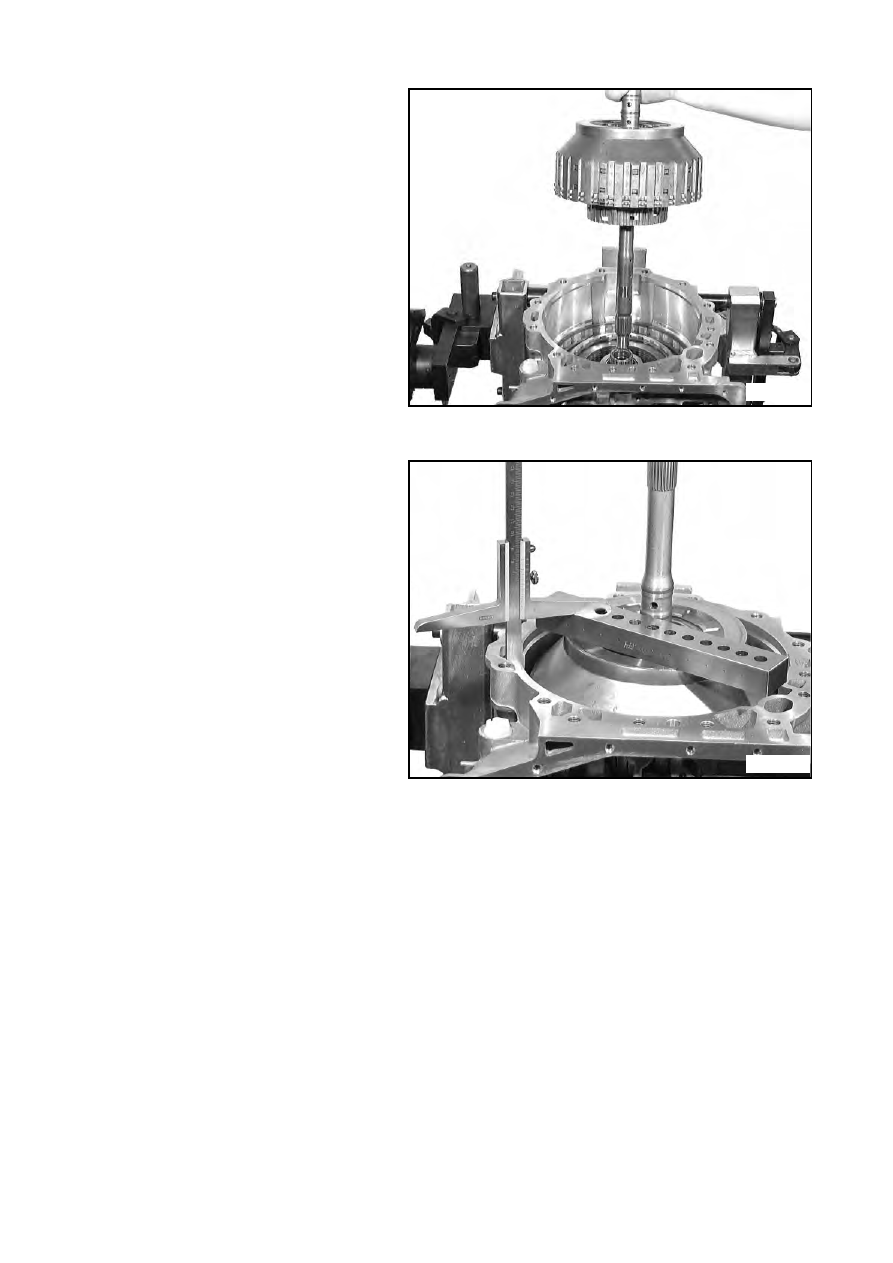

Turn tower II 180° in the support fixture.
Align the discs for brake C. Then put in
tower II by hand, turning it backwards
and forwards until the discs engage com-
pletely in disc carrier C.

Control dimension:
Cylinder AB to the transmission housing’s
sealing area: approx. 20 mm.

Note!
Dimensions is indicated without the mea-
suring bar thickness.

3.5/6

97163

97164

3.6

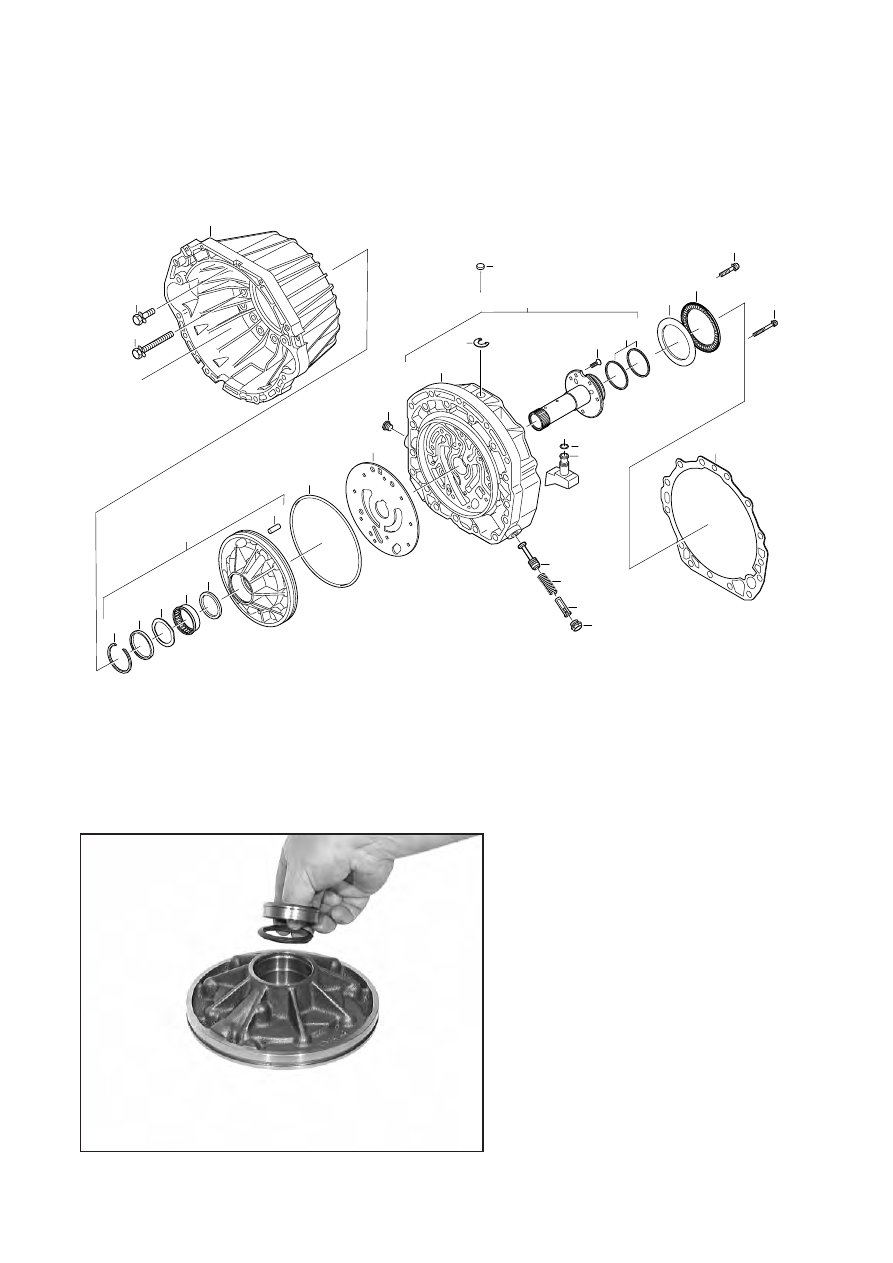

Oil supply

Complete pump 10.010.

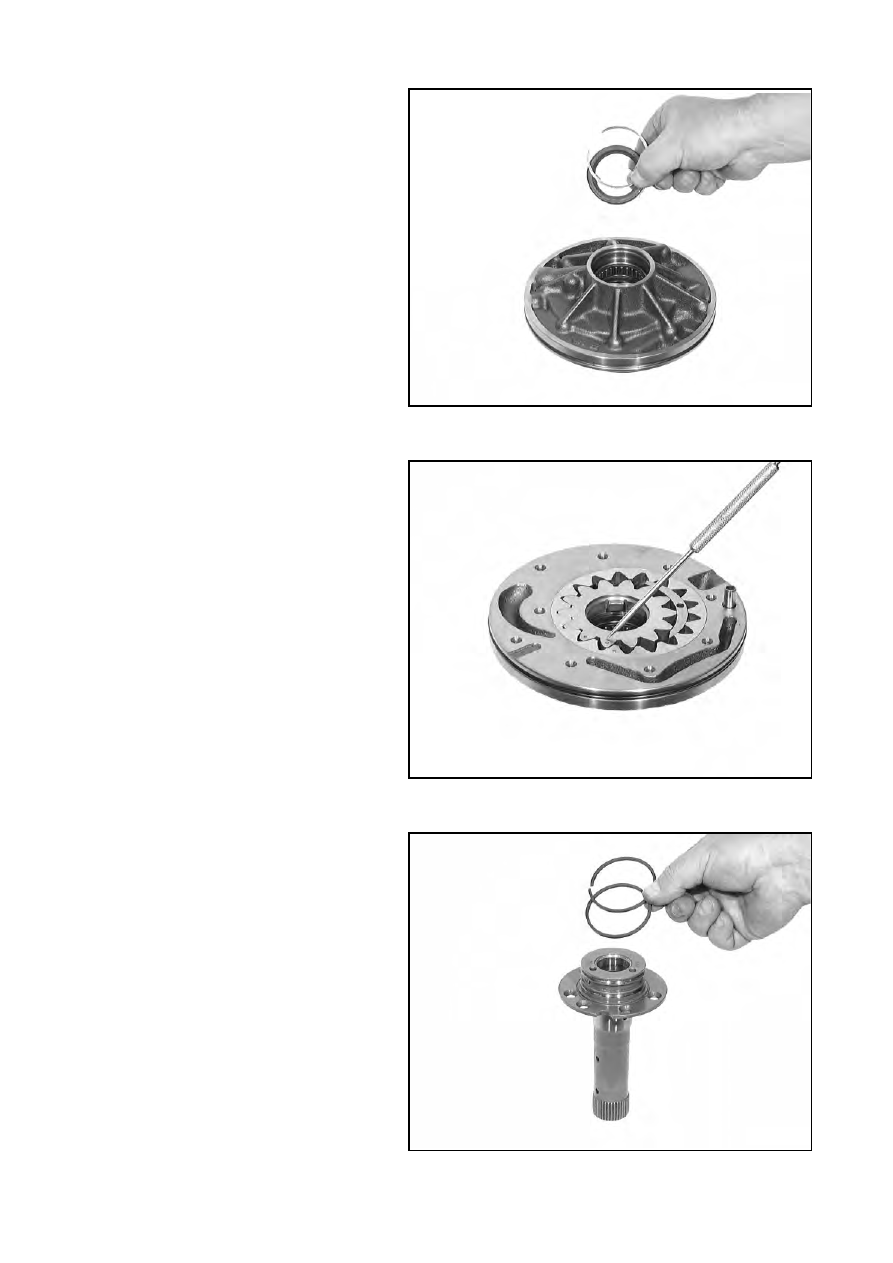

First put sealing ring 10.010/140 into the
pump housing and press in the needle
bearing 10.010/150 with assembly drift
5x46 000 954 in the mandrel press.

3.6/1

97165

5 HP 24

22.100

22.090

22.010

/190

10.010

10.014

10.016

10.090

/150

/160

/170

/180

/110

10.024

/190

10.070

10.074

/200

/210

/130

/140

/180

/160

/170

/150

/140

10.020

02.250

10.380

02.260

Insert plate 10.010/160. Using assembly
sleeve 5x46 000 953, mount shaft seal
10.010/170 into the pump housing and
secure it with snap ring 10.010/180.

Press in sleeve 10.010/190.
Assemble a new O-ring 10.014.
Before putting the pump gear and pump
ring gear together, lubricate them slightly
with oil.
After this, put the pump together in such
a way that one marking can be seen on
the pump ring gear and two can be seen
on the pump gear.

Put two rectangular-section rings
10.020/140 on stator shaft 10.020/120. In
order to be able to mount the stator shaft
on the intermediate plate, the two parts
have to be positioned together properly.
The procedure for doing this is described
on the next page.

3.6/2

97167

97169

97170

Warm the intermediate plate 10.020/110
up to 70° C using a hot-air blower.
Screw two locating pins 5x46 001 007
into the intermediate plate.

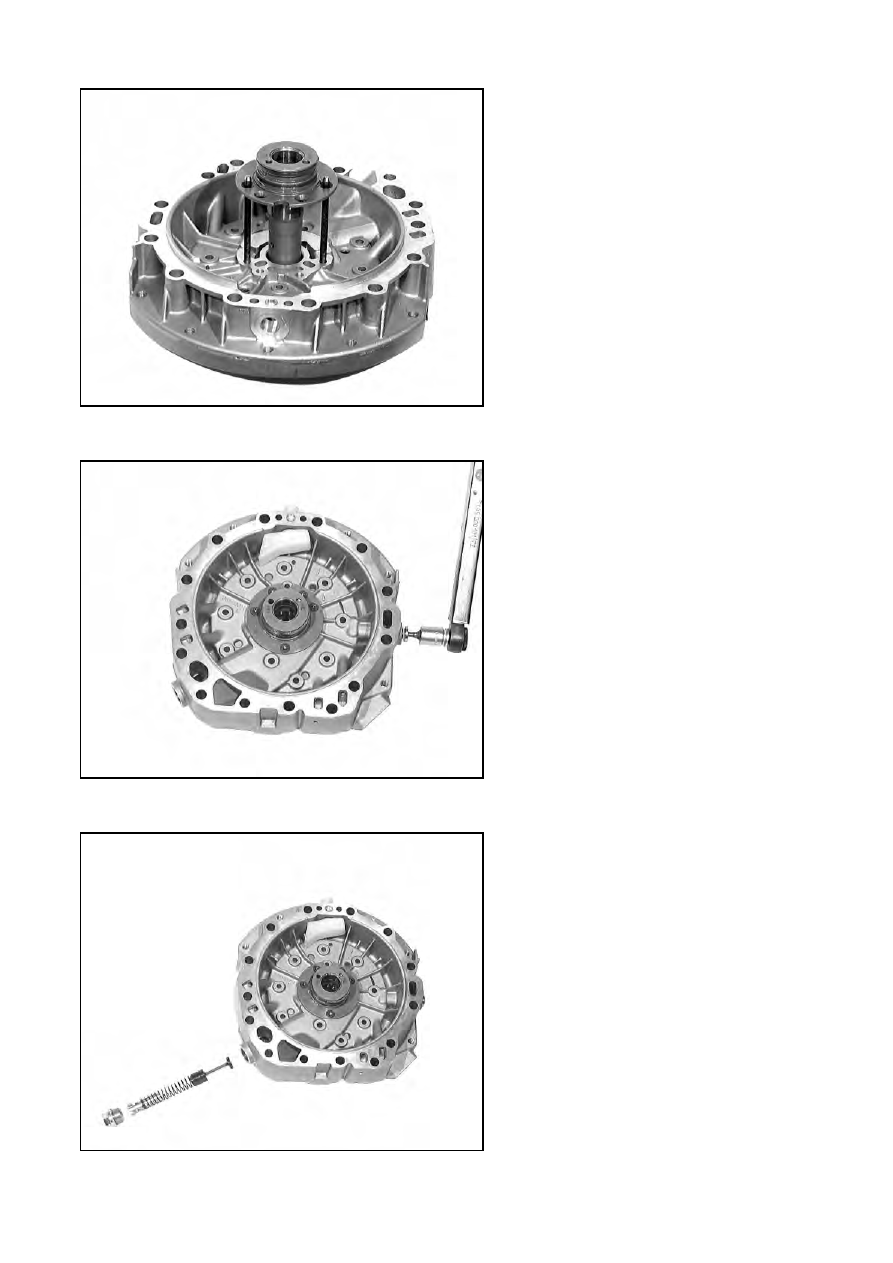

Guide in the stator shaft using the
locating pins and secure it first with three
countersunk screws 10.020/130. Remove
the locating pins and screw in the rest of
the counter-
sunk screws.

(See Chapter 1.5 for tightening torque)

Mount breather 10.020/190 (with a new
O-ring 10.020/200) into the intermediate
plate and secure it with retaining disc
10.020/210.
Put breather cover 10.380 on the breather.
Screw plug 10.090 into the intermediate
plate.

(See Chapter 1.5 for tightening torque)

Insert the flow control valve (consisting
of piston 10.020/150, pressure spring
10.020/160, sleeve 10.020/170) into the
intermediate plate and secure it with
screw plug 10.020/180.

(See Chapter 1.5 for tightening torque)

3.6/3

97171

97172
