229

Fuses

R

Luggage compartment fuse box

Fuse
No.

Rating
(amps)

Circuit

F1-F4

Not used

F5

40A

Passenger seat switchpack

F6

10A

Accessory connector

F7

40A

Front blower motor

F8

10A

Heater circuit water pump

F9

25A

Rear seat motors

F10

Not used

F11

5A

Rear footwell lamps, grab handle lamps, overhead console map
lamps

F12

10A

Air suspension

F13

20A

Rear seat entertainment

F14

Not used

F15

5A

Right-hand stop and tail lamps

F16

10A

Luggage compartment lamps, driver seat switch pack, rear
switch seat pack, blower motor relay coil

F17

10A

Left-hand rear fog, direction indicator and reversing lamps

F18

10A

License plate lamps, side marker lamps

F19

30A

Heated rear window

F20

10A

Heated door mirrors

F21

25A

Rear seat motors

F22

10A

Accessory connector

F23

Not used

F24

25A

Fuel pump driver module

F25

15A

Front accessory socket

F26

15A

Rear accessory socket

F27

10A

Rear CD

F28

25A

Left-hand rear window

F29

5A

VICS (Vehicle Information and Communication System) - Japan
only

F30

10A

Generator, battery-backed sounder, transit relay

F31

40A

Passenger front seat

F32

30A

Electric parkbrake actuator

F33

20A

Rear electronic module (fuel pump)

F34

30A

Power amplifier

F35-F36

Not used

F37

10A

TPMS Battery +

Fuses

230

L

F38

Not used

F39

15A

Gateway module

F40

25A

Right-hand rear window

F41, F42

Not used

F43

15A

Rear cigar lighter

F44

15A

Front cigar lighter

F45

Not used

F46

10A

Right-hand rear reverse, direction indicator and fog lamps

F47

20A

FEM, front seat heater

F48

5A

High mounted stop lamps

F49

5A

Left-hand stop and tail lamps

F50

Not used

F51

10A

Navigation system

F52

20A

Air suspension

F53

20A

Rear fan motor

F54

15A

Heated steering wheel

F55

5A

TPMS

Fuse
No.

Rating
(amps)

Circuit

231

Fire Extinguisher

R

Fire Extinguisher

DEALER FITTED FIRE
EXTINGUISHER

Many countries make it compulsory to
carry a fire extinguisher. Your Jaguar
Dealer can supply and fit one.

FACTORY FITTED FIRE
EXTINGUISHER

(Where fitted)

Some countries have a factory fitted fire
extinguisher which contains powder
pressurised with nitrogen.

This extinguisher can be used on liquid
fires, electrical equipment fires and, if no
explosion risk, gaseous fires.

!

WARNING:

Do not test the fire extinguisher prior to
use. Partial discharge will render the
extinguisher inoperative.

!

WARNING:

Do not use the fire extinguisher closer
than 2.4m (8 feet) to the base of a liquid
fire as the force may splatter the
burning liquid to the surrounding area.

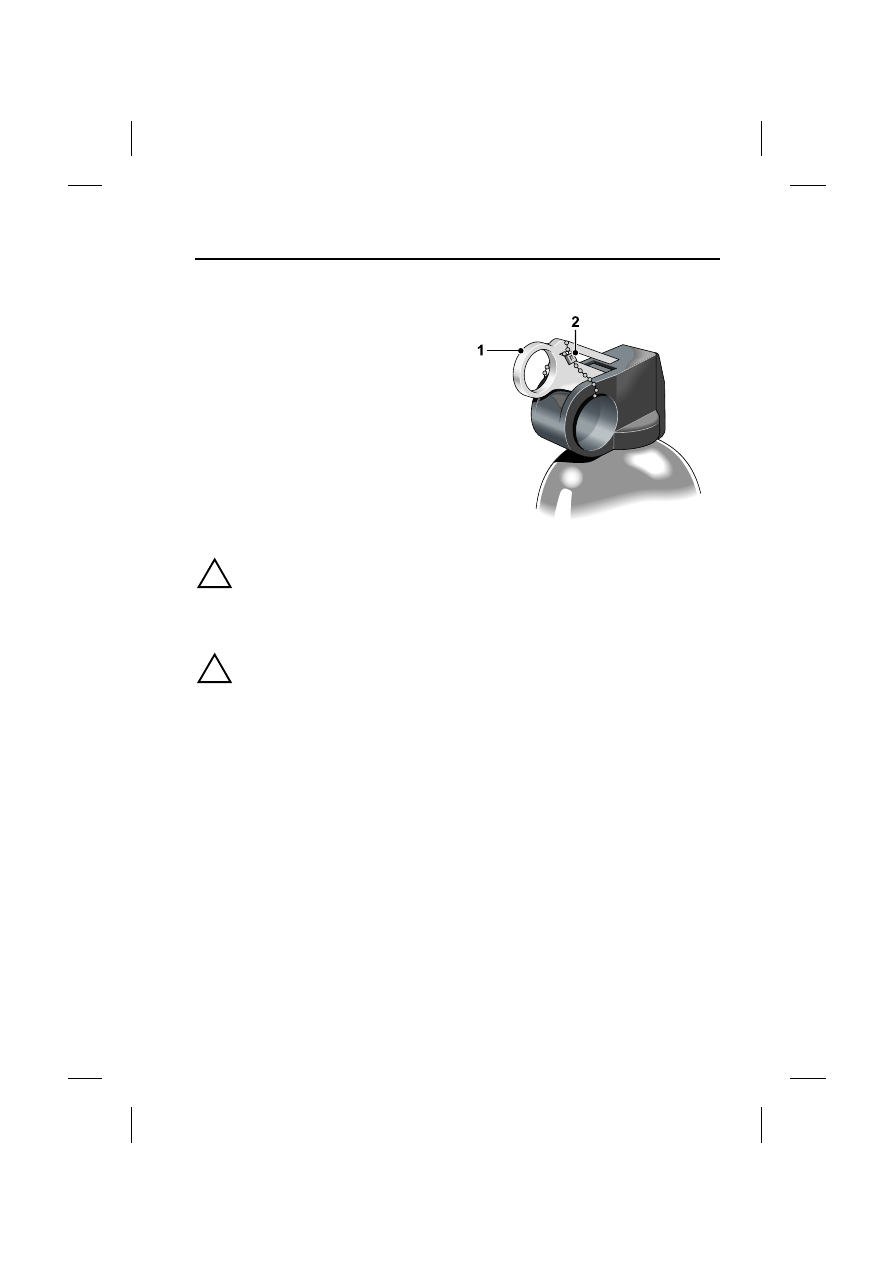

Operating the Fire Extinguisher

1. Unclip and remove the extinguisher

from the bracket.

2. Put your finger through the yellow

safety wedge ring (1) and pull hard to
remove the wedge. The operating
lever will be exposed.

3. Hold the extinguisher upright and aim

at the base of the fire.

4. Press the lever down firmly.

5. Release the lever to stop the flow of

powder.

Maintenance

Every six months:
• Remove the extinguisher from its

bracket and check that the nozzle is
clear.

• Check that the safety wedge strap (2)

is secure.

Check the pressure gauge on the base of
the extinguisher. If the gauge is in the red
area report it to your Jaguar Dealer



immediately as the extinguisher may not
work in an emergency.

JAG0650

General Maintenance

232

L

Maintenance

REGULAR CHECKS

In the interests of safety and reliability, it is
advisable to carry out the following
checks at the recommended intervals,
and always before starting on a long
journey.

DAILY

Check that there is sufficient fuel for the
journey intended, particularly at night and
before joining highways.

WEEKLY

Tires

Check the tires, including the spare, for
condition and pressure. Tire pressures
are explained on page, and shown on a
label inside the fuel filler flap.

Lamps

Check that all exterior lamps and
direction indicators function correctly and
that the lenses are clean.

Engine oil

With the vehicle standing on level ground,
check the oil level and top up if necessary
with oil of the correct grade.

Engine coolant

With the engine cold, check the level of
the coolant in the coolant reservoir header
tank. Any loss of fluid must be checked by
a Jaguar Dealer.

Brake fluid

Check the level of the fluid in the brake
fluid reservoir. Top-up if necessary with
new, unused Jaguar approved brake
fluid.

The reservoir is initially nearly full, but the
level will drop as the brake pads wear. If
the level appears unusually low, location
of the fluid leakage must be checked by a
Jaguar Dealer.

Power steering fluid

With the engine cold, check the level of
the fluid in the power steering fluid
reservoir. Top up if necessary with fluid of
the correct specification. Any loss of fluid
should be checked by a Jaguar   Dealer.

MONTHLY

Windshield washer fluid

Top up with recommended windshield
washer fluid and clean soft water. Check
the operation of the washers. Use Jaguar
Windshield Washer Fluid to keep the
glass clean and also to prevent the fluid
from freezing during cold weather.

Wiper blades

Check the quality of the wipe. If smearing
or juddering is evident, clean the
windshield and wiper blades.
